Overview

Open746I-C is an STM32 development board designed for the STM32F746IGT6 microcontroller, consists of the mother board and the MCU core board Core746I.

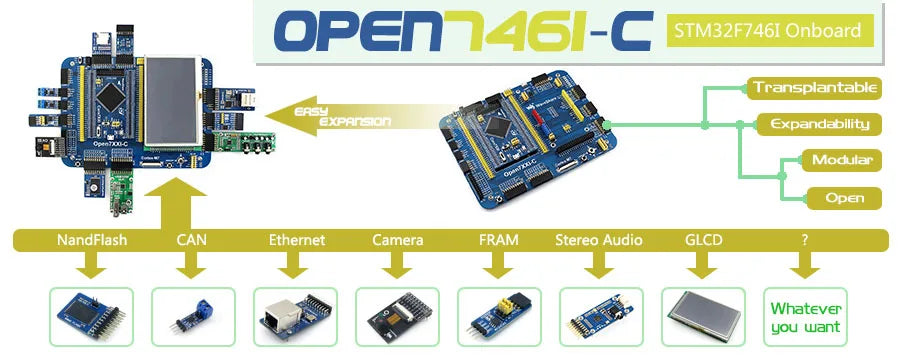

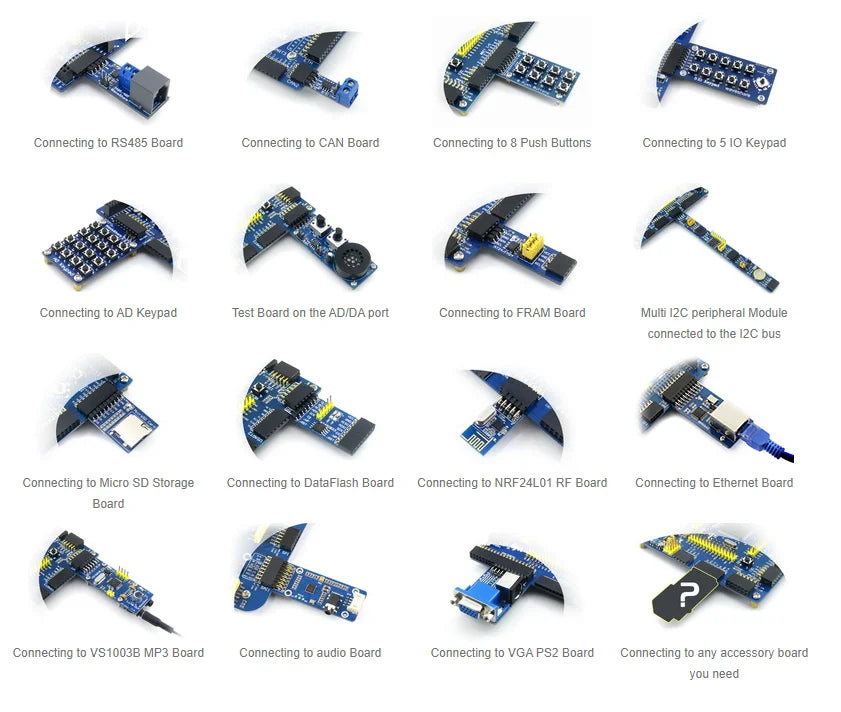

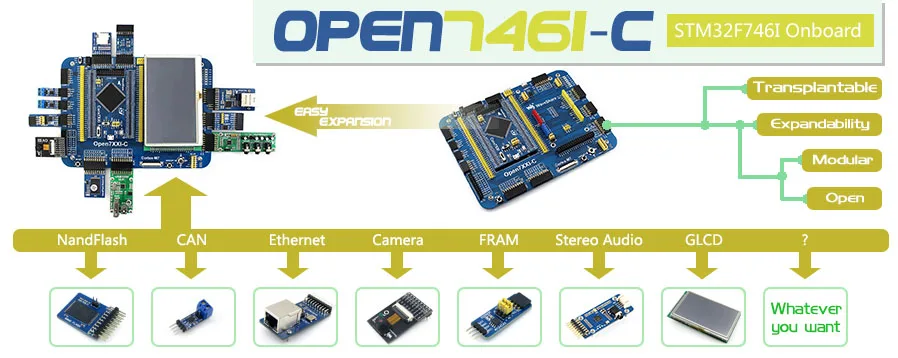

The Open746I-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.

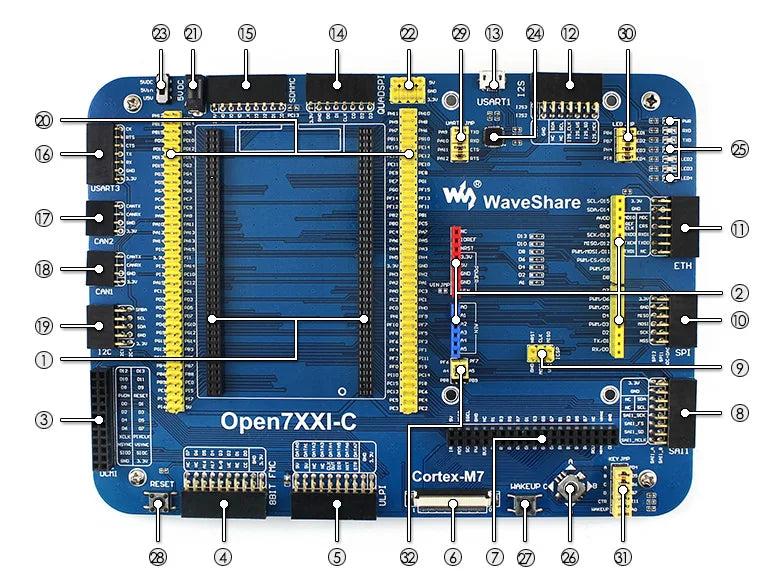

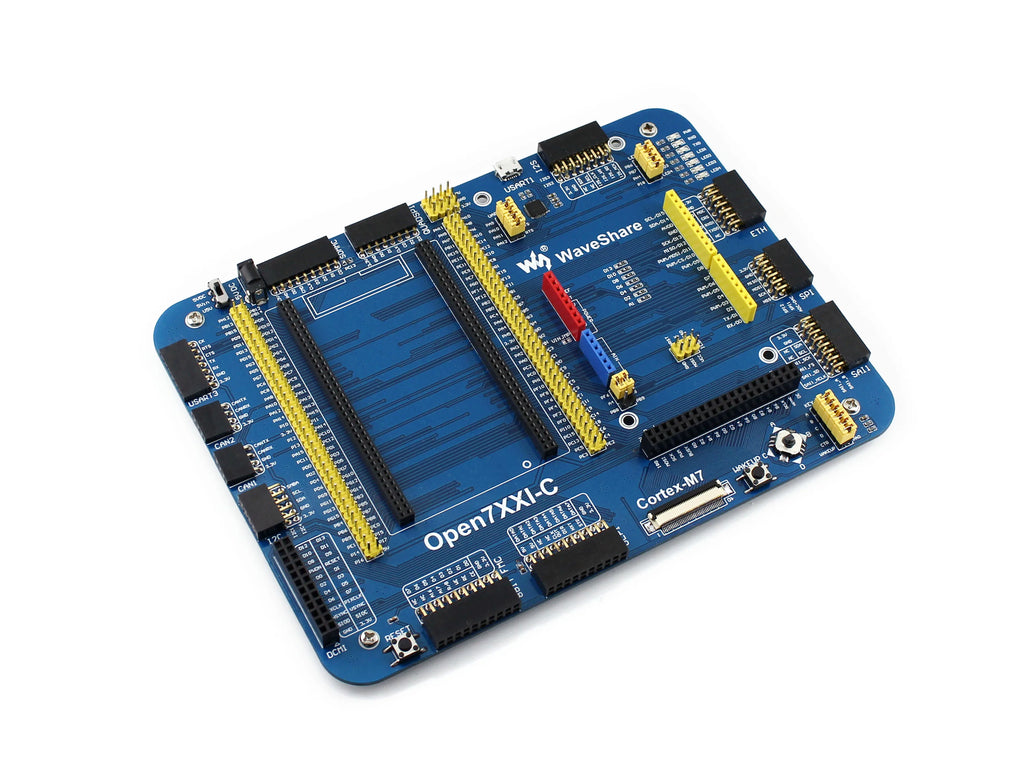

What's on the mother board

1. MCU core board connector: for easily connecting the Core746I

2. Arduino interface: for connecting Arduino shields

3. DCMI interface: for connecting camera

4. 8-bit FMC interface: easily connects to peripherals such as NandFlash

5. ULPI interface: for connecting high-speed USB peripheral (the STM32F746I integrates USB HS controller without any PHY device)

6. LCD interface 1: for connecting 10.1inch LCD, 7inch LCD

7. LCD interface 2: for connecting 4.3inch LCD

8. SAI1 interface: for connecting audio modules

9. ICSP interface: Arduino ICSP

10. SPI1/SPI2 interfaces:

    • easily connects to SPI peripherals such as DataFlash (AT45DBxx, W25QXX), SD card, MP3 module, etc.

    • easily connects to AD/DA modules (SPI1 features AD/DA alternative function)

11. Ethernet interface: for connecting Ethernet modules

12. I2S2/I2S3/I2C1 interface: easily connects to I2S peripherals such as audio module, etc.

13. USART1 connector: USB to UASRT via the onboard convertor CP2102

14. QUADSPI interface: 4-wires SPI interface (the F7 series latest peripheral interface), for connecting serial Flash modules like W25QXX Board

15. SDMMC interface: for connecting Micro SD module, features much faster access speed rather than SPI

16. USART3 interface: easily connects to RS232, RS485, USB TO 232, etc.

17. CAN2 interface: for connecting CAN modules

18. CAN1 interface: for connecting CAN modules

19. I2C1/I2C4 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), 10 DOF IMU Sensor, etc.

20. MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion

21. 5V DC jack

22. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board

23. Power supply switch: powered from 5VDC OR USB connection of the USART1

24. CP2102: USB to UART convertor

25. LEDs: convenient for indicating I/O status and/or program running state

26. Joystick: five positions

27. WAKE UP button: used as regular button, and/or wake up the STM32 MCU from sleep

28. Reset button

29. USART1 jumper

30. LED jumper

    • short the jumper to connect to default I/Os used in example code

    • open the jumper to connect to custom I/Os via jumper wires

31. KEY jumper

    • short the jumper to connect to default I/Os used in example code

    • open the jumper to connect to custom I/Os via jumper wires

32. Arduino jumper

    • short the upper pins, A4, A5 is used as AD function

    • short the lower pins, A4, A5 is used as I2C function

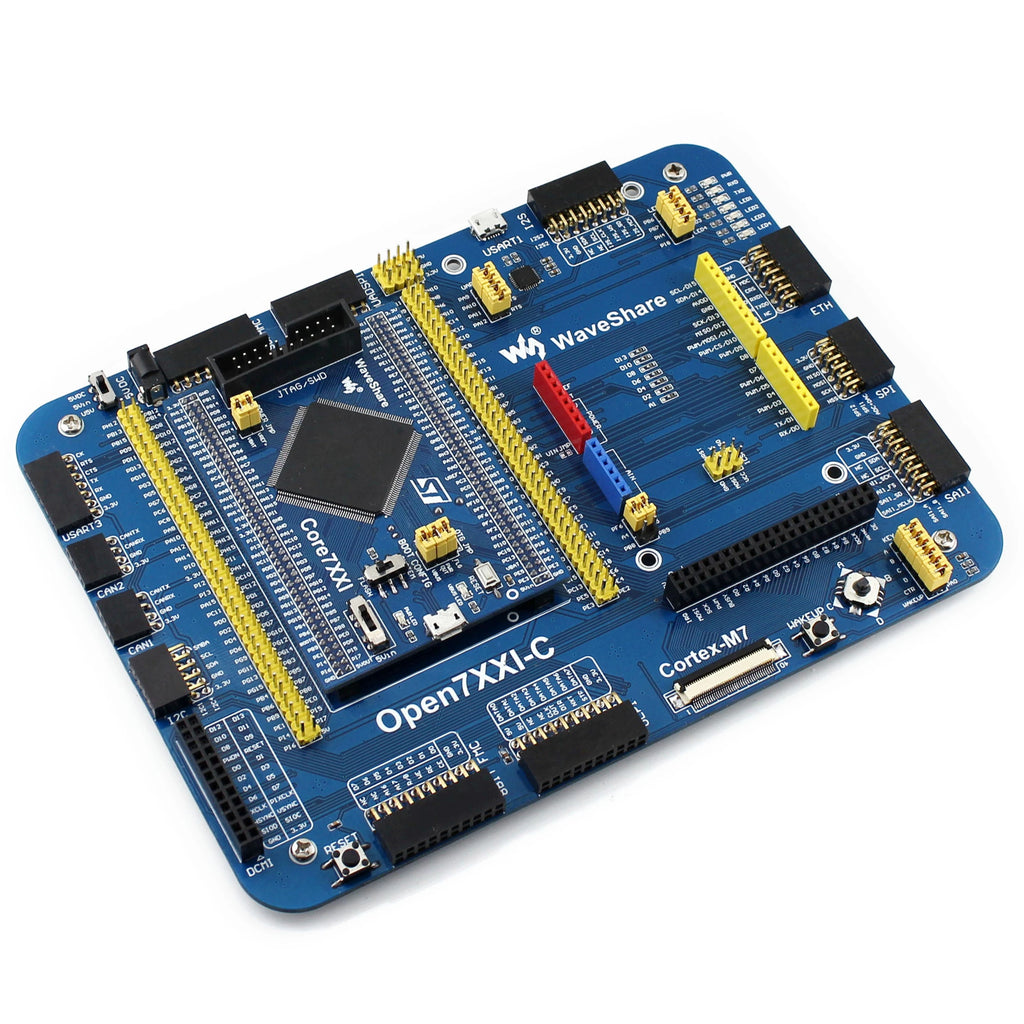

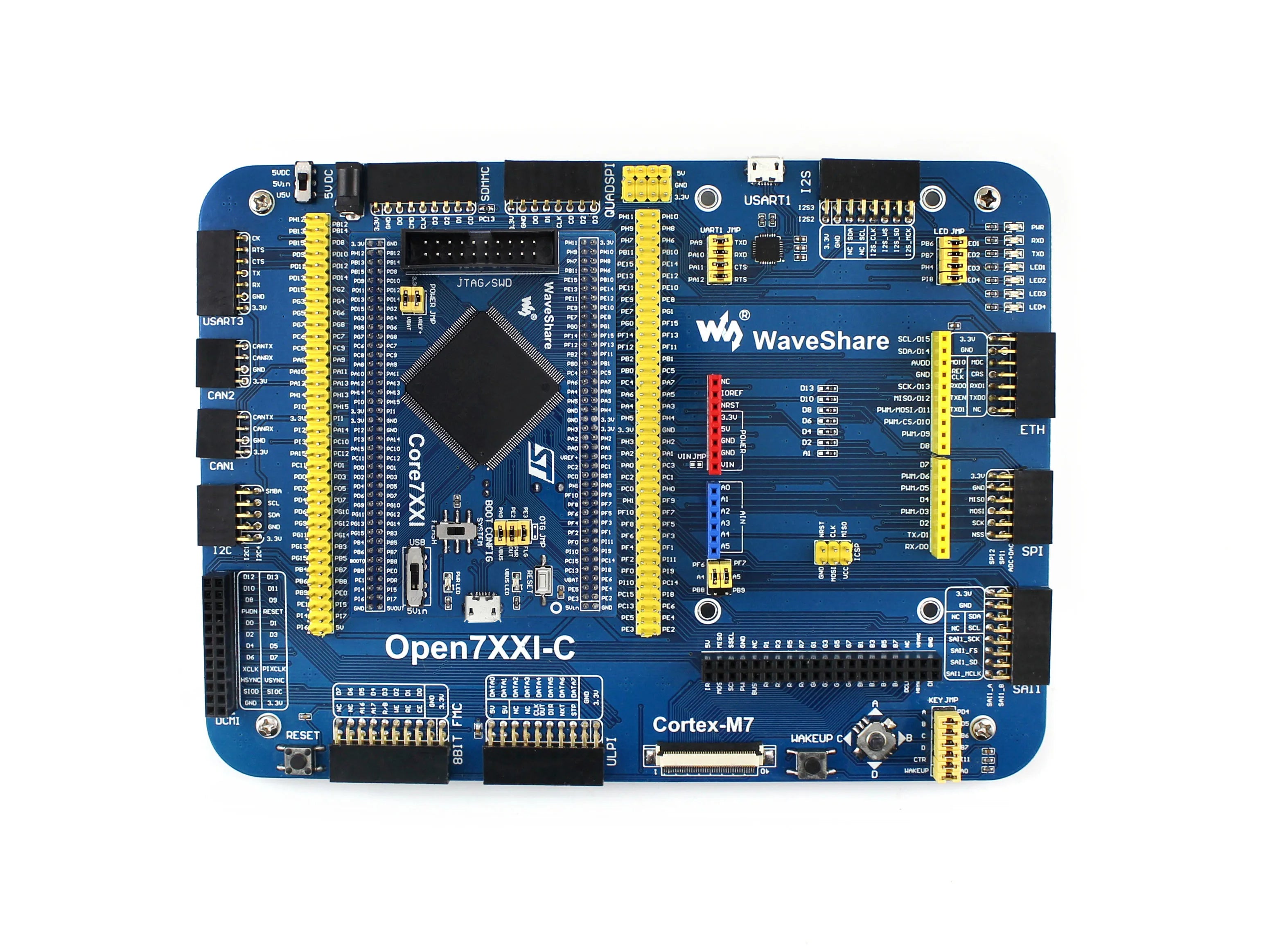

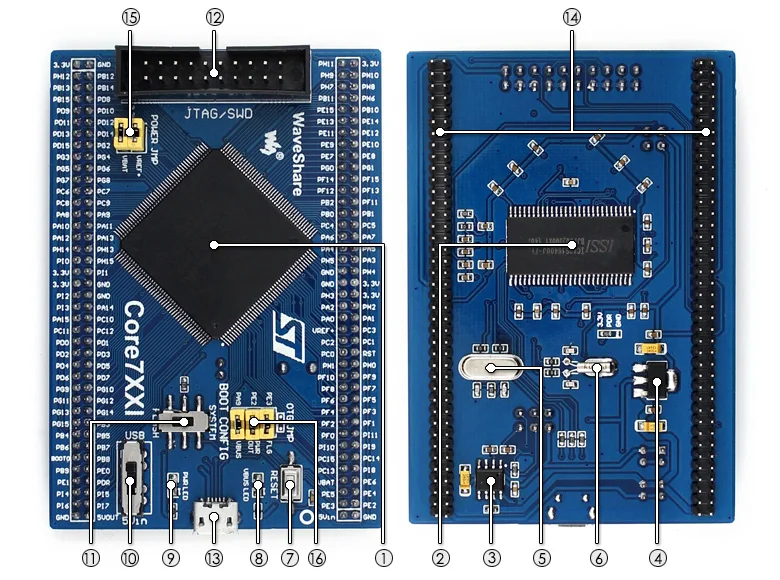

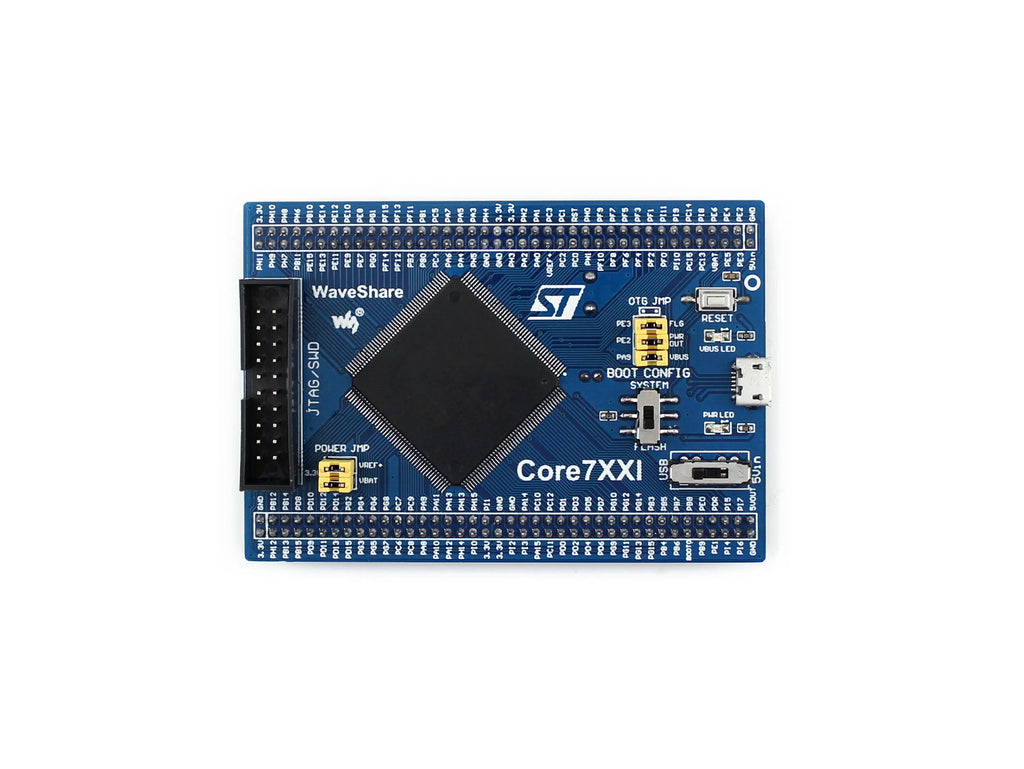

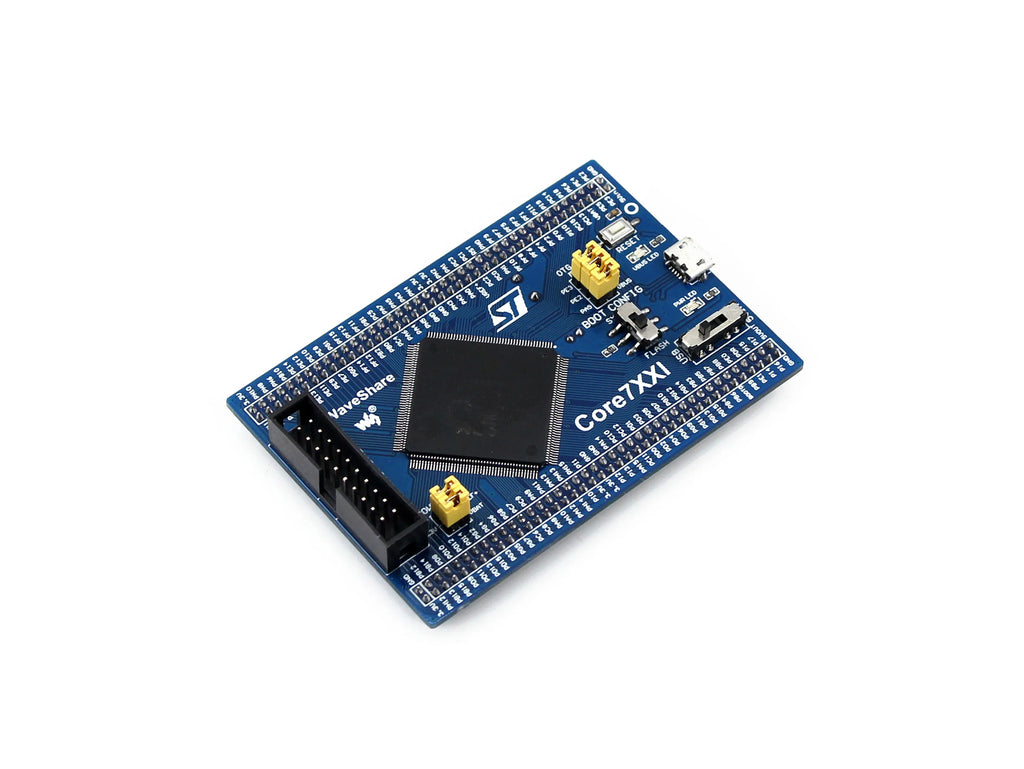

What's on the Core746I

1. STM32F746IGT6:the high performance STM32 MCU which features:

   • Core: Cortex-M7 32-bit RISC + FPU + Chrom-ART graphic accelerator

   • Feature: single-cycle DSP instructions

   • Operating Frequency: 216MHz, 462 DMIPS/2.14 DMIPS/MHz

   • Operating Voltage: 1.7V-3.6V

   • Package: LQFP176

   • Memories: 1024kB Flash, 320+16+4kB SRAM

   • MCU communication Interfaces:

     • 6 x SPI, 4 x USART, 4 x UART, 3 x I2S, 4 x I2C

     • 2 x CAN, 1 x QUAD-SPI, 1 x DCMI, 2 x SAI

     • 1 x FMC, 1 x SDMMC, 14 x TIM , 1xLPTIM

     • 1 xLCD-TFT, 1xSPDIFRX, 1xHDMI-CEC

     • 1 x USB 2.0 OTG FS

     • 1 x USB 2.0 OTG HS (supports external HS PHY through ULPI)

     • 1 x 10/100 Ethernet MAC

   • AD & DA converters: 3 x AD (12-bit); 2 x DA (12-bit)

   • Debugging/Programming: supports JTAG/SWD interfaces, supports IAP

2. IC42S16400J / IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)

3. MIC2075: onboard USB power management device

4. AMS1117-3.3: 3.3V voltage regulator

5. 8M crystal

6. 32.768K crystal, for internal RTC with calibration

7. Reset button

8. VBUS LED

9. Power indicator

10. Power supply switch, powered from 5Vin or USB connection

11. Boot mode selection, for configuring BOOT0 pin

12. JTAG/SWD interface: for debugging/programming

13. USB connector, supports Device and/or Host

14. MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion

15. Power jumper

    • VBAT: short the jumper to use system power supply, open it to connect external power, such as battery

    • VREF: short the jumper to connect VREF+ to VCC, open it to connect VREF+ to other custom pin via jumper wire

16. OTG jumper

    • short the jumper when using USB OTG/HOST

    • open the jumper to disconnect from related I/O port

Photos

Note:
The Modules in the photos are for reference only.
The Open746I-C does NOT integrate any debugging function, a debugger is required.

JTAG/SWD interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout

Figure 2. SWD Header Pinout

Development Resources

• Schematic

• Demo code (examples in C, FreeRTOS, μC/OS-III)

• STM32 development software (KEIL, STM32CubeMX, etc.)

• STM32 datasheets

• STM32 development documentations

Wiki: www.waveshare.com/wiki/Open746I-C

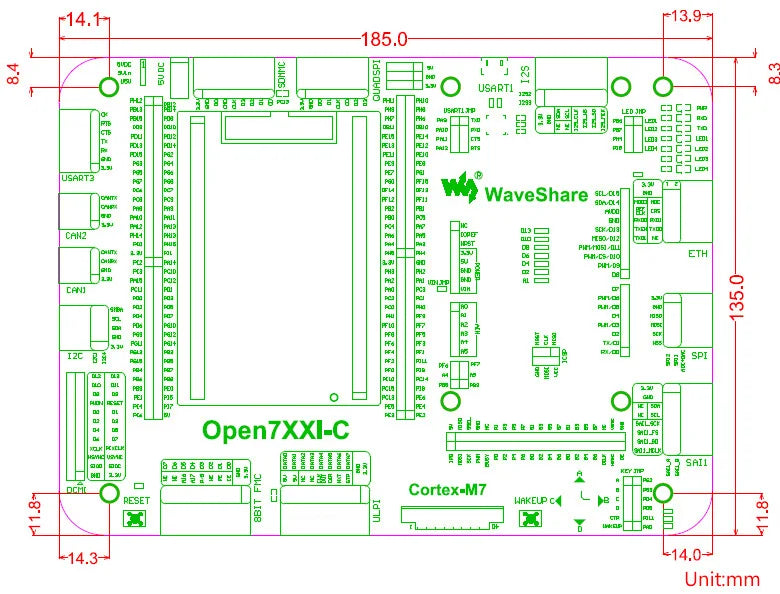

Dimensions

PACKAGE CONTENT

Weight: 0.345 kg
