Waveshare PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Raspberry Pi 5 PCIe HAT

Waveshare PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Raspberry Pi 5 PCIe HAT

$57.56

$57.56 $0.00

Description

SPECIFICATIONS

Battery Included: no

Brand Name: Waveshare

High-concerned chemical: none

Model Number: PCIE TO M.2 E KEY HAT+

Origin: Mainland China

Typical Application Fields: Education and Learning

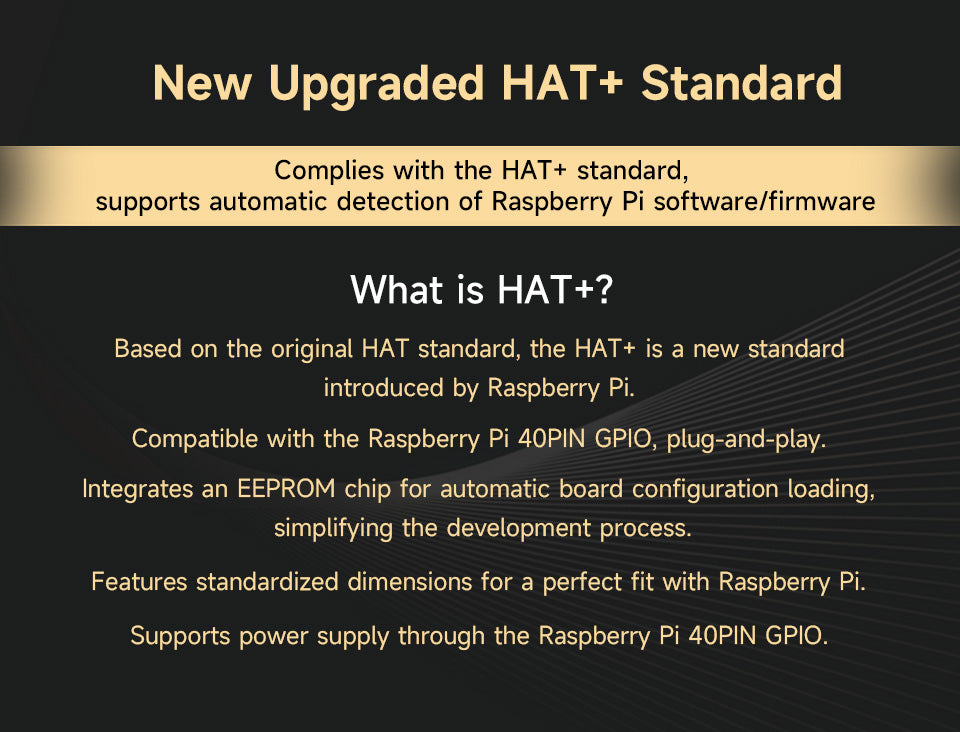

PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With Various NGFF (M.2 E Key) Wireless NIC, Supports USB Bluetooth Connection And HAT+ Standard, Raspberry Pi 5 PCIe HAT

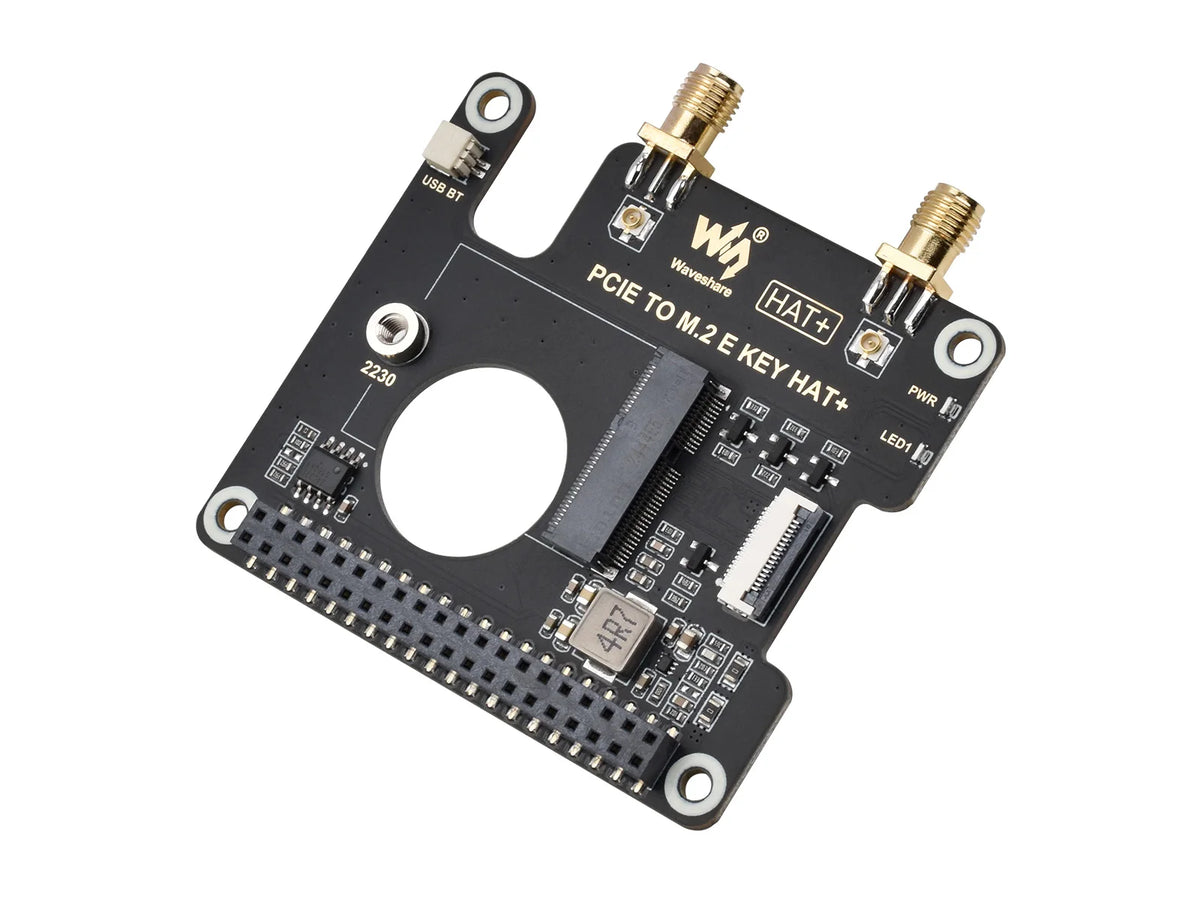

PCIe To M.2 E KEY HAT

Designed for Raspberry Pi 5

Compatible With Various NGFF (M.2 E Key) Wireless NIC

Kit Selection

PCIE TO M.2 E KEY HAT+ Acce A

This kit includes PCIE TO M.2 E KEY HAT+ kit, Wireless-AX210 module and WiFi antenna (2pcs).

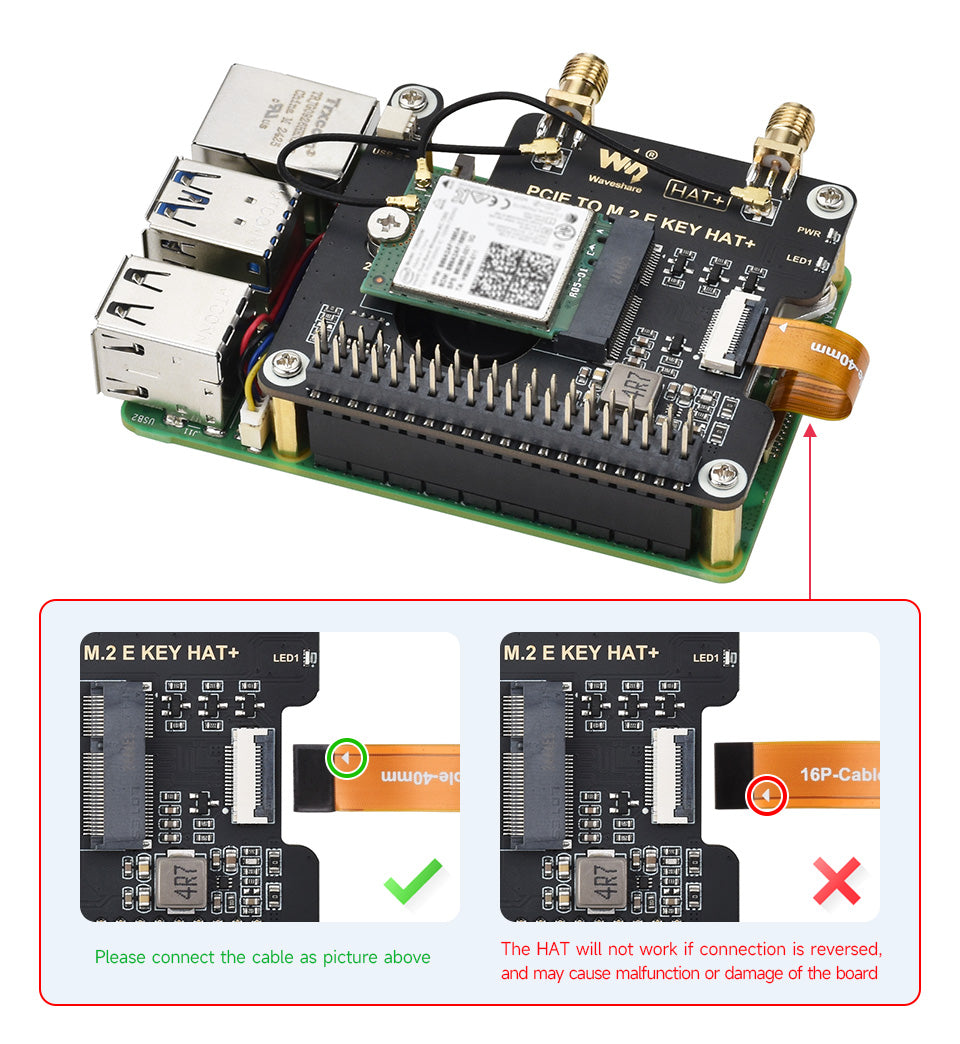

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

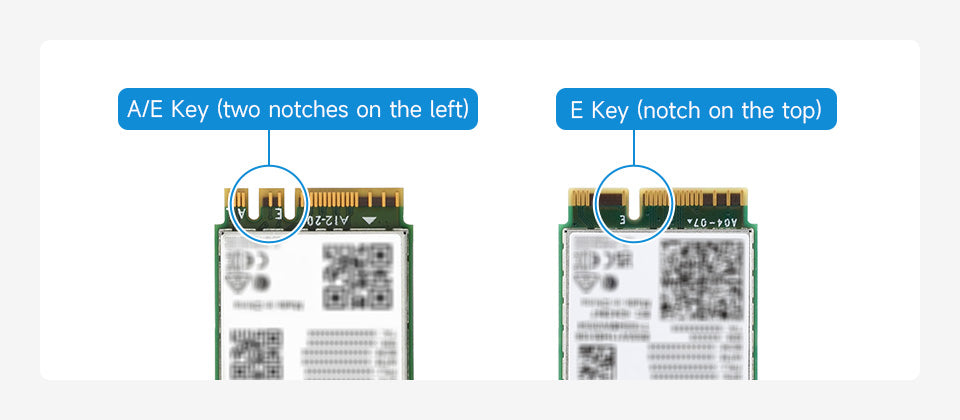

Compatible with wireless NIC

suitable for A/E Key and E Key

Various wireless NIC support

Supports the following modules, with more compatible modules coming soon

Model	RTL8822CE		AX200		AX210			BE200
Wi-Fi Version	Wi-Fi 5		Wi-Fi 6		Wi-Fi 6E			Wi-Fi 7
Wi-Fi Band	2.4GHz	5GHz	2.4GHz	5GHz	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	6GHz
Wi-Fi Rate	300Mbps	867Mbps	574Mbps	2400Mbps	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	5800Mbps
Interface	NGFF (M.2 A/E Key)							NGFF (M.2 E Key)
Bluetooth Version	5.0		5.2		5.3			5.4
Technical Support	MU-MIMO
Antenna Connector	IPEX 4 Connector
System Support	Linux, Windows 10 / 11
Dimensions	22.0 × 30.0 × 2.4mm

Onboard SMA female antenna connector

for easy antenna mounting

* for reference only, please refer to the Package Content for detailed part list

Supports USB Bluetooth connection

Supports inputting Bluetooth signal into the Raspberry Pi via USB interface

(* this function is only available after connecting the Wireless NIC module)

how to install

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIE_TO_M.2_E_KEY_HAT+

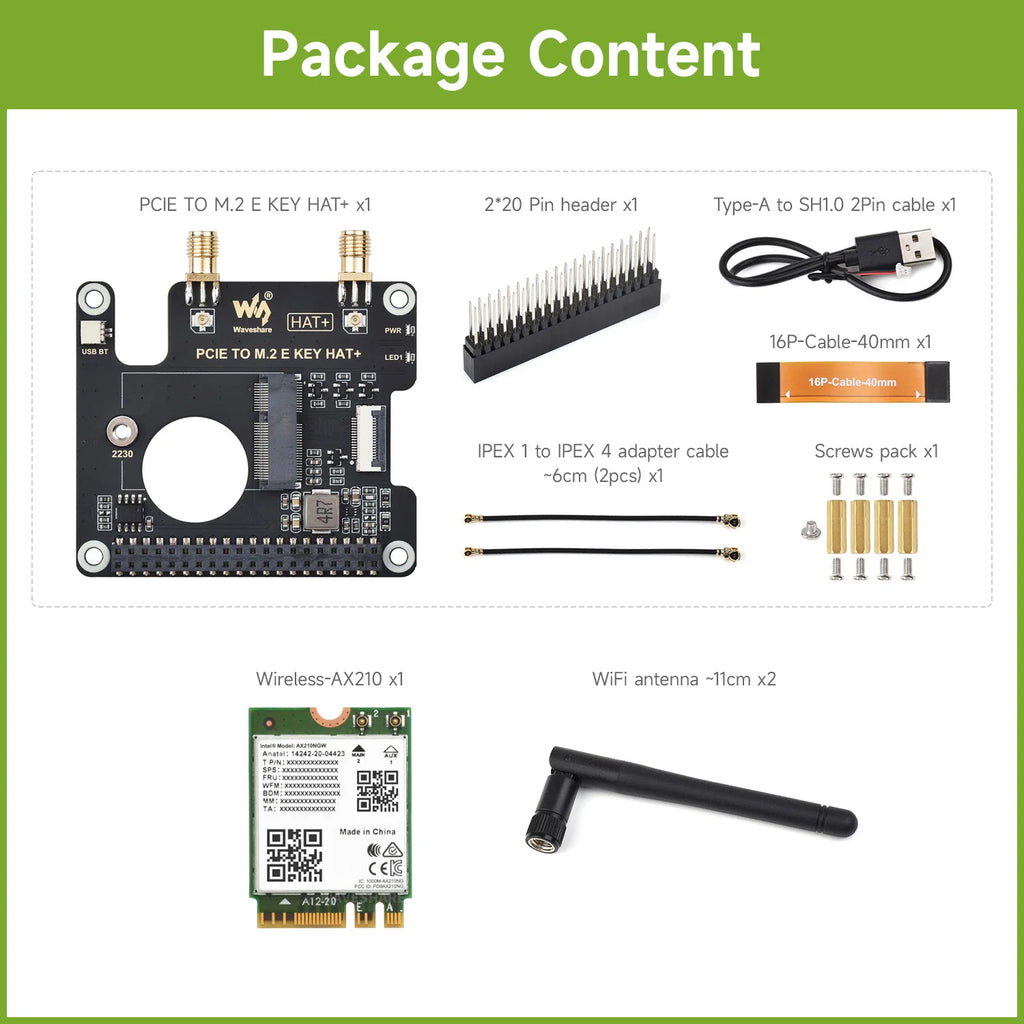

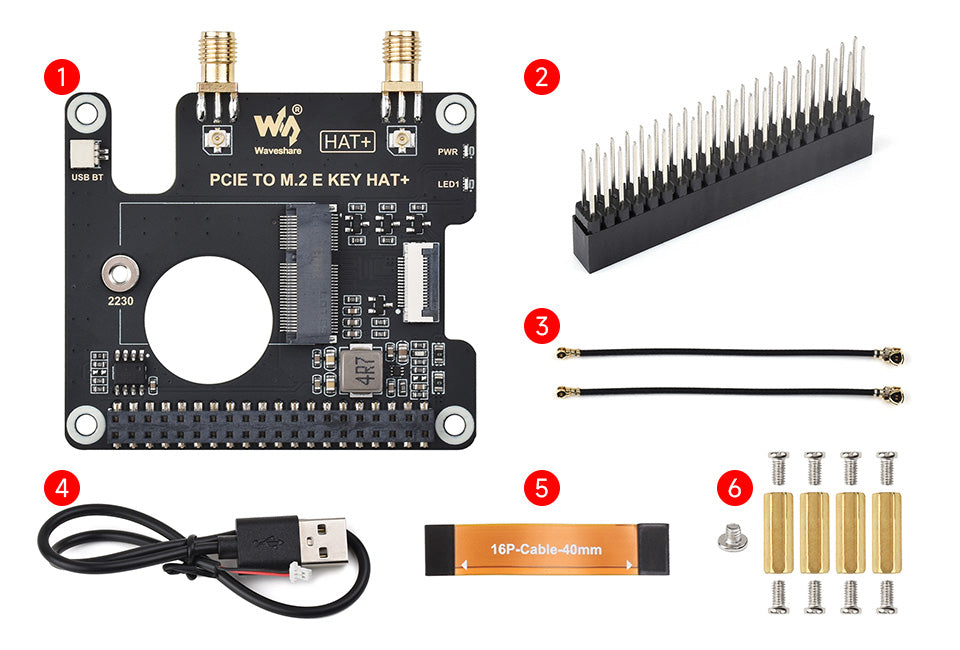

Package Content

PCIE TO M.2 E KEY HAT+

PCIE TO M.2 E KEY HAT+ x1
2*20 Pin header x1
IPEX 1 to IPEX 4 adapter cable ~6cm (2pcs) x1
Type-A to SH1.0 2Pin cable x1
16P-Cable-40mm x1
Screws pack x1

PCIE TO M.2 E KEY HAT+ Acce A

PCIE TO M.2 E KEY HAT+ kit:
- PCIE TO M.2 E KEY HAT+ x1
- Screws pack x1
- IPEX 1 to IPEX 4 adapter cable ~6cm (2pcs) x1
- 2*20 Pin header x1
- Type-A to SH1.0 2Pin cable x1
- 16P-Cable-40mm x1
Wireless-AX210 x1
WiFi antenna ~11cm x2
