Waveshare Precision RTC Module for Raspberry Pi Pico,Onboard DS3231 Chip,Onboard Female Pin Header For Direct Attaching
China Mainland
$49.59
Sale price
$49.59
Regular price
$0.00
Skip to product information
Waveshare Precision RTC Module for Raspberry Pi Pico,Onboard DS3231 Chip,Onboard Female Pin Header For Direct Attaching
$49.59
Sale price
$49.59
Regular price
$0.00
Description
SPECIFICATIONS
BACKUP BATTERY VOLTAGE: 2.3V ~ 5.5V
Battery Included: no
Brand Name: Waveshare
High-concerned chemical: none
Model Number: Pico-RTC-DS3231
OPERATING TEMPERATURE: -40°C ~ +85°C
OPERATING VOLTAGE: 3.3V
Origin: Mainland China
POWER CONSUMPTION: 100nA (sustains data and clock information)
Typical Application Fields: Education and Learning
Raspberry Pi Pico is NOT included.
DESCRIPTION
Precision RTC Module For Raspberry Pi Pico, Onboard DS3231 Chip
Precision RTC Module
For Pico
Incorporates High Precision RTC Chip DS3231
Features At A Glance

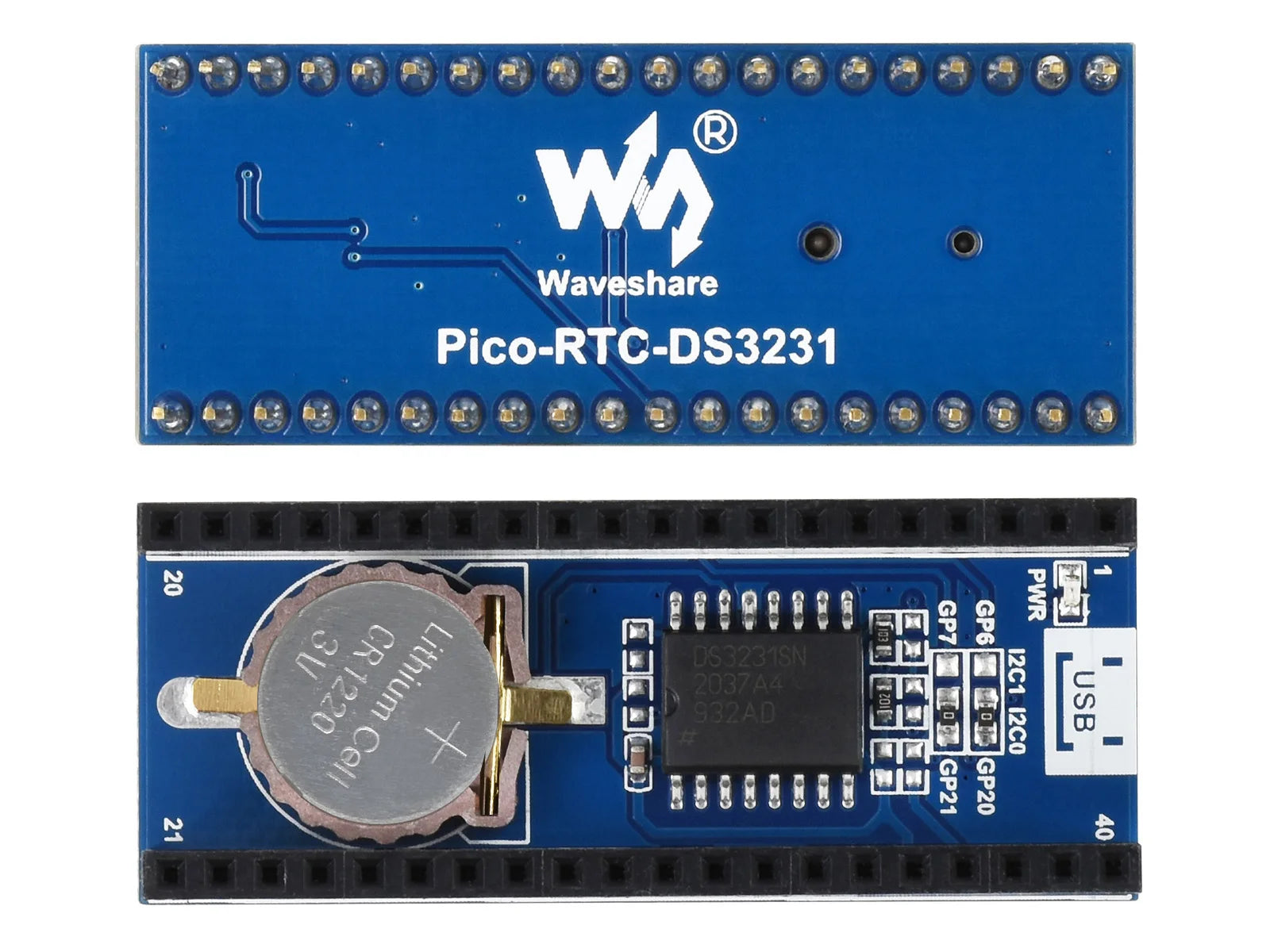

ThePico-RTC-DS3231is a RTC expansion module specialized for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231 and uses I2C bus for communication. More external sensors are allowed to be connected thanks to the stackable design.
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
-

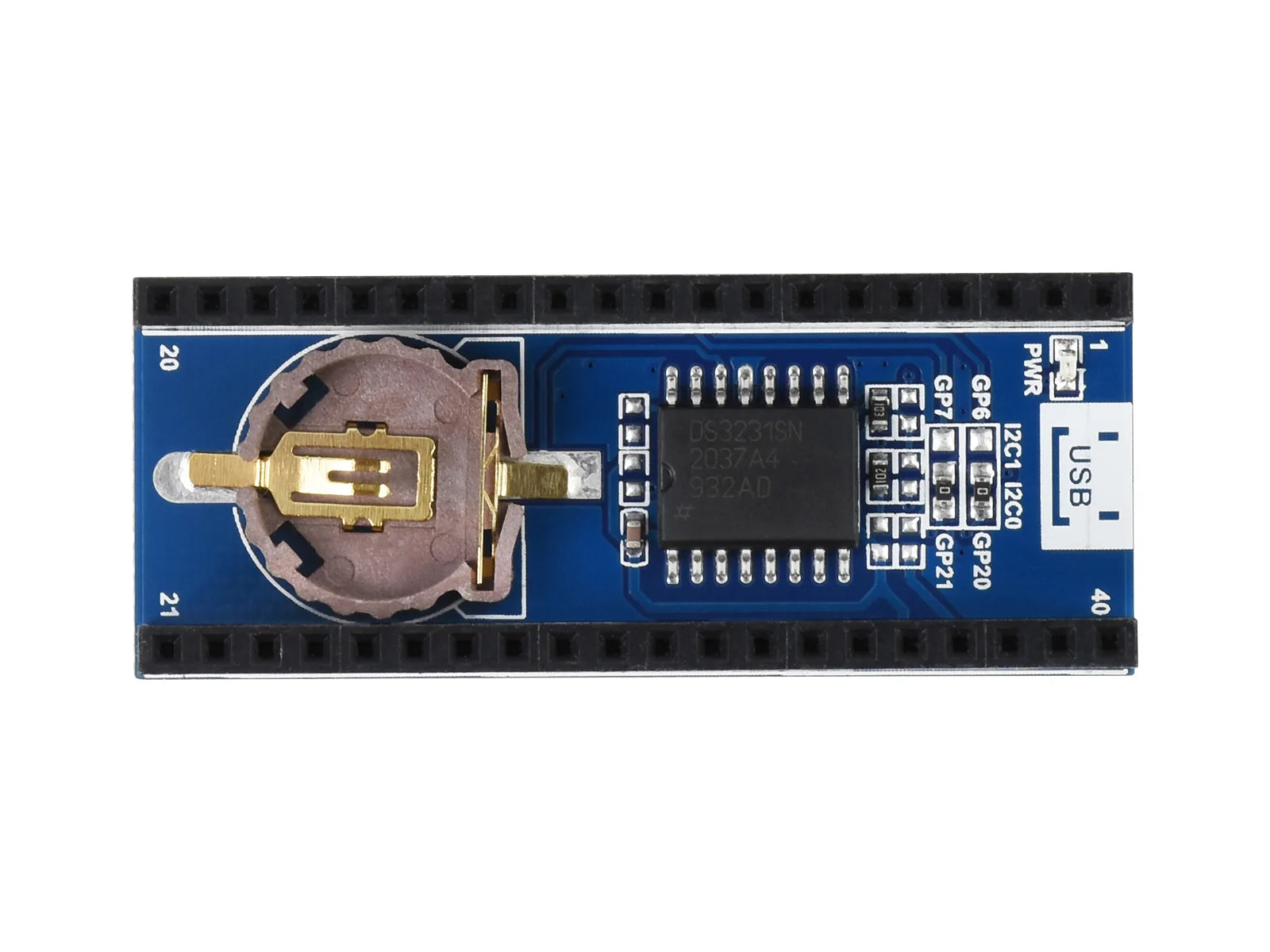

Onboard high precision RTC chip DS3231, with backup battery holder
Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
Optional format : 24-hour OR 12-hour with an AM/PM indicator
2x programable alarm clock
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
3.3V |
BACKUP BATTERY VOLTAGE |
2.3V ~ 5.5V |
OPERATING TEMPERATURE |
-40°C ~ +85°C |
POWER CONSUMPTION |
100nA (sustains data and clock information) |

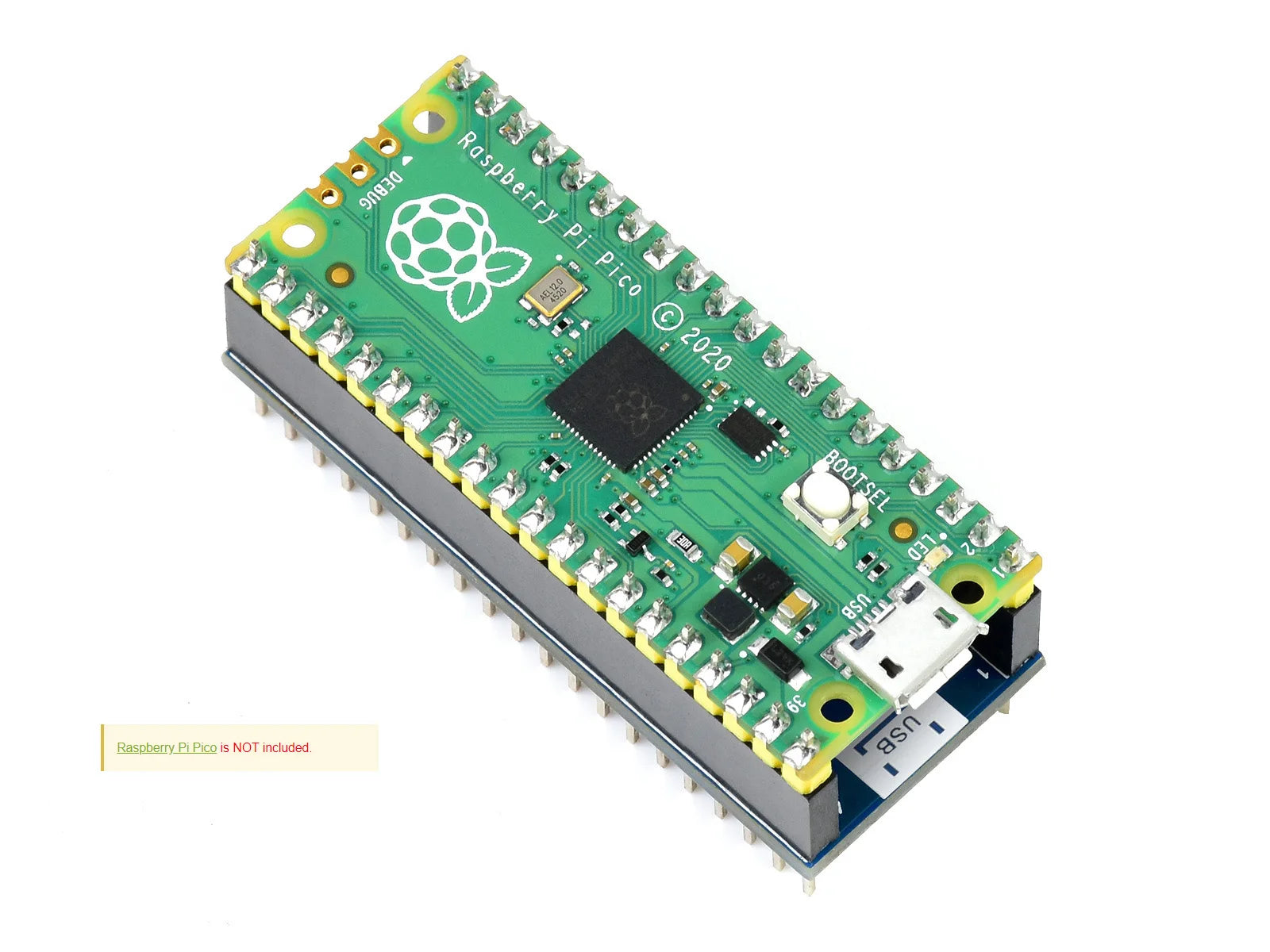

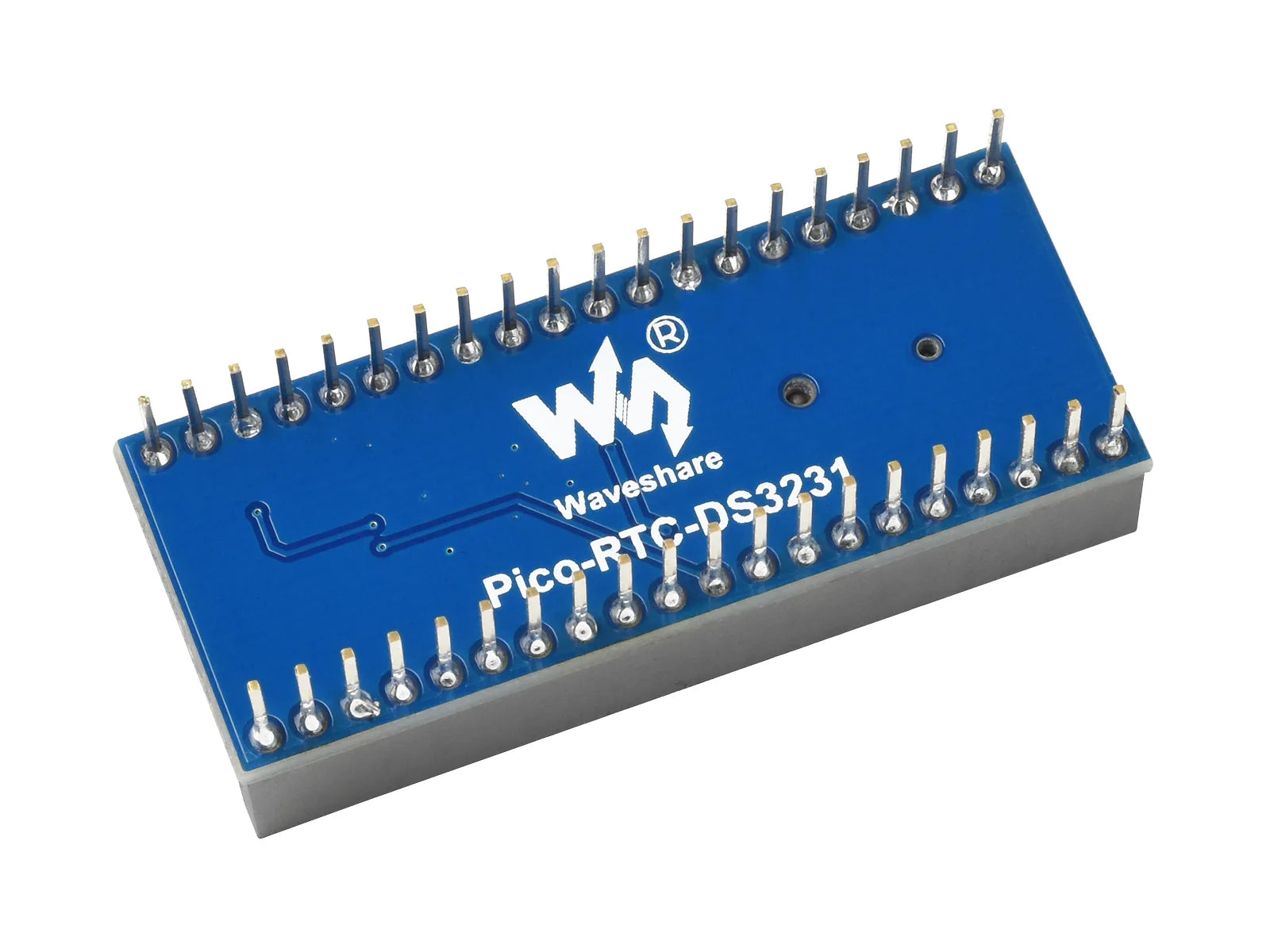

Raspberry Pi Pico Header Compatibility

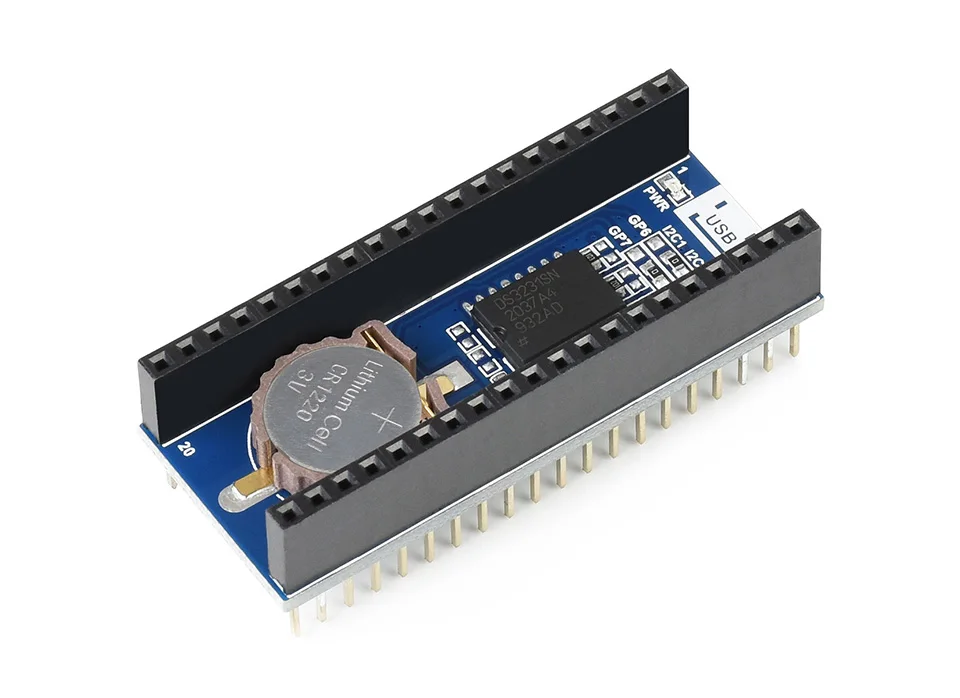

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

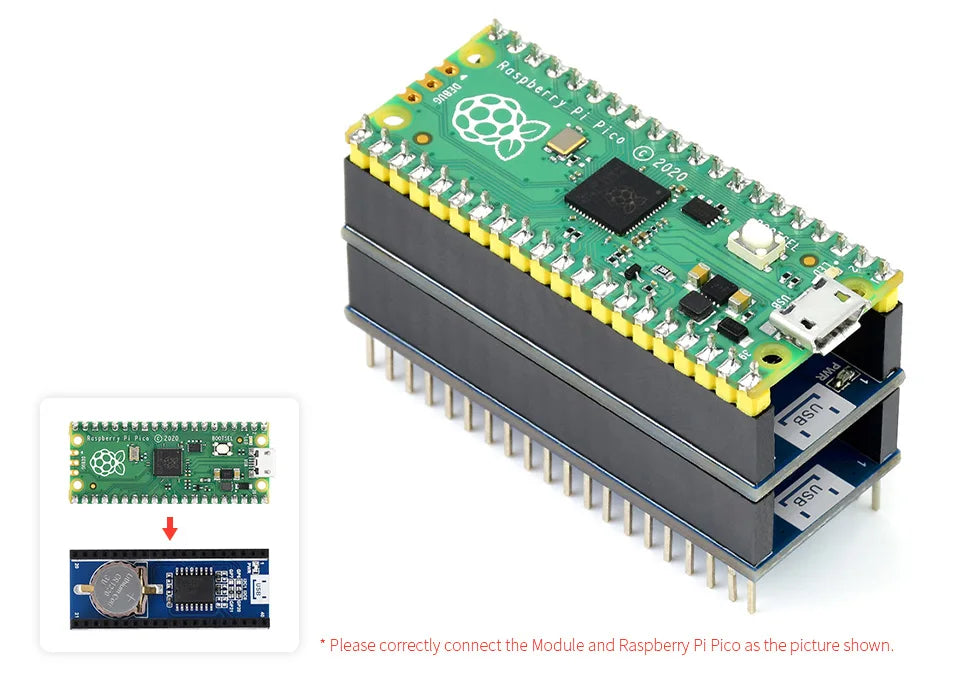

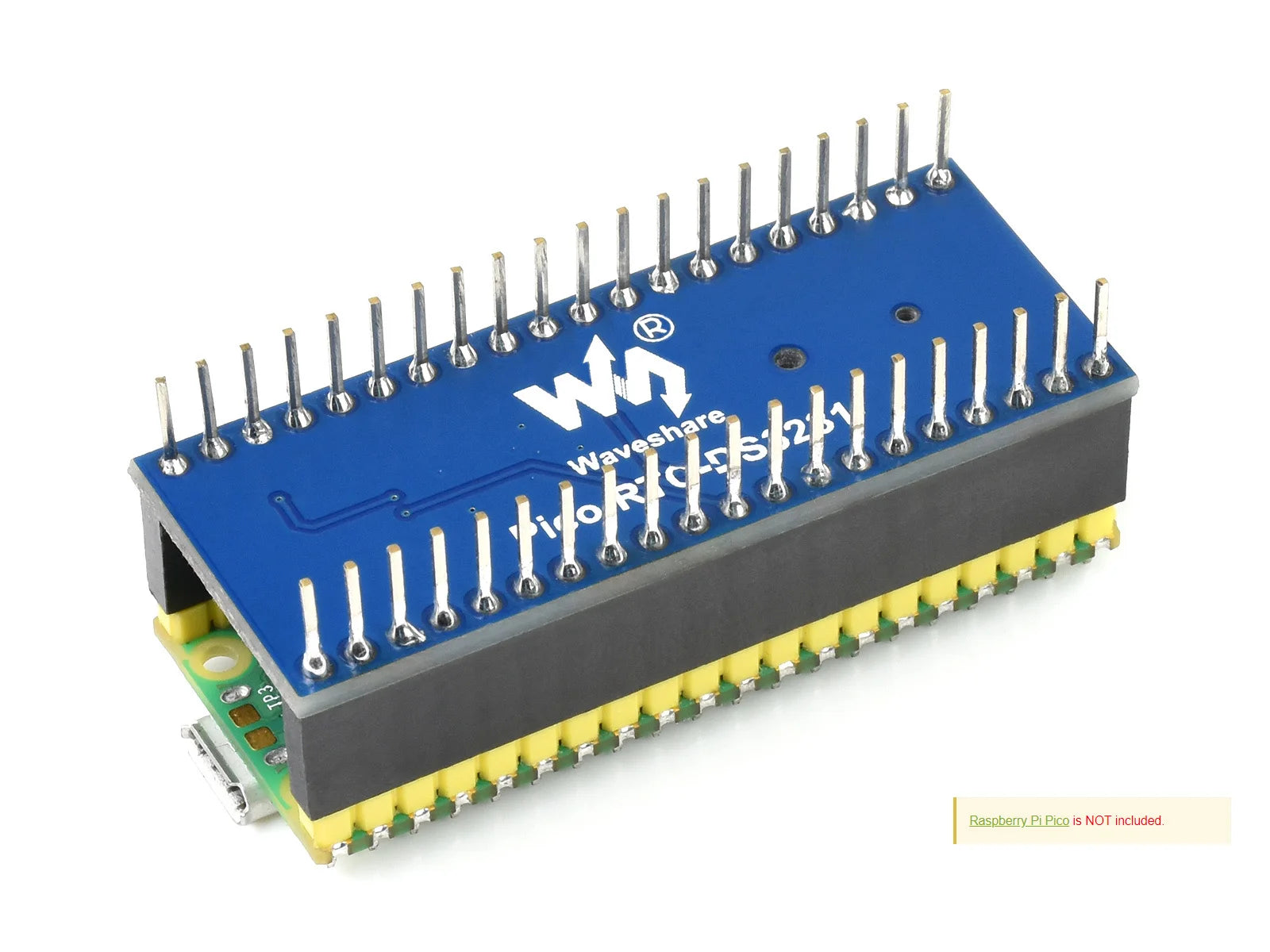

Stackable Design
Raspberry Pi Pico is NOT included.

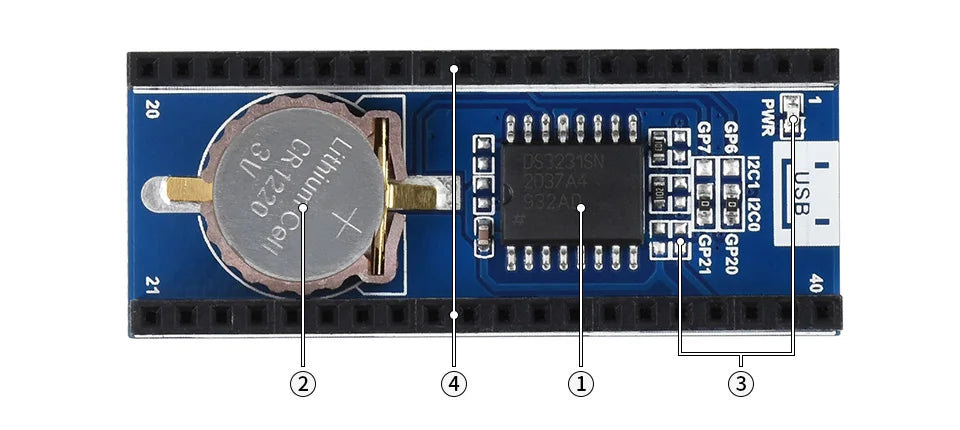

What's On Board
DS3231
high precision RTC chip, I2C busRTC backup battery
supports CR1220 button cellPower indicator
enabled by soldering a 0Ω resistor on the jumper, disabled by default
4.Raspberry Pi Pico header
for attaching to Raspberry Pi Pico, stackable design

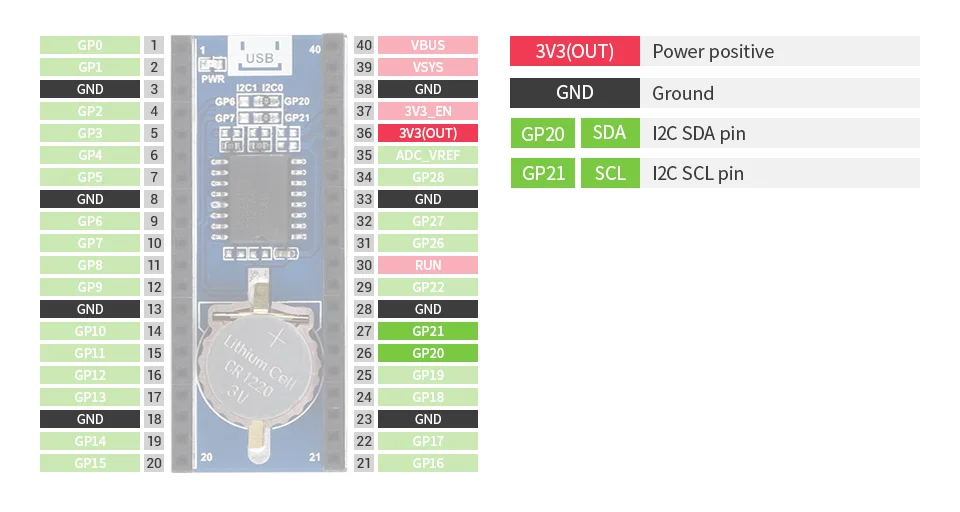

Pinout Definition

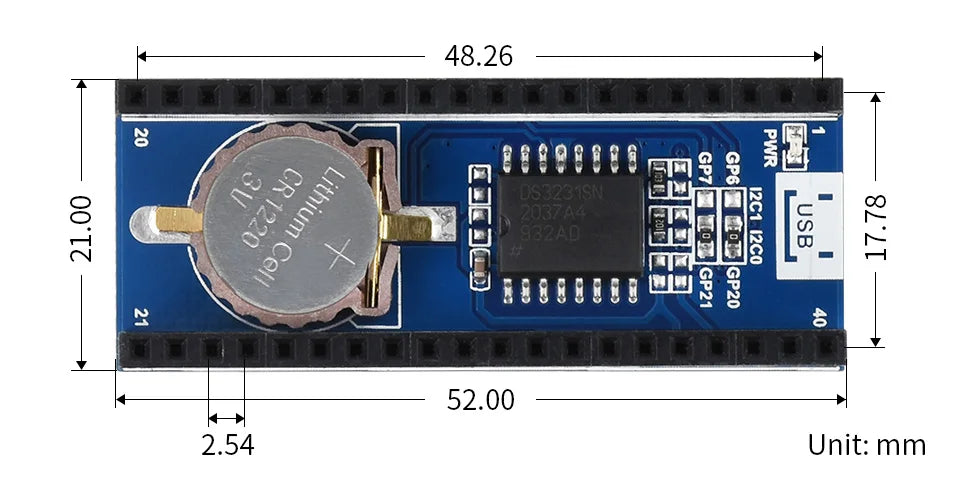

Outline Dimensions
Resources & Services
WIKI:www.waveshare.com/wiki/Pico-RTC-DS3231
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
PACKAGE CONTENT
Weight:0.023 kg
Pico-RTC-DS3231 x1
