SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Compatible With: Raspberry Pi

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

【Overview】

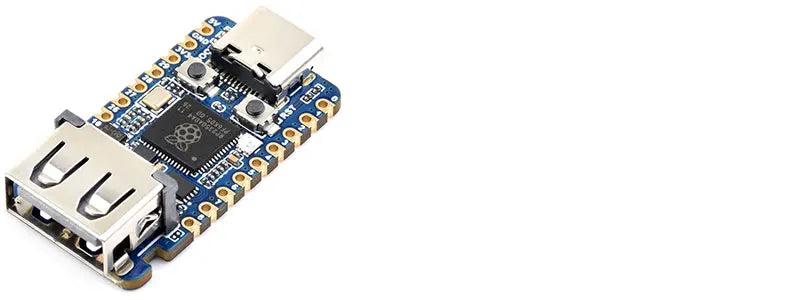

[] RP2350-USB-A Mini Development Board

[] Based on Raspberry Pi RP2350A, with onboard USB interface

[] Using half-hole technology, it can be welded on a custom board

【Features】

[] It uses the RP2350A microcontroller chip designed by Raspberry Pi

[] The unique dual-core and dual-architecture is equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock running frequency of up to 150MHz

[] Built-in 520KB SRAM and 2MB on-chip Flash

[] Using the Type-C interface, it keeps up with the trend of the times and does not need to worry about whether to insert it in the right or wrong direction

[] The stamp hole design can be directly welded and integrated into the baseboard designed by the user

[] USB1.1 host and device support

[] Onboard 1 USB expansion port, compatible with USB2.0/1.1 transmission

[] Support low-power sleep and hibernation modes

[] Can be identified as a large-capacity storage device through USB for drag-and-drop downloading

[] RP2350A's 15 GPIO pins are brought out

[] 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 14 controllable PWM channels

[] Accurate on-chip clocks and timers

[] Built-in temperature sensor

[] On-chip accelerated floating-point library

[] 12 programmable I/O (PIO) state machines for custom peripheral support

【C/C++，Arduino】

[] Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications

【Dual-core, dual-architecture processor】

[] Equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor

[] Running frequency up to 150 MHz

【15 multi-function GPIO pins】

[] Supports configuration pin function, which can be easily and flexibly developed and integrated

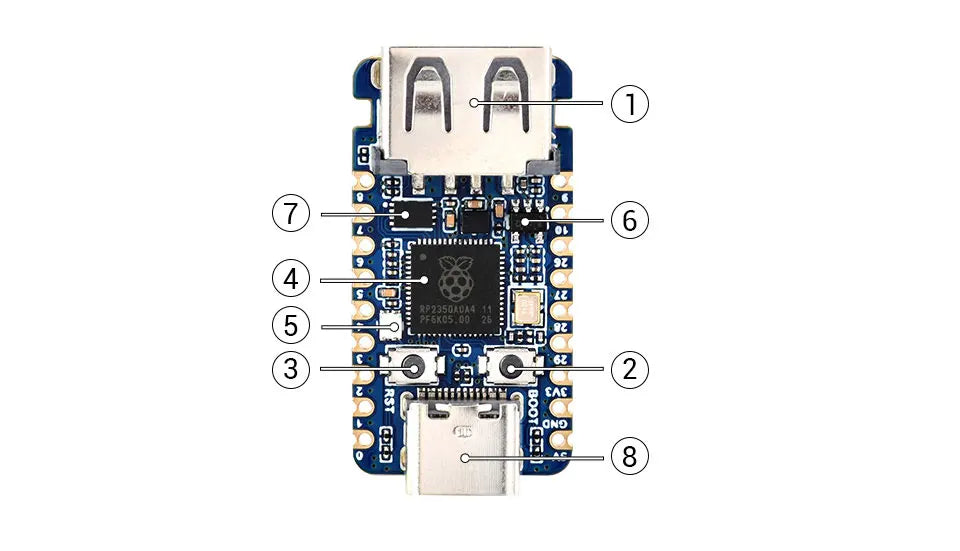

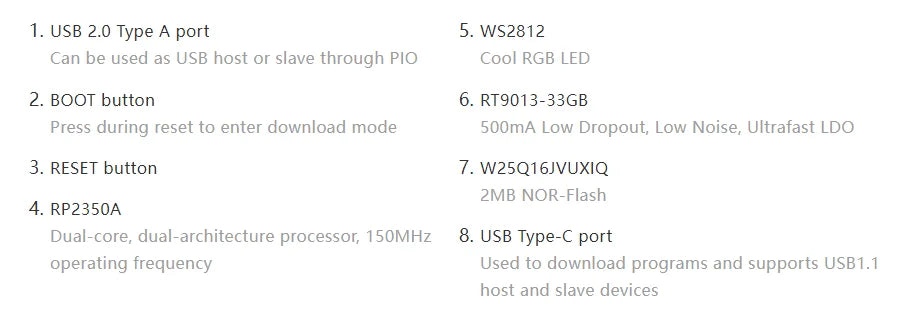

【Resource Overview】

【Size】

[] RP2350-USB-A
