SPECIFICATIONS

Battery Included: no

Brand Name: Waveshare

Choice: yes

High-concerned chemical: none

Model Number: RP2350-PiZero

Origin: Mainland China

Typical Application Fields: Consumer Electronics

semi_Choice: yes

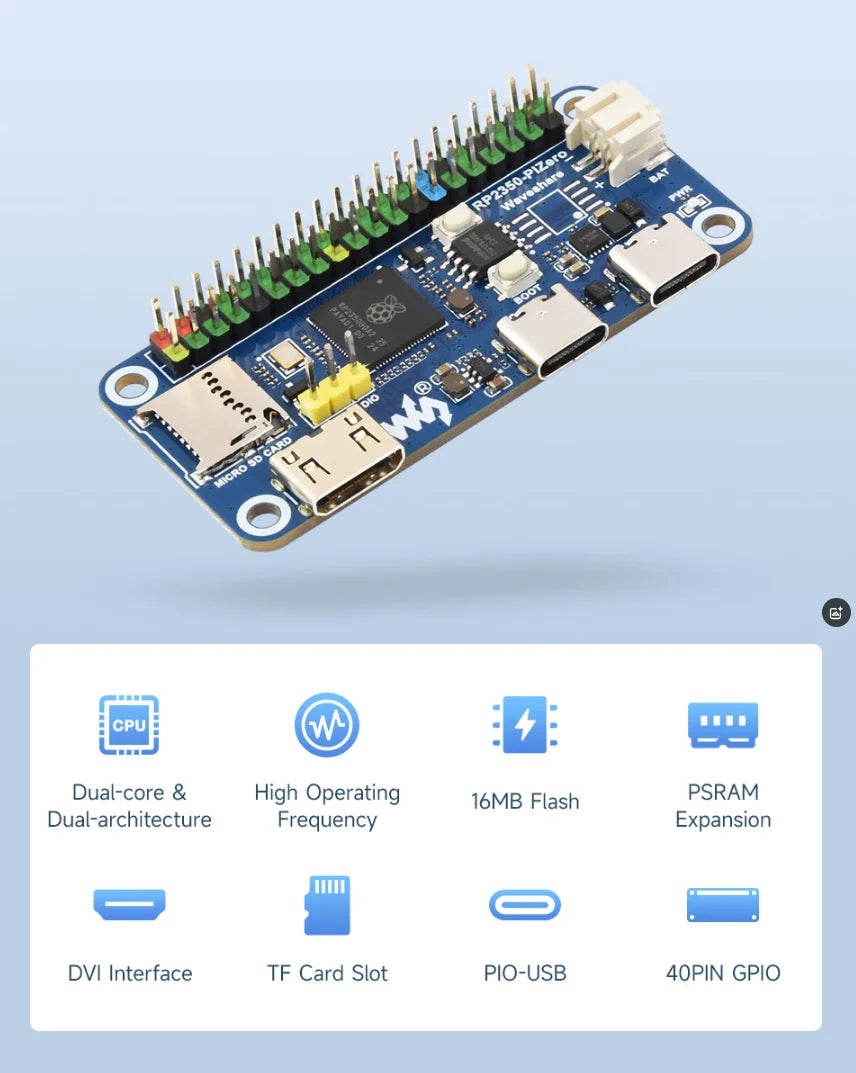

Waveshare RP2350-PiZero Development Board, Based On The Raspberry Pi RP2350 Dual-core & Dual-architecture Microcontroller, 520KB SRAM And 16MB Onboard Flash Memory, compatible with Raspberry Pi 40PIN GPIO header

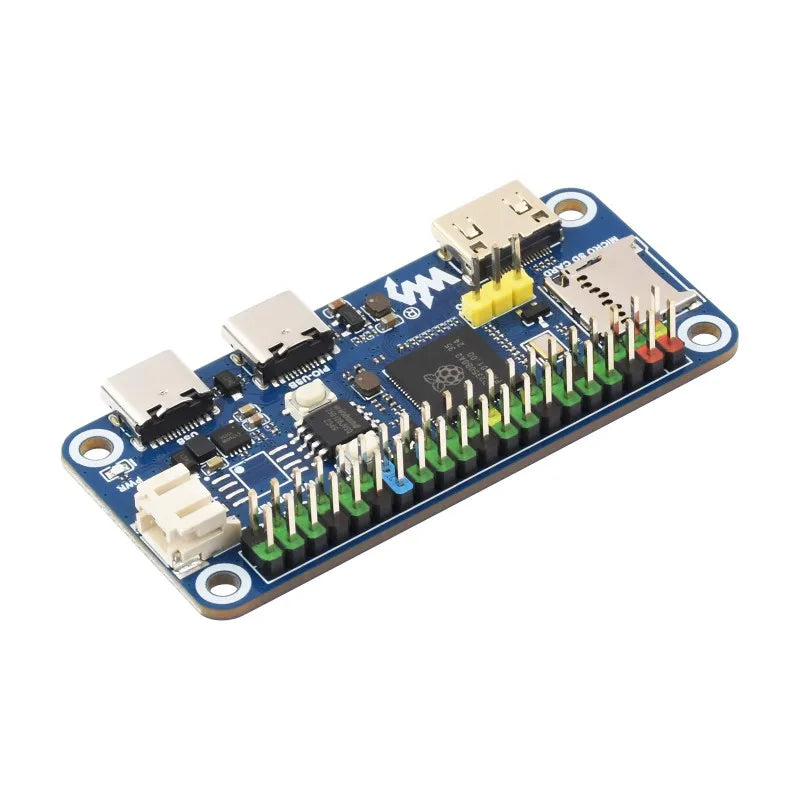

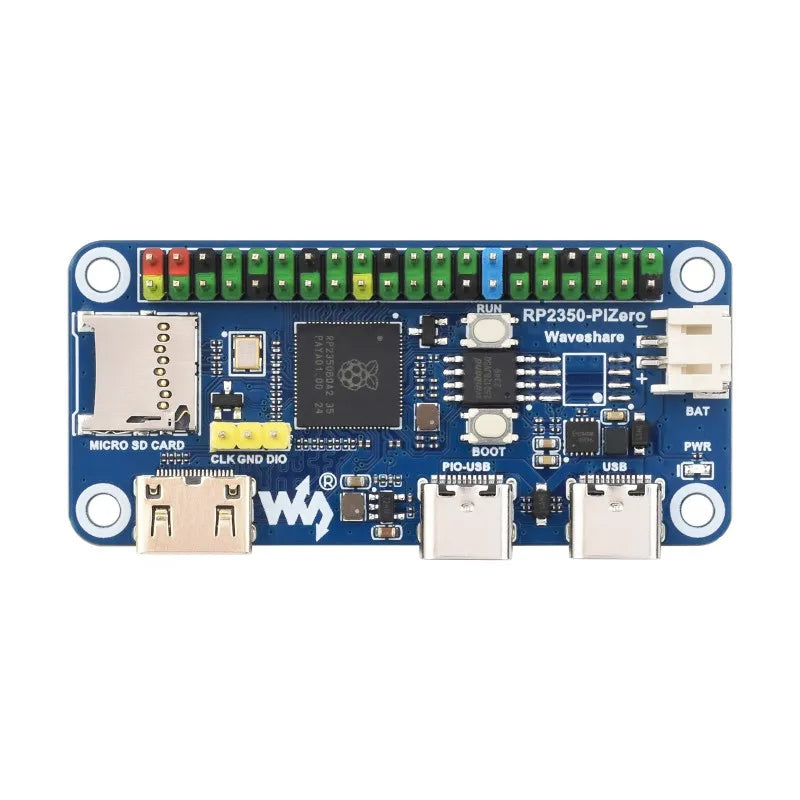

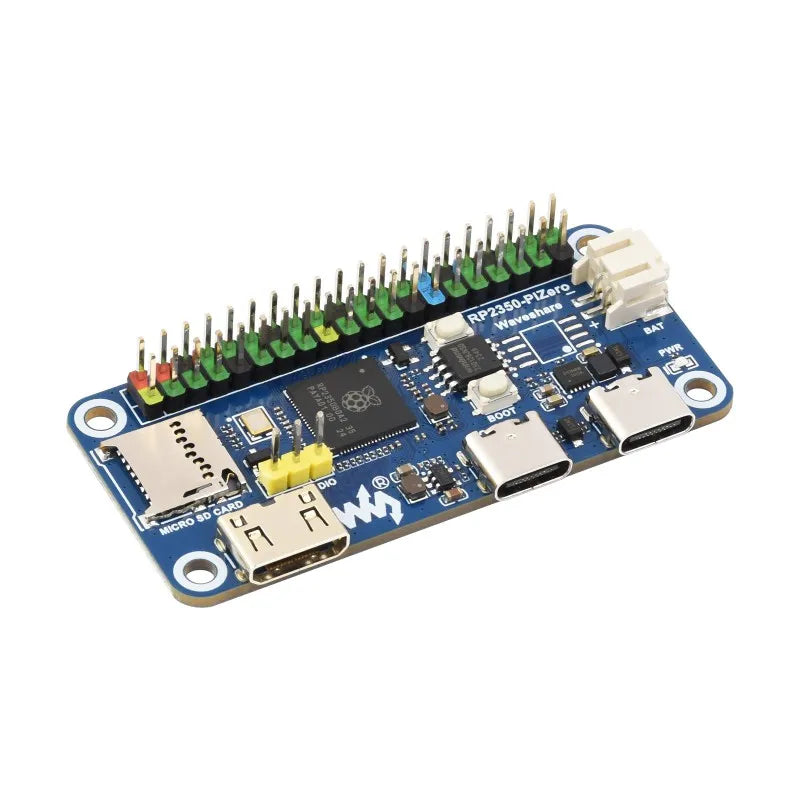

RP2350-PiZero Development Board

Based On Raspberry Pi RP2350

Onboard DVI interface, TF card slot and PIO-USB port

Board specifications

RP2350-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, with reserved solder pads for PSRAM chip expansion, easy to develop and integrate into products.

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion
Type-C connector for easier use

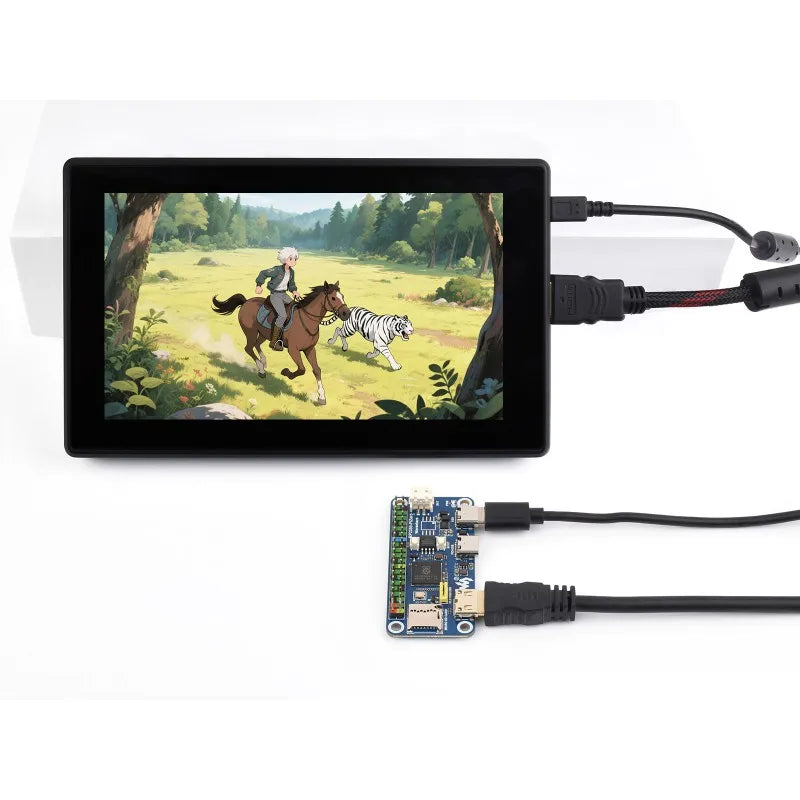

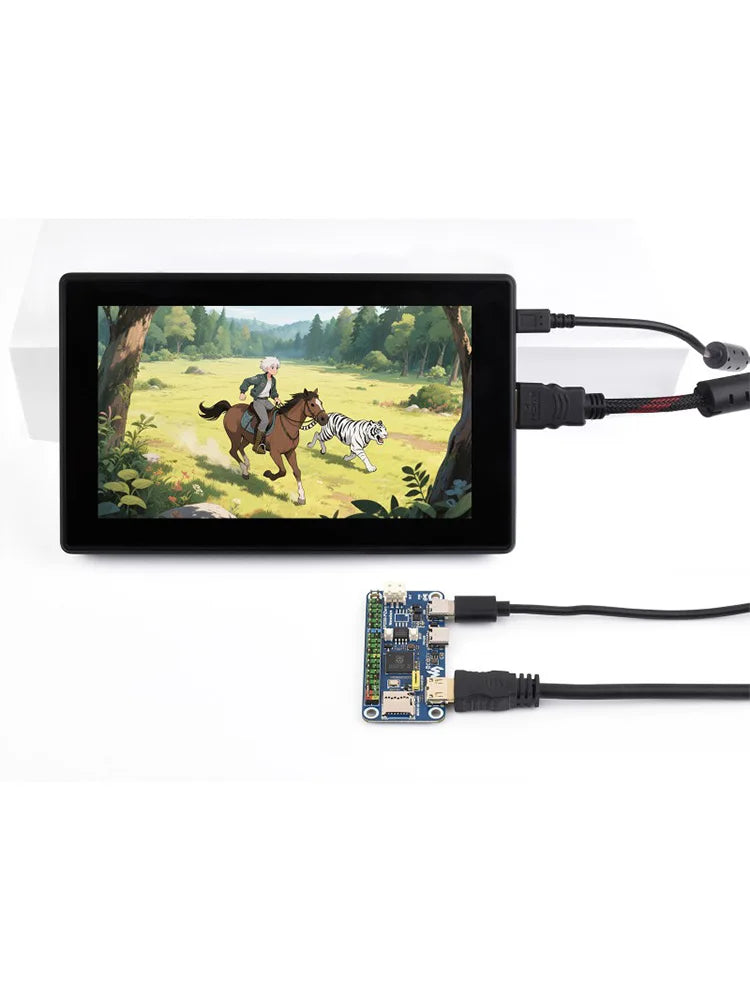

Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
Supports using as a USB host or device via onboard PIO-USB port
Onboard TF card slot for reading and writing TF card
Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

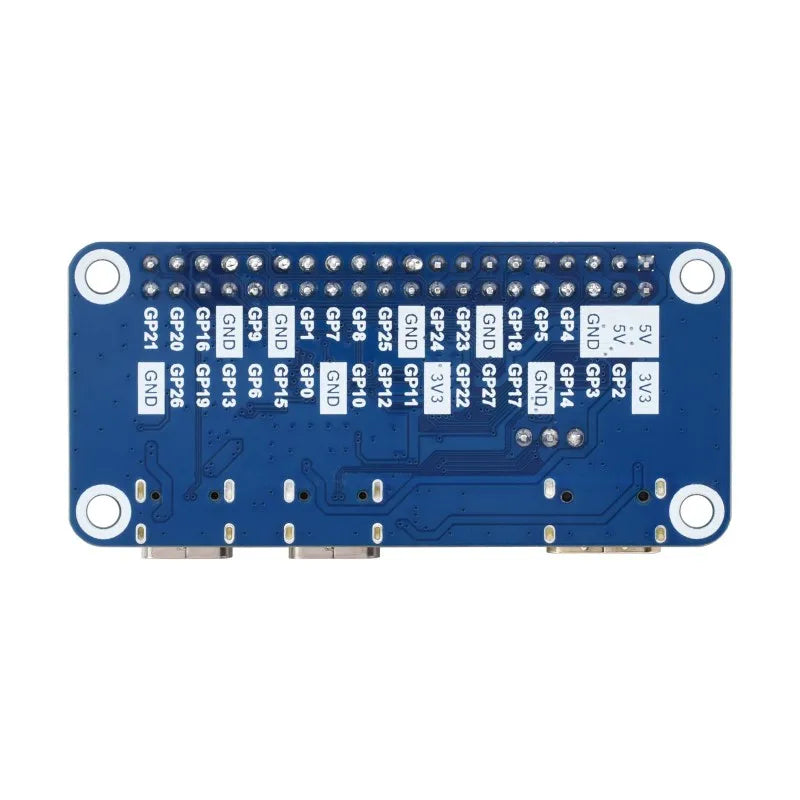

Adapting 5 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 2 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support
