Description

SPECIFICATIONS

Application: Raspberry Pi

Brand Name: NONE,waveshare

Chipset: RS485 CAN HAT

Condition: New

Feature 1: Standard Raspberry Pi 40PIN GPIO extension header

Feature 2: onboard CAN controller MCP2515 via SPI interface

Feature 3: RS485 function

Feature 4: Onboard TVS

High-concerned chemical: none

Model Number: RS485 CAN HAT

Origin: Mainland China

Product Name: RS485 CAN HAT

Type: Drive IC,Data Conversion Development Boards and Kits

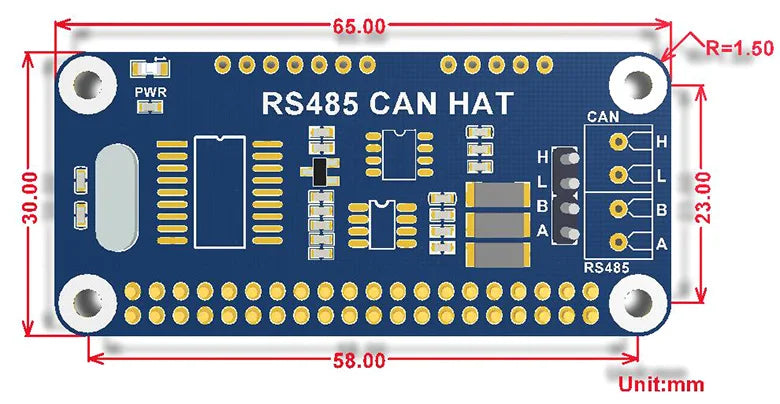

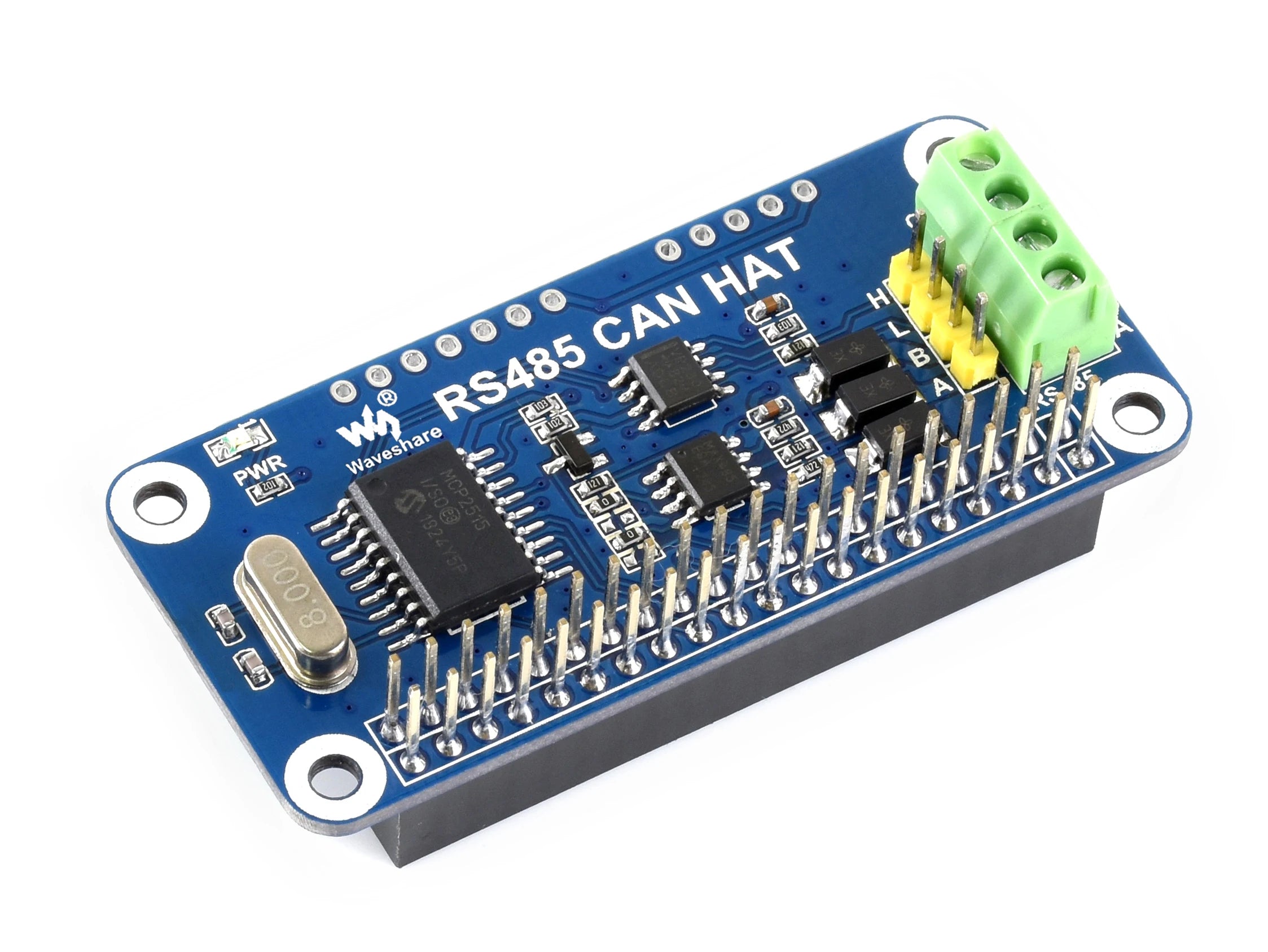

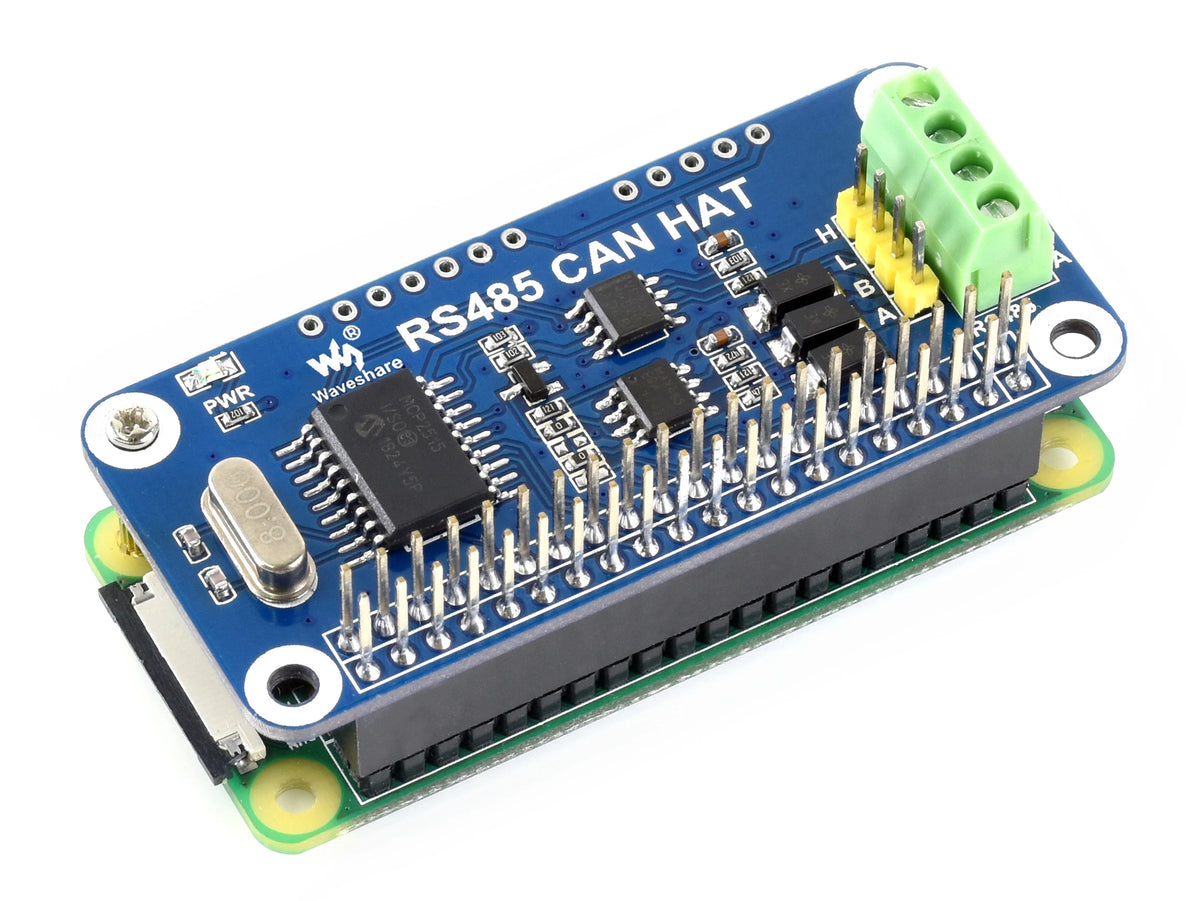

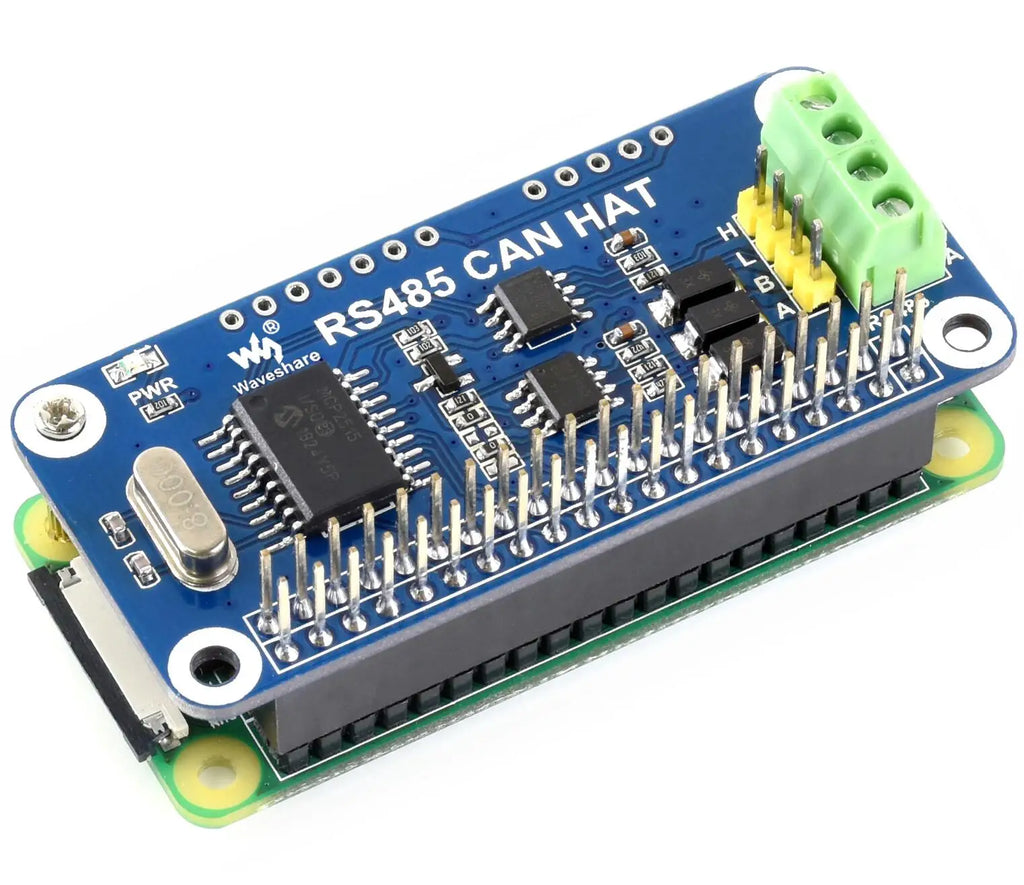

Waveshare RS485 CAN HAT SN65HVD230 Transceiver Onboard TVS Expansion Board for Raspberry Pi

Product Description

RS485 CAN HAT For Raspberry Pi, Allows Stable Long-Distance Communication

Overview

The RS485 CAN HAT will enables your Pi to communicate with other devices stably in long-distance via RS485/CAN functions.

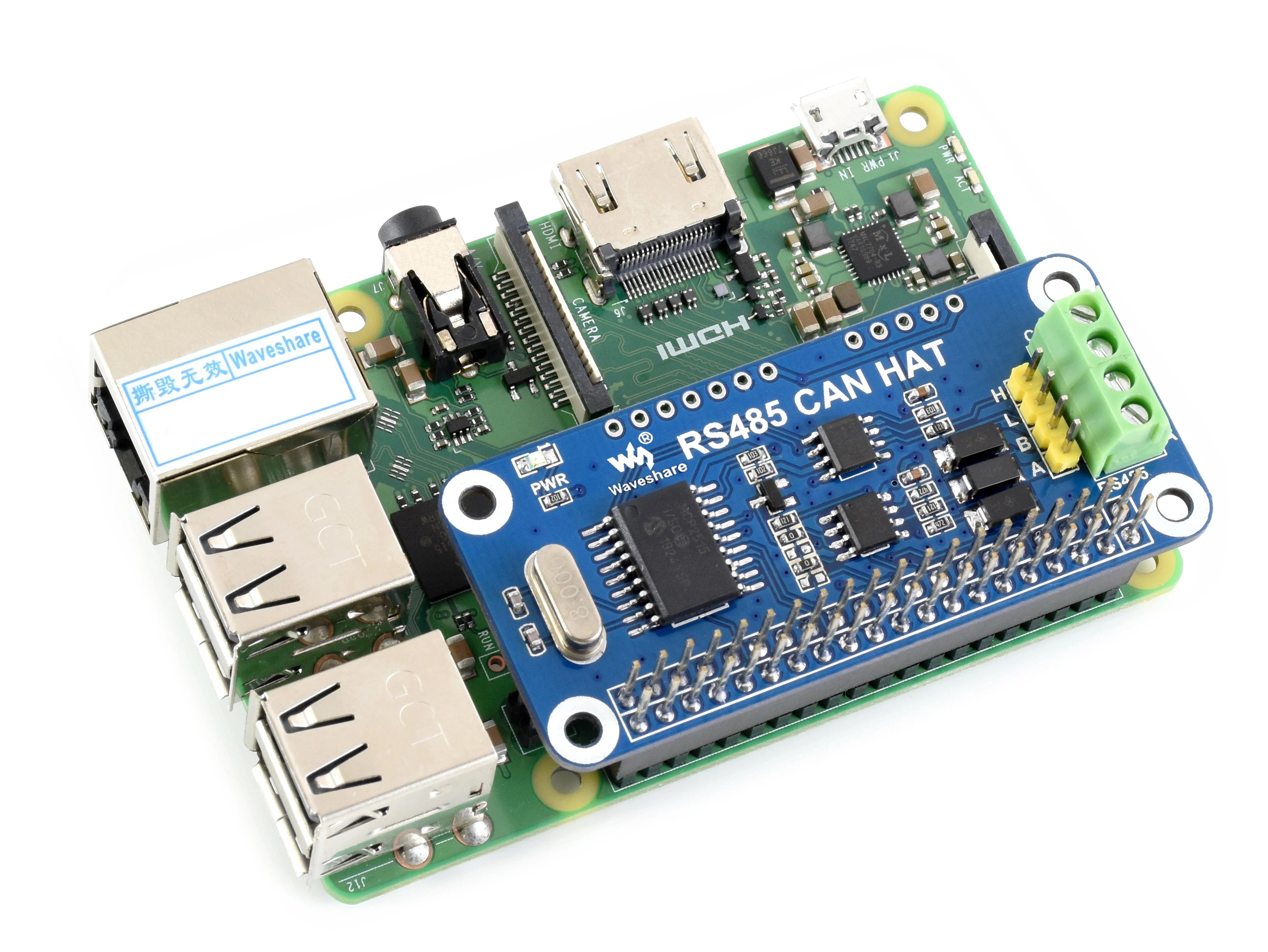

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightning-proof & anti-electrostatic
Reserved control pins, allows to work with other control boards
Comes with development resources and manual (examples in wiringPi/python)

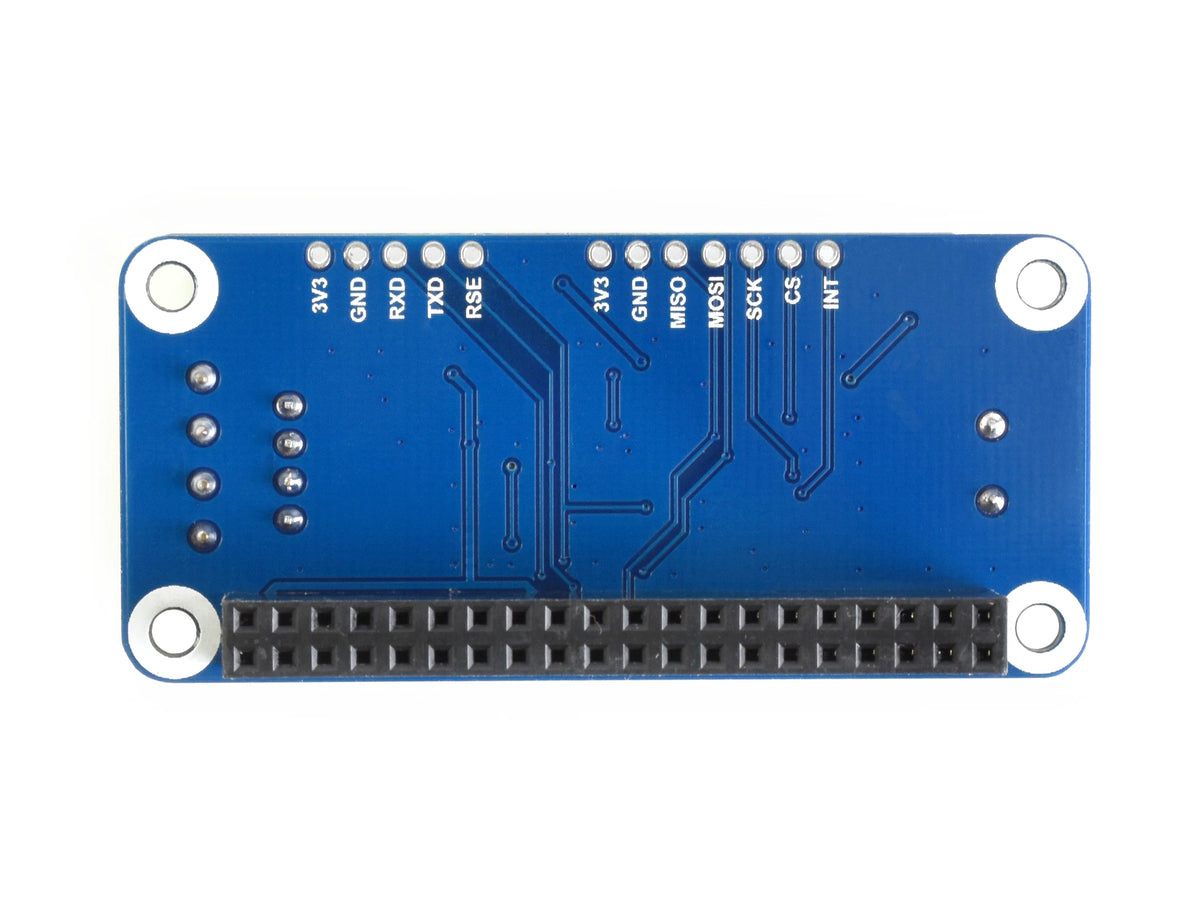

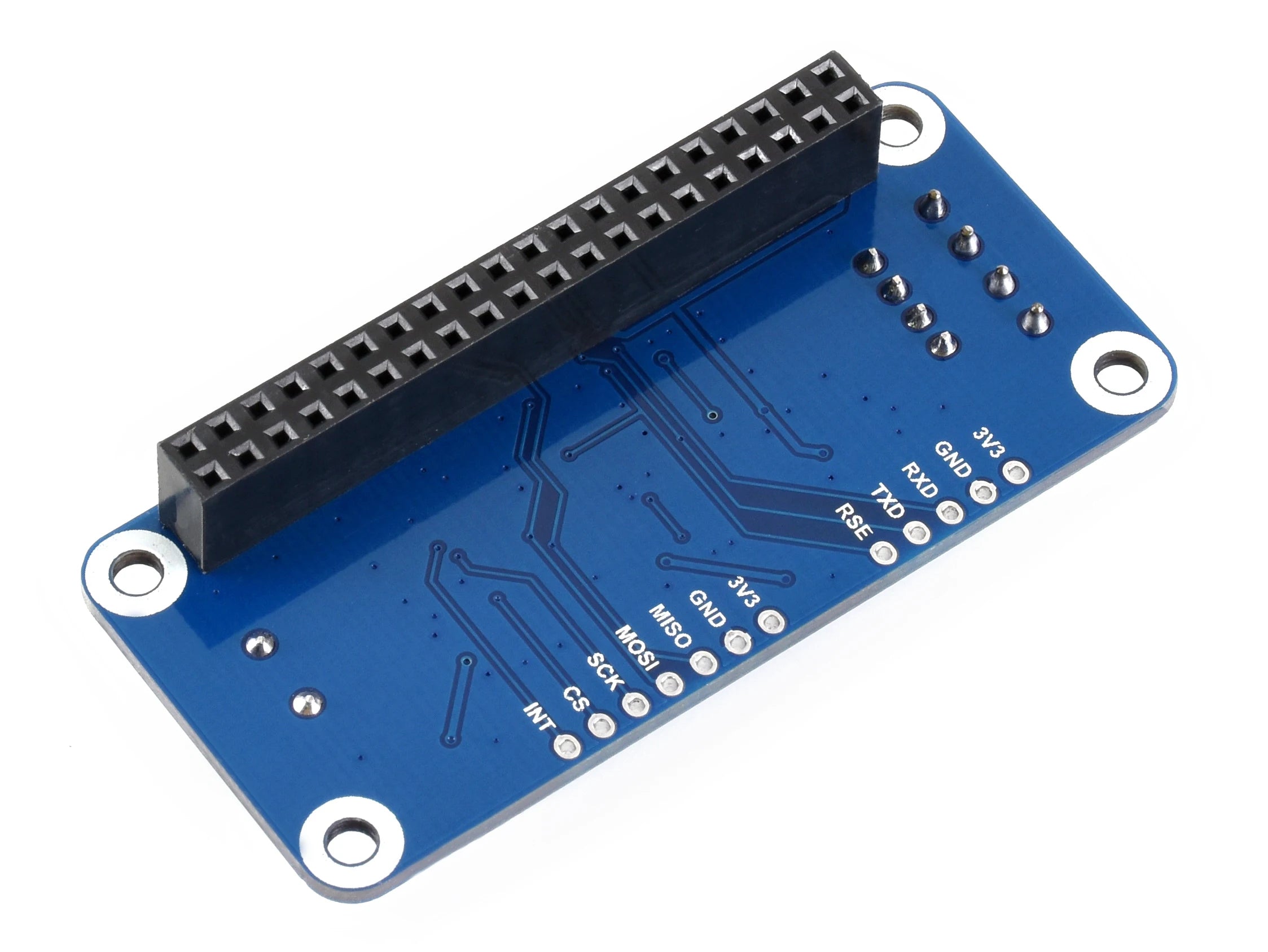

PIN	RASPBERRY PI (BCM)	DESCRIPTION
3V3	3V3	3.3V Power
GND	GND	Ground
SCK	P11 / SCLK	SPI clock input
MOSI	P10 / MOSI	SPI data input
MISO	P9 / MISO	SPI data output
CS	P8 / CE0	SPI chip selection
INT	P25	Interrupt
RXD	P15 / RXD	RS485 UART receive
TXD	P14 / TXD	RS485 UART transmit
RSE	P4	RS485 TX/RX control (auto control by default, some soldering is required to enable manual control), high for TX, low for RX
