Description

SPECIFICATIONS

Application: Raspberry Pi Pico series boards

Brand Name: NONE,Waveshare

Chipset: SIM7080G

Condition: New

High-concerned chemical: none

Model Number: Pico-SIM7080G-Cat-M/NB-IoT (EN)

Origin: Mainland China

Type: Drive IC,Power Management Development Boards and Kits

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM7080G NB-IoT / Cat-M(EMTC) / GNSS Module For Raspberry Pi Pico, Global Band Support

SIM7080G NB-IoT / Cat-M / GNSS
Module For Pico

NB-IoT, Cat-M(EMTC), And GNSS Positioning With Global Band Support

Features At A Glance

The Pico-SIM7080G-Cat-M/NB-IoT is an NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency band, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

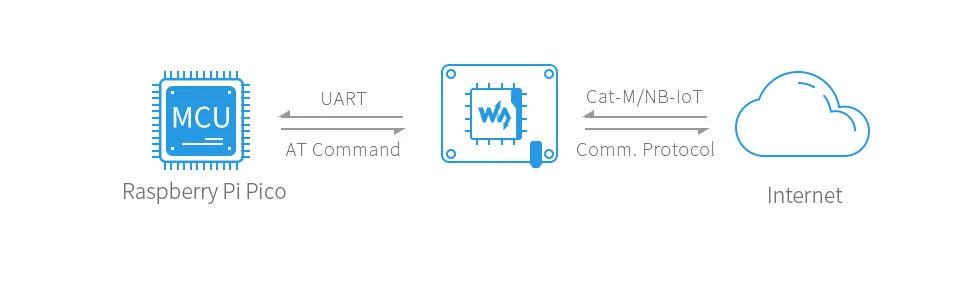

UART communication, serial AT commands control
Communication protocol support: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT...
GNSS positioning support: GPS, GLONASS, BeiDou, and Galileo
Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
2x LED indicators, for monitoring the module operating status
Onboard Nano SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
Comes with development resources and manual (MicroPython examples)

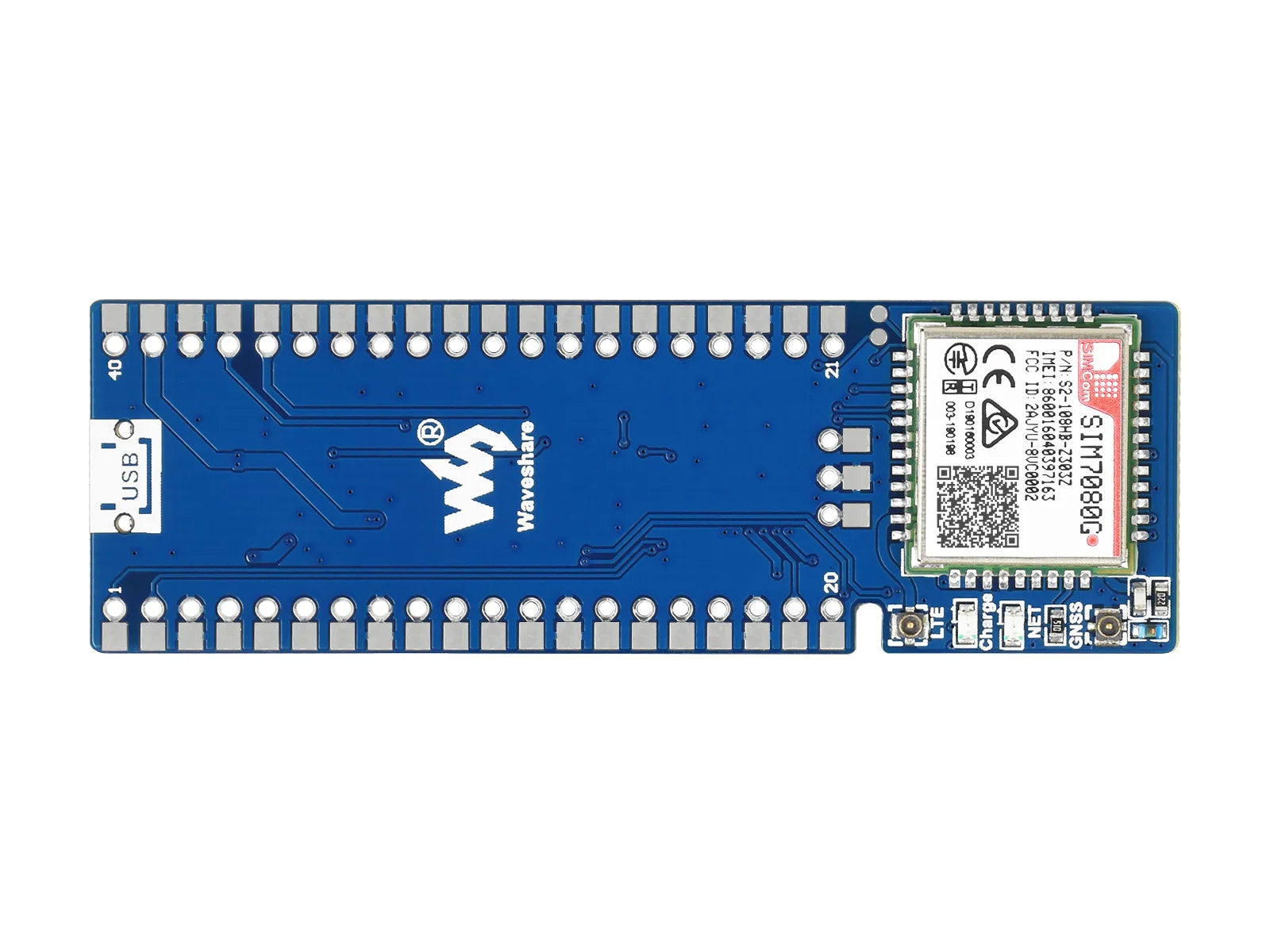

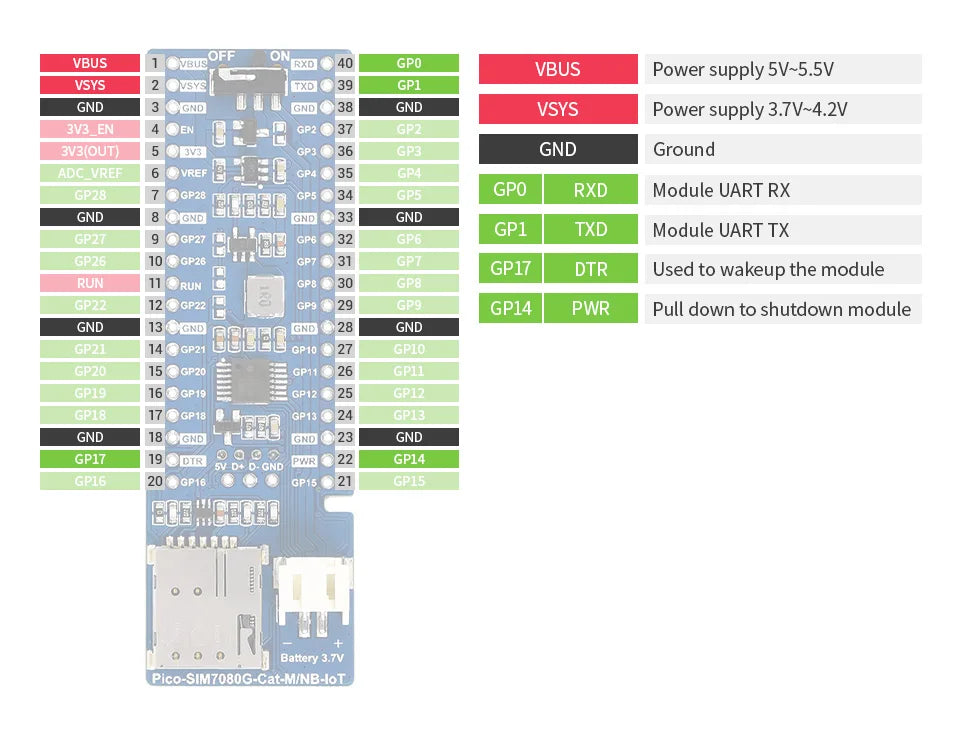

Raspberry Pi Pico Header Compatibility

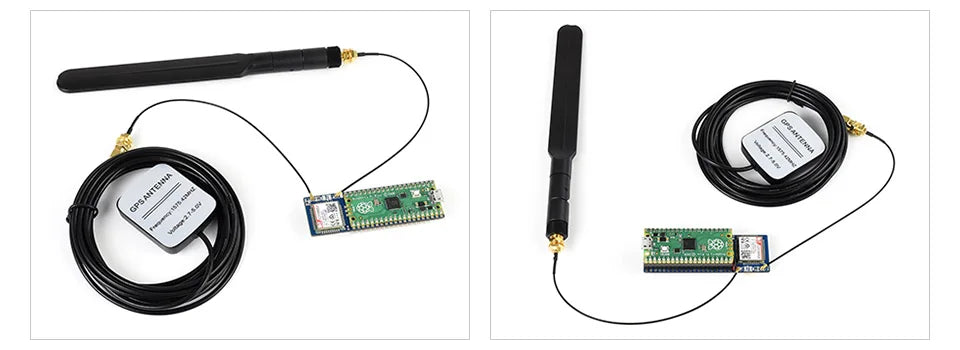

The Pico Can Be SMD-Mounted (Left), Or Attached Via Female Header (Right)

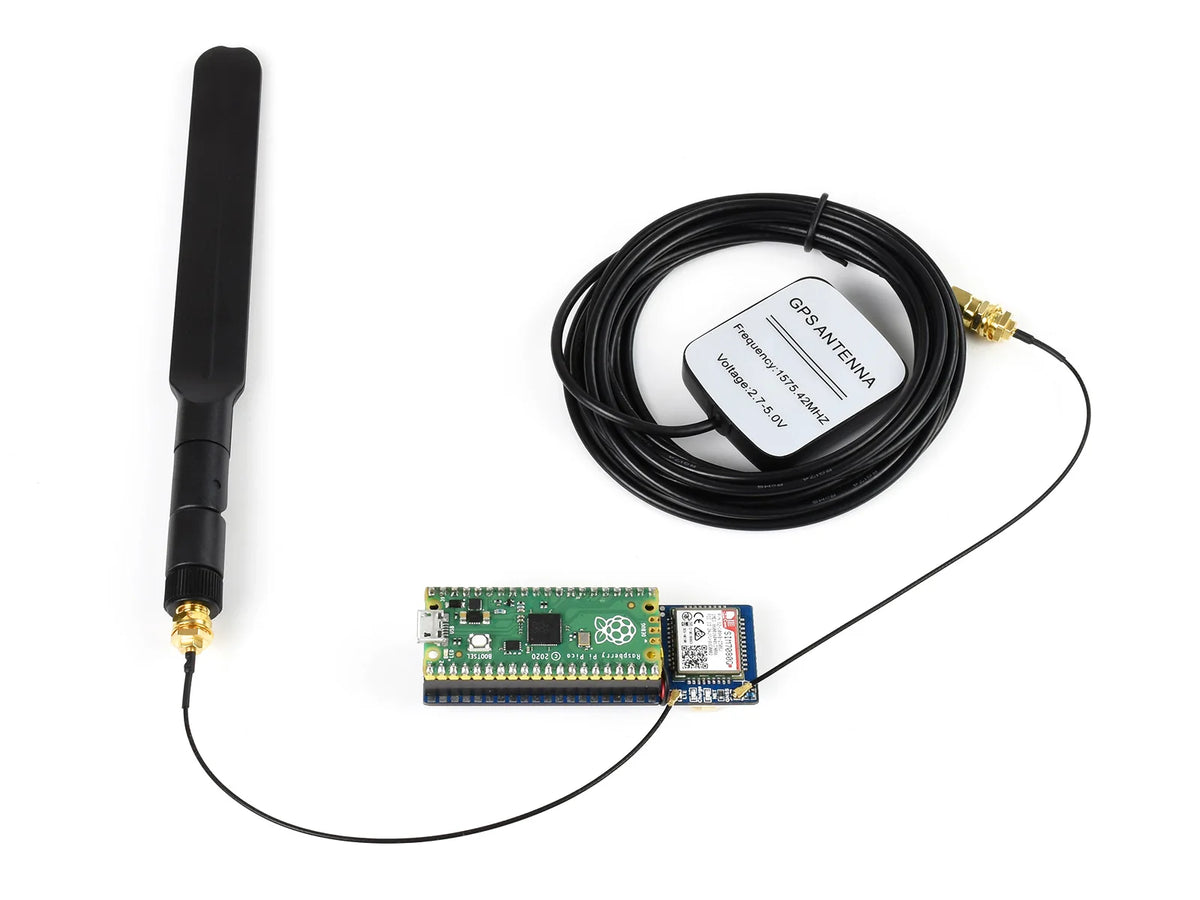

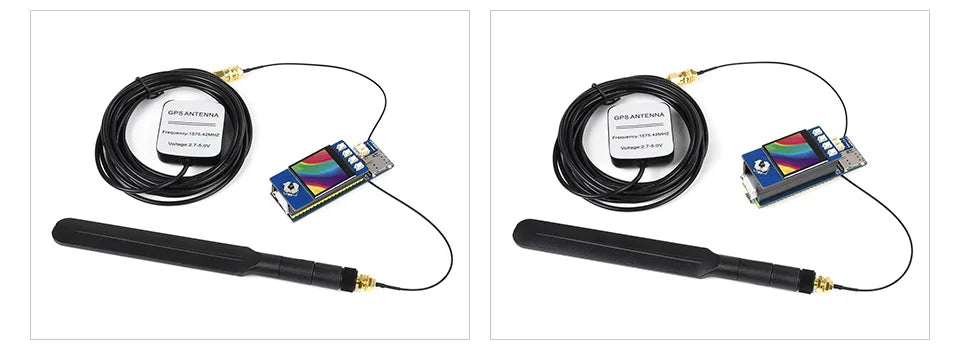

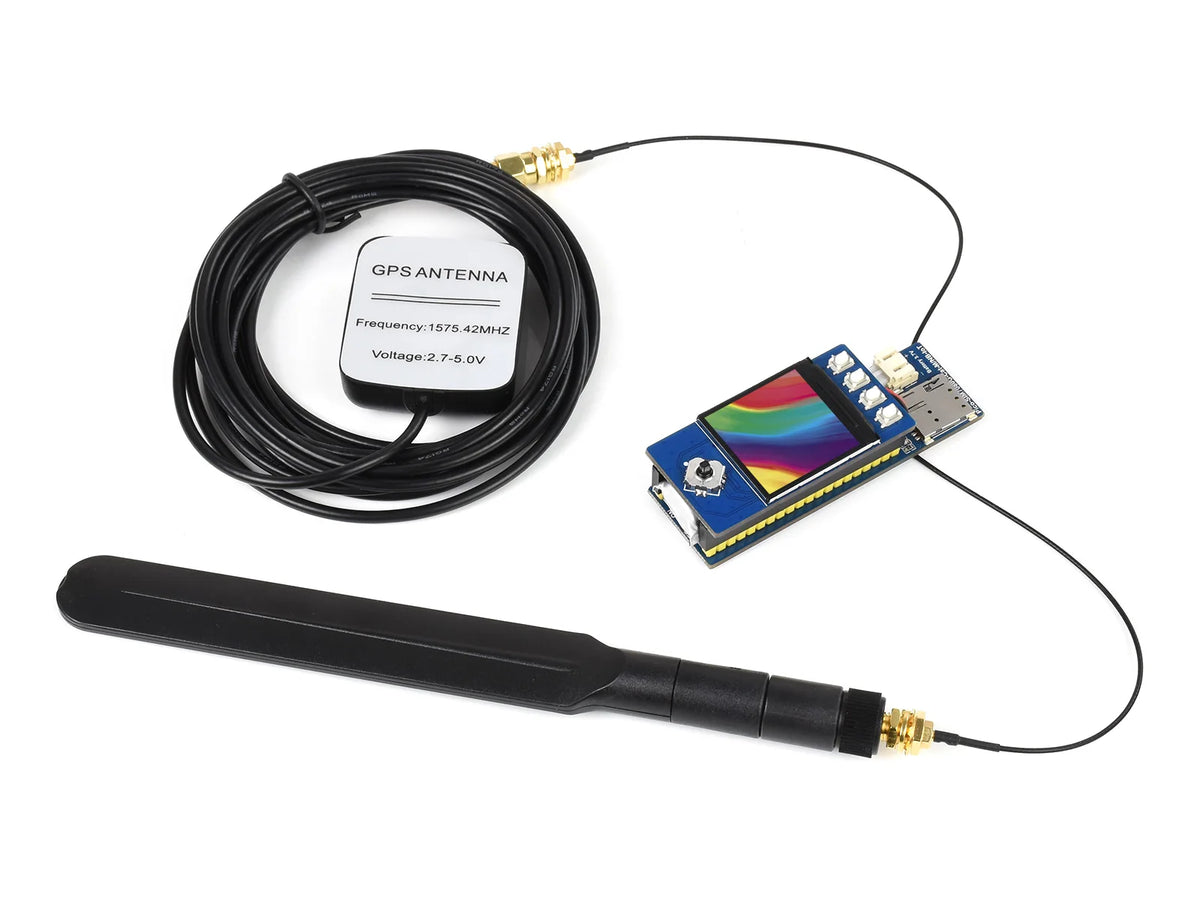

Connecting With Other Expansion Module And Antenna

Raspberry Pi Pico is NOT included.

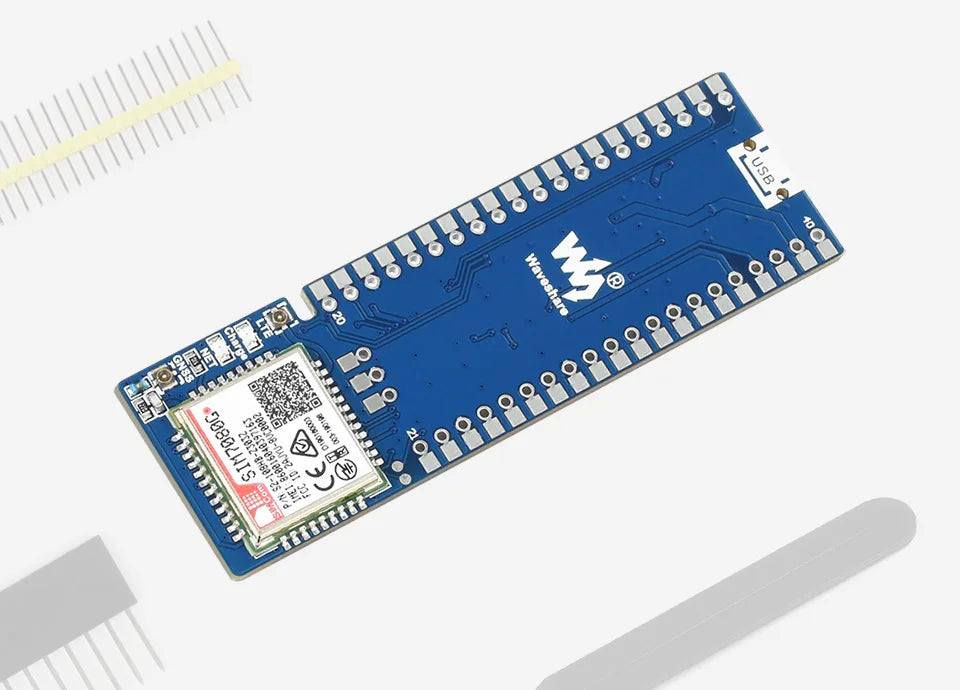

The pin headers are NOT soldered by default.

Global Band Support Of NB-IoT / Cat-M

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

Cloud Communication

Supports Communication Protocols Including: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT

GNSS Positioning Support

Supports GPS, GLONASS, BeiDou, And Galileo

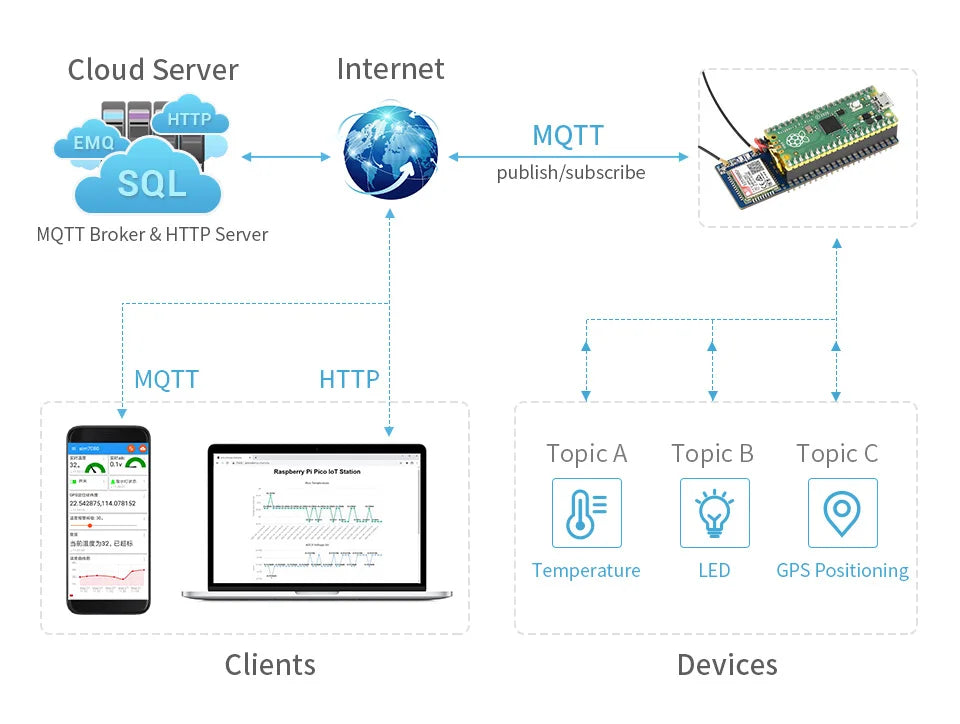

Application Example

While connecting to Internet via SIM7080G, the Raspberry Pi Pico will be able to send data to Cloud server by MQTT protocol,
making it possible for users to monitor the Pico in real time via smartphone APP or webpage.
