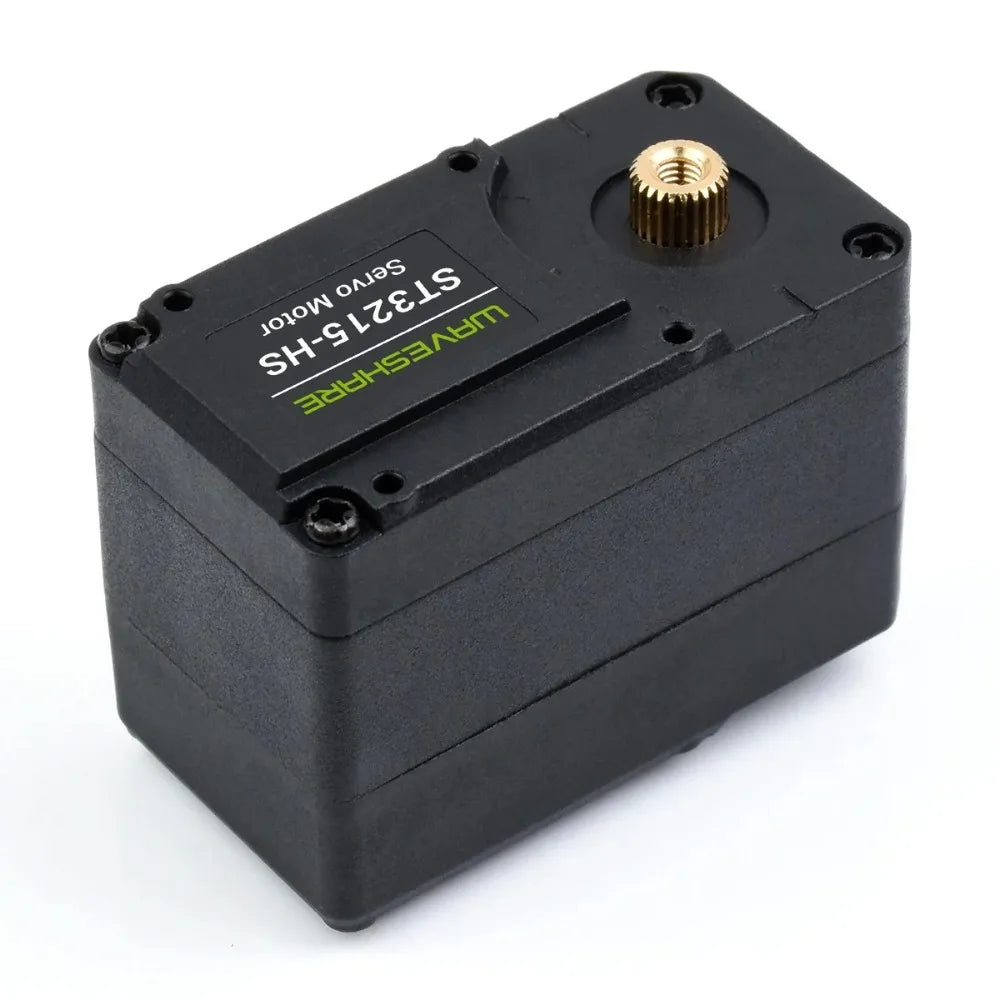

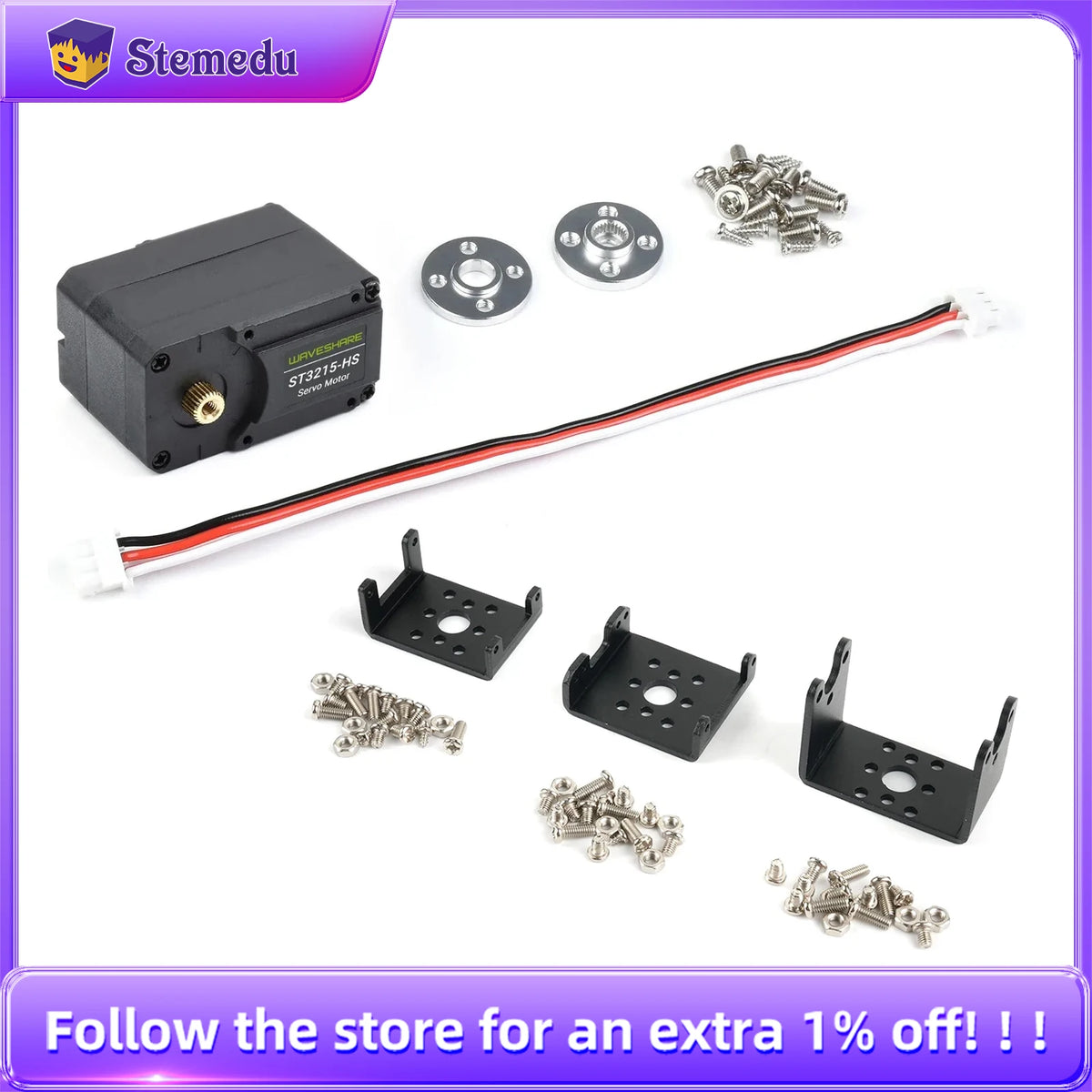

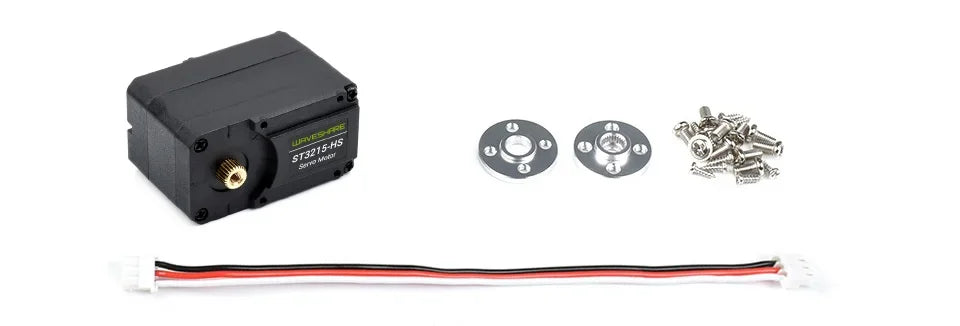

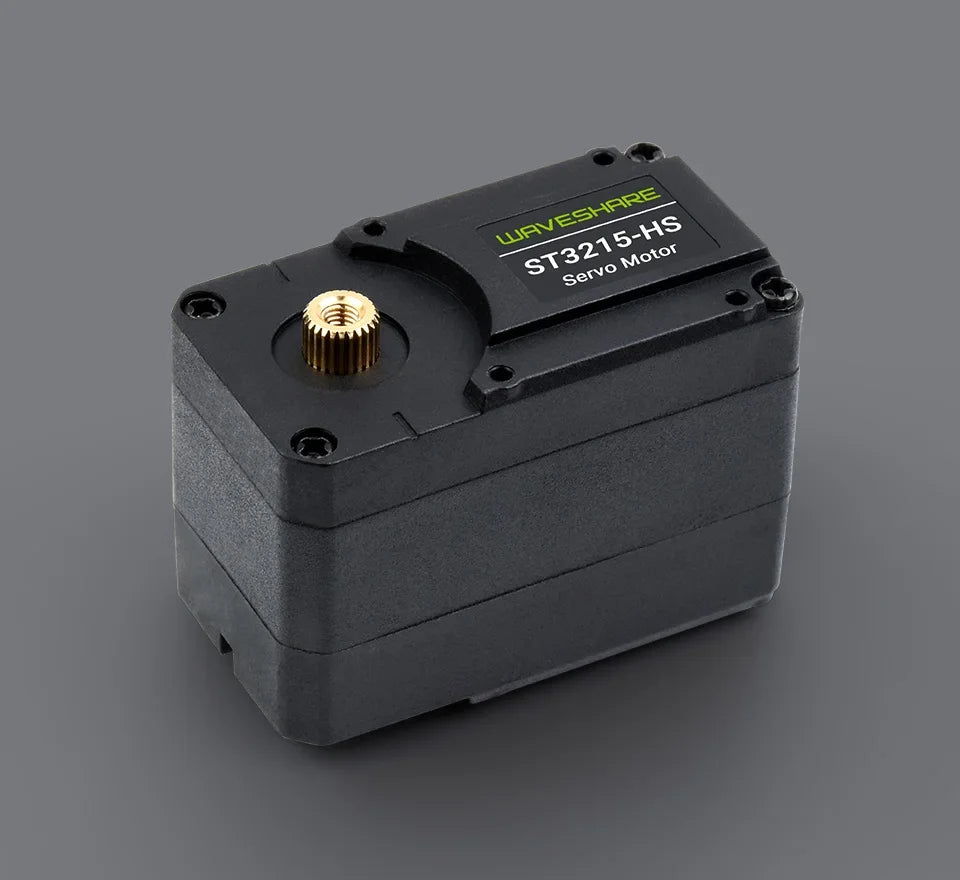

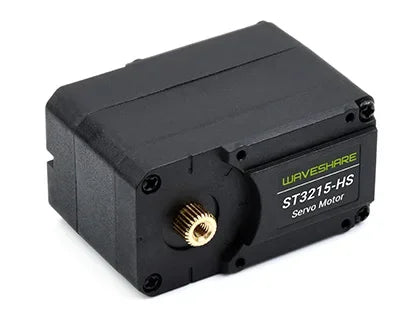

Waveshare ST3215-HS 20kg.cm Bus TTL Servo Motor 106PRM High Speed Large Torque With 360 Degrees High Precision Magnetic Encoder

Waveshare ST3215-HS 20kg.cm Bus TTL Servo Motor 106PRM High Speed Large Torque With 360 Degrees High Precision Magnetic Encoder

$121.92

$121.92 $0.00

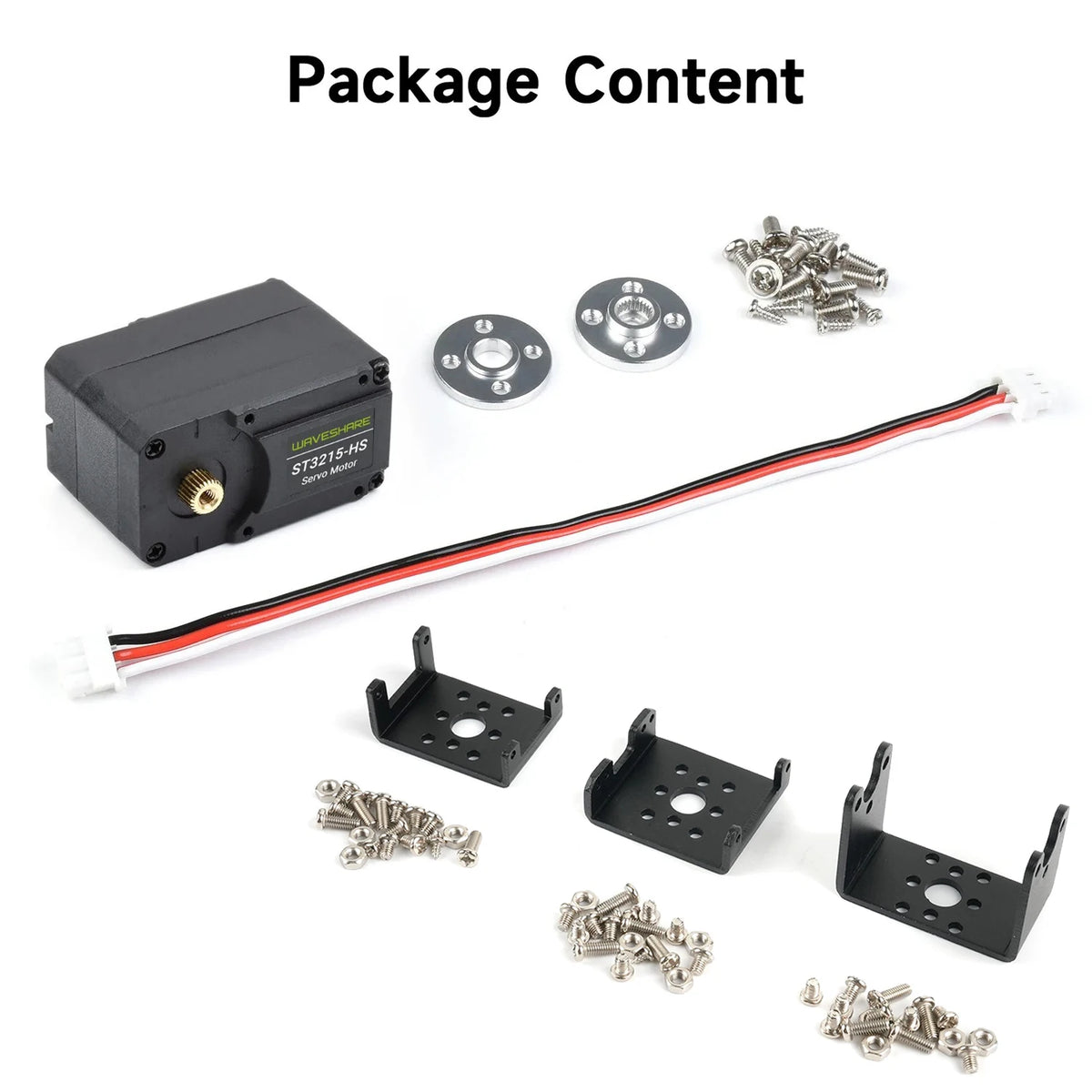

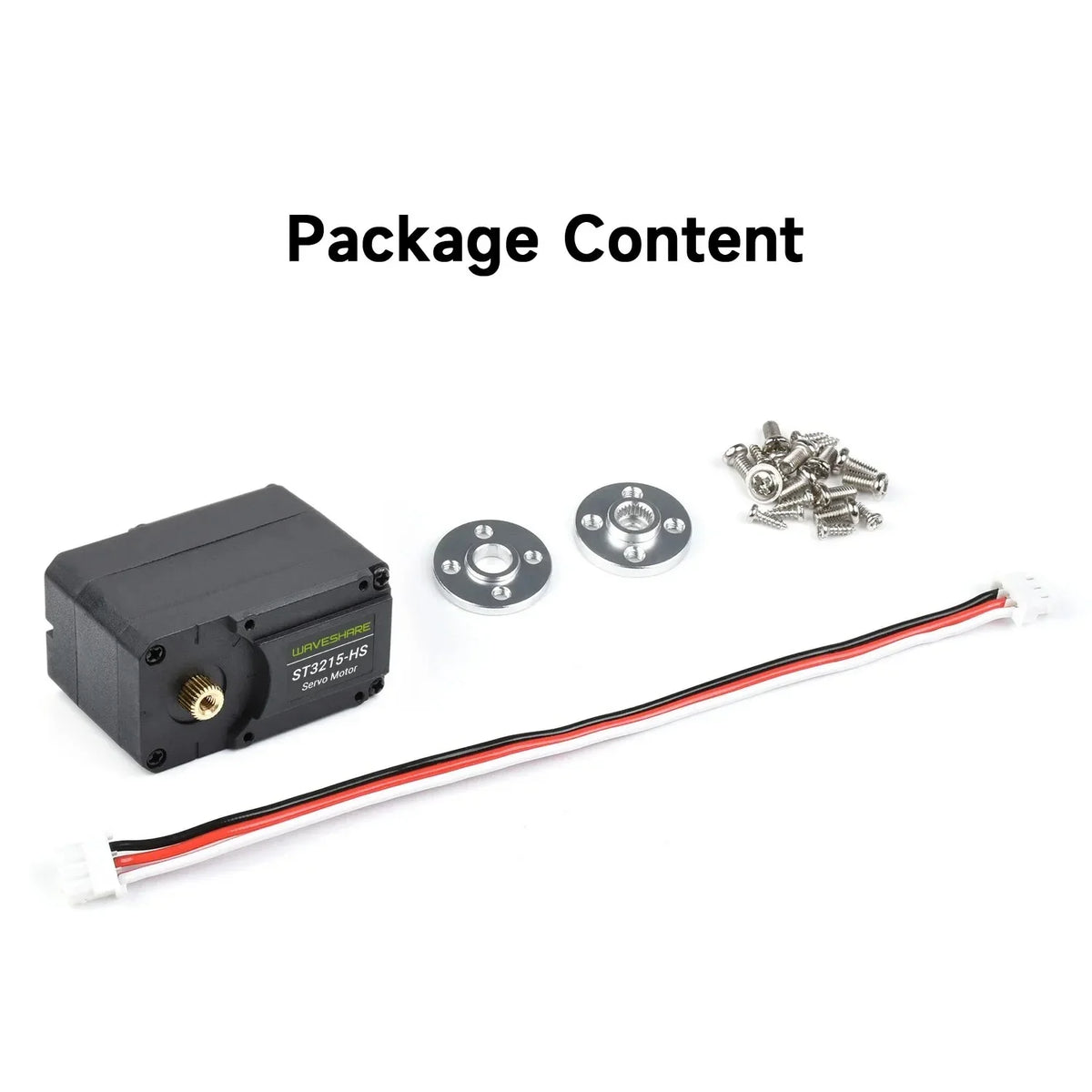

Description

SPECIFICATIONS

Brand Name: stemedu

Choice: yes

High-concerned chemical: none

MECHANISM LIMITED ANGLE: No Limit

Origin: Mainland China

POSITION SENSOR RESOLUTION: 360° / 4096

PRODUCT TYPE: ST3215-HS bus servo motor

ROTATION ANGLE: 360° (0~4095)

Recommend Age: 14+y

TORQUE: 20kg.cm@12V

semi_Choice: yes

DESCRIPTION

20kg.Cm Bus Servo Motor, 106PRM High Speed, Large Torque, With 360 Degrees High Precision Magnetic Encoder, Two-Way Feedback, Servo/Motor Mode Switchable

20kg.Cm High Speed Bus Servo Motor

Large Torque | 360° High Precision Magnetic Encoder | 106PRM High Speed

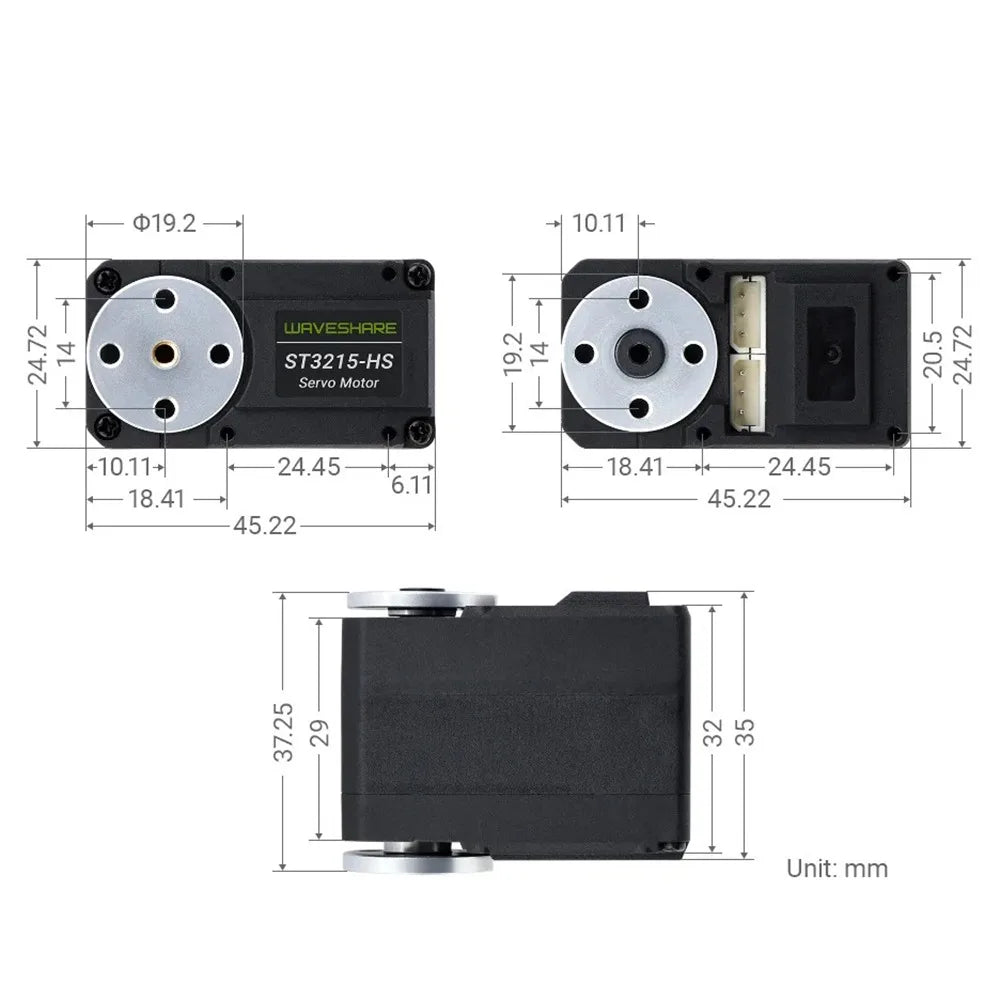

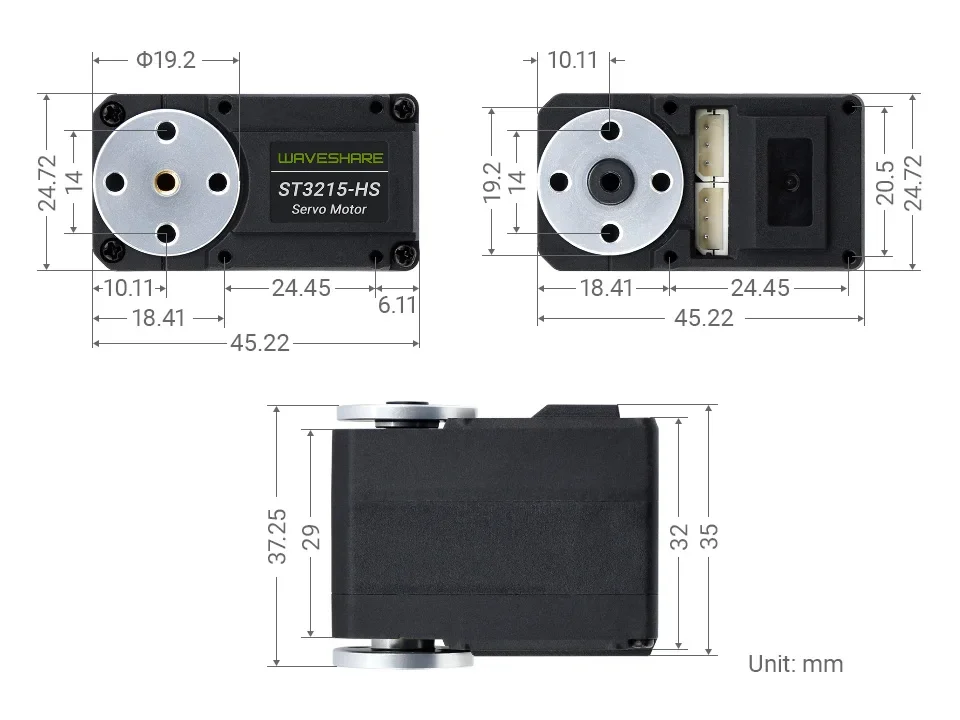

Specifications

PRODUCT TYPE	ST3215-HS bus servo motor
TORQUE	20kg.cm@12V
ROTATION ANGLE	360° (0~4095)
POSITION SENSOR RESOLUTION	360° / 4096
MECHANISM LIMITED ANGLE	No Limit
OPERATING VOLTAGE	6 ~ 12.6 V
GEAR	high precision metal gear
NO-LOAD SPEED	0.094sec / 60° (106RPM)
ENCODER TYPE	360° Magnetic Encoder
ID RANGE	1 ~ 253
BAUDRATE	38400bps ~ 1Mbps (1Mbps by default)
FEEDBACK	Position, Load, Speed, Input Voltage
NO-LOAD CURRENT	240 mA
LOCKED-ROTOR CURRENT	2.4A
KT	8.3kg.cm/A

Application Examples

Servo motor will provide various feedback like position, speed, torque lock, working mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control.

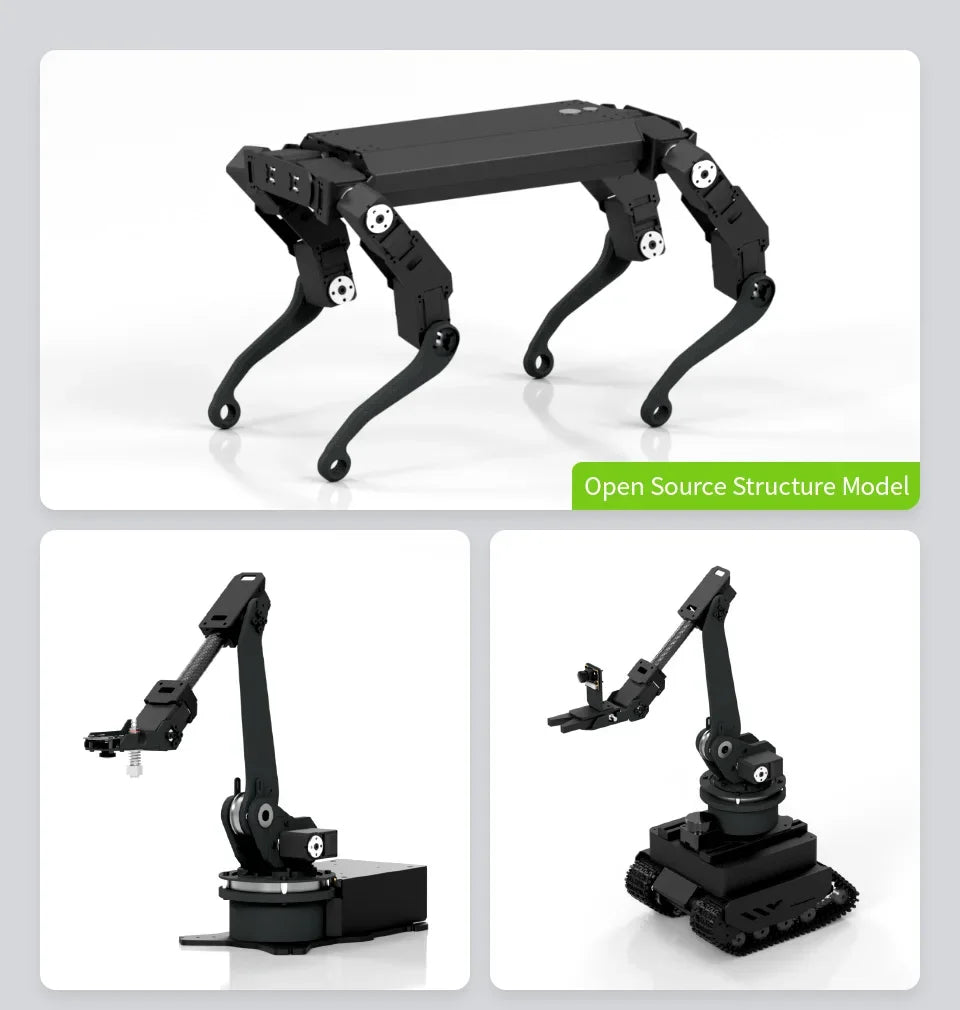

Ideal choice for building wheeled robots, 3D printers, etc. that require accurate closed-loop speed control or stepping control; it can also be used for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servo motors. (This product provides the open source model of the quadruped robots as shown in the picture below.)

* images here are for reference ONLY

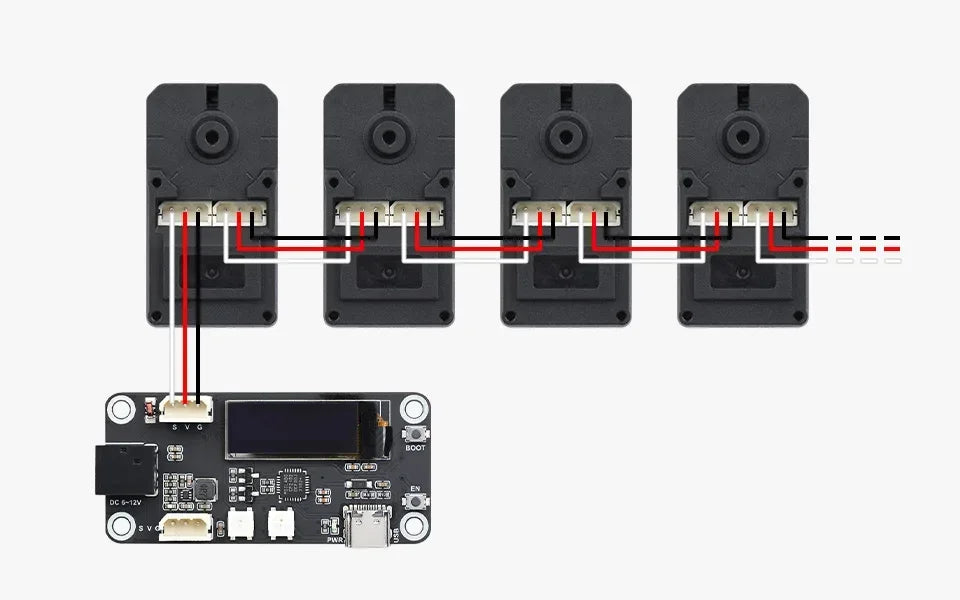

UART Serial Bus Control

Allows Controlling Up To 253 Bus Servo Motors At The Same Time

Note: though one channel UART is able to control up to 253 bus servo motors, due to the high power of the servo motors, it is necessary to consider whether the power supply solution is enough when using too many servo motors. For reference only, the servo driver board is NOT included

Large Torque, High Speed

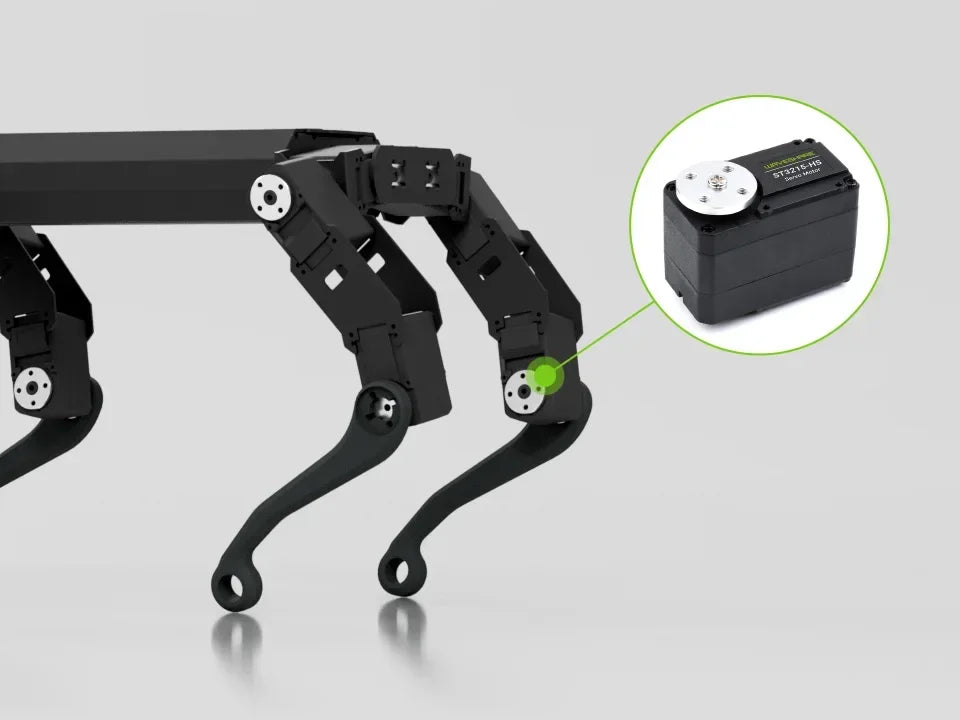

Up To 20kg.Cm Torque On 12V Voltage, Suitable For Building Quadruped Robots,
Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servo
Motors With Large Torque And High Speed Performance

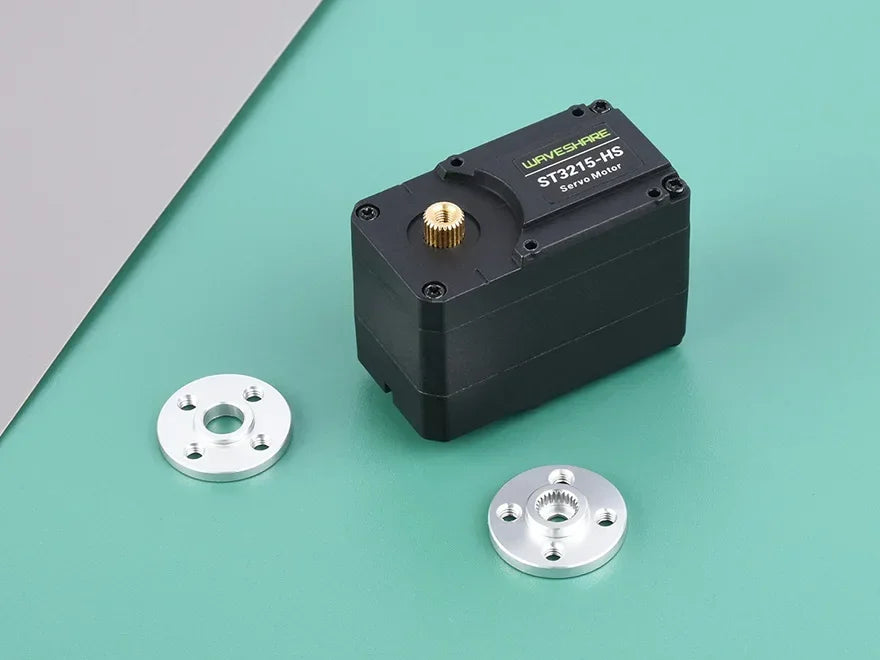

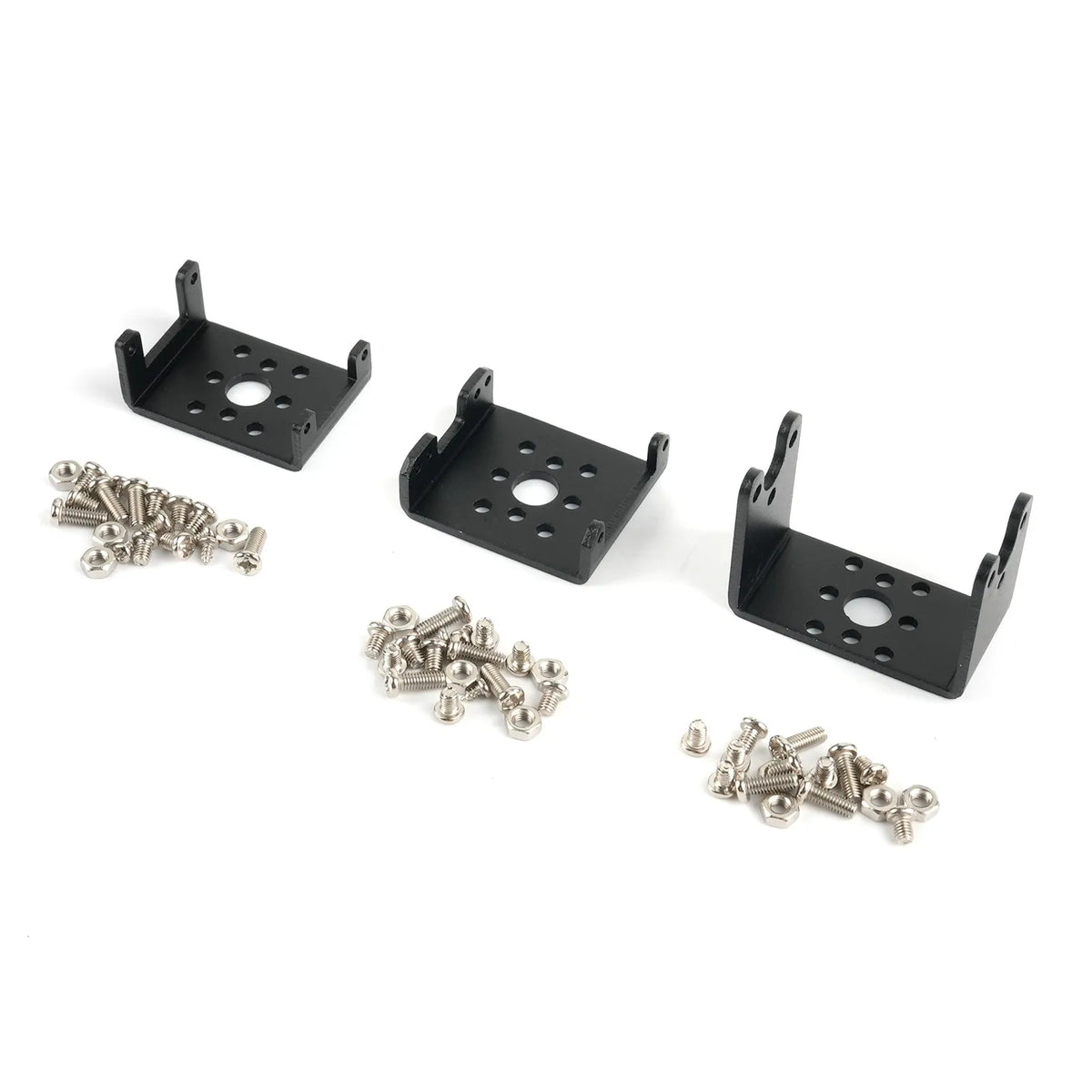

Supports Installing Flat Key Shaft Flange

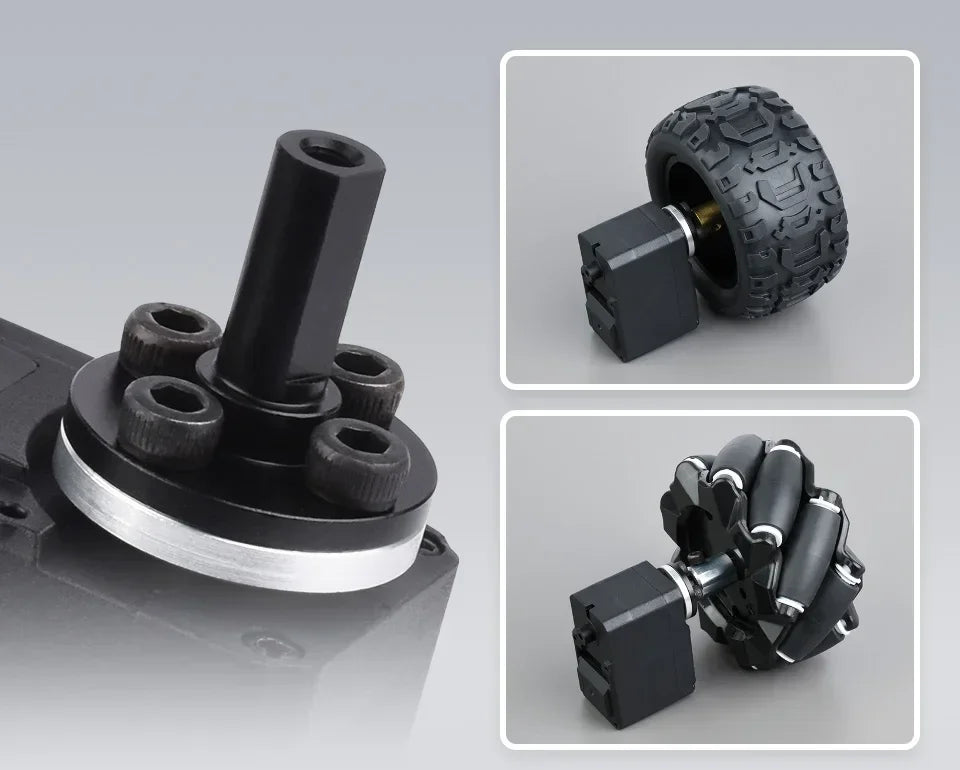

With The Flat Key Shaft Flange Designed For The Serial Bus Servo, It Is Possible
To Drive Various Transmission Parts

* for reference only, the flat key shaft flange and wheels are Not included.

360° Magnetic Encoder
High Precision, Longer Lifetime

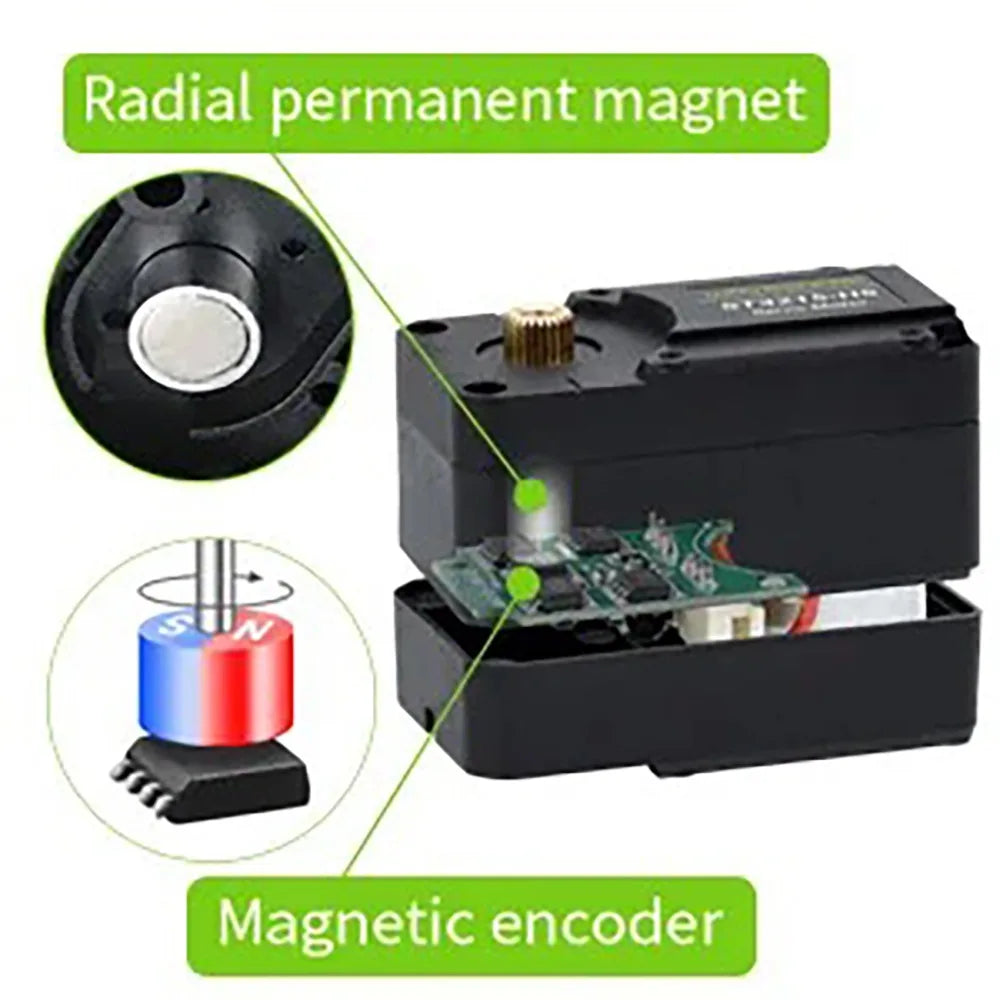

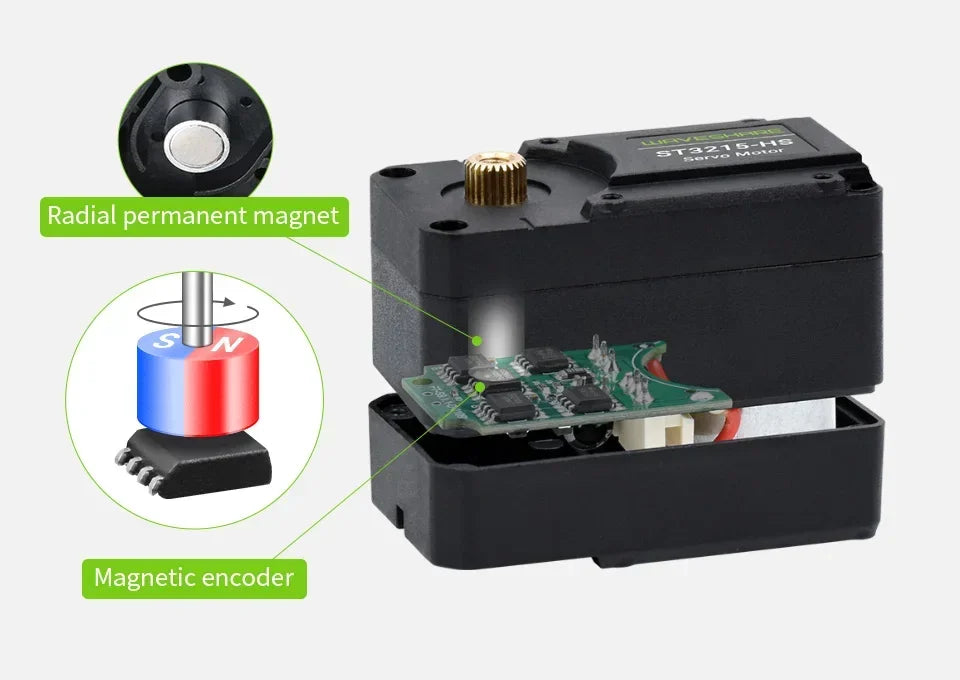

Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the potentiometer, the angle is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the motor is effectively extended.

Acceleration Start-Stop Function

The Speed And Acceleration Values Are Settable To Make The Motion Effect Softer

Actual Effect

Motion Effect Diagram

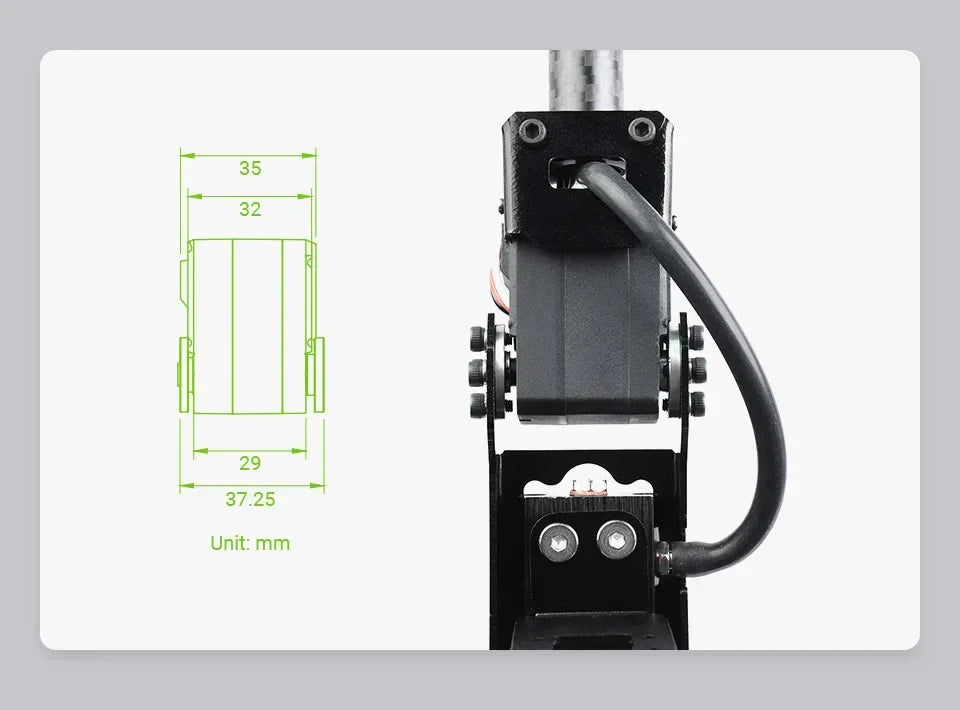

Compact Structure Design

The case adopts higher intensity engineering plastics, dual shaft and low profile design, shortening the plane spacing of the double-shaft servo wheel, and the overall structure is more compact, which can make the appearance of the product more beautiful.

One Button To Calibrate The Middle Position

360° Installation At Any Position, One Button To Set The Current Position As Middle Position. Easy To Install

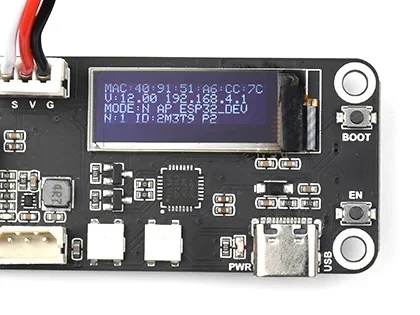

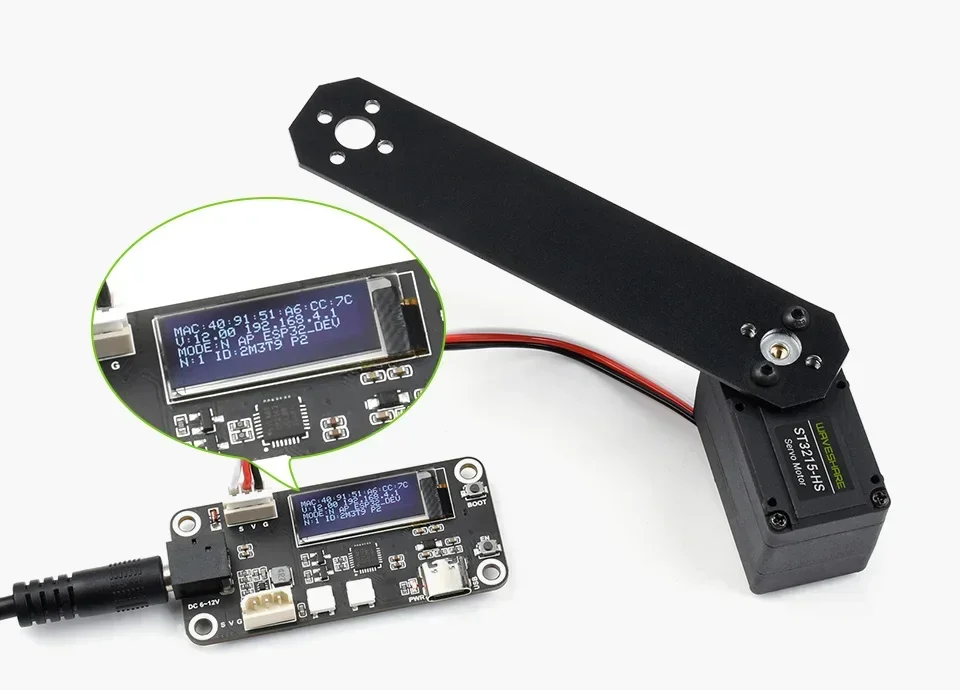

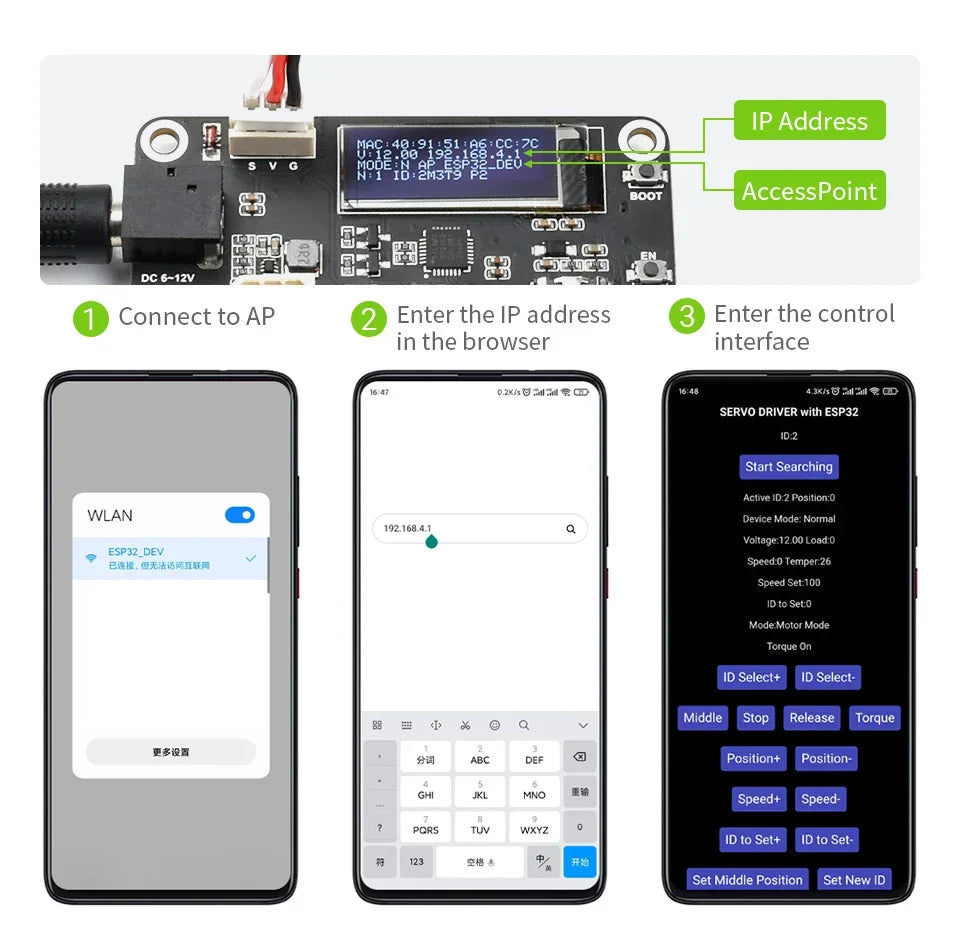

1. In the default program, a hotspot will be created automatically after the servo driver board is turned on. Use your mobile phone to connect to this hotspot, open the browser, and enter the IP address to enter the control interface.

2. Click Release to unlock, then turn the servo motor to the middle position where you need to set

3. Click Set Middle Position then comfirm.

4. Turn the servo motor to any angle, then click Middle, and the servo motor will automatically return to the middle position initially set.

Two-Way Feedback

The Servo Motor Will Provide Various Feedback Like Position, Load, Speed,
And Input Voltage In Real Time

* images here are for reference ONLY

Dual Modes: Servo Or Motor

Precise Rotation Angle Control On Servo Mode

Continuous Rotation On Motor Mode

* images here are for reference ONLY

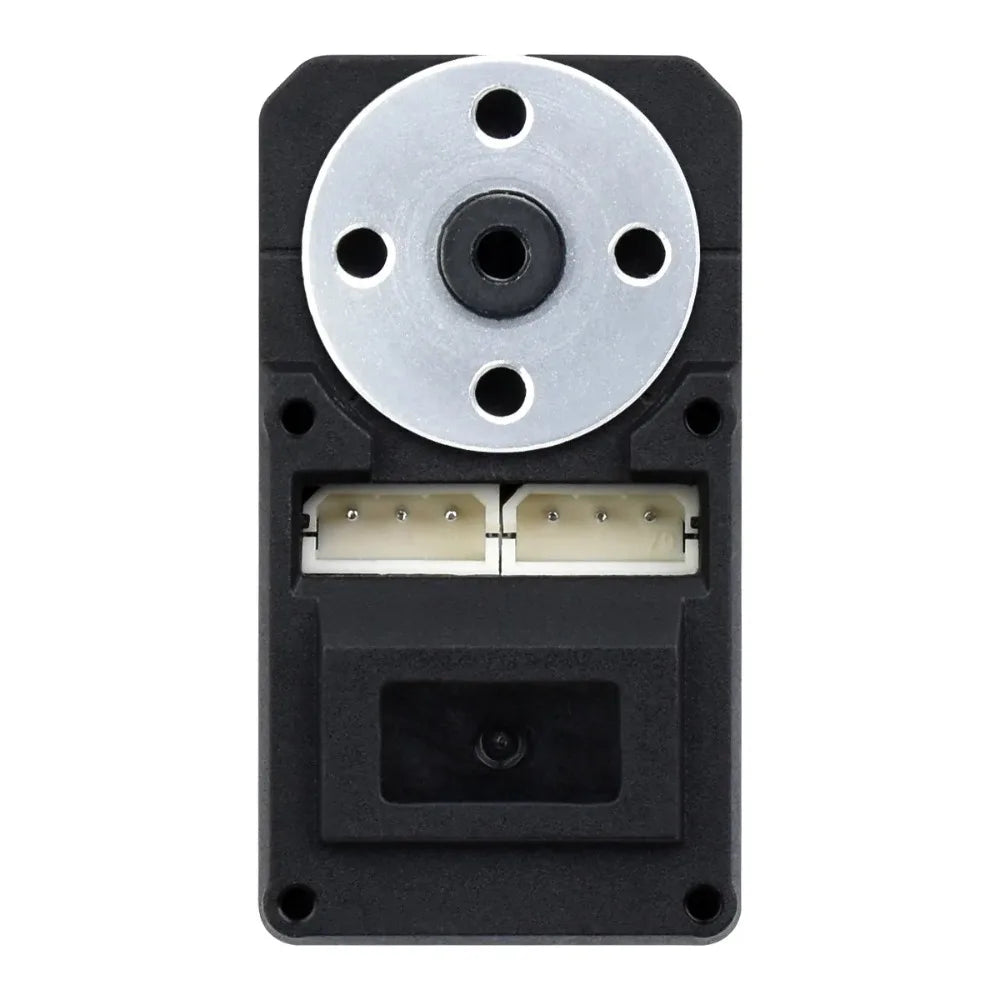

Details Introduction

Nylon and fiberglass case
Improved heat-resistance, size stability, rigidity, and mechanical performance

High strength aluminum servo wheels
Using T6061 aluminum alloy, good corrosion-resistance

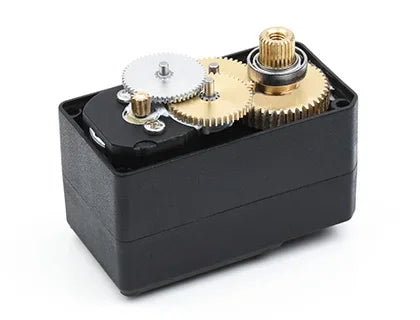

High precision copper and steel gears
Ingenious combination of the two, lower operating noise, better stability and mechanical performance

Open Source Control Program

We provide the open-source web control demo of the servo driver board and a secondary development tutorial, which can be directly used for remote setting and remote control of the servo motor. At the same time, we also provide a 3D model for you to build your own project quickly
