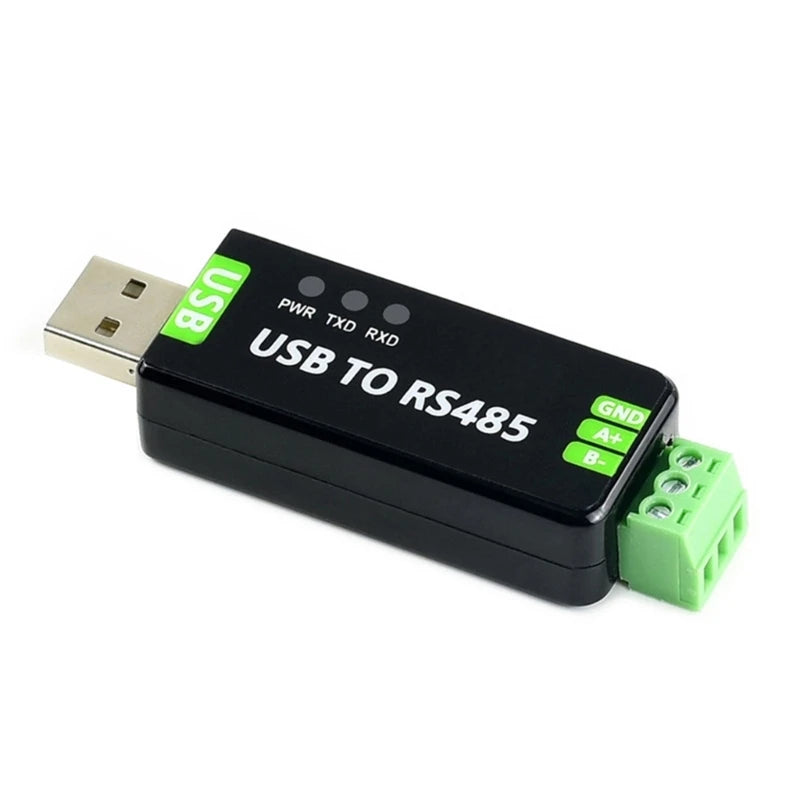

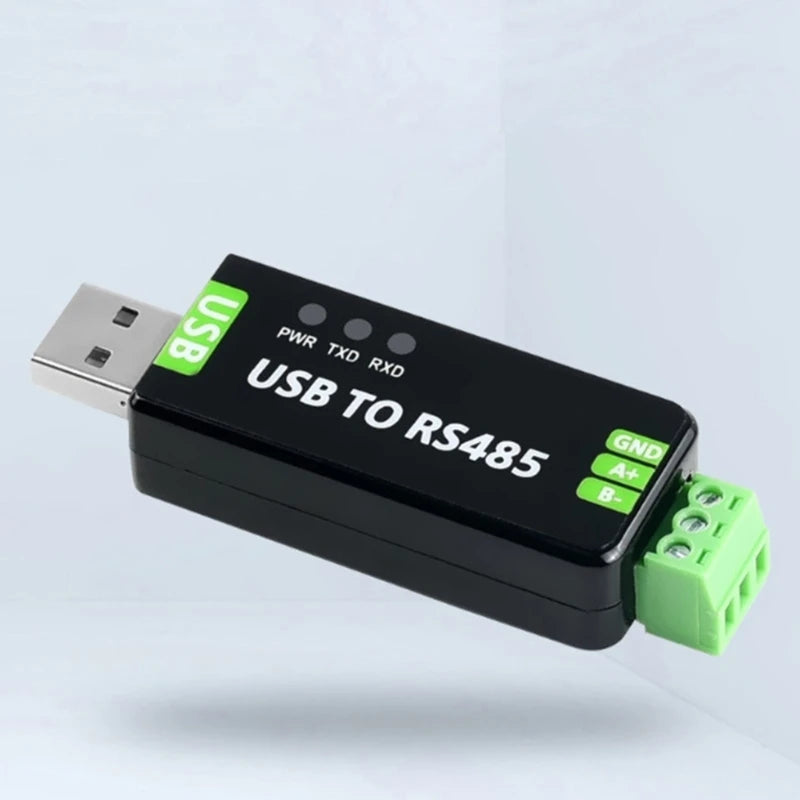

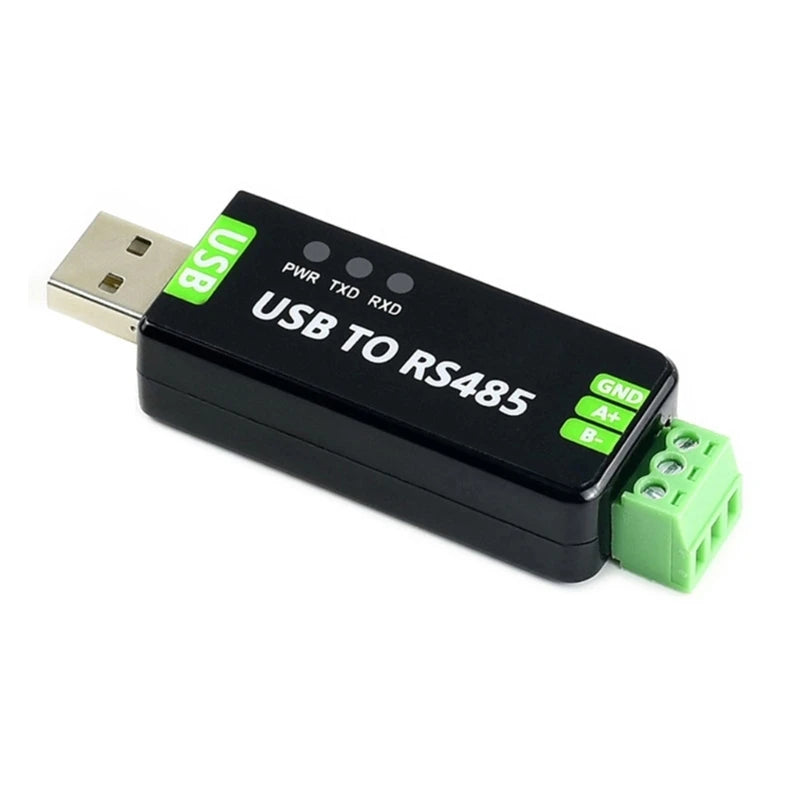

SPECIFICATIONS

Features:
OOTDTY
brand new and high quality
Support USB to R8485 communication.
Adopt original FT232RL, high speed communication is stable, reliable and compatible.

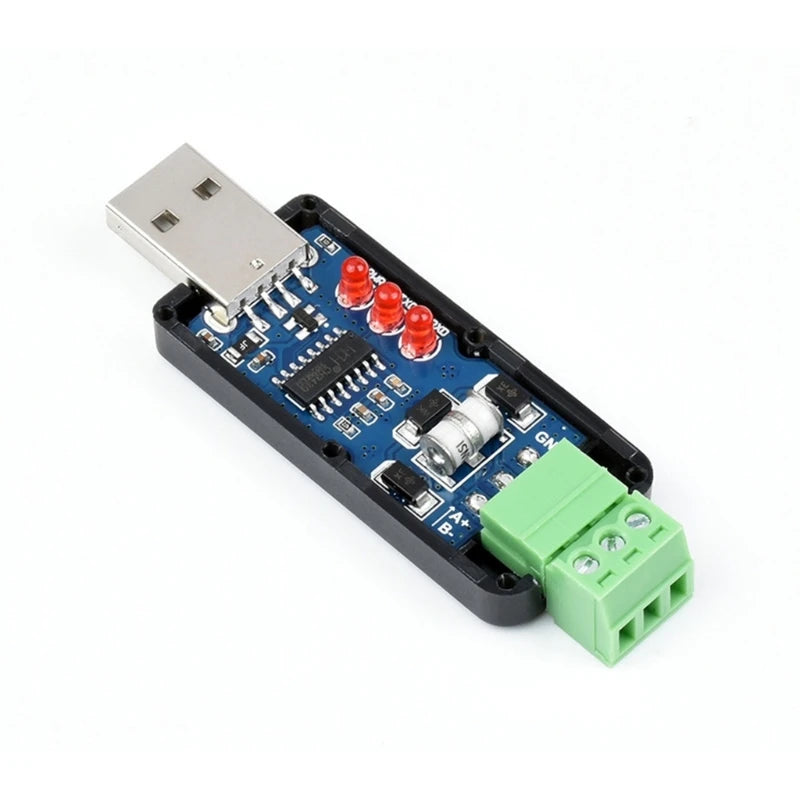

On-board TVS transient suppression tube; can effectively suppress and transient in the circuit, protection and anti-static.
Onboard self-recovery and protection diode ensure stable current and output, prevent overcurrent and overvoltage, and improve impact resistance.
External 3 L indicators for easy viewing of power and transmission and reception

Specifications:

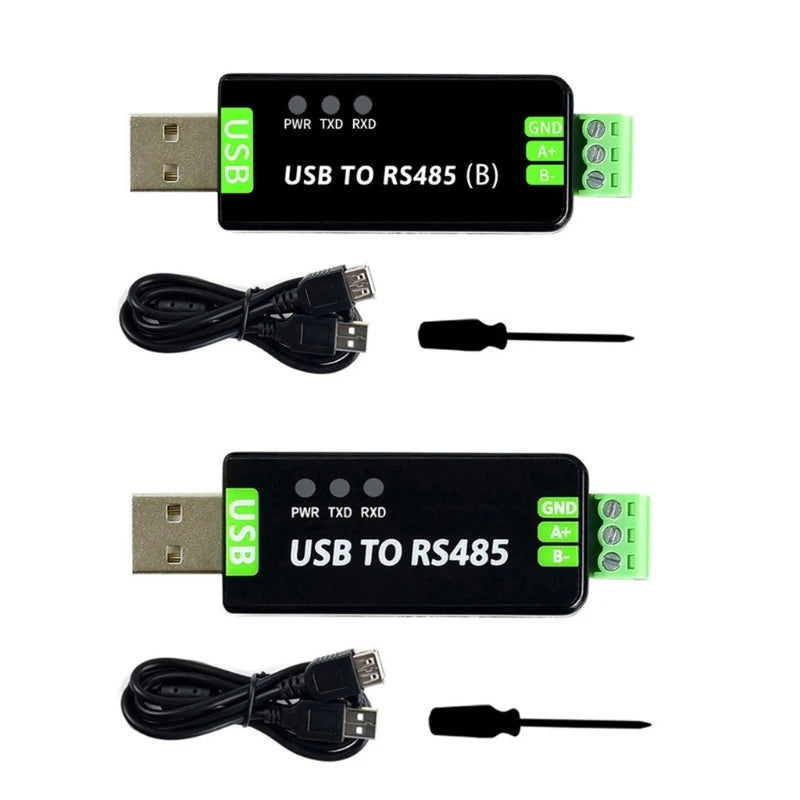

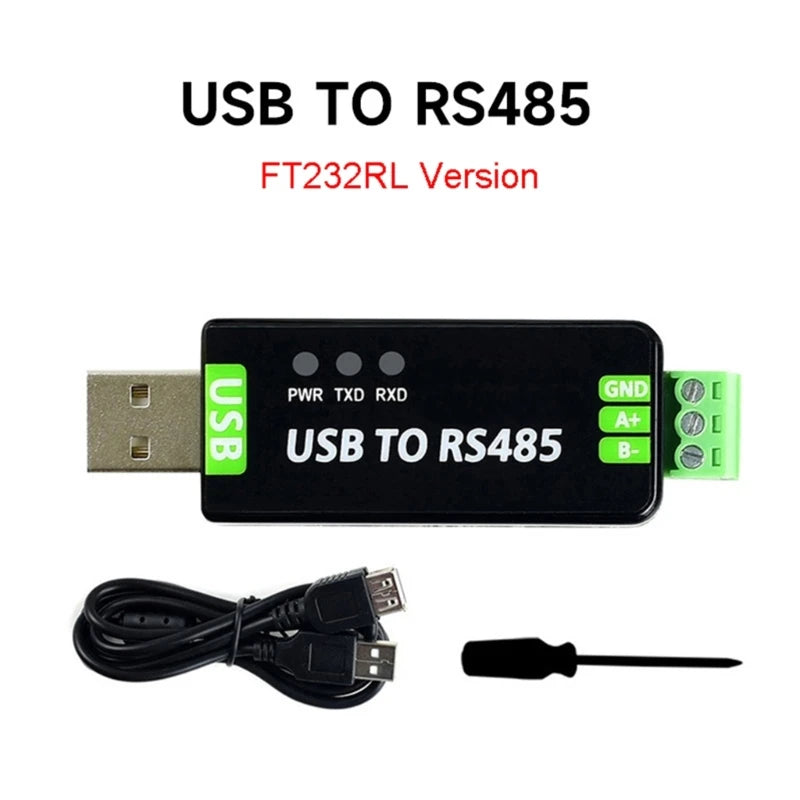

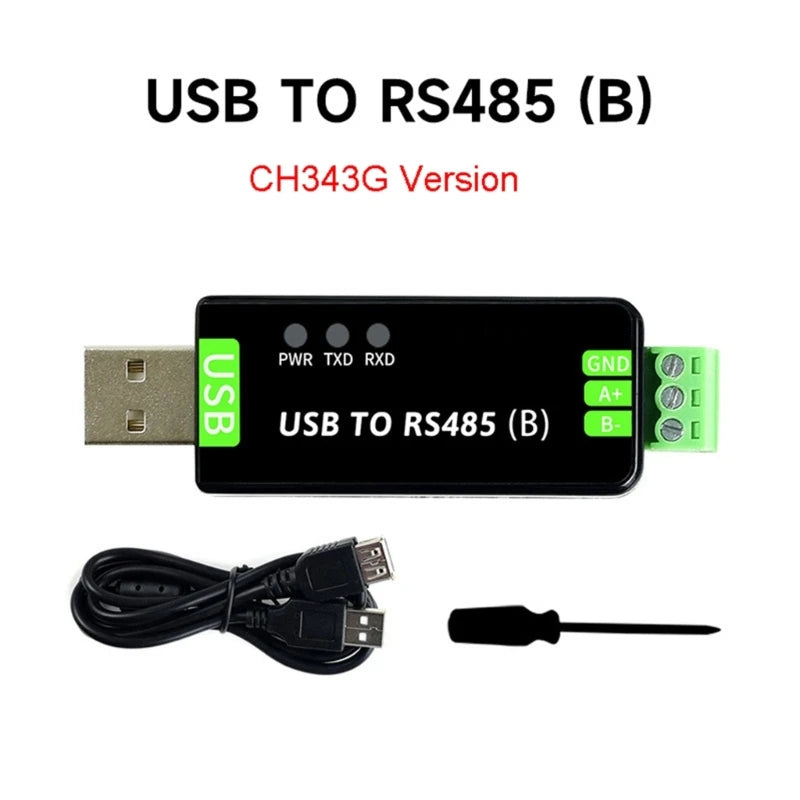

CH343G version, FT232RL version (optional)
Communication speed: 300-921600ps,
Host USB
Device RS485
USB
Working level: 5V
form: USB-A type
protection: 200mA self-recovery ESD static protection.
Transmission distance: about 5 meters
RS485

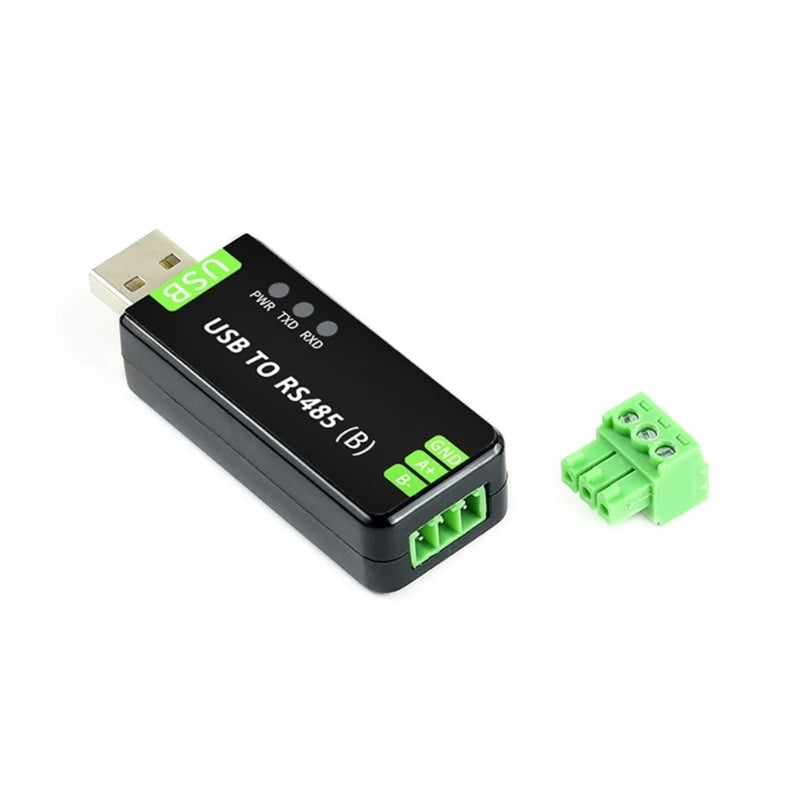

form: terminal block
pins: A+, GND
Direction control: hardware automatically determines and controls data transmission direction
protection: Provide 600W protection, and 15KV static protection (onboard 120R resistance).
Transmission distance: about 1200 meters (at low speed)

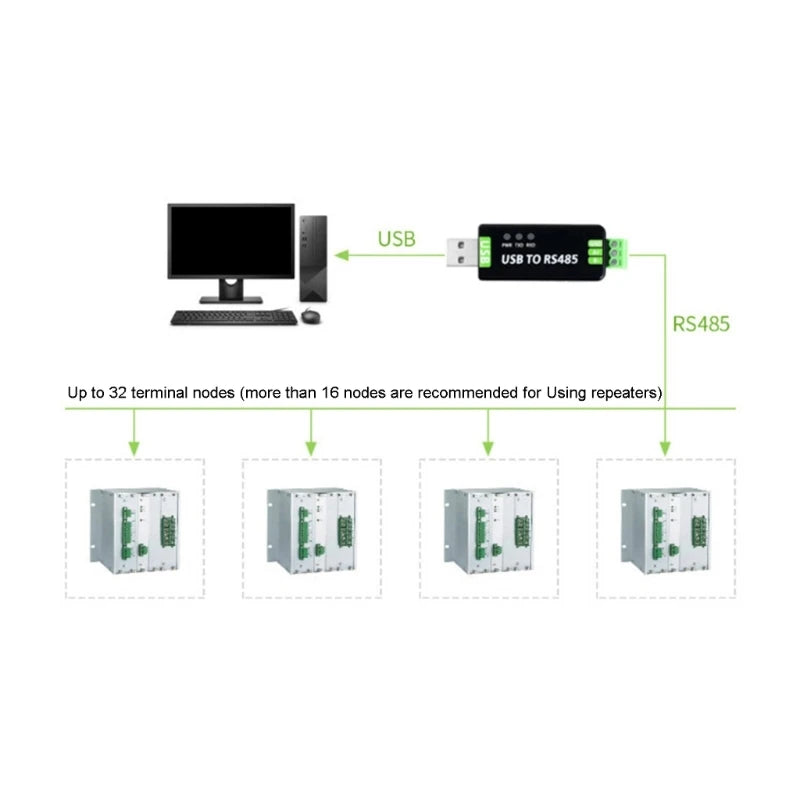

Transmission up to 32 nodes in point pairs, more than 16 nodes are recommended to add repeaters),
light:
PWR: Power to USB, red light when detected
TXD: Send light, when the data is sent from the USB port, it lights up red.
RXD: light, when the data is sent back from the device it lights up red.

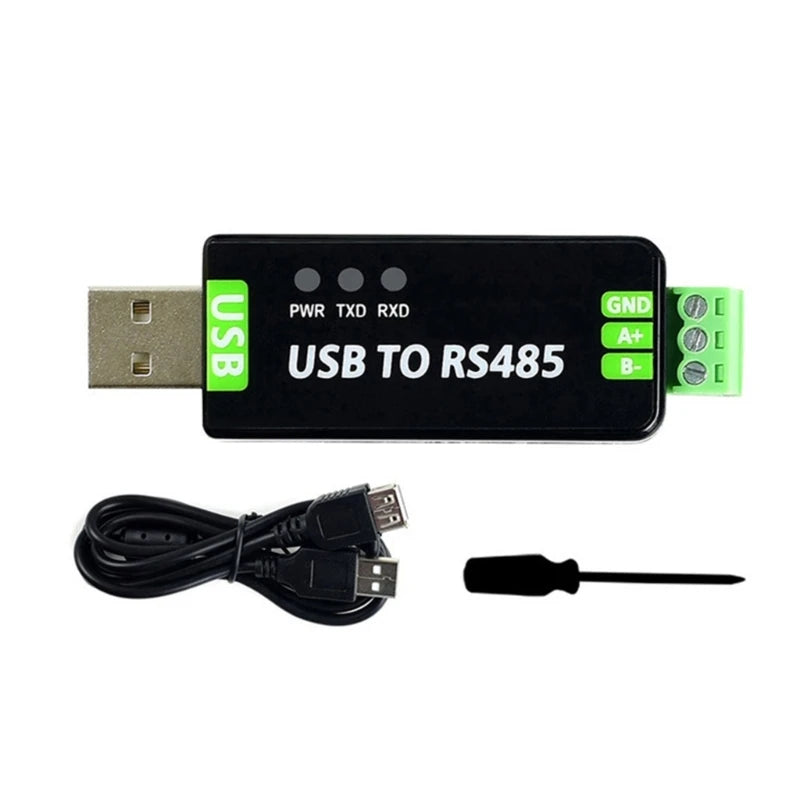

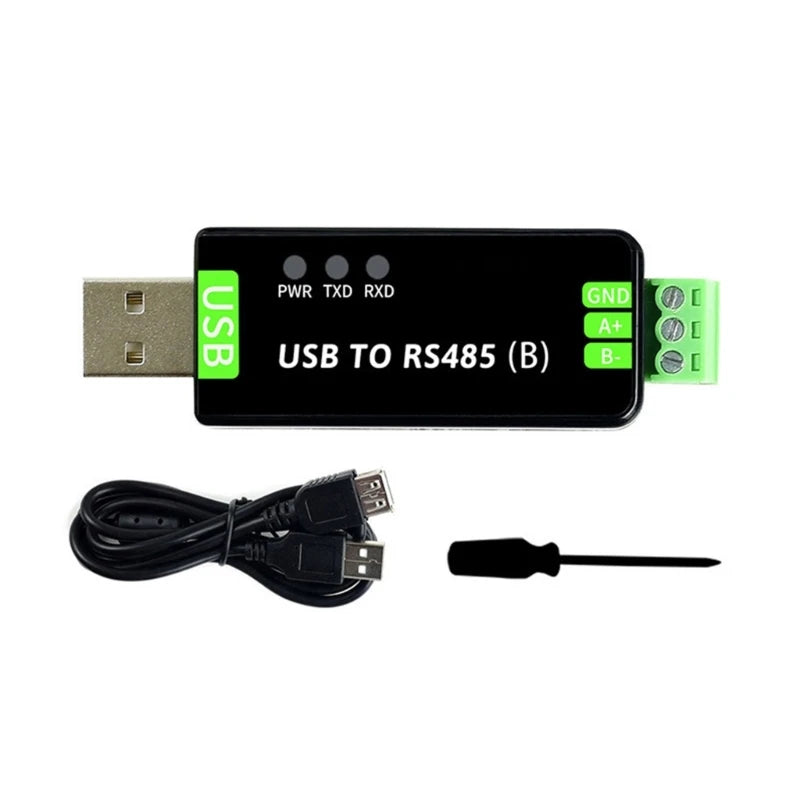

Package Includes:
1 USB to RS485 Converter

Note:
No retail package.

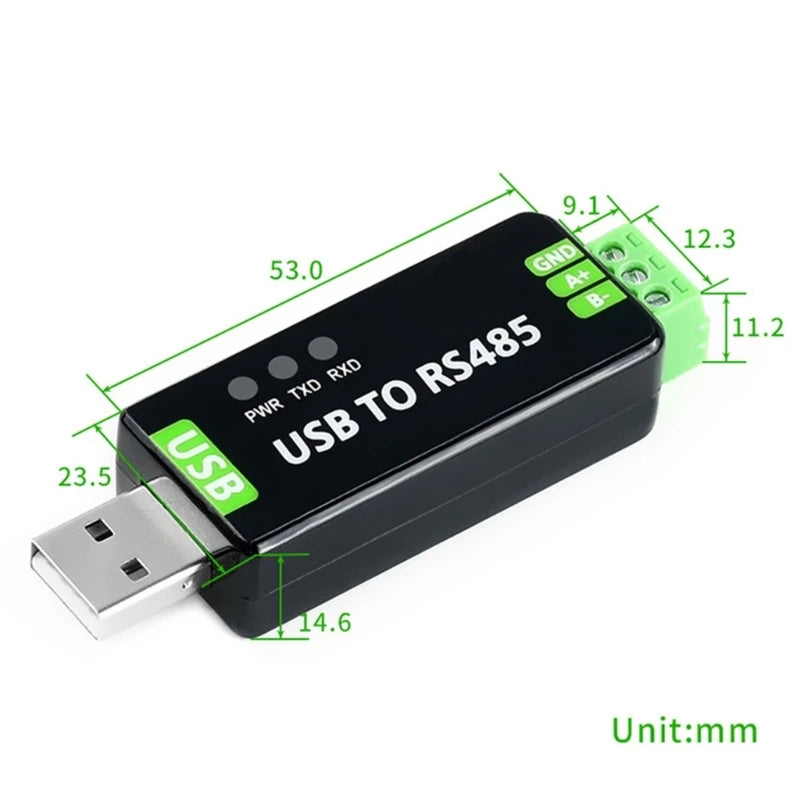

Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
