WCS1700/1800/1600 Hall Current Sensor Adjustable 35A/70A/100A Short Circuit Overcurrent Protection Module

WCS1700/1800/1600 Hall Current Sensor Adjustable 35A/70A/100A Short Circuit Overcurrent Protection Module

$22.68

$22.68 $0.00

Color WCS1700-70A WCS1800-35A WCS1700-70A 1 WCS1600-100A WCS1600-100A 1 WCS1800-35A 1

Description

SPECIFICATIONS

Brand Name: SZYTF

Choice: yes

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Switching Transducer

Theory: Hall Sensor

Type: Biosensor

Use: Other

is_customized: Yes

semi_Choice: yes

Product information:

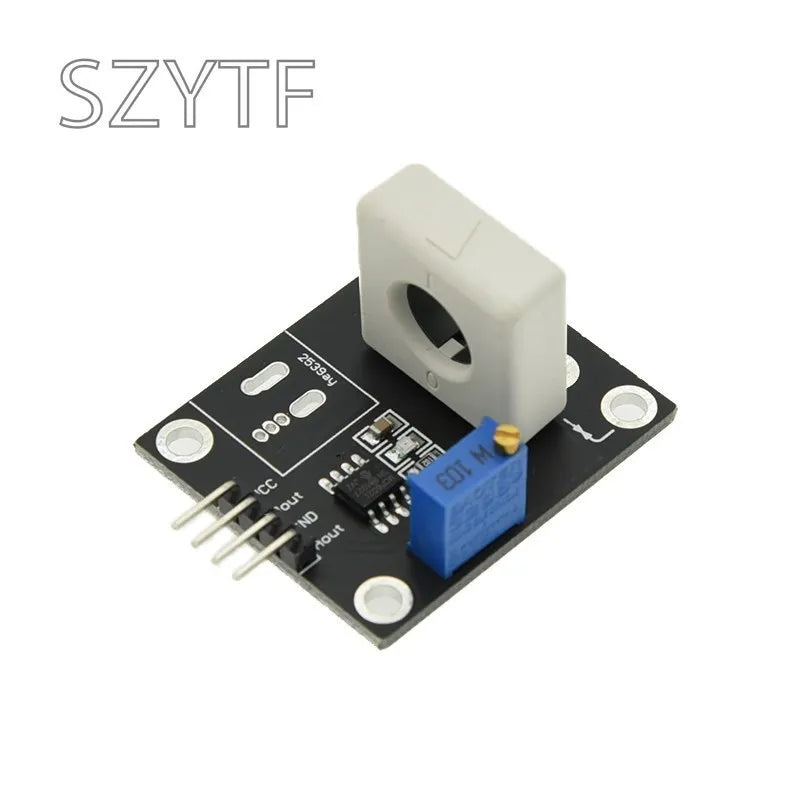

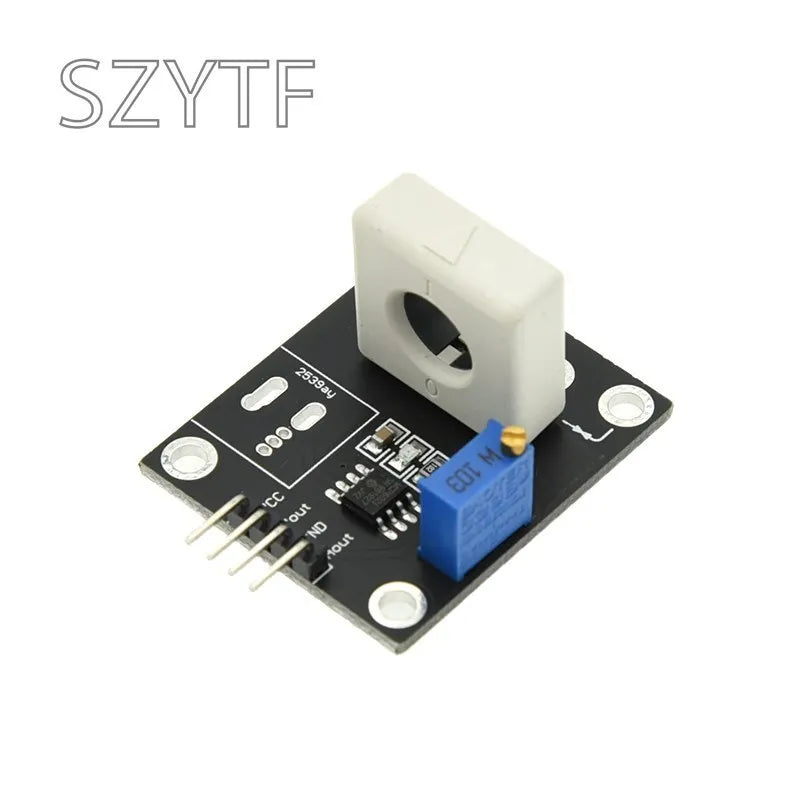

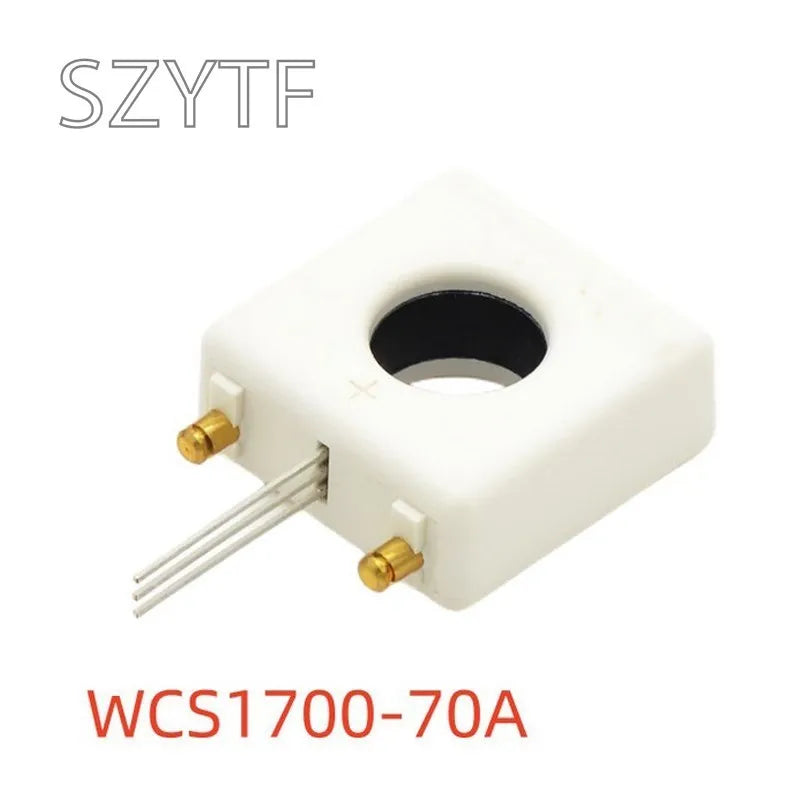

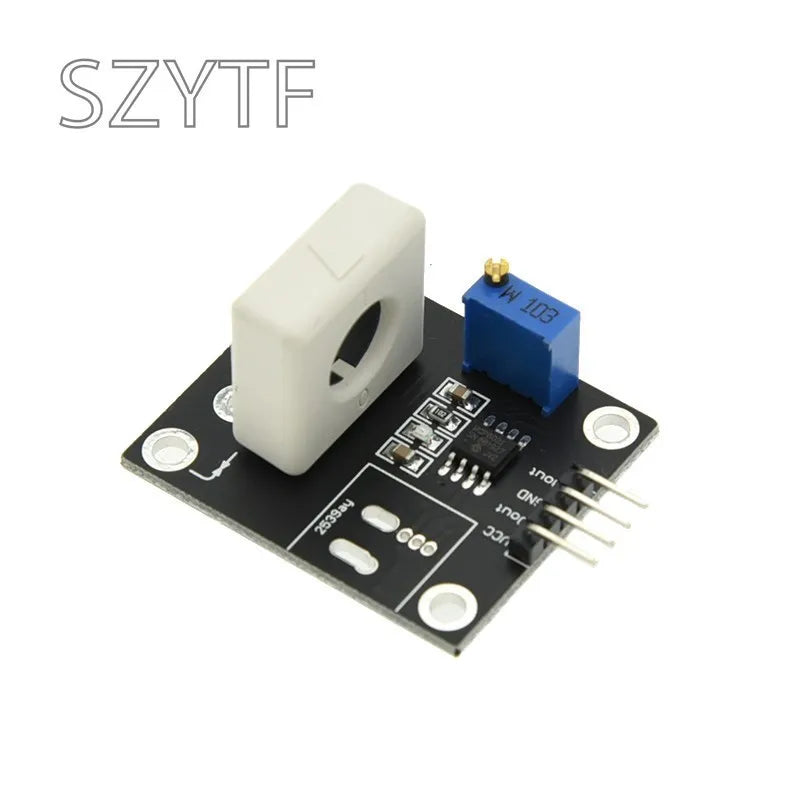

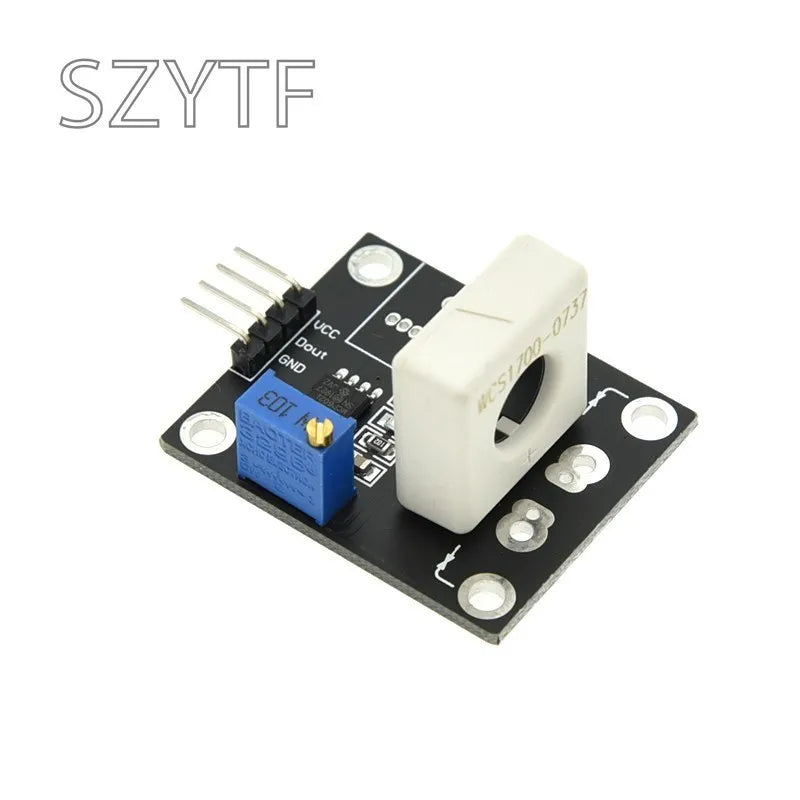

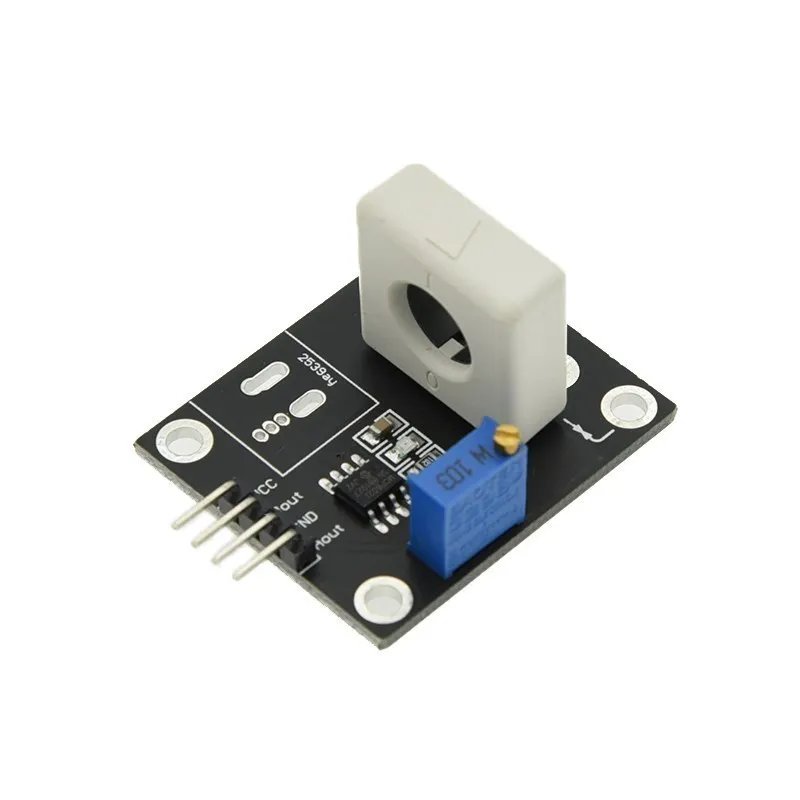

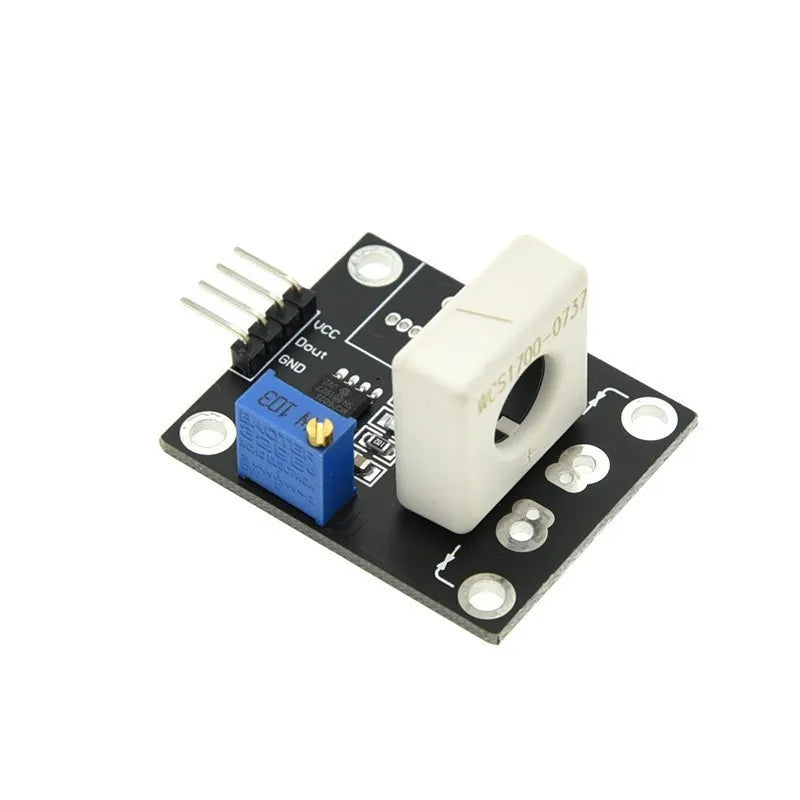

Product Name: wCS1700 Overcurrent Detection Sensor Overcurrent/Short Circuit Protection Detection Module Product Features

1. Dimensions: length 37mmX width 31mmX height 16.5mm

2. Main chip: LM393 op amp, wCS1700

3. Operating voltage: DC 5V

Features:

1. With signal output indication;

2. Wide current detection range DC±70A AC: 50A; 3. Current detection resolution 32mV/A;

4. Output overcurrent signal indication;

5. The critical point of overcurrent signal setting is adjustable, and the setting resolution is 3A; 6. With mounting holes, it is convenient for firmware installation;

7. The sampling current converts the analog signal output, which can be connected to ADC, TTL level signal output, and can be connected to the IO port of the single-chip microcomputer for control.

8. The output signal is: analog signal and level signal.

Application:

Smart car motor overcurrent detection, locked-rotor protection current detection, short-circuit protection detection, demonstration teaching experiments, etc., to facilitate secondary development;

The maximum detection current can be selected: ±2A/±5A/±7.5A/±20A/130A/±35A/±60

A/±75A/±100A/±150A/+200A
