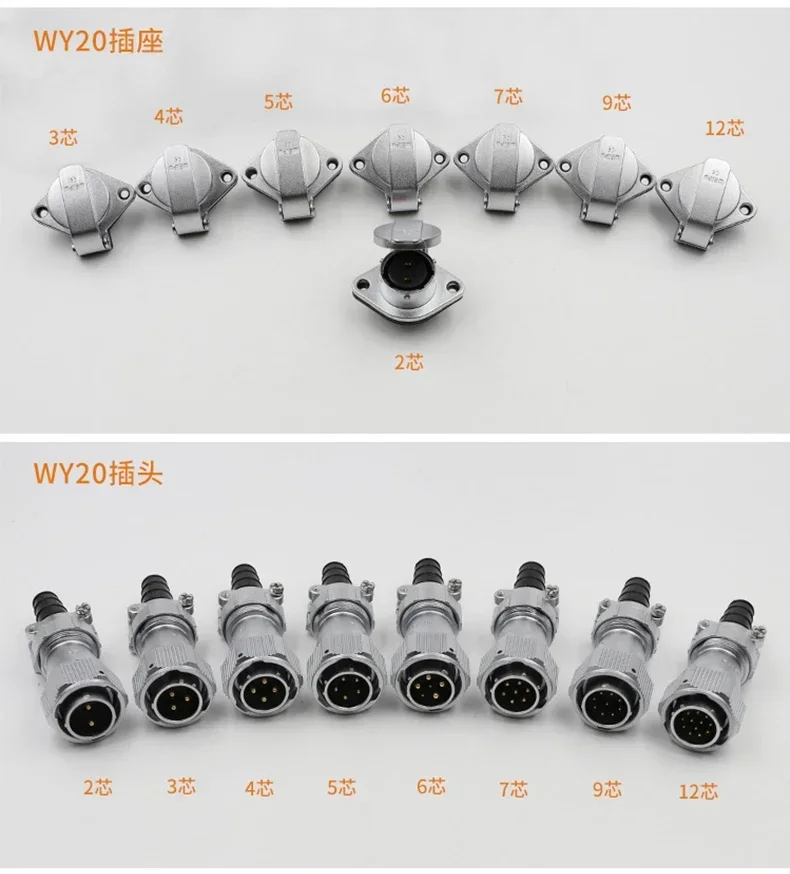

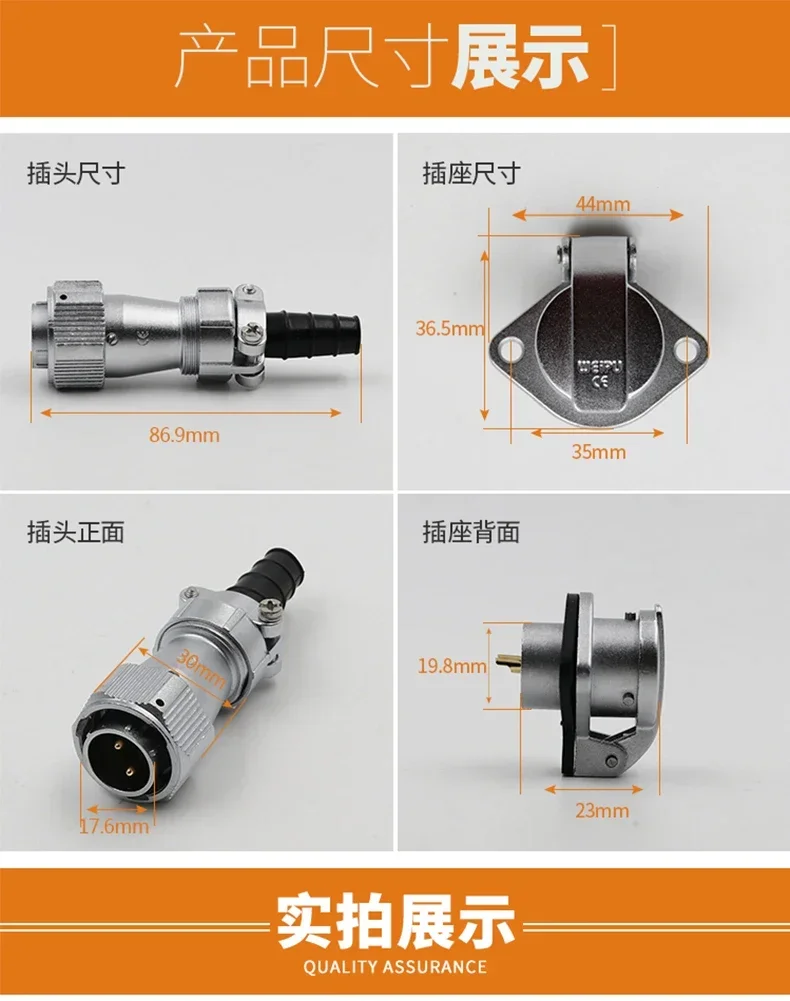

WEIPU WY20 TI+ZG Metal Industrial Waterproof Electrical Circular Connector M20 2 3 4 5 6 7 9 12 15 Pin Soldering Wire Adapter

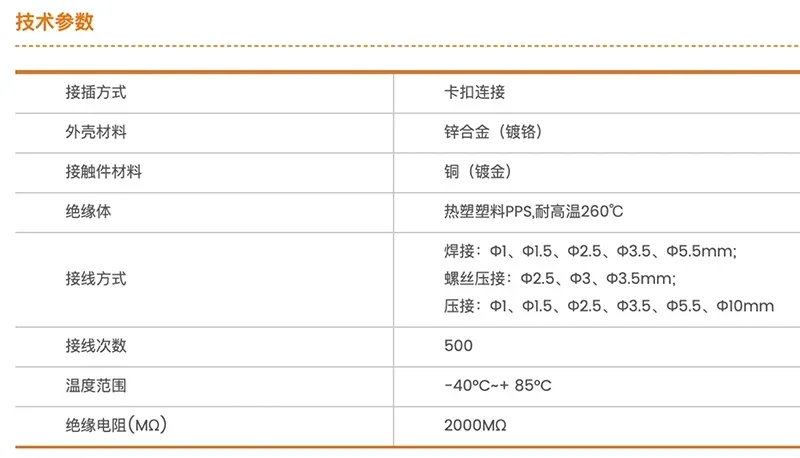

SPECIFICATIONS
Brand Name: Gmilli
Certification: CE,FCC,RoHS
Connection method: Screew Lock
Contactl material: Brass with gold plating
Coupling: Bayonet
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Insert material: PPS, max temperature: 260 Celsius
Mating eyelet: 500
Model Number: WY20
Origin: Mainland China

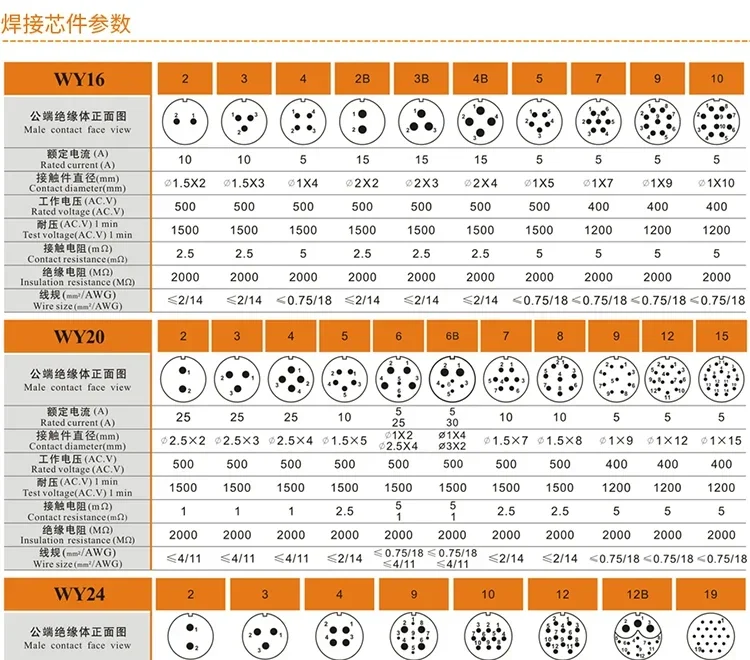

Pin Numbers: 2 3 4 5 6 7 9 12 15 Pin
Product Name: M20 Power Connector
Protection Level: IP65/IP67
Shell material: Zinc alloy with chrome plating
Termination: Solder and crimp
Voltage: 380 V

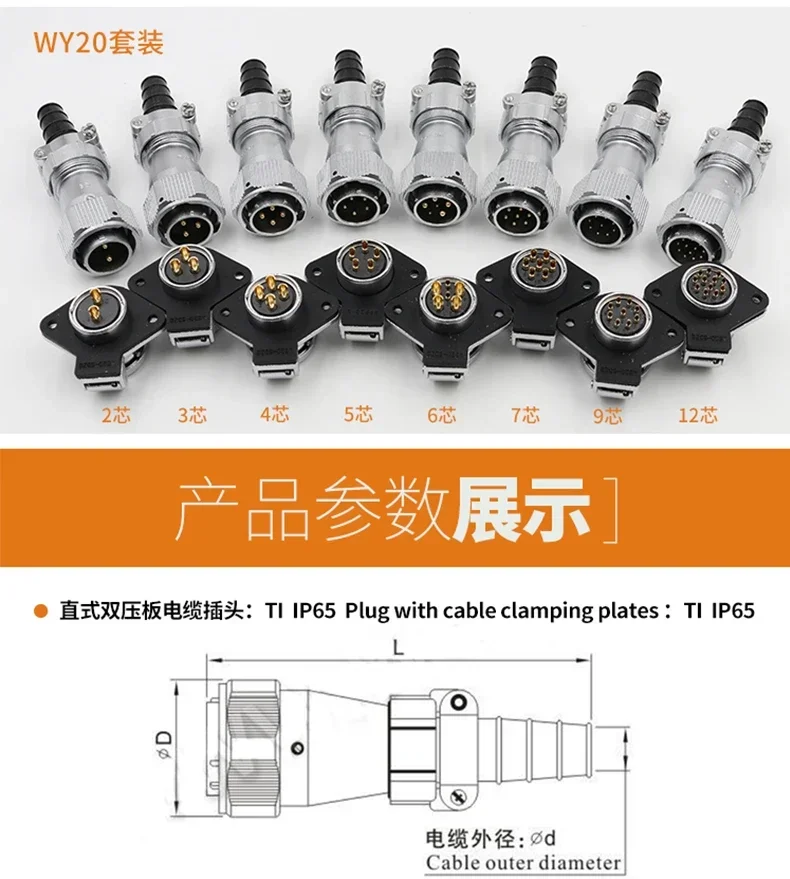

WEIPU WY20 TI/ZG Industrial IP67 Waterproof Electrical Connector
M20 2 3 4 5 6 7 9 12 15 Pin Copper Gilding Soldering Terminal
