SPECIFICATIONS

Applicable Lights: For WS2811 WS2812B 1903 16703 Etc

Brand Name: NONE

Certification: CCC,ce,EMC,FCC,LVD,pse,ROHS

Choice: yes

Connection Mode: Bluetooth APP

Controled Method: Bluetooth APP Remote Button

High-concerned chemical: none

Is Smart Device: Yes

Item Type: RGB controler

Material: ABS

Max. Load Power: 600Pixels/Channel

Model Number: SP611E

Origin: Mainland China

Power Source: DC

Remote Distance: 30m

Voltage: 5-24V

Warranty: 3Years

semi_Choice: yes

Features:

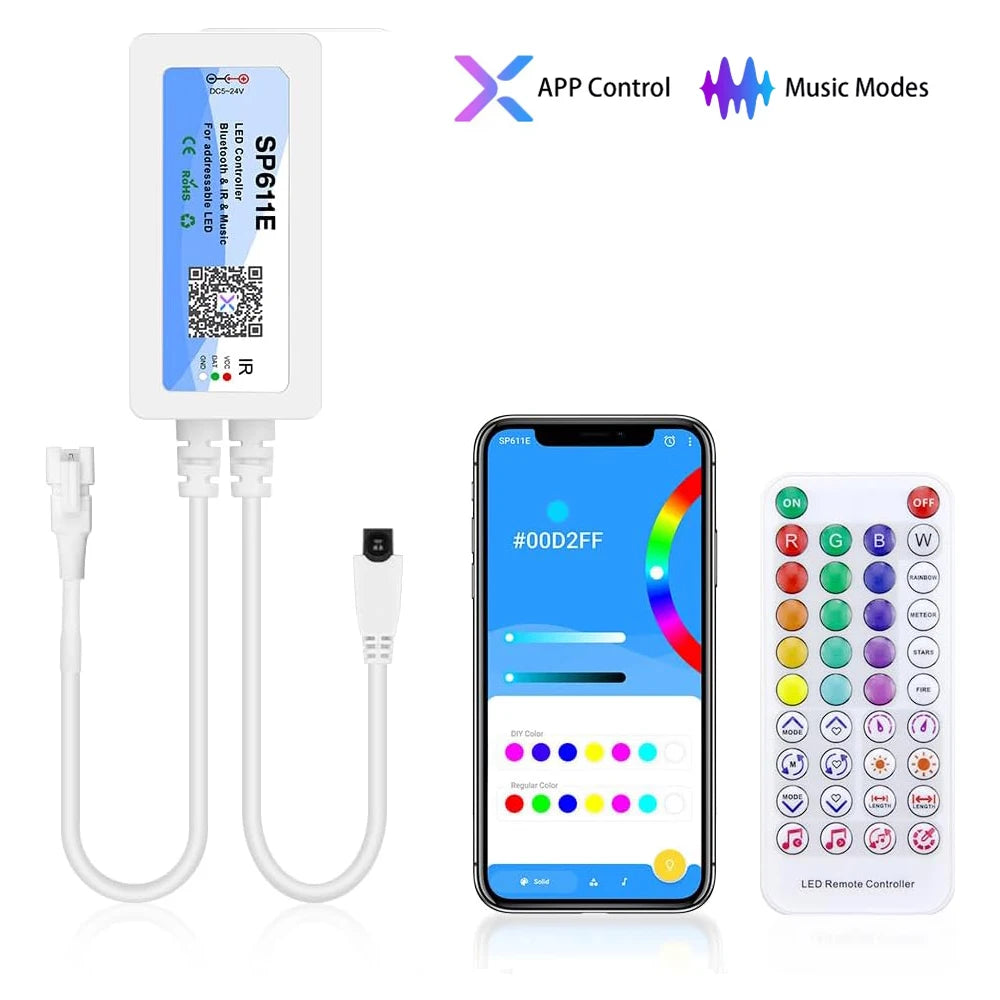

1. Supports both APP control and IR remote control.

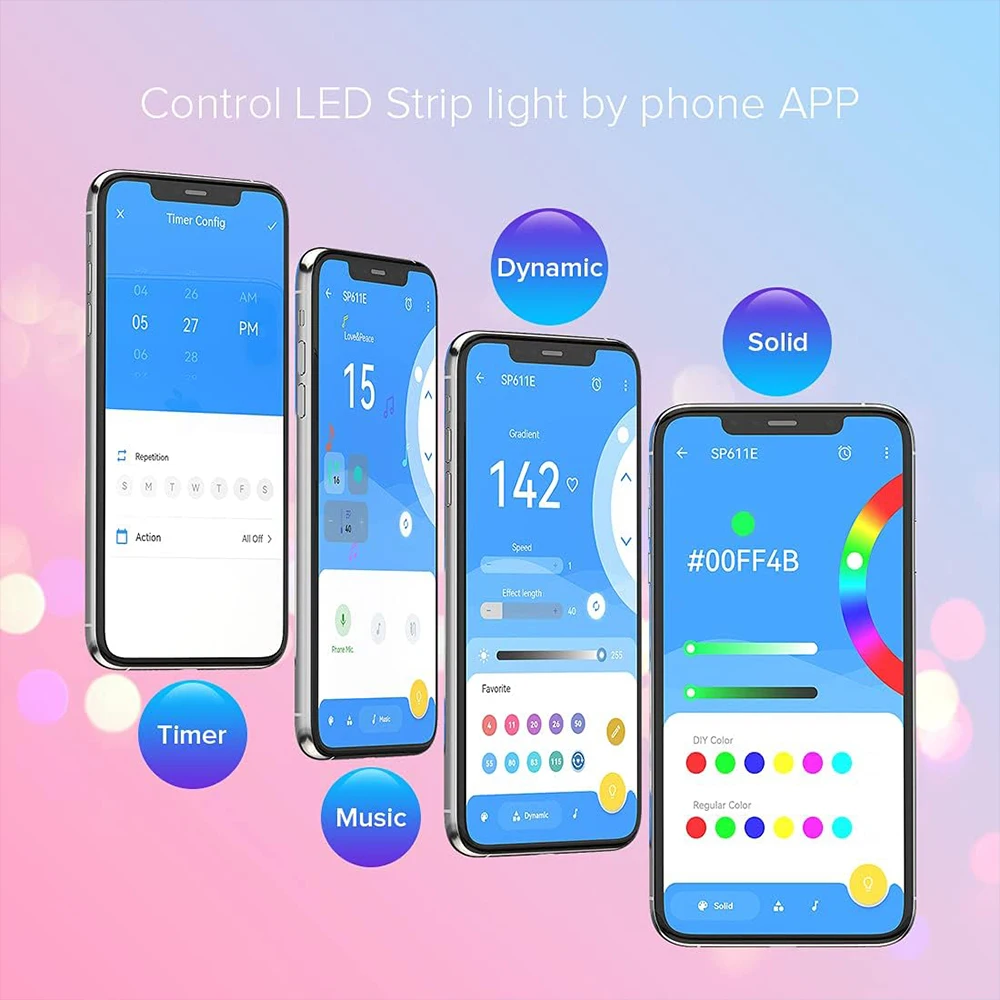

2. Support automatic device connection and automatic re-connection when the APP turns on.

3. Support multiple devices grouping control.

4. Multiple sound collection methods: phone mic, player streaming, on-board mic.

5. Support modifying the device name, calibrate the RGB channel sequence, and timer function.

6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels.

7. Built-in 142 dynamic effects, effect length adjustable, with favour effects collecting function.

8. Built-in 18 music effects, effect length adjustable, sensitivity adjustable.

9. DC5~24V wide voltage input, the power supply has anti-reverse connection function.

10. Automatic saving function for setting parameters.

Technical Parameters:

Input voltage: DC5-24V.

Working temperature: -20℃~60℃.

Support: IOS 10.0/ Android 4.4.

Output signal: SPI (TTL) Digital Signal.

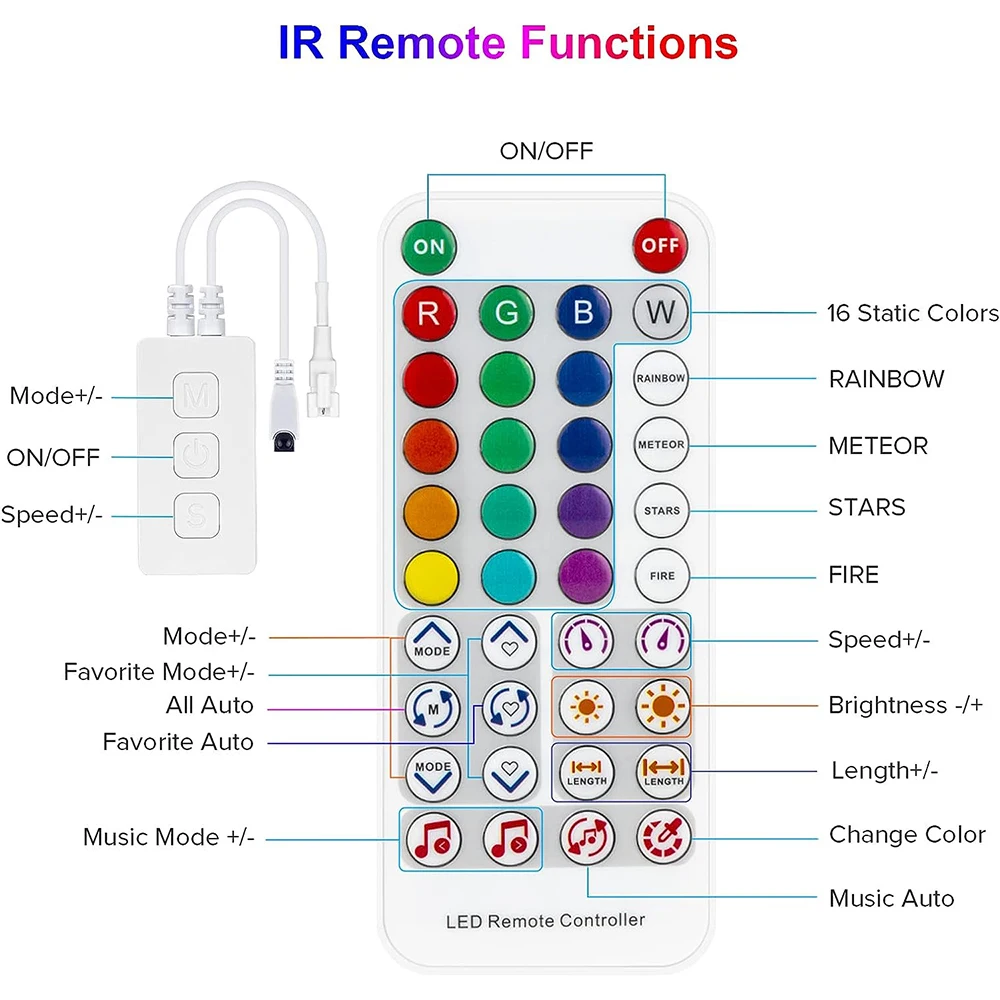

Connection Type: IR 38 Keys Remote Control or Bluetooth APP Control.

Controllable pixels: 600pcs IC ( ws2812b led light 600 pcs leds, ws2811 led light 1800 pcs leds).

Application: Digital Addressable LED Light.

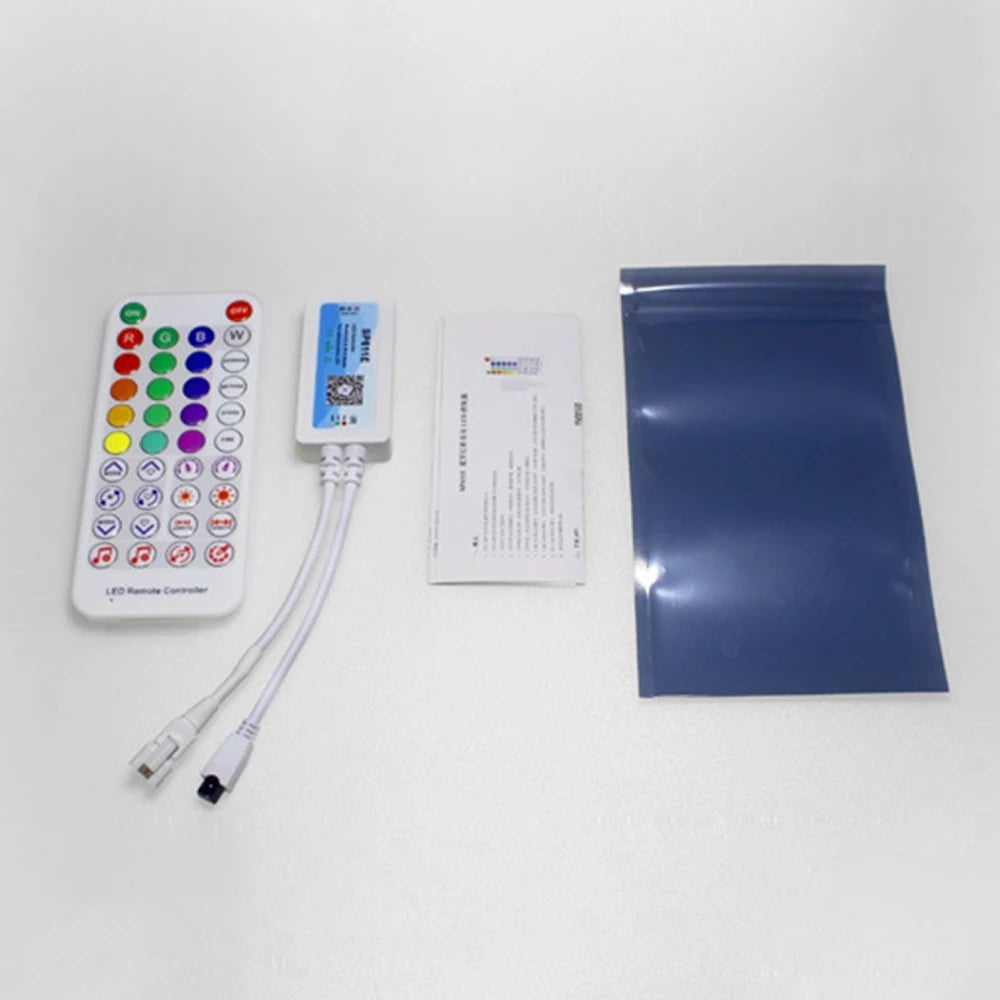

Package Included:

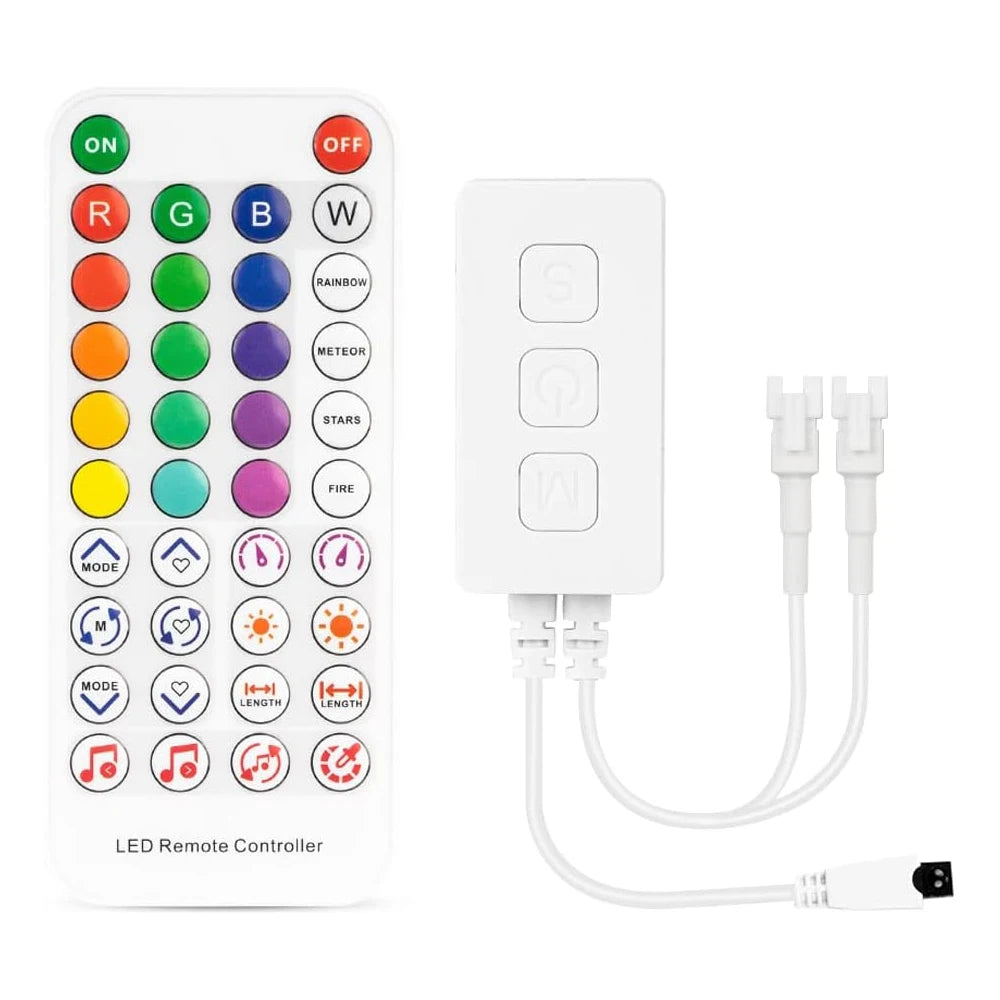

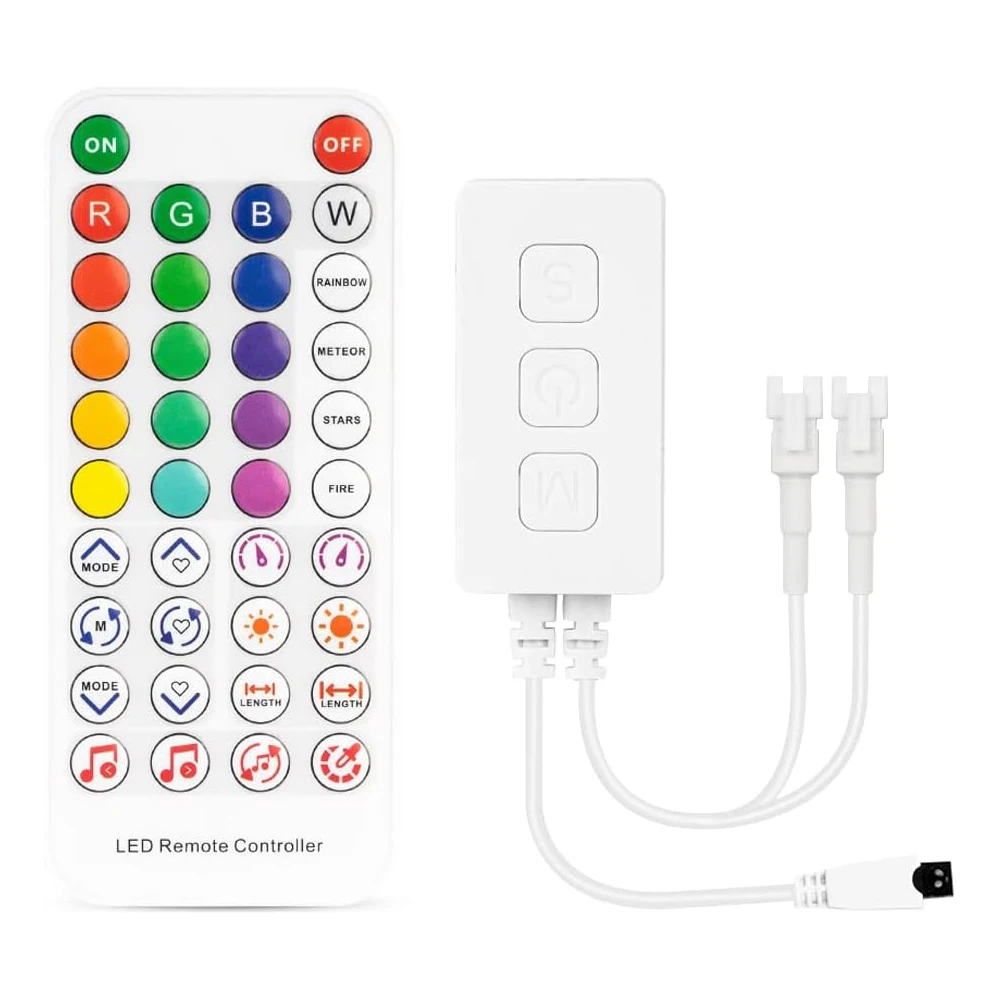

1Pcs SP611E Led Controller+ IR 38 Keys Remote(Battery not included)
