Heltec WiFi LoRa 32 V3 ESP32-S3FN8 SX1262 LoRa Module CP2102 Type-C 0.96" OLED Bluetooth 5 863-928MHz Low Power IoT Board with Battery Charging Circuit

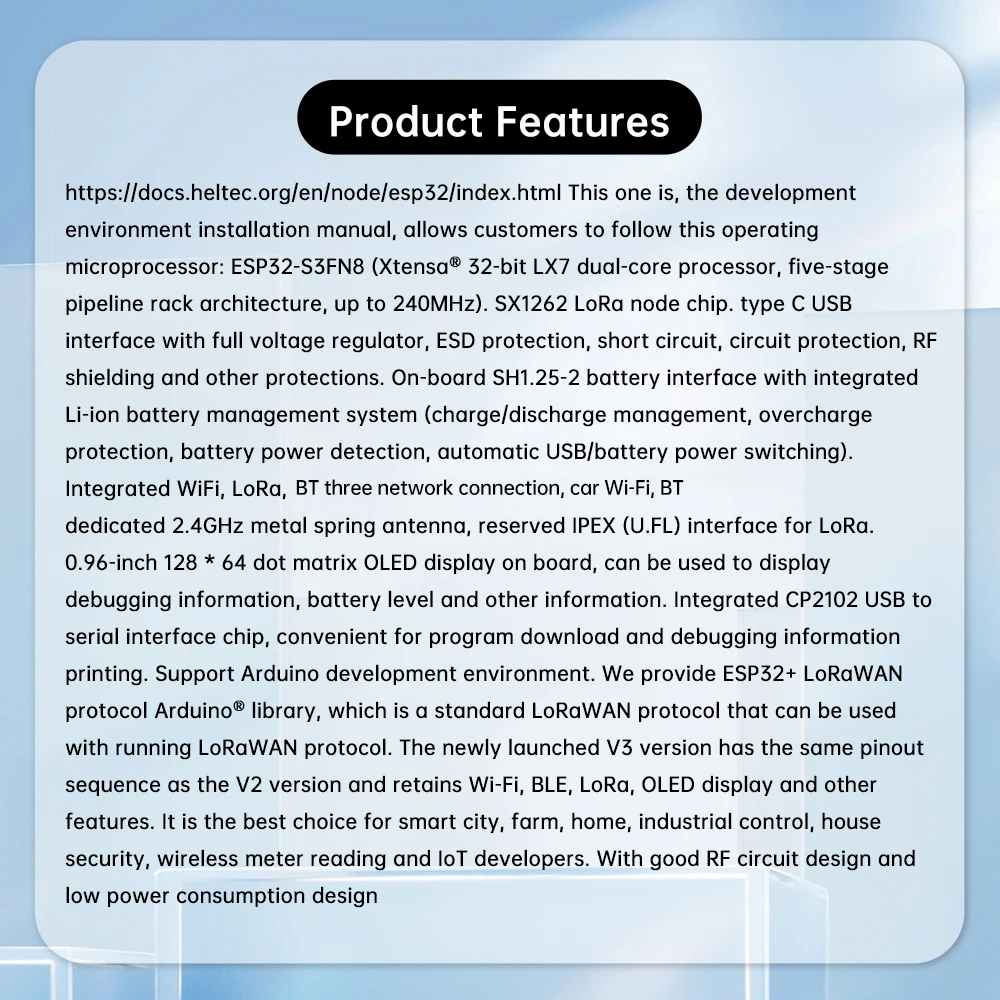

Product Introduction

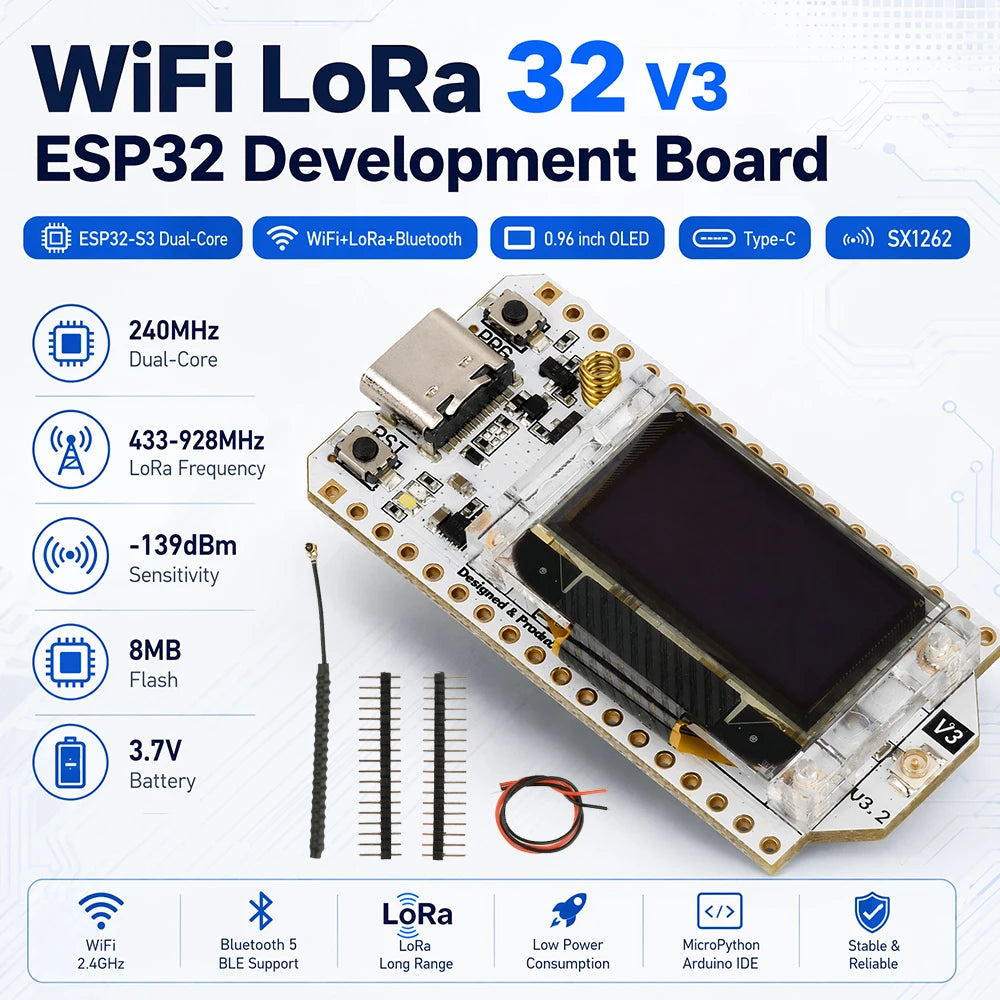

This is the upgraded V3 version of Heltec WiFi LoRa 32, adopting ESP32-S3FN8 dual-core main chip + SX1262 LoRa RF chip, integrated WiFi, Bluetooth 5 BLE Mesh and LoRa triple communication.

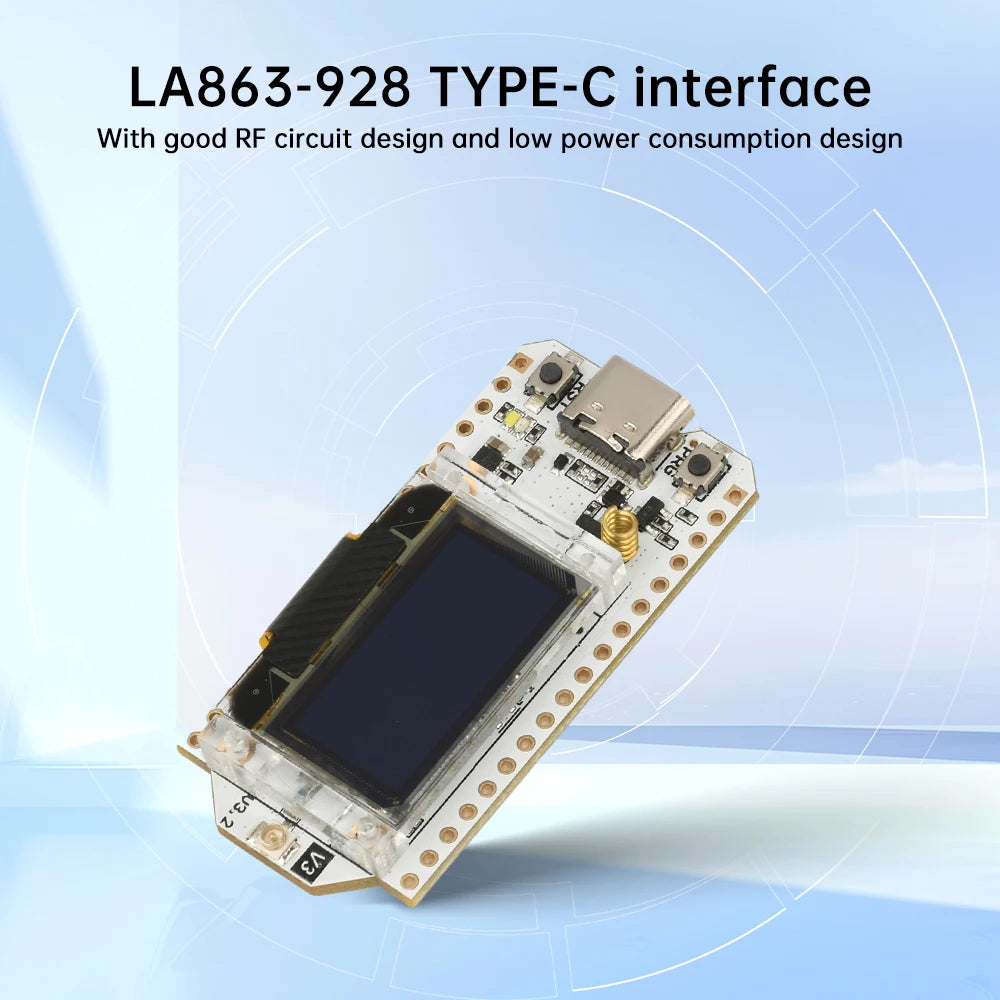

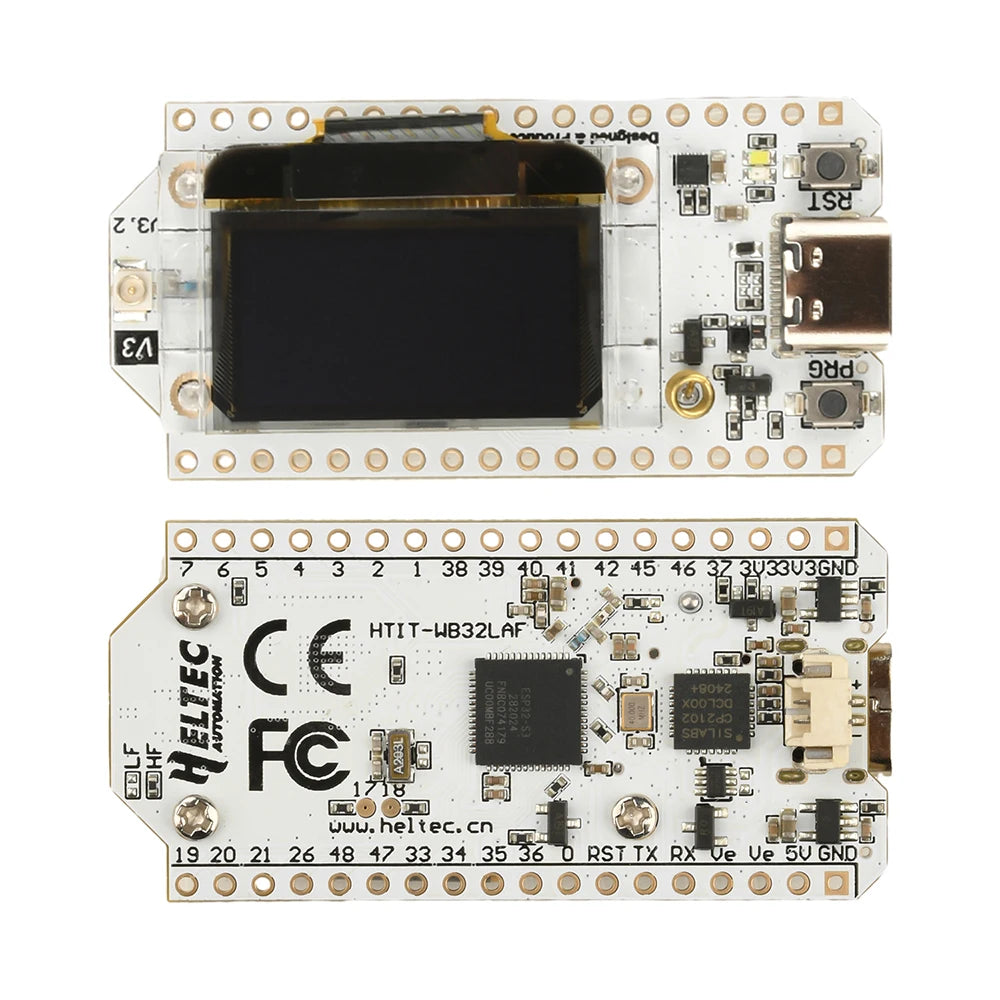

Equipped with built-in 0.96-inch OLED screen, CP2102 serial chip and Type-C port, it supports 3.7V lithium battery charging & automatic power switching. Pin compatible with V2 model, fully retain all original functions.

Comes with official Arduino LoRaWAN library and complete setup documentation, ideal for smart agriculture, industrial control, smart home, wireless meter reading and IoT prototype development.

Core Features

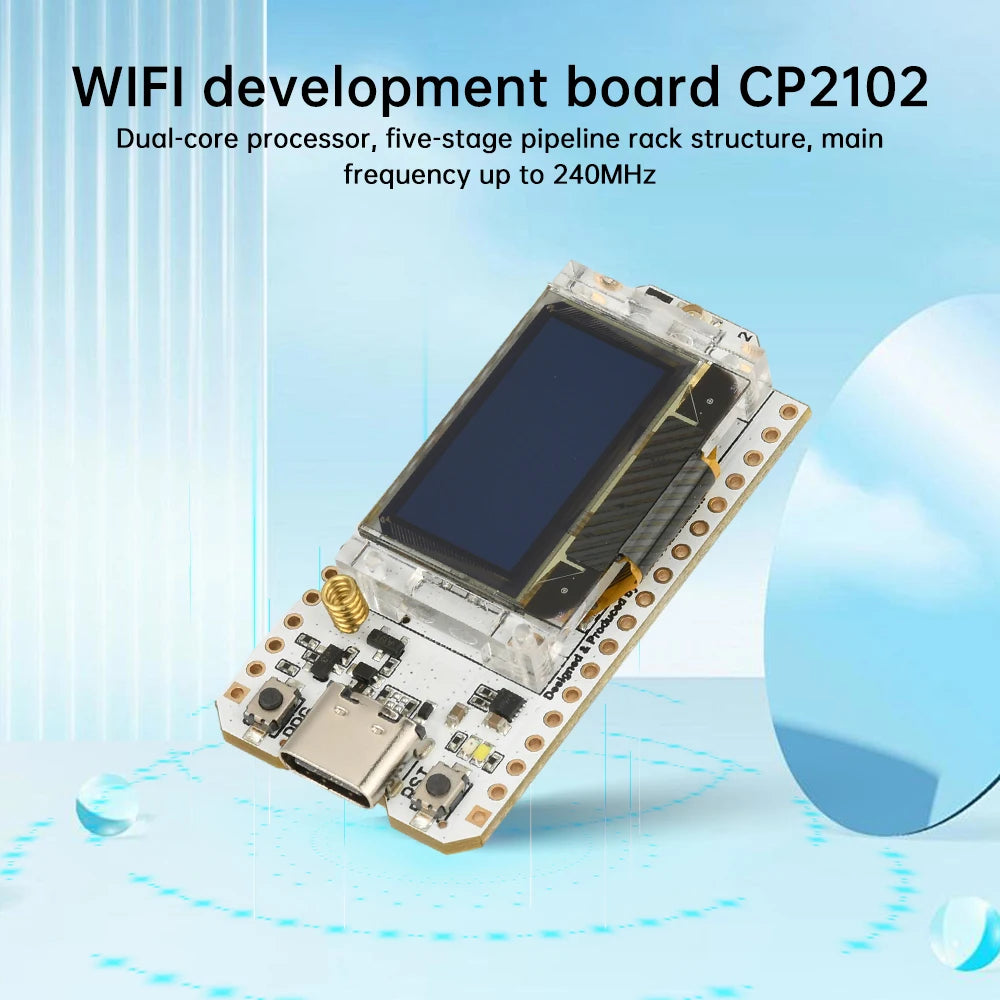

1.Powerful Main Controller: ESP32-S3FN8 Xtensa LX7 32-bit dual-core processor, up to 240MHz, 8MB SiP Flash, abundant peripheral resources for complex IoT projects.

2.SX1262 LoRa RF Chip: 863-928MHz frequency band, max transmit power 21dBm, receiving sensitivity up to -139dBm, ultra-long-distance low-power wireless communication.

3.Integrated Triple Network: WiFi 802.11 b/g/n, Bluetooth 5.0 & BLE Mesh + LoRa; on-board 2.4G spring antenna, reserved IPEX U.FL port for LoRa external antenna expansion.

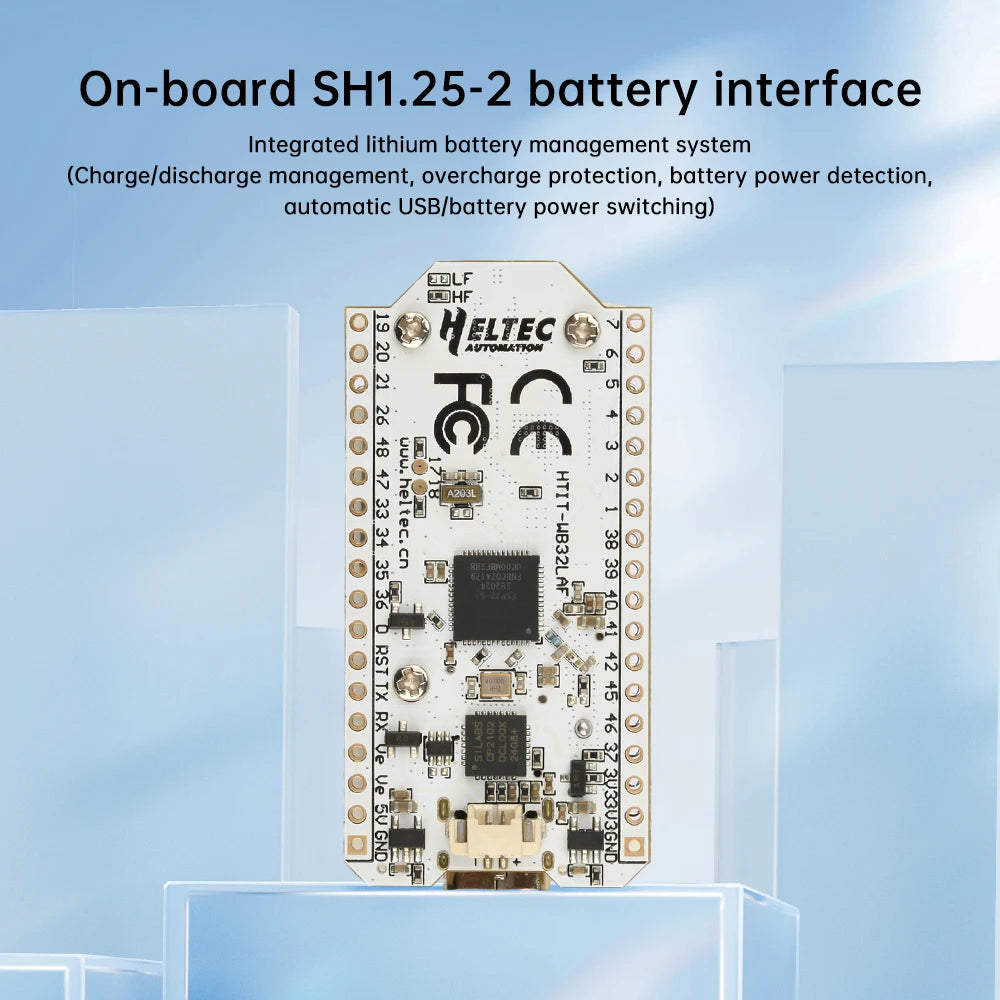

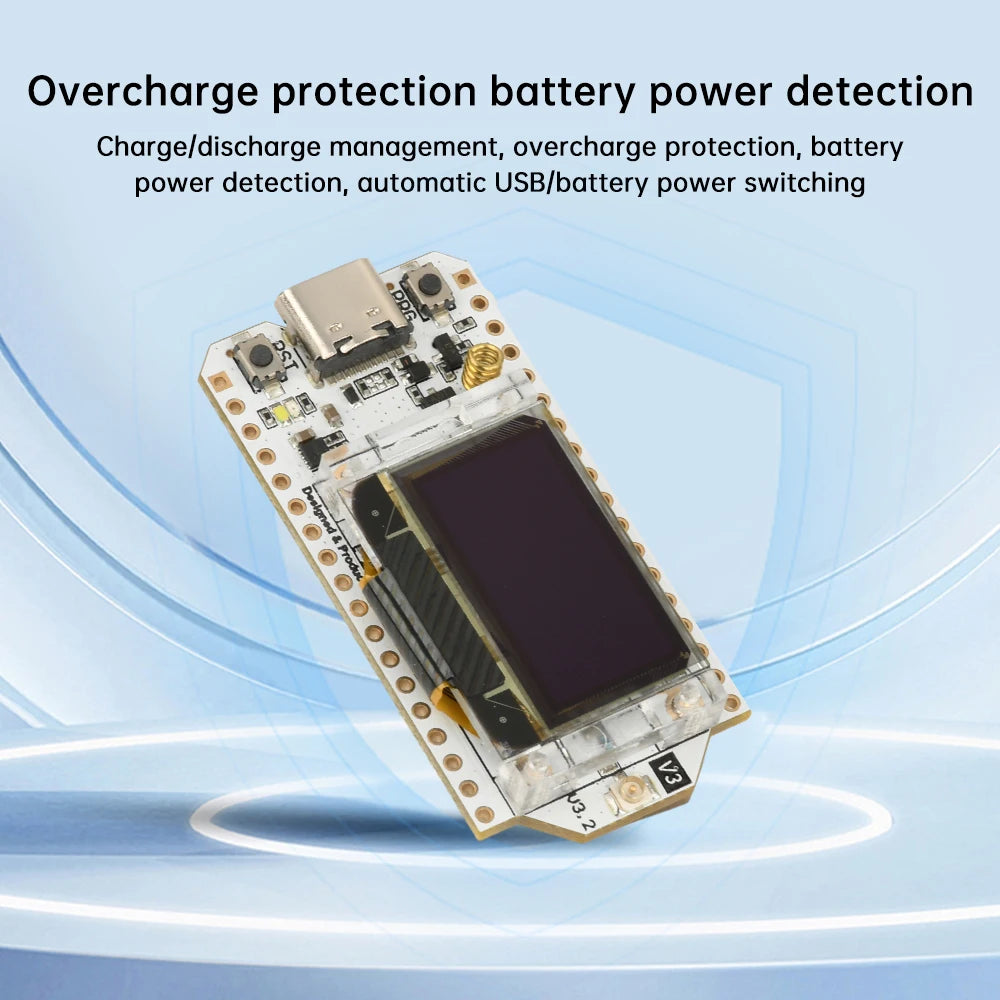

4.Type-C & Complete Protection Circuit: Built-in ESD, short-circuit, voltage regulator and RF shielding circuits; SH1.25 battery port with full lithium battery management (charge/discharge protection, auto USB/battery power switch).

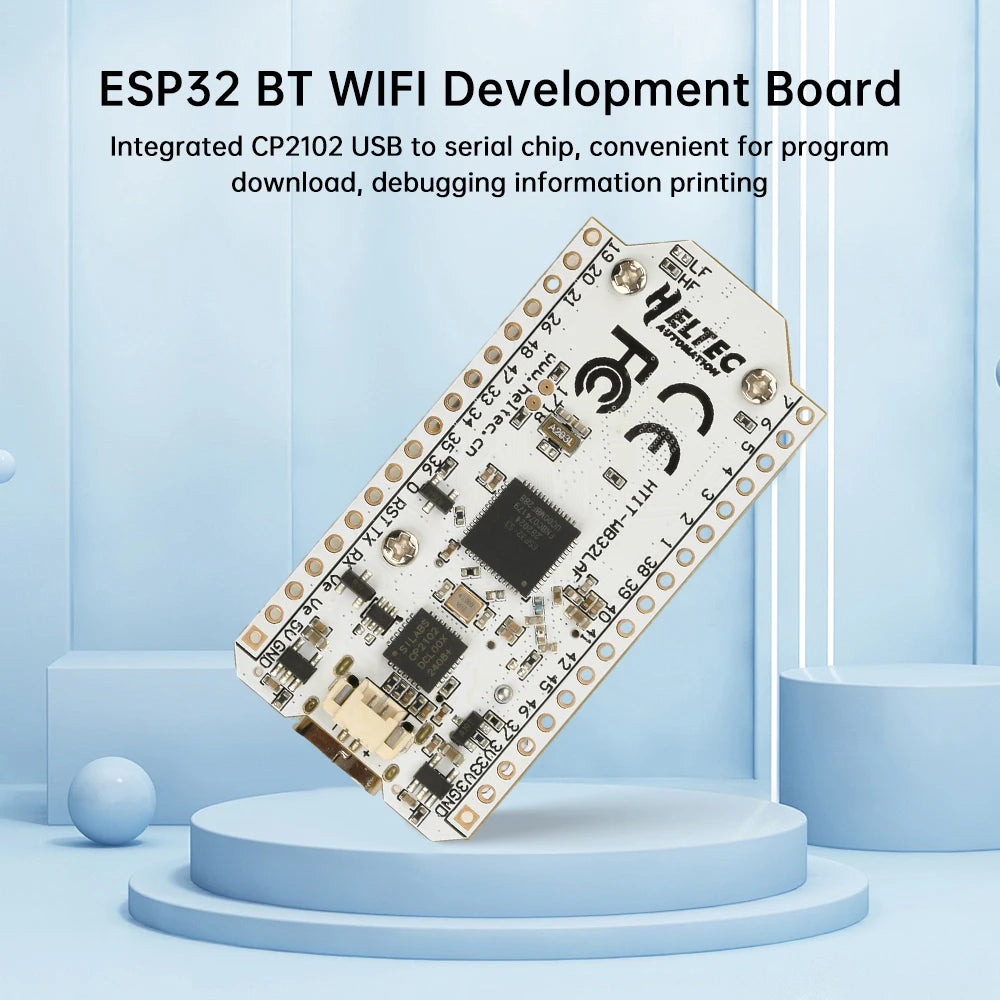

5.Onboard 0.96" 128*64 OLED & CP2102 Chip: Screen displays debugging info and battery level; CP2102 USB serial chip for fast program download and log output, fully compatible with Arduino IDE with official LoRaWAN library.

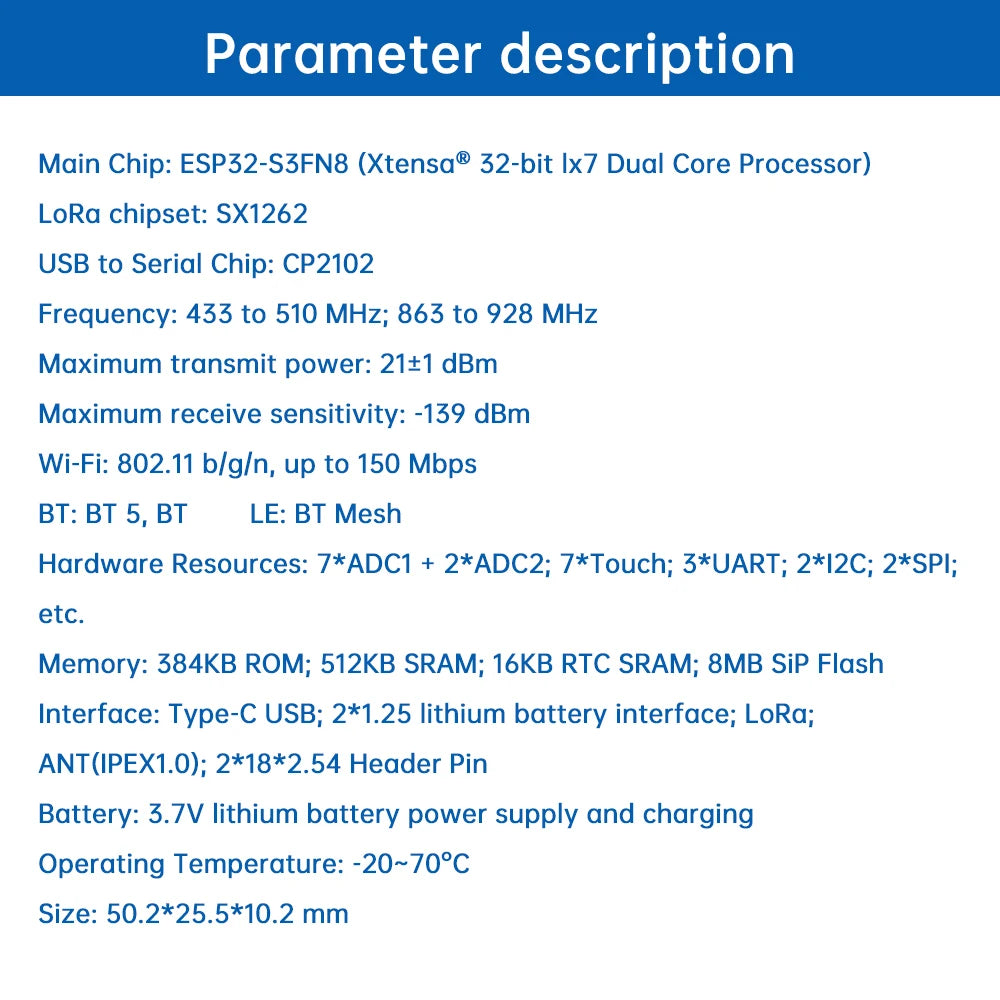

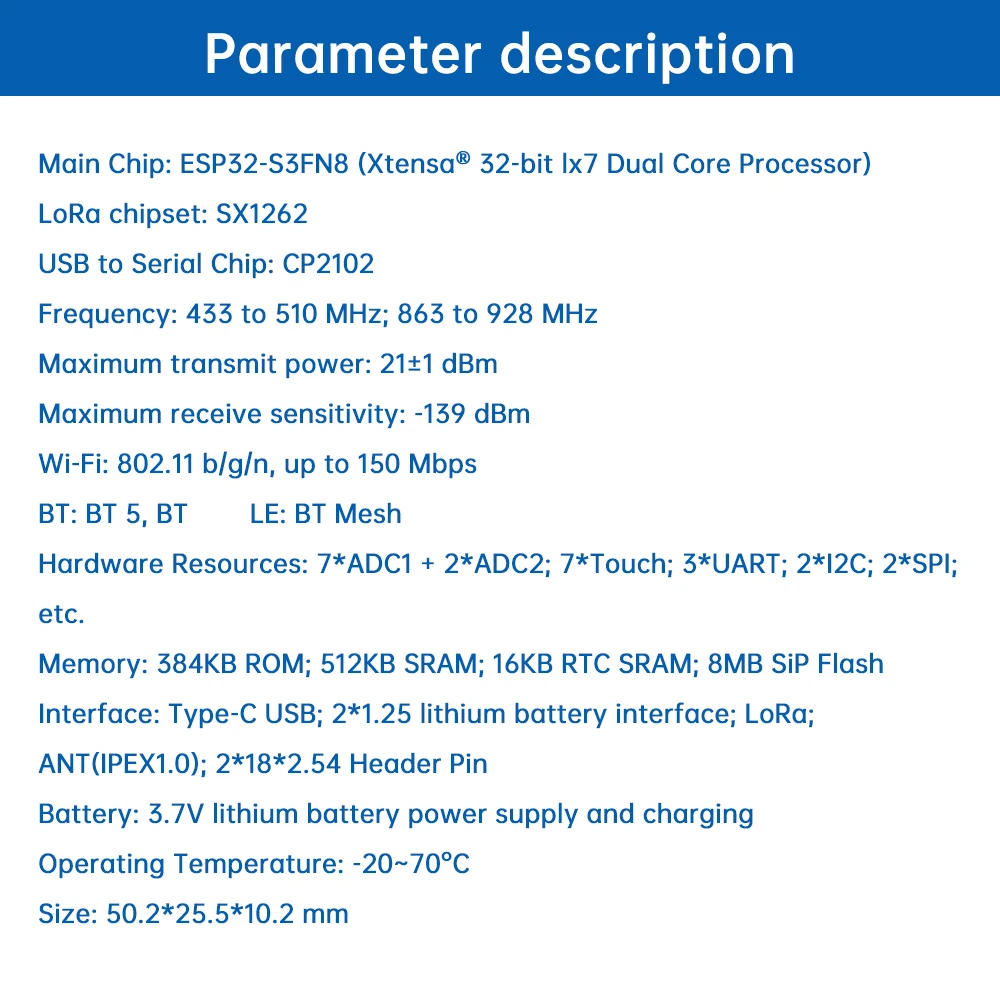

Detailed Specifications

Item	Parameter
Main Chip	ESP32-S3FN8 (Xtensa 32-bit LX7 Dual-Core, 240MHz Max)
LoRa Chip	SX1262
USB Serial Chip	CP2102
Working Frequency	863~928MHz
Max TX Power	21±1 dBm
RX Sensitivity	-139 dBm
WiFi Standard	802.11 b/g/n, up to 150Mbps
Bluetooth	Bluetooth 5.0, BLE Mesh
Memory	384KB ROM, 512KB SRAM, 16KB RTC SRAM, 8MB SiP Flash
Display	0.96" OLED, 128*64 Dot Matrix
Power Supply	Type-C DC 5V / 3.7V Lithium Battery
Battery Interface	SH1.25-2 Battery Connector, built-in charge management
External Antenna Port	IPEX1.0 (U.FL) for LoRa
Peripheral Pins	7ADC1, 2ADC2, 7Touch, 3UART, 2I2C, 2SPI
Working Temp	-20℃ ~ 70℃

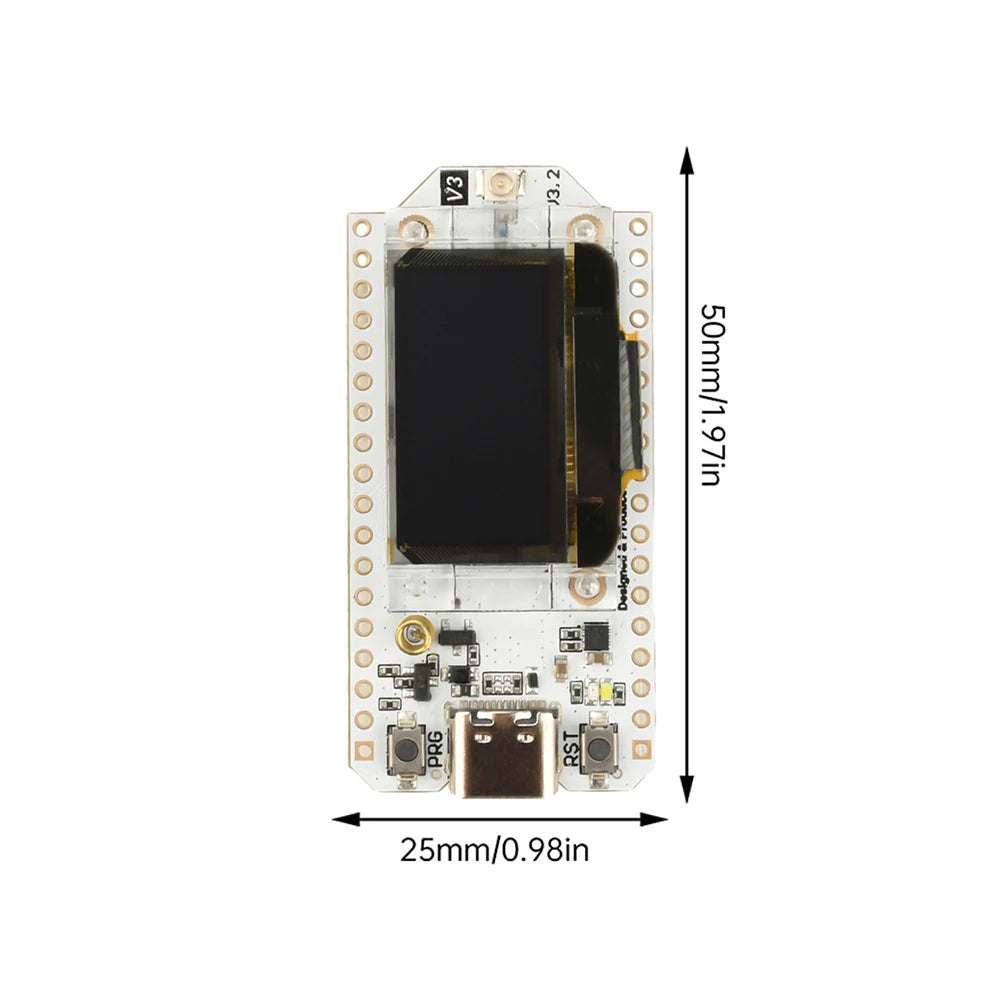

Dimension	50.225.510.2 mm

Application Scenarios

Smart City Monitoring, Intelligent Farm, Greenhouse Sensor Collection, Smart Home Security, Industrial Automation Control, Wireless Water/Electric Meter Reading, Low Power IoT Data Logger, Arduino Maker DIY Projects

Official Support Document

Complete operation guide & environment installation tutorial available on official website:

https://docs.heltec.org/en/node/esp32/index.html

Standard LoRaWAN Arduino library provided for secondary development.

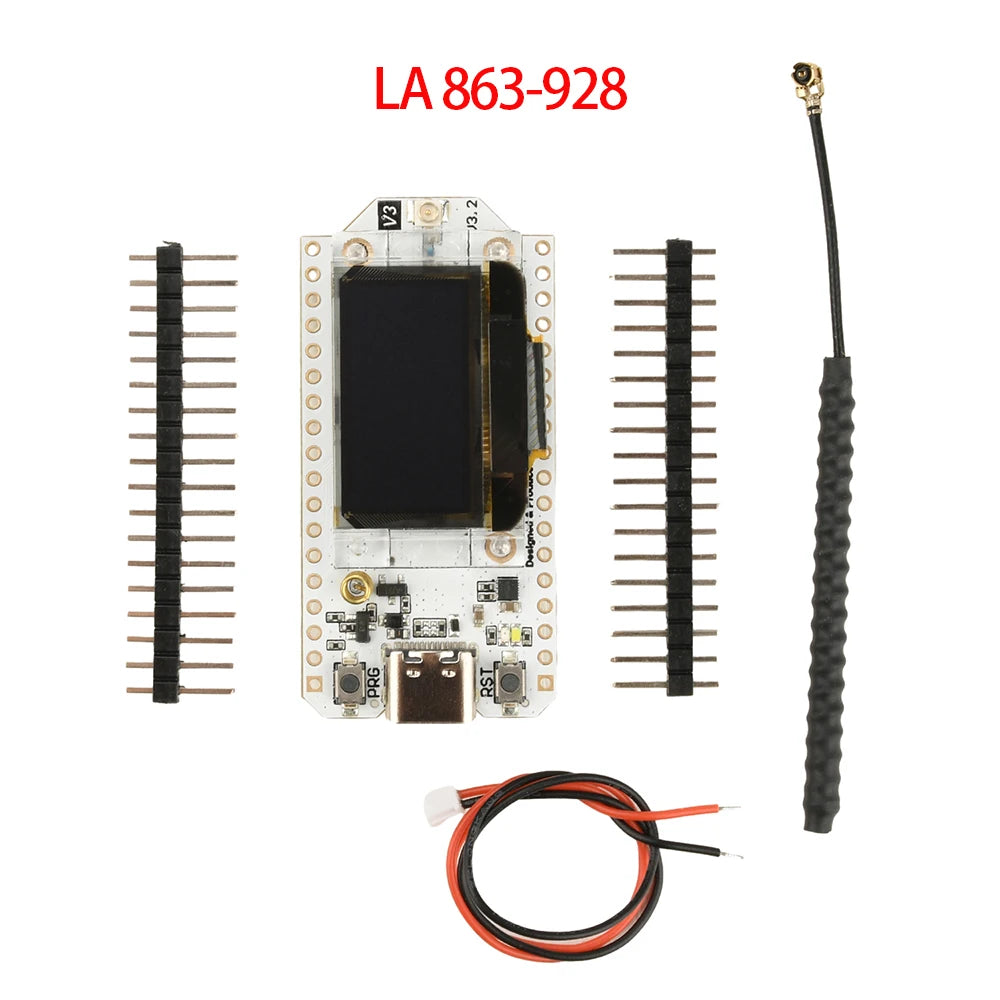

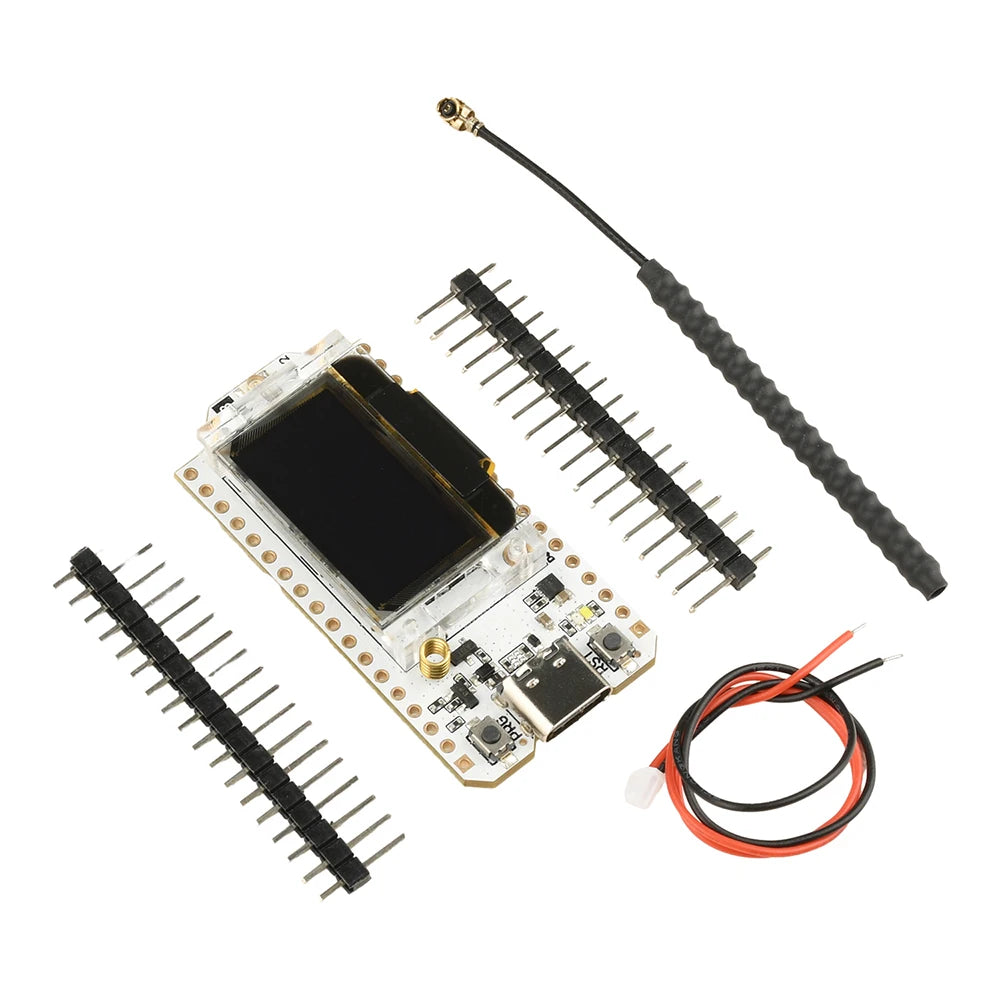

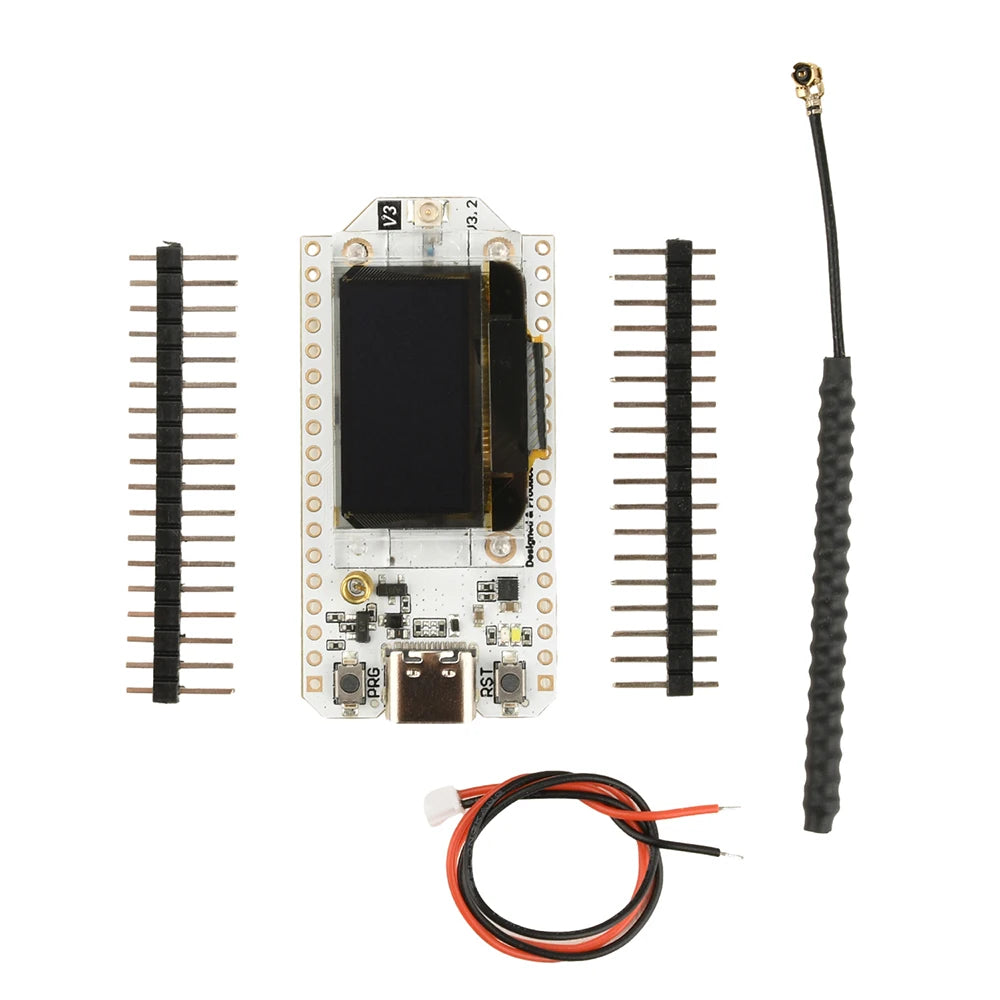

Packing List

1 x Heltec WiFi LoRa 32 V3 Main Board

1 x Spring Antenna

2 x Pin Header

1 x Terminal Wire Set

Warm Tips

1.This module supports 3.7V lithium battery charging, built-in charging protection circuit;

2.Pin definition is consistent with V2 version, easy to replace and upgrade;
