SPECIFICATIONS

Brand Name: winsen

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Model Number: MH-Z19C

Origin: Mainland China

Output Voltage: UART/PWM

Semi-finishedproduct: No

Style: pin version/terminal version

Type: NDIR CO2 sensor

Description

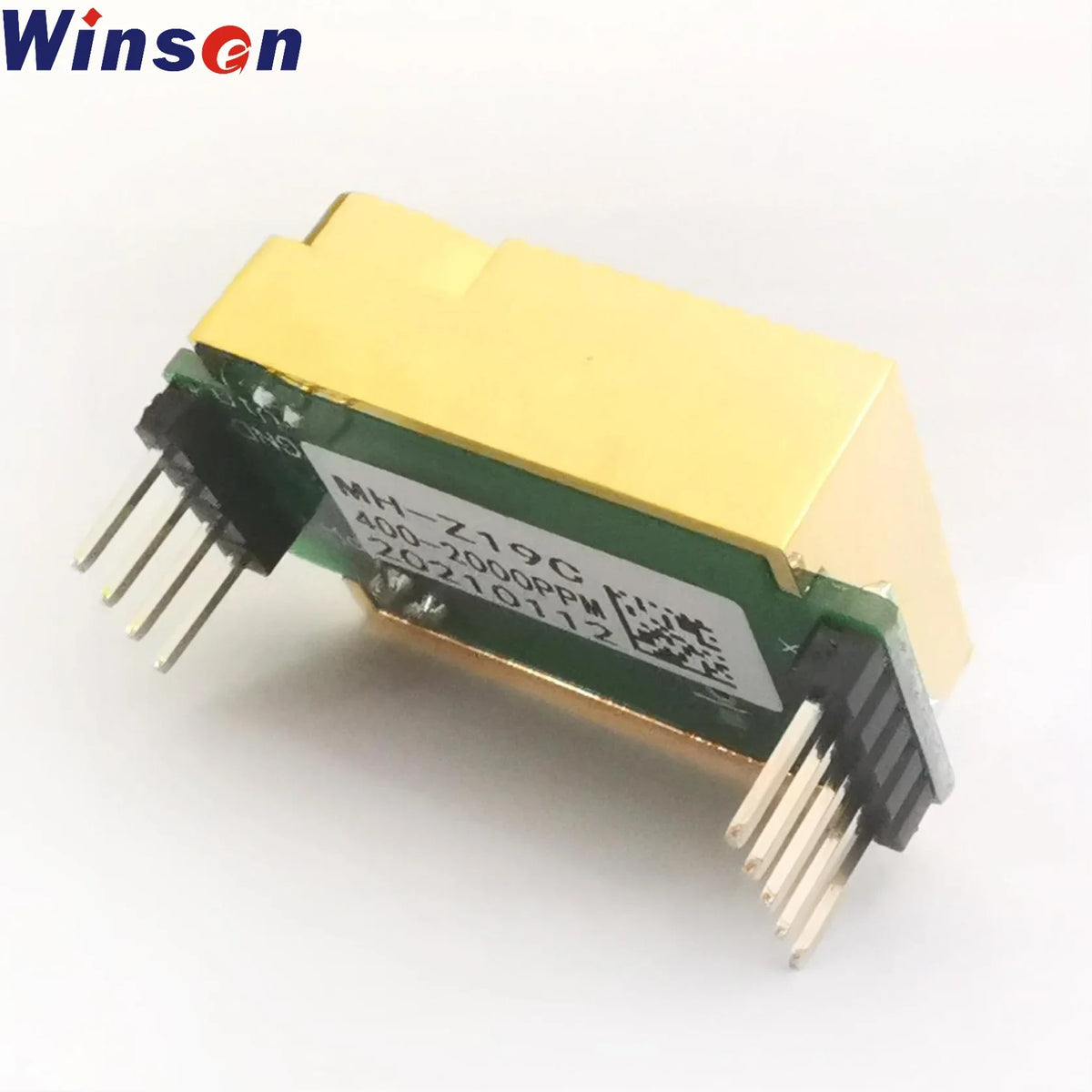

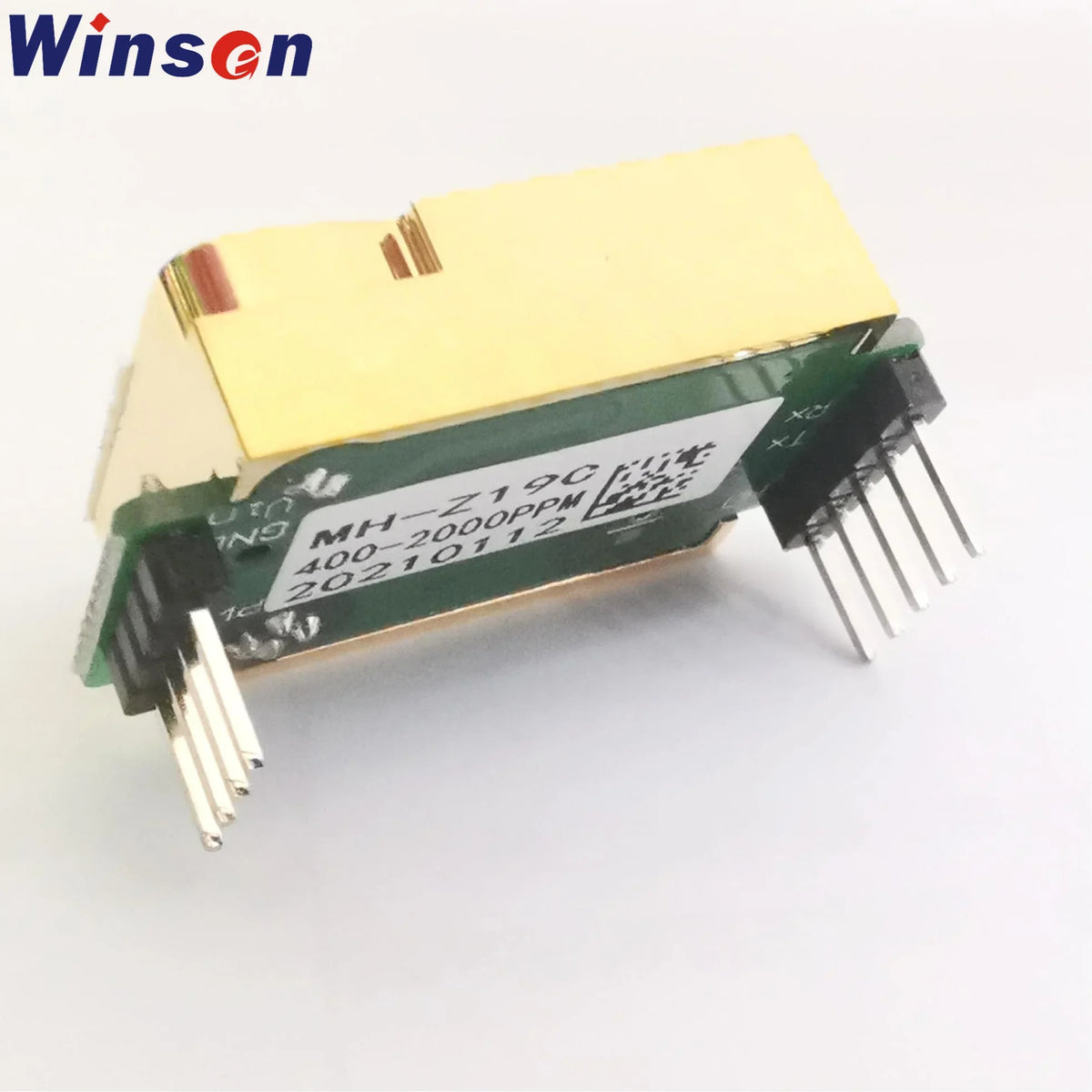

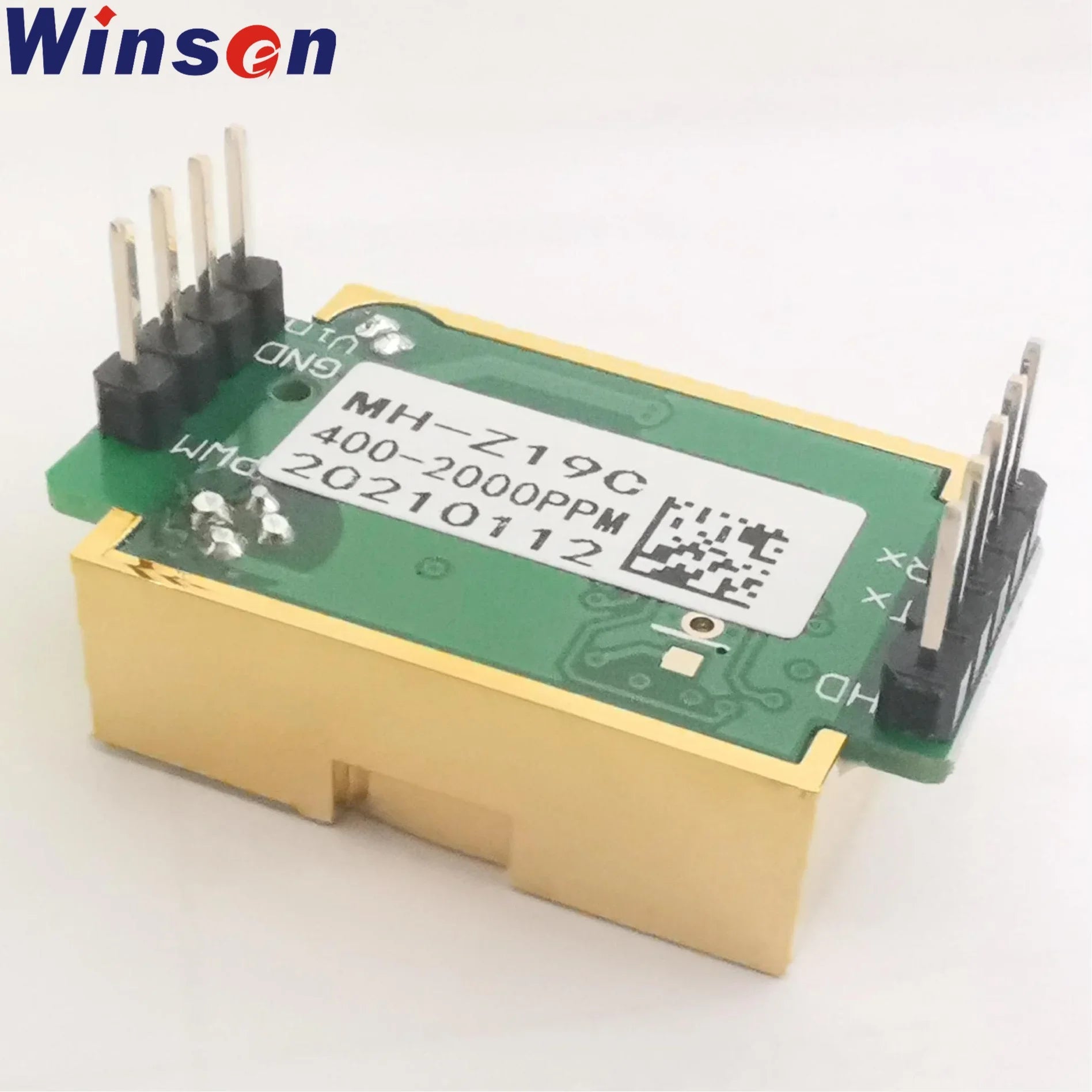

MH-Z19C NDIR infrared gas module is a common type, small size sensor, pins type or terminal type, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has UART output and PWM output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.

Application

HVAC refrigeration
Air cleaner device
Indoor air quality monitoring
Smart home
Ventilation system School

Features

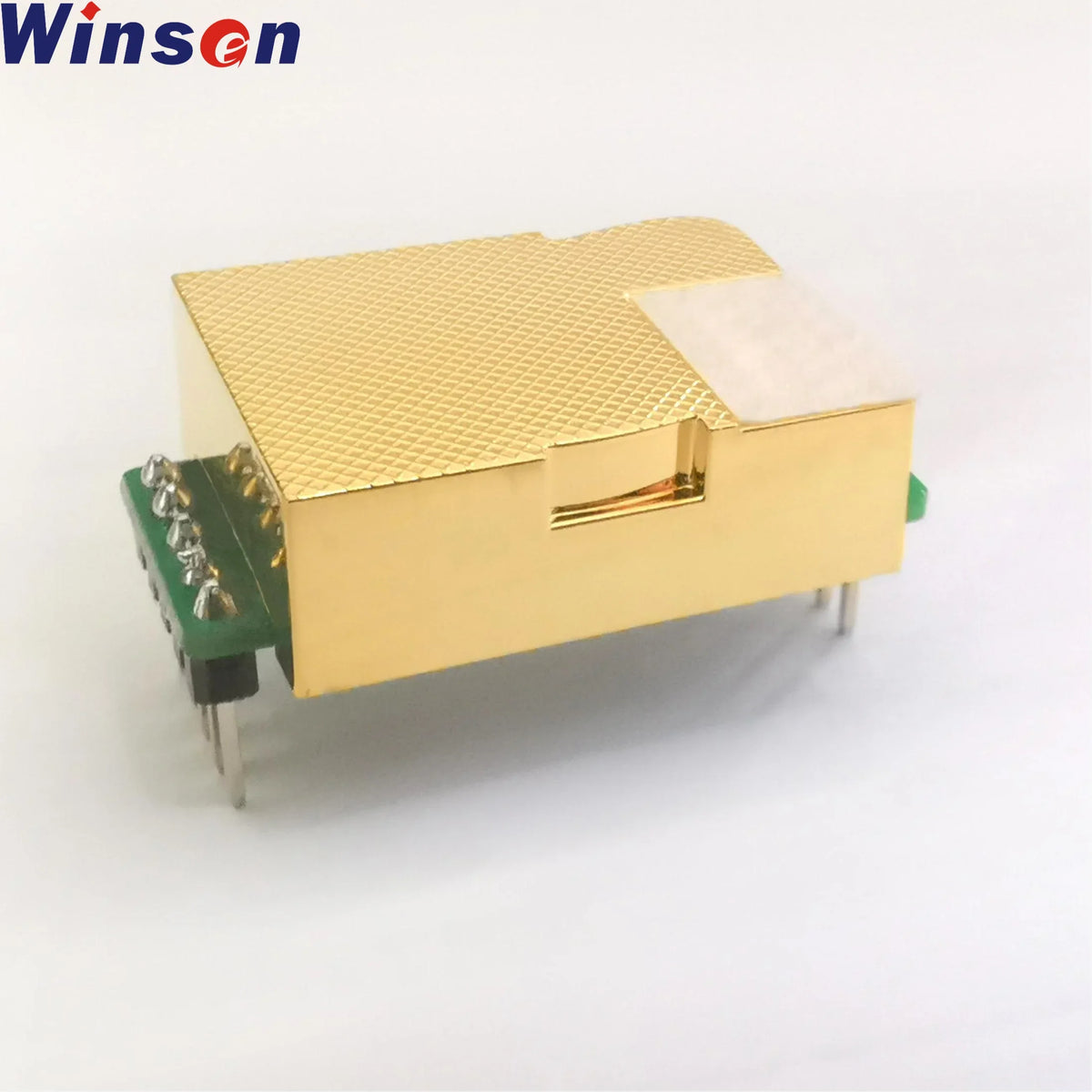

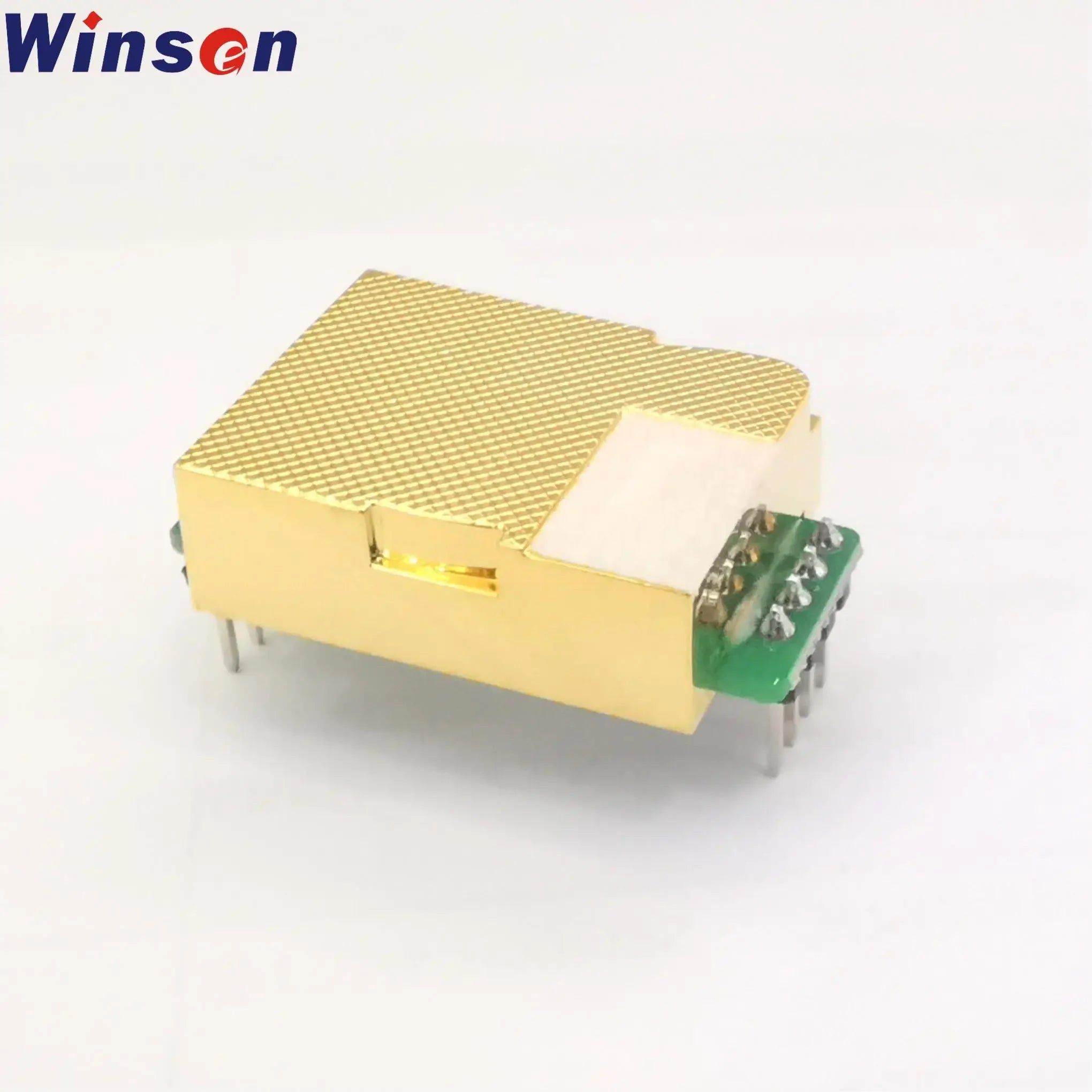

Chamber is gold plated
High sensitivity, low power consumption
Good stability
Temperature compensation, excellent linear output
Multiple output modes: UART, PWM
Long lifespan
Anti-water vapor interference, anti-poisoning

Specifications

Model No.	MH-Z19C
Detection gas	CO2
Working Voltage	5.0±0.1V DC
Average Current	<40mA (@5V power supply)
Peak Current	125mA (@5V power supply)
Interface Level	3.3V (Compatible with 5V)
Detection range	400~10000ppm (optional)
Output Signal	Serial Port (UART) (TTL level 3.3V)
Output Signal	PWM
Preheat Time	1 min
Response Time	T90 <120s
Working Temperature	-10 ~ 50℃
Working Humidity	0 ~95% RH (No condensation)
Storage Temperature	-20~60 ℃
Weight	5g
Life Span	>10 years
