Description

SPECIFICATIONS

Accessory Type: SENSOR

Battery Included: no

Brand Name: seeed studio

Compatible With: meshtastic

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Internet of Things (IoT)

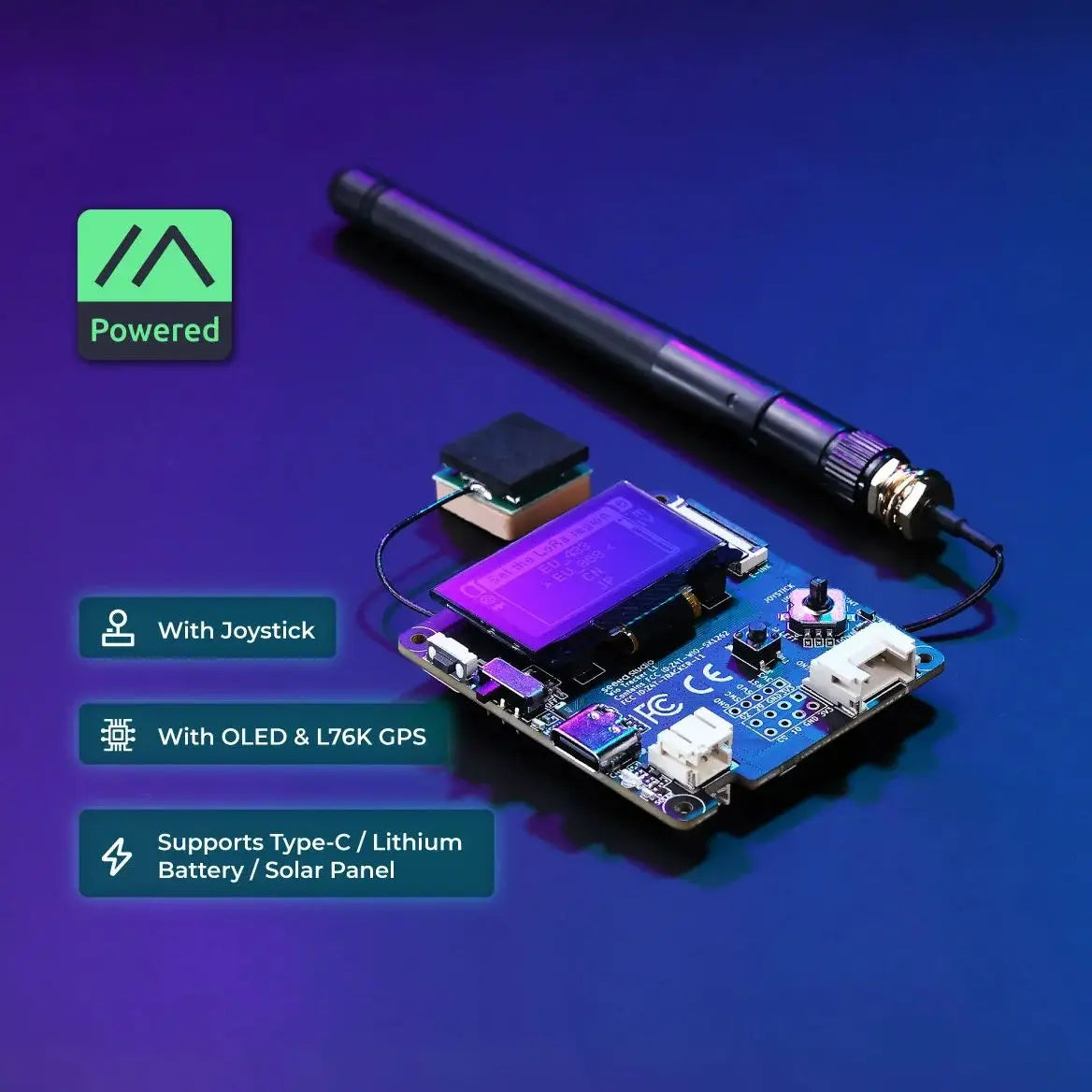

The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking. The L1 version comes with an 1.3 inch OLED status panel for real-time feedback and system monitoring.


Feature


Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

Triple Power Supply Options

Supports Type-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments—ideal for outdoor and mobile applications.

Flexible Display Support

Optional 1.3-inch OLED and 2.13-inch E-Ink screens, offering versatile display options for different power consumption and visual feedback needs.

High Expandability

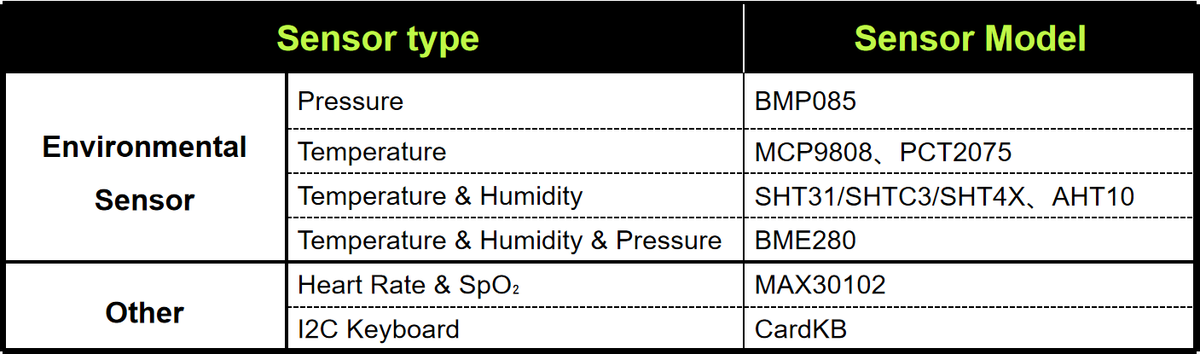

Fully compatible with the Grove Ecosystem (The list of supported sensors is provided below.), and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.

Specification

Processor

Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz

On-chip Memory

1 MB flash and 256 kB RAM

Wireless

LoRa: Based on Wio-SX1262, supports 862-930MHz

Bluetooth 5.0

GPS

L76K(GPS,BeiDou,GLONASS,QZSS)

OLED Display

Size: 1.3 inch

Resolution: 128*64 pixels

Active Area(mm): L34.5*W23.0*H1.47

Interface

24P E-Ink Display Connector

Grove Connector: UART/IIC/GPIO

Plated Through Hole（PTH）: UART/IIC/GPIO/Analog

Soldering pads reserved for SWD

Power

Type-C: 5v---1A

Solar energy interface(2.0mm 2p):5V---1A

Baterry interface(1.0mm 2p JST): 3.7v---1A

Certification

FCC, CE, RoHS

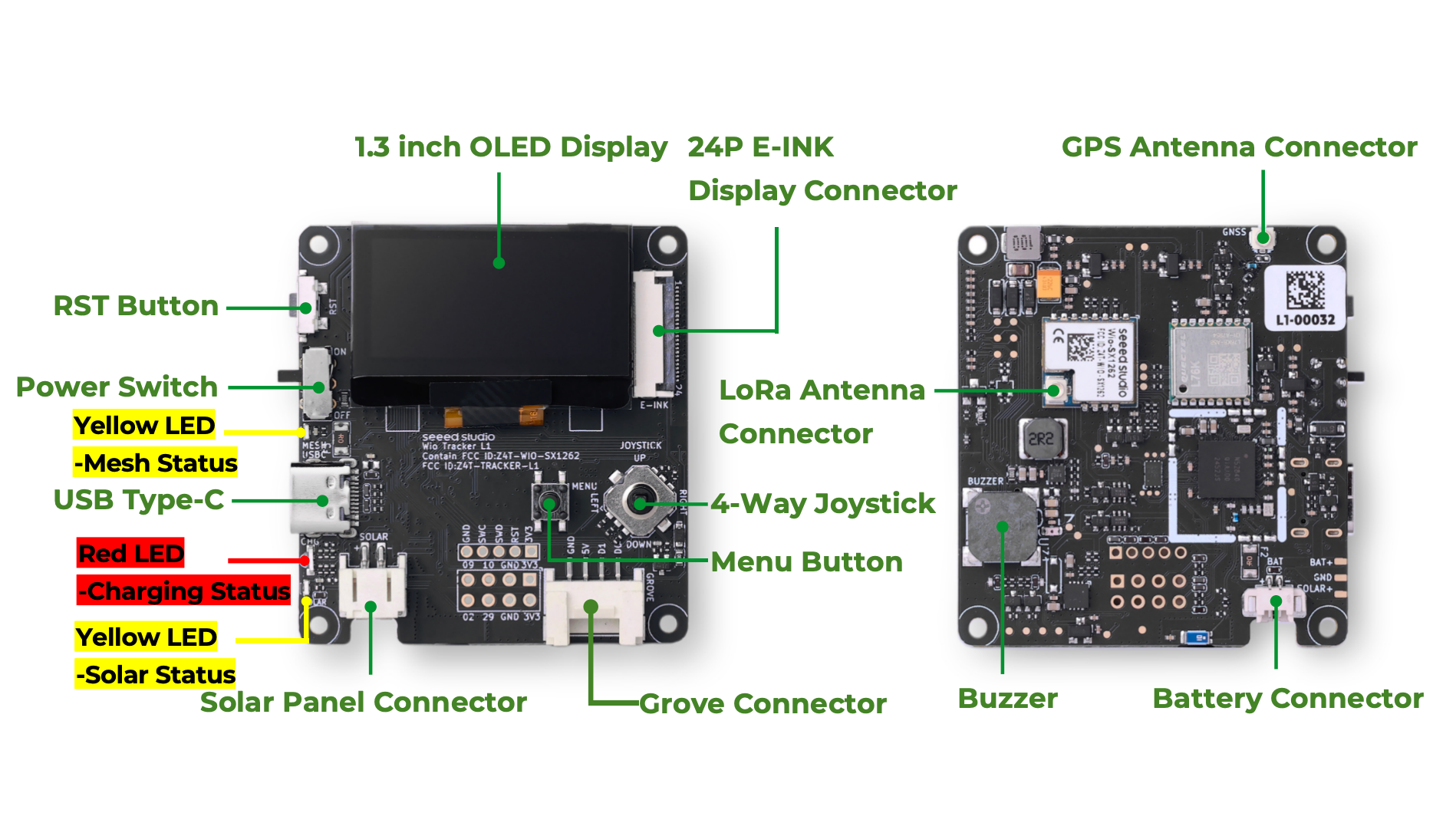

Hardware Overview

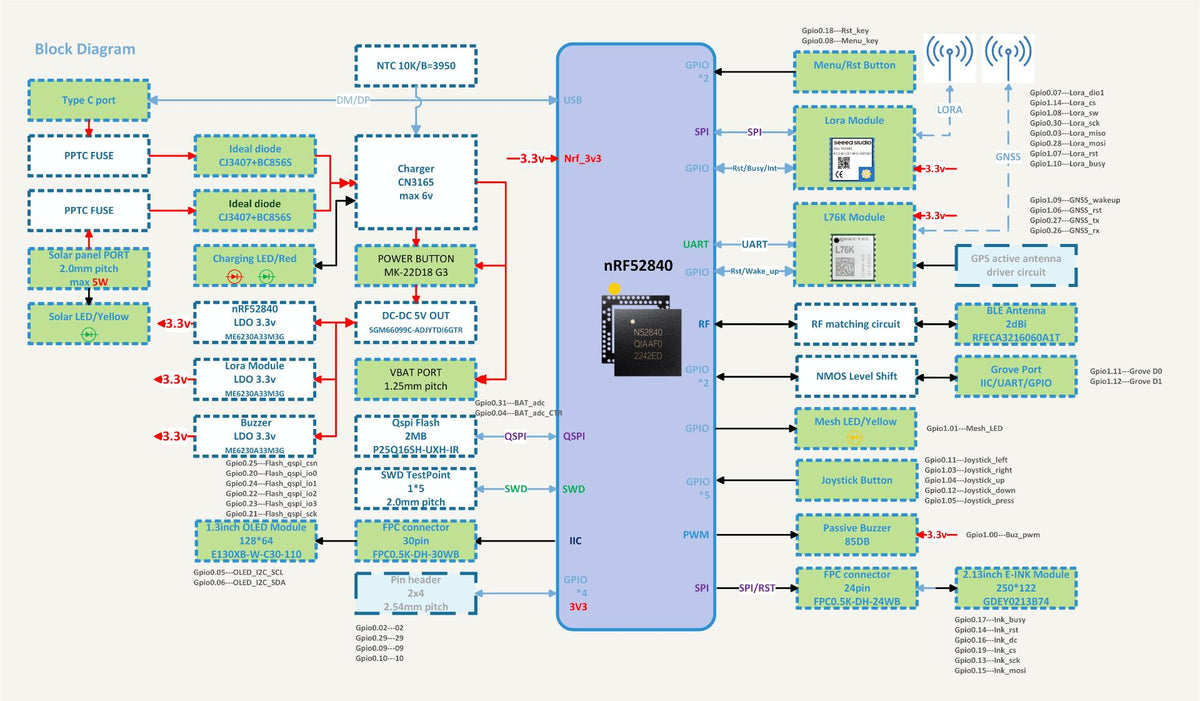

  • Diagram

Explore what our community has built!

Discover all the amazing projects from the Meshtastic Device Design Challenge — powered by Seeed and Hackster.io and Meshtastic.

See how community members around the world used Wio Tracker L1 Series to bring their creative ideas to life.

[View All Community Projects]

Documents
(V1) Wio Tracker Ll Pro 3D-Shell Reference Document
(V2 New Four-way Joystick) Wio Tracker Ll Pro 3D-Shell Reference Document
Wio Tracker L1 CE Certification
Wio Tracker L1 FCC Certification
Seeed Wio Tracker L1 Power Consumption Test and Battery Life Calculation

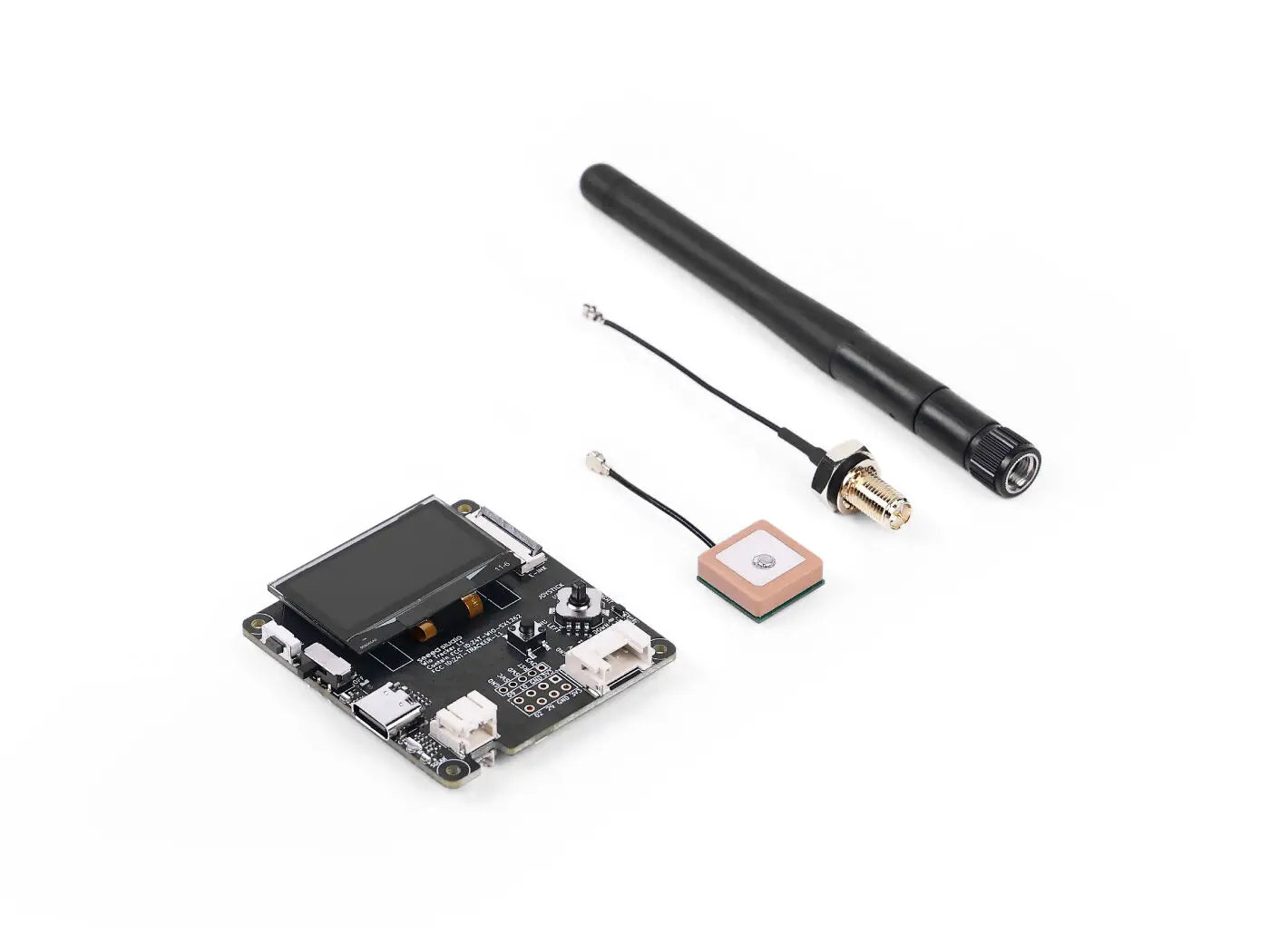

Part List

Wio Tracker L1 Board with 1.3 inch OLED

x1

LoRa Antenna

x1

60mm RF Cable(RP-SMA Female to IPEX)

x1

GPS Antenna

x1
