SPECIFICATIONS

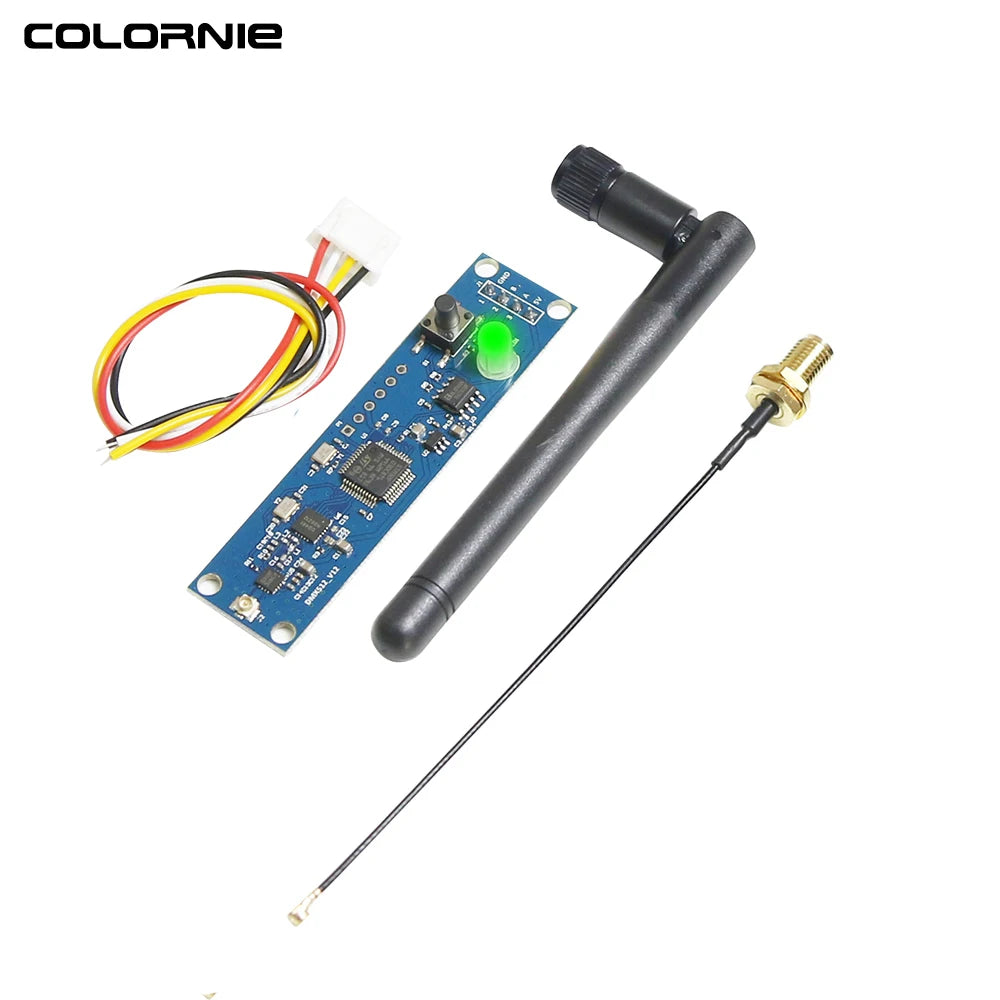

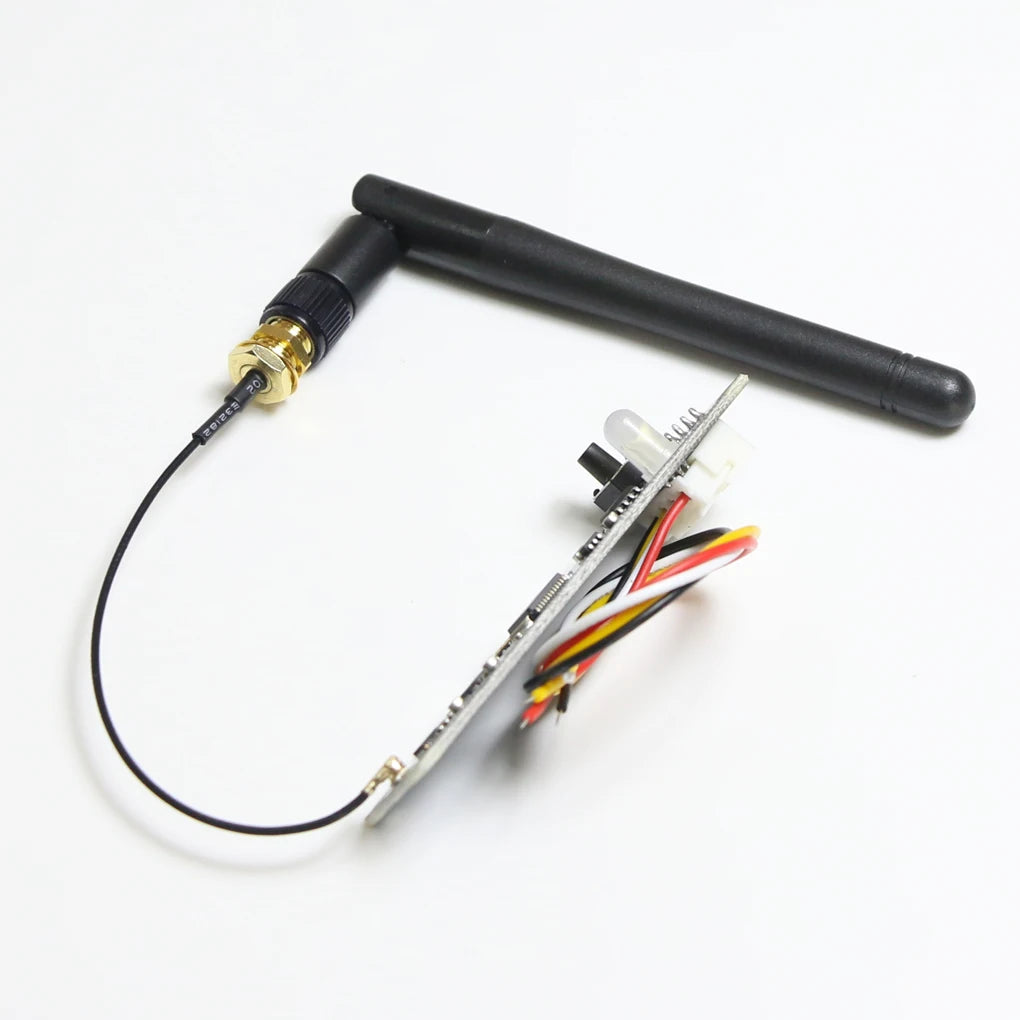

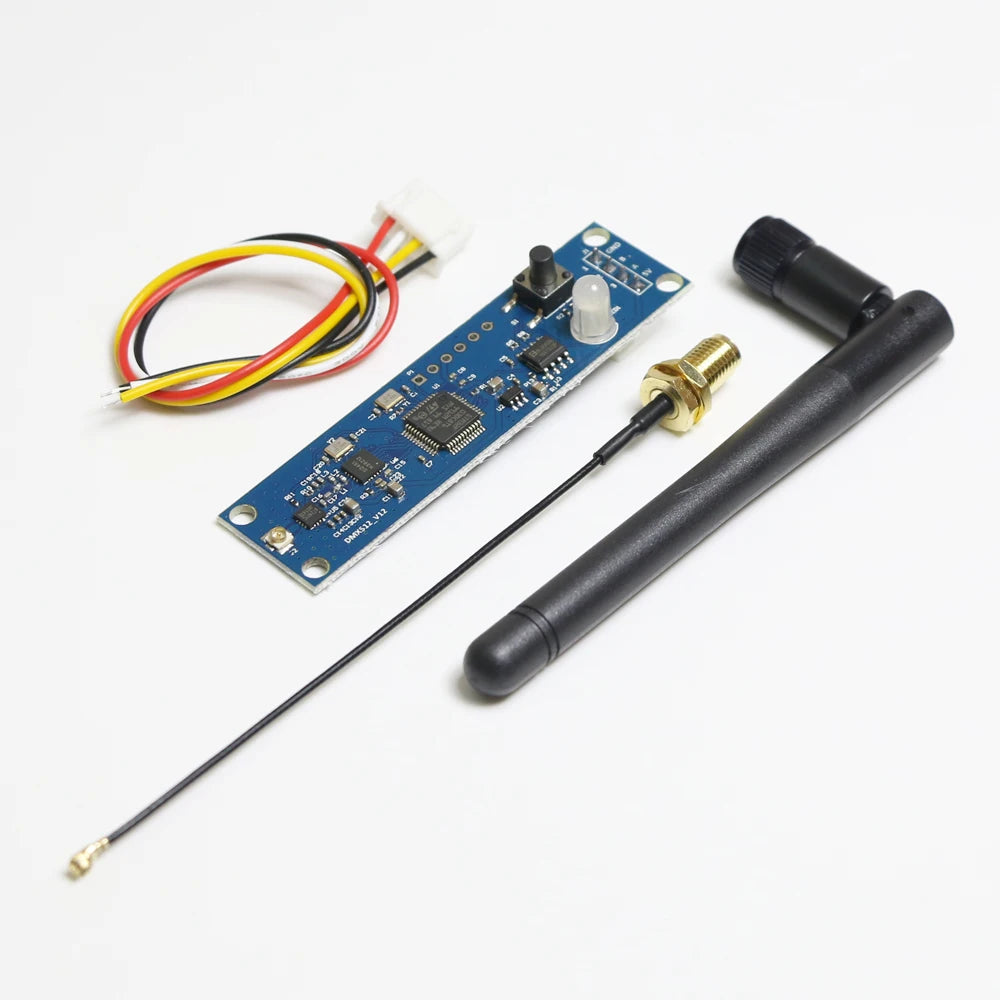

DMX512 PCB Board Wireless Receiver/Transmitter With Antenna

We have video show how to work, pls contact with us directly or leave message to us. Thank you!

Description:

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.

This product adopt 2.4G ISM frequency section( global opening section) without permission limited High effective GFSK modulate,communication design ; 126 channels jumping frenquecy automaticly,high anti-jamming ability.

Product feature:

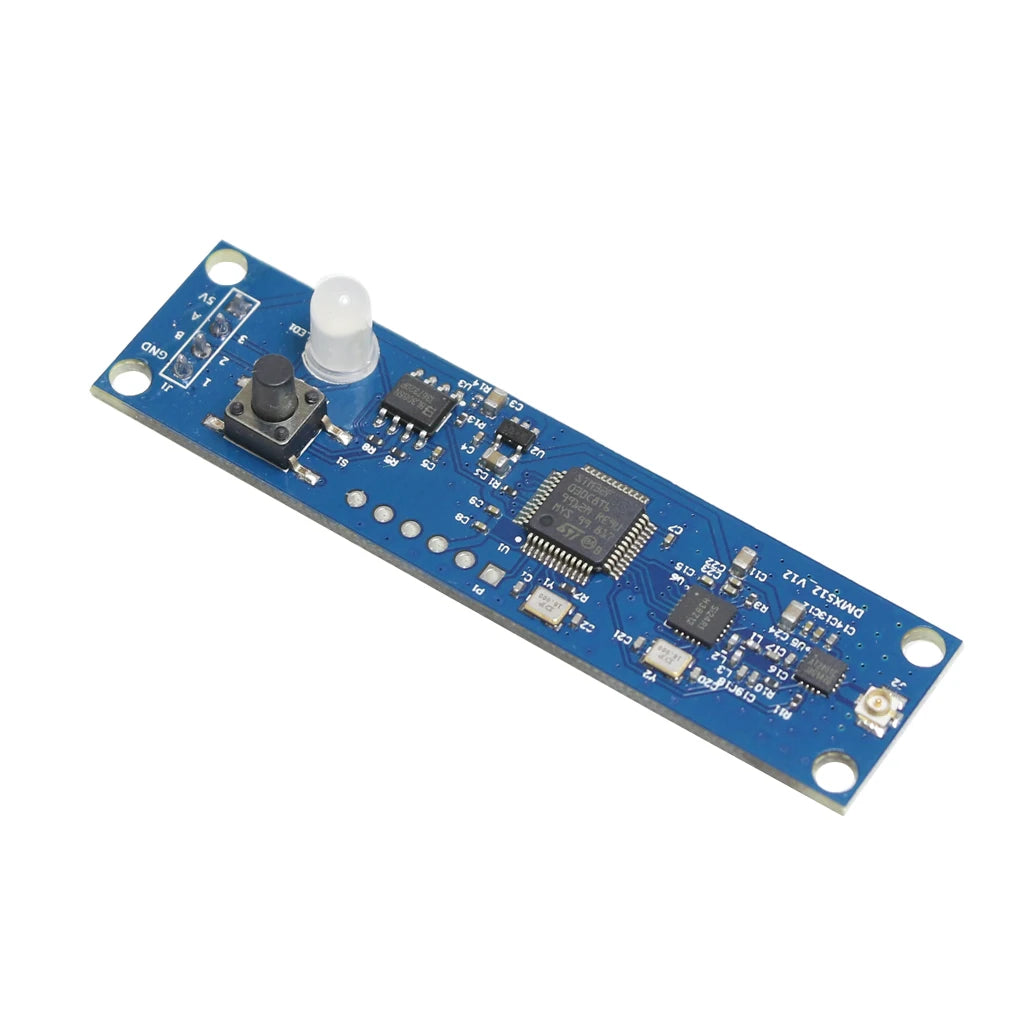

Product name:2.4G wireless DMX512 R/T moulding board

Small size,Esay to suit for interior of accessed lighting

Single key to operate,tricolor LED displaying

Transmitting standard DMX512 protocol data of console,also can transmitting lighting and lighting DMX512 protocol data.

126 channels jumping frenquecy automaticly,high anti-jamming ability. to ensure works reliability

7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place..

Input voltage:5VDC

Effective Range:400M

Work frequency section:2.4G ISM,126 channels.frequency section

Max transmitting power rate:20dBm

Receiver sensitive:-94dBm

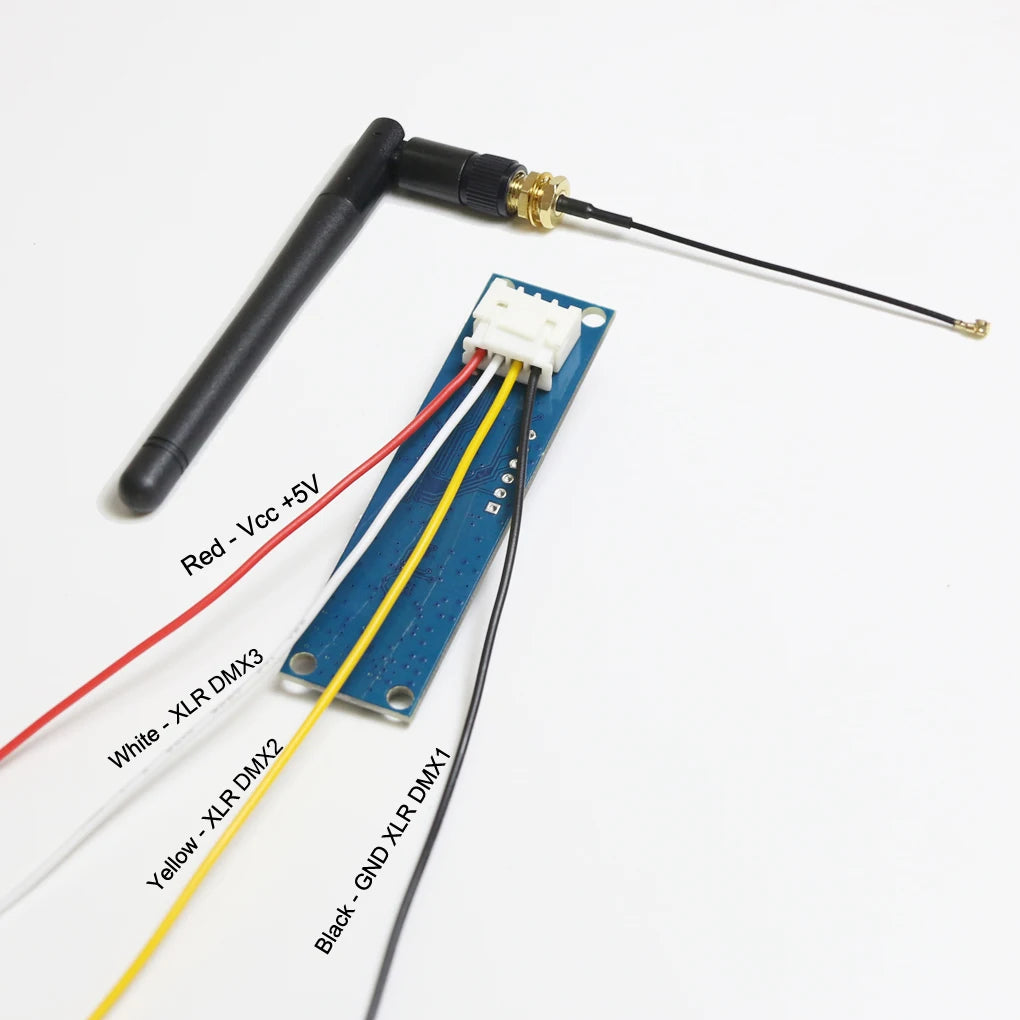

Signal port:RS485 or CPU series port AURT
