SPECIFICATIONS

Accessory Type: USB To DC Cable,USB To DC Cable

Battery: 3.7V lithium battery power supply and charging

Battery Included: no

Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh

Brand Name: Heltec Automation

Choice: yes

Compatible With: 1

Frequency: 470-510MHz, 863-923MHz

GNSS Chipset: UC6580

Heltec Dev-board: Wireless Tracker GNSS LoRa BLE

High-concerned chemical: none

LoRa Chipset: SX1262

Master Chip: ESP32-S3FN8

Max TX Power: 21±1dBm

Origin: Mainland China

Receiving Sensitivity: -134dBm

Typical Application Fields: Internet of Things (IoT)

WiFi: 802.22b/g/n, up to 150Mbps

semi_Choice: yes

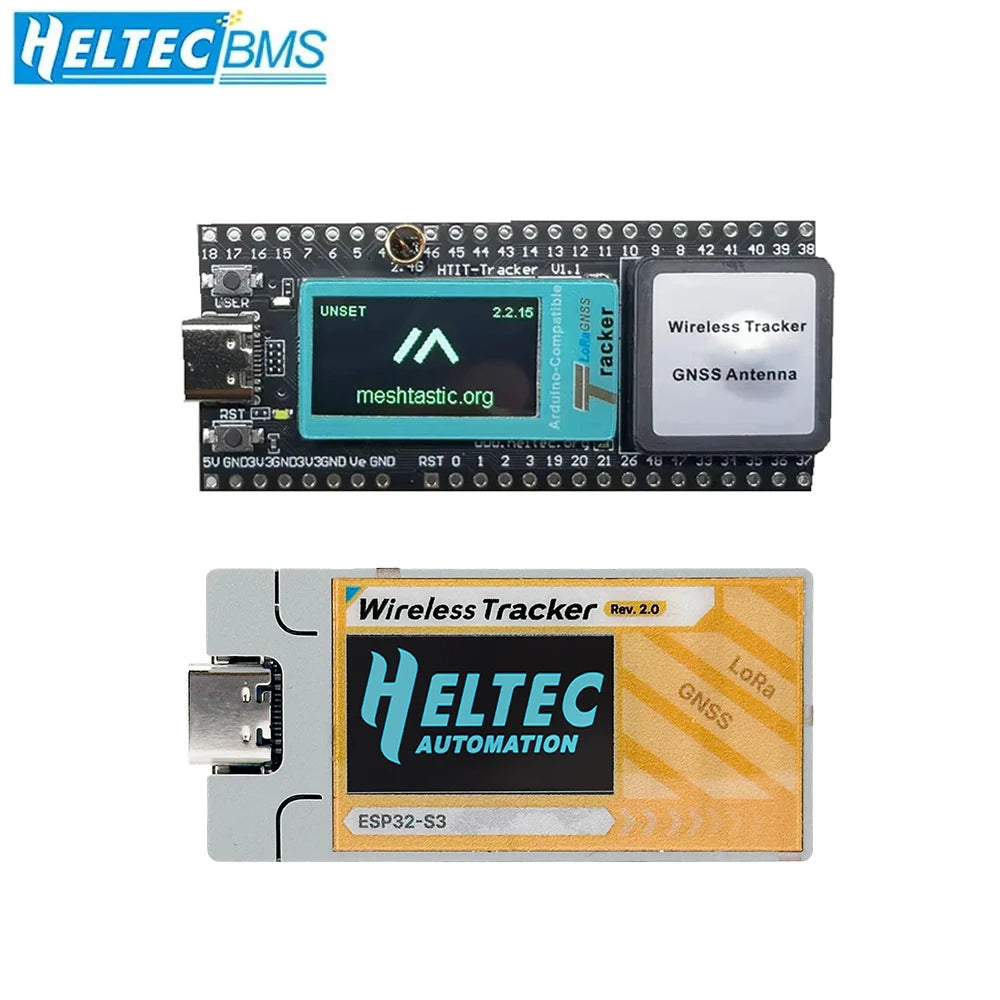

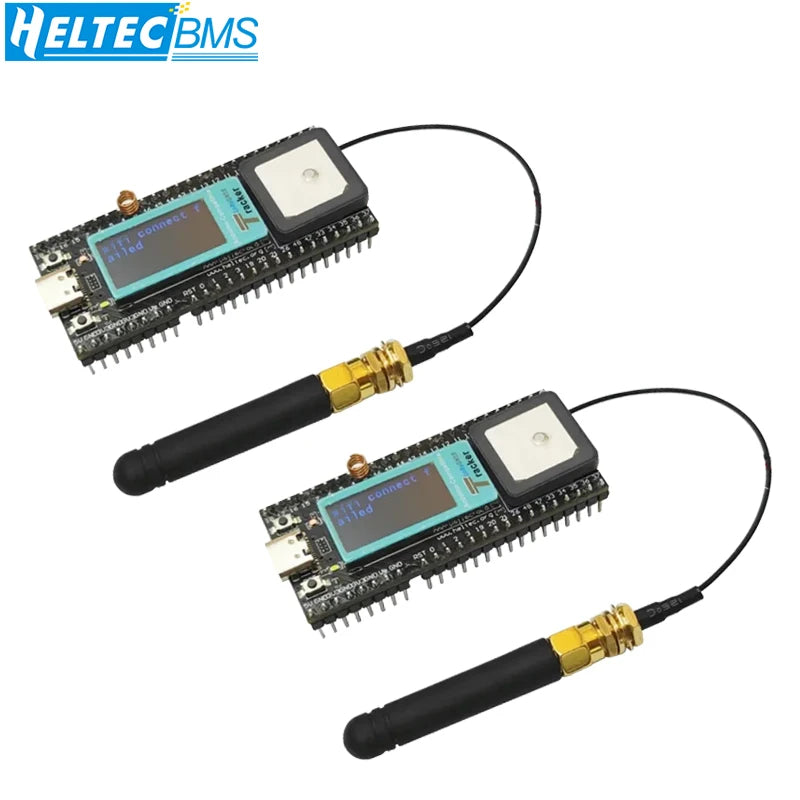

Wireless Tracker V2, ESP32-S3 +GPS+LoRa Node, Meshtastic, MeshCore and LoRaWAN Compatible

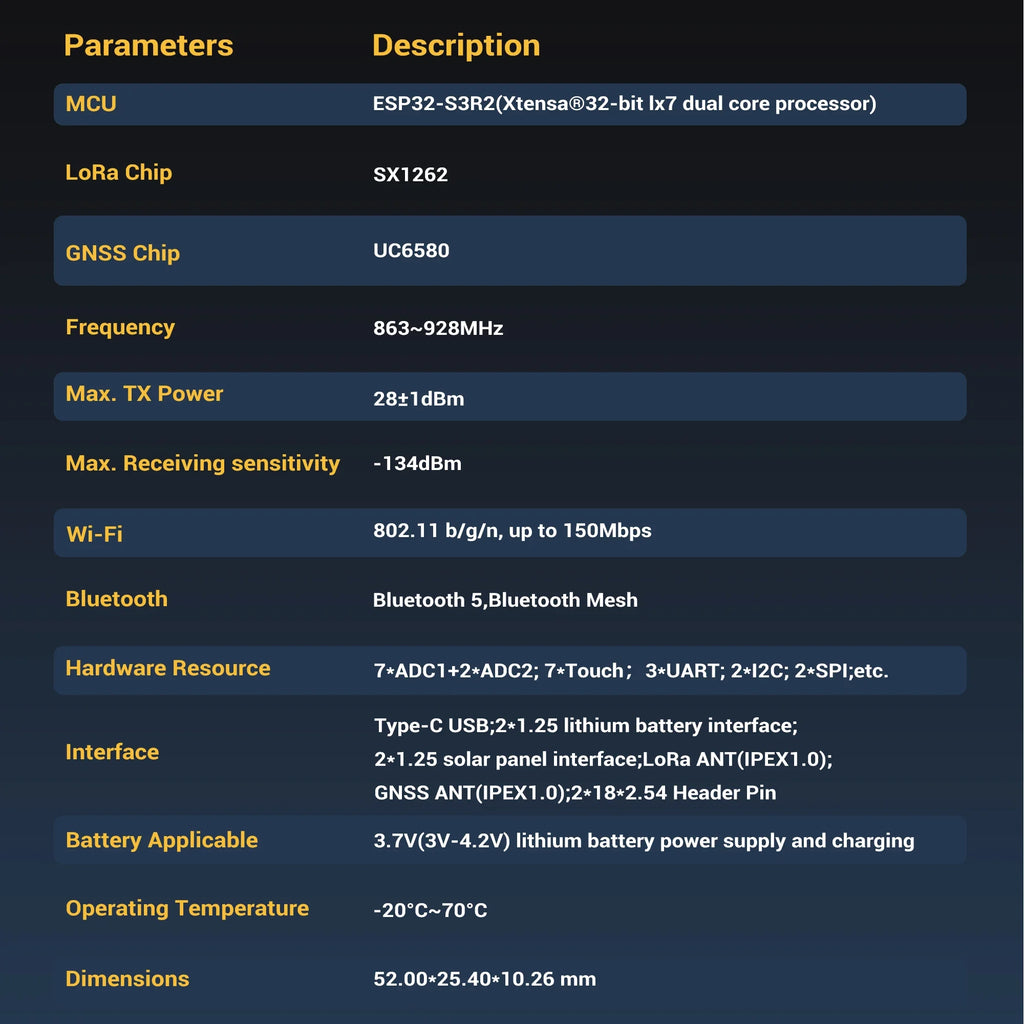

Wireless Tracker V2 powered by ESP32-S3FN8, integrates SX1262 and UC6580 to support WiFi, Bluetooth, LoRa, and GNSS. With a built-in PA, it delivers a transmit power of 28±1 dBm.

Summary
The Wireless Tracker V2 is built around the ESP32-S3FN8 and integrates the SX1262 LoRa chip along with the UC6580 GNSS chip.
This new generation Wireless Tracker V2 incorporates a power amplifier, achieving a maximum transmission power of up to 28±1dBm. The LNA can be bypassed without affecting reception performance.
The Wireless Tracker V2 features LDS antennas for both GNSS and 2.4G, significantly reducing the device’s size.
It is widely used in fields such as personnel positioning, asset tracking, LoRaWAN, Meshtastic, and MeshCore.

Main Features

Supports Wi-Fi/Bluetooth, LoRa, and GNSS communication.
Integrates a power amplifier with a maximum output power of 28±1dBm, and the LNA can be bypassed.
Supports multi-system joint positioning including GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS.
Integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, automatic switching between USB and battery power).
USB-C interface with comprehensive voltage regulation, ESD protection, short circuit protection, and RF shielding.
Supports the Arduino development framework, providing LoRa/LoRaWAN examples.
Compatible with Meshtastic and MeshCore.

Tips：

The product in this link defaults to 'no welding of pins'. If you need to weld before shipping, please contact customer service ,we will arrange it for you!

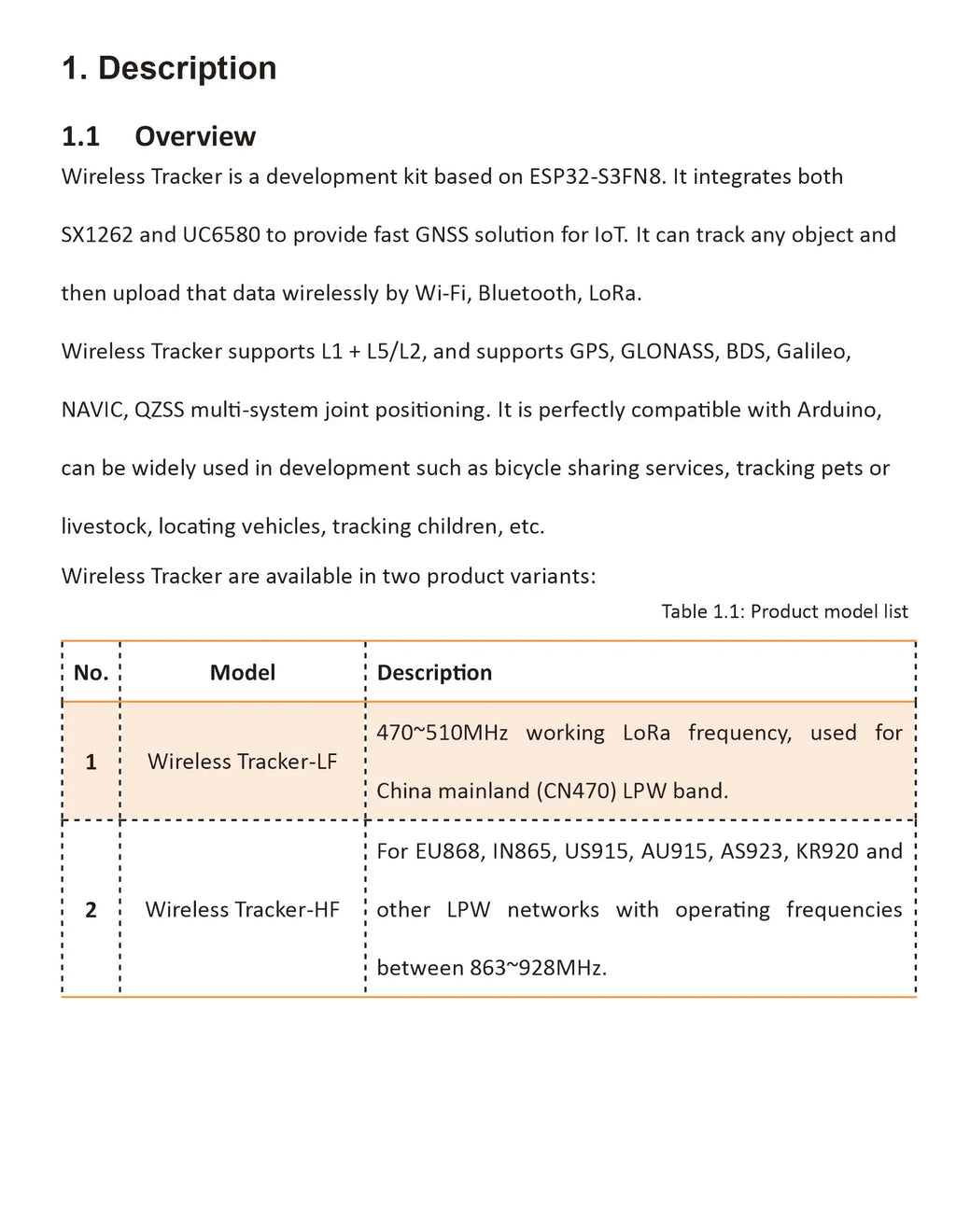

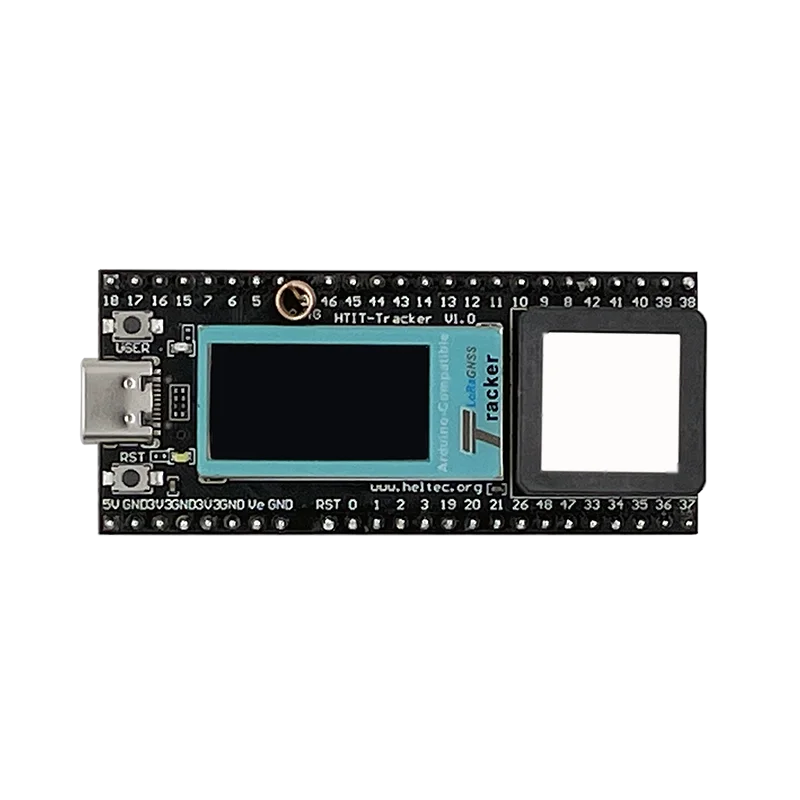

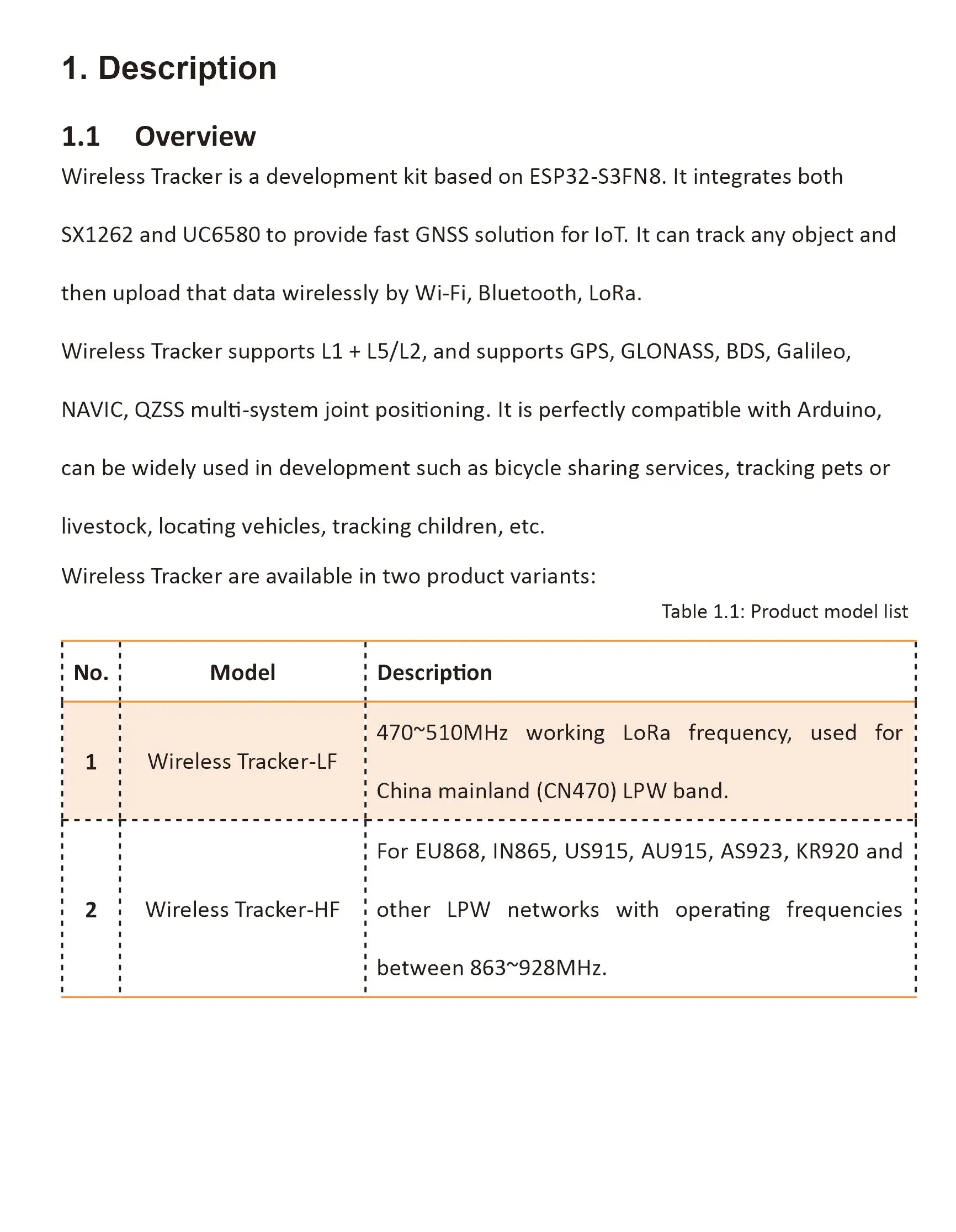

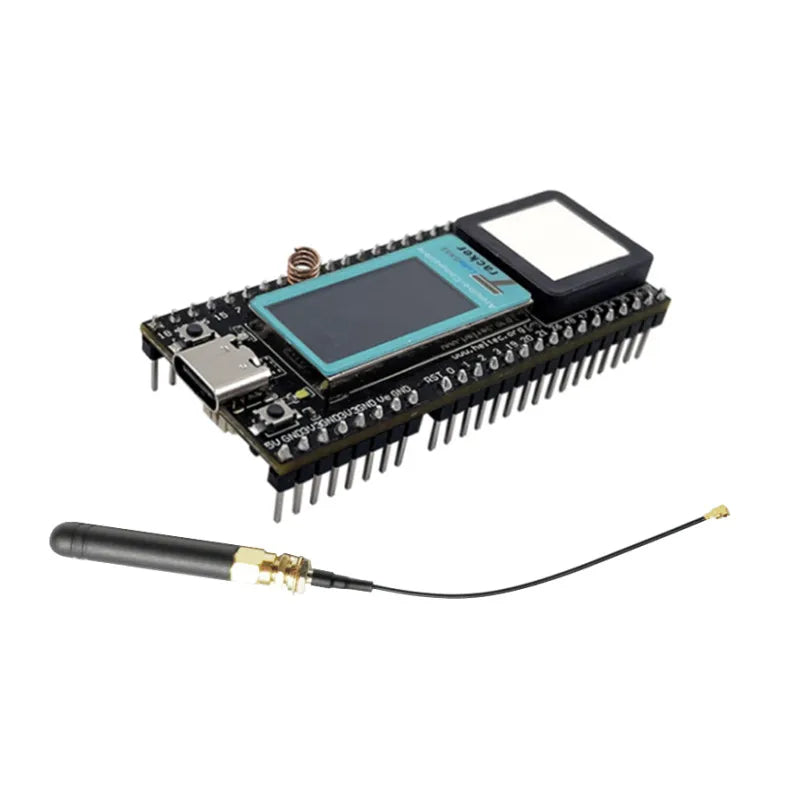

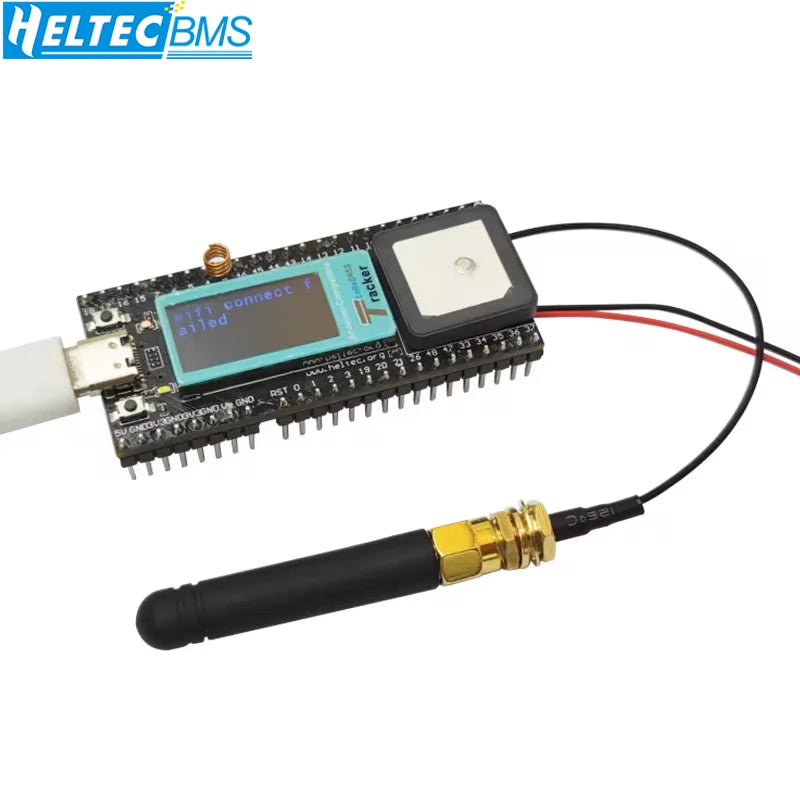

Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa.
Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.

Wireless Tracker is a part of the “Heltec LoRa“ series, with the following features:

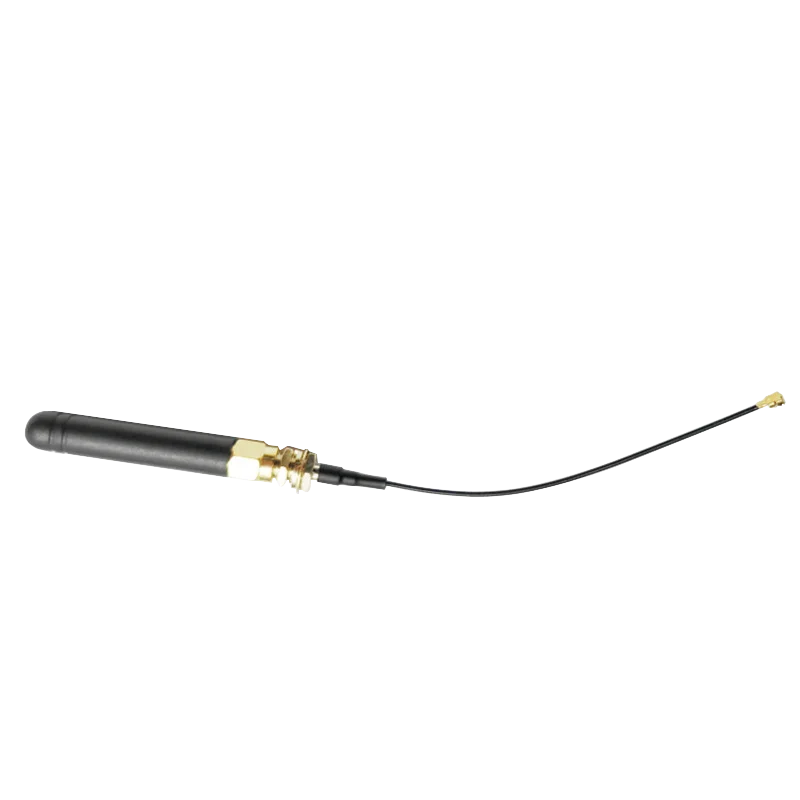

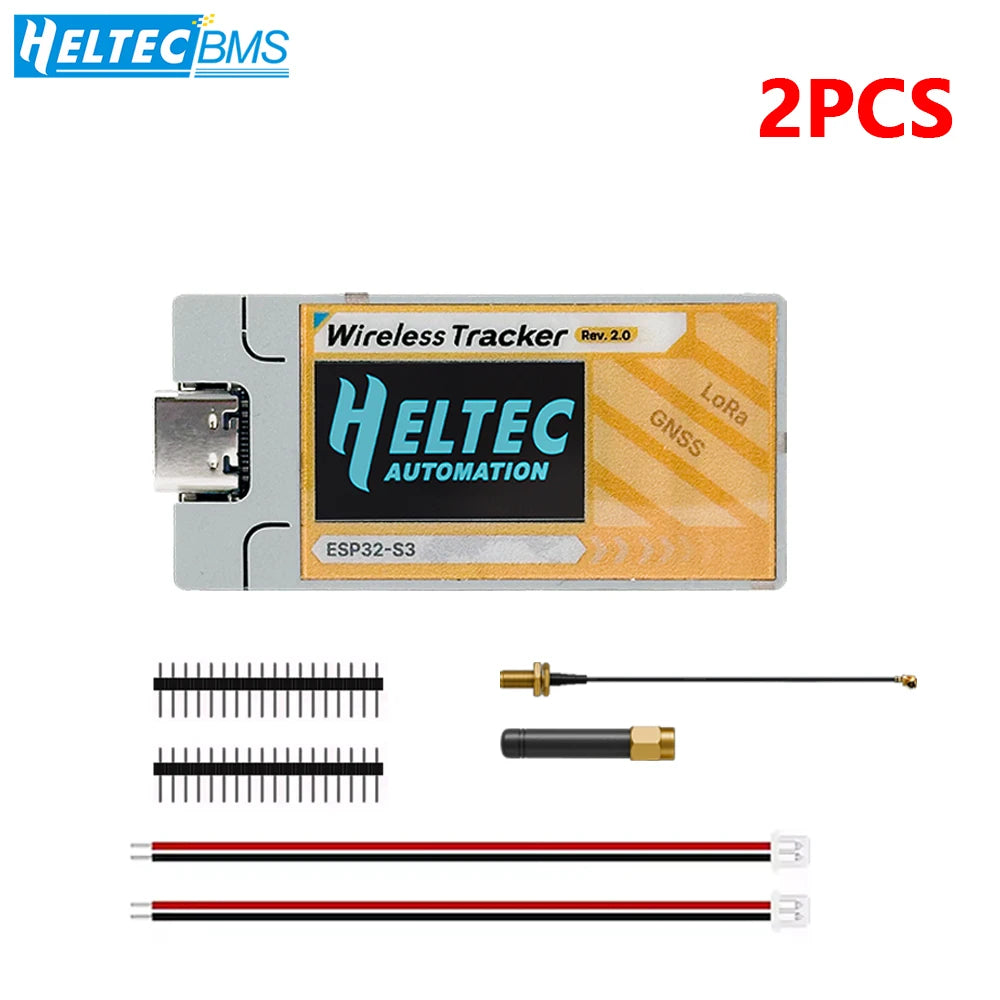

Include glue rod antenna(IPEX-1);

Without battery;

Include SH1.25 x 2 battery connector.

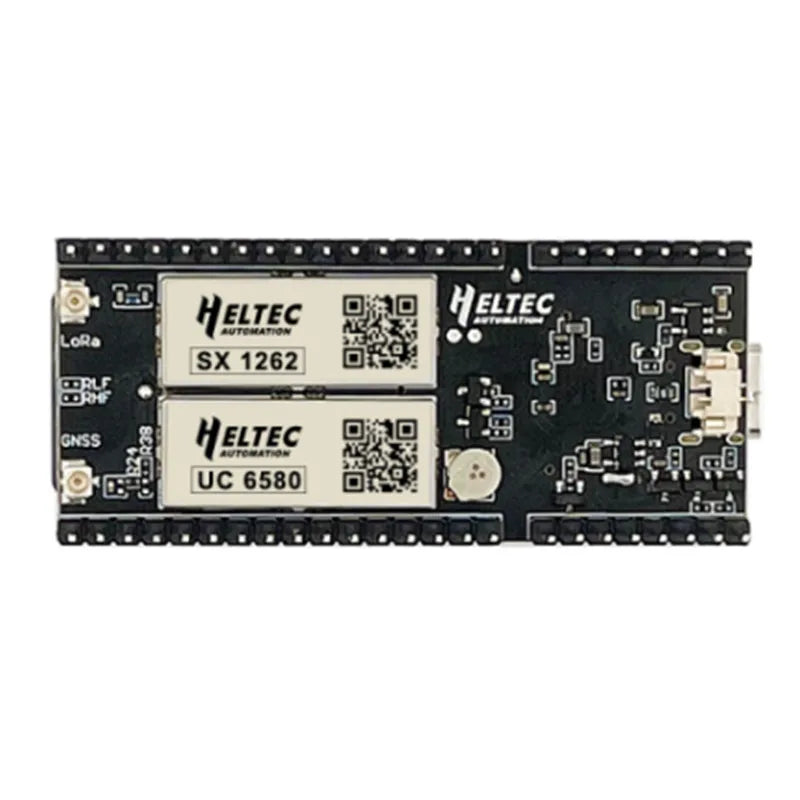

ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.

Low power design of dual-frequency multi-system based on 22nm technology.

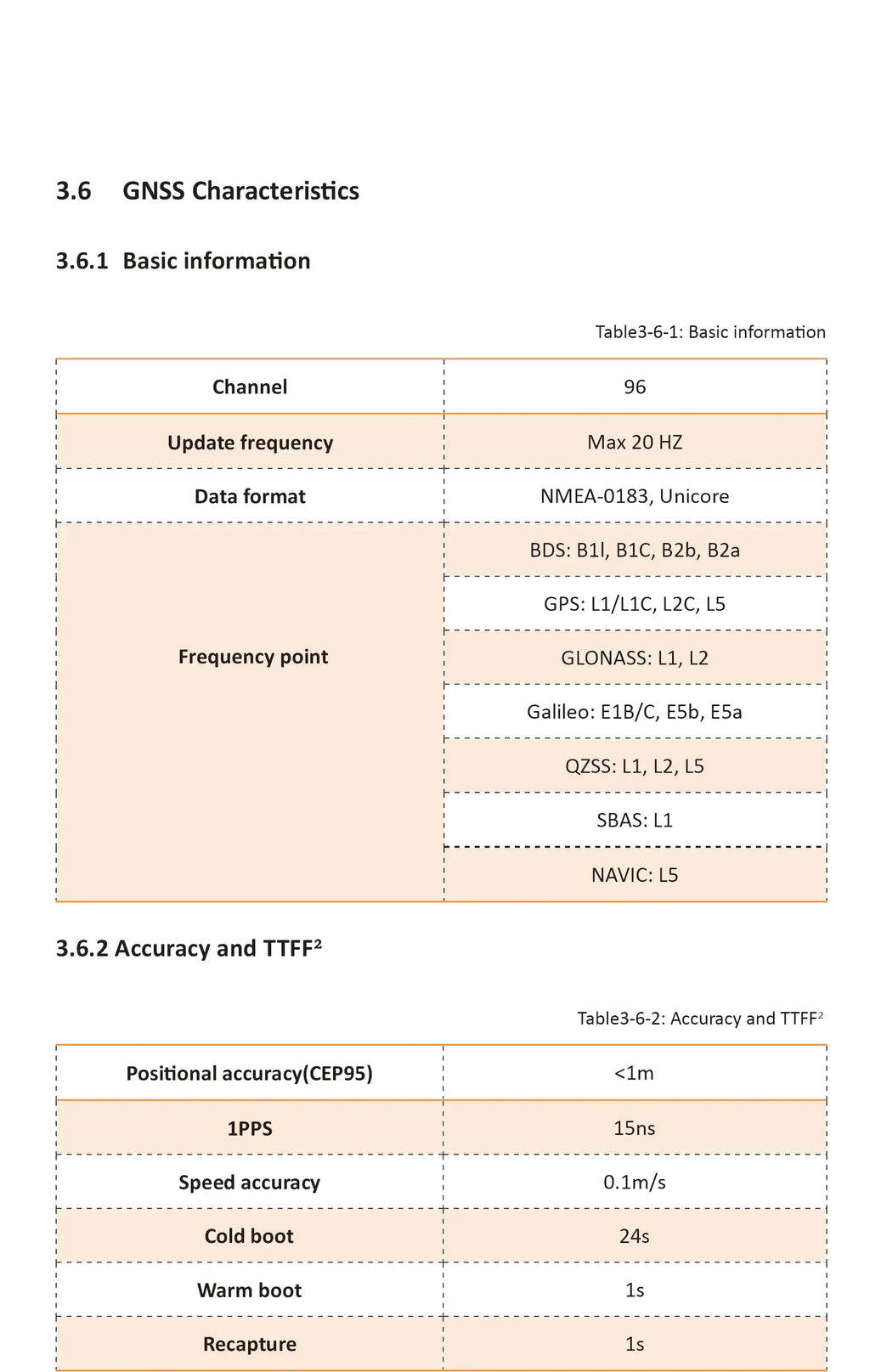

Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.

Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.

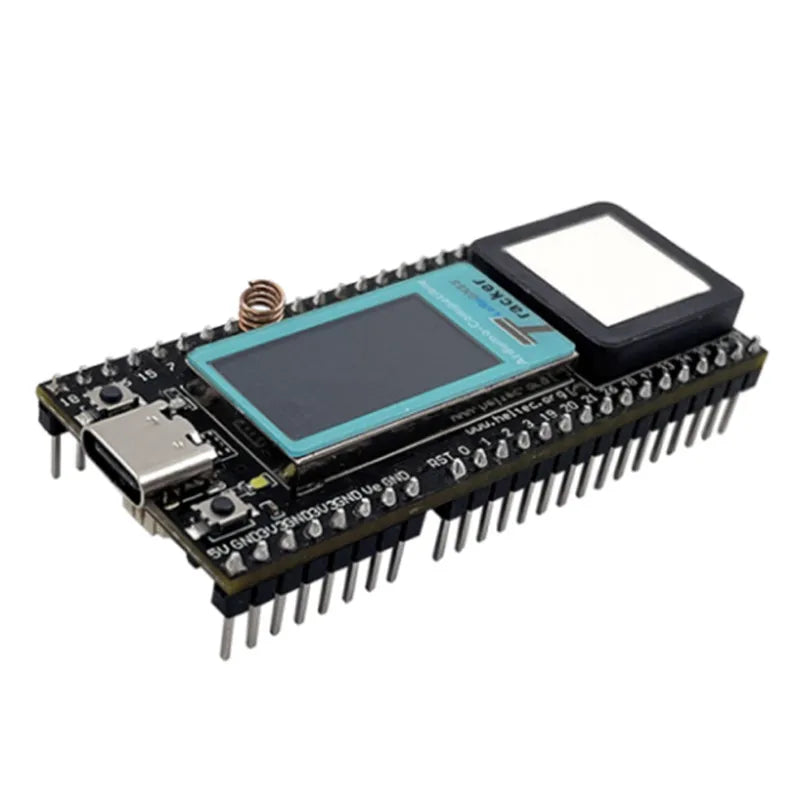

Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information.

Support the Arduino development environment.

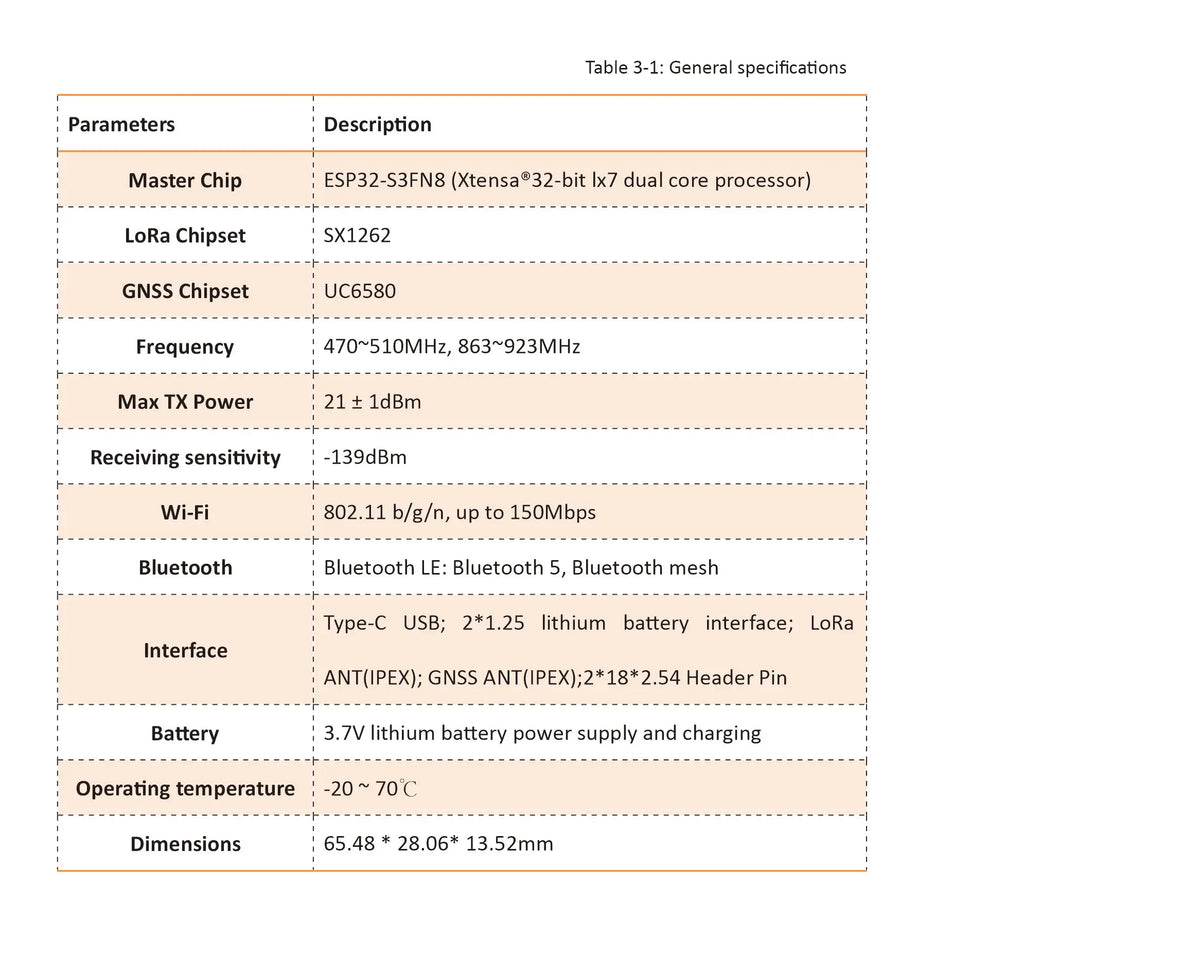

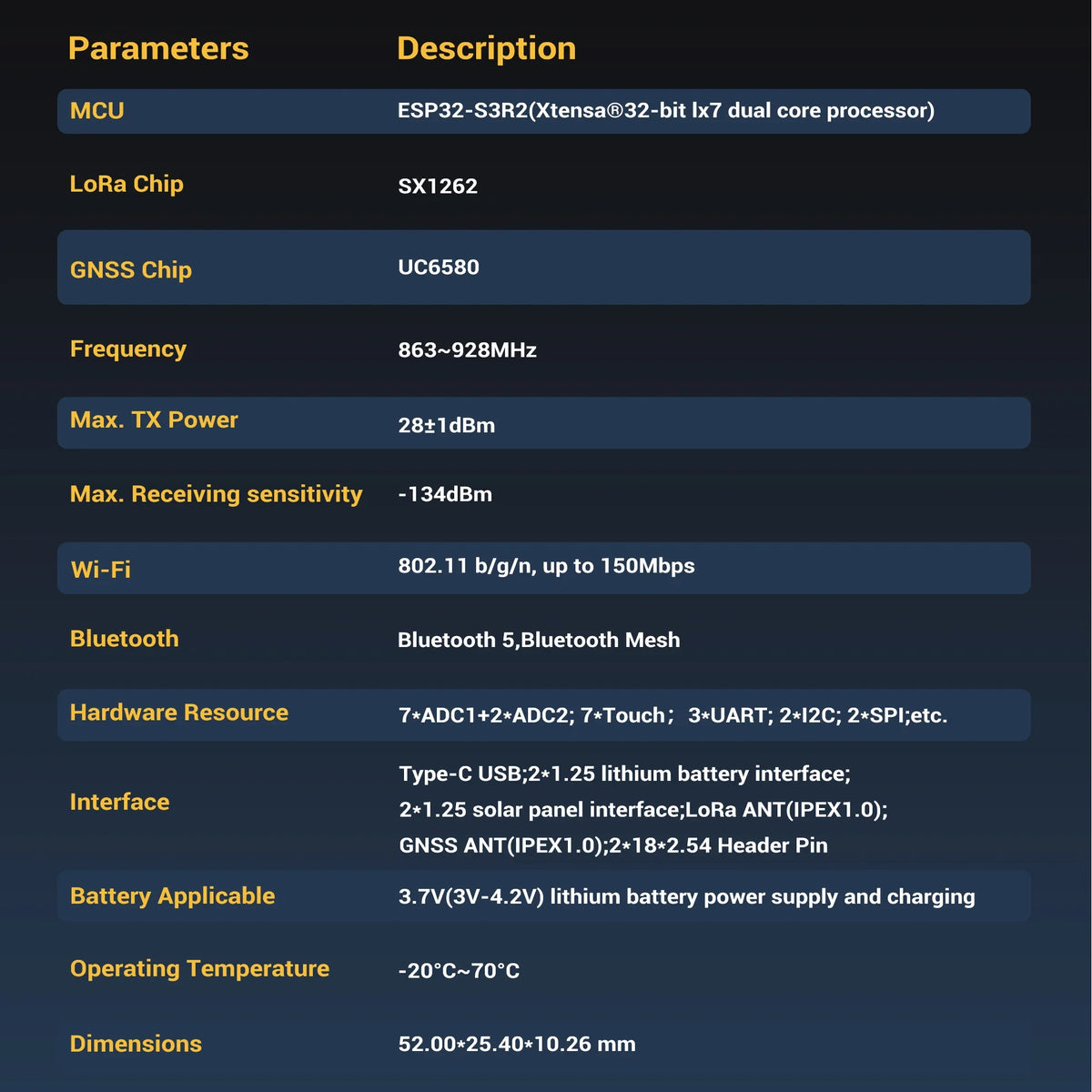

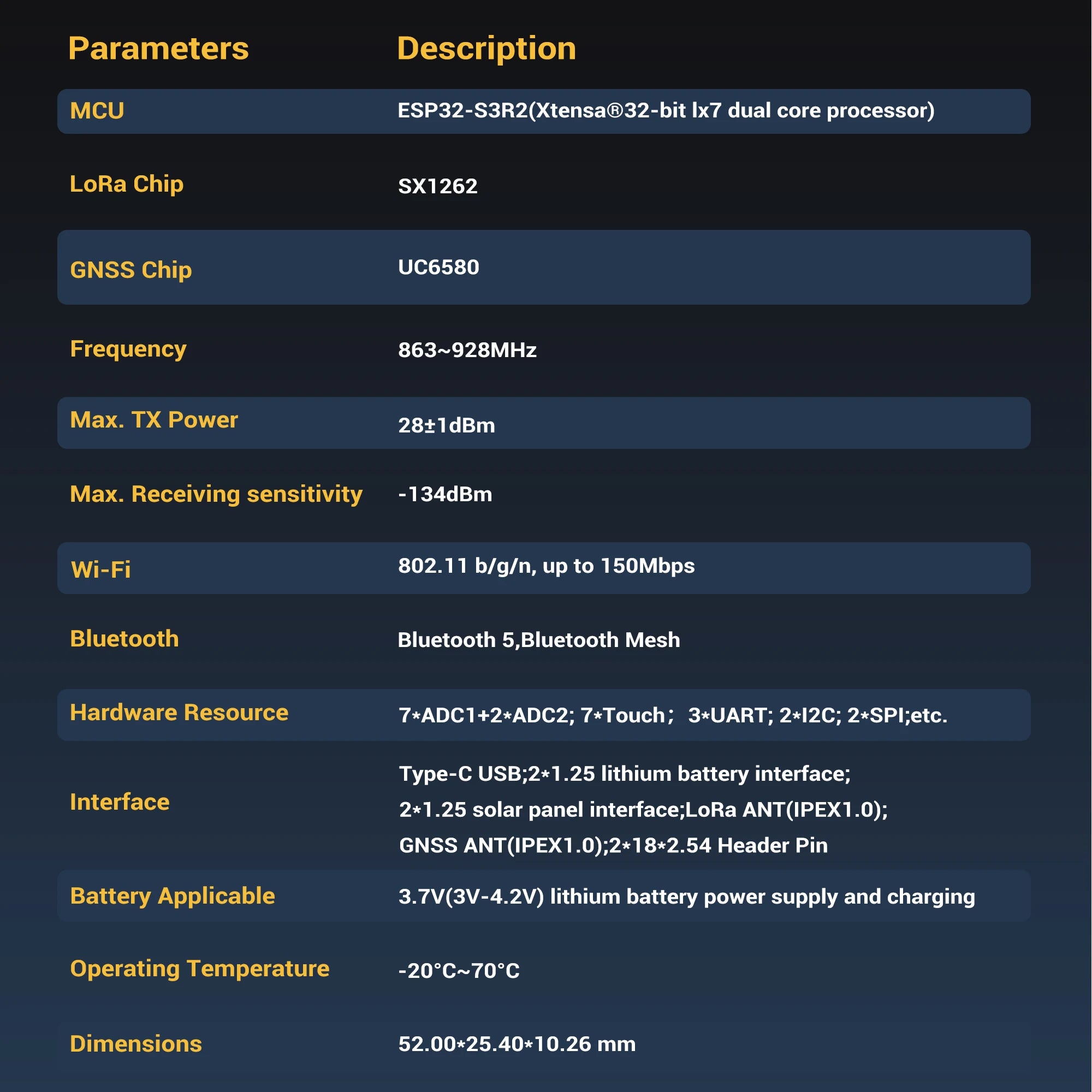

Parameter：
