SPECIFICATIONS

Brand Name: RAK

High-concerned chemical: none

Origin: Mainland China

Type: others

Selection

• Type1-RAK19007+RAK11310 - RAK19007+RAK11310 LoRaWAN and LoRa Raspberry Pi RP2040 Core with Arduino

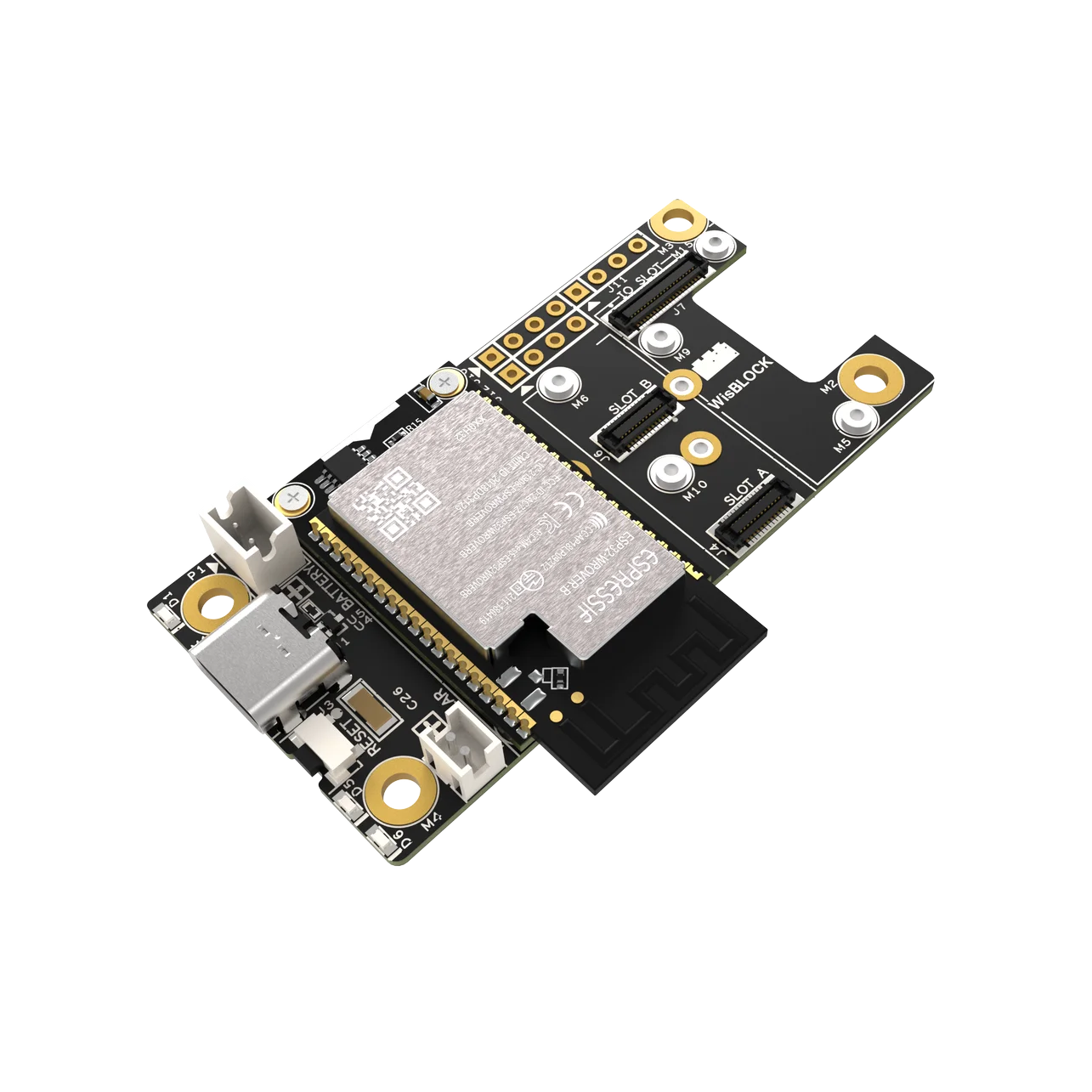

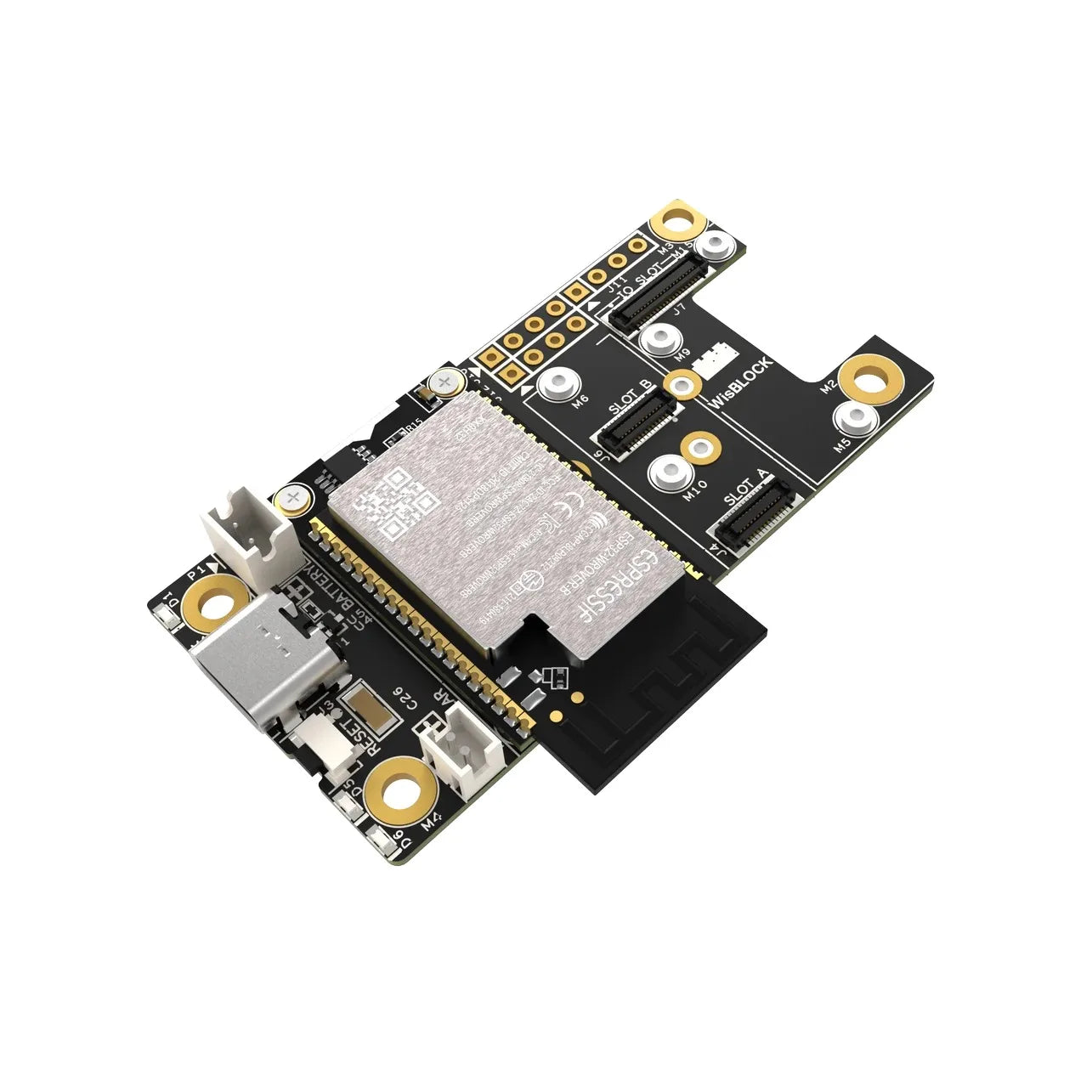

• Type2-RAK19007+RAK11200 - RAK19007+RAK11200 WiFi and BLE Espressf ESP32-WROVER Core with Arduino

• Type3-RAK19007+RAK4631 - RAK19007+RAK4631 LoRaWAN and LoRa Nordic nRF52840 BLE Core with Arduino

• Type4-RAK19007+RAK4631-R - RAK19007+RAK4631-R LoRaWAN and LoRa Nordic nRF52840 BLE Core with RUI3

• Type5-RAK19007+RAK11722 - RAK19007+RAK11722 LoRaWAN Ambiq Apollo 3 Core with RUI3

• Type6-RAK19007+RAK3312- LoRa、 WiFi and BLE ESP32-S3 + SX1262 Module

Request Quote for Custom WisBlock Module



Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Important Note:

• The RAK3312 WisBlock Core Module is the successor to the RAK11200, which has reached end-of-life (EOL) due to the discontinuation of the ESP32-Wrover module by Espressif. RAK3312 offers improved performance and long-term availability. Existing RAK11200 users remain fully supported through documentation and resources.

• For the RAK4631 variant, selection between the Arduino version and the low-power RUI3 version is available. This supports both Arduino-based IoT development and low-power IoT evaluation depending on project requirements.

• If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and cause damage to the battery and board.

• If a battery is used with WisBlock Base Board, please check that the battery connector has the correct polarity. You can check the required polarity in our Documentation Center.

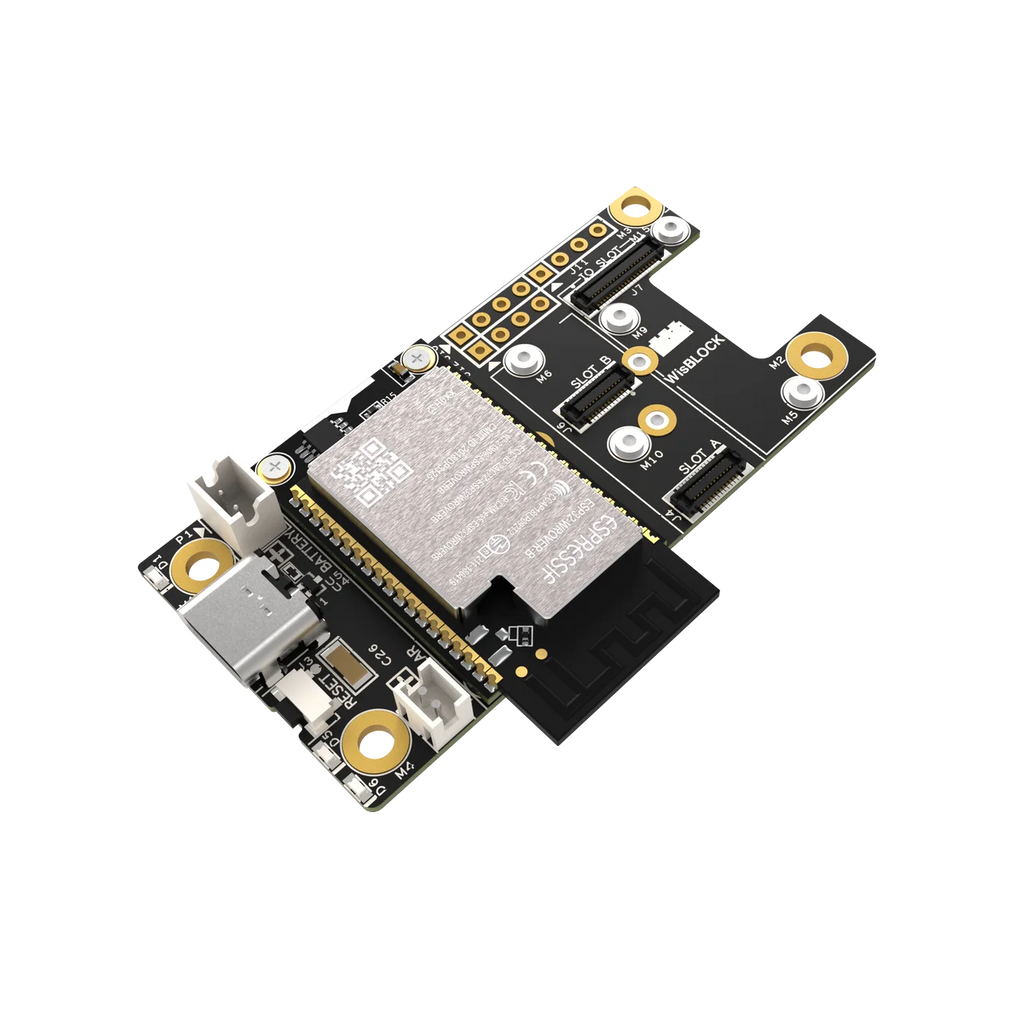

What Is the WisBlock Starter Kit

Start off the WisBlock journey with this bundle kit: the WisBlock Starter Kit. The RAK WisBlock Starter Kit provides a structured entry point into modular IoT hardware evaluation. It serves as a modular IoT starter kit for early-stage device prototyping and connectivity testing.

This bundle includes the WisBlock Base RAK19007 and a selectable WisBlock Core module. Together, they form a WisBlock development kit designed for evaluating wireless connectivity, firmware behavior, and power performance without custom hardware design. It functions as a LoRaWAN development kit with BLE for multi-protocol IoT evaluation.

Supported Connectivity Options & Core Modules

• RAK4631 (LPWAN + BLE)

• RAK11310 (LPWAN)

• RAK3312 (LPWAN + WiFi + BLE)

• RAK11722 (LPWAN)

These Starter Kits offer a discounted bundle price compared to purchasing individual components separately.

Why You Need the WisBlock Starter Kit

Early-stage IoT development often stalls due to hardware mismatches, regional constraints, or unnecessary component sourcing. This IoT prototyping kit reduces those barriers and helps teams move from idea to working prototype more efficiently.

Why it’s useful:

• Faster setup: Reduces time spent sourcing and validating compatible core components

• Deployment readiness: Supports regional frequency selection for compliant testing and trials

• Design flexibility: Allows switching connectivity paths without replacing the base platform

Key Features of the WisBlock Starter Kit

• Architecture

  Standardized modular base-and-core architecture supporting removable and replaceable core modules without modification to the base hardware.

• Core Module Interoperability

  Supports multiple WisBlock Core modules, including LPWAN, BLE, and WiFi variants, enabling evaluation of different MCU and radio combinations on a single base platform.

• Multi-Connectivity Evaluation

  Supports multiple wireless communication technologies, including LoRaWAN, BLE 5.0, and WiFi (via RAK3312 core module). This allows evaluation of long-range, short-range, and IP-based connectivity options on a single hardware platform, unlike many development kits that support only a single radio.

• Mechanical & Electrical Interface

  Unified mechanical footprint and electrical interface across all supported core modules, ensuring consistent power routing and peripheral connectivity throughout the WisBlock ecosystem.

• Firmware Support

  Compatible with Arduino-based firmware for rapid application development and RUI3 low-power firmware for power-optimized operation and timing validation.

Key Benefits for IoT Prototyping & Evaluation

• Regional compliance validation: Functions as an IoT prototyping kit for regional LoRaWAN compliance, enabling accurate evaluation across EU868, US915, AS923, and other supported bands.

• Protocol-level evaluation: Supports side-by-side testing of LoRaWAN and BLE connectivity without redesigning hardware.

• Firmware flexibility: Allows developers to choose between Arduino-based development and low-power RUI3 firmware depending on project goals.

• Reduced design risk: Helps identify regulatory, power, and connectivity constraints early in the development cycle.

Regional Frequency Compatibility

Please refer to the table below to select the correct RAK4631 / RAK11310 / RAK11722 module variant based on the region. This ensures the WisBlock Starter Kit is configured as an EU868 / US915 / AS923 LoRaWAN starter kit or other supported regional option.

Use Case Examples for WisBlock Starter Kit

These examples show how the kit supports practical development needs across different stages of connected product creation, particularly for engineers evaluating an IoT starter kit LoRa BLE platform before committing to custom hardware.

Use Case #1: Learning LPWAN Fundamentals

A hobbyist uses the kit to build a simple sensor node, sending periodic data over LoRa connectivity. The pre-matched base and core modules reduce setup errors, allowing focus on understanding network behavior and power usage

Use Case #2: First Wireless Prototype

An individual developer evaluates BLE communication by pairing the kit with a mobile device. Using the modular WisBlock platform, the prototype demonstrates basic data exchange without custom hardware design.

Comparison Table: WisBlock Starter Kit vs. Dragino LoRa Kit

While both products serve as a LoRaWAN starter kit, the WisBlock Starter Kit offers modular core swapping and multi-protocol evaluation beyond fixed-architecture alternatives.

What’s in the Box

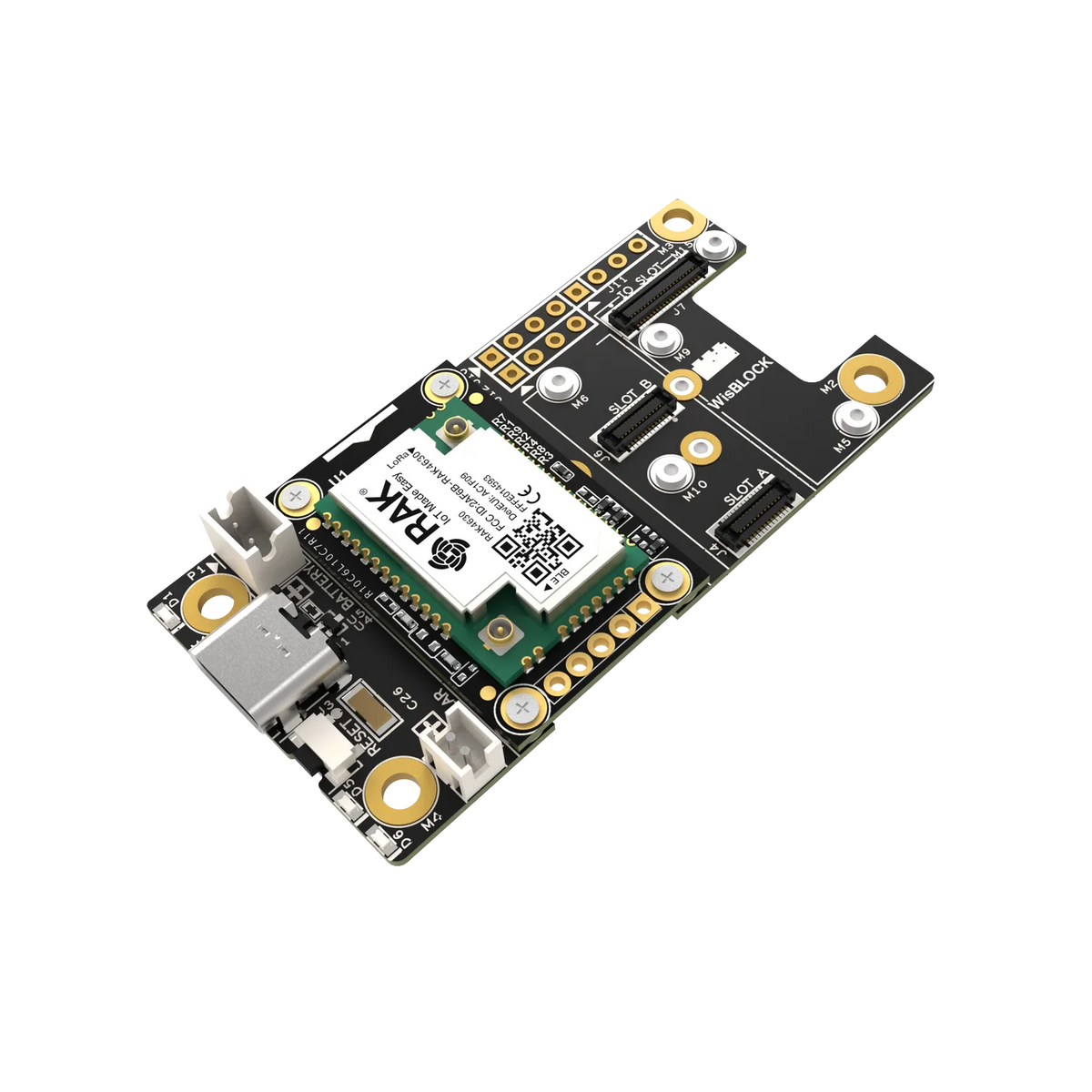

• Variant 1（RAK19007+RAK4631）

  • 1pc WisBlock Base (RAK19007)

  • 1pc WisBlock Core (RAK4631) - Select your frequency band before ordering. Open Source Arduino variant

  • 1pc LoRa Antenna with MHF1 connector

  • 1pc WiFi/BLE Antenna with MHF1 connector

  • 1pc Type-C USB Cable

  • 1set Screw

• Variant 2 （RAK19007+RAK4631-R）

  • 1pc WisBlock Base (RAK19007)

  • 1pc WisBlock Core (RAK4631) - Select your frequency band before ordering. RUI3 variant

  • 1pc LoRa Antenna with MHF1 connector

  • 1pc WiFi/BLE Antenna with MHF1 connector

  • 1pc Type-C USB Cable

  • 1set Screw

• Variant 3（RAK19007+RAK11310）

  • 1pc WisBlock Base (RAK19007)

  • 1pc WisBlock Core (RAK11310) - Select your frequency band before ordering

  • 1pc LoRa Antenna with MHF1 connector

  • 1pc Type-C USB Cable

  • 1set Screw

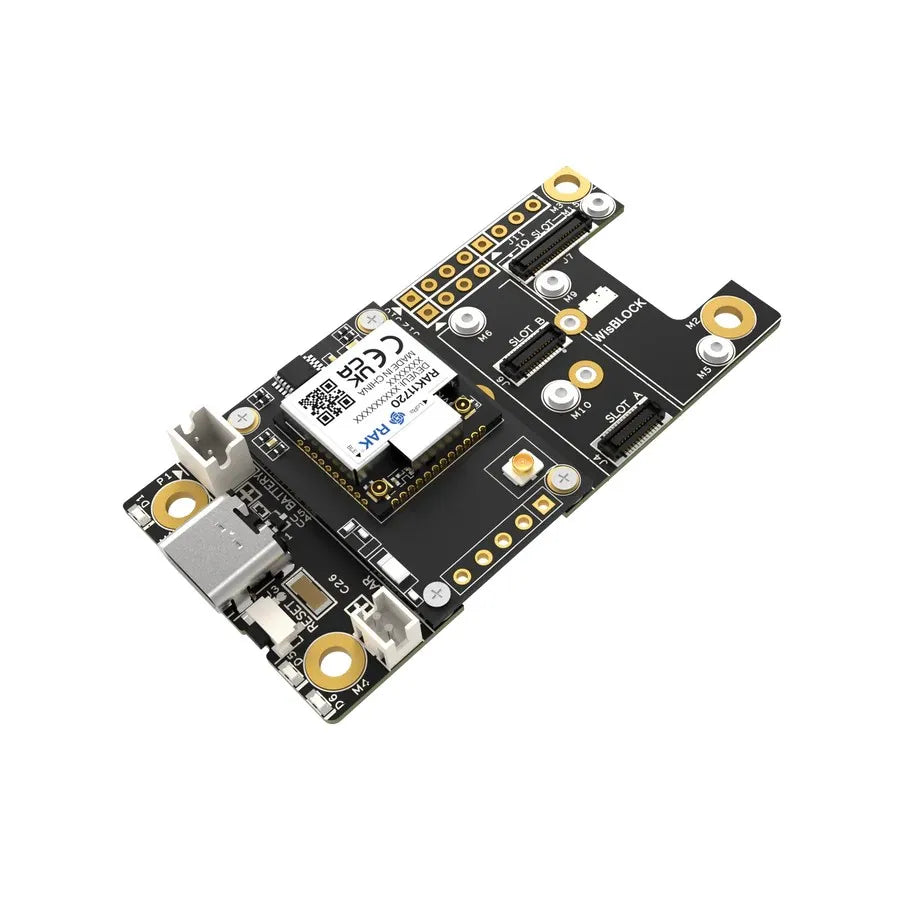

• Variant 4 （RAK19007+RAK11722）

  • 1 pc WisBlock Base (RAK19007)

  • 1 pc WisBlock Core (RAK11722)

  • 1 pc LoRa Antenna with MHF1 connector

  • 1pc Type-C USB Cable

  • 1set Screw

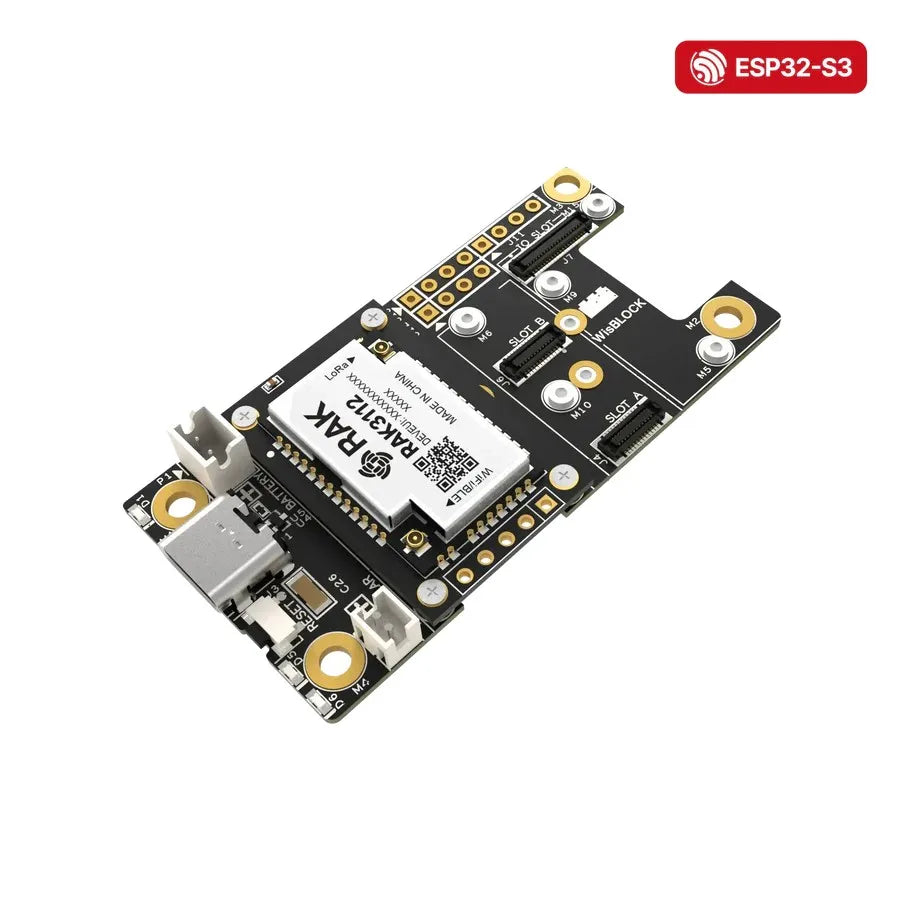

• Variant 5（RAK19007+RAK3312）

  • 1pc WisBlock Base (RAK19007)

  • 1pc WisBlock Core (RAK3312)

  • 1pc LoRa Antenna with MHF4 connector

  • 1pc WiFi/BLE Antenna with MHF4 connector


  • 1pc Type-C USB Cable

  • 1set Screw

• Variant 6（RAK19007+RAK11200 EOL）

  • 1 pc WisBlock Base (RAK19007)

  • 1 pc WisBlock Core (RAK11200)


  • 1pc Type-C USB Cable

  • 1set Screw

RAK3312 is the successor to RAK11200, offering improved performance and long-term availability. Existing RAK11200 users continue to be fully supported through documentation and resources listed below.
