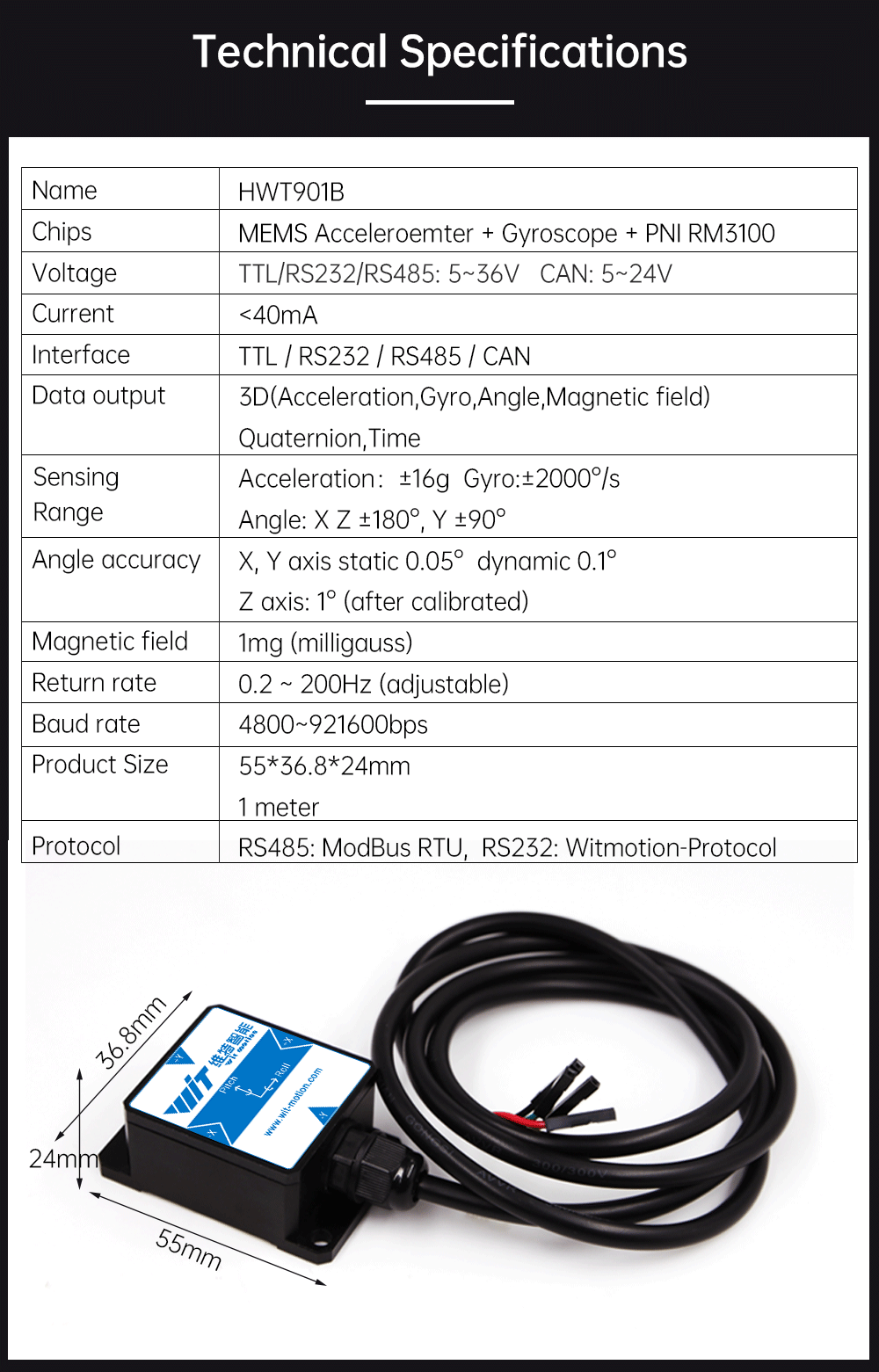

SPECIFICATIONS

A: Yes. The USB-UART serial converter would be required.

Q: If I run into any issue when use the sensors? Can you help?

A: Certainly, if you have any questions, WitMotion technical support team will be here to help.

You can reach us at support@wit-motion.com, Normally response time: 12Hrs

Q: What is the difference between HWT901B standard version and HWT901B waterproof version?

A: Except for the acceleration, gyro, angle, and magnetic data, the HWT901B standard version will be equipped with barometer which can output the air pressure, height data. But it is not waterproof.

However, the HWT901B waterproof version will not be equipped with barometer. (*due to glue-pouring process)

Q: I need the sensors with a longer cable, printed with our logo (OEM order) or customized functions, can you make it?

A: The answer is YES. The sensor order with customization requests would be welcome.

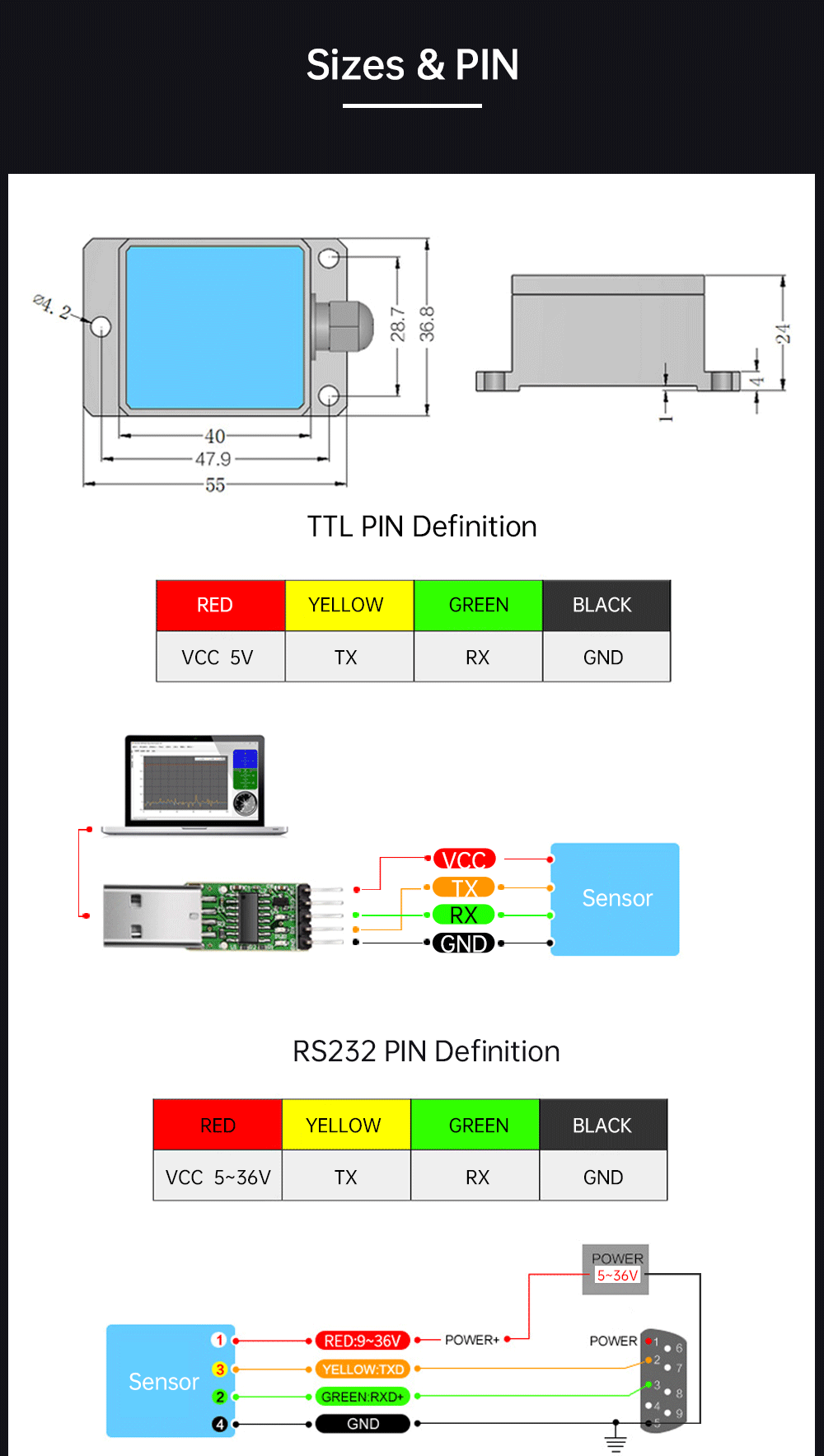

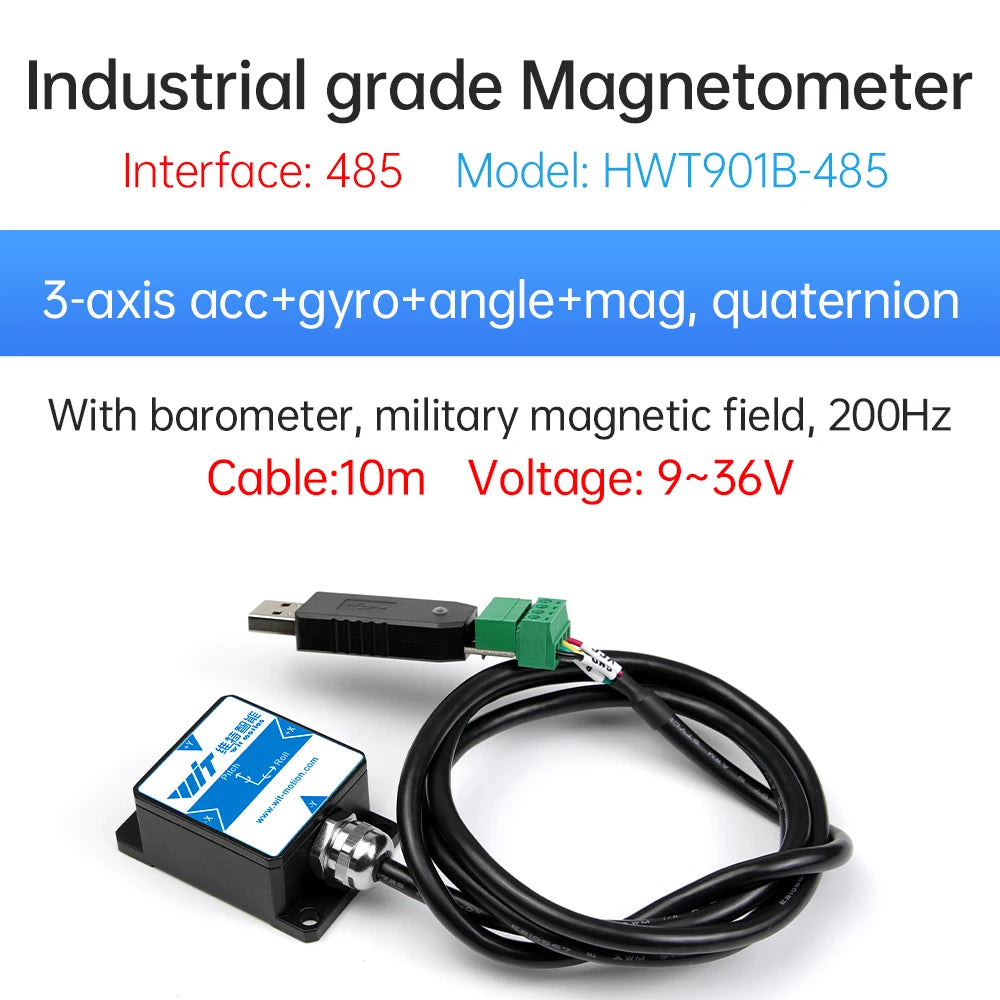

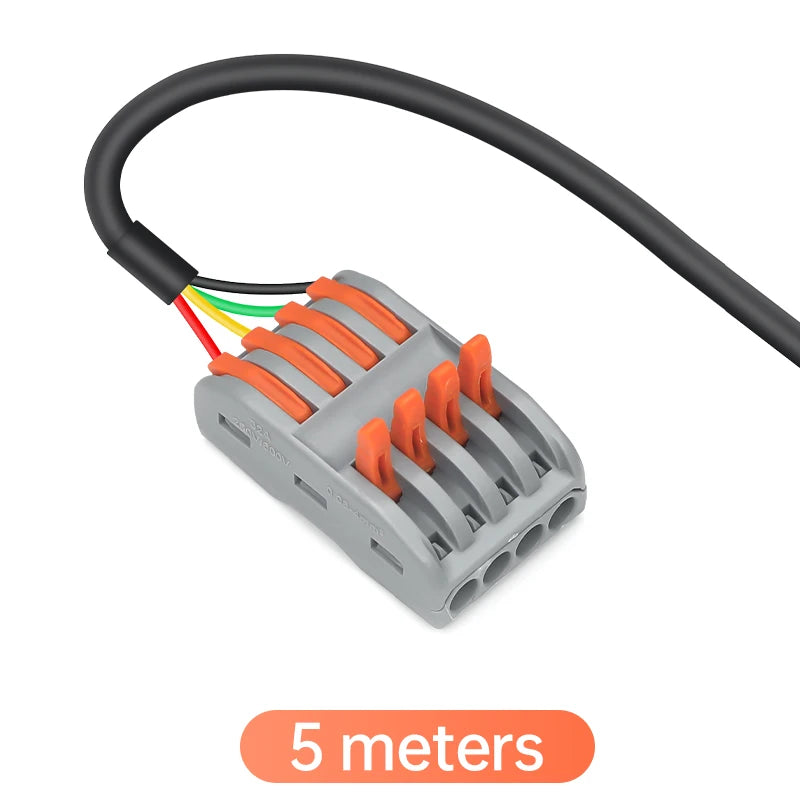

* We can produce the sensors with cable as TTL (1 meter), RS232 (10 meters maximum), RS485 (100 meters).

* OEM logo with customer's logo would be available. Once you share the LOGO.ai file, our photographer will help you finish the * design.

* There are over 25+ professional engineers ready for helping you build the preferred sensor.

* If you need 20pcs or above large quantities, pls directly contact us.

Q: Can I use the HWT901B or HWT905 sensor for iOS?

A: Nope. Due to the communication protocol and port design, WitMotion serial sensors are not compatible with iOS operating systems by now.

But you can search WitMotion WT901BLECL on our store, for which it can work well with iPhone.

Q: If I plan to use the sensors for Arduino, or Raspberry Pi, which one is recommended?

A: Considering the Arduino and Raspberry Pi is commonly in TTL level, the HWT901B with TTL interface would be highly recommended.

If you are able to make the hardware changes from RS232/RS485 - TTL and then connect it with your boards, each one would be suggested.

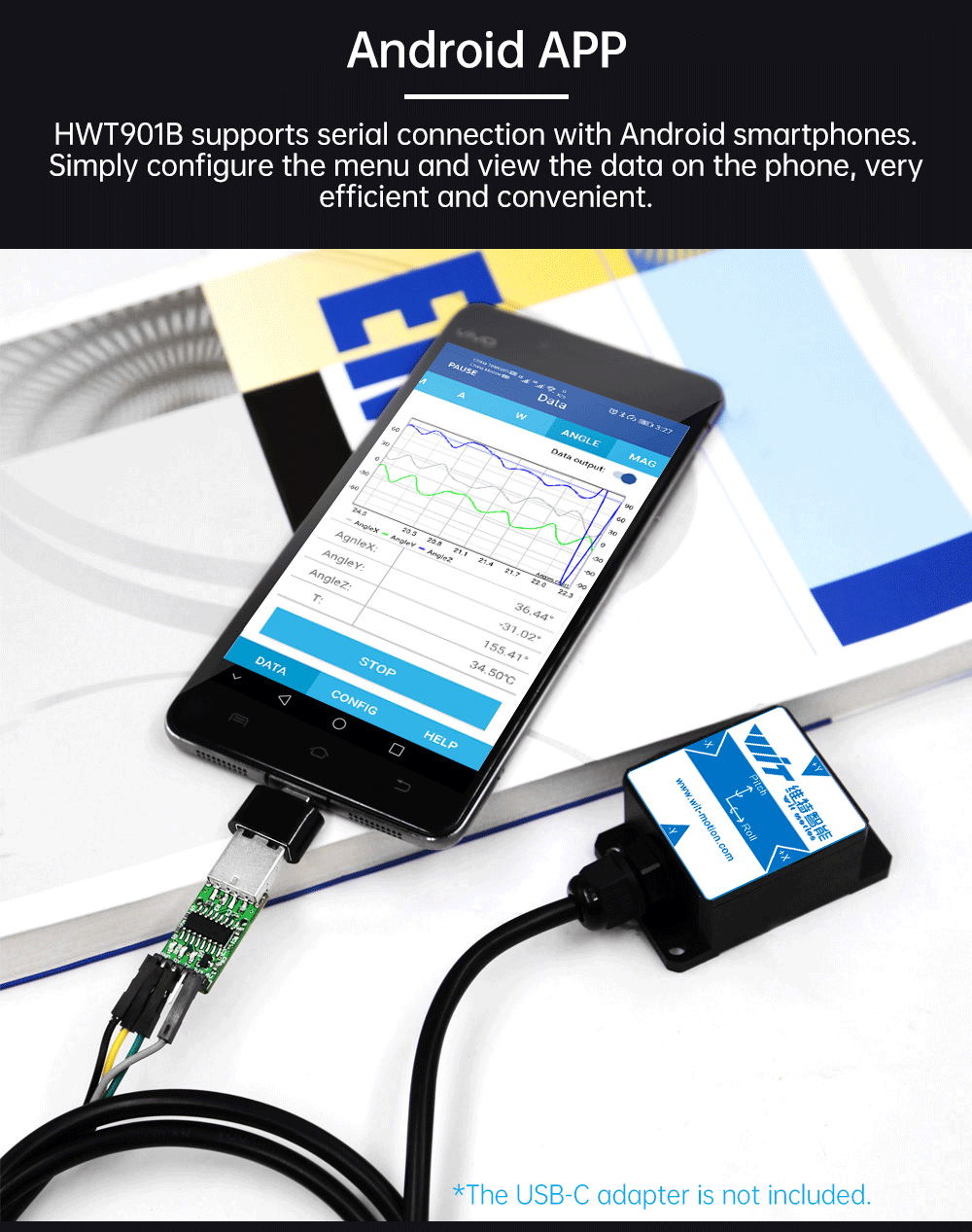

Q: I plan to use the HWT901B sensor with my Android smartphone, do I need to purchase additional tools?

A: All tools are sold separately. A USB Type-C/Micro USB to USB adapter is used to demonstrate connection to a PC or mobile phone. You can consult and buy if necessary.

Q: I am new about the attitude sensors, shall I buy any other tool for the connection?

There will be a manual with step by step guiding to set up the sensors.

A:  You can scan below QR code and visit the witmotion document center link and search the model you bought.

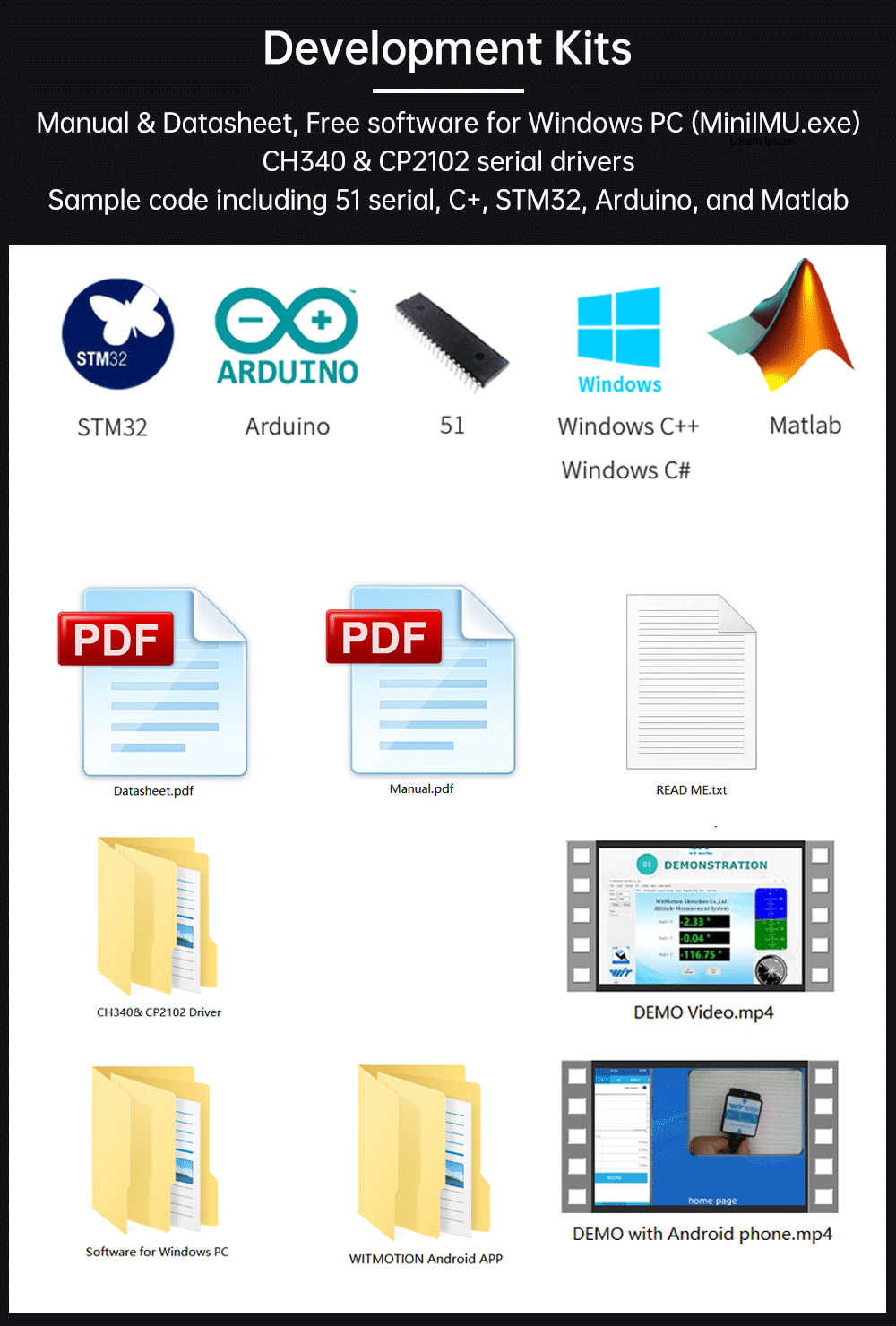

Q: Where can I find the tutorial and related software for the sensors?

Frequently Asked Questions:

Product sellpoints

1、Customization & Technical Support:Tailor your High-precision tilt sensor with OEM logo and custom functions, backed by WitMotion's responsive technical support.

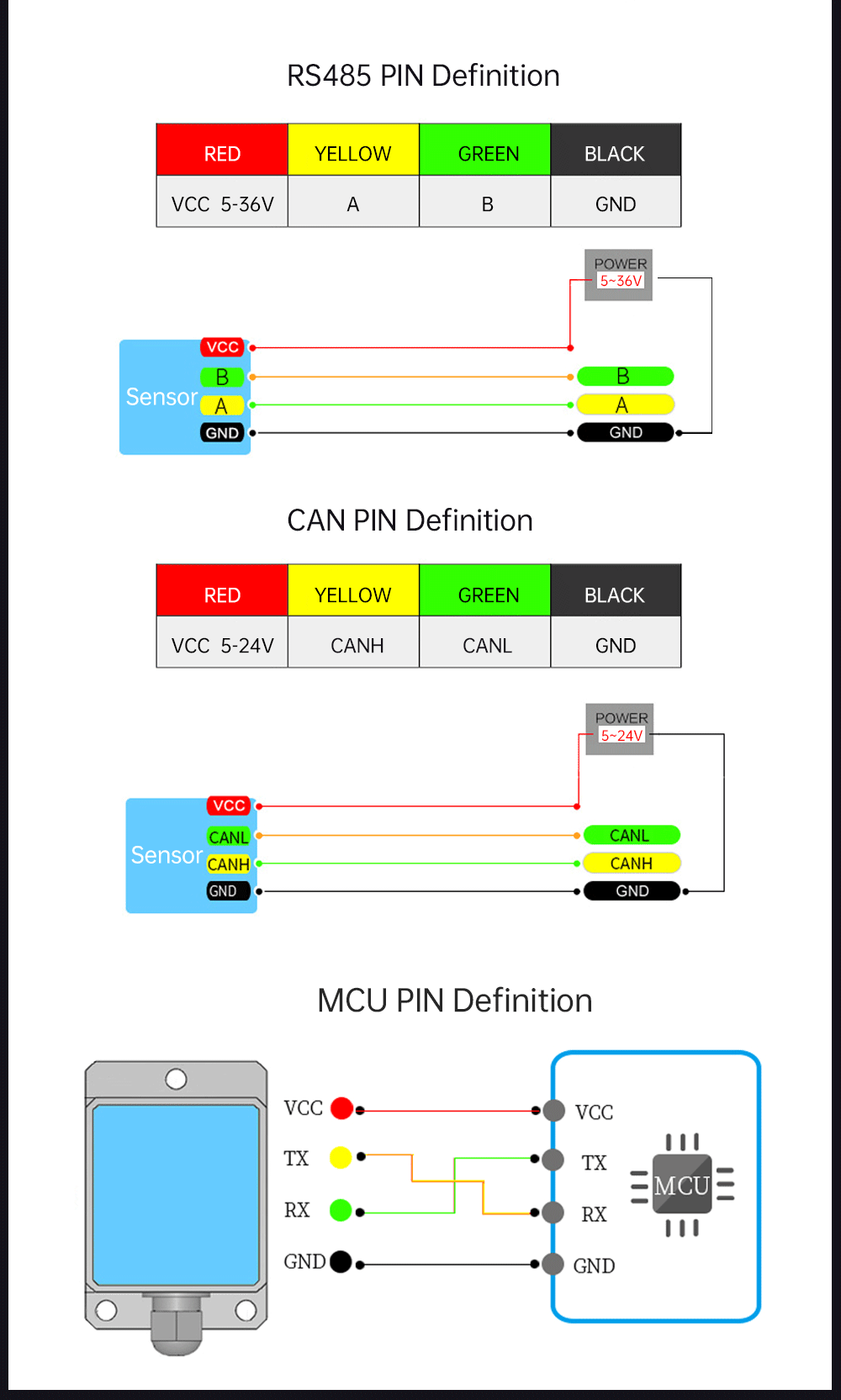

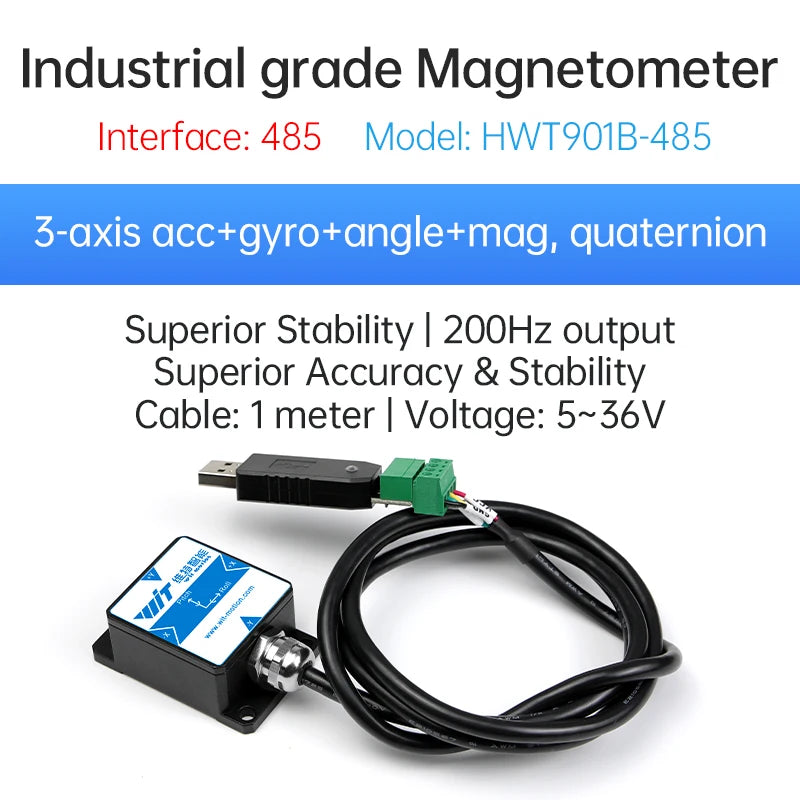

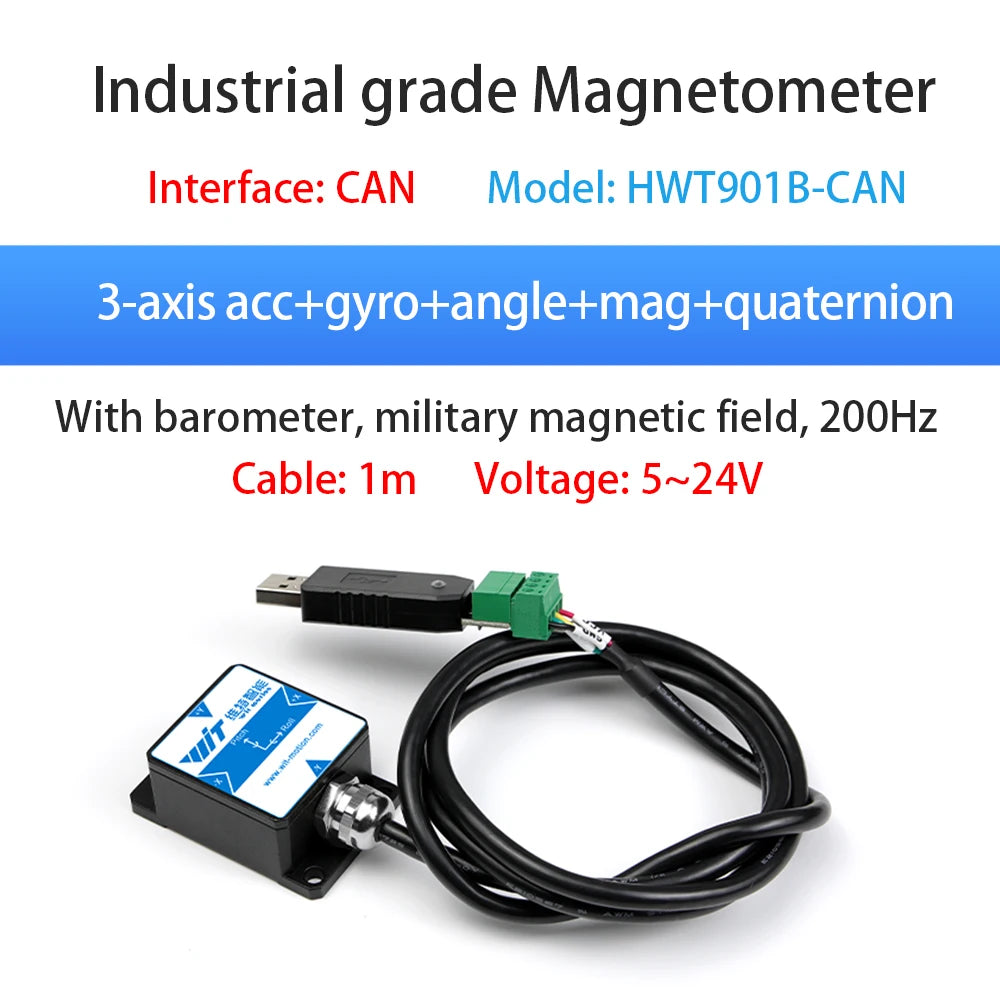

2、Versatile Interface Options:Select from TTL, RS232, RS485, or CAN interfaces to match your device's connectivity needs for seamless integration.

3、Multi-Axis Measurement Capability:Measure 3-axis XYZ acceleration, angular rate, gyro, angle, and magnetic field for comprehensive tilt angle measurement.

4、Rm3312|65ft To Meter|High Stability Acceleration & Angular Speed:Achieve precise measurements with 0.01g acceleration and 0.05degree/second angular speed for reliable end-to-end applications.

5、Waterproof & Barometric Pressure:Opt for the HWT901B waterproof version with air pressure data for robust performance in various environments.

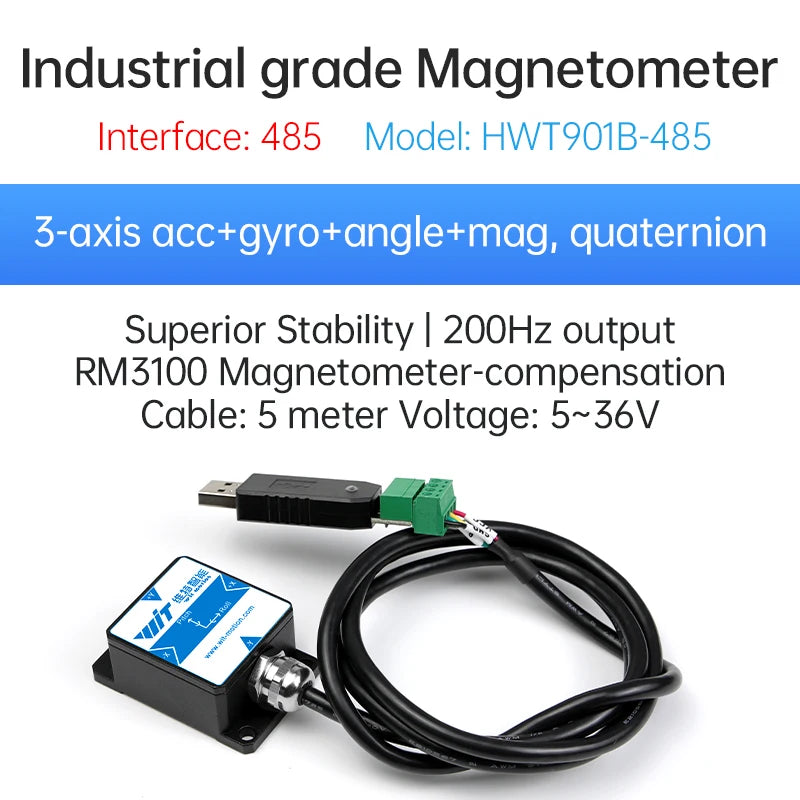

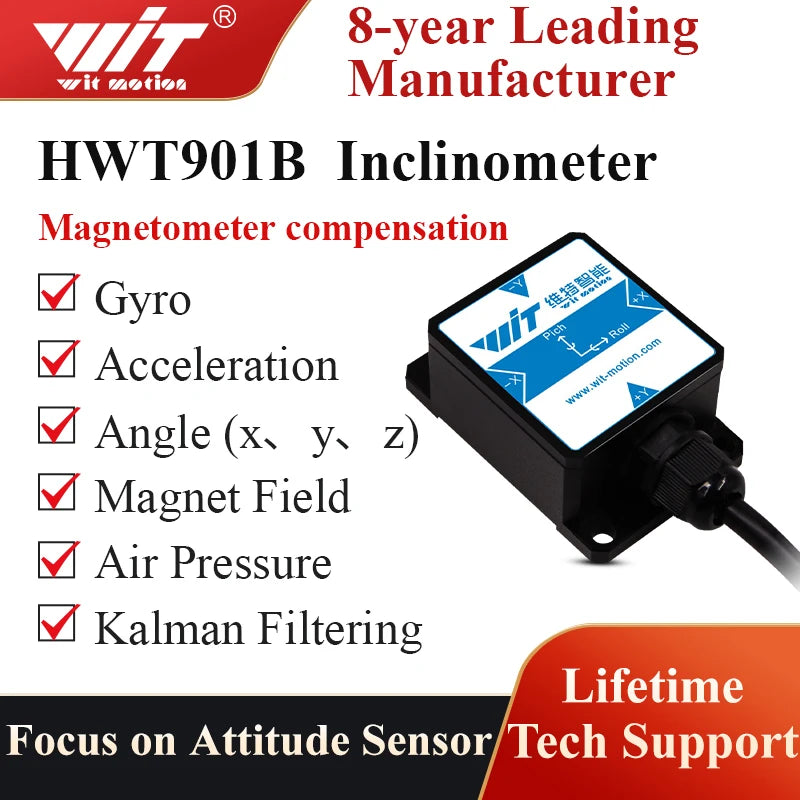

6、Magnetometer Compensation Technology: Built-in PNI RM3100 magnetometer, supports magnetic field compensation to avoid environmental magnetic interference and ensure more accurate heading angle

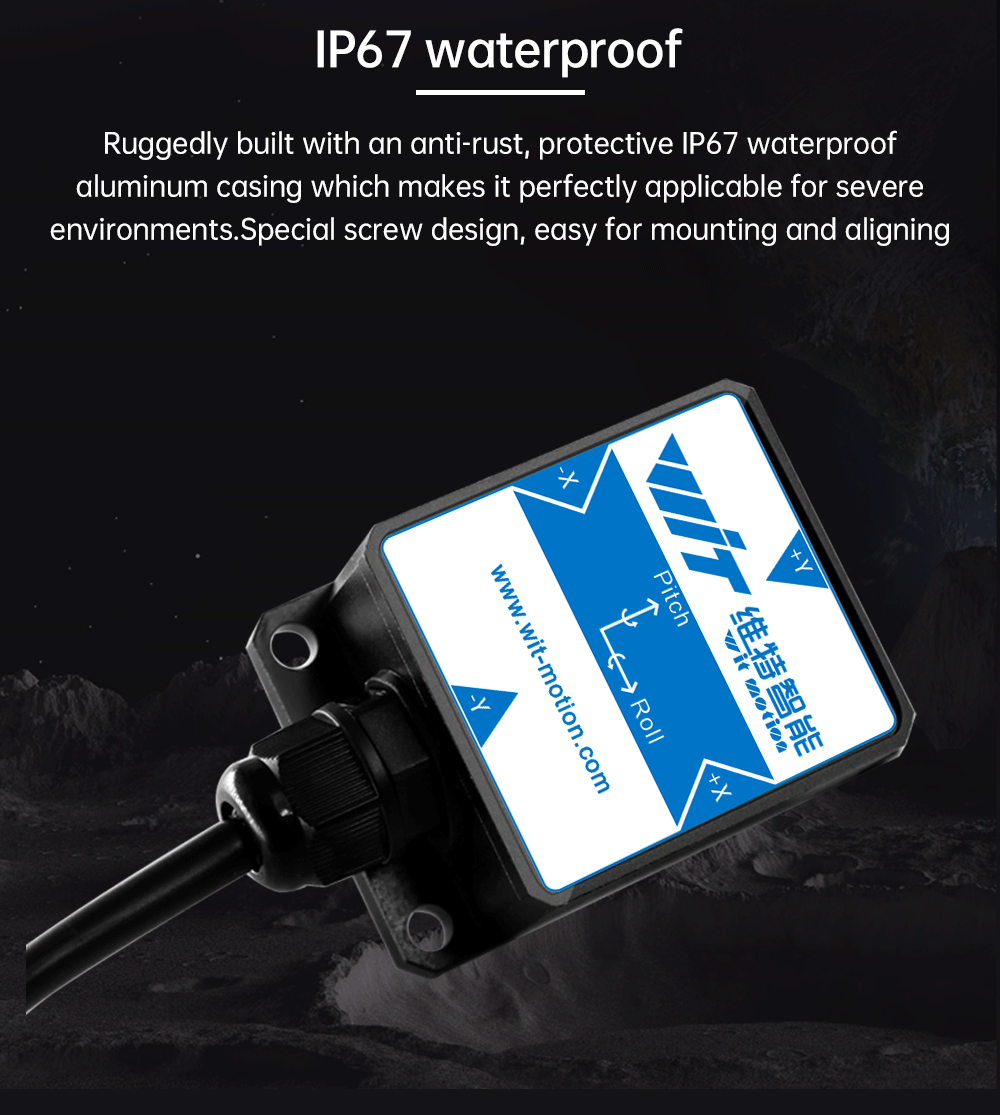

7、IP67 Industrial Protection: Fully sealed aluminum casing, waterproof and dustproof, can work stably for a long time in harsh environments such as humidity, dust and outdoors

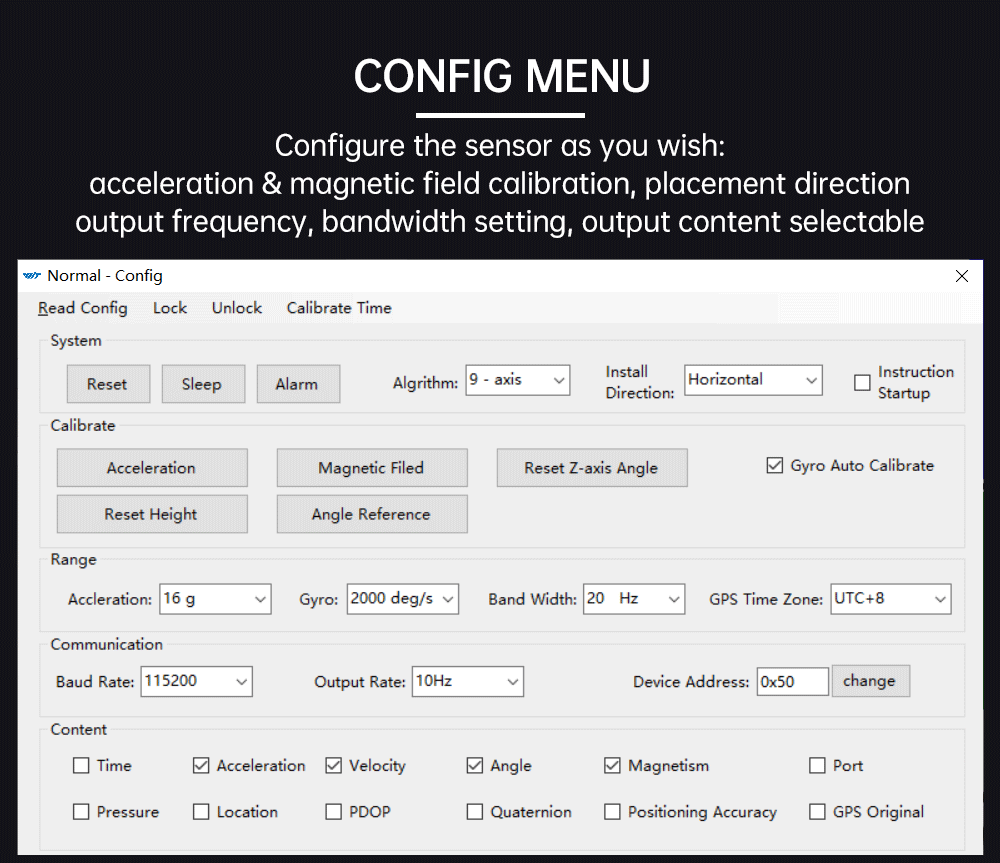

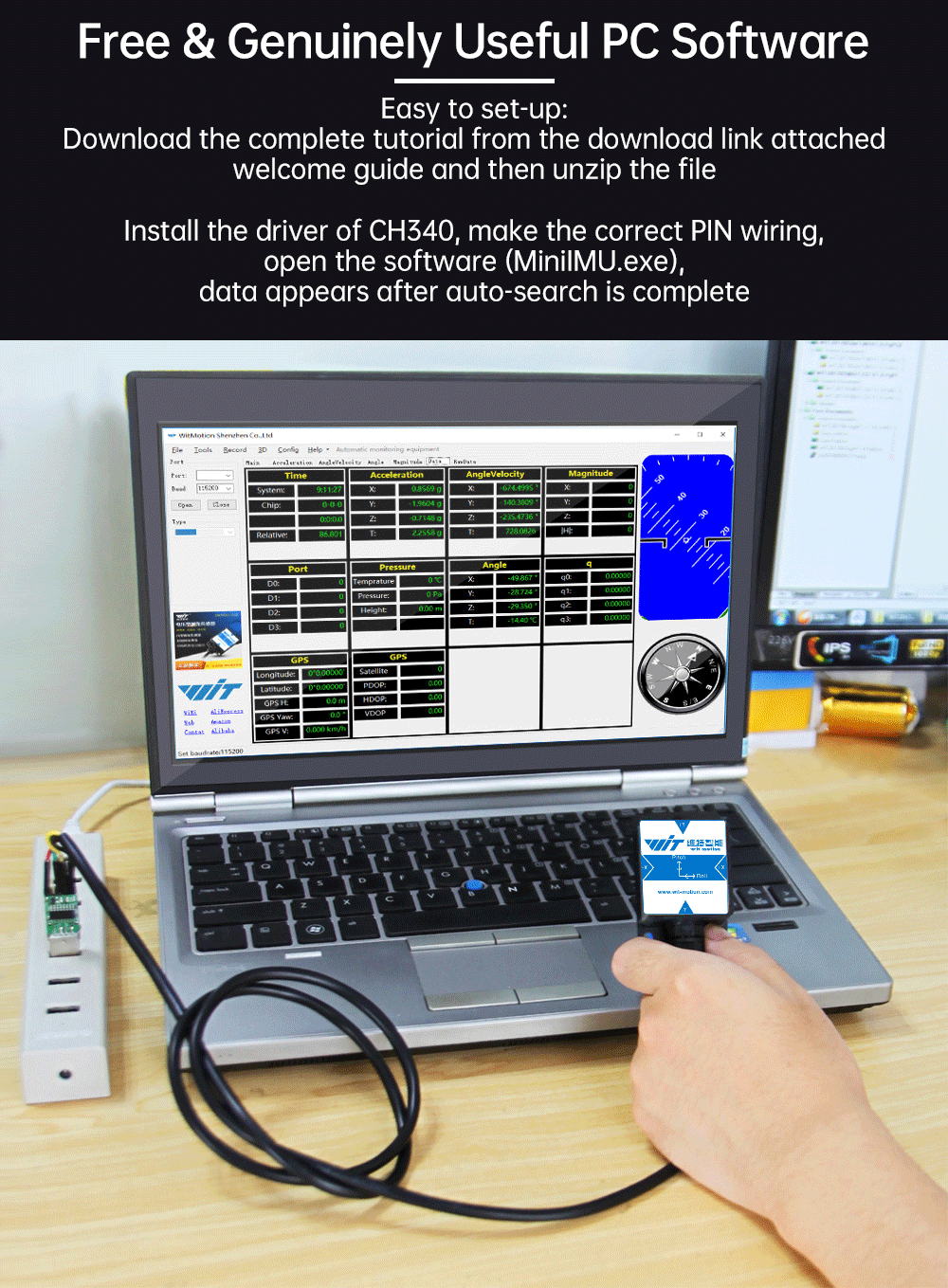

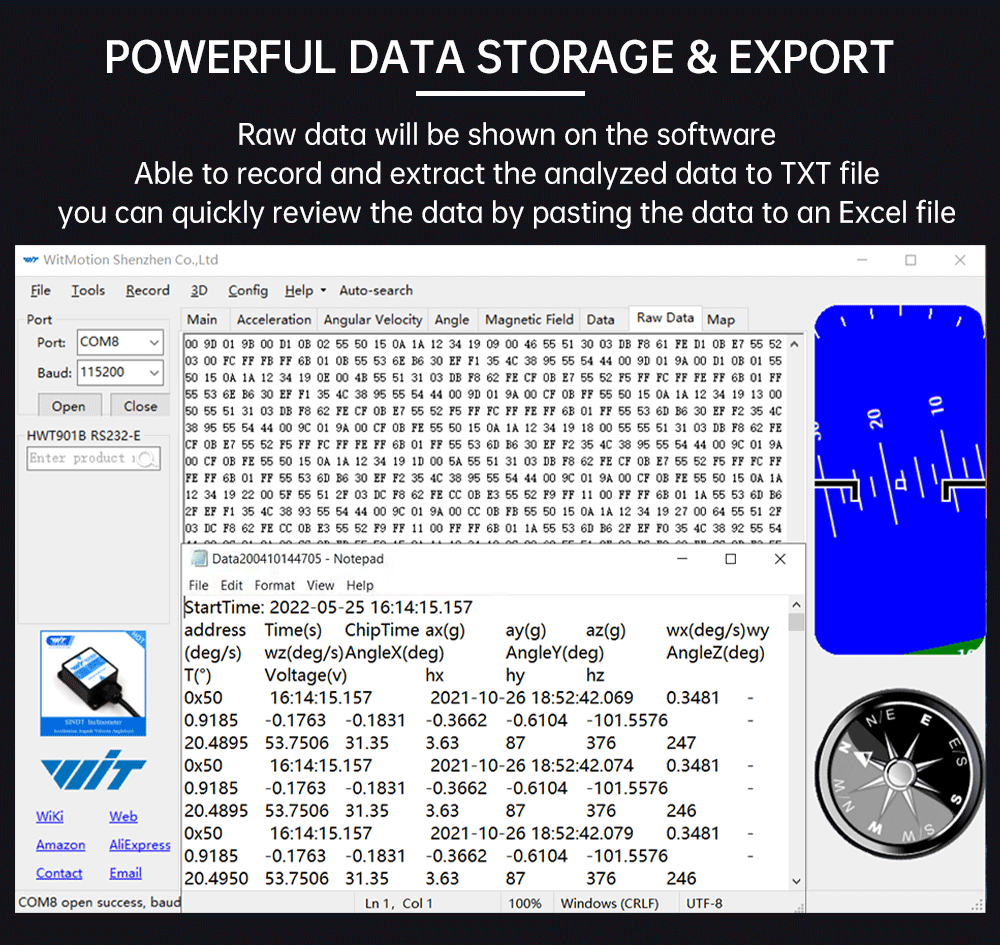

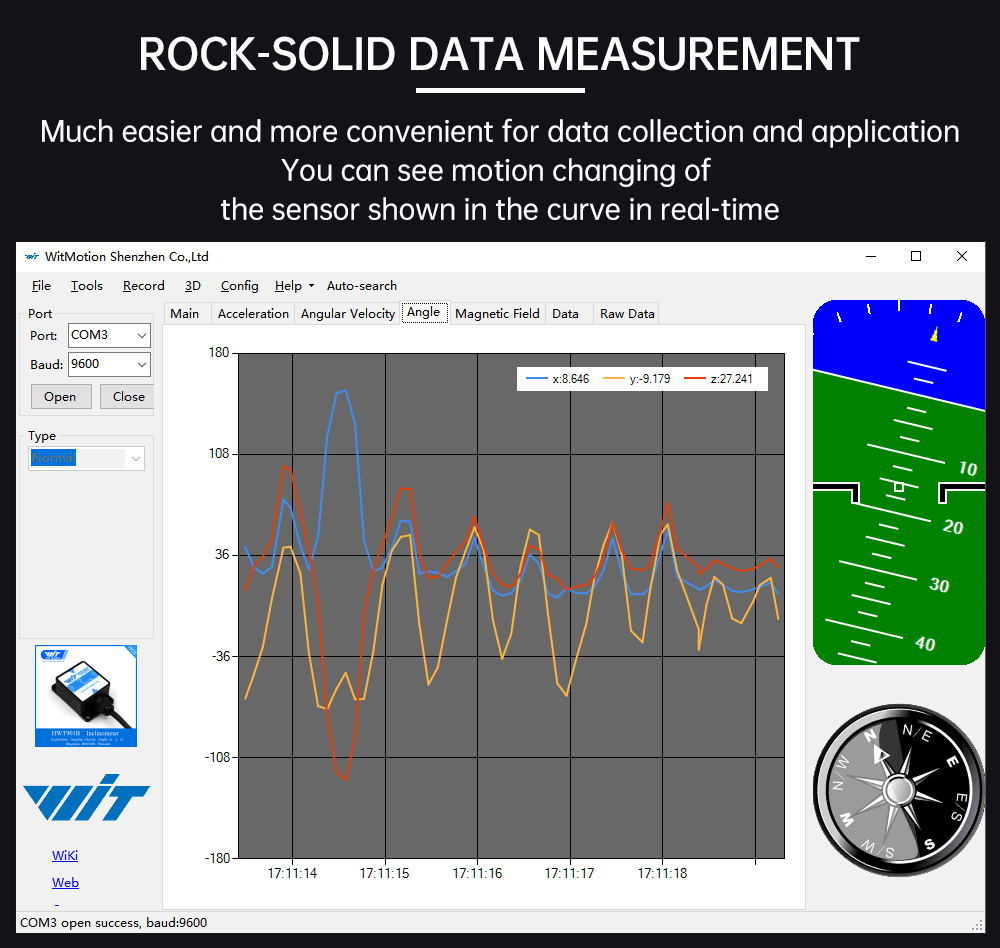

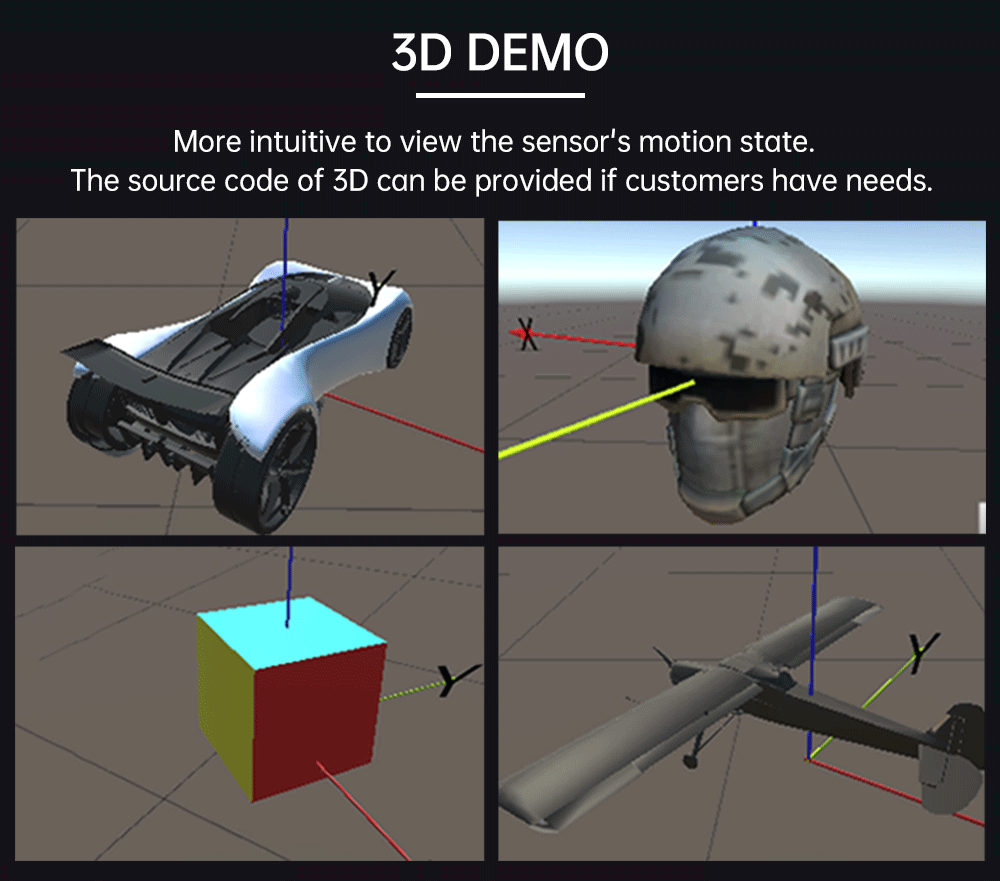

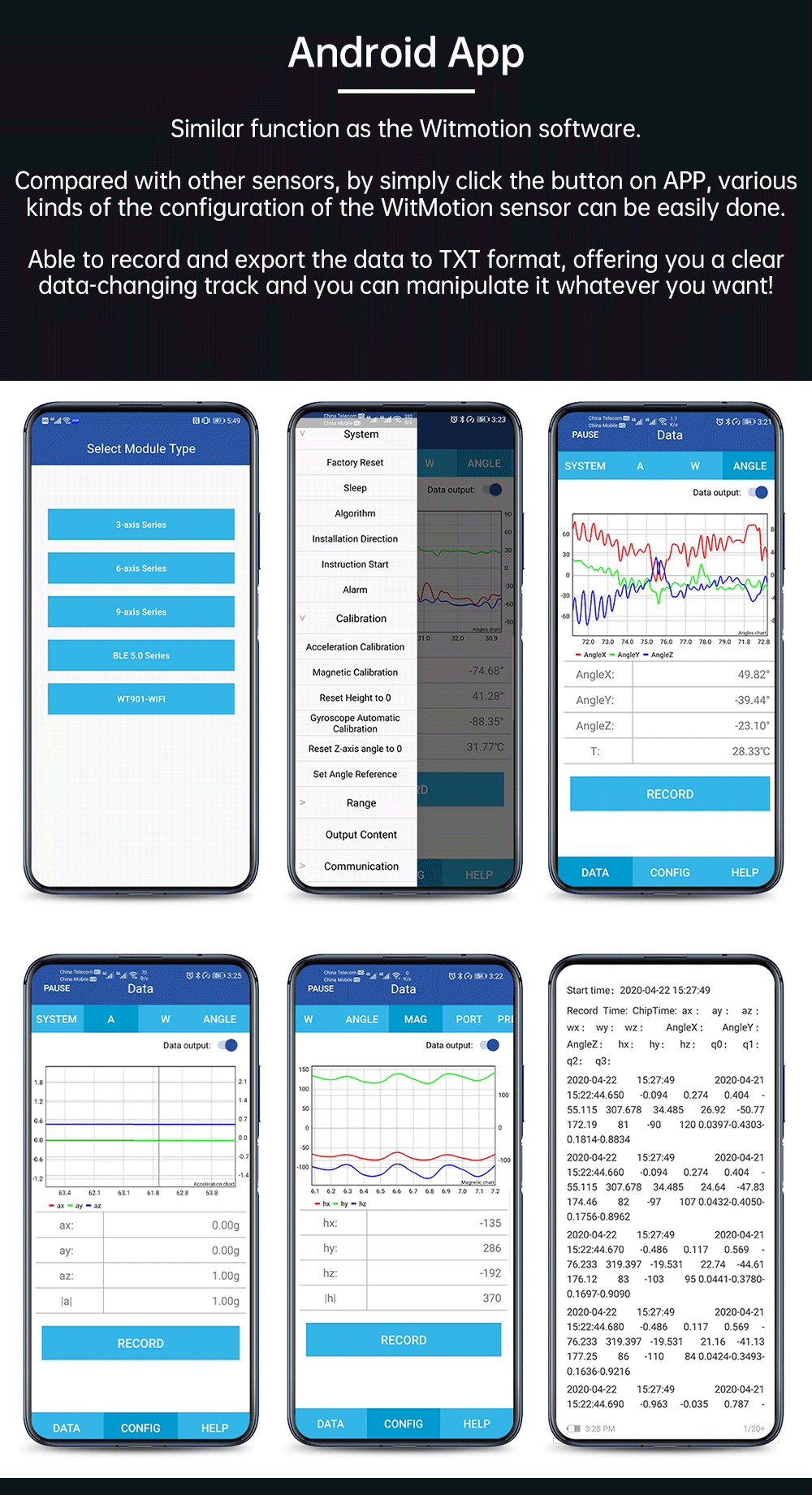

8、Full-Platform Software Support: Free PC software (MiniIMU.exe) and Android APP, supporting real-time data visualization, record export and 3D attitude demonstration

9、Rich Data Output: Outputs multi-dimensional data such as acceleration, angular velocity, attitude angle, magnetic field and air pressure at the same time, meeting the needs of complex scenarios

10、Lifetime Technical Support: WitMotion has 10 years of industry experience, providing lifetime technical

Application Scenarios

1、Construction Machinery Monitoring: Tilt monitoring of cranes, excavators and tower cranes to prevent overturning accidents

2、Drones & Robots: Attitude control of drones, attitude perception and balance control of AGV robots and inspection robots

3、Industrial Automation: Attitude calibration and angle feedback of automated production lines and robotic arms

4、Building & Bridge Monitoring: Bridge deflection, slope displacement and building structural health monitoring

5、Ships & Vehicles: Ship attitude monitoring, vehicle driving attitude and driving behavior analysis

6、Research & Education: University control engineering teaching, robot competitions and attitude algorithm verification
