WITMOTION UM982 GNSS Receiver RTK Module ZED-F9P UM980 Sensor GPS BDS GLONASS /Galileo For High Accuracy Drones Positioning

WTRTK-960 4G board

$985.96

Sale price $985.96 Regular price $0.00

Skip to product information

WITMOTION UM982 GNSS Receiver RTK Module ZED-F9P UM980 Sensor GPS BDS GLONASS /Galileo For High Accuracy Drones Positioning

WITMOTION UM982 GNSS Receiver RTK Module ZED-F9P UM980 Sensor GPS BDS GLONASS /Galileo For High Accuracy Drones Positioning

$985.96

Sale price $985.96 Regular price $0.00

Color WTRTK-960 4G board WTRTK-960 WTRTK-982 4G board RTK982 LORA USA WTRTK-980 WTRTK-980 4G board WTRTK-982 Dual band antenna RTK980 LORA USA GNSS Antenna RTK982 LORA EU RTK980 LORA EU

Description

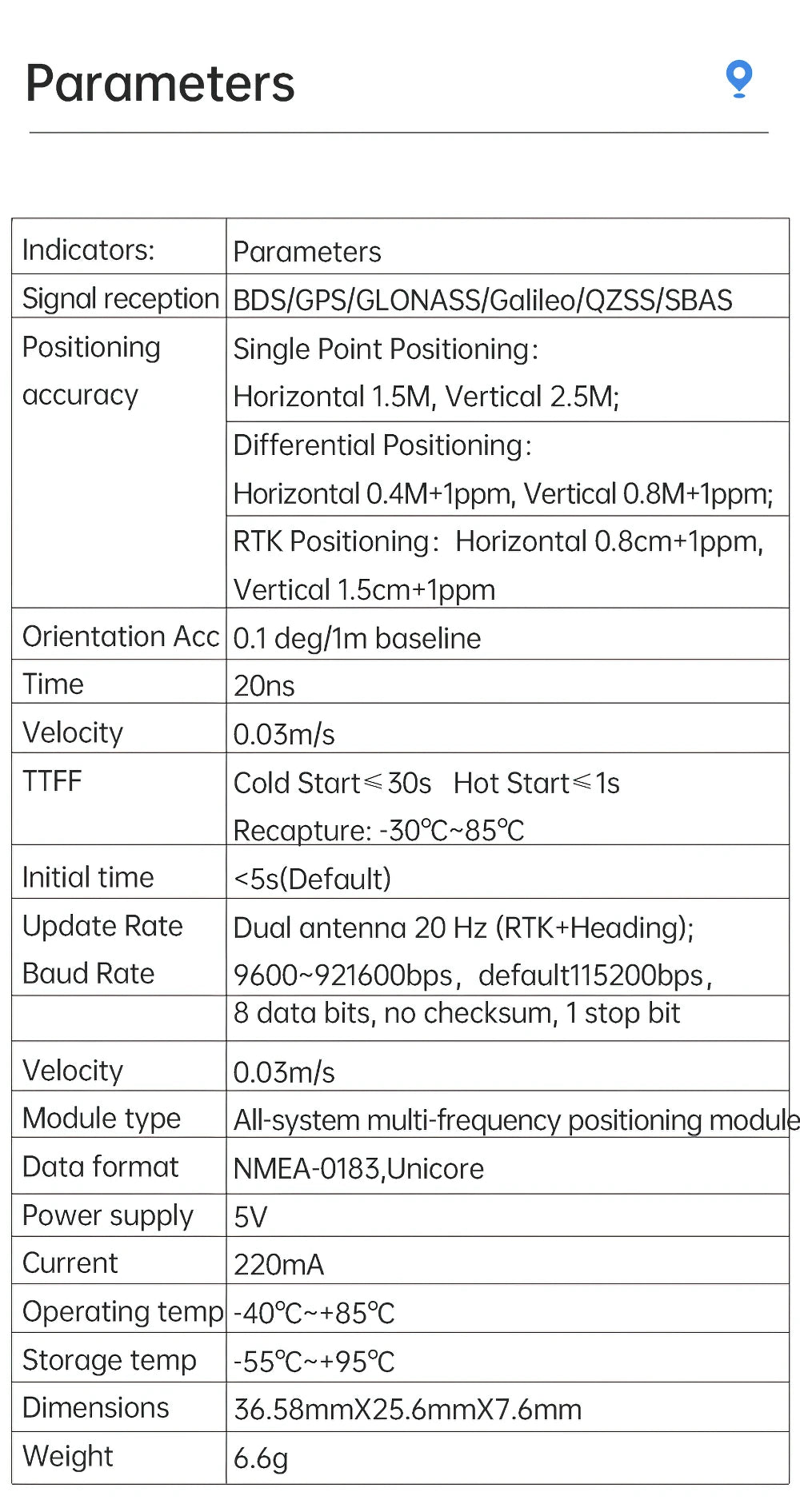

SPECIFICATIONS

After-Sale Service: Lifetime Technical Support

Baud rate: 4800bps-921600bps, default 115200bps

Brand Name: WitMotion

Channel: 1408

Feature: Dual-axis inclination monitoring

High-concerned chemical: none

Interface: Type-C

Material: Metal

Maximum Output Frequency: 50HZ

Origin: Mainland China

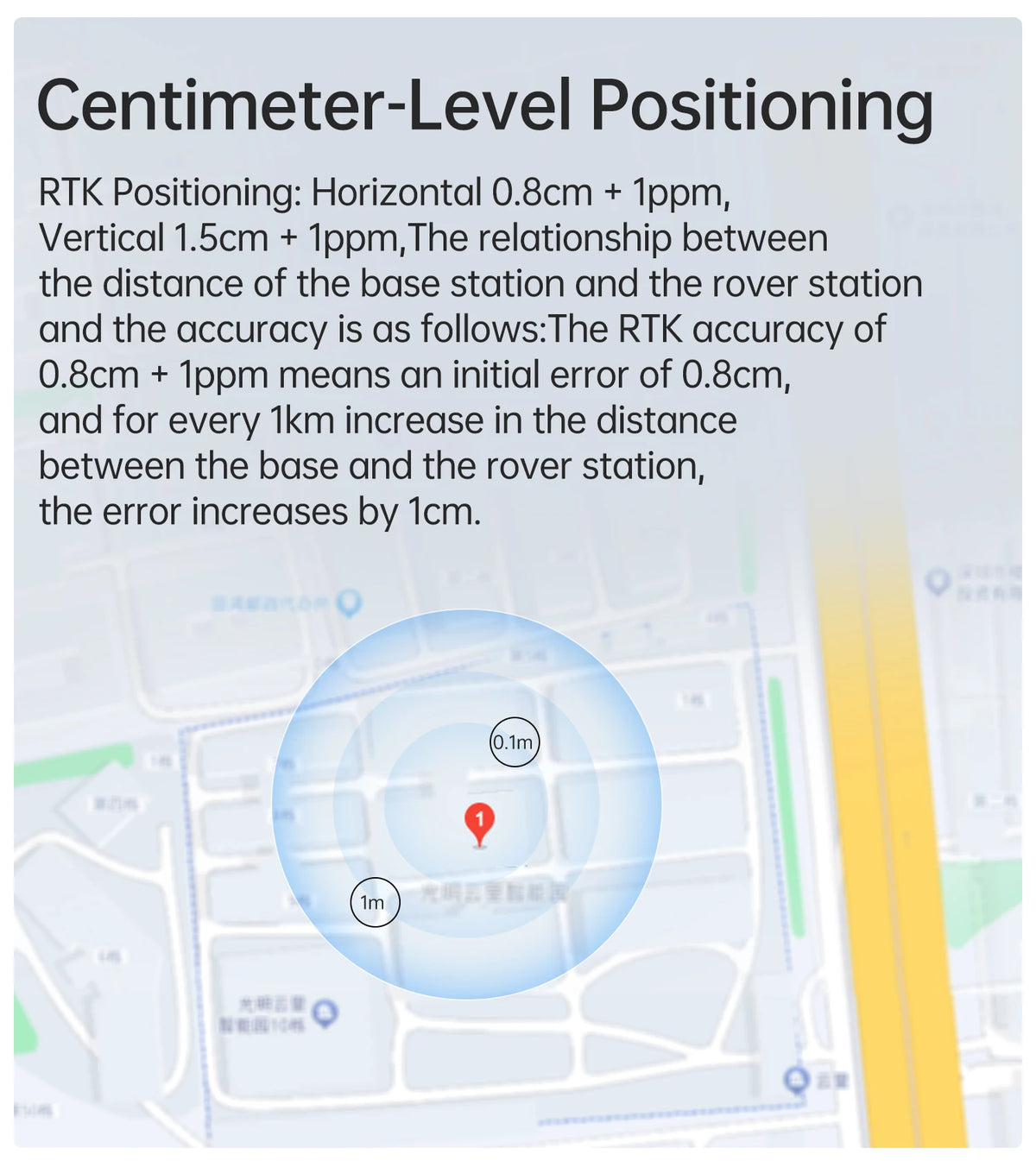

Position Accuracy: Horizontal 0.8cm+1ppm, Elevation 1.5cm+1ppm.

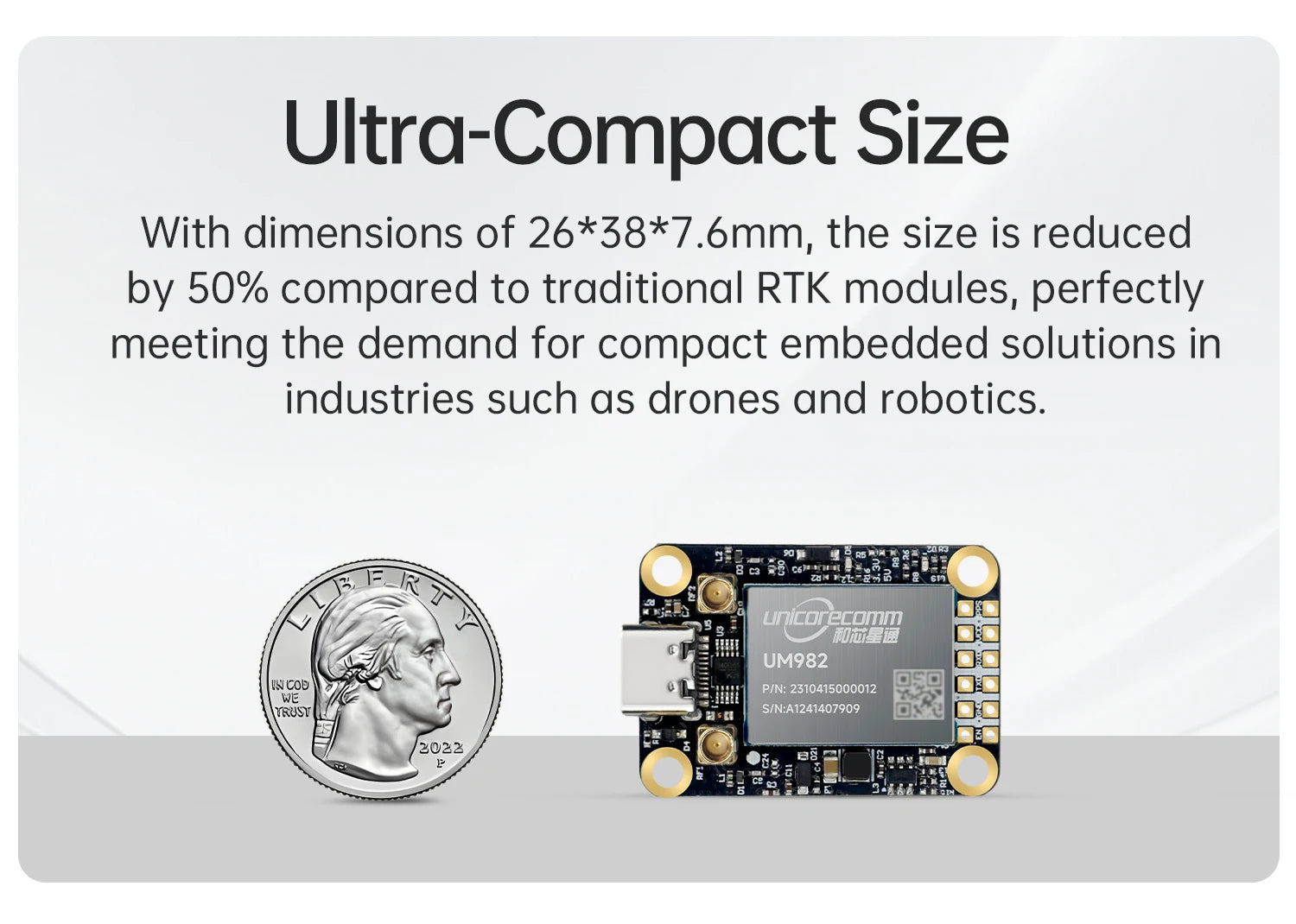

Size: 25*2.6*0.6cm

Support: 3*UART,1*I2C*, 1*SPI, 1*CAN

Type: Acceleration Sensor

Use: Position Sensor

Voltage: DC 3.6-6V, typical: 5.0V

is_customized: Yes

**Product Name:**WTRTK RTK High Precision GPS Module

Selling Points

1.Centimeter-Level Ultra-High Precision Positioning: With dual-RTK technology, differential positioning accuracy reaches centimeter level. Paired with B2b-PPP/E6-HAS satellite-based augmentation, it achieves global high-precision positioning without a base station

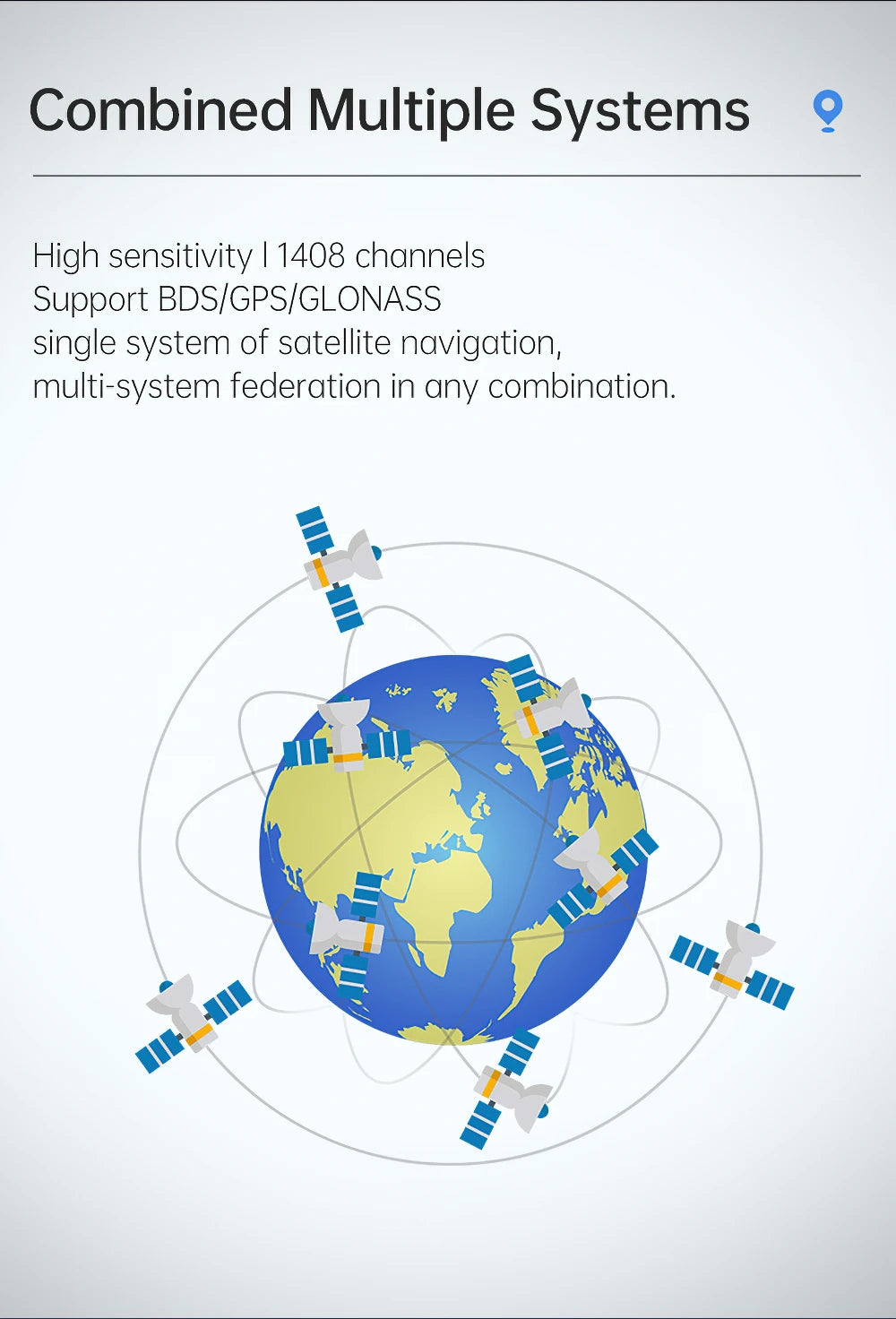

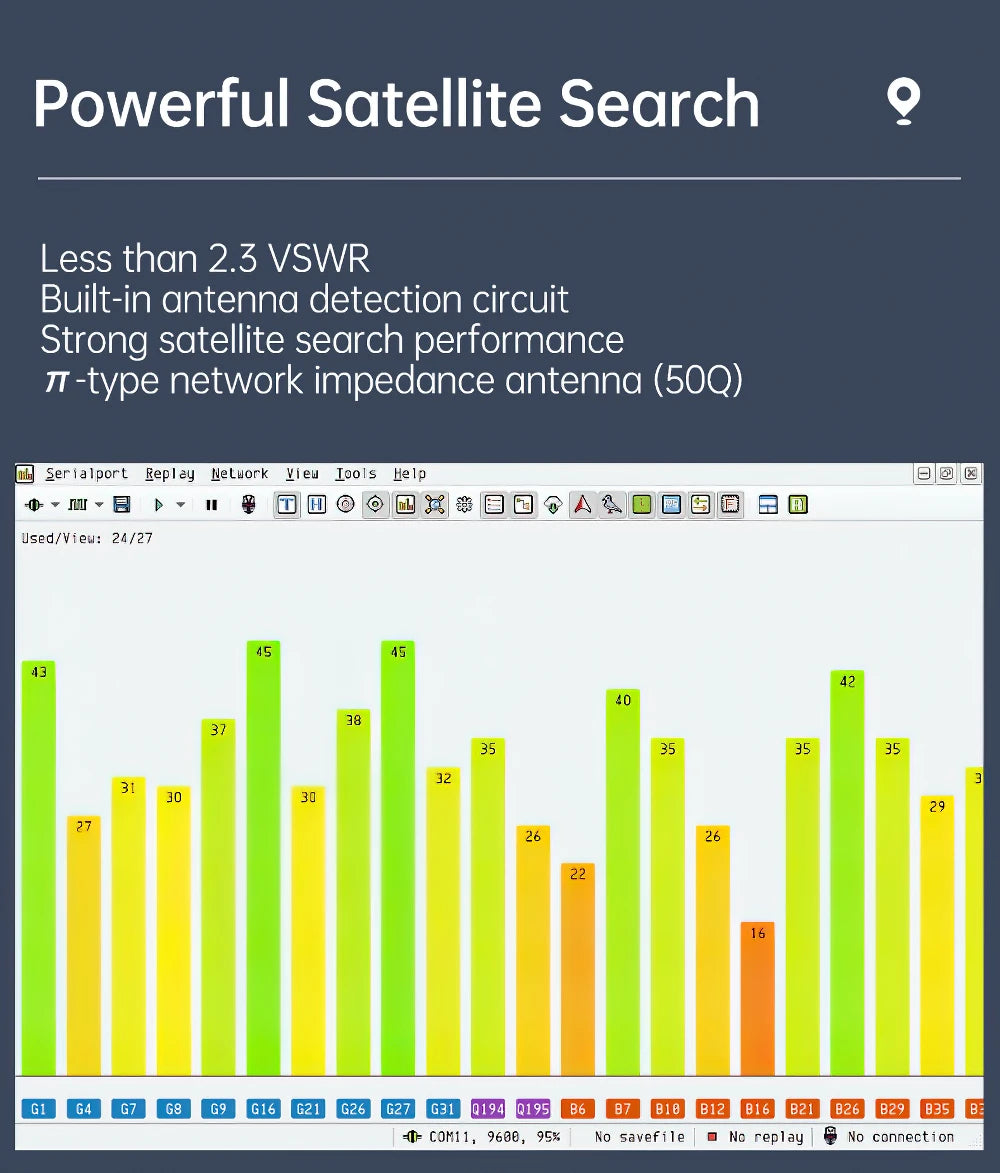

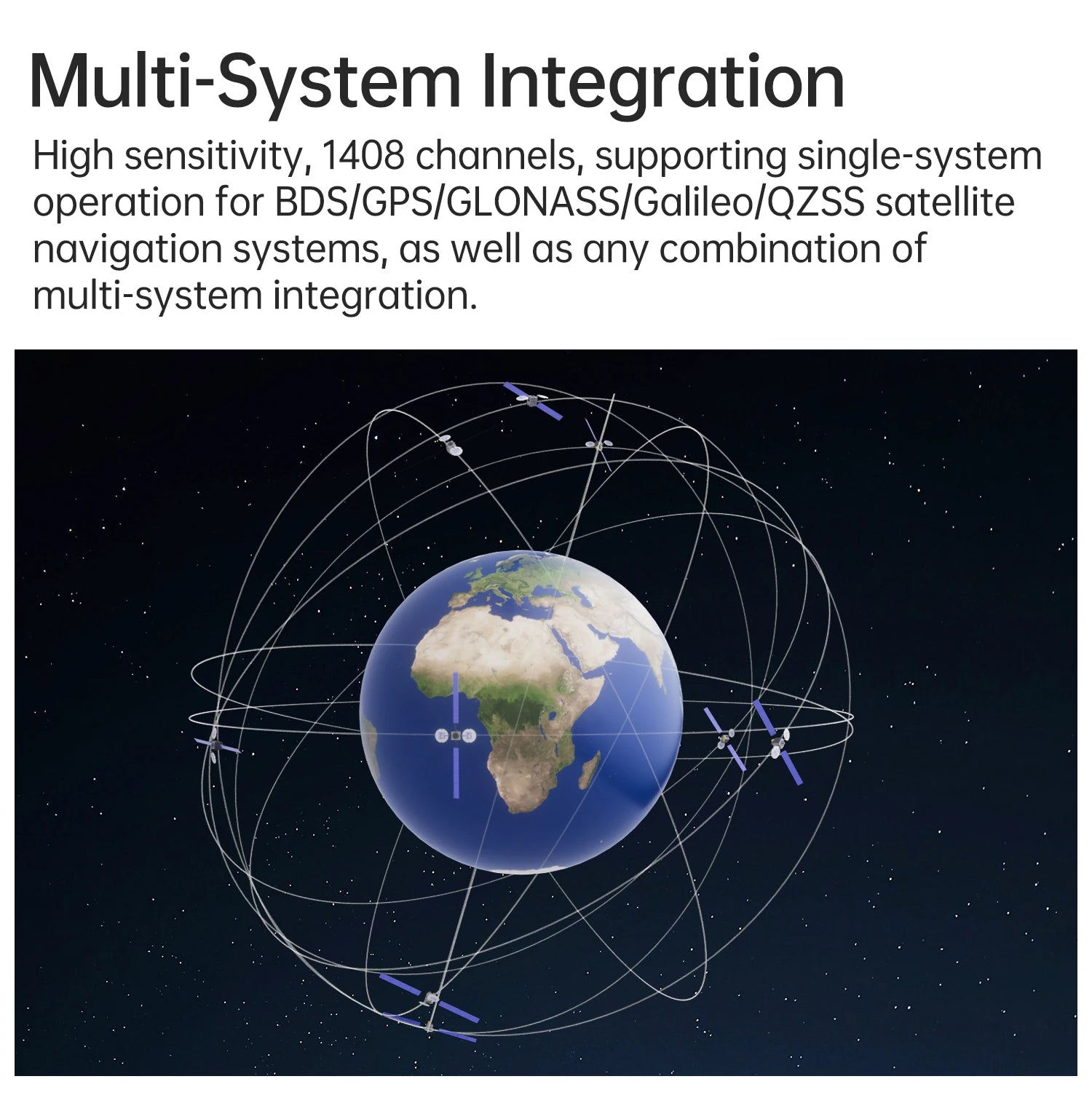

2.Full Constellation & Full Frequency Coverage: Supports 4 global satellite systems (GPS/GLONASS/Galileo/BeiDou), 1408-channel parallel reception, anti-occlusion and anti-multipath, more stable positioning in complex environments

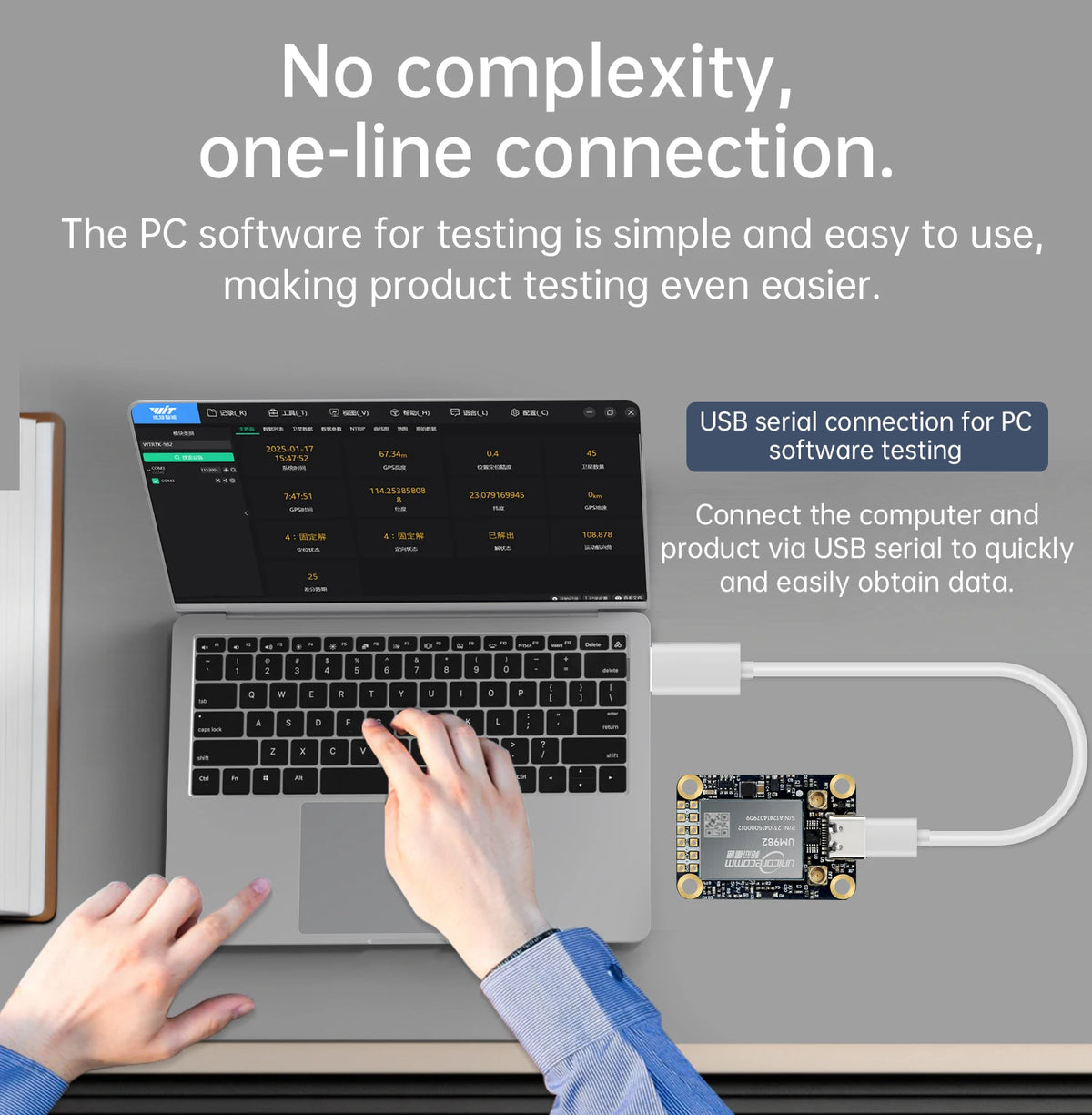

3.Type-C Plug & Play, No Wiring Required: Built-in Type-C interface, directly connect to PC for debugging, no complicated serial port wiring, zero threshold for getting started

4.Ultra-Fast Cold Start <30s: Optimized satellite search algorithm, cold start time <30s, quickly lock satellites, ready to use after power on

5.Dual-Antenna Accurate Heading Orientation: Dual-antenna models (WTRTK-982/M20D) achieve accurate heading angle measurement, solve single-antenna heading drift problem, suitable for UAV and unmanned vehicle orientation

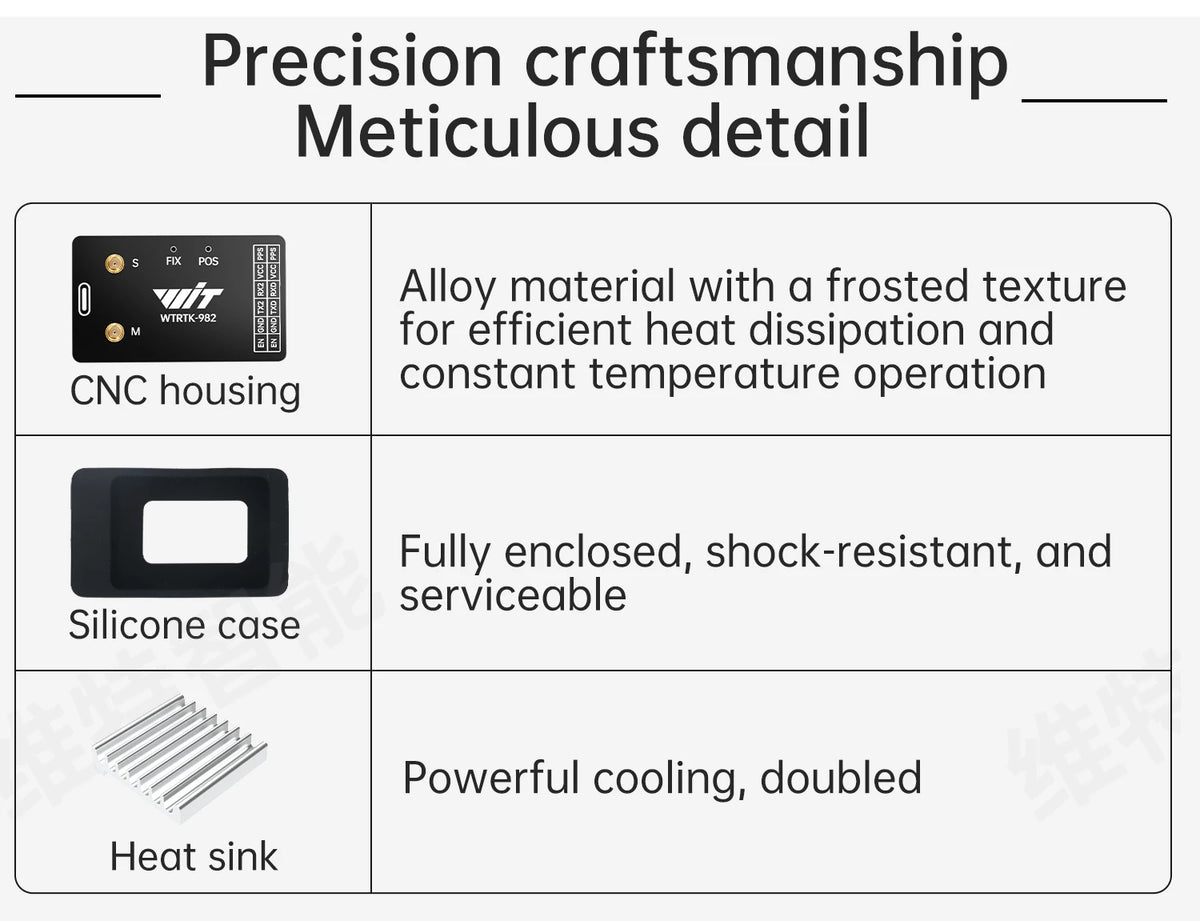

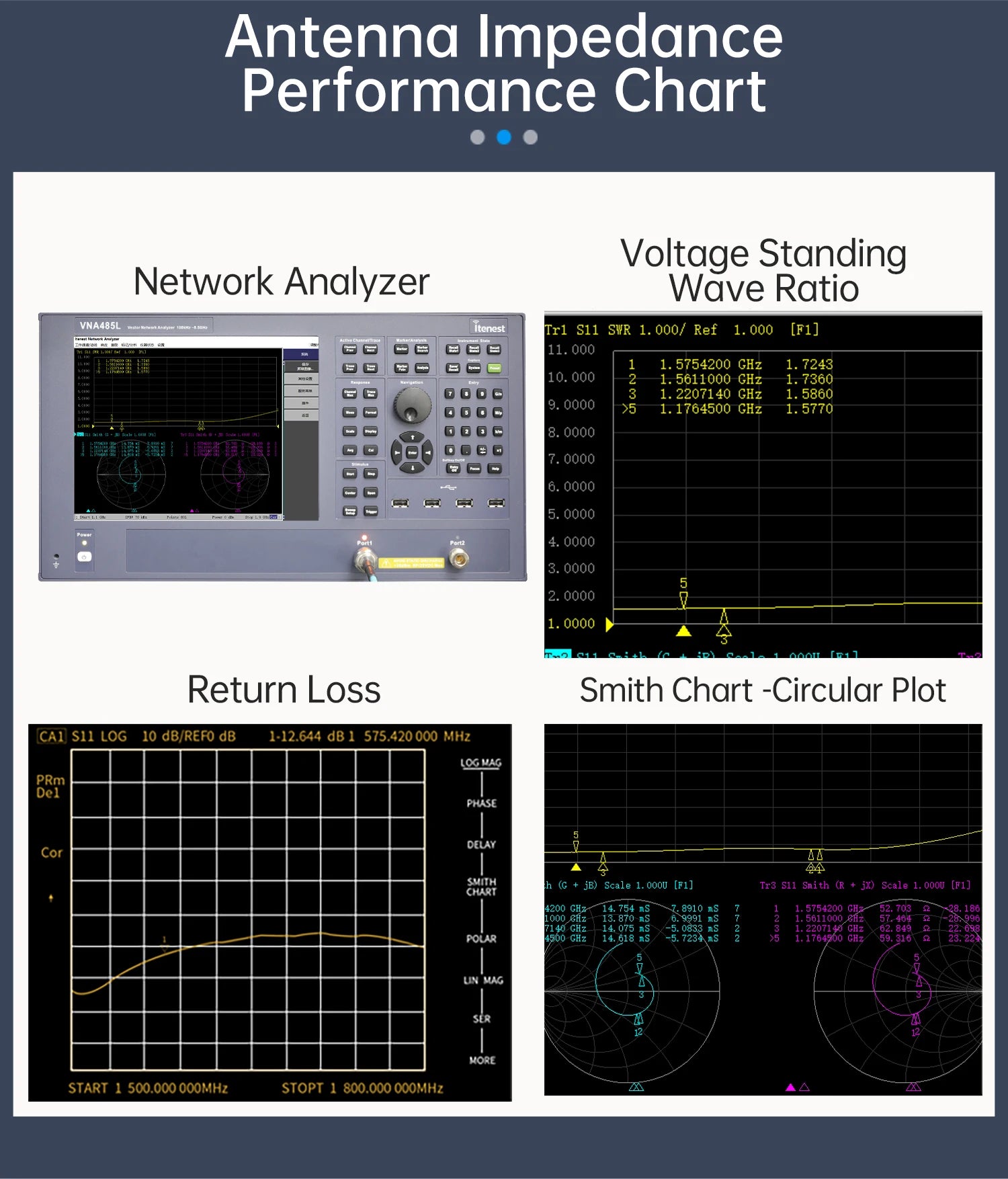

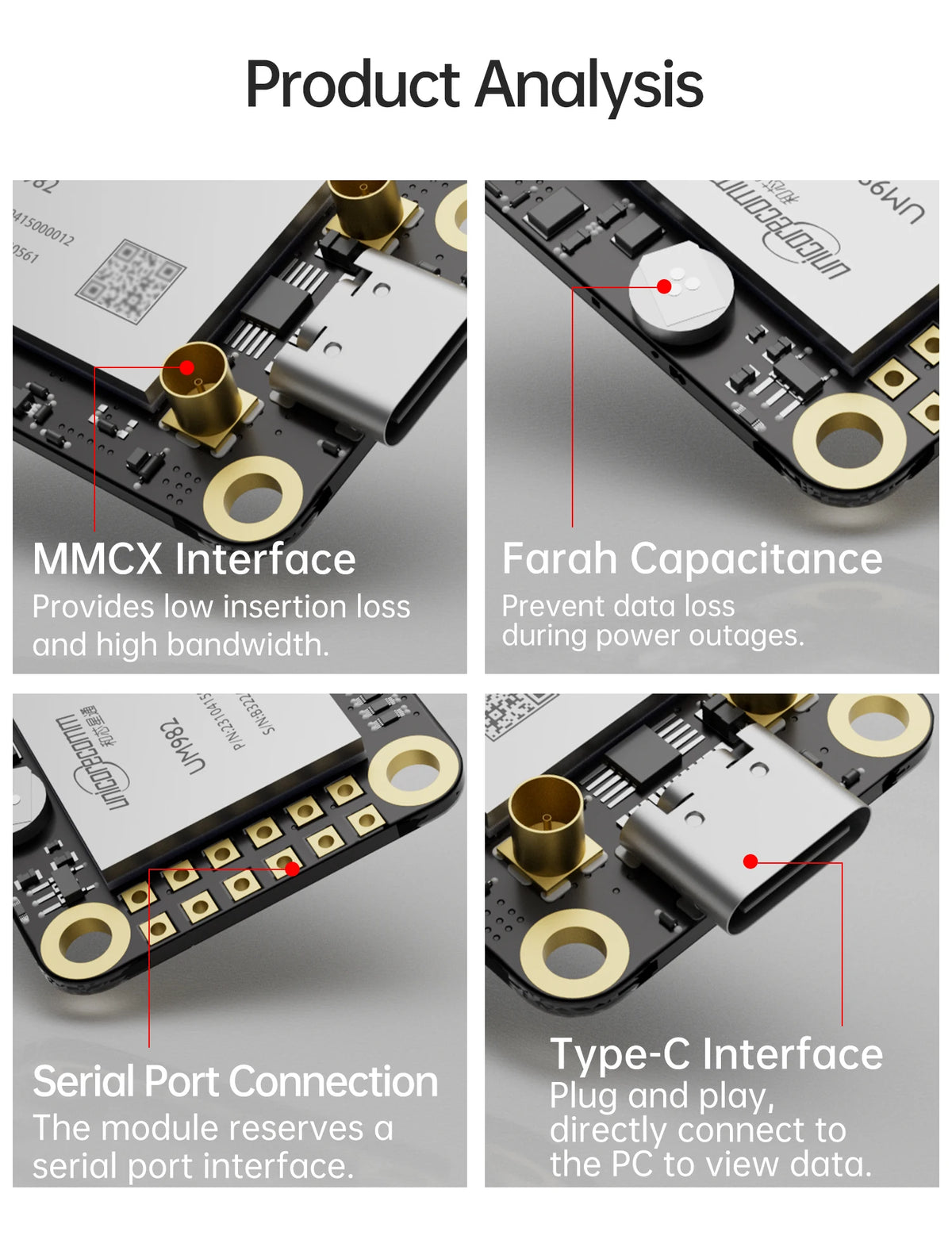

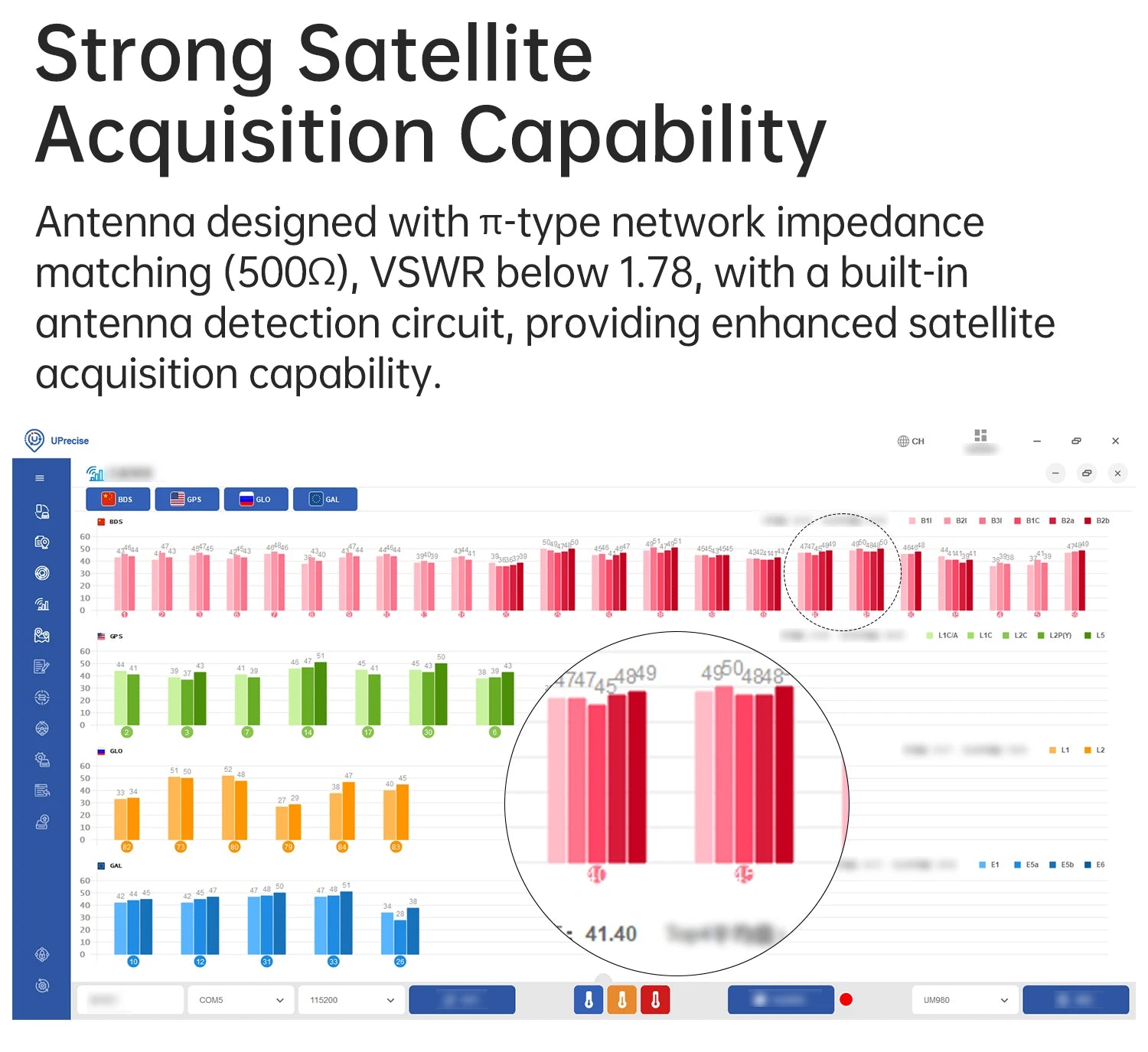

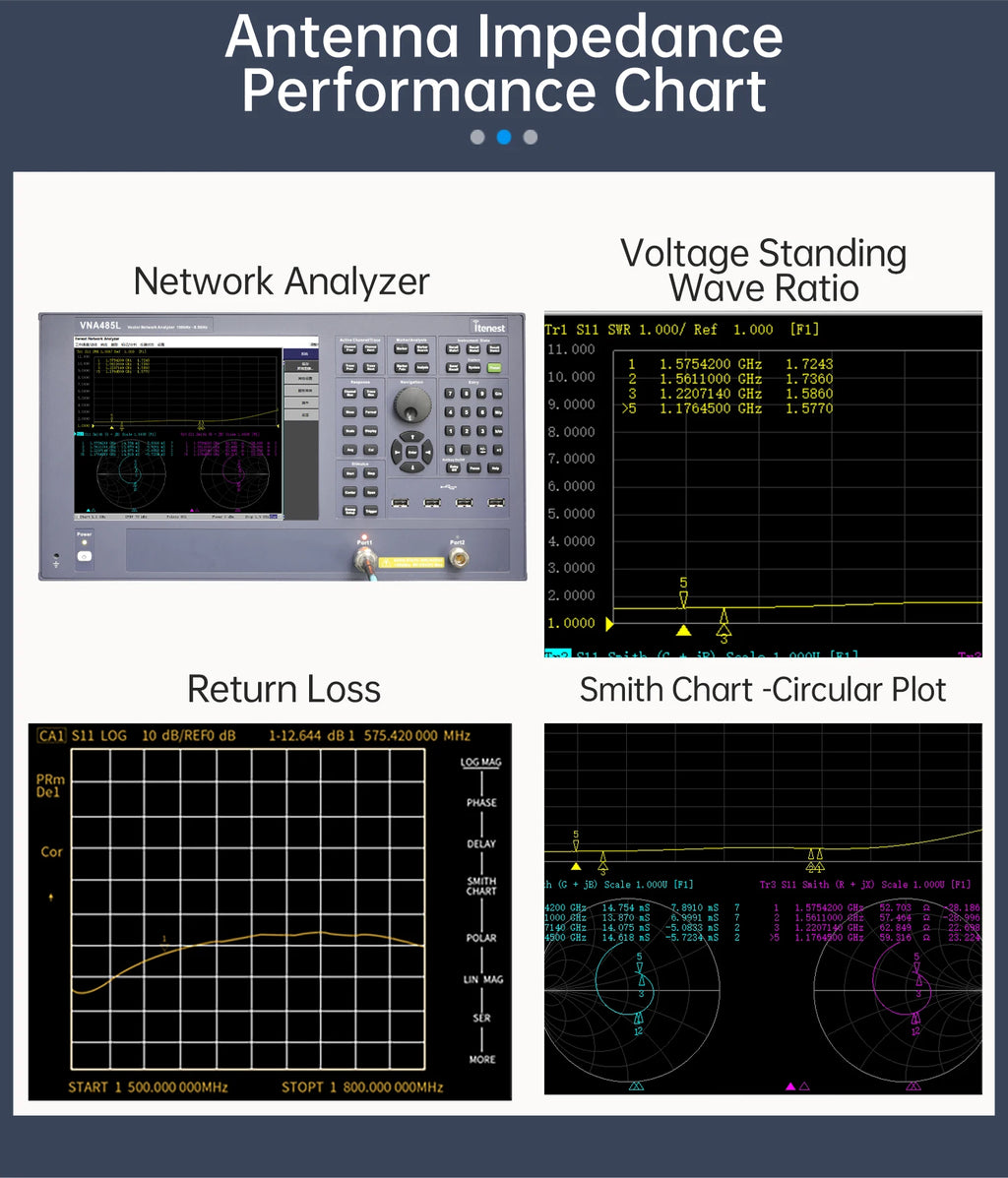

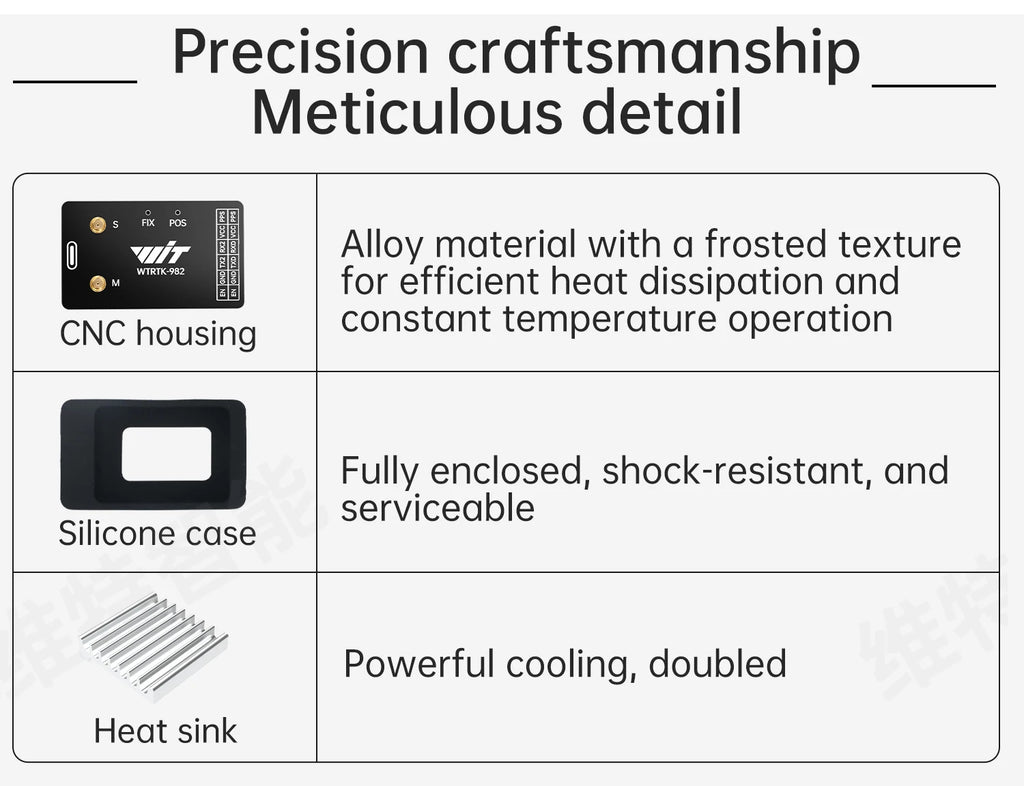

6.Industrial-Grade Stable Hardware Design: Antenna π network impedance matching, strong signal anti-interference ability; Farad capacitor saves data for 60s after power off, no data loss; MMCX interface with low insertion loss and high bandwidth

7.Complete Networking Solutions Optional: Provide LoRa (1.2KM urban transmission) and 4G LTE full-network two differential data transmission solutions, meet short/long-distance different scenario needs

8.Full-Link Development Support: Provide PC upper computer, SDK source code, ROS driver, lifetime technical support, quickly adapt to secondary development

9.Multiple Models for Different Needs: Single antenna/dual antenna, different sampling rates optional, covering full-scenario positioning needs from consumer to industrial grade

10.8-Year Leading Manufacturer Quality: ISO9001/IATF16949 certified, products sold to 80+ countries, 15,000+ successful cases, guaranteed quality

Usage & Application

UAV Field: UAV aerial survey, plant protection, inspection, achieve centimeter-level accurate positioning and route planning, improve operation accuracy

Unmanned Vehicle/AGV Field: Unmanned delivery vehicles, industrial AGVs, autonomous driving vehicles, achieve autonomous navigation, obstacle avoidance and accurate parking

Robot Field: Service robots, inspection robots, mobile robots, achieve high-precision positioning and SLAM mapping

Surveying & Exploration Field: Topographic surveying, engineering surveying, geological exploration, replace traditional RTK equipment, portable and efficient

IoT/Vehicle Networking Field: Vehicle monitoring, fleet management, asset tracking, achieve high-precision location services

Scientific Research & Education Field: University robot laboratories, autonomous driving research projects, navigation algorithm research

Other Scenarios: Smart agriculture, construction machinery control, ship navigation, emergency rescue positioning, VR/AR spatial positioning

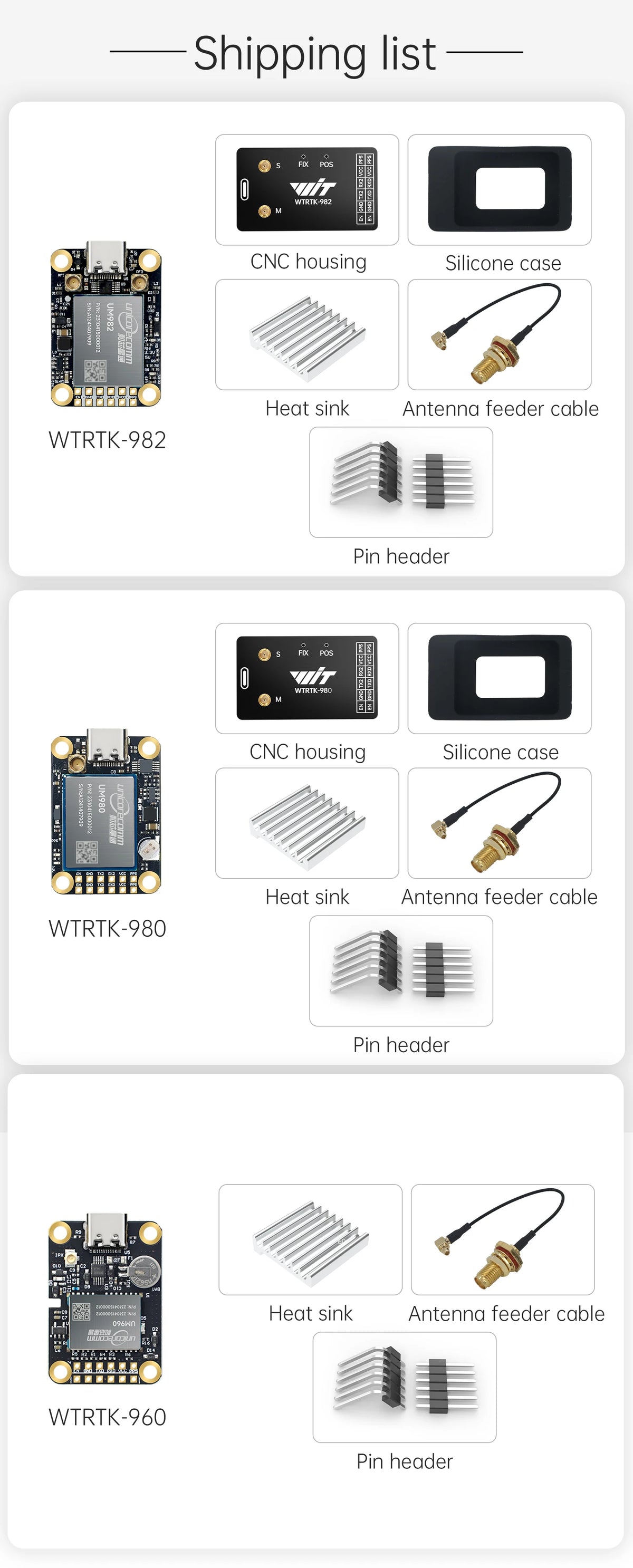

****WTRTK-982 and WTRTK-980 shipping packaging also include: SMA female--MMCX

****WTRTK-960 shipping packaging also include: SMA female-- IPEX1

**WTRTK-982 doc:

https://drive.google.com/drive/folders/1USGufd-EMizzeMTHkAZF2xCDaathZwX6?usp=drive_link

**WTRTK-980 doc:

https://drive.google.com/drive/folders/1RP-g-l8X-KwJOpTcQYS-juQpOMaA7P9b?usp=drive_link

Product Description

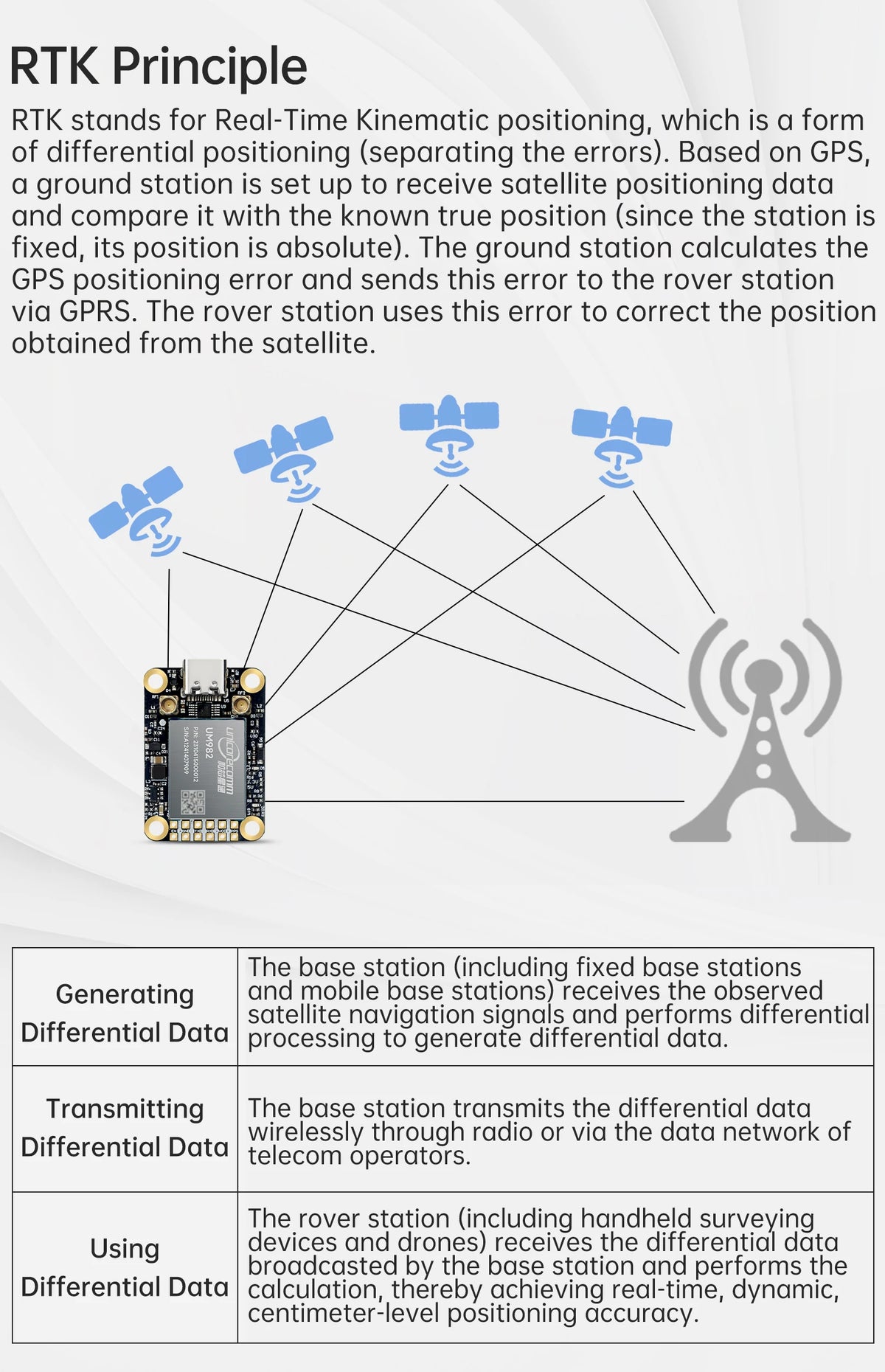

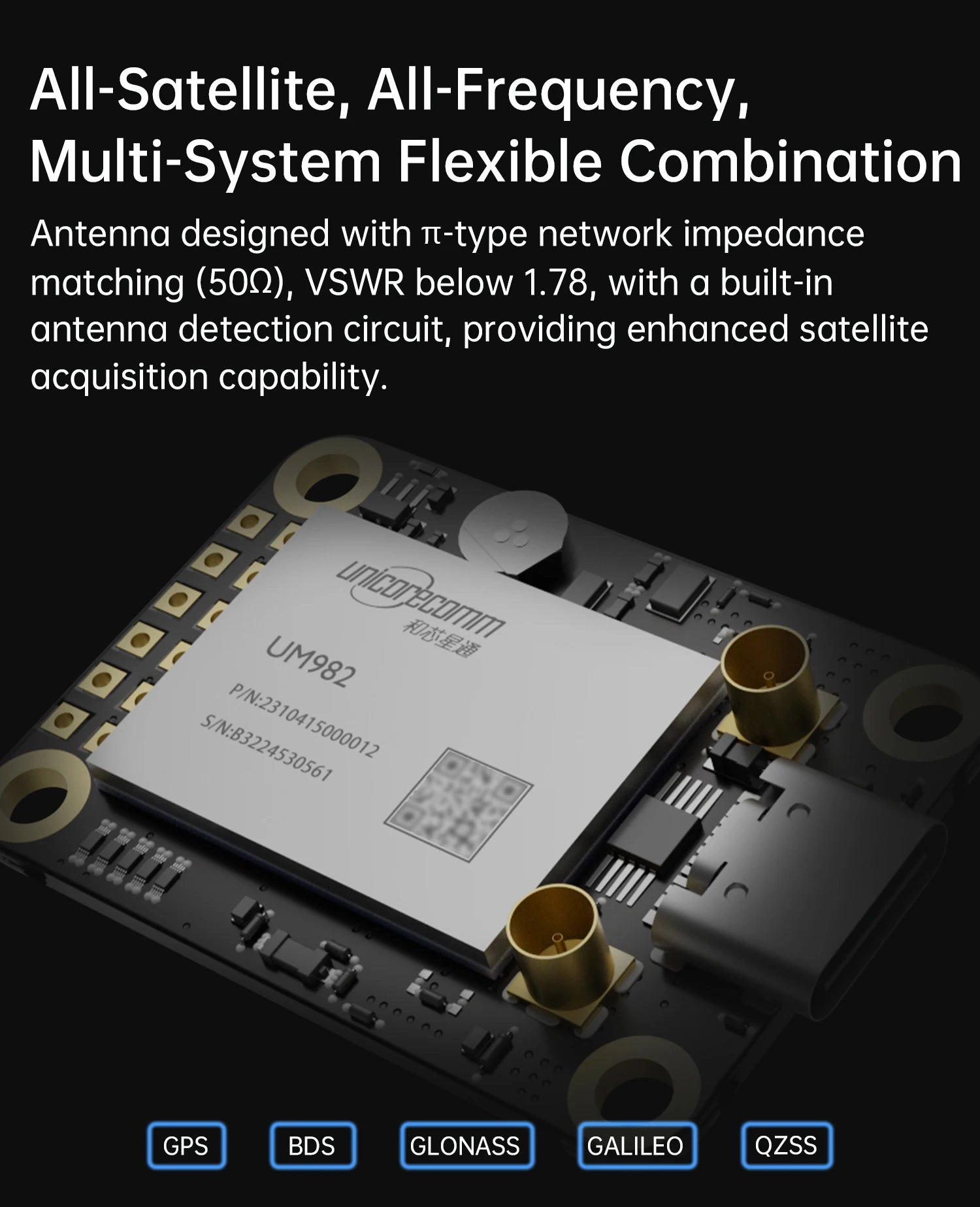

The WTRTK series centimeter-level RTK GPS module is designed for high-precision positioning scenarios, with Unicorecomm's high-performance RTK engine as the core, supporting full constellation and full frequency signal reception, 1408-channel parallel processing, greatly improving satellite search speed and positioning stability. The module has built-in dual-RTK algorithm, supports RTCM differential protocol, and can achieve centimeter-level real-time positioning with a base station; it also supports B2b-PPP/E6-HAS satellite-based augmentation service, which can achieve global centimeter-level positioning without building its own base station, greatly reducing deployment costs.

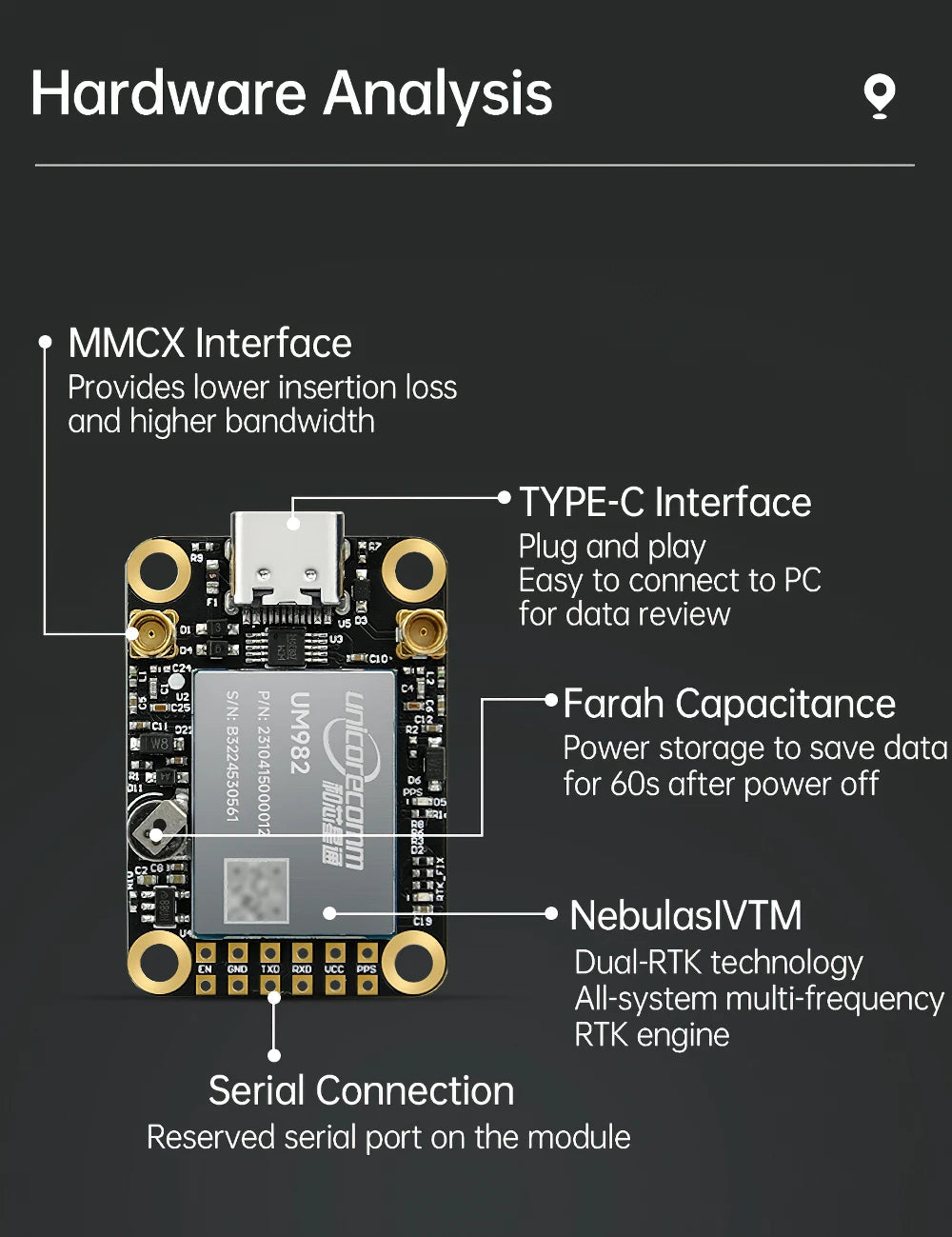

The module adopts Type-C interface design, plug-and-play, directly connect to PC to complete parameter configuration and data viewing through upper computer; reserved serial port and MMCX antenna interface, support secondary development and external antenna expansion. Equipped with Farad capacitor, it can save data for 60s after power off to avoid data loss; antenna π network impedance matching, strong signal anti-interference ability, more stable positioning in complex environments.

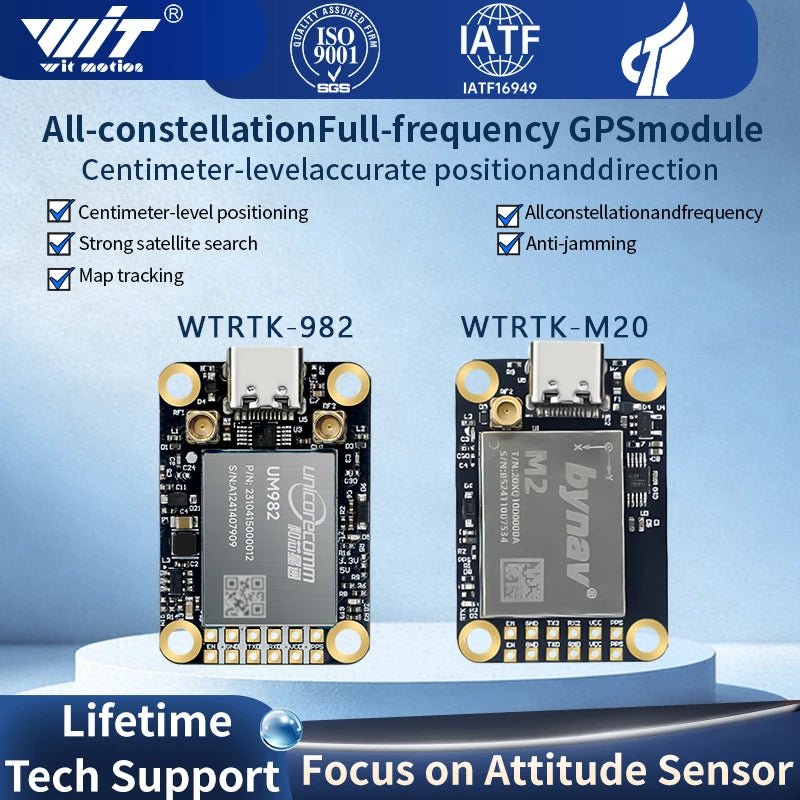

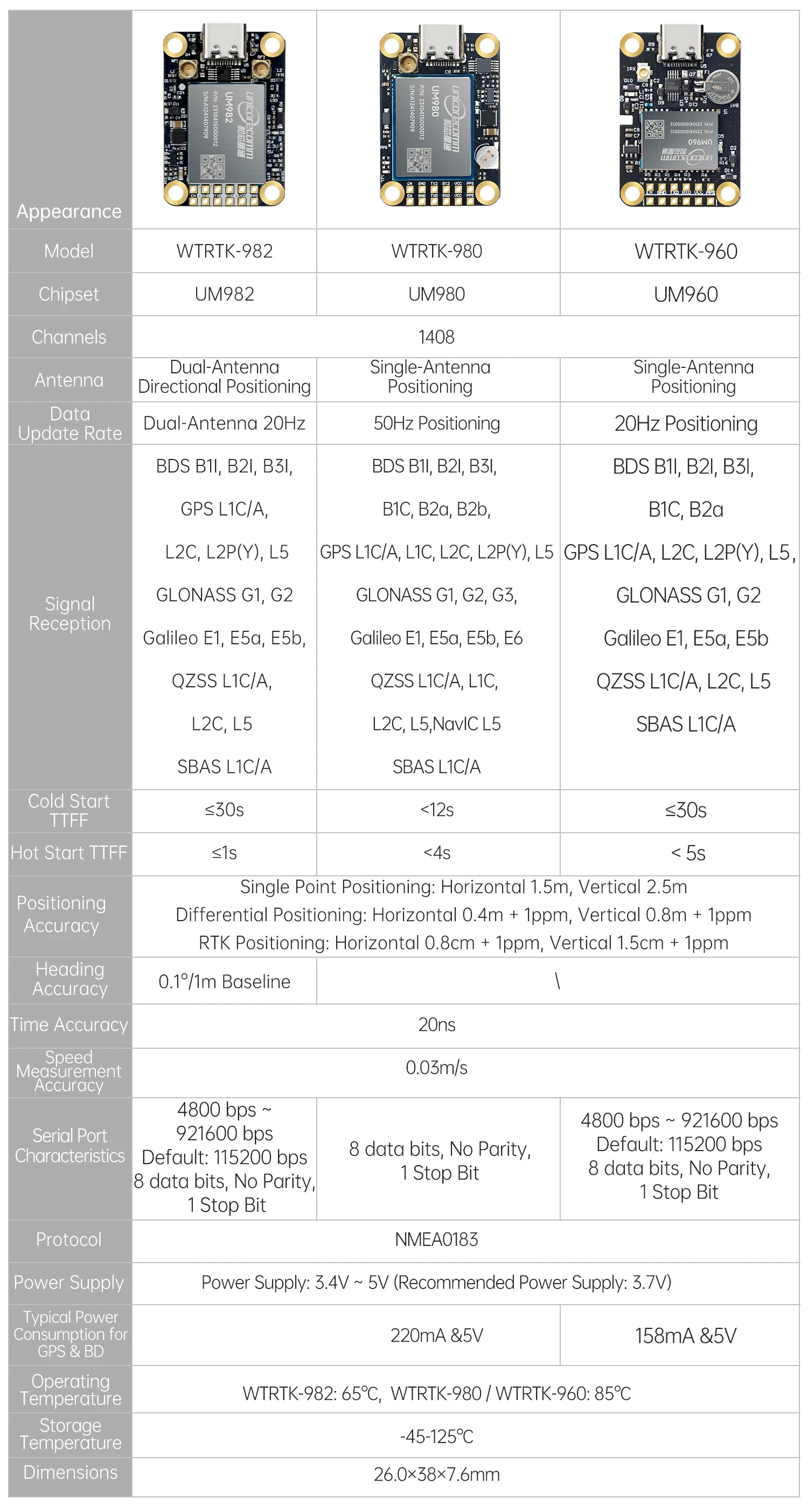

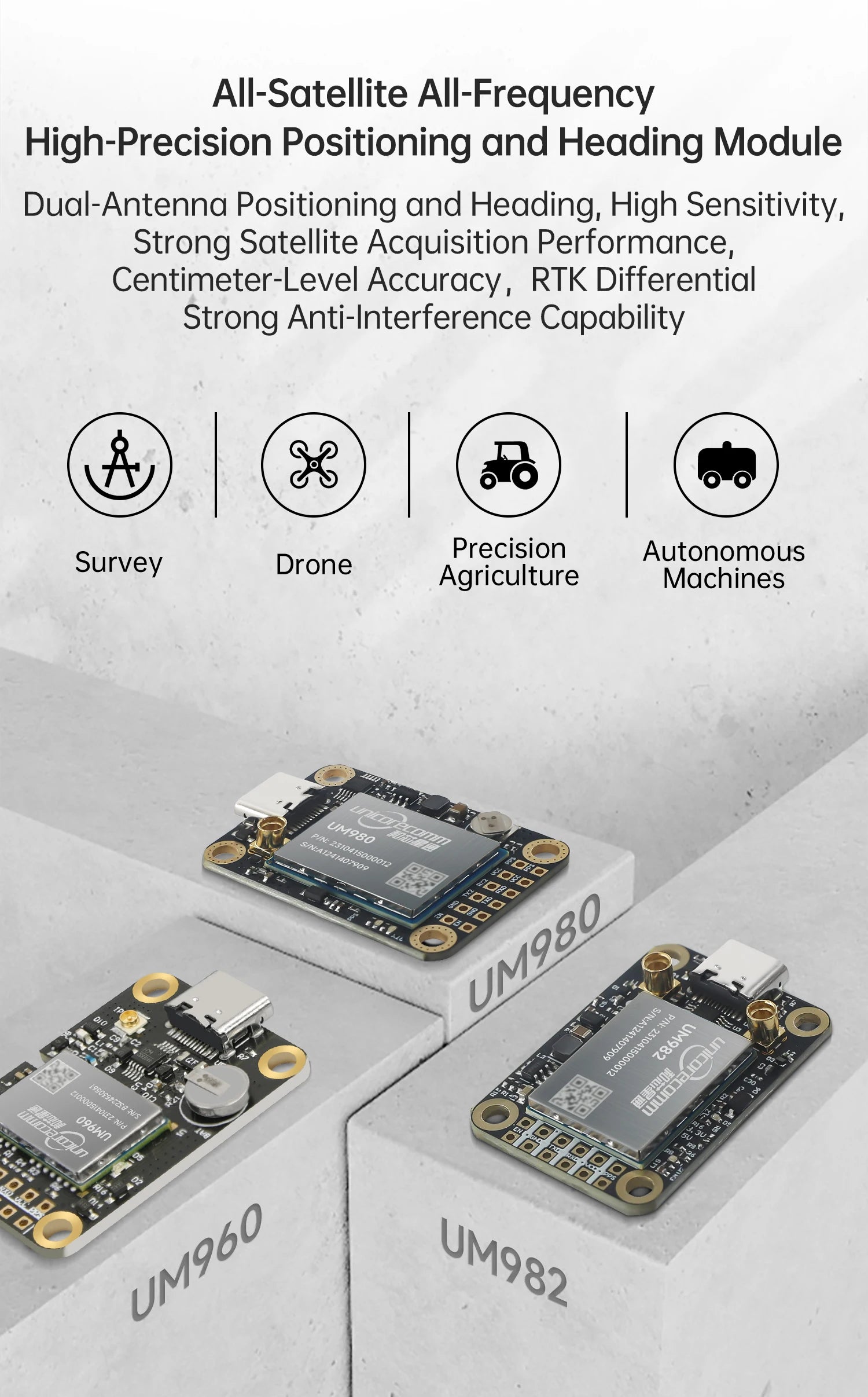

The series provides multiple models to choose from:

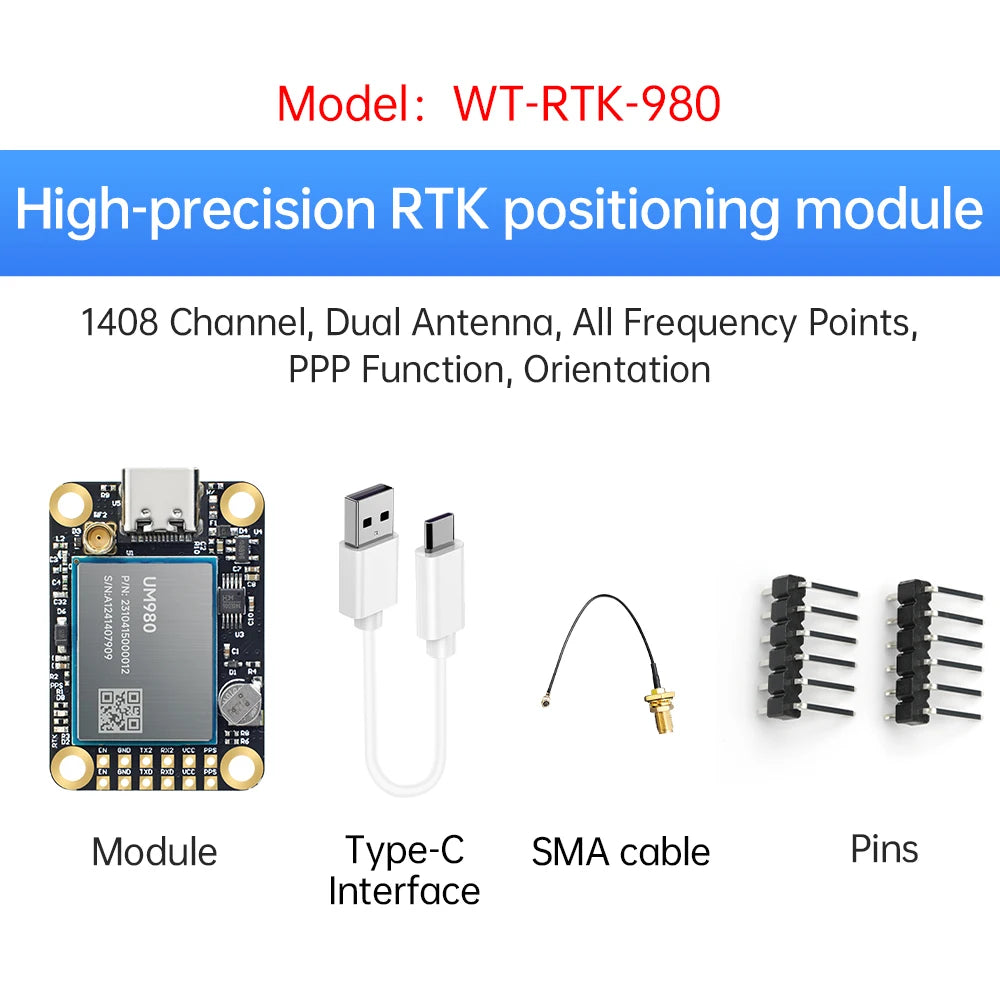

WTRTK-980: Single antenna design, 50Hz high sampling rate, suitable for scenarios with high sampling rate requirements

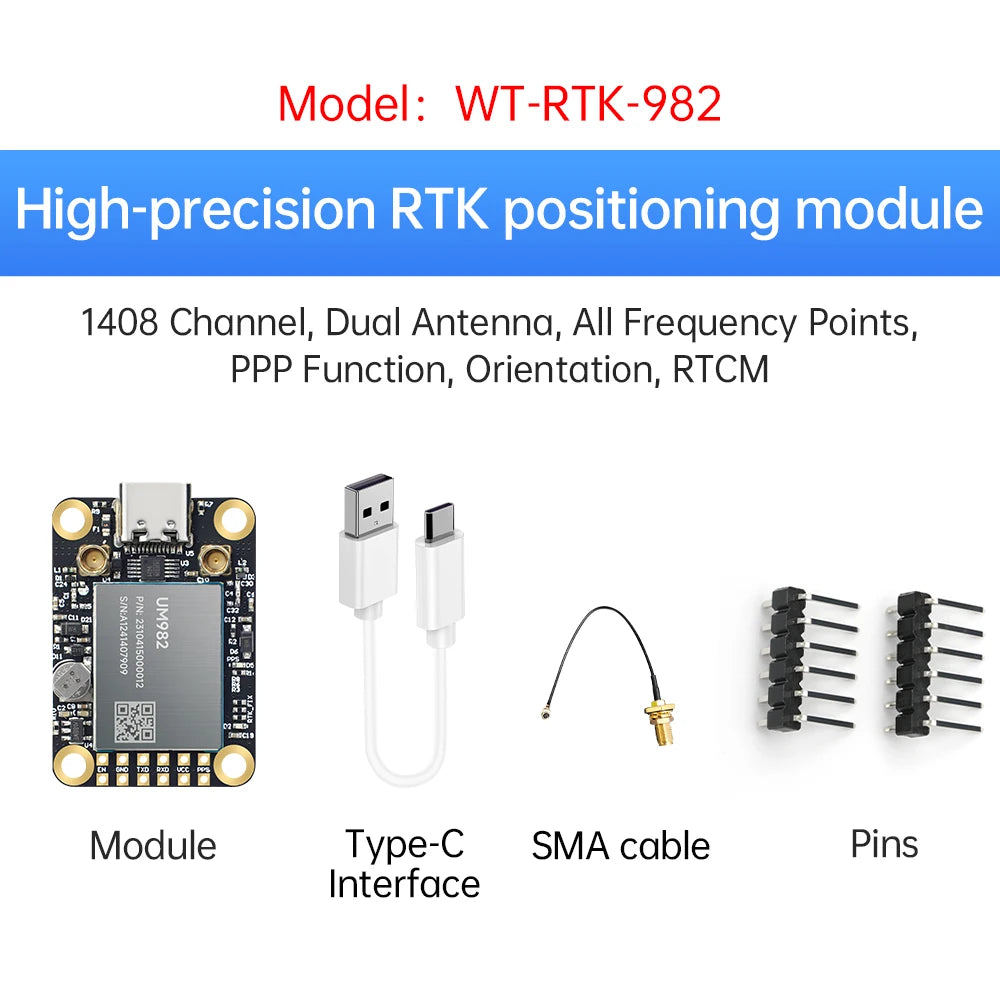

WTRTK-982: Dual antenna design, 20Hz sampling rate, supports accurate heading orientation, suitable for UAV, unmanned vehicles and other scenarios requiring heading

WTRTK-M20D: Full-system multi-frequency dual antenna, 10Hz sampling rate, flagship positioning performance

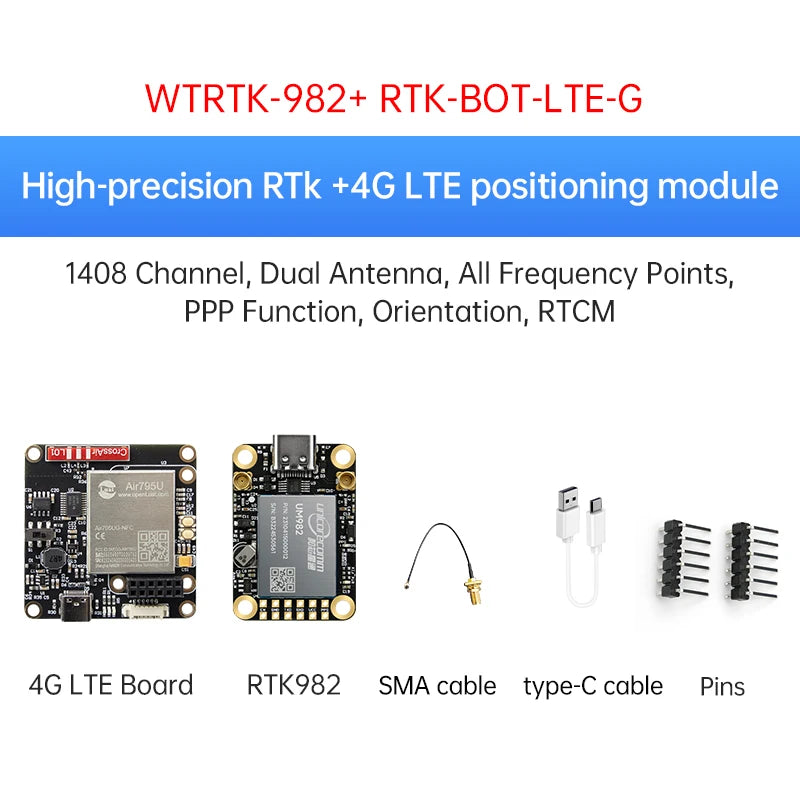

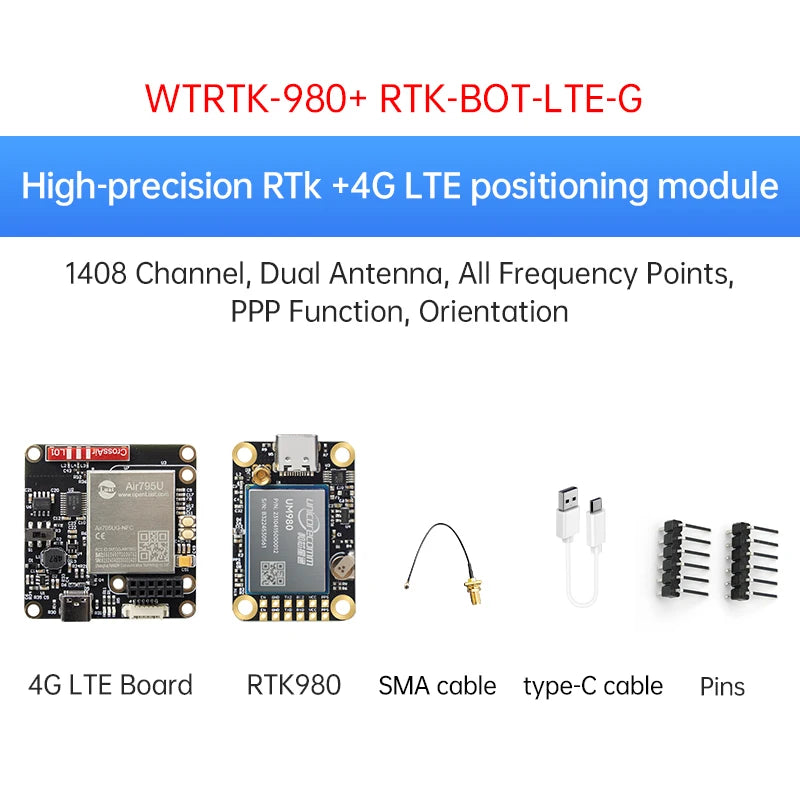

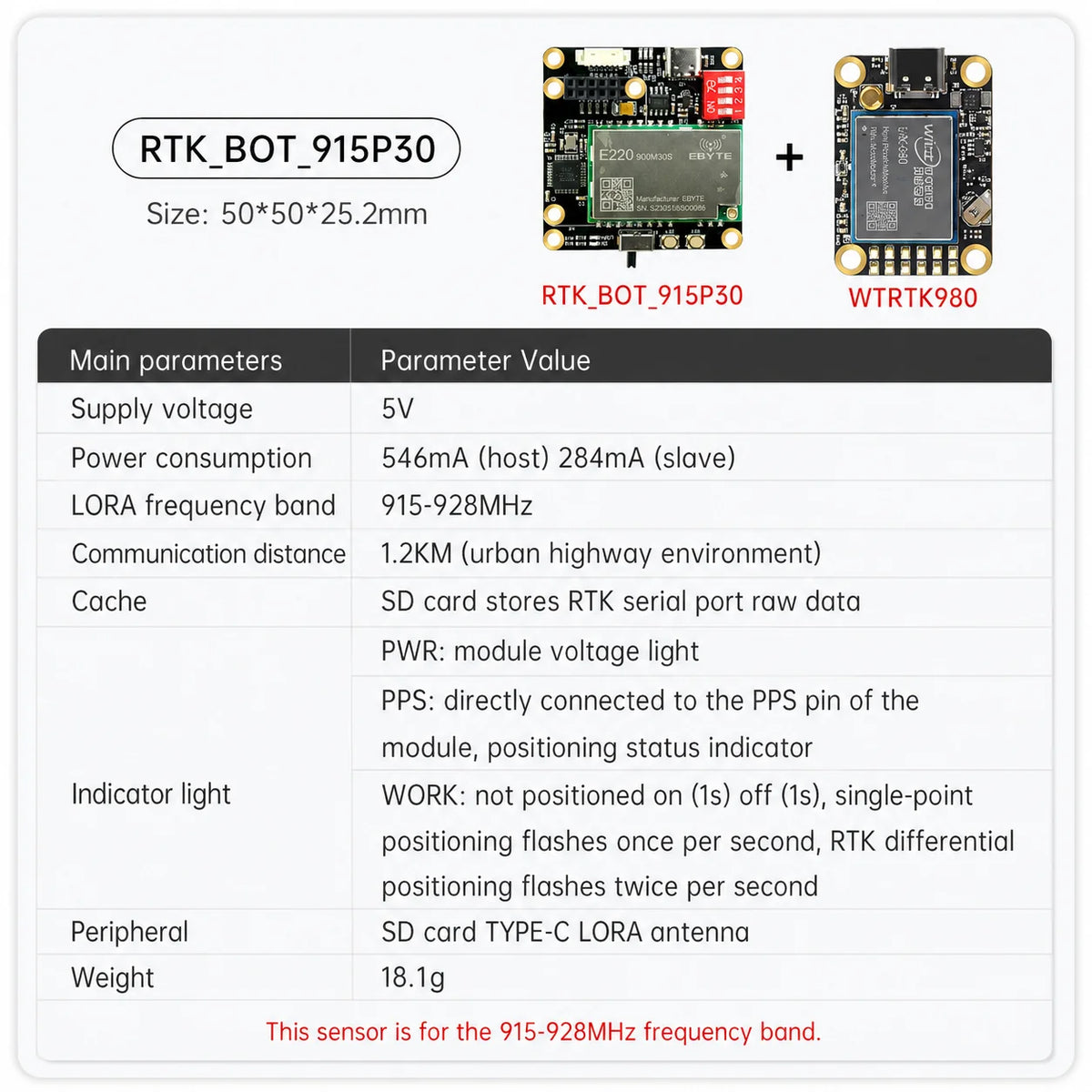

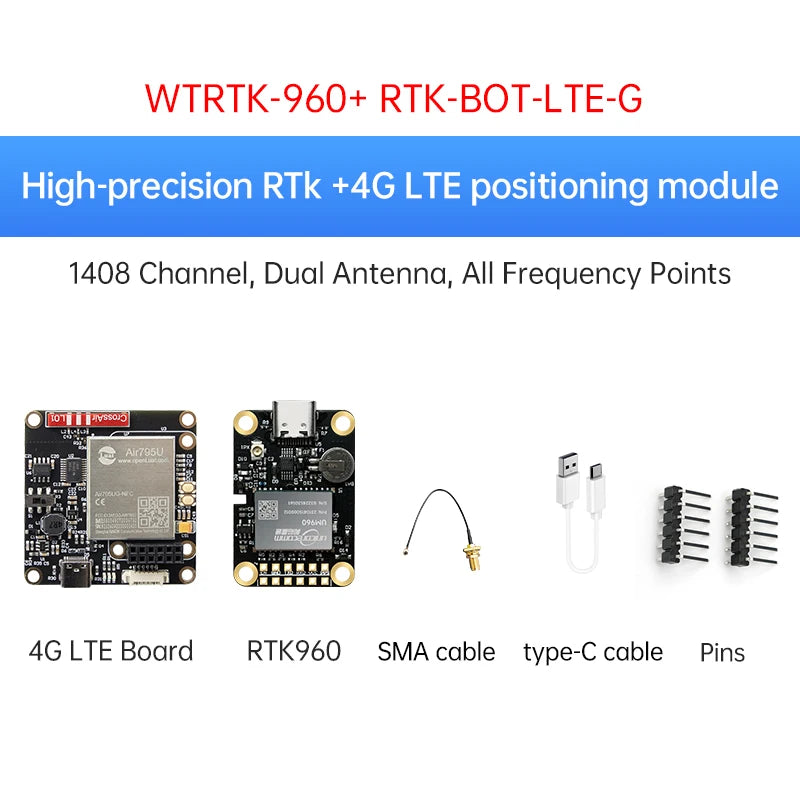

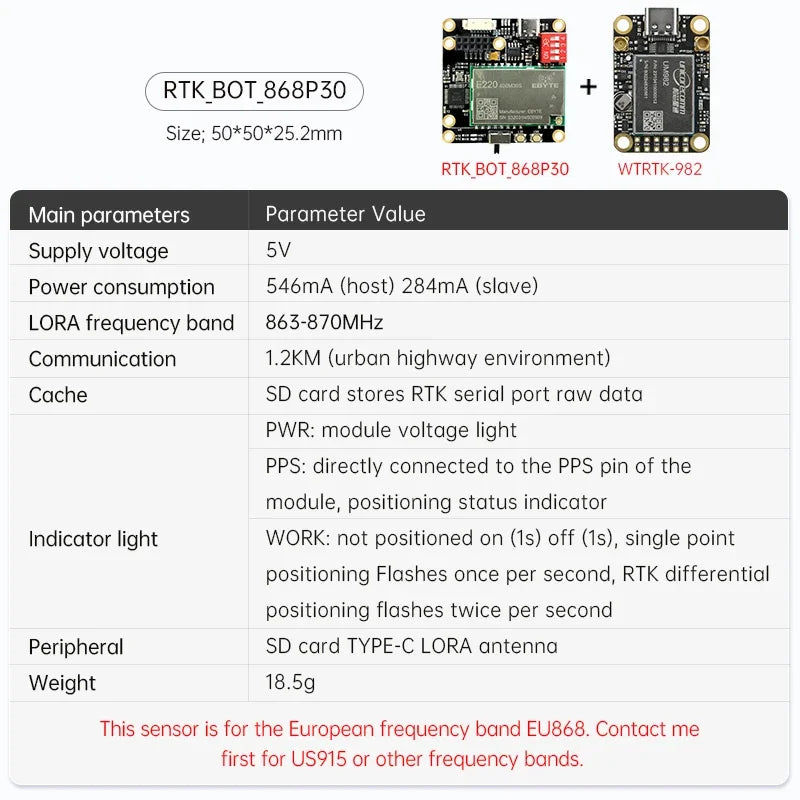

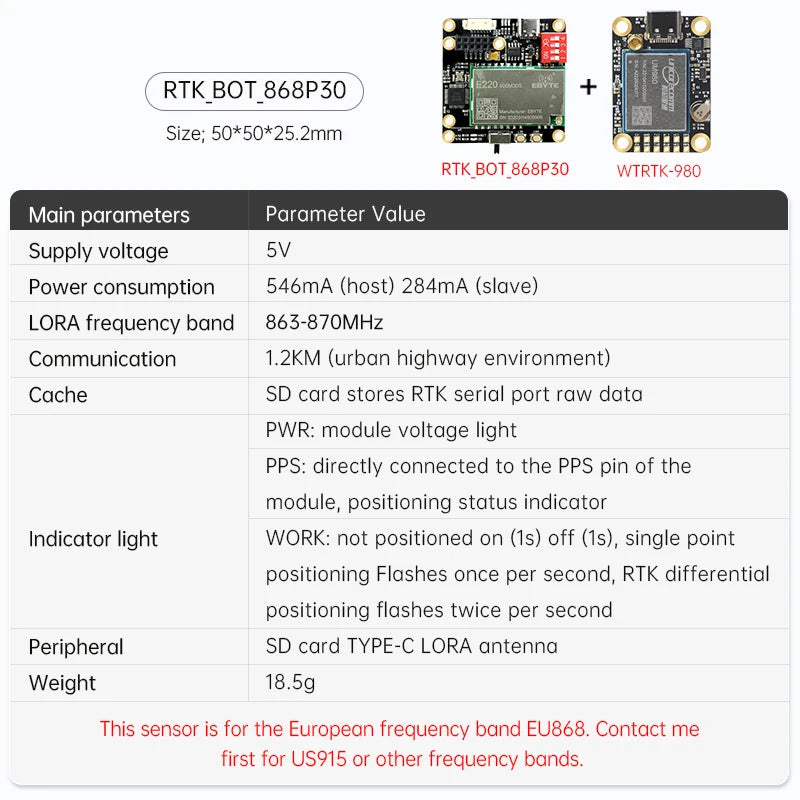

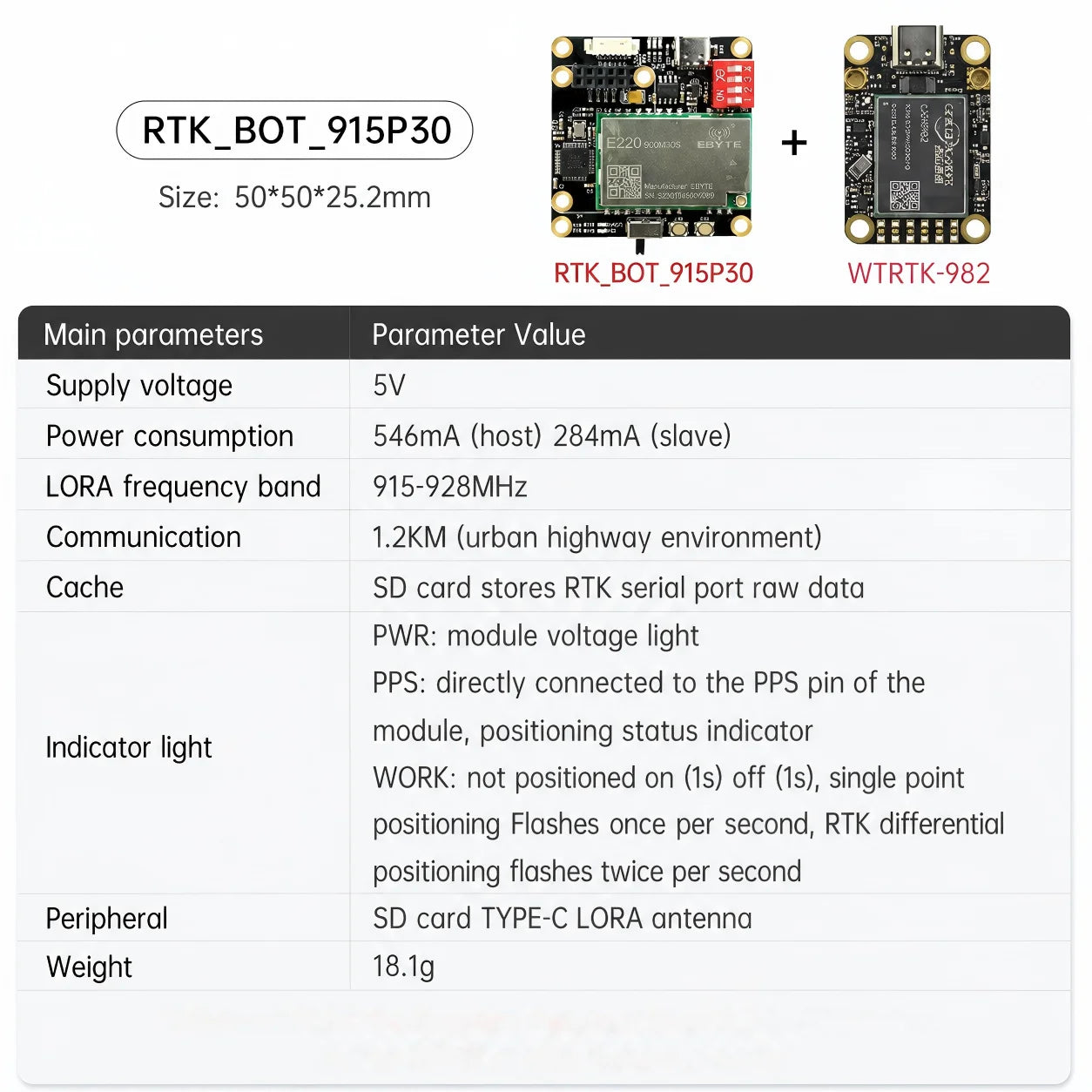

Two complete networking solutions are also provided: LoRa wireless differential solution (RTK_BOT_868P30), with a transmission distance of 1.2KM in urban environment, suitable for short-distance robots and unmanned vehicles; 4G LTE full-network solution (WTRTK-980+RTK-BOT-LTE-G), which realizes national-wide differential data transmission, suitable for long-distance scenarios such as UAV and surveying.

As an 8-year leading manufacturer in the industry, WitMotion has ISO9001/IATF16949 certification, products are sold to more than 80 countries around the world, with a cumulative sales of 6.5 million+ products, serving 10,000+ industry customers, providing lifetime technical support and complete development kits, which is the first choice for scientific research, industrial and consumer high-precision positioning projects.
