WitMotion WT-DP03 High Precision Water Depth Pressure Sensor MS5837 30Bar ADC 0.016mbar Resolution for Arduino ROV AUV Diving

WitMotion WT-DP03 High Precision Water Depth Pressure Sensor MS5837 30Bar ADC 0.016mbar Resolution for Arduino ROV AUV Diving

$165.78

$165.78 $0.00

Description

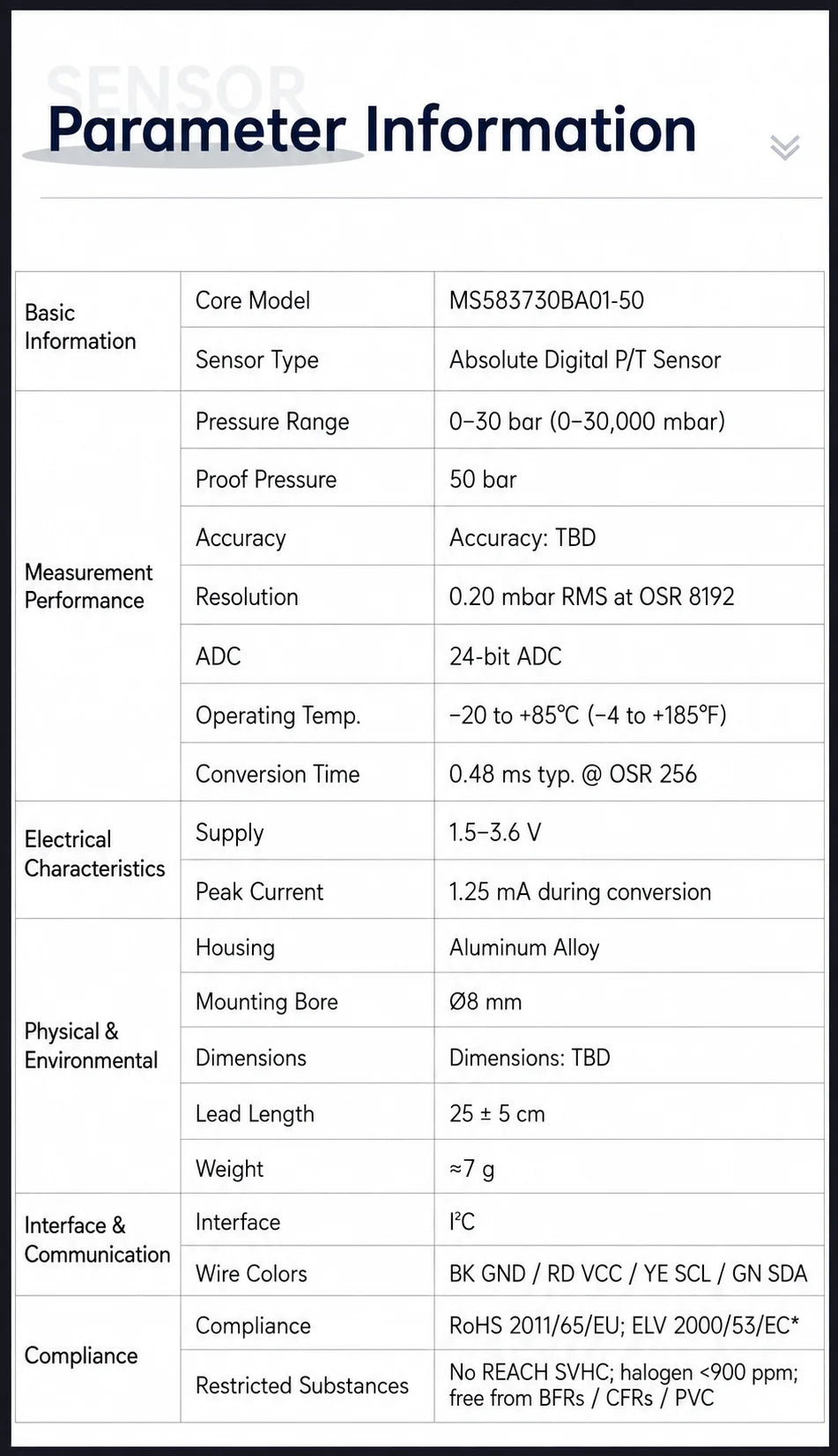

SPECIFICATIONS

Application: ROV, AUV, Diving, Hydrology

Brand Name: NONE

Choice: yes

High-concerned chemical: none

MS5837: MS583730BA01-50

Material: Metal

Operating Temperature: -20 to +85°C

Origin: Mainland China

Output: Digital Output

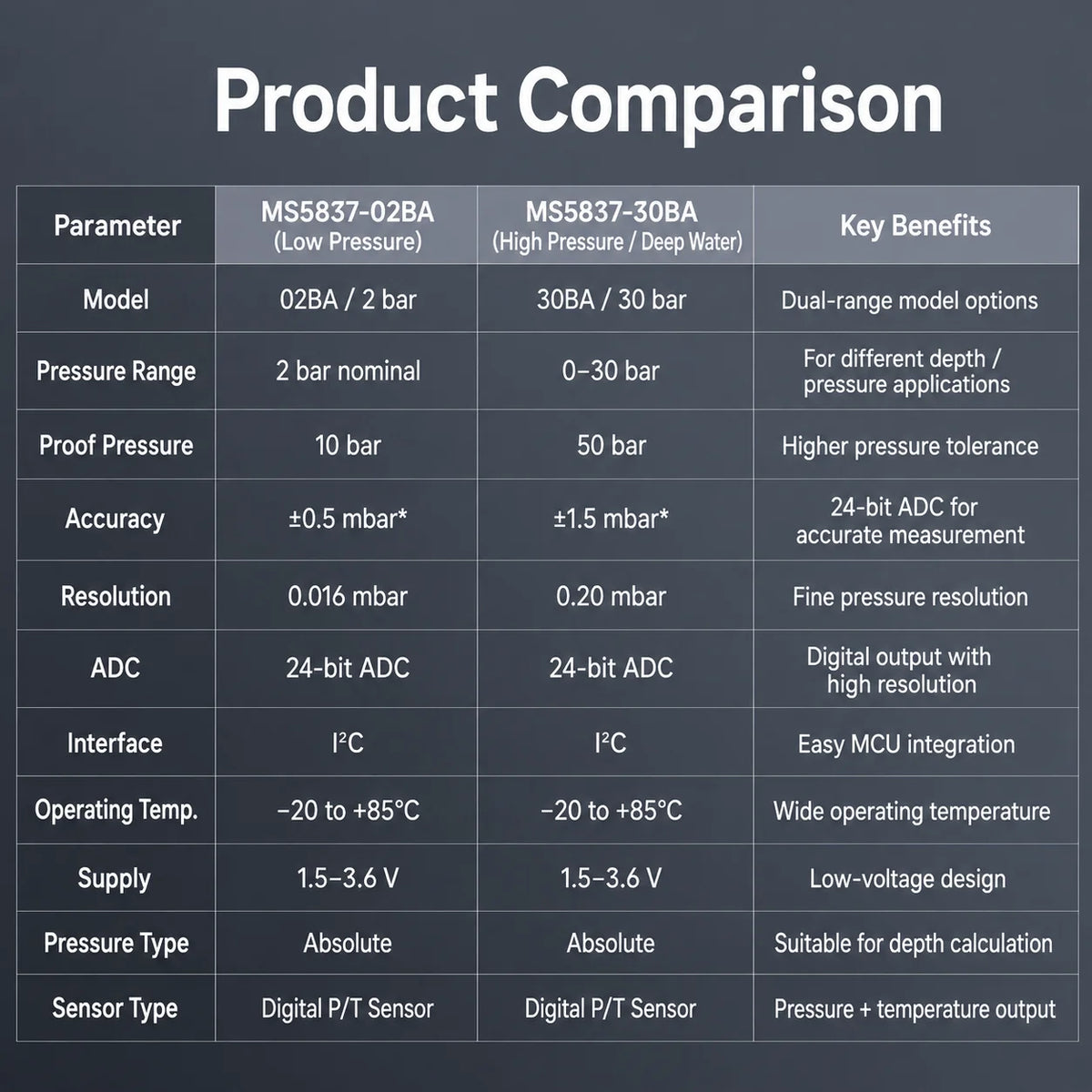

Pressure Range: 0-30 bar / 2 bar

Pressure Sensor: Depth Sensor

Submersible Sensor: Digital P/T Sensor

Supply Voltage: 1.5-3.6V

Type: Acceleration Sensor

Use: Tilt Angle Measurement

WT-DP03 pressure sensor: MS5837 depth sensor module

Water Level Sensor: Pressure Transducer

WitMotion: WT-DP03

is_customized: Yes

semi_Choice: yes

WitMotion WT-DP03 Submersible Pressure Transducer Digital Water Level Sensor 30Bar Max I2C 3.3V for Hydrological Monitoring Aquaculture

High-Precision Water Depth & Pressure Measurement

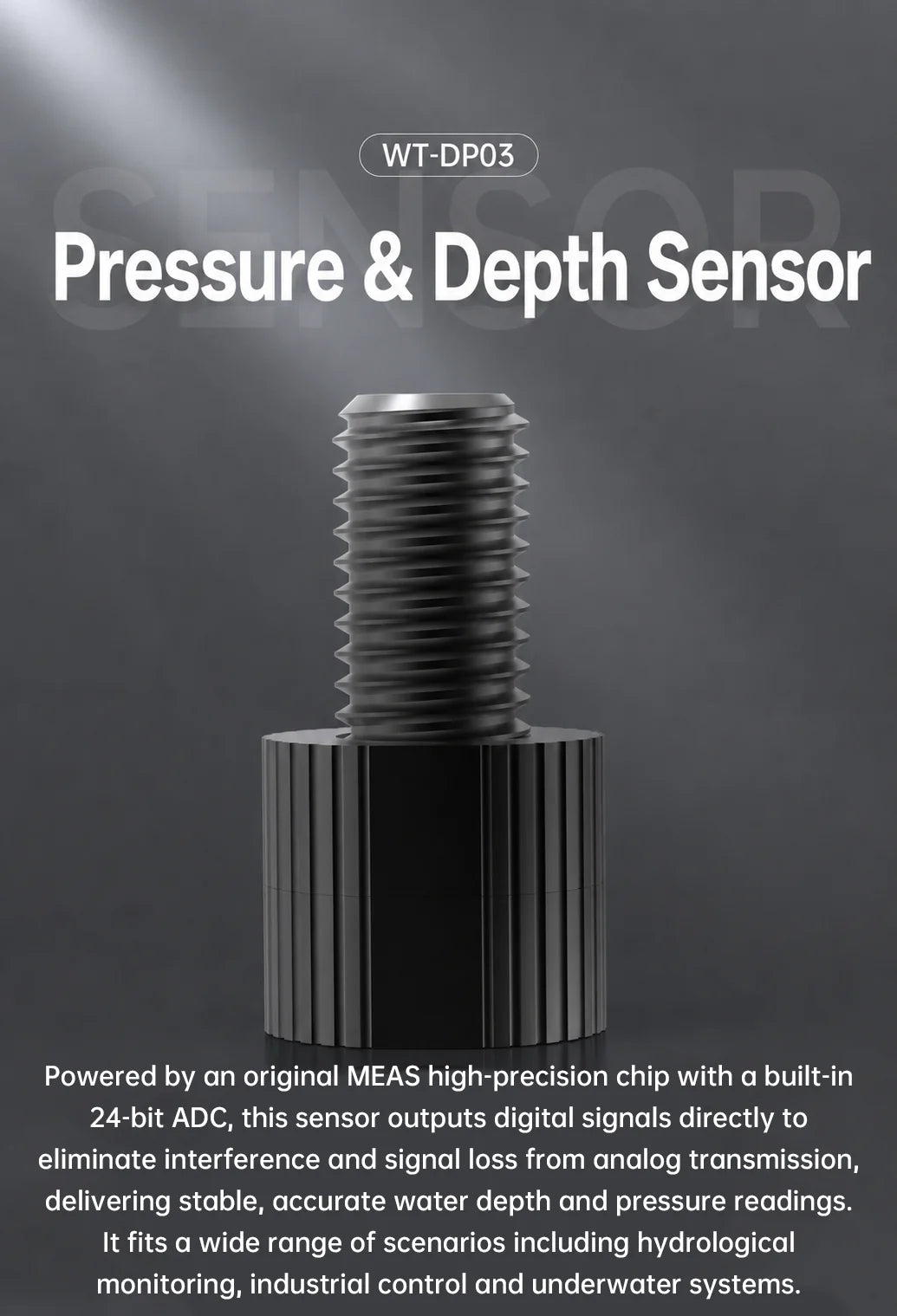

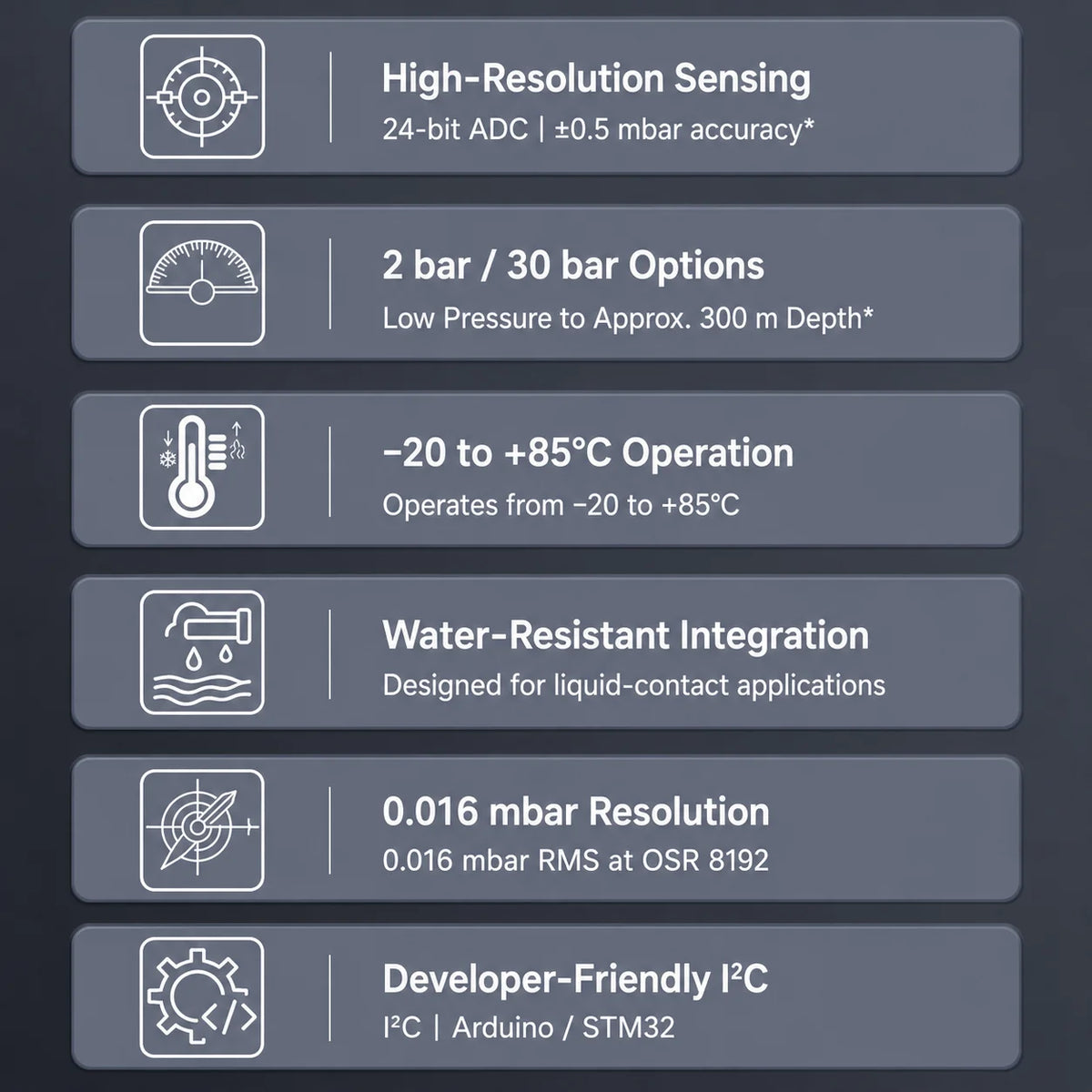

The WitMotion WT-DP03 digital pressure and temperature sensor is powered by an original MEAS high-precision chip (MS5837 series) with a built-in 24-bit ADC, delivering ±0.5 mbar accuracy and 0.016 mbar resolution (2Bar version).

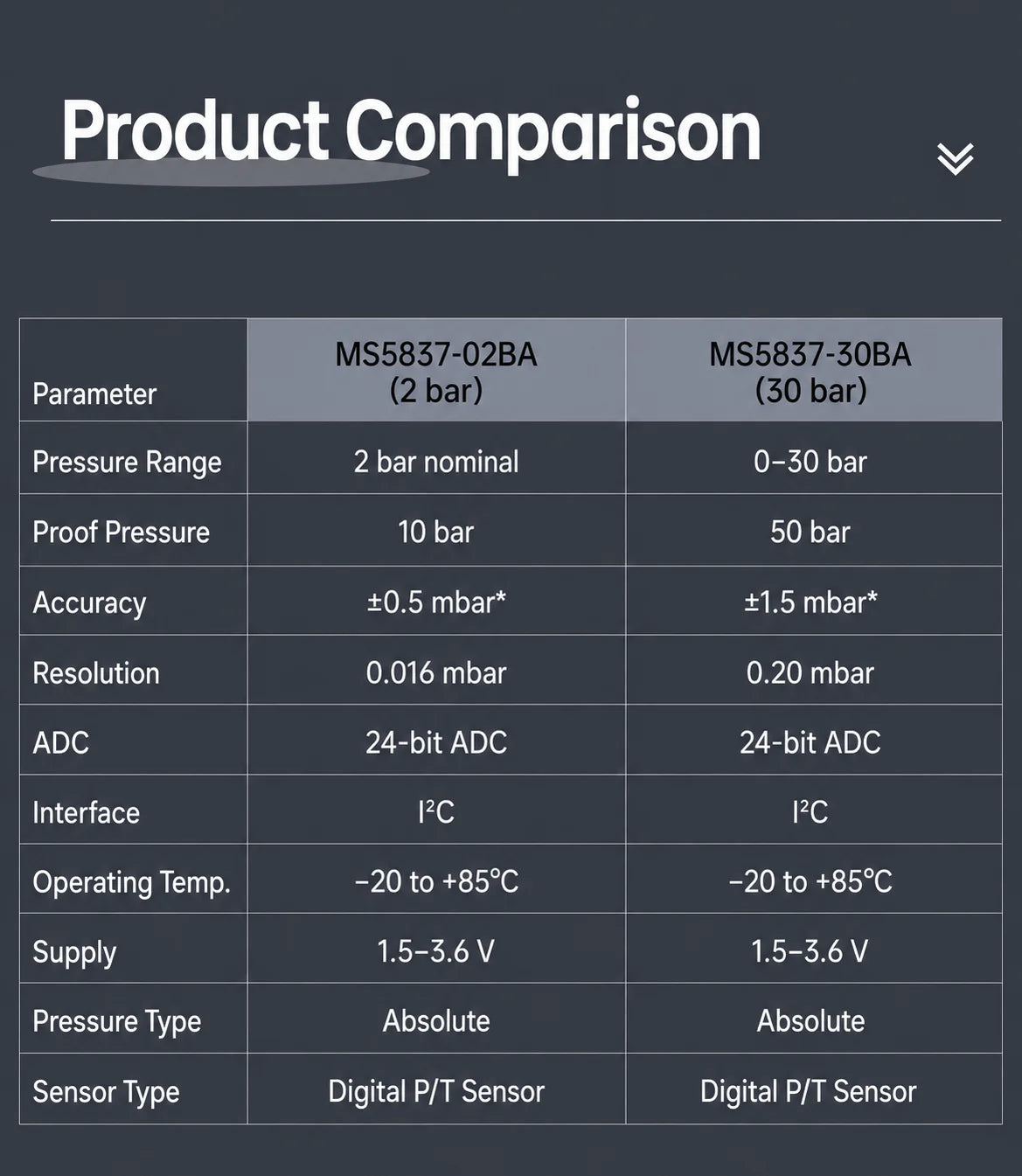

The sensor outputs digital signals directly via I2C interface, eliminating interference and signal loss from analog transmission for stable, accurate water depth and pressure readings. Available in 2Bar (approx. 20m depth) and 30Bar (approx. 300m depth) variants.

Water-Resistant Integration & Durable Design

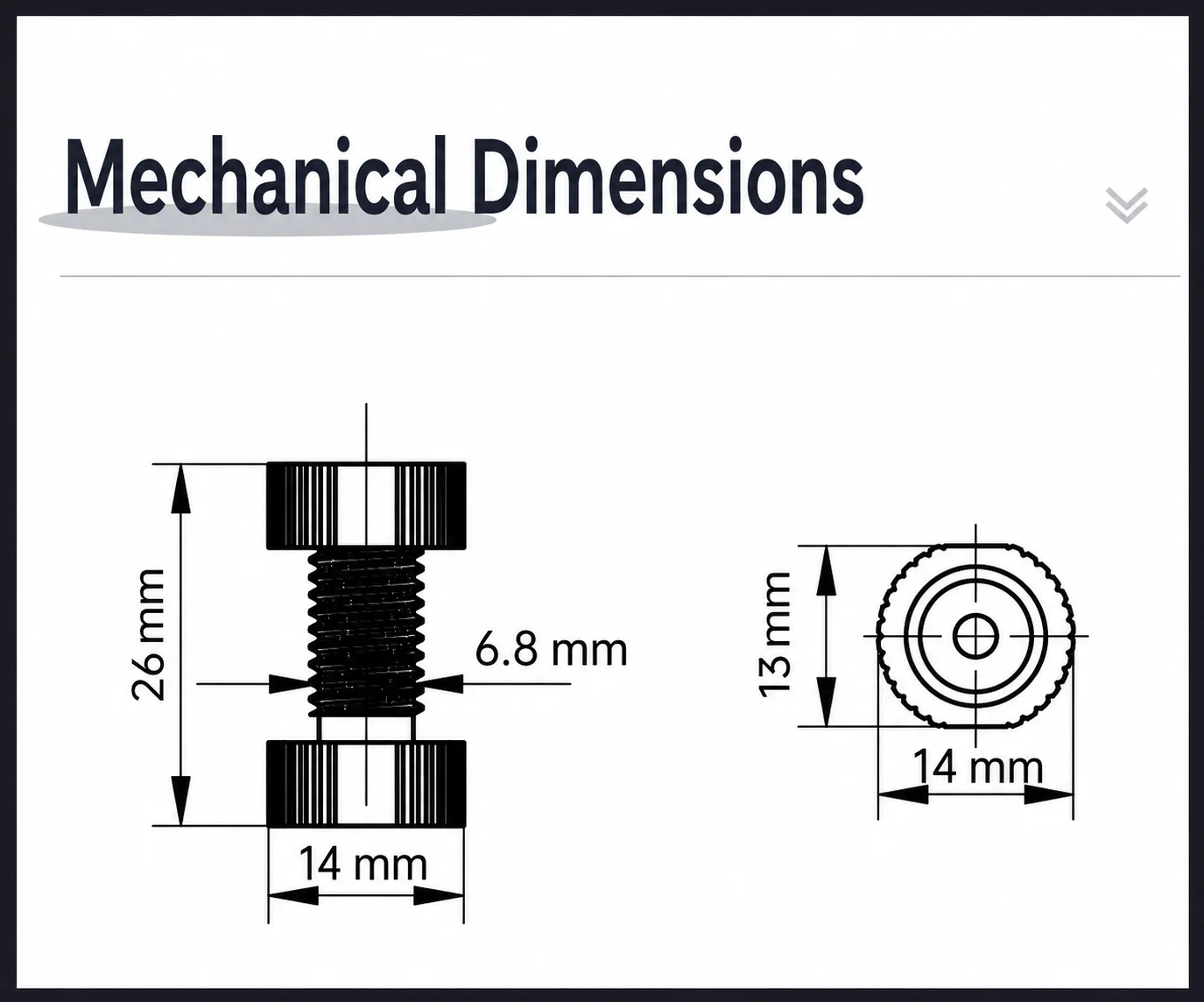

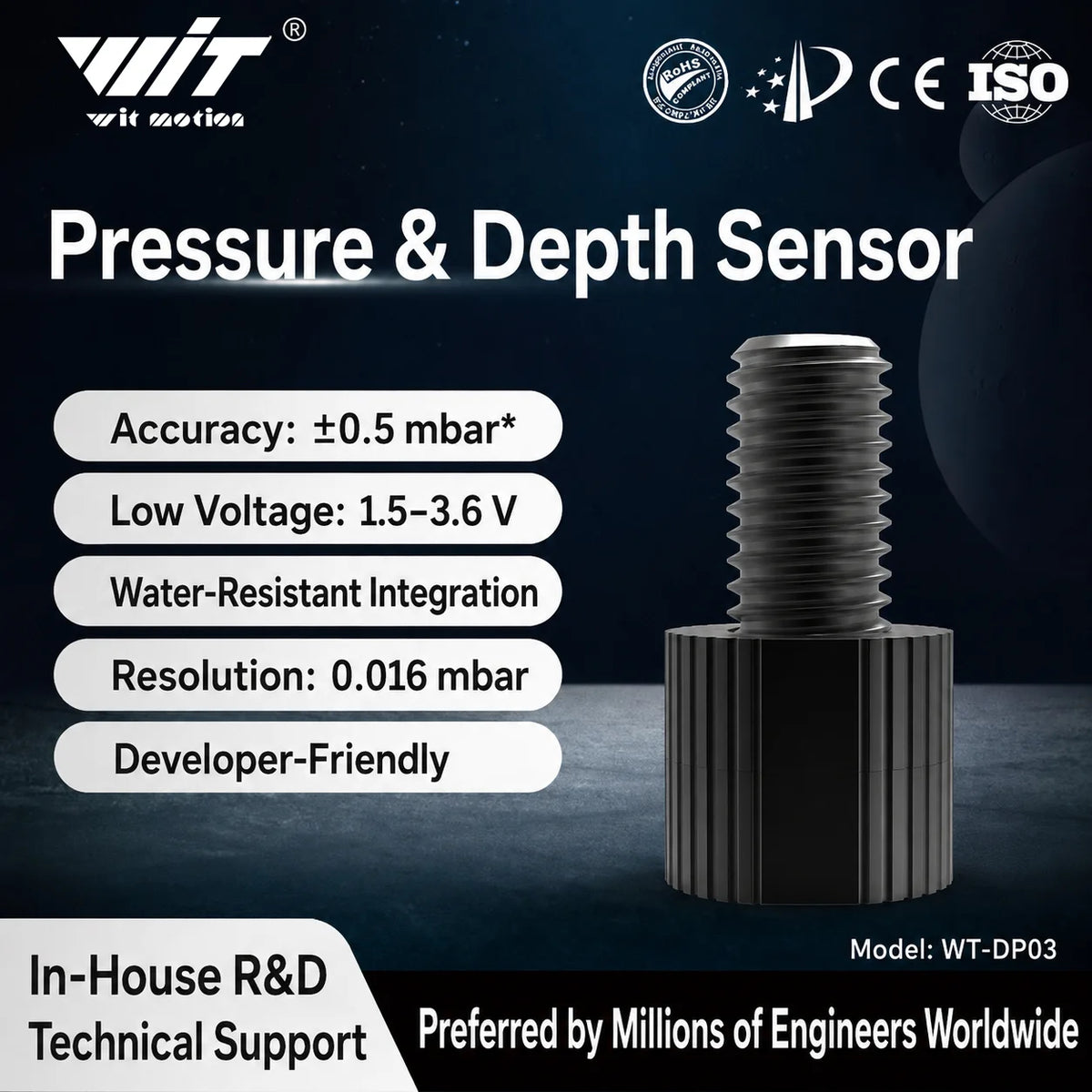

The WT-DP03 features a compact aluminum alloy housing with dimensions of just 26×14×6.8mm and lightweight ≈7g design, ideal for space-constrained underwater applications.

The sensor is designed for liquid-contact applications with proper sealing.

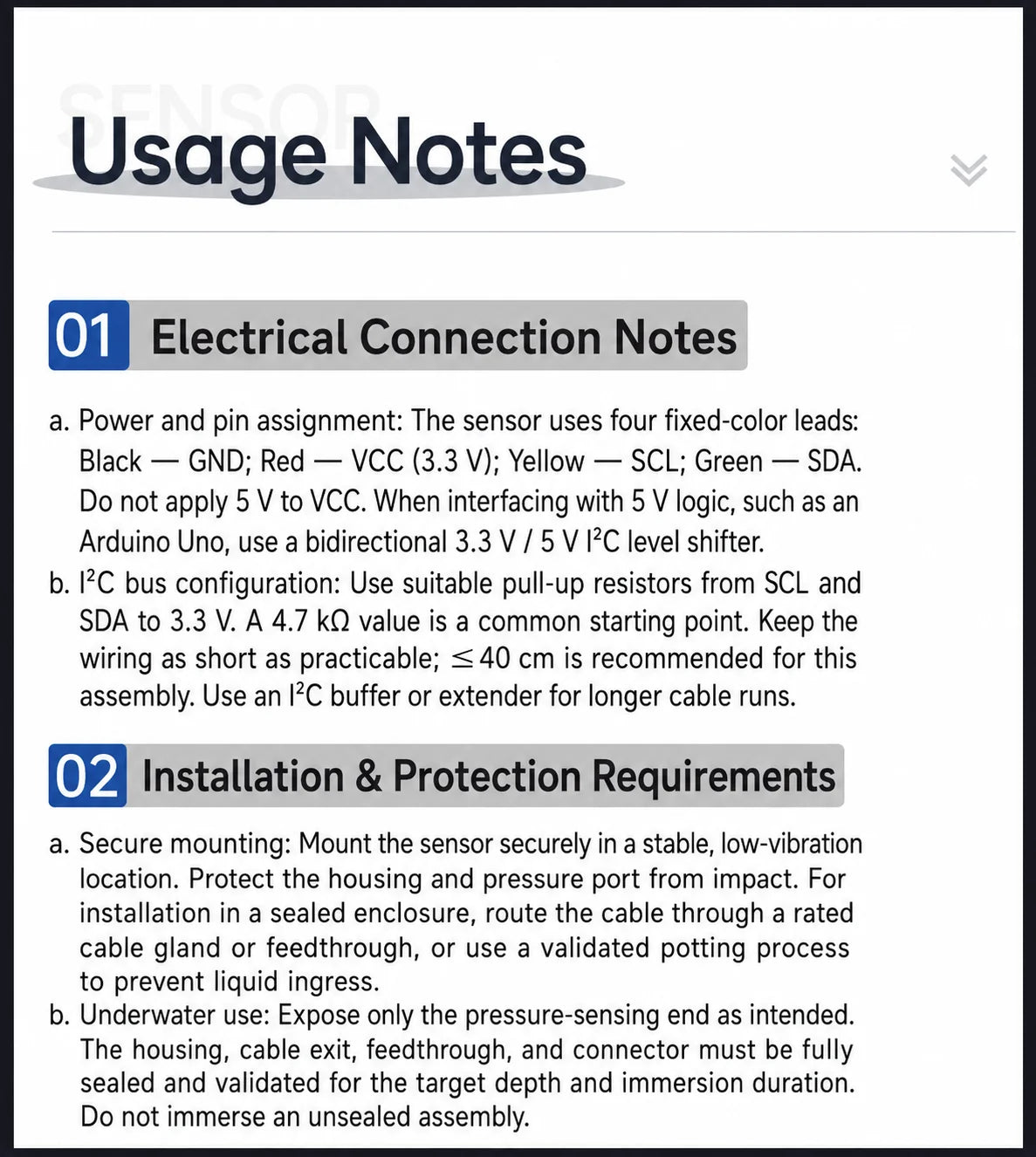

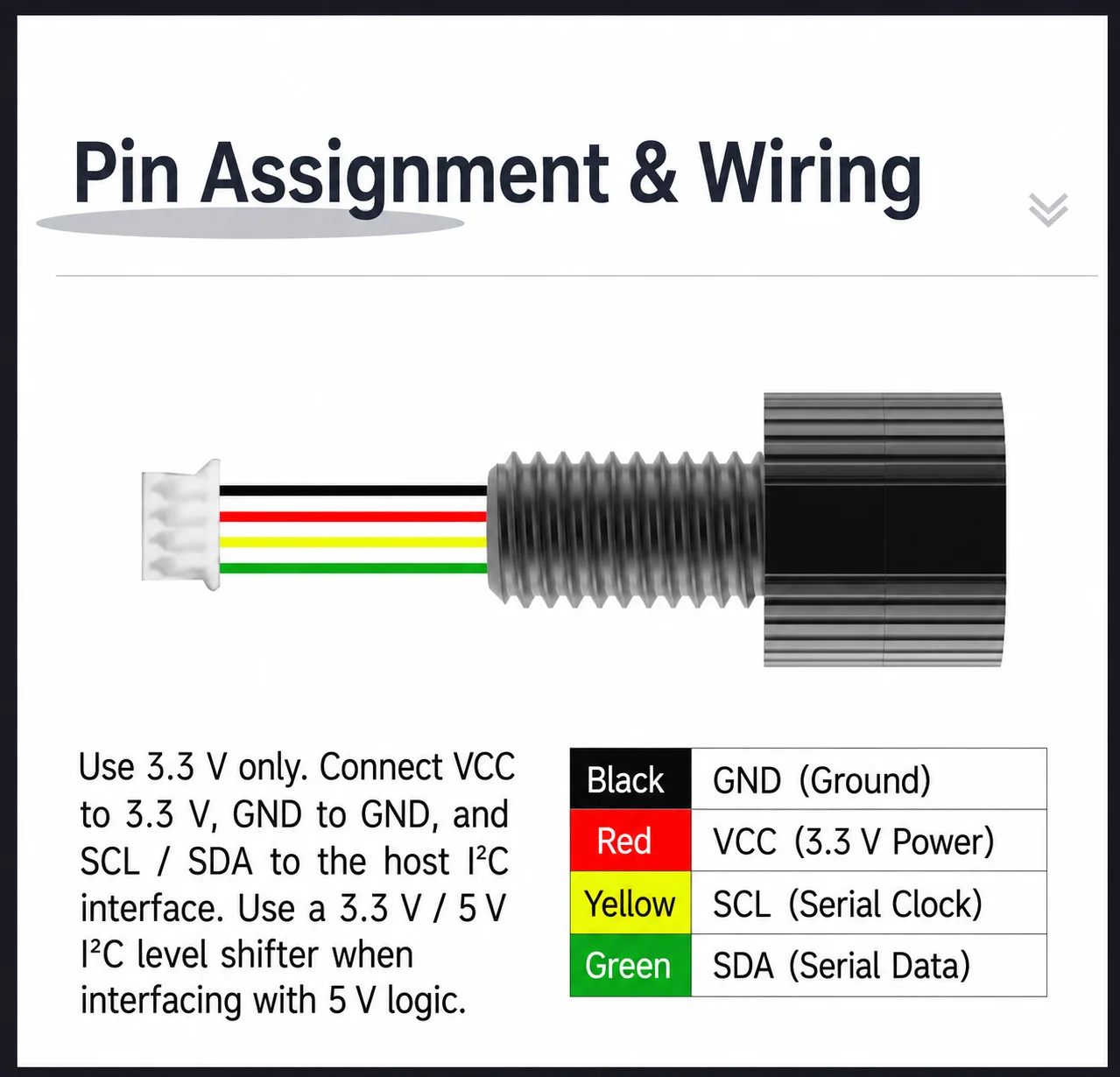

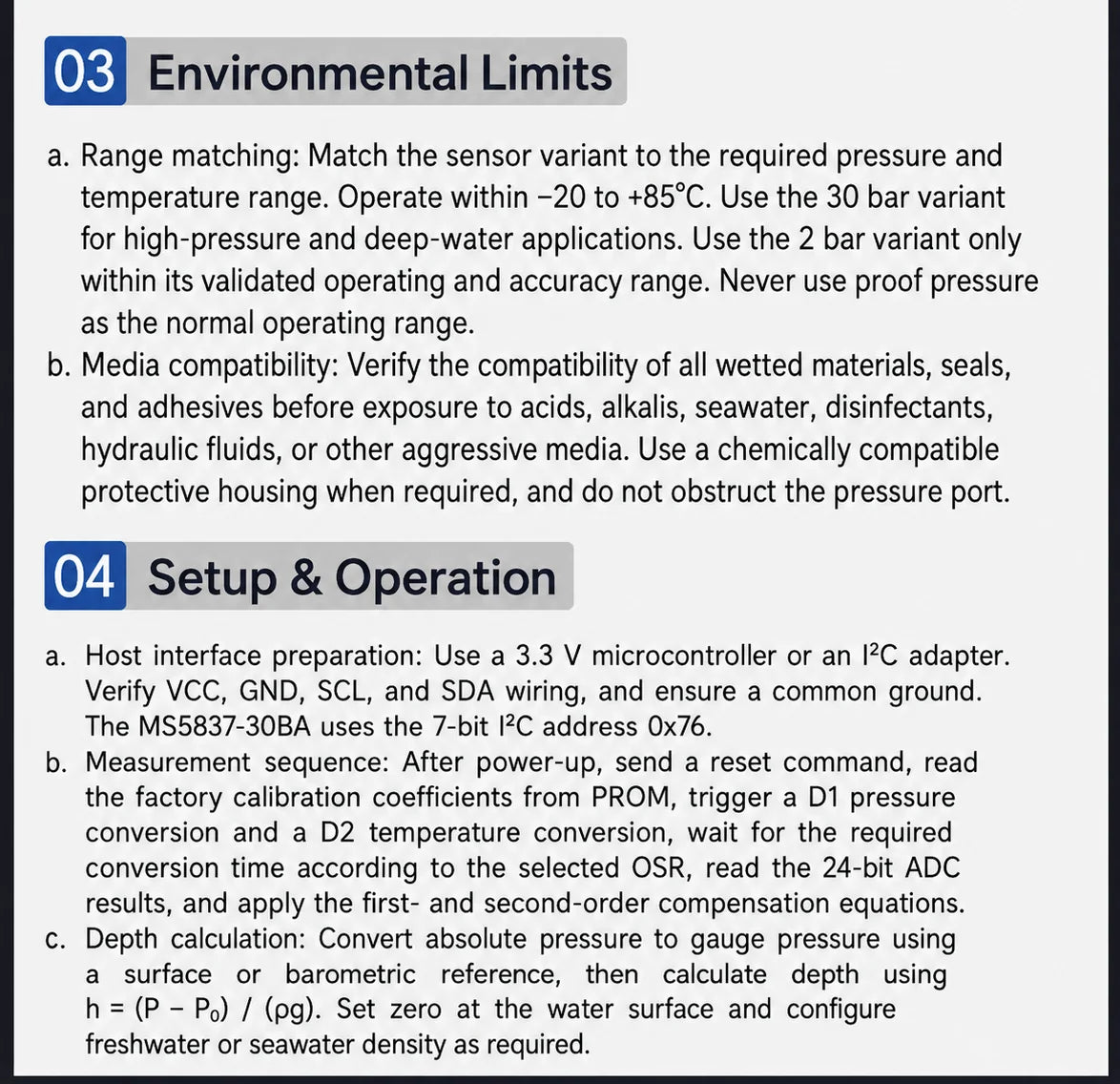

Four-color coded leads (Black-GND, Red-VCC 3.3V, Yellow-SCL, Green-SDA) simplify wiring and installation. RoHS compliant and free from REACH SVHC, halogens, BFRs, CFRs, and PVC
