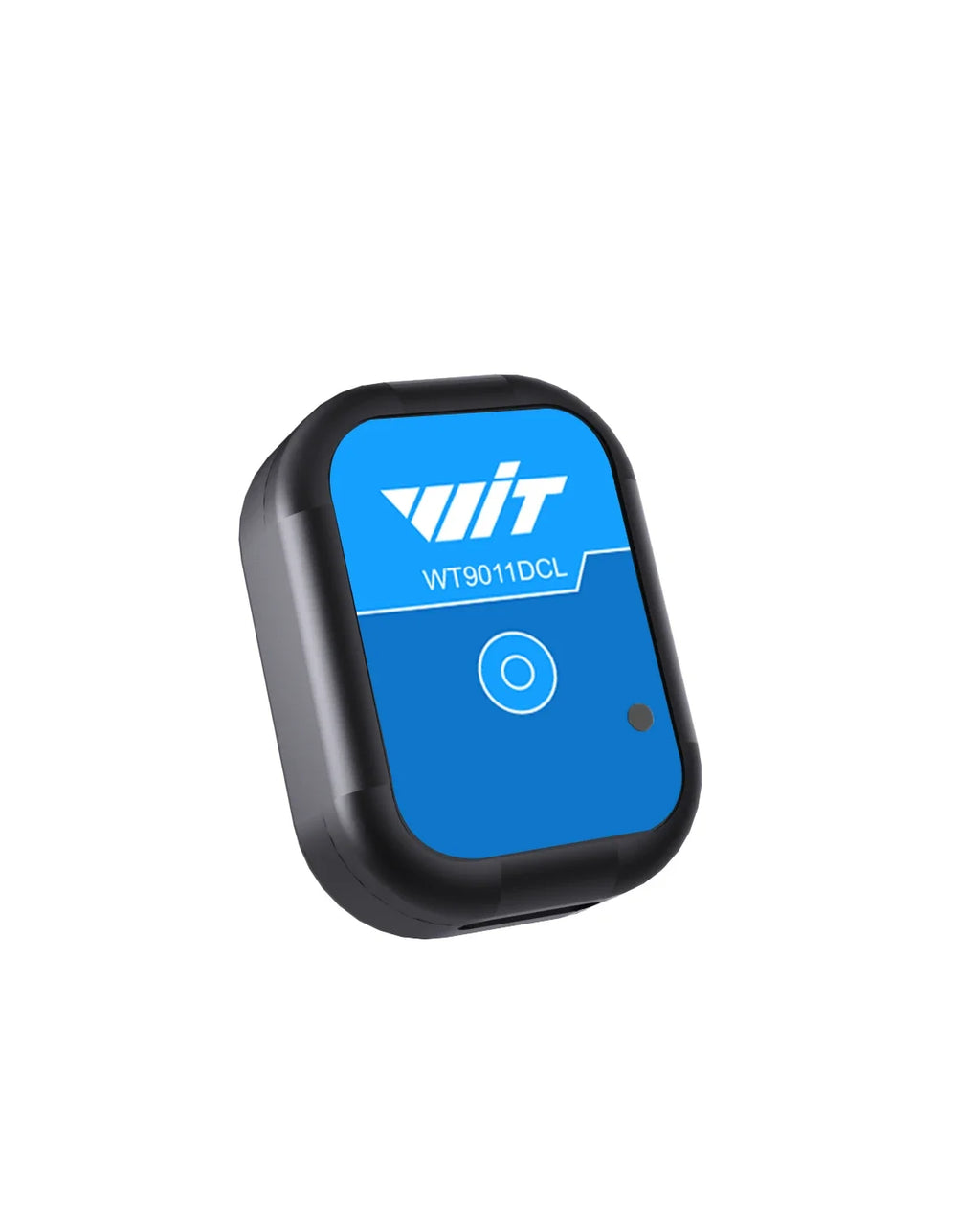

WitMotion WT901BLECL MPU9250 IMU BLE 5.0 Accelerometer Inclinometer, 3 Axis Acce+Gyroscope+Magnetometer BLE 50m for IOS/Android

WitMotion WT901BLECL MPU9250 IMU BLE 5.0 Accelerometer Inclinometer, 3 Axis Acce+Gyroscope+Magnetometer BLE 50m for IOS/Android

$238.68

$238.68 $0.00

Color WT9011DCL Adapter WT9011DCL WT901BLECL Strap BWT901CL BWT901CL USB-HID WT901BLECL WT901BLECL Adapter

Description

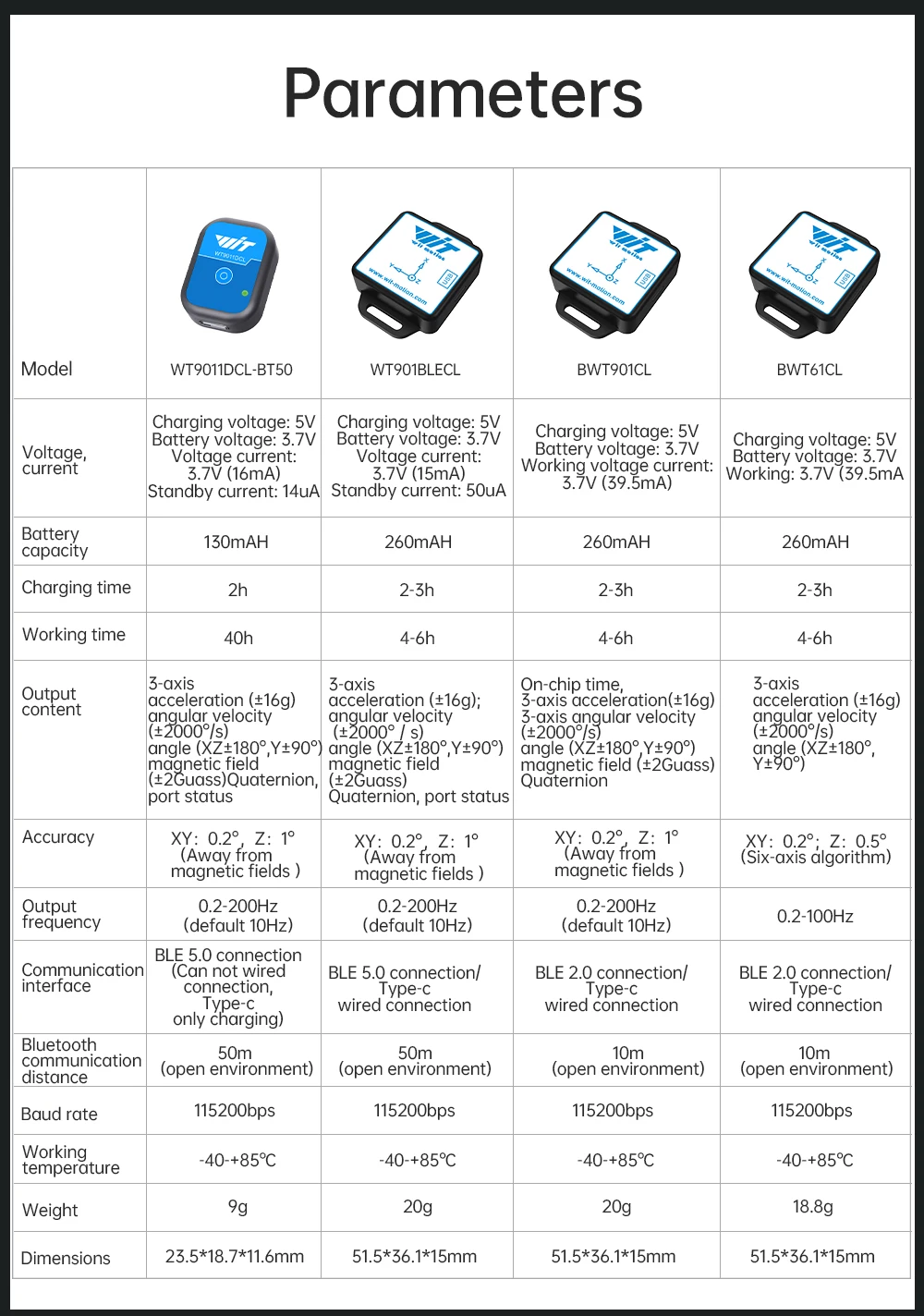

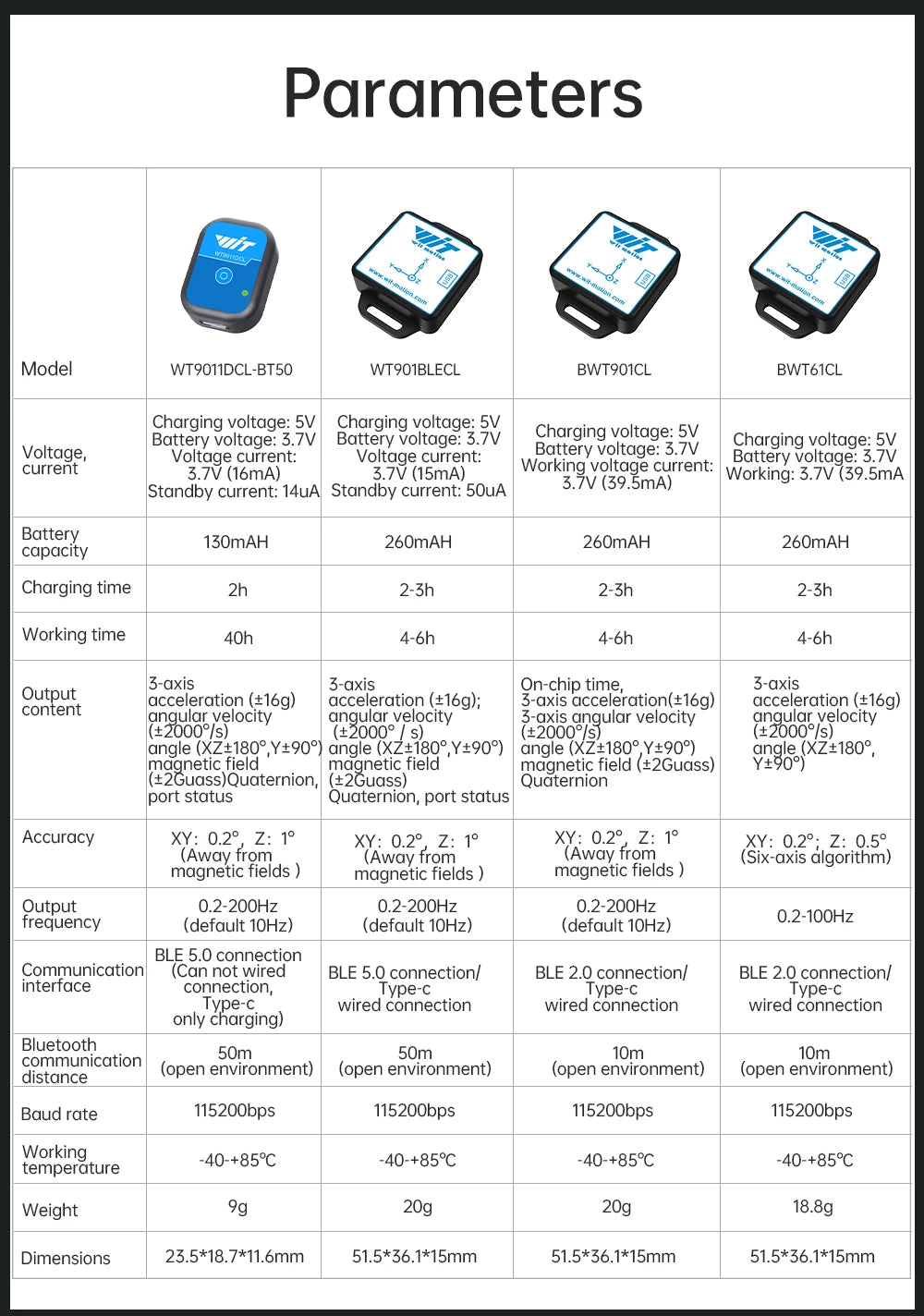

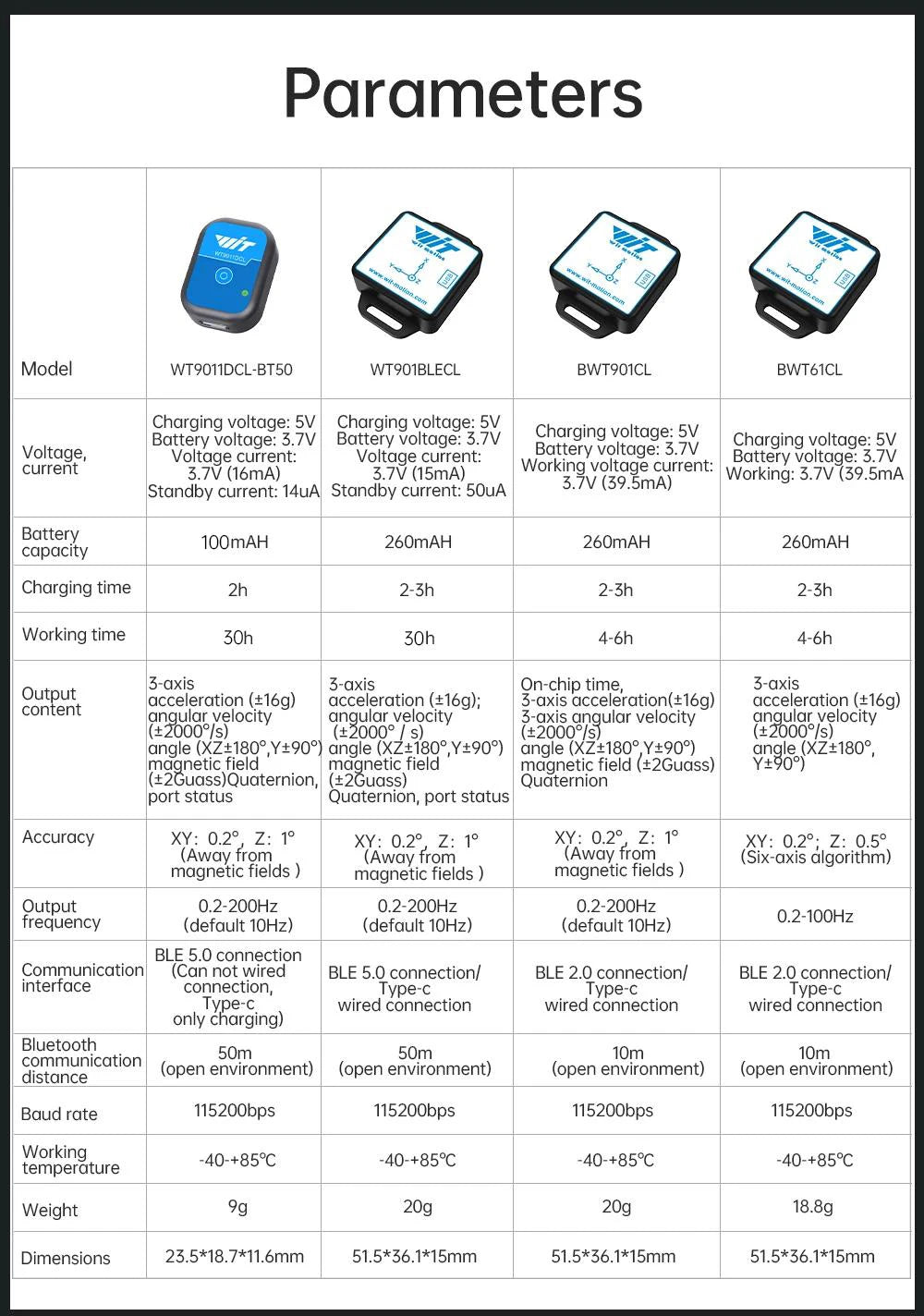

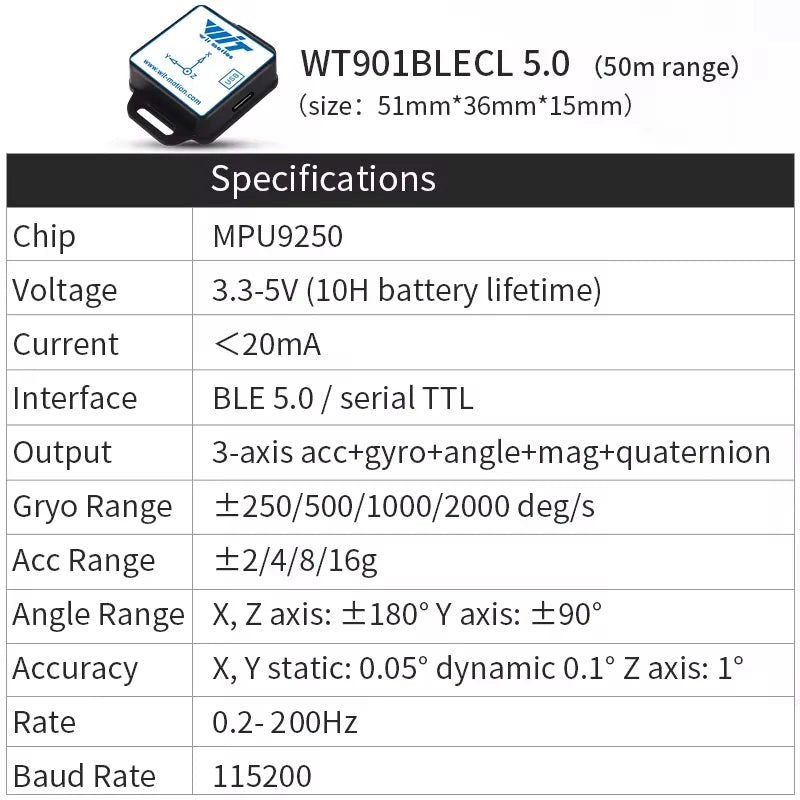

SPECIFICATIONS

After-Sale Service: Lifetime Technical Support

Baud Rate: 115200kps

Bluetooth Version: Bluetooth 5.0, Low-consumption

Brand Name: WitMotion

Choice: yes

Compatibility: PC, Android, IOS system

Consumption Current: Typical 25mA

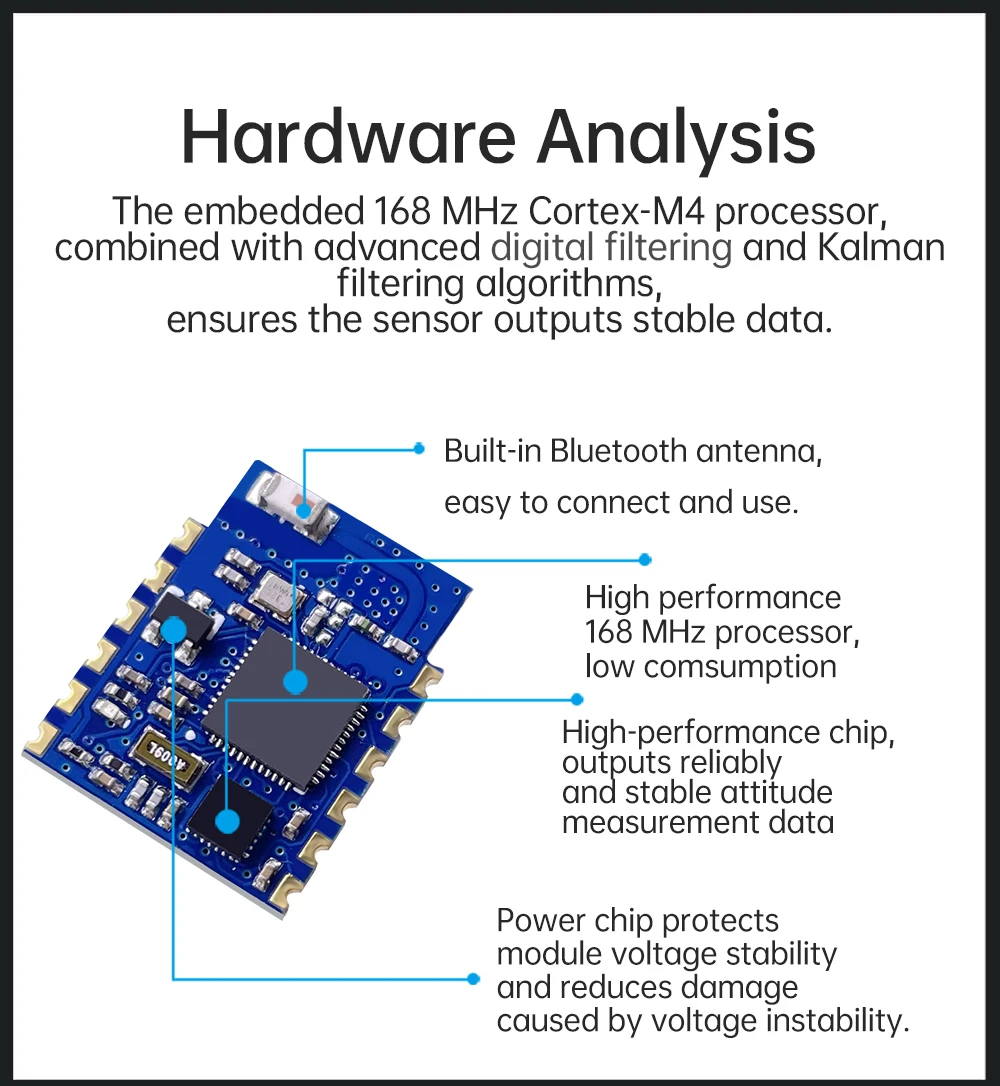

Design: Built-in MPU9250, built-in rechargeable battery

High-concerned chemical: none

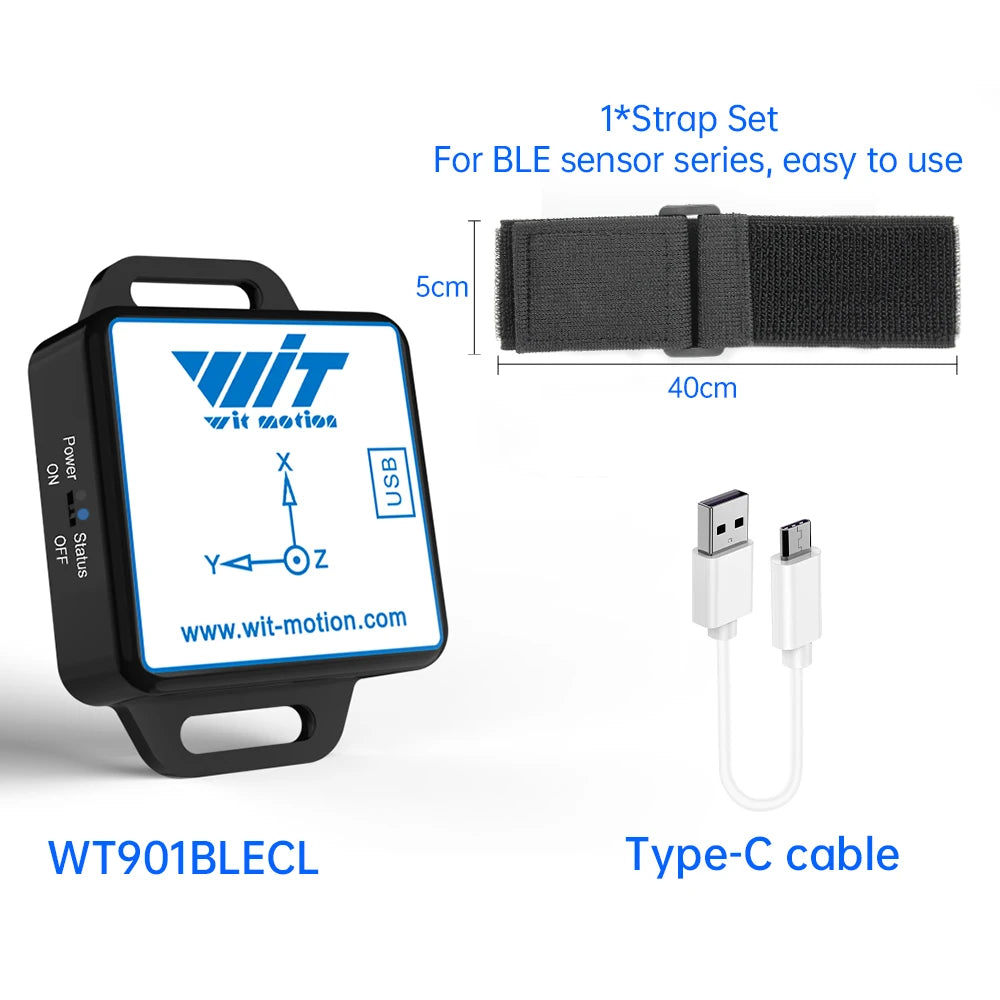

Interface: TTL level, Type-C

Measuring: 3-axis XYZ Acceleration, Angular rate, Gyro, Angle, Magnet Field

Origin: Mainland China

Output: Digital Output

Output Frequency: Max 200HZ (baud rate 115200)

Range: Acceleration: 16g, Angular Velocity: +-2000 degree/second

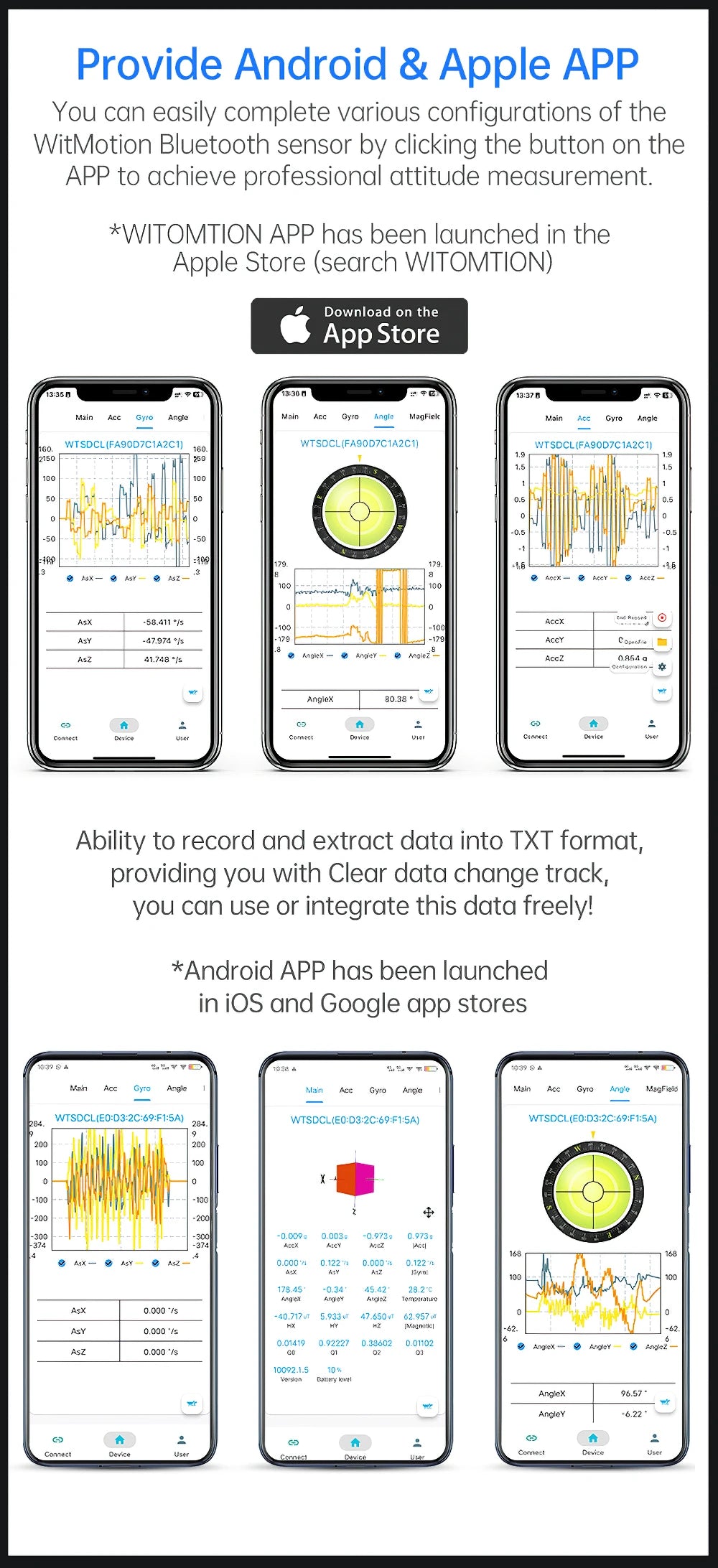

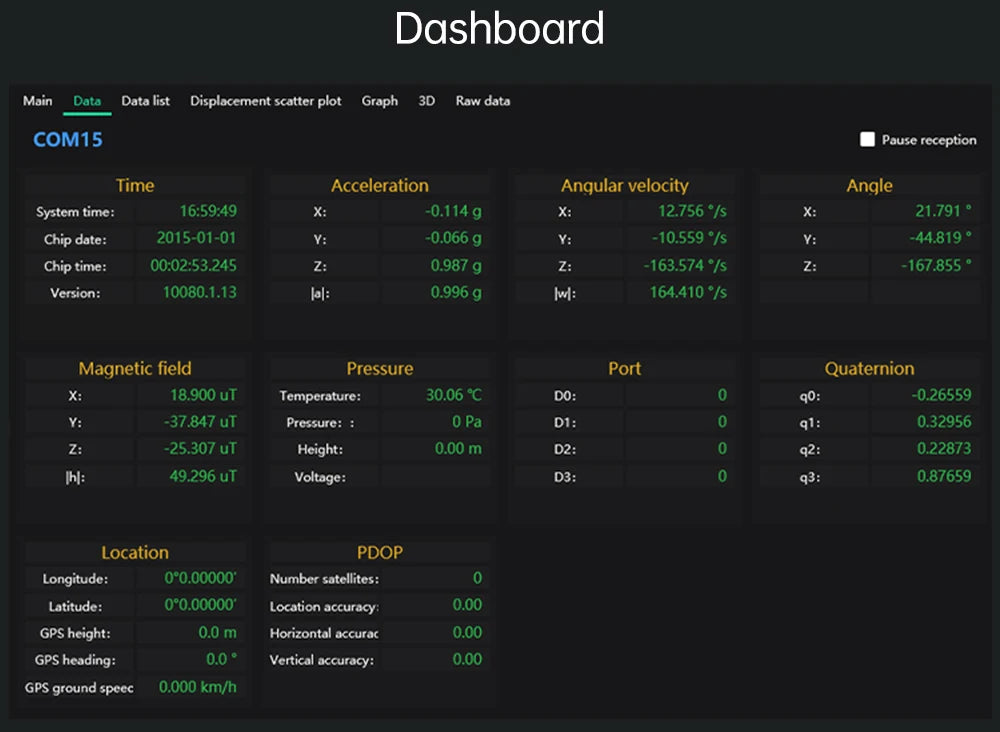

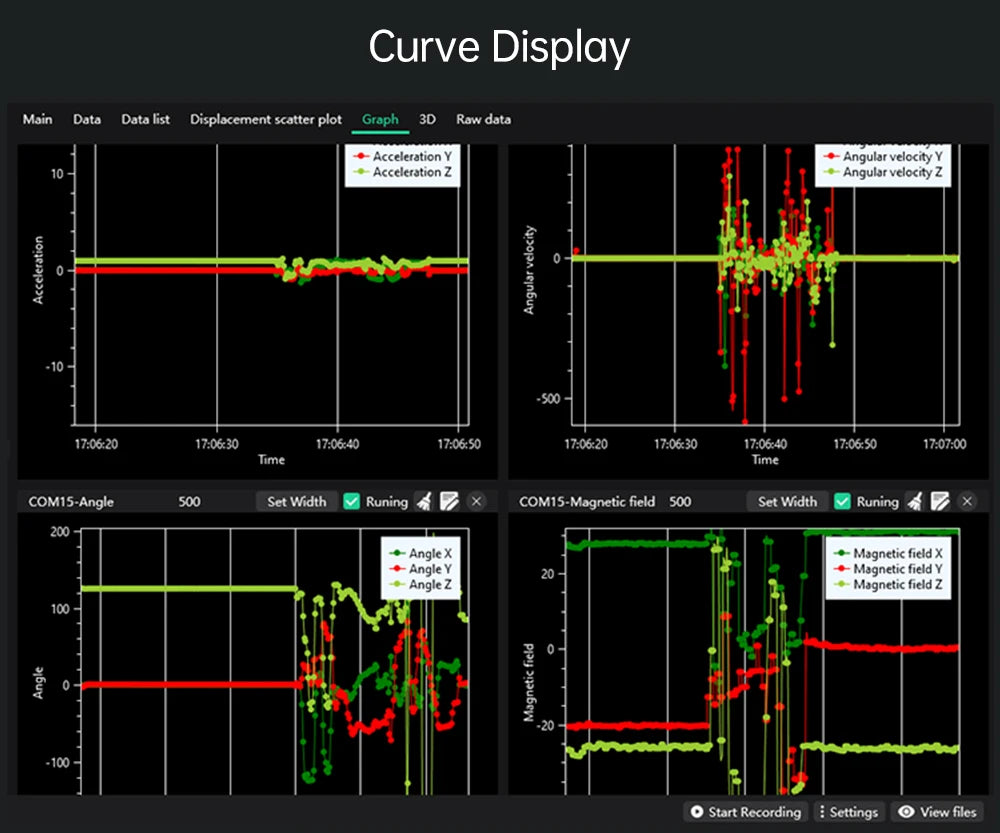

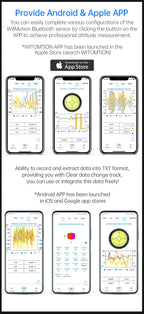

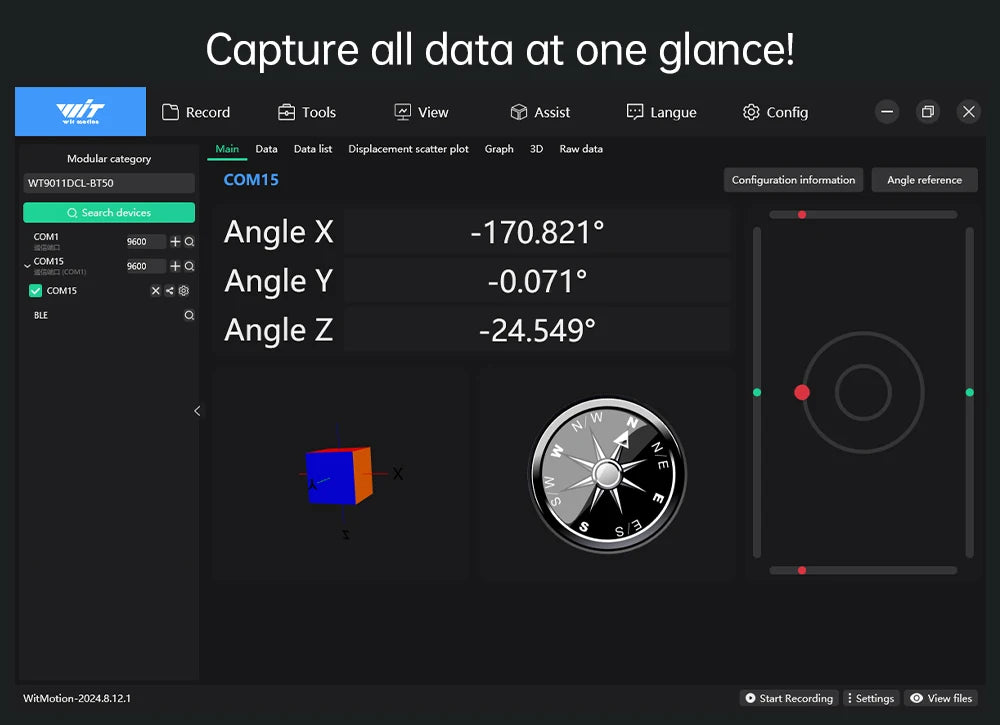

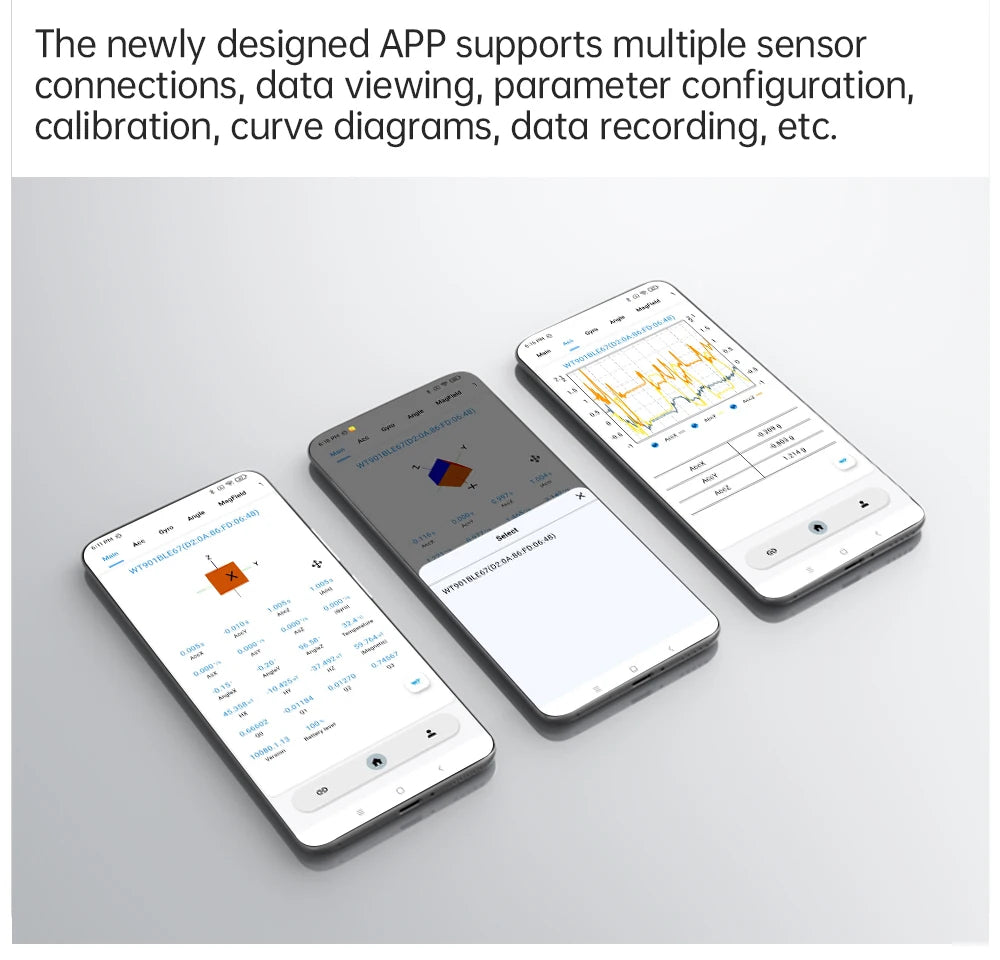

Technical Support: Provide Android, IOS App, PC software, Sample code

Theory: IMUsensor

Type: Acceleration Sensor

Use: Tilt Angle Measurement

Voltage Input: 3.3-5V

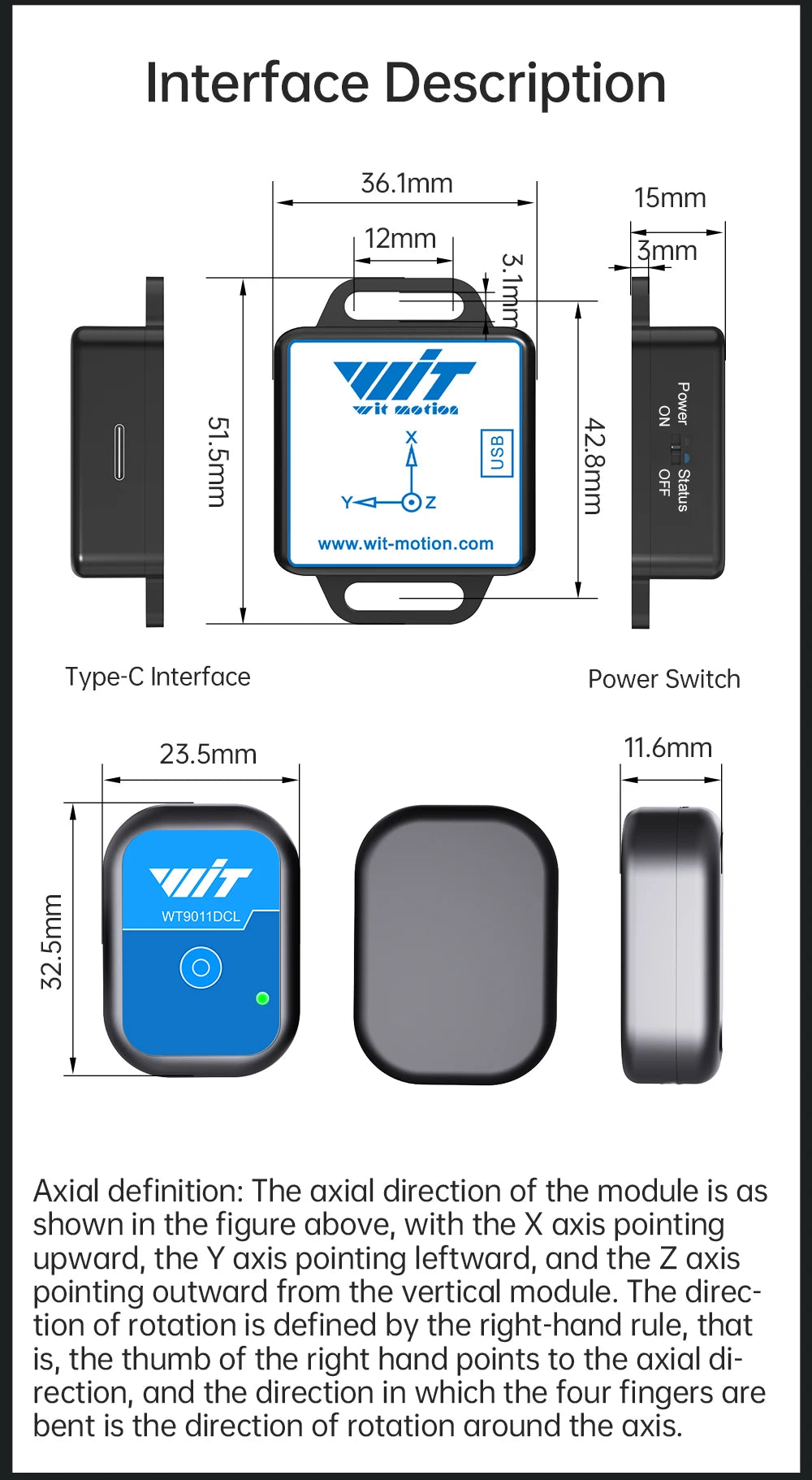

Volume: 36*51.3*15mm

is_customized: Yes

semi_Choice: yes

Frequently Asked Questions:

Q: Where can I find the tutorial and related software for the sensors?

A: You can scan below QR code and visit the WitMotion document center link and search the model you bought.

There will be a manual with step by step guiding to set up the sensors.

If you have any questions, WitMotion support team can be reached at support@wit-motion.com (normal response time: 12Hrs)

Q: It is my first time using Bluetooth sensors. Shall I buy any other tool for the connection?

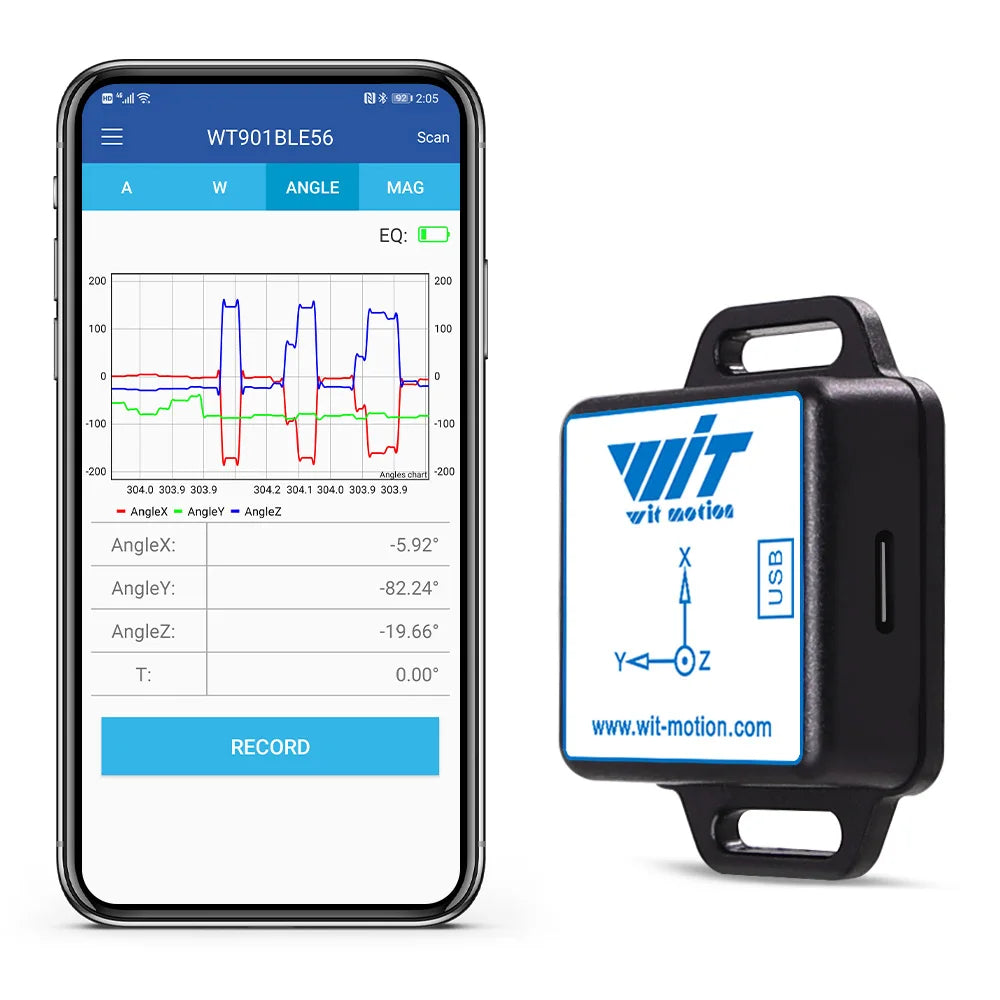

A: If you use it with iPhone or Android smartphone, the BLE adapter is not required.

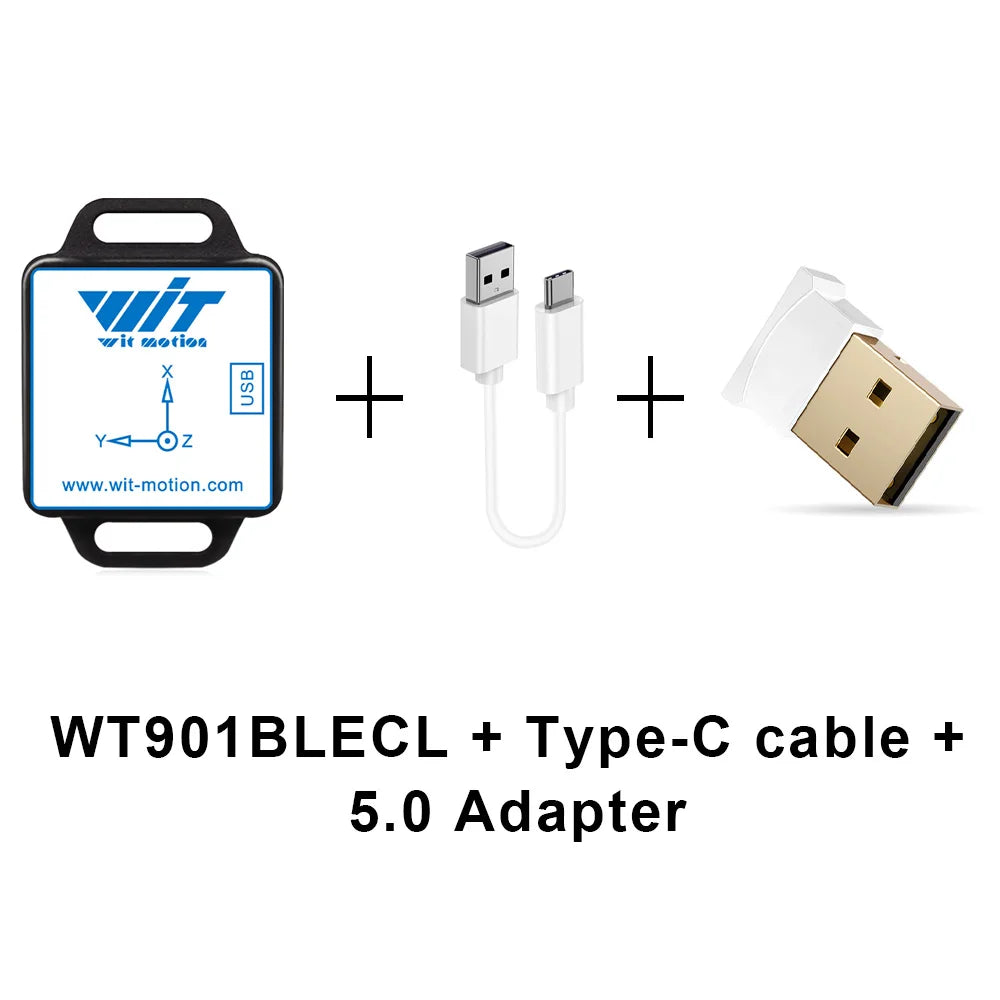

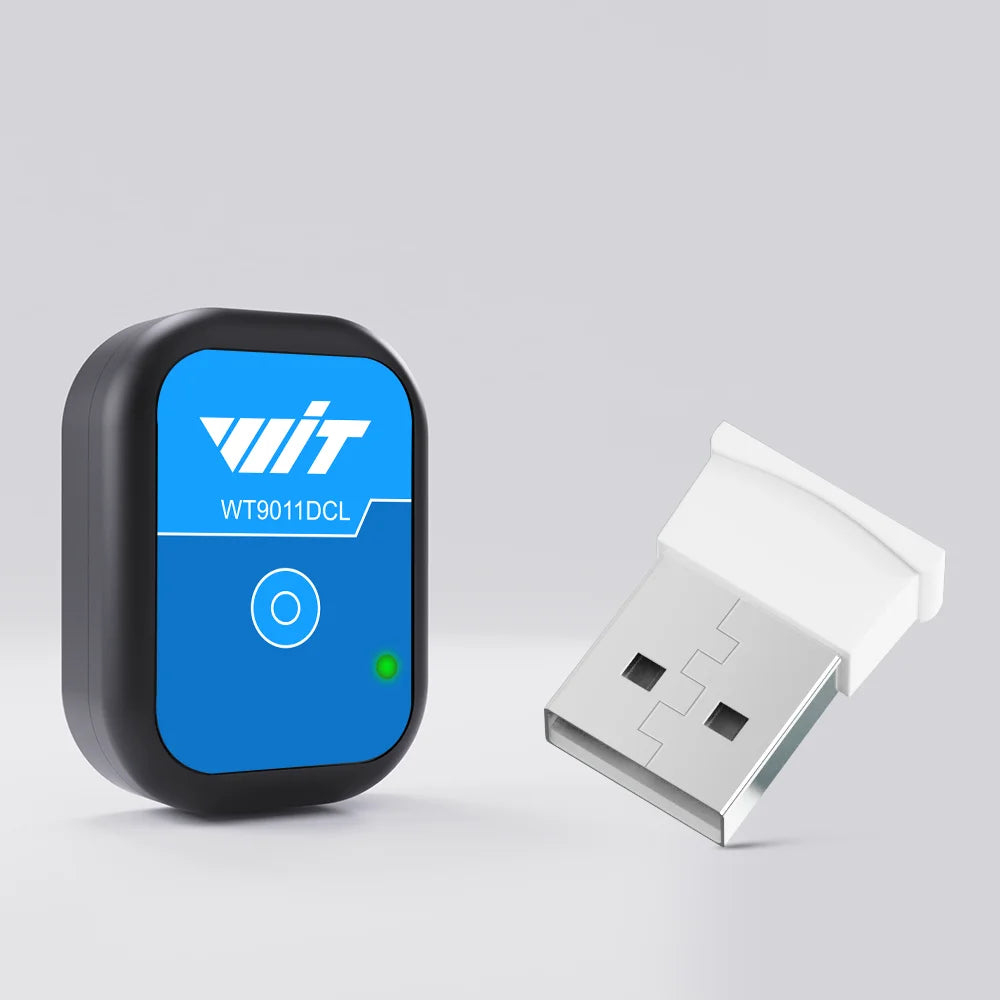

The BLE 5.0 adapter would be required for Bluetooth connecting to a Windows PC.

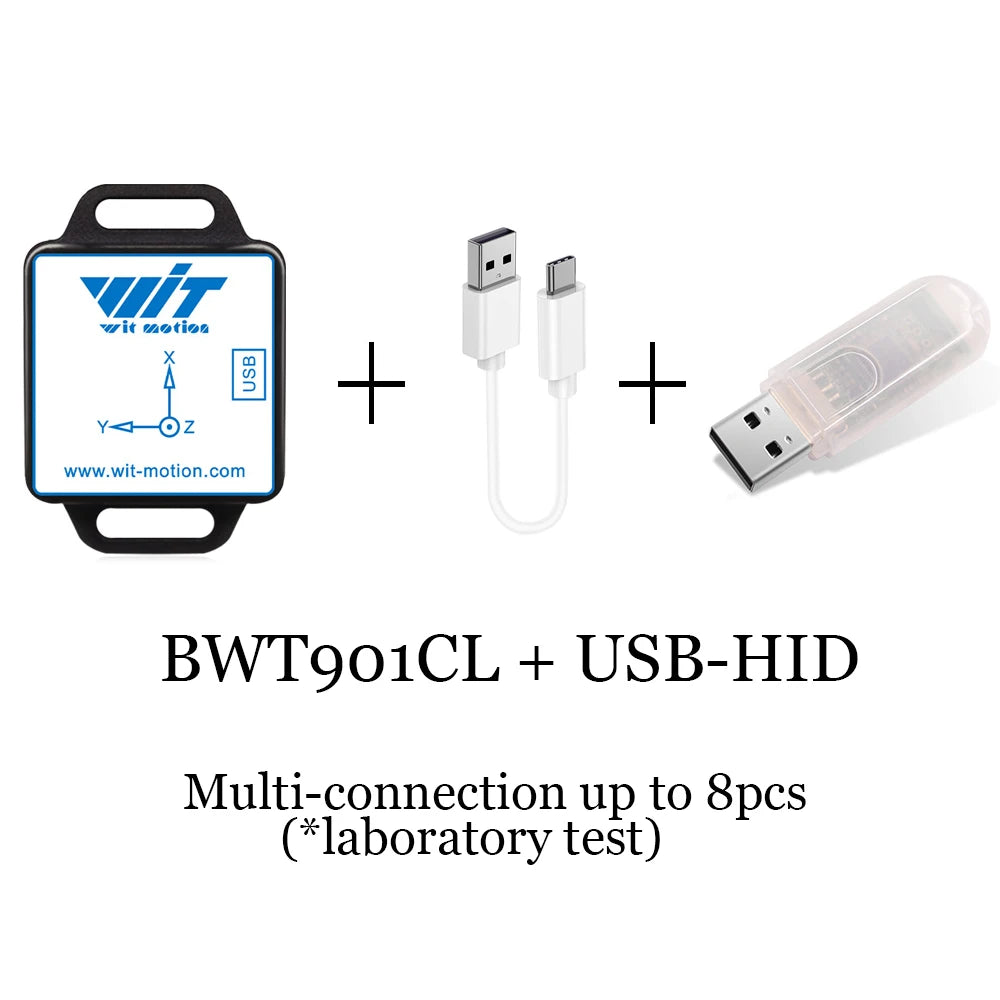

If you need to connect several sensors at the same time, you will need to buy several adapters to pair multiple devices.

Due to the communication protocol, the sensor WT901BLECL cannot directly pair with laptop's own Bluetooth. Even paired, there will not be data output and the range of Bluetooth will be influenced.

Q: Can I develop my own APP for the devices to collect the data?

A: For sure. The Android APP's source code will be provided for reference. Likewise, if you plan to integrate the sensor's data with your APP or other devices, it is necessary to study the communication protocol for data analysis.
