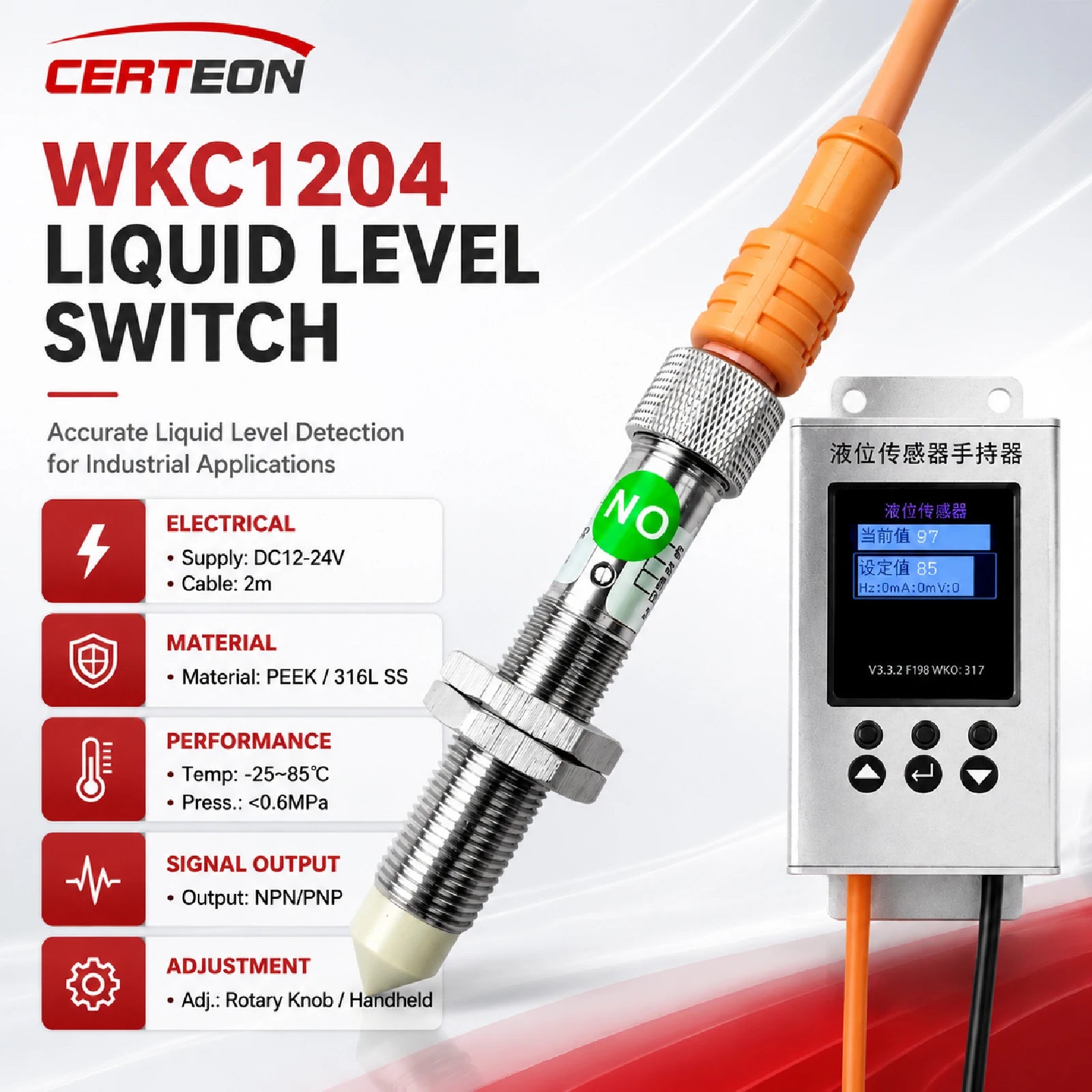

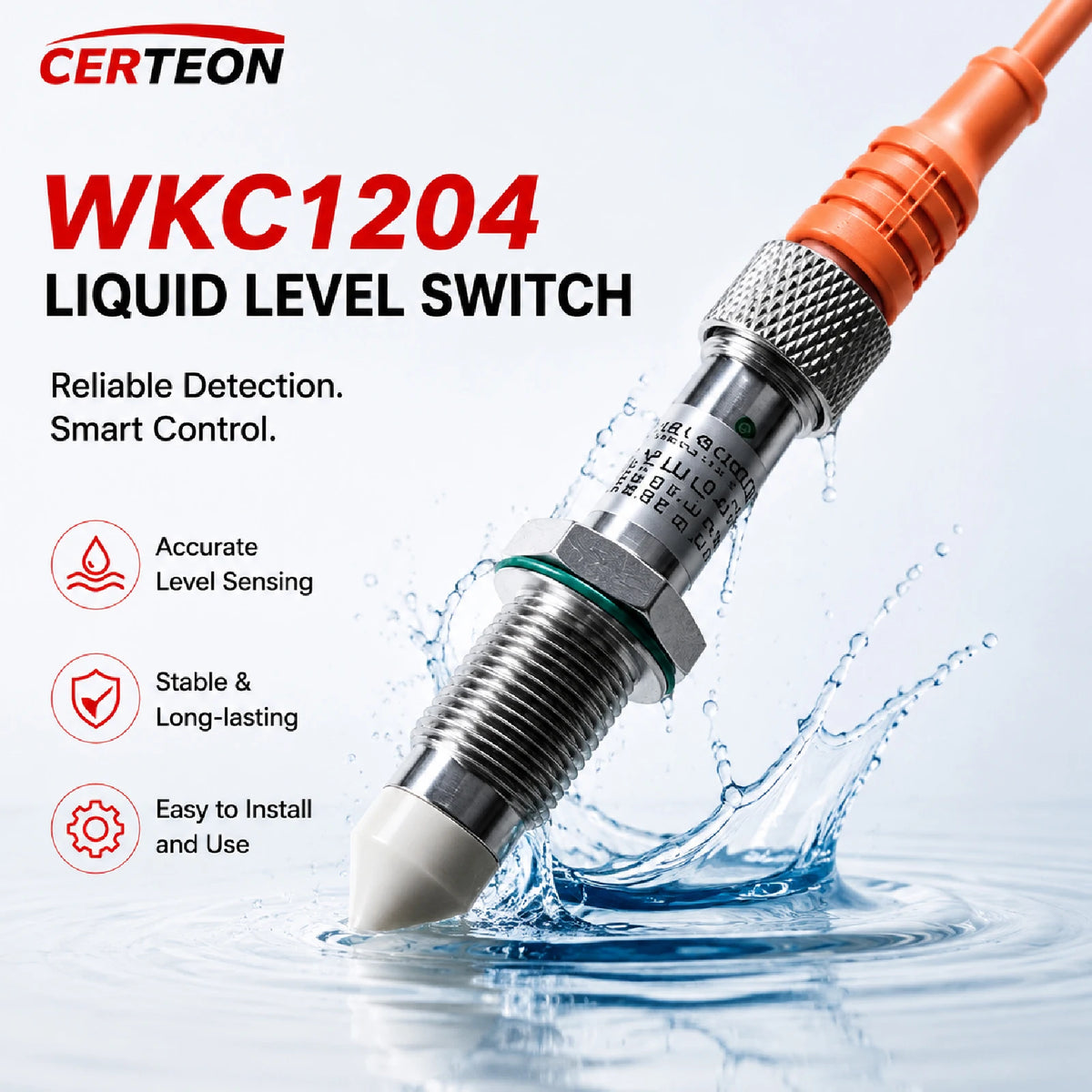

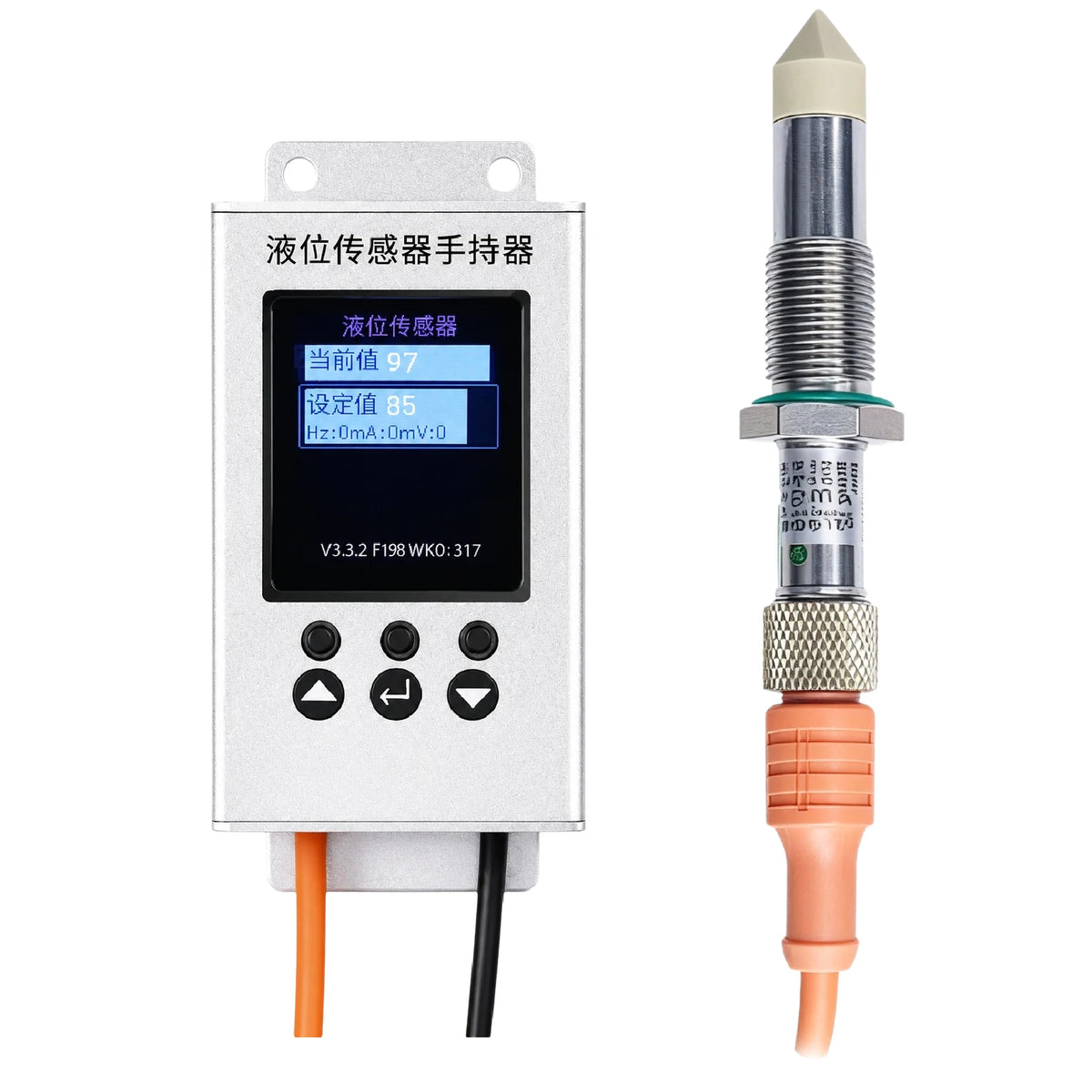

WKC1204 Capacitive Liquid Level Sensor Oil Glue Level Switch DC12-24V NPN PNP for Dispensing Potting Filling System

WKC1204 Capacitive Liquid Level Sensor Oil Glue Level Switch DC12-24V NPN PNP for Dispensing Potting Filling System

$461.79

$461.79 $0.00

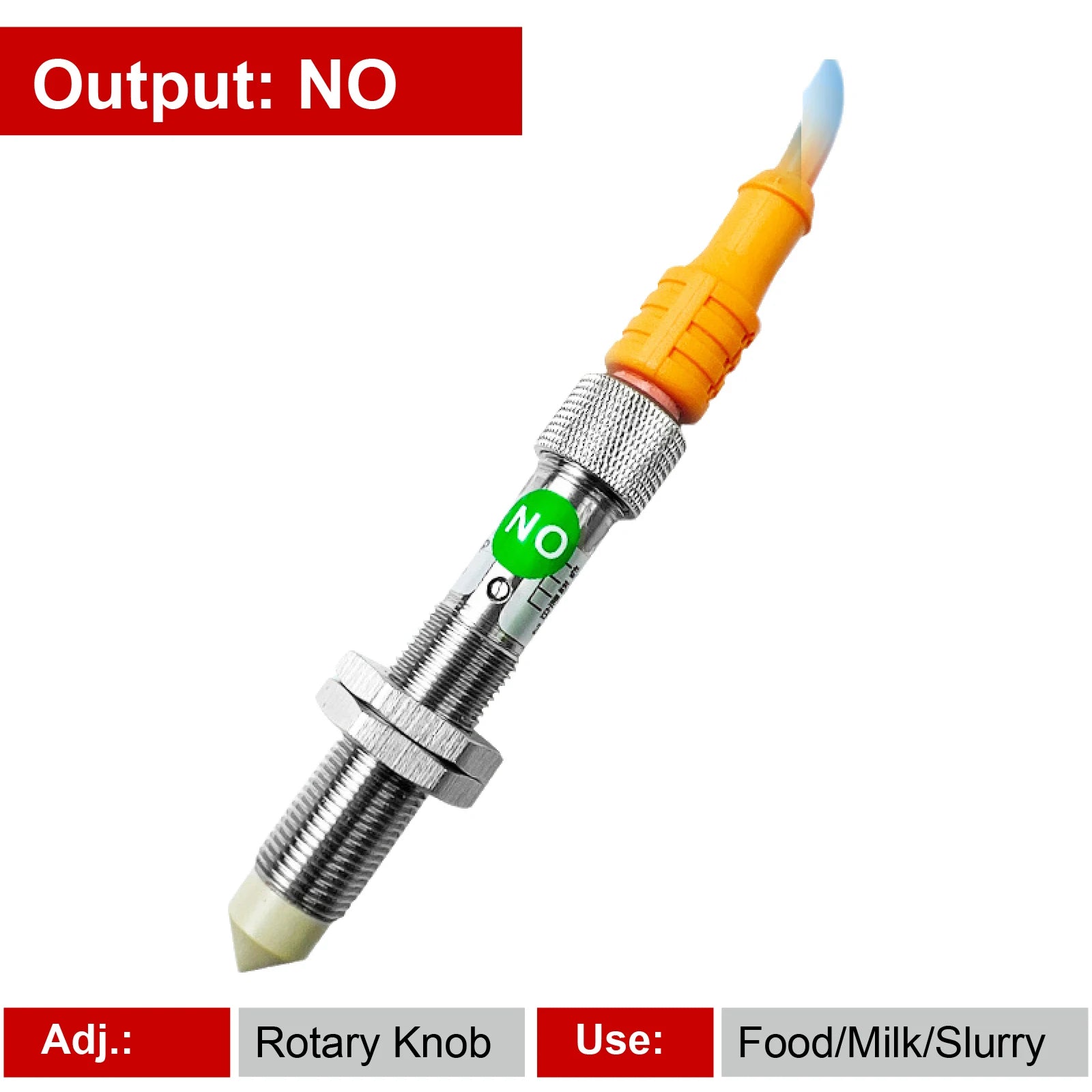

Color 2-NC-WTX NO-Handheld Device 2-NO-WTX 1-NO-Viscosity Ink 1-NC-Viscosity Ink 1-NO-Oi 1-NC-Oi 1-NO-Food 1-NC-Food

Description

SPECIFICATIONS

Brand Name: NONE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Material: Stainless Steel

Model: WKC1204

Origin: Mainland China

Output Signal: NPN/PNP

Response Time: 20ms

Target Media: Viscous low-corrosive materials

1.NOTE

Some configurations may not be fully displayed due to page limitations. For custom requirements, please contact us directly.

Default Configuration:
Power supply: DC 12–24V
Detection type: Capacitive, contact-based sensing
Output: Dual output (NPN + PNP)
Indicator lights: LED (Red for power, Green for output status)
Sensitivity: Adjustable via potentiometer

Optional Configuration (sold separately):

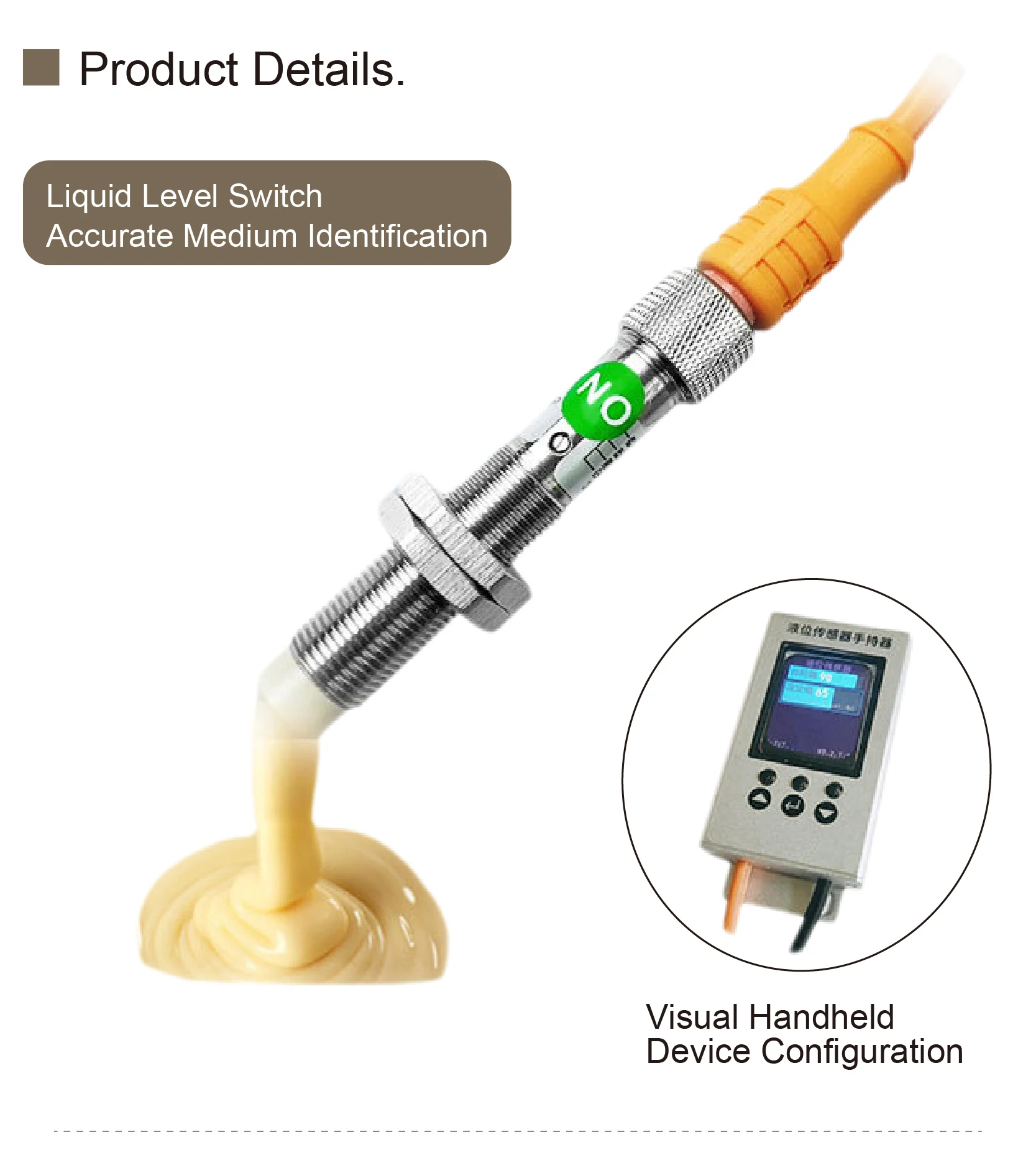

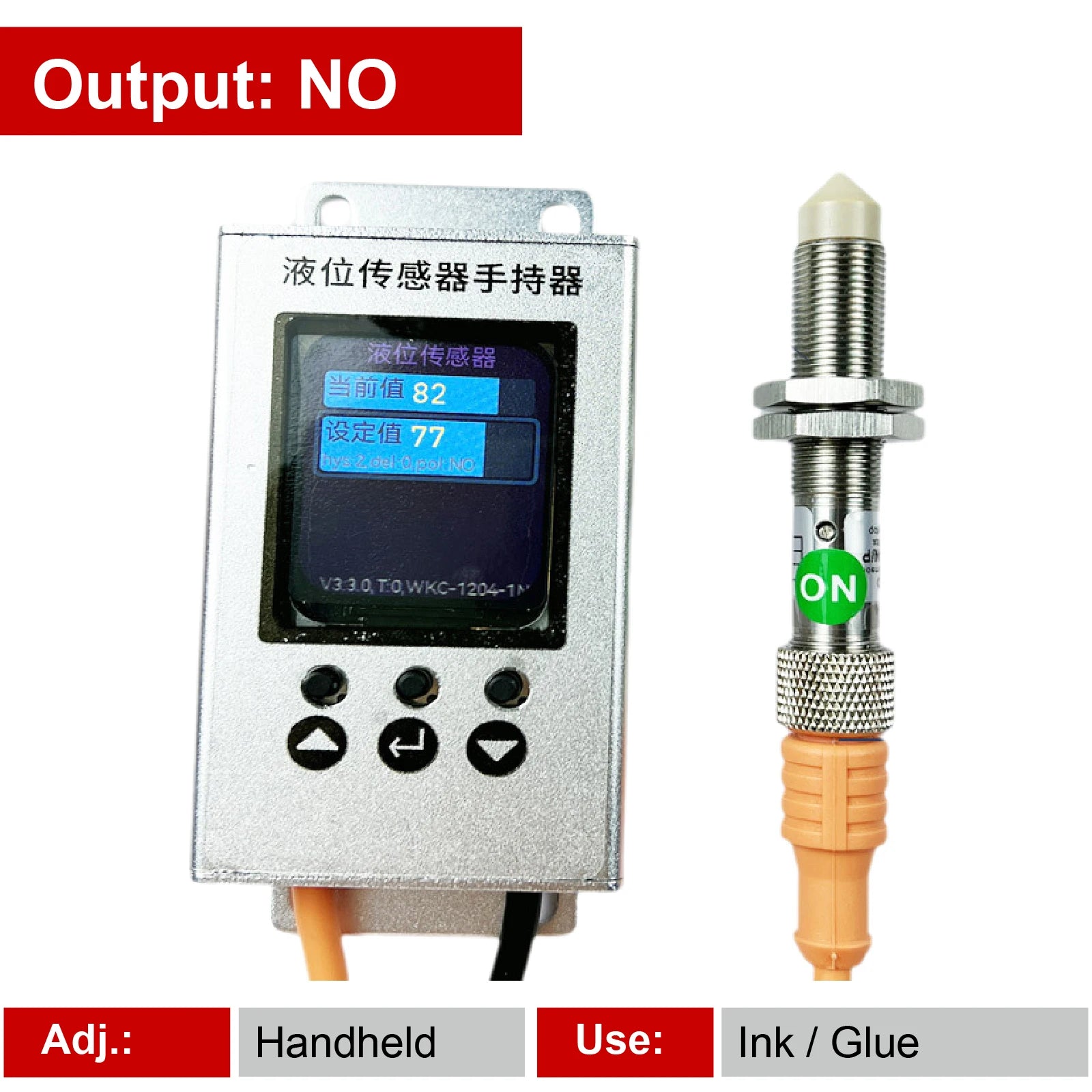

Handheld sensitivity adjustment tool for precise calibration

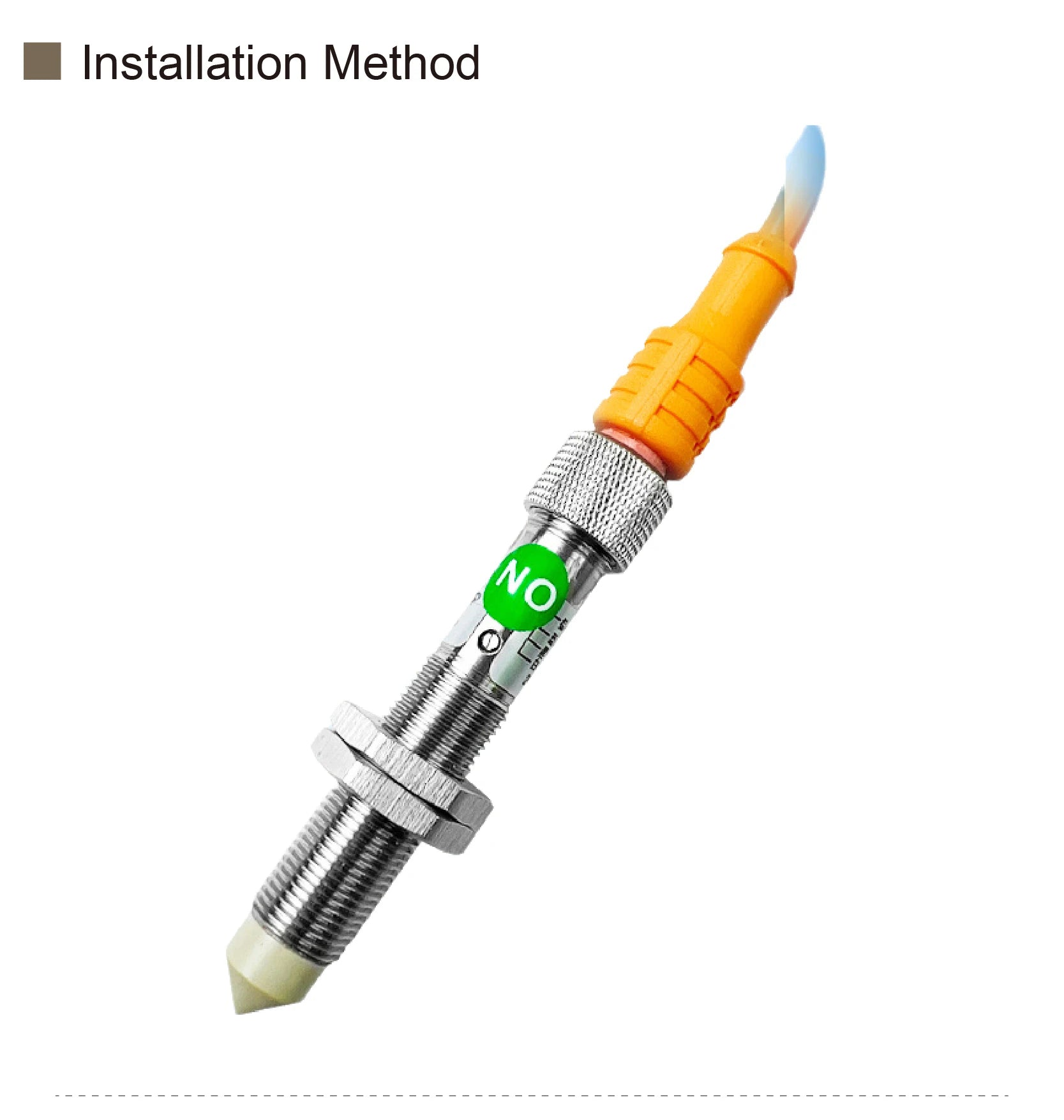

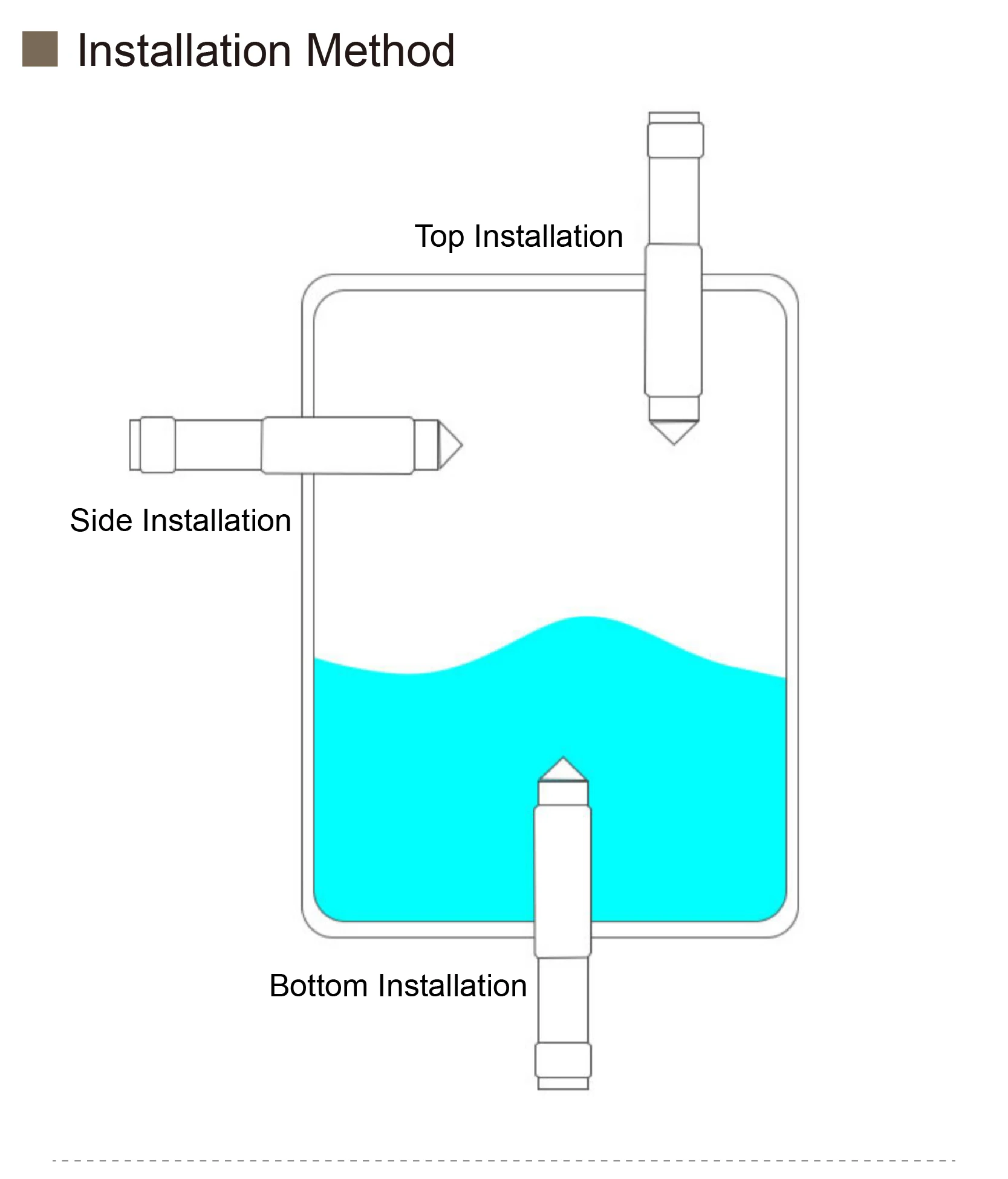

Installation Options:
Flexible mounting, can be installed on the top, side, or bottom of the device

Important Notes:
Not suitable for use with highly corrosive liquids
Operating temperature range: -25°C to 85°C
Maximum pressure: 0.6 MPa

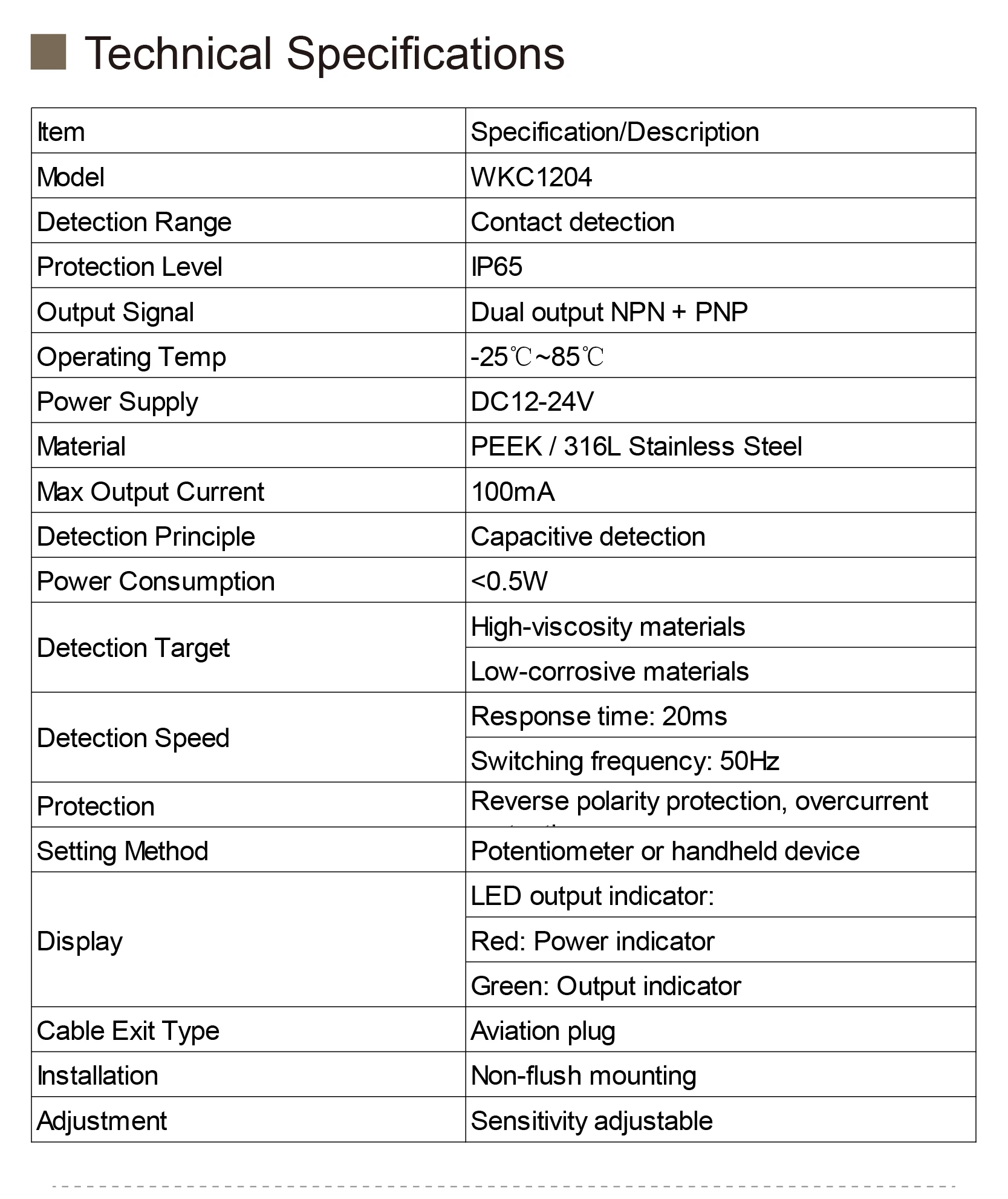

2. Parameters

Parameter	Value
Model	WKC1204
Detection Principle	Capacitive
Target Media	Viscous low-corrosive materials
Detection Mode	Contact-based
Sensitivity	Adjustable
Response Time	20ms
Output Frequency	50Hz
Output Signal	NPN/PNP
Power Supply	DC 12-24V
Max Output Current	100mA
Power Consumption	Less than 0.5W
LED Indicators	Red Power Green Output
Protection Level	IP65
Protection Functions	Reverse polarity overcurrent
Operating Temperature	-25°C to 85°C
Housing Material	PEEK 316L Stainless Steel
Installation Type	Non flush mounting

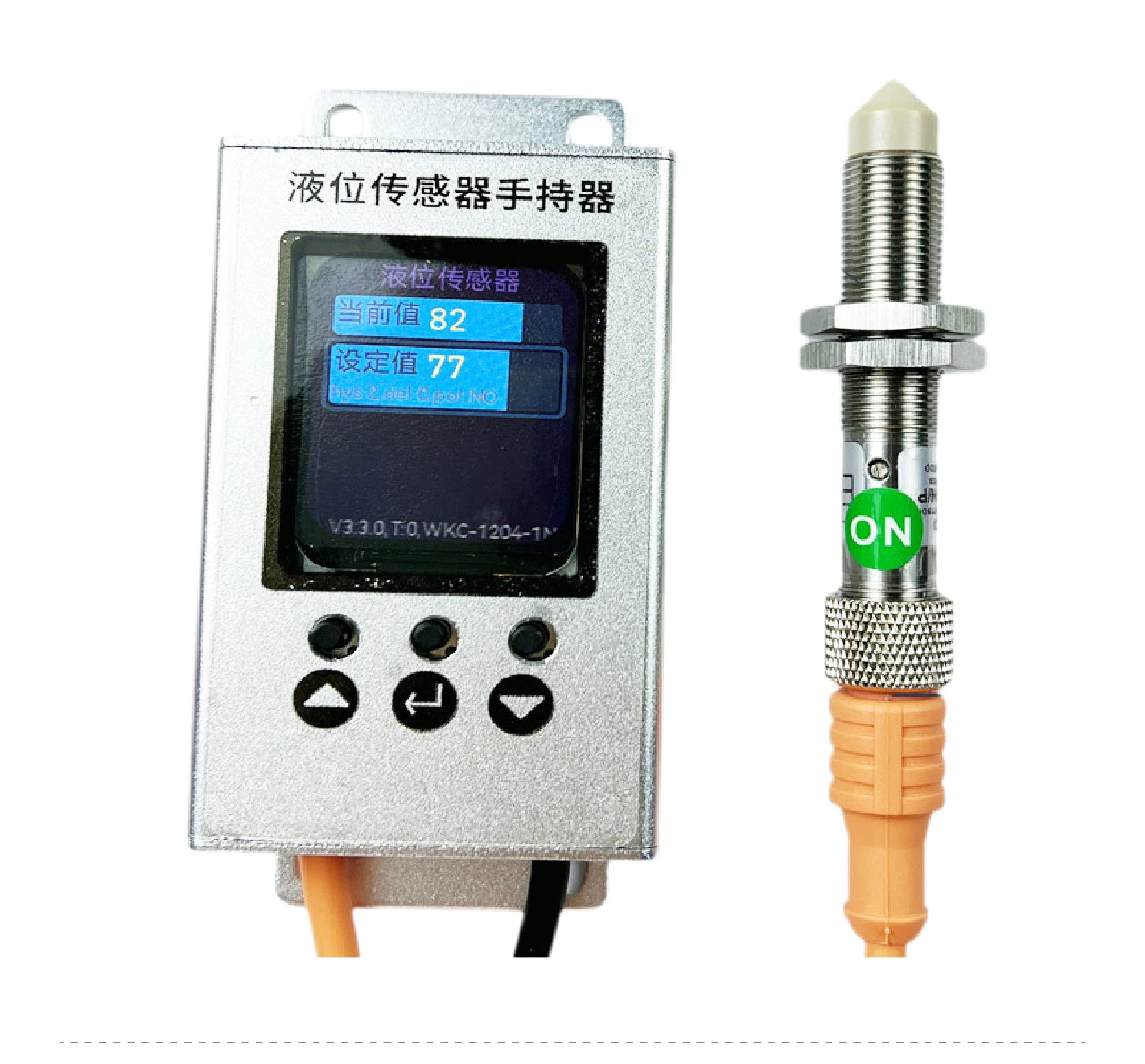

Adjustment Method	Potentiometer or Handheld Device

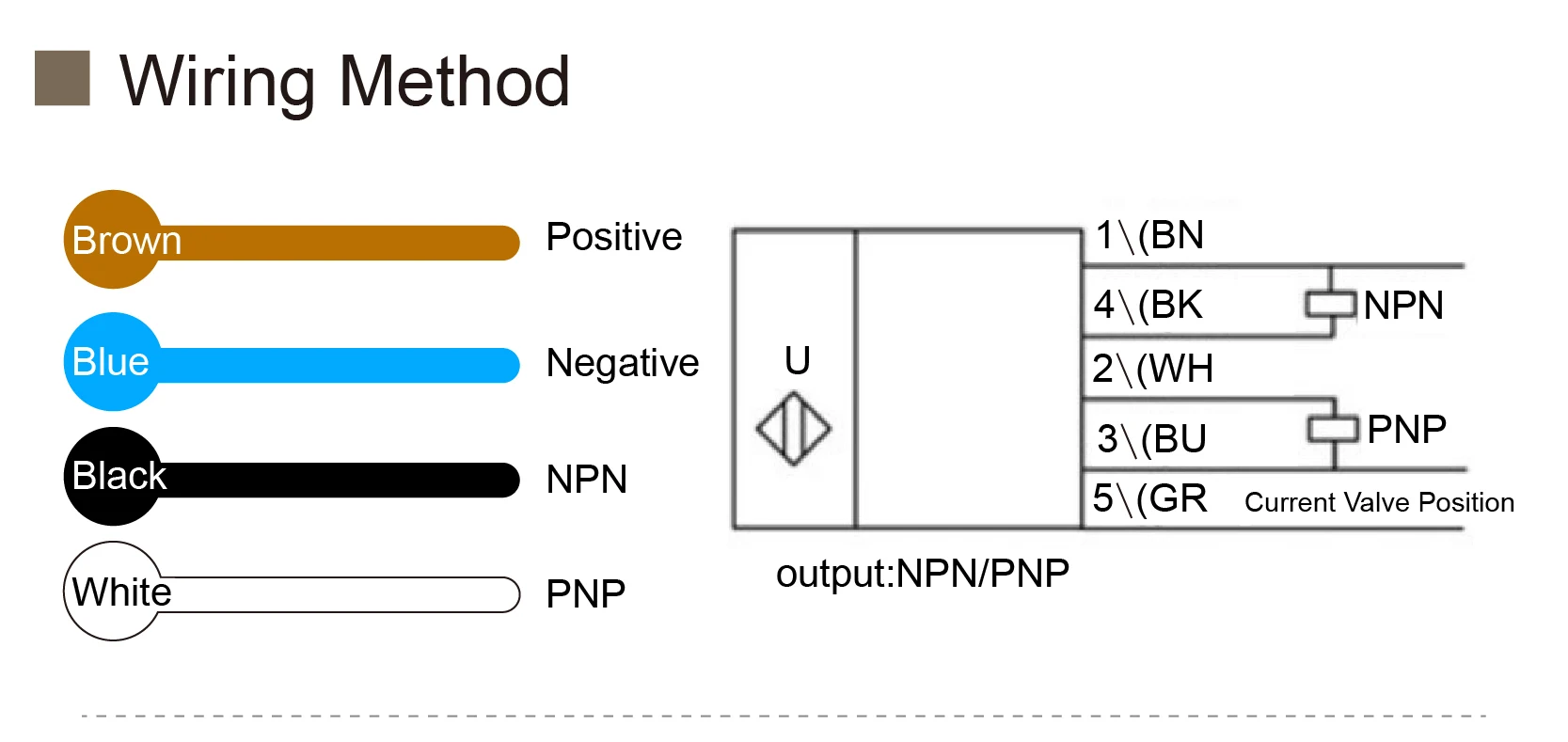

Wiring Type	Aviation Connector

3. Features

Dual NPN and PNP Output: Compatible with a wide range of control systems, enabling flexible and versatile integration.

Fast 20 ms Response Time: Provides near-instant liquid level detection with minimal delay for real-time monitoring.

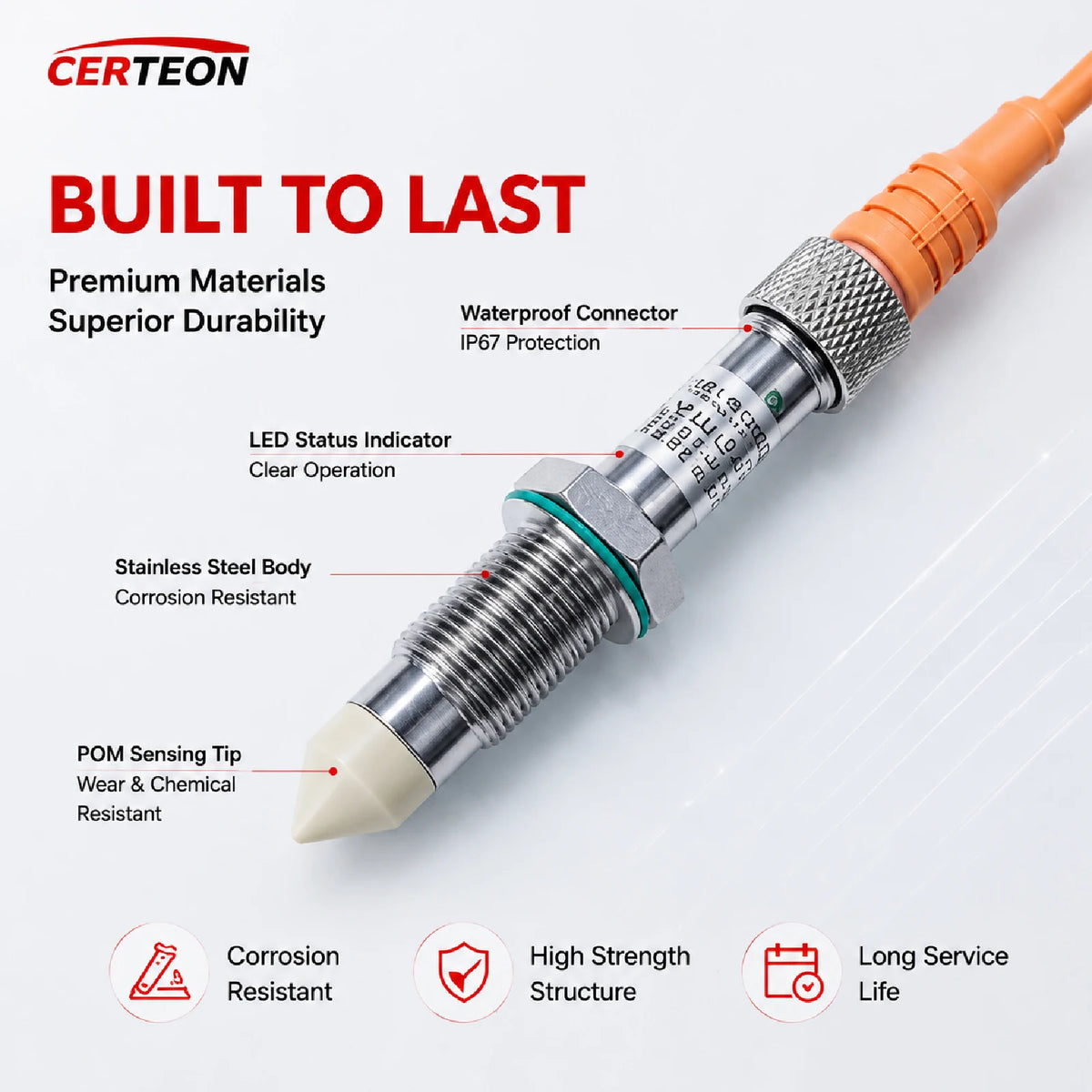

Durable Construction: Made with PEEK and 316L stainless steel to ensure reliable long-term performance in demanding industrial environments.

Multiple Mounting Options: Designed for flexible installation and can be mounted on the top, side, or bottom to suit different system layouts.

Adjustable Sensitivity: Detection levels can be easily fine-tuned using the built-in potentiometer or an optional external handheld adjustment tool.

LED Indicators: Red LED indicates power status, and green LED indicates output signal for clear and intuitive operation feedback.

4. Applications

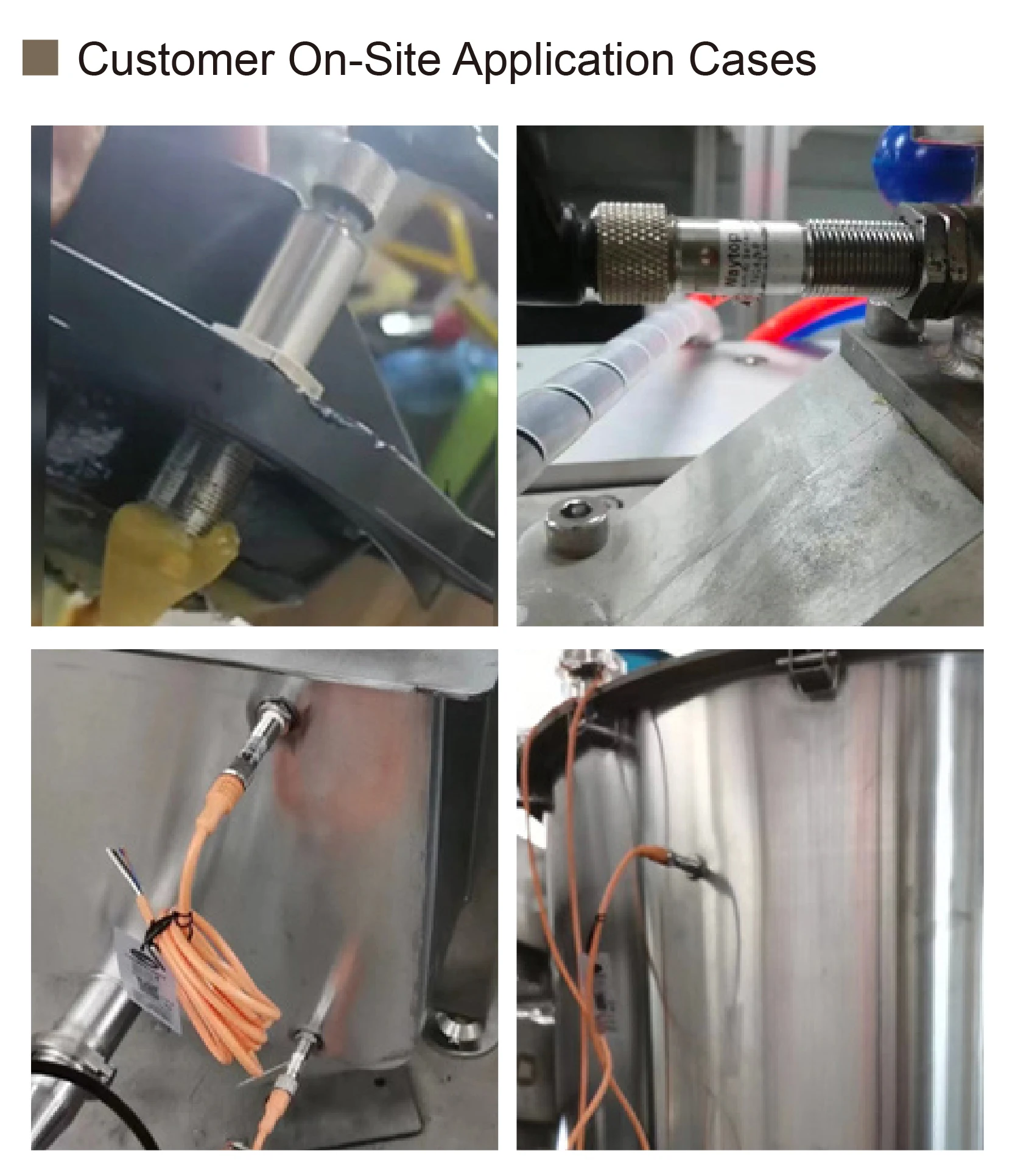

This product is suitable for glue dispensers, potting machines, filling systems, and a wide range of industrial automation equipment where precise and reliable liquid level detection and control are required.

5. FAQs

Q1: Can this sensor detect highly corrosive liquids?
A1: No. This sensor is designed for low-corrosive and viscous materials only. It is not suitable for highly corrosive liquids.

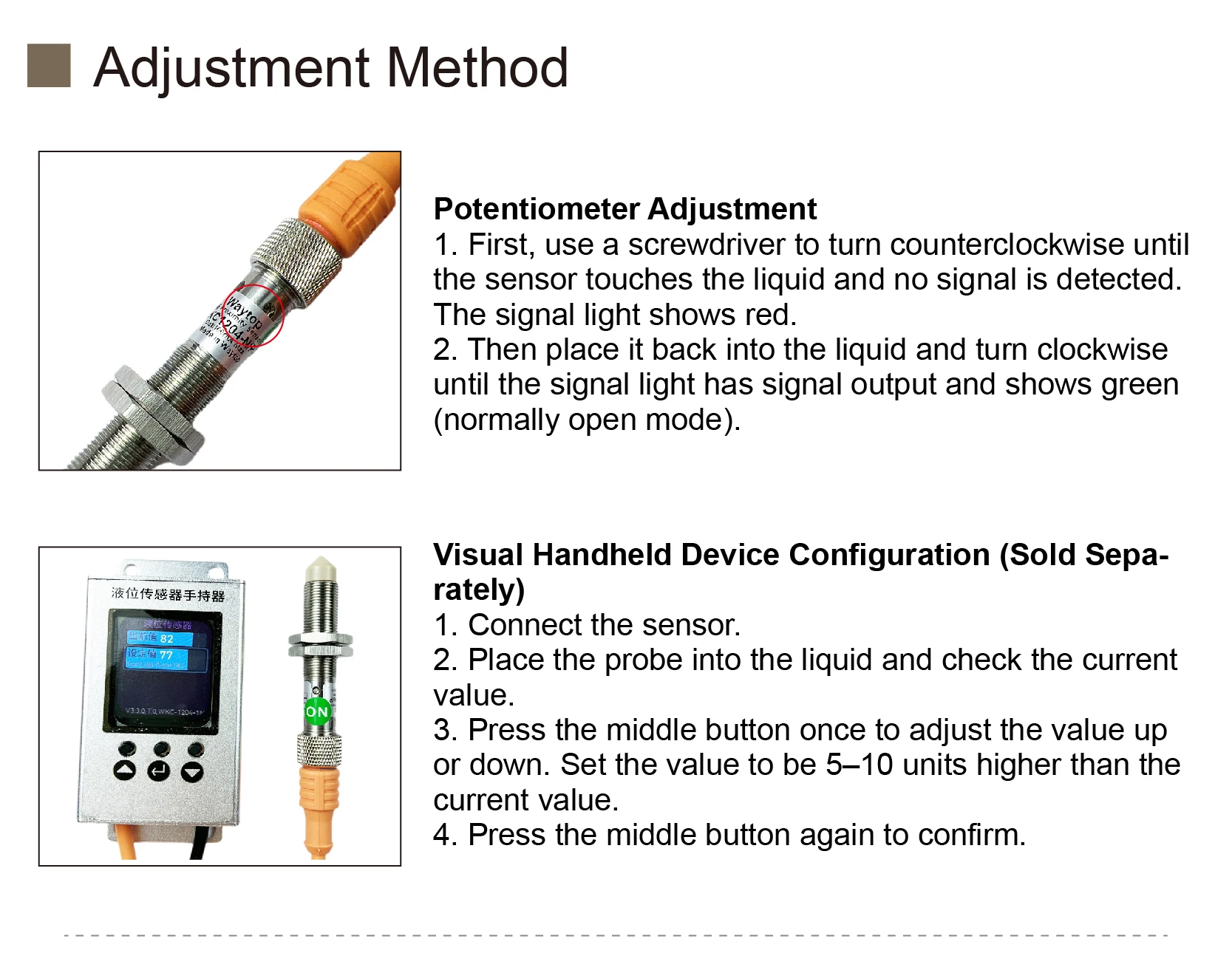

Q2: How do I adjust the sensitivity?
A2: Sensitivity can be adjusted using the built-in potentiometer or an optional external handheld adjustment tool (sold separately).

Step 1: Turn the potentiometer counterclockwise until the red LED lights up.
Step 2: Immerse the sensor in the liquid.
Step 3: Slowly turn the potentiometer clockwise until the green LED turns on.

Q3: What mounting methods are supported?
A3: The sensor supports flexible installation from the top, side, or bottom, making it suitable for different system configurations.
