SPECIFICATIONS

Features:

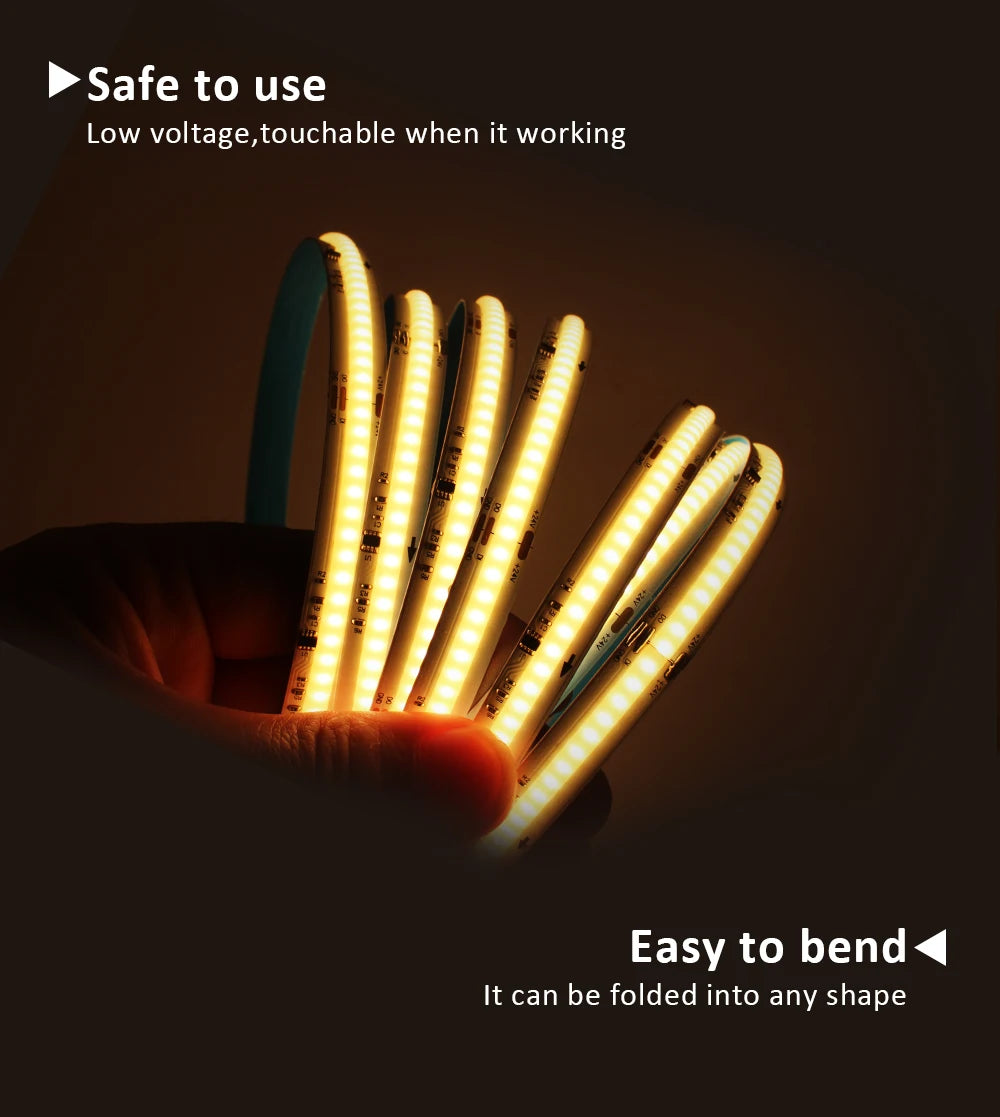

1.WS2811 horse running led strip is Low power consumption, Super-bright but running with low temperature
2.All the light spread and completely smooth, luminous very even

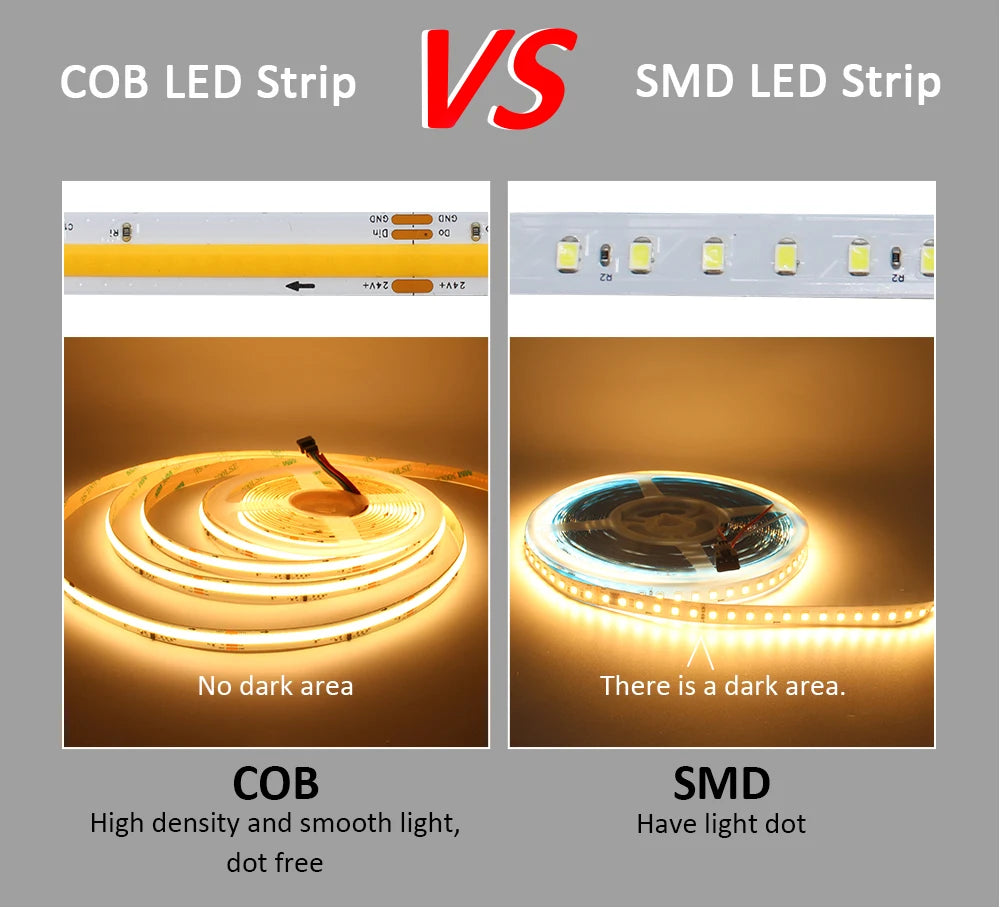

3.LED Type: COB LED Strip Light with IC Control 15 LED Chip,
4.Long Lifespan >50,000 hours
5.Certified by both RoHS / CE / UL588 tested approved.
6."BanlaX" APP control and 2.4G remote control.
7. Sync and 4-Zone control independently.
8. With Timer ON/oFF function.

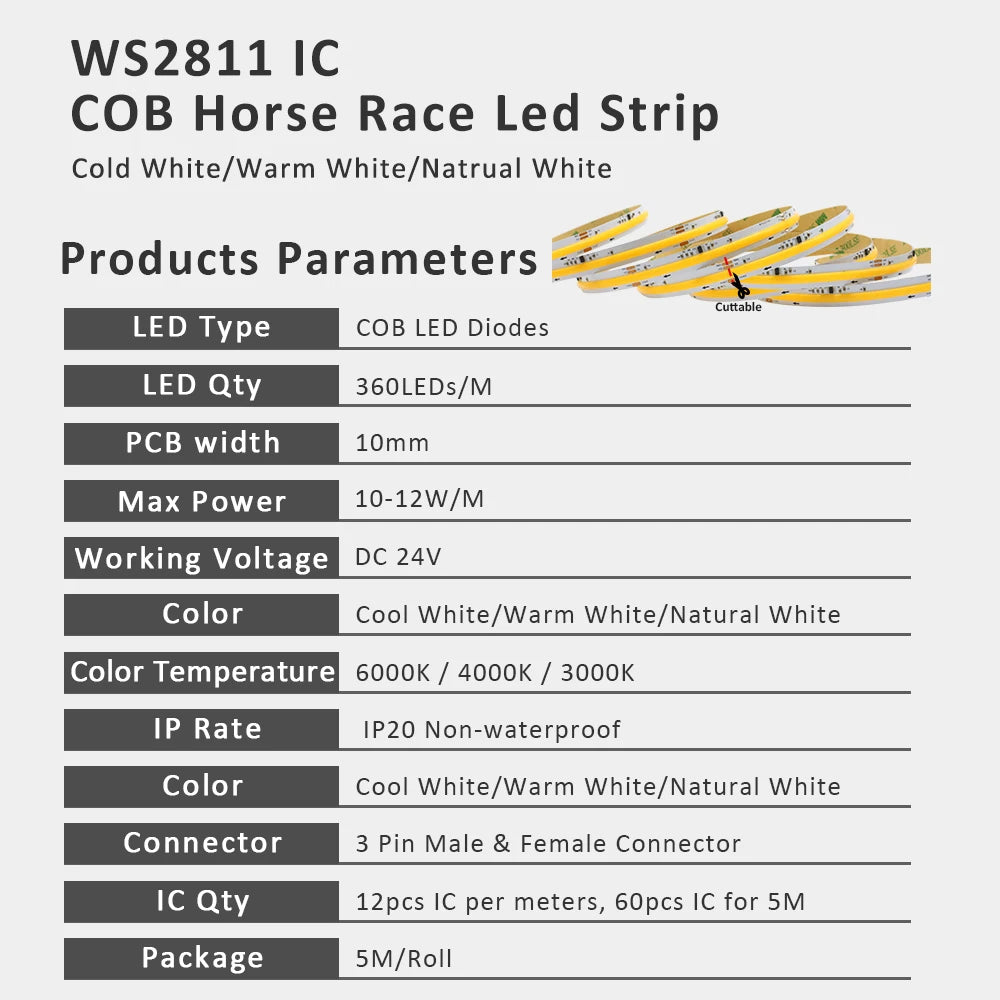

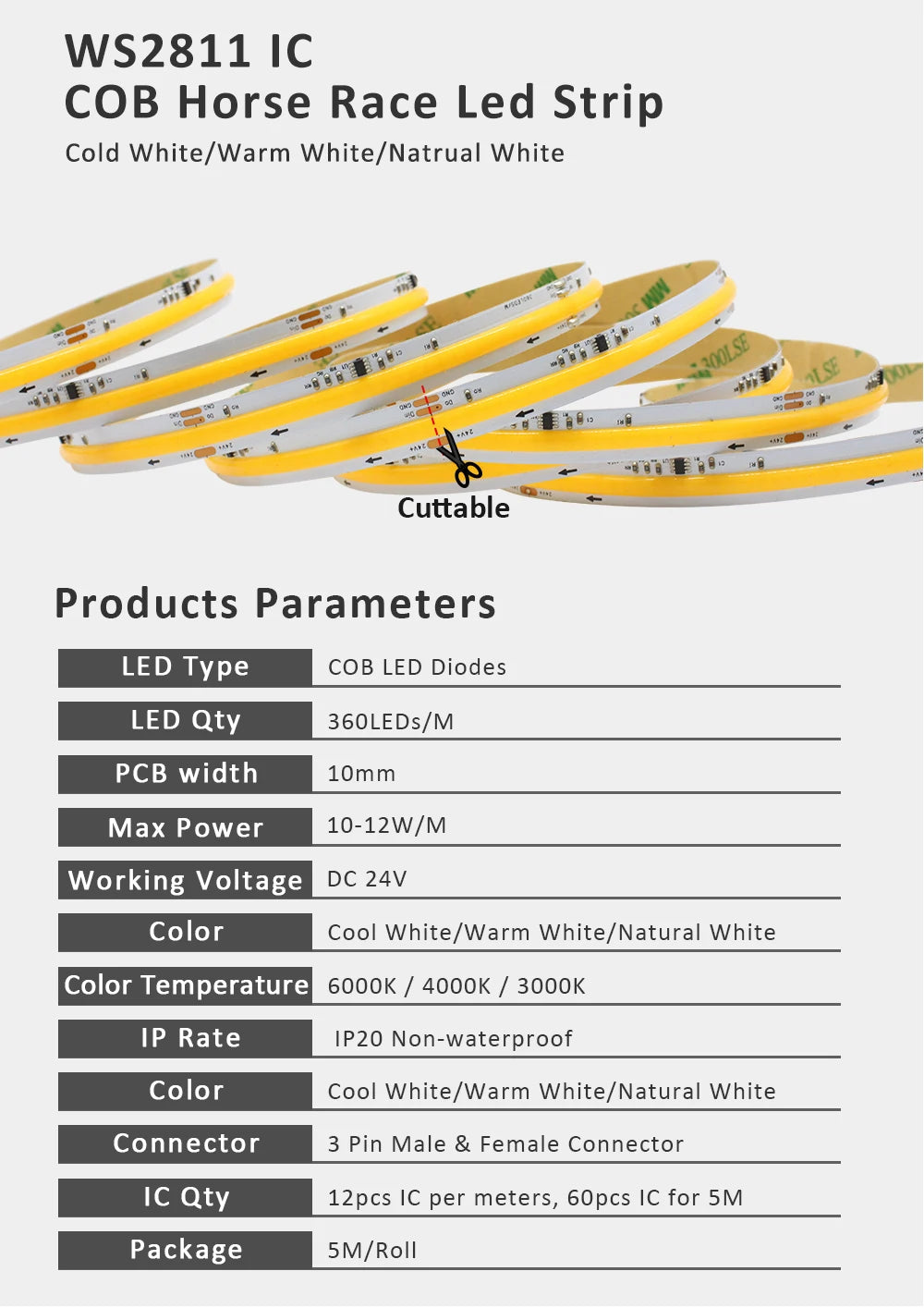

2811 COB LED Strip Specifications:

LED Type: COB LED Diodes
LED Qty: 360LEDs/M
PCB width:10mm
Max Power: 10-12W/M
Working Voltage: DC 24V

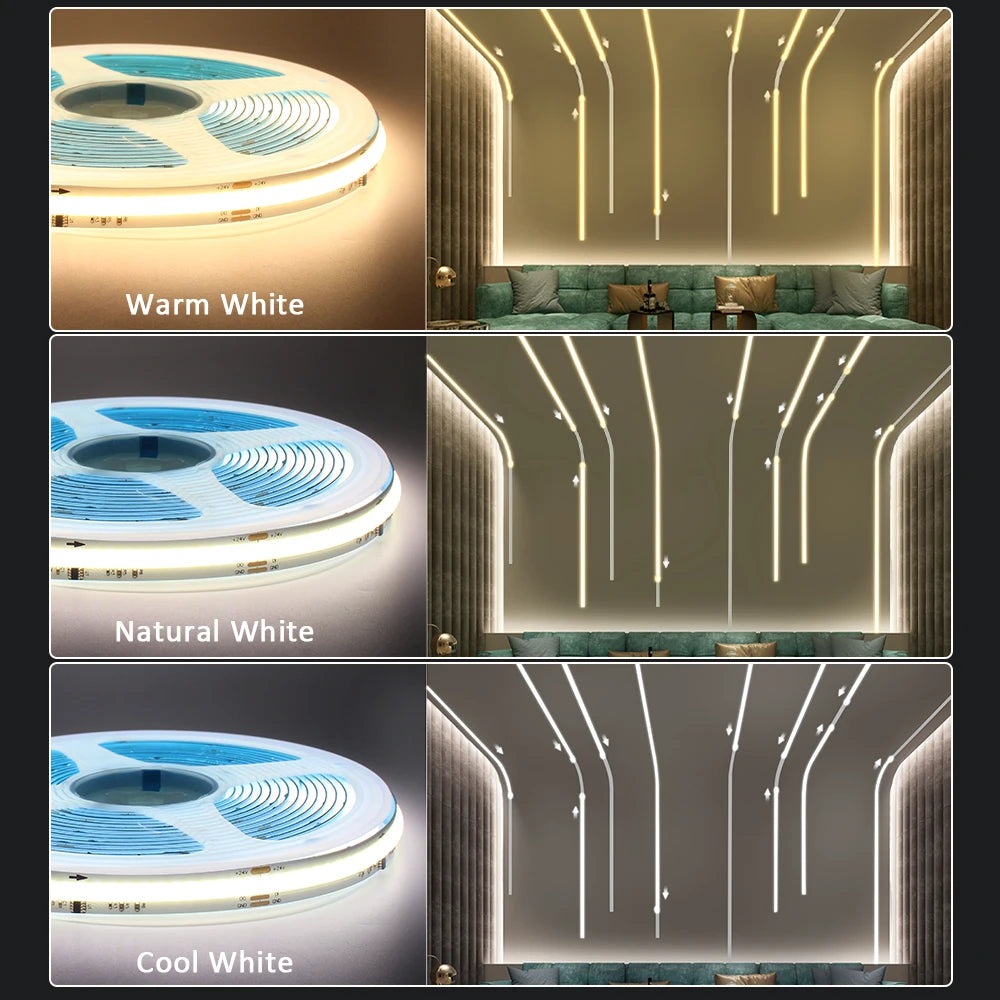

Color: Cool White / Warm White / Natural White
Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K
IP Rate: IP20 Non-waterproof
Connector: 3 Pin Male & Female Connector
Package: 5M/Roll

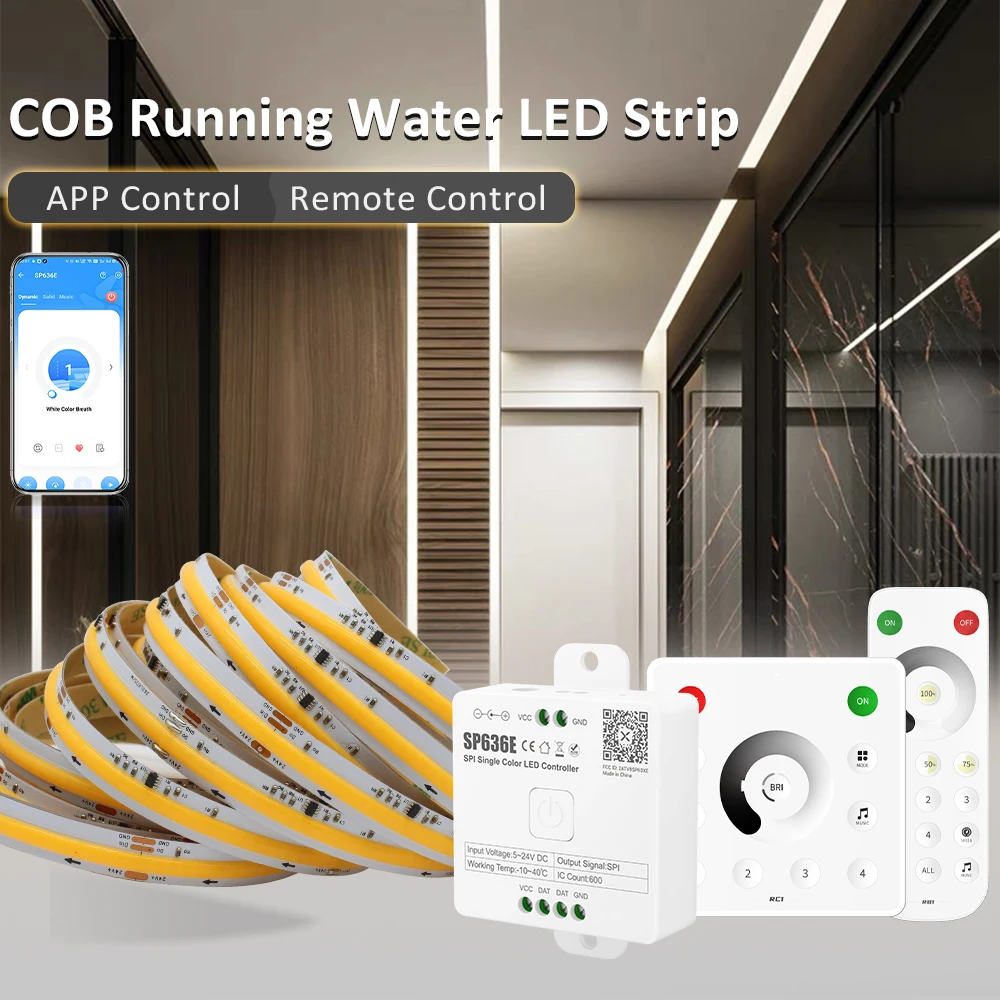

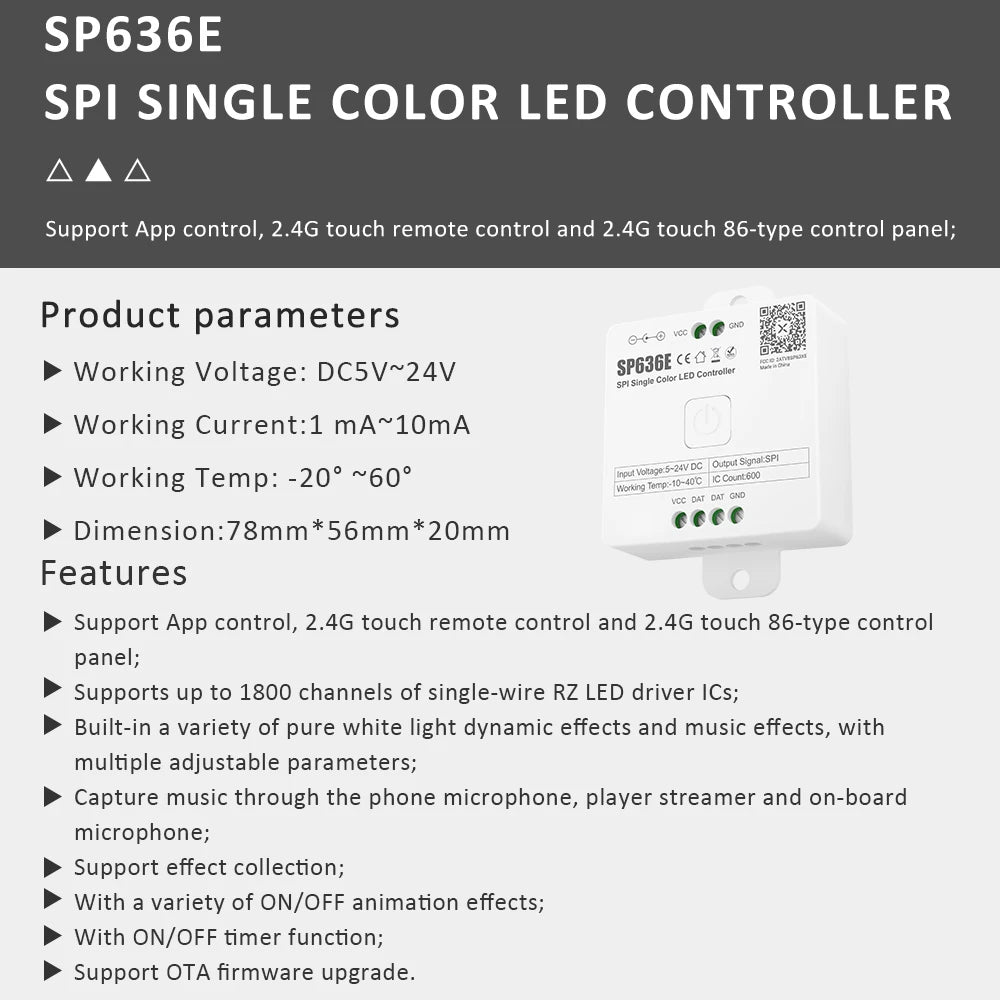

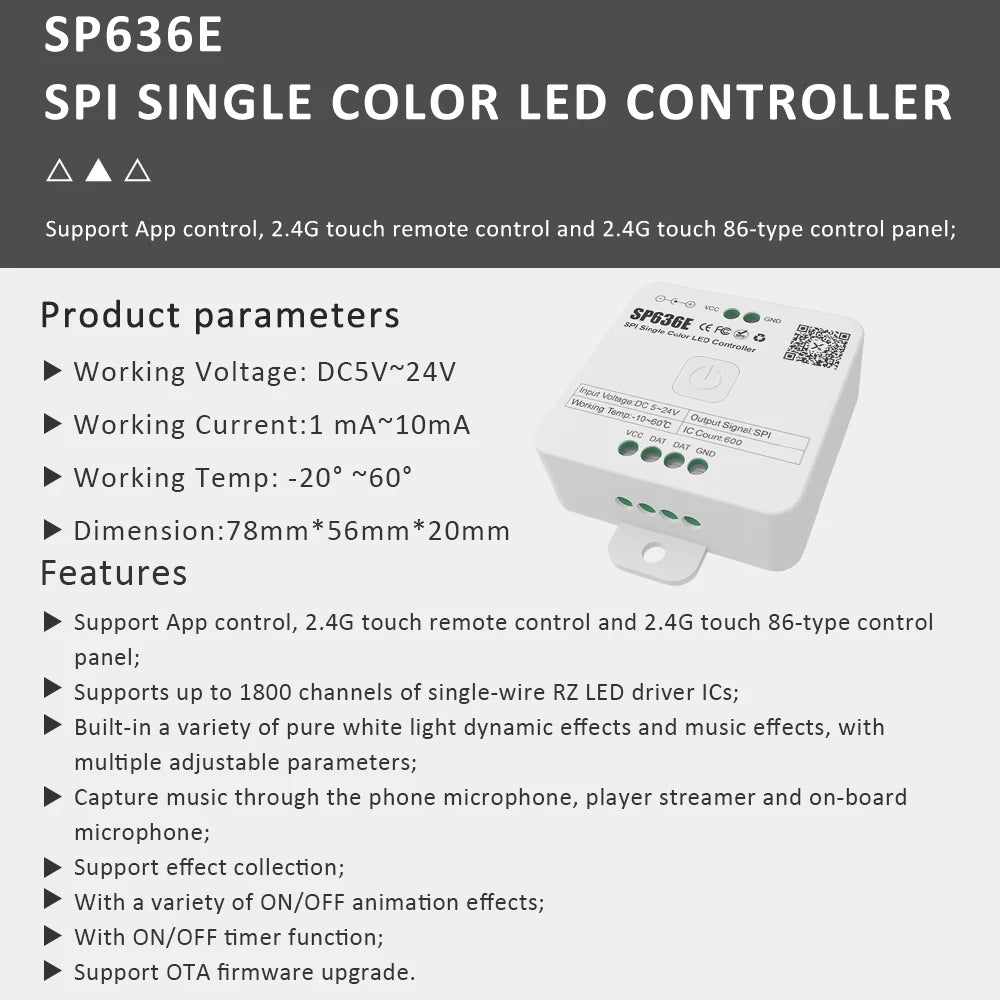

SP636E LED Pixel Controller with RB1/RC1 Remote:

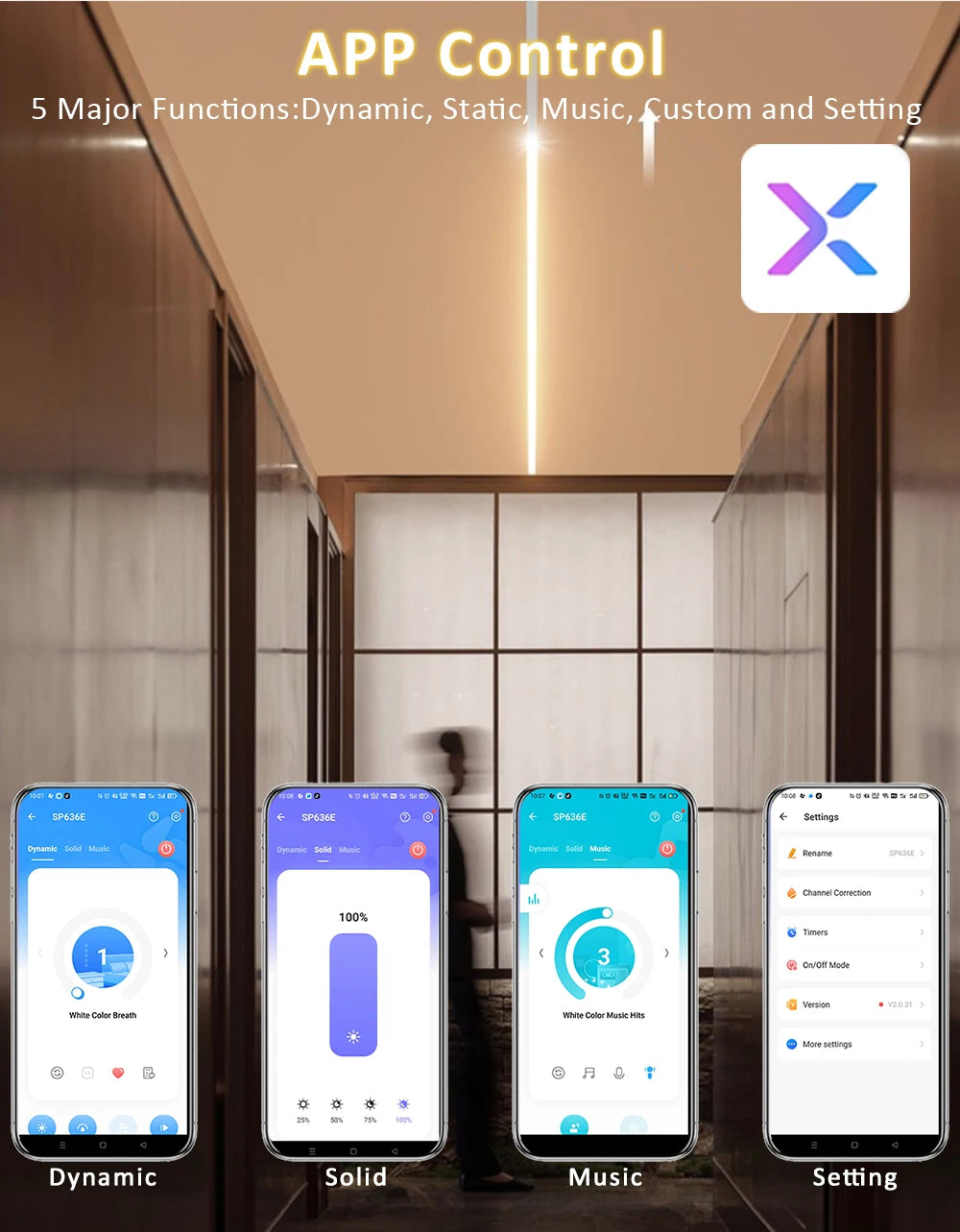

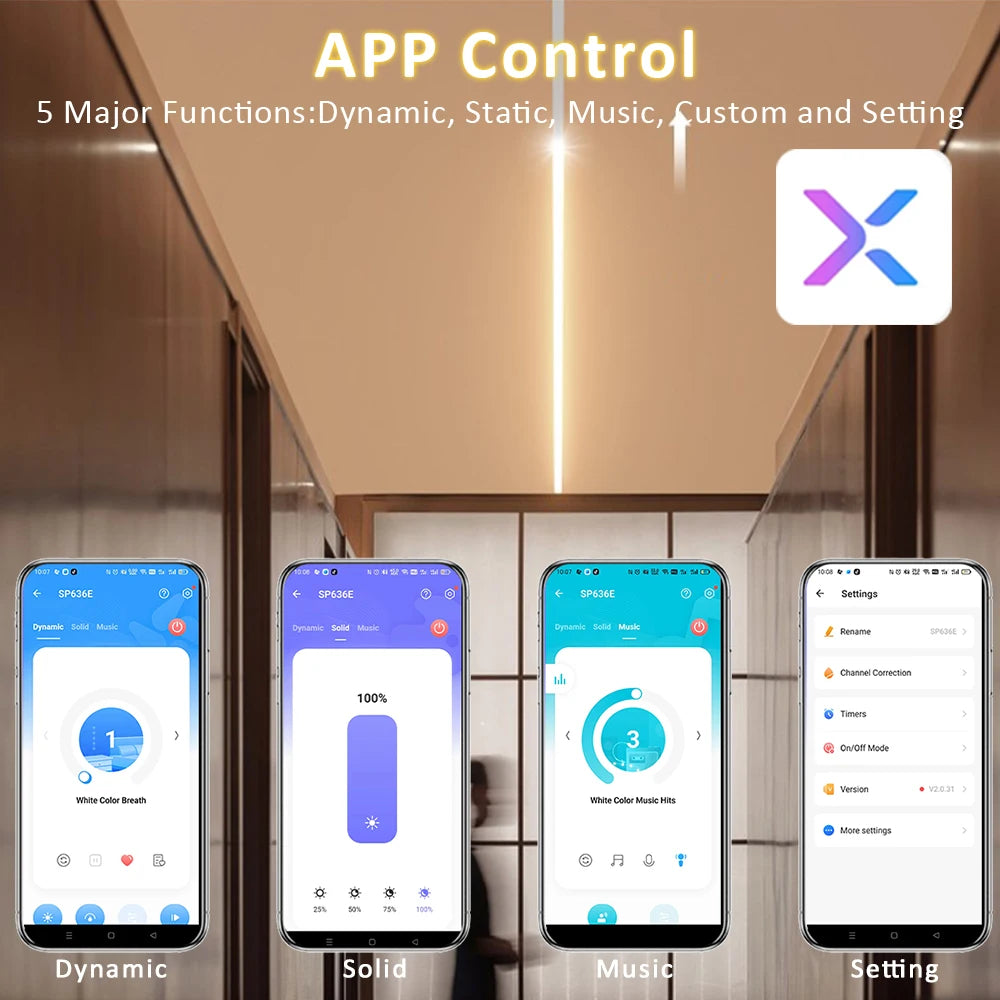

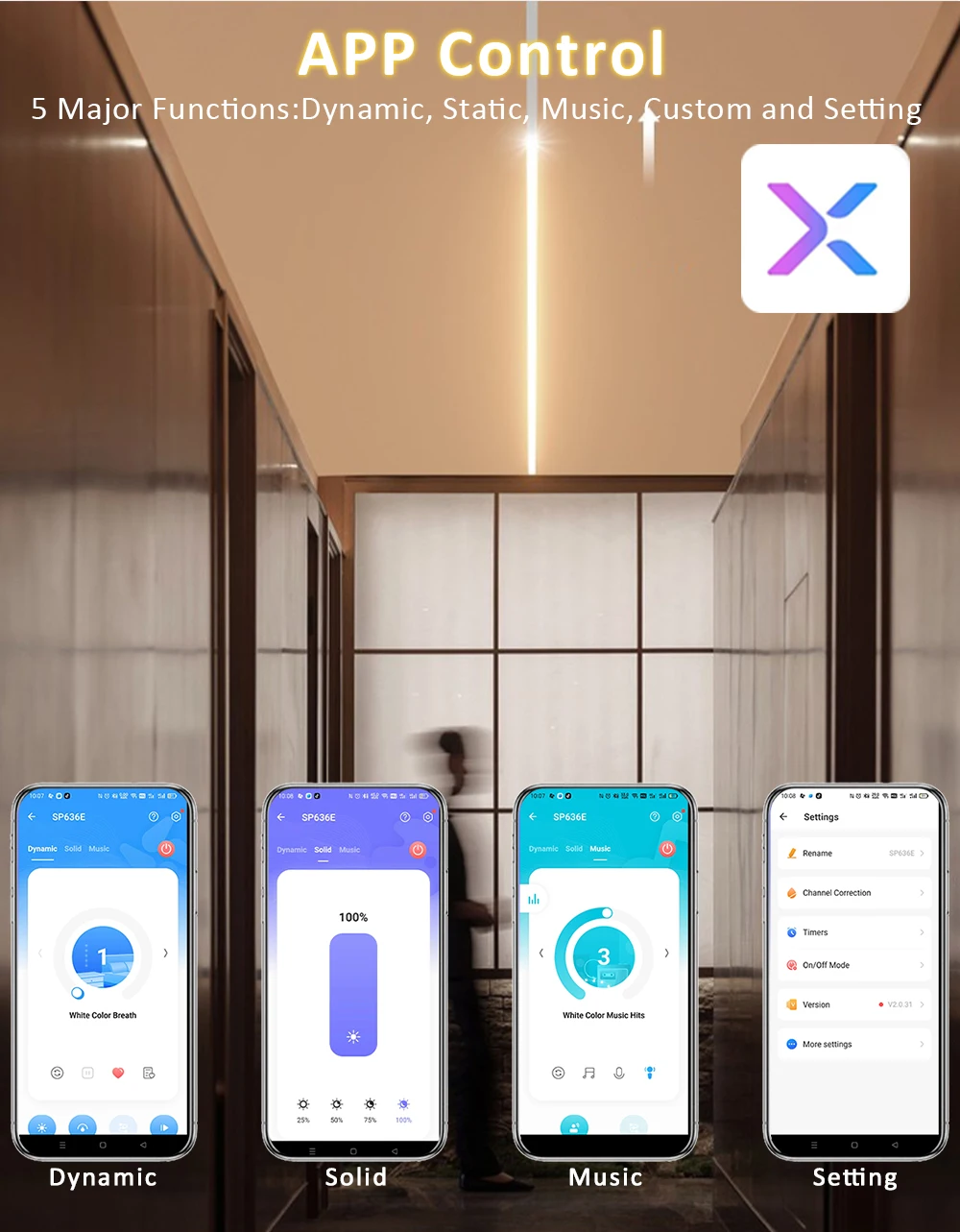

1. Support "BanlanX" APP control,2.4G touch remote control(RB1) and 2.4G touch 86-type control panel(RC1).
2. Max control 600 Pixels(IC)
3. Speed/Brightness is adjustable
4. Built-in a variety of pure white light dynamic effects and music effects,with multiple adjustable parameters.
5. Capture music through the phone microphone, player streamer and on-board microphone.
6. Support effect collection
7. With a variety of ON/OFF animation effects
8. With ON/OFF timer function
9. Support OTA firmware upgrade.
10.Mini size: 78*56*20mm,with colorful wholesale package.

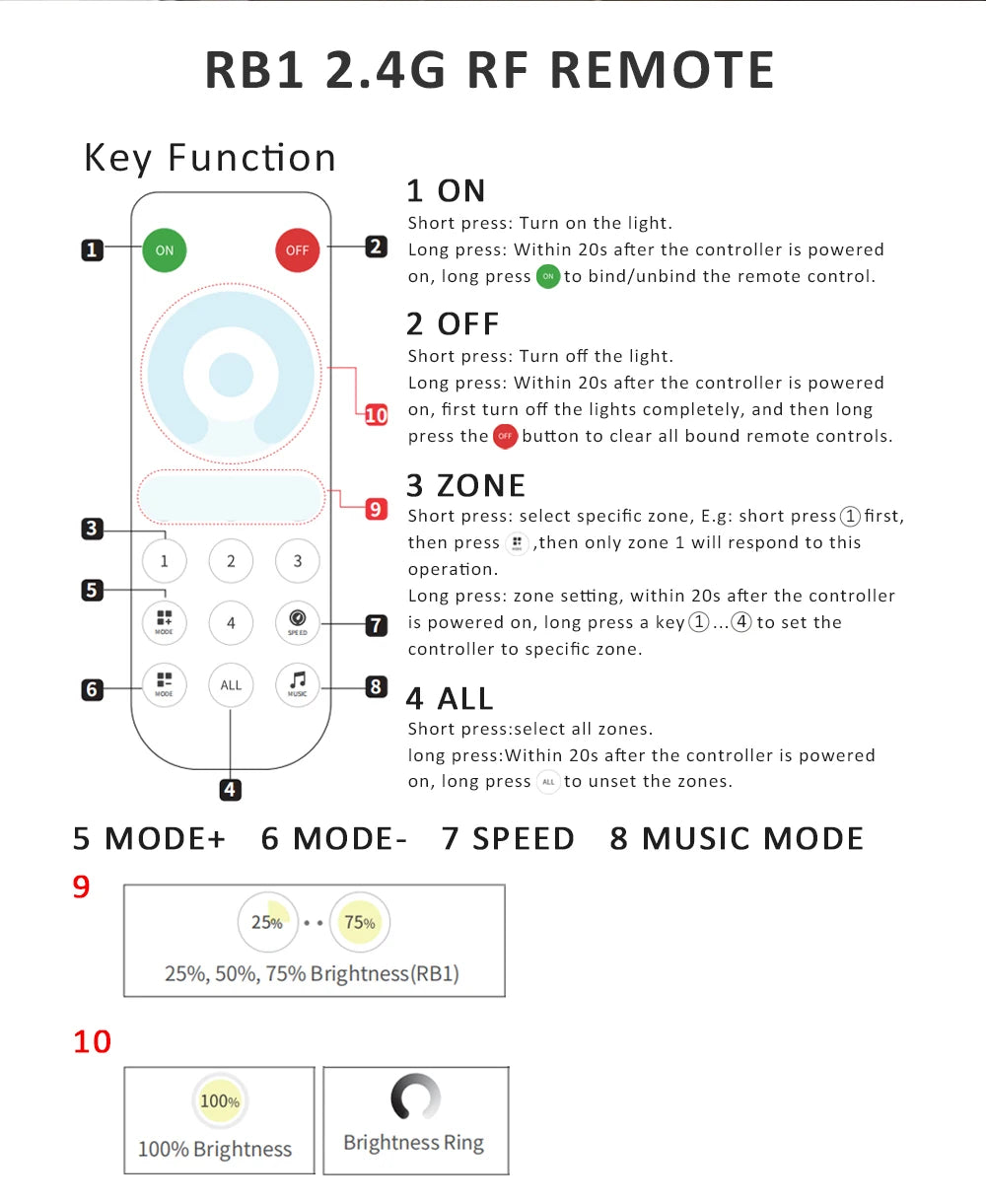

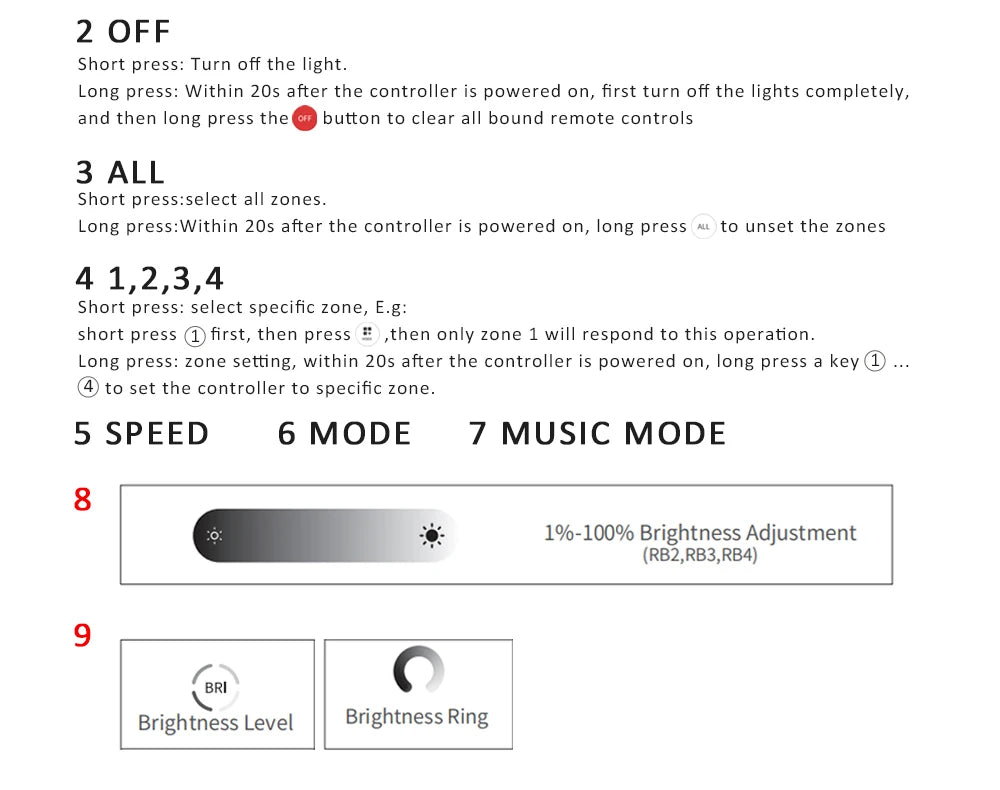

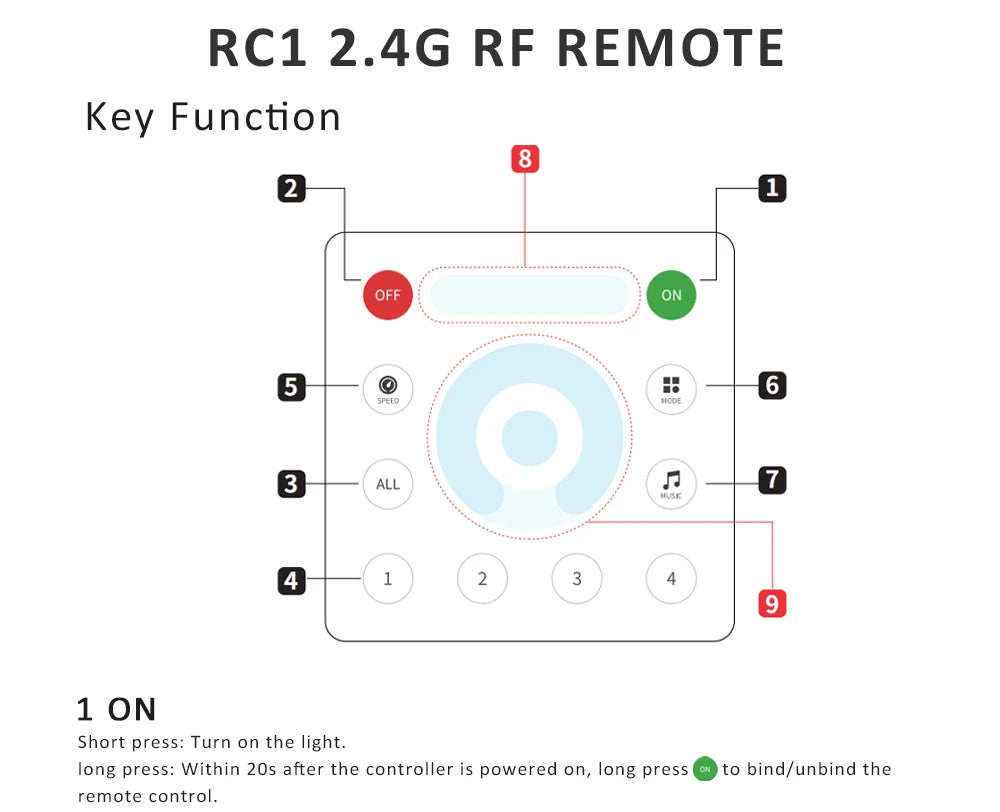

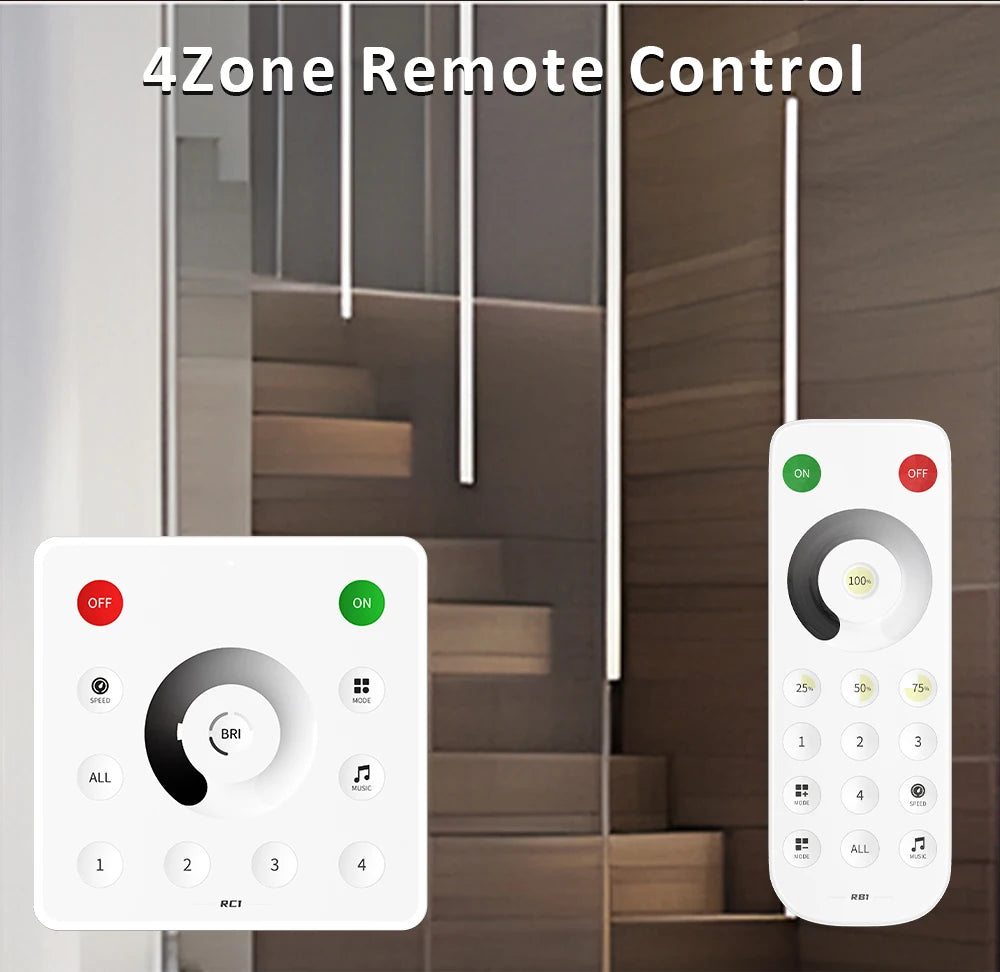

Work with 2.4G Touch Remote Control:

The SP636E controller work with RB1 and RC1 2.4G touch remote control
1. Support one-to-many control, one remote control can control multiple controllers,sync or independently.
2. Support many-to-one control,each Sp636E controller can be set up to max 5 remote controls.

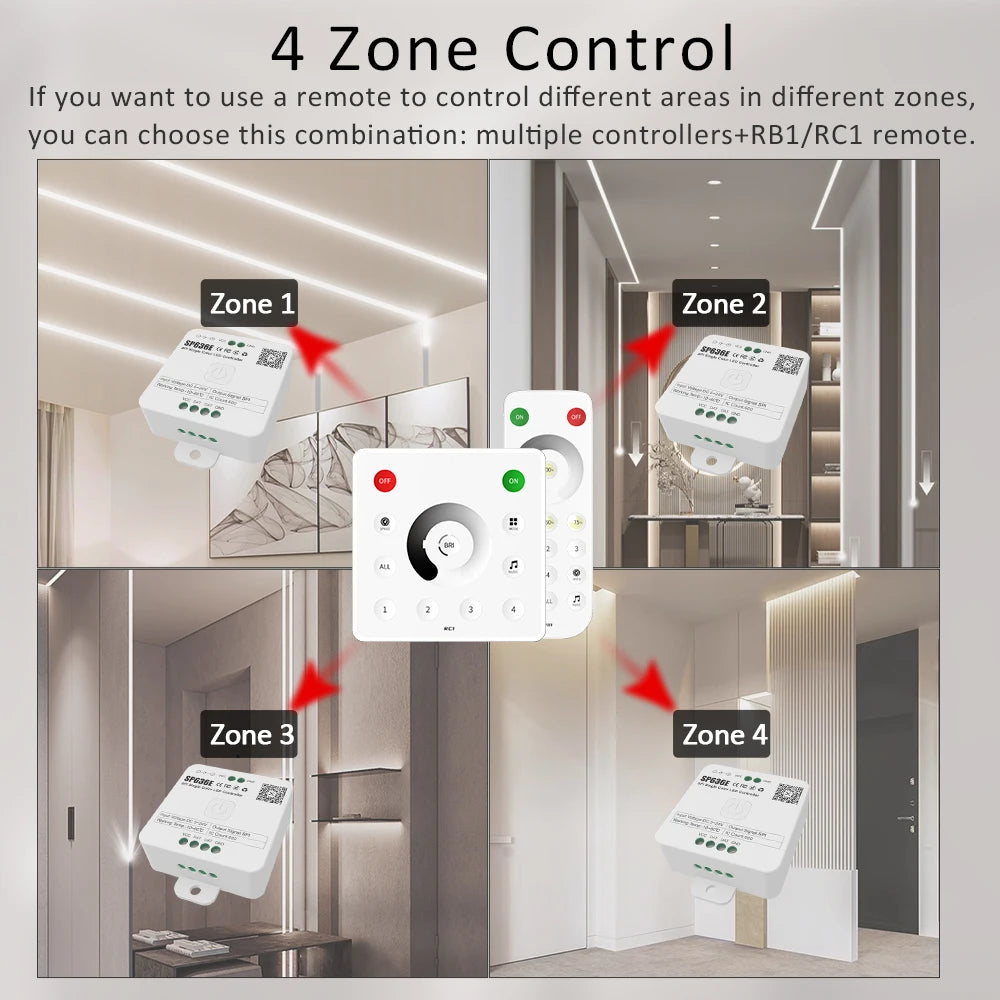

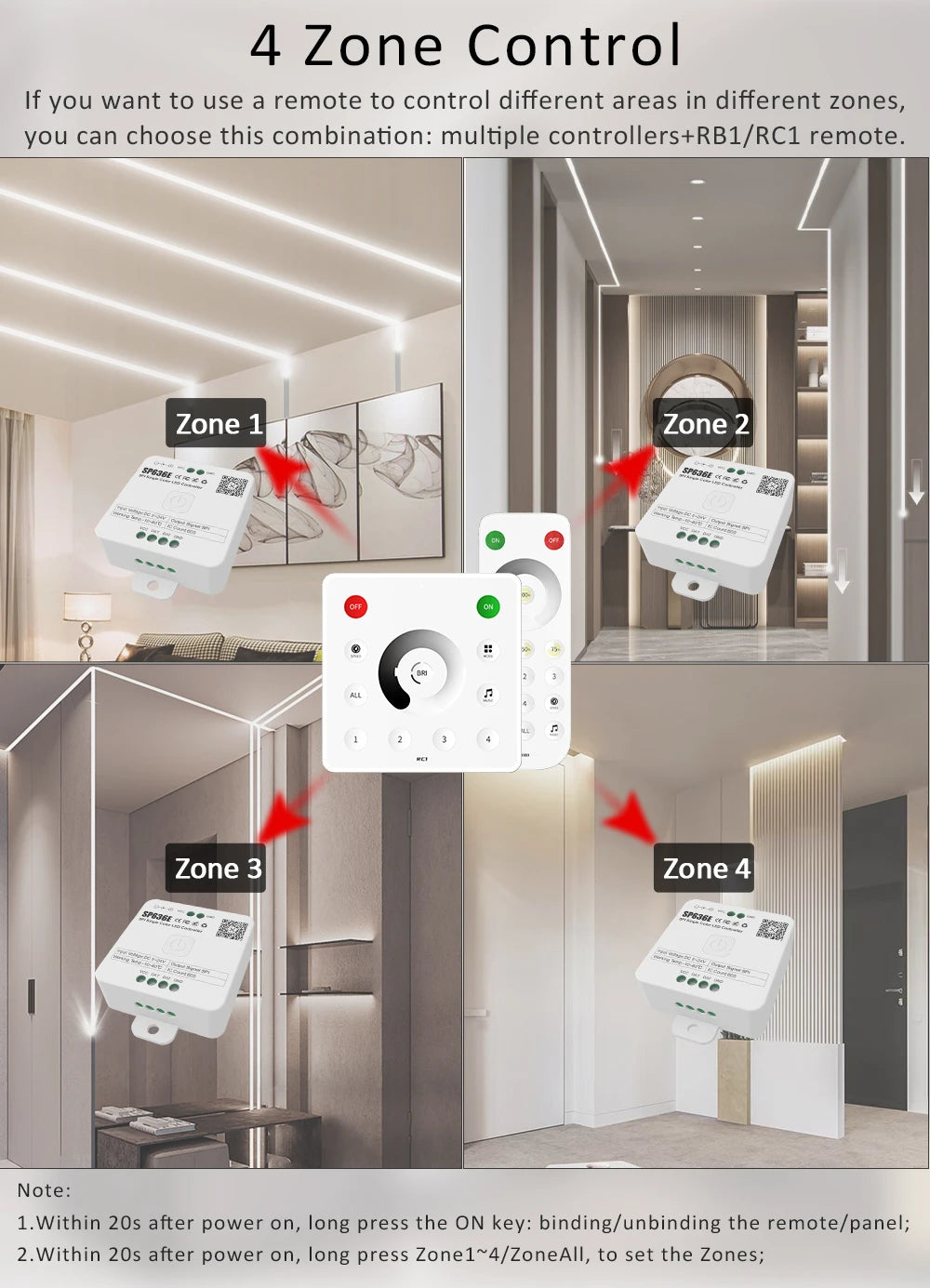

3. Support Sync control and 4-Zones control independently. (such as 4 rooms, 4 different effects)

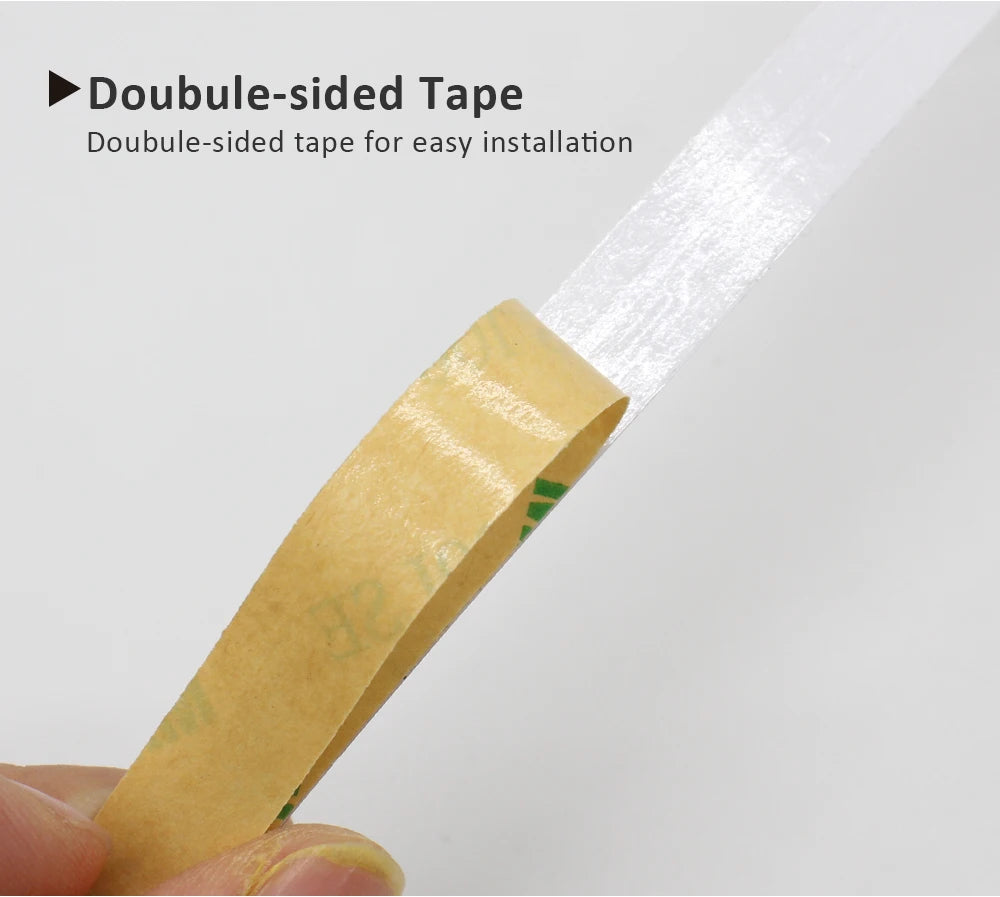

4. With Double-side tape on the back,easy to install at anywhere

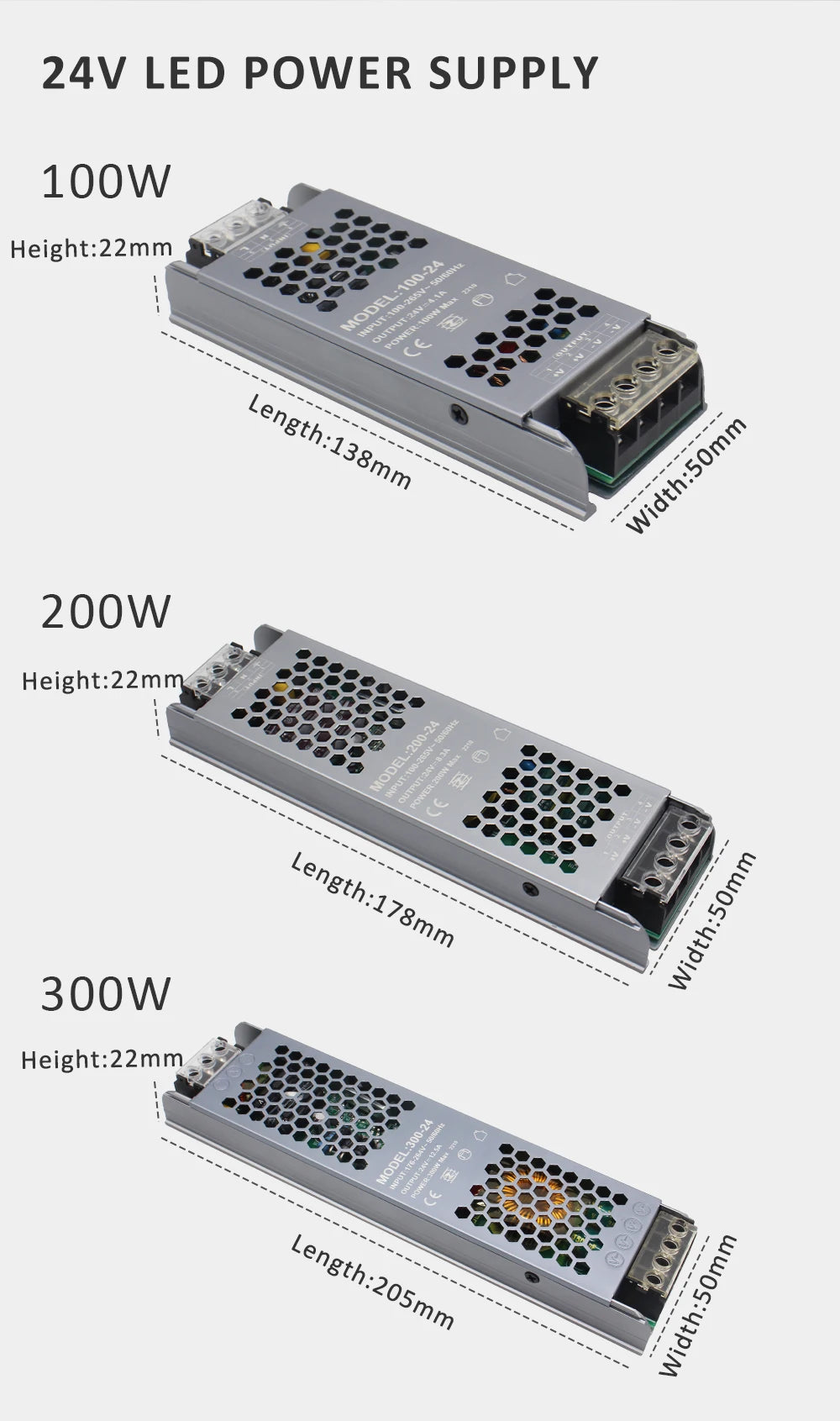

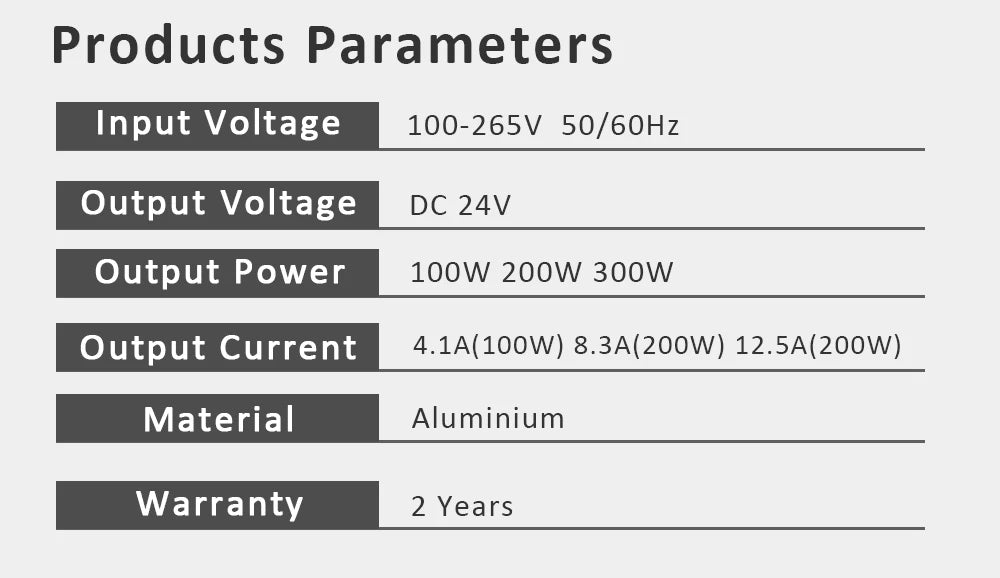

Power Supply:

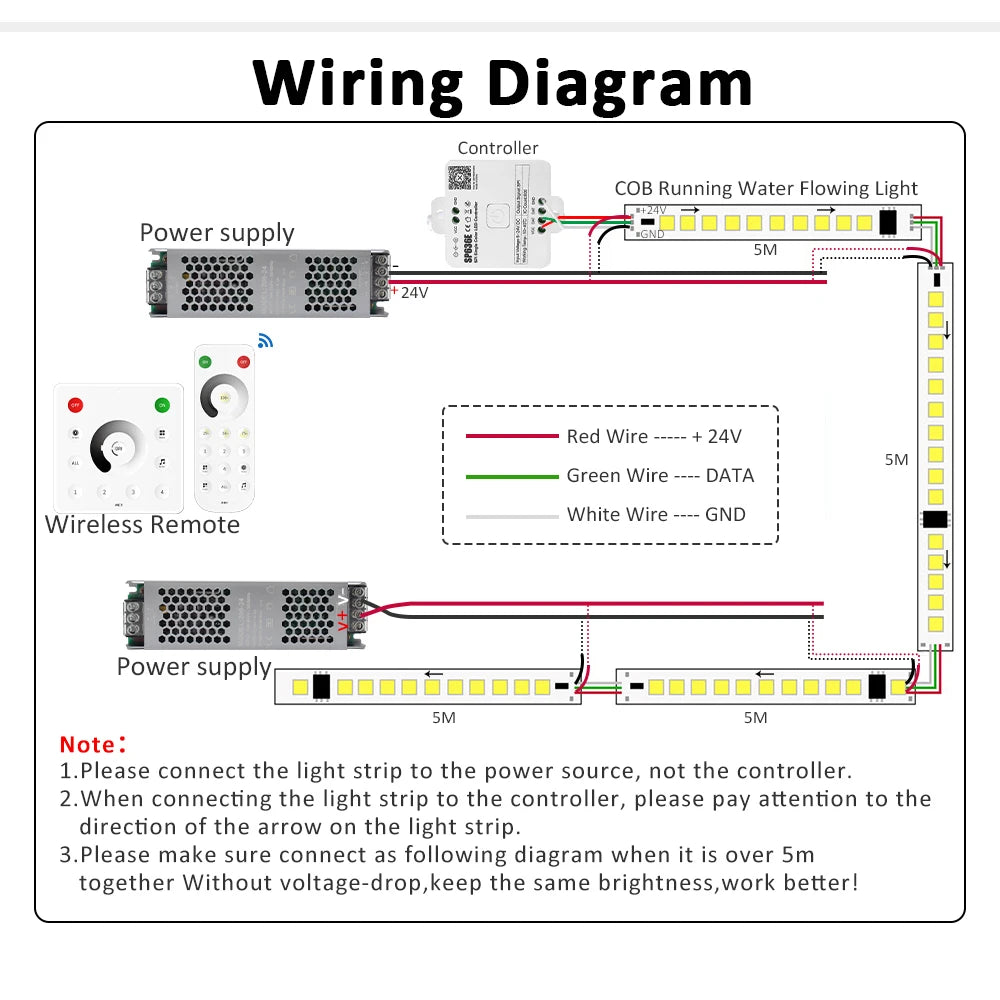

We used high quality DC 24V 100W -300W LED power supply,100% real power output. 1pc DC24V 300W power supply can drive max 20 meters WS2811 horse running pixel led strip.Meanwhile, you have to connect all led strip to the power supply,in case of flickering.

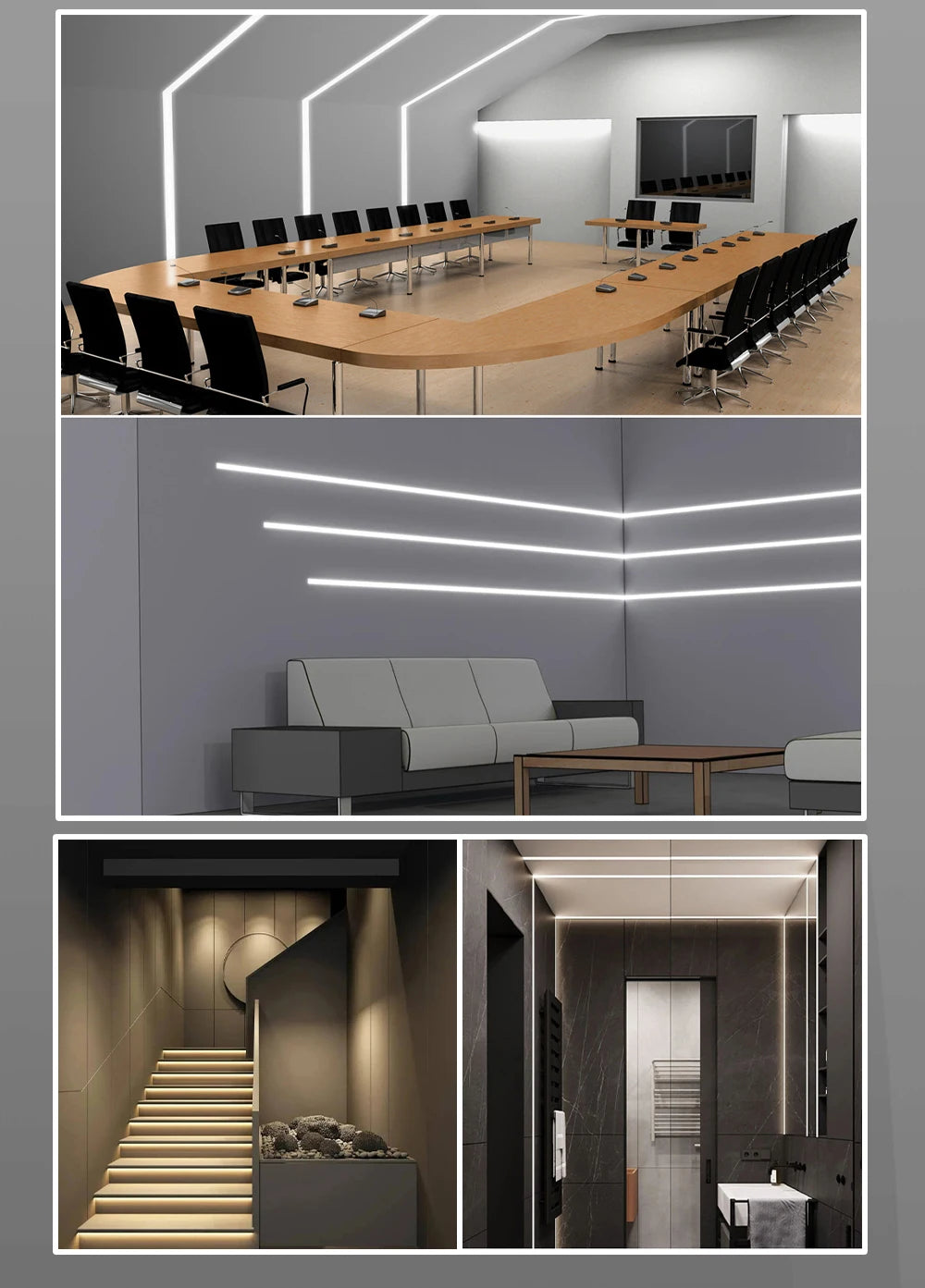

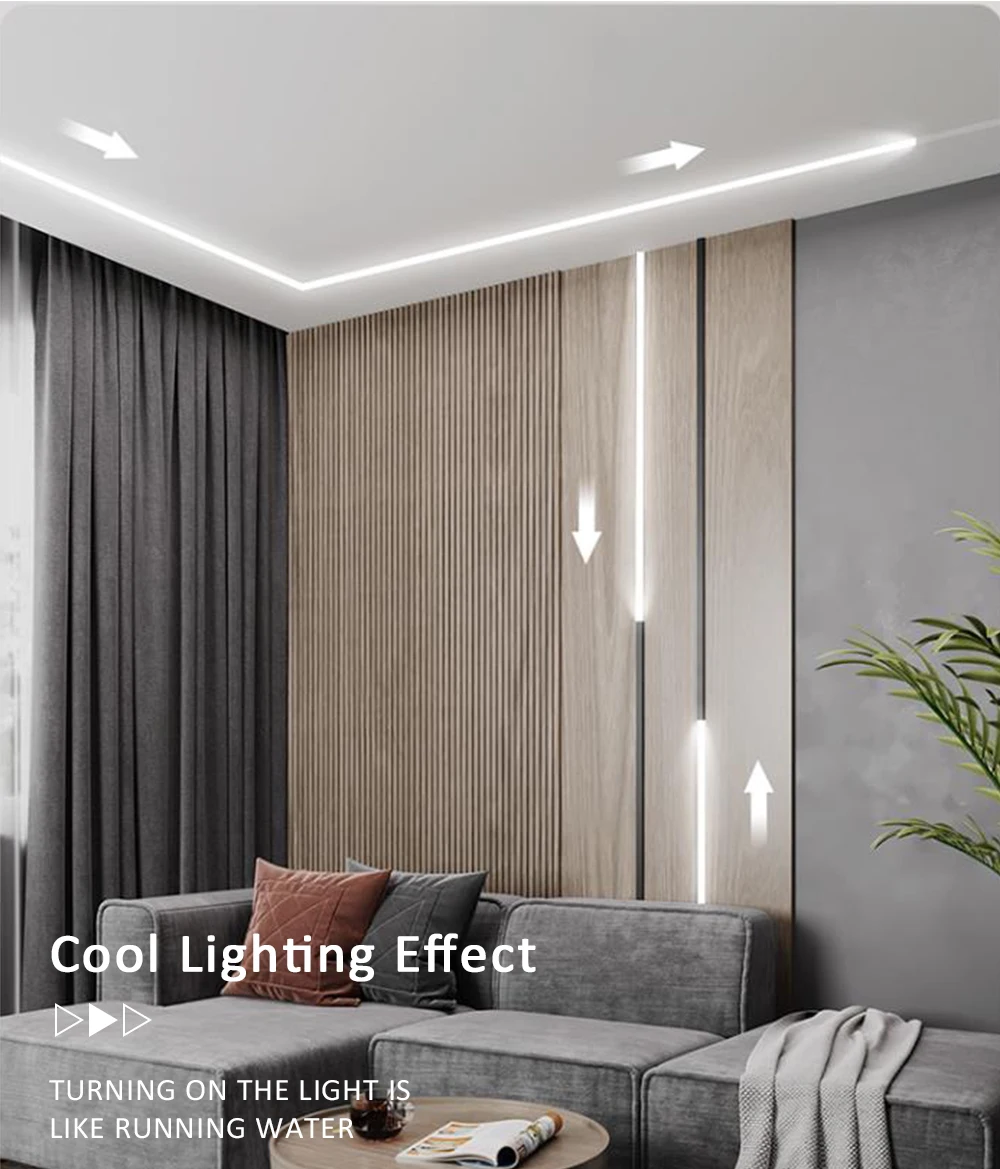

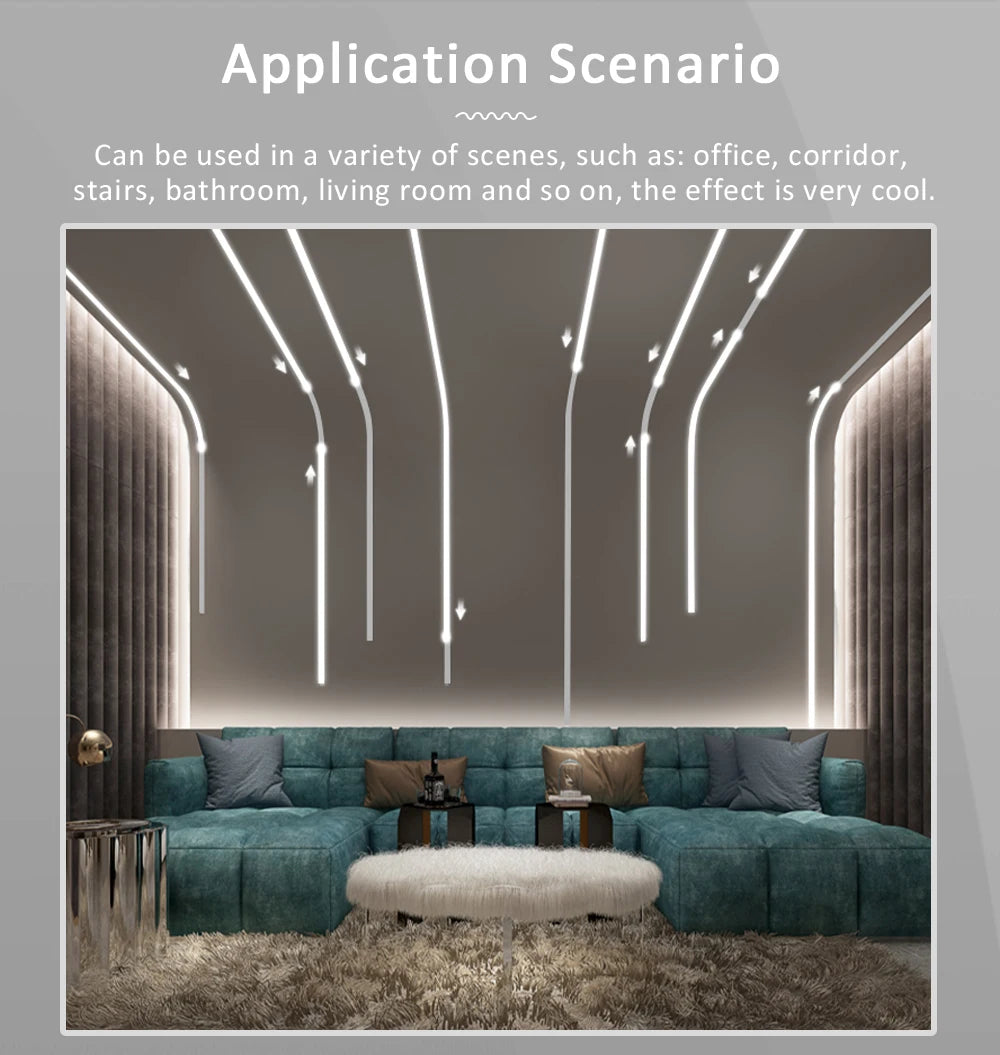

Application

Making led screen,Rooms Staris Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,the city lighting project, entertainment and leisure places lighting.

Package Including:

SP636E Controller Only = 1 X SP636E controller (Not with led strip,remote and power supply)

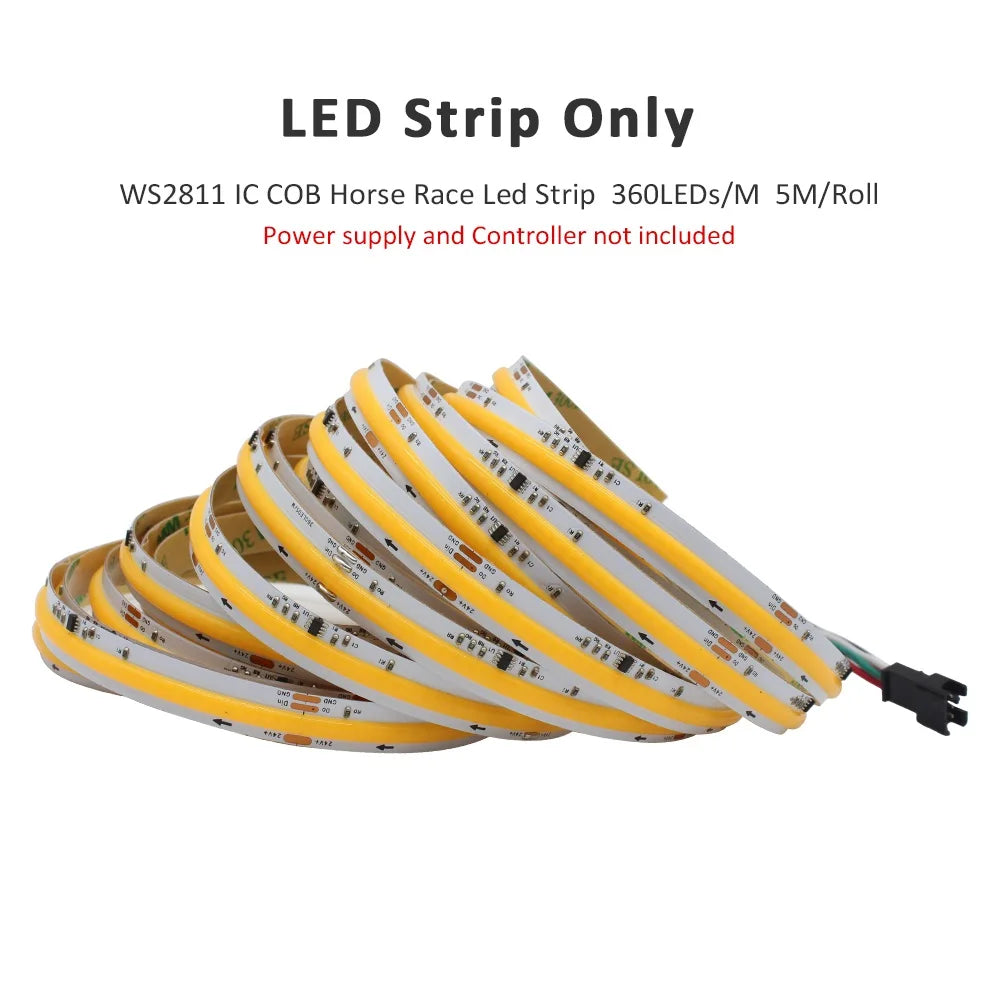

LED strip Only = 24V 2811 led strip (Not with controller,remote and power supply)

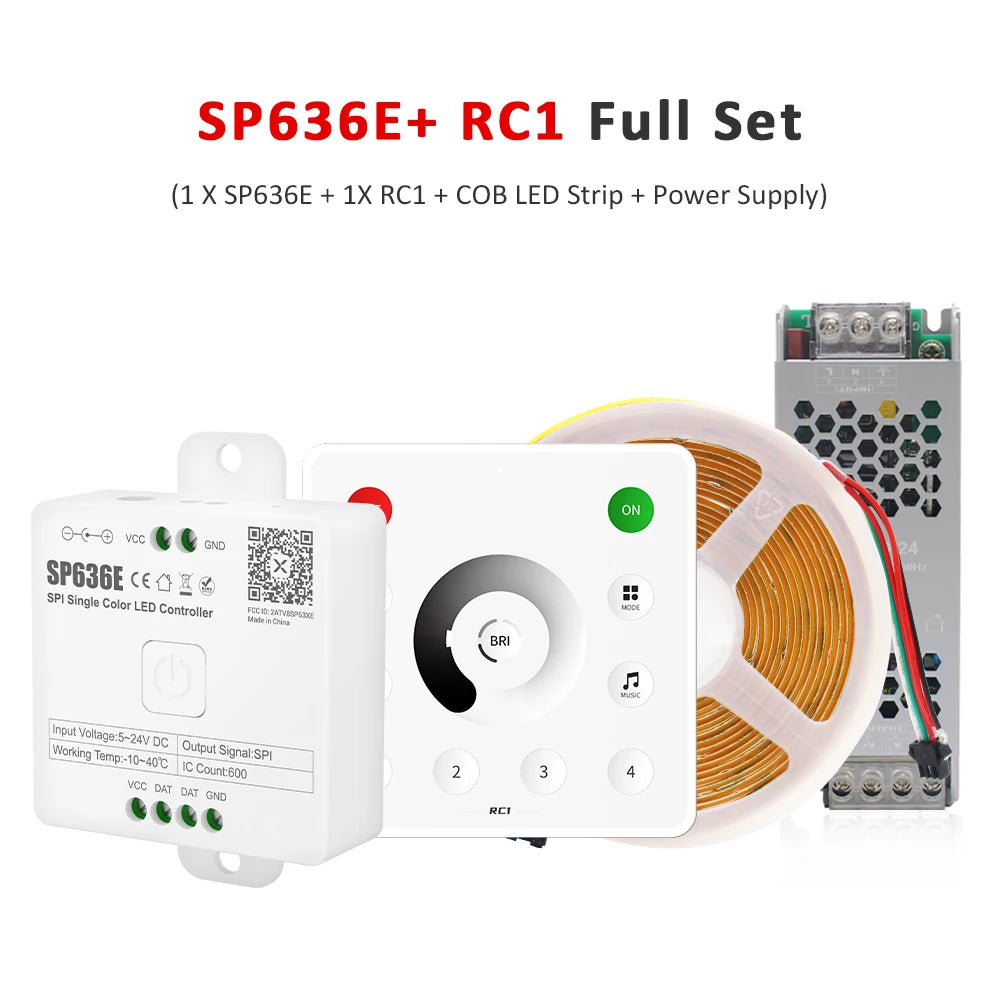

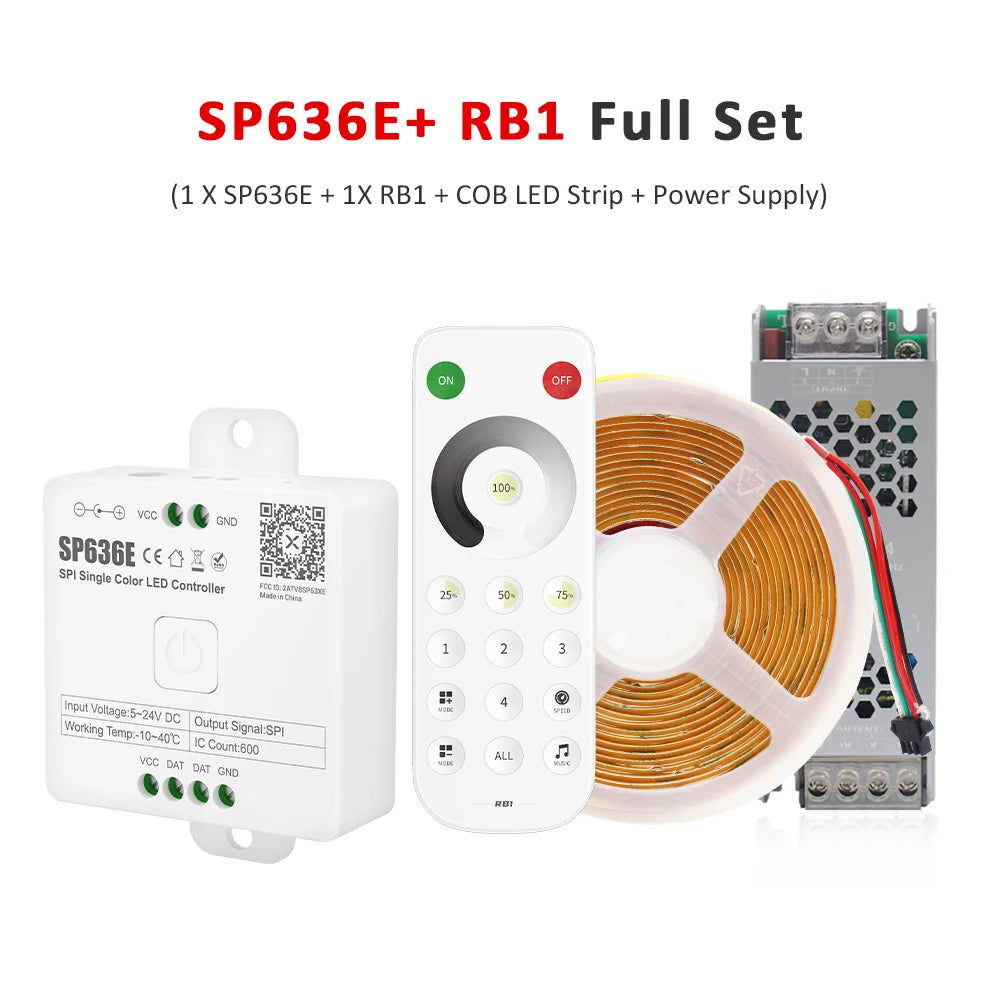

SP636E RB1/RC1 Full Set = SP636E Controller +RB1/RC1 Remote + 24V Led Strip + 24V Power Supply

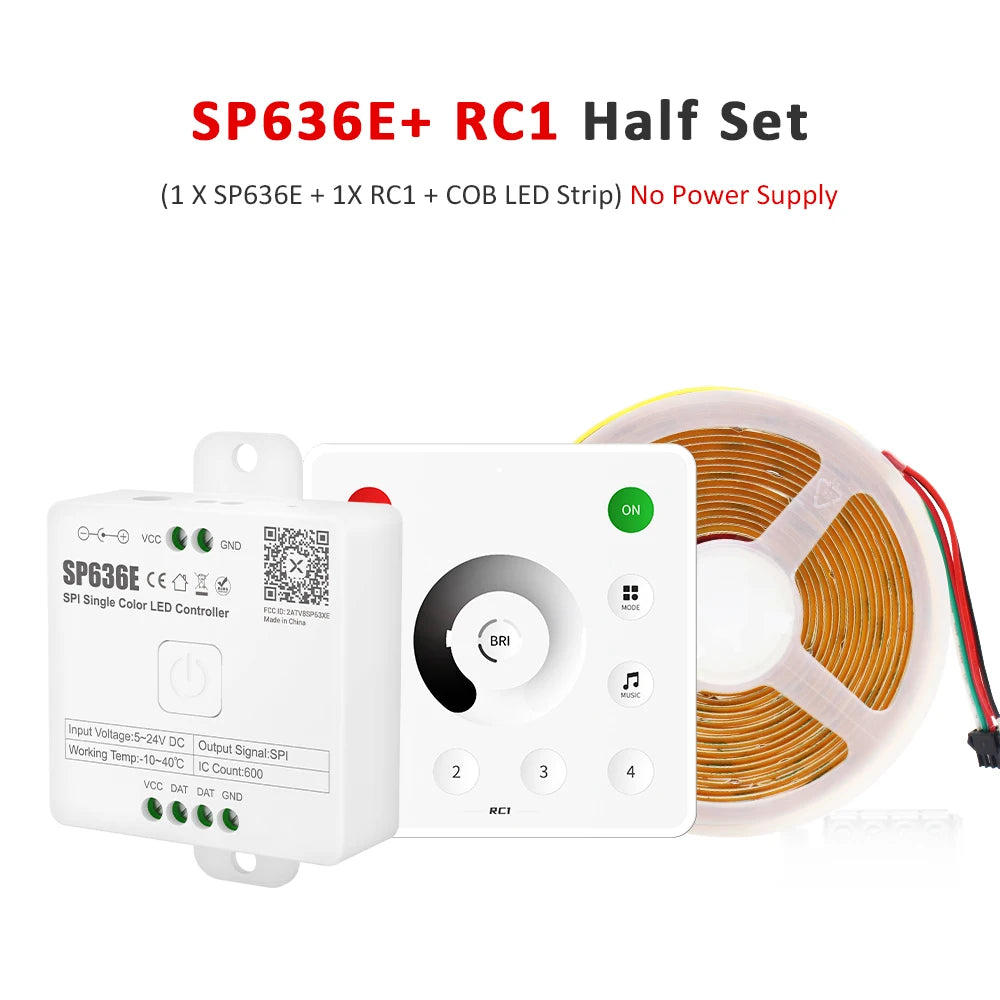

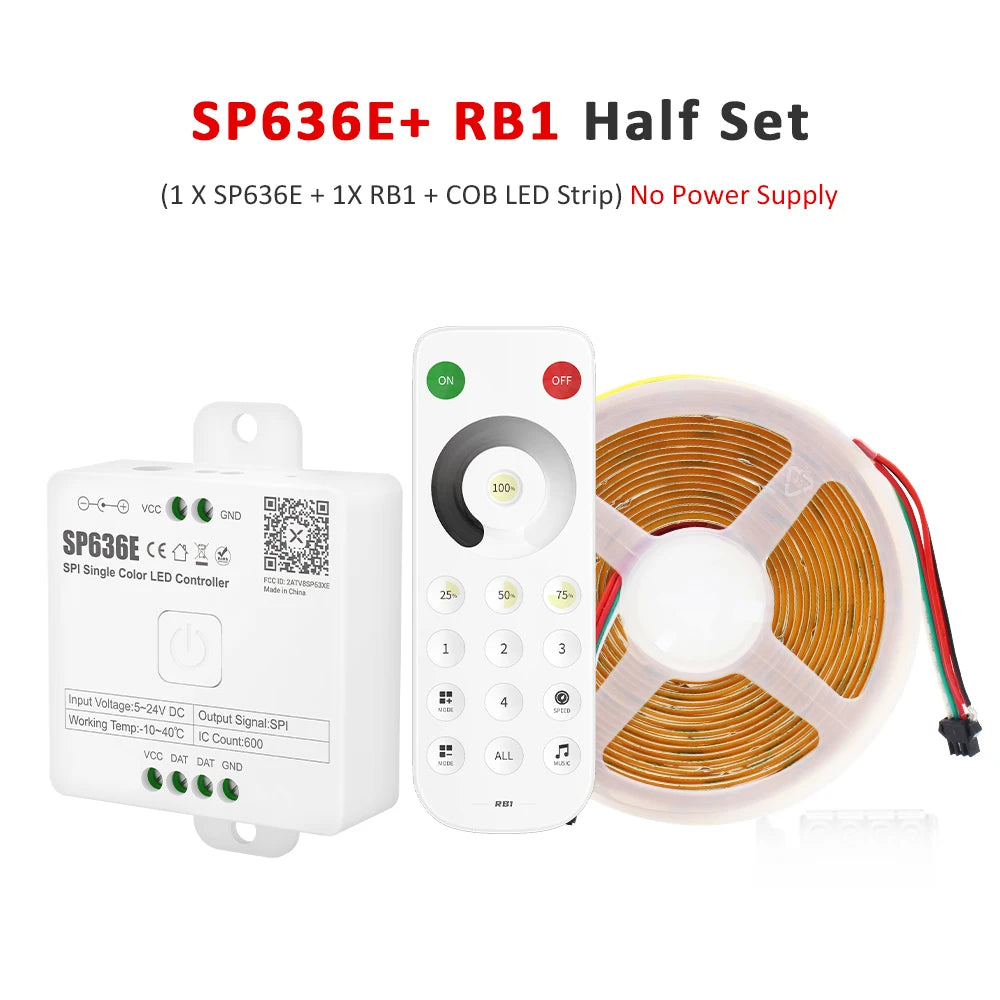

SP636E RB1/RC1 Half Set = SP636E Controller +RB1/RC1 Remote + 24V Led Strip （Not with power supply)

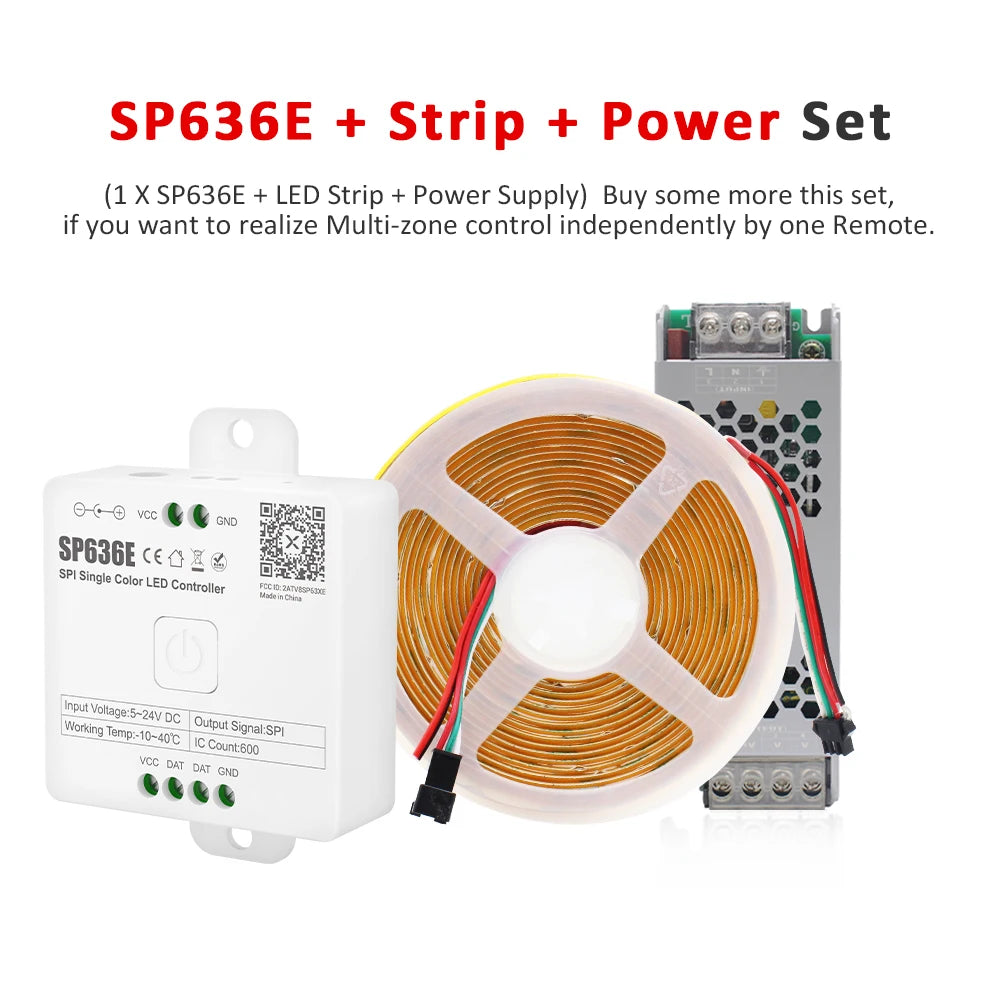

SP636E Strip Power Set = SP636E Controller + 24V Led Strip + 24V Power Supply (Not with Remote)
The RB1/RC1 Remote is not with battery.
