Description

SPECIFICATIONS

Average Life (hrs): 50000

Brand Name: ASMTLED

Certification: ce,CCC,EMC,LVD,UL,VDE,ROHS,CE,RoHs

Color Temp(K): 6000K 4000K 3000K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Cree

LED Chip Model: /

LEDs Number/M: 360leds

Luminous Flux: 60-249

Model Number: COB HORSE RACE LED STRIP

Nominal Voltage: 24V

Occasion: Bedroom

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 360

Strip type: COB

Voltage: 24v

Waterproof: Yes

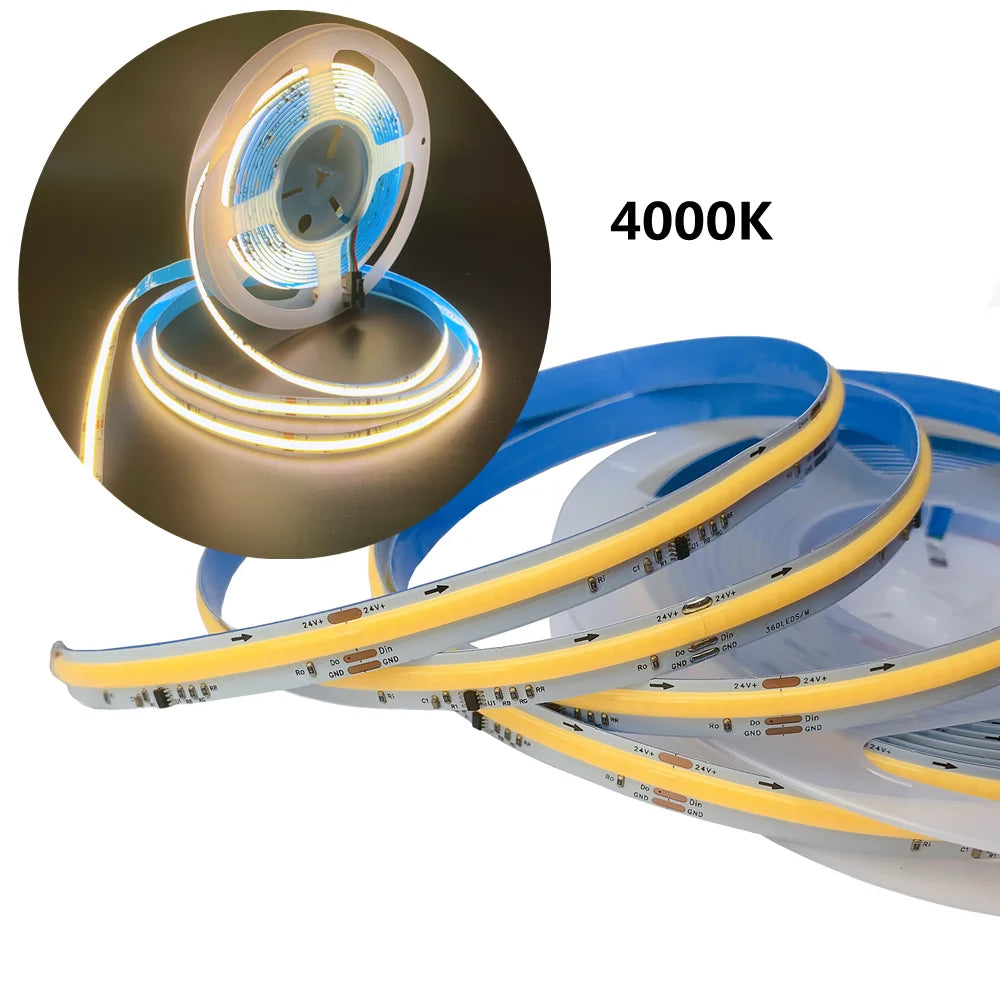

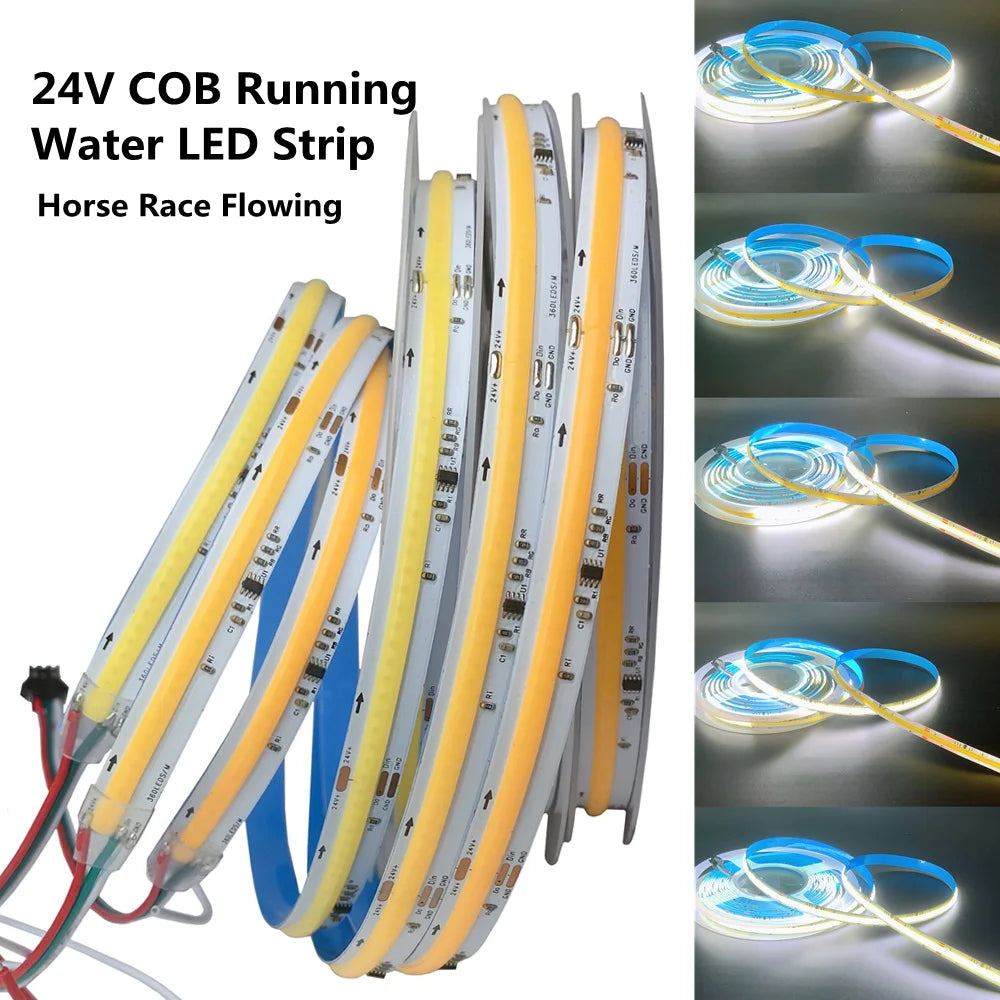

WS2811 COB Running Water Flowing LED Strip Light Horse Race Chasing Tape Wireless Remote Controller DC24V Power 20M 10M Full Set

Description

Connection Note:

When the led strip is over 10m,please kindly connect power wire to the two ends of led strip, to keep the same brightness.

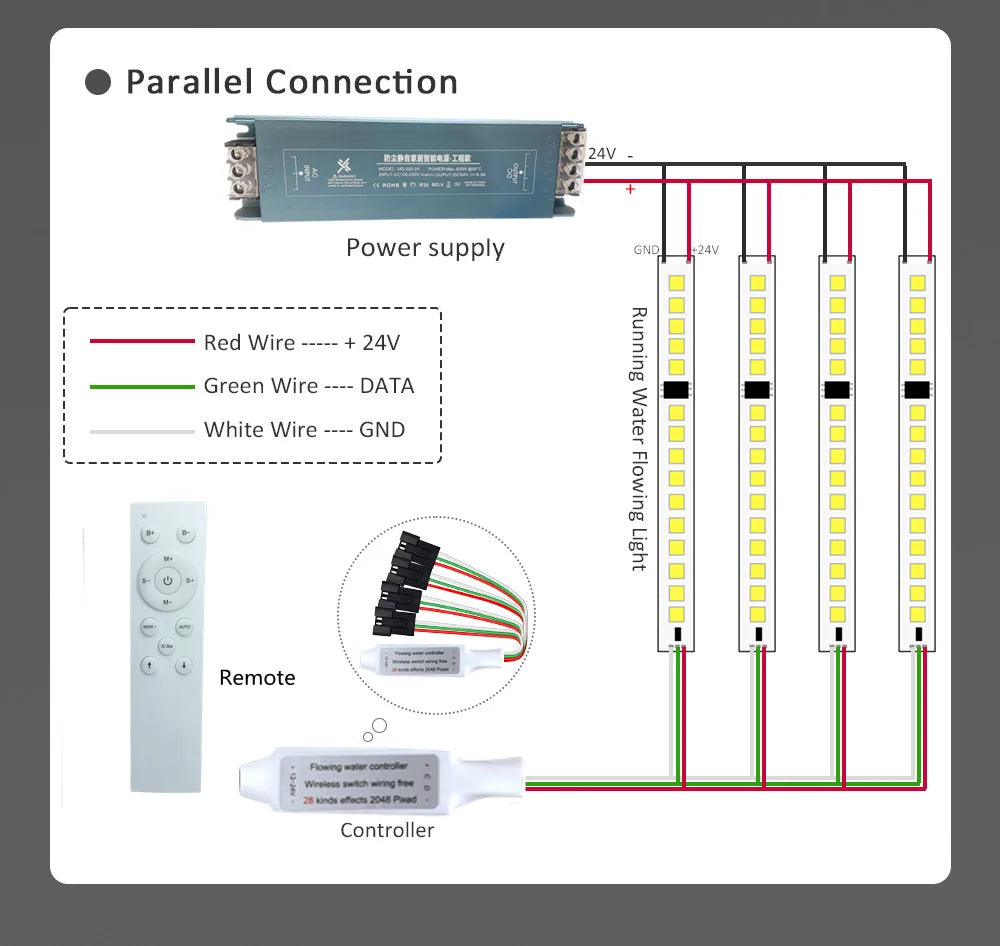

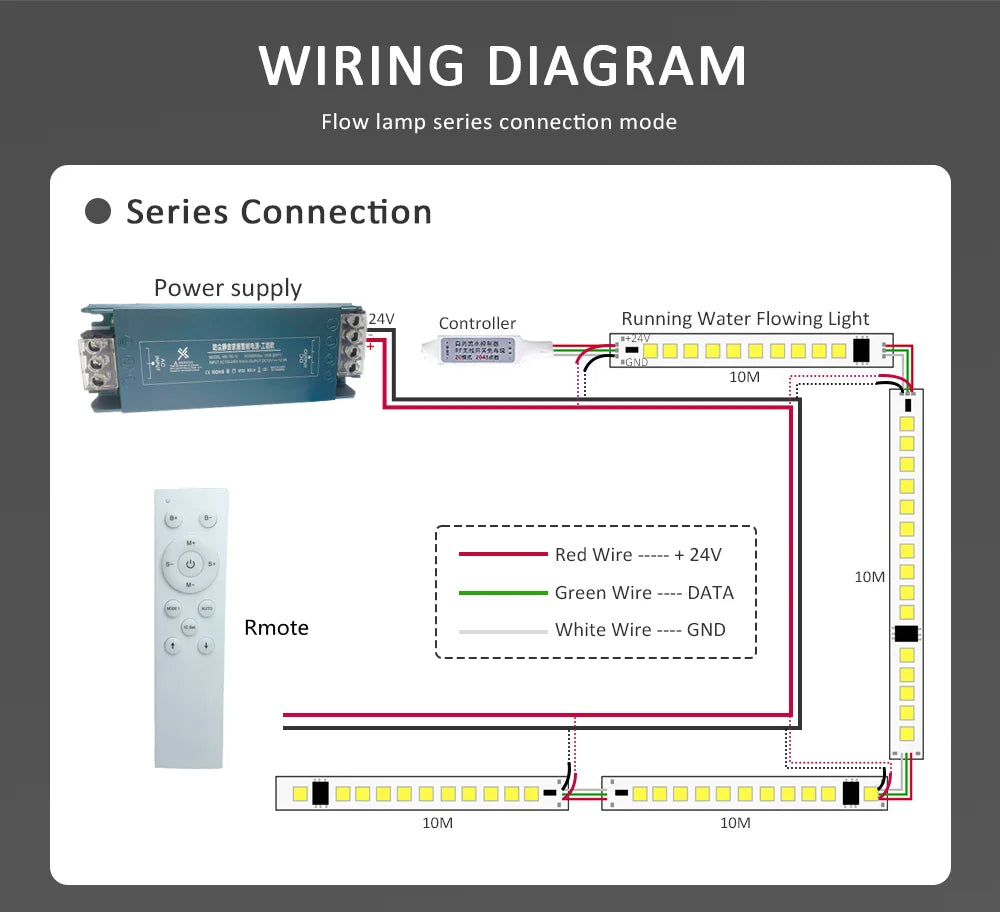

There is wiring diagram in the following of this page.

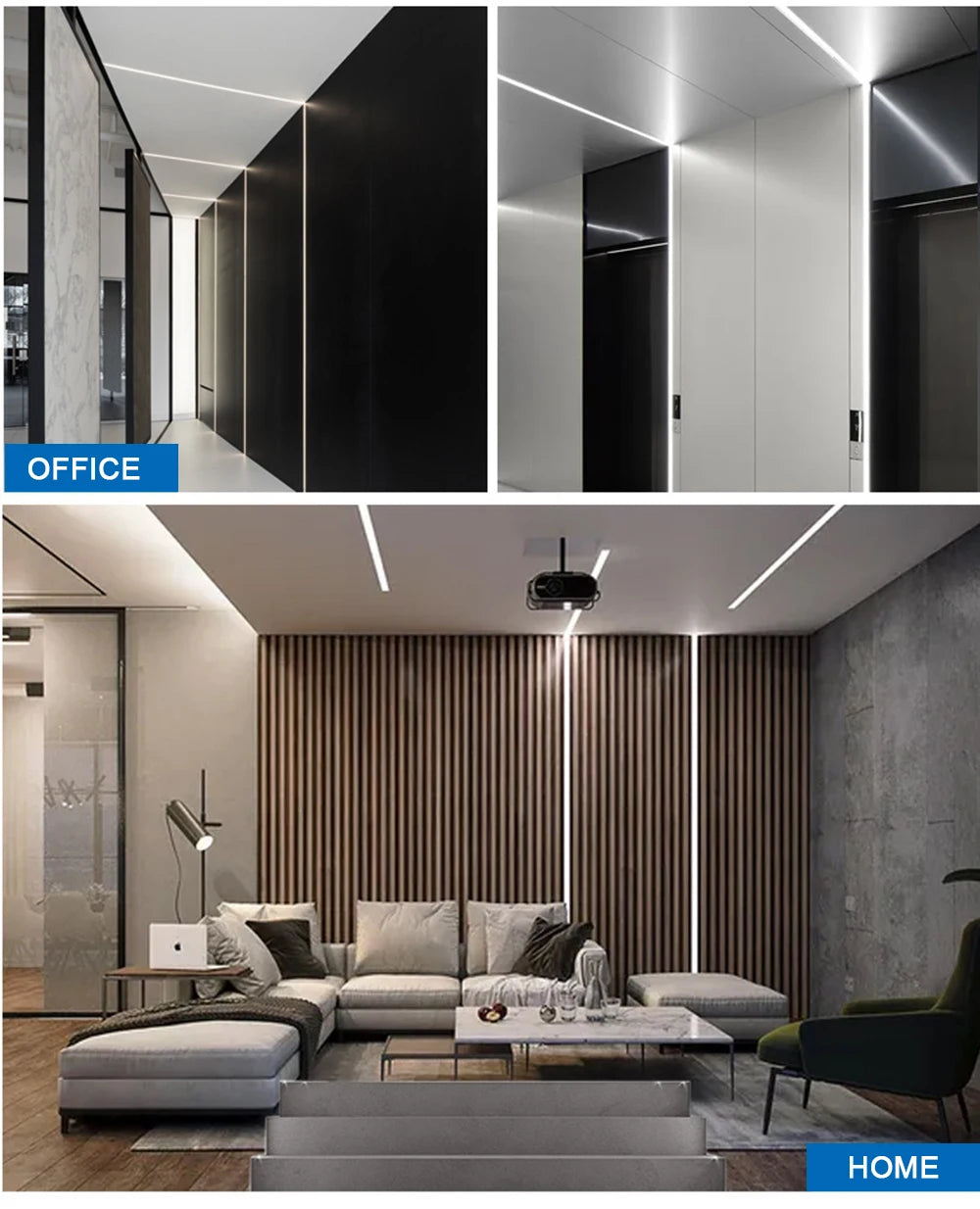

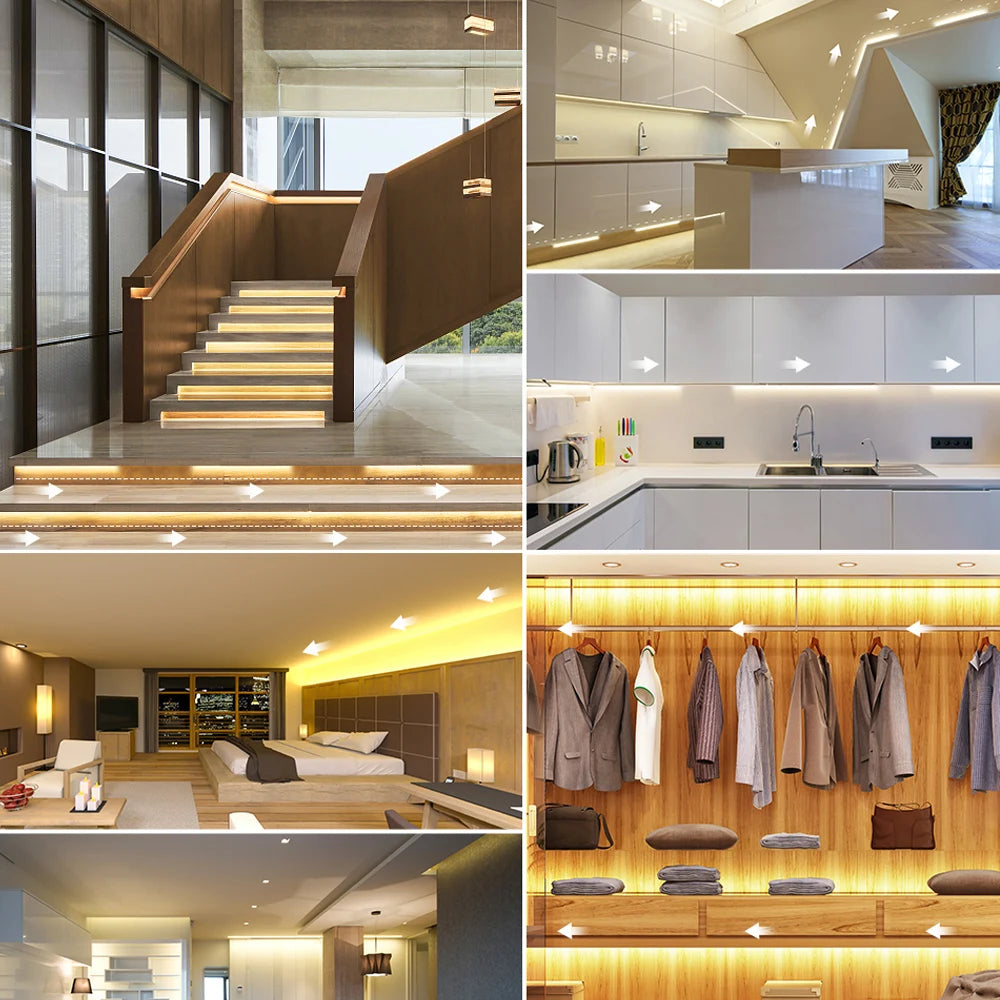

Application

Making led screen,Rooms Staris Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,the city lighting project, entertainment and leisure places lighting.

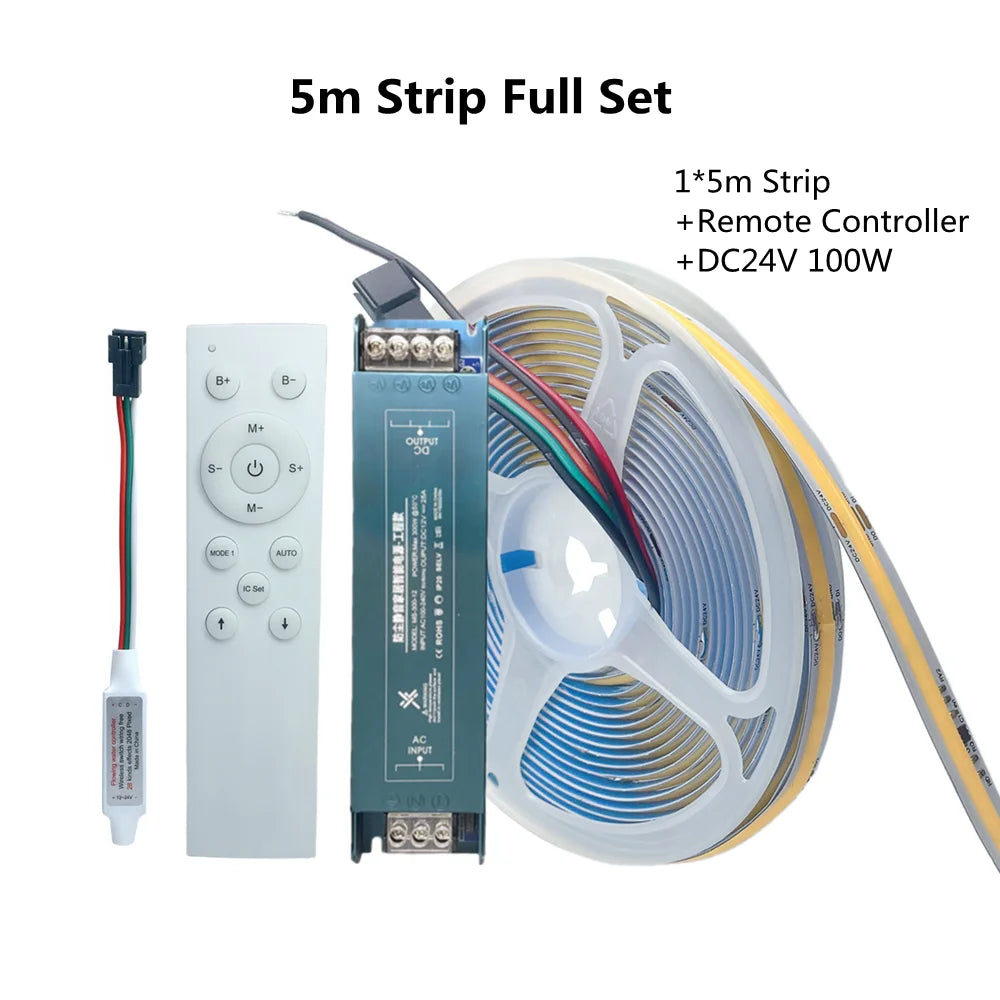

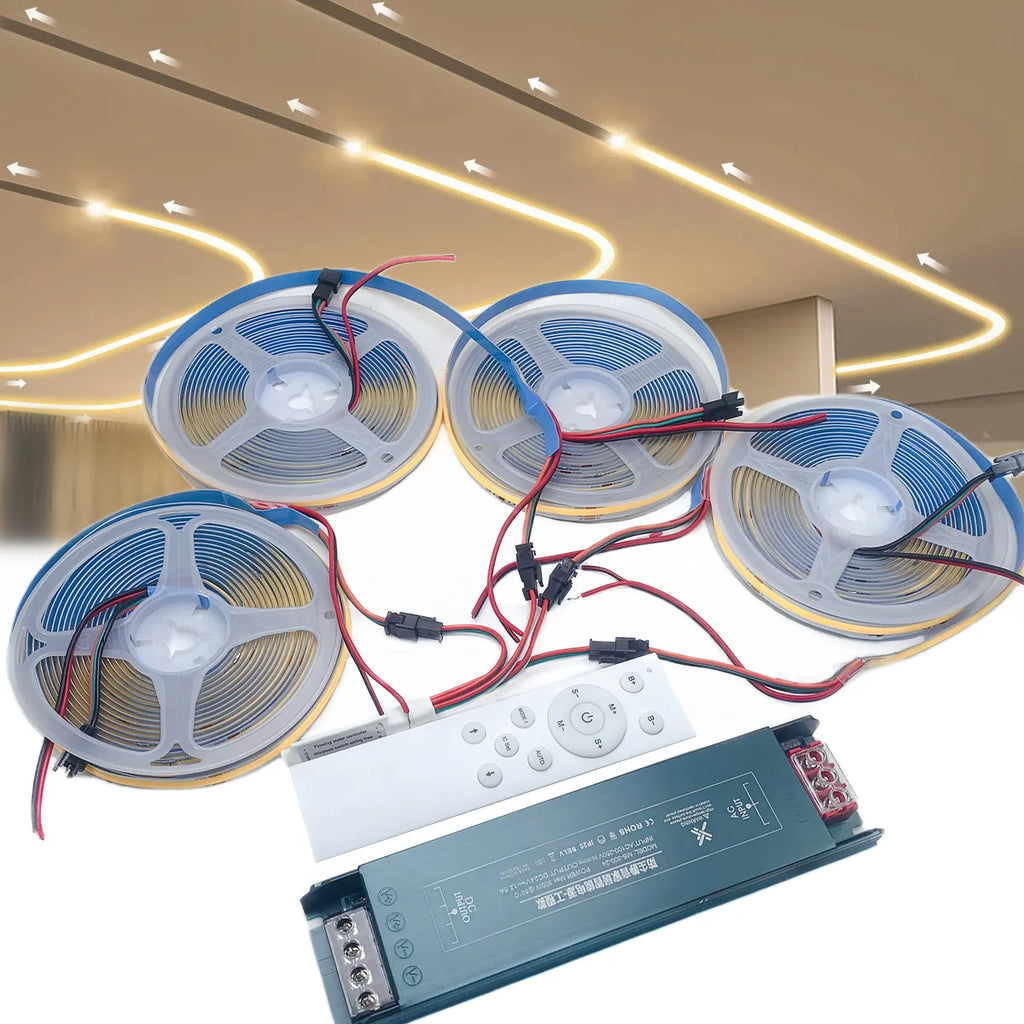

DC 24V Power Supply:

Input Voltage: 110V / 220V AC
Output Votage: 24V DC
Output Power: 100W/150W/200W/300W
Features: No Noise, Real power output, long life-span.

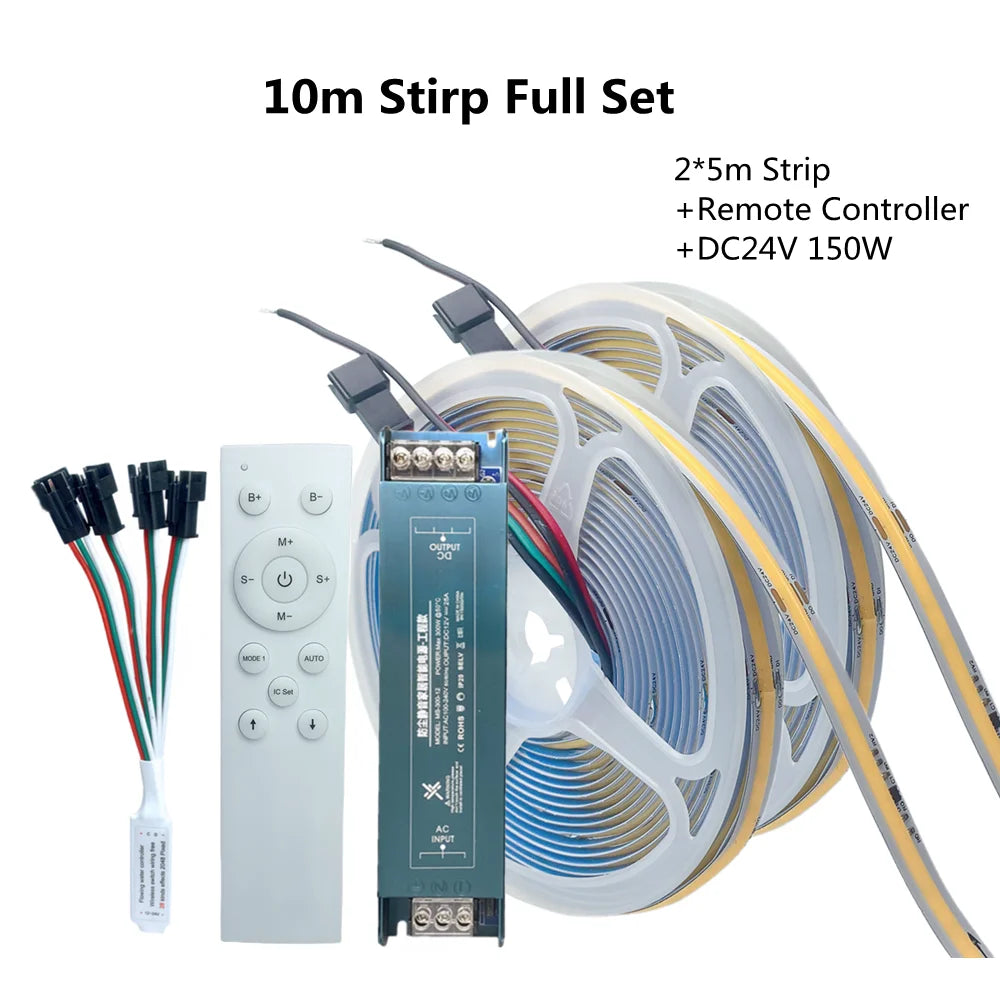

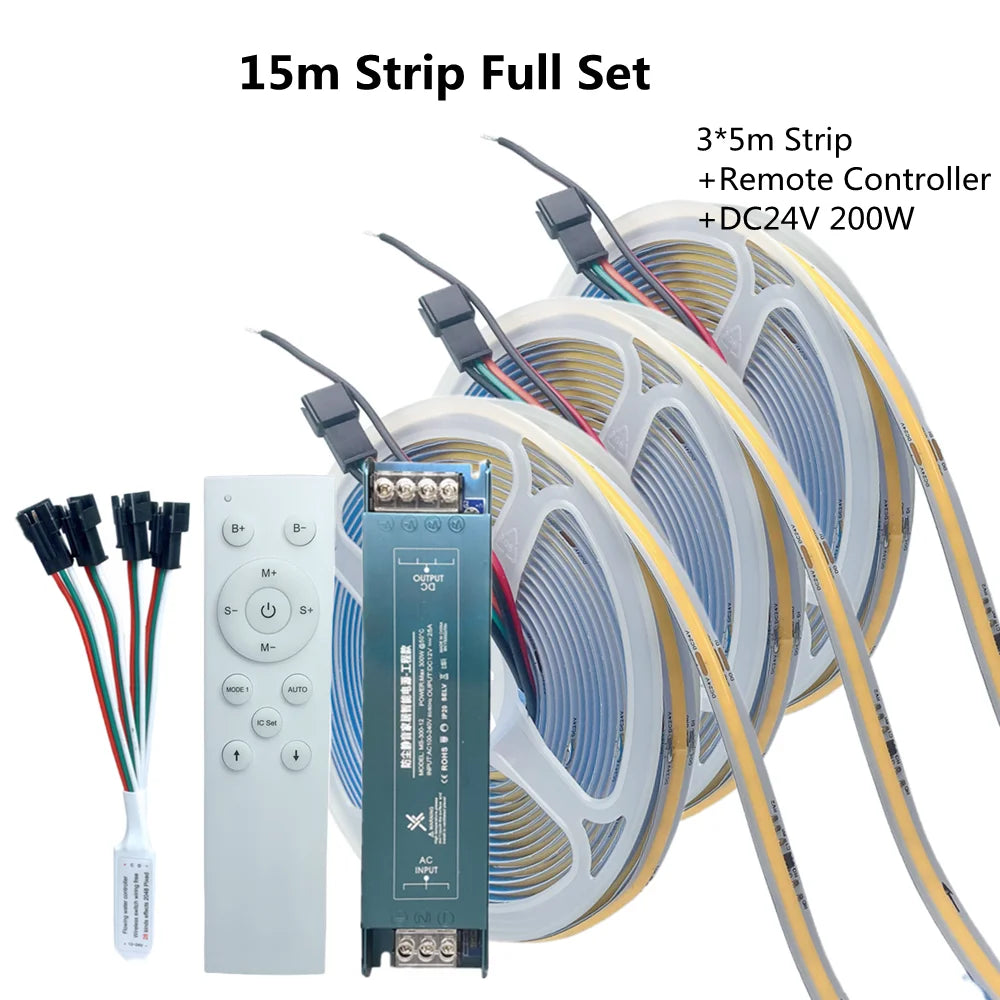

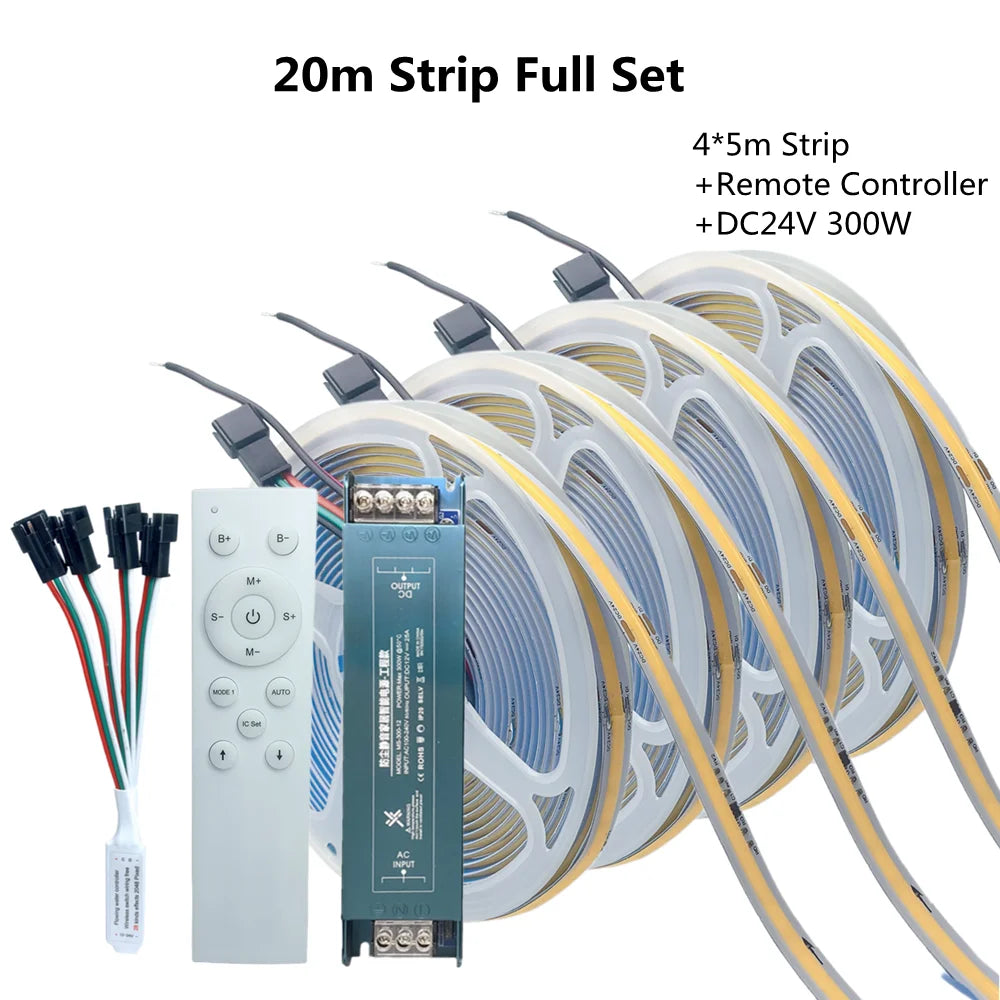

* Advise: 24V 100W power supply used for 5M, 24V 150W power supply used for 10M,24V 200W power supply used for 15m,24V 300W power supply used for 20m

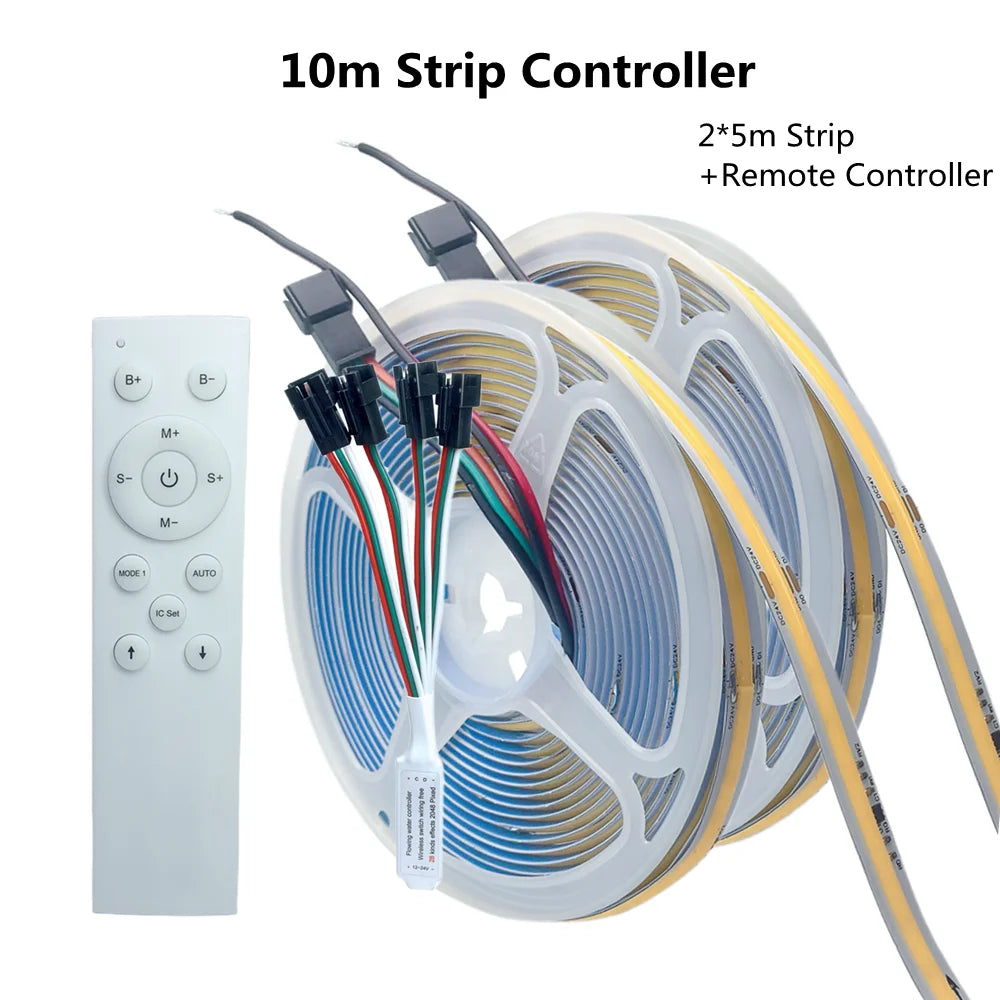

Horse Race Led Strip Controller:

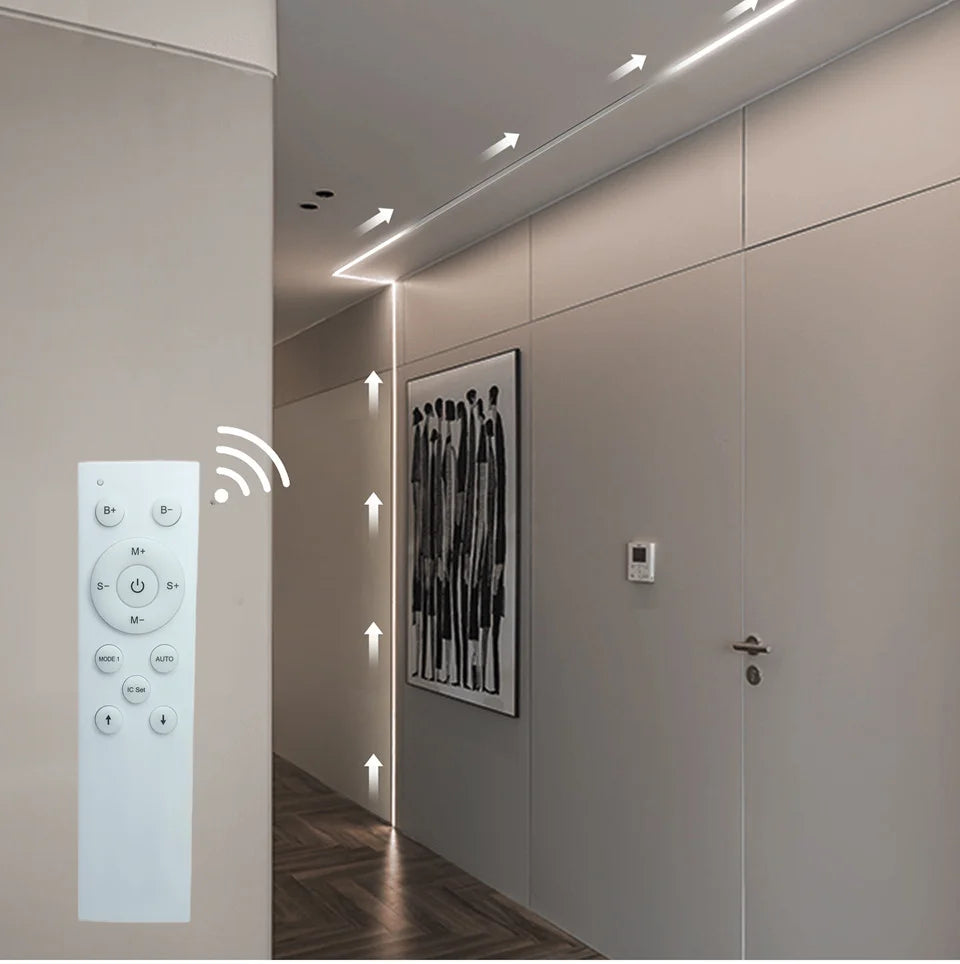

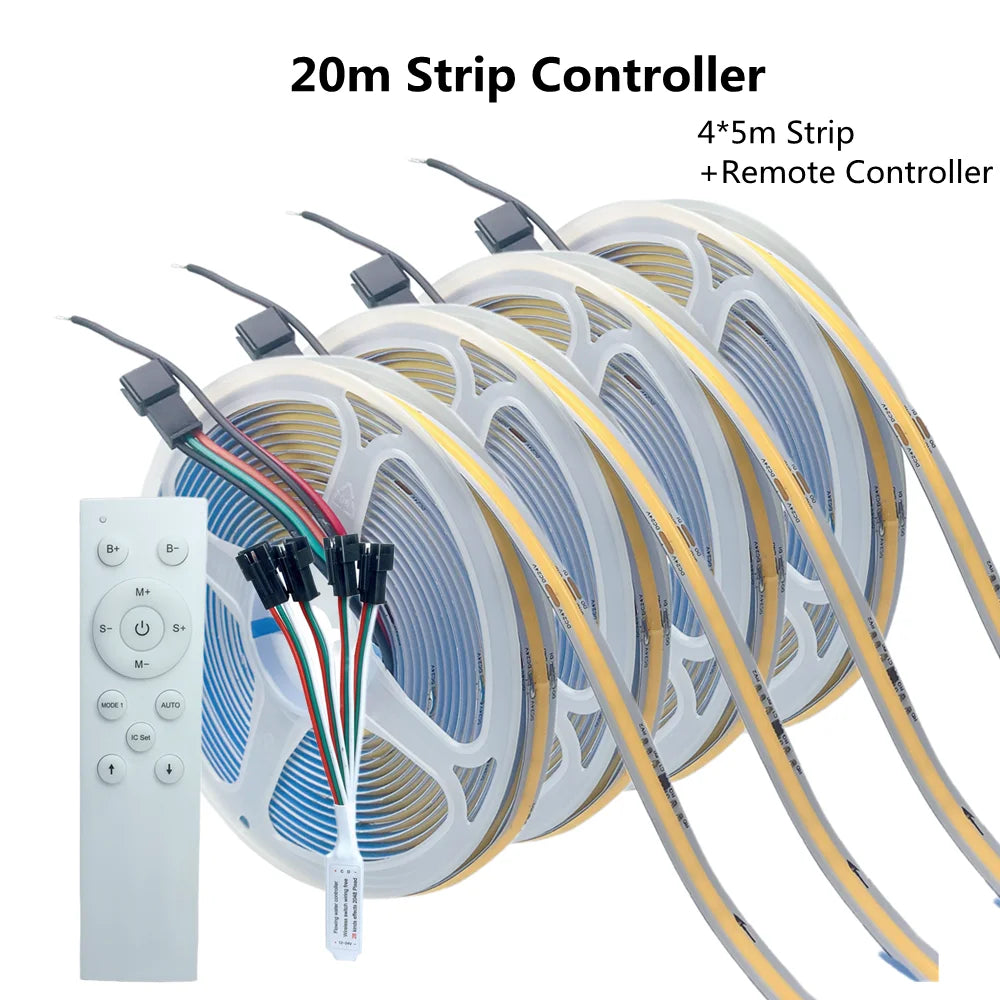

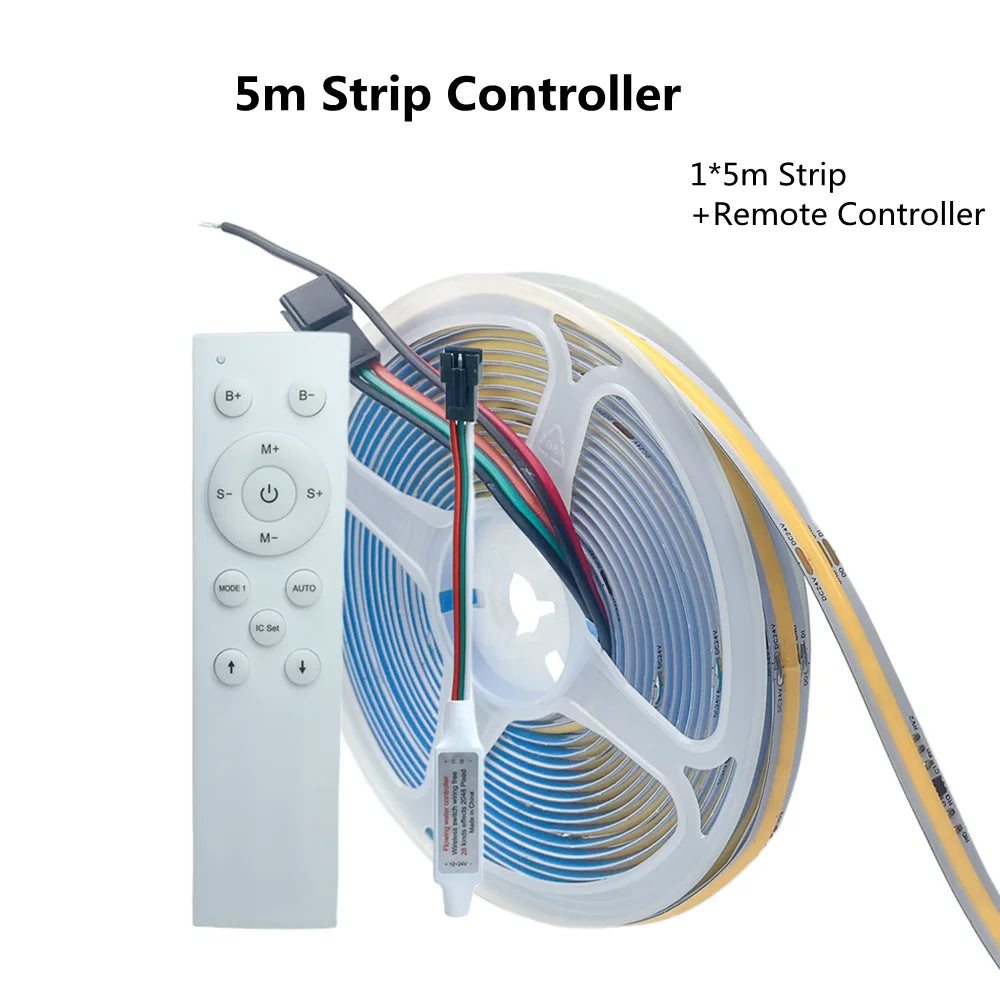

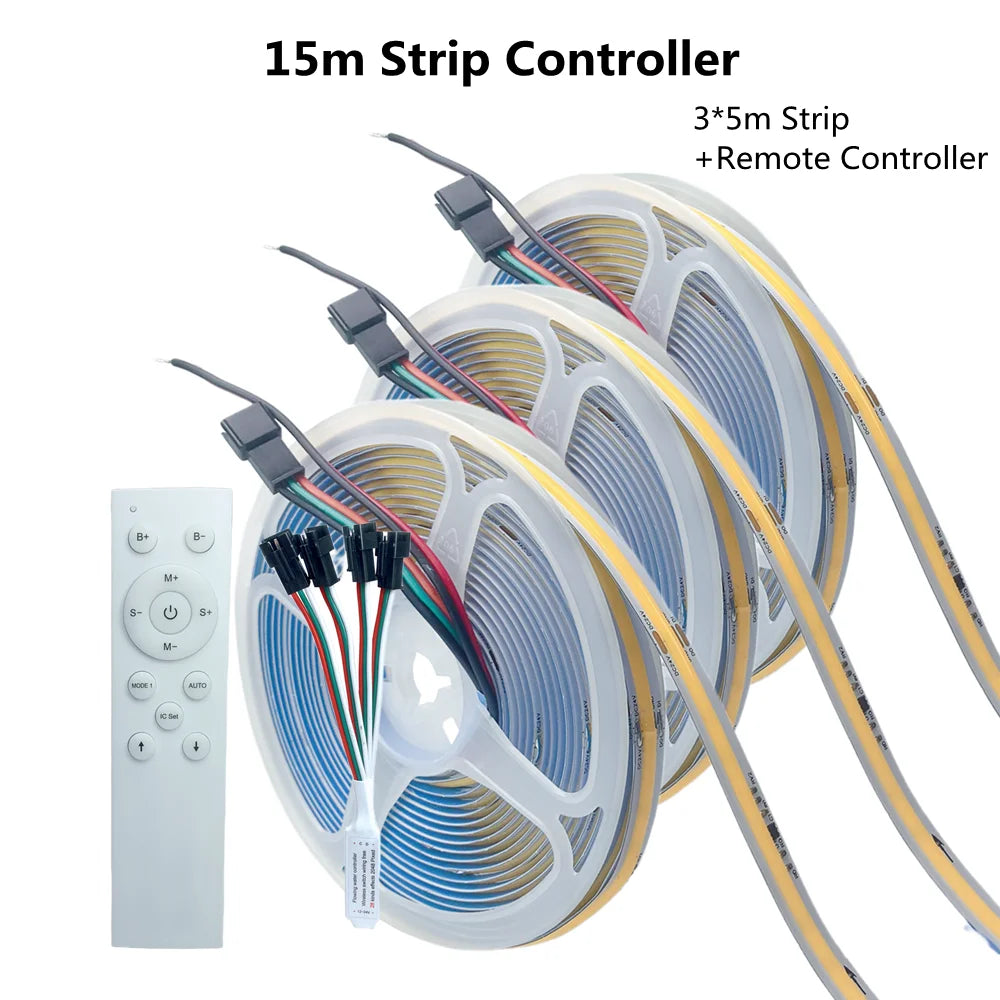

Remote Wireless Pixel Controller:

Product parameters:
* Working voltage: DC 12-24V
* Number of points controlled : the maximum can control 2048 pixels
* Remote control distance: 15 meters(with 86 box base)
* Battery model: AAA buttn battery (battery is not included )

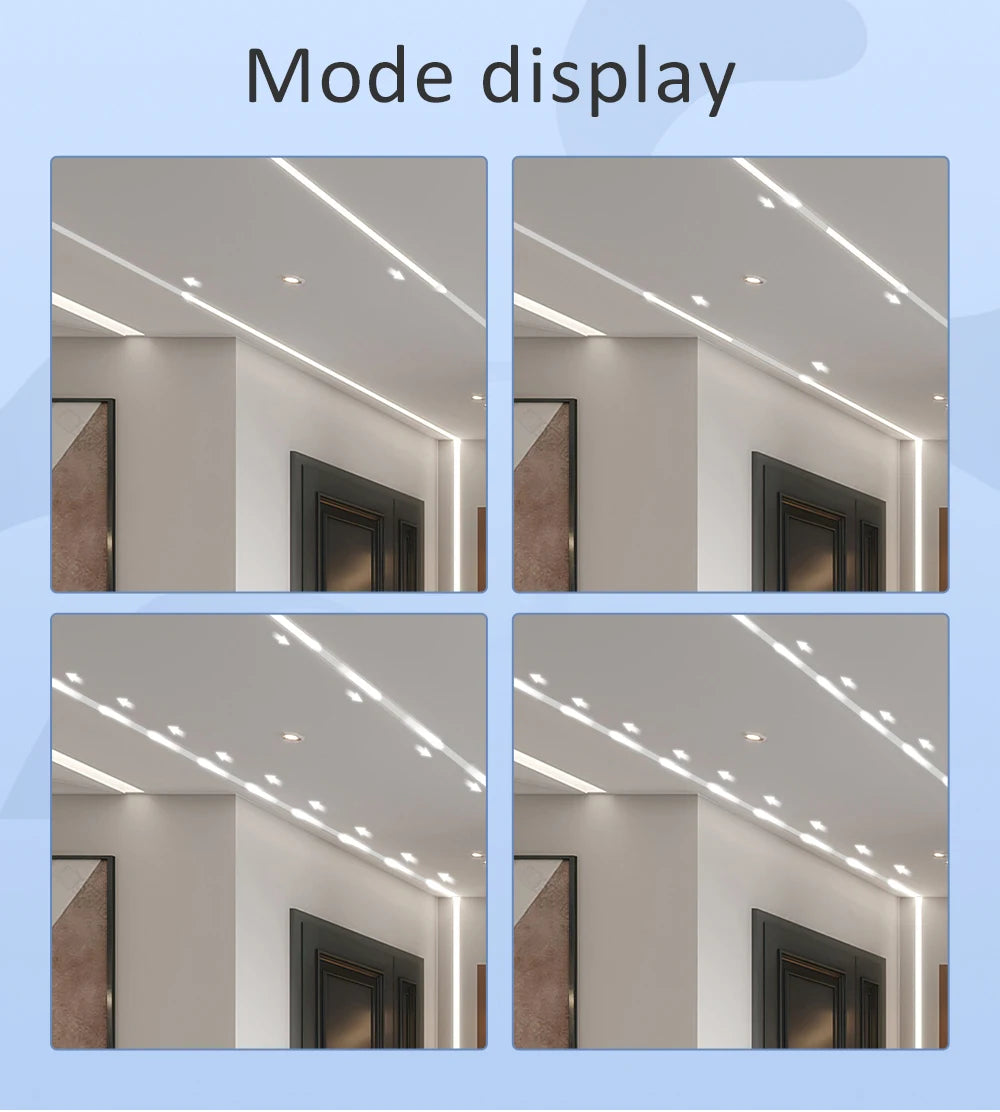

* Effect mode: 28 kinds(each mode has lights on and water flow,lights off and backflow)

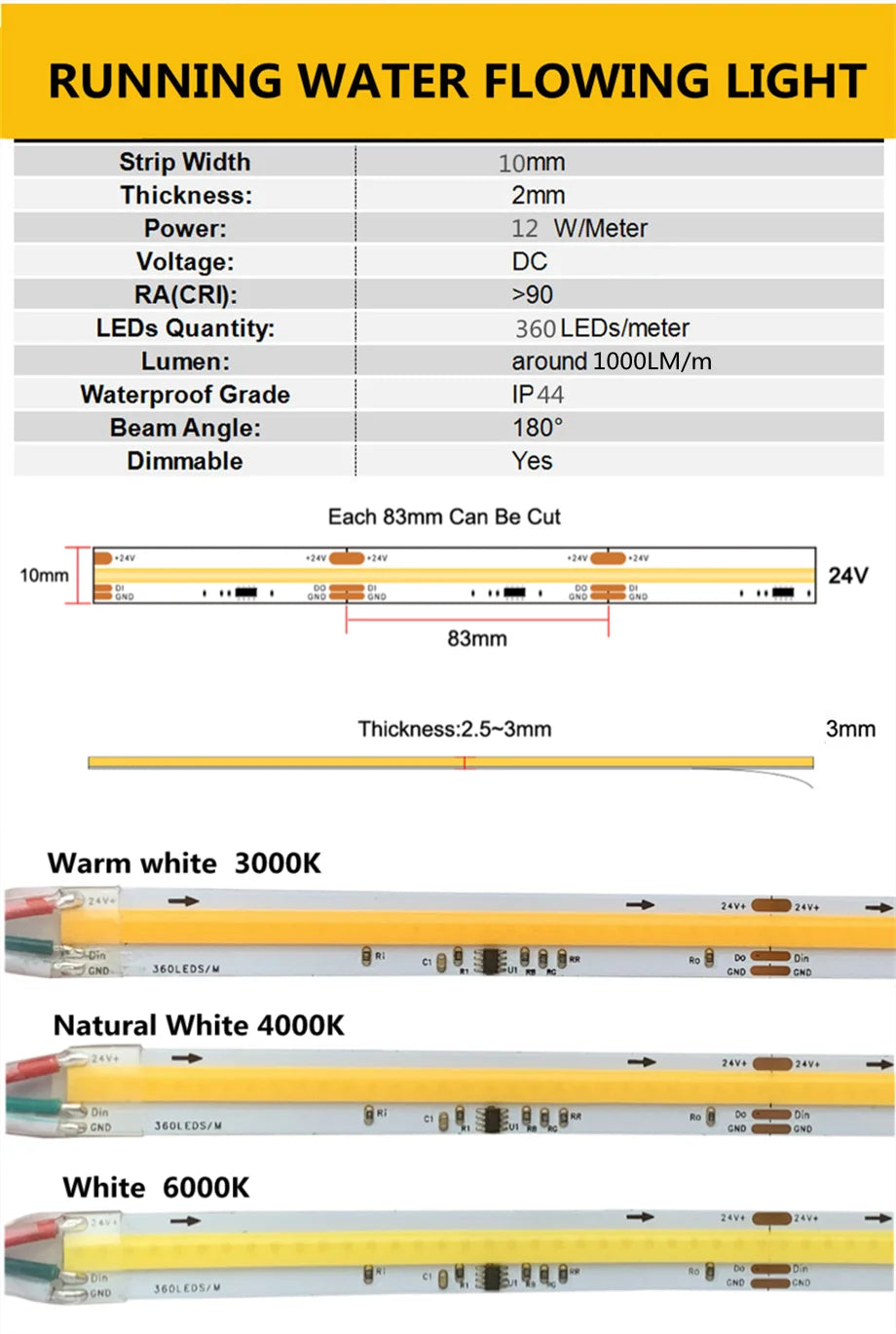

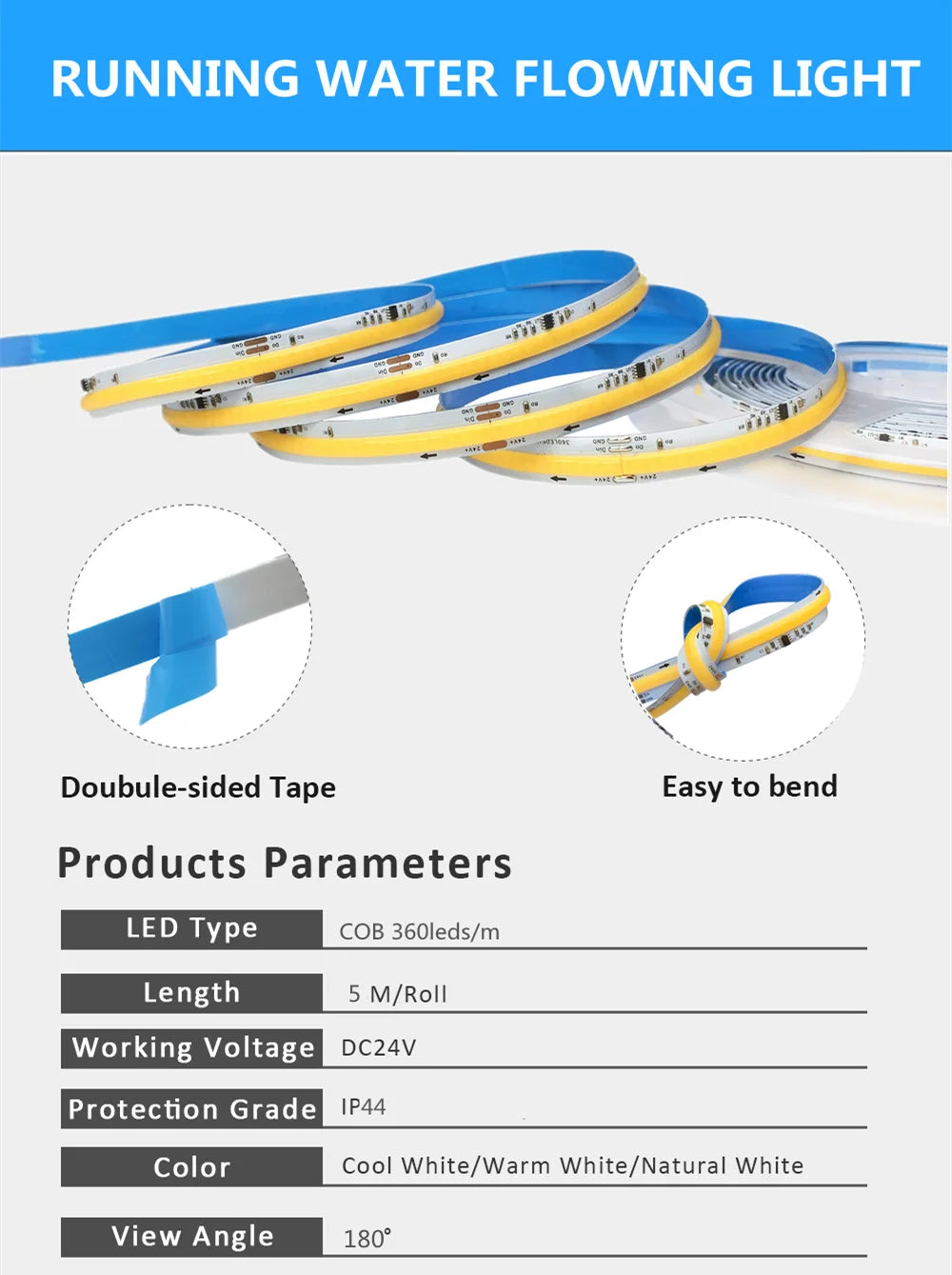

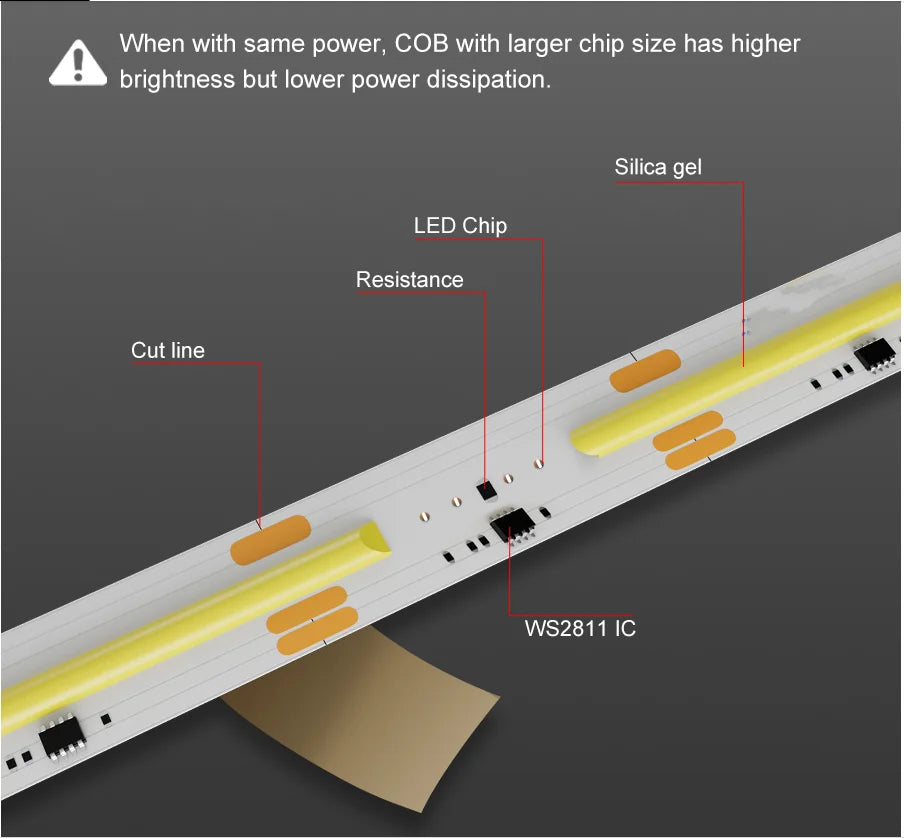

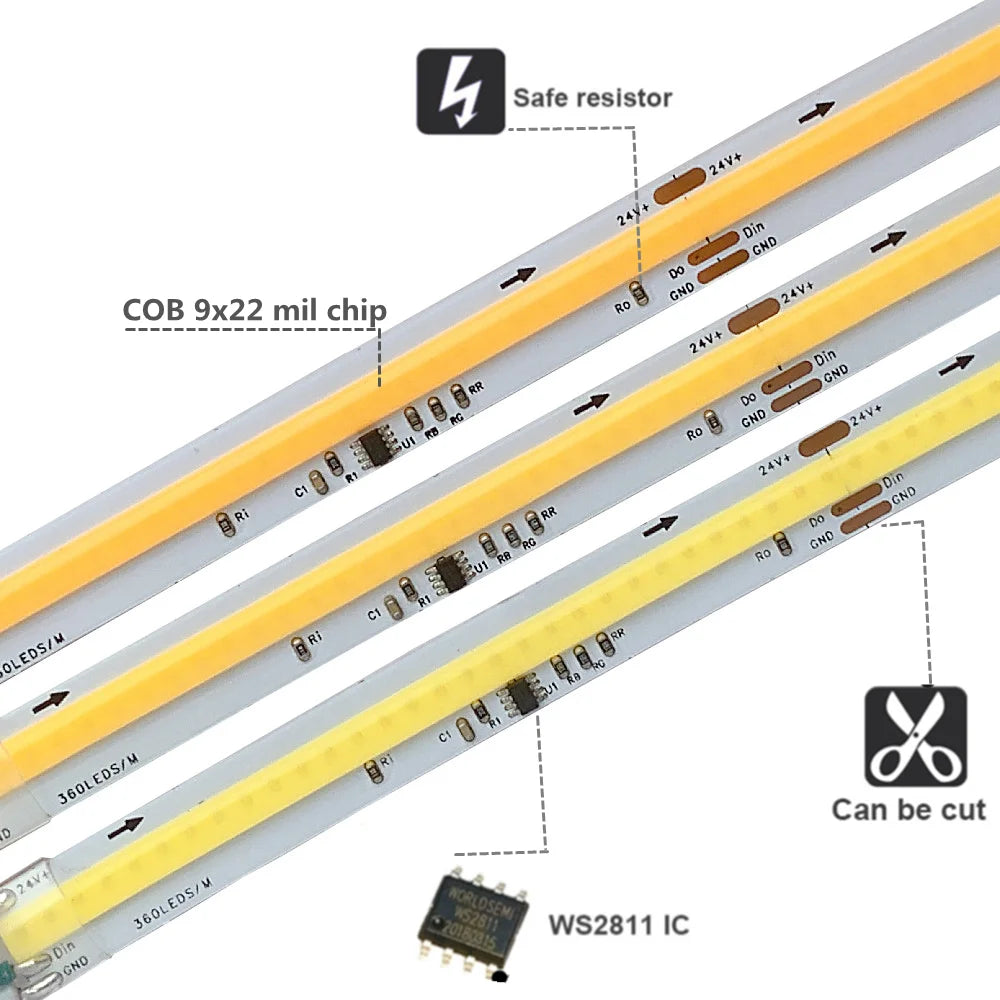

LED Type: COB LED Diodes
LED Qty: 360LEDs/M
PCB width:10mm
Max Power: 12W/M
Working Voltage: DC 24V

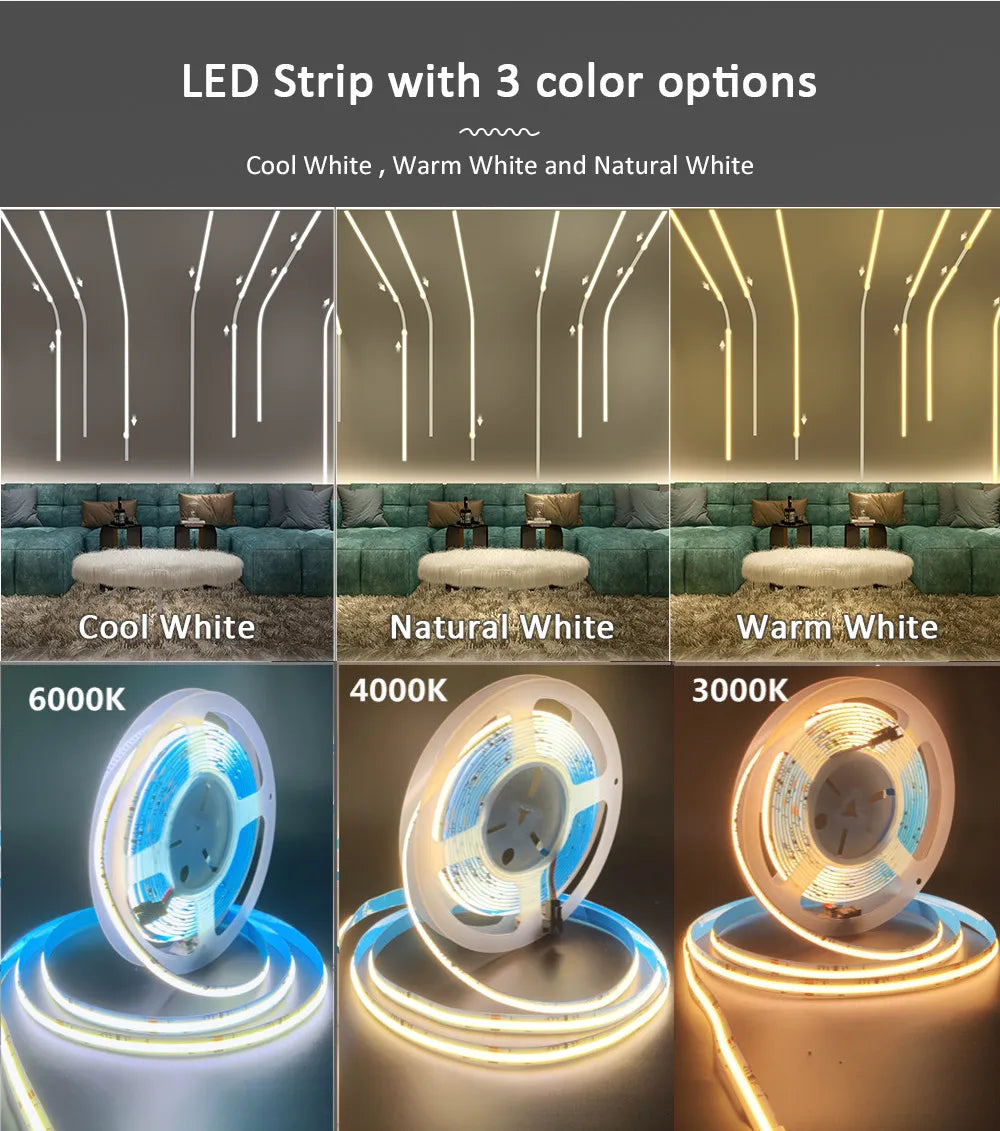

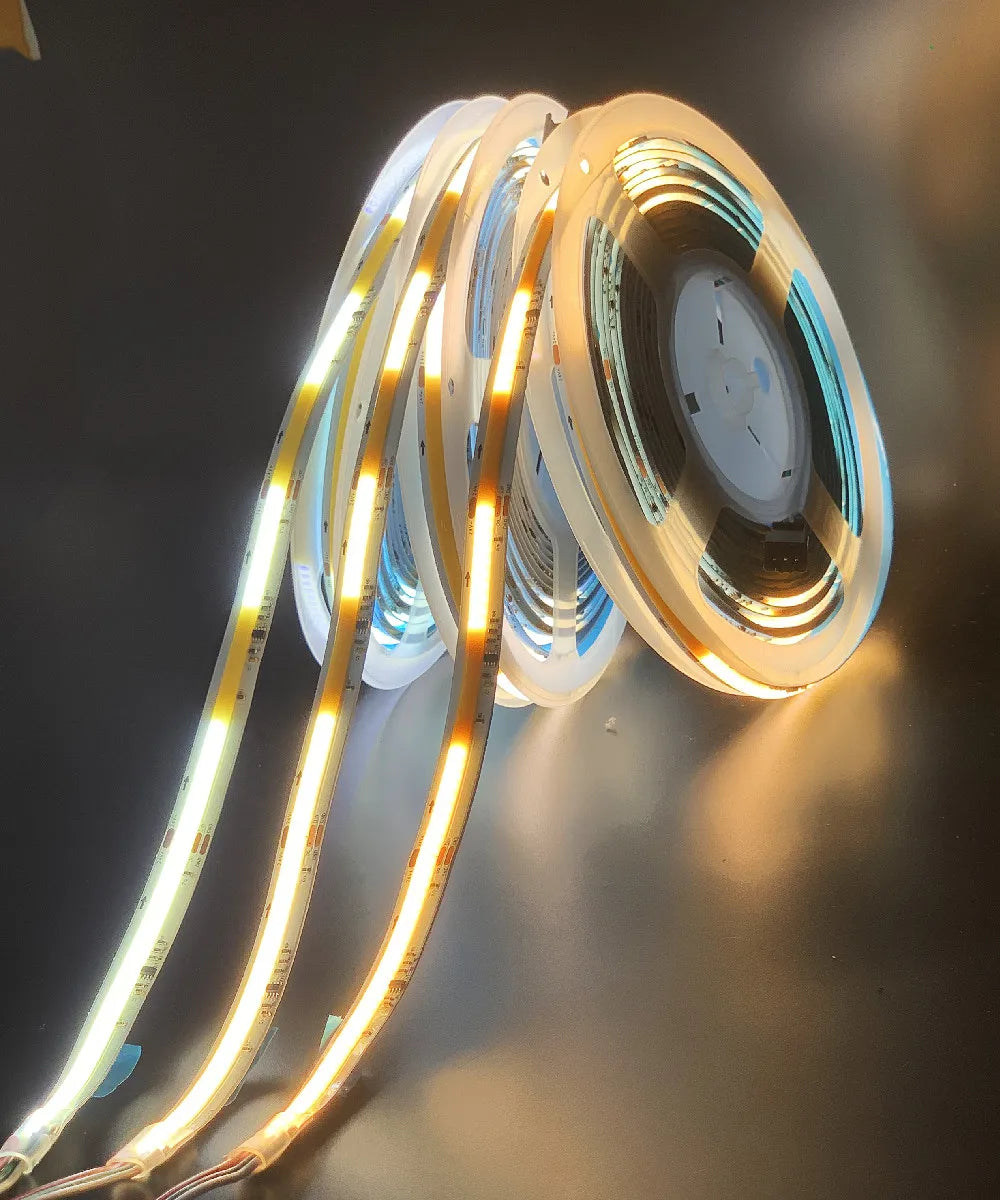

Color: Cool White / Warm White / Natural White

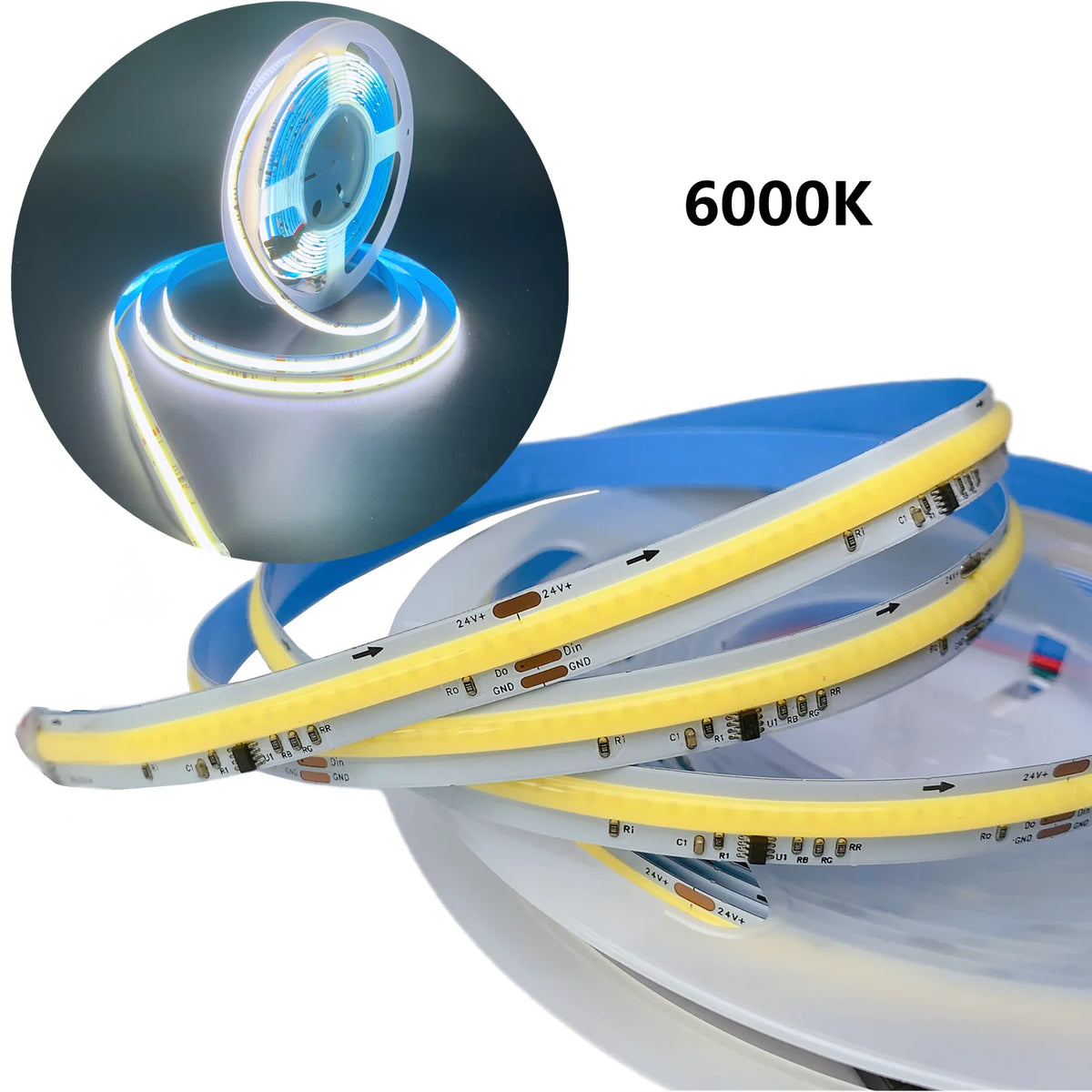

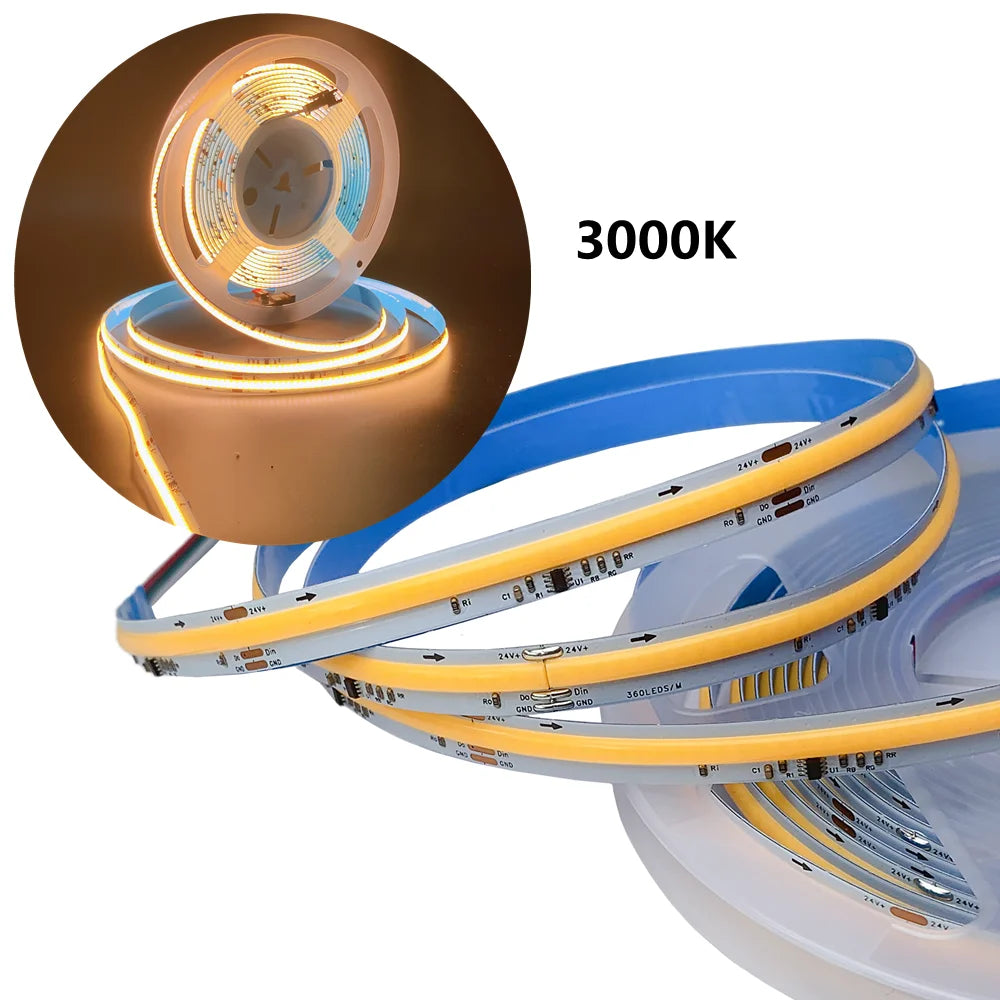

Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K
IP Rate: IP44 waterproof
Connector: 3 Pin Male & Female Connector

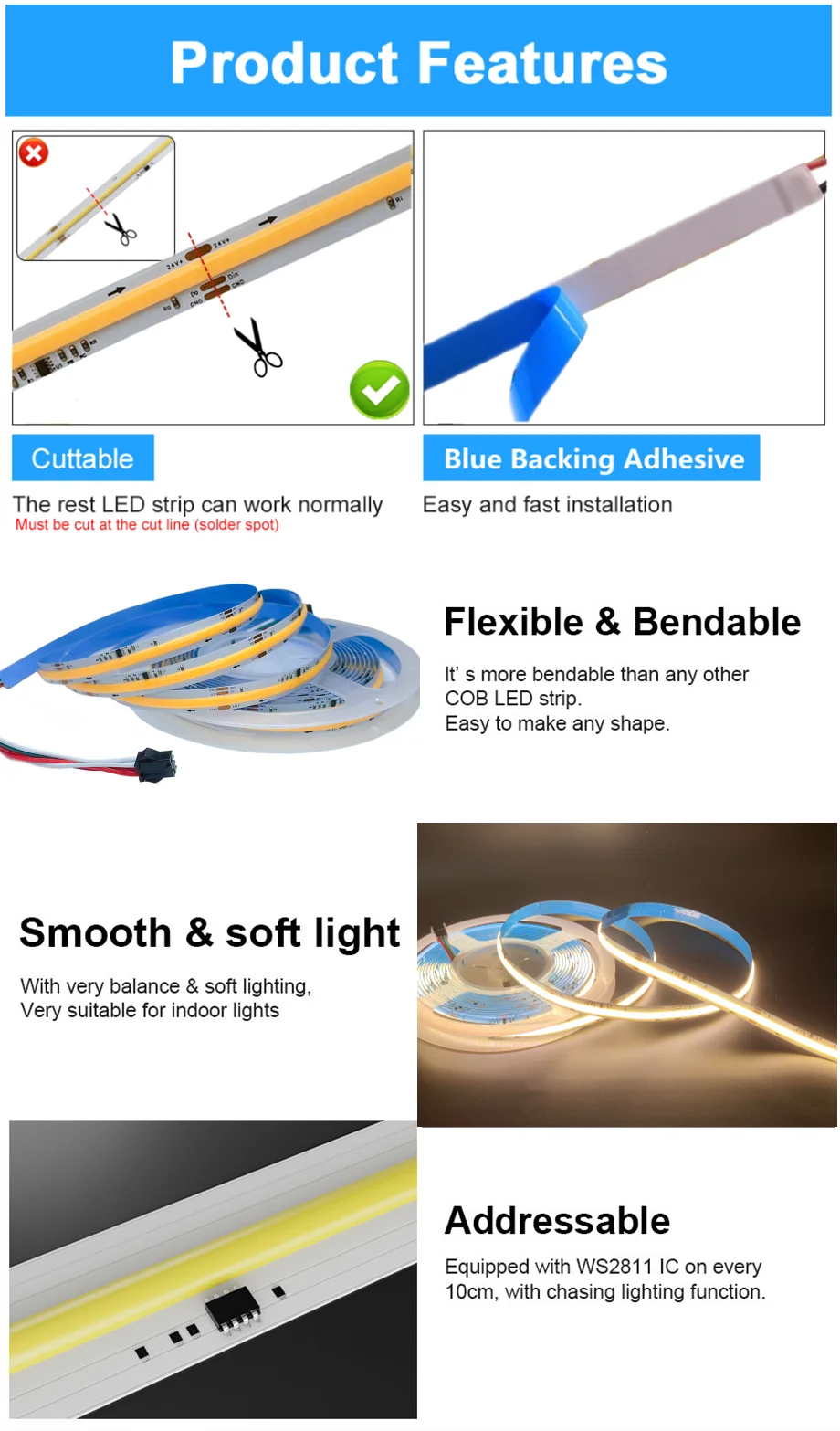

IC Qty:12pcs IC per meters, 60pcs IC for 5M

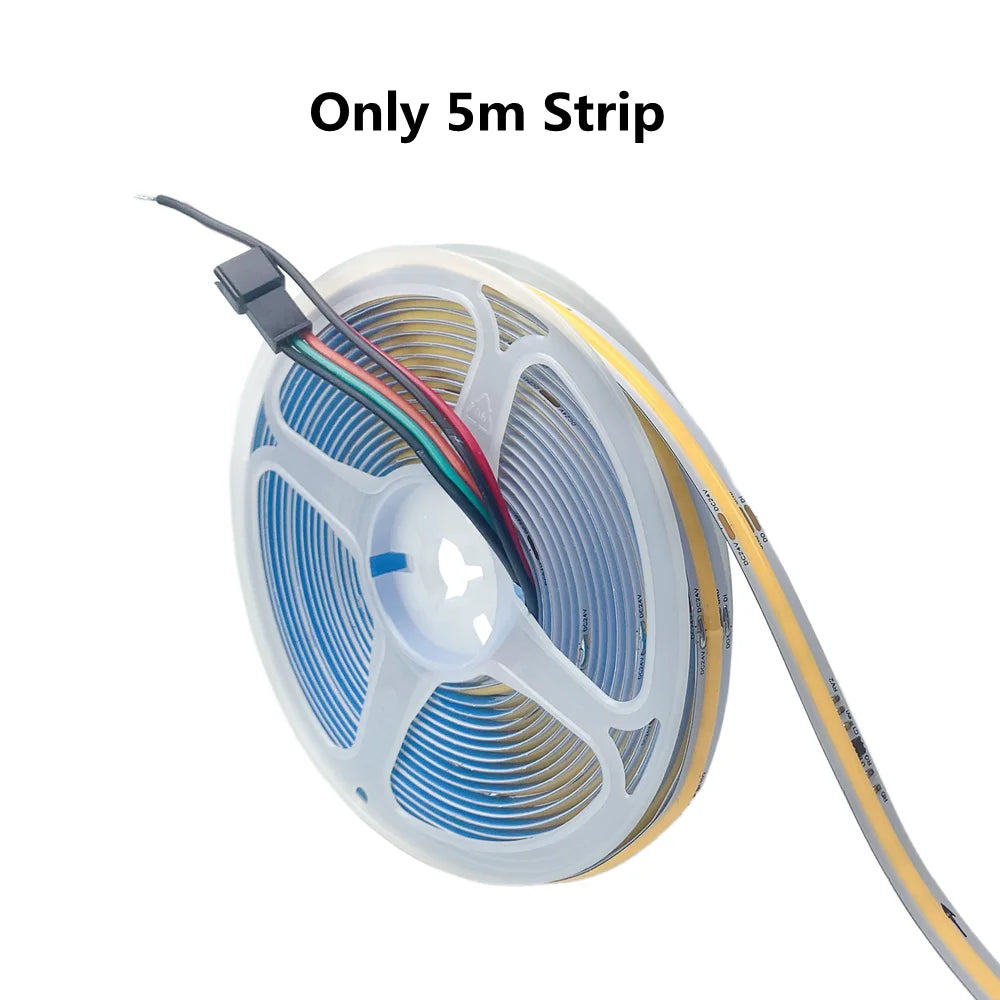

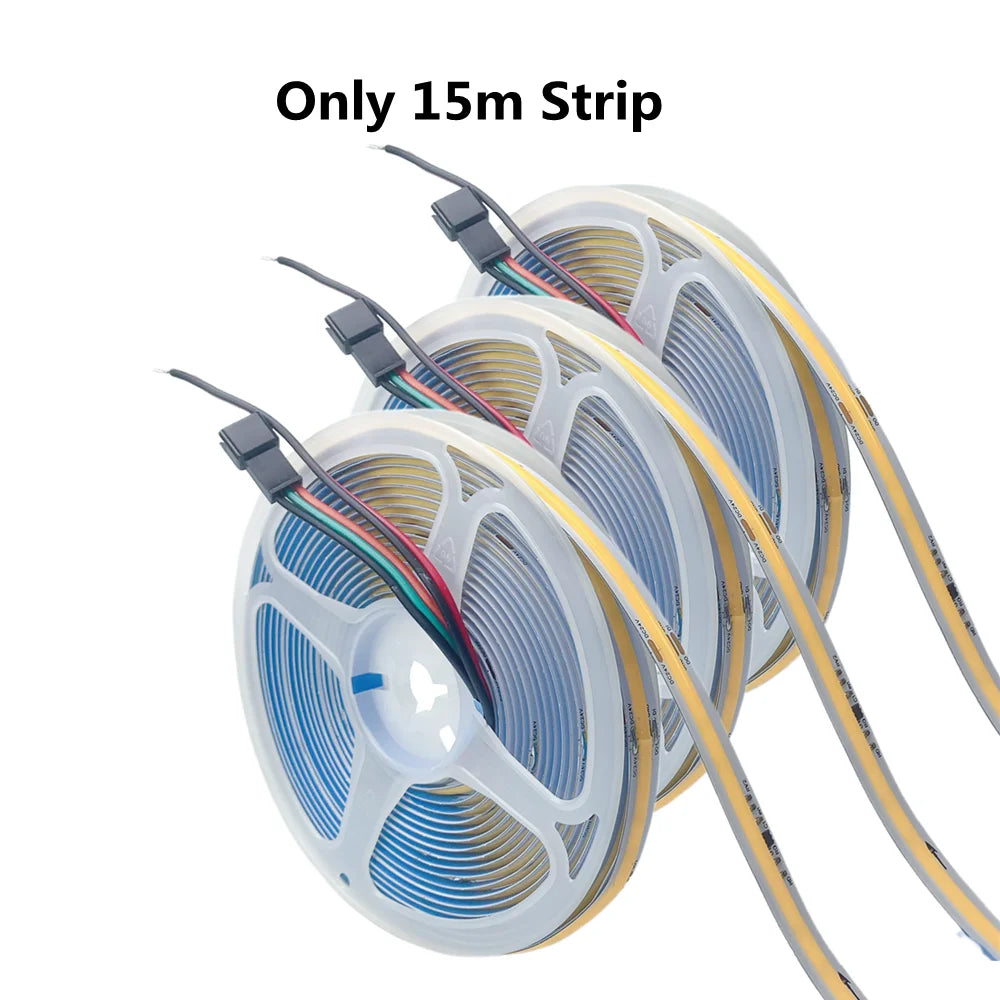

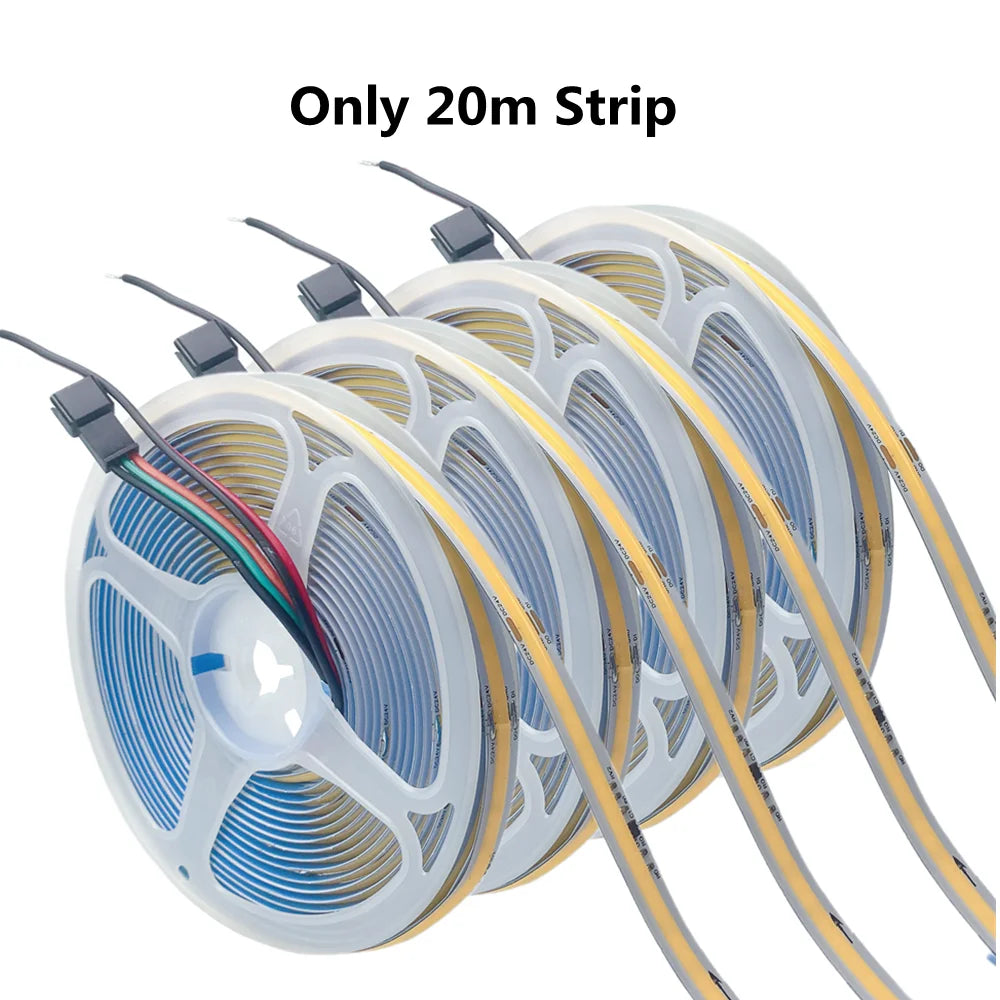

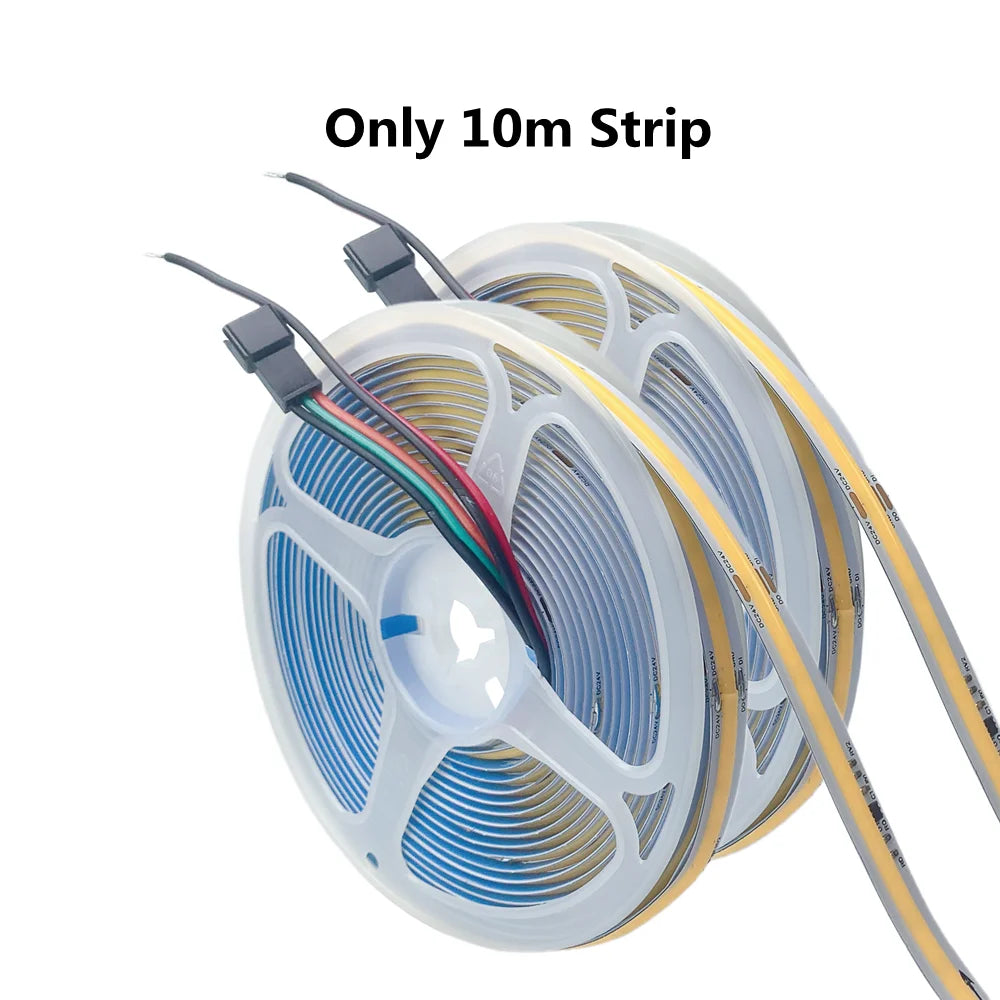

Package: 5M/Roll
