SPECIFICATIONS

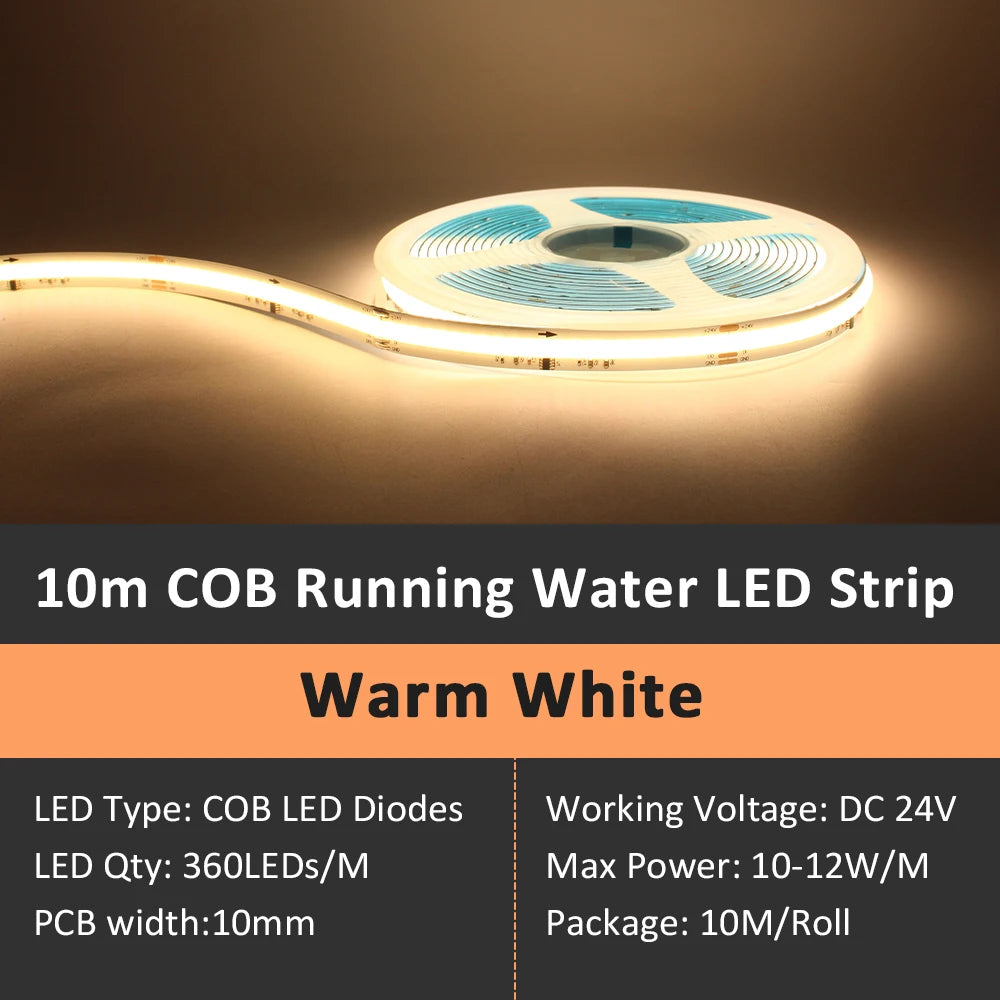

COB Running water LED strip:

Product Name: 16703 IC COB Horse Race Led Strip

LED Type: COB LED Diodes

LED Qty: 576LEDs/M

PCB width:10mm

Max Power: 10W/M (Warm White),10W/M(Cool White),10W/M(Natural White)

Working Voltage: DC 24V

Color: CCT (Warm White to Natural White to Cool White adjustale)

Color Temperature: 2700-6500K

IP Rate: IP20 Non-waterproof

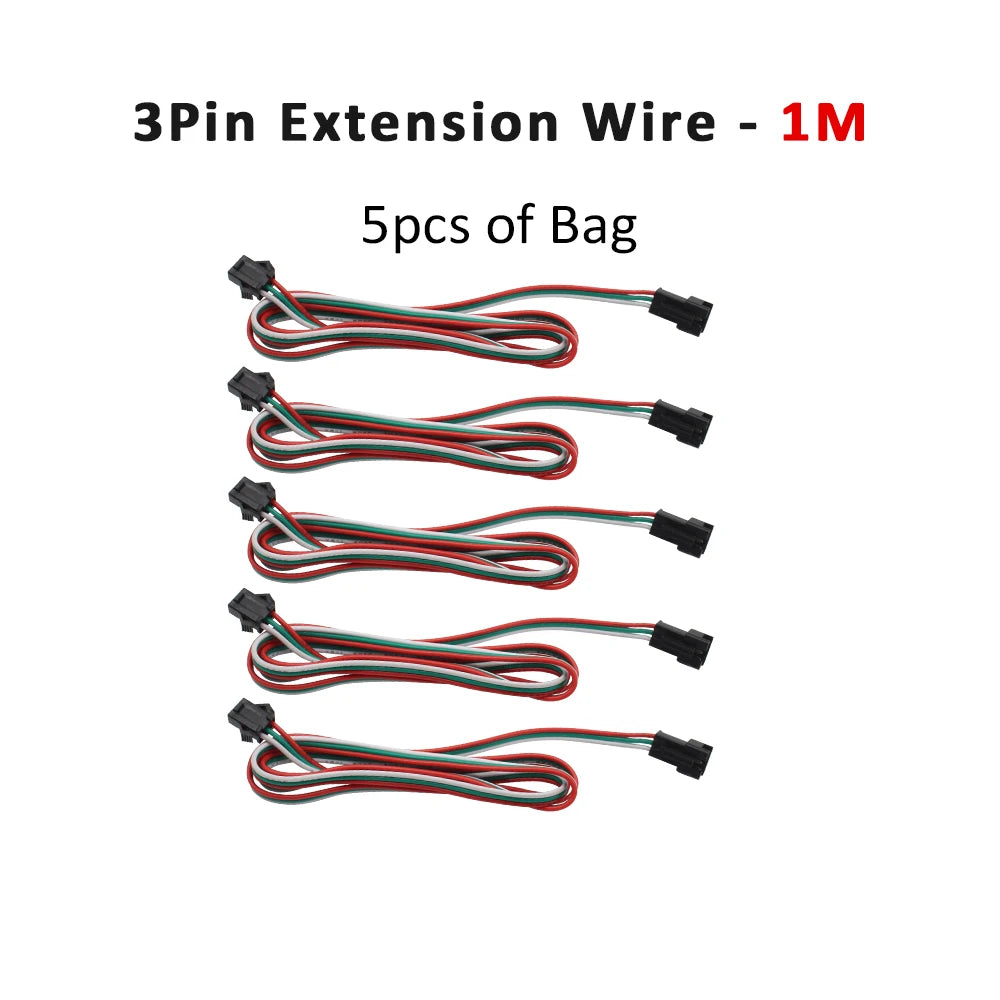

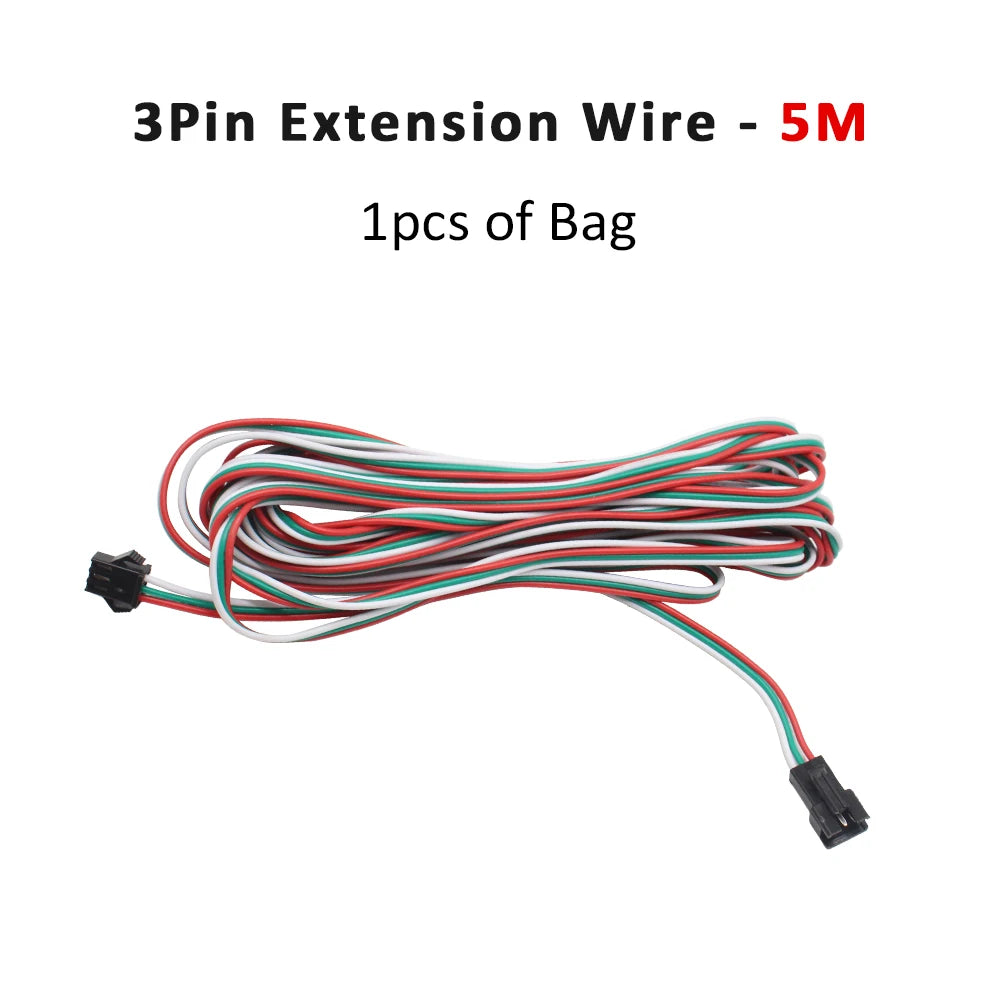

Connector: 3 Pin Male & Female Connector

IC Qty:12pcs IC per meters, 60pcs IC for 5M

Package: 5M/Roll

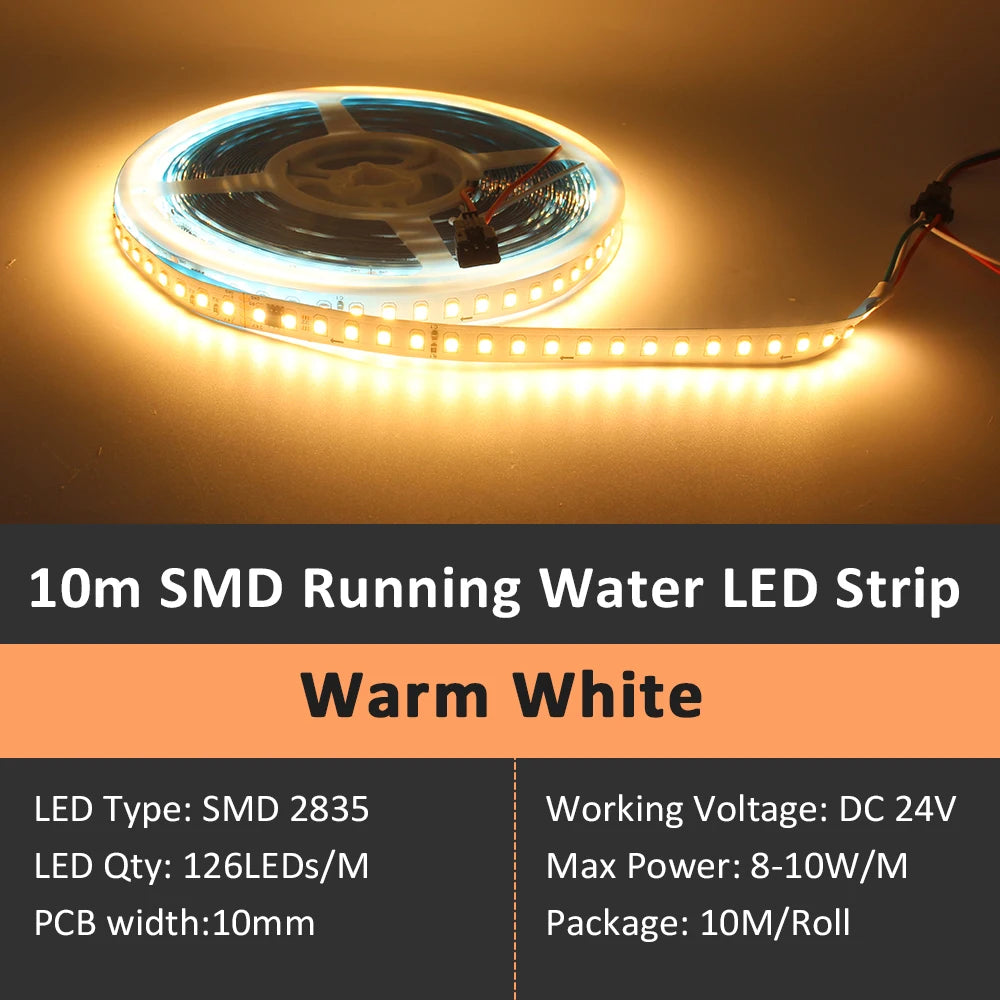

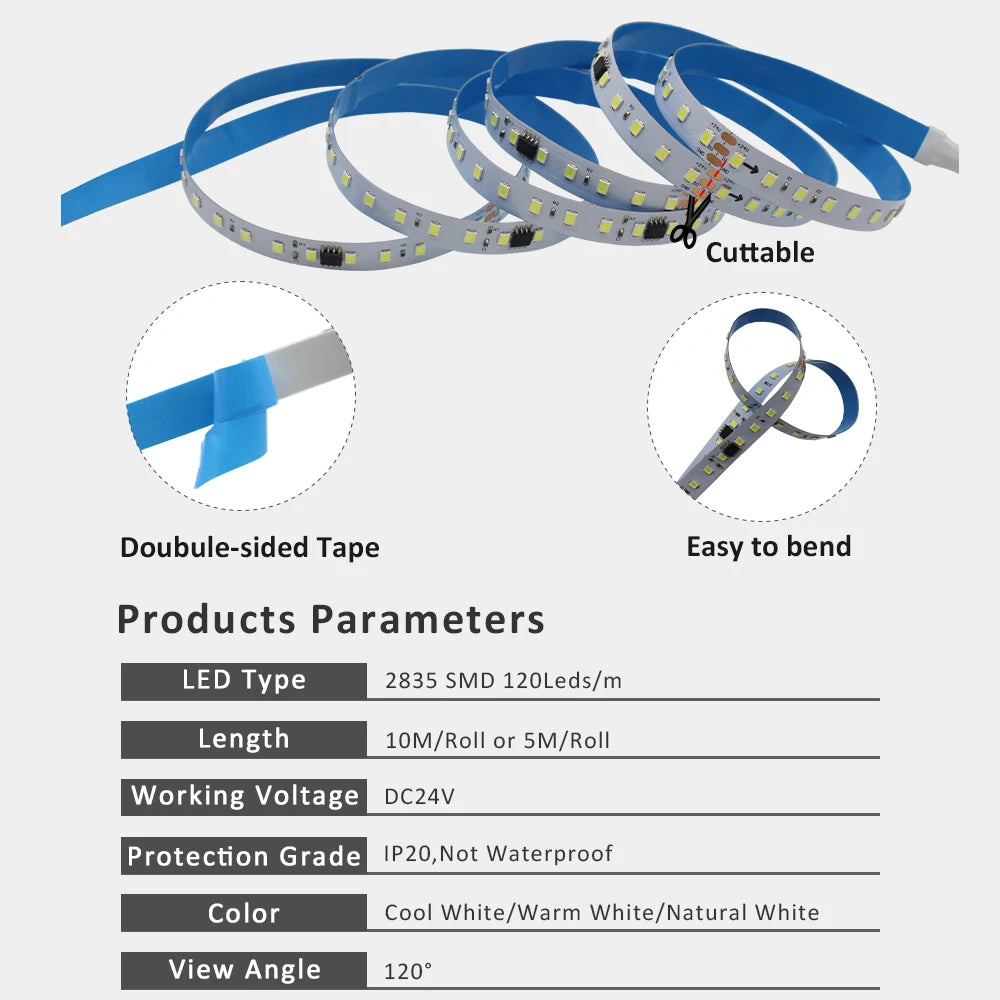

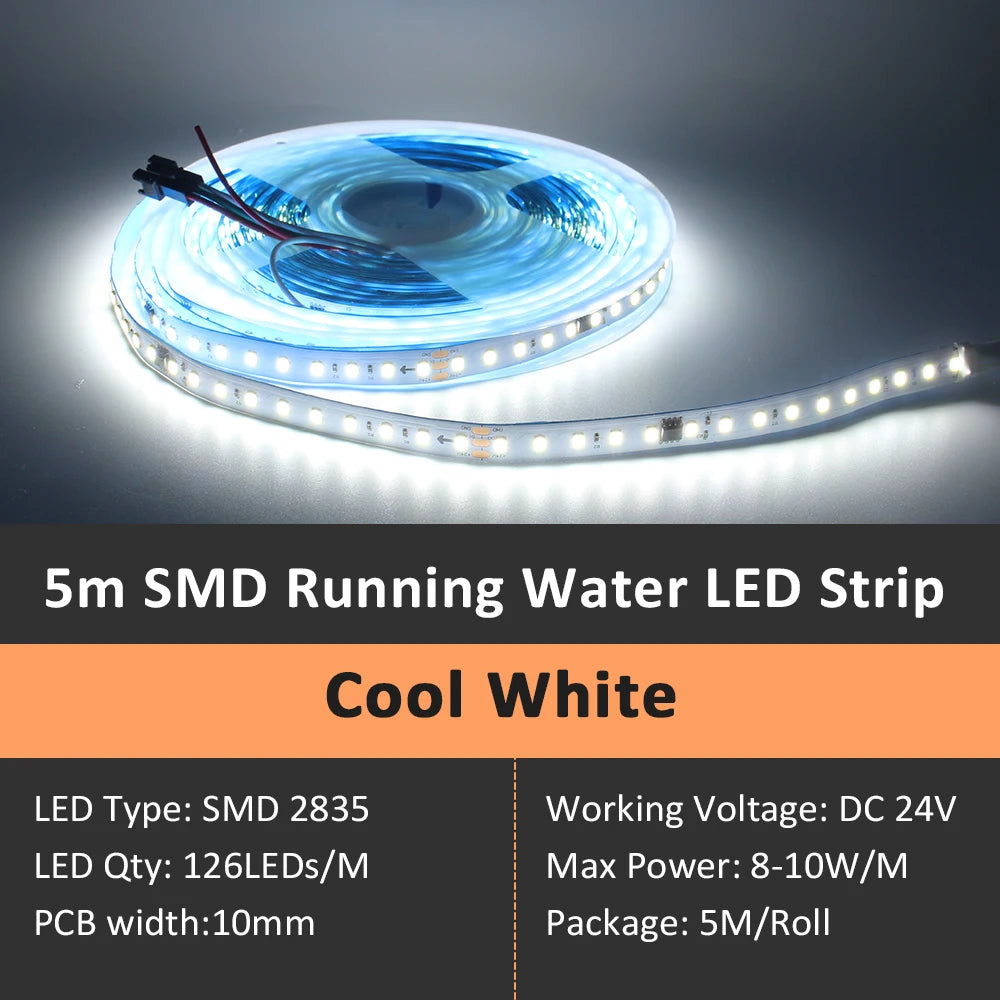

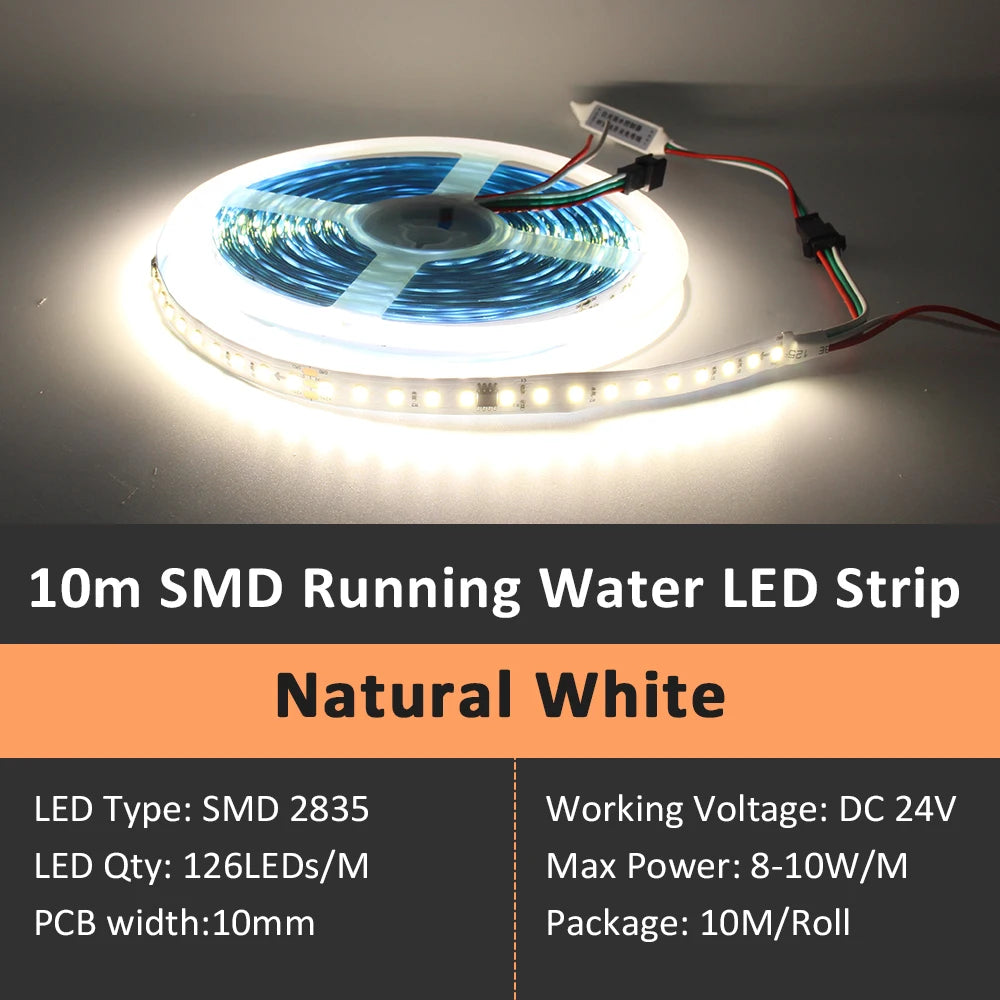

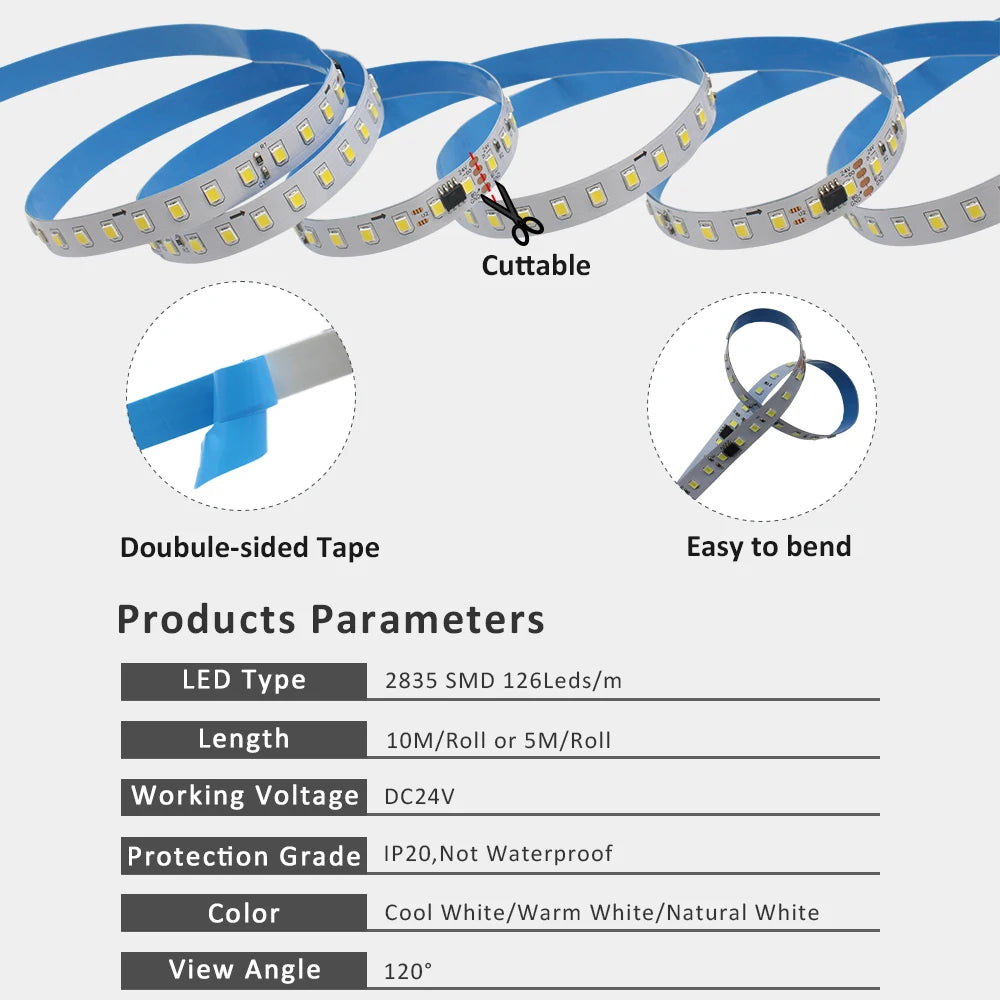

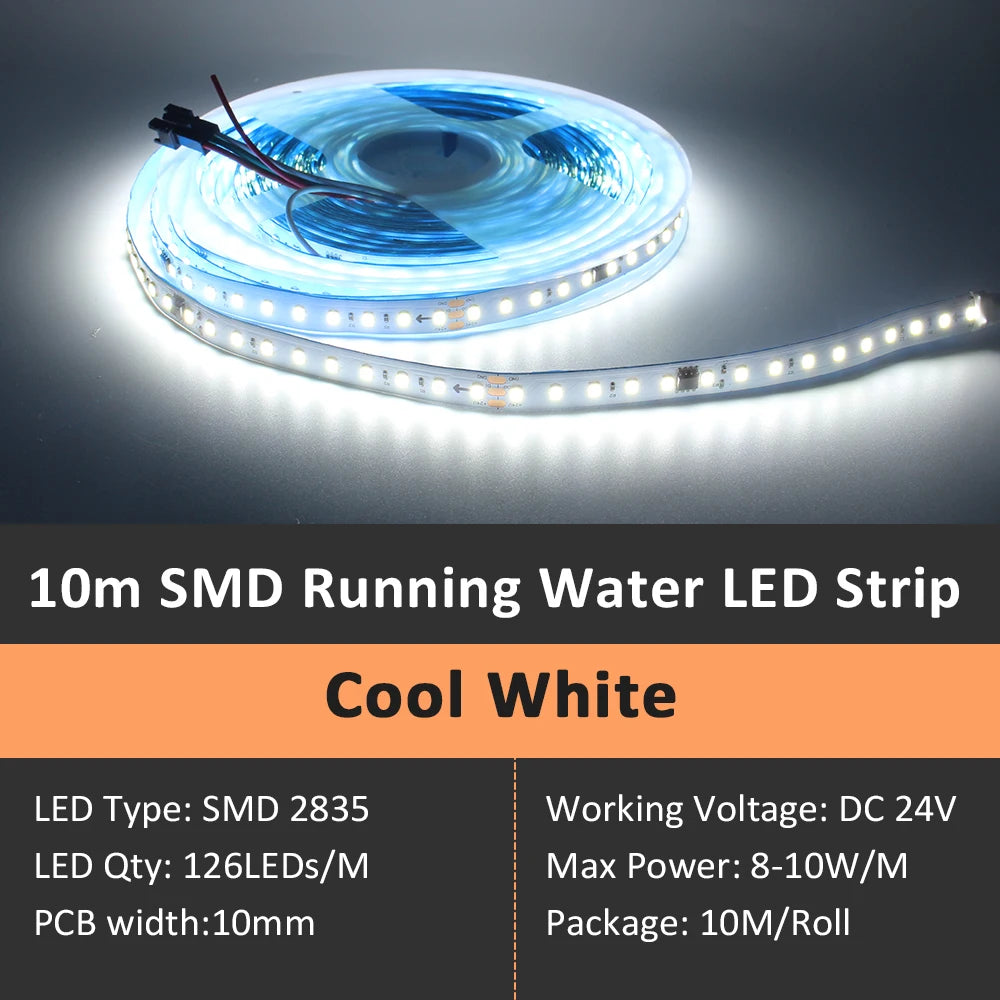

SMD Running water LED strip:

LED Type: SMD2835

LED Qty per Meter: 120Leds/m

Power: 10-12W/M

Working Voltage: 24V DC

Protection Grade: IP20,Not Waterproof

Color: White 6000K/Warm White 3000K/Natrual White(4000K)

Control IC: WS2811, 80 IC for 10M

Viewing Angle: 120°

Storage Temperature: -20°to 50°

Size ( L X W X H ): 5000/10000 x 10 x 2.5 mm

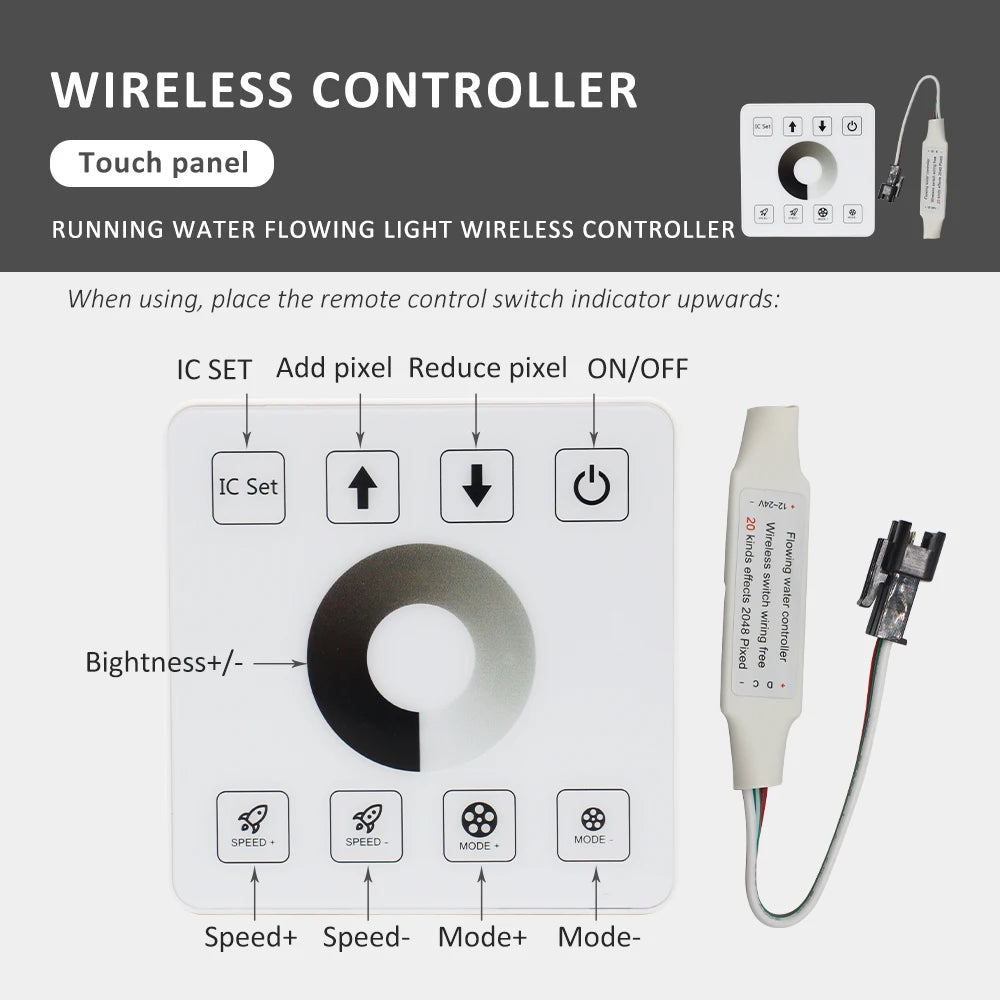

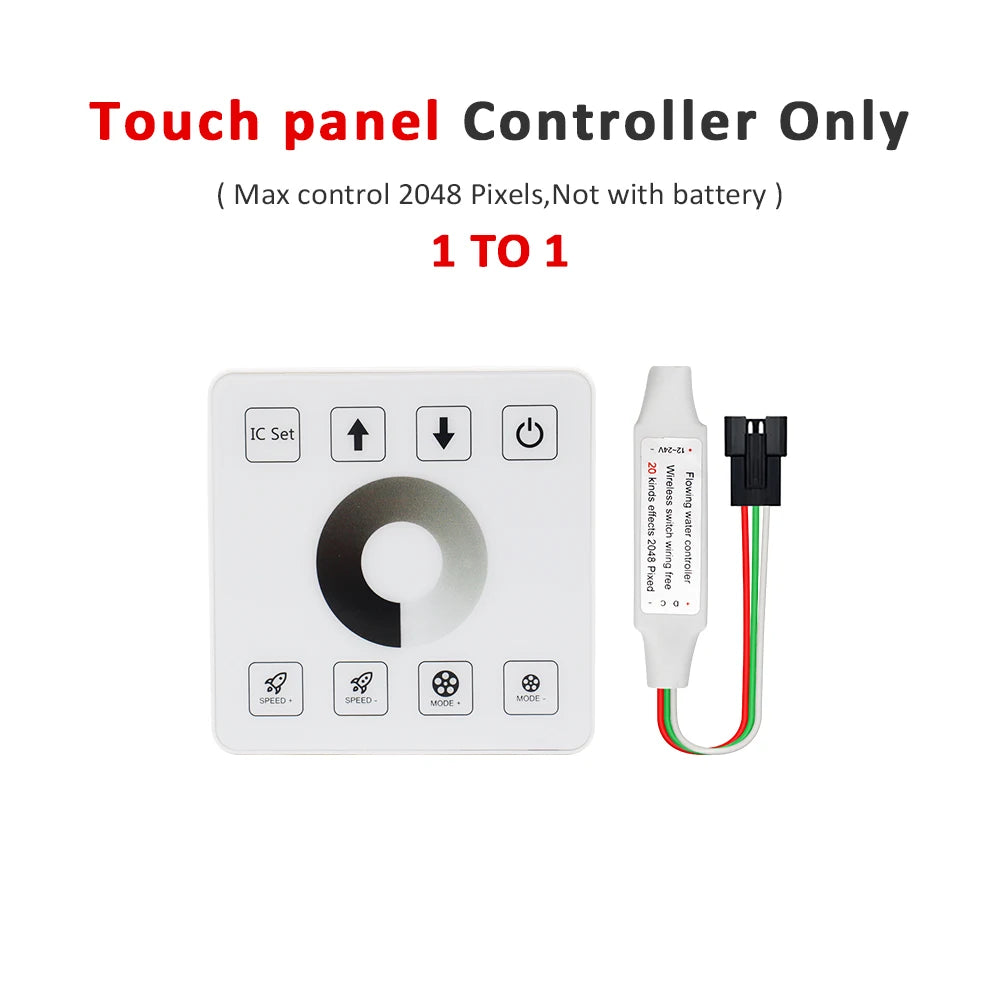

Wireless Touch Panel WS2811 Controller:

Mini SPI LED strip controller with TOUCH panel wireless remote control

* Powered by CR2032 Button Cell (Battery not included)

* Max control 2048 Pixels(IC)

* Speed/Brightness is adjustable

* 20 Kinds of different modes changable

* With Double-side tape on the back,easy to install at anywhere

* 15m remote distance

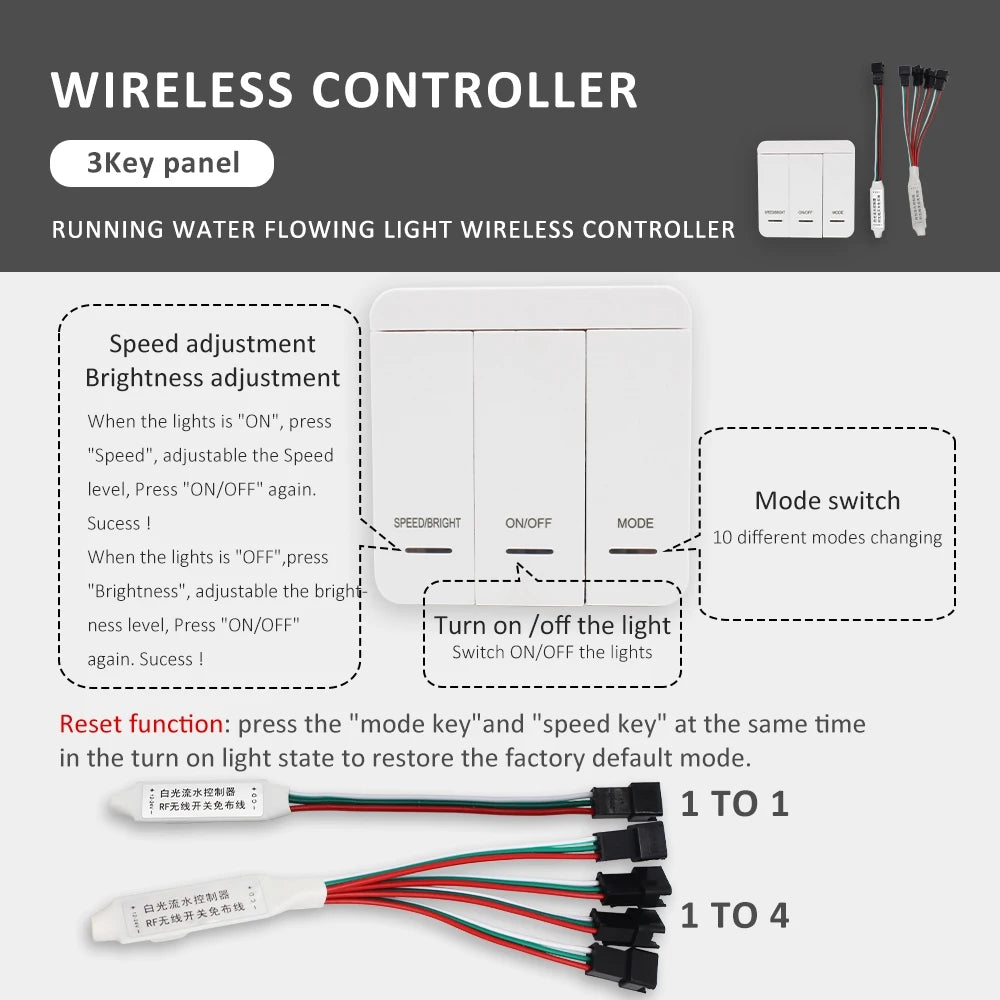

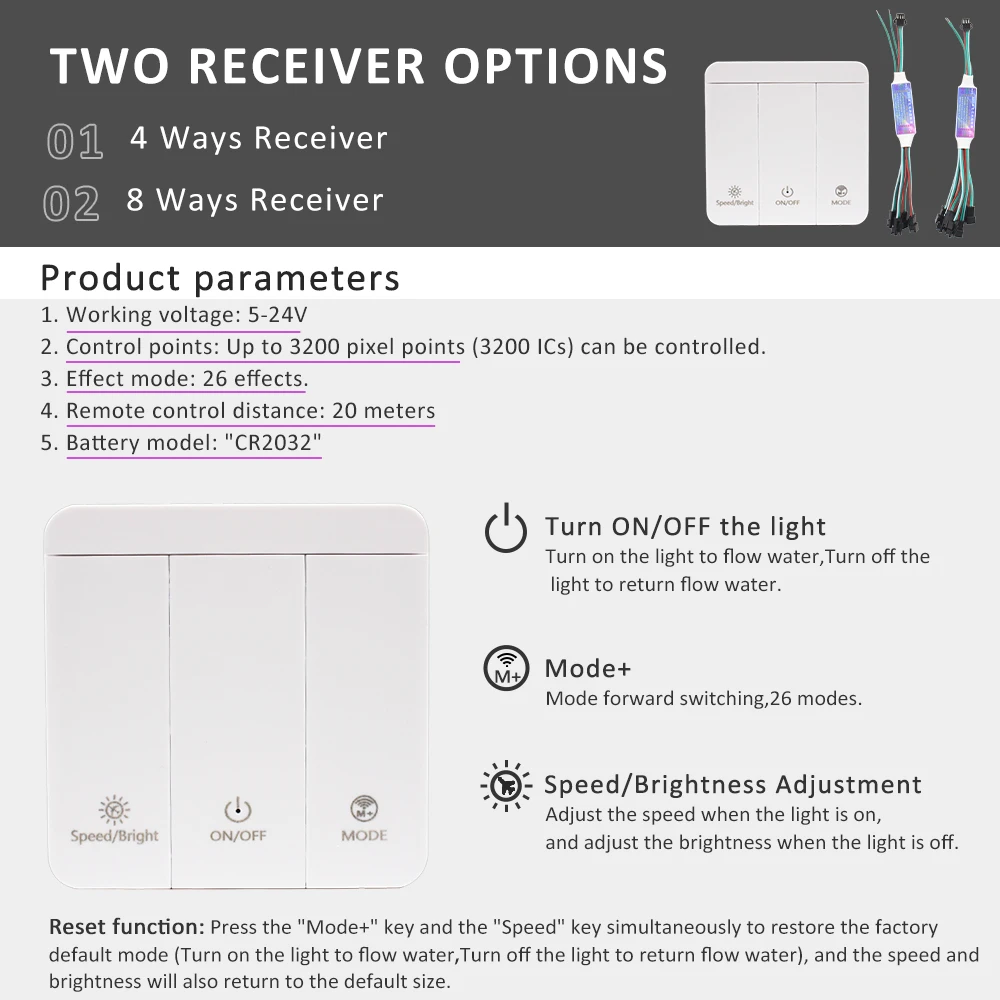

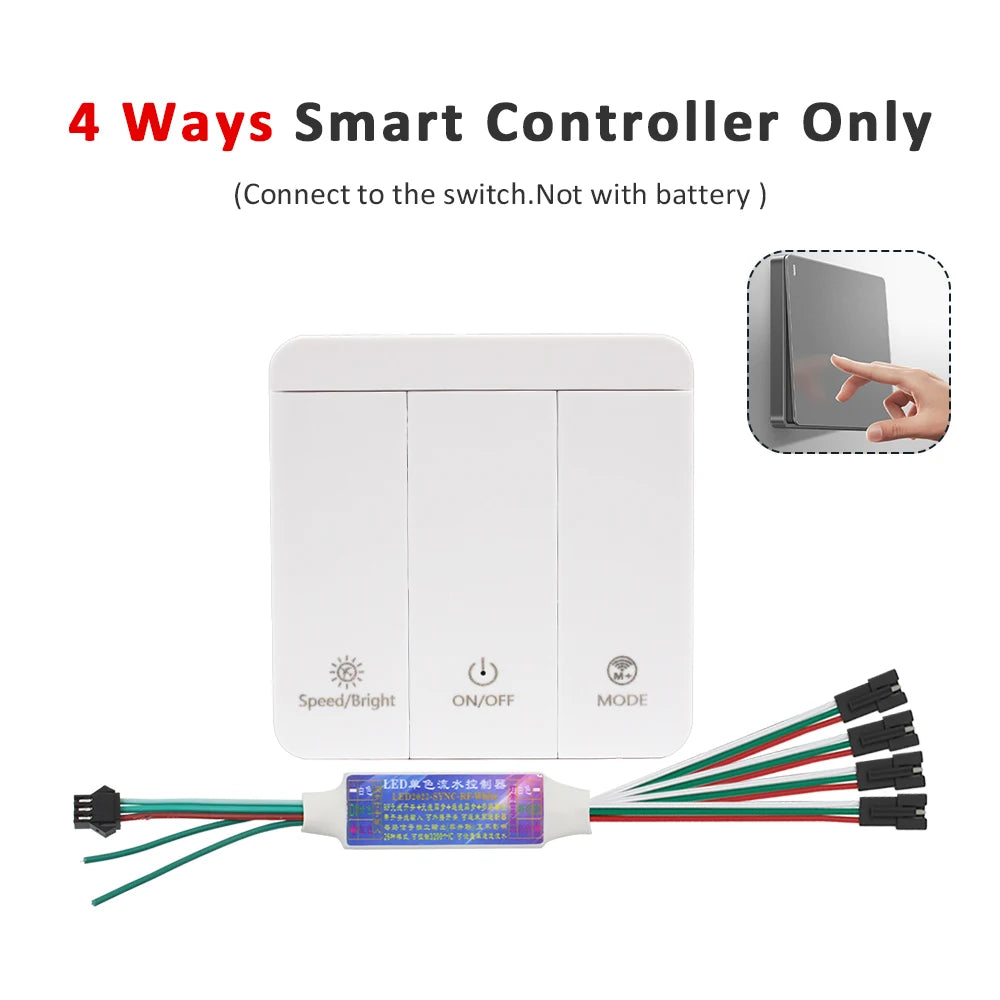

3Keys sync smart Controller:

Product Name: Single Color Horse Race Led Strip Controller

Working Voltage: DC5-24V ( The controller dont connect to the power supply)

Control Distance: < 20m

Battery Type: CR2032 button cell ( Not included)

Modes: 26 Different modes built-in controller.

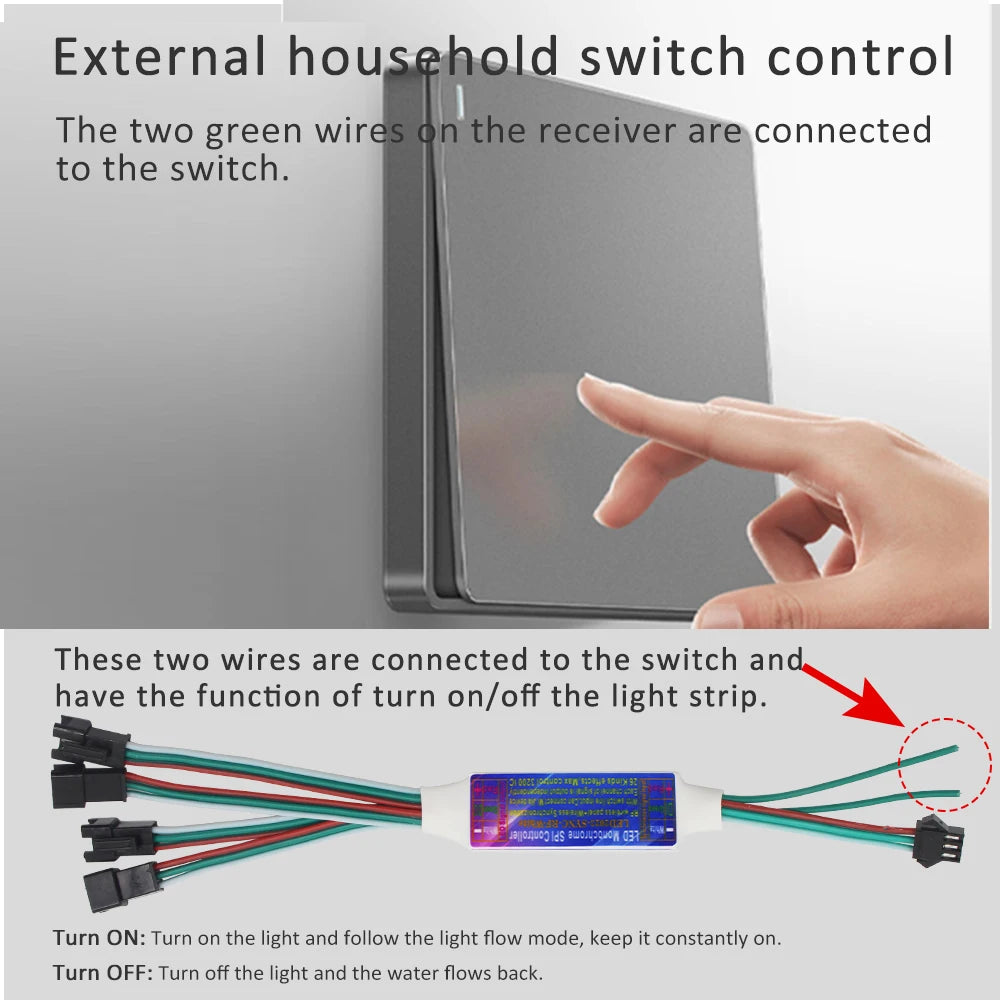

With Switch Input ( Green Wire): Turn ON,the lights running, Turn OFF, the lights backflow.

Max Pixel Control:Max Control Pixels:3200pcs Pixels,if more than 3200pcs pixels,just add extra receiver or amplifier to realize sync working.

Installation: With 2pcs double-side tape,anywhere to stick.

3 Keys Remote Function: ON/OFF, Model Key, Brightness UP/Down,Speed UP/Down

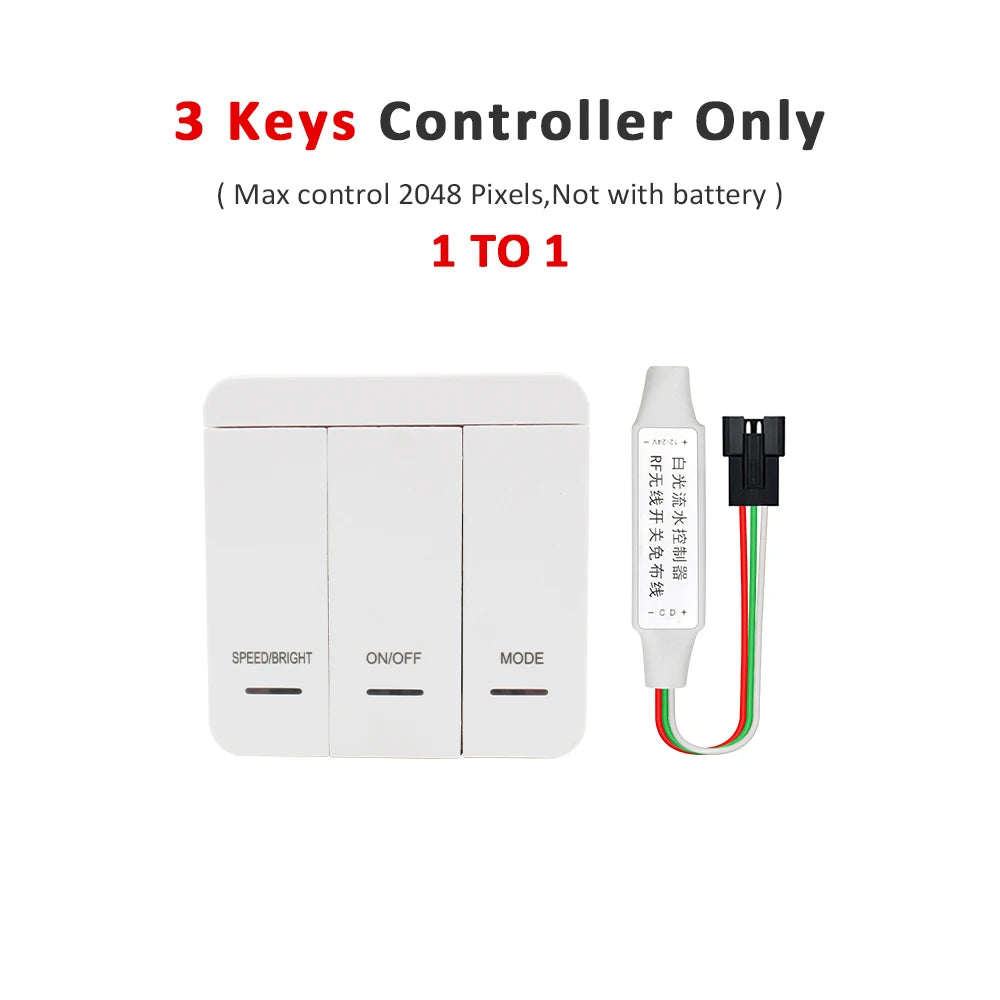

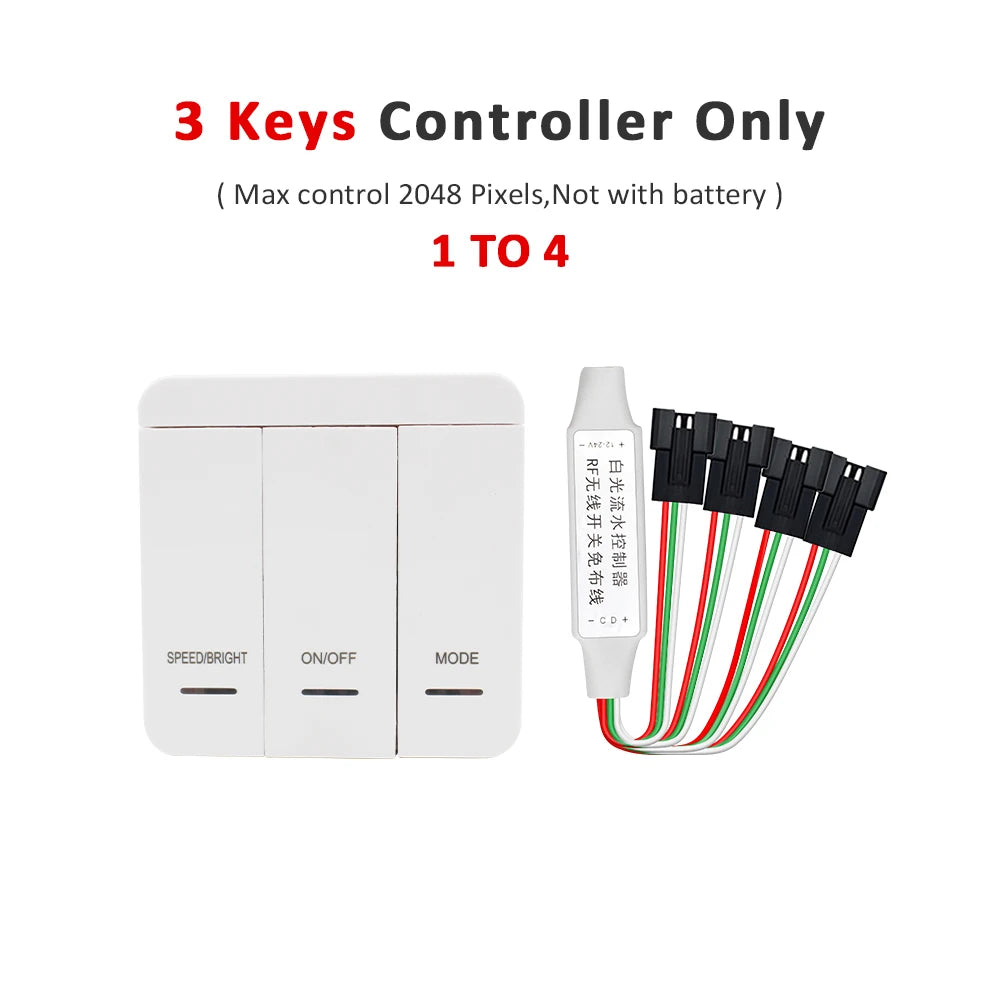

3Keys Horse Race Led Strip Controller:

Mini LED strip controller with 3 Keys panel wireless remote control.

Working Voltage: DC 12V 24V

Remote Distance: 15M in the open air

Powered by 1pc*12V 17A Battery (Battery are not included)

Max control 2048 Pixels(IC), Pixels Points adjustable ( If you found some led strip not light ON,please do IC Setting,increase the Pixels points).

Speed/Brightness is adjustable

With Double-side tape on the back,easy to install at anywhere
