SPECIFICATIONS

● Features:

1、Led strip: WS2811 (Dream color) & 5050SMD
2、Working Temperature: -20 °~ 60 °
3、Easy to Install : Using the double adhesive.You can stick the LED strip to any dry, clean and smooth place .

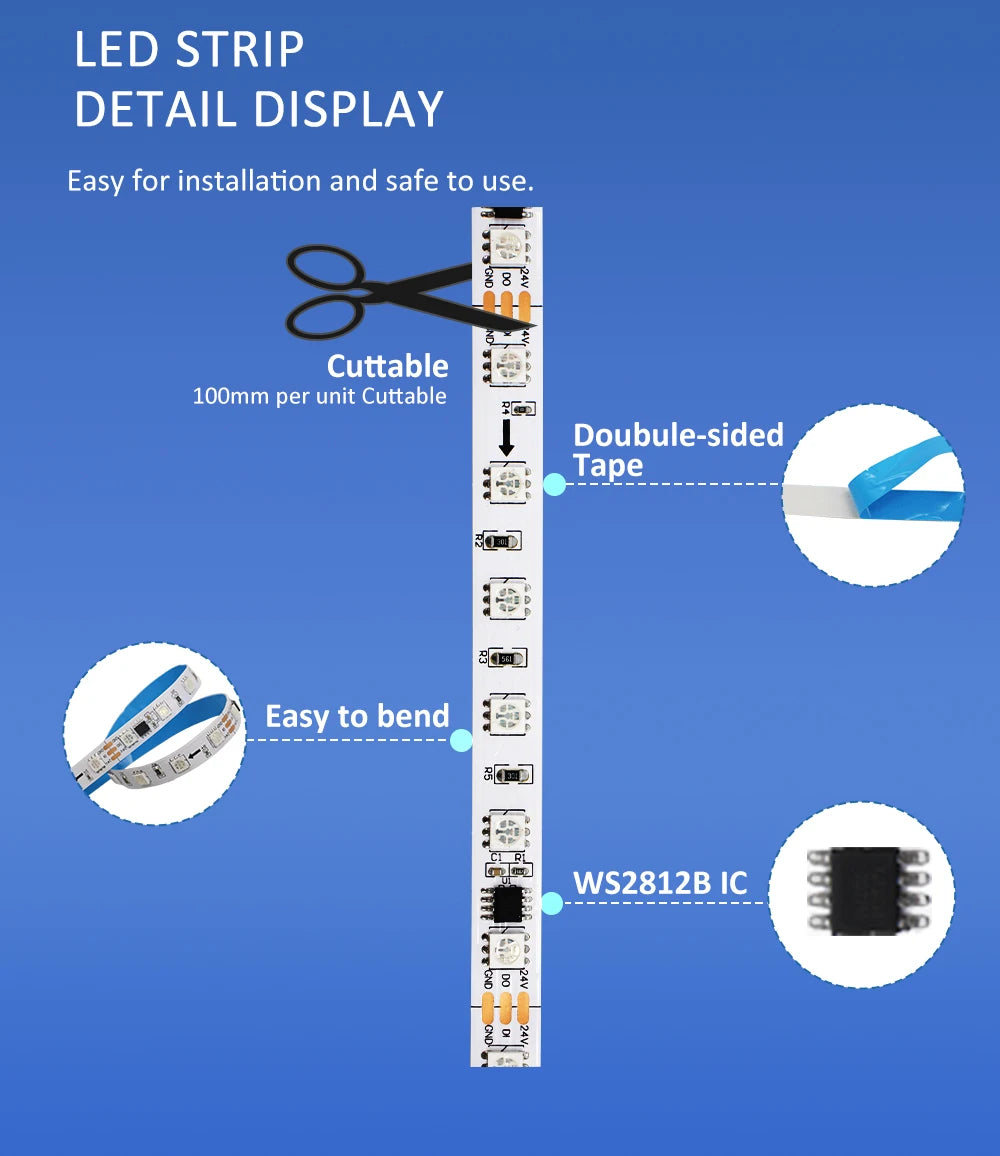

4、DIY Cuttable:The lights are cuttable at marked place, granting you more creative freedom during installation.
5、Flexible:The led strip is Flexible.It can be bent at any angle
6、Controlled by Bluetooth App or RF wireless 28 Keys Remote Control.

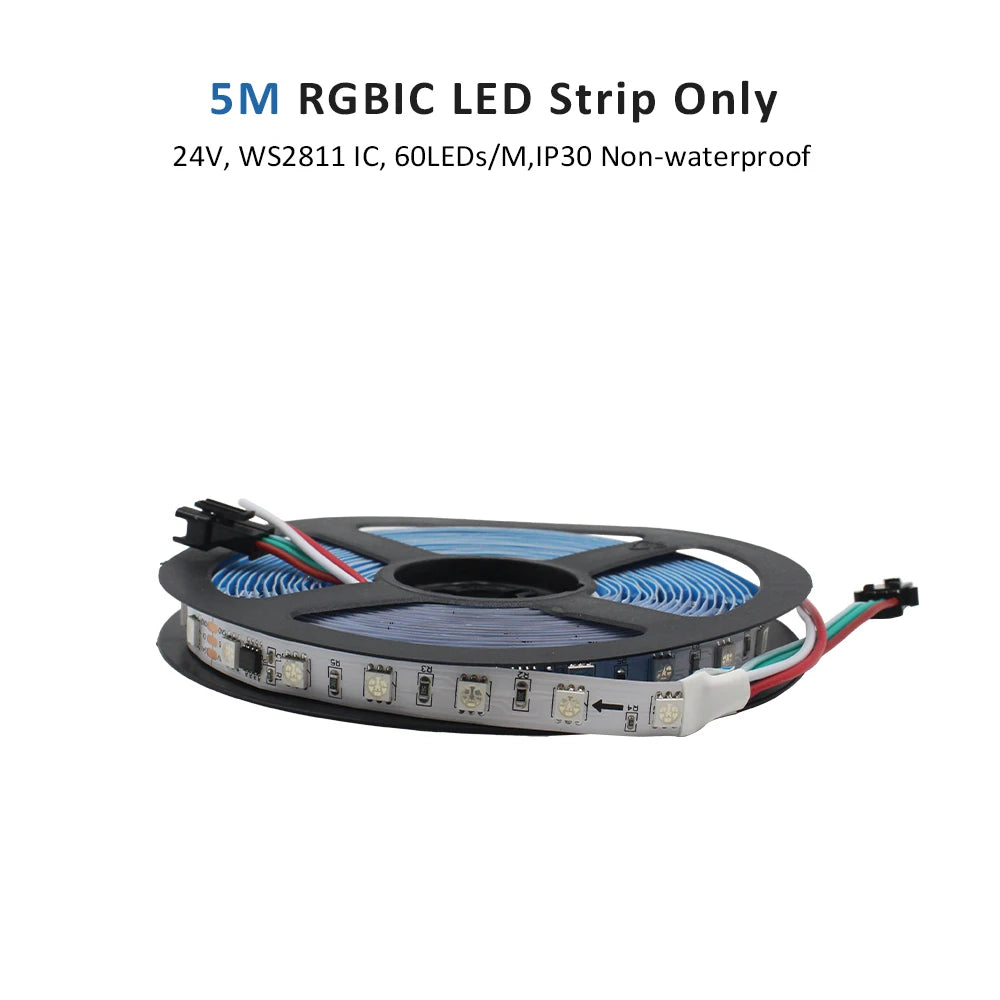

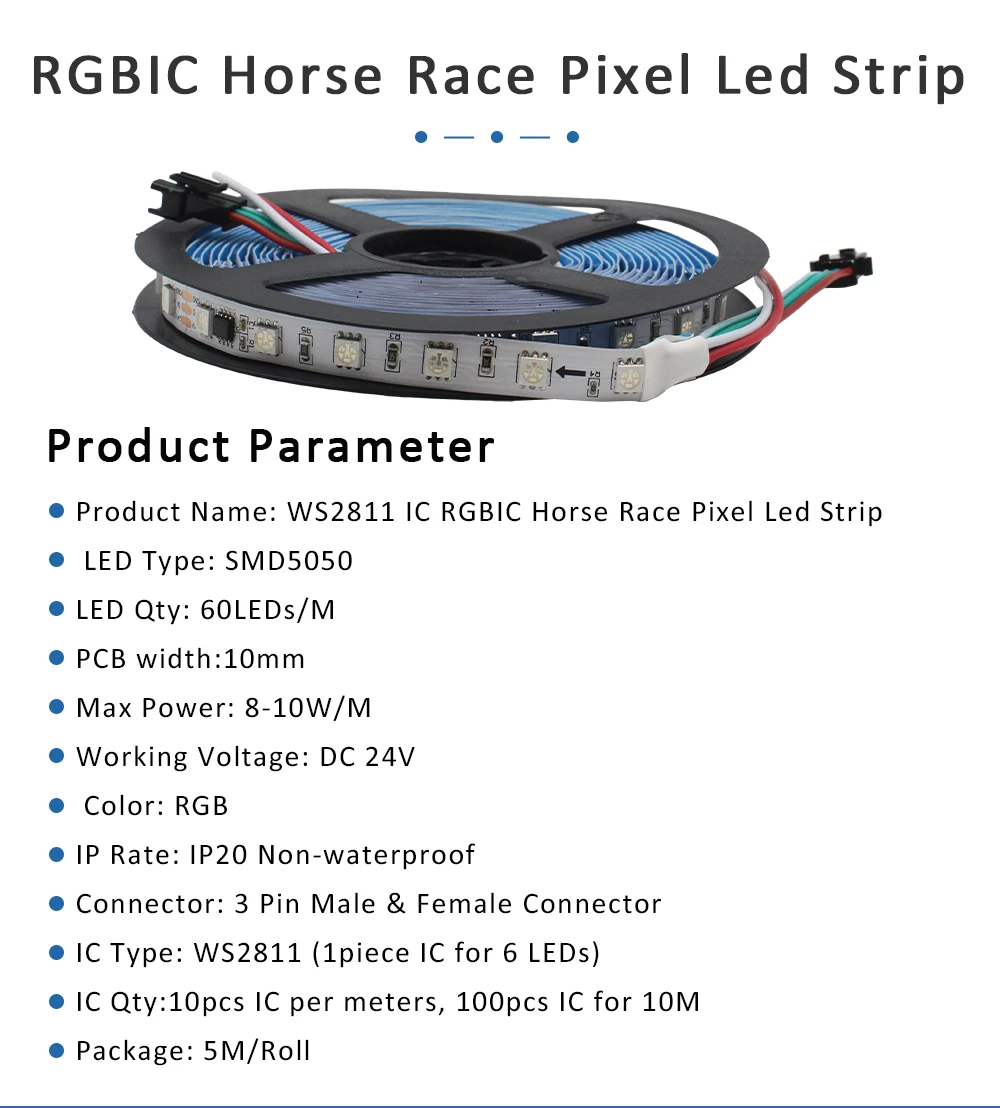

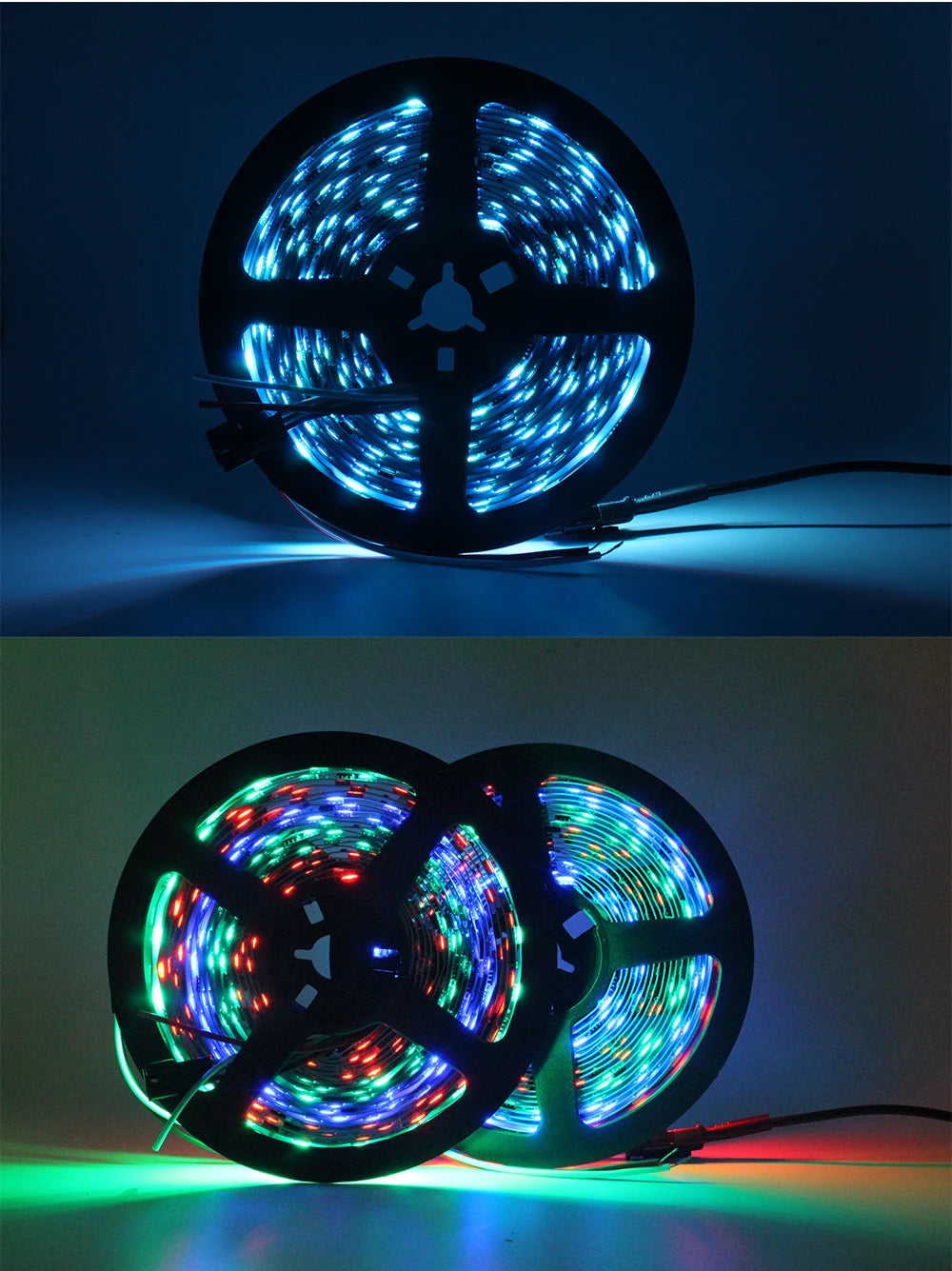

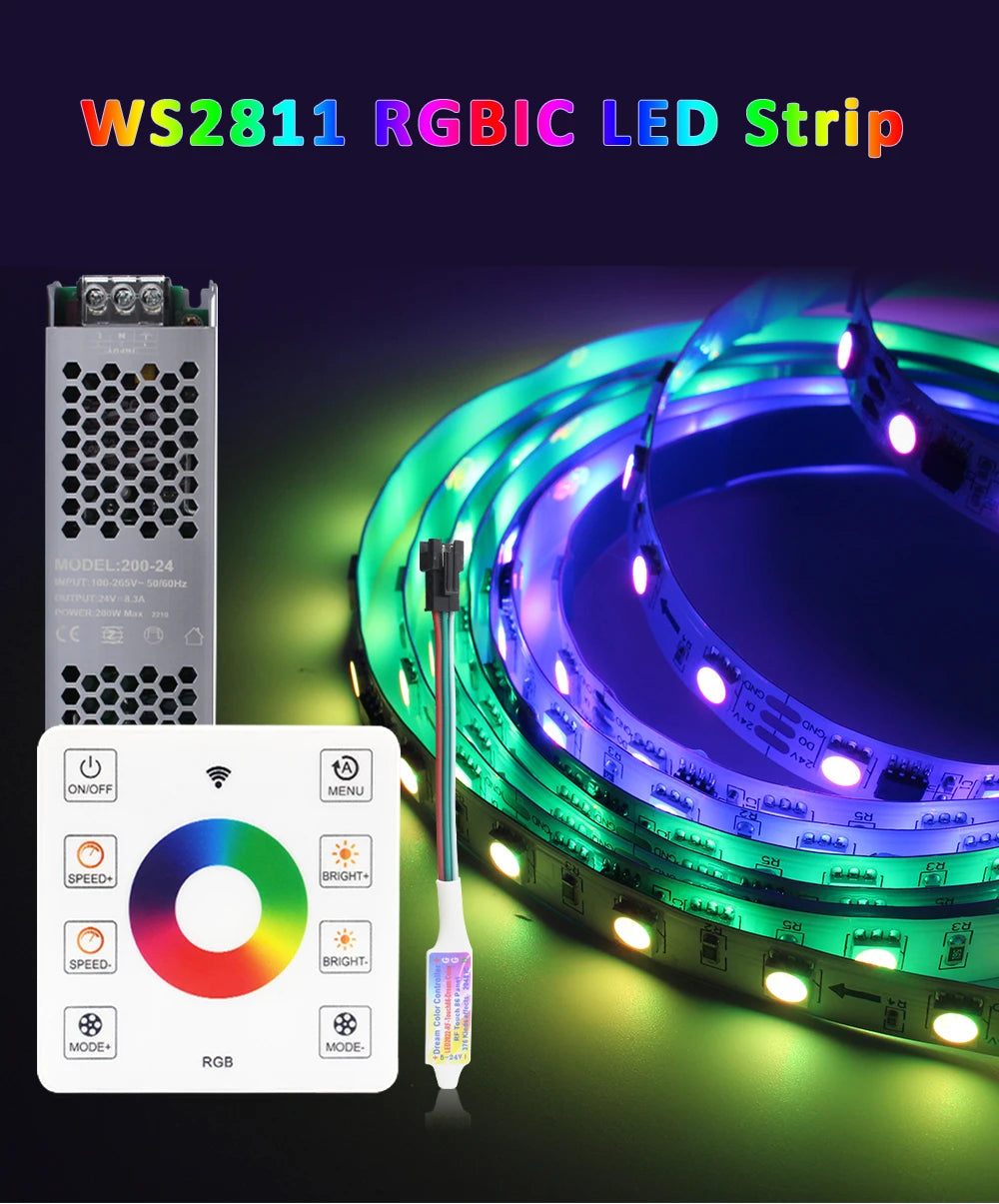

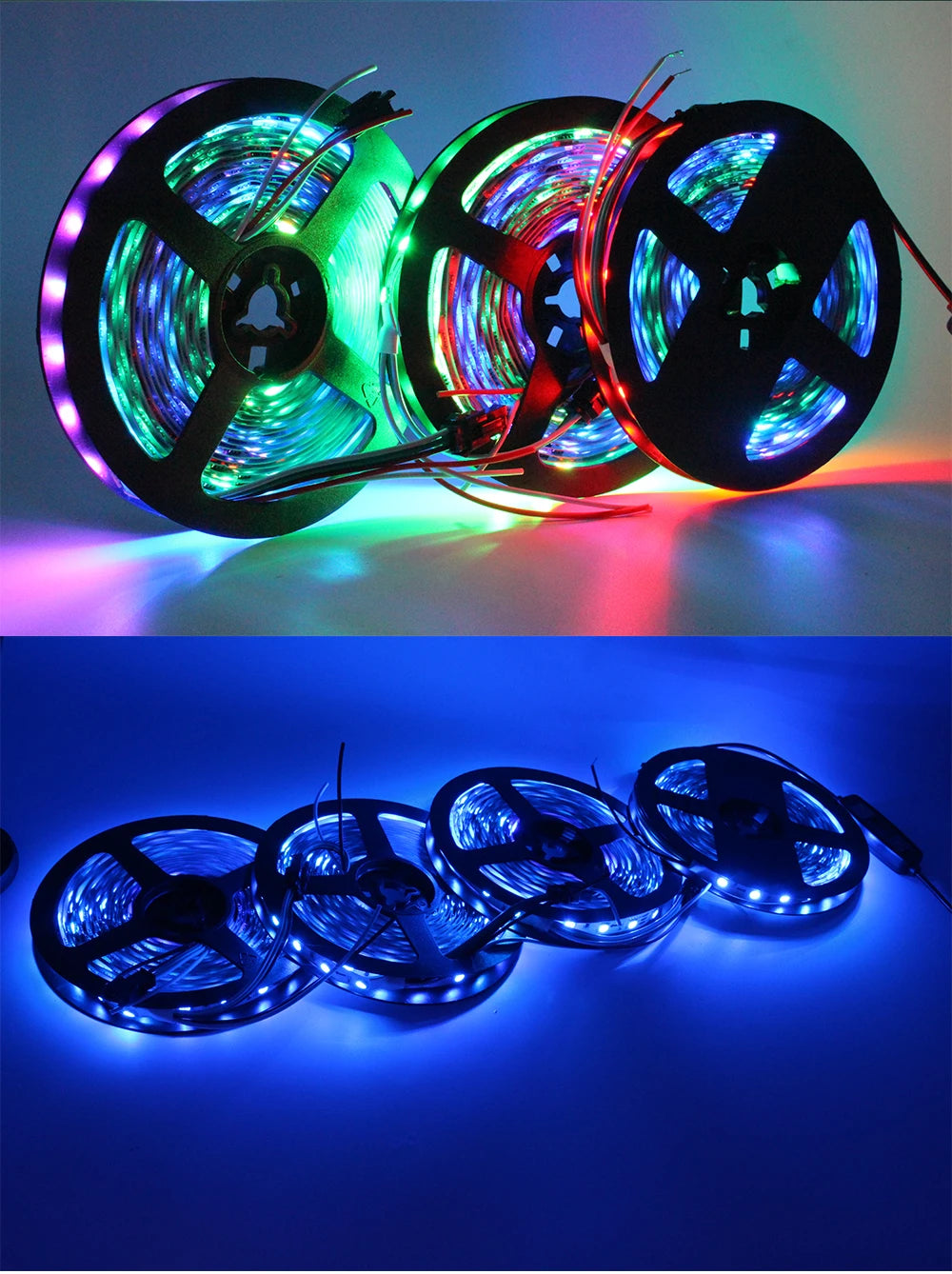

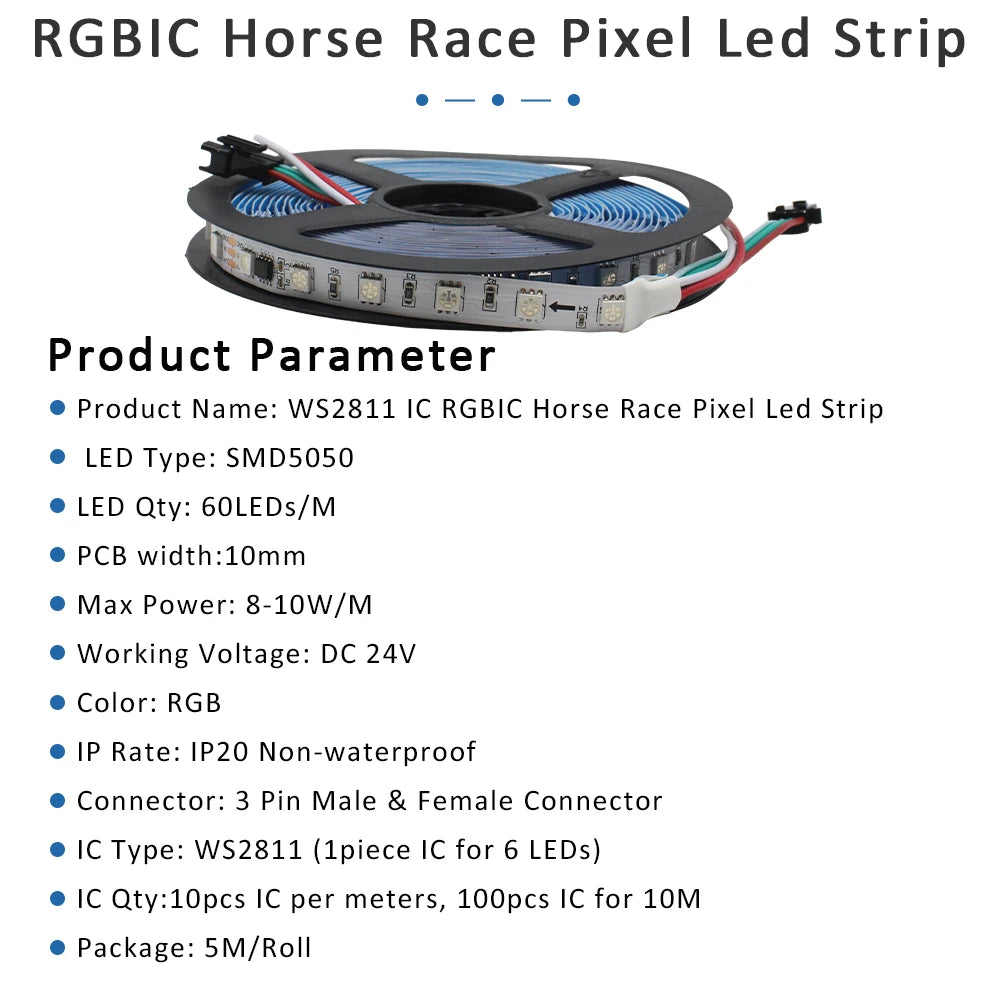

● RGB Horse Race LED Strip Light:

LED Strip: WS2811 RGBIC Addressable Led Strip Light
LED Type: SMD5050

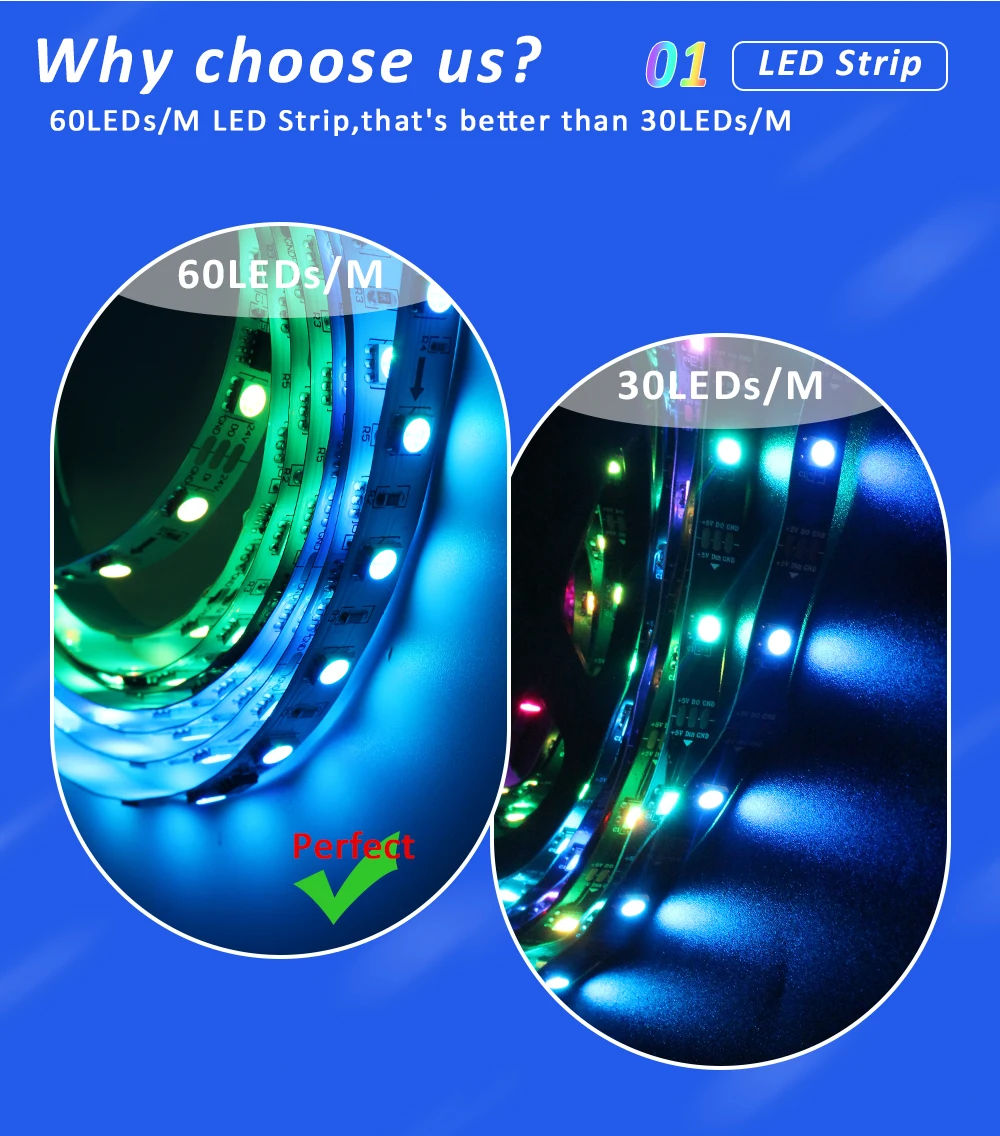

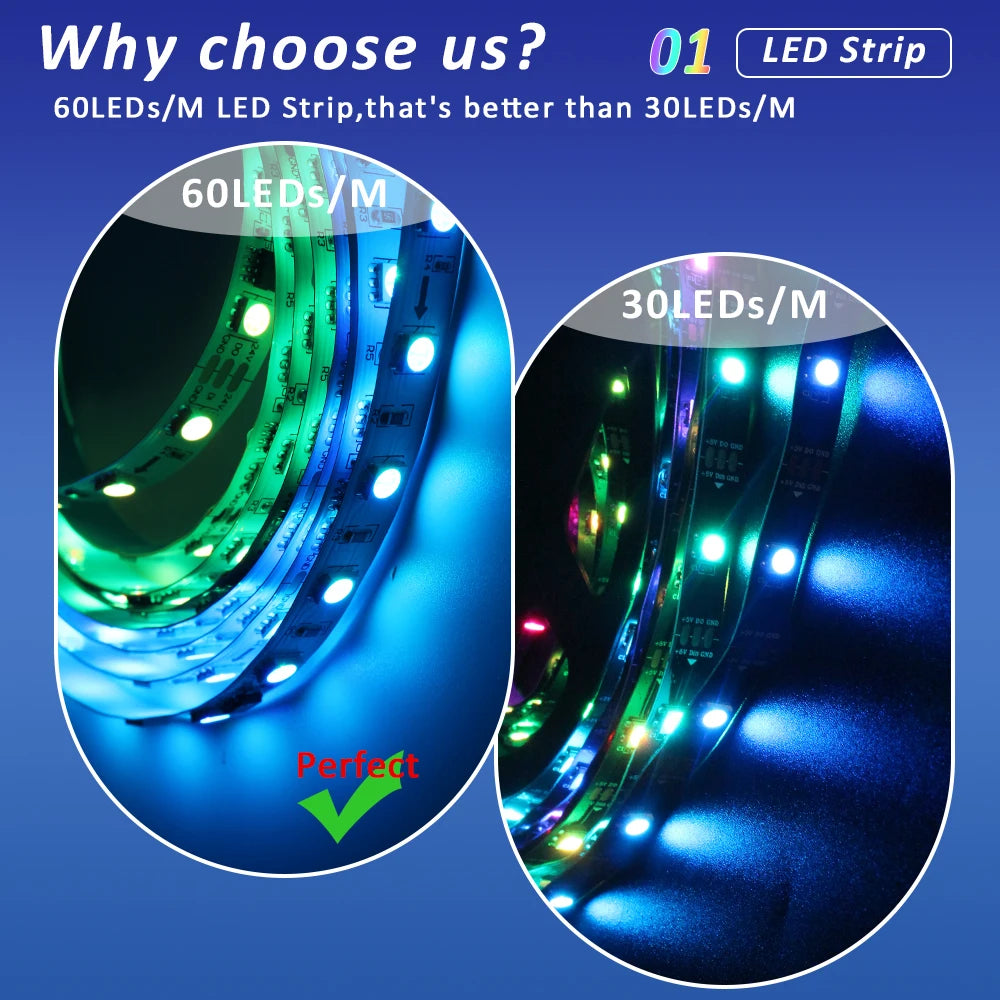

LED Qty: 60LEDs/m (Others is only 18LEDs/m or 30LEDs/m)
IC Type: WS2811
Working Voltage: DC 24V
Waterproof IP: IP30 Non-Waterproof
PCB width: 10mm
Cuttable at each 10cm
IC Qty: 1pc IC for 6LEDs
Come with male female 3pin connector (Red Wire is +，White wire is -, Green wire is signal wire）

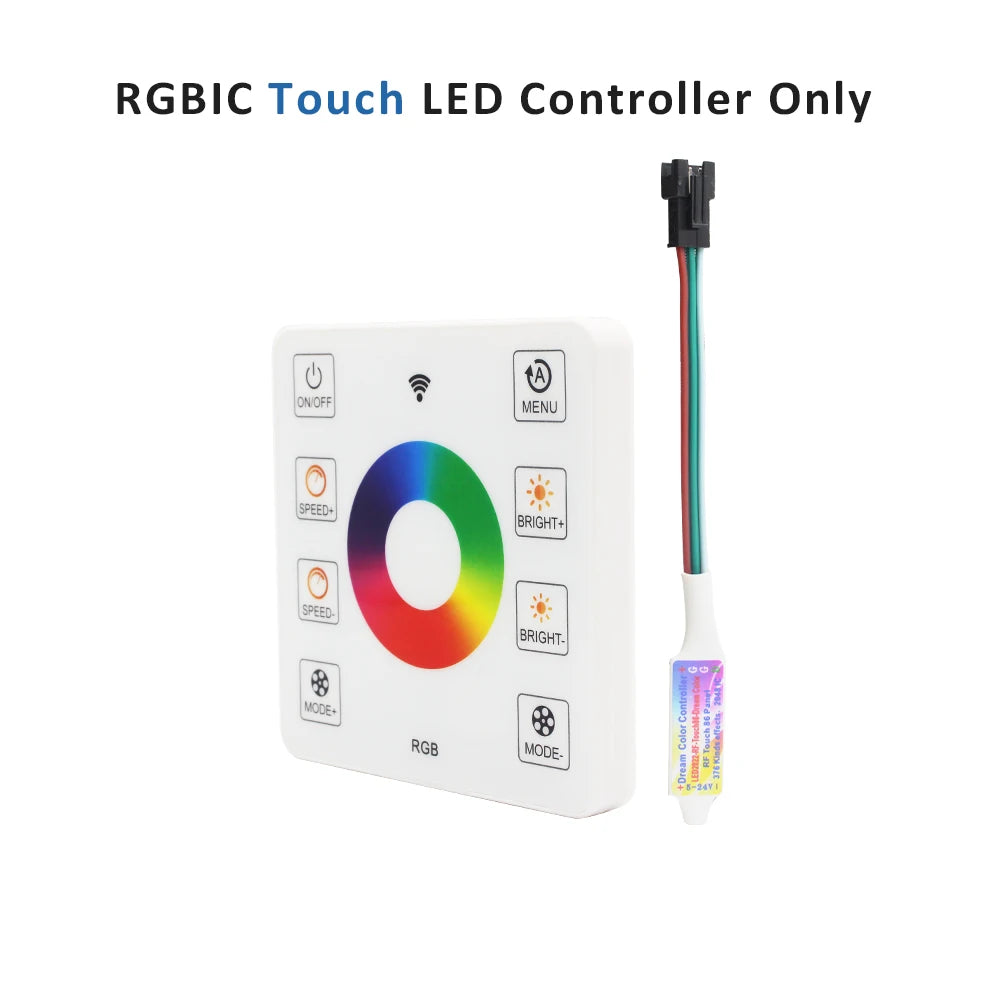

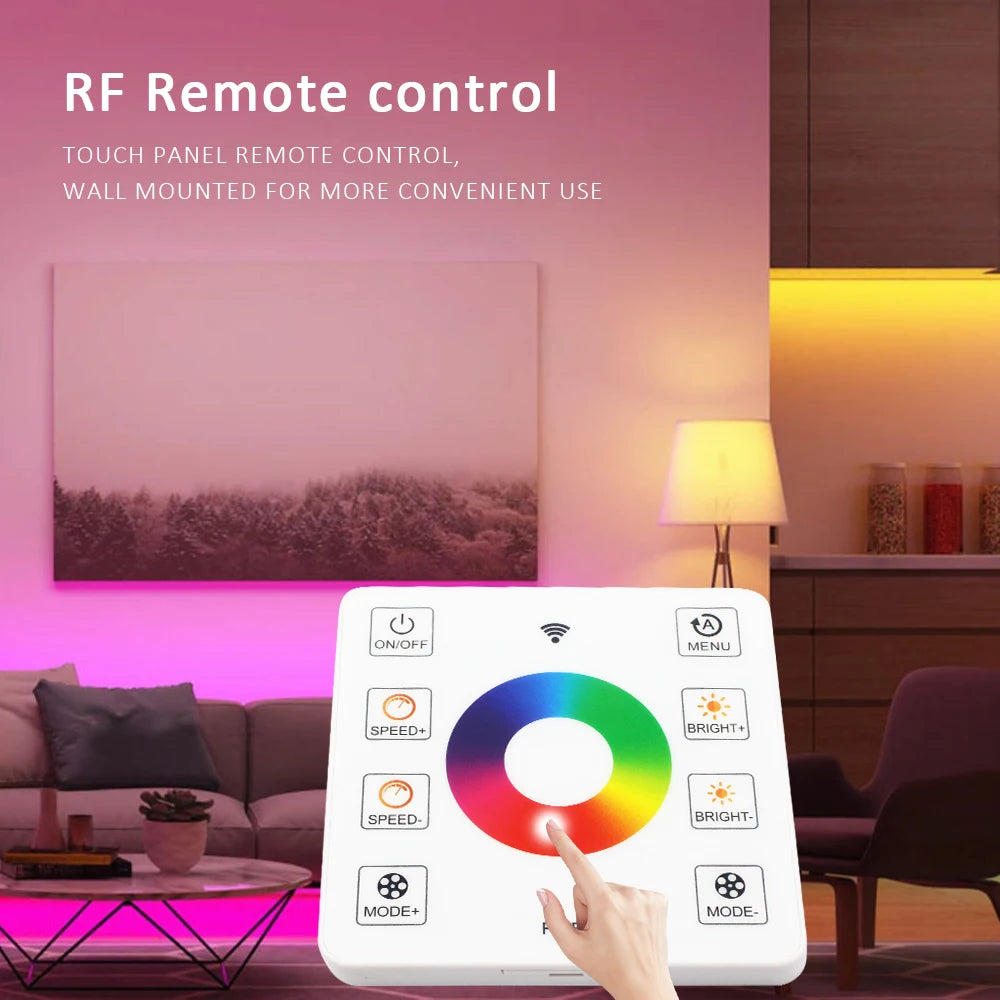

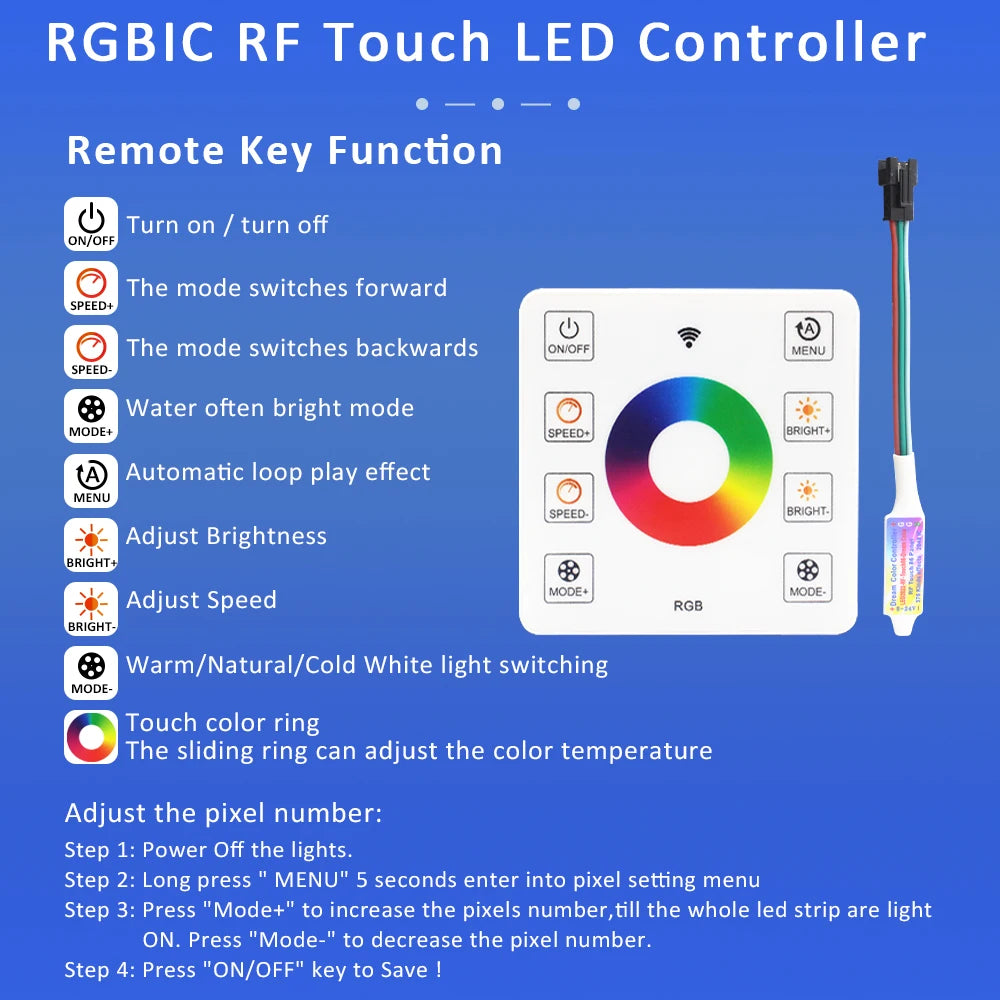

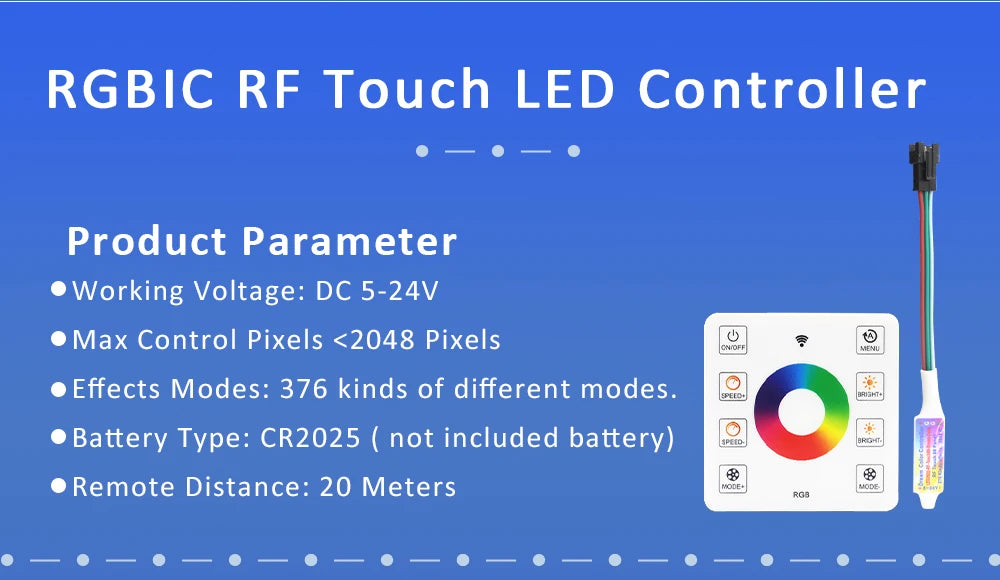

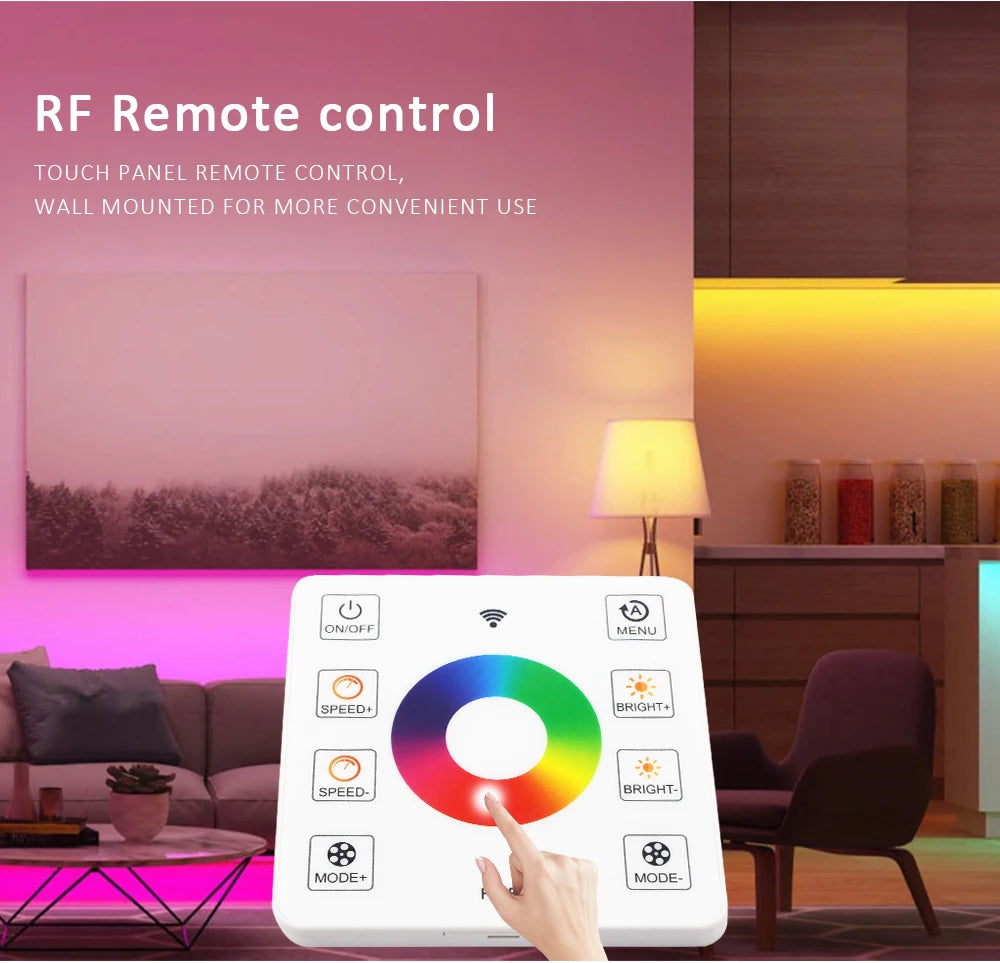

● RGBIC RF Touch LED Controller

Working Voltage: DC 5-24V
Max Control Pixels <2048 Pixels
Effects Modes: 376 kinds of different modes.Most of effects are running water when you turn ON. Also with Pause and Auto-play function.
Battery Type: CR2025 ( The remote is not with battery)

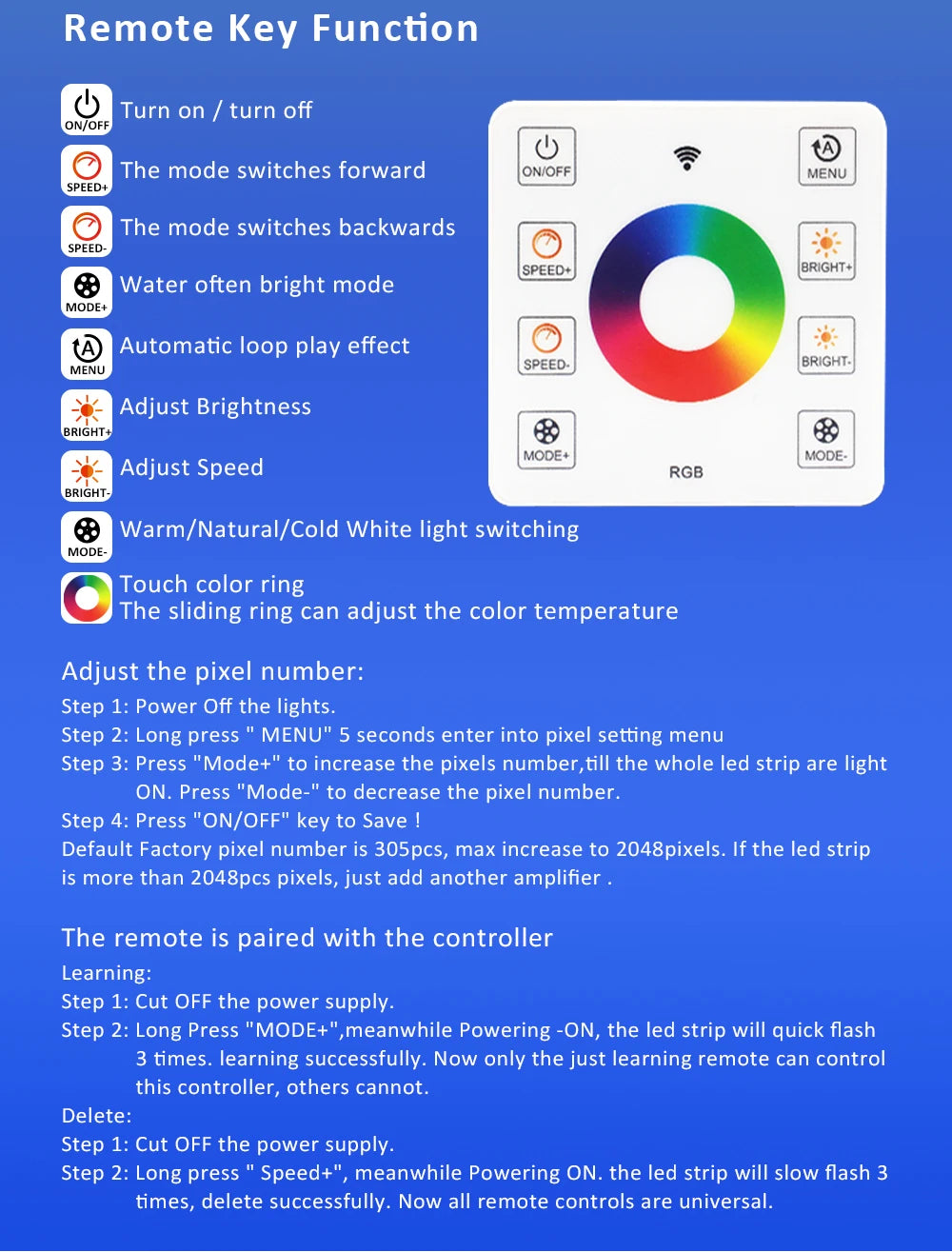

8 Keys Function: ON/OFF , Speed UP/Down, Mode+/Mode-, MENU, Brightness UP/Down, Touch color ring in the middle to adjust the static color.
Remote Distance: 20 Meters

How to adjust the pixel number ?

Step 1: Power Off the lights.
Step 2: Long press " MENU" 5 seconds enter into pixel setting menu
Step 3: Press "Mode+" to increase the pixels number,till the whole led strip are light ON. Press "Mode-" to decrease the pixel number.
Step 4: Press "ON/OFF" key to Save !
Default Factory pixel number is 305pcs, max increase to 2048pixels. If the led strip is more than 2048pcs pixels, just add another amplifier .

How to adjust the wire-Order of RGB led strip ?

Each factory maybe have a different wire-order for RGB led strip, normally it is +RBG,+GRB,+GBR,+RGB,etc. If you press Red, the Led strip light Green or Blue color, that means you have to adjust the wire-order of led strip light.
Let us do as the following steps:
Step 1: Power OFF the lights
Step 2: Long press " MENU" 5 seconds enter into the setting menu.
Step 3: Press " Bright +" to adjust the order,till the led strip are Sequentially light RED, Green, Blue order. Press " Bright-" to reset the order (Convenient batch adjustment).
Step 4: Press " ON/OFF" key to Save.

How to pair the remote to the controller, make it work independently ,never disturbed each other?

Learning:
Step 1: Cut OFF the power supply.
Step 2: Long Press "MODE+",meanwhile Powering -ON, the led strip will quick flash 3 times. learing sucessfully. Now only the just learning remote can control this controller, others cannot.

Delete:
Step 1: Cut OFF the power supply.
Step 2: Long press " Speed+", meanwhile Powering ON. the led strip will slow flash 3 times, delete sucessfully. Now all remote controls are universal.

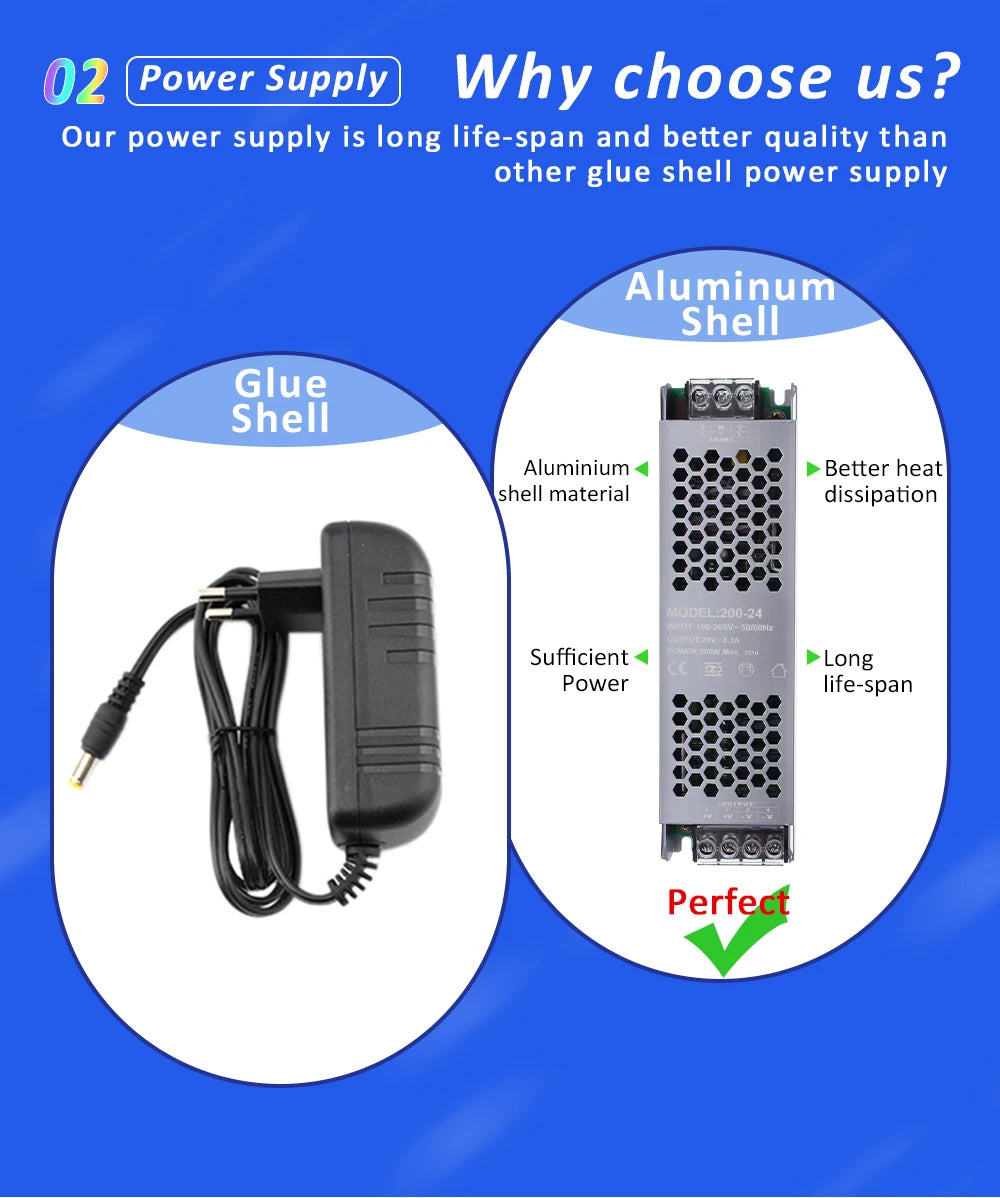

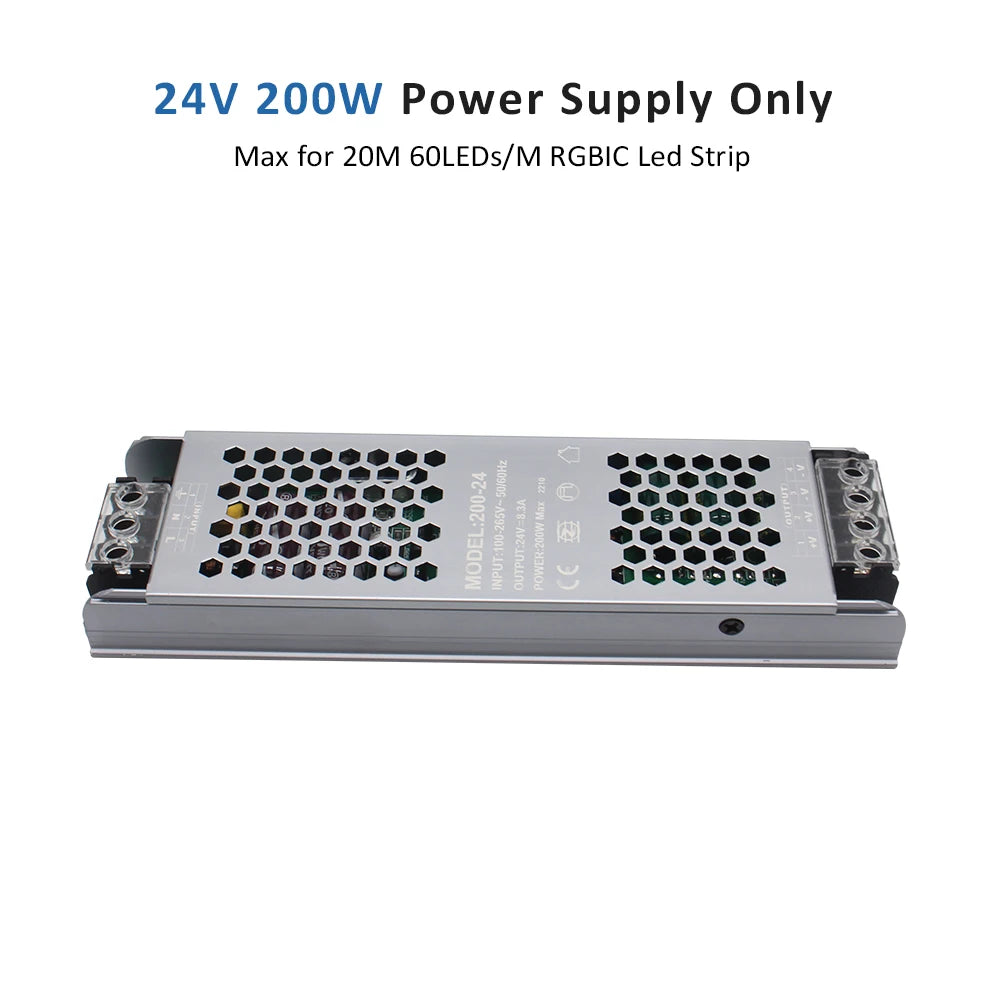

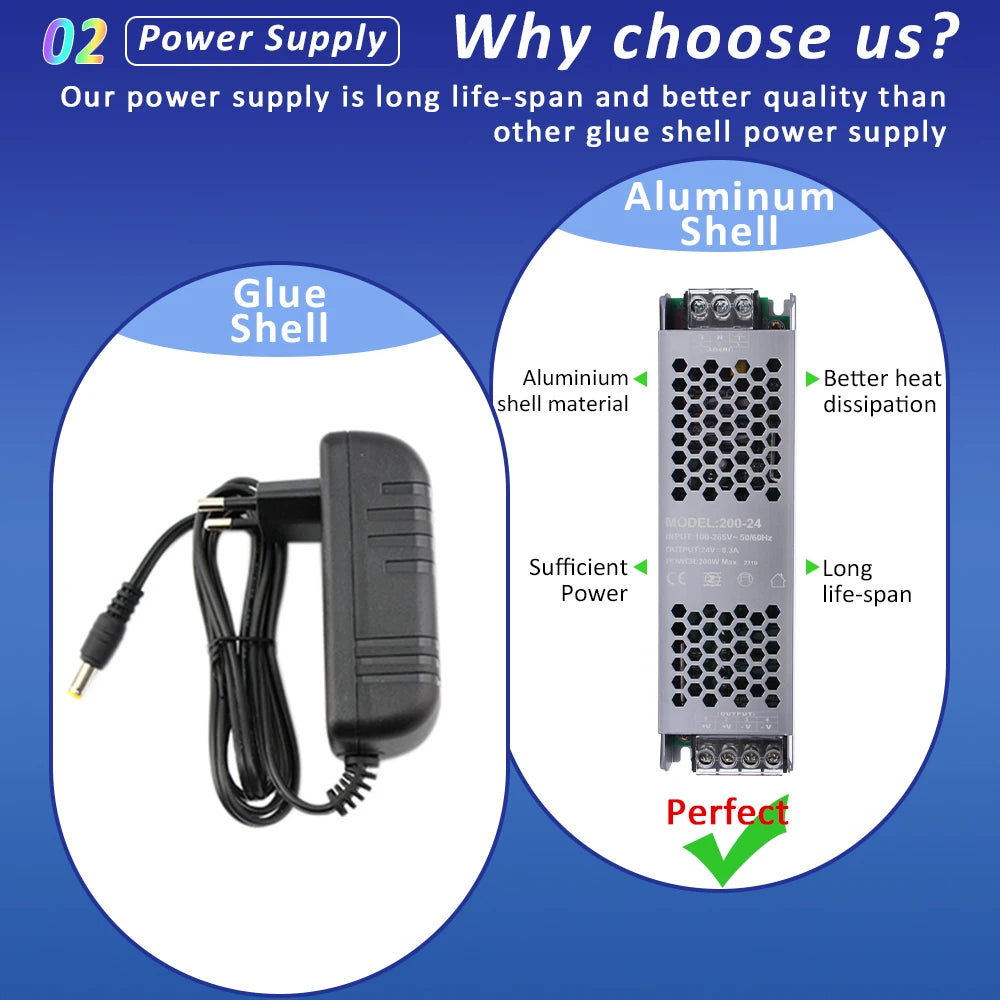

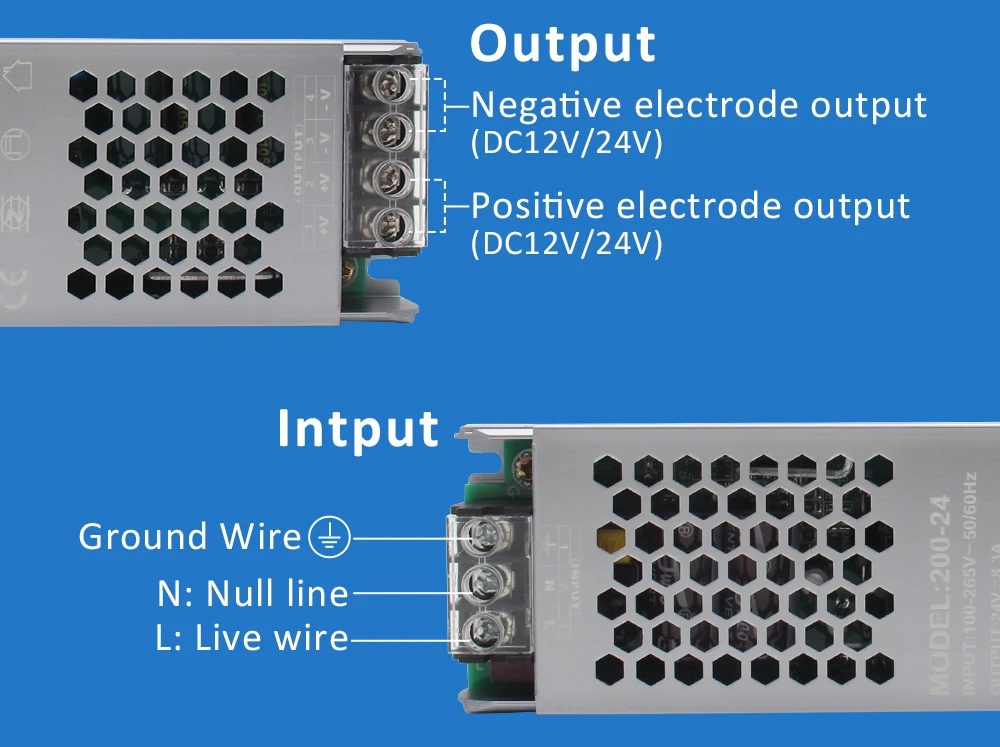

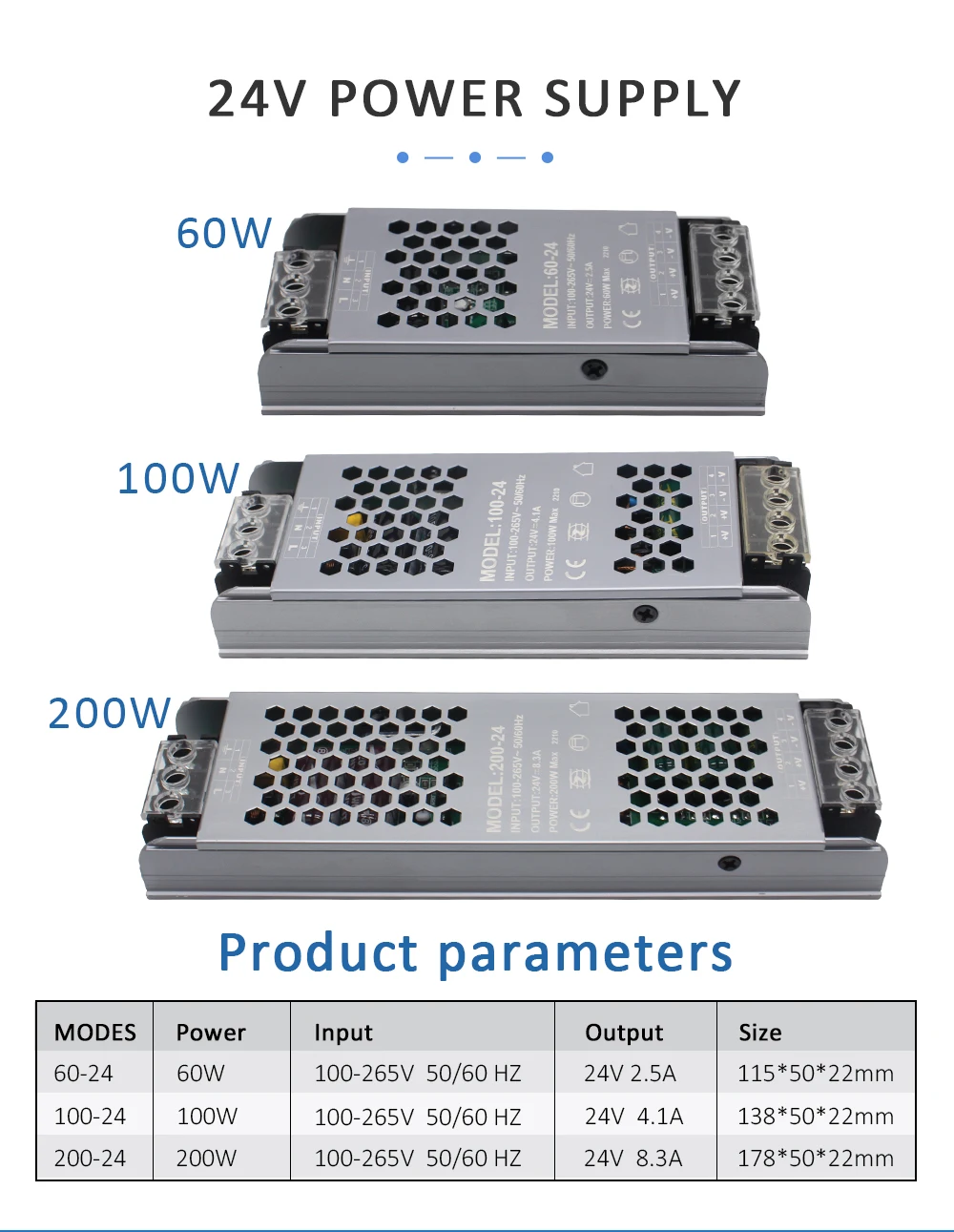

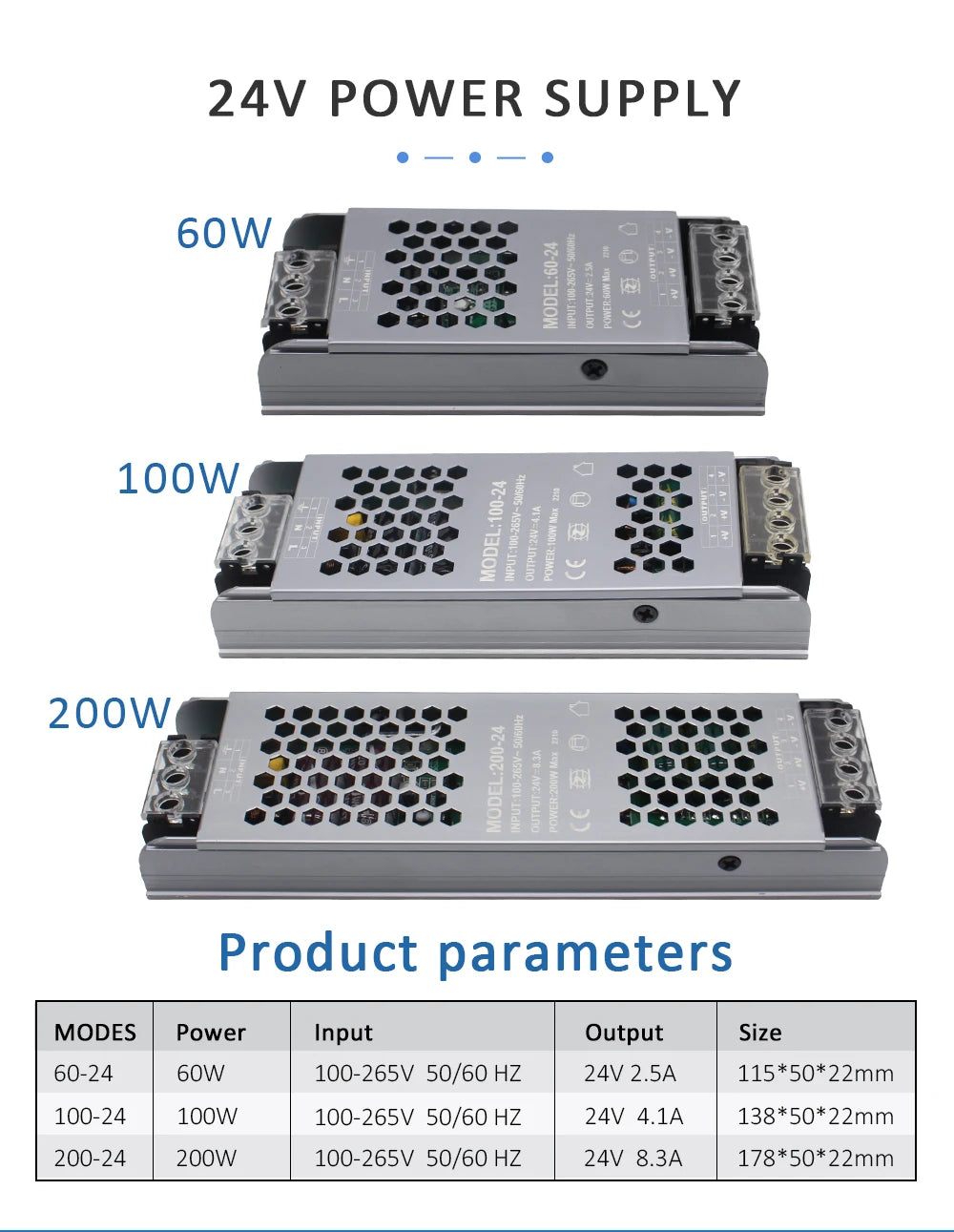

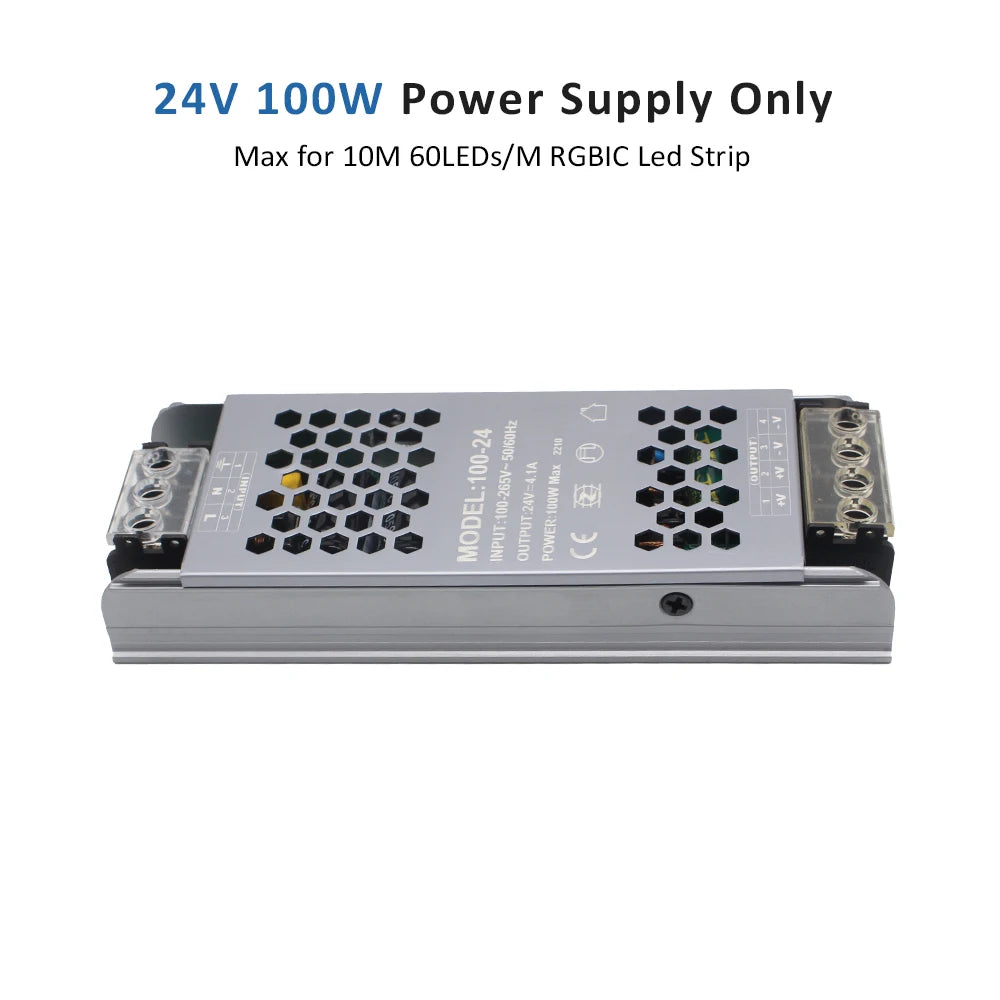

● Power Supply:

Input Working Voltage: AC 110V/220V
Output Voltage: DC 24V
Output Power: 60W/100W/200W

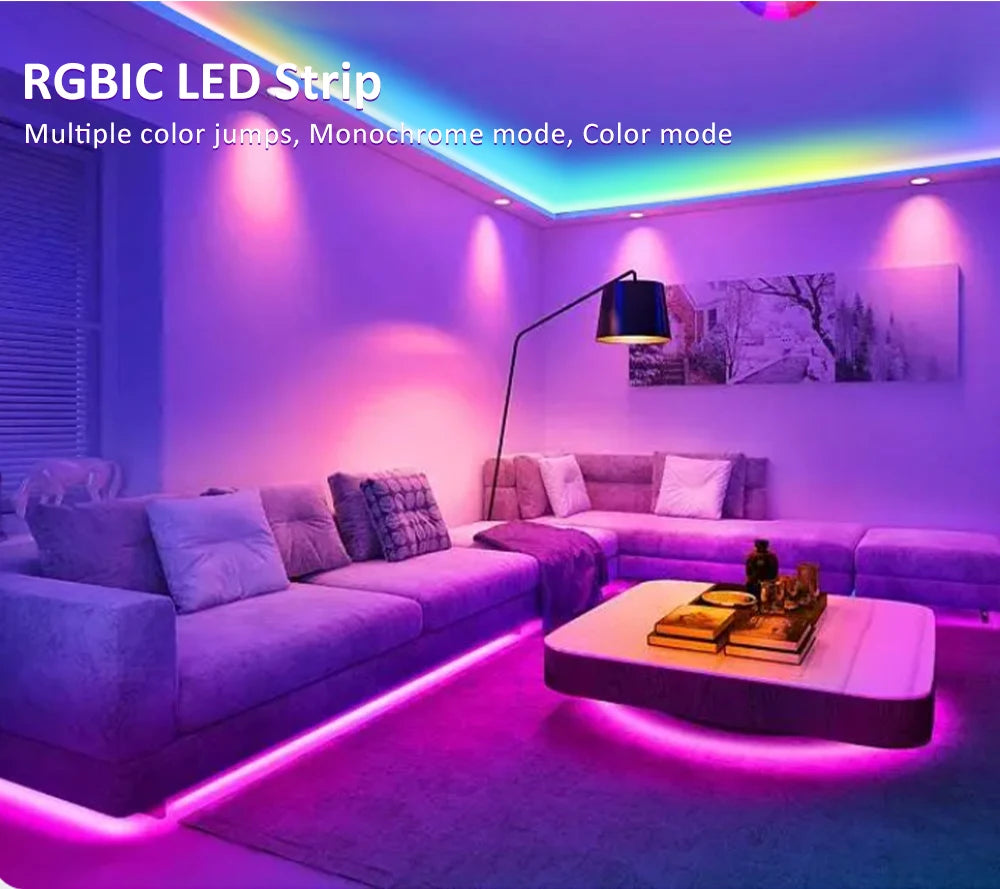

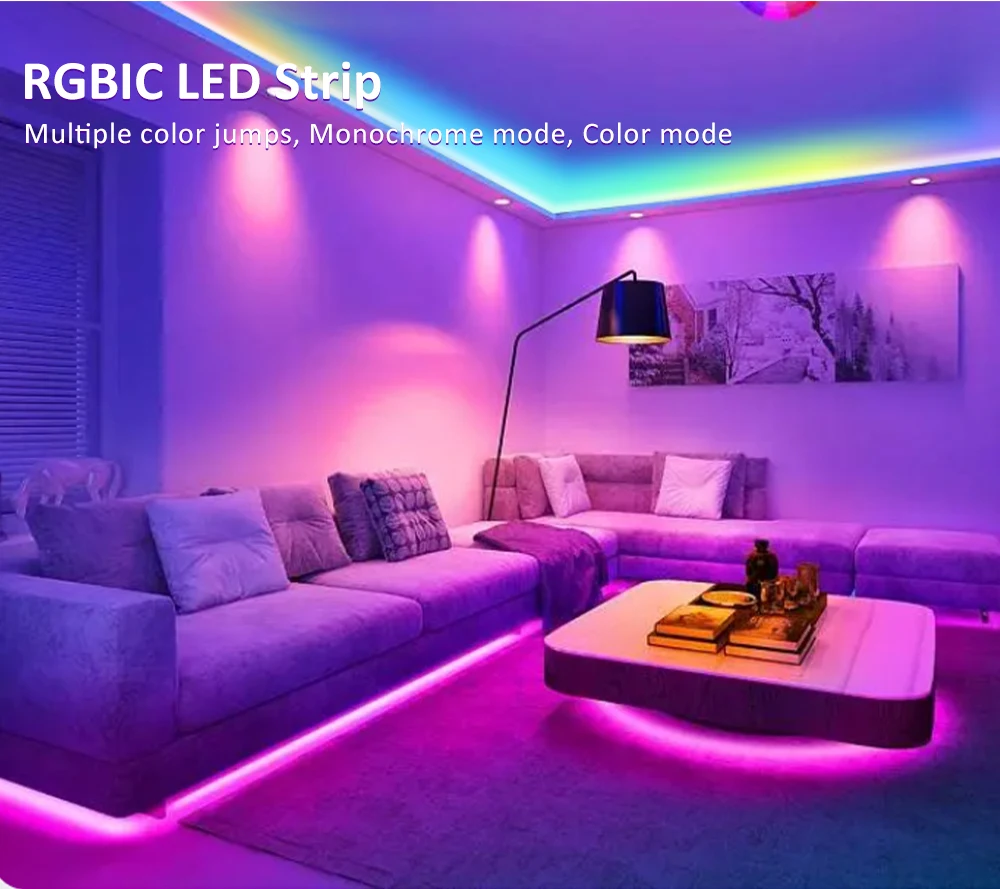

●Multiple applications:

1. Can be used to decorate cars and bicycles, frame or outline lighting.
2. Widely used for home improvement purposes, hotels, clubs, shopping malls.
3. Architectural decoration lighting, exquisite mood lighting.
4. Widely used in backlight, concealed lighting, and slot lighting.
5. Emergency and safety lighting, advertising sign lighting.
6. Decorative lighting for festivals, events and exhibitions.

● Q & A:

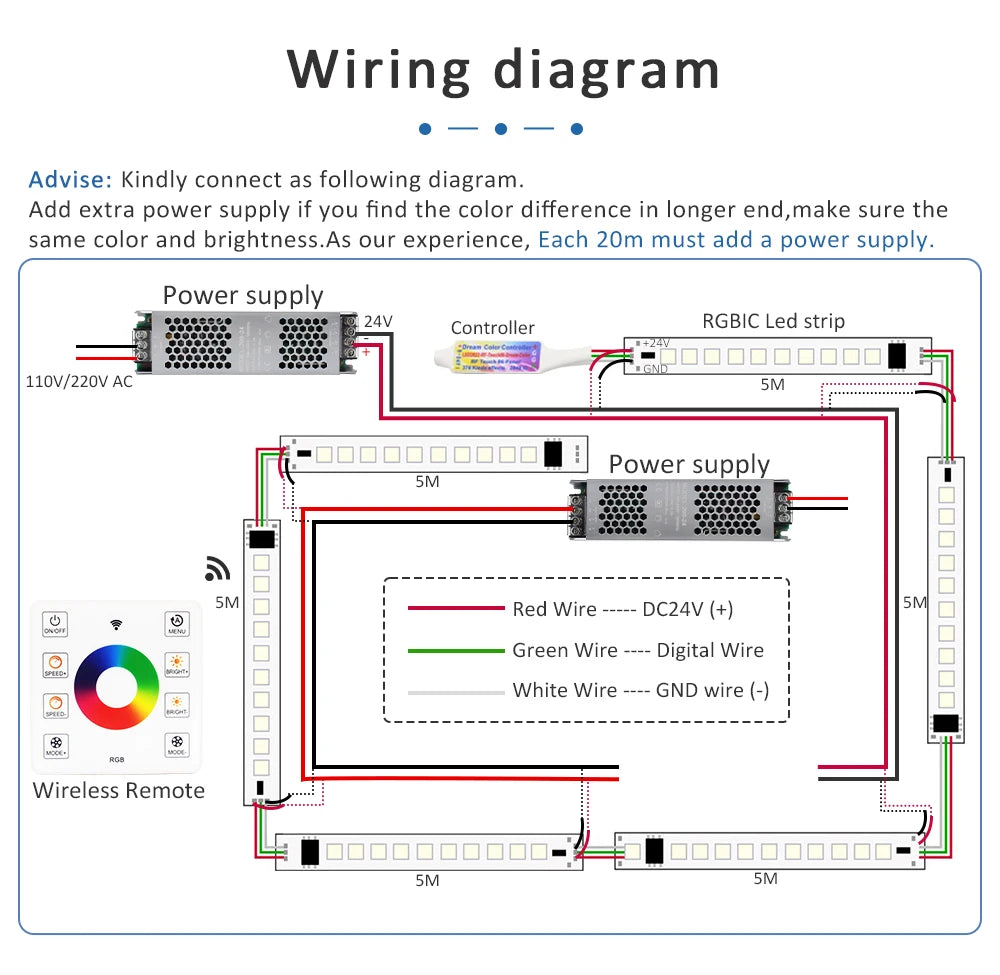

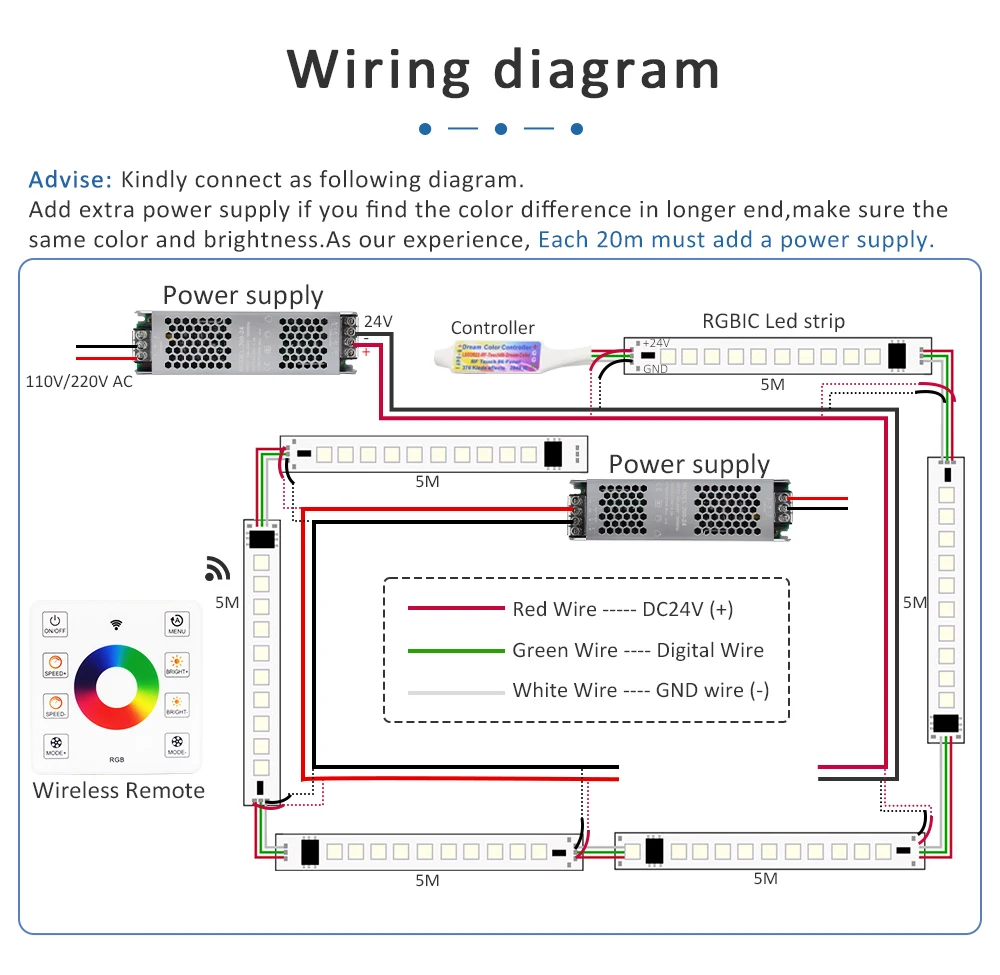

Question 1:I connect more than 30m led strip in the same power supply, why the last 10m/20m have color difference when it is static ?
Answer: That means you need add an extra power cable to the end of led strip，because there is voltge-drop when it is too long.

Question 2: Why some of led strip is not light-ON ?
Answer: Kindly enter into the " Pixel Setting" from App, increase the pixel points till all lights are ON.

Question 3: IF I want to connect 35meters,make them working synchronously, How to order ?

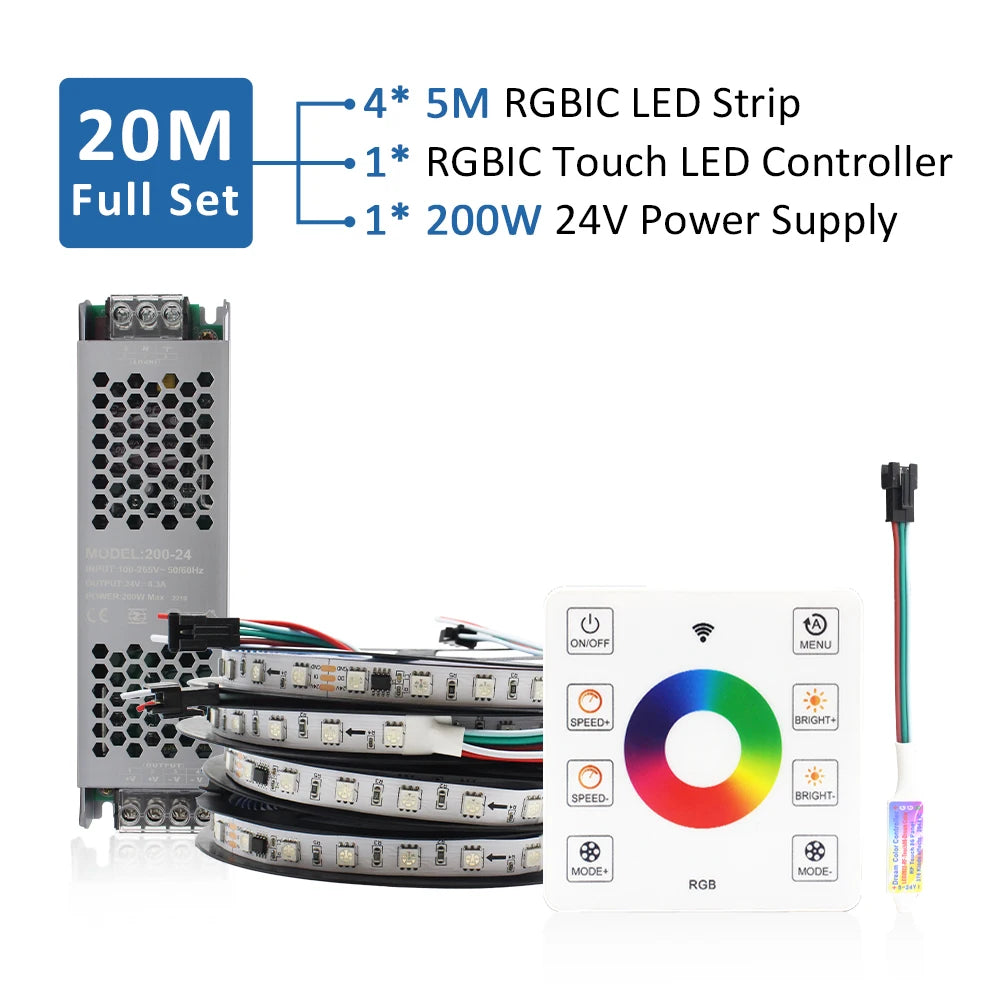

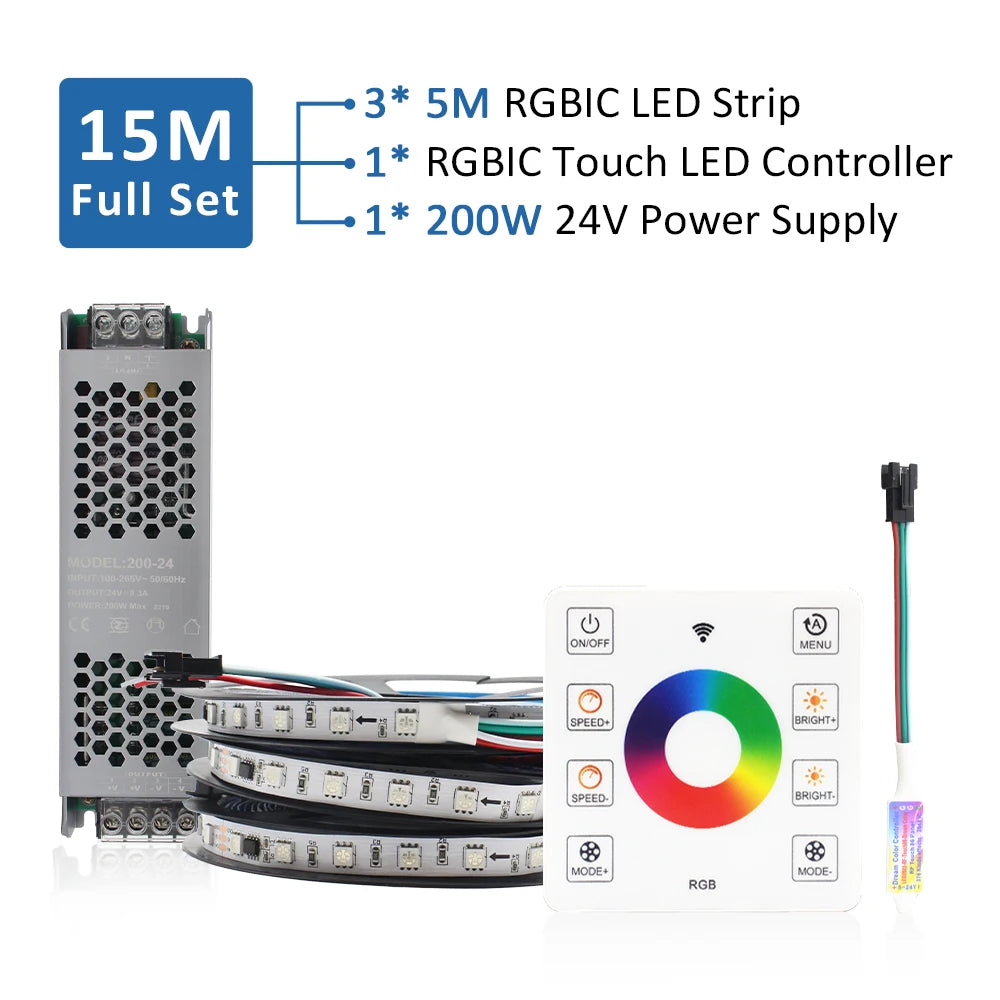

Answer: You can buy 1x 20M Full Set + 1 x 15M Full Set + 1 x 24V 100W Power Supply Only
