SPECIFICATIONS

Average Life (hrs): More than 50000hours

Brand Name: Xnbada

Certification: CCC,ce,FCC,ROHS,UL,CE,RoHs

Color Temp(K): 3000-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 576/720

Luminous Flux: 249-2000

Model Number: WS2811 COB

Nominal Voltage: 12V/24V

Occasion: Living room,Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 576/720

Strip type: COB

Voltage: 12V/24V

Waterproof: No

Package:

1 * COB 720/576 RGB IC LED Strip (Note:LED Power Supply and LED Controller is not included).

Please Note:

1.Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.

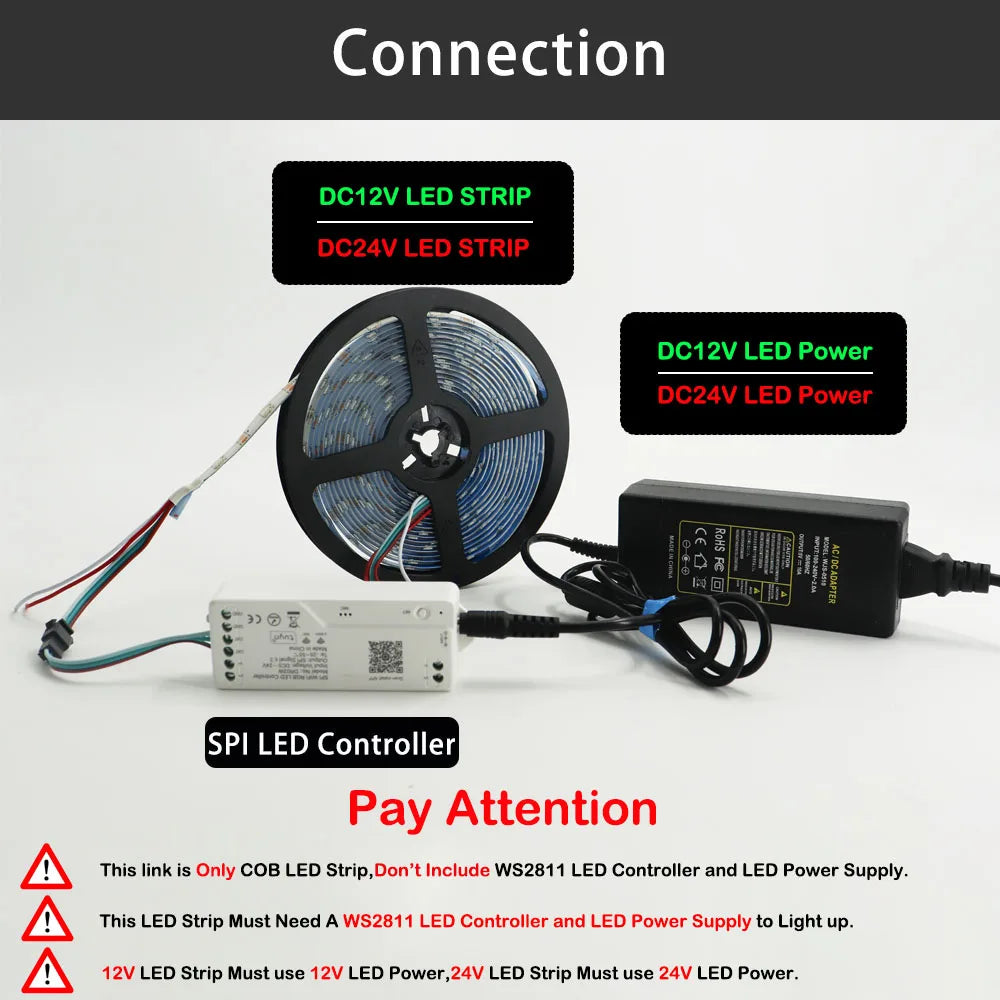

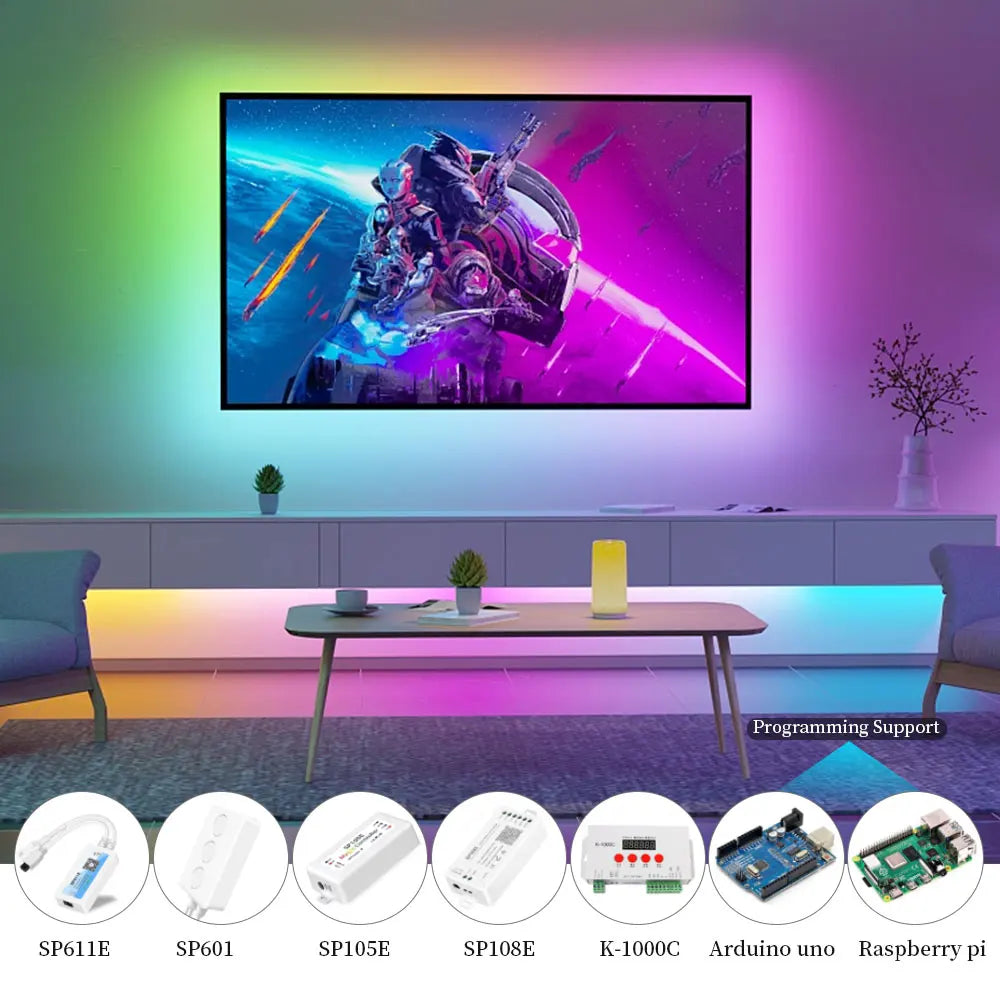

2.You need order a ws2811 led controller(Not Inlcude)and a 12V/24V led power supply(Not Inlcude) Light Up the COB led strip.

3.This LED Strip is Non-Waterproof.

4.This LED Strip is not Individually Addressable Led Strip:

DC5V 720Leds/m---One IC Control 18Leds

DC12V 576Leds/m---One IC Control 36Leds

DC12/24V 720Leds/m---One IC Control 36Leds

Specification:

Input Voltage: DC5V, DC12V, DC24V.

IC Type: FCOB RGB WS2811 IC.

Wattage:

720Leds/m -----5V/12V-12W/m, 24V-20W/m.

576Leds/m -----12V-10W/m, 24V-18W/m.

FPCB Width: 720-10/12mm, 576-10mm, 360-10mm.

LED Quantity: 720LEDs/M, 576LEDs/M.

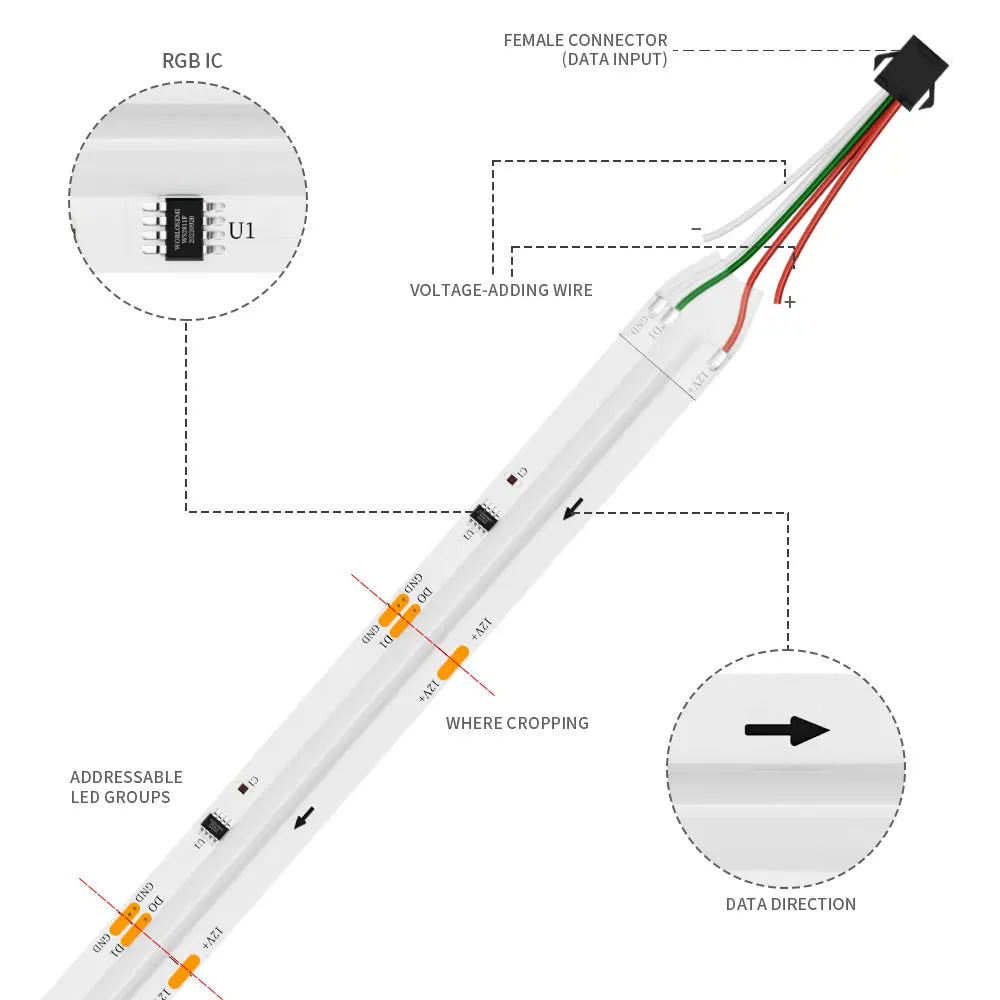

Cutting Length: 720-every 25/50mm, 576-every 62.5mm.

Individually Addressable: every (720-25/50mm) or (576-62.5mm) can be unique controlled.

Color Rendering Index: Ra＞90.

Operation Temperature: -20℃-+45℃.

Storage Temperature: -20℃-+60℃.

View Angle: 180°.

Advantages:

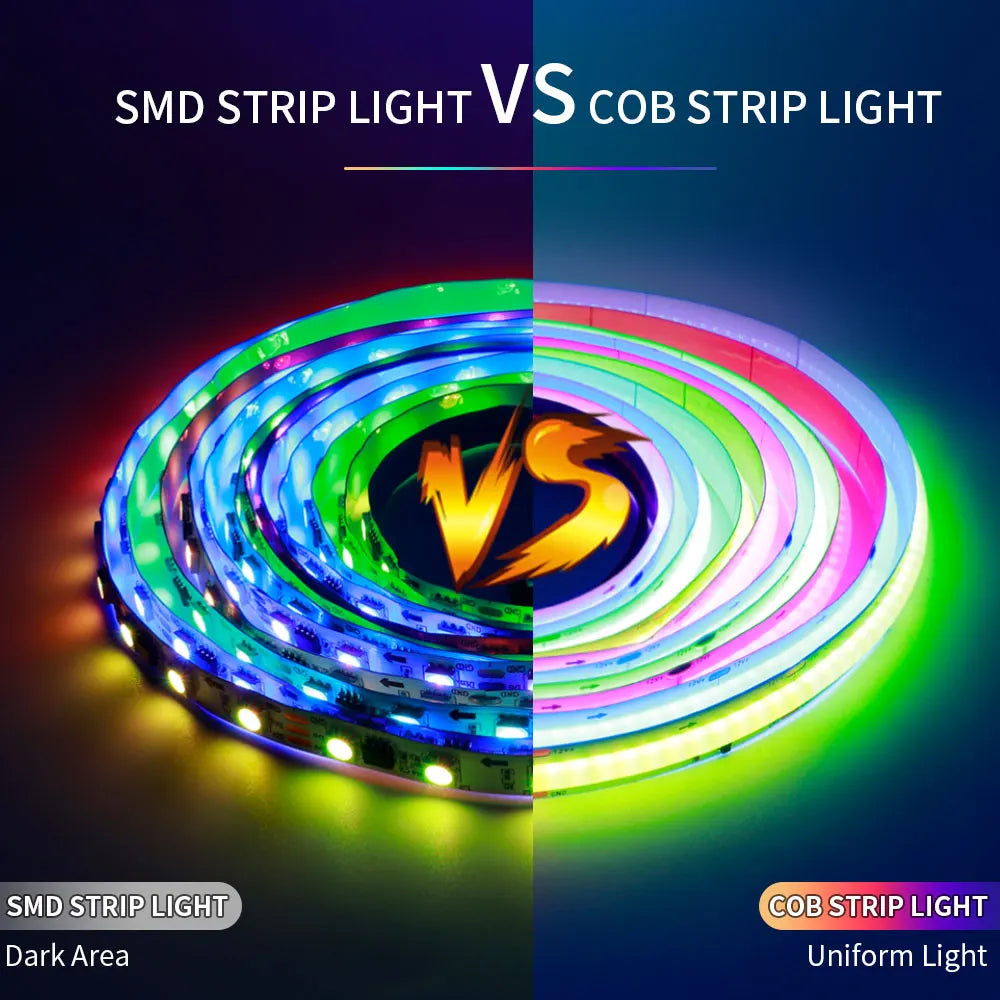

1. Chips are arranged in a linear way, integrated package, with uniform light color and no light spot;

2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;

3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

4. DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;

5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;

6. LED light source, energy-saving and environmental protection, in line with national environmental standards.
