WS2812B 5050 RGB Led Digital Panel Light Matrix Flexible Screen WS2812 Ring Individually Addressable Pixels DC5V
8LEDs Black PCB
$11.79
Sale price
$11.79
Regular price
$0.00
Skip to product information
WS2812B 5050 RGB Led Digital Panel Light Matrix Flexible Screen WS2812 Ring Individually Addressable Pixels DC5V
$11.79
Sale price
$11.79
Regular price
$0.00
Description
SPECIFICATIONS
Average Life (hrs): 50000HOURS
Brand Name: LOAMLIN
Certification: CCC,ce,FCC,ROHS
High-concerned chemical: none
Is Batteries Included: no
Is Smart Device: no
Item Type: Strip
LED Chip Brand: Epistar
LED Chip Model: SMD5050
LEDs Number/M: 8LED/16LED/24LED/35LED/45LED
Luminous Flux: 249-2000
Nominal Voltage: 5V
Occasion: Living room
Origin: Mainland China
Power Consumption (W/m): 11.52W/m
Power Generation: Switch
Power Source: DC
Strip type: SMD
Voltage: 5V
Waterproof: No
Description:

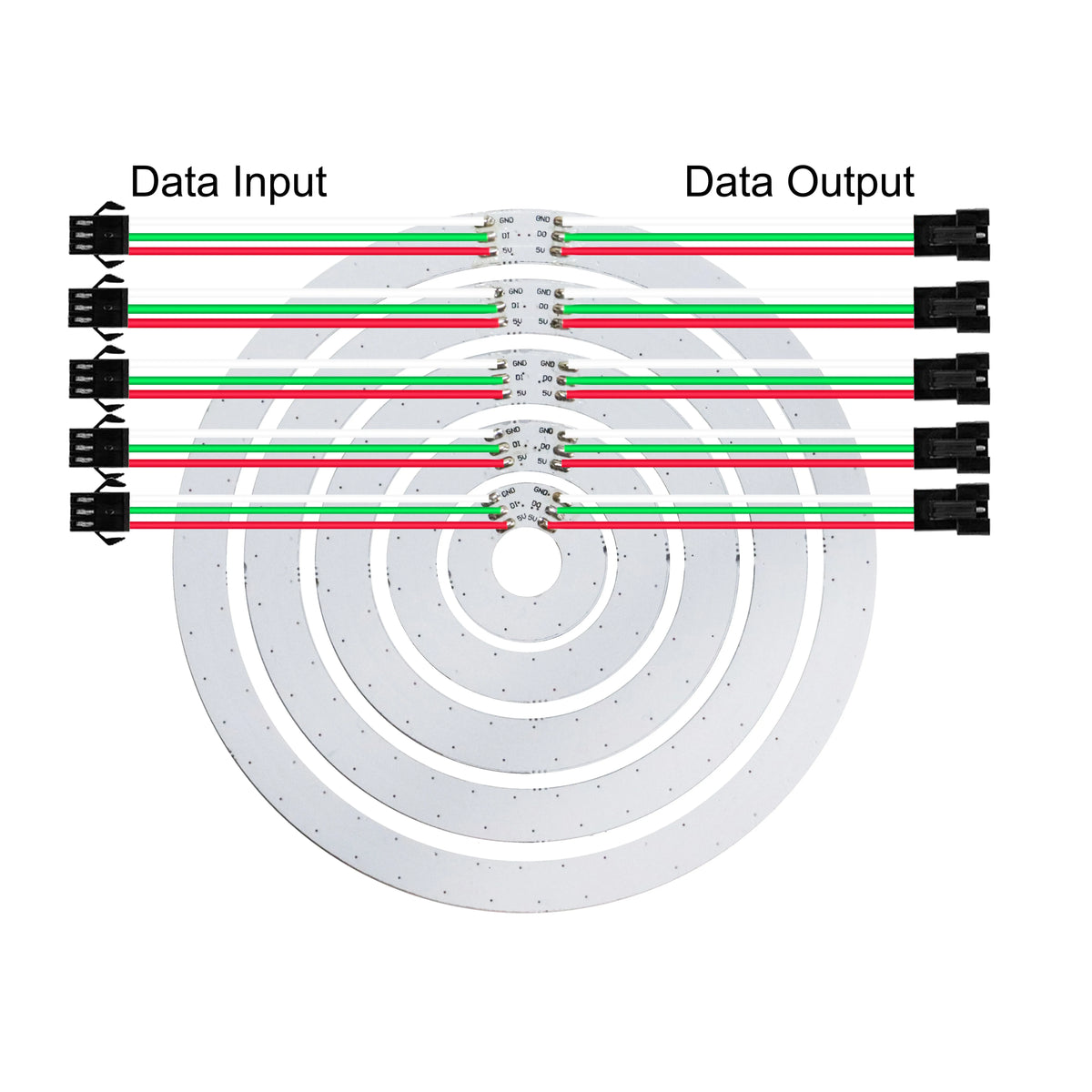

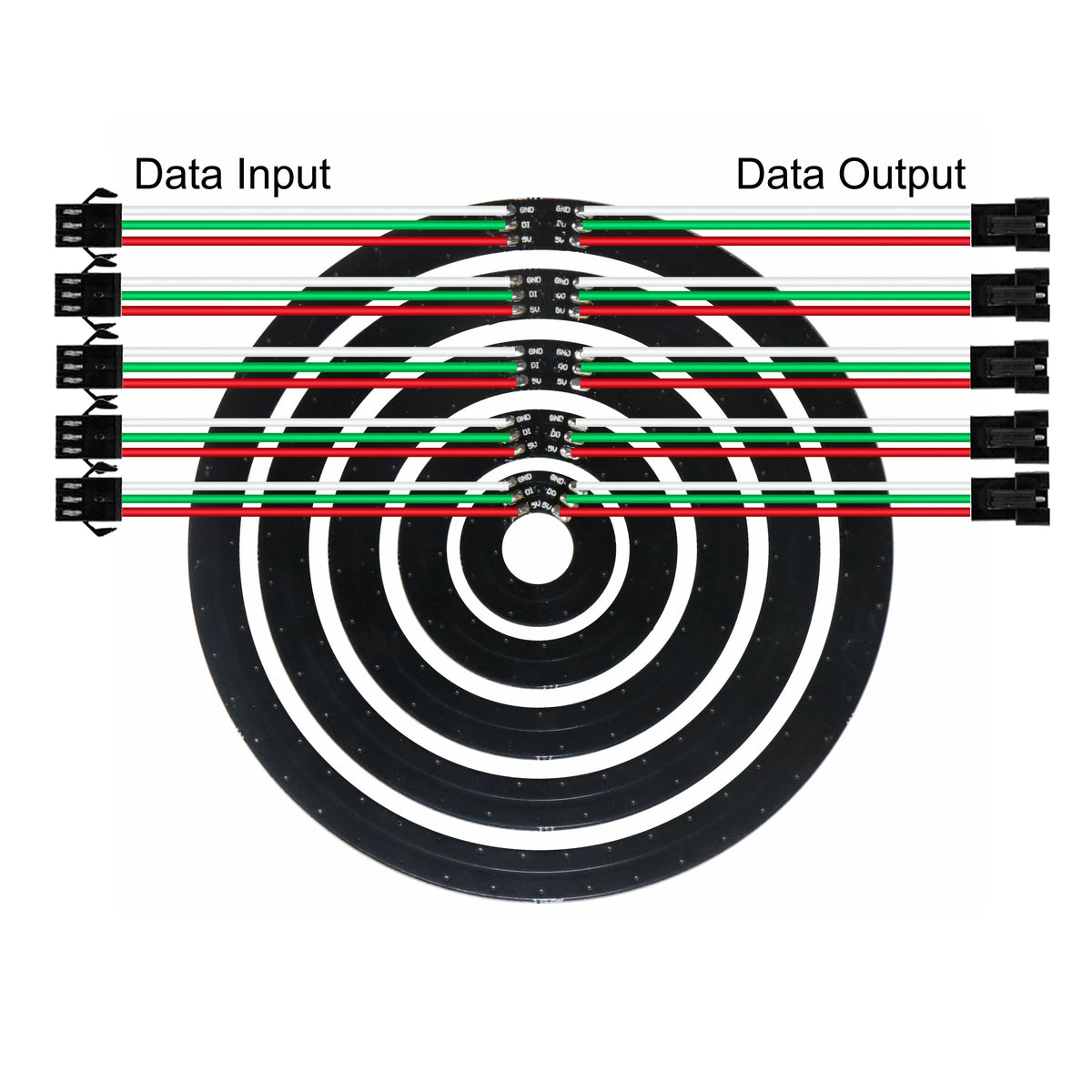

There is a single data line with a very timing-specific protocol.
Since the protocol is very sensitive to timing,
It requires a real-time microconroller such as an AVR, A rduino, PIC, mbed, etc.
It cannot be used with a Linux-based microcomputer or interpreted microcontroller
Such as the netduino or Basic Stamp.
Chip: WS2812 (Built-in LED)

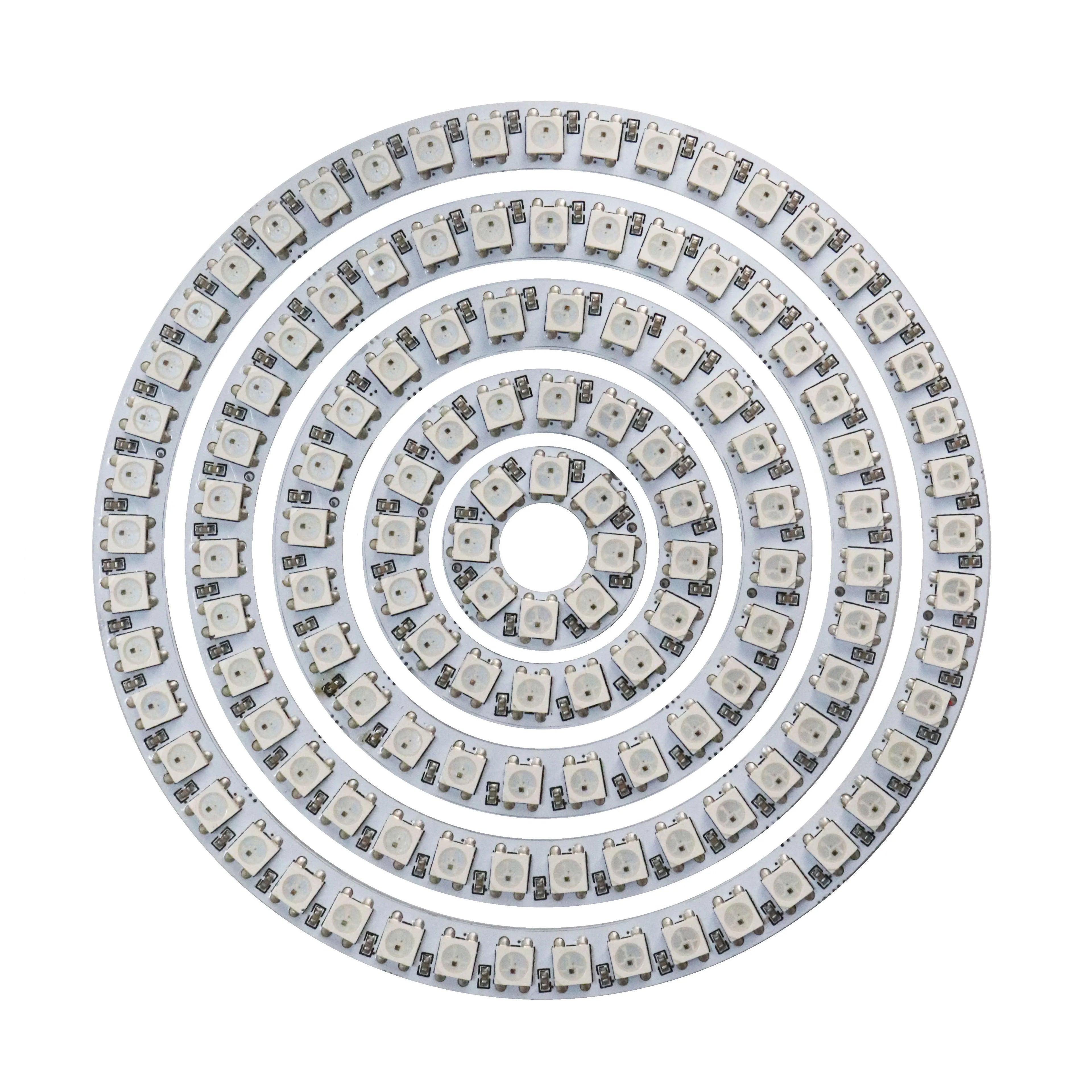

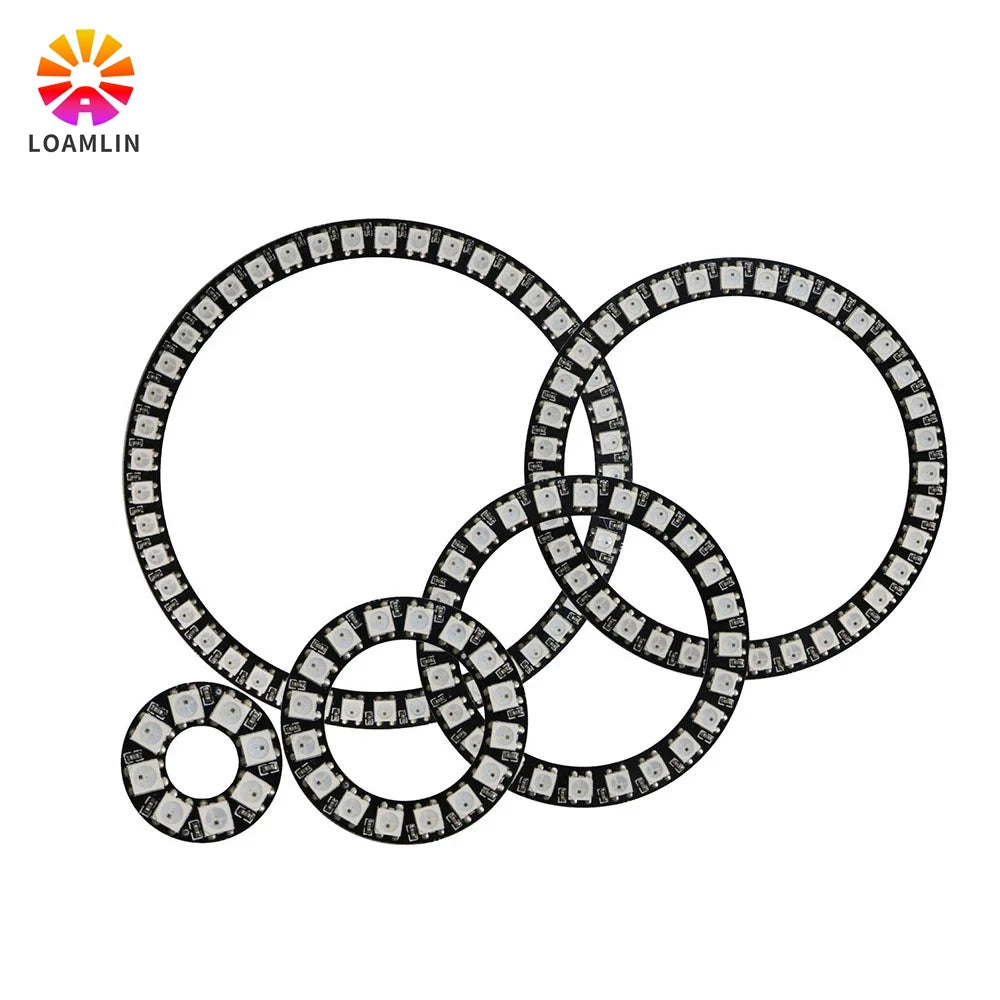

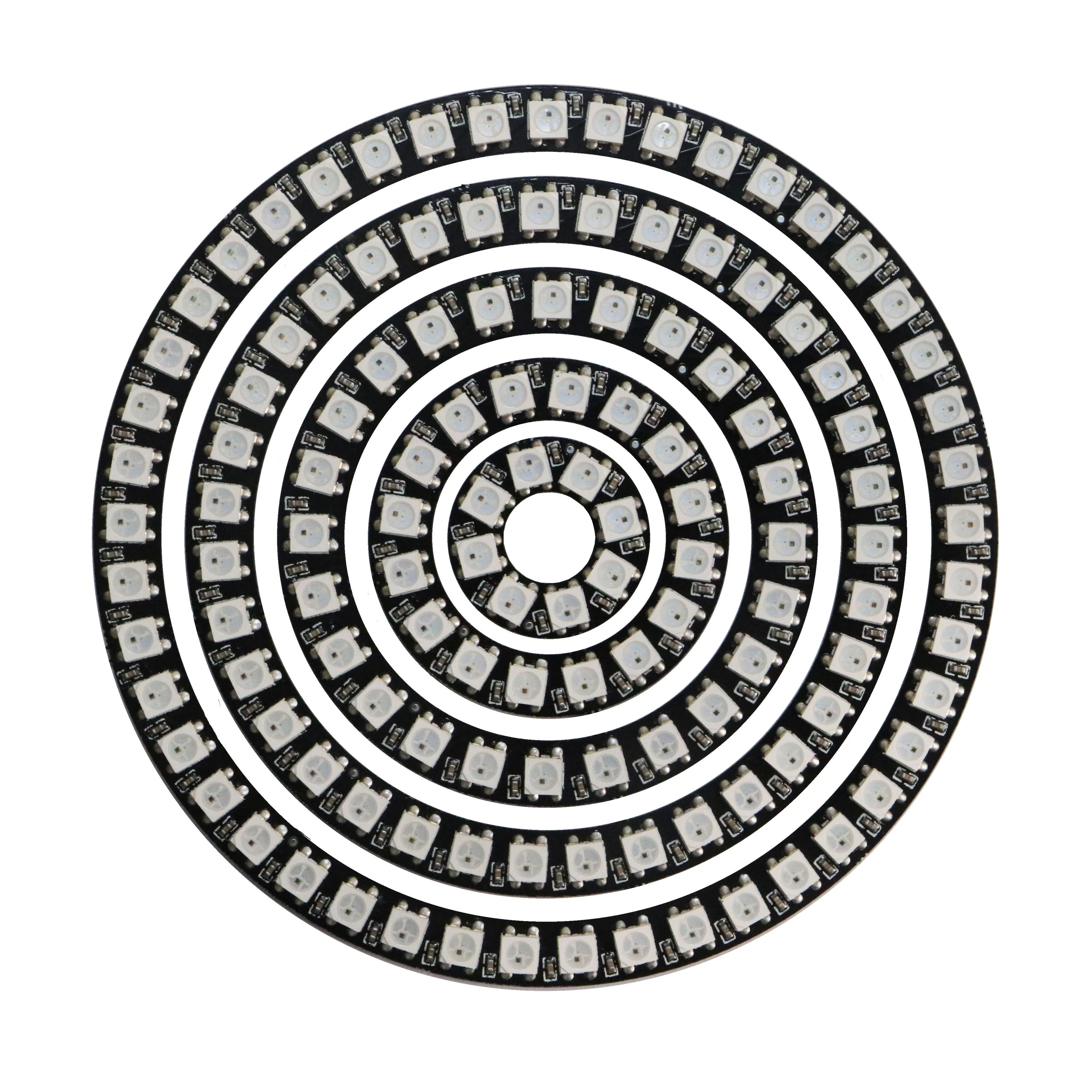

LED:8/16/24/35/45Pcs 5050 RGB Full Color Highlighting
Voltage: 5V(POWER SUPPLY AND CONTROLLER IS NOT INCLUDED)

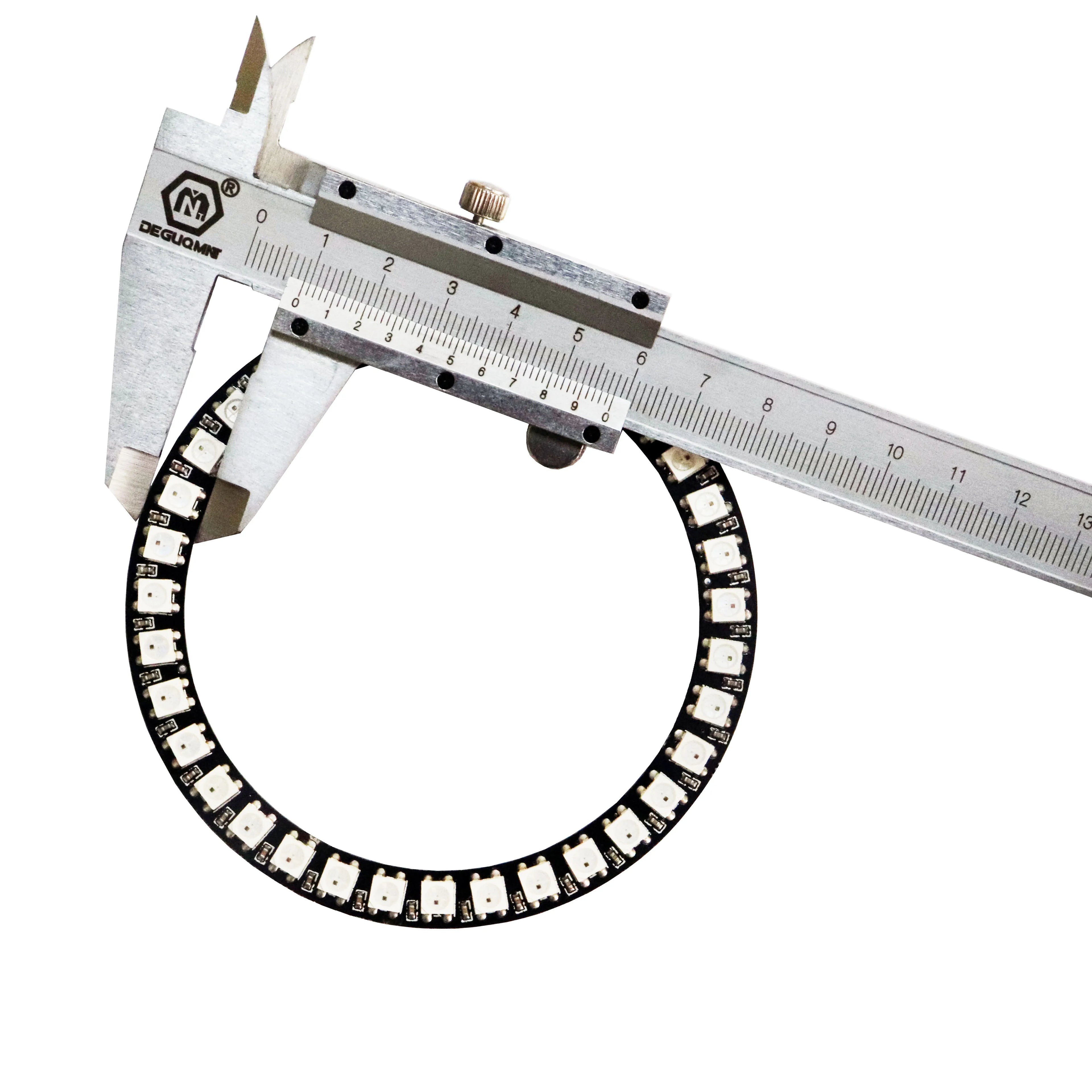

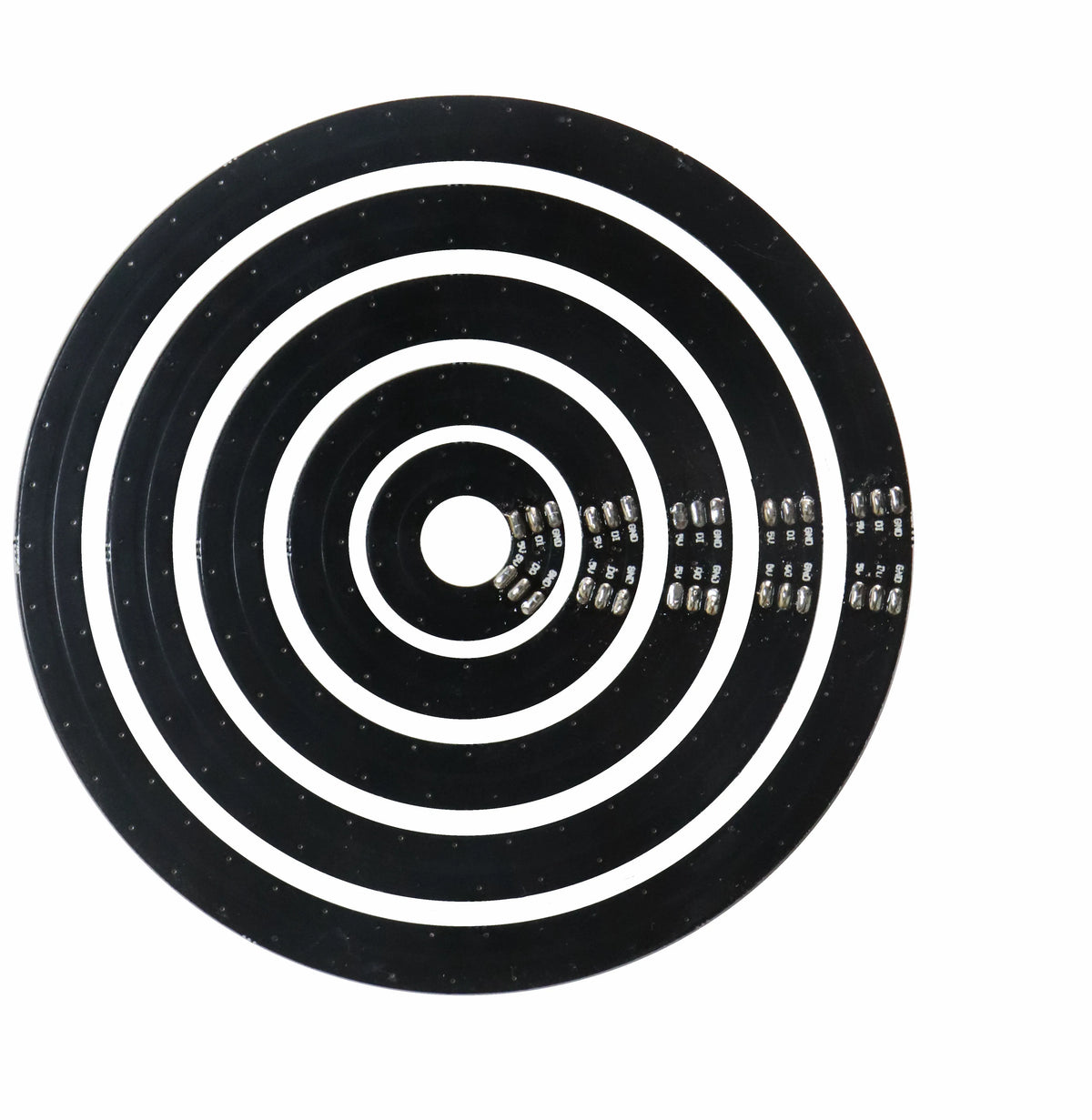

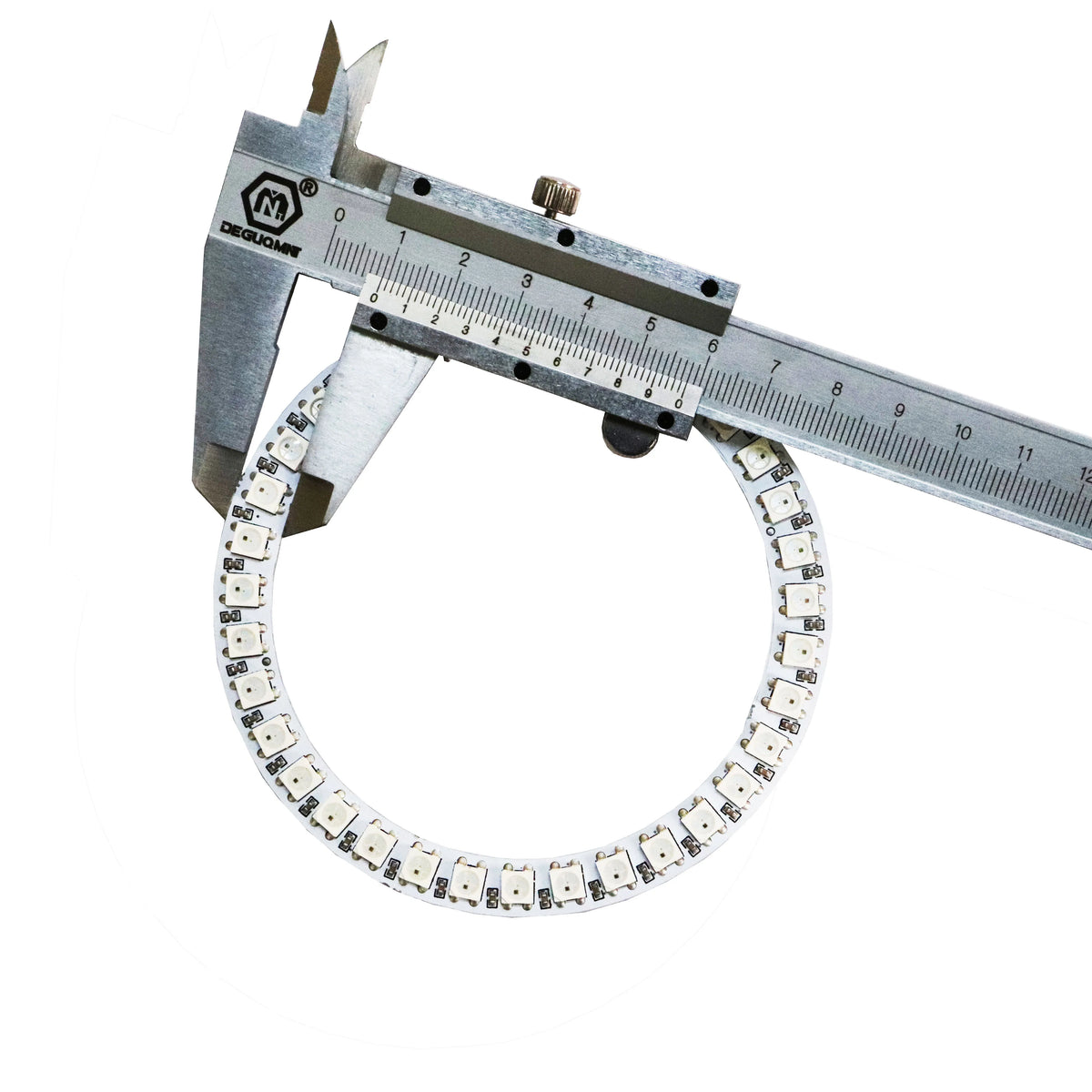

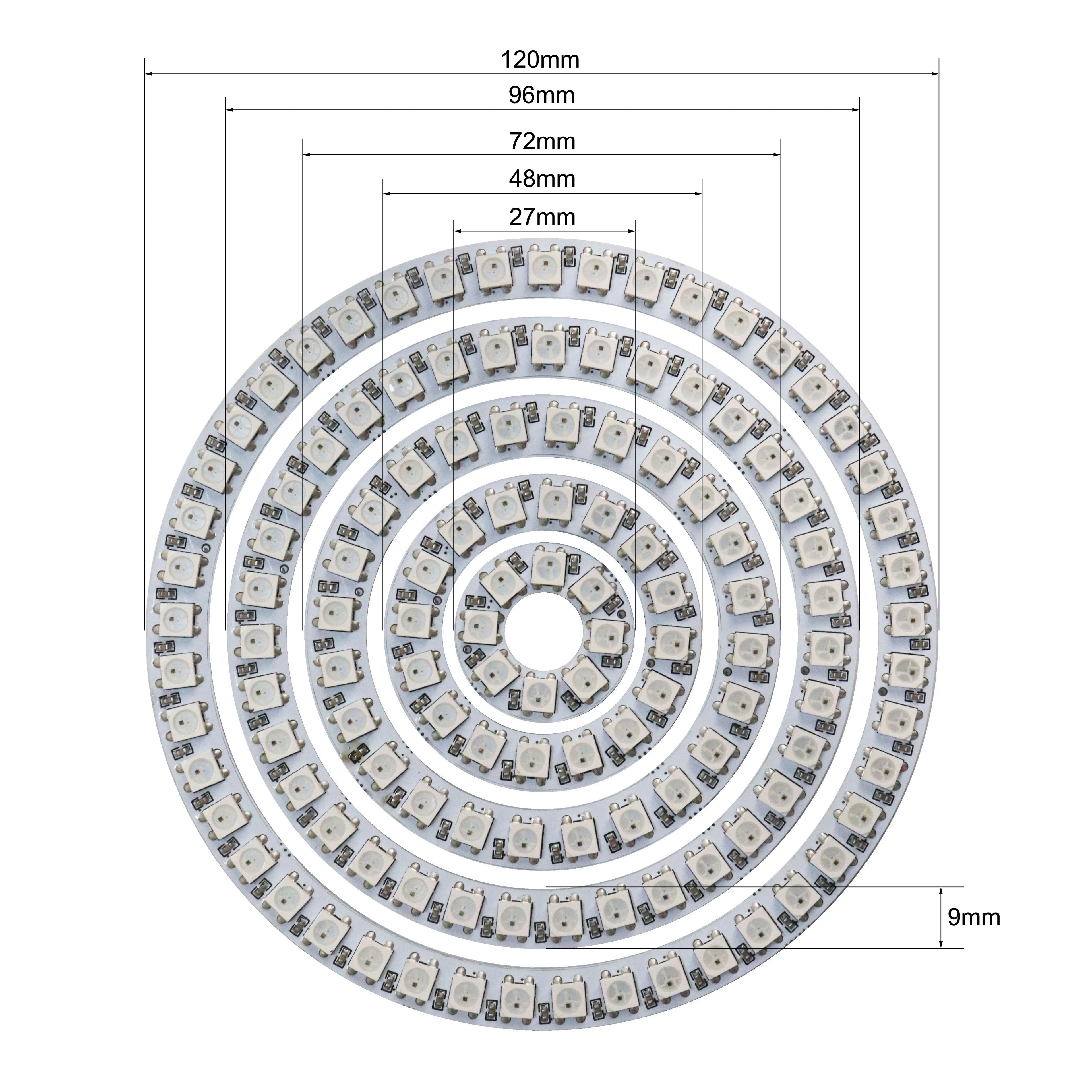

Size: Outer Diameter Inner Diameter PCB Width

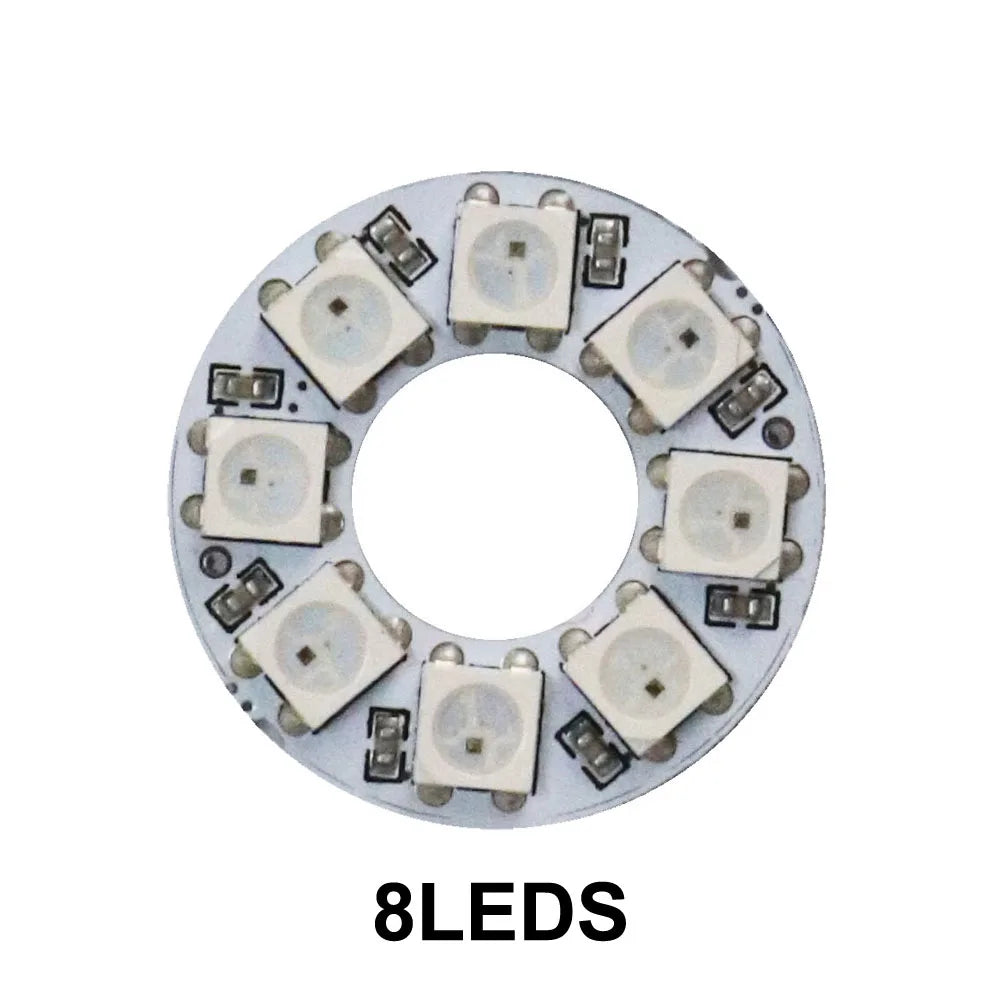

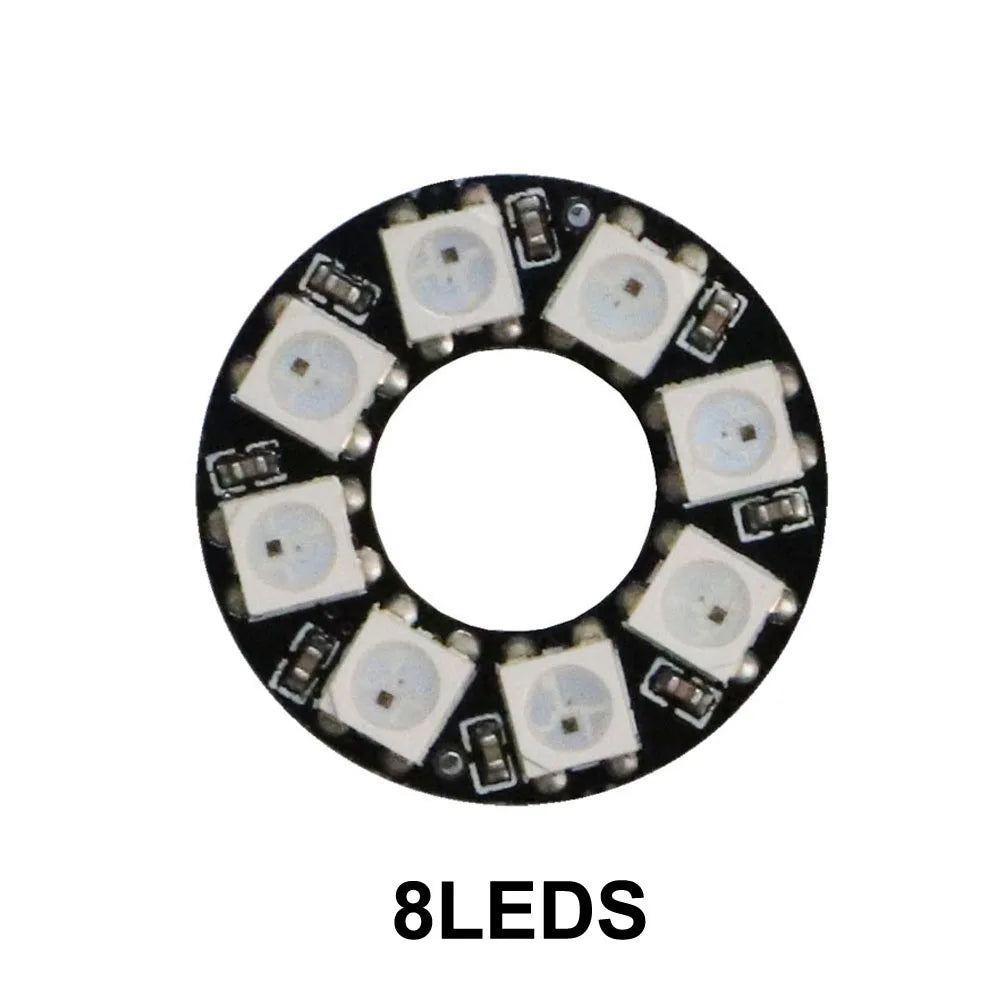

8LED 27mm 12mm 7.5mm

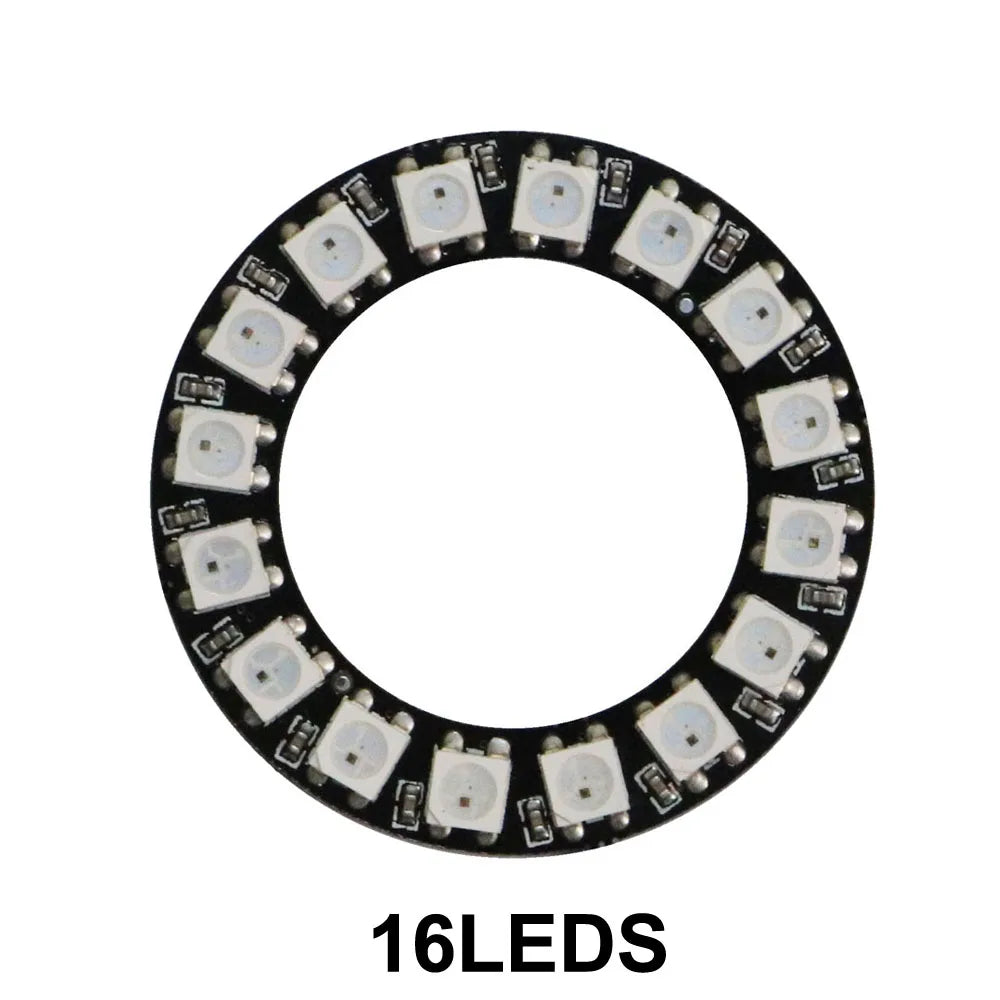

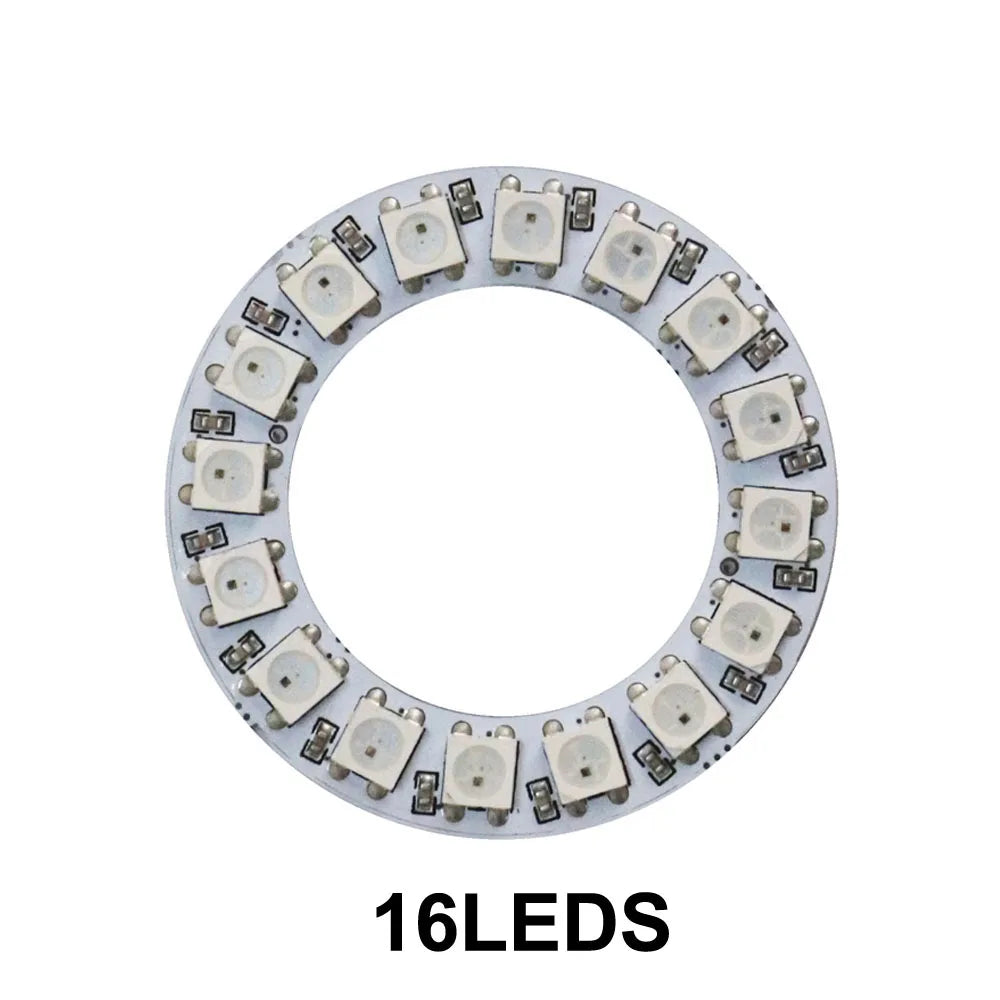

16LED 48mm 31.1mm 7.5mm

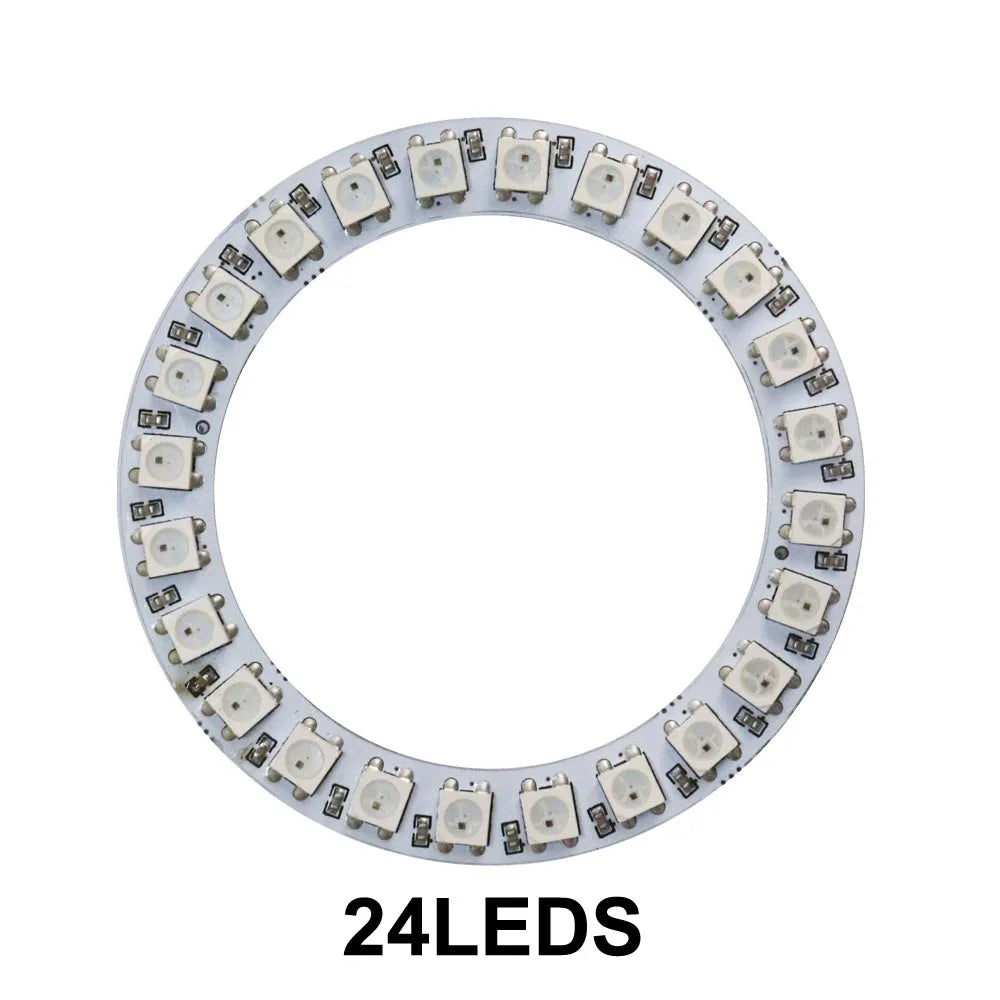

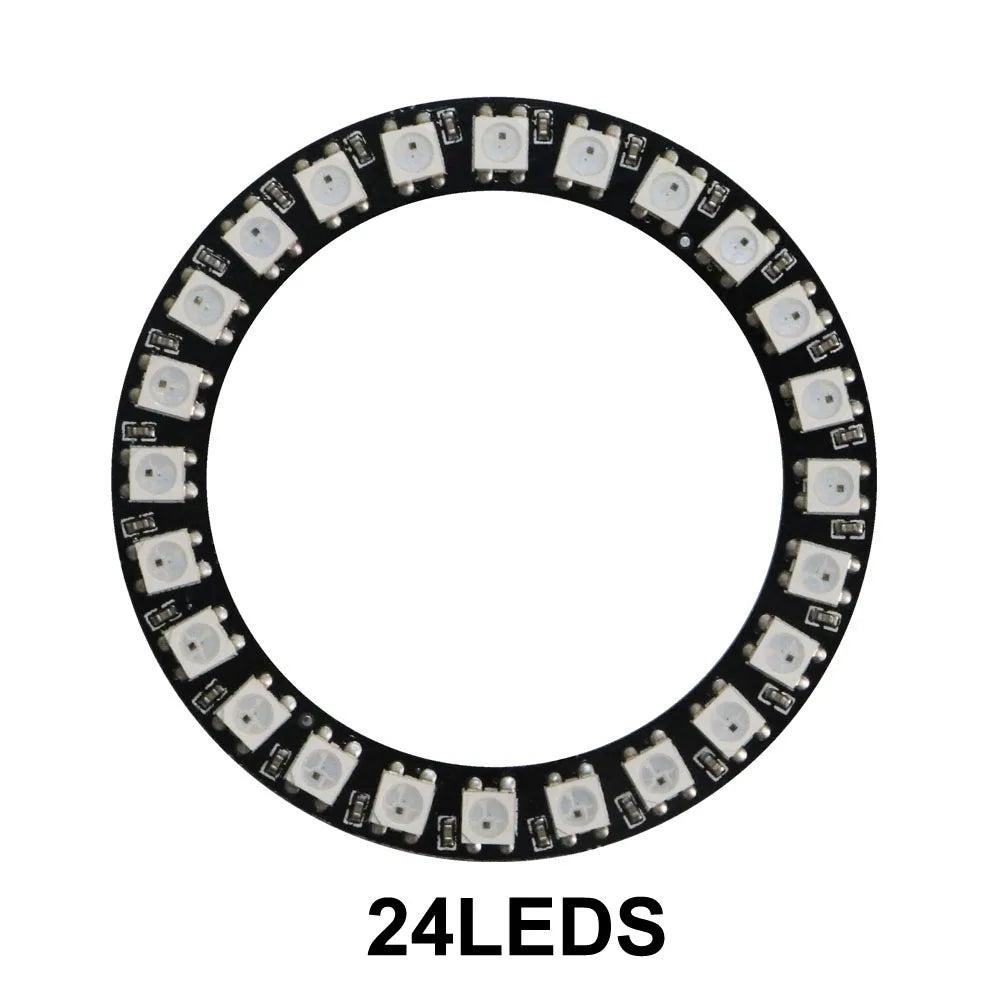

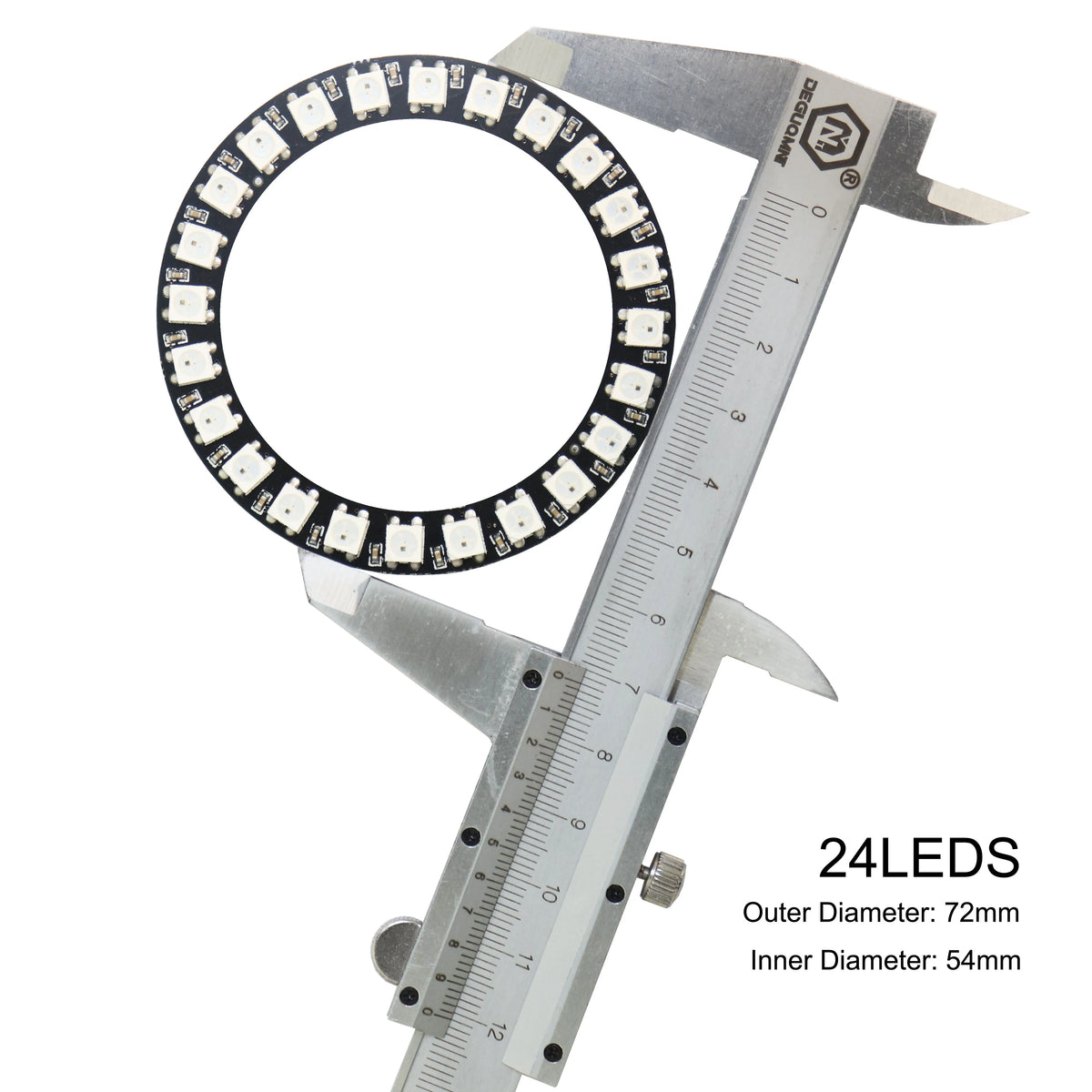

24LED 72mm 54mm 9mm

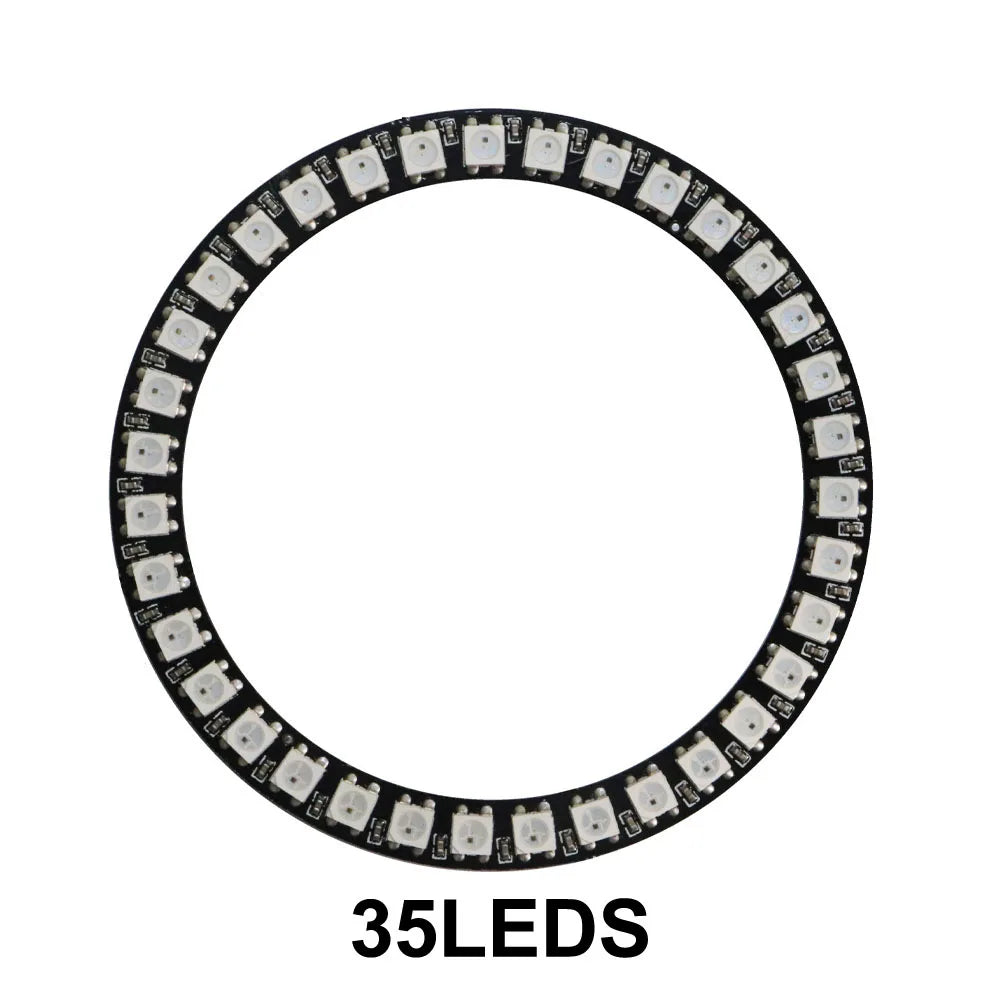

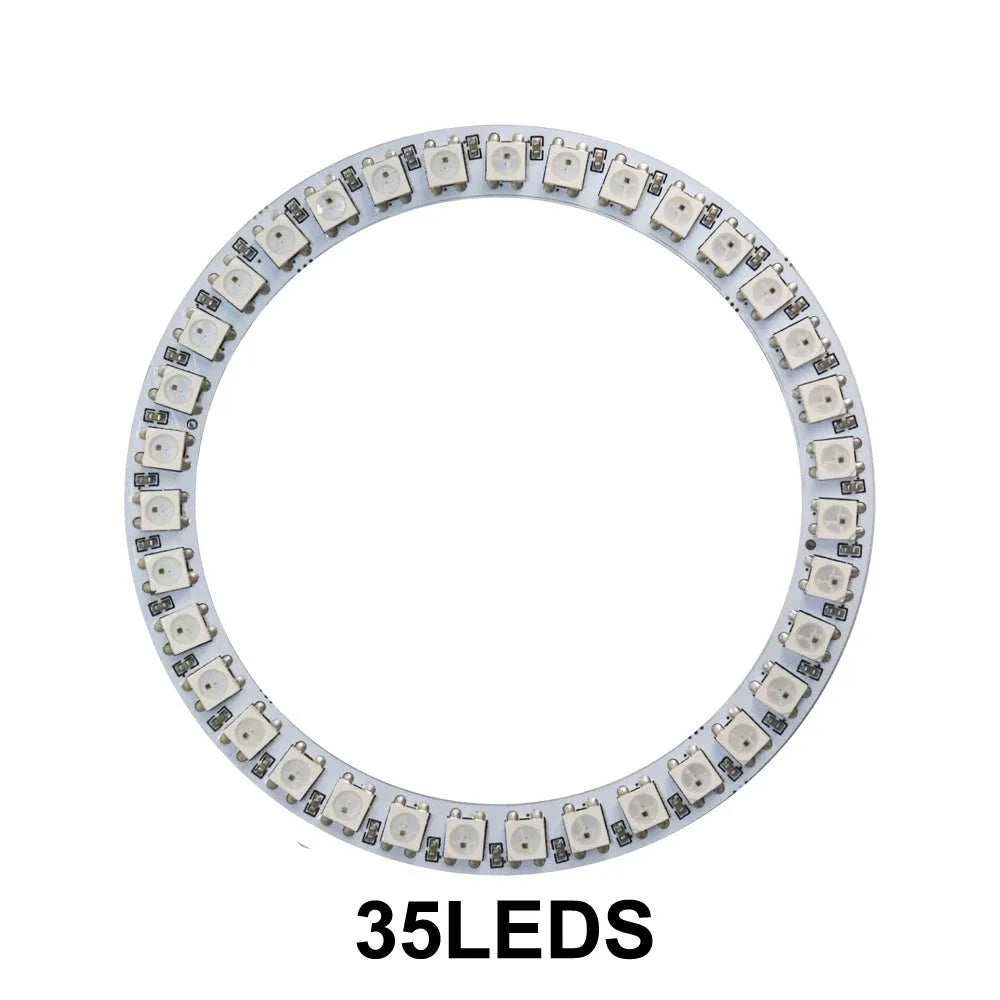

35LED 96mm 78mm 9mm

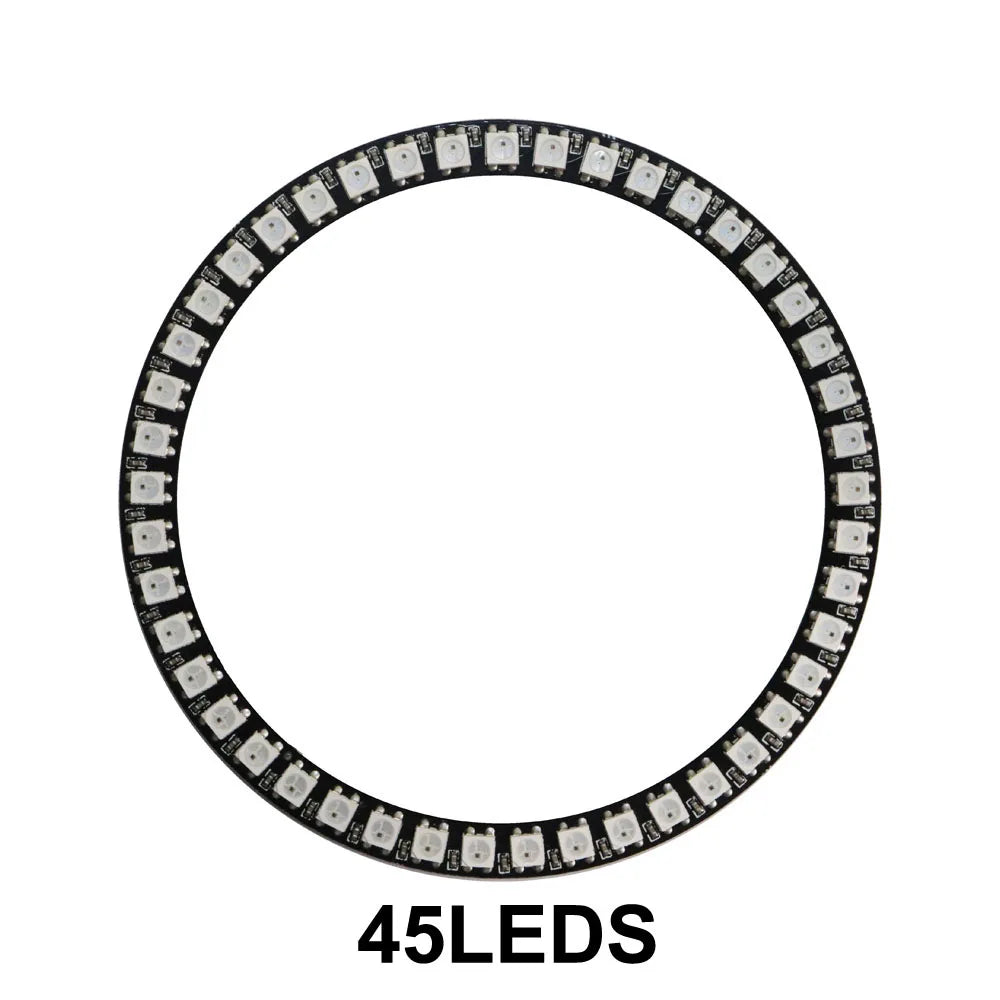

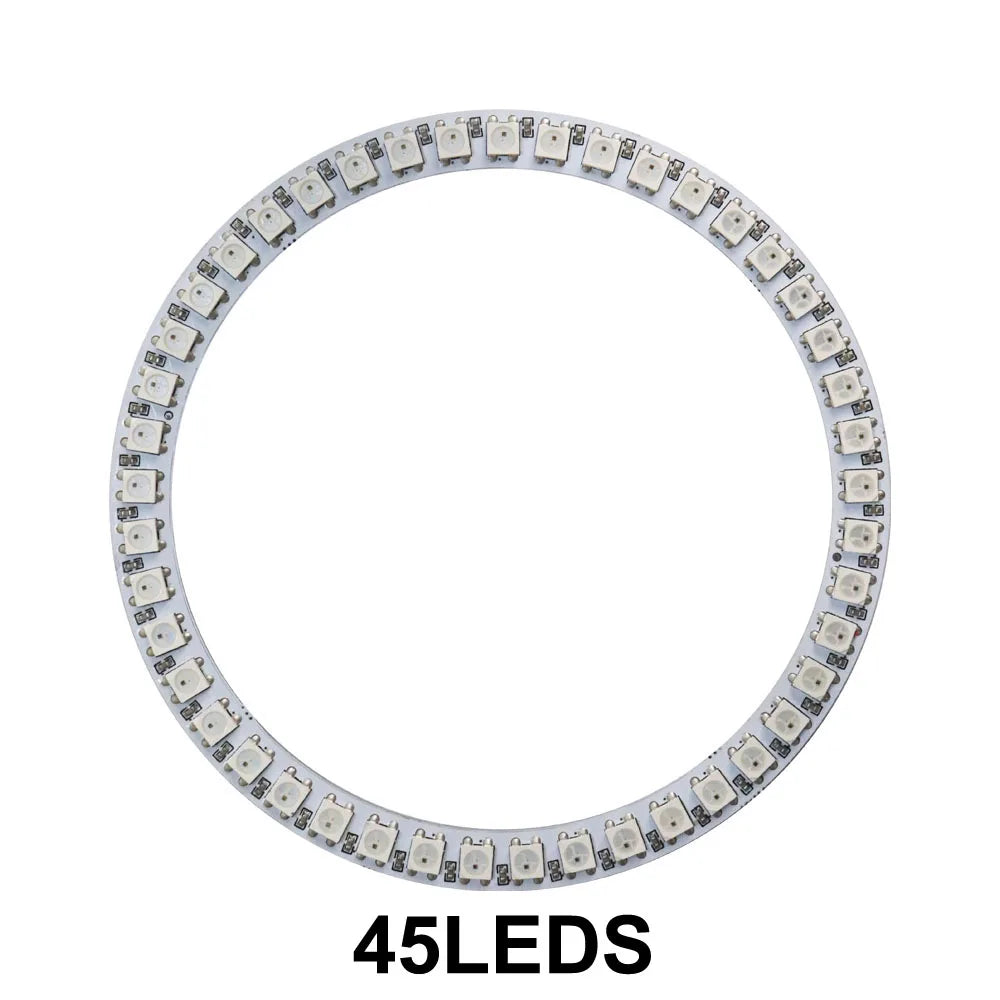

45LED 120mm 102mm 9mm
