Description

SPECIFICATIONS

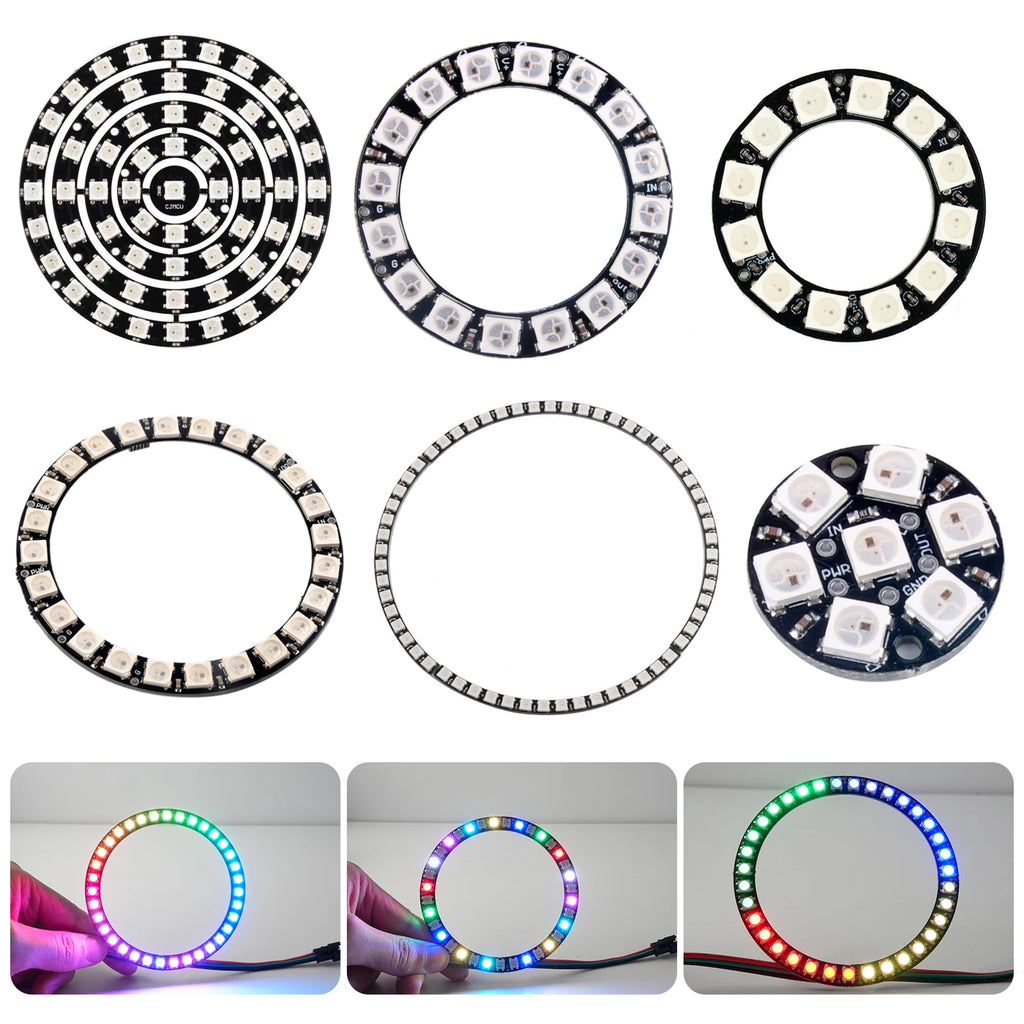

1: 7 Bits WS2812 5050 RGB LED Ring

2: 12 Bits WS2812 5050 RGB LED Ring

3: 16 Bits WS2812 5050 RGB LED Ring

4: 24 Bits WS2812 5050 RGB LED Ring

5: 60 Bits WS2812 5050 RGB LED Ring

6: 8 Bits WS2812 5050 RGB LED Stick

Brand Name: DIYmall

Choice: yes

Communication interface: Single-wire communication

High-concerned chemical: none

LED Chip: WS2812B

Model Number: FZ1556+FZ1557+FZ1558+FZ1559+DIY0120

Origin: Mainland China

is_customized: Yes

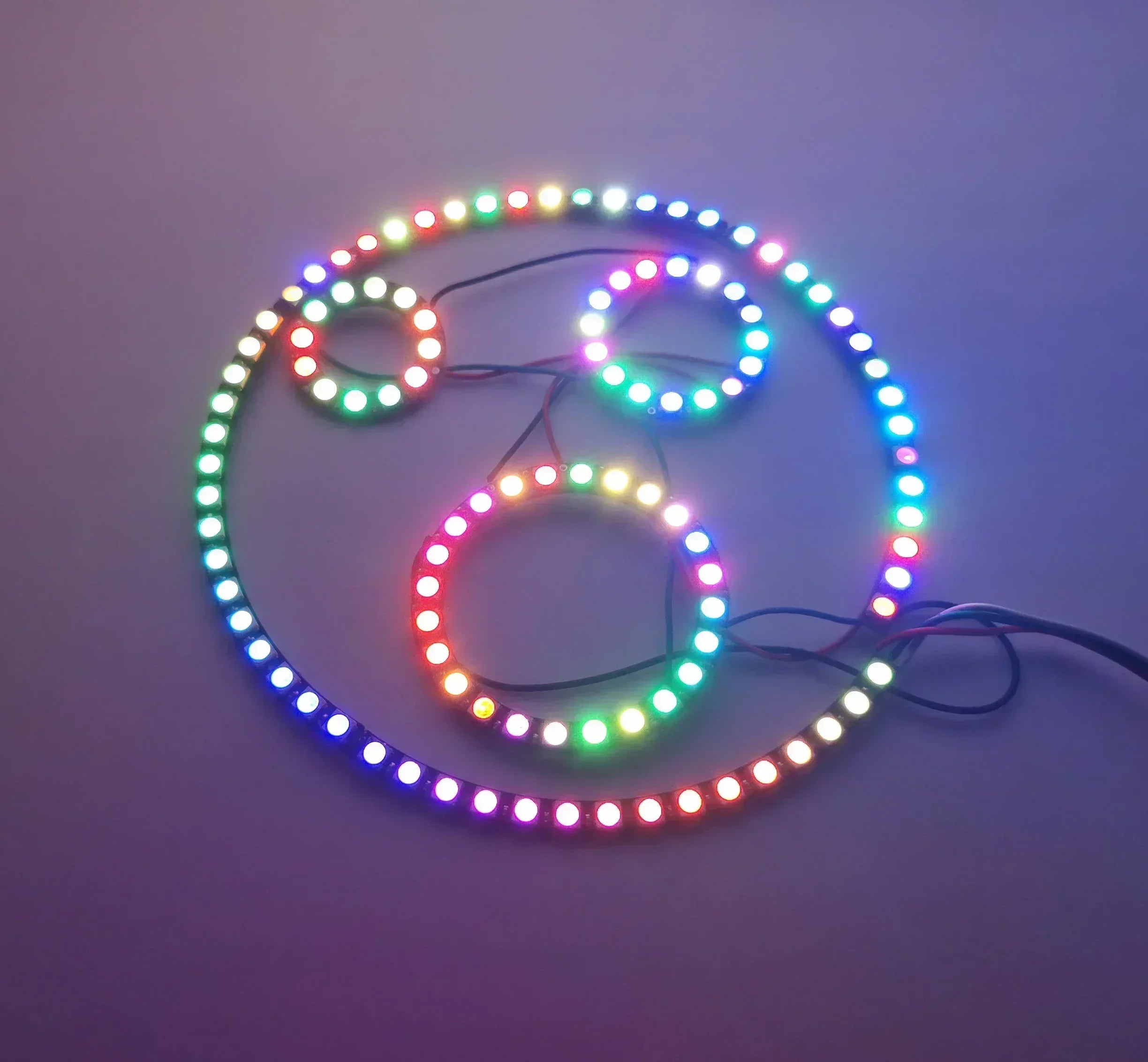

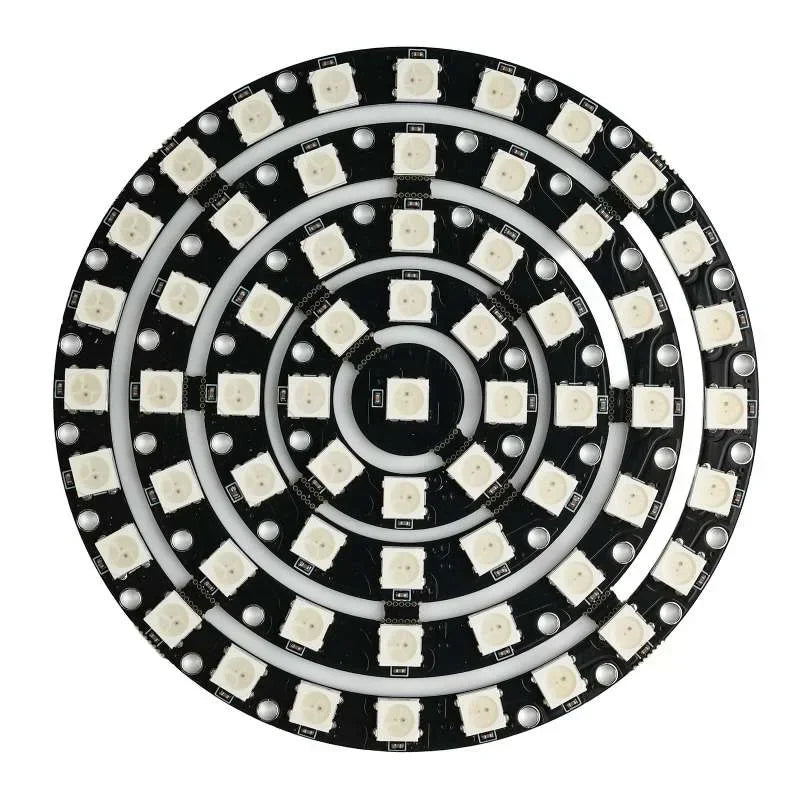

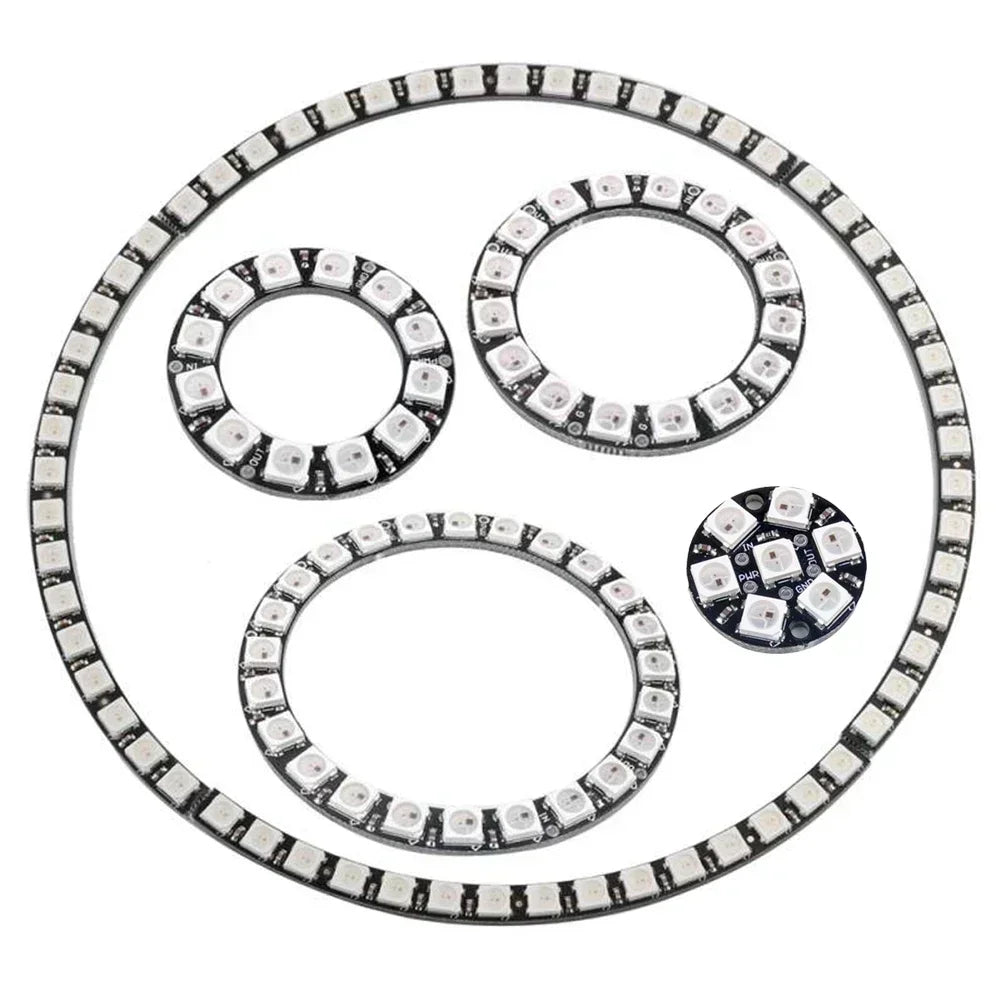

WS2812B 5050 RGB LED Ring 7 / 8 / 12 / 16 / 24 / 60 Bits Lamp Light with Integrated Drivers WS2812 for Arduino Raspberry Pi

Description:
This RGB LED ring can work with AVR, Arduino, Raspberry Pi, PIC, mbed etc.

Voltage:DC4-7V,usually we use USB 5V to power it;
LED Chip:WS2812B;
Communication interface:Single-wire communication

You can set the led brightness in the arduino code, and also you can program each light individually.

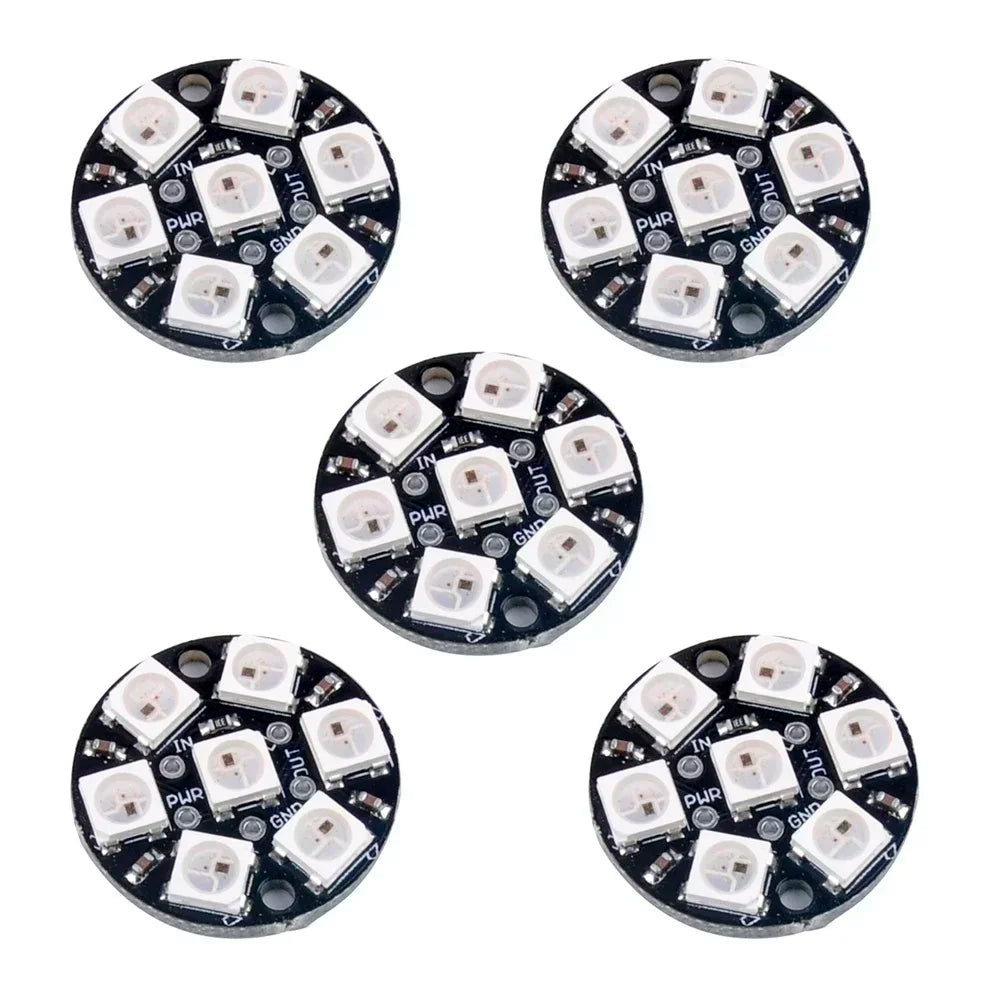

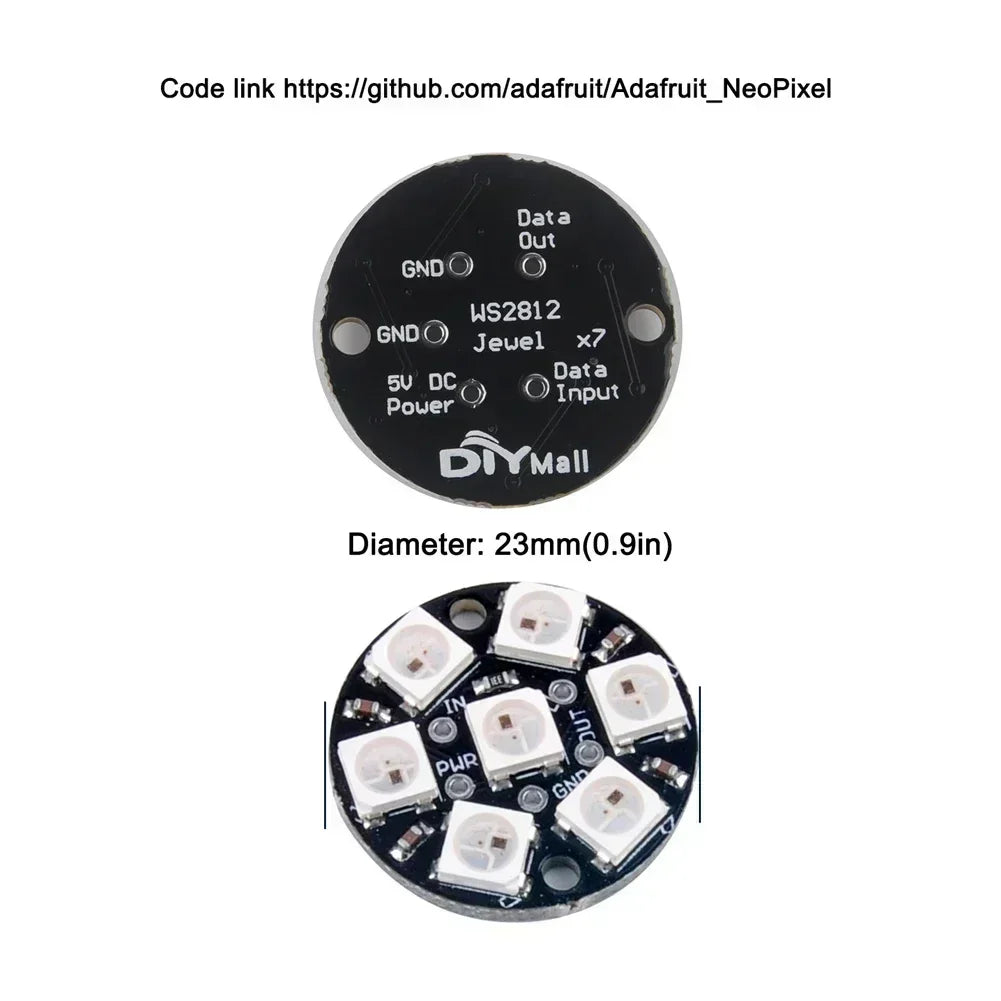

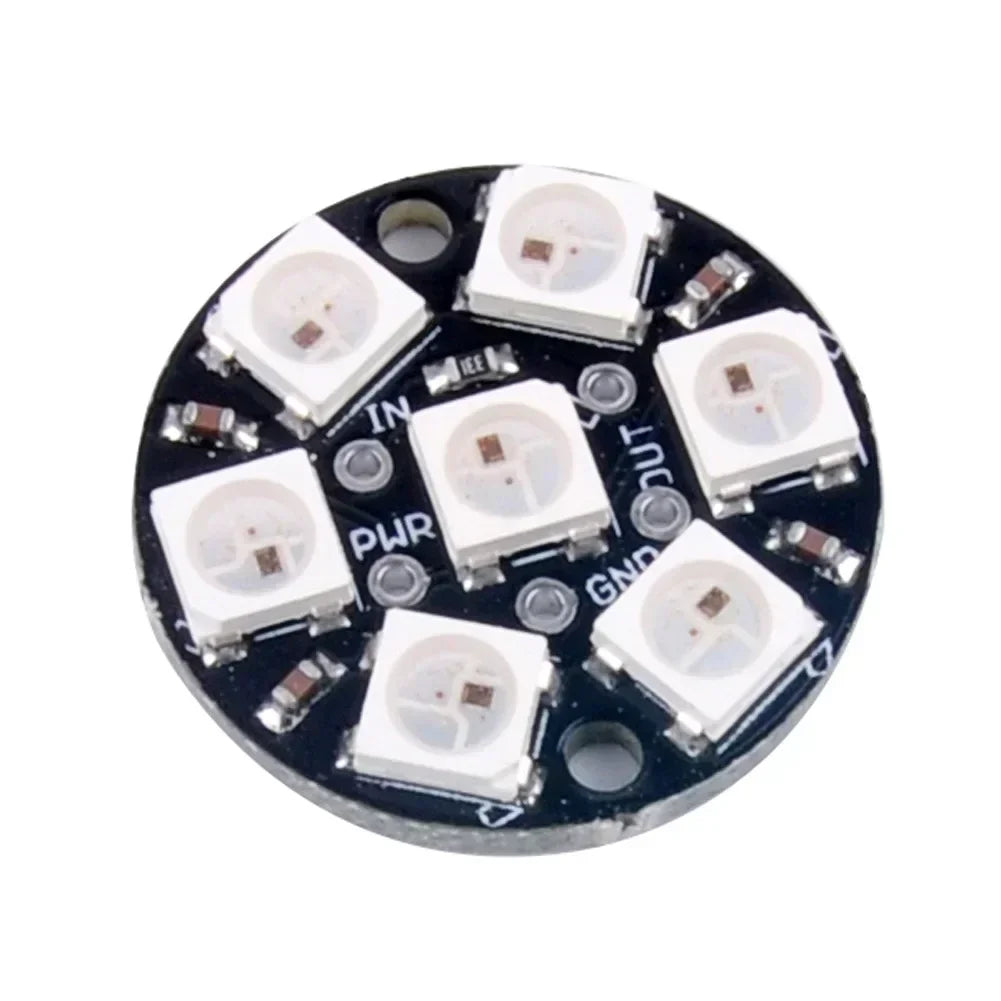

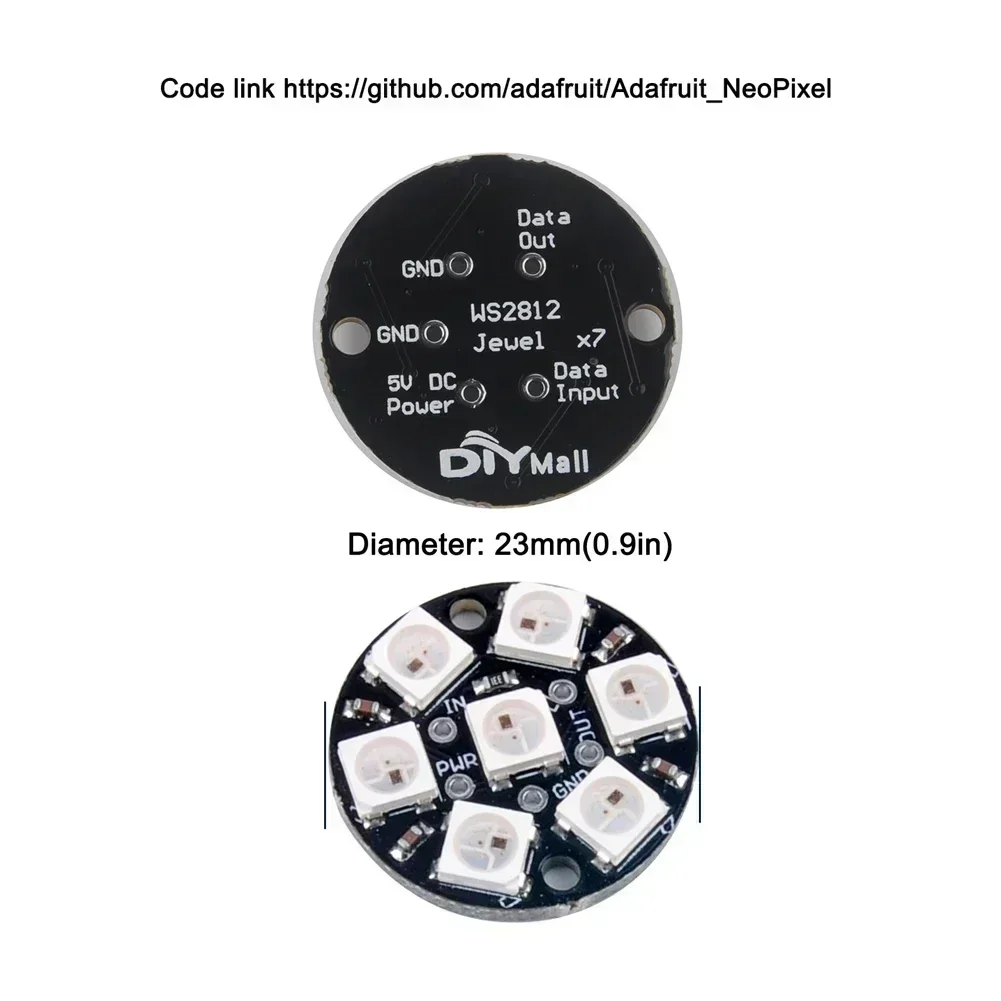

7Bits
Diameter: 23 mm / 0.9"

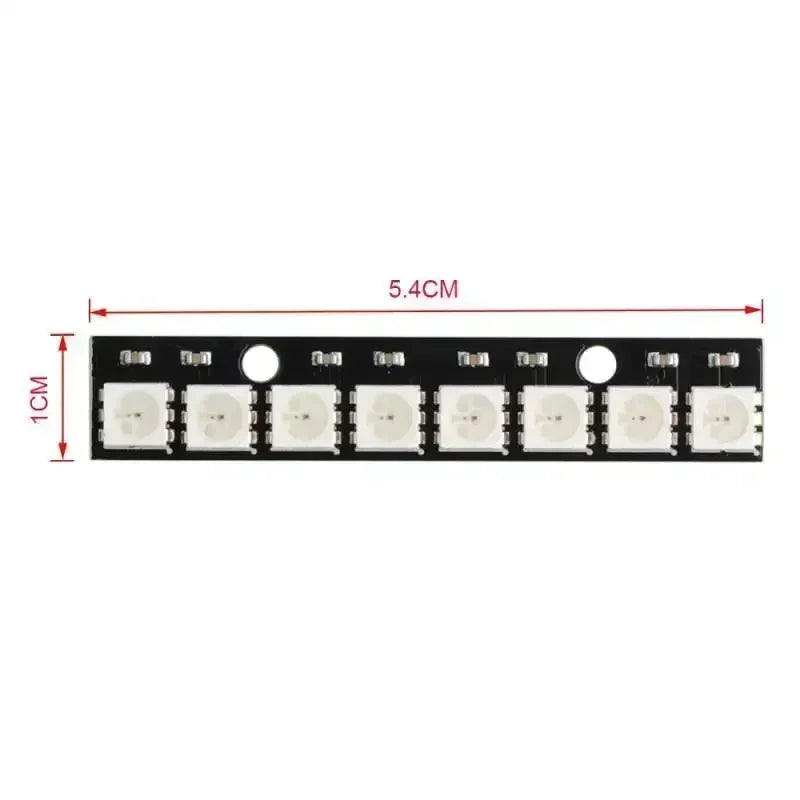

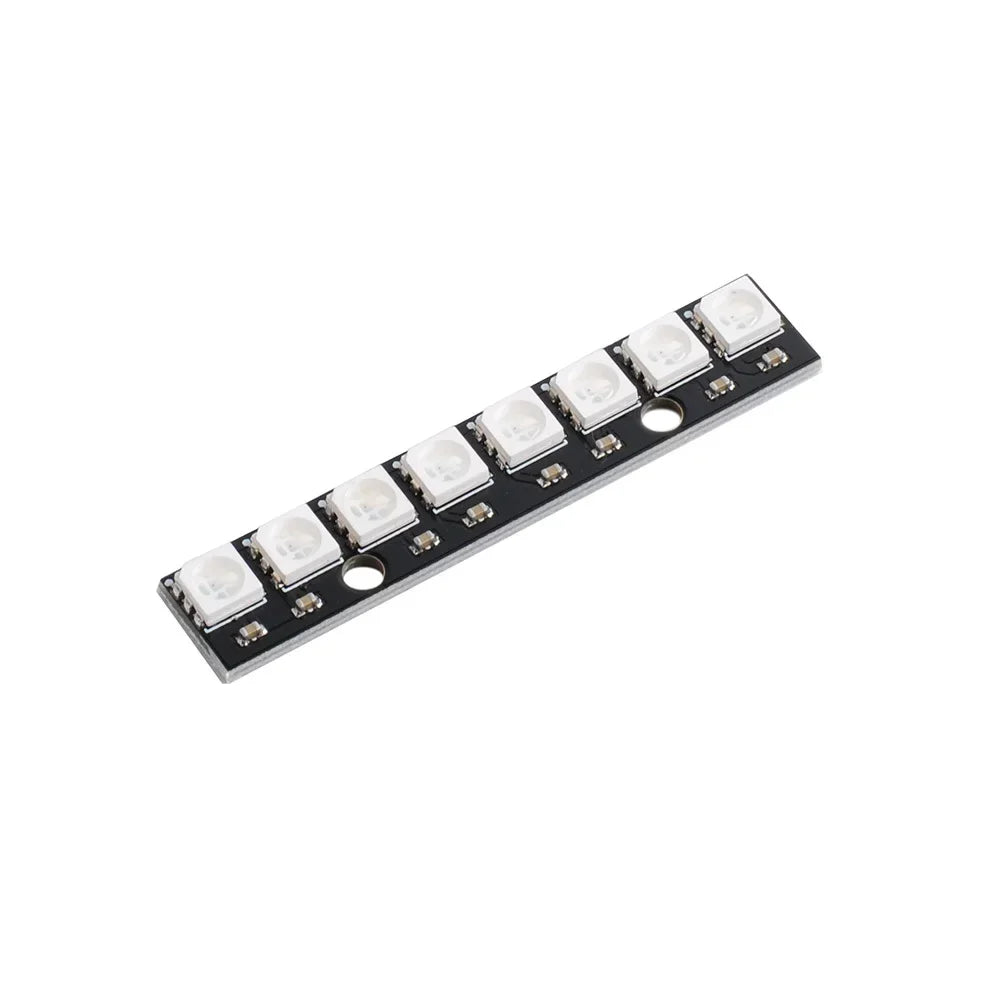

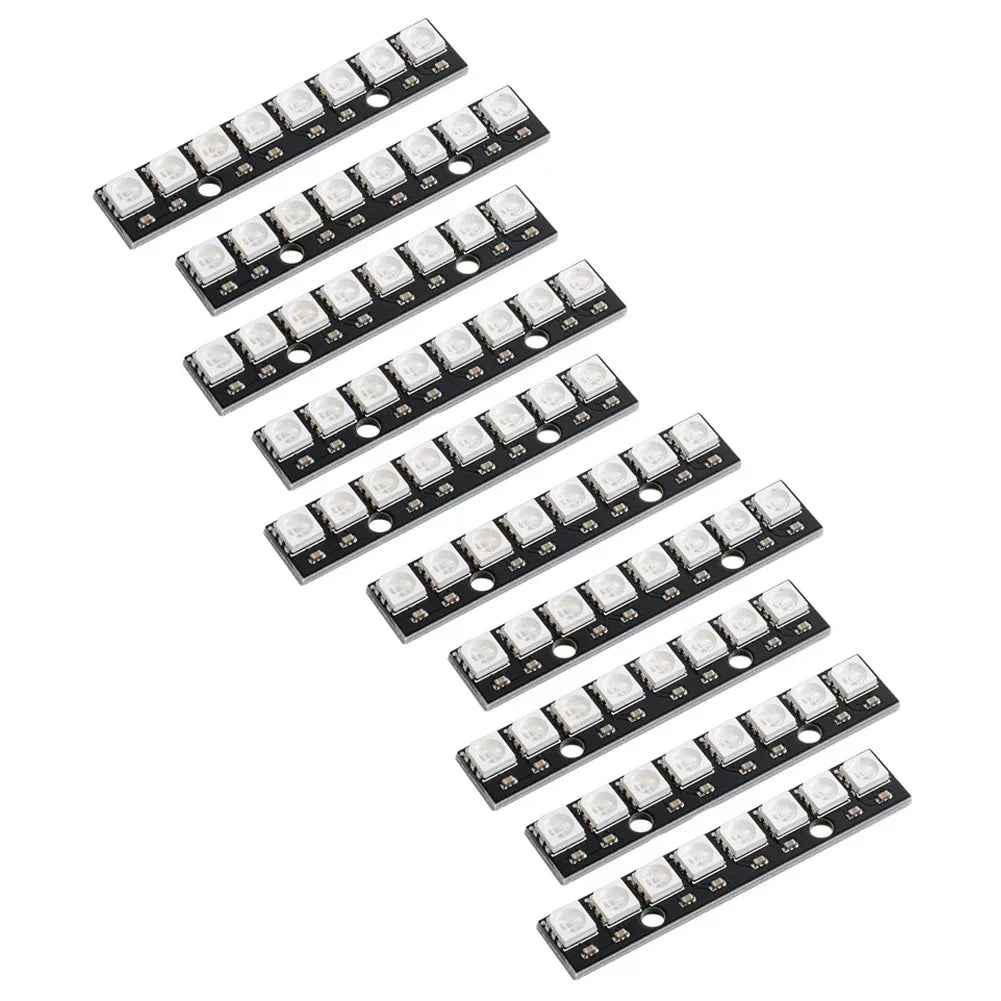

8Bits
Length: 54 mm / 2.1"
Width: 10 mm / 0.4"

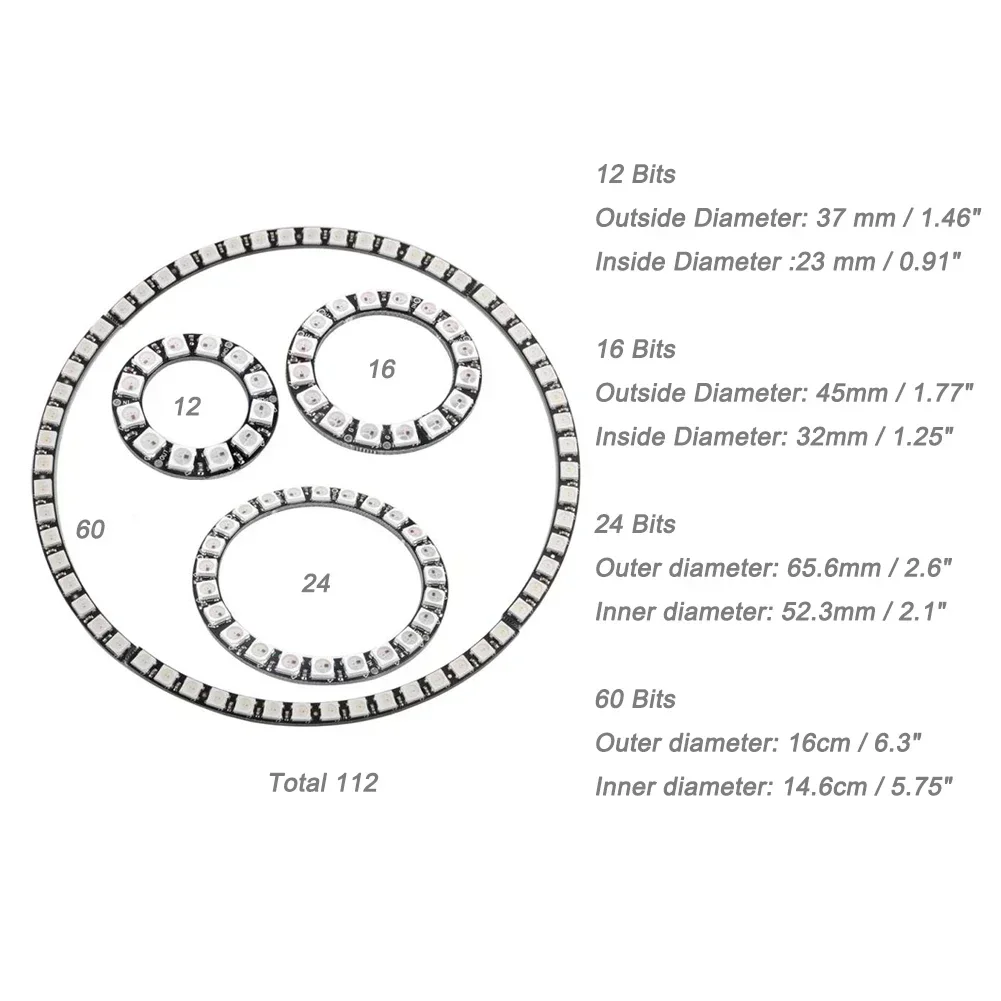

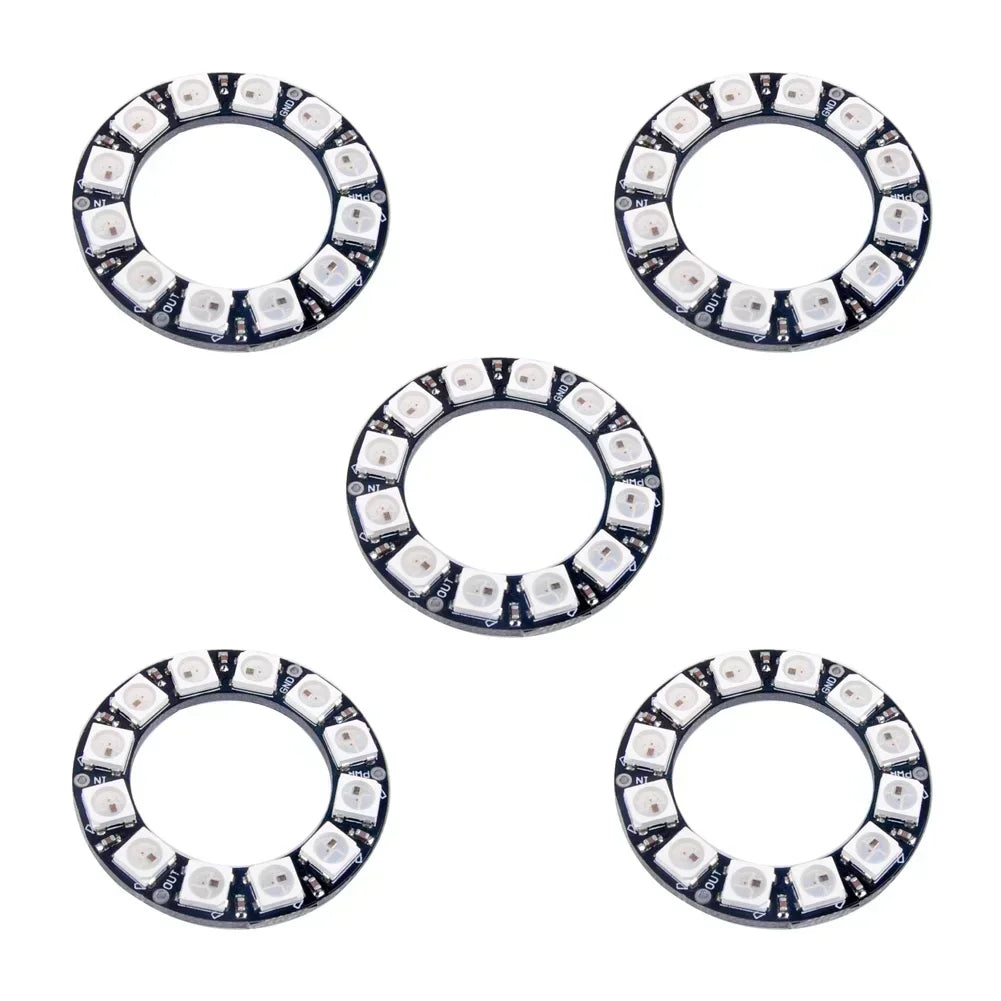

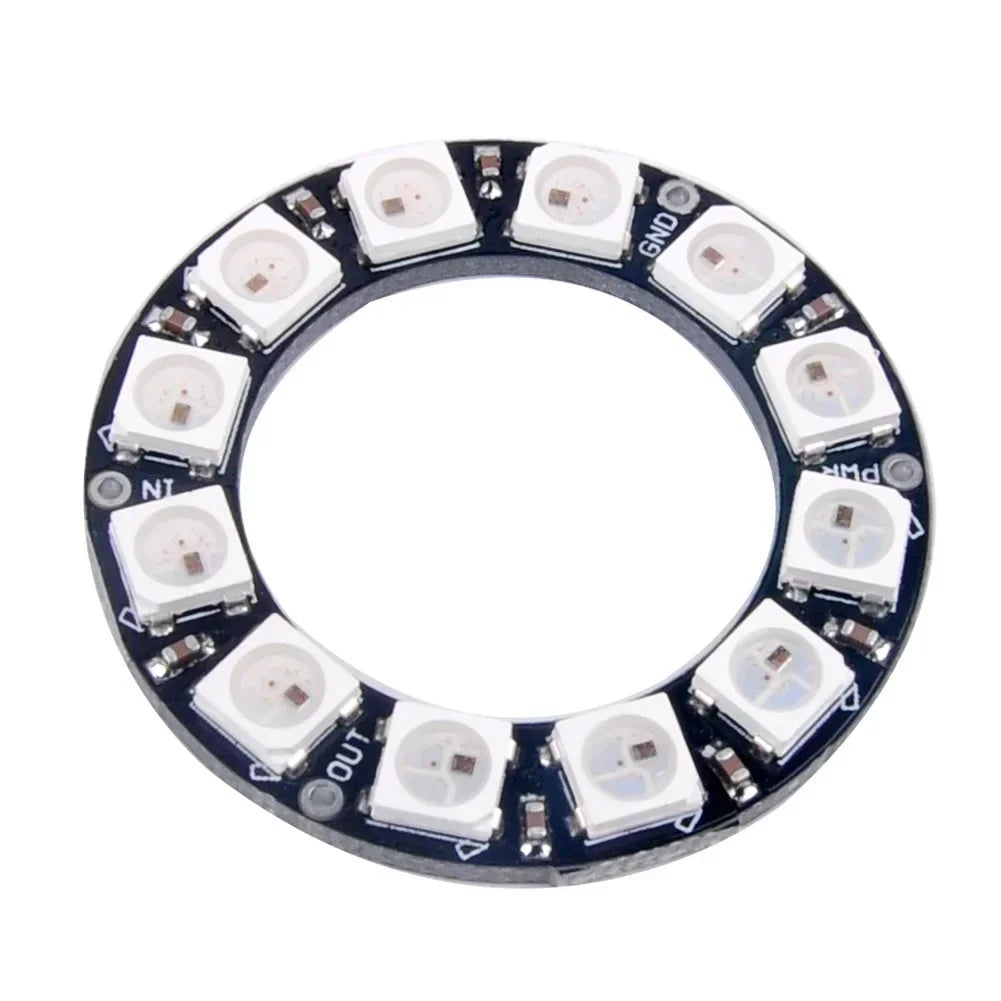

12 Bits
Outside Diameter: 37 mm / 1.46"
Inside Diameter :23 mm / 0.91"

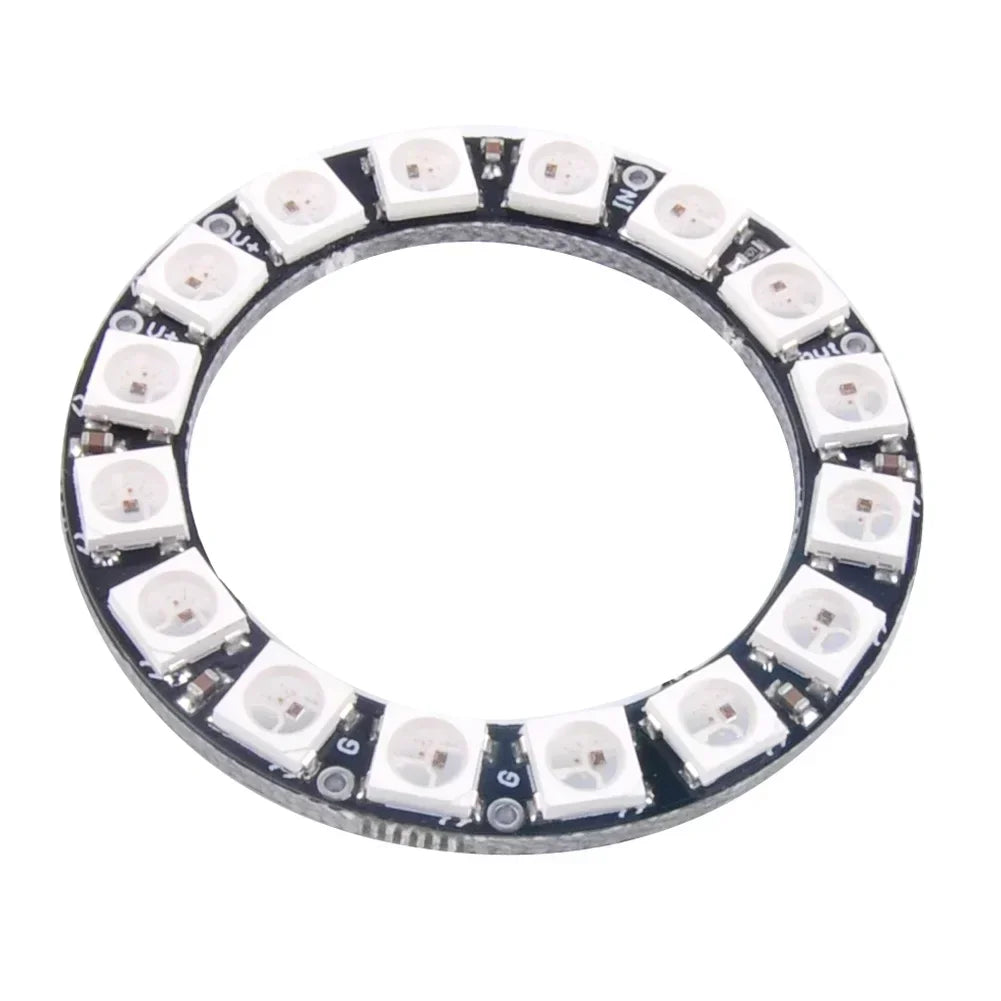

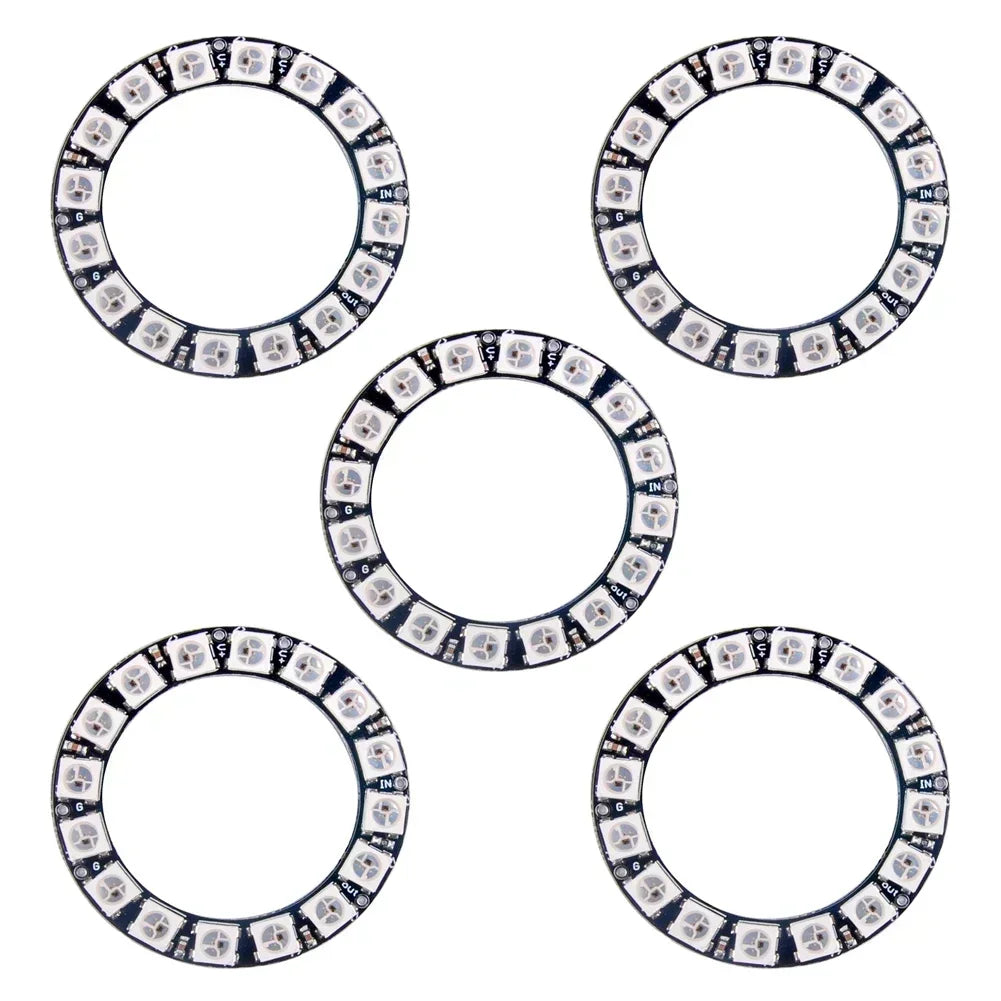

16 Bits
Outside Diameter: 45mm / 1.77"
Inside Diameter: 32mm / 1.25"

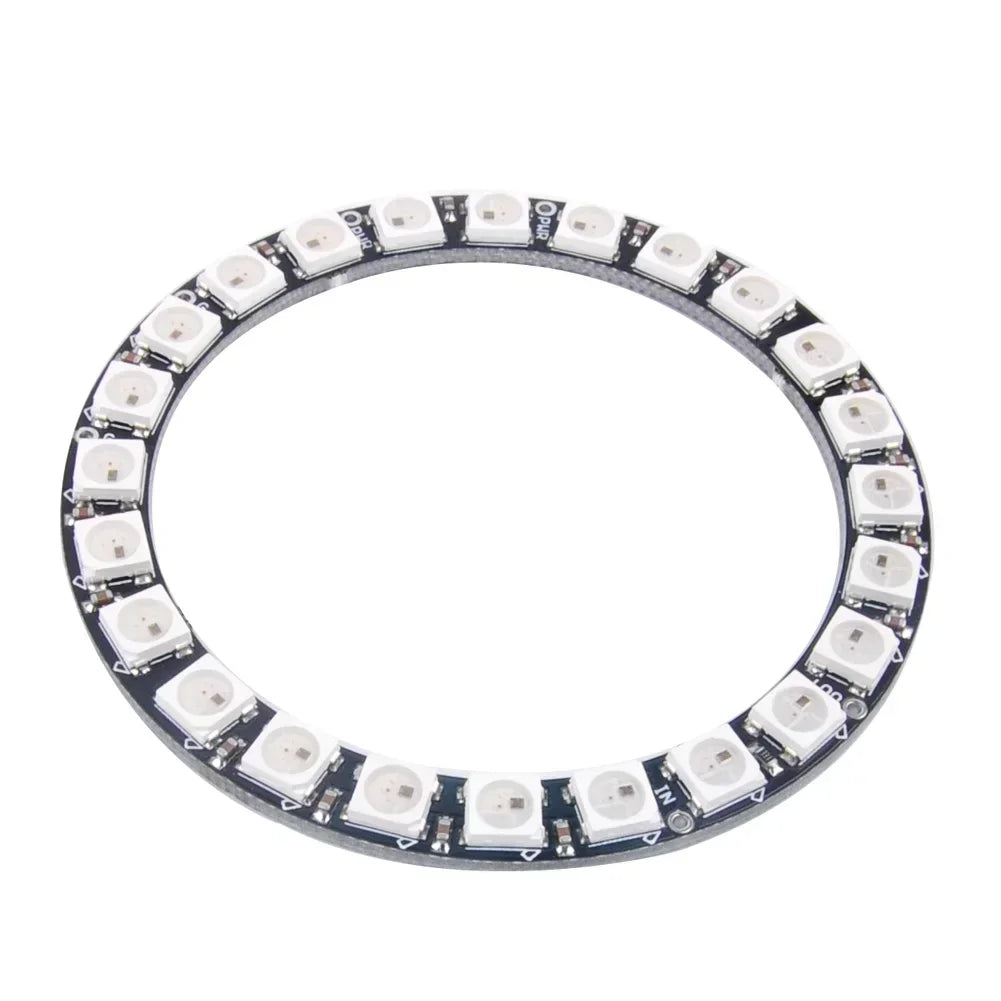

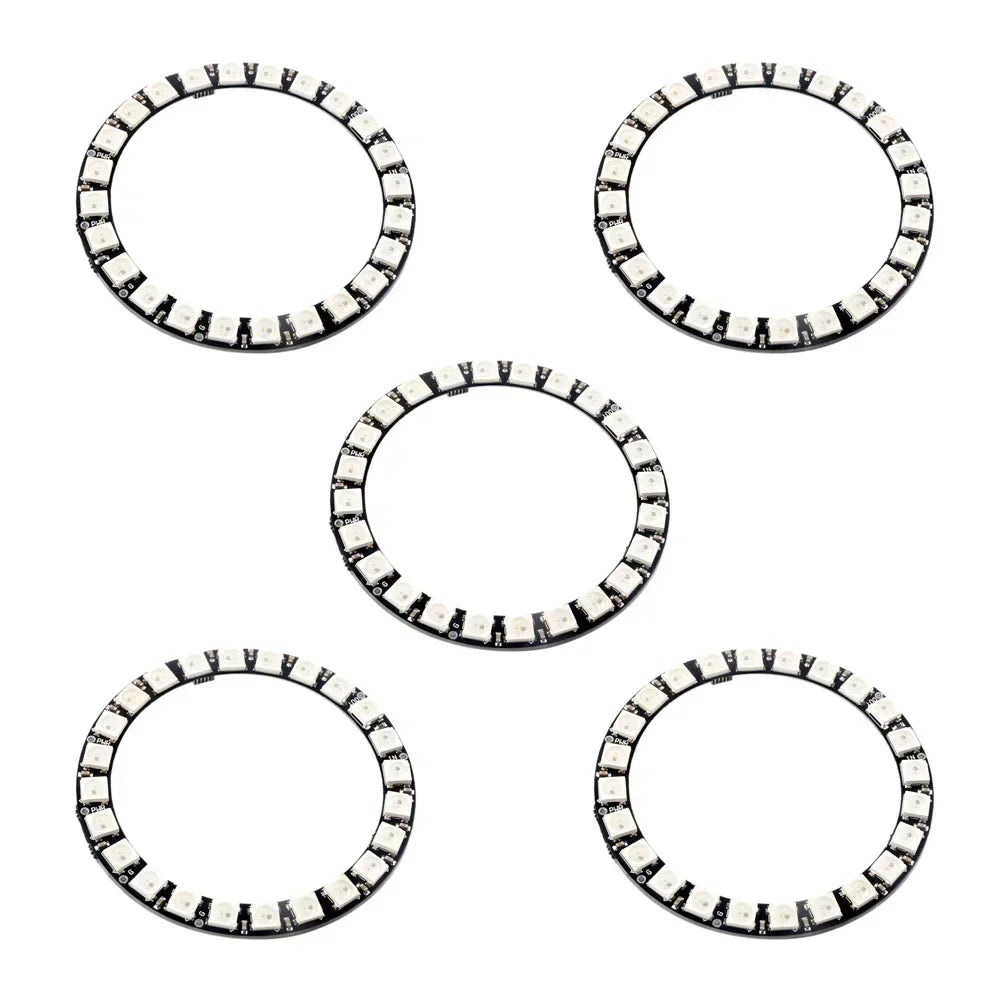

24 Bits
Outer diameter: 65.6mm / 2.6"
Inner diameter: 52.3mm / 2.1"

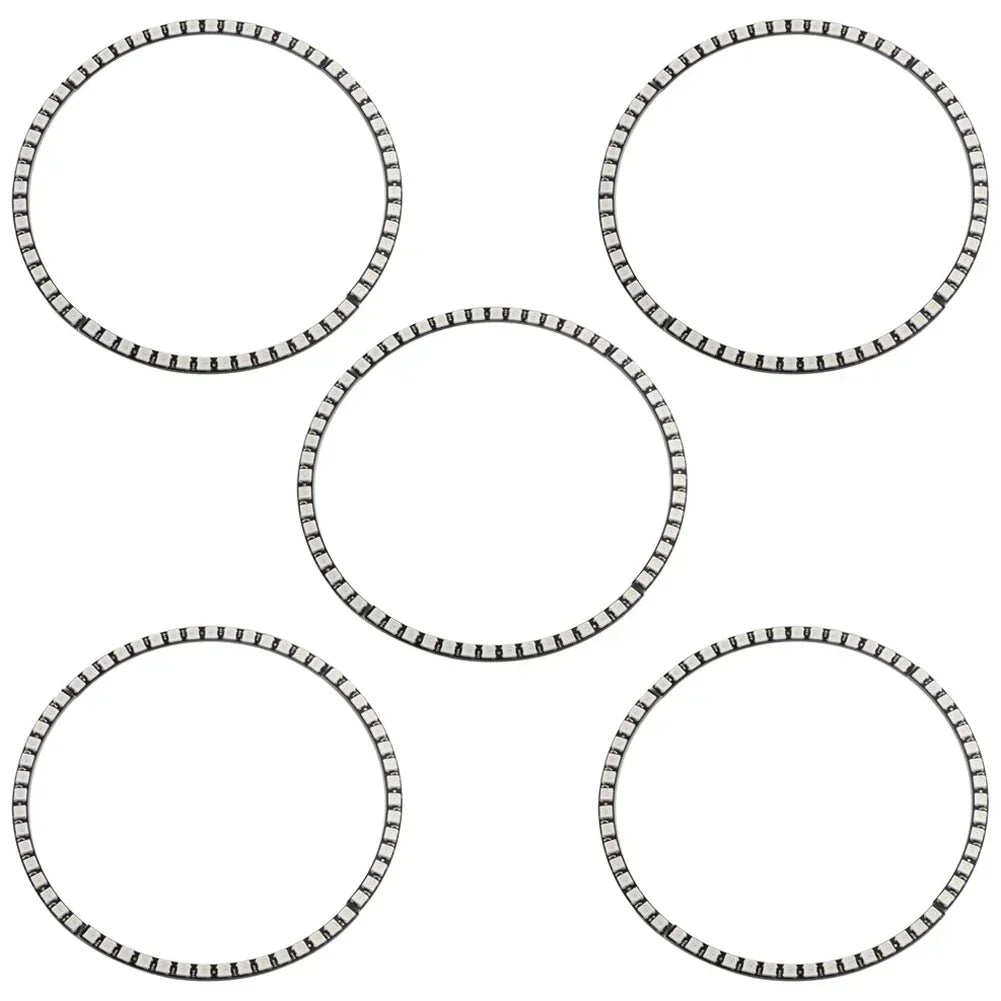

60 Bits
Outer diameter: 16cm / 6.3"
Inner diameter: 14.6cm / 5.75"

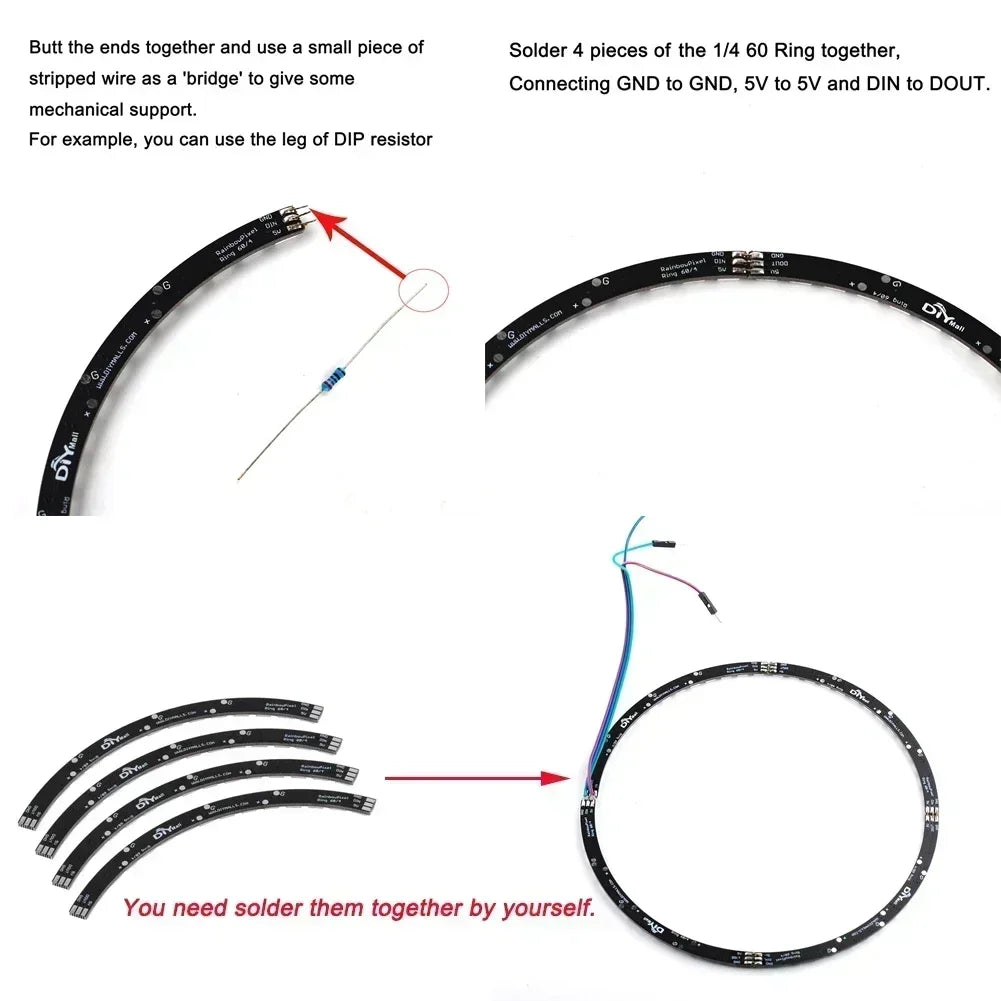

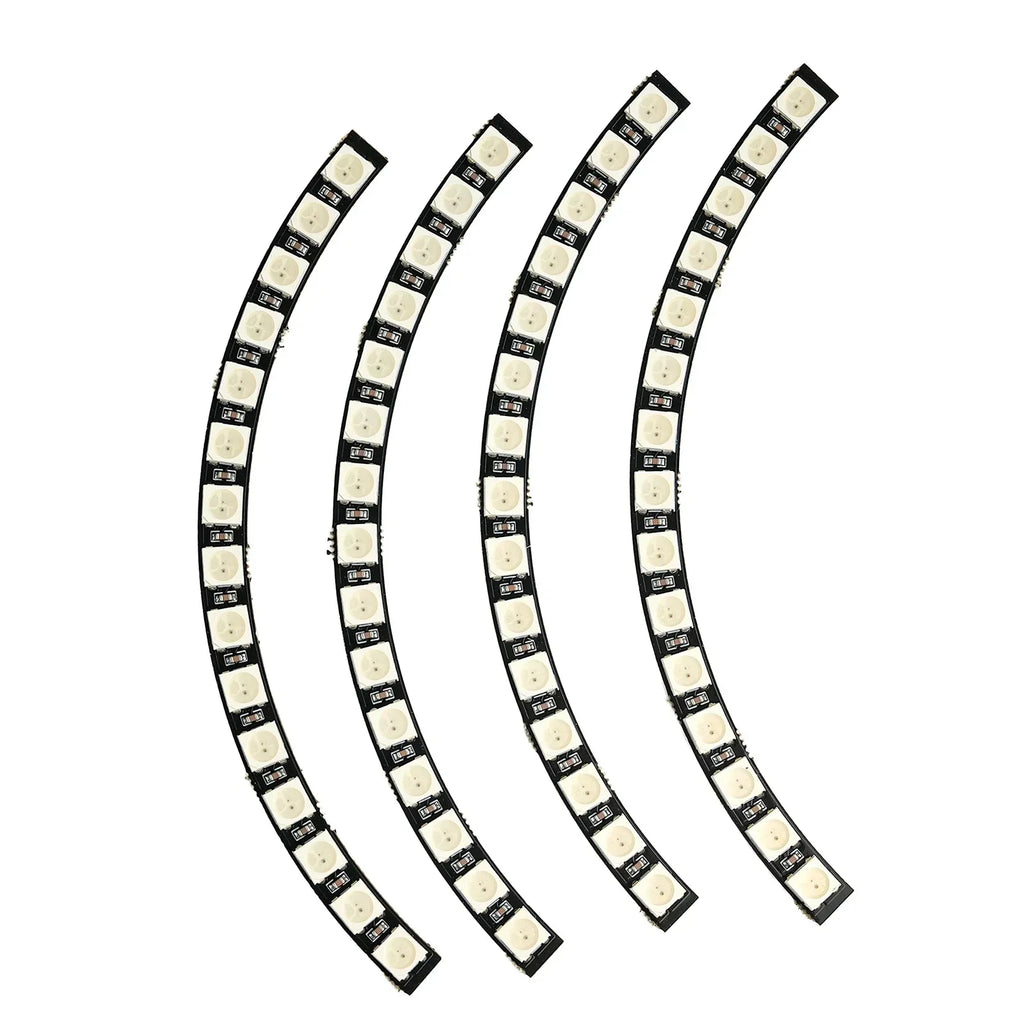

Note: the 60 bits ring is 4 pieces of separate 1/4 ring , you need solder them together by yourself, package without any cables.

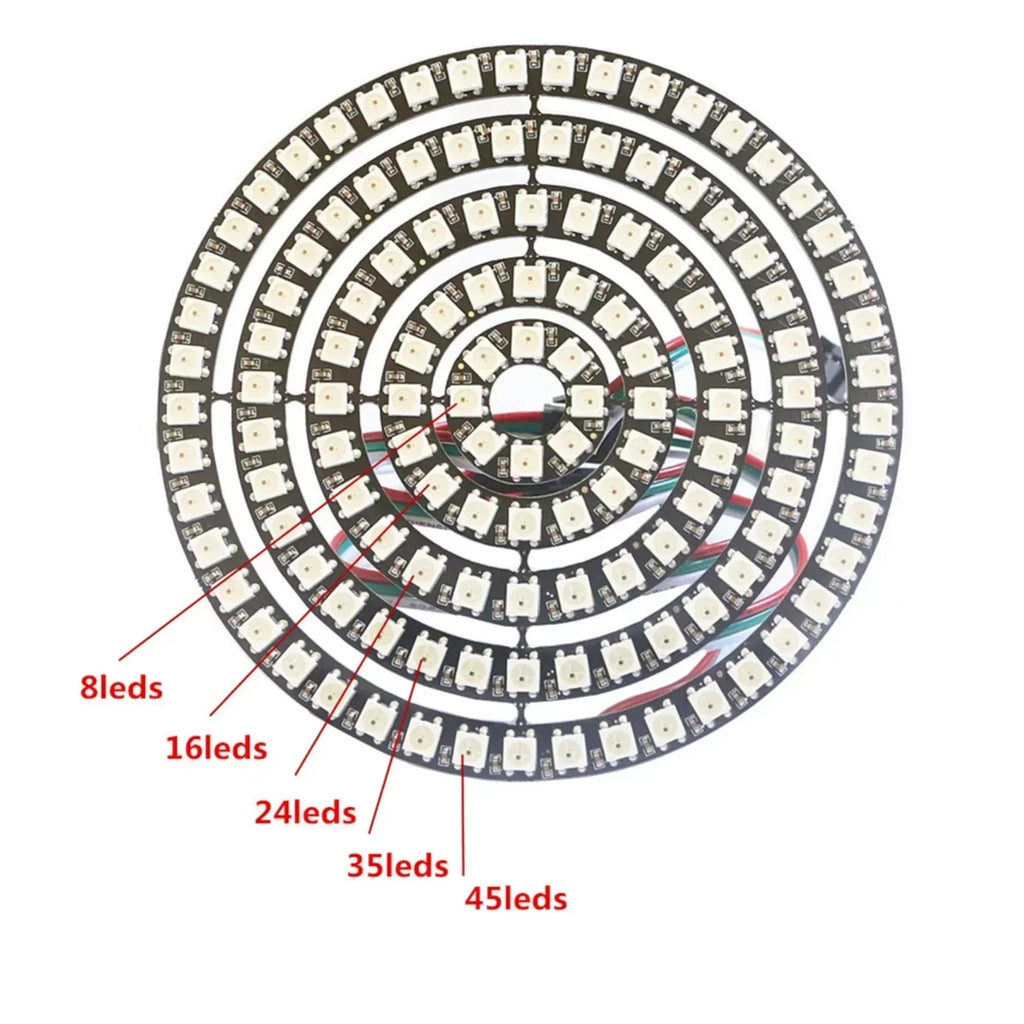

61 Bits
Outer diameter: 8.5cm / 3.35"

Voltage:DC4-7V
Communication interface:Single-wire communication
LED Chip:WS2812B

Connection:
5V to 5V
pin 6 to DI
GND to GND

Package list
Please note this is a multi-option link, we will ship as you choose.
