Emitting Color
Color
Ships FromChina Mainland
Description

SPECIFICATIONS

Addressable: Every LED Individually Addressable

Adhensive Tape: IP30, IP65

Attention 1: Must work with Pixels Controller and 5v Power

Attention 2: Every 0.5 meter with Solder Joints

Average Life (hrs): 50000

Brand Name: BTF-LIGHTING

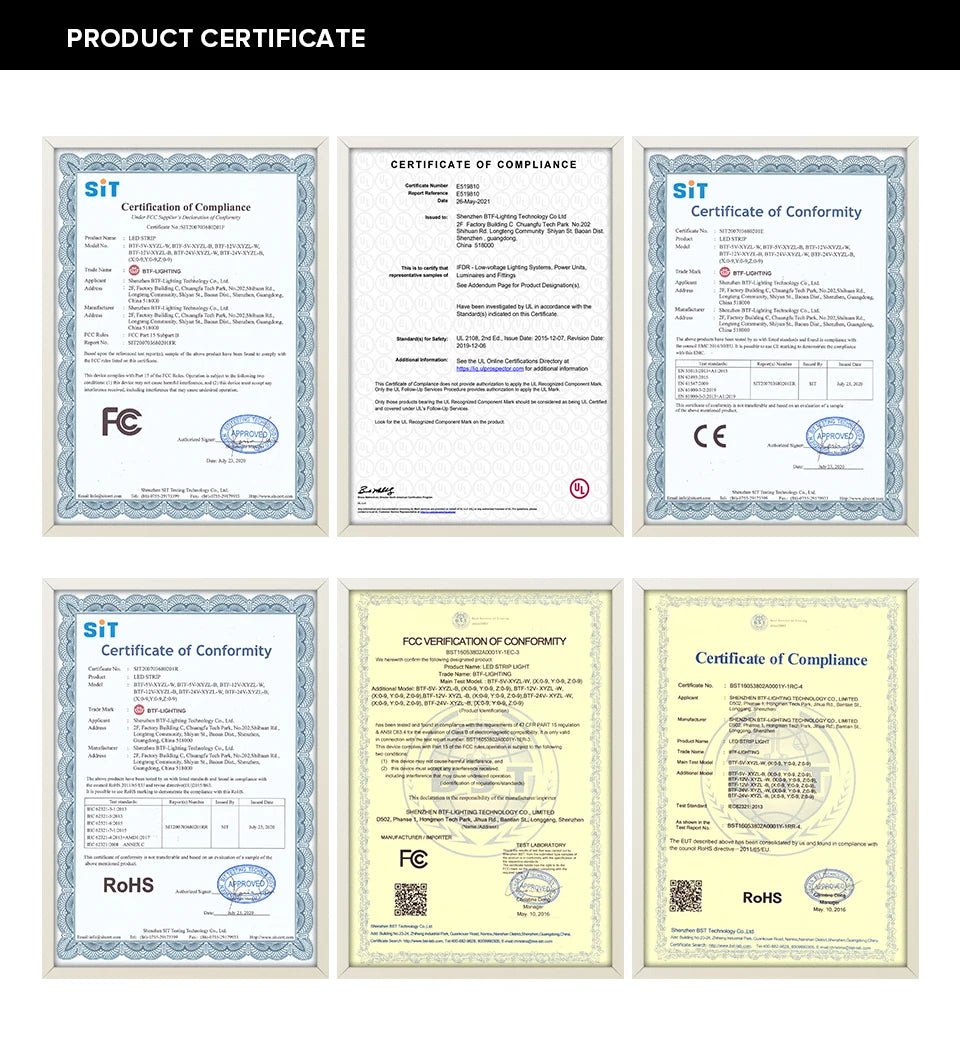

Certification: CCC,ce,FCC,ROHS,UL

Cuttable: Every LED is cuttable

High-concerned chemical: none

IC Number/M: 30/60/74/96/100/144

IC Type: Improved version ws2812 IC, 1 ic drives 1 led chip

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Model: SMD5050

LEDs Number/M: 30/60/74/96/100/144

Luminous Flux: 2000-82000

Model Number: BTF-WS2812B

Nominal Voltage: 5V

Occasion: Living room

Origin: Mainland China

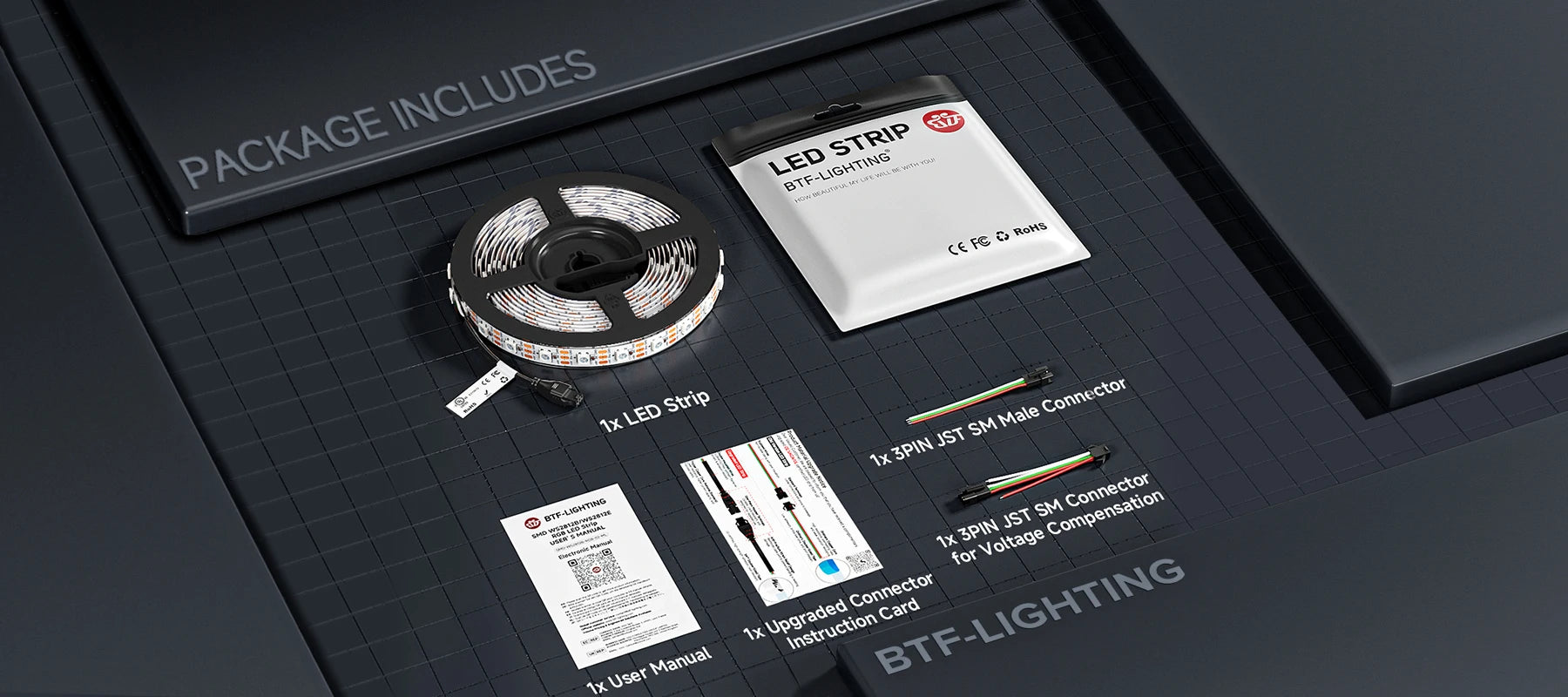

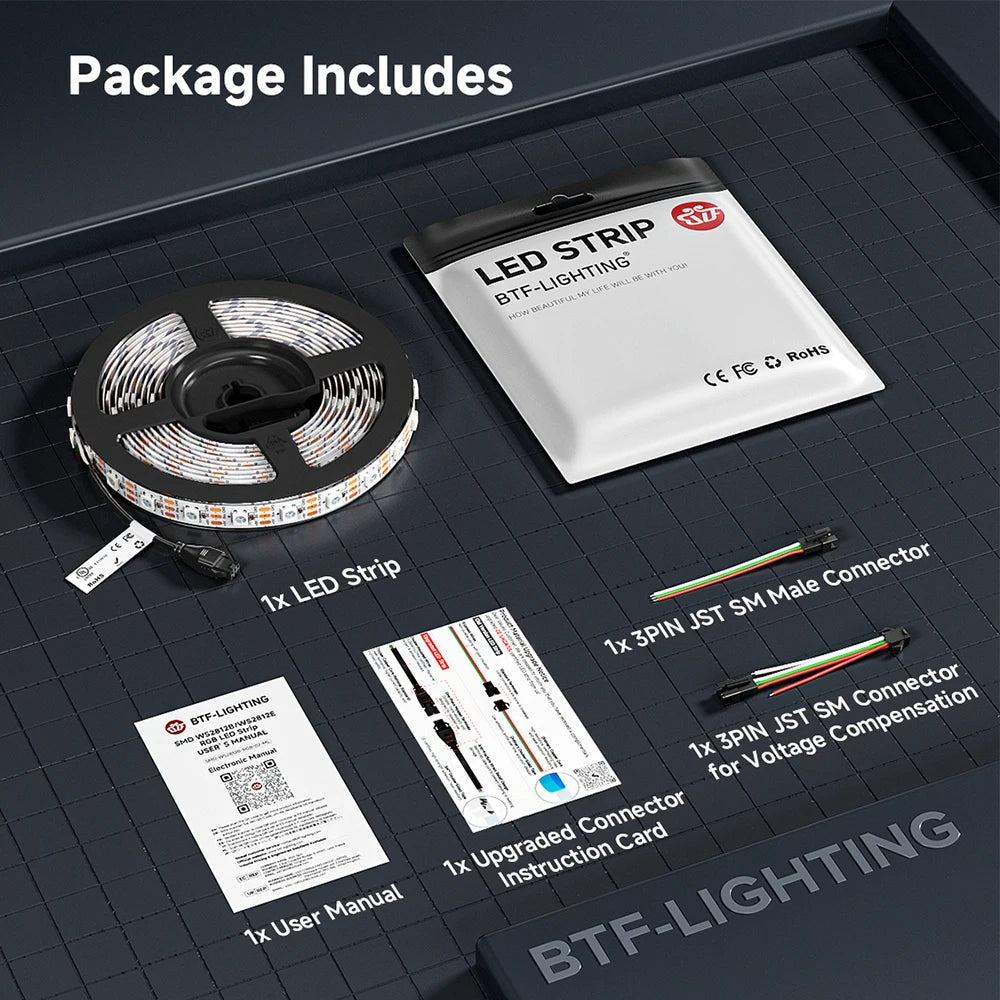

Package Including: Only LED Lights ( No power and pixels controller )

Pixels Controller: Arduino uno, Raspberry pi, Wifi, Bluetooth and APP pixels controller, etc

Power Source: DC

Strip type: SMD

Theoretical Power: 0.3W / LED

Voltage: 5V

Waterproof: Yes

Waterproof Grade: IP30, IP65, IP67

Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and Pixels Controller.
2. WS2812B Must Use DC5V Power Supply and Pixels Controller to Control.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.
4. WS2812B LED Strip Can Be Cut Between Each LED To Create Custom Lengths, Do Not Bend LED Strip Sharply.
5. The 3 Pin SM Connectors of LED Strip Included: Red: VCC, White: GND, Green: DATA.
6. The LED Strip Has Adhesive Tape On The Back of PCB ( Except IP67 ). Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.

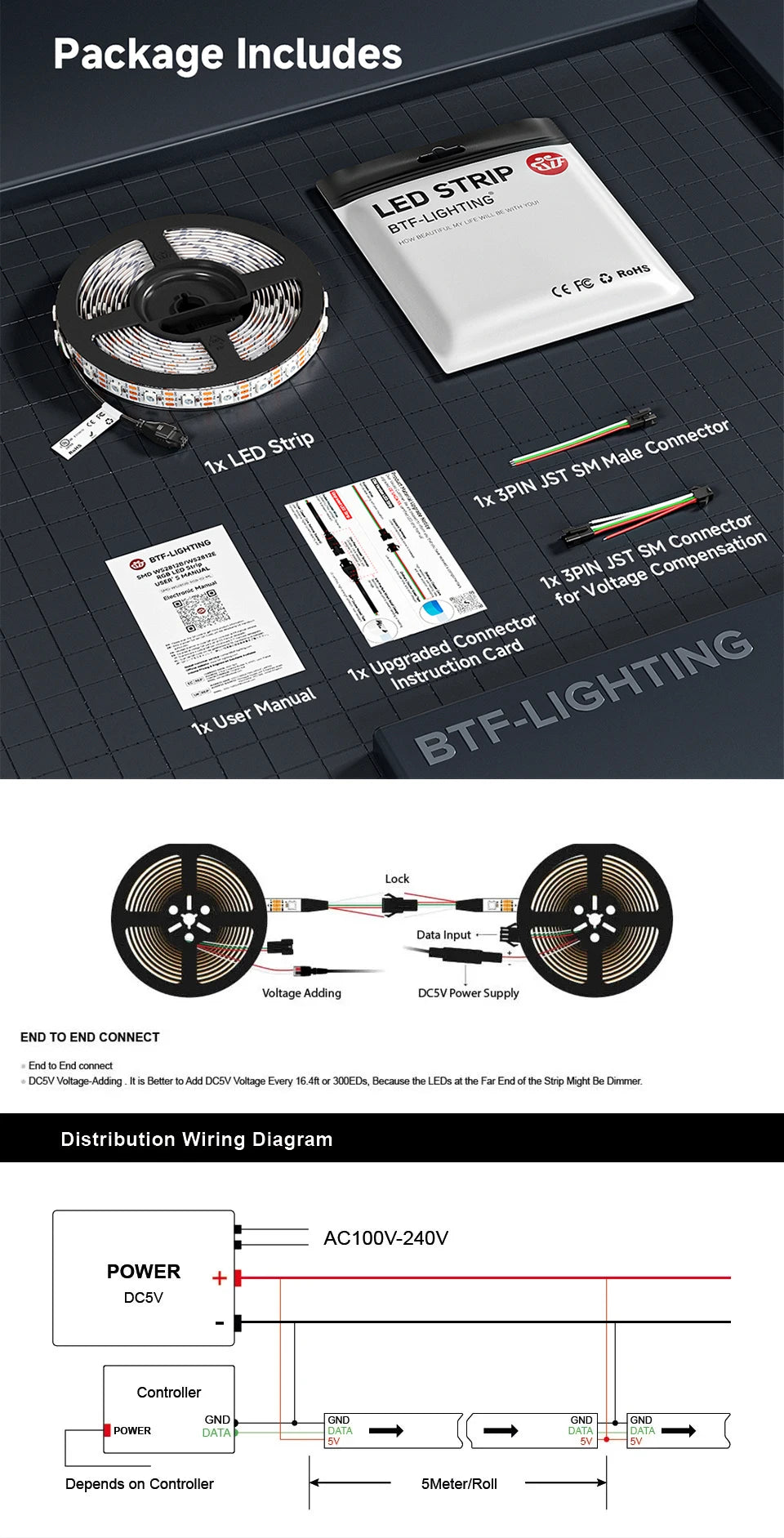

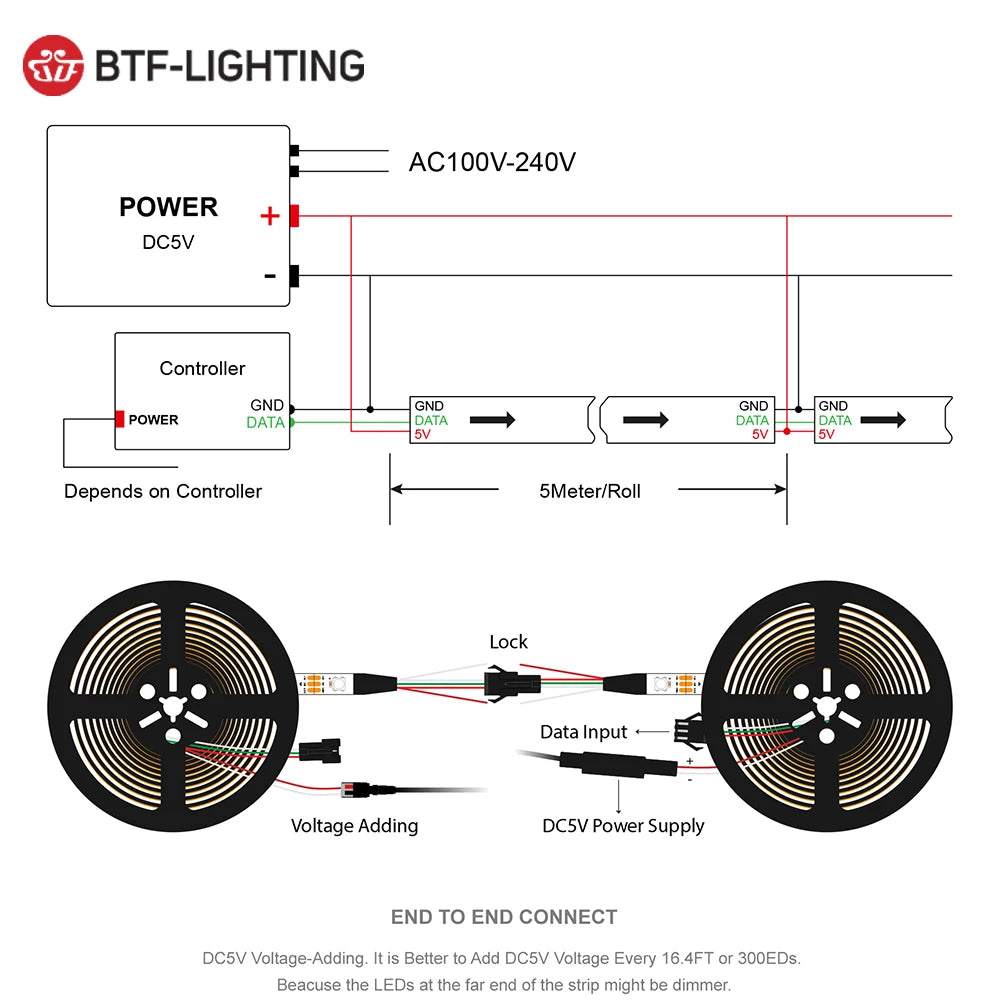

7. Longer LED Strip Runs, Please Add More Power to 2 Pin Power Wire of Both Ends To Reduce Voltage Drop.

How to Choose LED Power Supply and Pixels Controller?
First, Calculated The Whole LED Strip Lights Watts.
One LED Chip is About 0.3W, If You Buy 5m 60LEDs/m ( Total LED Strip is 300 LEDs ), So 0.3W*300=90W.
Then, Choose the Right LED Power Supply.
This LED Strip is Work with DC5V Power, So 90W / 5V=18A ( At Least 18A or more ).
Finally, Choose the Right Pixels Controller You Like.
WS2812B LED Strip is Controlled By Single Data Line Pixels Controller.
So you could choose them from our store, we have IR/RF Remote, Bluetooth, Wifi, Music APP and Computer controller etc. ( If you can't recognize them, you could feel free to contact us, we will glad to help you )

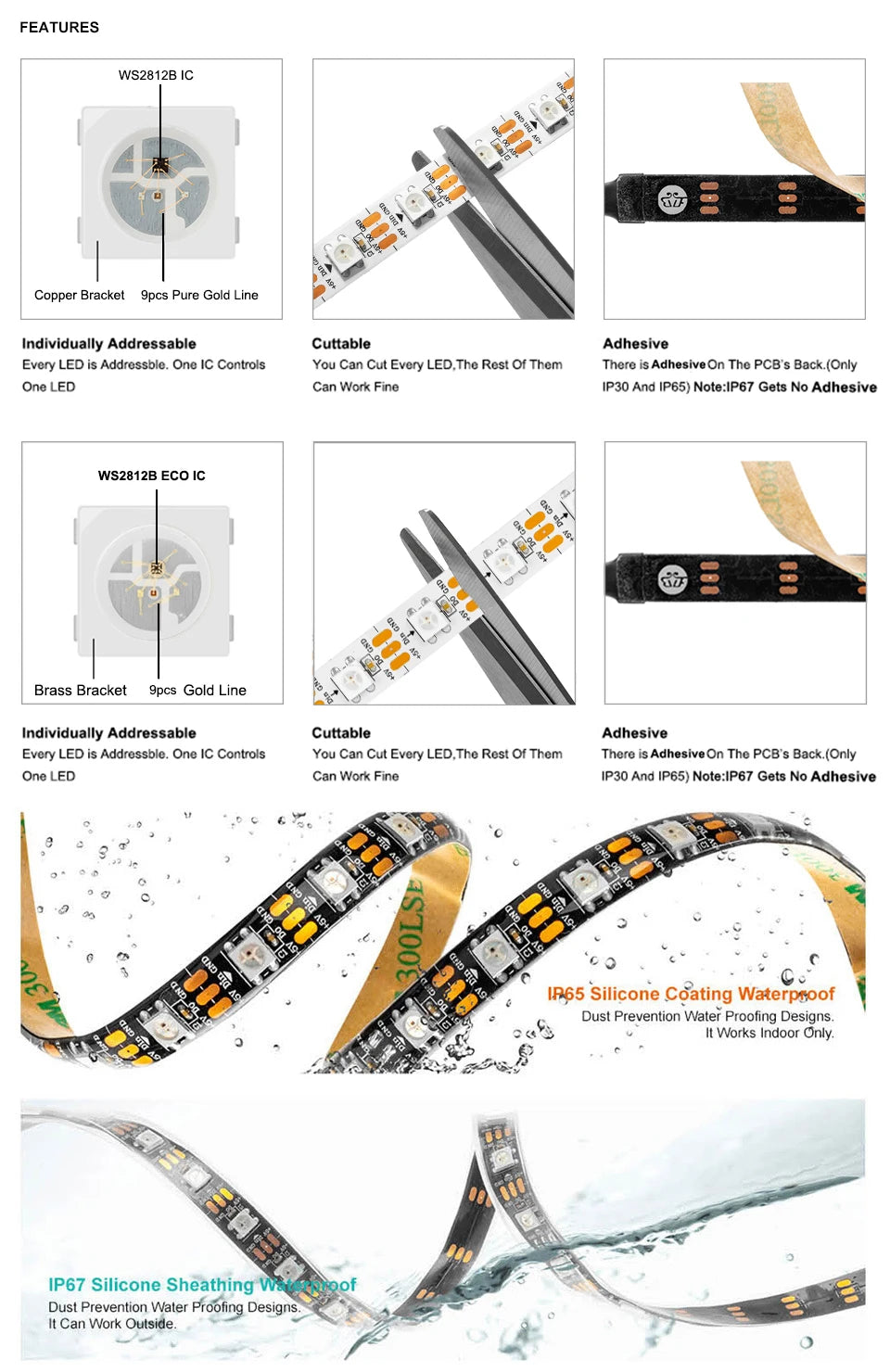

Features:

Input Voltage:DC 5v.

Power: 30leds/m----9watt/meter; 60leds/m----18watt/meter; 74leds/m----22watt/meter; 96leds/m----28.8watt/meter; 100leds/m----30watt/meter; 144leds/m----43.2watt/meter.

LED: Each LED is separately controlled, every LED is cuttable.

IC Type: ws2812 IC(built inside the 5050 smd rgb led), (1 IC drives 1 led chip).

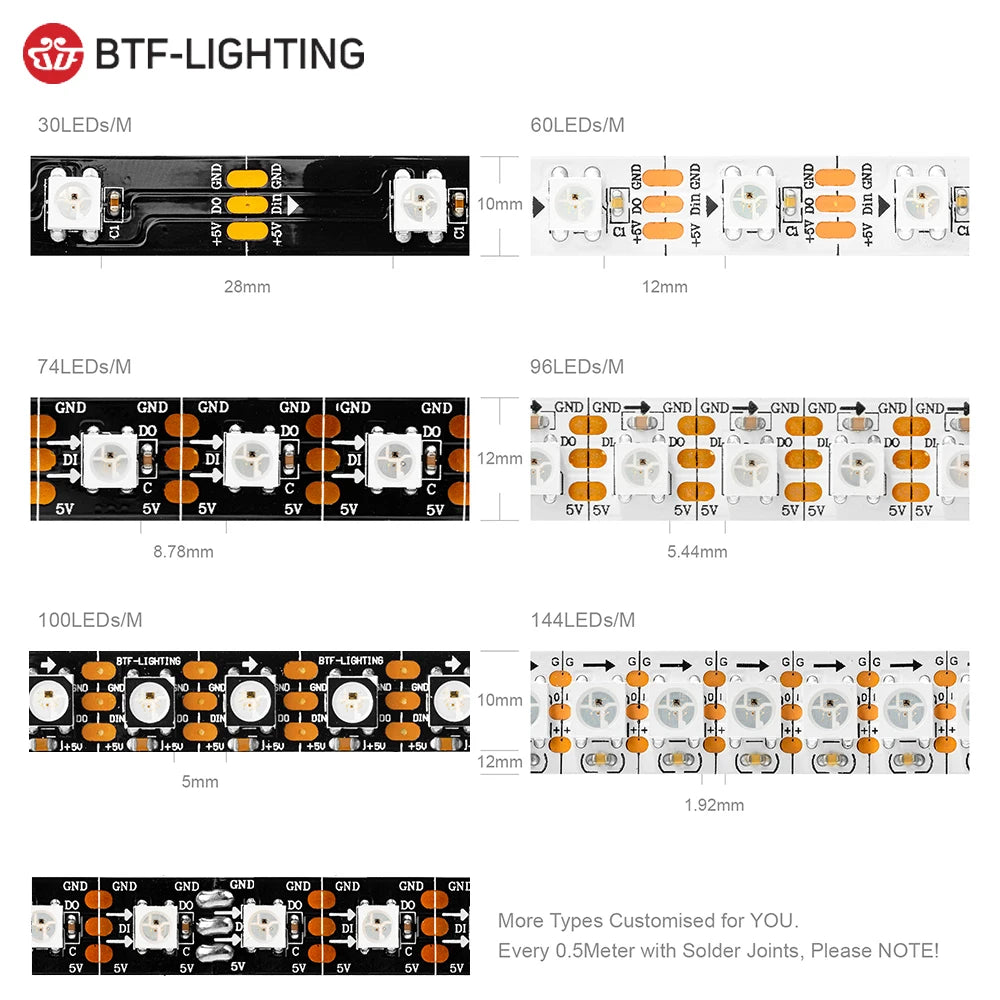

Pixels: 30/60/74/96/100/144/meter.

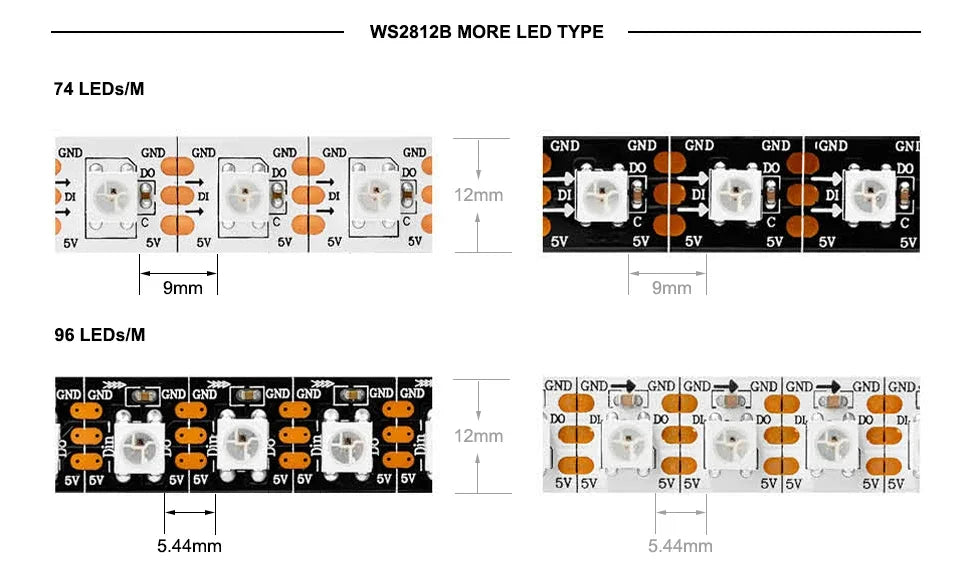

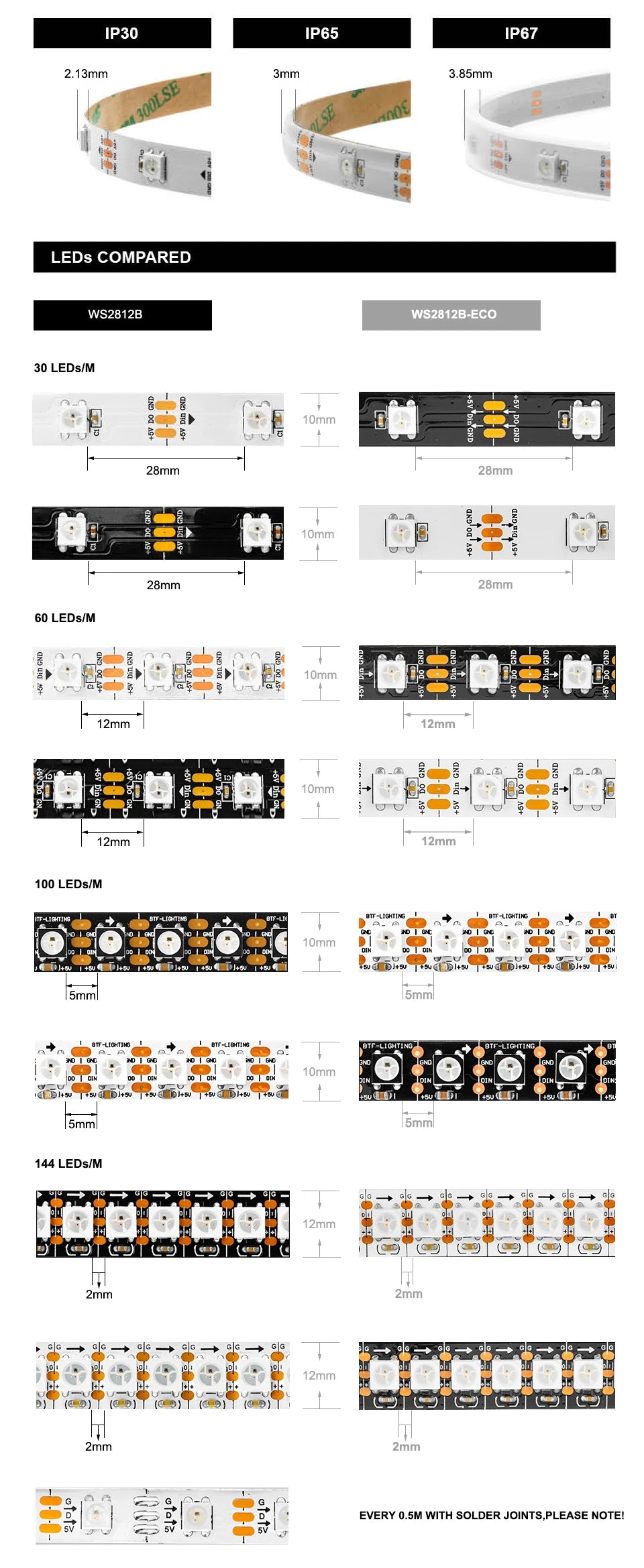

FPCB Width: 30leds/m----10mm; 60leds/m----10mm; 74leds/m----12mm; 96leds/m----12mm; 100leds/m----10mm; 144leds/m----12mm.

FPC Color: Black/White.

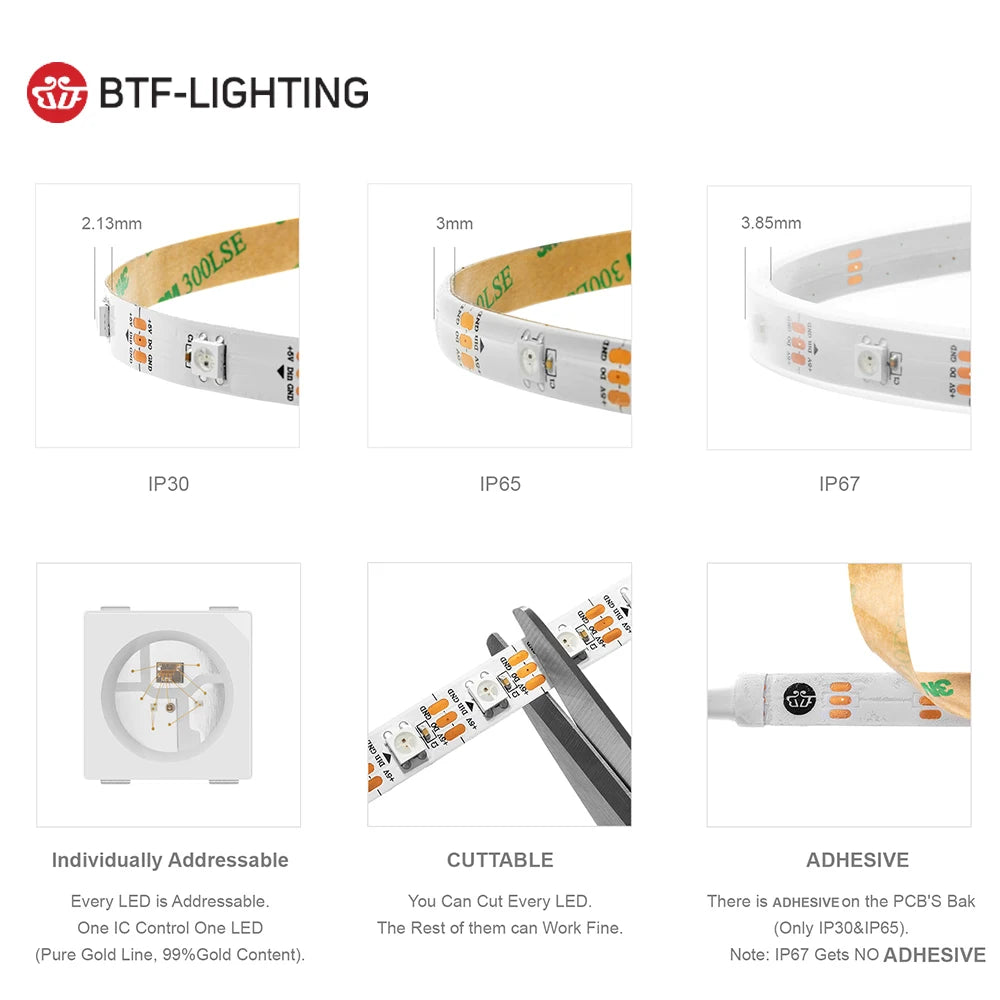

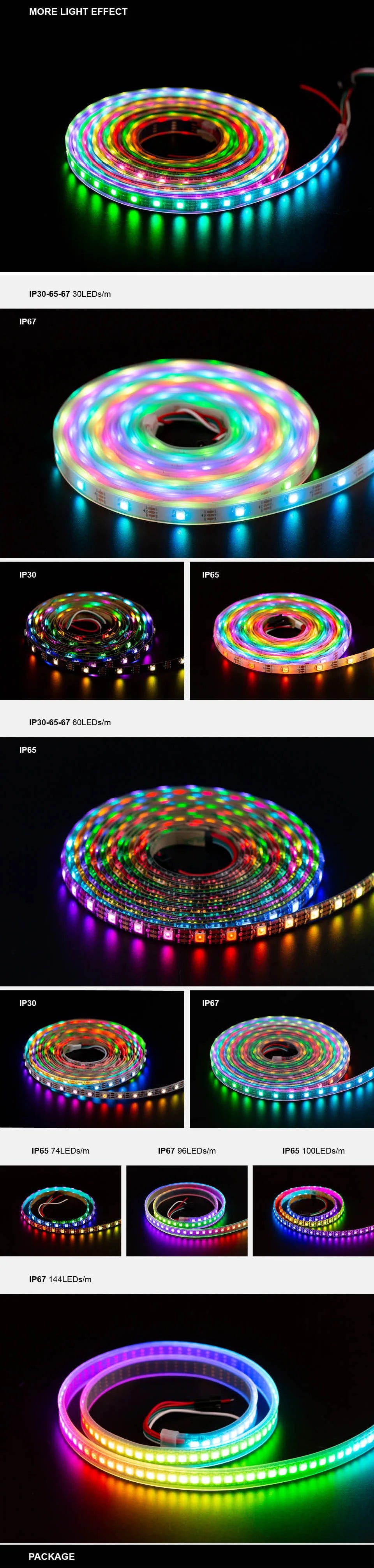

Protection rate: IP30 Non-Waterproof; IP65 Waterproof in Silicon Coating; IP67 Waterproof in Silicone Tube.

Package: In anti-static bag, IP30 IP65 with adhensive tape on the back. (IP67 without adhensive).

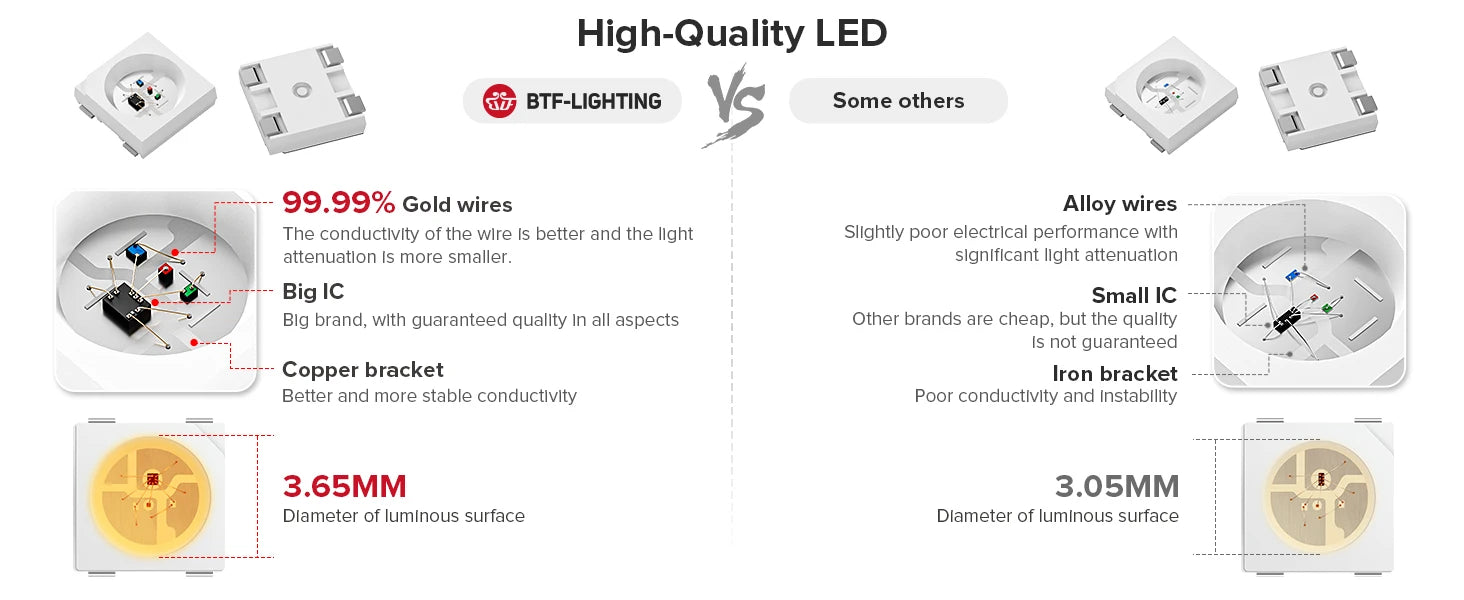

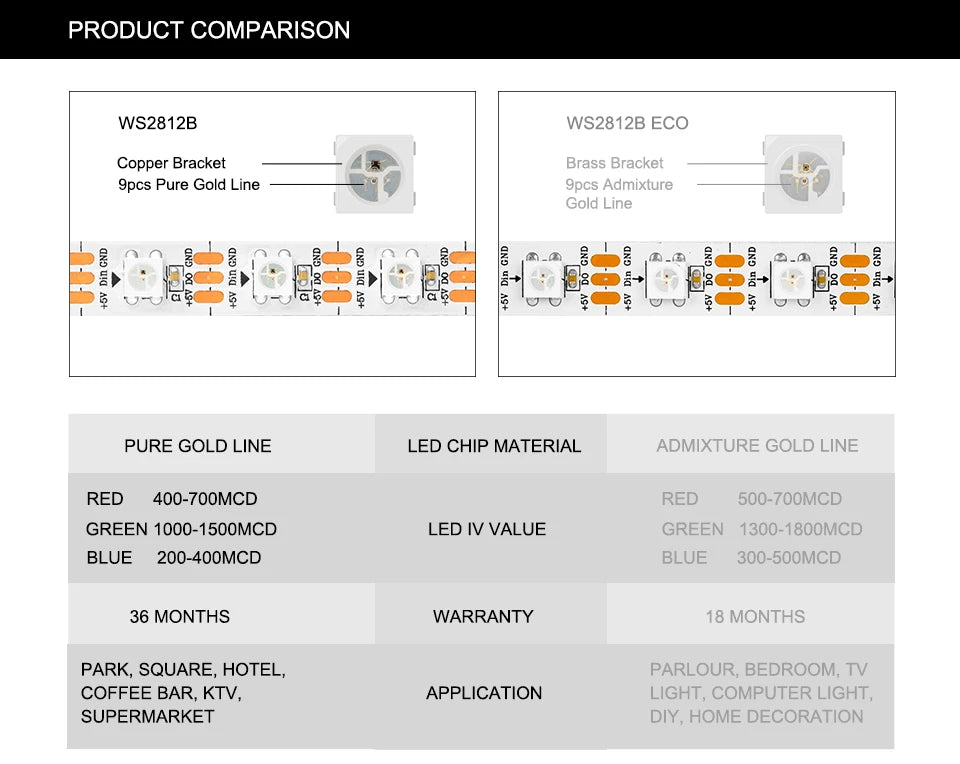

The different between the WS2812B and WS2812B-ECO.
1, LED Chip Material:

9pcs Pure Gold Line, Copper Bracket (WS2812B).

9pcs Admixture Gold Line, Brass Bracket (WS2812B-ECO).

2, LED IV Value Brightness:

Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).

Red: 500-700mcd, Green: 1300-1800mcd, Blue: 300-500mcd (WS2812B-ECO).

3, Warranty Period of Led Strip:

36 Months (WS2812B), 18 Months (WS2812B-ECO).

4, Suggestions on Product Application:

Such as Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, etc (WS2812B).

Usually applied to Parlour, Bedroom, TV light, Karaoke Television light, Computer light, DIY and Home decoration, etc (WS2812B-ECO).
