SPECIFICATIONS

Average Life (hrs): More than 50000 Hours

Brand Name: TNALANT

Certification: CCC,ce,FCC,ROHS

Choice: yes

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 48

Luminous Flux: 249-2000

Model Number: WS2812B

Nominal Voltage: DC5V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 48

Strip type: Flat 3-wire

Voltage: 5V

Waterproof: No

semi_Choice: yes

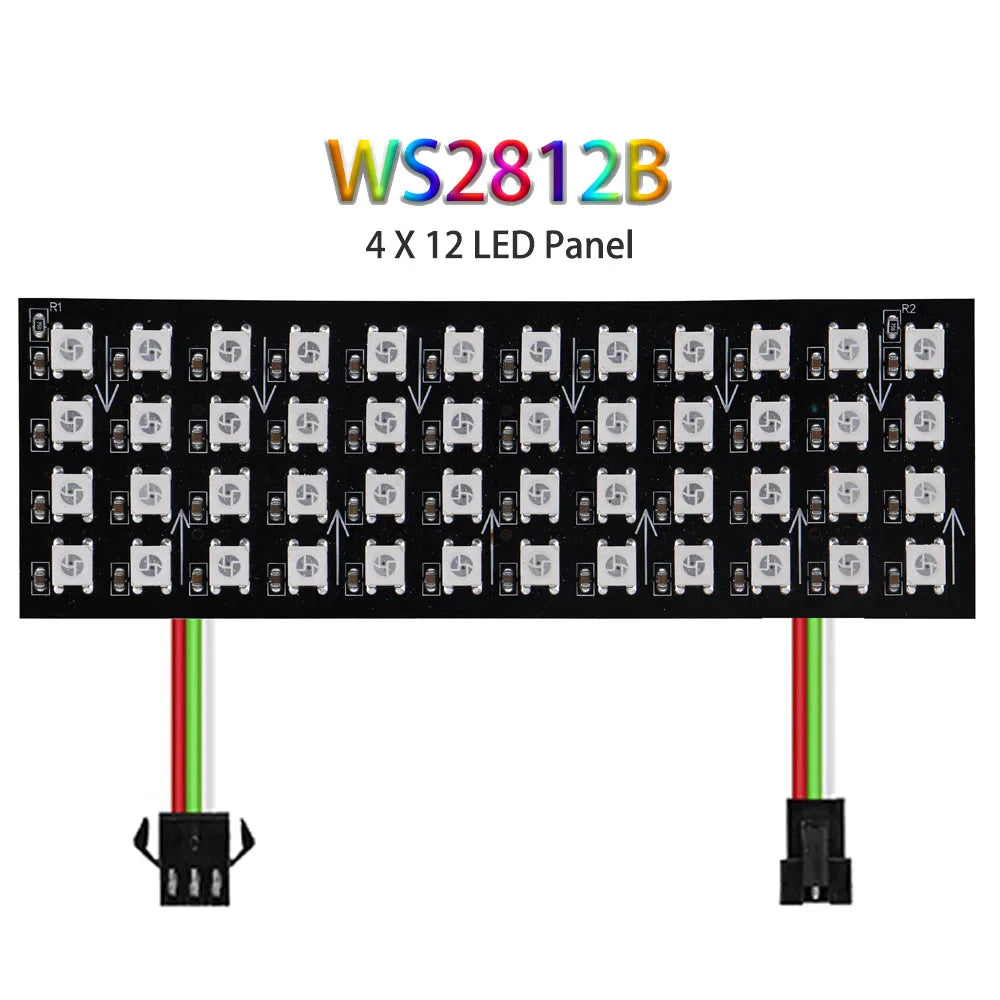

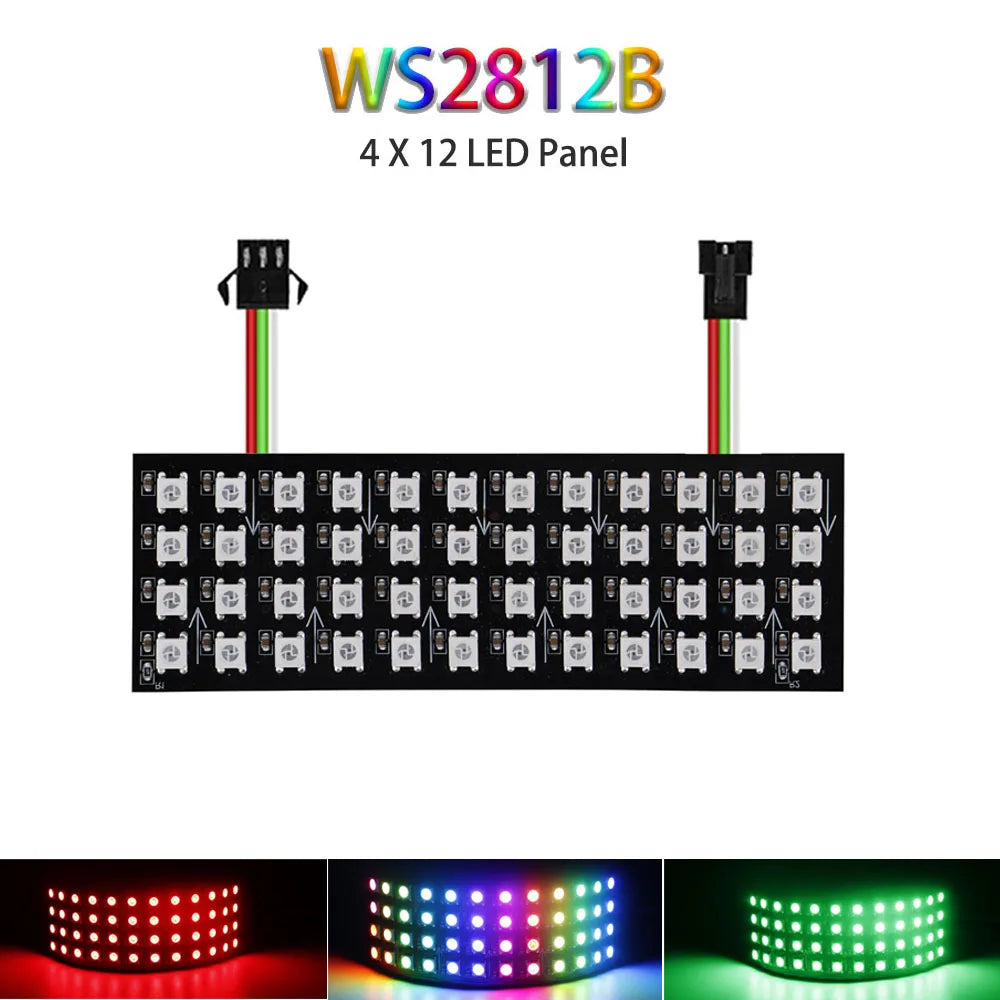

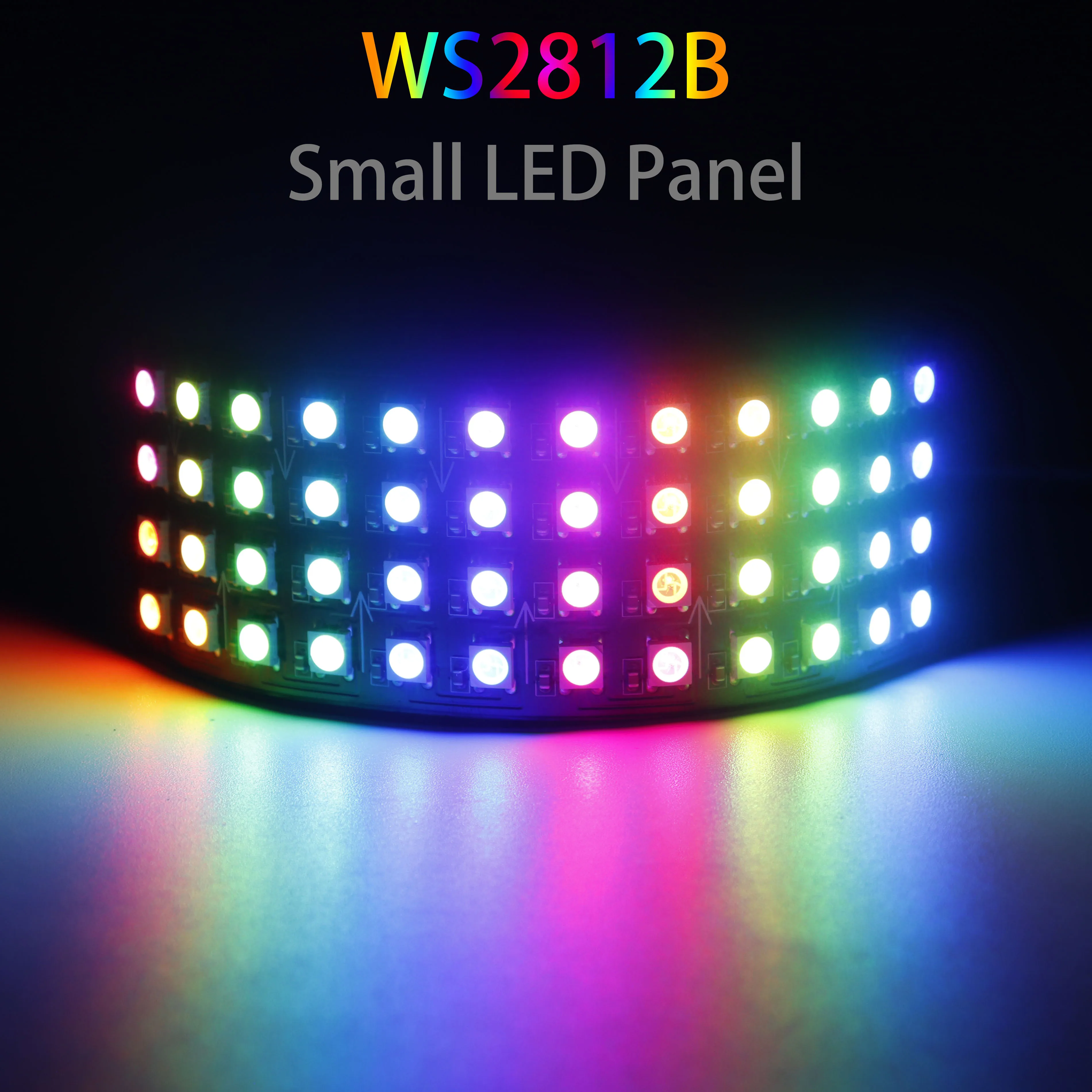

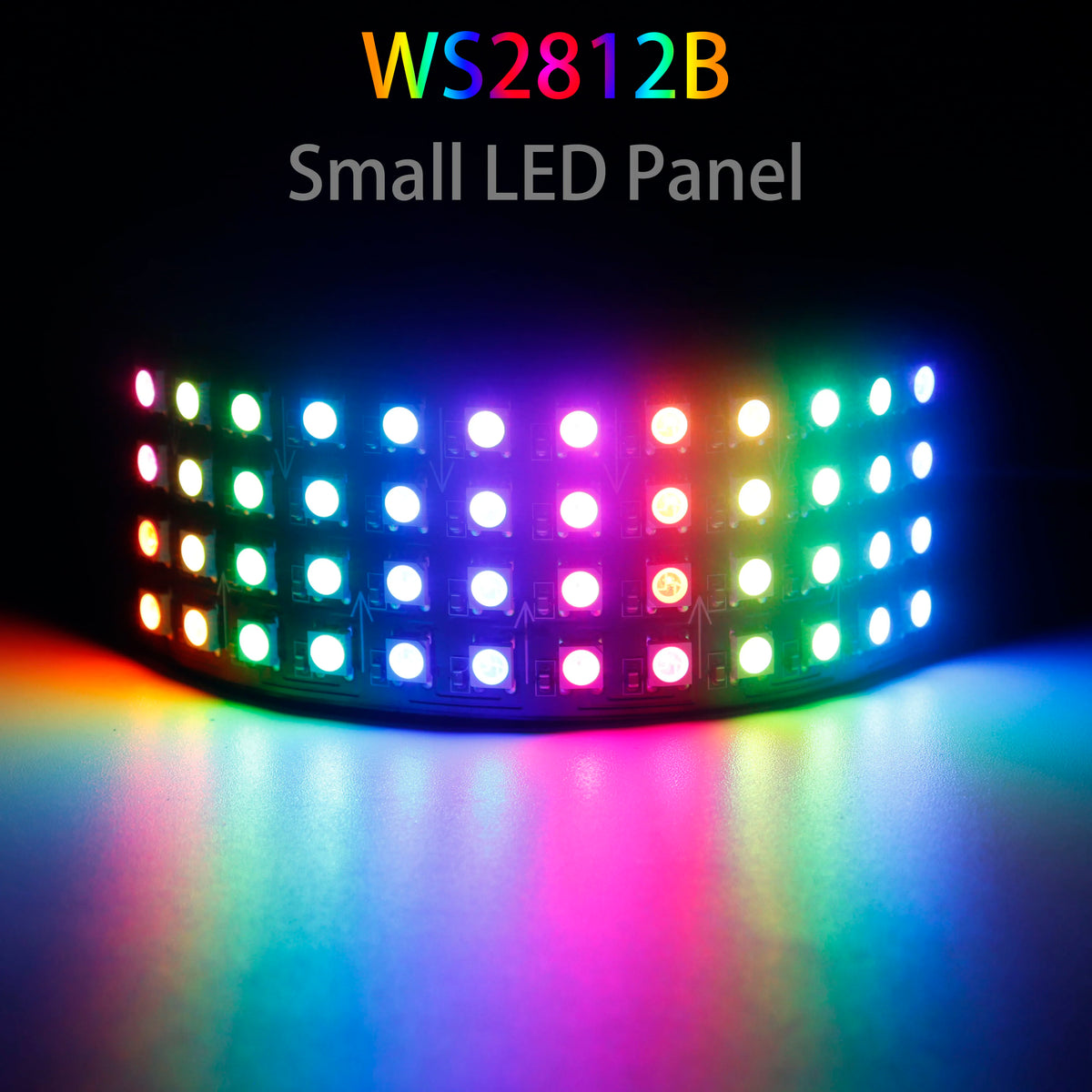

WS2812B Mini LED Digital Flexible Individually Addressable Panel 4X12 48Pixels WS2812IC Module Matrix Screen DC5V

Description:

Voltage: DC5V

FPCB Colors: Black

Light Source: SMD 5050 RGB

Working Life: >50,000 Hours

Beam Angle: 120 °

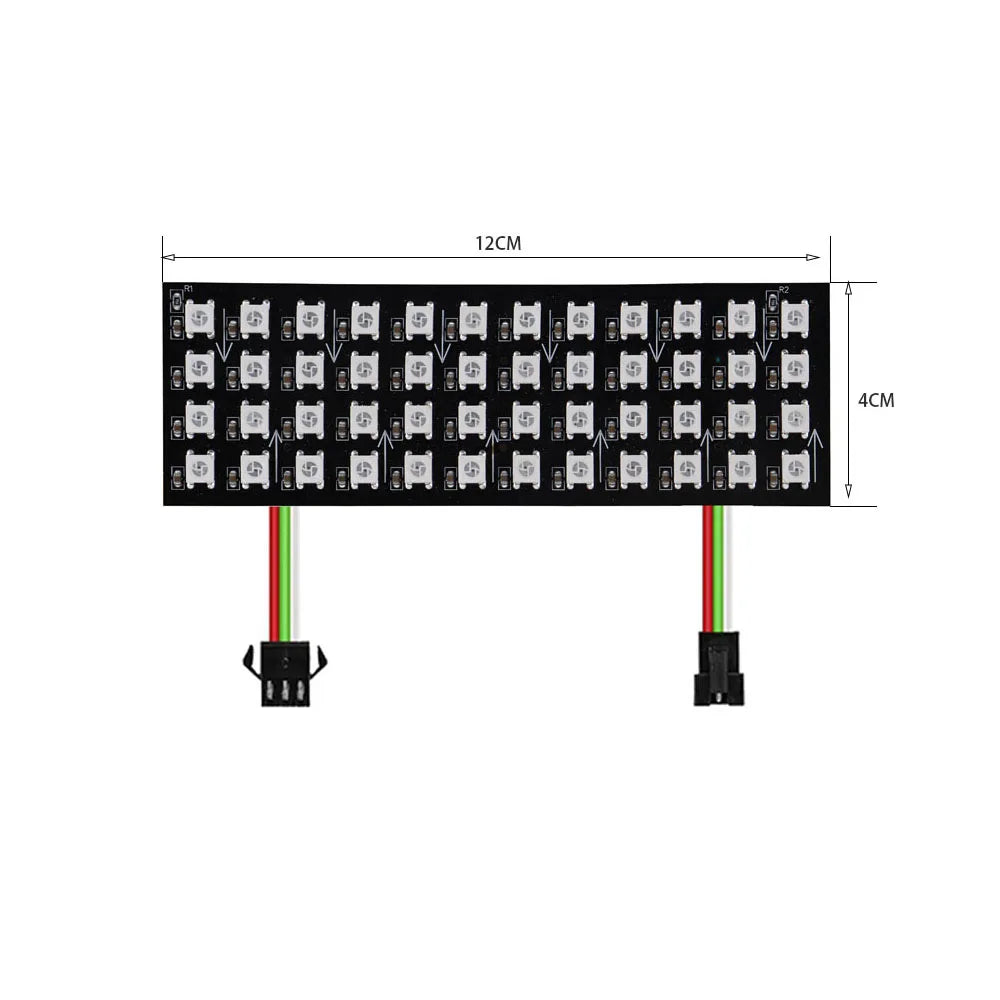

LED Quantity: 48Pixels/4*12 48Pixels

Power: 48LEDs 14.4W

Emitting Color: Full color (24-bit)

Gray level: 64/256

Plate: Soft Copper

Waterproof: IP30 Non- Waterproof

Working Temperature:-20°C~40°C

IC: WS2812B (WS2811 IC built-in RGB Chip)

Precautionsp:

1.With 48LEDs, you could use over 3A of current if you turn on all the LEDs on to white (which we really do not recommend because we don't think the flex PCB can handle that much current).

2.Using voltage 5V DC. higher than 5V DC will destroy it.

3.Do not bend strip sharply. Flexible PCBs are not designed for repeated flexing!

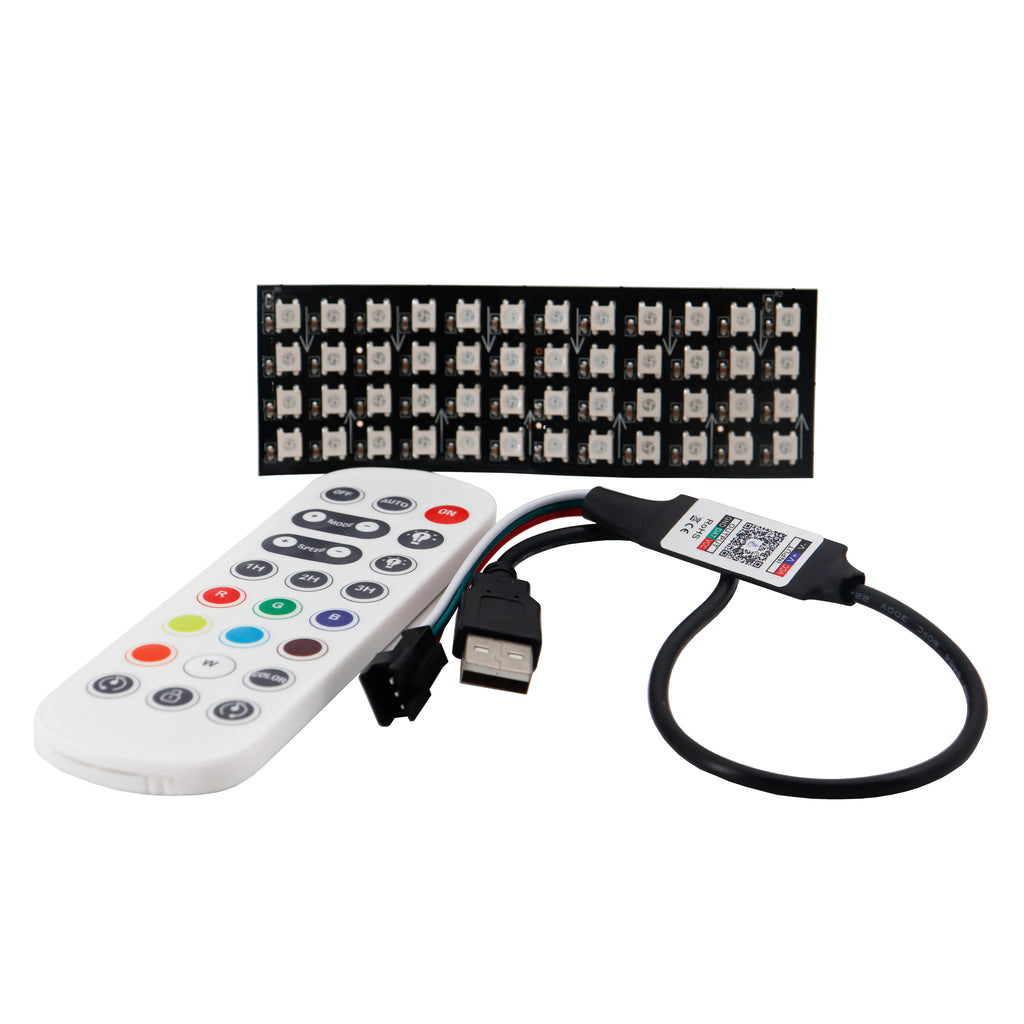

4.If you need better led strip performance, you can use a K-1000C controller or another programmable controller.

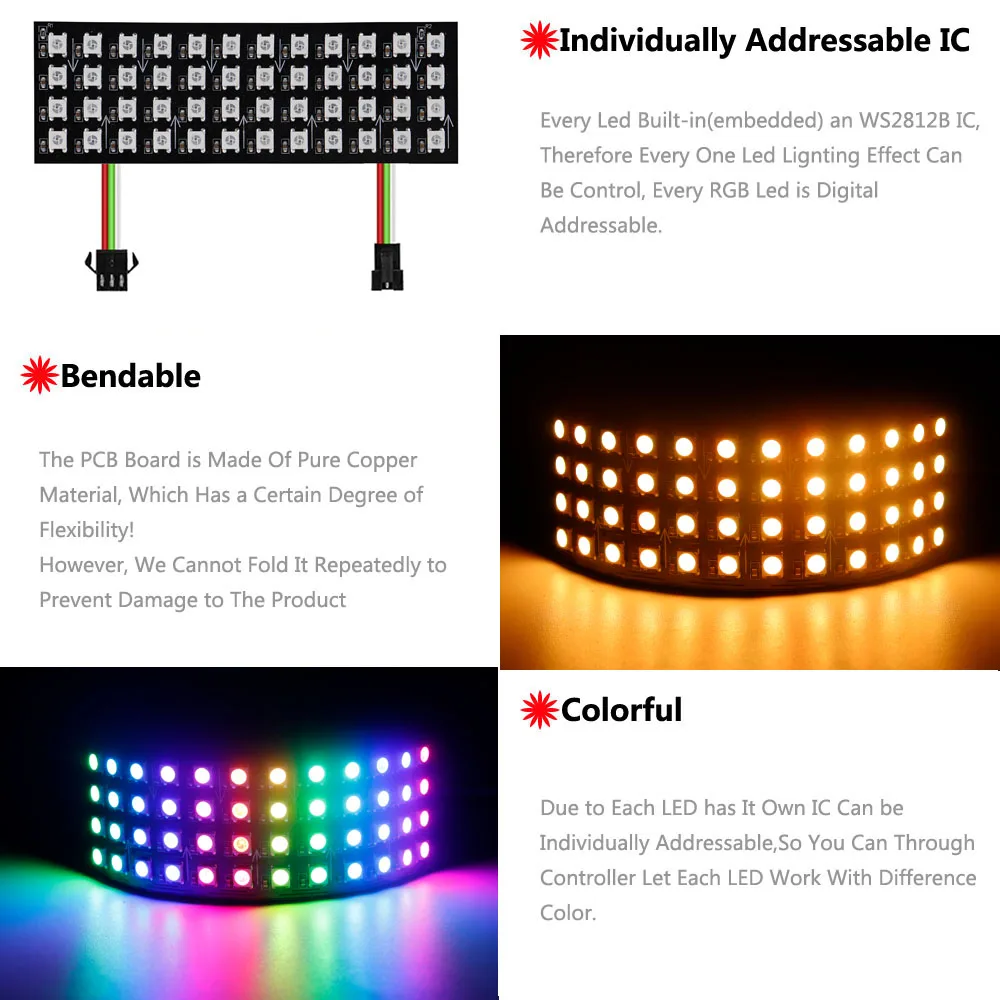

Features：

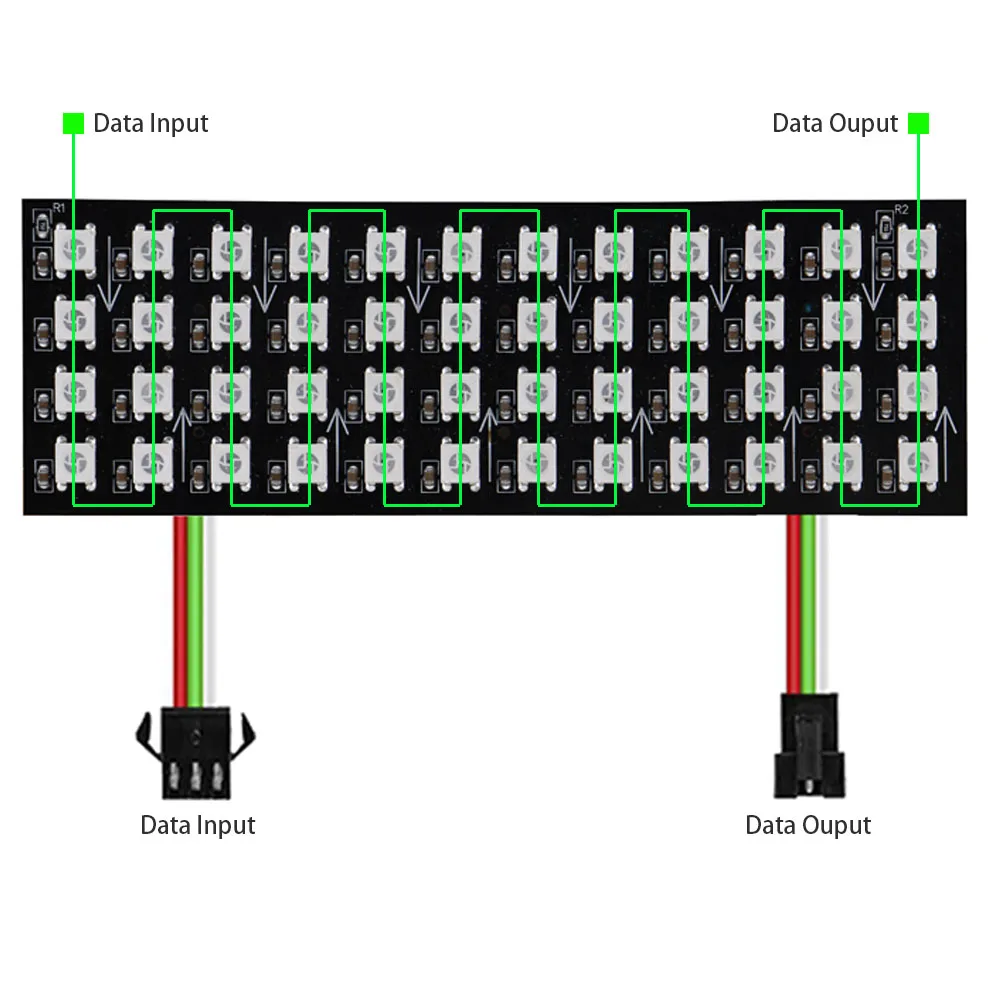

1.Individually Addressable

Using a programmable controller and you can program every led just you like. Every one led has its own IC chip.one IC controll one led.The chip buil in led.

2.DIY

If you have a programmable controller , you can DIY your own special effects

3.Bright

Brightness can be adjusted freely.Do not stare at it for a long time, otherwise you will be dazzled when the led Brightness is the brightest.

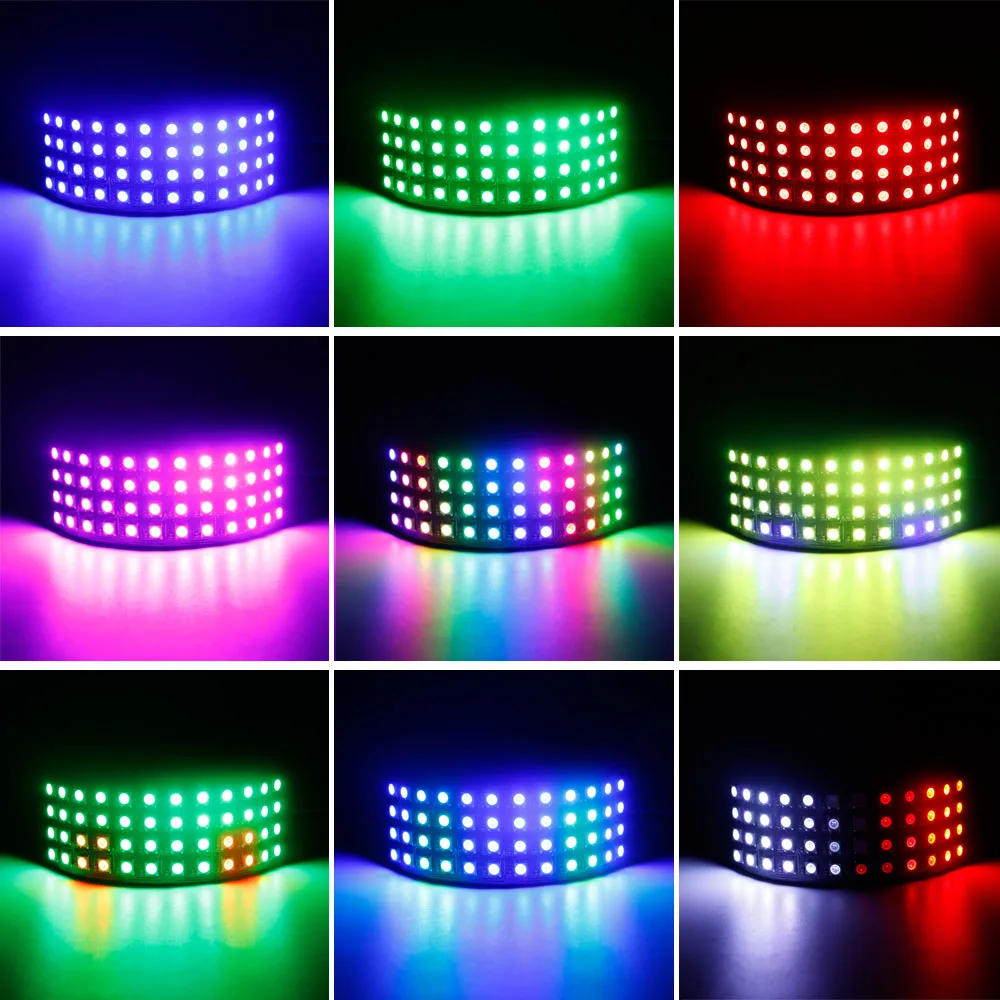

4.Colorful

Red ,Green, Blue .Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software
