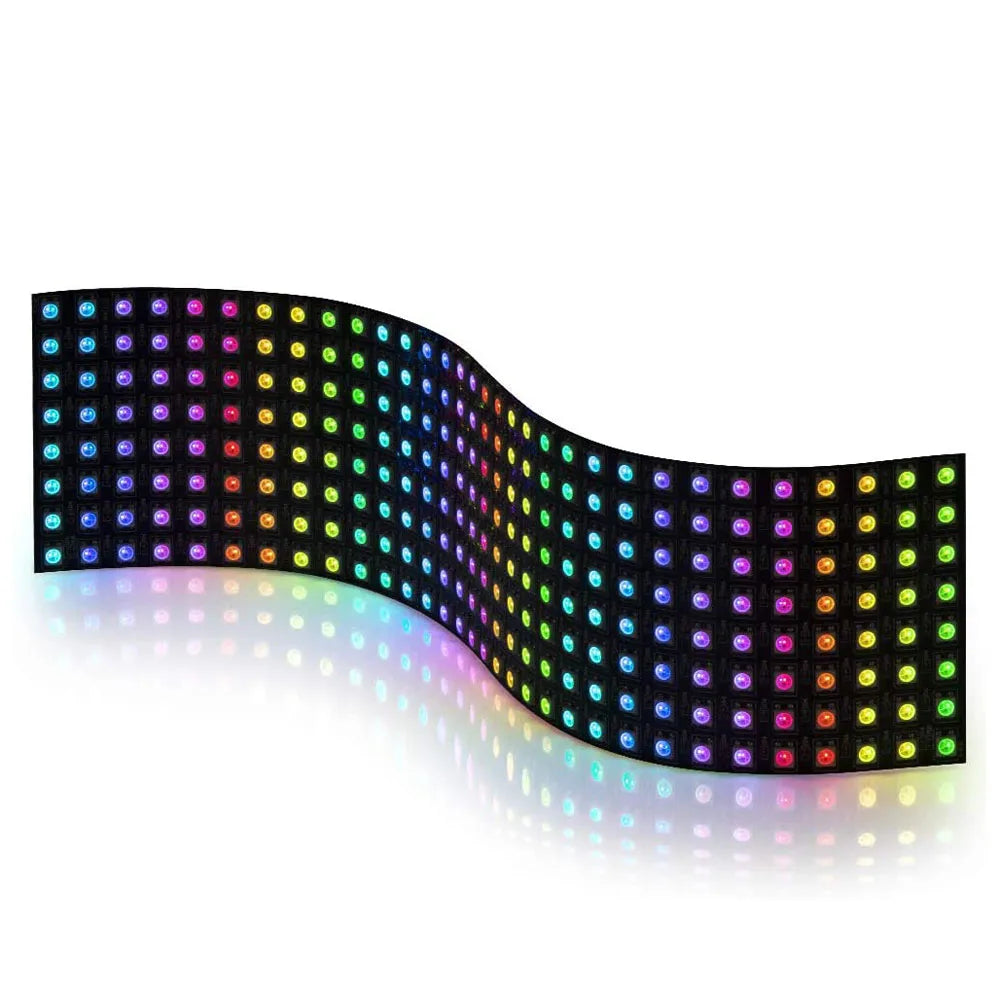

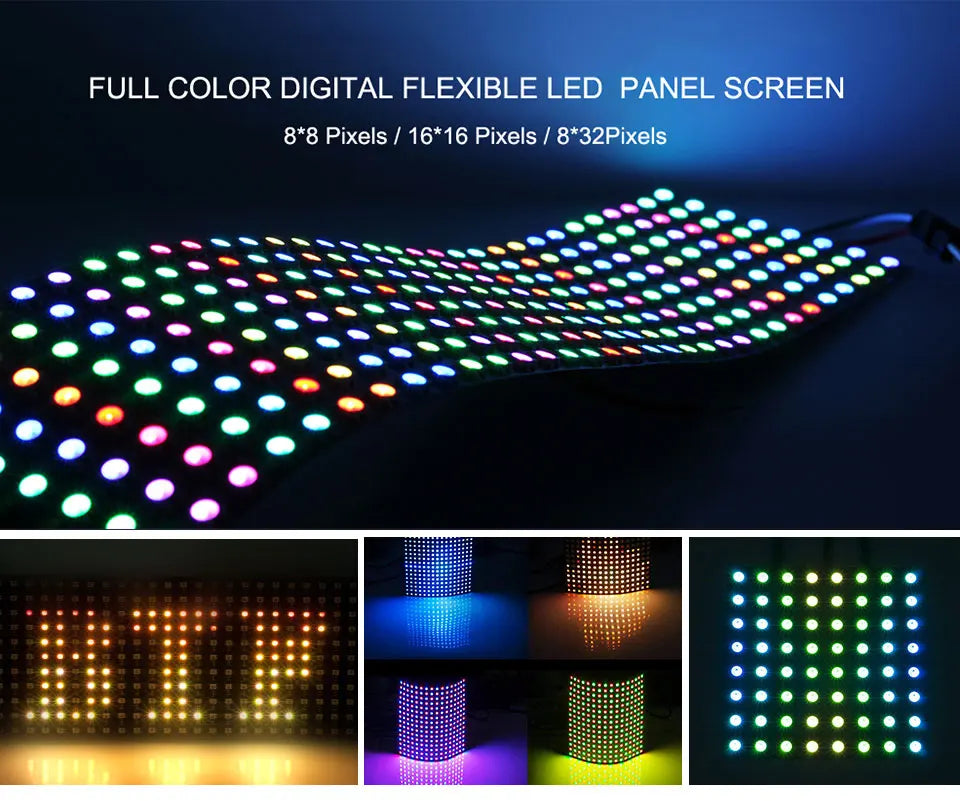

WS2812B RGB LED Panel Screen 8x8 16x16 8x32 256 Pixels Digital Flexible Programmed Individually Addressable Full Color DC5V

WS2812B RGB LED Panel Screen 8x8 16x16 8x32 256 Pixels Digital Flexible Programmed Individually Addressable Full Color DC5V

$33.62

$33.62 $0.00

Emitting Color 8x8 size 16x16 size 8x32 size

Color WS2812B WS2812B ECO

Ships FromChina Mainland

Description

SPECIFICATIONS

Average Life (hrs): 50000

Brand Name: BTF-LIGHTING

Certification: ce,FCC,ROHS,UL

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 64/256

Luminous Flux: 2000-82000

Model Number: WS2812B

Nominal Voltage: 5V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 0.3w/led

Power Source: DC

Specifications (light beads / m): 64/256

Strip type: SMD

Voltage: 5v

Waterproof: No

Please Note:
Only Have Led Panel, Not Include Led Power And SPI Led Controller!
WS2812B Led Panel Must Use DC5V Power Supply.

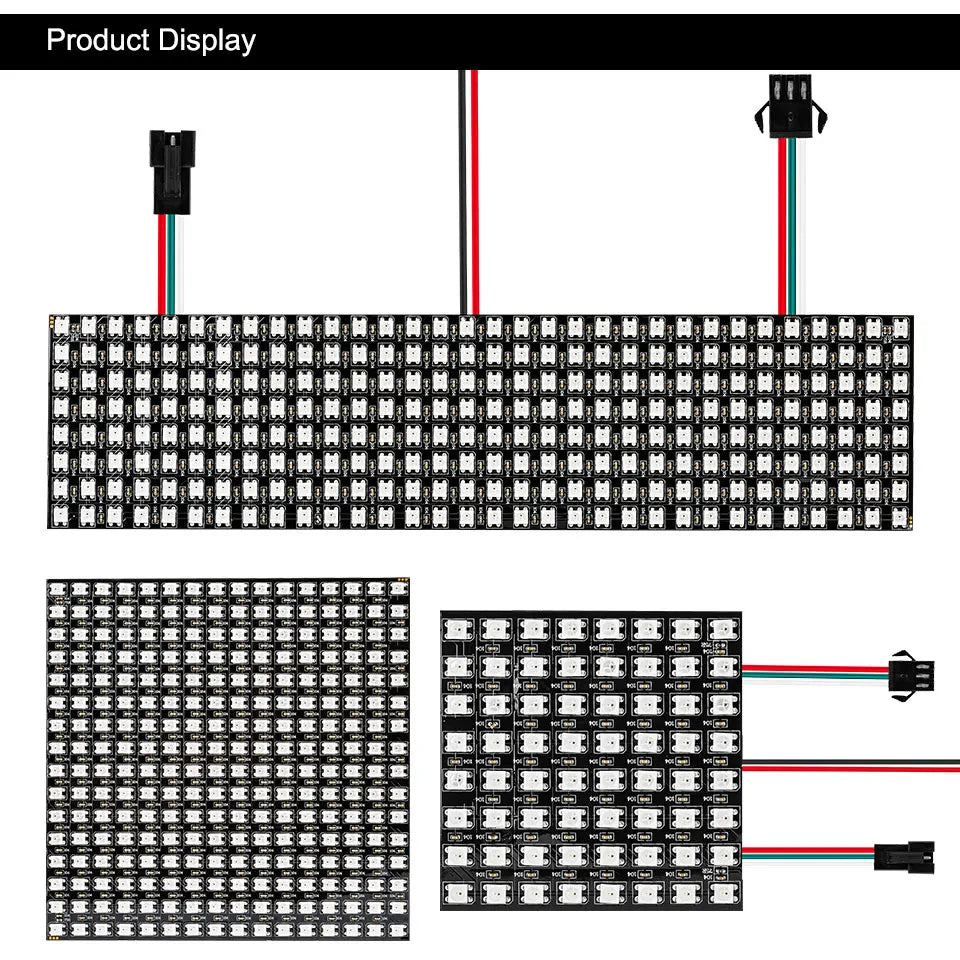

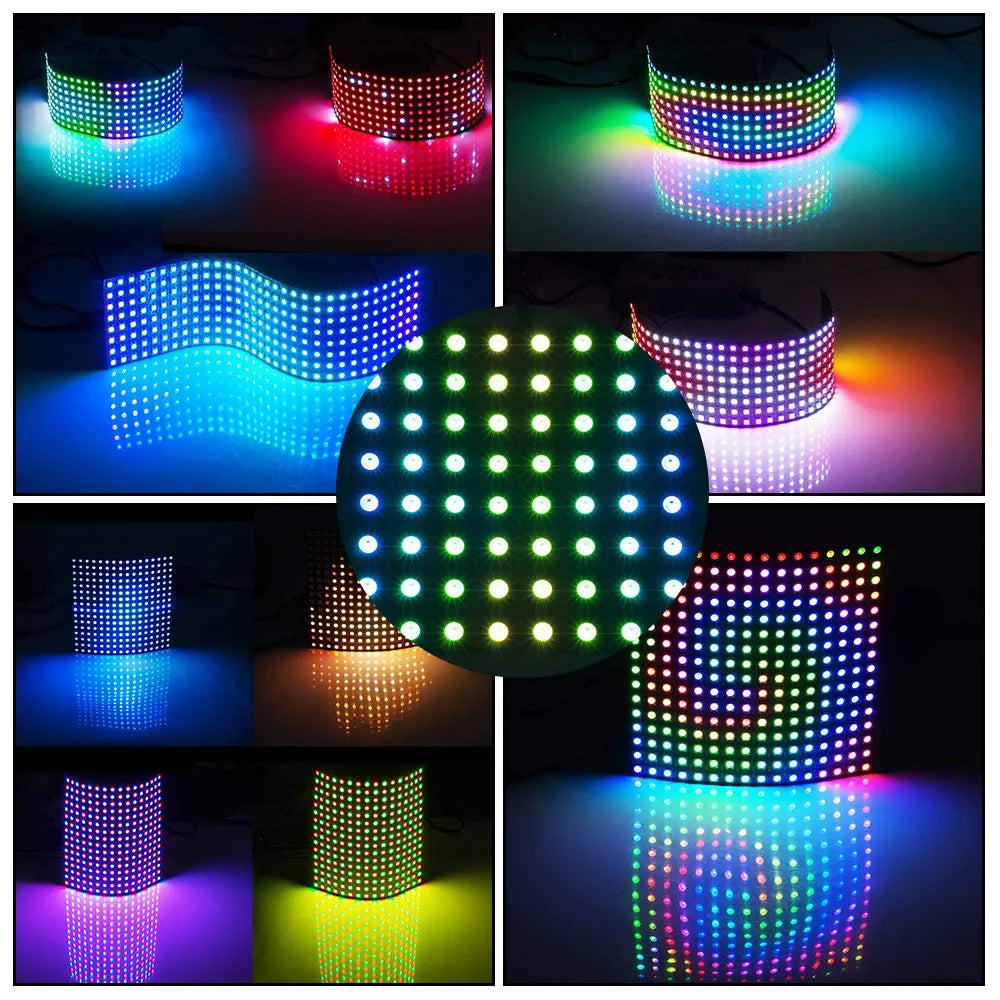

Three size:

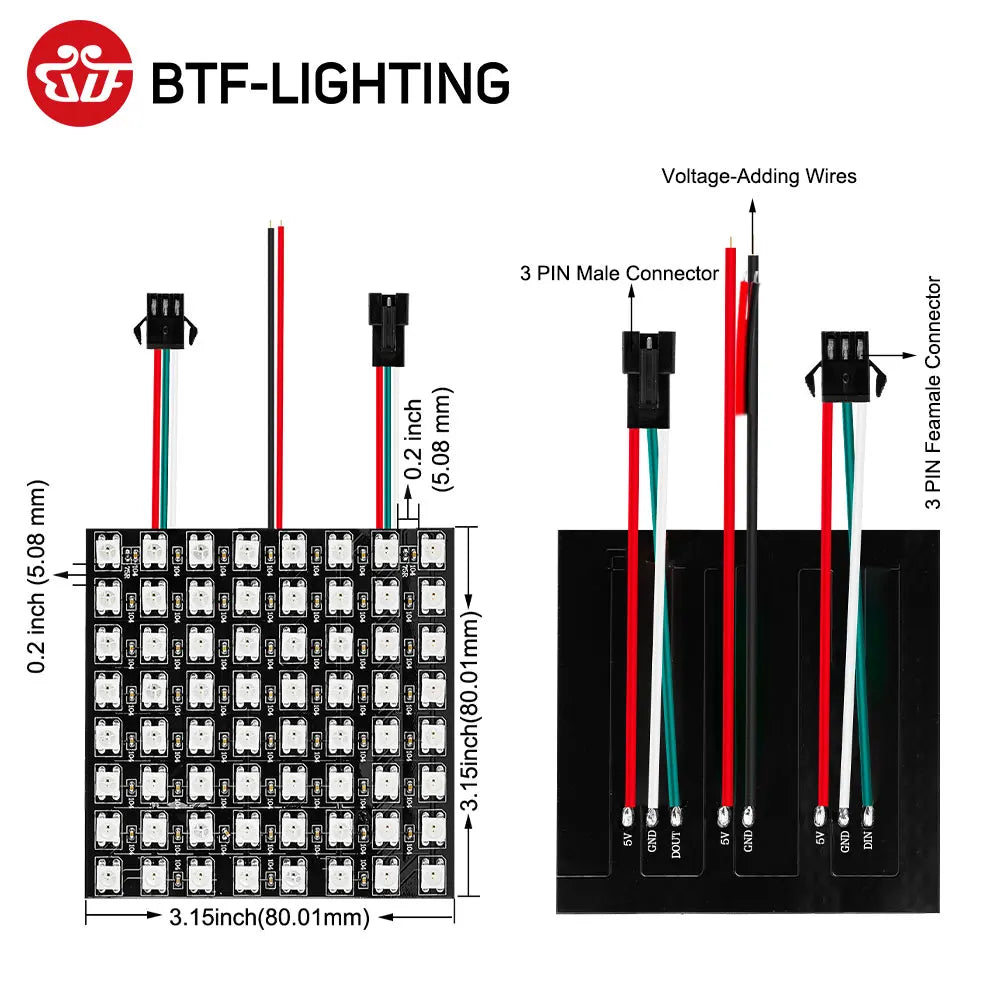

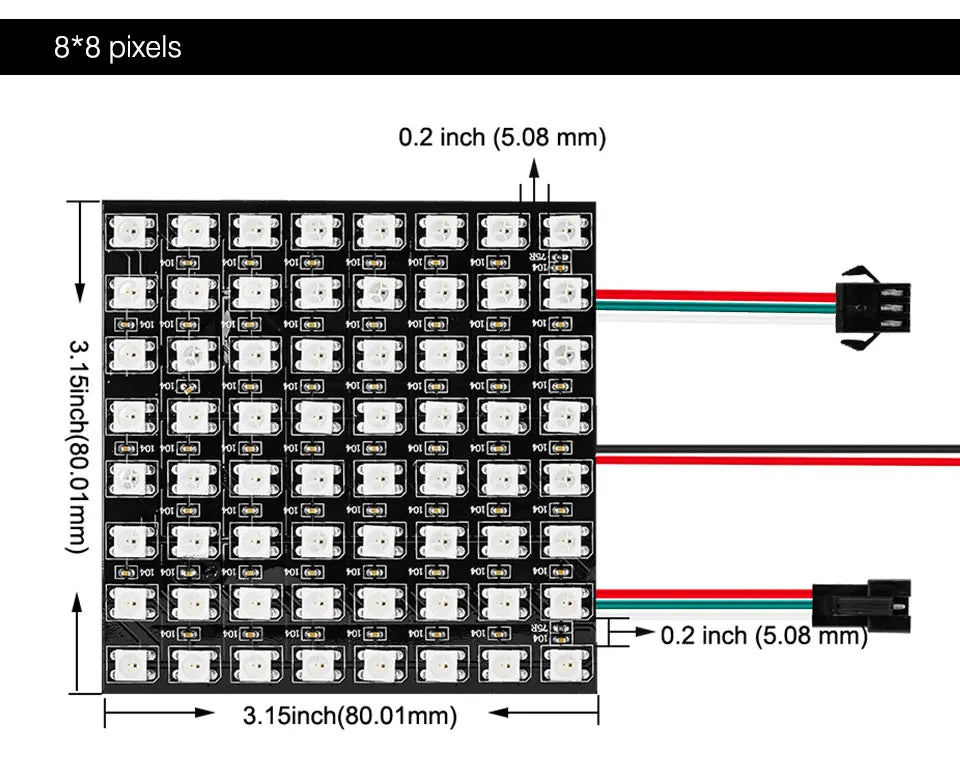

8*8, 64leds, 8cm*8cm.

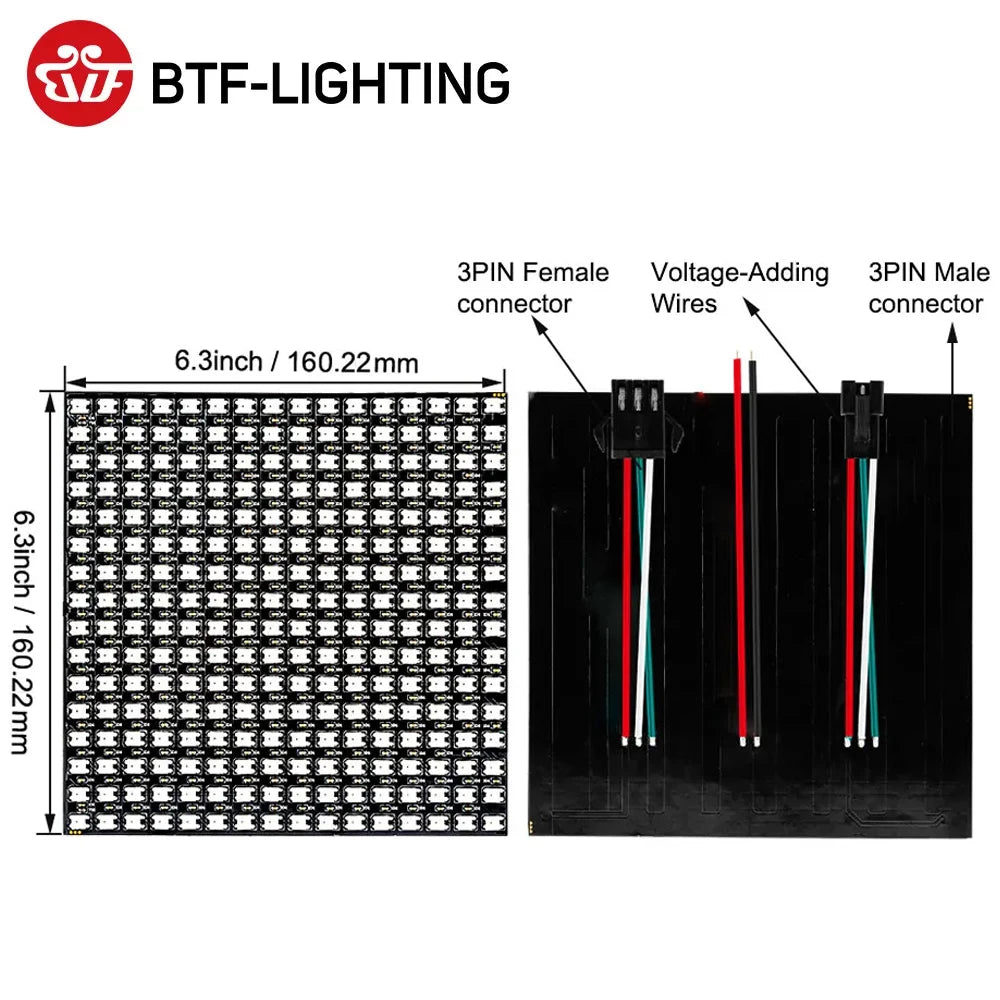

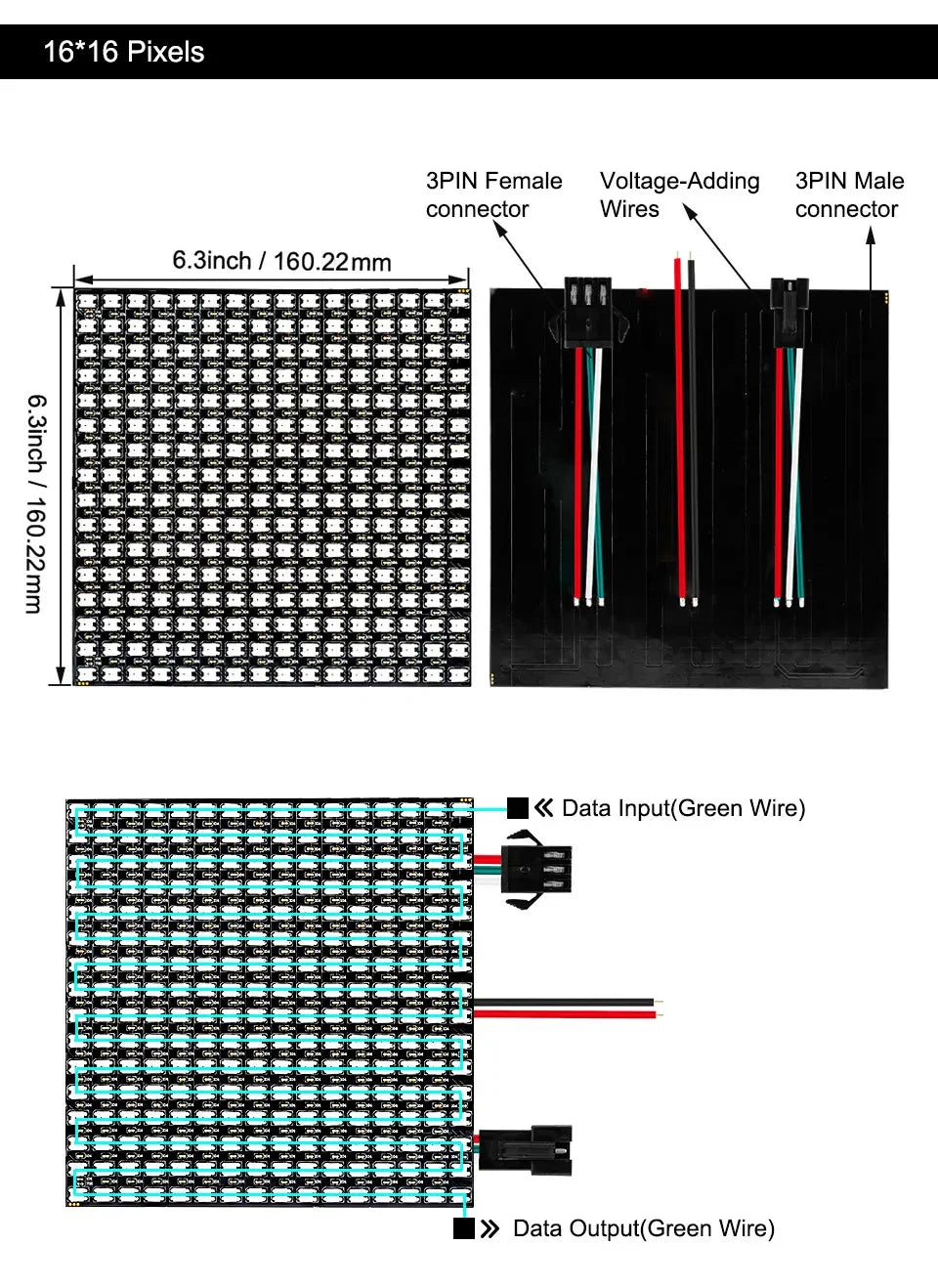

16*16, 256leds, 16cm*16cm.

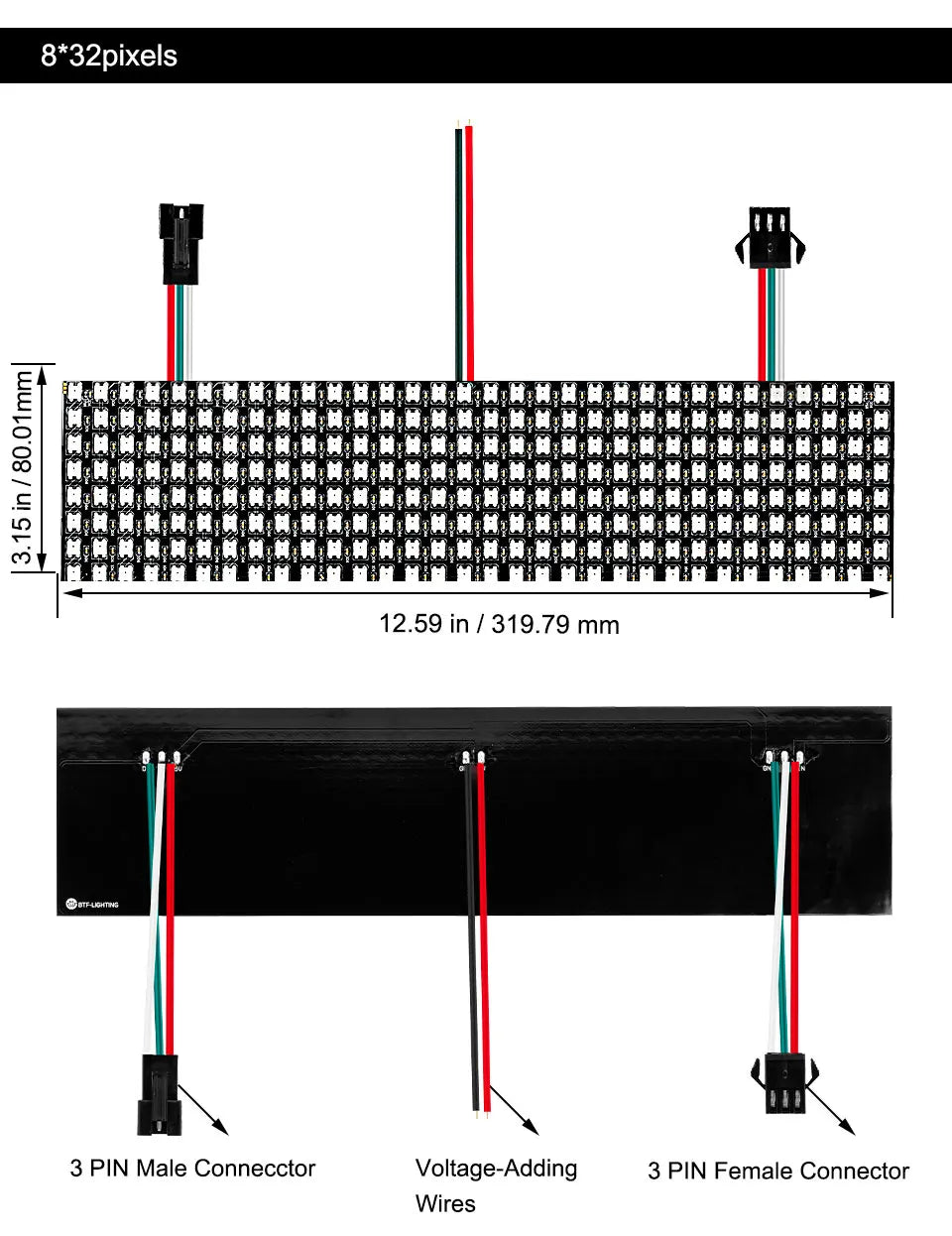

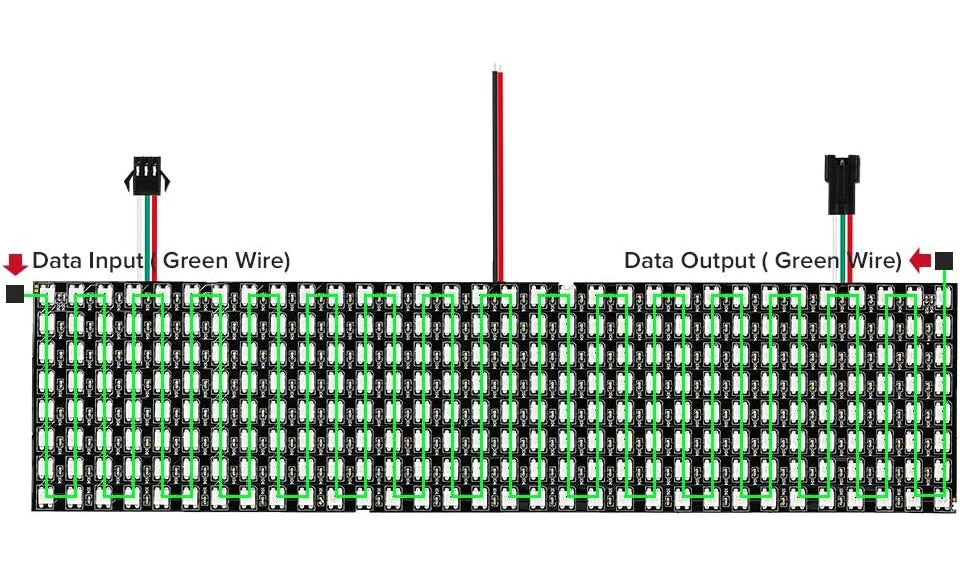

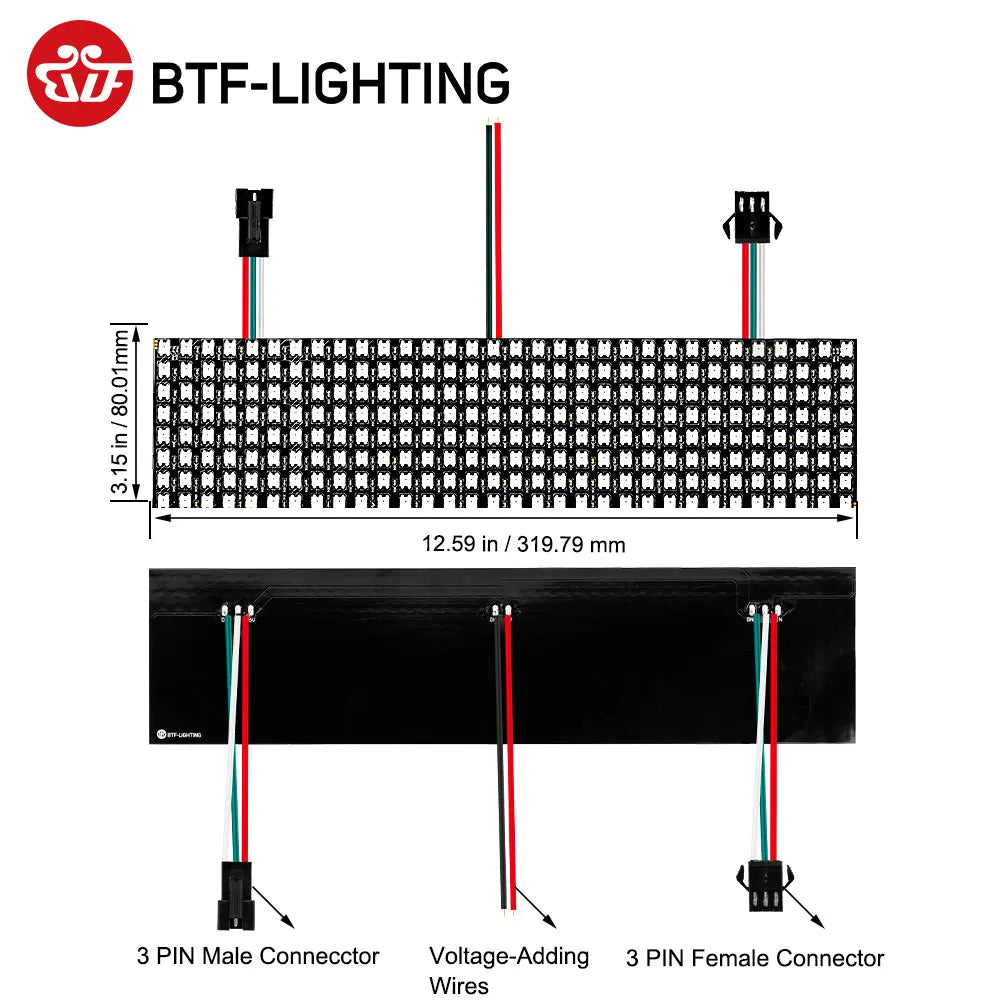

8*32, 256leds, 8cm*32cm.

Emitting color: pixel RGB , WS2812 IC.
Work voltage: DC5V.
Power: 0.3W/pixel.
Waterproof level: Non-waterproof.

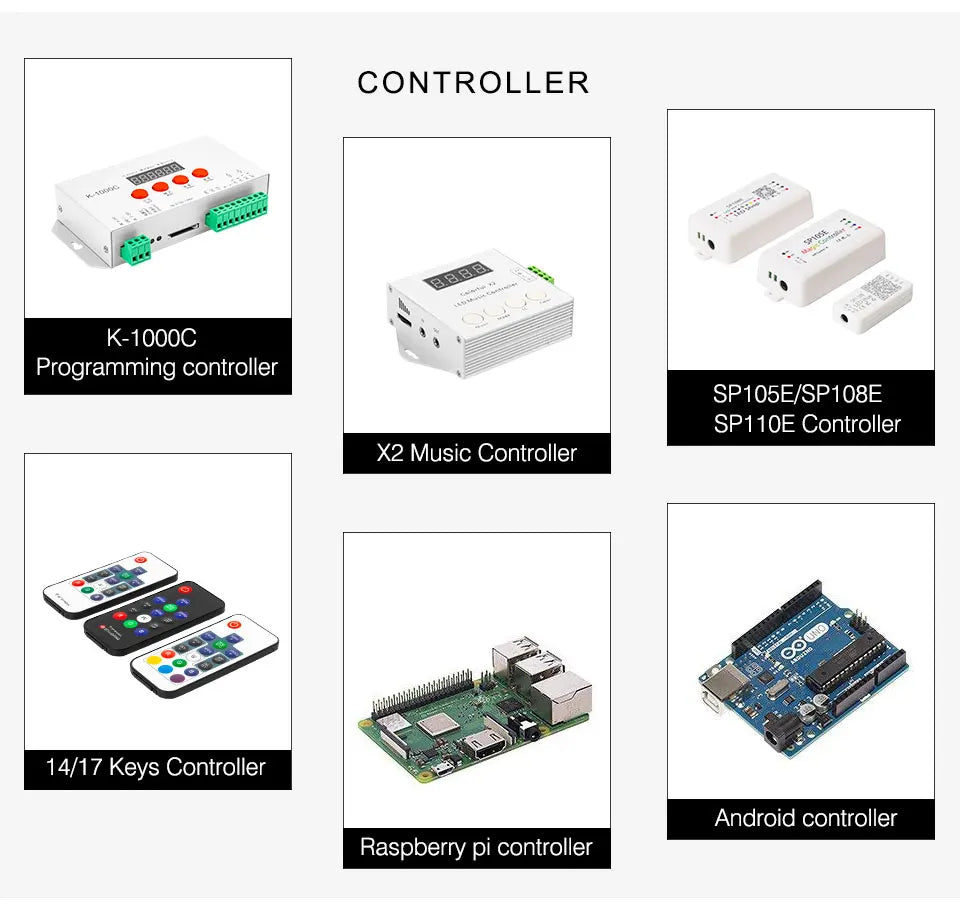

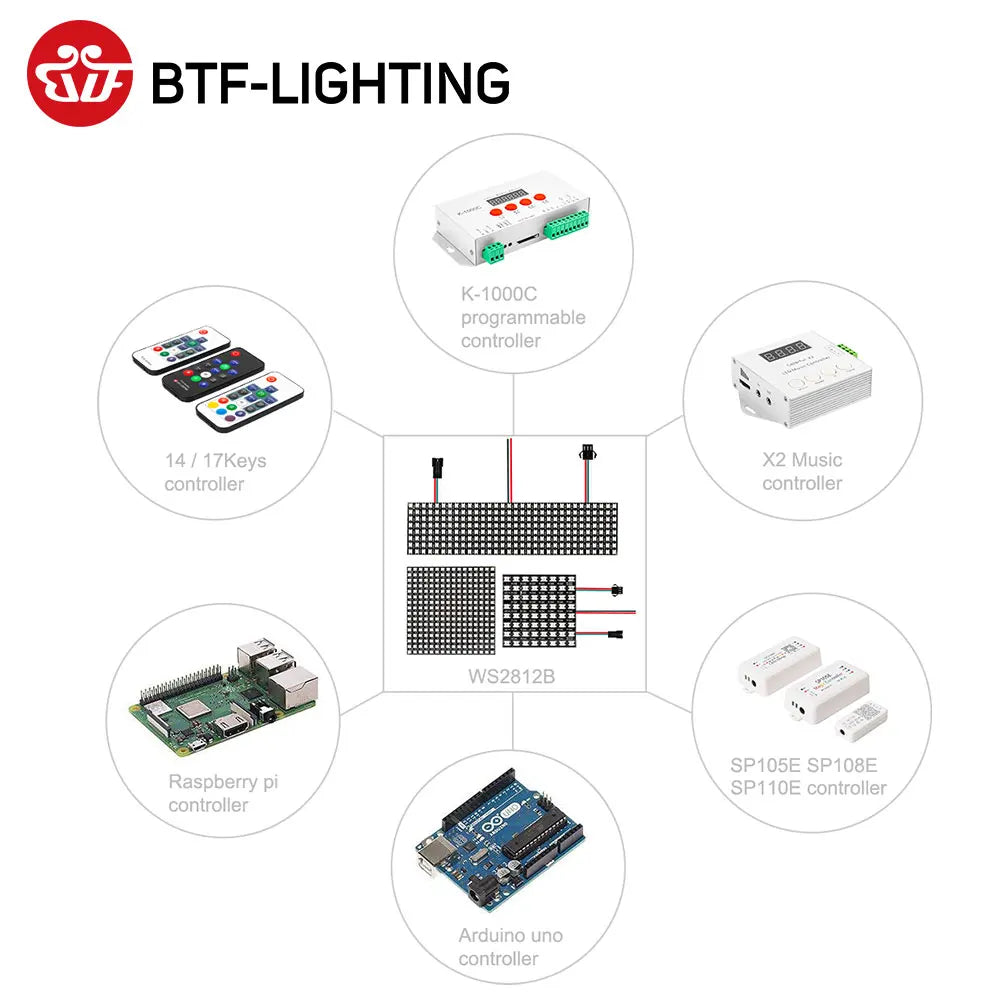

Working mode: external controller Arduino compatible.

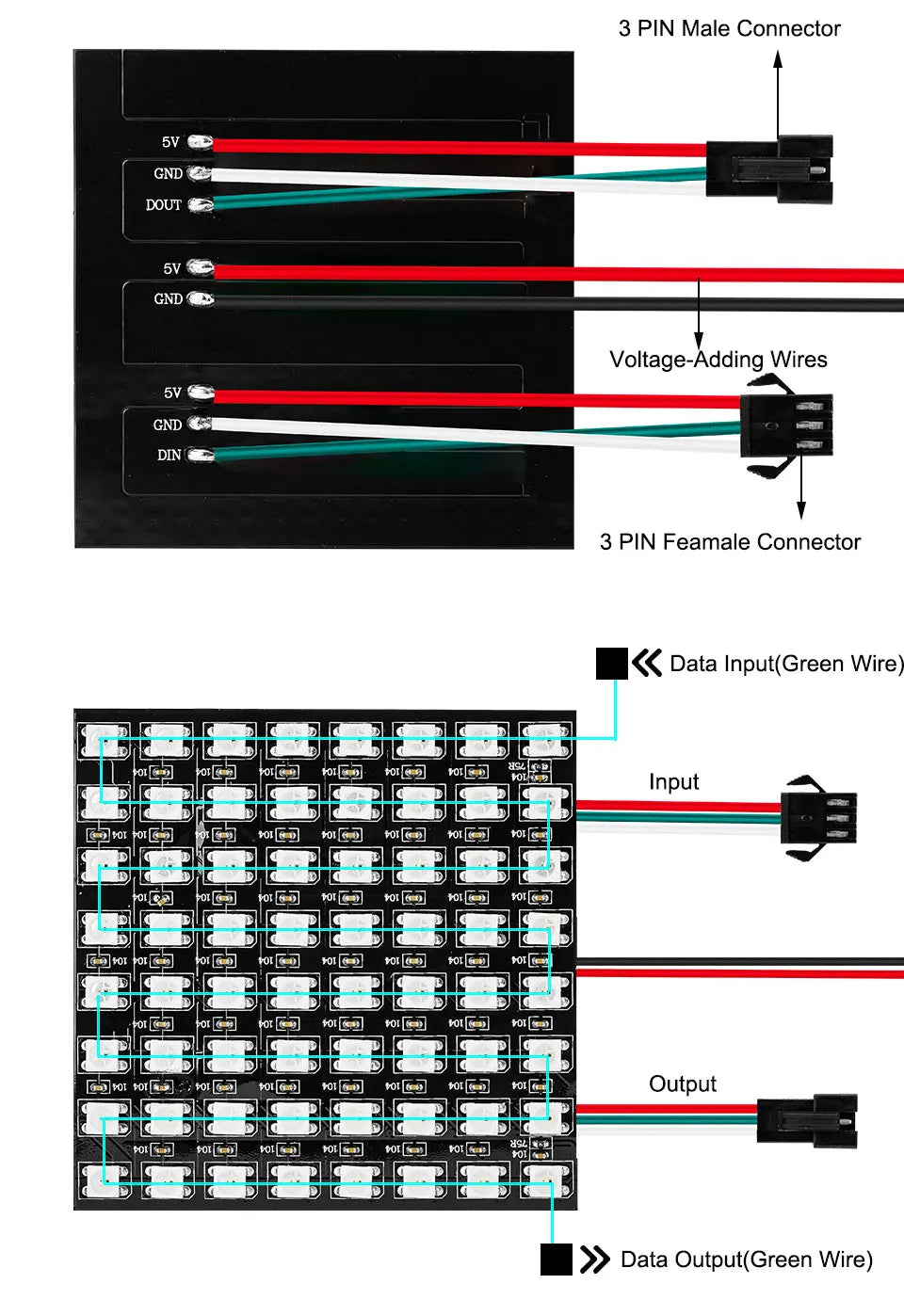

Connection: VCC: RED; GND:BLACK; DAT:BLUE.

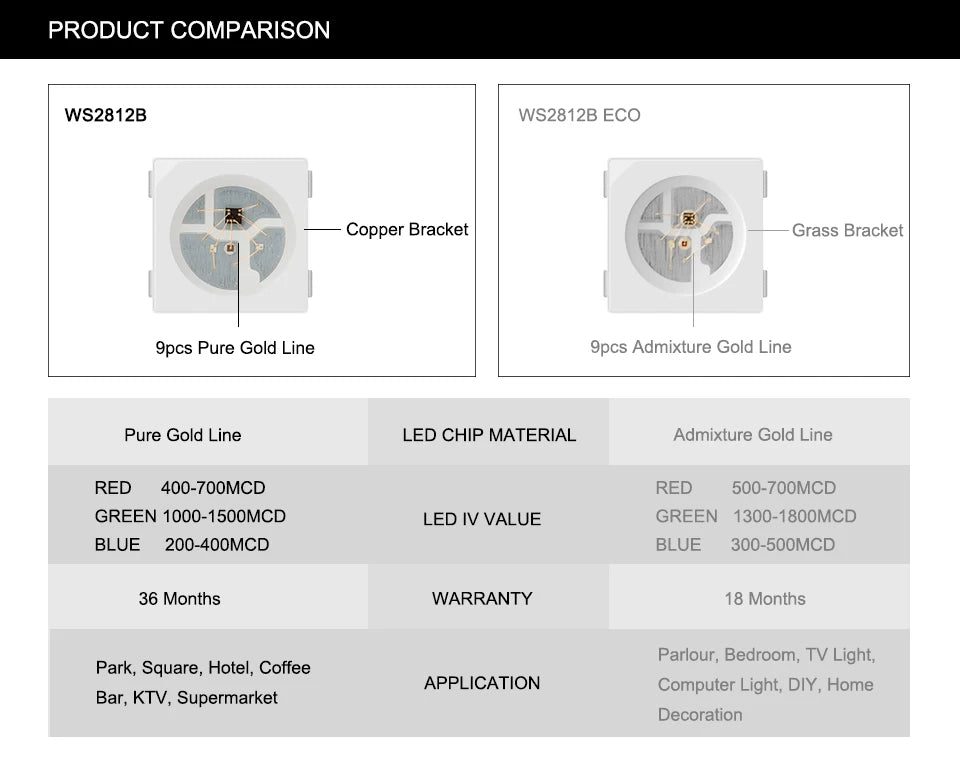

The different between the WS2812B and WS2812B-ECO.
LED Chip Material:
9pcs Pure Gold Line, Copper Bracket (WS2812B).
9pcs Admixture Gold Line, Brass Bracket (WS2812B-ECO).

LED IV Value Brightness:
Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).
Red: 500-700mcd, Green: 1300-1800mcd, Blue: 300-500mcd (WS2812B-ECO).
