SPECIFICATIONS

Average Life (hrs): More than 50000hours

Brand Name: Xnbada

Certification: CCC,ce,FCC,ROHS,UL,CE,RoHs

Choice: yes

Color Temp(K): 3000-6000K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/74/96/144

Luminous Flux: 249-2000

Model Number: WS2812B

Nominal Voltage: 5V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/74/96/144

Strip type: SMD

Voltage: DC5V

Waterproof: Yes

semi_Choice: yes

Packing List：

1X Led Strip(Without DC5V LED Power or WS2812B Led Controller)

Pay Attention

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2. WS2812B Led strip can be cut buy every "one" led chip!

3.

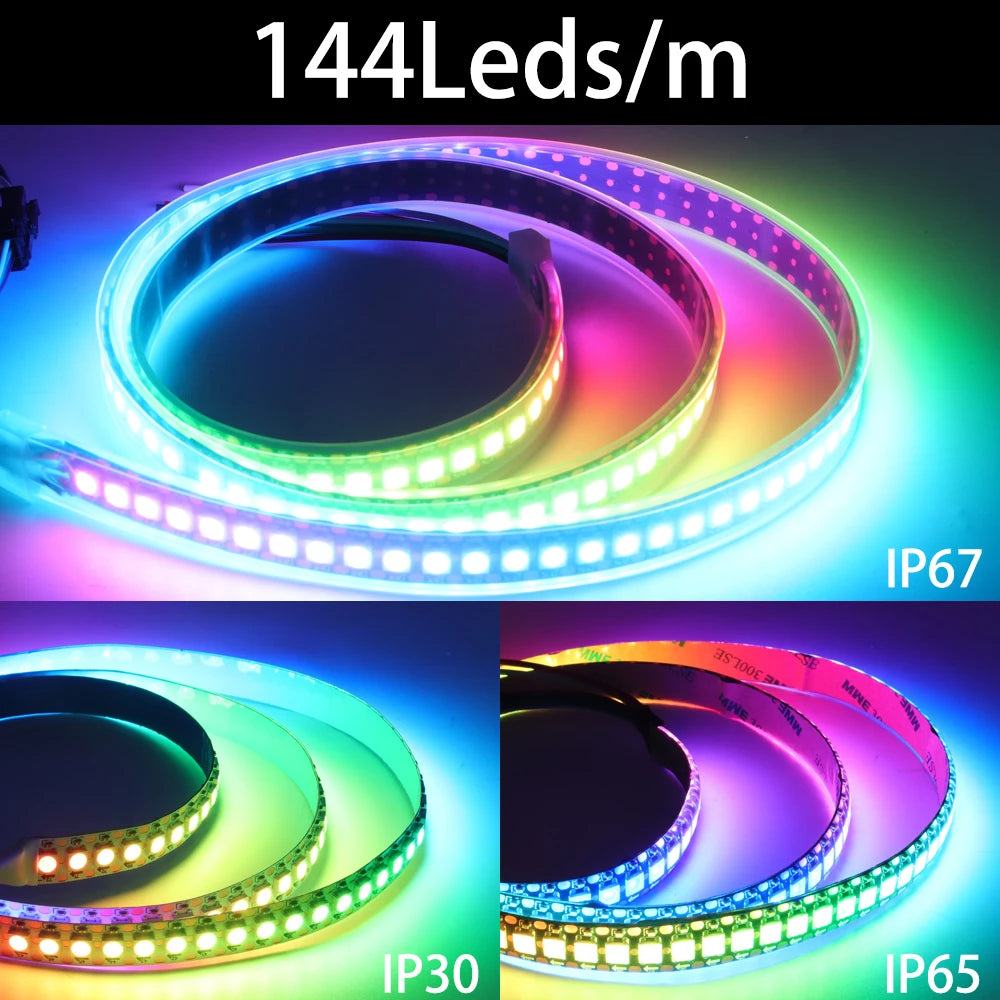

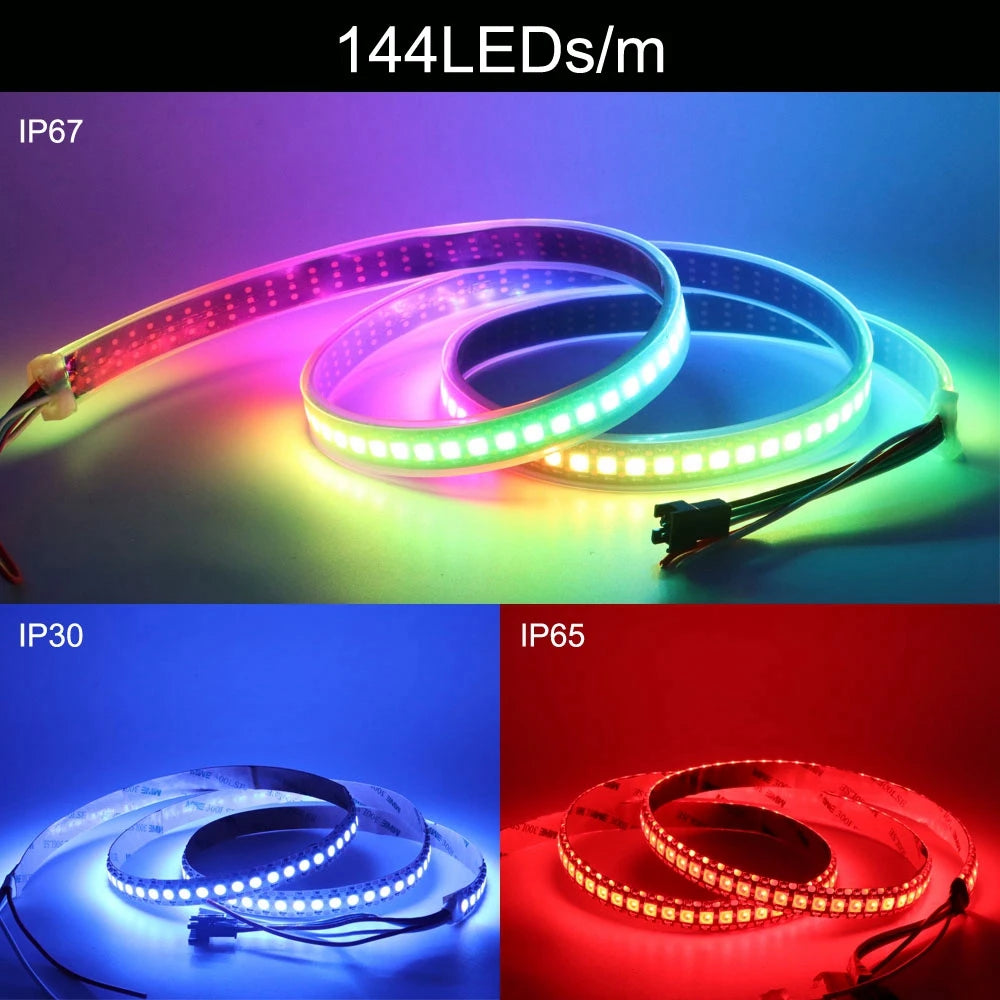

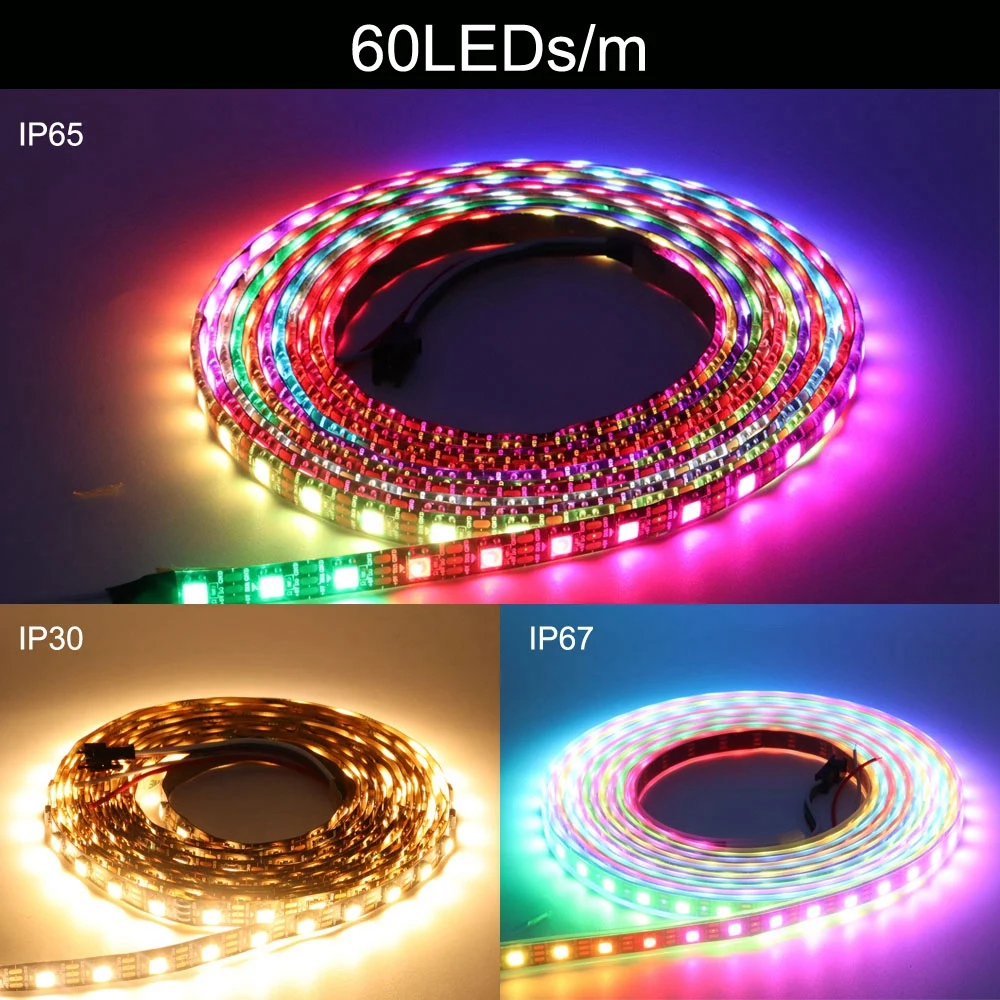

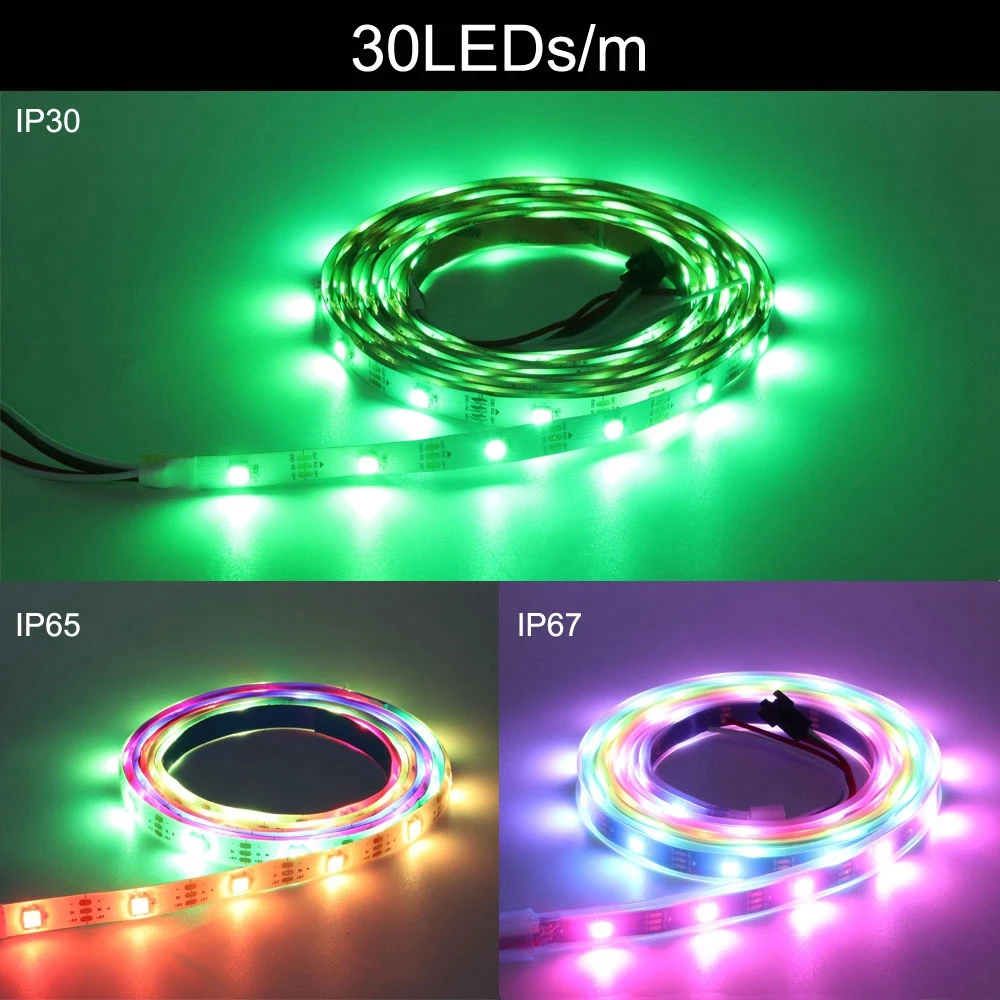

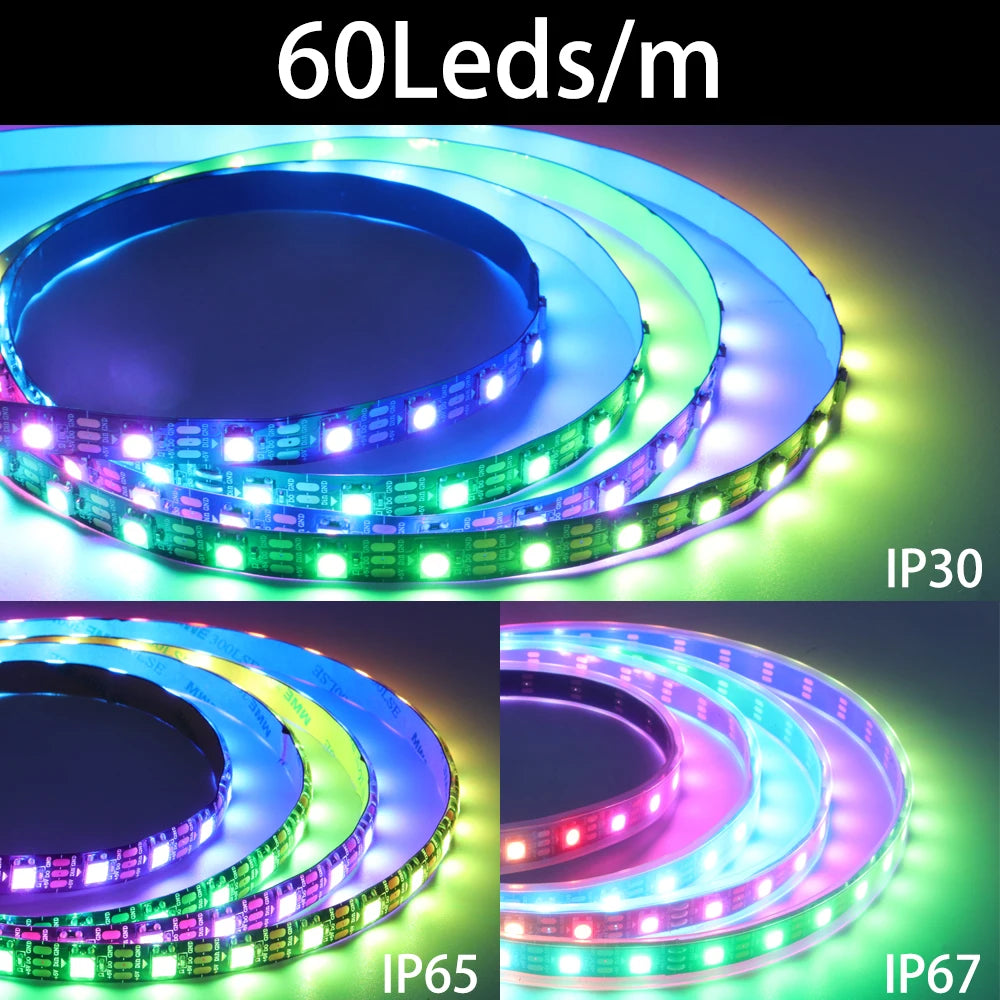

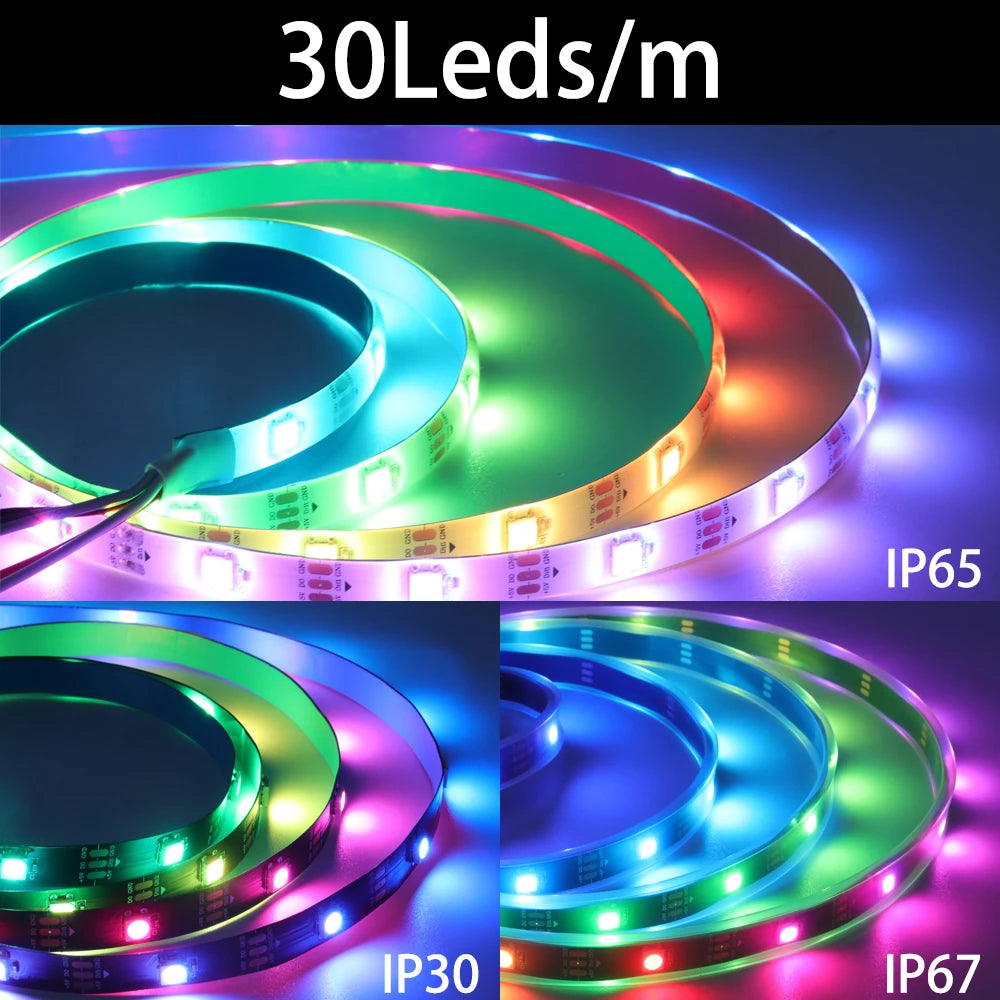

IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

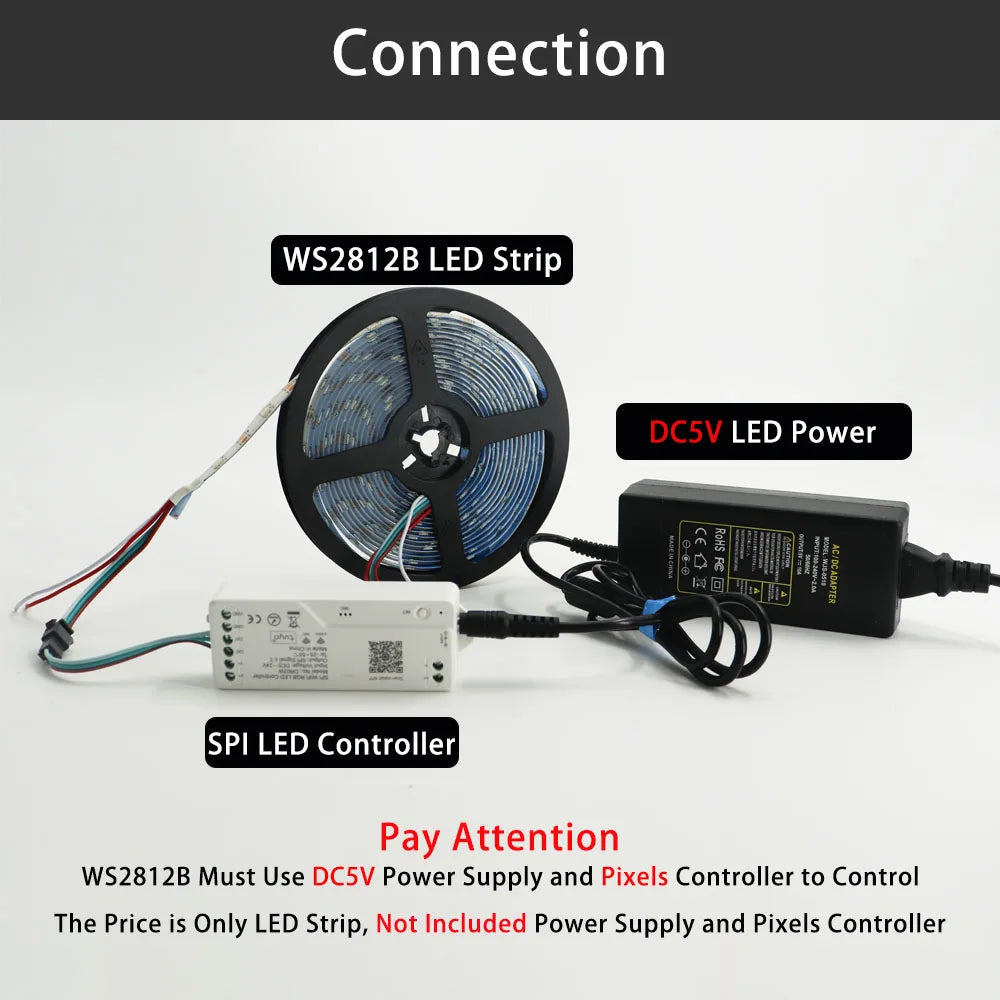

4. WS2812B Led Strip Work WithDC5V,And it must need aWS2812B Led ControllerControl it

About how to choose Led Power

Calculated The Whole Led Strip Watts:

1.One Led Chip is About 0.2W,If You Buy is 5m 30Leds/m(Total Led Strip is 150Leds) ,So 0.2W*150=30W

2.And This Led Strip Work5V,So 30W / 5V=6A,We Know This Led Strip Better at Least 6A......

Product Desription:

1. WS2812B Led Strip is Powered By " 5V Power Supply " (Not Included) And Is Controlled By A Single Data Line From A Suitable Controller (Not Included).

2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.

3. The Strip Has 3M Adhesive Tape On The Back(E xcept Ip67 ). Installation Surface Must Be Smooth, Clean And Dry.

4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.

5. Do Not Bend Strip Sharply.

6. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.

7. 3-Pin JST Connector Wire is 20AWG.

Products Application:

WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other

Decoration.

Product Details:

Input Voltage: DC5V

Power:

30Leds/m----6Watt/meter

60Leds/m----12Watt/meter

74Leds/m----14.8Watt/meter

96Leds/m----19.2Watt/meter

144Leds/m----28.8Watt/meter

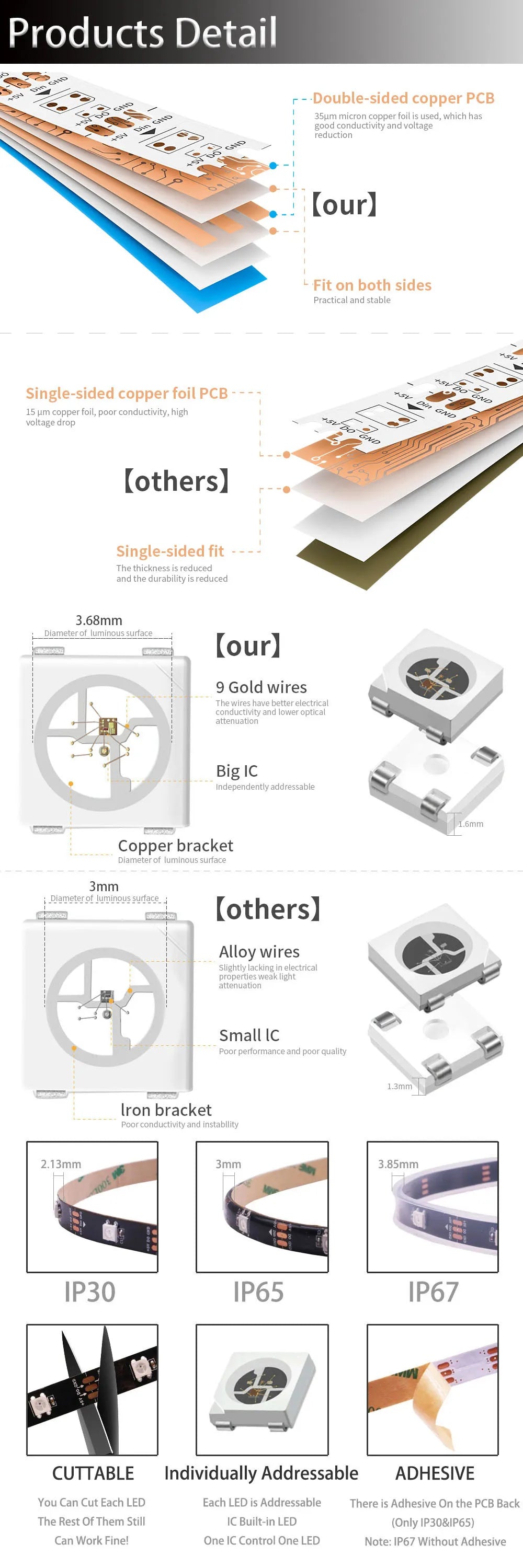

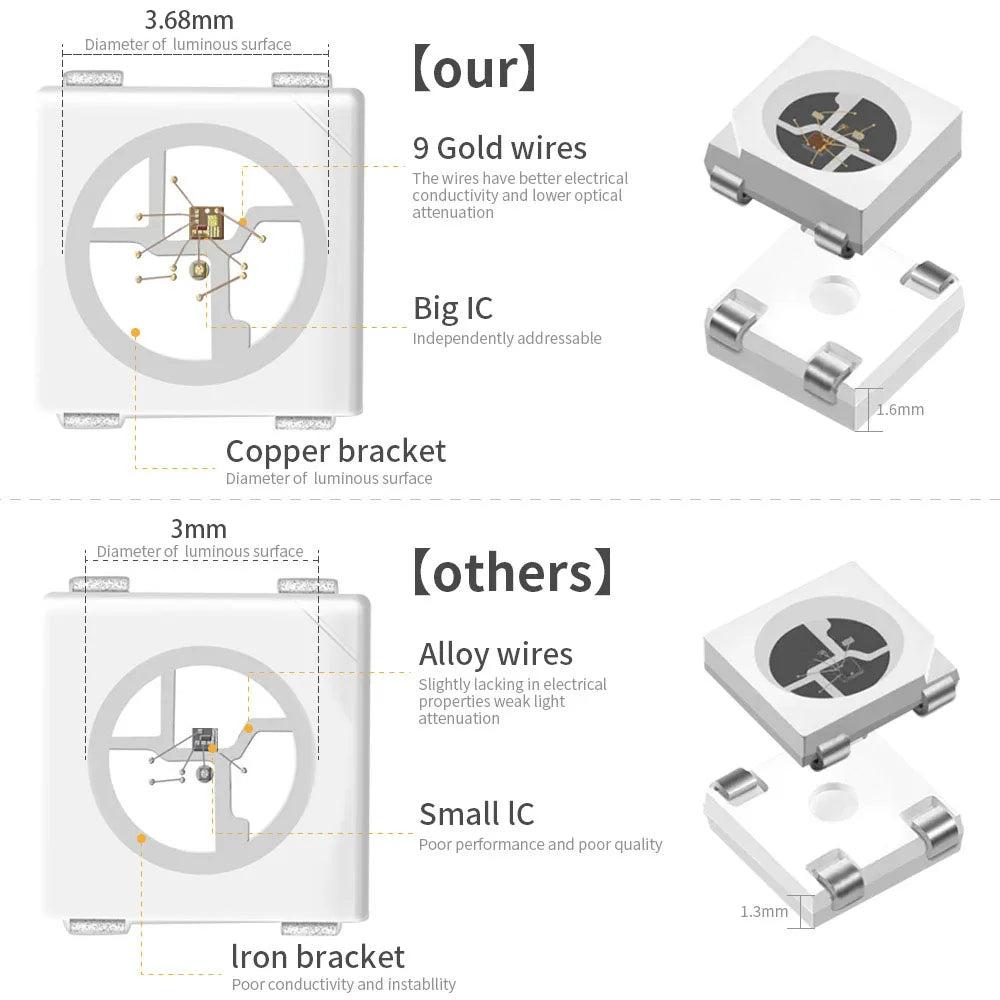

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

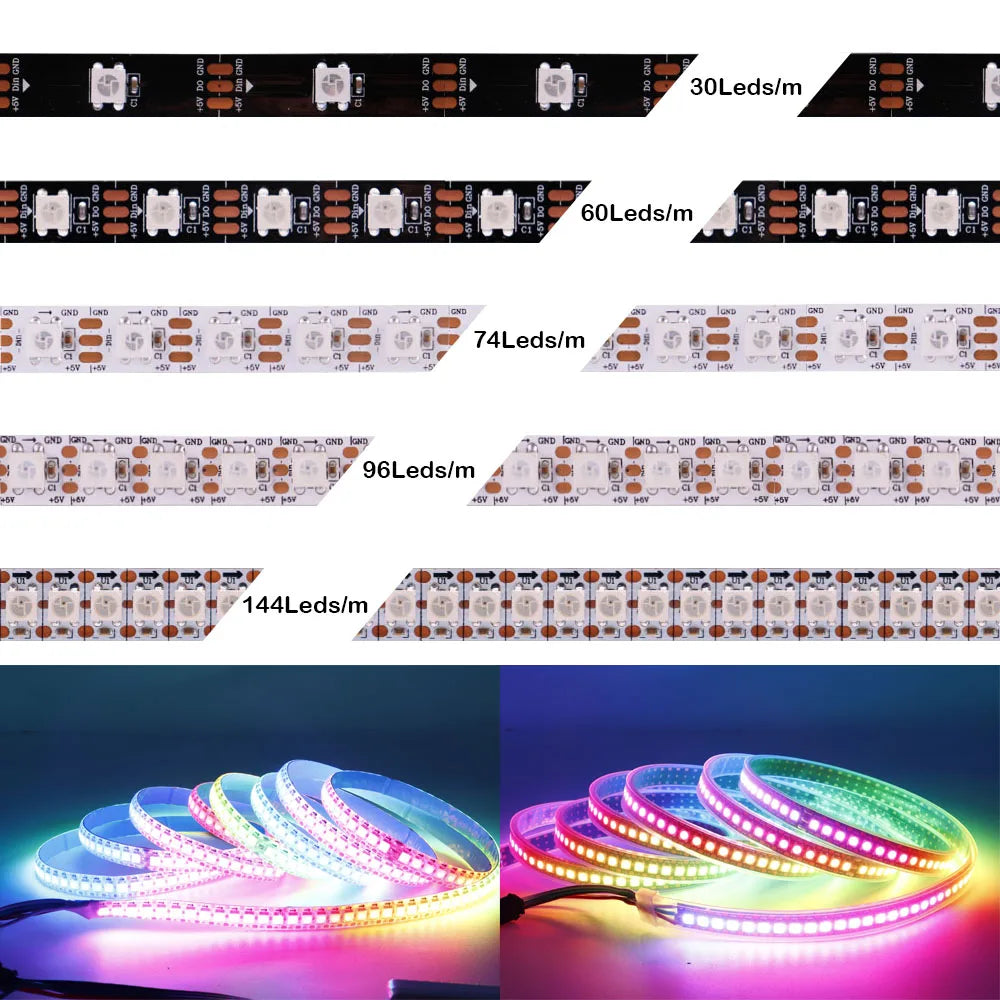

Pixels: 30/60/74/96/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

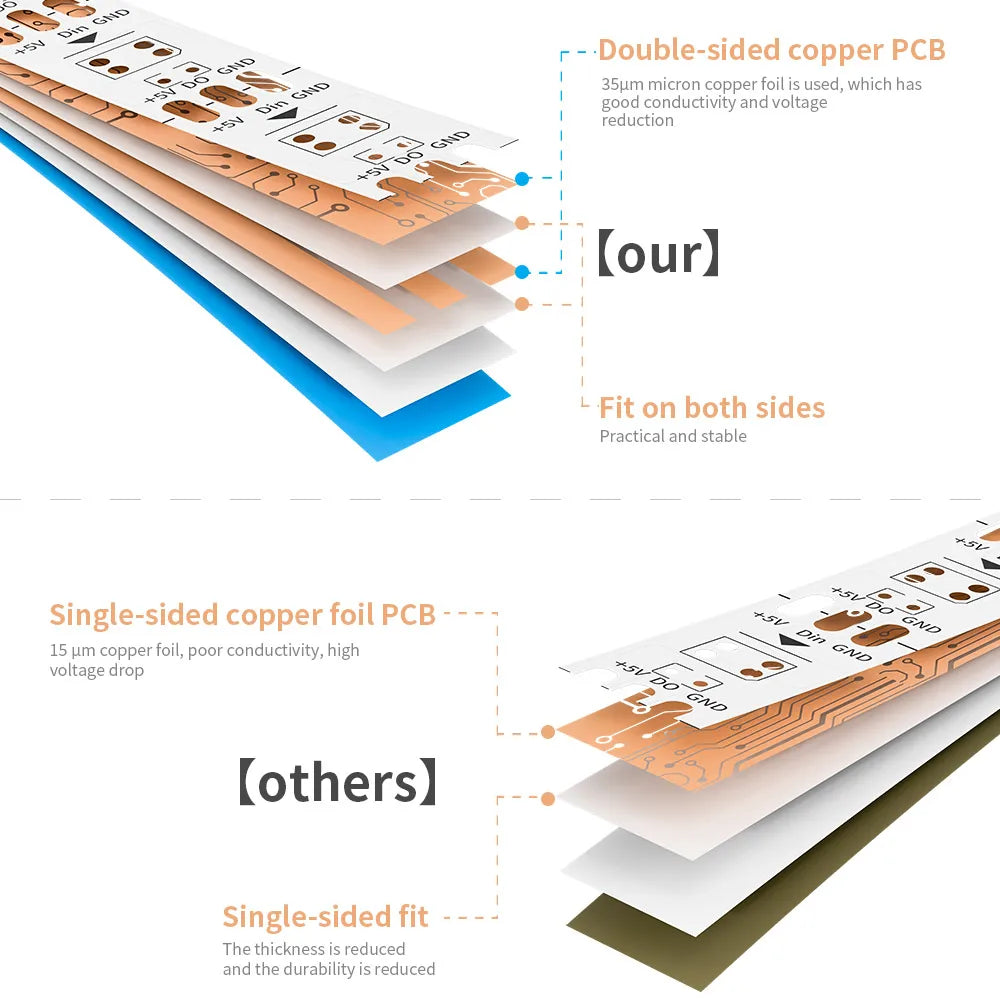

FPC Width:

30Leds/m----10mm

60Leds/m----10mm

74Led/m---10mm

96Led/m---10mm

144Leds/m----12mm

FPC color: Black/White

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

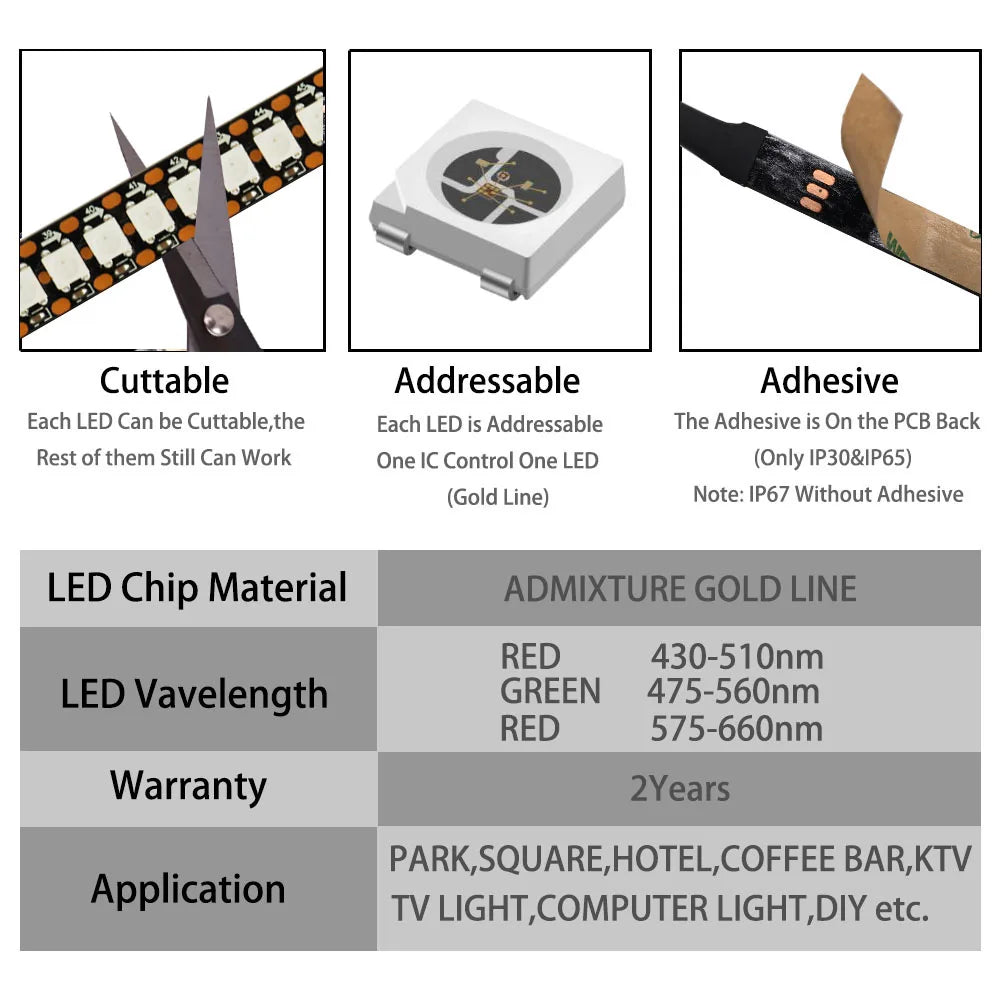

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
