SPECIFICATIONS

Brand Name: NONE

Certification: ce,FCC,ROHS,UL,CE,RoHs

Choice: yes

Color Temp(K): RGB

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Model: SMD5050

LEDs Number/M: 30/60/72/96/144

Luminous Flux: 249-2000

Model Number: WS2812

Nominal Voltage: 5v

Occasion: Living room

Origin: Mainland China

Power Generation: light

Power Source: DC

Specifications (light beads / m): 30/60/72/96/144

Strip type: SMD

Voltage: 5V/12

Waterproof: Yes

semi_Choice: yes

# Package List:
1 × LED strip (power supply or LED controller not included)

## Notes
**Important:** WS2812B must use a 5V LED power supply; exceeding DC5.5V will burn the LED strip.

1. A 0.5-meter length of LED strip is common in electronic products and is not a quality issue. If you mind this, please do not order!
2. WS2812B LED strip can be cut at each "LED chip"!
3. Protection level explanation:
- IP30: Non-waterproof
- IP65: Silicone-coated waterproof

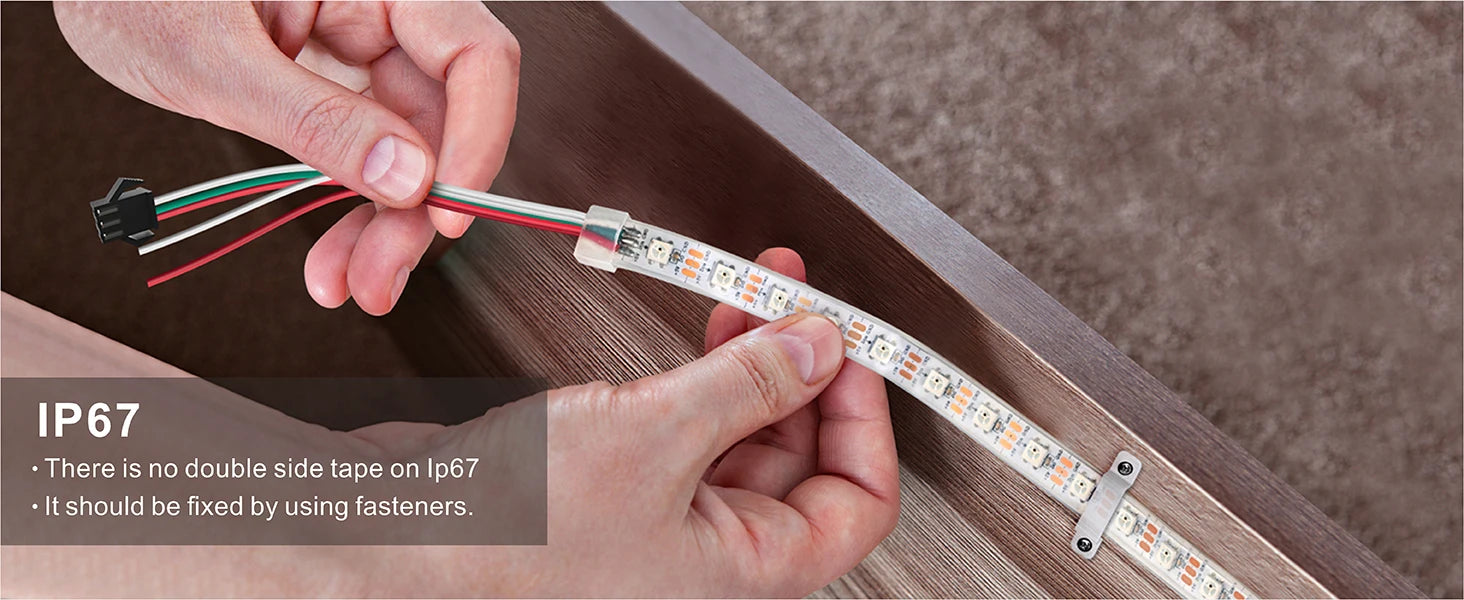

- IP67: Silicone tube waterproof

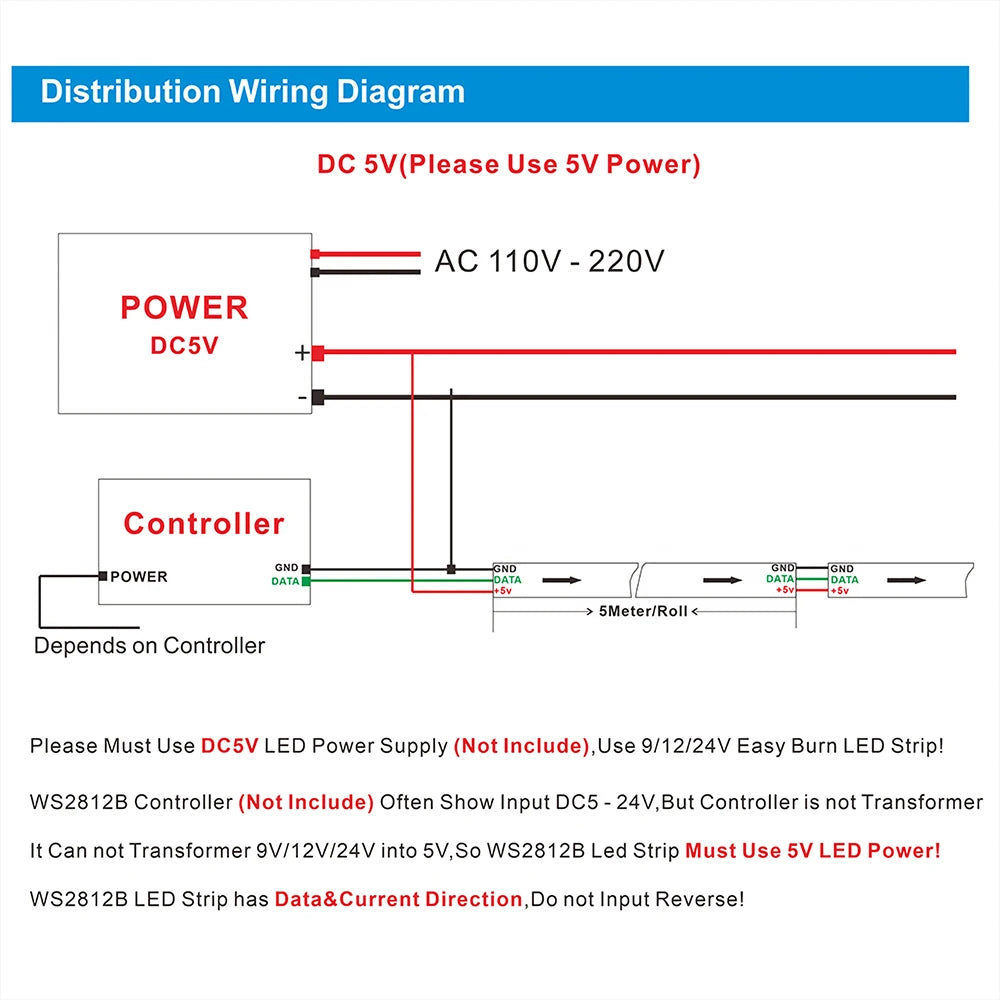

4. WS2812B LED strip must be used with a DC5V LED power supply and must be controlled by a WS2812B LED controller.

## How to Choose an LED Power Supply
Calculate the total wattage of the entire LED strip:
1. Each LED chip is about 0.2W. For example: 5 meters long, 30 LEDs/meter (total 150 LEDs), so 0.2W × 150 = 30W
2. The strip works at 5V, so 30W ÷ 5V = 6A; at least a 6A power supply is needed

## Product Description

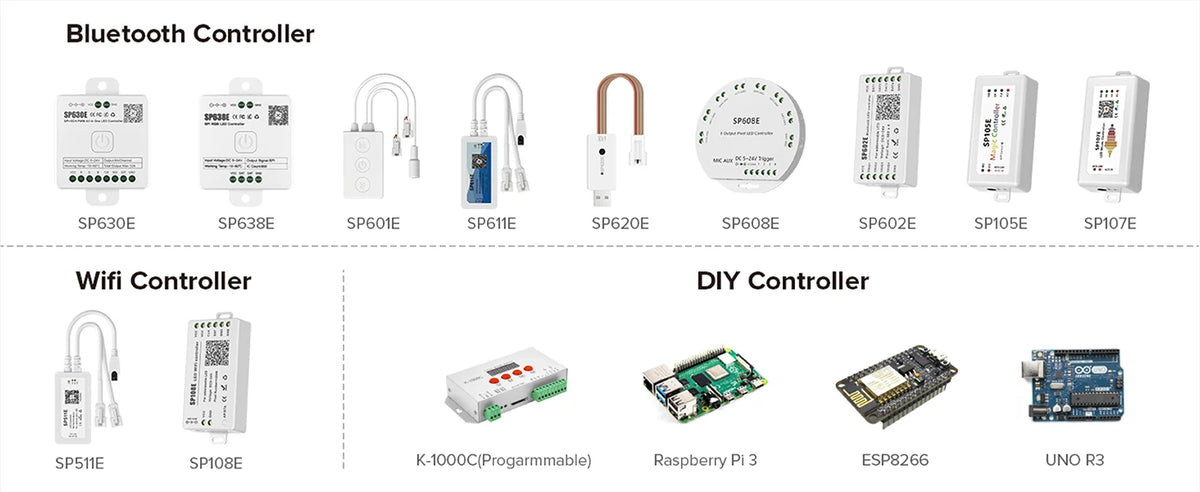

1. WS2812B LED strip is powered by a "5V power supply" (not included) and controlled by a single data line from a suitable controller (not included)

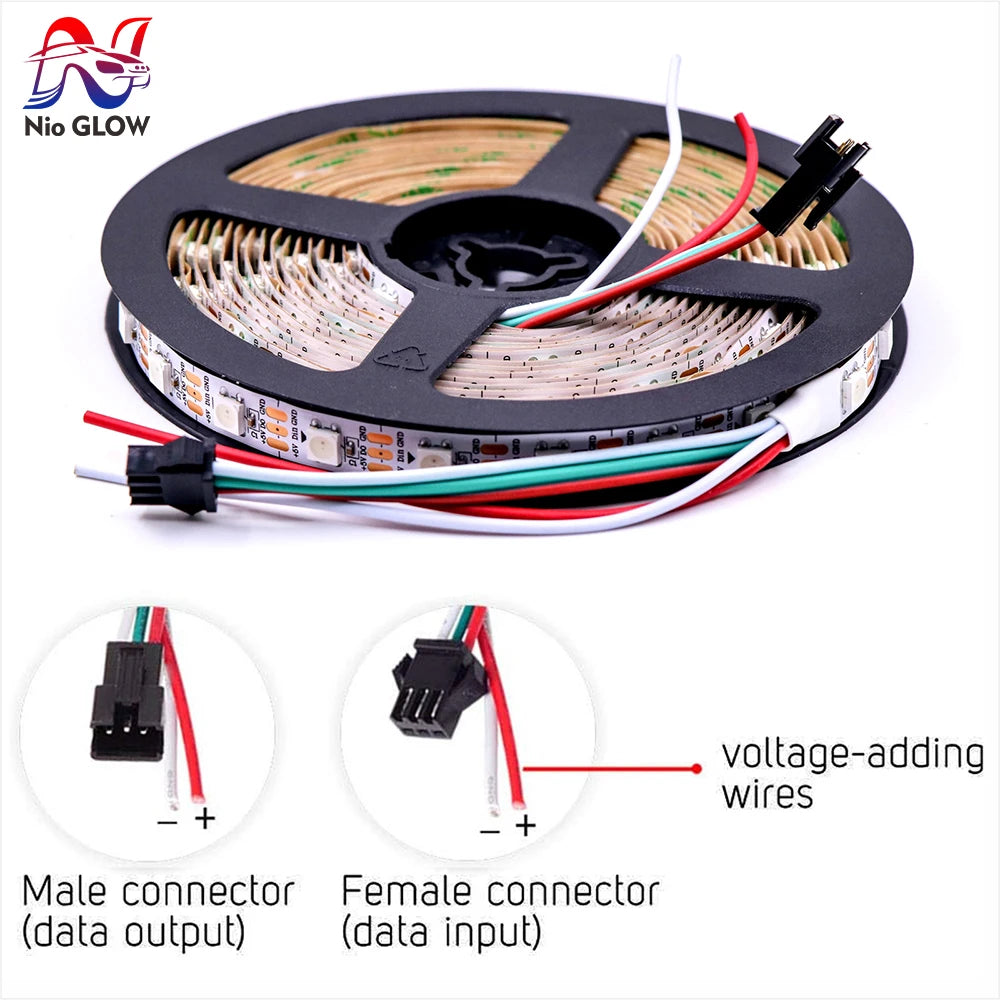

2. Includes a 3-pin JST connector: red = VCC, white = GND, green = DATA

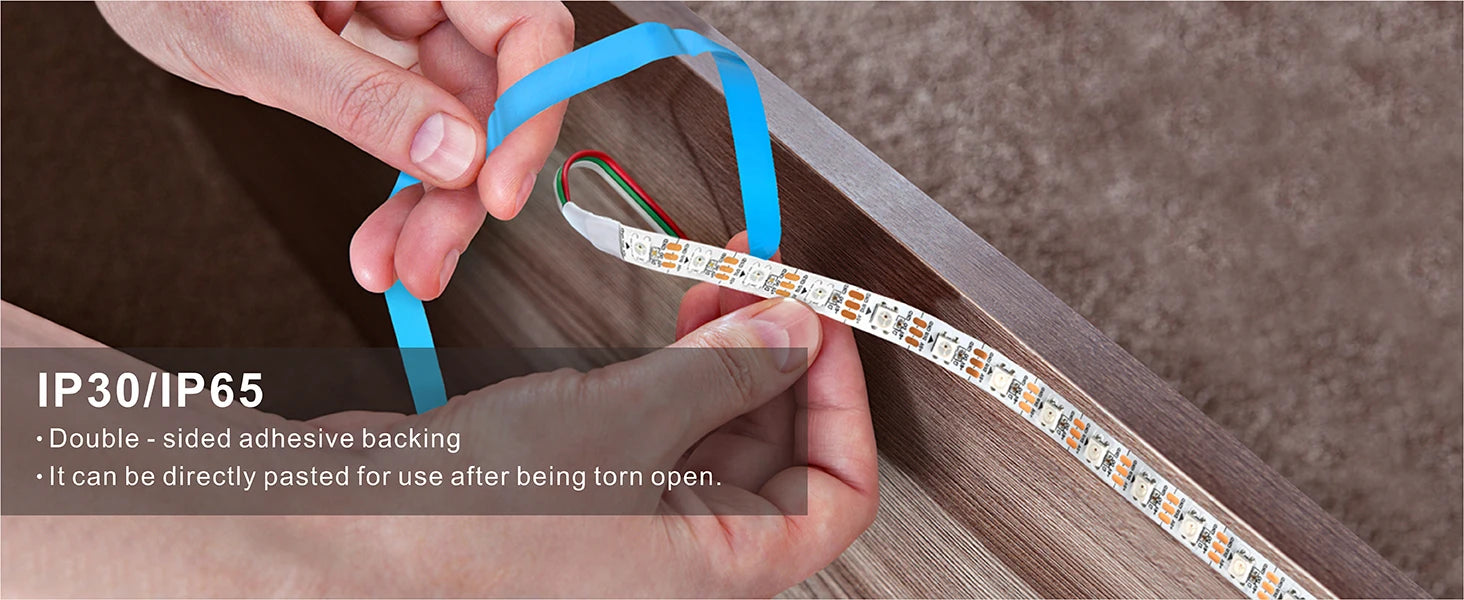

3. The back of the strip has 3M adhesive tape (except IP67 model). The installation surface must be smooth, clean, and dry
4. The strip can be cut between each LED to create a custom length
5. Do not bend the strip too sharply
6. Longer lines should be powered from both ends to reduce voltage drop
7. The 3-pin JST connector cable is 20AWG

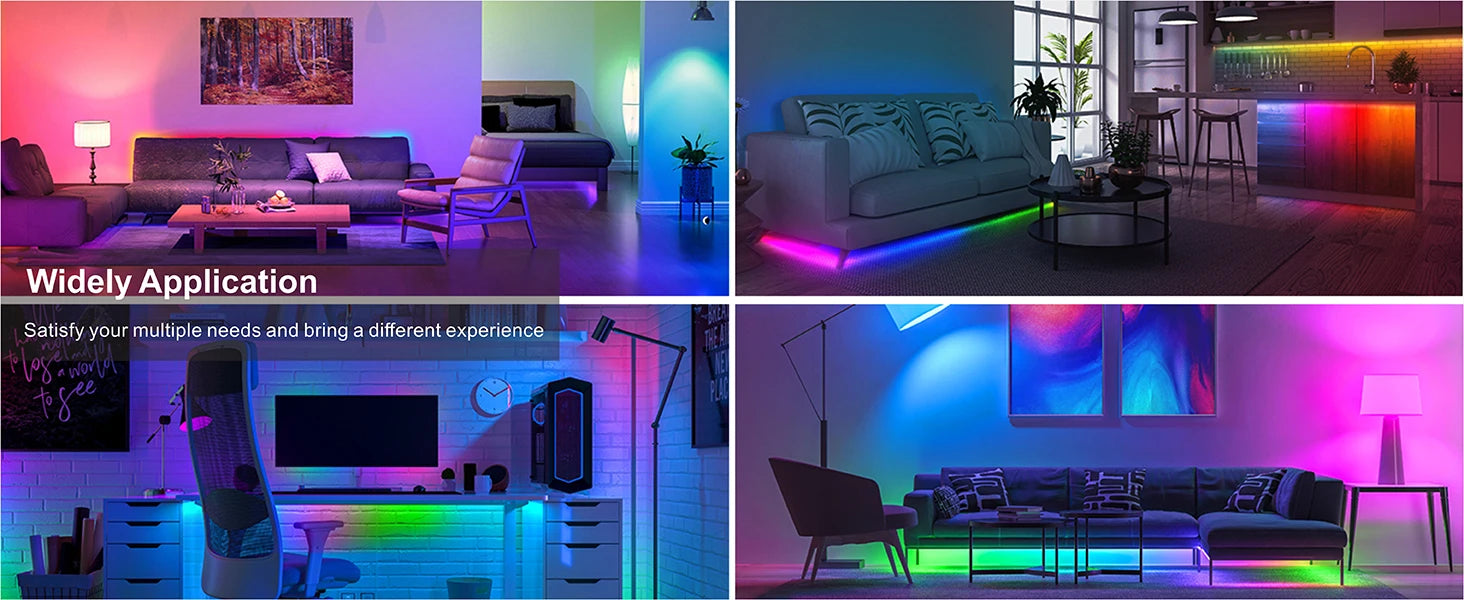

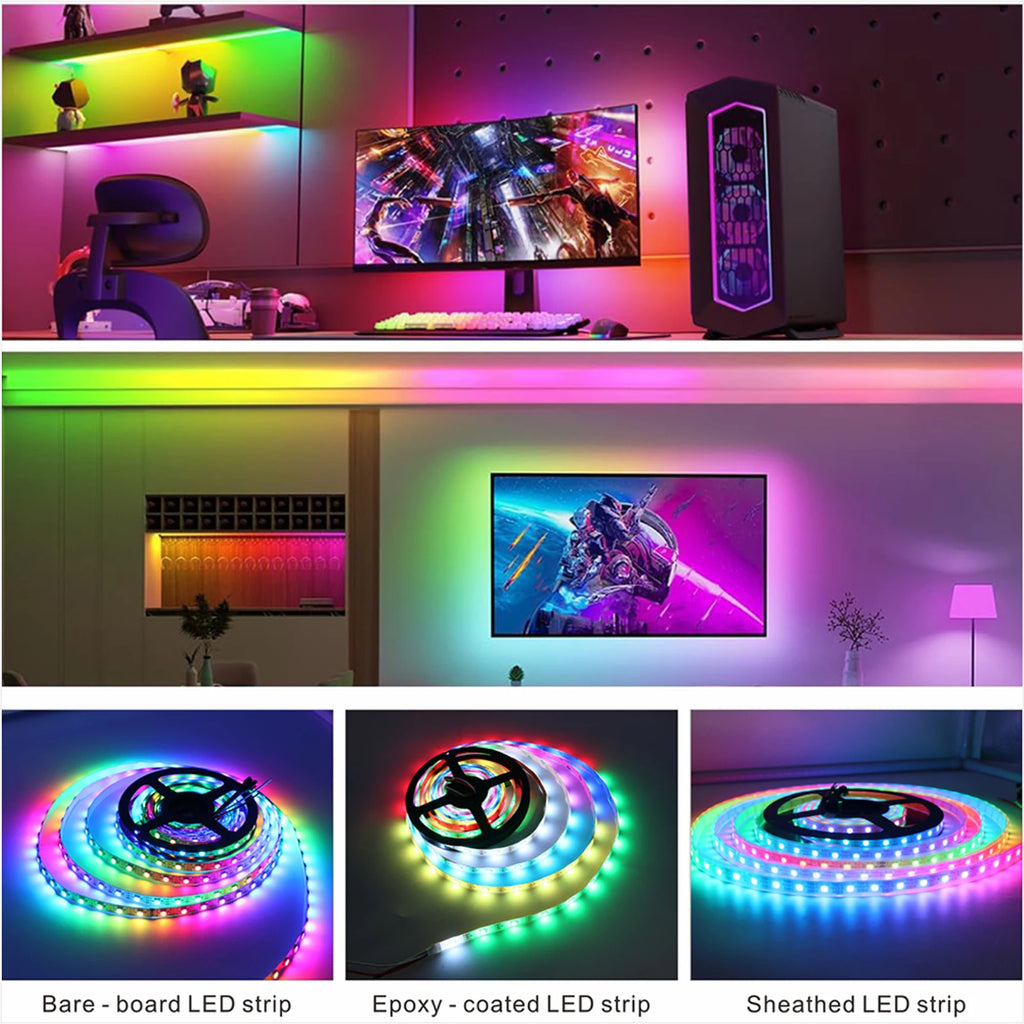

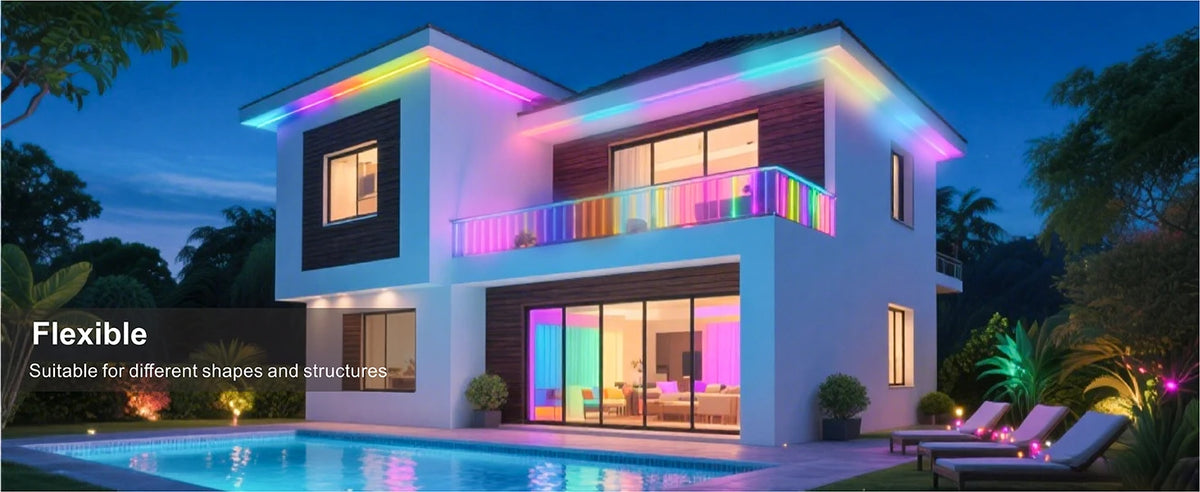

## Product Applications
WS2812B dream color LED strip is suitable for:
- Atmosphere creation in entertainment venues such as TV backdrops, hotels, KTVs, bars, game rooms
- Car chassis decoration, shop decoration, home decoration, etc.

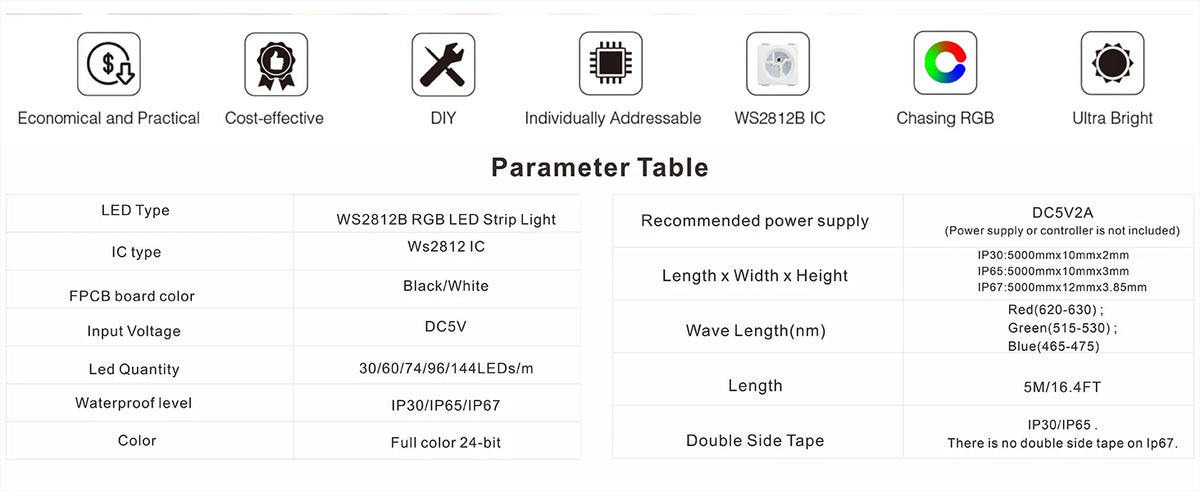

## Technical Specifications
- **Input Voltage**: DC5V
- **Power**:
- 30 LEDs/m — 6W/m
- 60 LEDs/m — 12W/m
- 74 LEDs/m — 14.8W/m
- 96 LEDs/m — 19.8W/m
- 144 LEDs/m — 28.8W/m

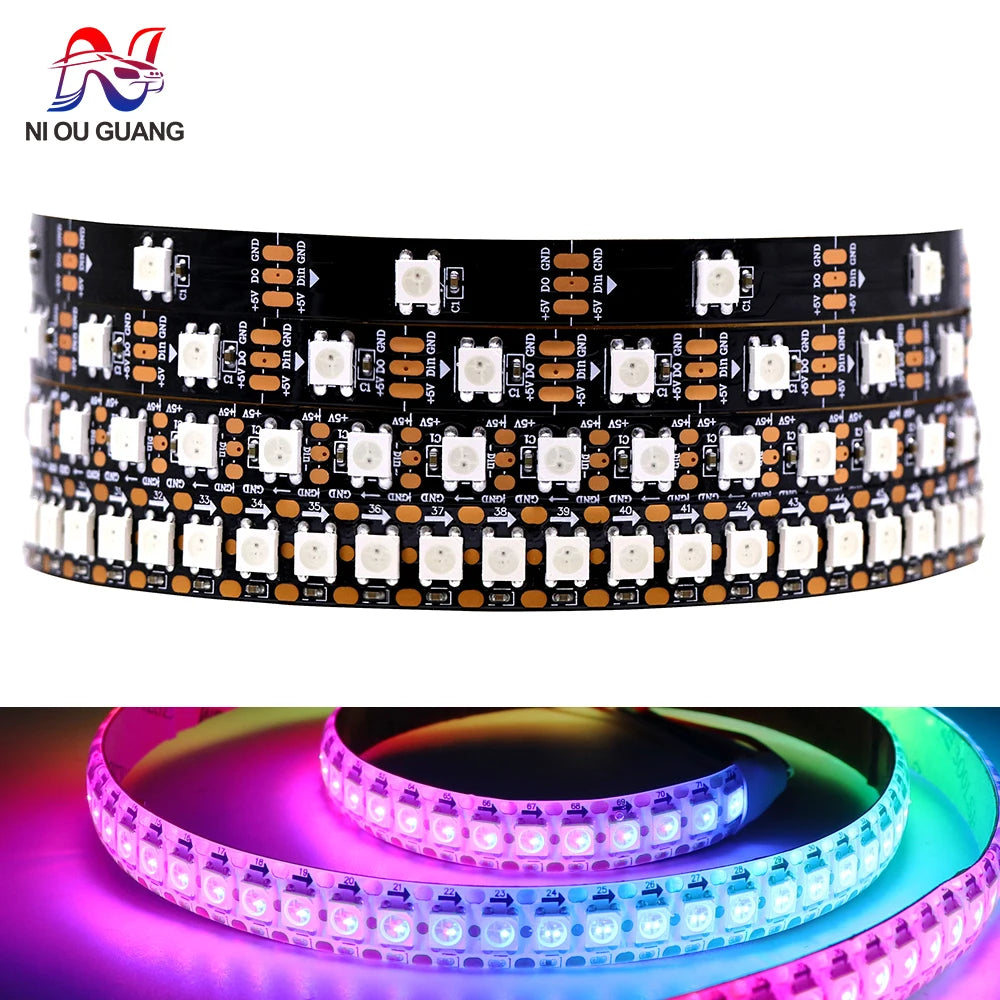

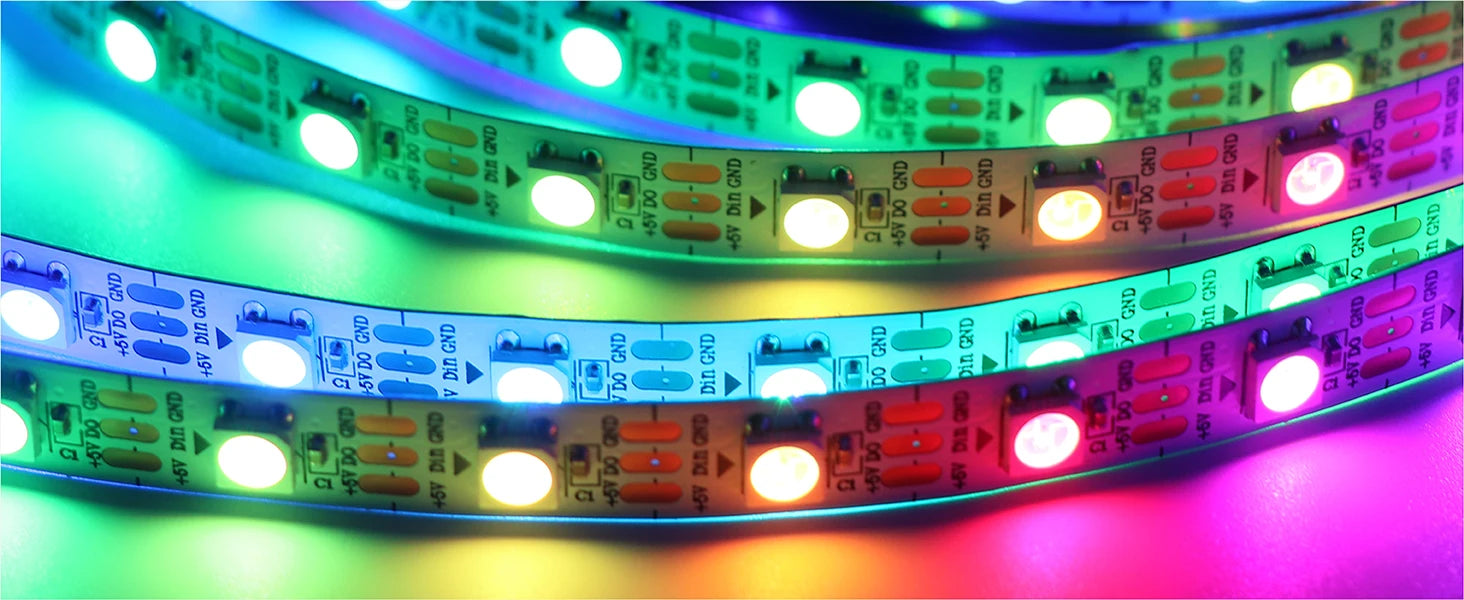

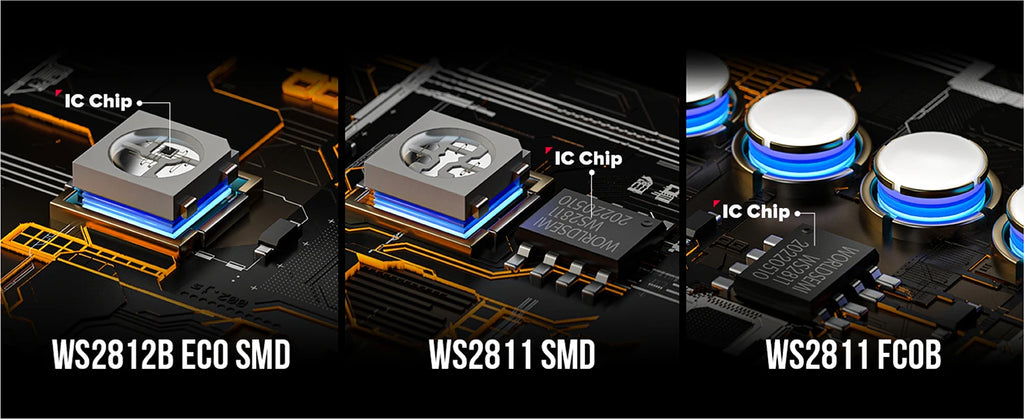

- **LED Type**: WS2812B (5050 SMD RGB LED with built-in WS2811 IC)

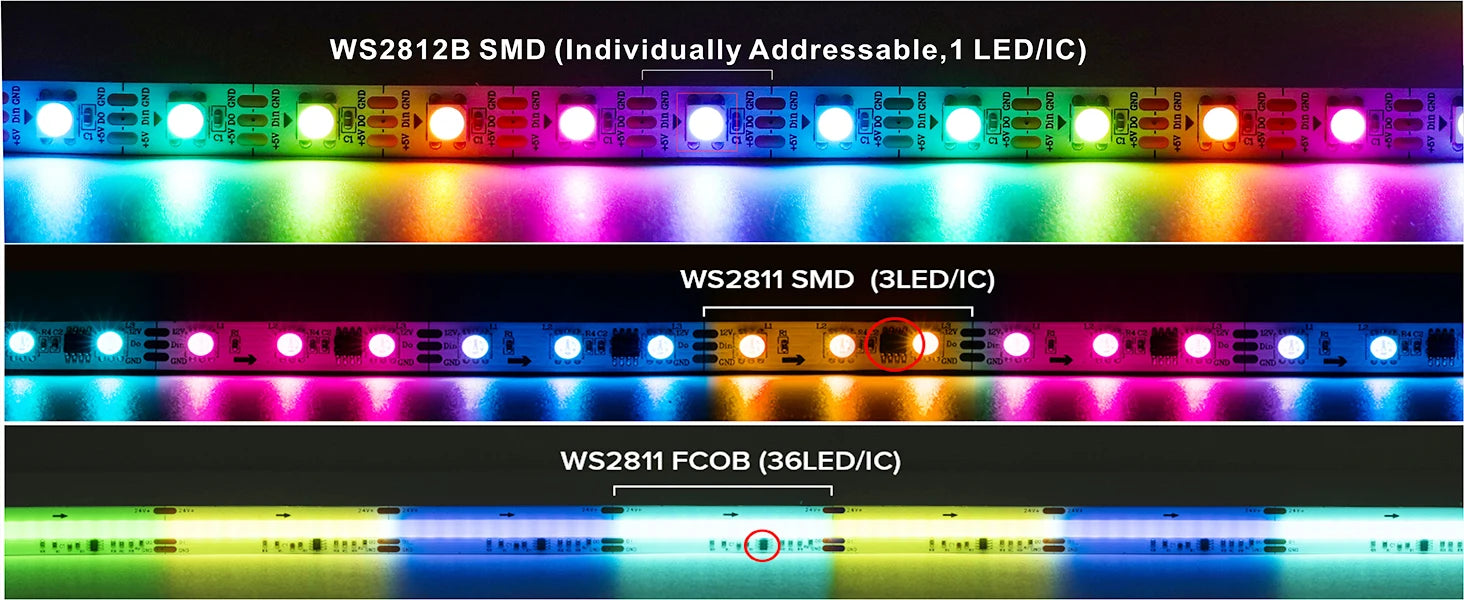

- **Control Method**: Each LED can be individually controlled

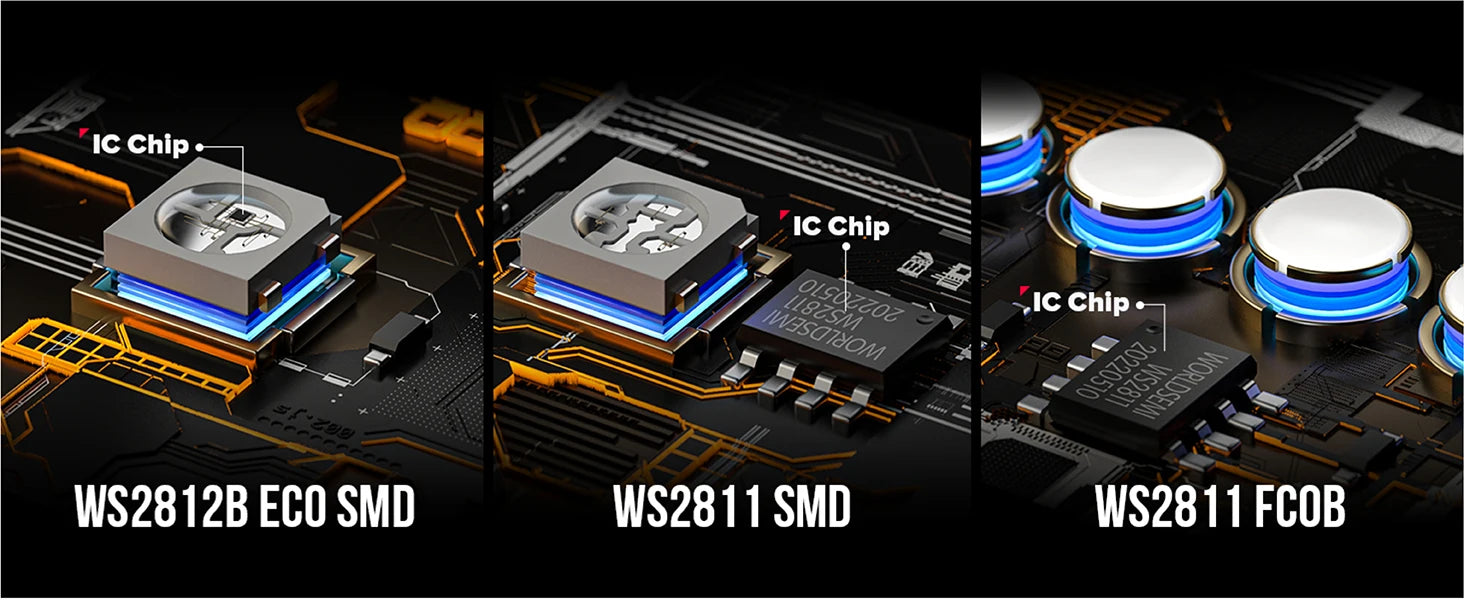

- **IC Type**: WS2812 IC (built into 5050 SMD RGB LED)

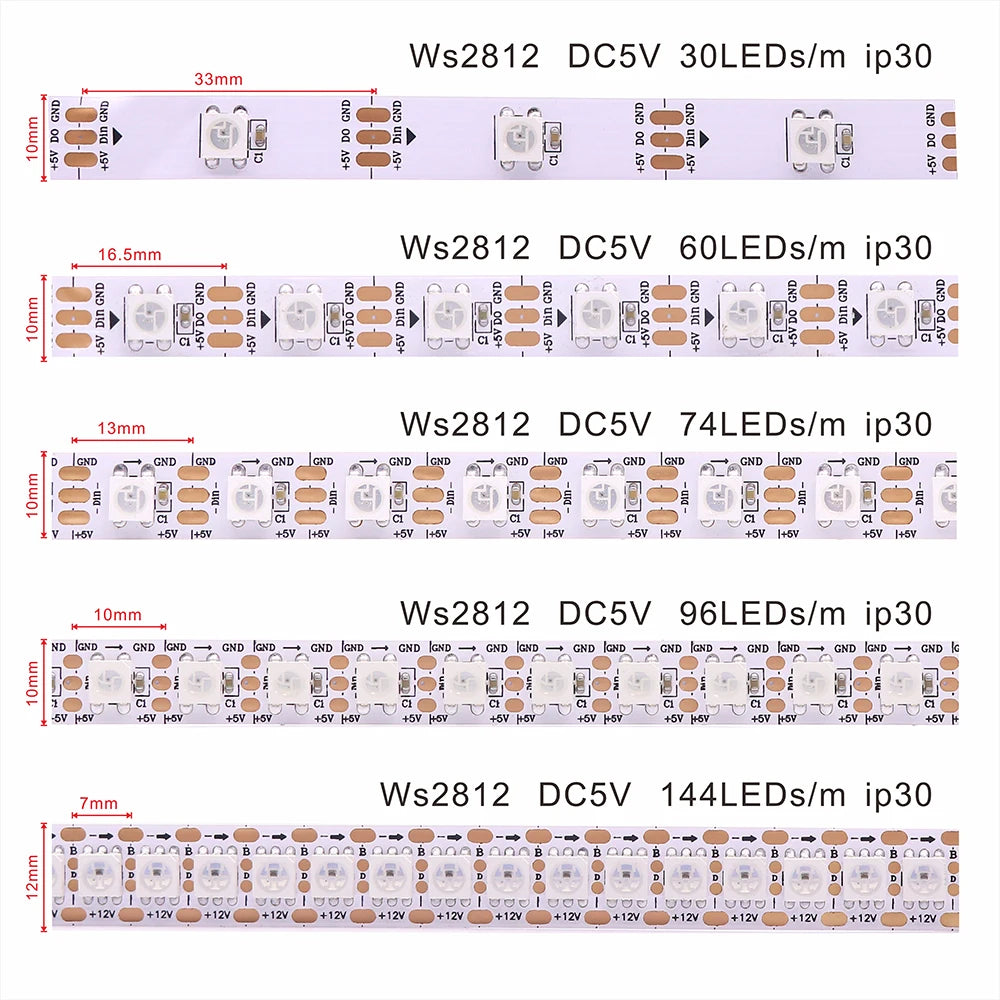

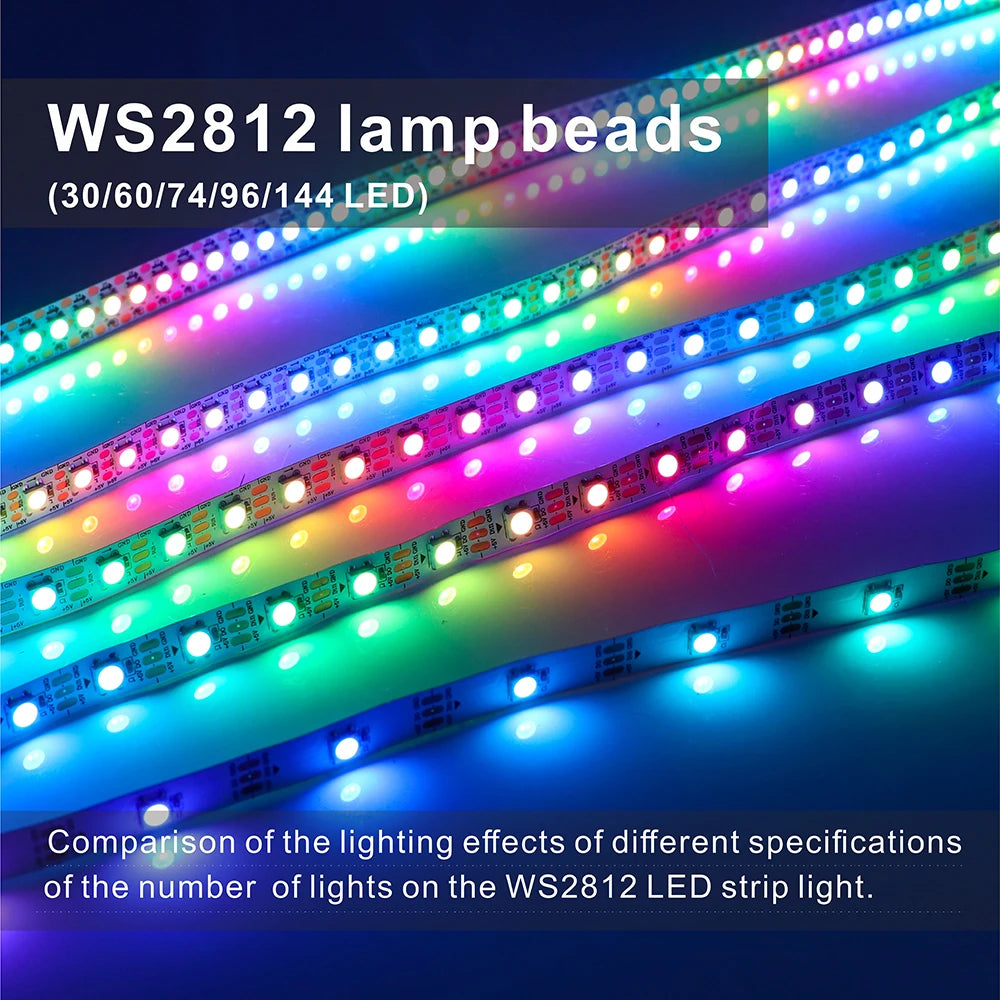

- **Pixel Density**: 30/60/74/96/144 LEDs/m
- **Gray Scale**: 256
- **Bits per Color**: 8 Bits/Color
- **FPC Width**:
- 30/60/74/96 LEDs/m — 10mm
- 144 LEDs/m — 12mm
- **FPC Color**: Black/White
- **Protection Level**: IP30/IP65/IP67
- **Color**: Full-color RGB, dream color changing
- **Cuttable**: Can be cut at each LED
- **Packaging**: Anti-static bag; IP30/IP65 with adhesive backing (IP67 without adhesive)
