SPECIFICATIONS

Average Life (hrs): more than 5000hours

Brand Name: TNALANT

Certification: CCC,EMC,LVD,UL,CE,RoHs

Color Temp(K): RGB

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144

Luminous Flux: <60

Model Number: WS2812B WS2815 WS2811 WS2813

Nominal Voltage: 5V/12V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/1144

Strip type: SMD

Voltage: DC5V/DC12V

Waterproof: Yes

 Note:

The price is only Led Strip, Not Included Power Supply or Controller!（The intelligent controller and power supply need to be ordered separately）

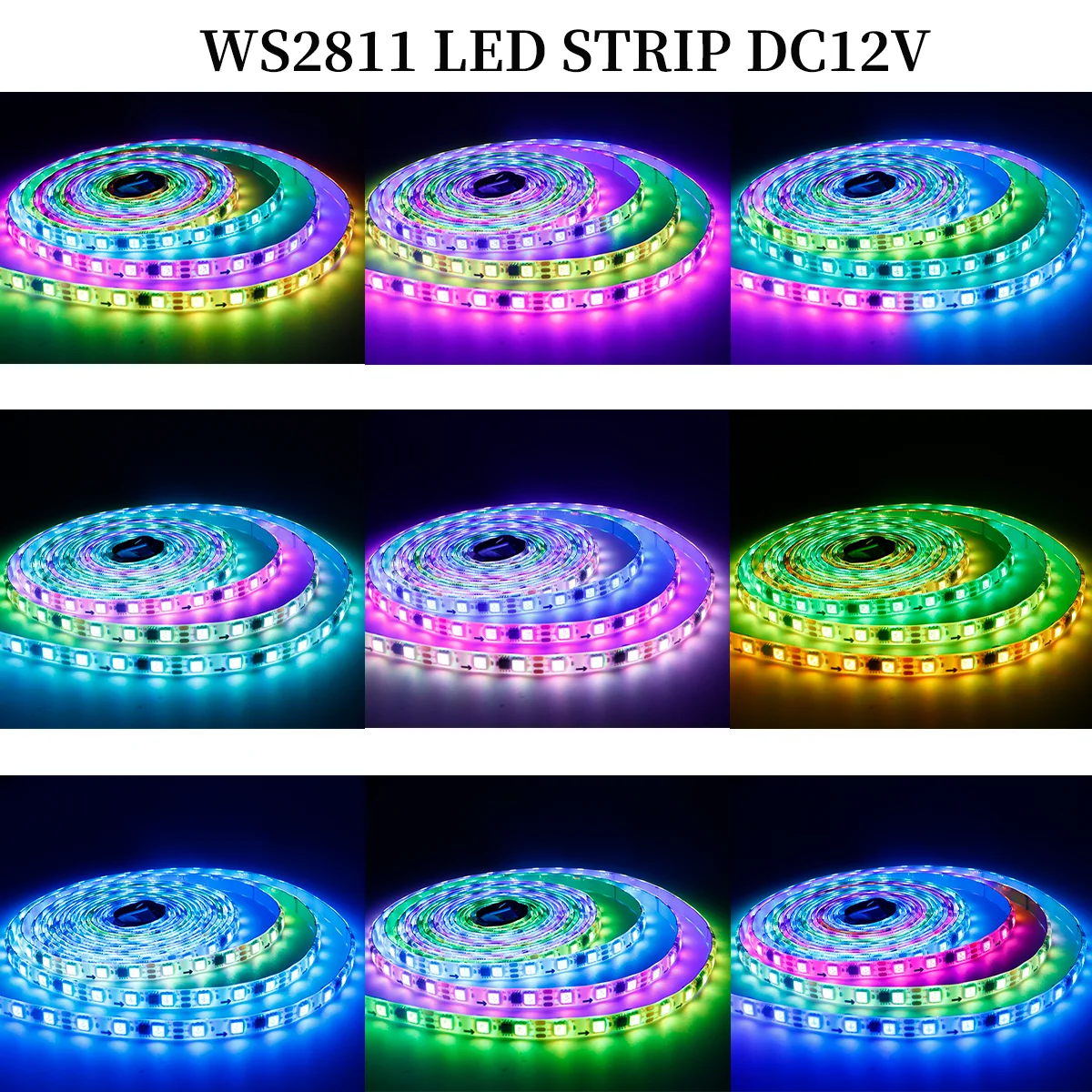

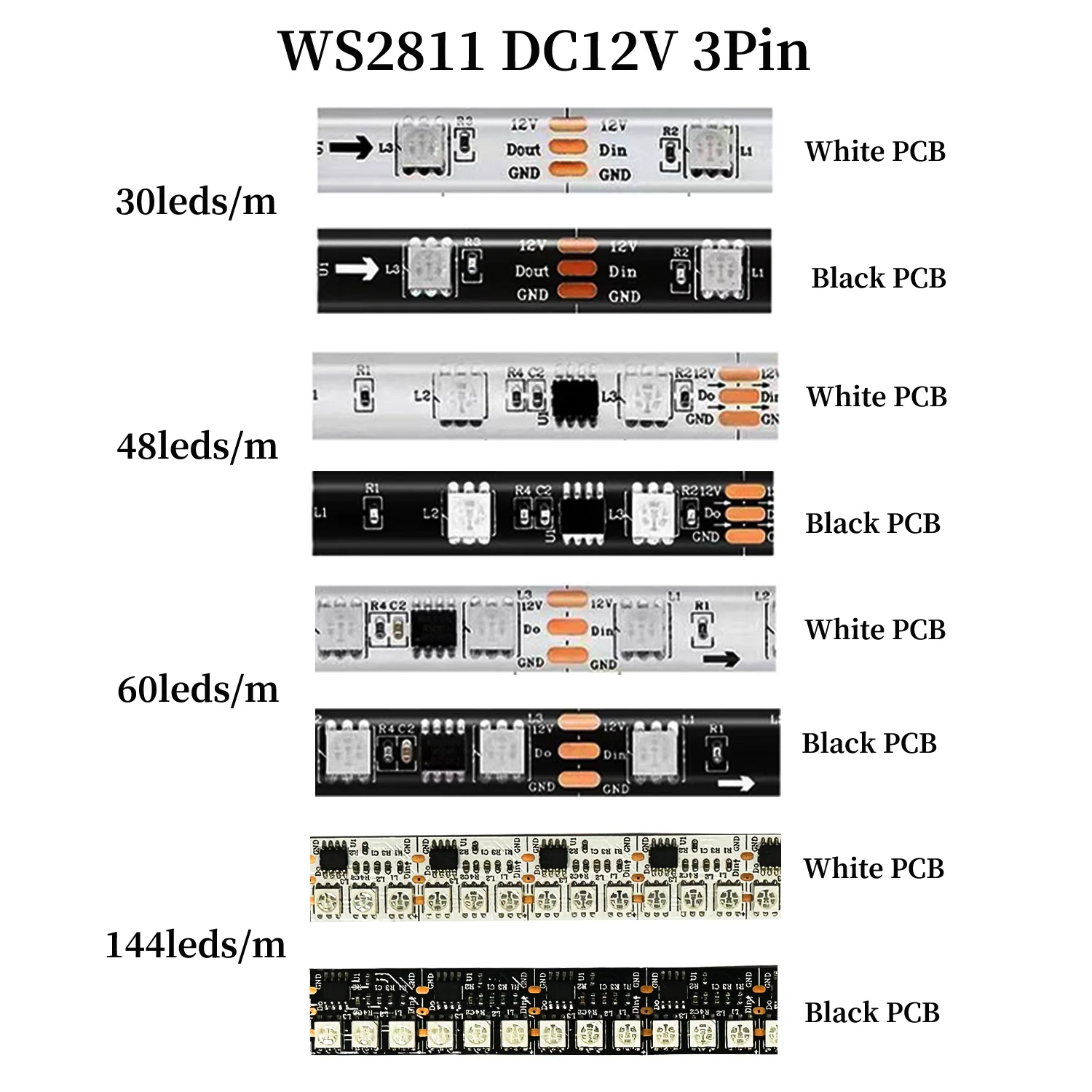

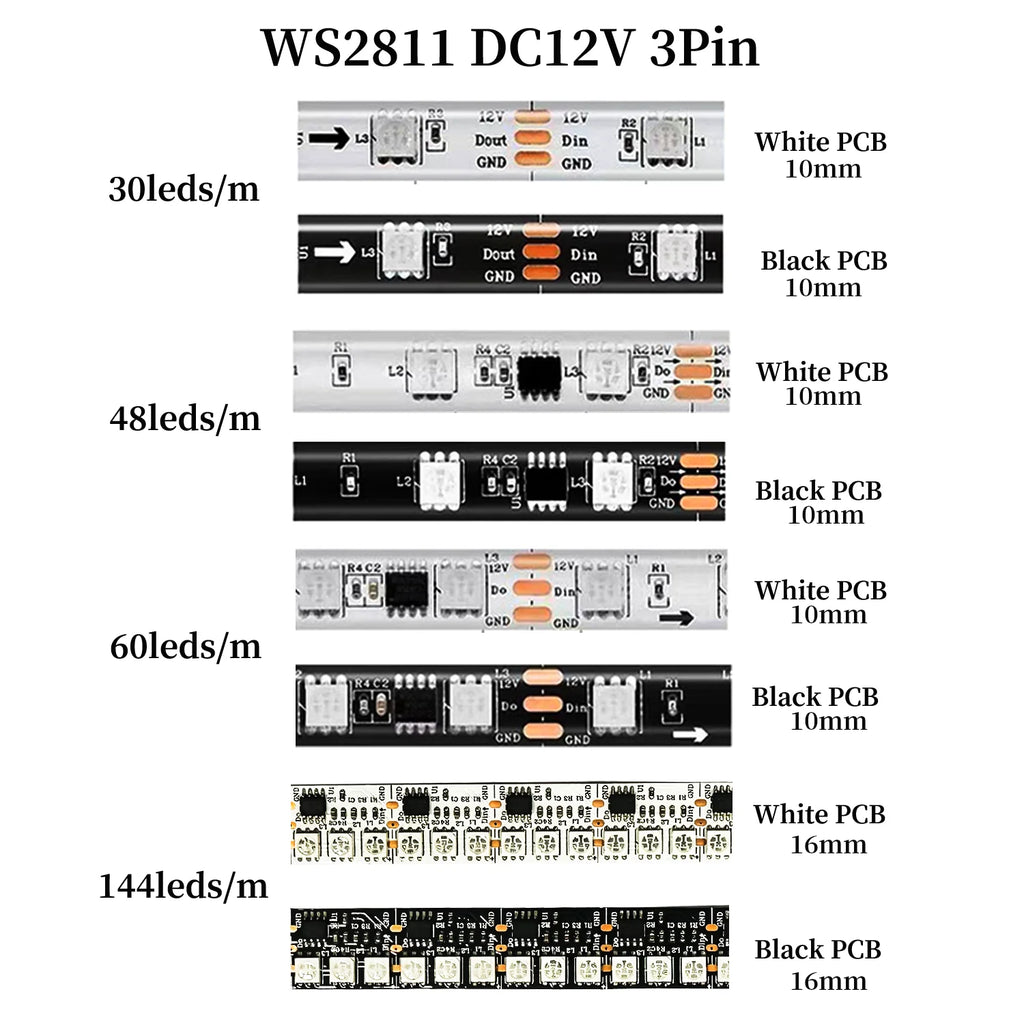

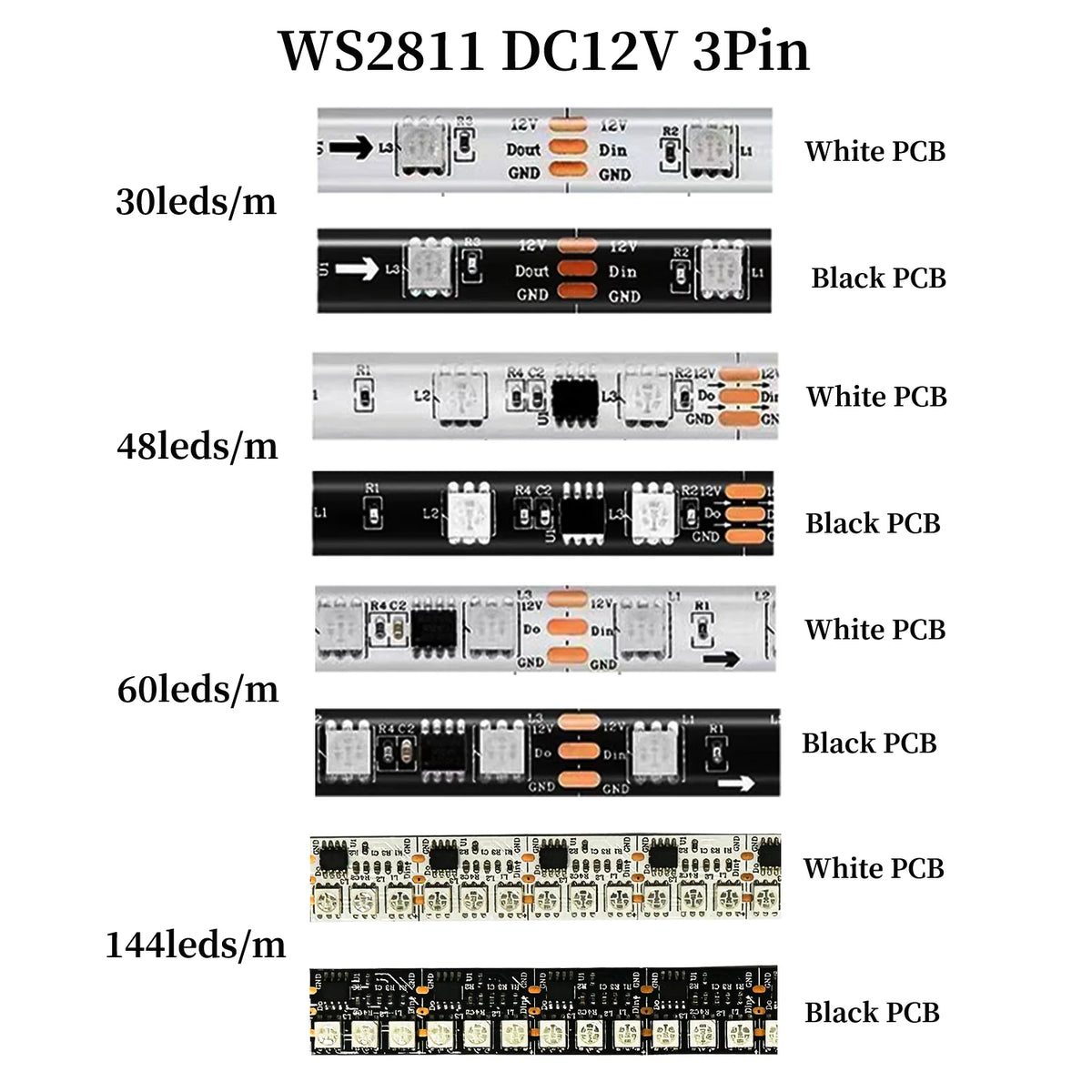

WS2811 LED Strip:

(1) Working Voltage: DC12V

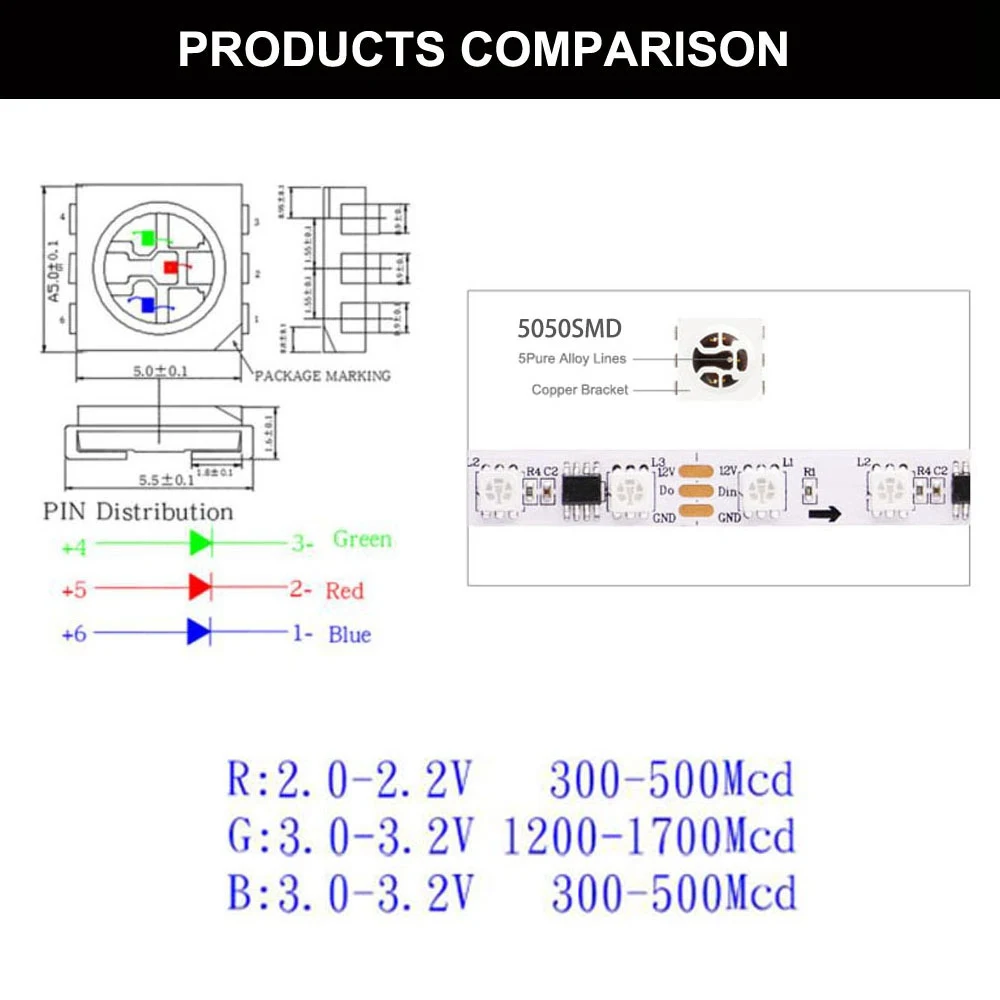

(2) LED Source: SMD 5050 RGB

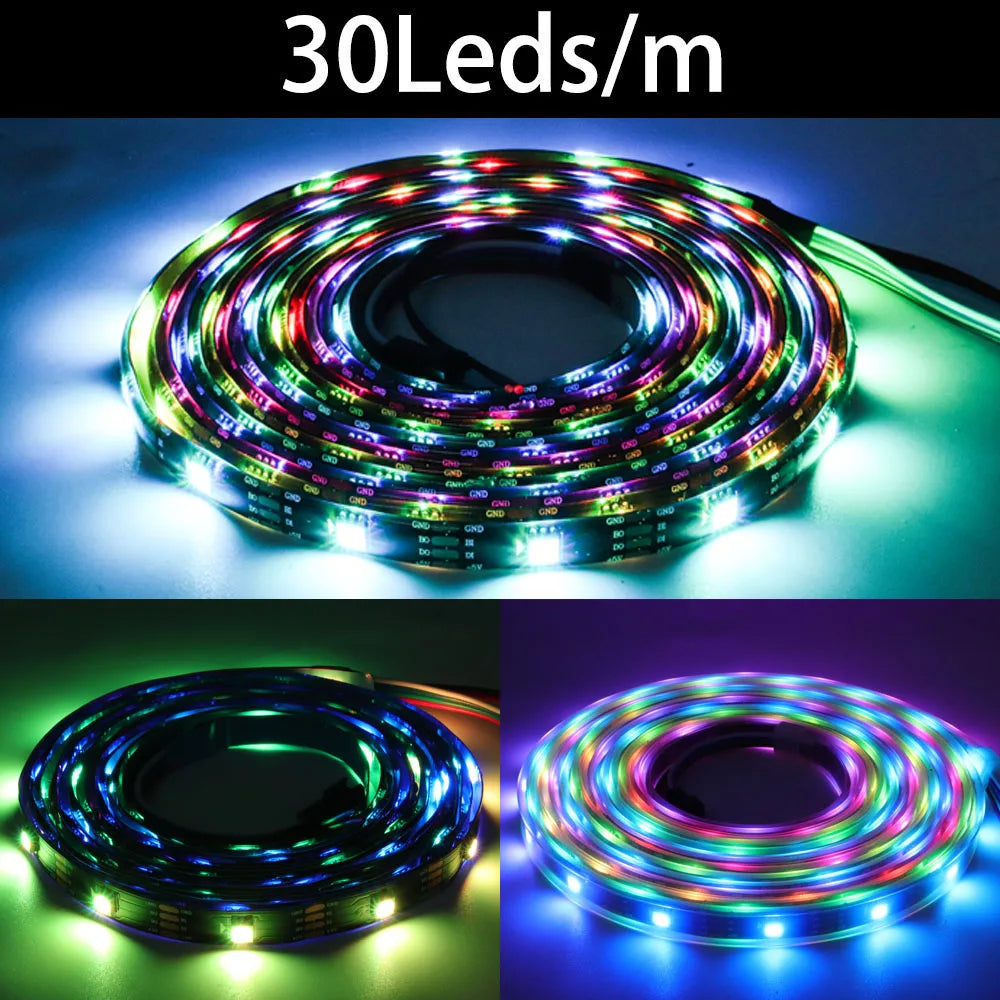

(3) LED QTY: 30leds/M;48leds/M;60leds/ M;144leds/M

(4) IC QTY: 10/20M

(5) Power: 9/18W /M

(6) Grey scale: 256 / Color

(7) Cutability: 3 led / cutting (Similar WS2811, 1 IC control 3 LED)

(8) Beam Angle: 120 °

(9) Color Mode: 133Pattern & 100 Speeds

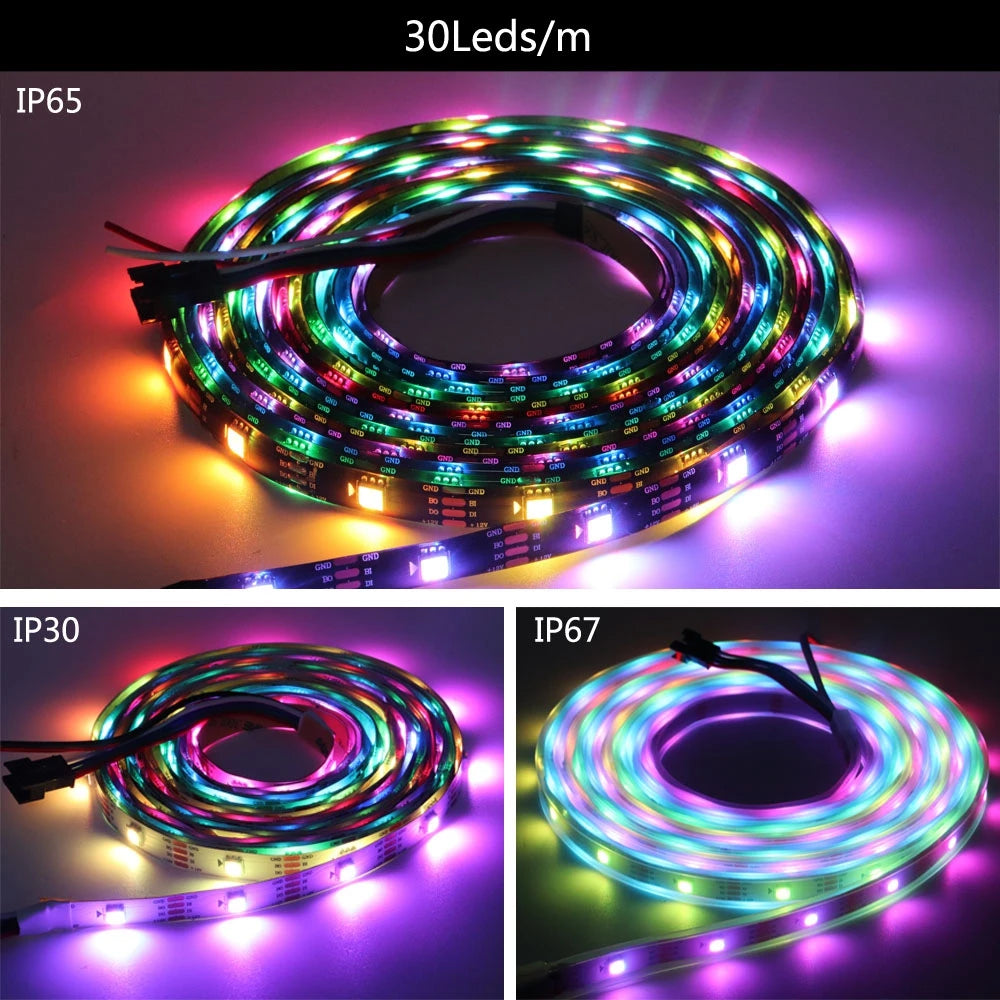

(10) IP Grade: IP30 non -waterproof / IP65/67 waterproof

(11) Dimension: 5000 x 10 x 2.4mm

(12) Packaging:

a.3Pin Connector

b. 1M/2M/3M/4M/5M/roll 12V WS2811 RGB Strip

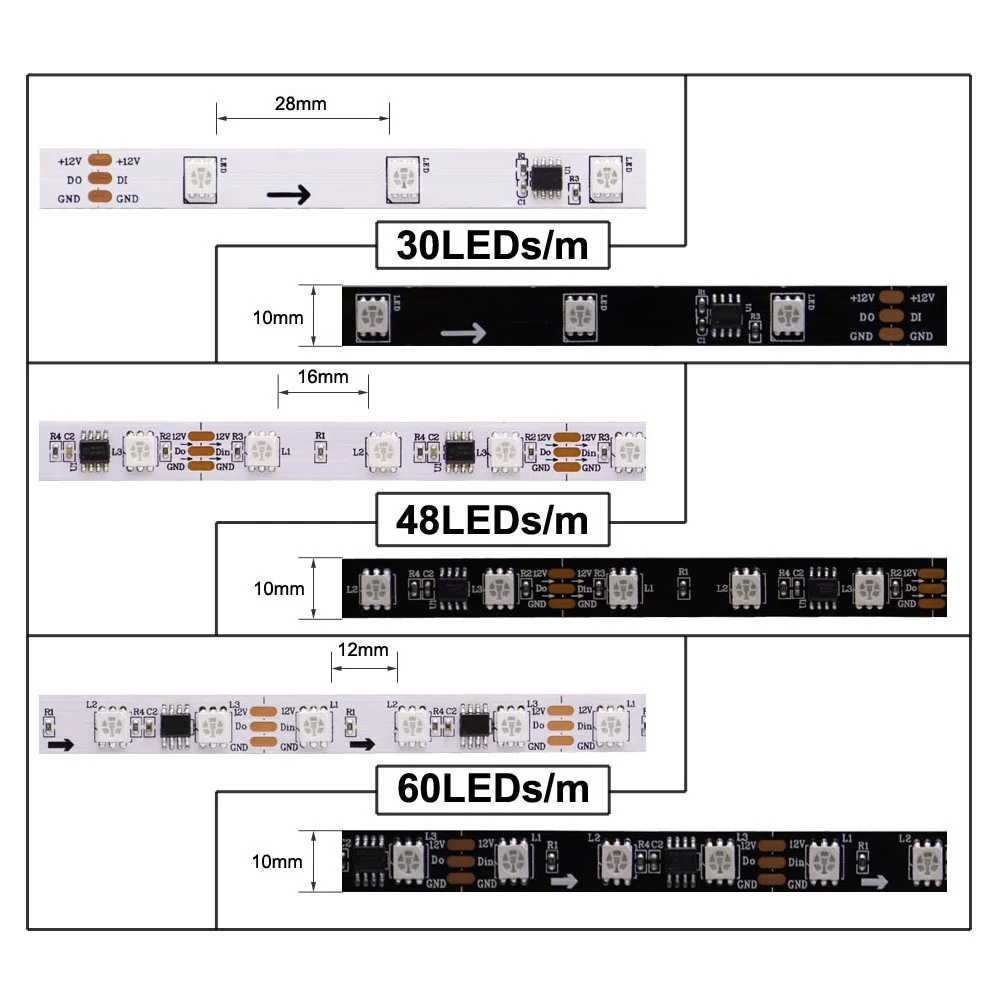

(13) FPC Width: 30Leds/M--10mm

48Leds/M--10mm

60Leds/M--10mm

144Leds/M--16mm

Features:

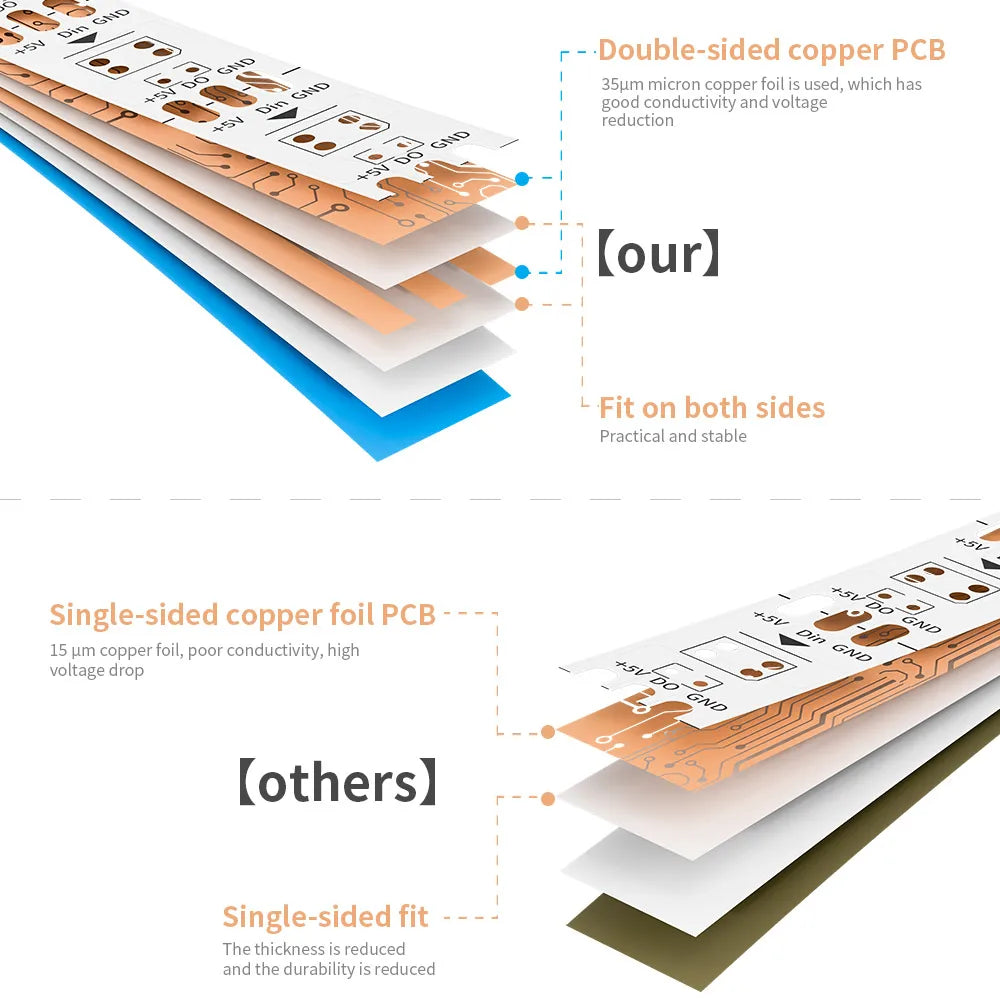

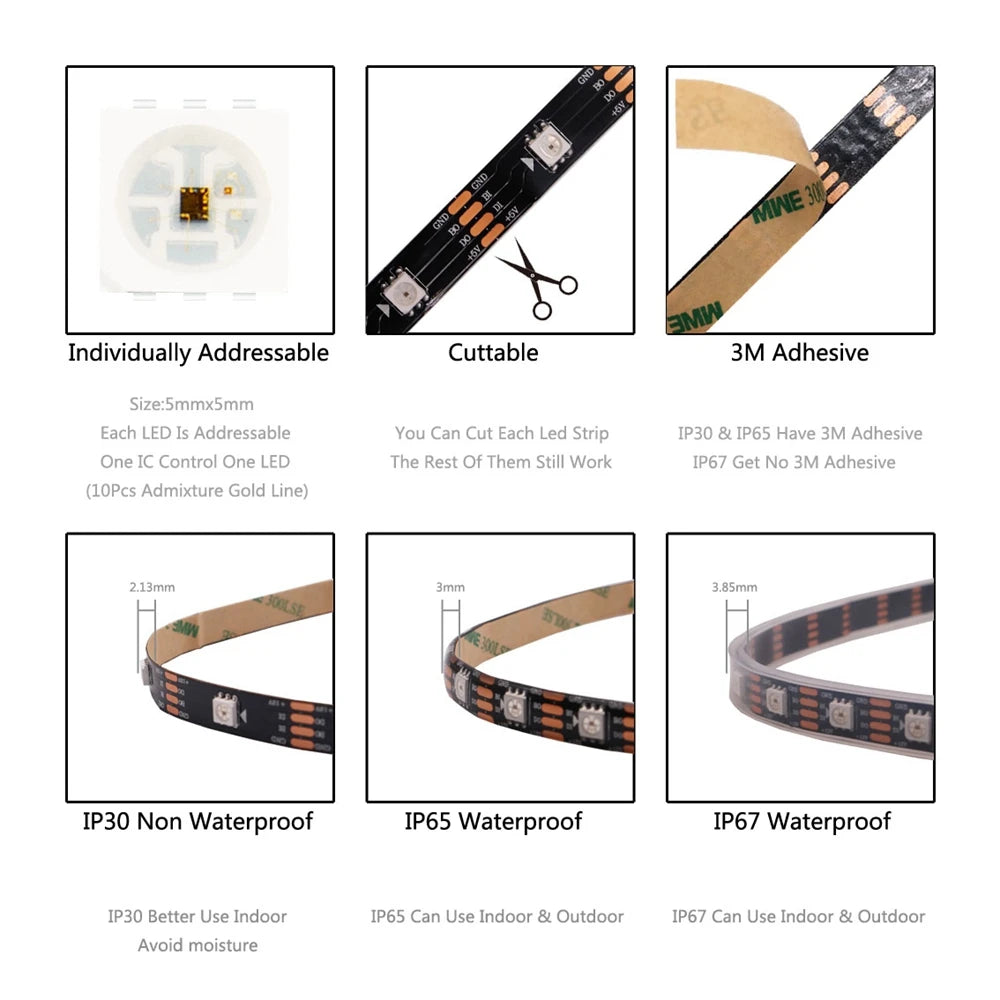

(1) Flexible PCB ( IP30,IP65) With adhesive tape on the back for easy installation.IP67 There is no tape on the back

(2) Energy saving and environment protection.

(3) High brightness 5050 SMD LED light strip.

(4) Solid-state, high shock or vibration resistance.

(5) Low power consumption, high intensity.

(6) Match the RGB controller and power supplier system.

(7) Available in various single and RGB colors.

Easy installation, Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bend in

Dream color lighting, Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,

you can also edit animation effect by CorelDRAW/Flash/Led Edit software. The city lighting project, entertainment and leisure places lighting.

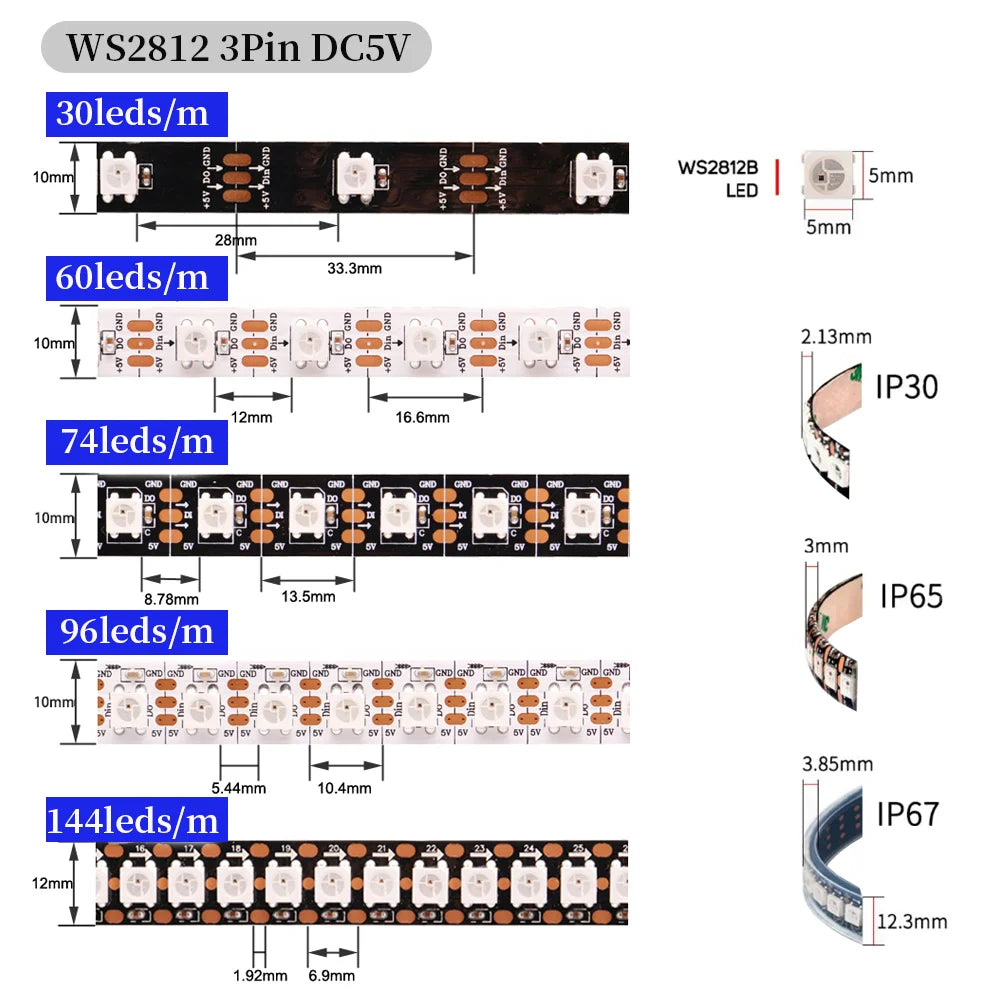

WS2812 LED strip:

Input Voltage: DC5V

Power: 30Leds/M--9Watt/meter

60Leds/M--18Watt/meter

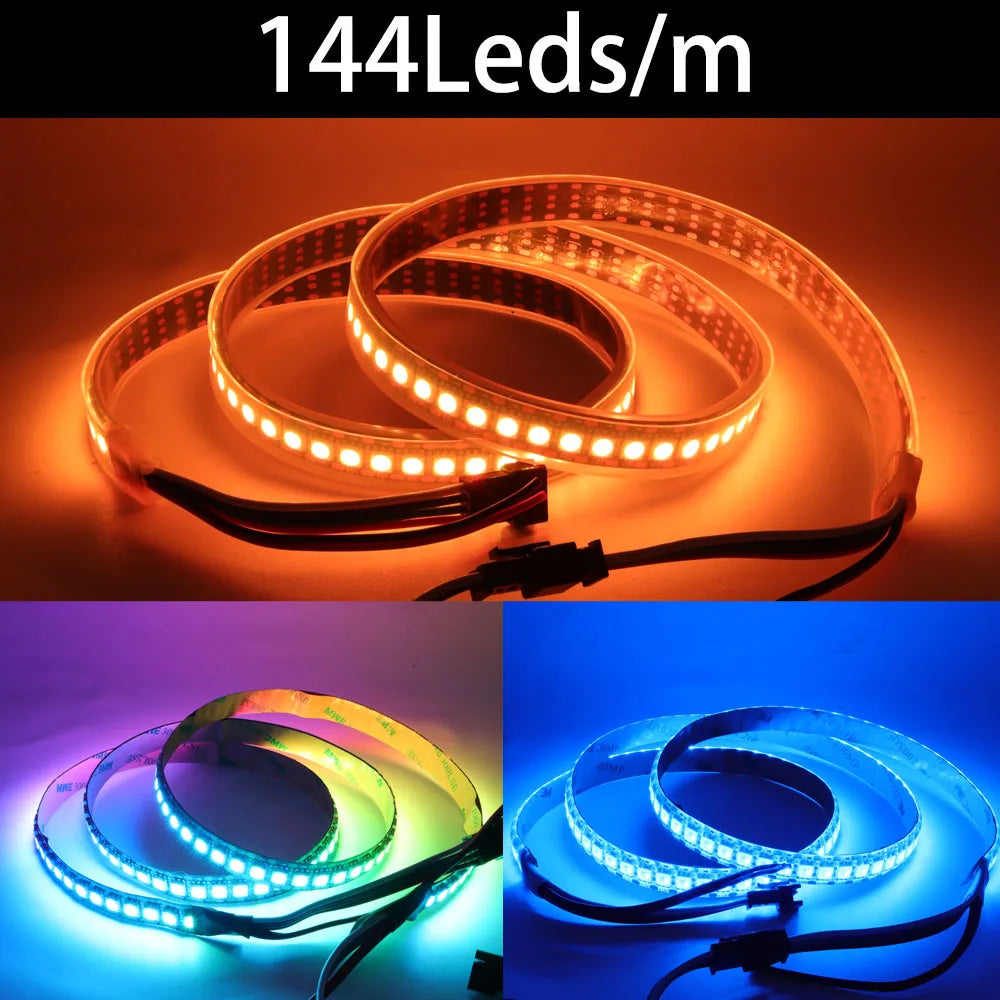

144Leds/M--43.2Watt/meter

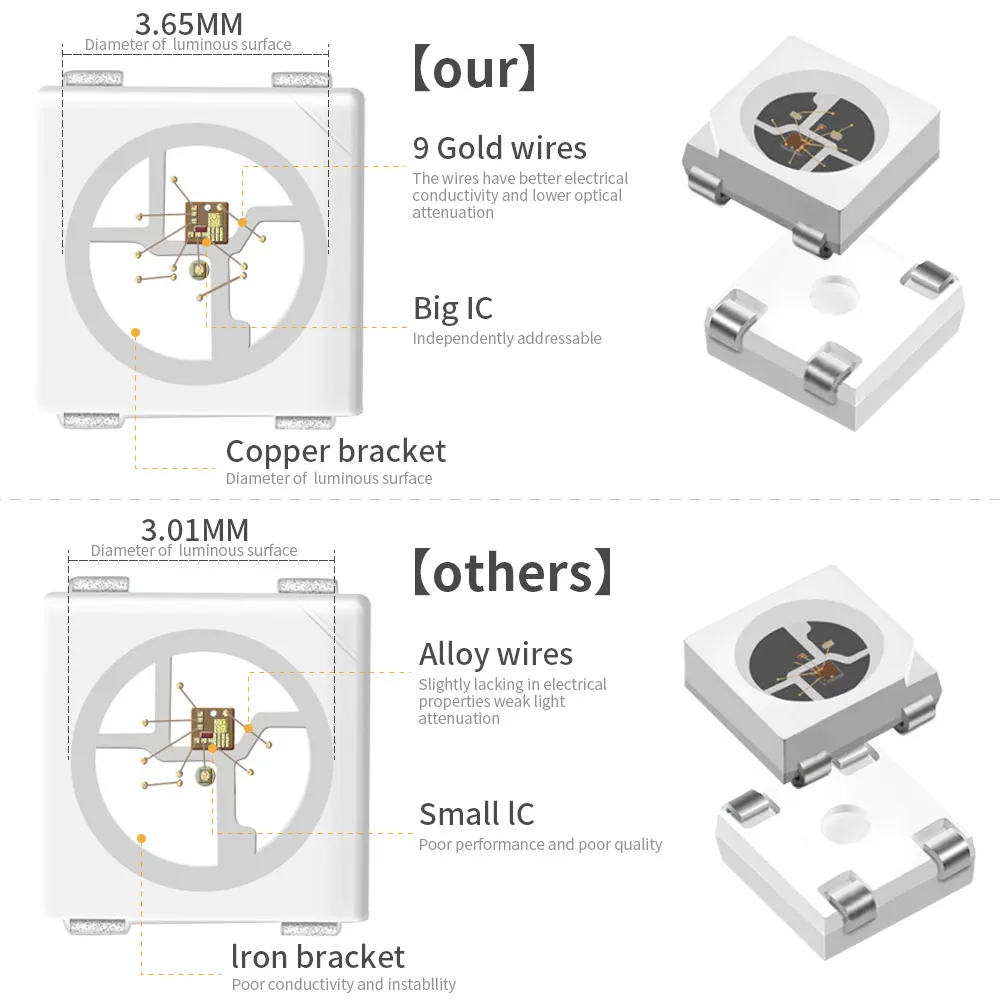

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

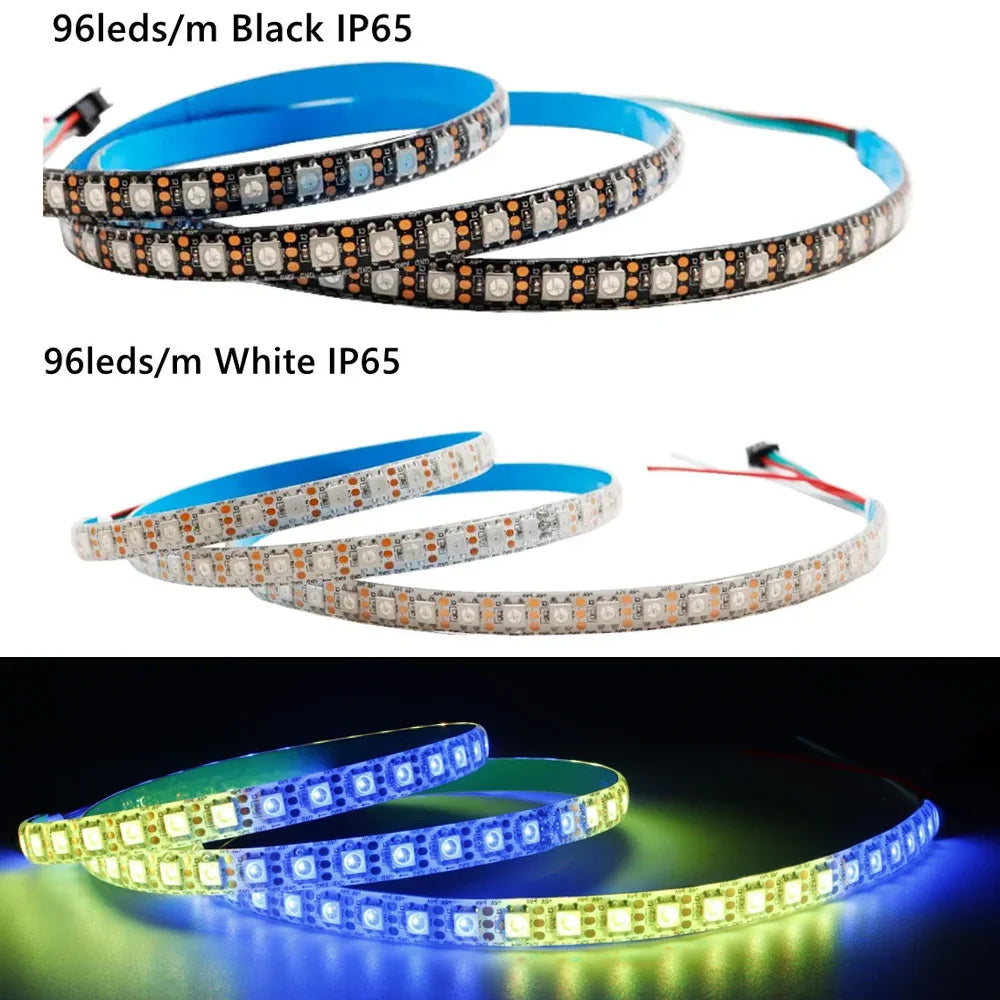

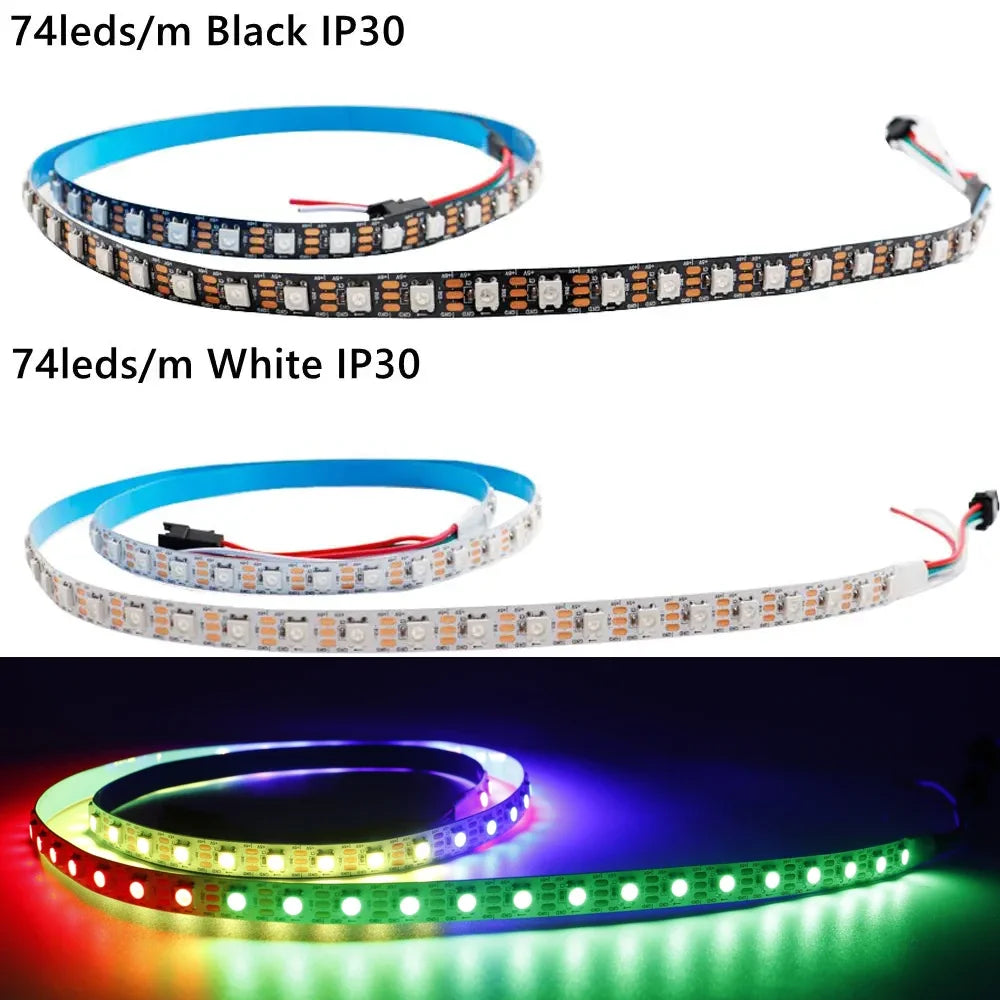

Pixels: LED QTY: 30leds/60leds/74leds/ 96leds/144ledsM

Pitch: 16.6mm(1000/64)

Grey Scale: 25610:49 2024/9/6

Bits/Color: 8-Bits/Color

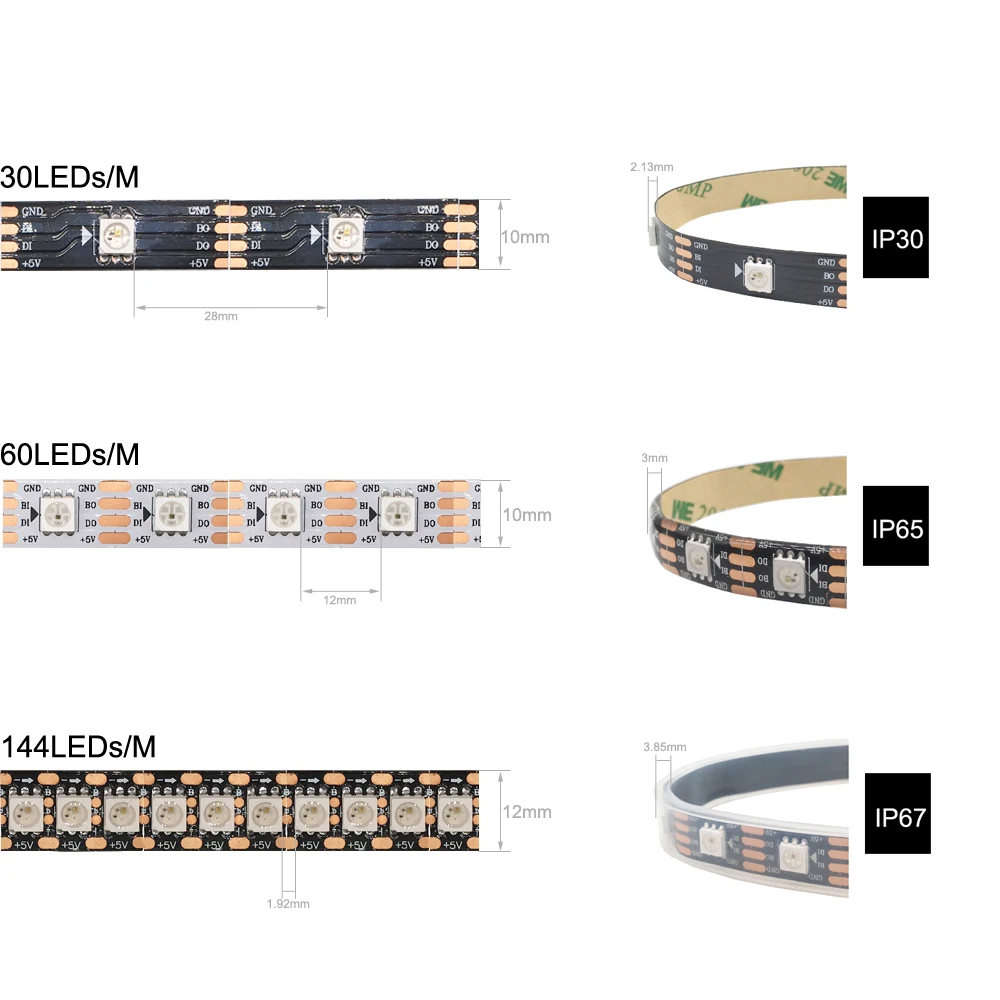

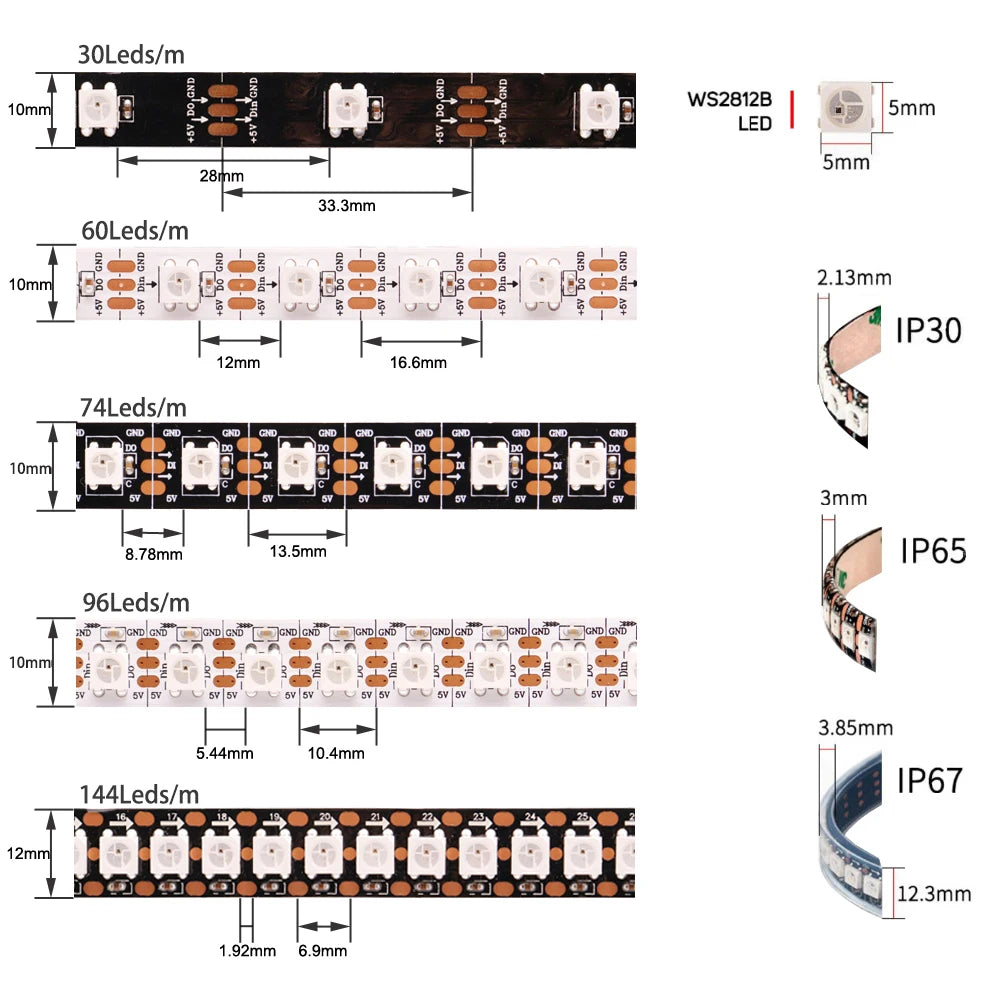

FPC Width:

30Leds/M--10mm

60Leds/M--10mm

144Leds/M--12mm

FPC color: Black/White

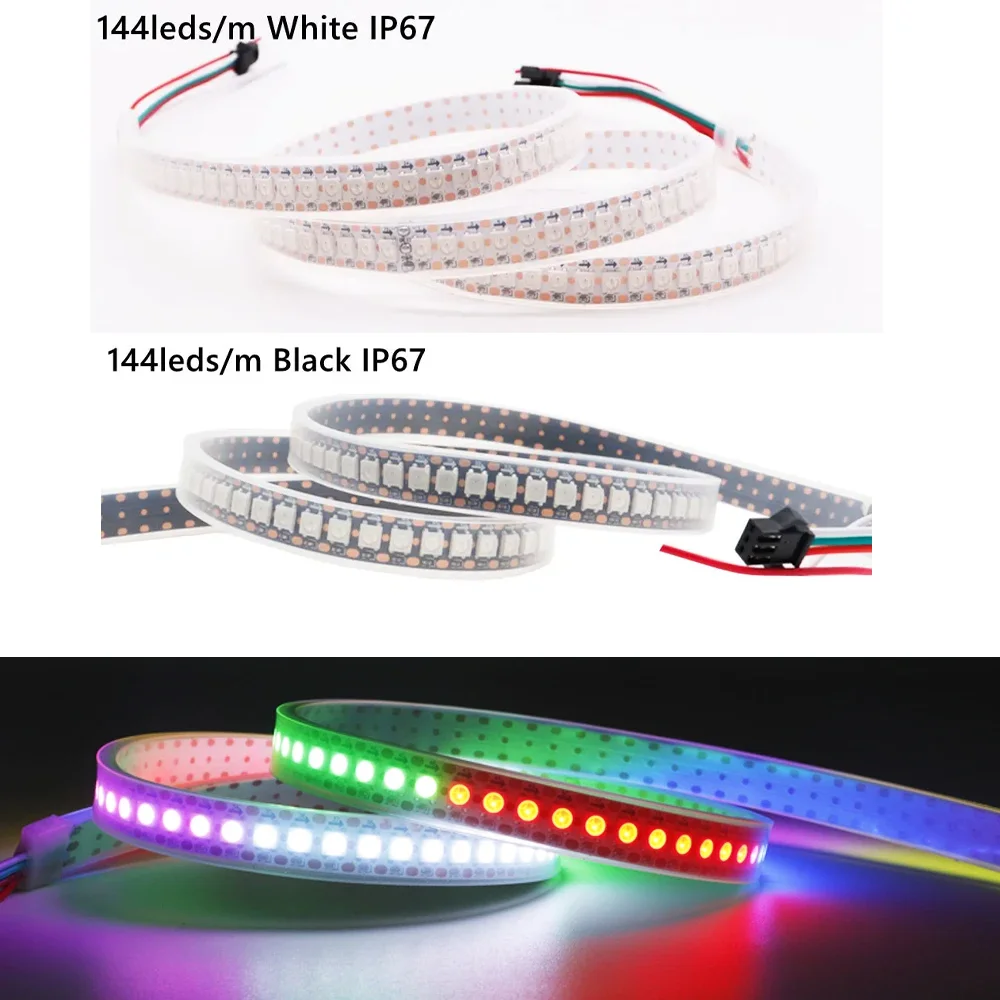

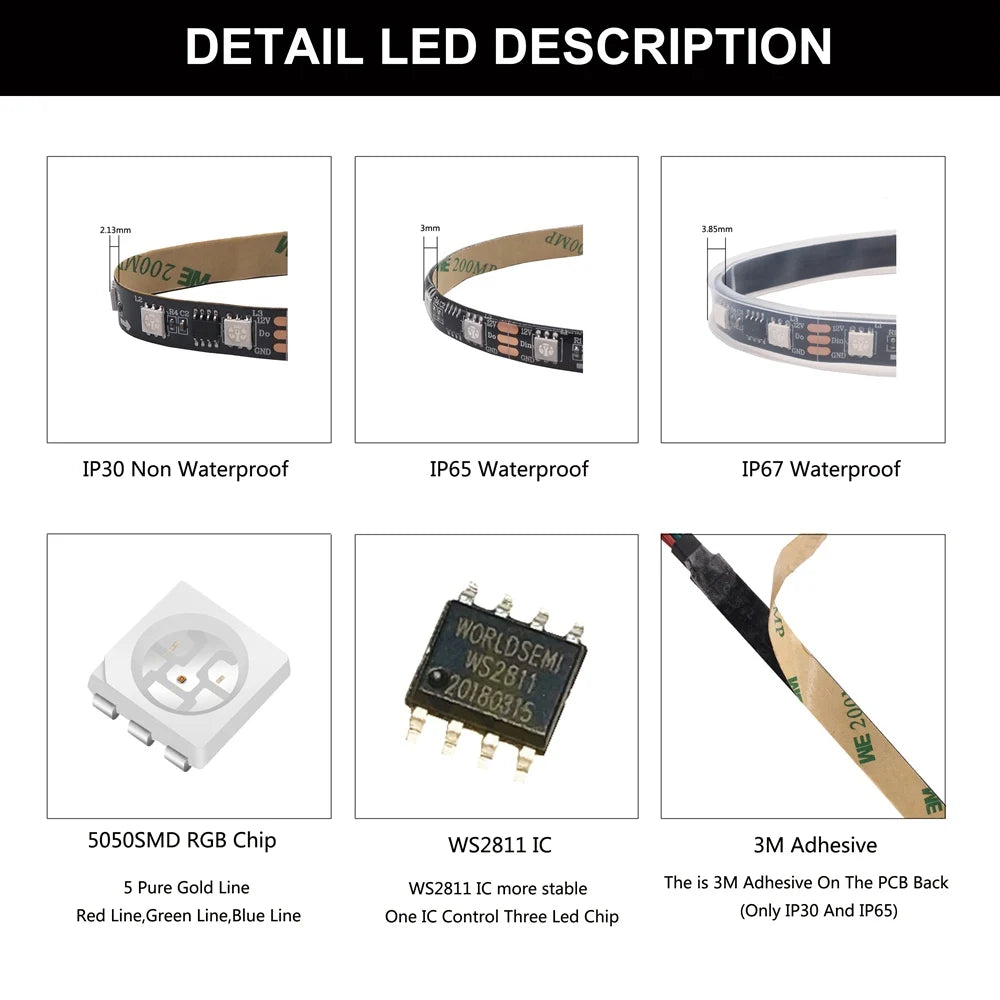

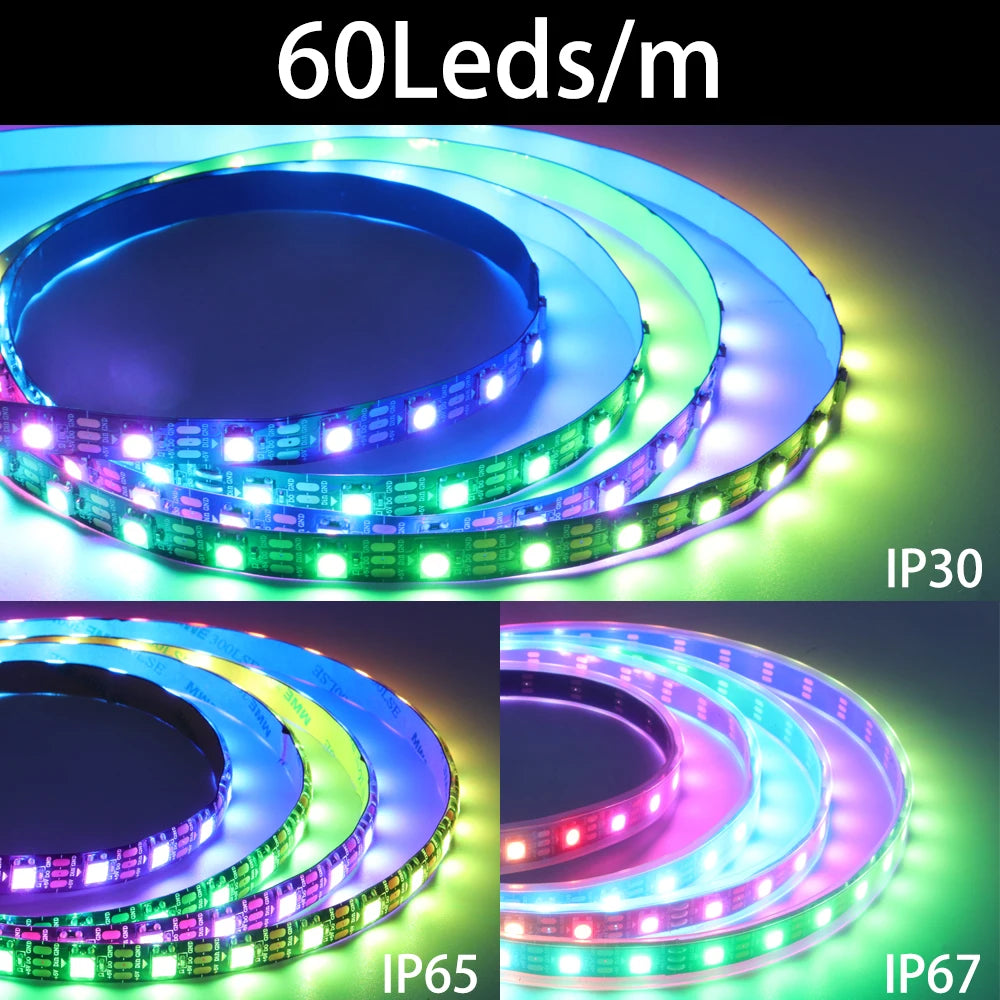

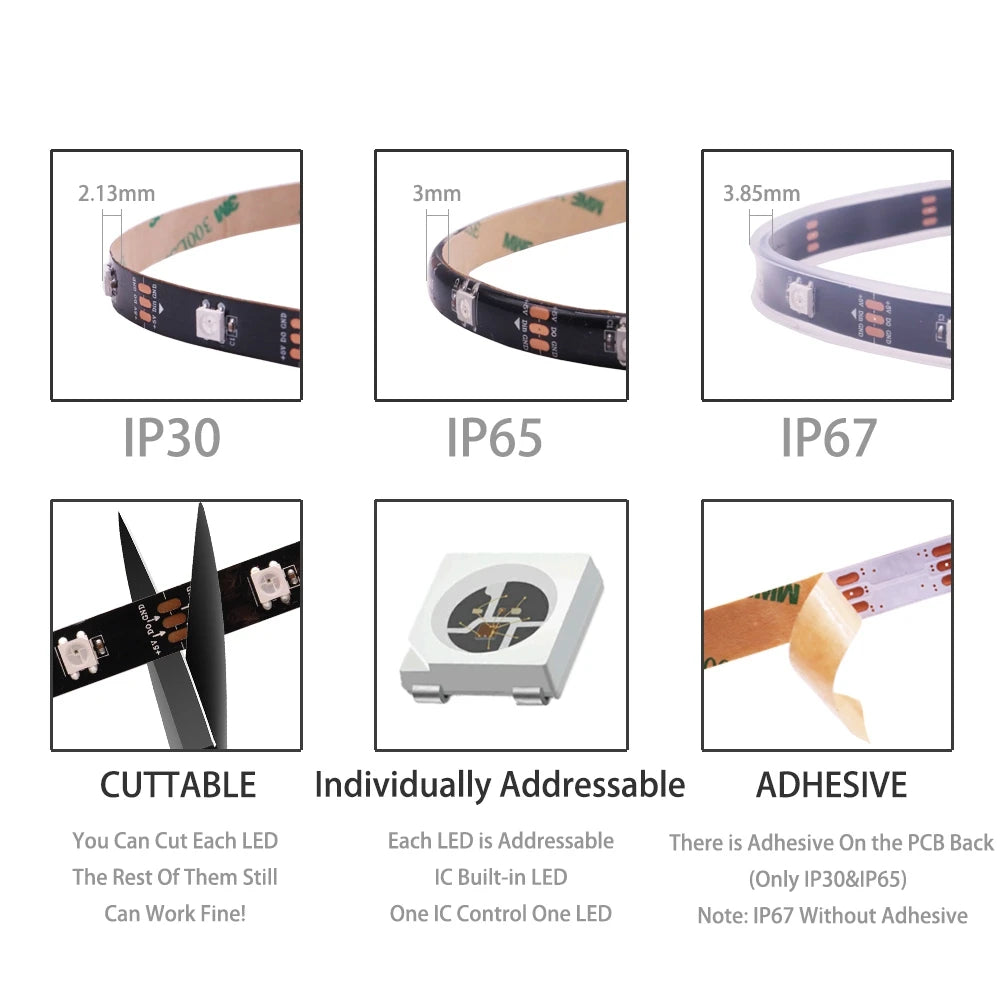

Protection Rate: IP30 non -waterproof / IP65 /IP67 waterproof

Colors: Full Color RGB, Dream Color Changing

Cuttable: Every LED is Cuttable

Package: IN Anti-Static Bag,IP30 IP65 With 3M Adhesive Tape On The Back(IP67 Without 3M Adhesive)

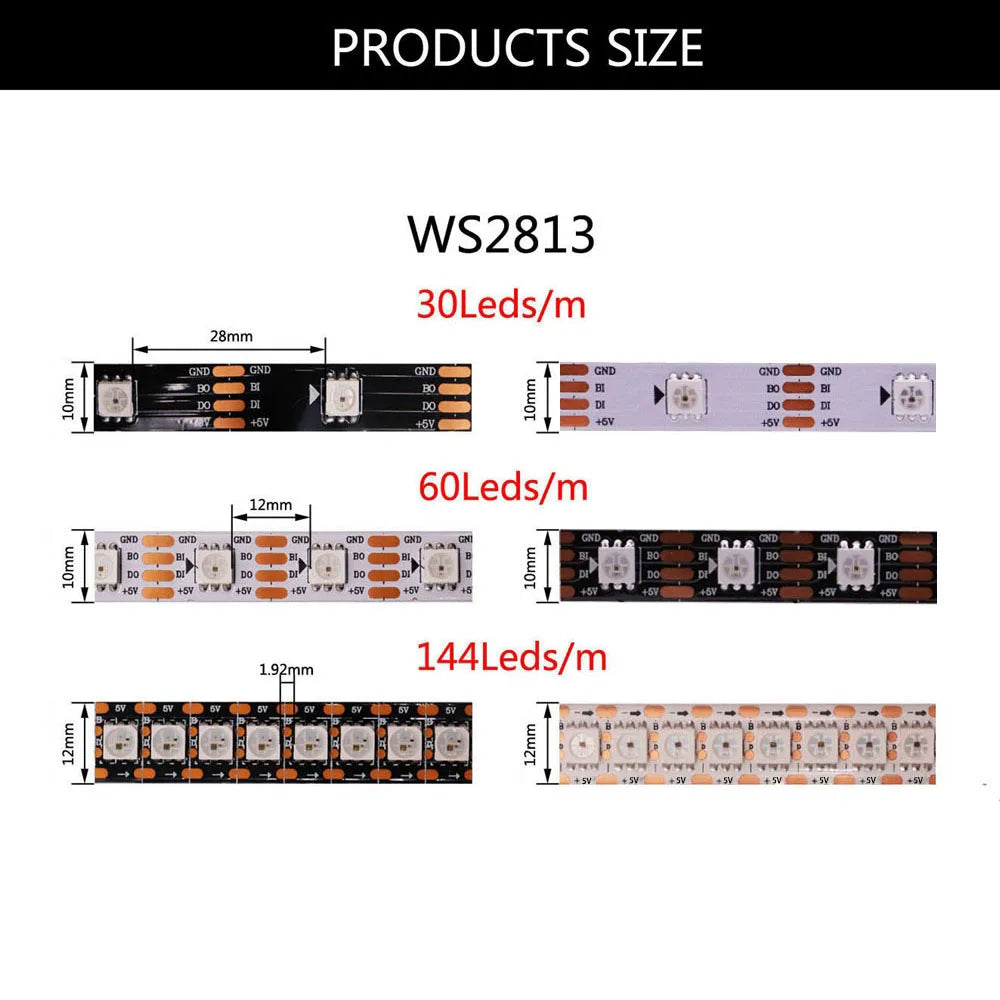

WS2813 LED strip:

Input Voltage: DC5V

Power: 30 Led/M -- 9 Watt/Meter / 60 Led/M --- 18 Watt/Meter / 144 Led/M --- 43.2 Watt/Meter

LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 IC)

LED: Each LED is separately controlled

IC Type: Improved version ws2813 IC(built inside the 5050 SMD RGB led)

Of IC: (1 IC Drives 1 led chip)

Pixels: 30Leds/60Leds/144Leds/meter

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Colors: Full color RGB, dream color changing

Bits/Color: 8-Bits/Color

FPC Color: Black / White

FPC Width:

30 Leds/M --10 mm

60 Leds/M -- 10 mm

144 Leds/M --12 mm

Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube

Cuttable: Every LED is cuttable

Package: In anti-static bag, IP30 IP65 with 3M adhesive tape on the back (IP67 without 3M adhesive), each strip with one free male connector for connector

Working Temperature: -40 - 70 °C

Storage Temperature: -50 - 80 °C

Source Life: 50,000 hours

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Recommend controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

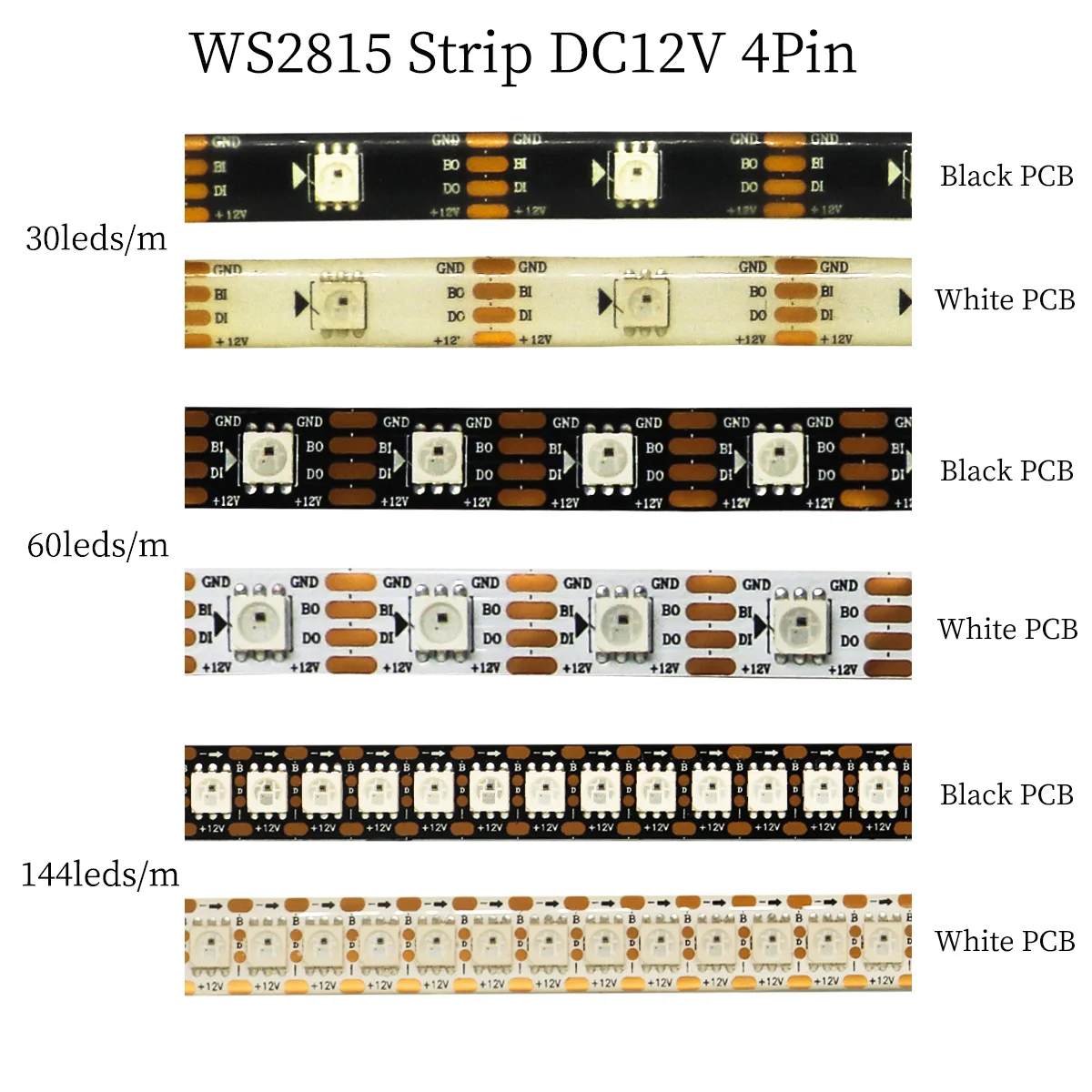

WS2815 LED strip:

Input voltage:DC12V;

Power:30leds/M----9watt/meter

60leds/M----18watt/meter

144leds/M----34watt/meter

LED resource:WS2815 led(5050 SMD RGB LED with built-in improved version of WS2811 IC)

LED: Each LED is separately controlled

IC Type: Improved Version WS2815 IC(built inside the 5050 SMD RGB led)

Of IC:(1 IC drives 1 led chip);

Pixels:30/60/144/meter;

Pitch:16.6mm(1000/64);

Grey scale:256;

Bits/color:8-bits/color;

FPC Width: :30leds/M--10mm

60leds/M--10mm

144leds/M--12mm

FPC color: White PCB/Black PCB

Protection rate:IP30/ IP65 /IP67

Colors: Dream color changing; Full color RGB,

Cuttable: every LED is cuttable;

Package: In anti-static bag,IP30 IP65 with 3M Adhesive tape on the back(IP67 without 3M Adhesive)

Working temperature:-40 ~ 70 °C

Storage temperature:-50 ~ 80 °C

Source life:50,000 hours

Connector:4PIN Connector terminal pair

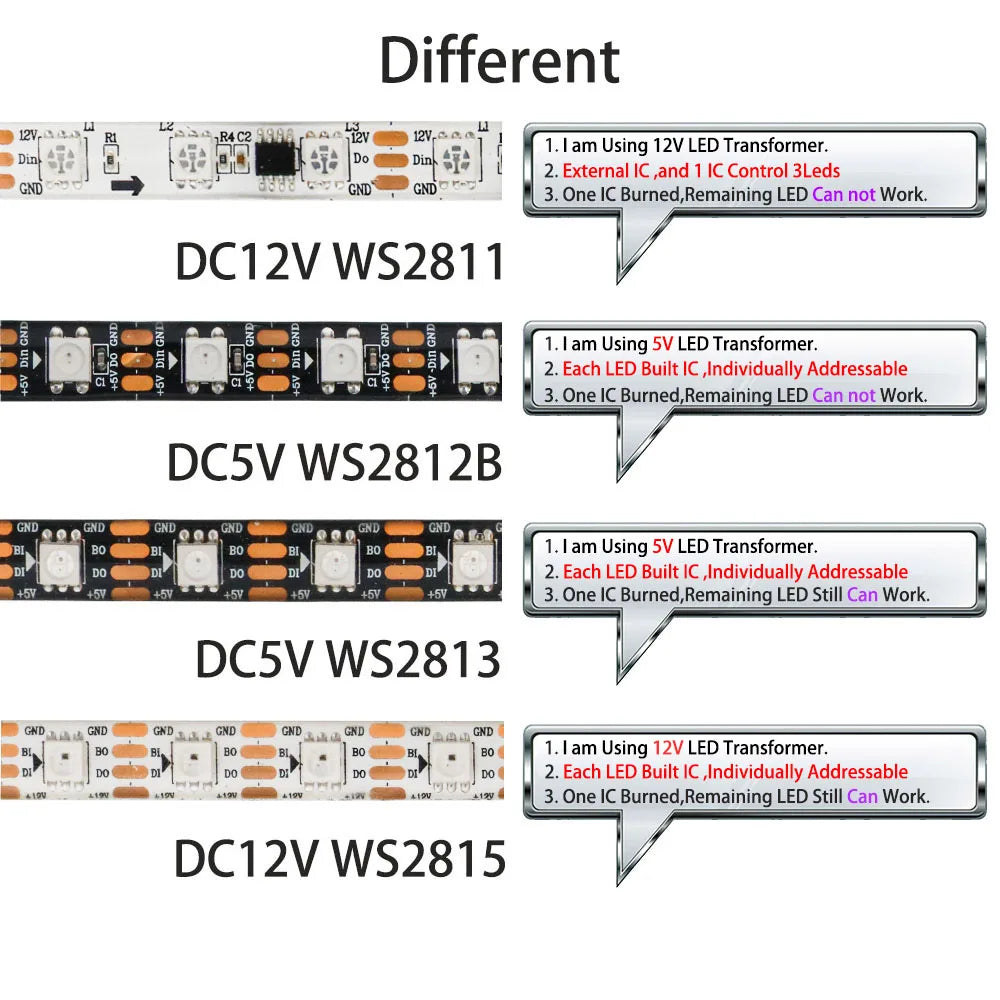

WS2812 and WS2813 LED strip must be connected to a DC5V power supply. Exceeding DC5.5V will burn out; WS2811 WS281 led strip must be connected to a DC12V power supply. Exceeding DC12.5V will burn out;
