WS2813 WS2815 Pixels LED Strip Controller DC 5V 12V 24V Addressable Dual Signal 4Pin Mini Dimmer 21-Key RF/Bluetooth Controls

WS2813 WS2815 Pixels LED Strip Controller DC 5V 12V 24V Addressable Dual Signal 4Pin Mini Dimmer 21-Key RF/Bluetooth Controls

$15.84

$15.84 $0.00

Color RF21K - 4Pin IR BT Manual - 4Pin Manual - 4Pin RF14K - 4Pin

Button NumberDC5-24V

Description

SPECIFICATIONS

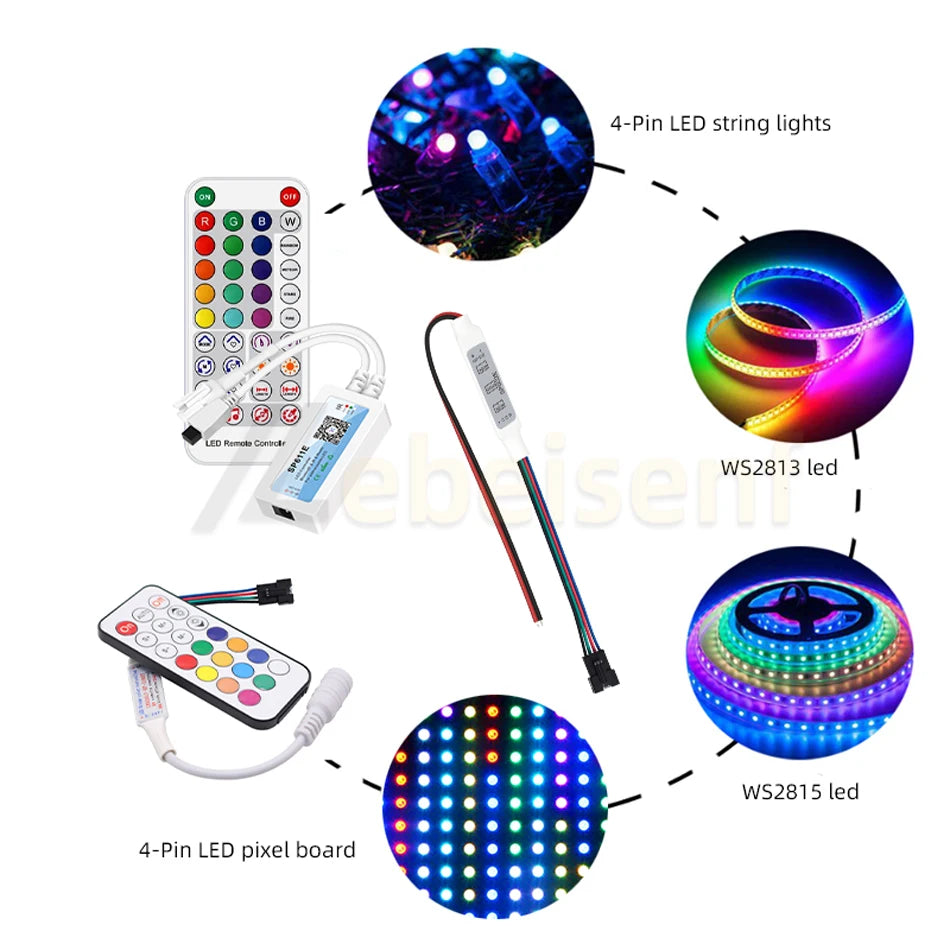

Applicable Lights: WS2813/WS2815 LED strip

Brand Name: lebeisenf

Certification: CCC,ROHS

Choice: yes

Connection Mode: SM-4PIN output LED strip

Controled Method: Controller buttons, IR/RF remote control, Bluetooth APP

Features: For WS2813/WS2815 LED strip

High-concerned chemical: none

Is Smart Device: no

Item Type: RGB controler

Material: ABS

Max. Load Power: 2048 Pixel

Model Number: 4-Pin SPI LED controller

Origin: Mainland China

Power Source: DC

Remote Distance: /

Voltage: 5-24V

Warranty: 2 year

Wattage: /

semi_Choice: yes

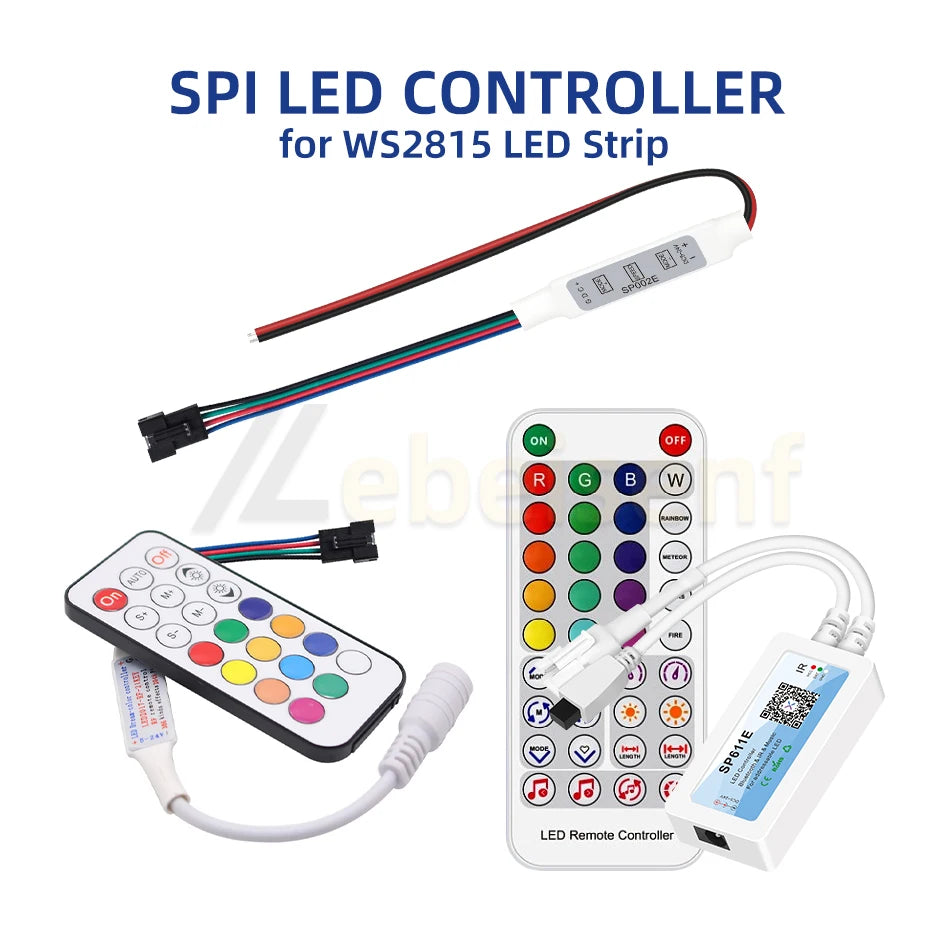

WS2815 WS2813 LED Lights Controller for Dream Effect 4pin SM JST RGB IC Led Strip Light DC5-24V

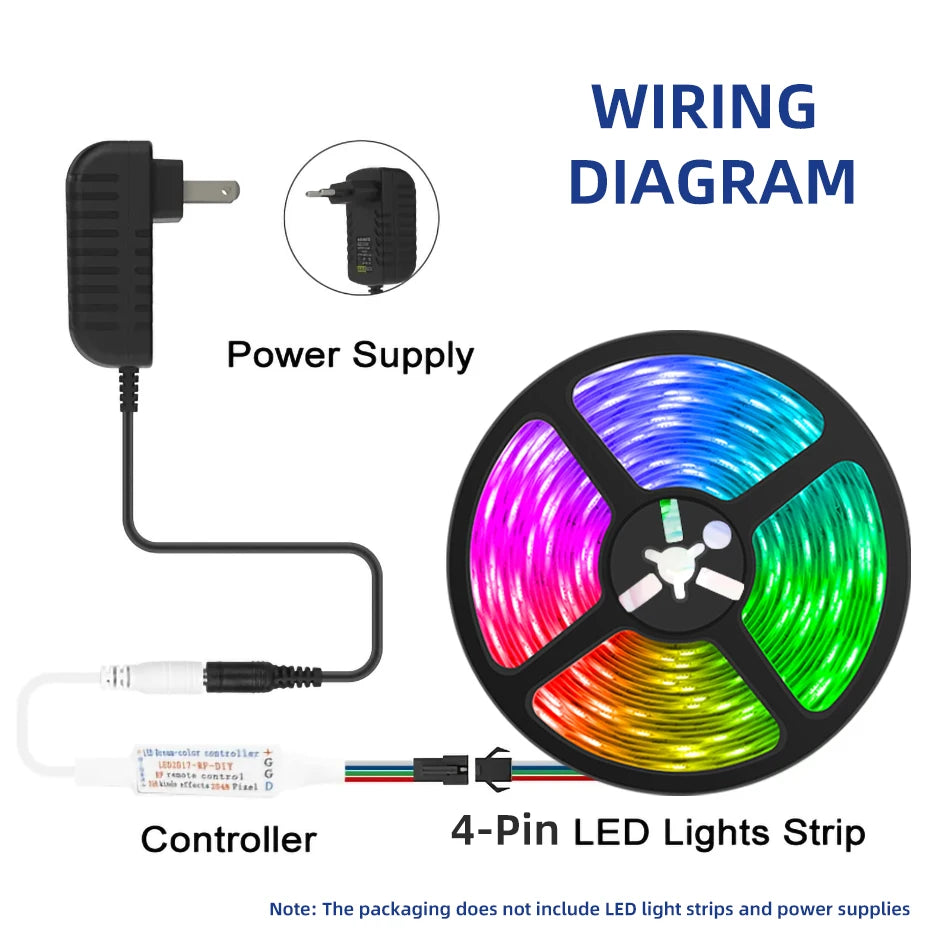

Notice:

1. The product is only the controller, not including the power supply and light strip.

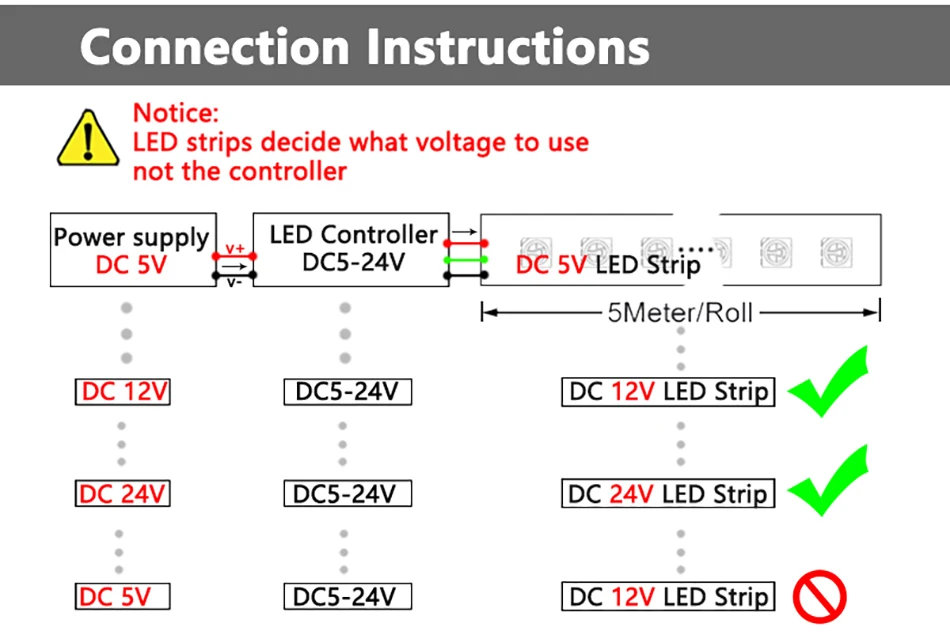

2. The power supply is determined by the light strip, the DC5V light strip uses the DC5V power supply, and the DC12V light strip uses the DC12V power supply.
3.USB is DC5V, please pay attention to use the light strip
4. The remote control does not contain batteries.

Features:

RF Remote control,long distance,mini size,wire connection is simple and very easy to use;

Support almost every kind of or two-wire LED-DRIVER-IC ;

With user setting saving functionality;

Brightness adjustable.

Preventing reverse connection of power supply.

working voltage:DC:DC5V-24V;

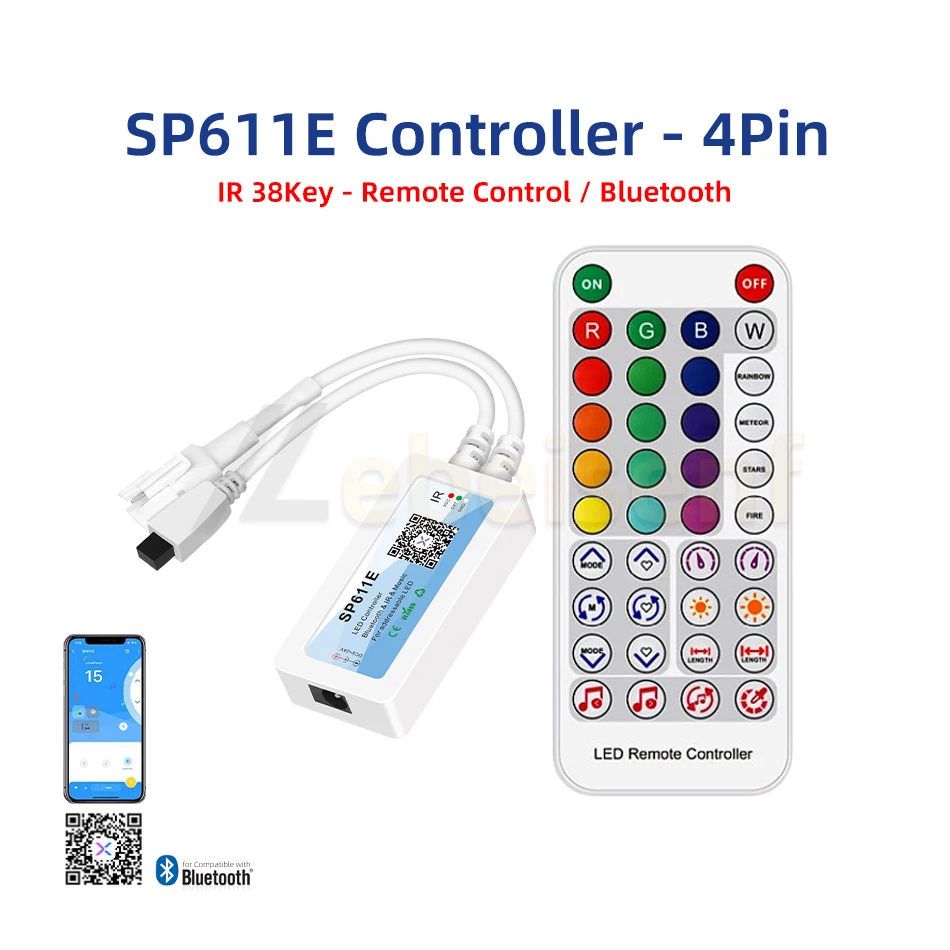

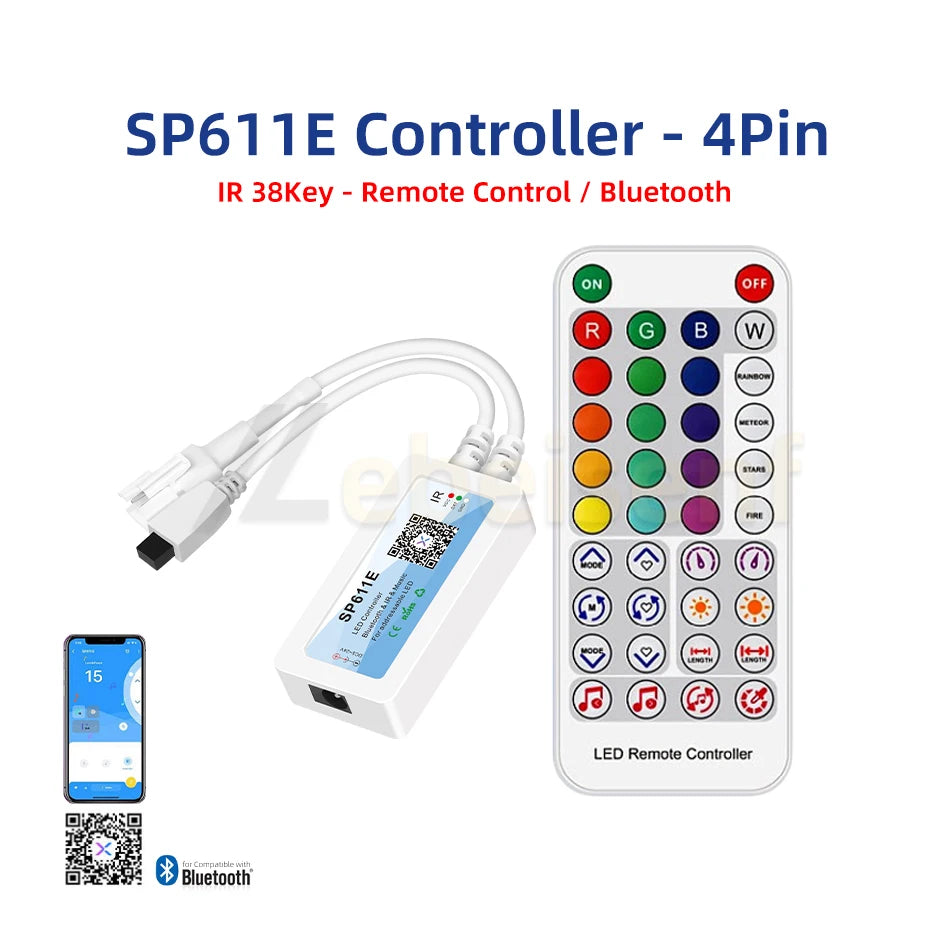

SP611E-4Pin Controller

Features:
1, Mobile phone APP, infrared IR remote control, key and other control methods;
2, Built-in 142 kinds of pattern mode, support effect length adjustment, dynamic mode collection;
3, Built-in 18 kinds of music modes, support music mode effect length adjustment, sensitivity adjustment, effect color self-selection;
4, a variety of automatic cycle mode, pattern mode, collection mode, music mode can be cycled independently;
5, a variety of music collection modes: cell phone microphone, player streaming, on-board microphone.

Technical Parameters:
●. Input voltage: DC5-24V.
●. Working temperature: -20℃~60℃.
●. Support: IOS 10.0/ Android 4.4.
●. Output signal: SPI (TTL) Digital Signal.
●. Connection Type: IR 38 Keys Remote Control or Bluetooth APP Control.
●. Controllable pixels: 600 pcs IC
●. Application: Digital Addressable LED Light.

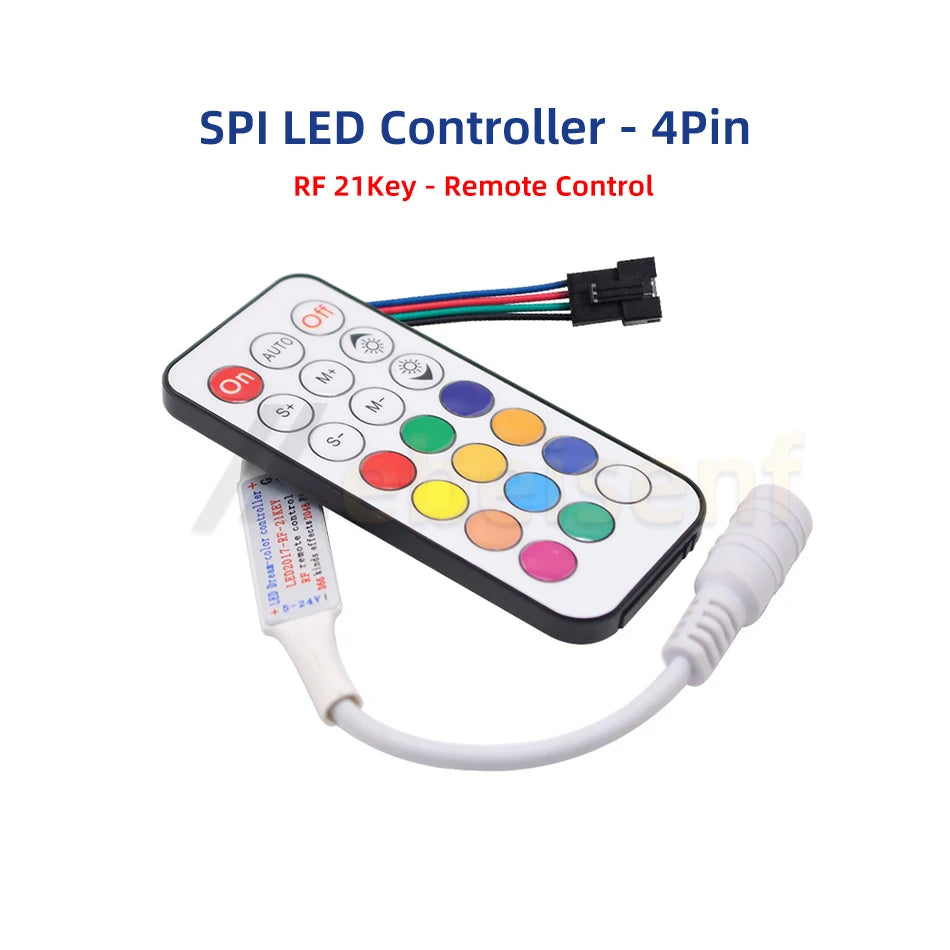

21-Key RF Remote Mini LED Controller

Features.

1, standard with RF 21-key remote control, remote control can be paired, lock the controller. Adjustable RGB channel sequence, adjustable cascade points, up to 2048 pixels;
2, comes with 366 kinds of pattern effects;
3, DC5-24V wide voltage input, anti-reverse connection, automatic save settings.

Technical Parameters:
●. voltage: DC5-24V
●. Current: <10MA
●. Temperature: -20 ~ 60C
●. Size: L29 * W12 * H3MM
●. Weight: 0.035KG
●. Effect: 366 kinds of variations, covering the effects of the market for all Symphony controller mode, you can program any combination
●. Maximum number of control points: 2048 points
●. Remote control distance: 30 meters (21-key multi-function RF remote control)

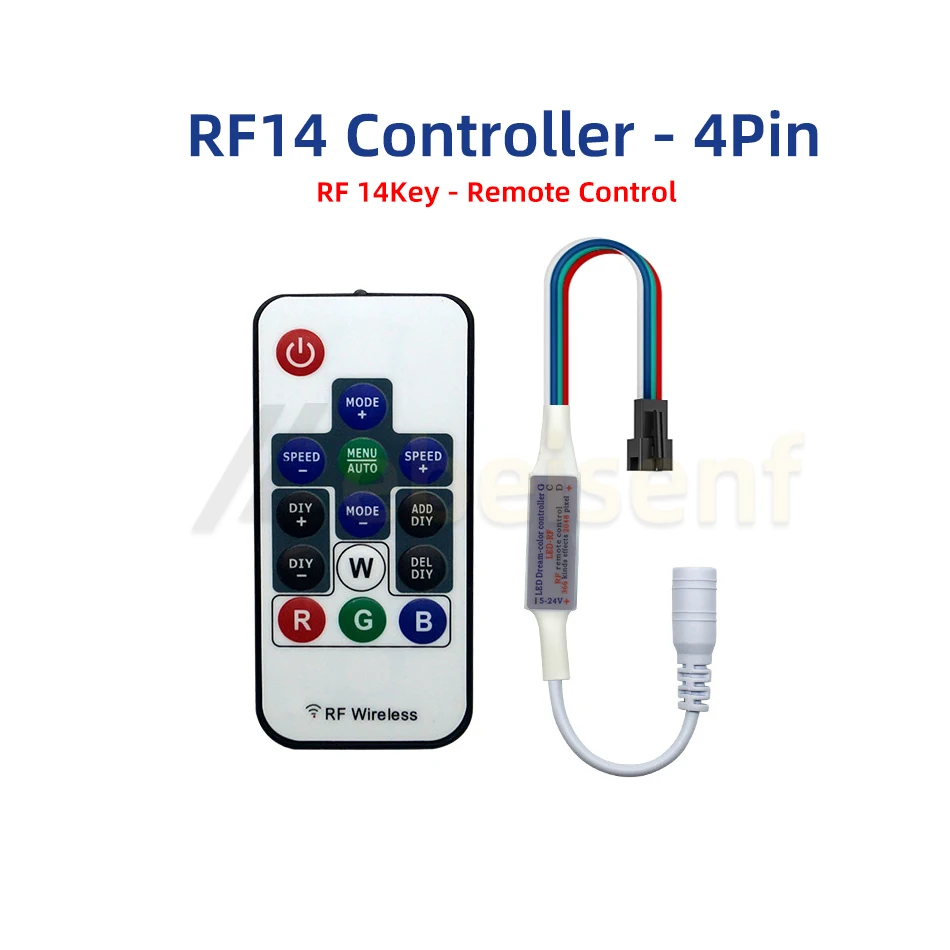

14-Key RF Remote Mini LED Controller

Features.

1, standard with RF 14-key remote control, remote control can be paired, lock the controller. Adjustable RGB channel sequence, adjustable cascade points, up to 2048 pixels;
2, comes with 358 kinds of pattern effects;
3, DC5-24V wide voltage input, anti-reverse connection, automatic save settings.

Technical Parameters:
●. voltage: DC5-24V
●. Current: <10MA
●. Temperature: -20 ~ 60C
●. Size: L29 * W12 * H3MM
●. Weight: 0.03KG
●. Effect: 358 kinds of variations, covering the effects of the market for all Symphony controller mode, you can program any combination
●. Maximum number of control points: 2048 points
●. Remote control distance: 30 meters (14-key multi-function RF remote control)

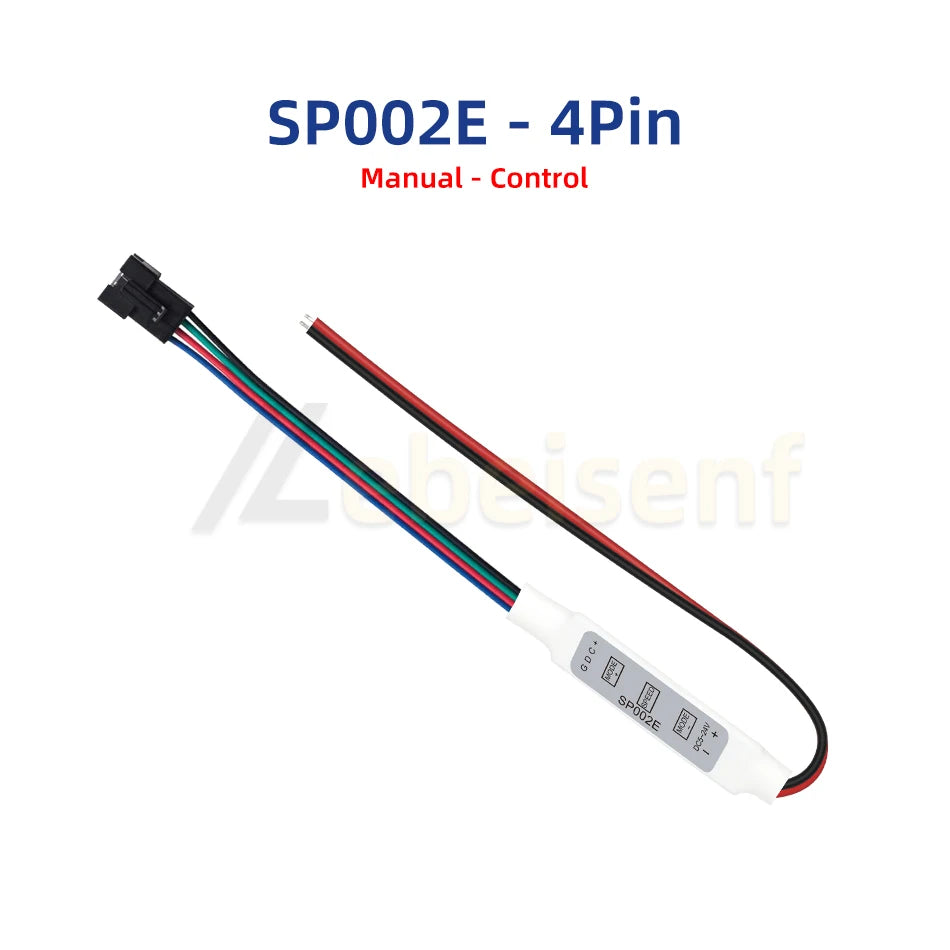

SP002E-4Pin LED Mini 3-Key Controller

Features.
1, Basic colorful controller;
2, Adjustable mode and speed with buttons; Power on light;
3, Comes with 68 kinds of pattern effects;
4, Wide voltage input, anti-reverse connection, automatic saving settings.

Technical Parameters.
●. voltage: DC5-24V
●. Current: <10MA
●. Temperature: -20 ~ 60C
●. Size: L60 * W11 * H3MM
●. Weight: 0.012KG
●. Effect: 68 kinds of variations, Covering the basic Symphony controller mode effects in the market
●. Maximum number of control points: 2048 points
