SPECIFICATIONS

Average Life (hrs): More than 5000hours

Brand Name: LOAMLIN

Certification: CCC,EMC,FCC,UL,CE,RoHs

Choice: yes

Color Temp(K): 2200k-6500k

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/74/96/144

Luminous Flux: 249-2000

Model Number: WS2815

Nominal Voltage: 12 V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 7.36W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/74/96/144

Strip type: SMD

Voltage: 12 V

Waterproof: Yes

semi_Choice: yes

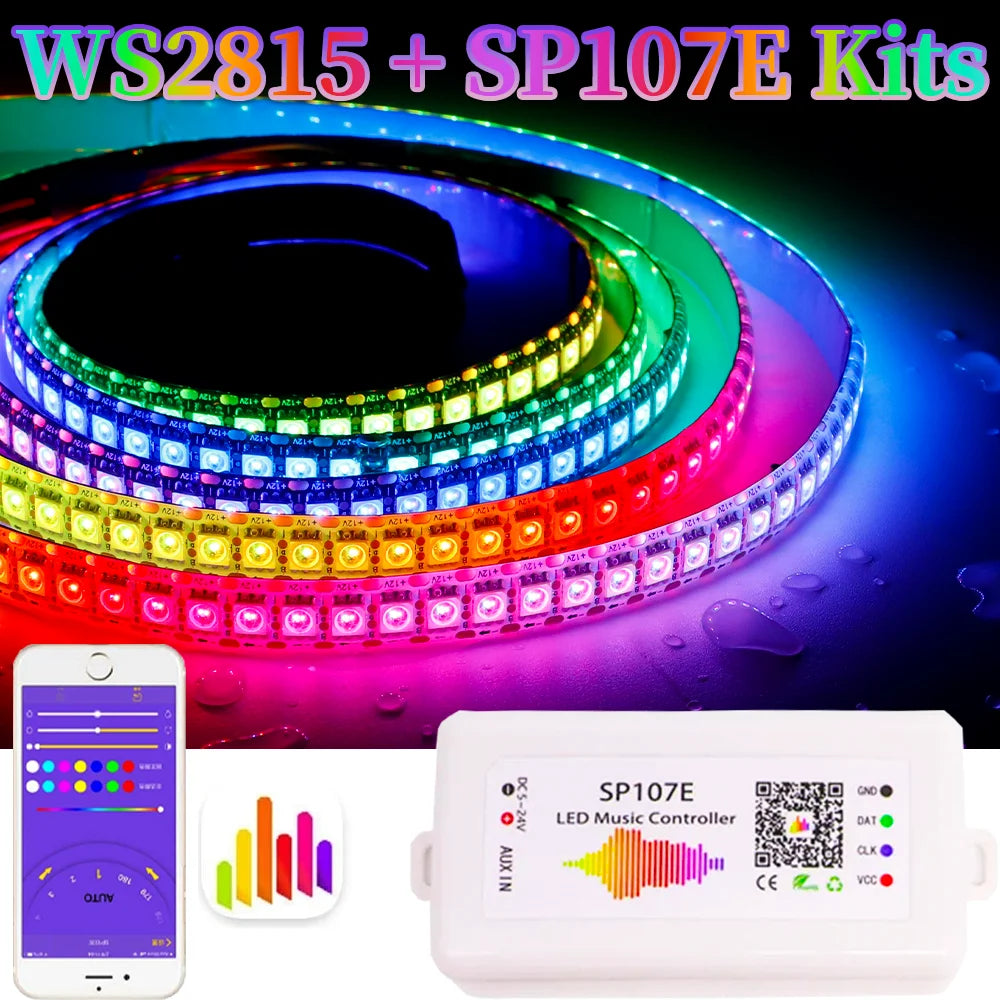

WS2815 Led Strip With SP107E Bluetooth Music Controller 30/60/144 Pixels/m RGB Individually Addressable LED Light lamp Kit DC12V

4Pin DC12V WS2815 LED strip:

Input voltage:DC12V;

Power:30leds/M----9watt/meter

60leds/M----18watt/meter

74leds/M----22.2watt/meter

96leds/M----28.8watt/meter

144leds/M----34watt/meter

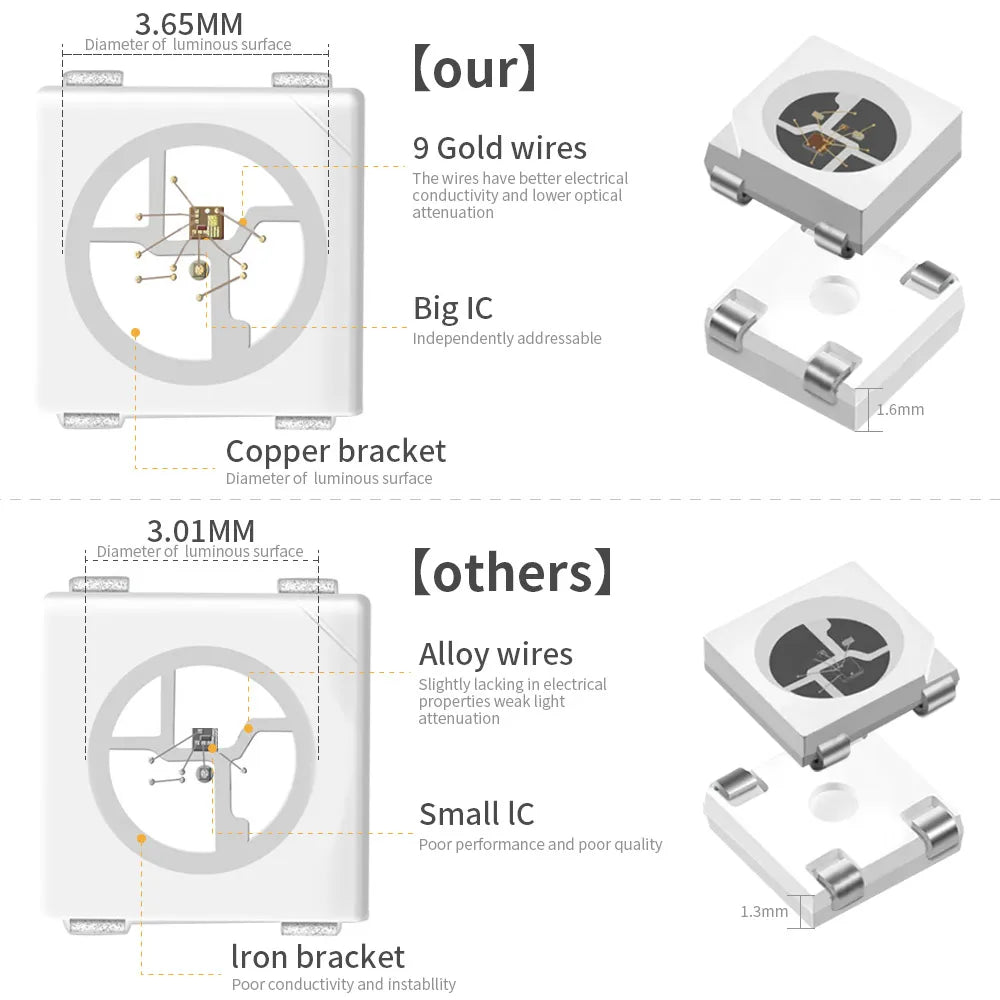

LED resource:WS2815 led(5050 SMD RGB LED with built-in improved version of WS2811 IC)

LED: Each LED is separately controlled

IC Type: Improved Version WS2815 IC(built inside the 5050 SMD RGB led)

Of IC:(1 IC drives 1 led chip);

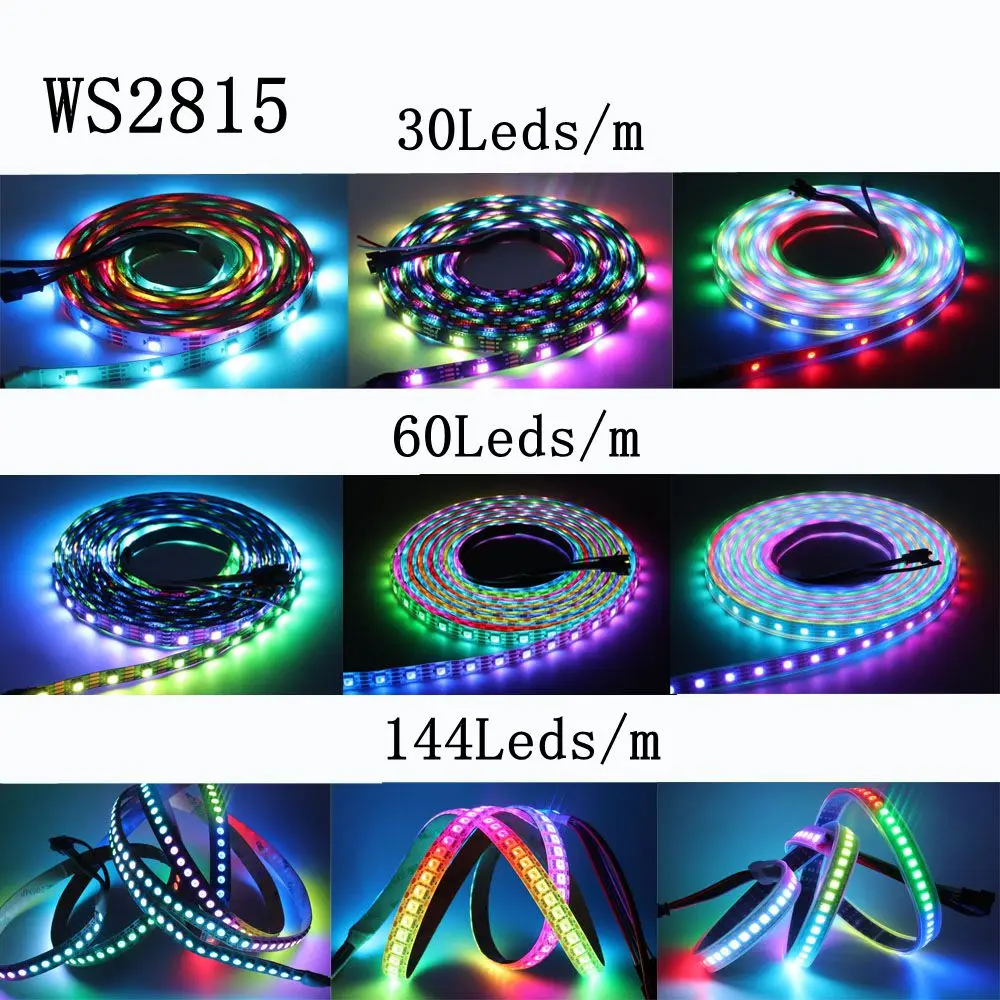

Pixels:30/60/74/96/144/meter;

Pitch:16.6mm(1000/64);

Grey scale:256;

Bits/color:8-bits/color;

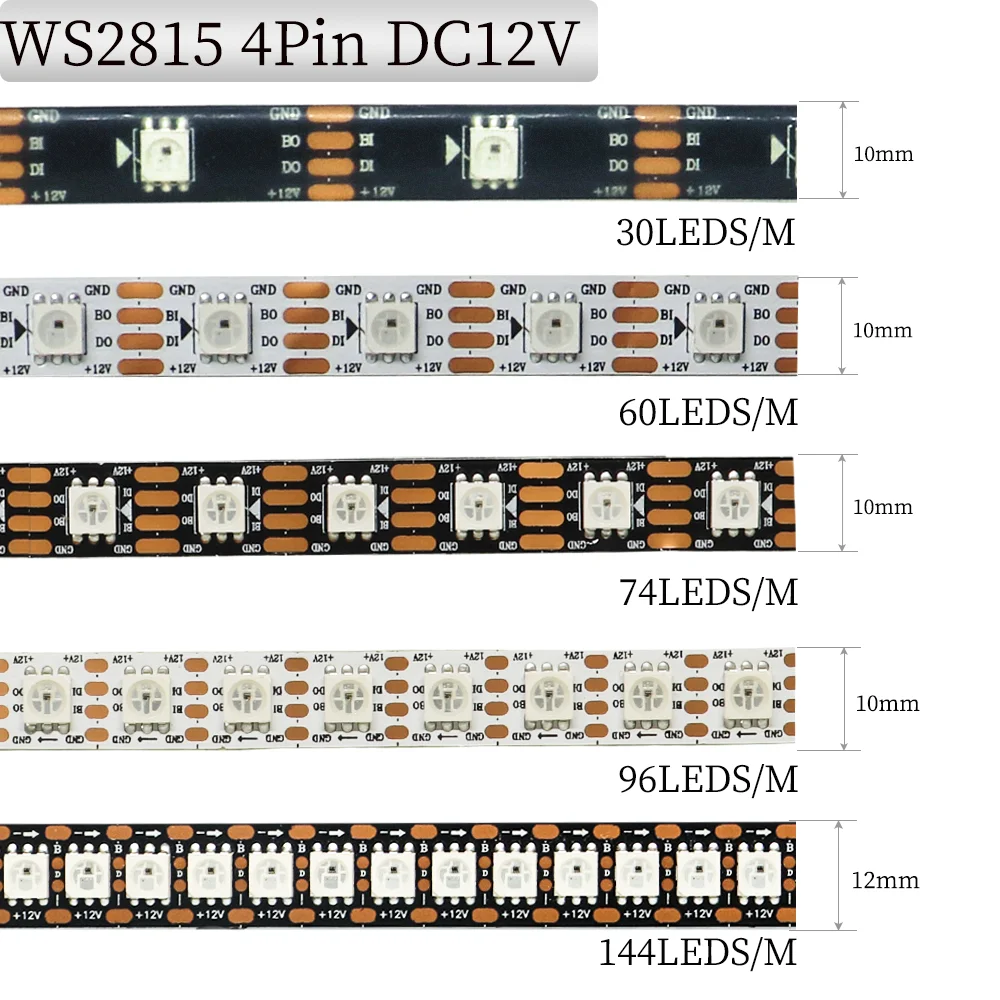

FPC Width: :30leds/M--10mm

60leds/M--10mm

74leds/M--10mm

96leds/M--10mm

144leds/M--12mm

FPC color: White PCB/Black PCB

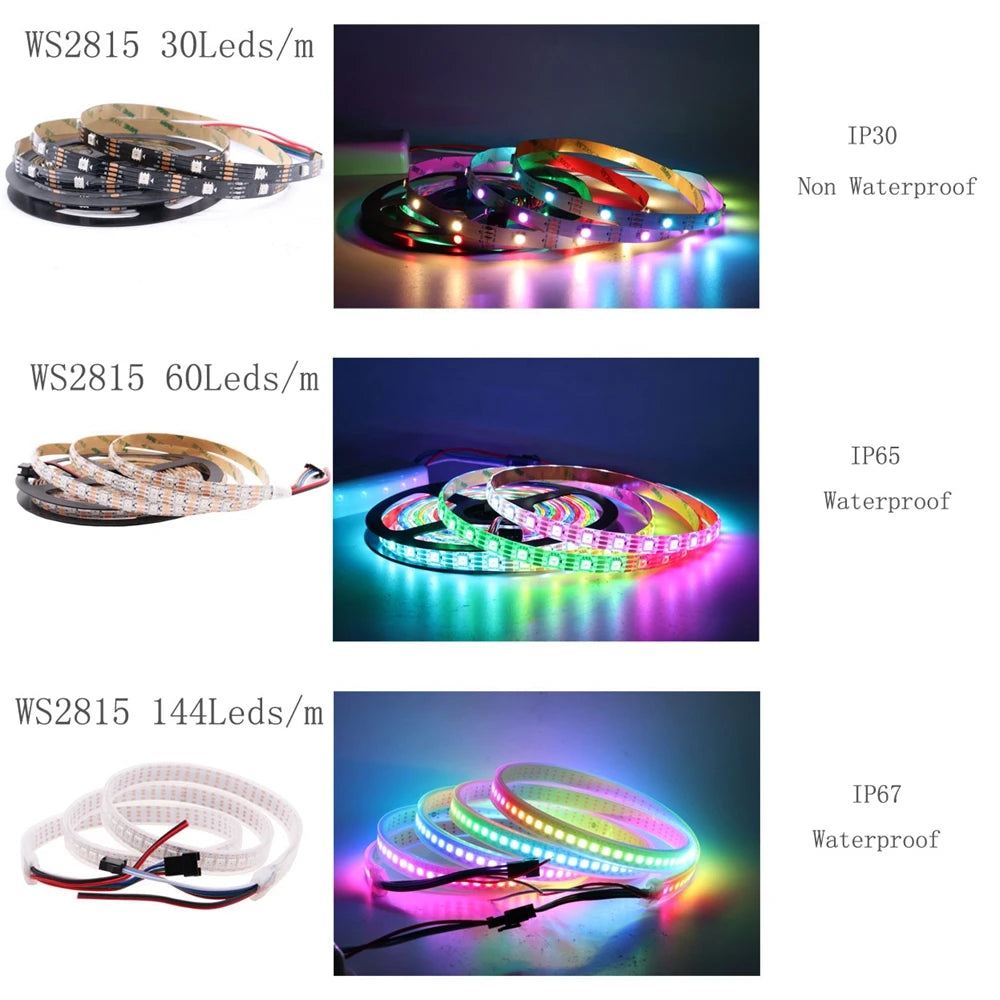

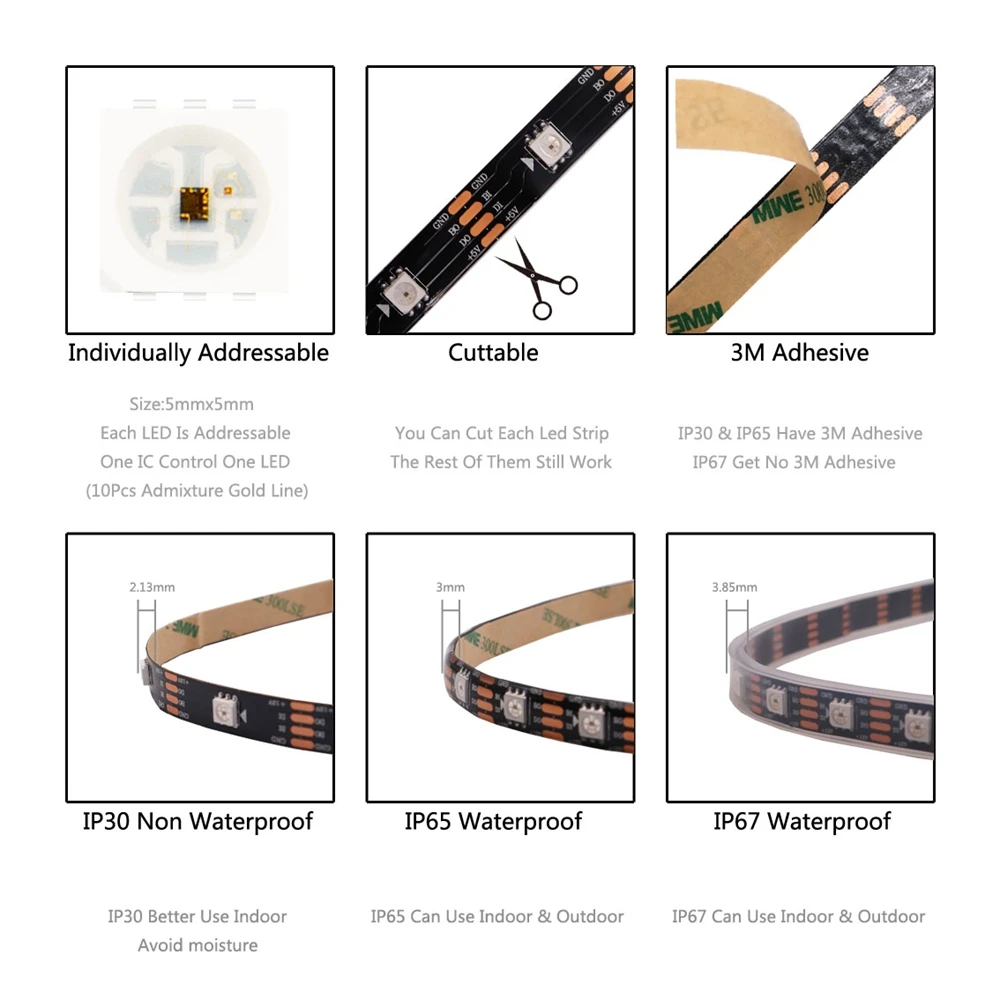

Protection rate:IP30/ IP65 /IP67

Colors: Dream color changing; Full color RGB,

Cuttable: every LED is cuttable;

Package: In anti-static bag,IP30 IP65 with 3M Adhesive tape on the back(IP67 without 3M Adhesive)

Working temperature:-40 ~ 70 °C

Storage temperature:-50 ~ 80 °C

Source life:50,000 hours

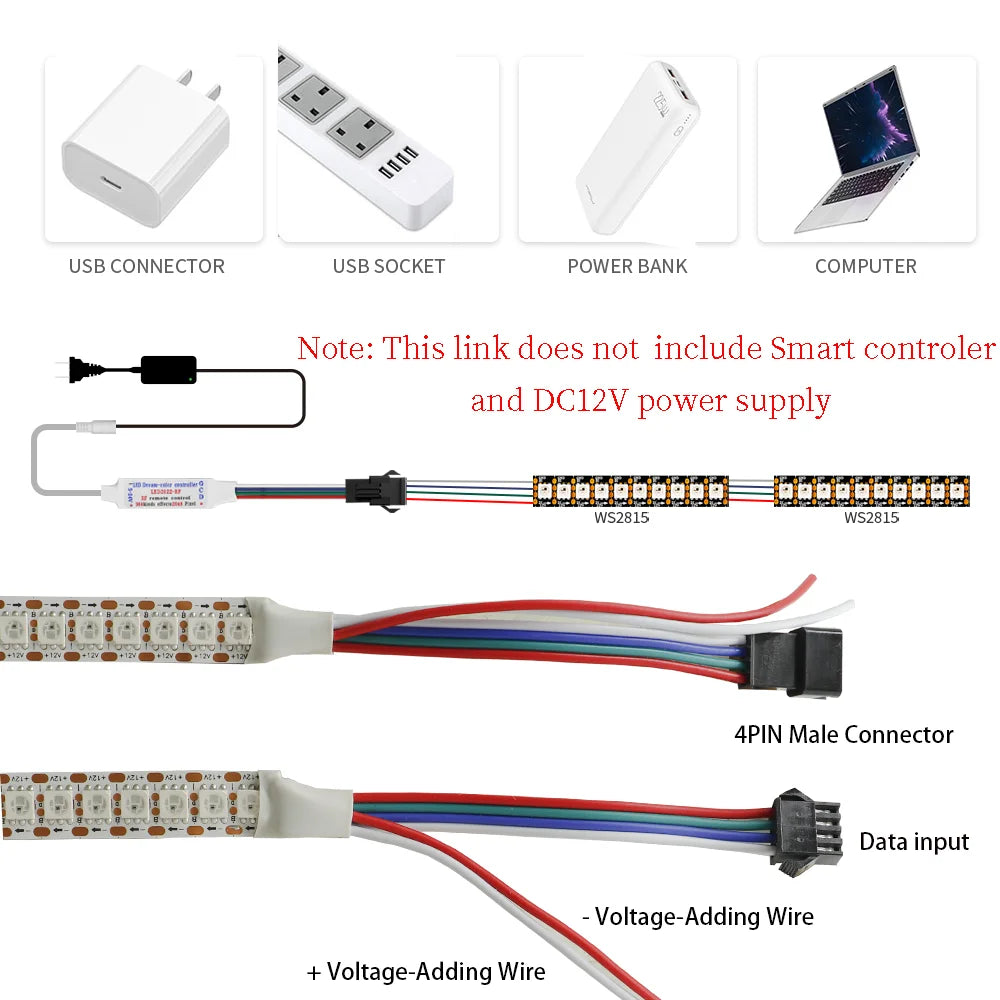

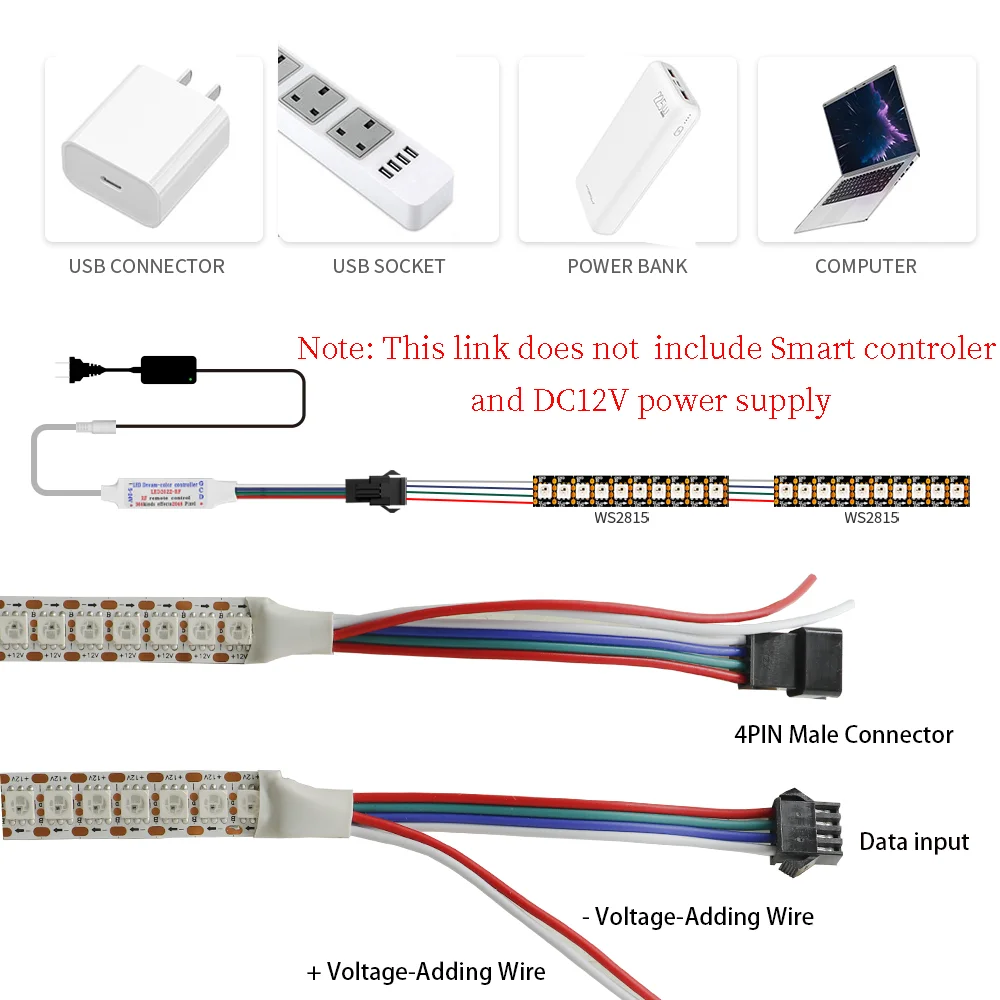

Connector:4PIN Connector terminal pair

(Red: 12V power , Green: Date line, Blue: standby date line, Black: GND)

Note: WS2815 led strip must be connected to a DC12V power supply.( not includedExceeding DC12.5V will burn out;

Note: This link only has WS2815 LED strip. DC12V power supply and Smart controller not included

There are welding points every 0.5 meters. This is quite normal in electronic light strips. It's not a matter of weight

Special attention:

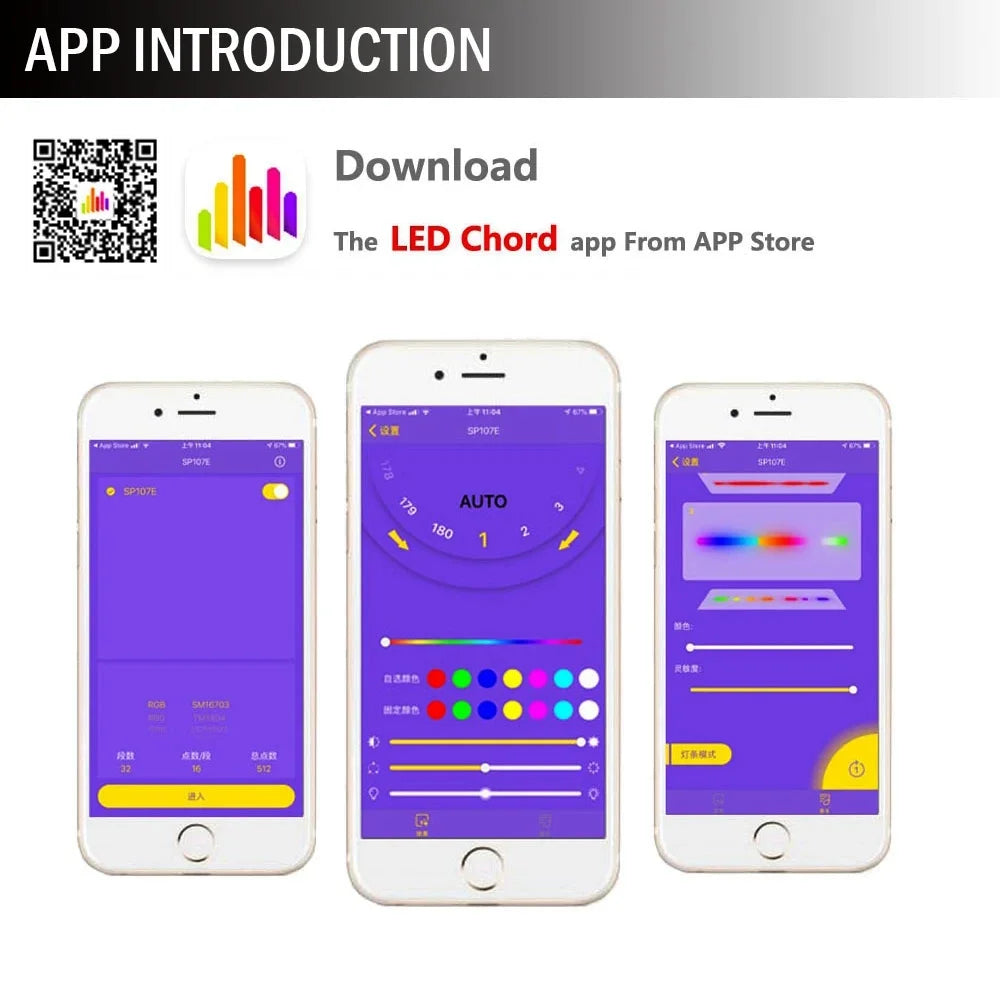

It is necessary to set the RGB channel sequence and IC model of the lighting fixtures according to the actual situation: set the pixel count of the lighting fixtures according to the actual couple. For example, 5M 144LEDSM. This light strip has a total of 720 pixels. You need to set the total number of illuminated points to 720 through the mobile app. This way, the light strip can be fully lit up normally (when you connect the light strip to the SP107E controller and find that only a part of the light strip is lit up, please do not worry, there is no quality issue). Please use the app to set all points for the LED strip

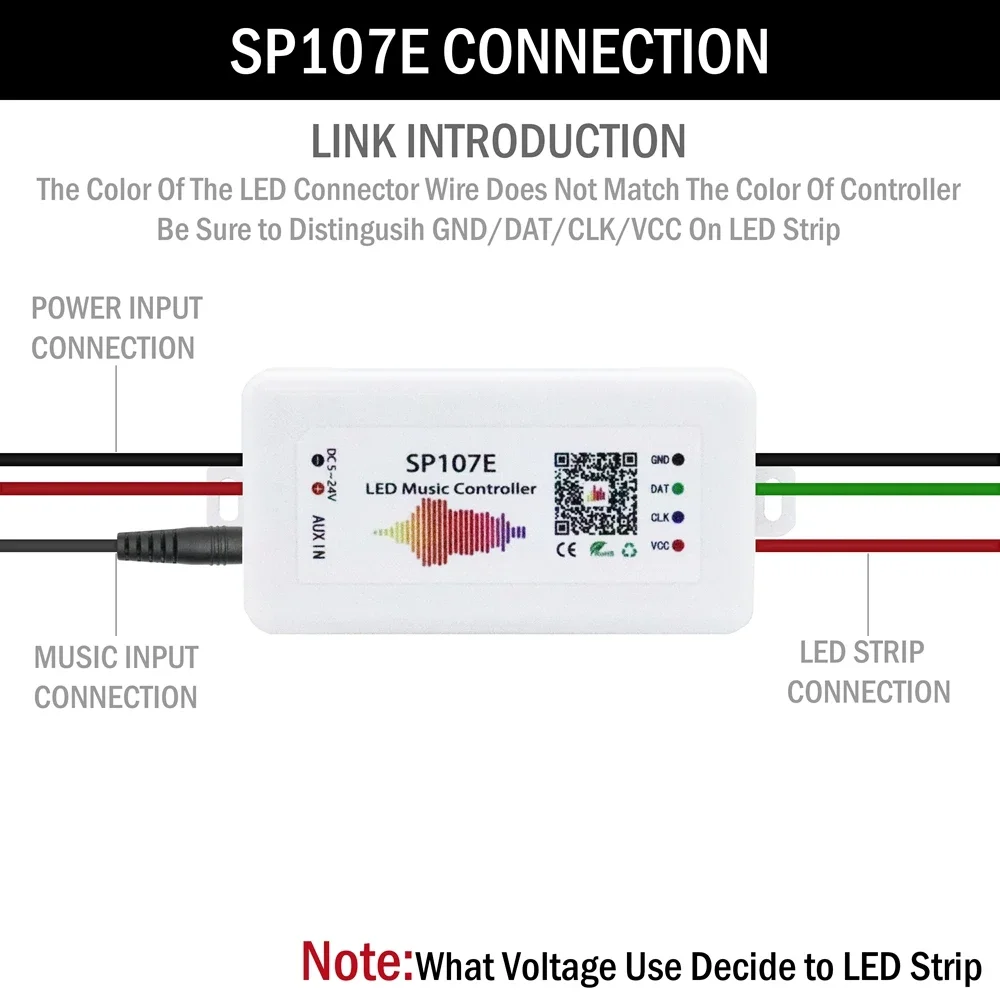

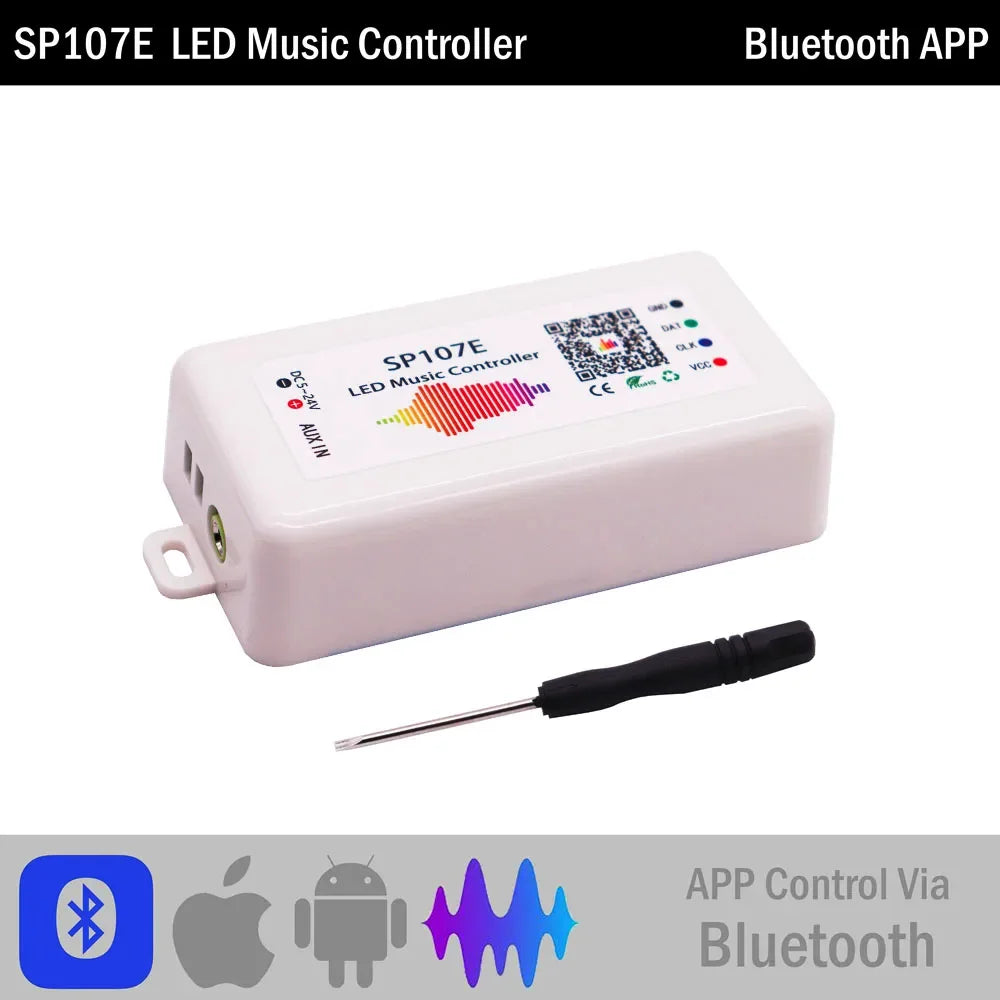

SP107E Bluetooth Music Led Controller

Control Method: APP

Input Voltage: DC 5-24V

Pixel: 960

Connector: 3Pin/4Pin

Control Distance: 30m

Product weight : 40g ;

Product size : 85mm*45mm*22mm;

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

WS2812 and WS2813 LED strip must be connected to a DC5V power supply. Exceeding DC5.5V will burn out; WS2811 WS281 led strip must be connected to a DC12V power supply. Exceeding DC12.5V will burn out;
