SPECIFICATIONS

Average Life (hrs): More than 50000Hours

Brand Name: TNALANT

Certification: CCC,ce,FCC,ROHS

Color Temp(K): 2200-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144leds/m

Luminous Flux: <60

Model Number: WS2815

Nominal Voltage: 12V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 60

Strip type: SMD

Voltage: 12 V

Waterproof: Yes

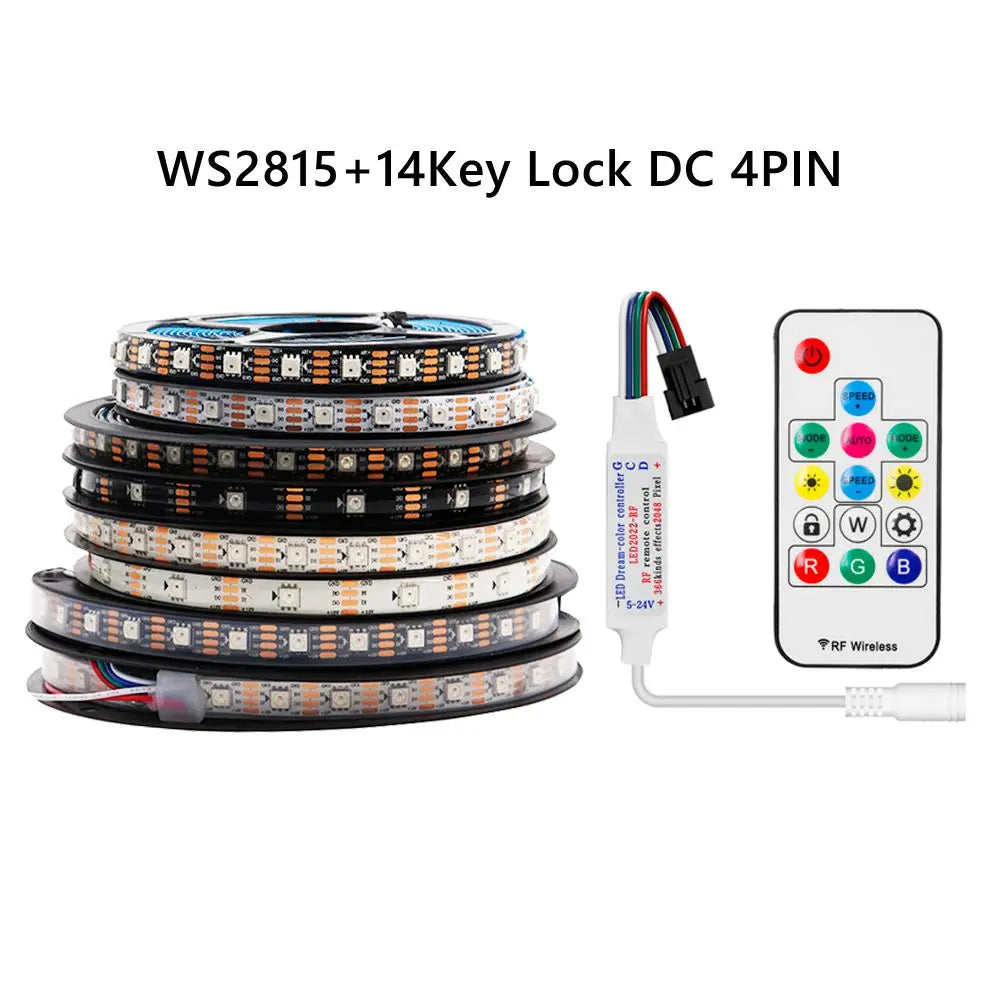

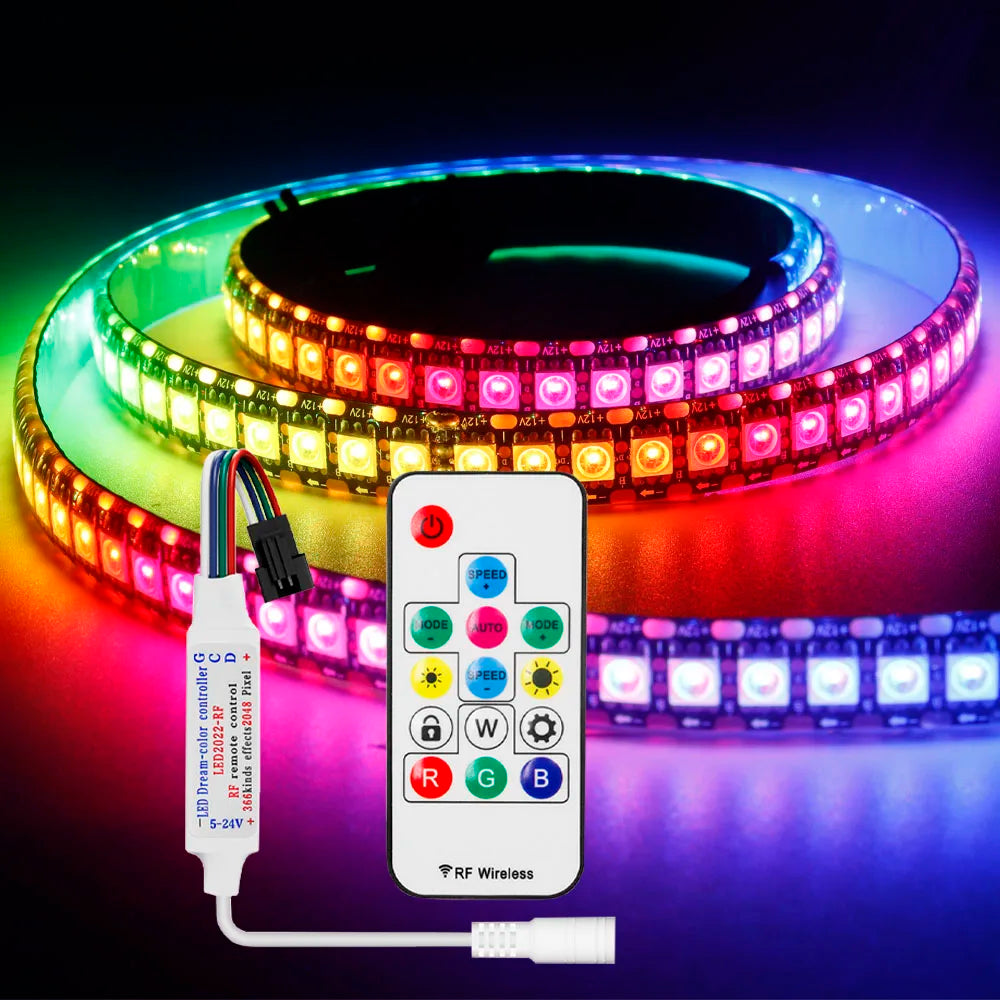

WS2815 LED Strip:

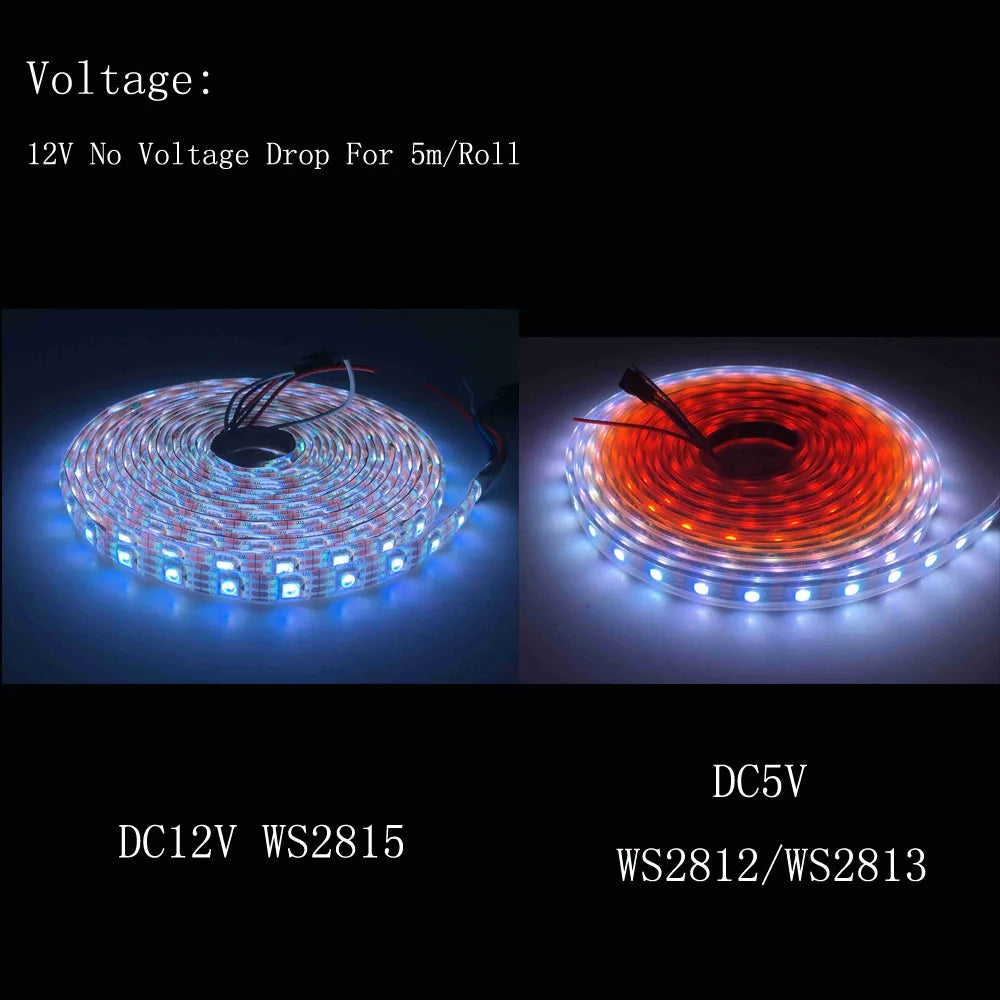

Input voltage:.............DC12V

Power:.......................30leds/m----9watt/meter

.......................60leds/m----18watt/meter

.......................144leds/m----34watt/meter

LED resource:...........WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: ...............Each LED is separately controlled

IC Type: ....................Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC: ..................(1 IC drives 1 led chip);

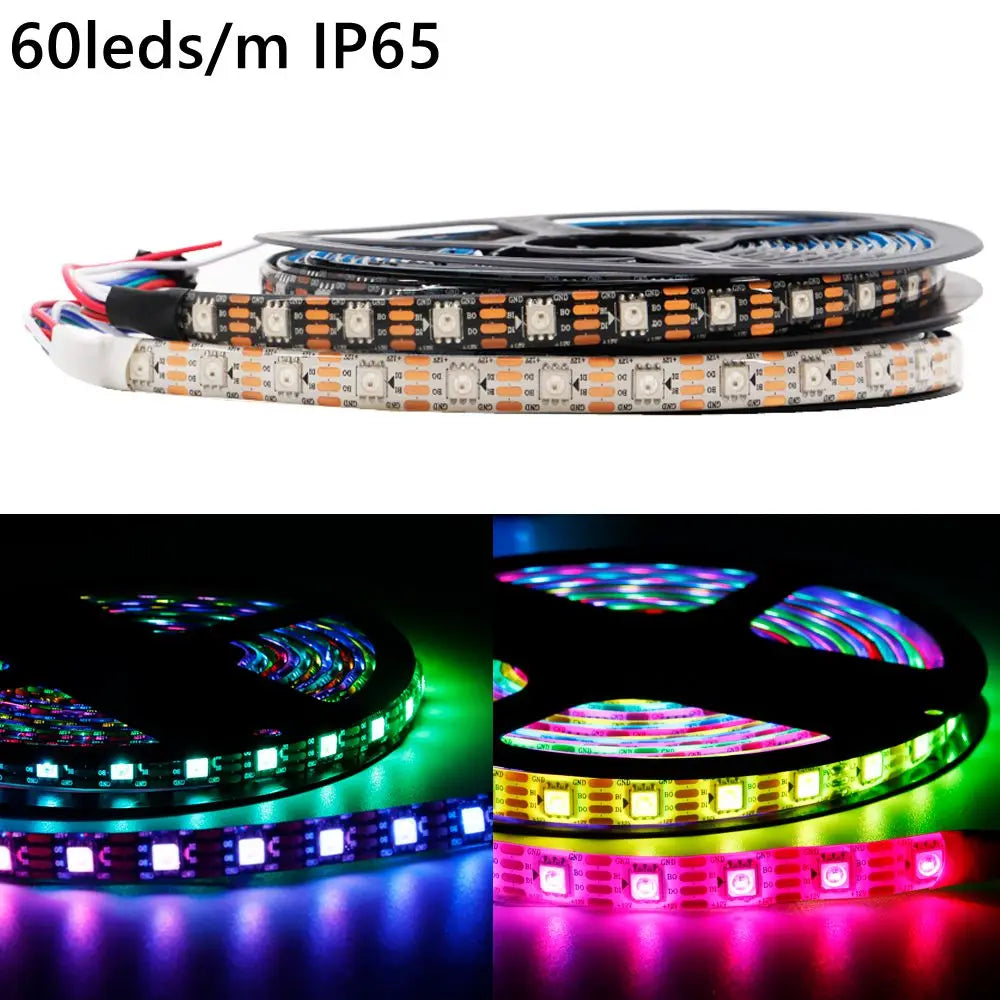

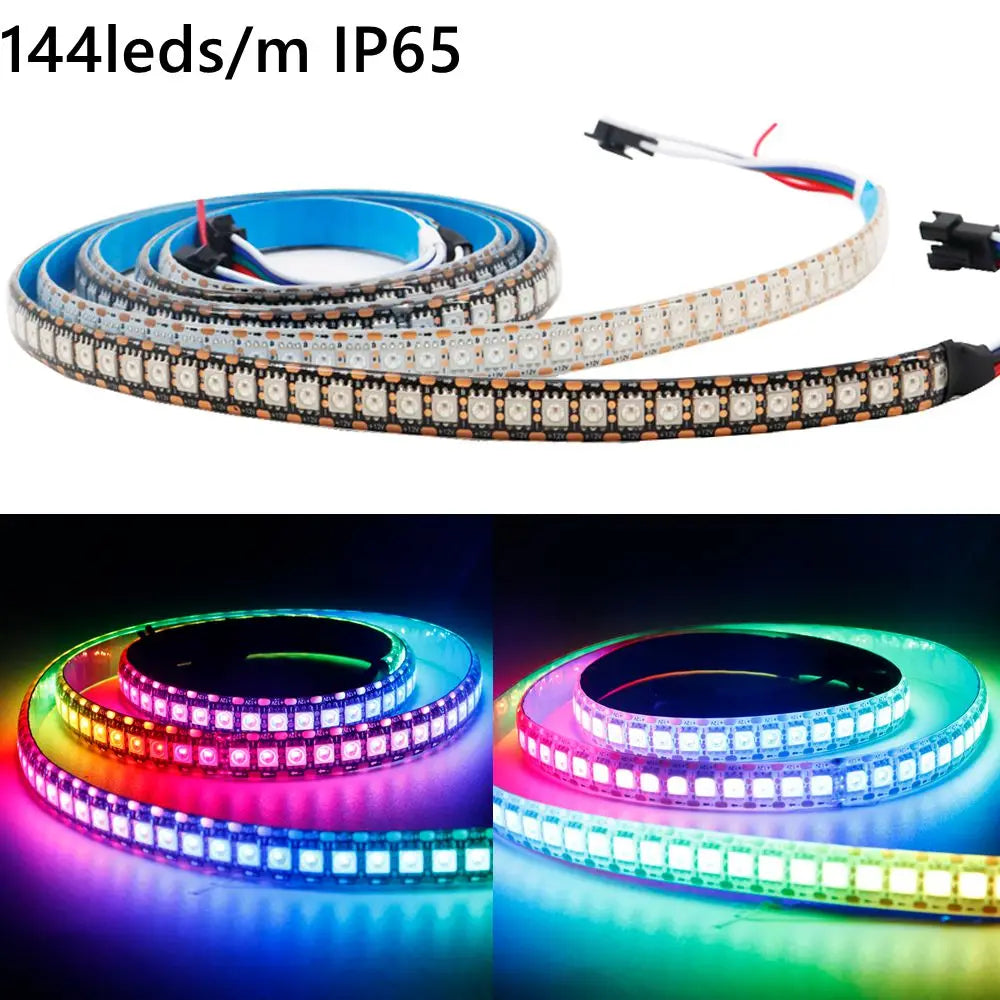

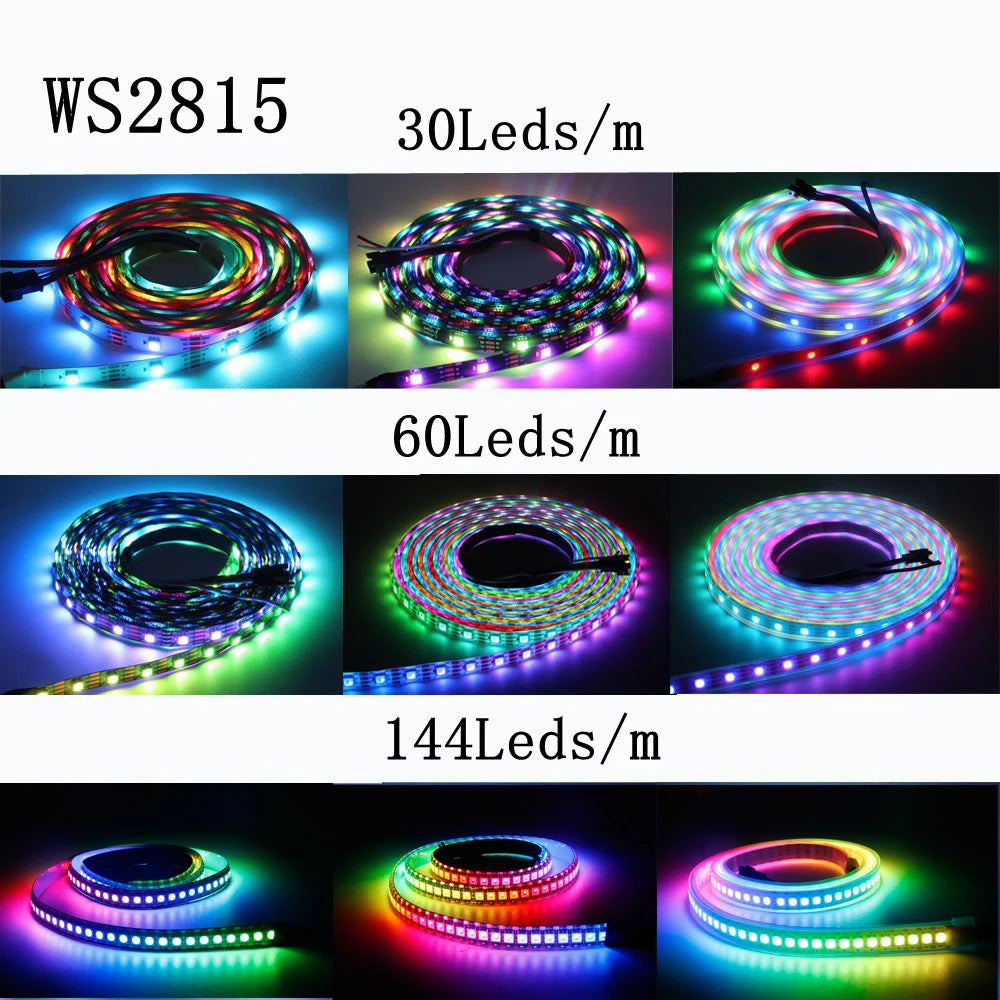

Pixels: .........30/60/144/meter;

Pitch: ........................16.6mm(1000/64);

Grey scale: ...............256;

Bits/color: .................8-bits/color;

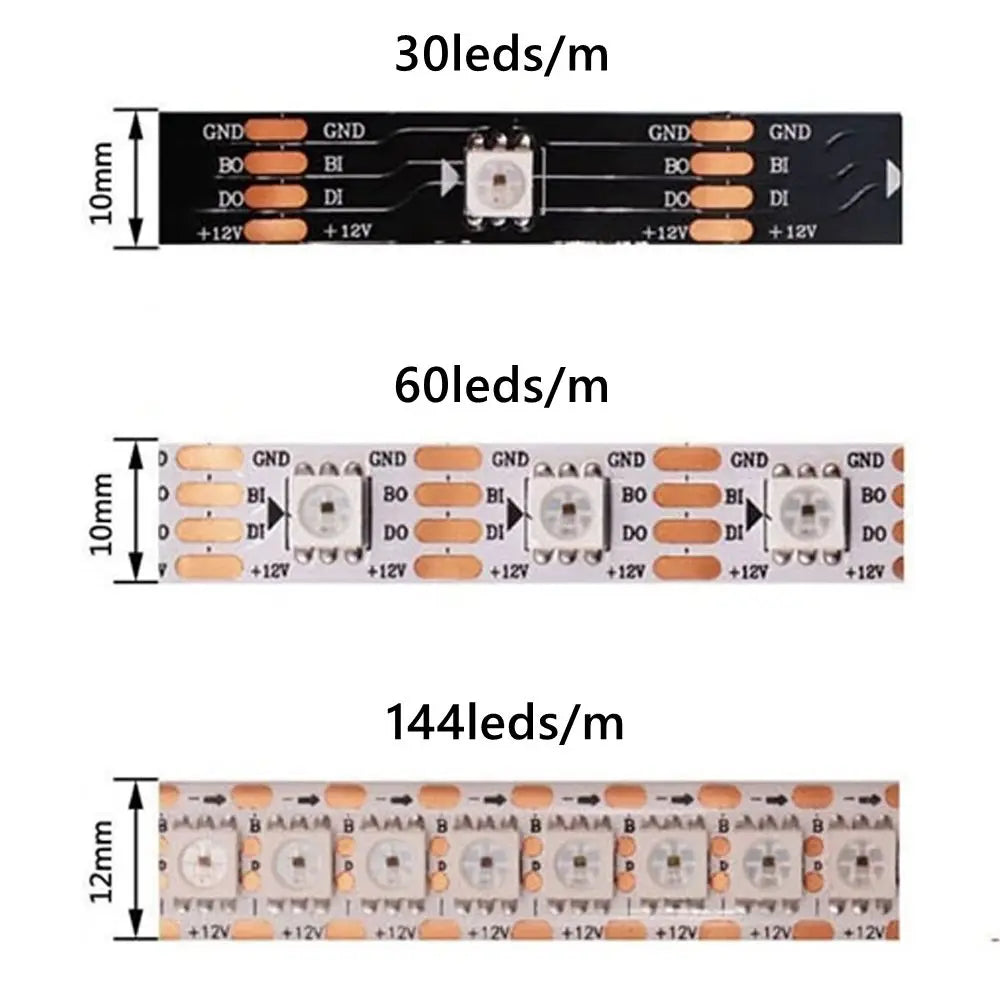

FPC Width: :..............30leds/m----10mm

.......................60leds/m----10mm

......................144leds/m----12mm

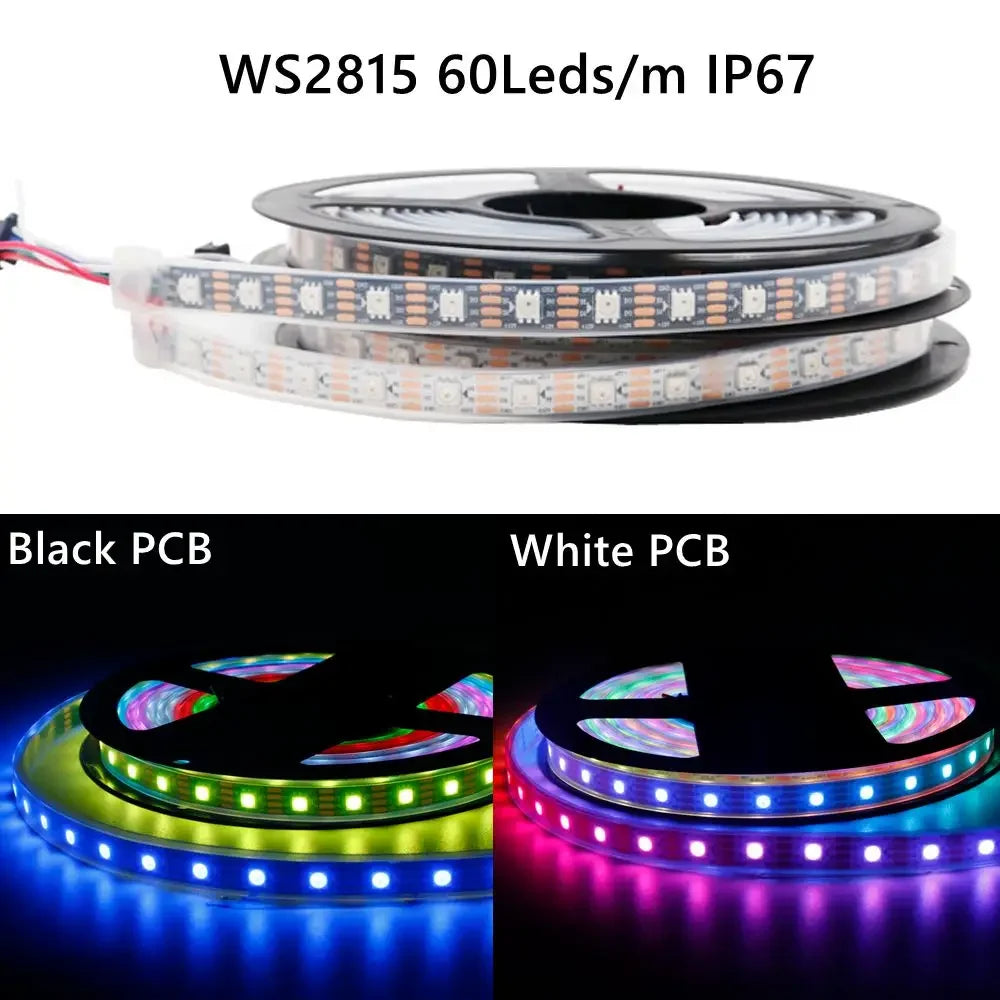

FPC color: .........White/Black PCB

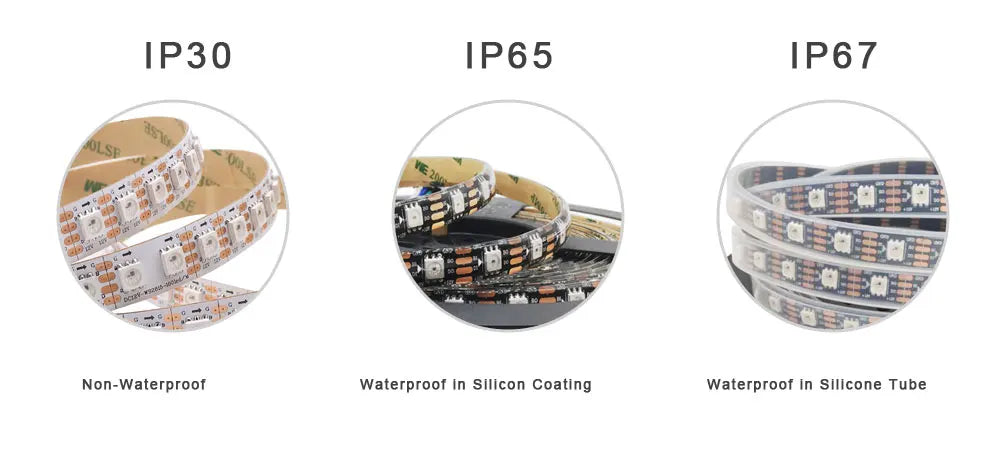

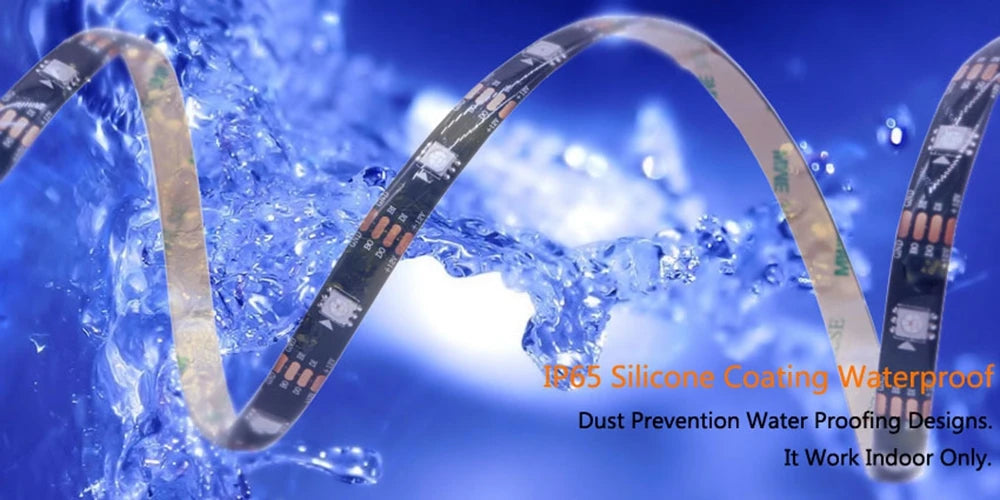

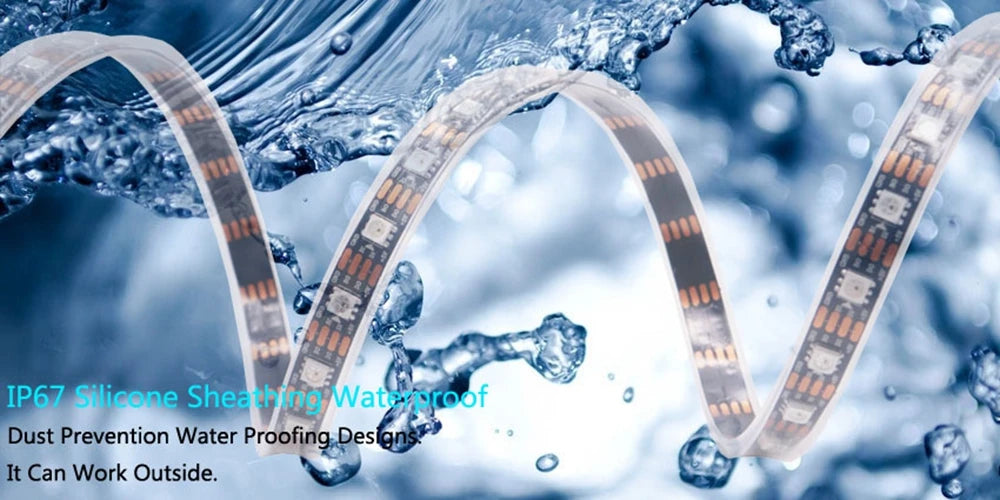

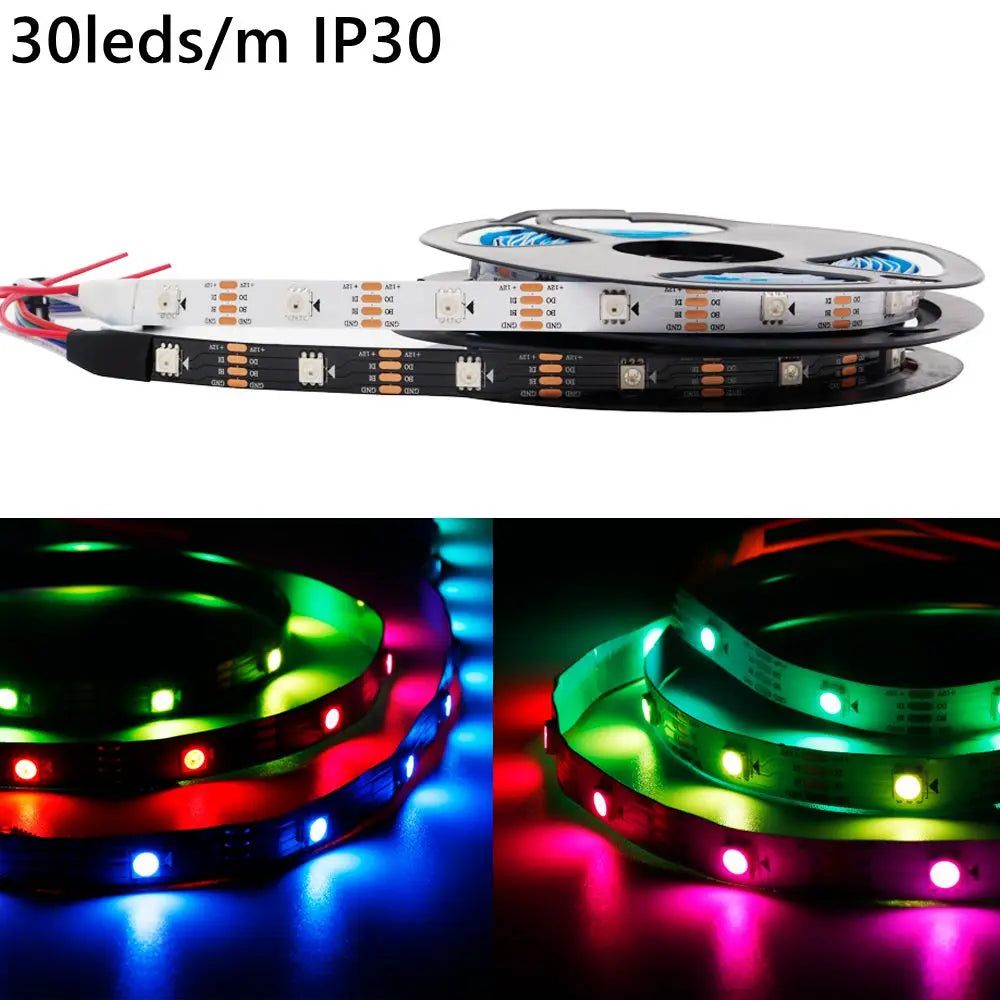

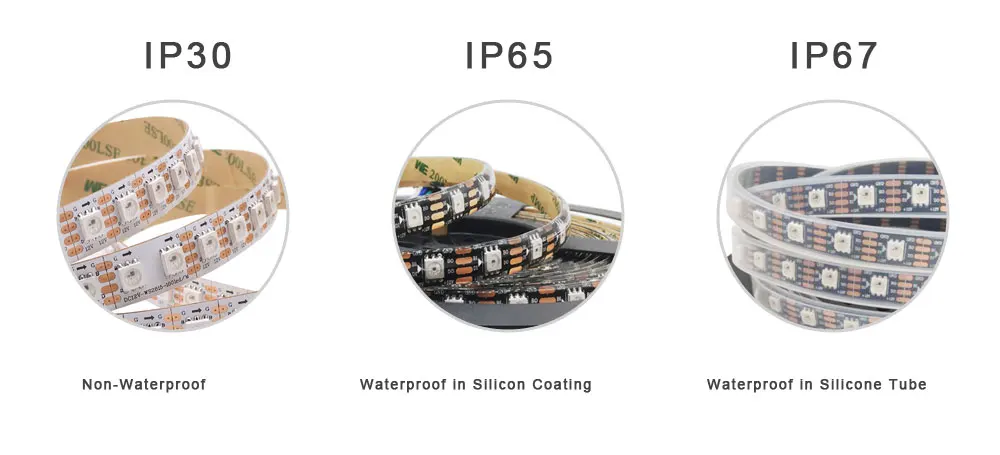

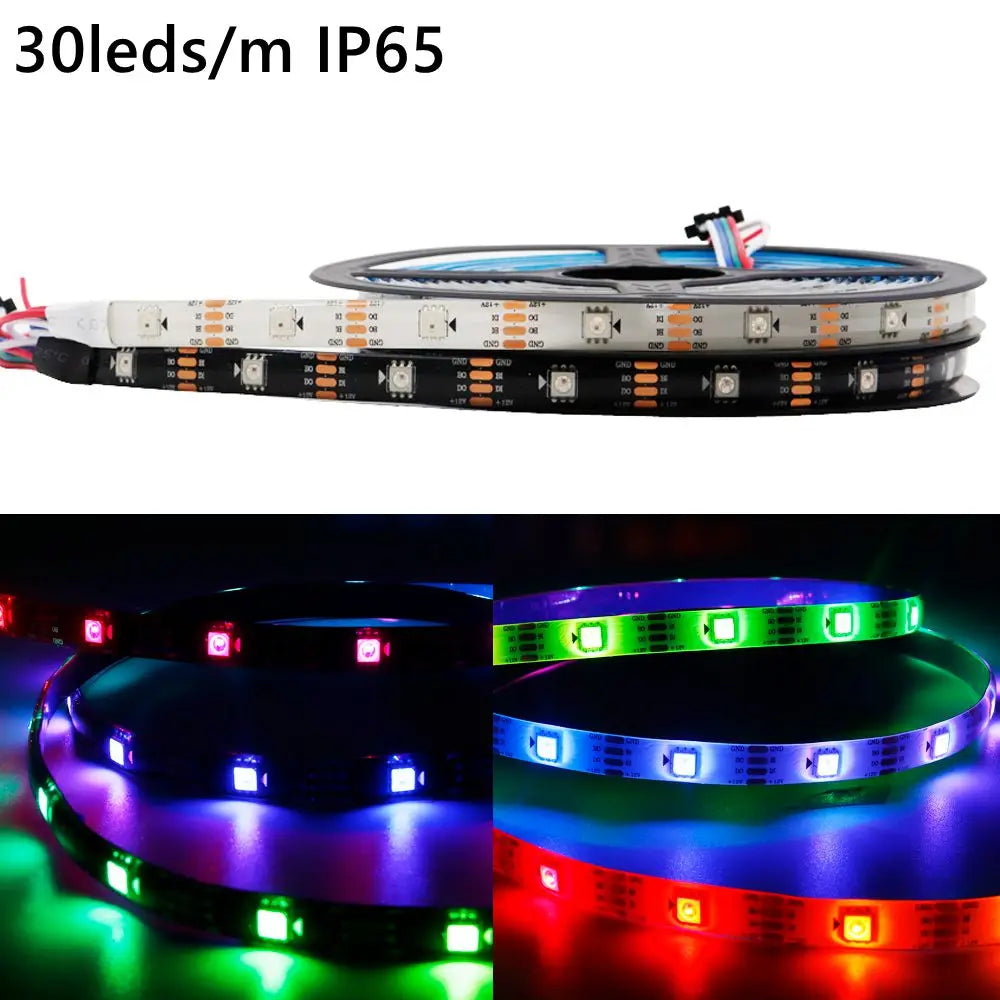

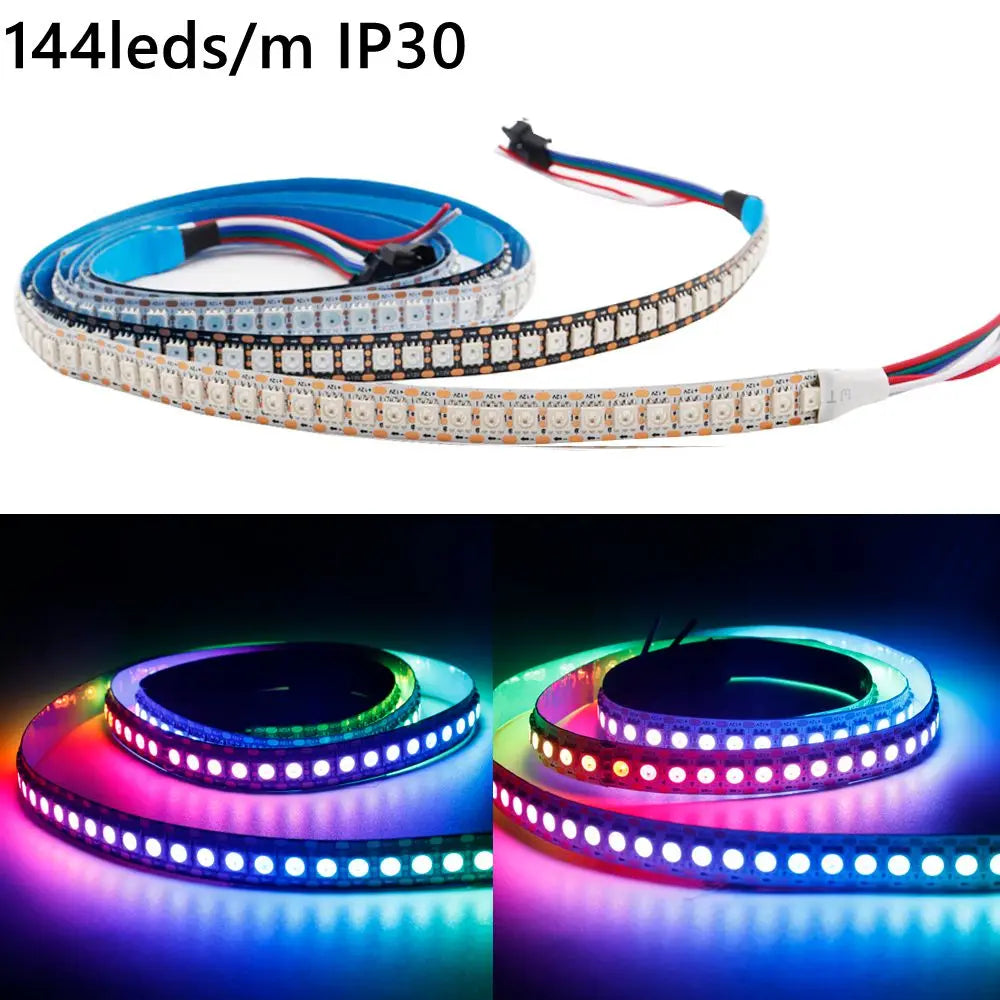

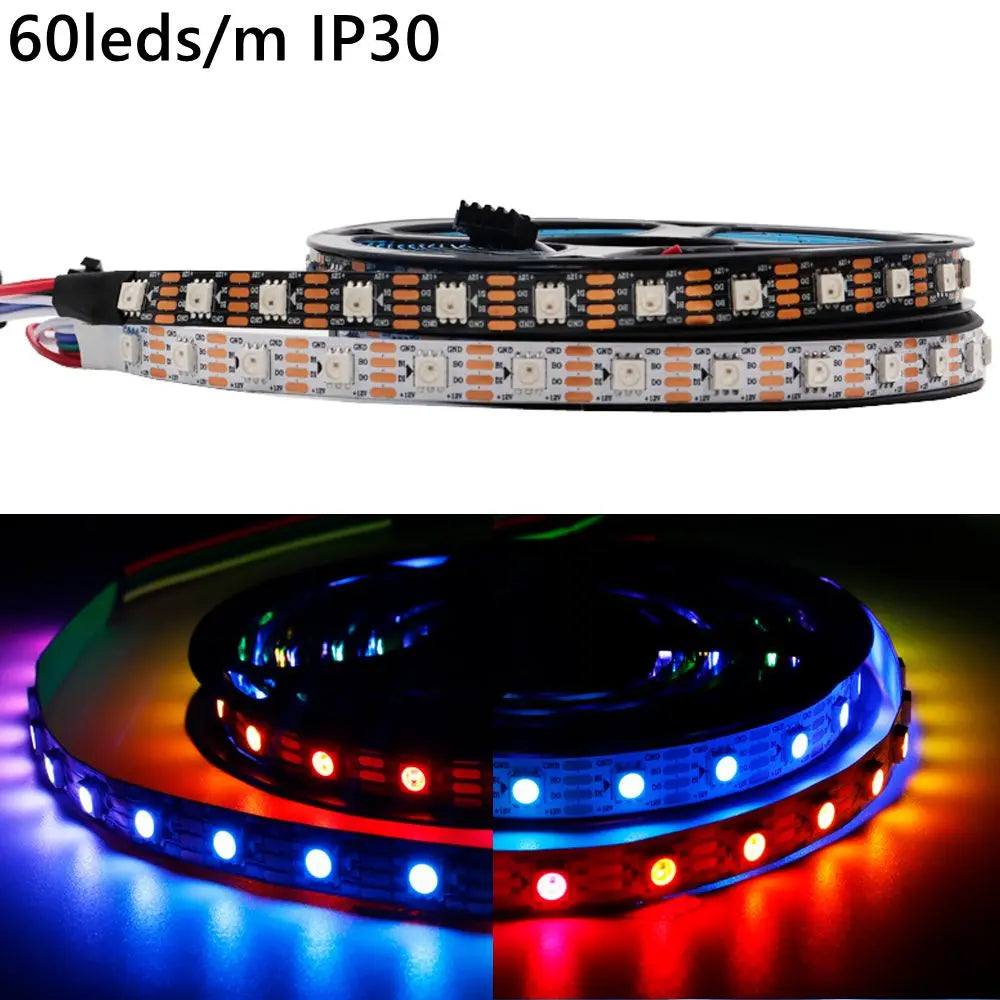

Protection rate ......IP30/ IP65 /IP67

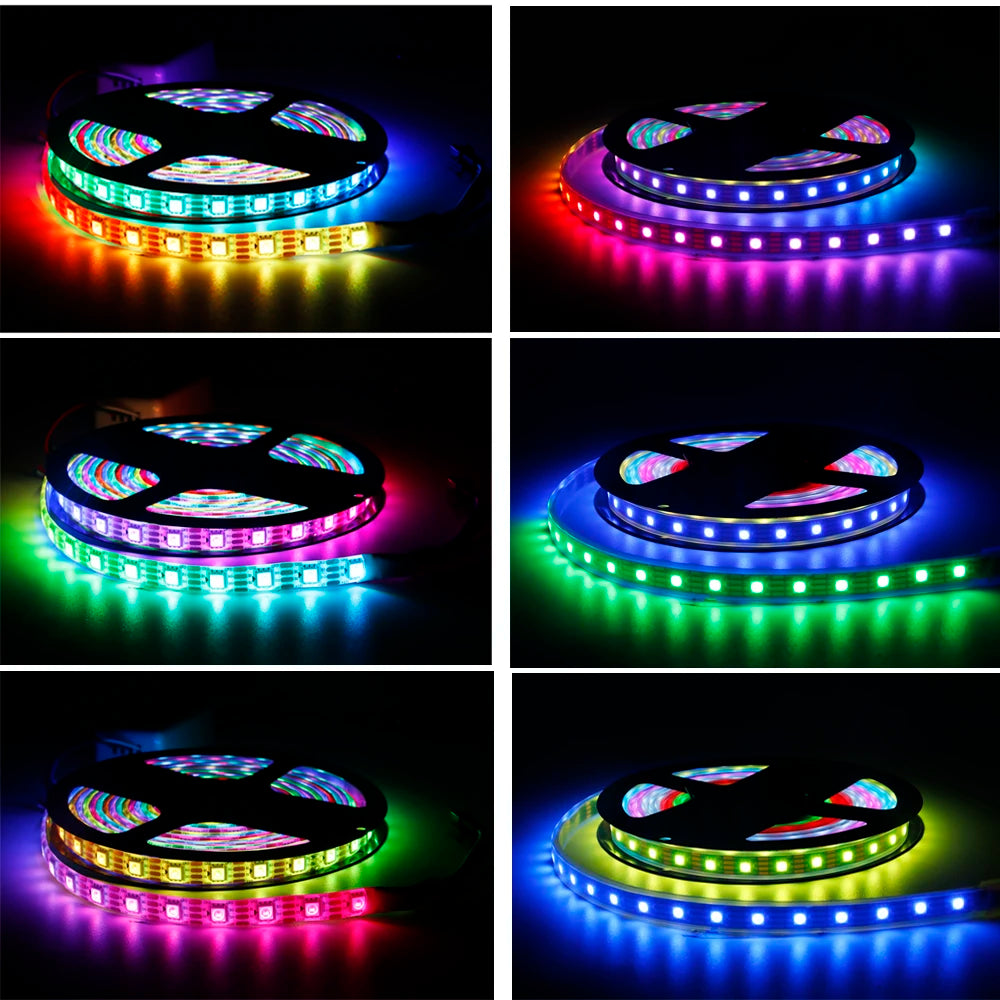

Colors: .......................Full color RGB, dream color changing;

Cuttable:.....................every LED is cuttable;

Package: ...................in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature...............-40 ~ 70 °C

Storage temperature...............-50 ~ 80 °C

Source life ...............50,000 hours

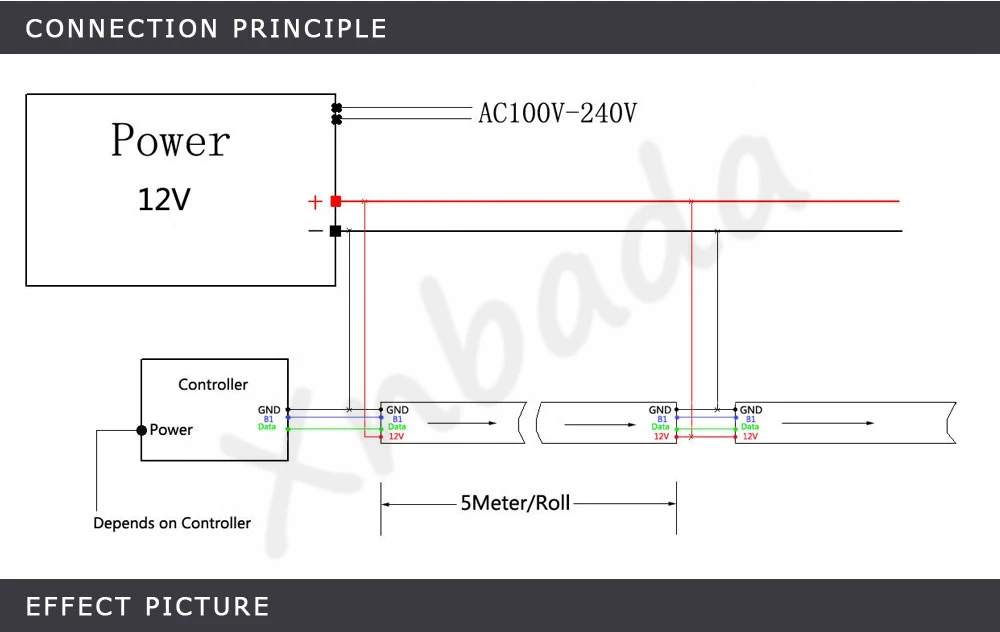

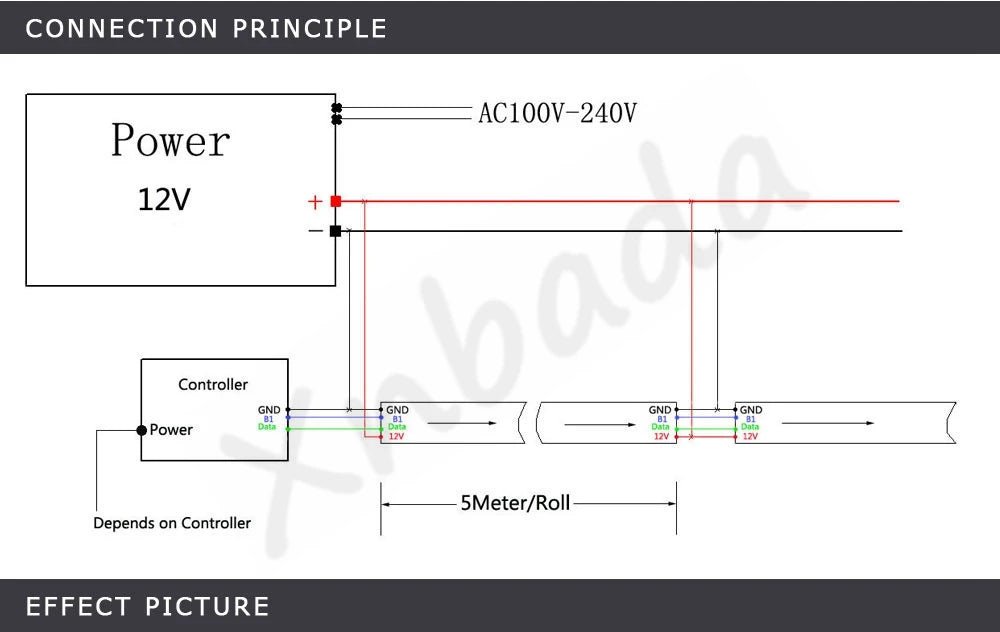

Connector ...............4PIN Connector terminal pair

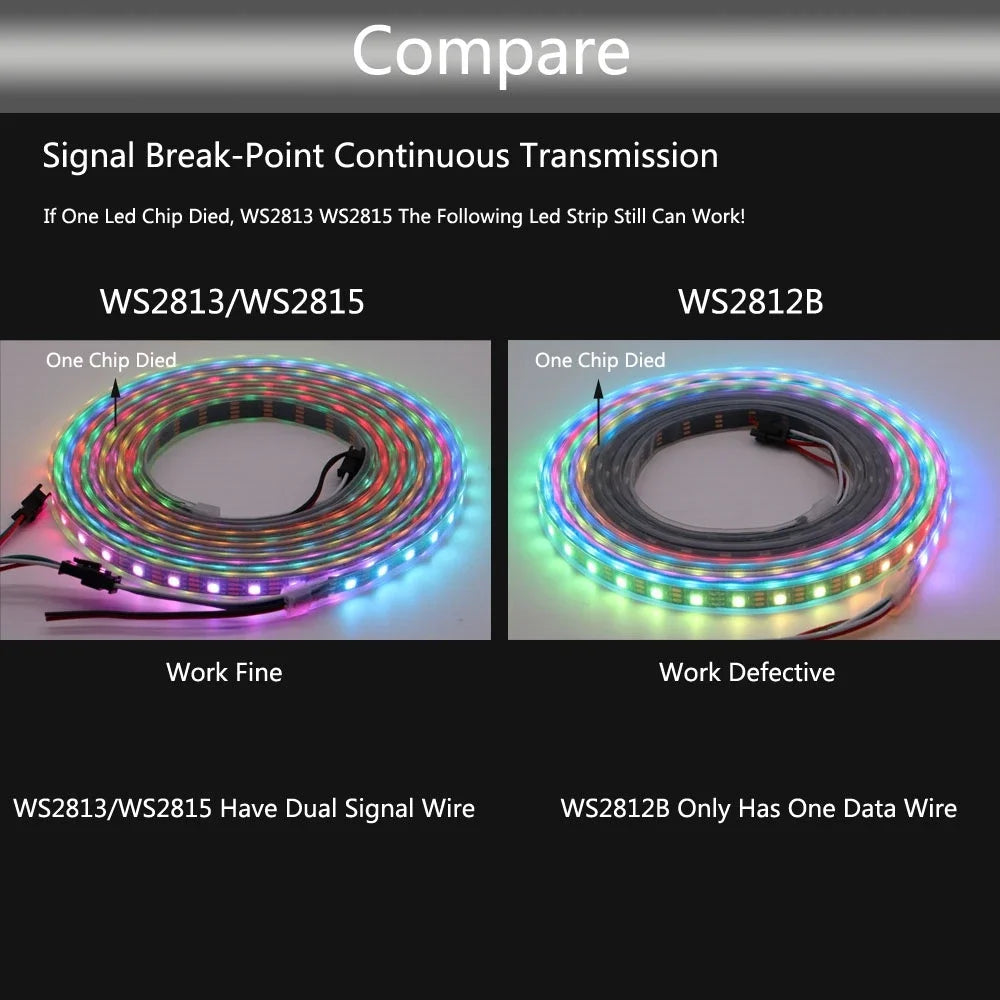

(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)
