SPECIFICATIONS

Average Life (hrs): more than 5000hours

Brand Name: TNALANT

Certification: CCC,EMC,FCC,UL,CE,RoHs

Choice: yes

Color Temp(K): 2200K-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/74/96/144

Luminous Flux: 249-2000

Model Number: WS2815

Nominal Voltage: 12V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/74*96/144

Strip type: SMD

Voltage: 12 V

Waterproof: Yes

semi_Choice: yes

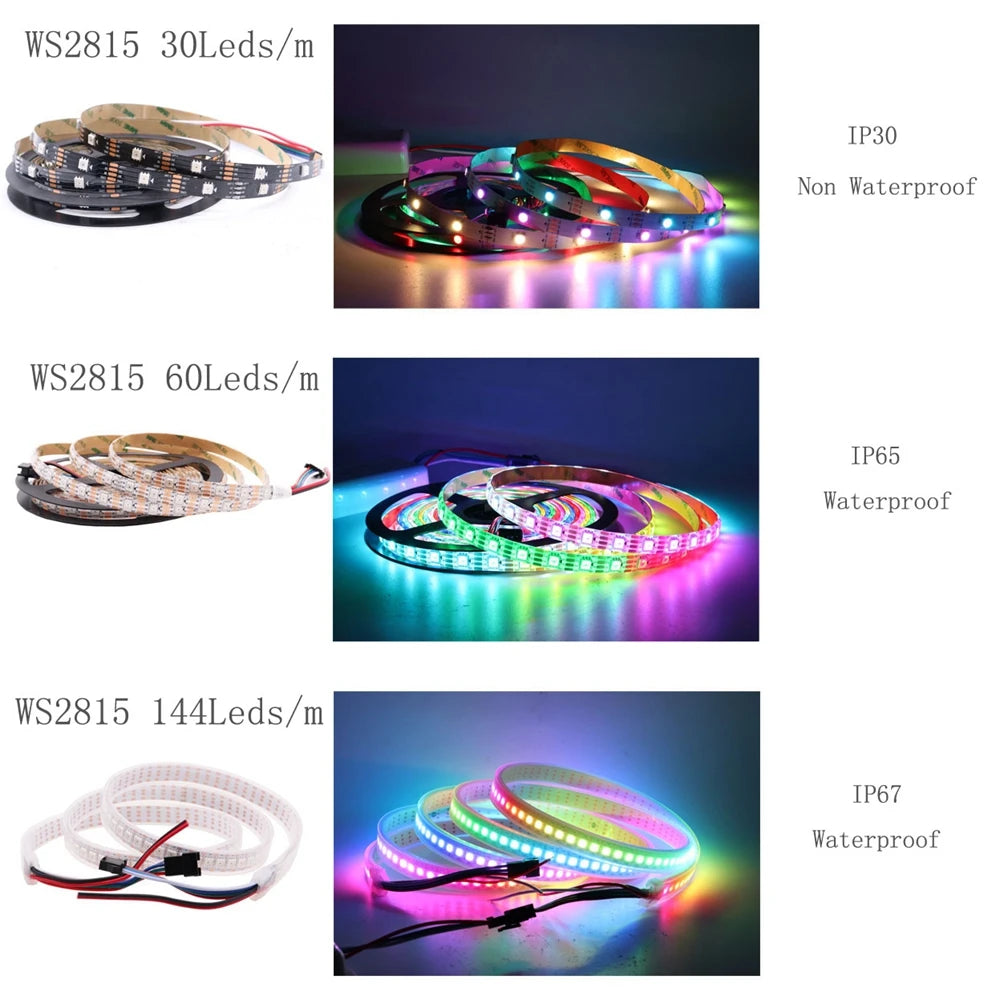

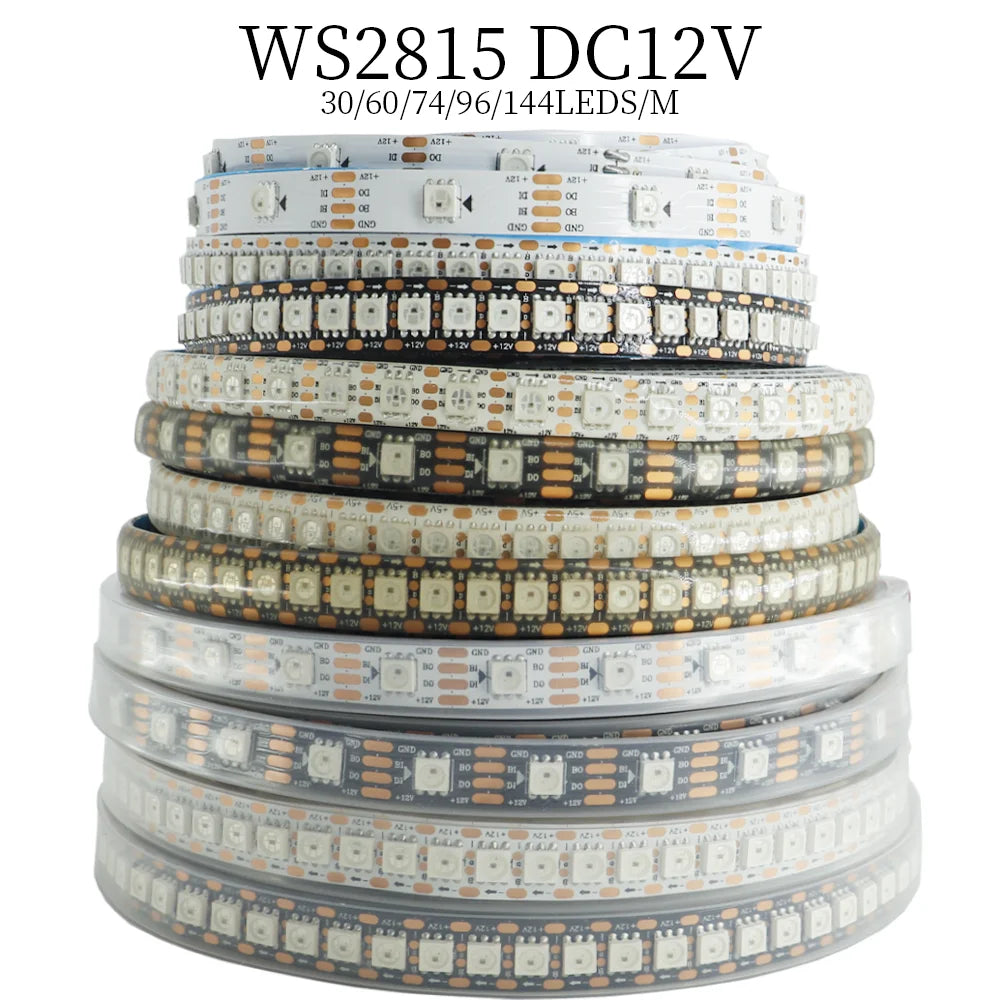

WS2815 Smart Full color RGB led lights strip 1M-5M 30/60/74/96/144leds/m Individually Addressable IC LED strips IP30 IP65 IP67 DC12V

Note:

1.WS2815 led strip must be connected to a DC12V power supply. Exceeding DC12.5V will burn out;

2.This link only has WS2815 LED strip. DC12V power supply and Smart controller not included

3.There are welding points every 0.5 meters. This is quite normal in electronic light strips. It's not a matter of weight

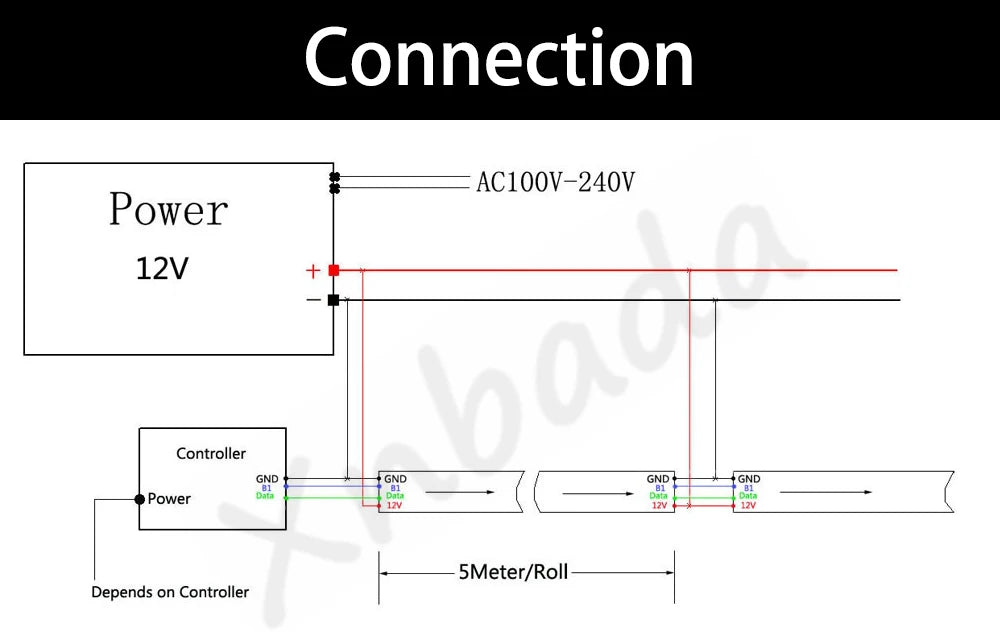

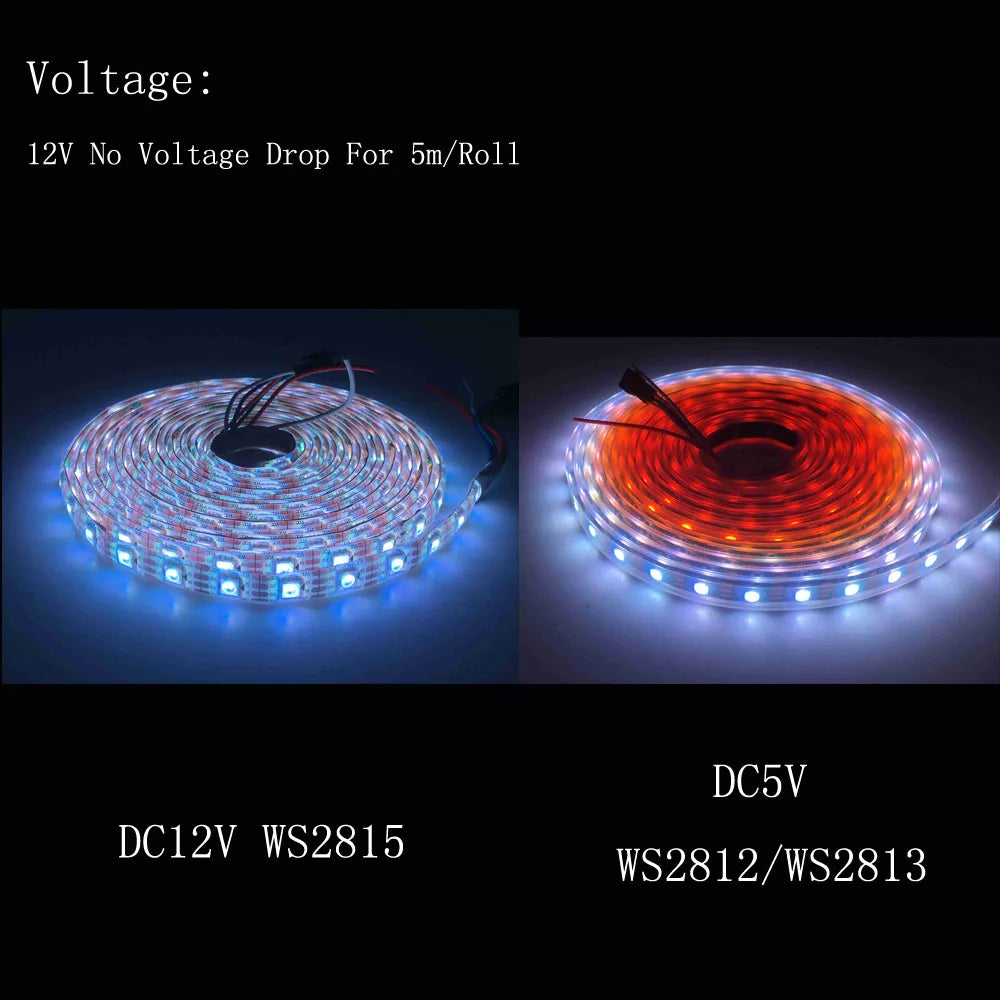

4.That there may be a voltage drop in the 3-meter, 4-meter, and 5-meter LED strips. There may be a voltage drop on the WS2815 144Leds/m light strip, so we need to apply 12V voltage at the end of the red and white cable;

DC12V WS2815 LED lights strip:

Input voltage:DC12V;

Power:30leds/M----9watt/meter

60leds/M----18watt/meter

74leds/M----22.2watt/meter

96leds/M----28.8watt/meter

144leds/M----34watt/meter

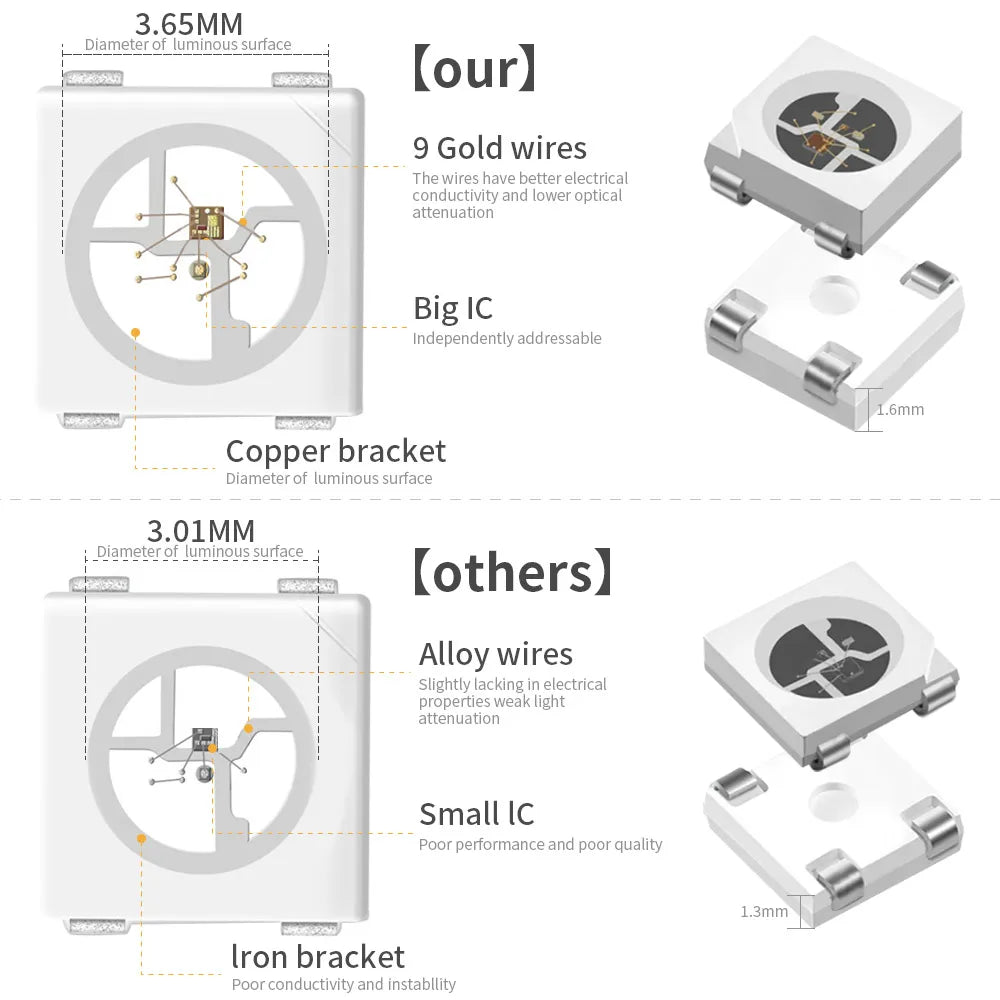

LED resource:WS2815 led(5050 SMD RGB LED with built-in improved version of WS2811 IC)

LED: Each LED is separately controlled

IC Type: Improved Version WS2815 IC(built inside the 5050 SMD RGB led)

Of IC:(1 IC drives 1 led chip);

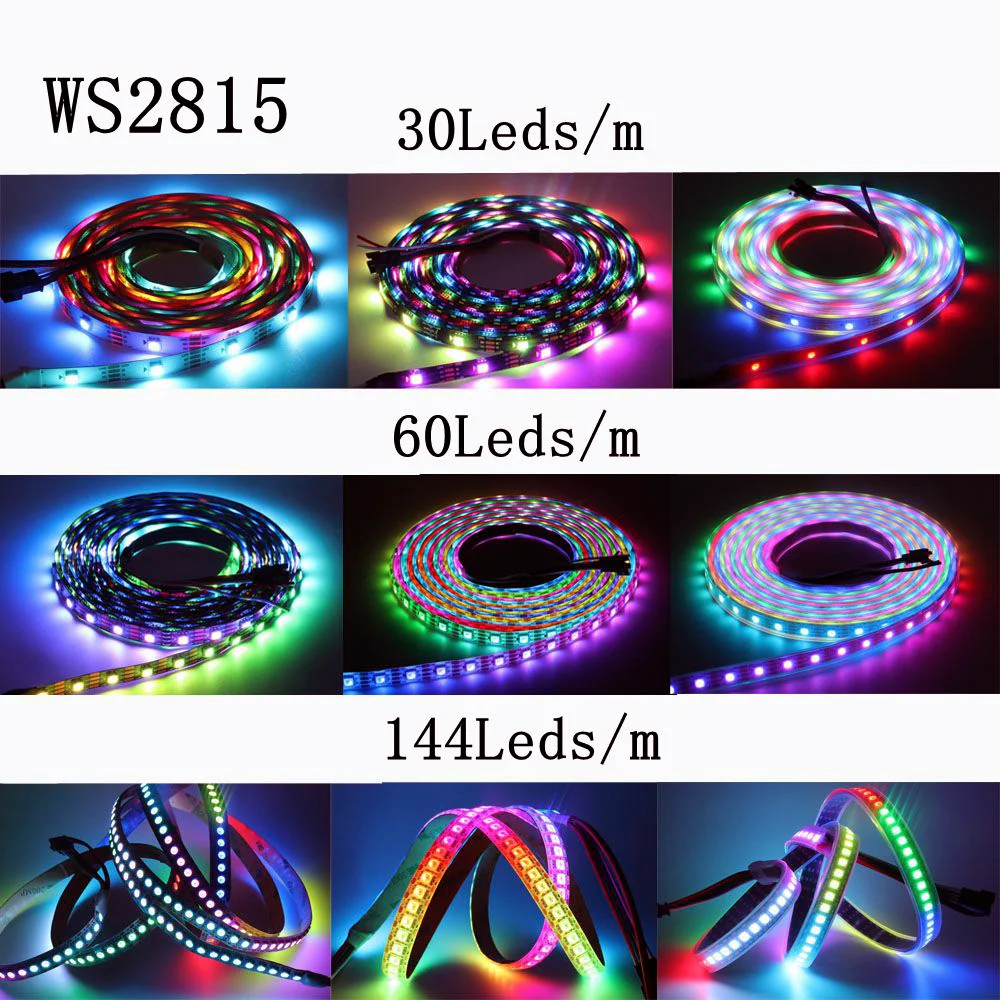

Pixels:30/60/74/96/144/meter;

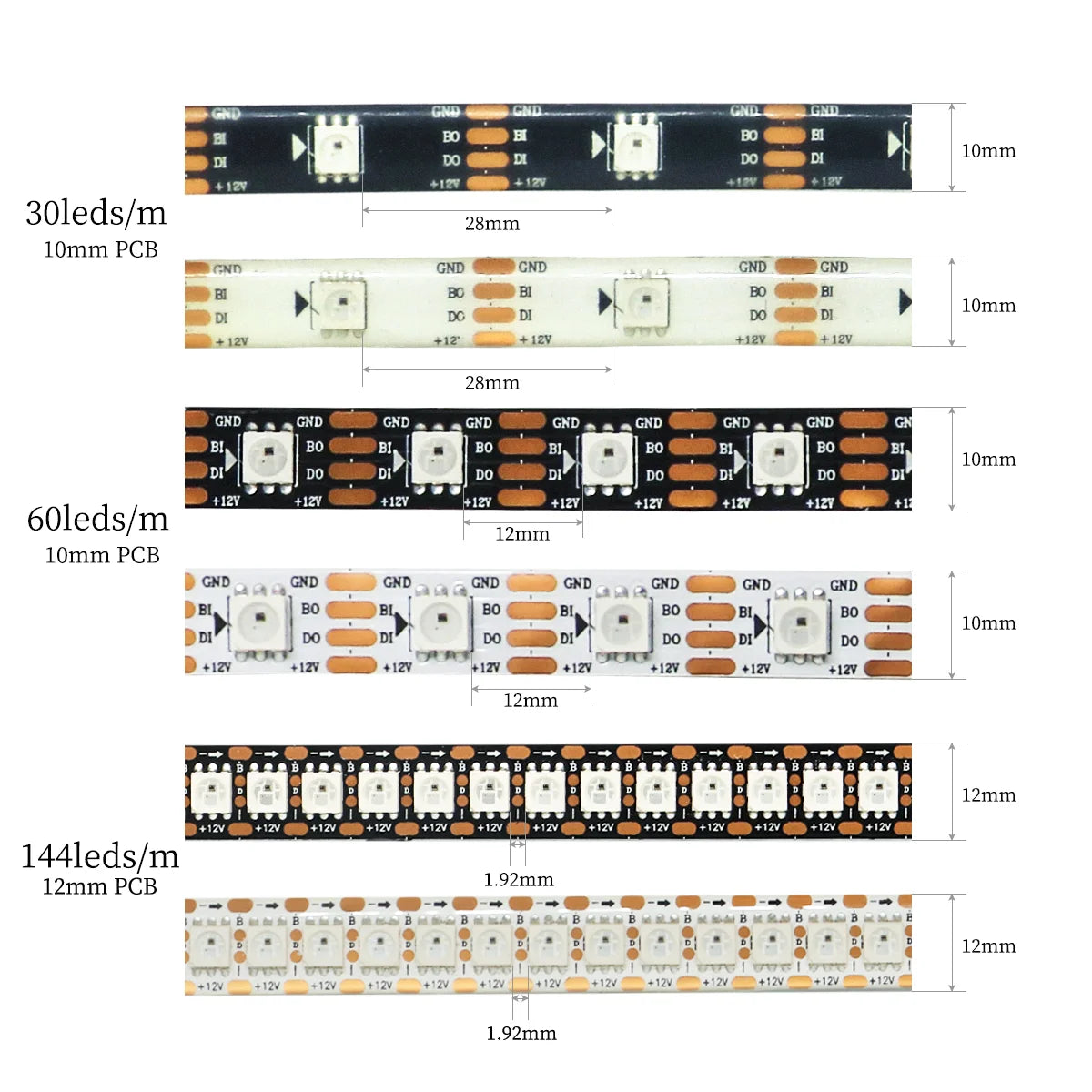

Pitch:16.6mm(1000/64);

Grey scale:256;

Bits/color:8-bits/color;

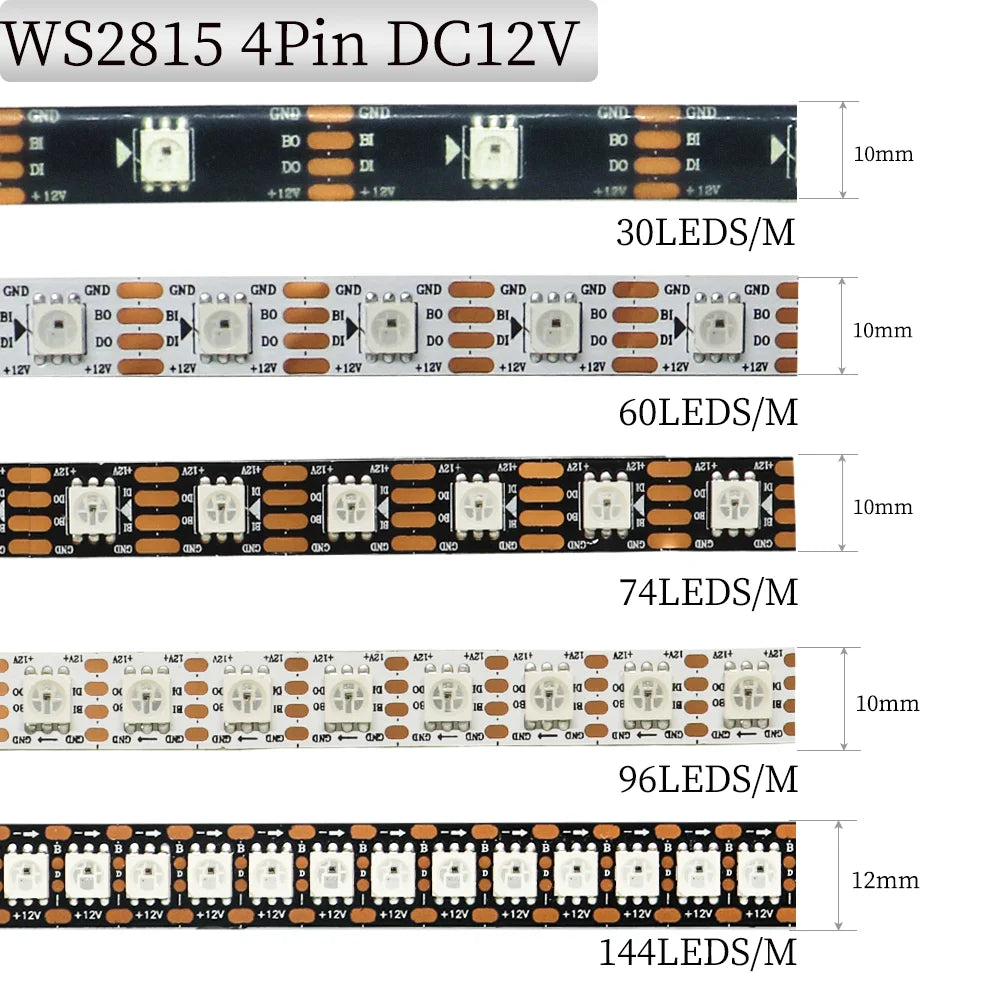

FPC Width: :30leds/M--10mm

60leds/M--10mm

74leds/M--10mm

96leds/M--10mm

144leds/M--12mm

FPC color: White PCB/Black PCB

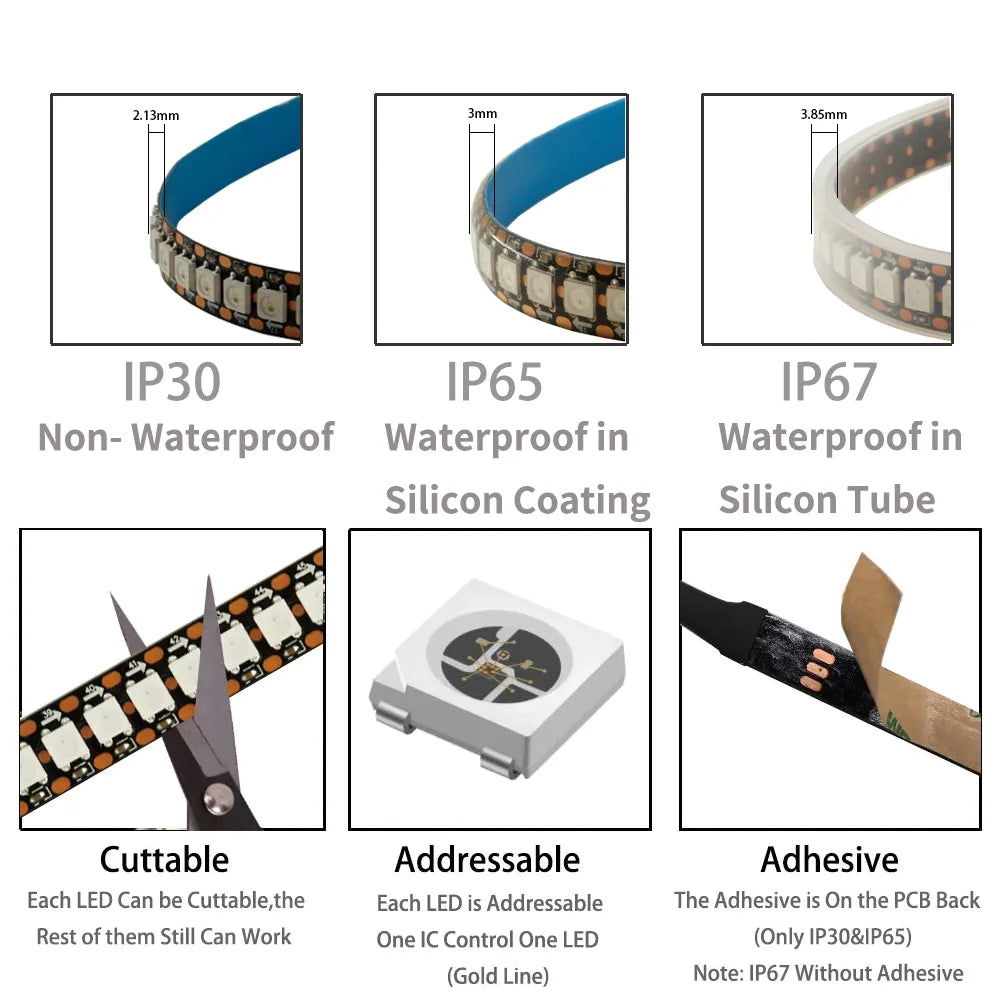

Protection rate:IP30/ IP65 /IP67

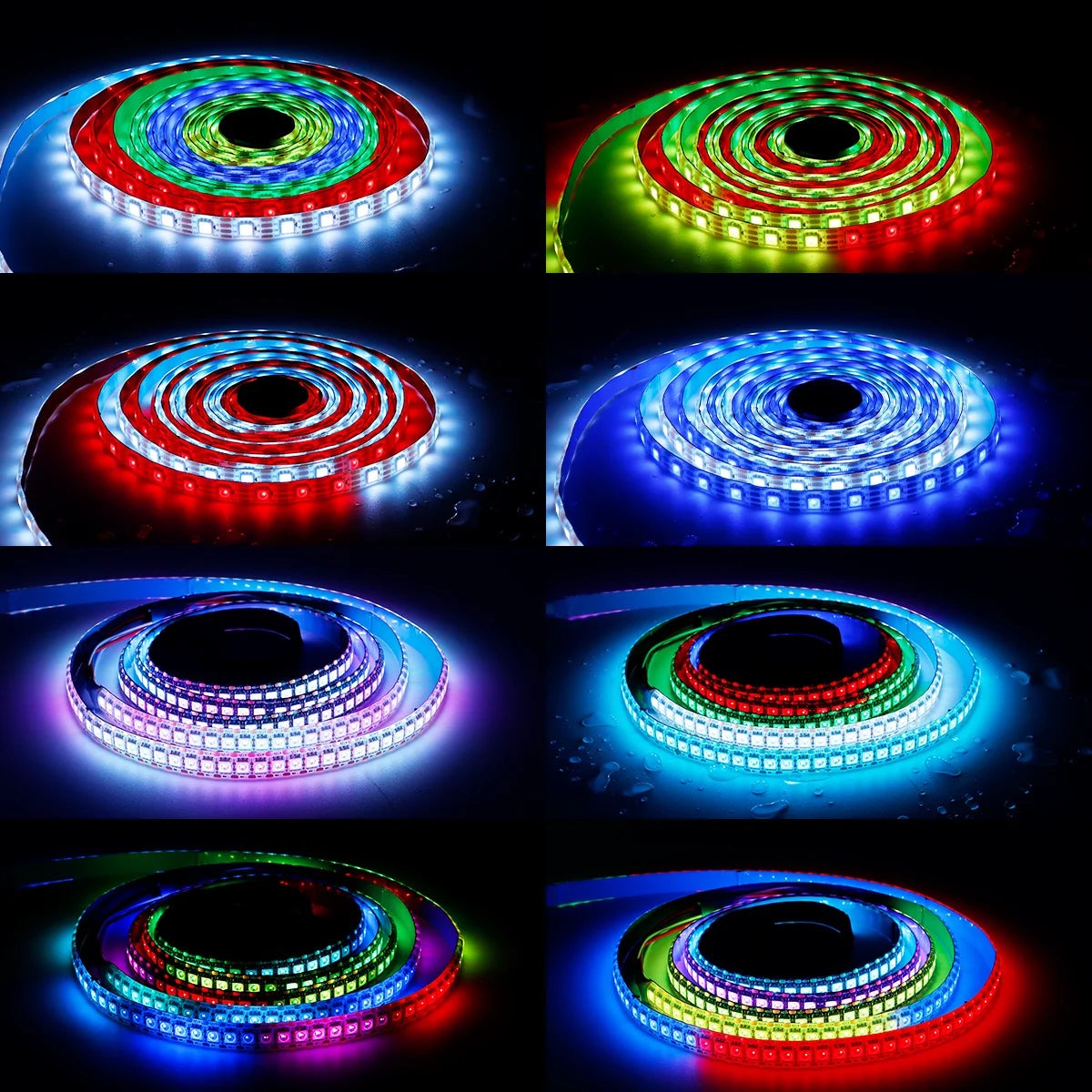

Colors: Dream color changing; Full color RGB,

Cuttable: every LED is cuttable;

Package: In anti-static bag,IP30 IP65 with 3M Adhesive tape on the back(IP67 without 3M Adhesive)

Working temperature:-40 ~ 70 °C

Storage temperature:-50 ~ 80 °C

Source life:50,000 hours

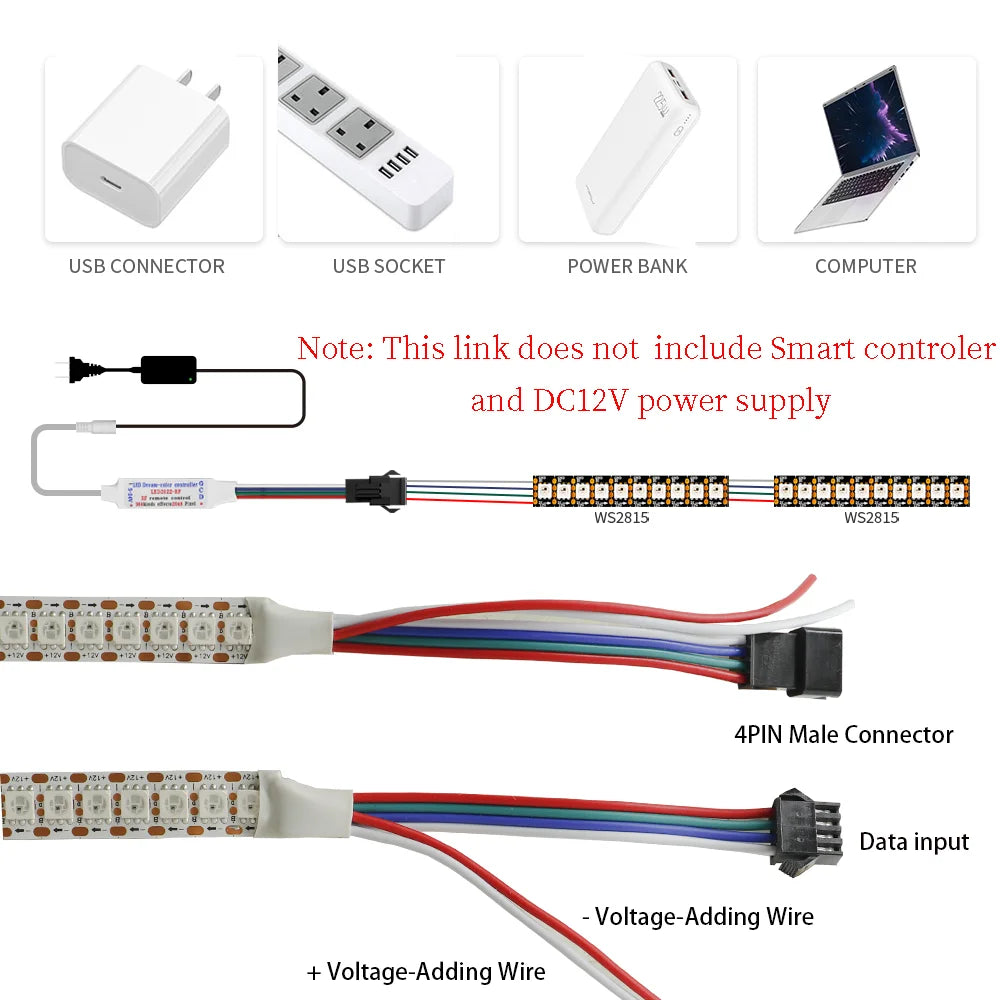

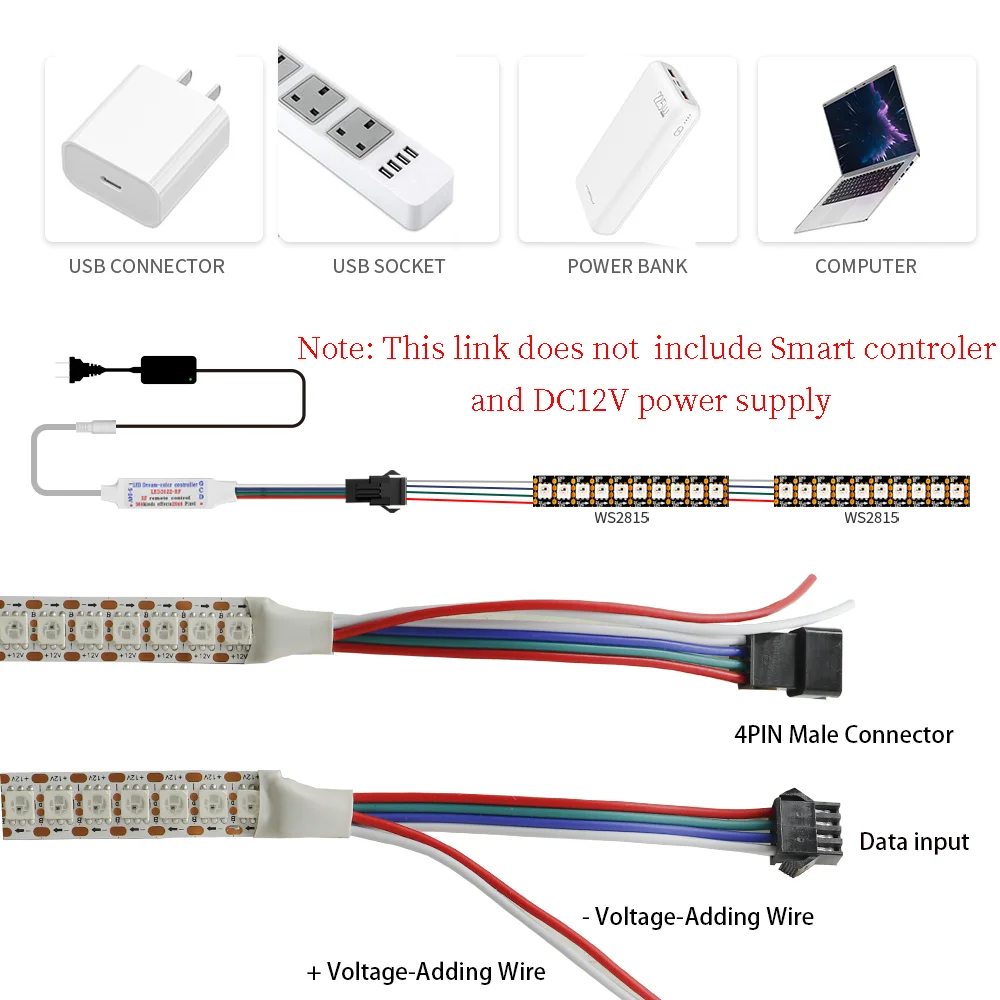

Connector:4PIN Connector terminal pair

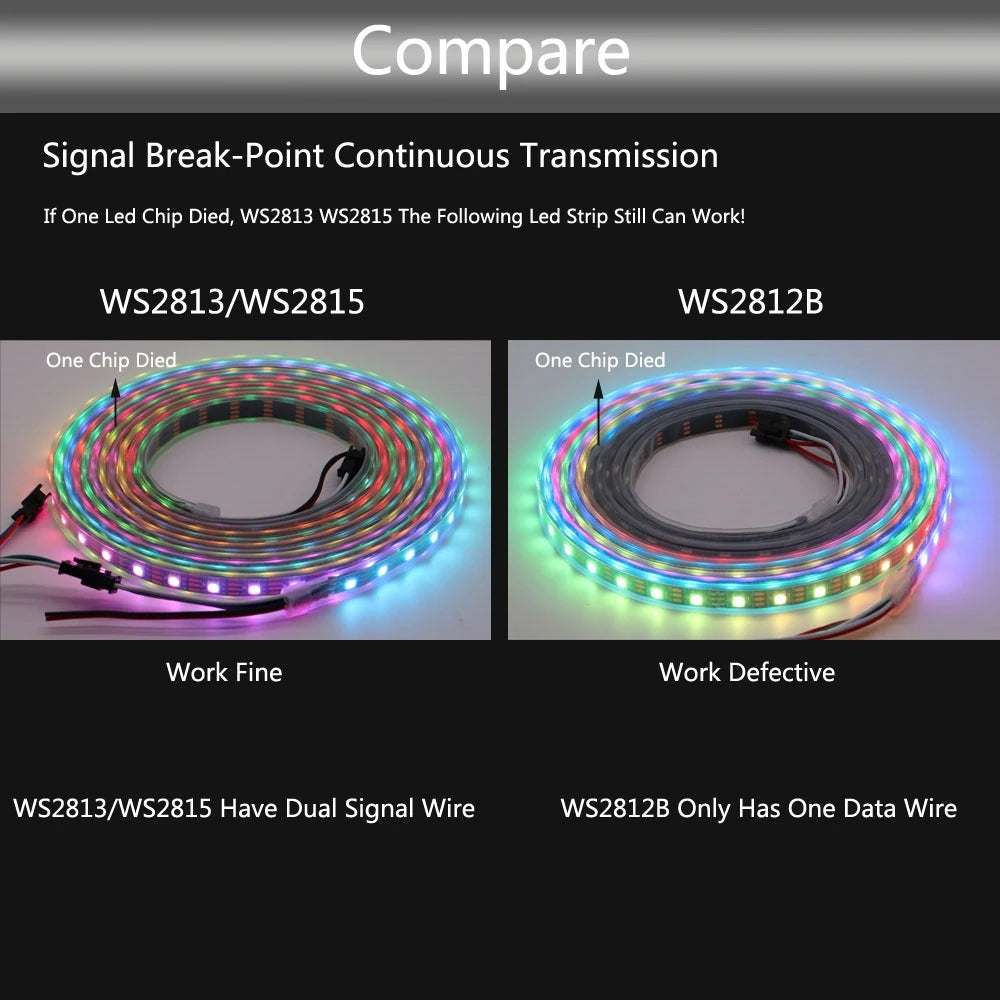

(Red: 12V power , Green: Date line, Blue: standby date line, Black: GND)
