SPECIFICATIONS

Brand Name: Winsen

High-concerned chemical: none

Origin: Mainland China

WSP2110 VOC gas sensor adopts multilayer thick film manufacturing technology. The heater and metal oxide semiconductor material on the ceramic substrate of subminiature Al2O3 are fetched out by electrode down-lead, encapsulated in metal socket and cap. Conductivity of the sensor is affected by the concentration of target gas. The higher the concentration is, the higher conductivity of sensor gets. Users can adopt simple circuit to convert variation of conductivity into output signal corresponding to gas concentration.

Application

It is used in automatic exhaust device, air cleaner in domestic occasion for harmful gas detection.

Features

High sensitivity to organic gases such as toluene, benzene, methanal; quick response and recovery; low power consumption, simple detection circuit, good stability and long life.

Specifications

Model			WSP2110
Sensor Type			Semiconductor flat surfaced sensor
Standard Encapsulation			Metal Cap
Detection Gas			toluene, methanal, benzene, alcohol, acetone &etc.
Detection range			1～50ppm
Standard circuit	Loop voltage	VC	≤24V DC
	Heating voltage	VH	5.0V±0.1V AC or DC
	Load resistance	RL	Adjustable
sensor features in standard test condition	Heating resistance	RH	90Ω±10Ω(Room Tem.)
	Heating consumption	PH	≤300mW
	Surface resistance	RS	10KΩ～100KΩ(in 10ppm toluene)
	Sensitivity	S	Rs(in air)/Rs(in 10ppm toluene)≥3
	Concentration slope	α	≤0.6(R50ppm/R5ppm toluene)
Standard condition of test	Temperature, humidity		20℃±2℃;65%±5%RH
	Standard test circuit		VC:5.0V±0.1V; VH:5.0V±0.1V
	Warm-up time		Not less than120 hours

Free Shipping Over $199

Standard Shipping: Standard Shipping (12–18 Business Days)
Express Shipping: Expedited Shipping (5–9 Business Days)
Free Shipping: Orders over $199 qualify automatically
Tracking: Full tracking number provided for all orders

30-Day Return Policy

Returns: 30-day hassle-free return window
Condition: Items must be unused and in original packaging
Refund: Full refund processed within 3-5 business days

Why Choose Us?

Factory Direct: ISO/TS 16949 certified manufacturer
Quality: 100% electrical continuity tested before shipment
Experience: 15+ years in automotive connector industry
Support: Professional technical support available

Secure Payment Latest encryption technology

Money-Back Guarantee 30-day hassle-free returns

Quality Assured Factory certified products

Global Fast Shipping Worldwide express delivery

Contact us

Subscribe to our emails

Be the first to know about new collections and special offers.

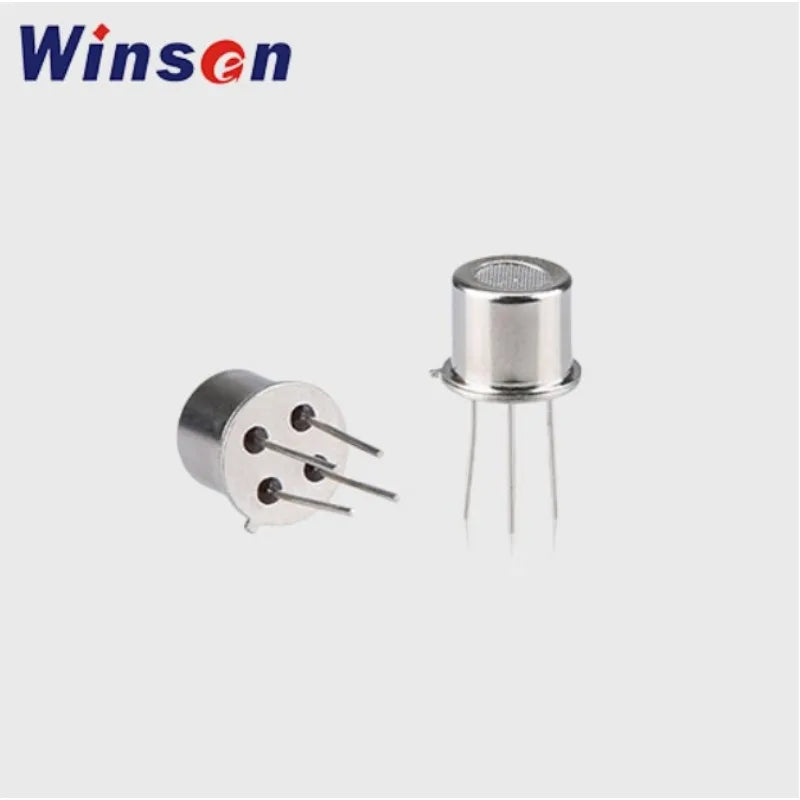

WSP2110 VOC Gas Sensor Air Cleaner in Domestic Occasion for Harmful gas Detection
