【Note】

[] X1008 is designed for data storage and does not support booting from HDD/SSD

[] New hard drives do not have partitions and need to be partitioned and formatted on first use before they can be accessed in Explorer.

[] Please use a DC 12V power adapter to power both X1008 and Pi5 through DC5521Jack. No additional power supply is needed for Pi5 (please note that the voltage required for 3.5-inch hard disk is 12V)

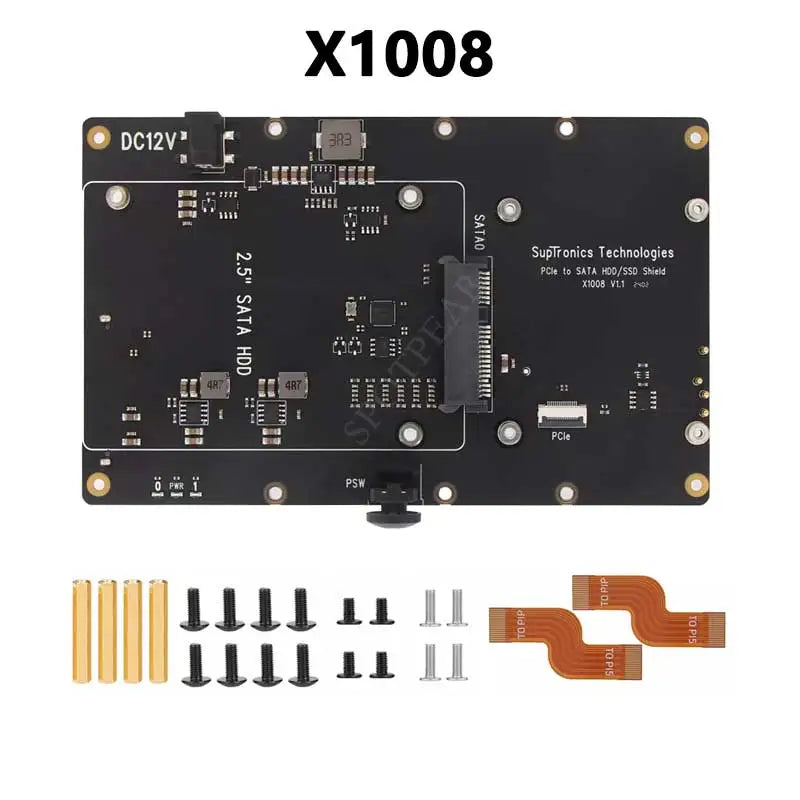

【Product Introduction】

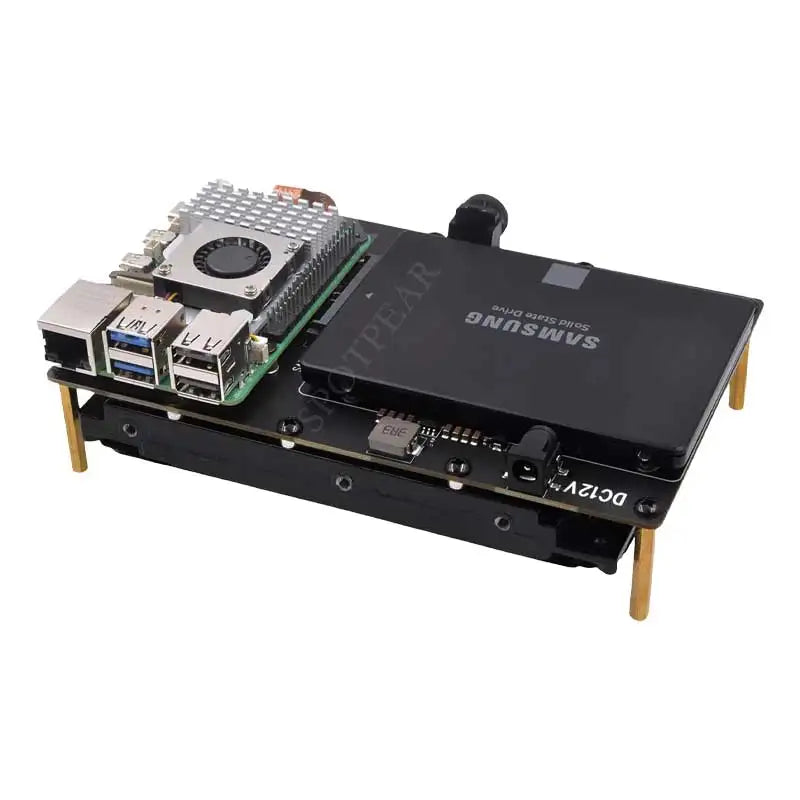

[] X1008 is a PCIe to dual SATA HDD/SSD expansion board designed for Raspberry Pi 5. It supports one 3.5-inch HDD and one 2.5-inch HDD/SSD, providing a large-capacity storage and high-speed storage solution for your Raspberry Pi 5, giving full play to the storage capacity. The SATA 3.0 interface speed can reach up to 5Gbps.

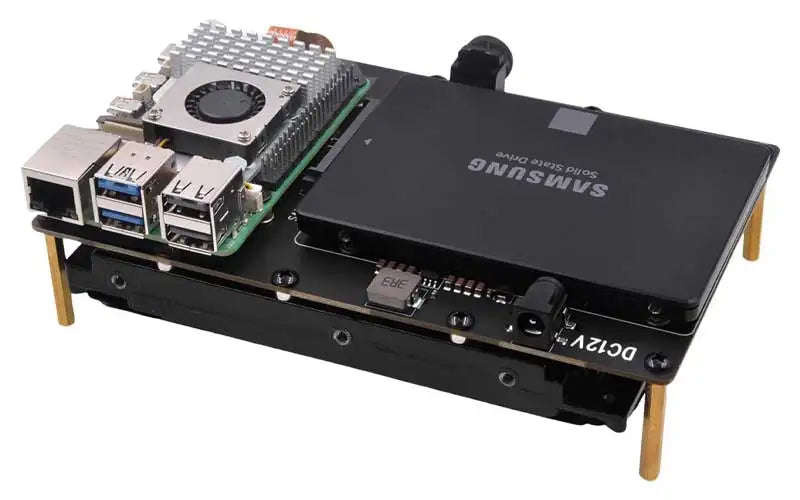

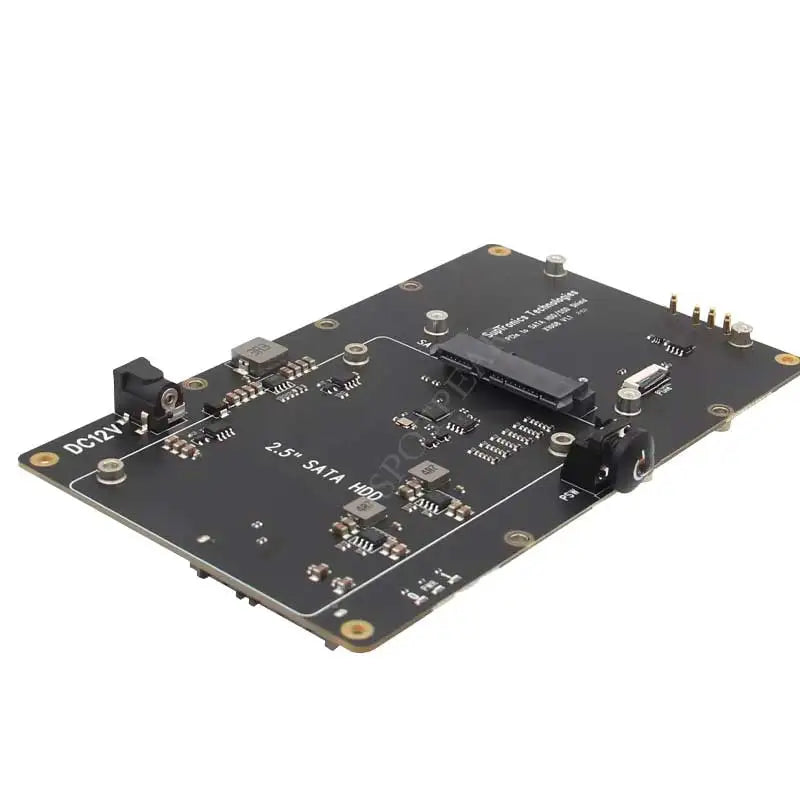

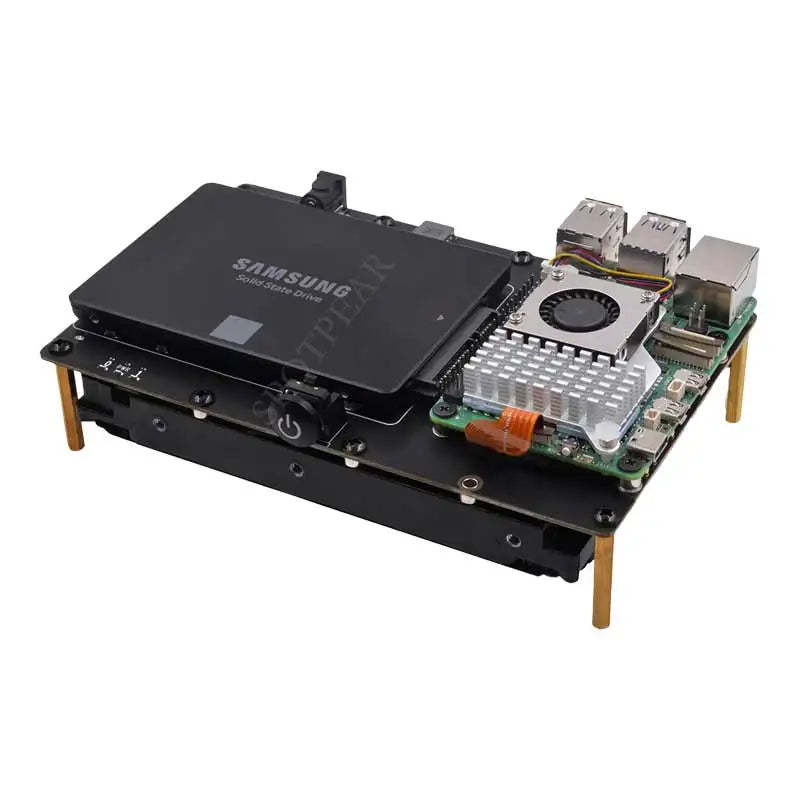

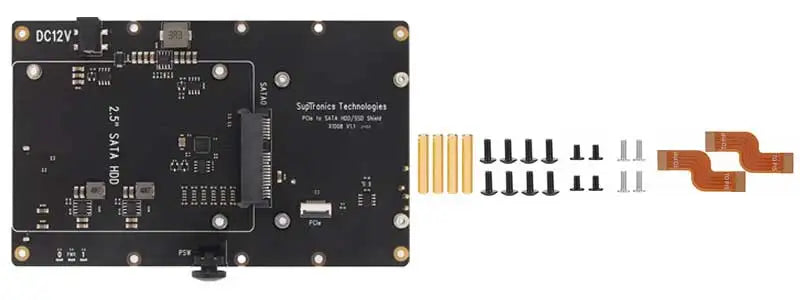

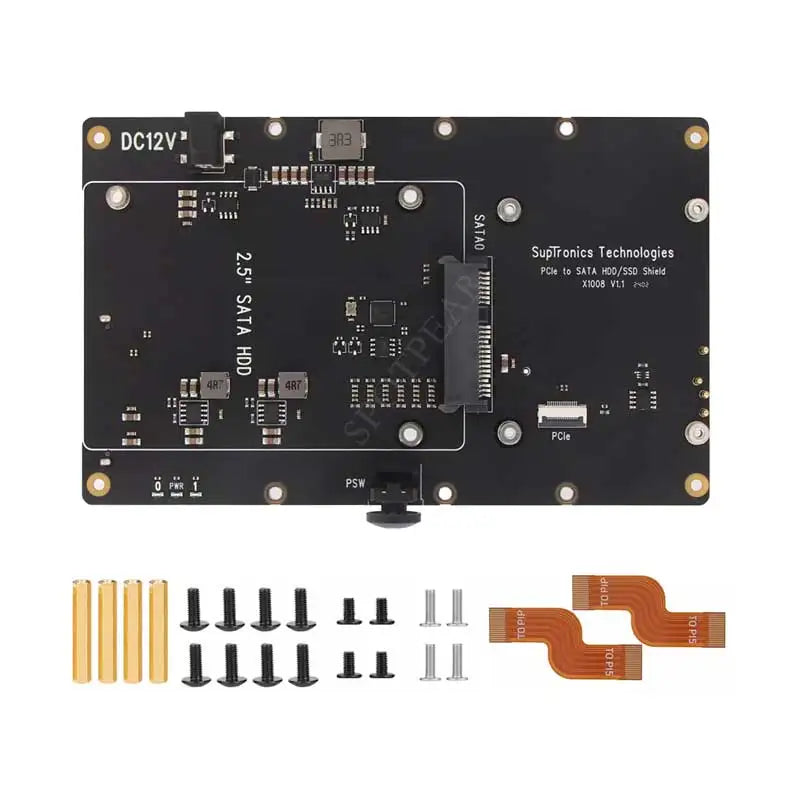

【Product Details】

【Features】

[] Compatible with Raspberry Pi 5B and supports expansion of other HATs of Raspberry Pi;

[] Supports simultaneous connection of 1 3.5-inch HDD and 1 2.5-inch HDD/SSD; [] Powered by Raspberry Pi5 through pogo pins;

[] Complies with PCI-Expressv2.0 specification and is backward compatible with PCI-Express v1.0

[] Supports HAT+STANDBY power state, automatically shutting down SATA devices when Pi5 is powered off;

[] Supports communication rates of 5.0 Gbit/s, 3.0 Gbit/s and 1.5 Gbit/s;

[] Compatible with SATA 6G, 3G, 1.5G hard drives;

Power supply instructions

[] Power supply: 12Vdc/-5%≥3A, through the DC power jack 5.5x2.1mm of the X1008 expansion board

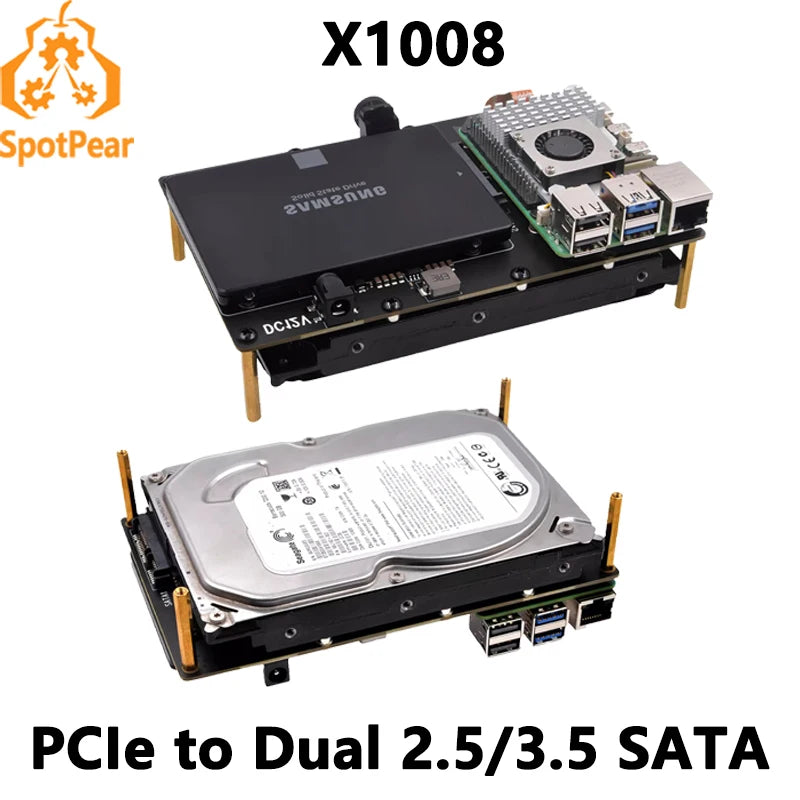

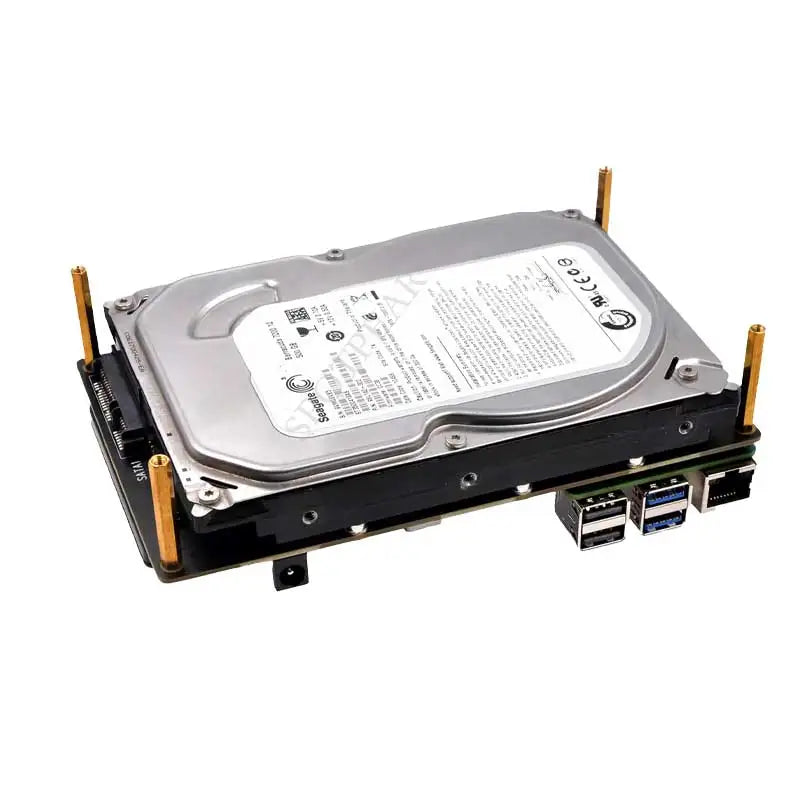

Support dual hard disks

[]Can connect two 2.5-inch HDD/SSD at the same time. Does not support booting from HDD/SSD using existing firmware.
