SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: Geekworm

Compatible With: Raspberry Pi 3 B+/3B

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

[Overview]

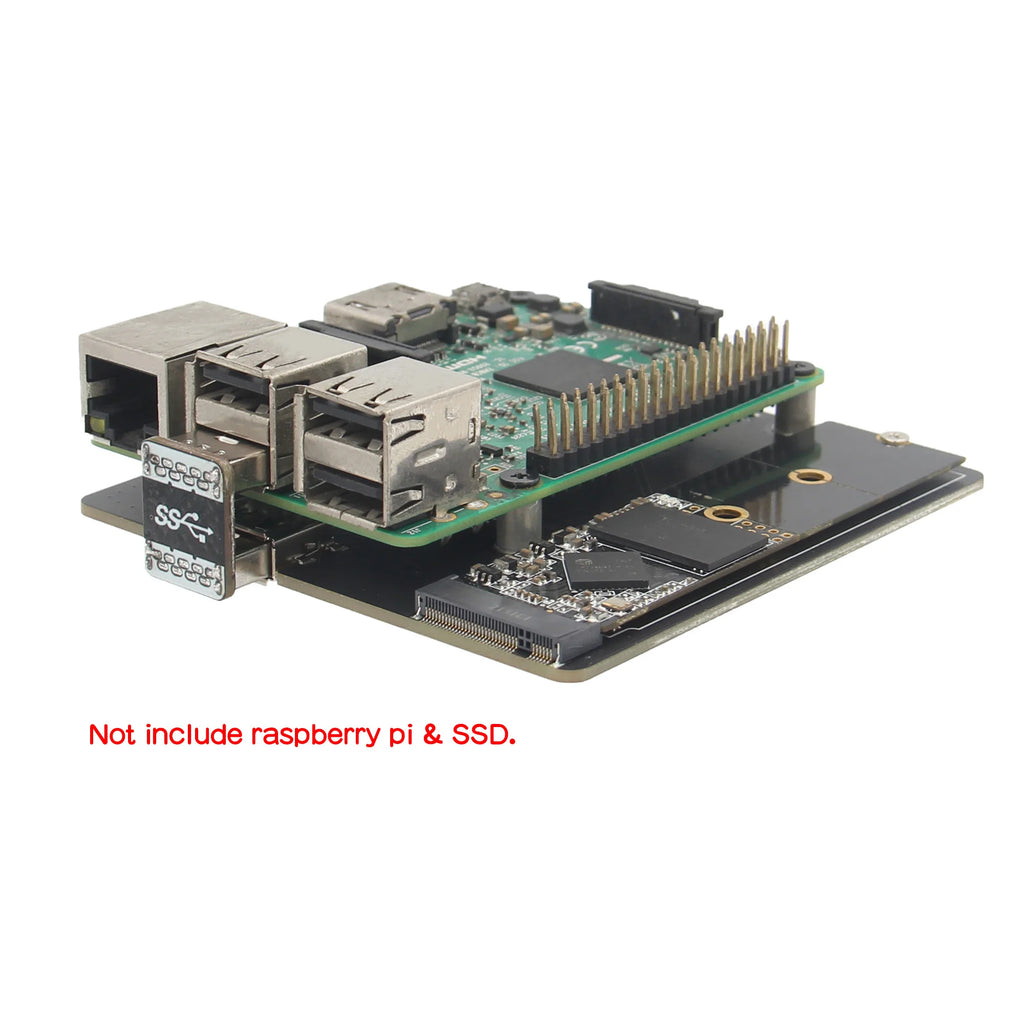

X851 is a new ultra-compact design M.2 NGFF SATA SSD Shield. It offers an easy and fast way to create storage solution with Raspberry Pi 3 B+ / 3B.

User can use X851 to build home media center and Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world.

X851 also supports operating system booting from your SSD for faster app opens, web serving and file copying.

UASP is NOT supported for Raspberry Pi 3.

[Features]

• Ideal storage solution for Raspberry Pi 3 B+ / 3B - M.2 NGFF SATA SSD Shield

• Only supports M.2 NGFF SSD 2280 length

• Integrated high efficiency step-Down Converter, 3.3V max 3.5A to power the SSD

• LED blue indicator indicates drive status

• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying

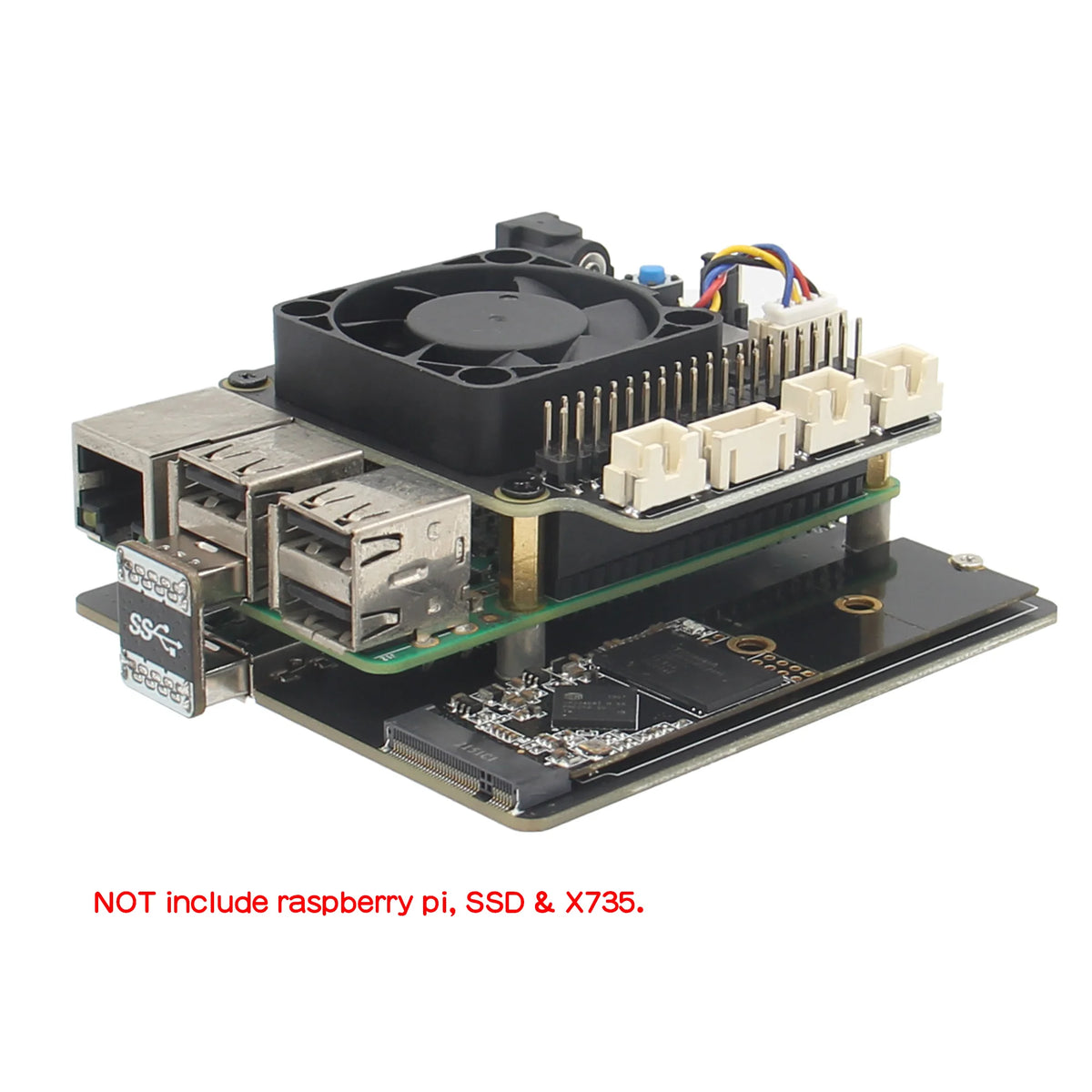

• Fully compatible with X732 for power management and cooling your Raspberry Pi 3

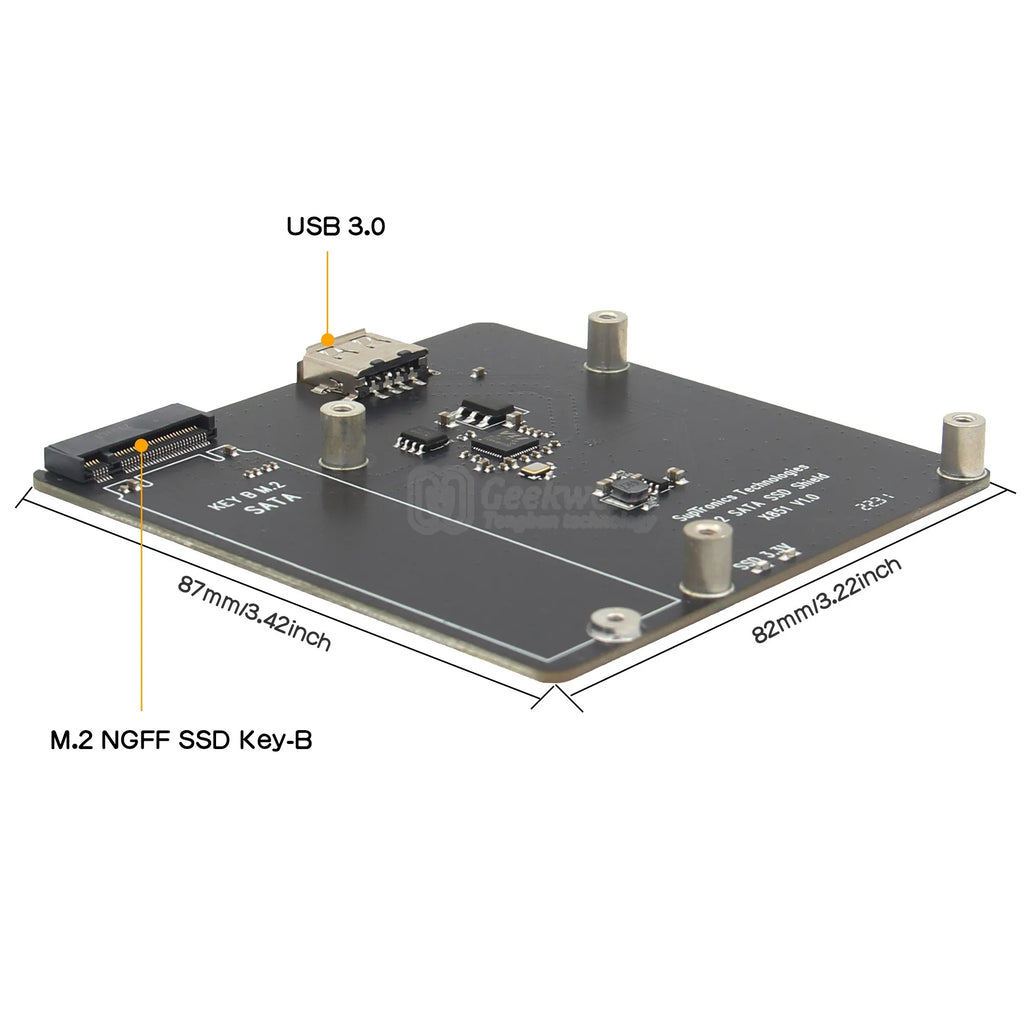

• PCB Size:82x87mm/3.22x3.42inch

[How to Power]

• 5Vdc +/-5% , ≥3A, power via micro usb port of Raspberry Pi 3 B+ / 3B

[Matching Case]

• There is no matching case for X851 yet.

[Packing List]

• 1 x X851 V1.0 SATA SSD Shield

• 1 x USB3.0 Connector

• 4 x Screw M2.5*5

• 1 x Screw M2*4

• 1 x Screwdriver
