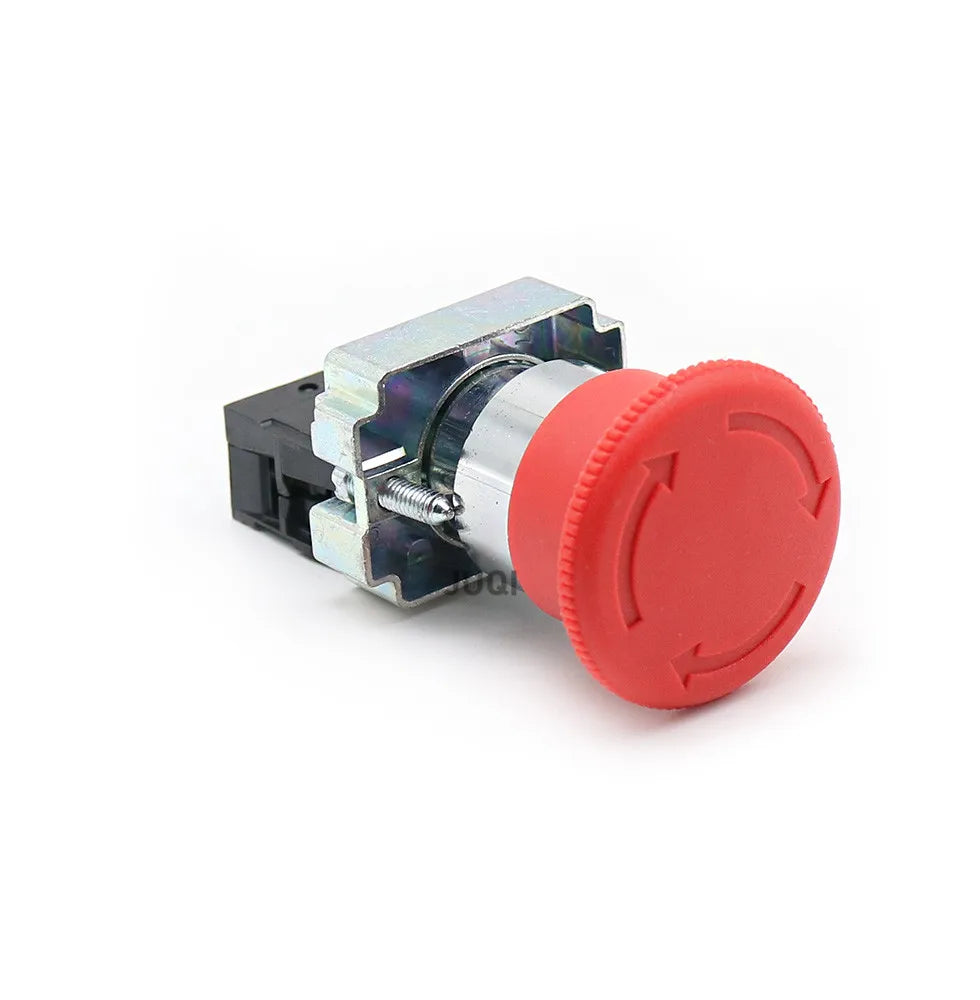

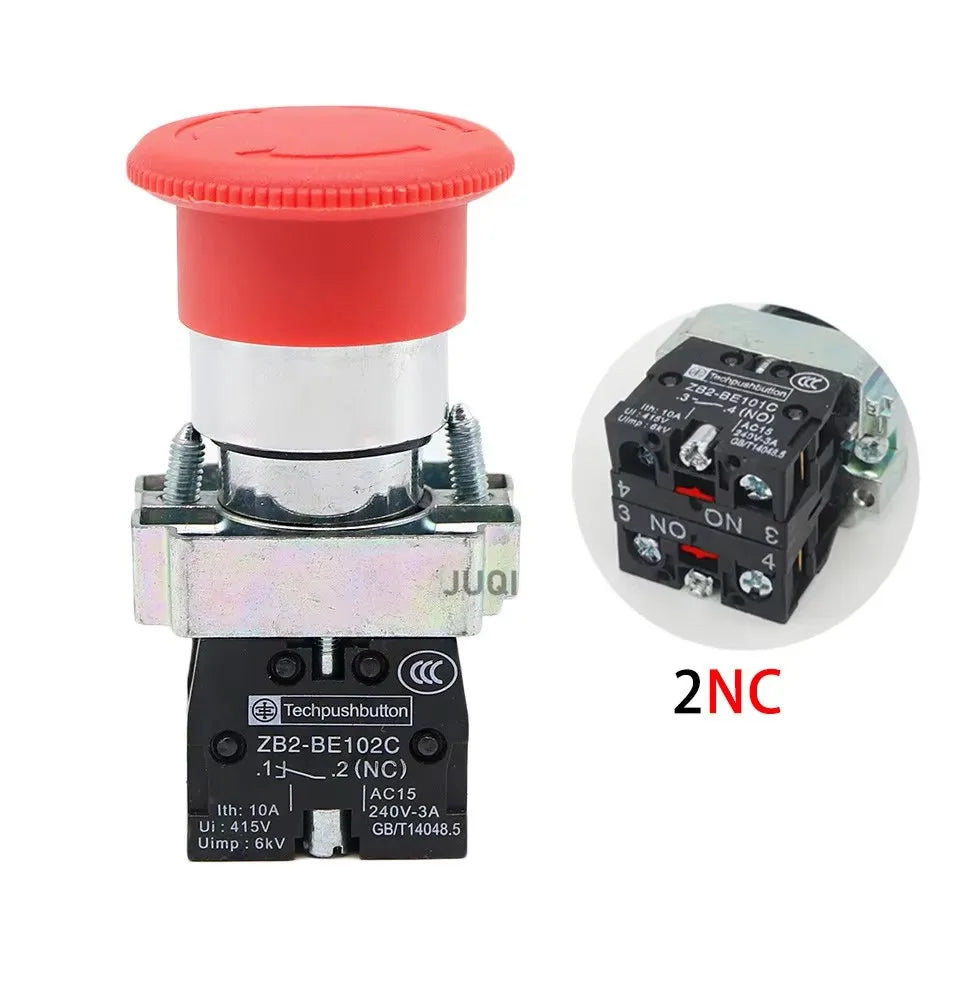

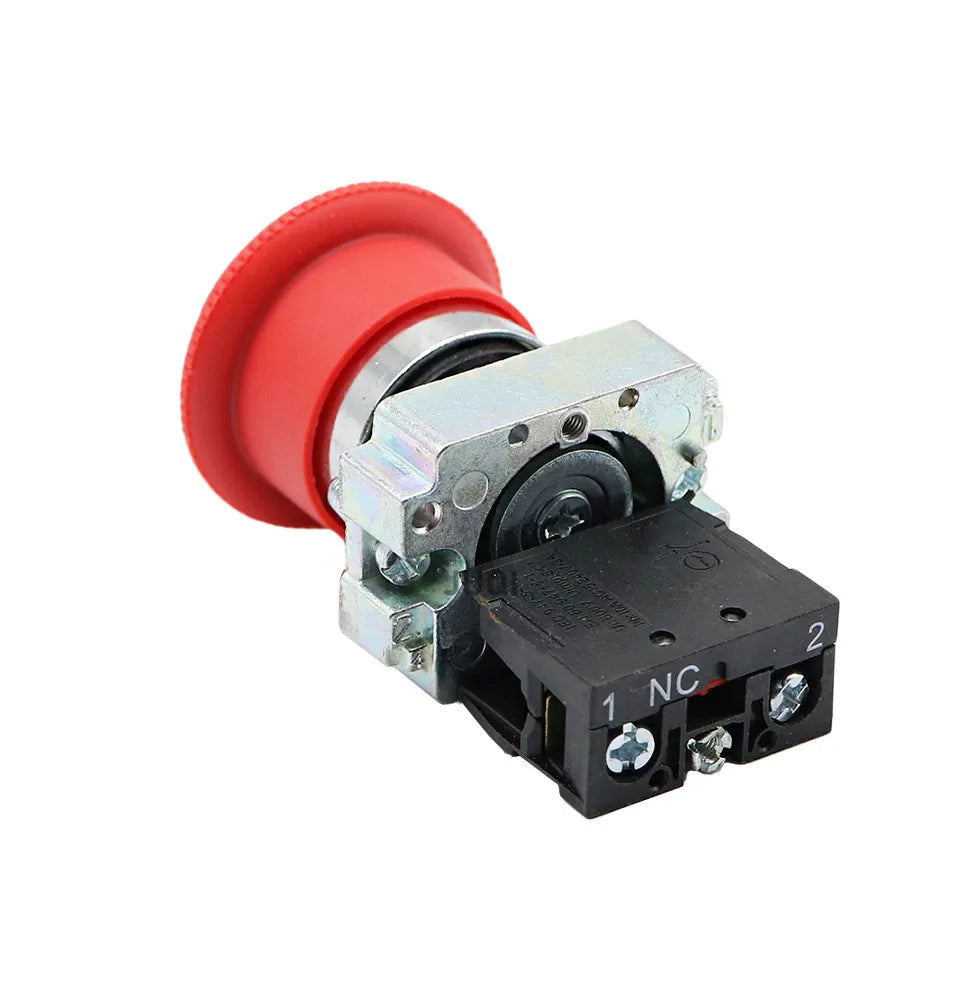

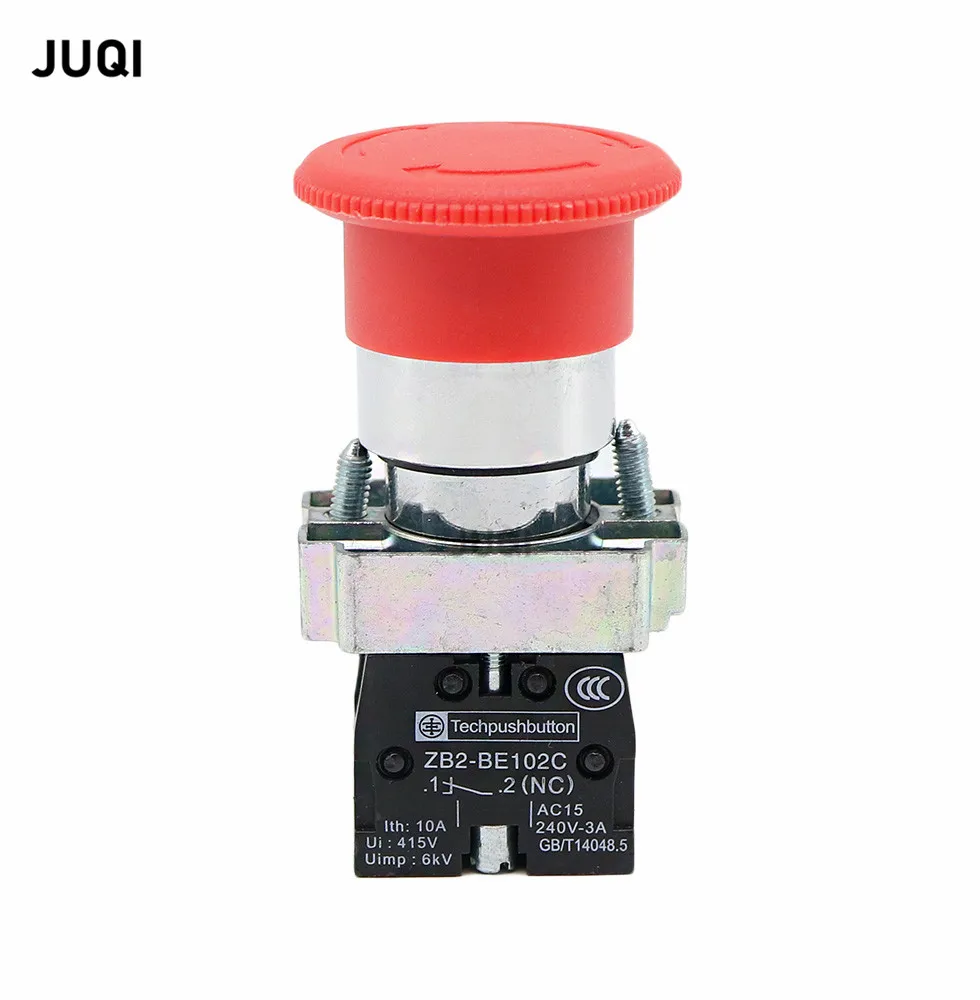

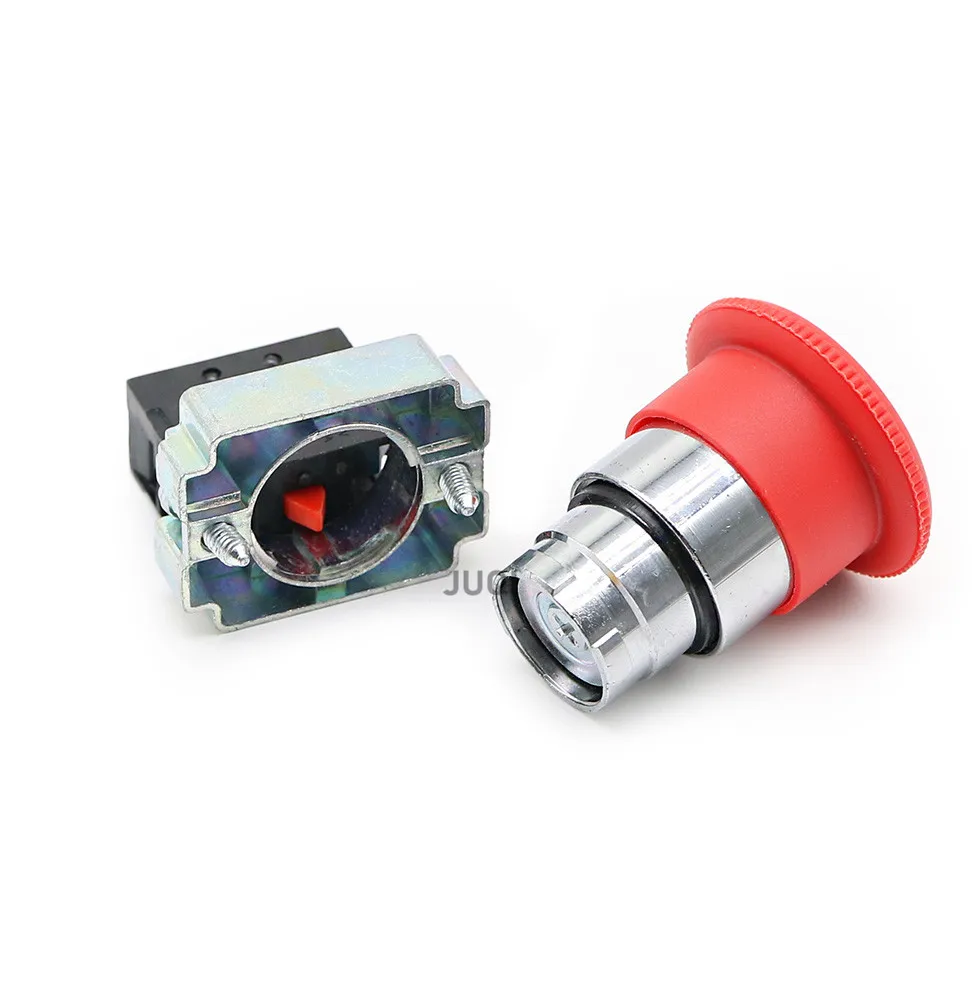

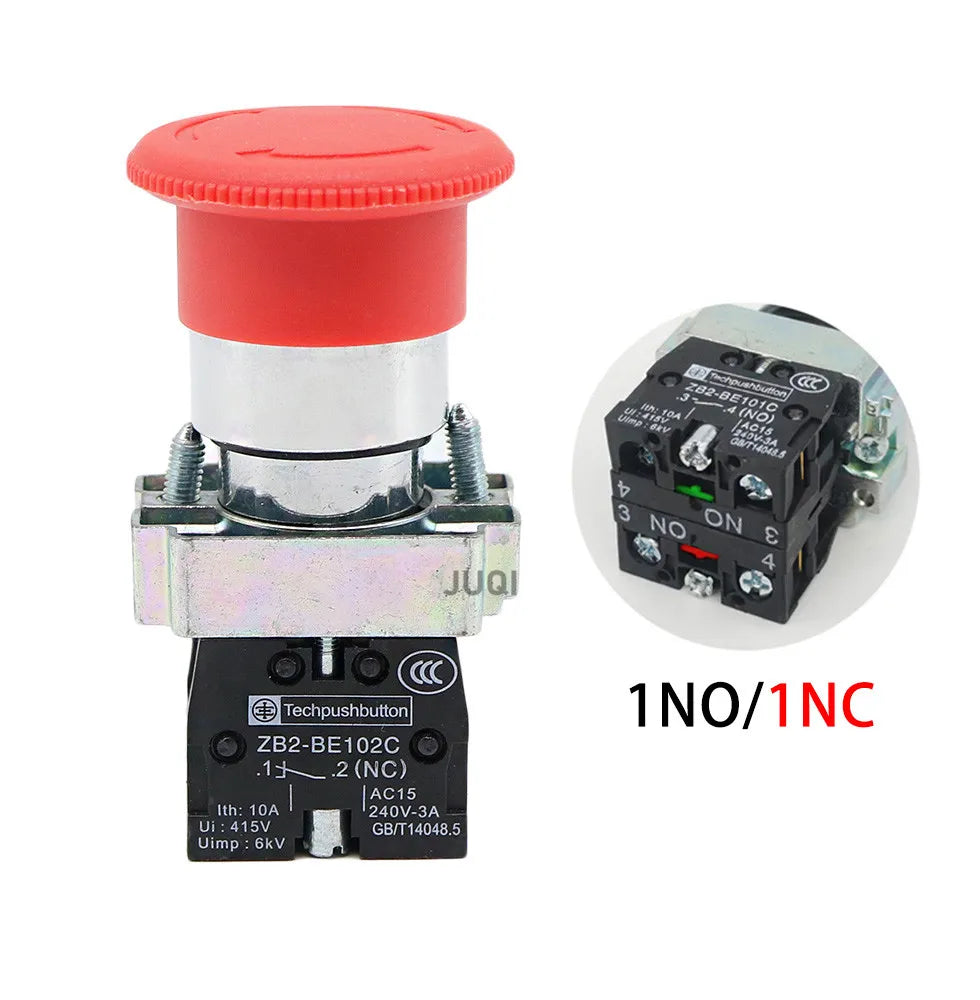

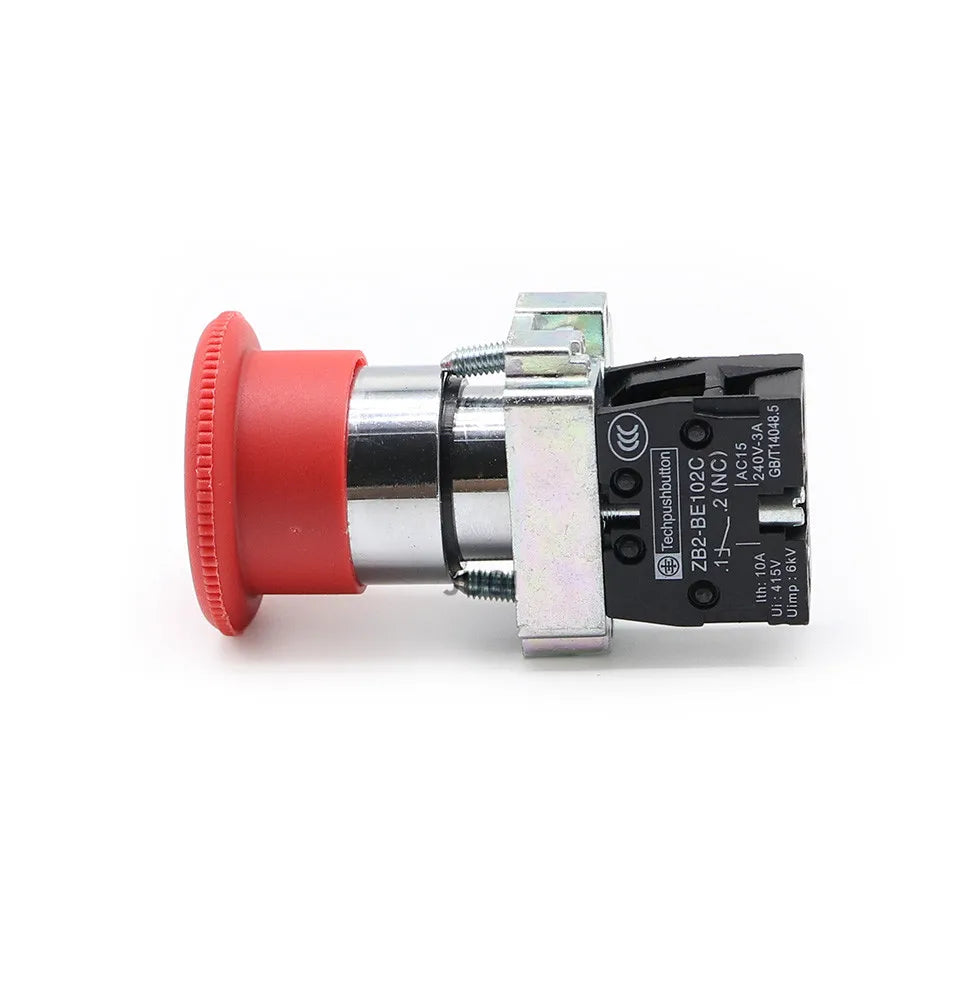

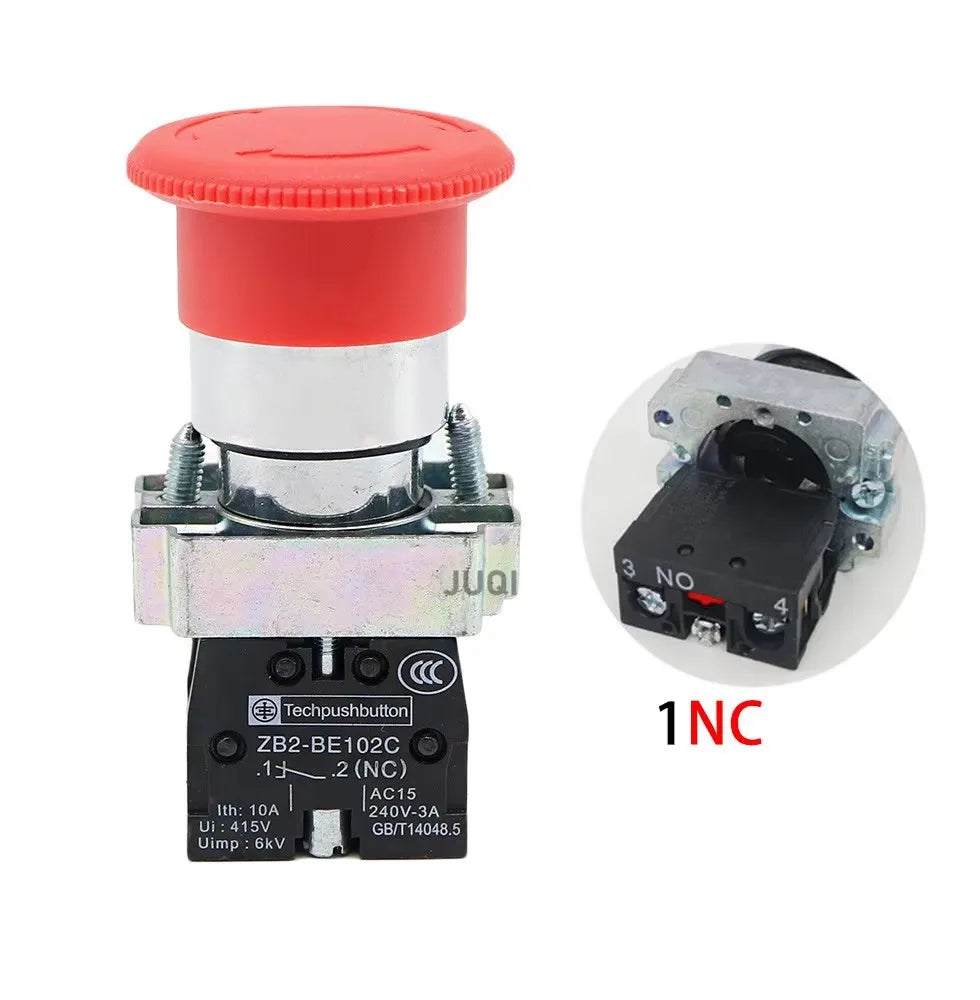

XB2-BS542 Emergency Stop Rotary Push Button Switch 1NC 2NC 1NO/1NC 2 Position Locking 22mm Mushroom Head Button

XB2-BS542 Emergency Stop Rotary Push Button Switch 1NC 2NC 1NO/1NC 2 Position Locking 22mm Mushroom Head Button

$5.85

$5.85 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Model Number: XB2-BS542

Origin: Mainland China

1.XB2 pushbutton switch

1.Basic spec code: 22mm

2.Protection grade: IP40, IP65

3.Electrical durability: 50 x 104

4.CE,CCC certification

2.Application:

XB2 series pushbutton switches are used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, DC operational voltage up to 220V and below for controlling in magnetic starter, contactor, relay and other electrical circuits. The buttons with indication conform with the standard of GB14048.5-2001.

3. Technique Parameters

Switch rating AC-15 DC-13 220V/0.5A

220V/6A 24V/6A 440V/0.25A

380V/4A 48V/3A .

660V/2A 110V/1A .

Contact resistance Hard silver contacts≤550MΩ

Max.insulation voltage AC 2500V 50Hz~lmin

Mechanical life The general button is 1 million times;

500,000 key knobs;

Knobs 500,000 times;

Emergency button ≥ 500,000 times;

Self-locking button 500,000.
