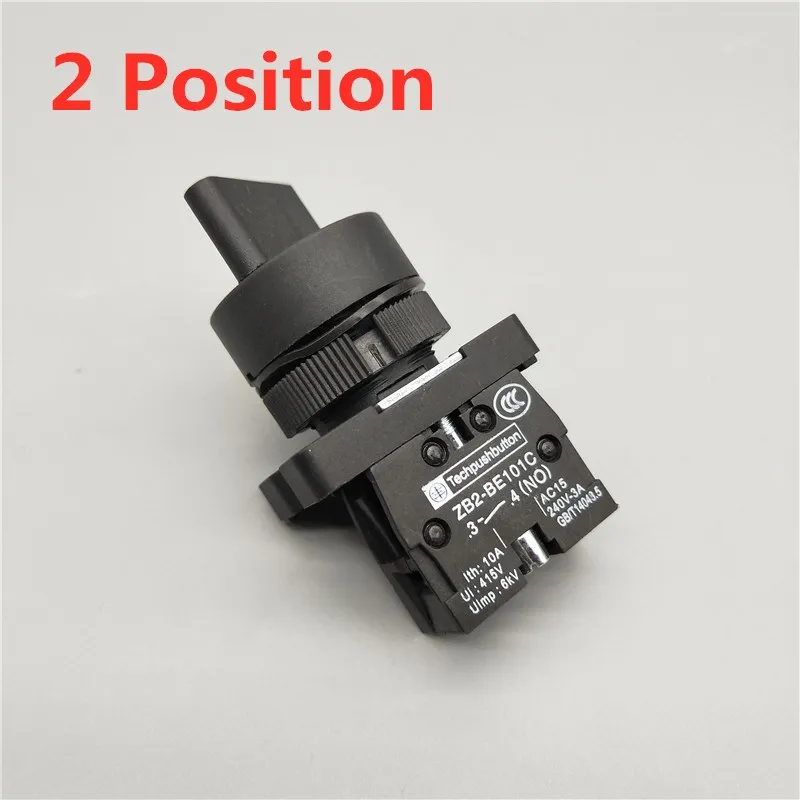

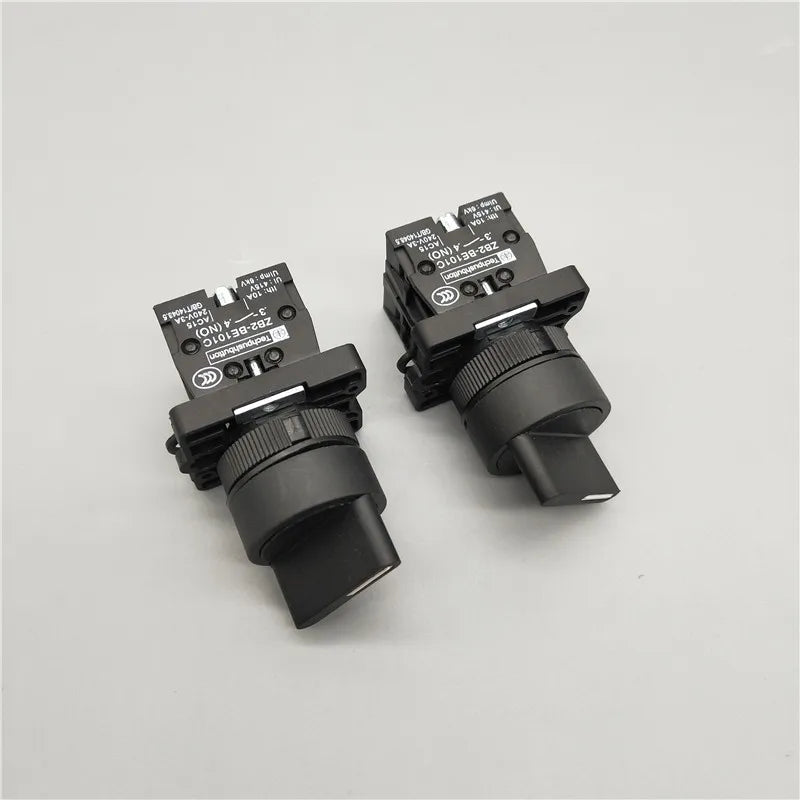

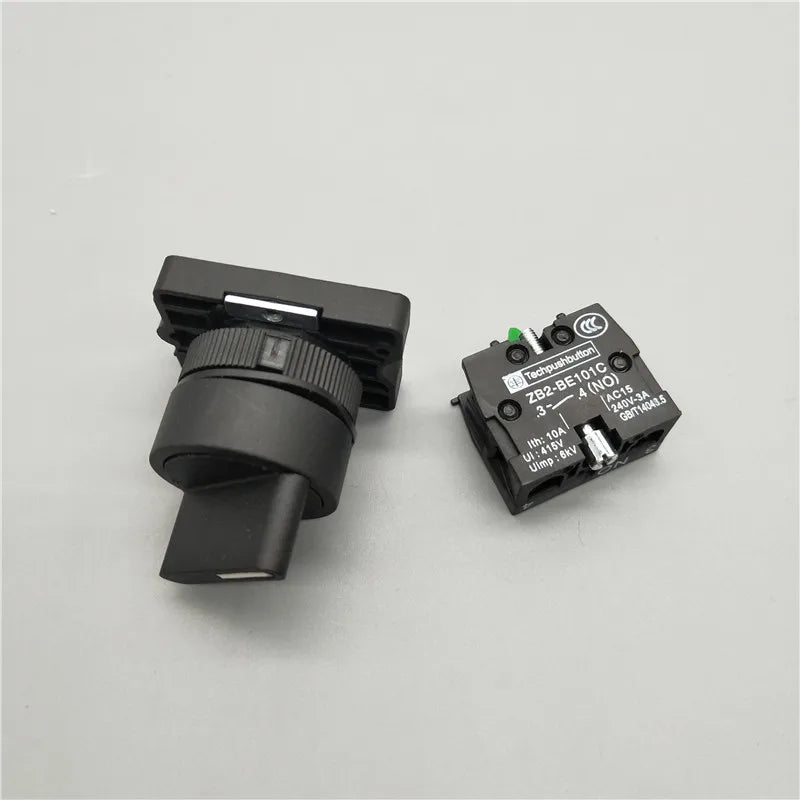

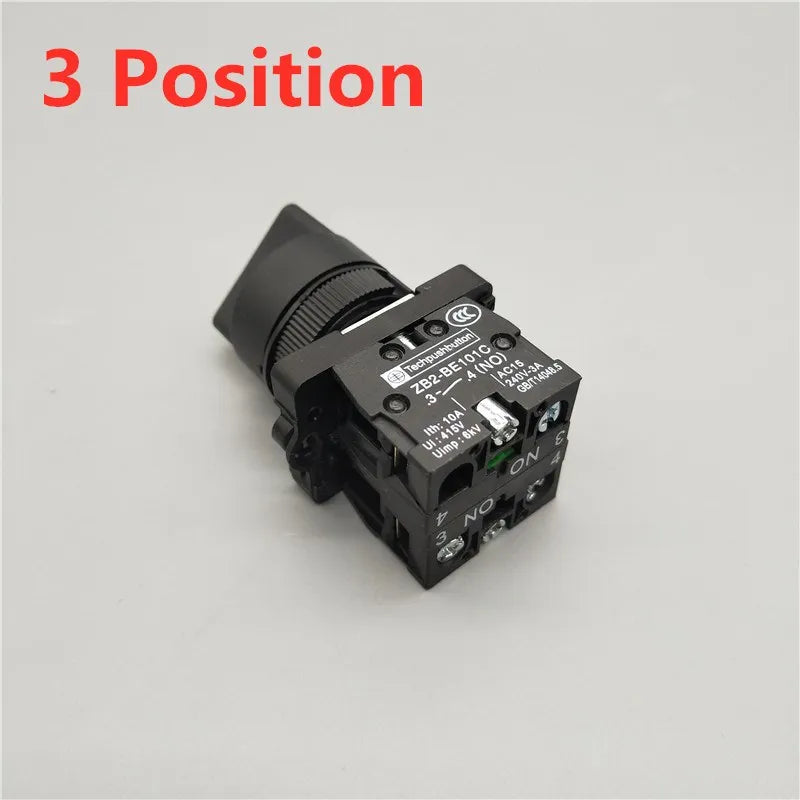

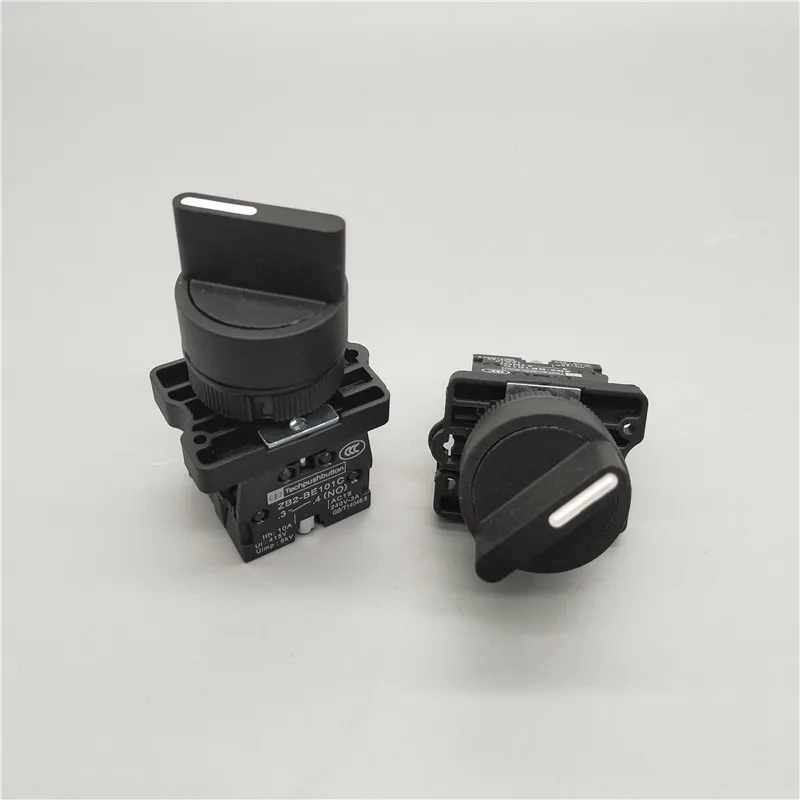

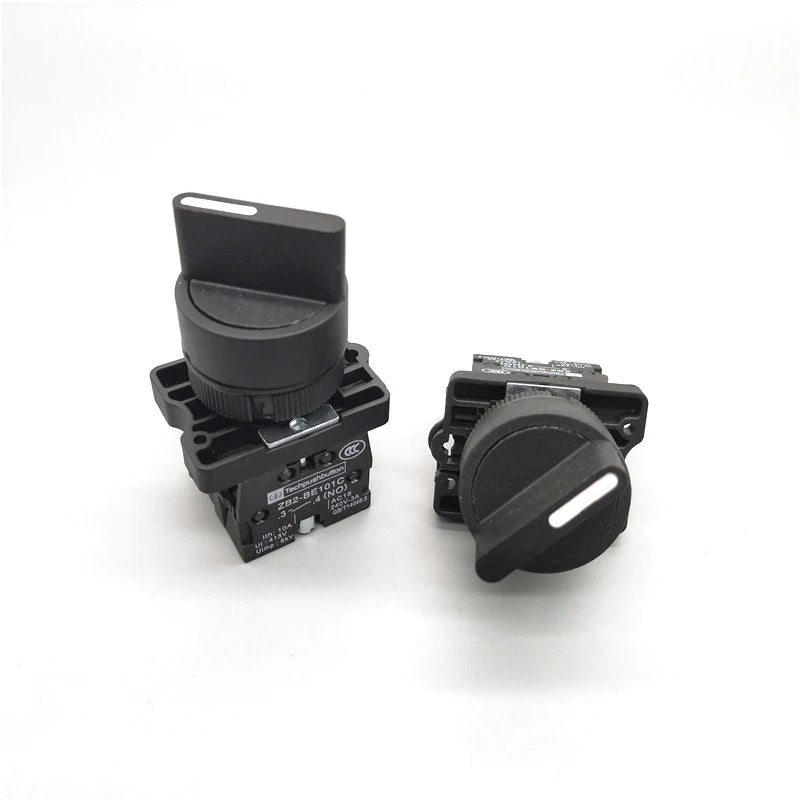

XB2-ED21 XB2-ED25 XB2-ED33 XB2-ED33 2/3 Positions 1N0/1NC&1NO/2NO Latching Self-Locking /Momentary Selector Push Button Switch

XB2-ED21 XB2-ED25 XB2-ED33 XB2-ED33 2/3 Positions 1N0/1NC&1NO/2NO Latching Self-Locking /Momentary Selector Push Button Switch

$11.39

$11.39 $0.00

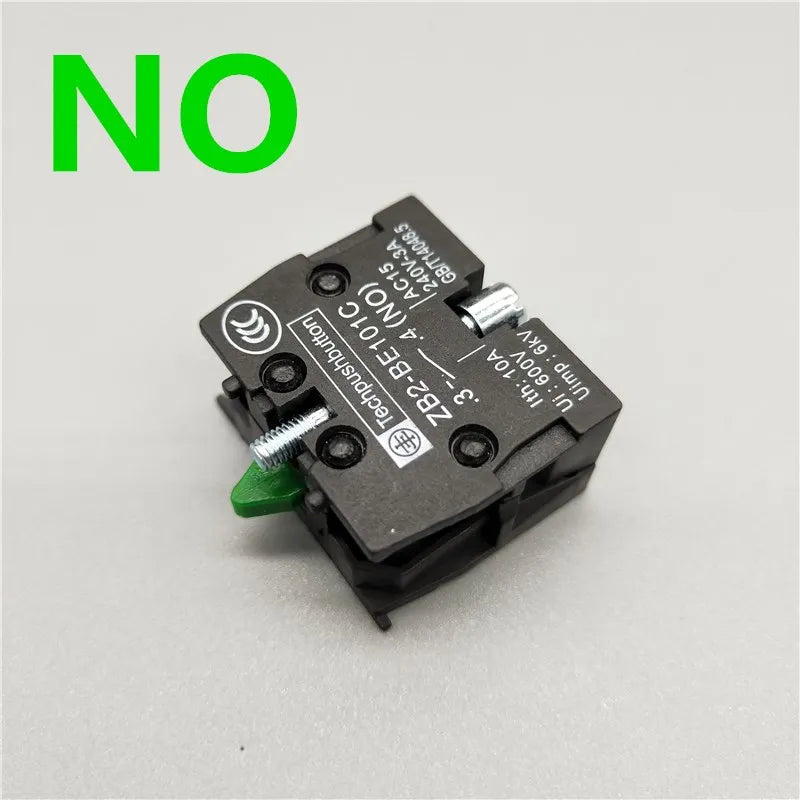

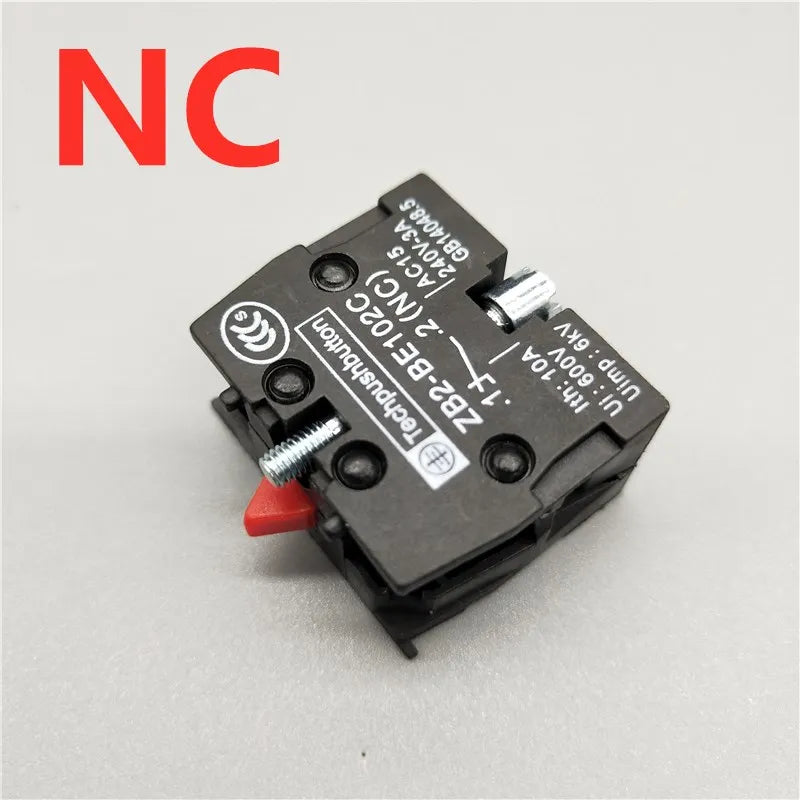

Color XB2-ED21 NO XB2-ED33 NC

Description

SPECIFICATIONS

Brand Name: NONE

Certification: RoHS,CE,CCC,CCC,ce,ROHS

Current: 10A

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Features: On-Off On-Off-Off

High-concerned chemical: none

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Model Number: XB2-ED21 XB2-ED33

Origin: Mainland China

Switch Type: Touch On/Off Switch

Warranty: 2 year

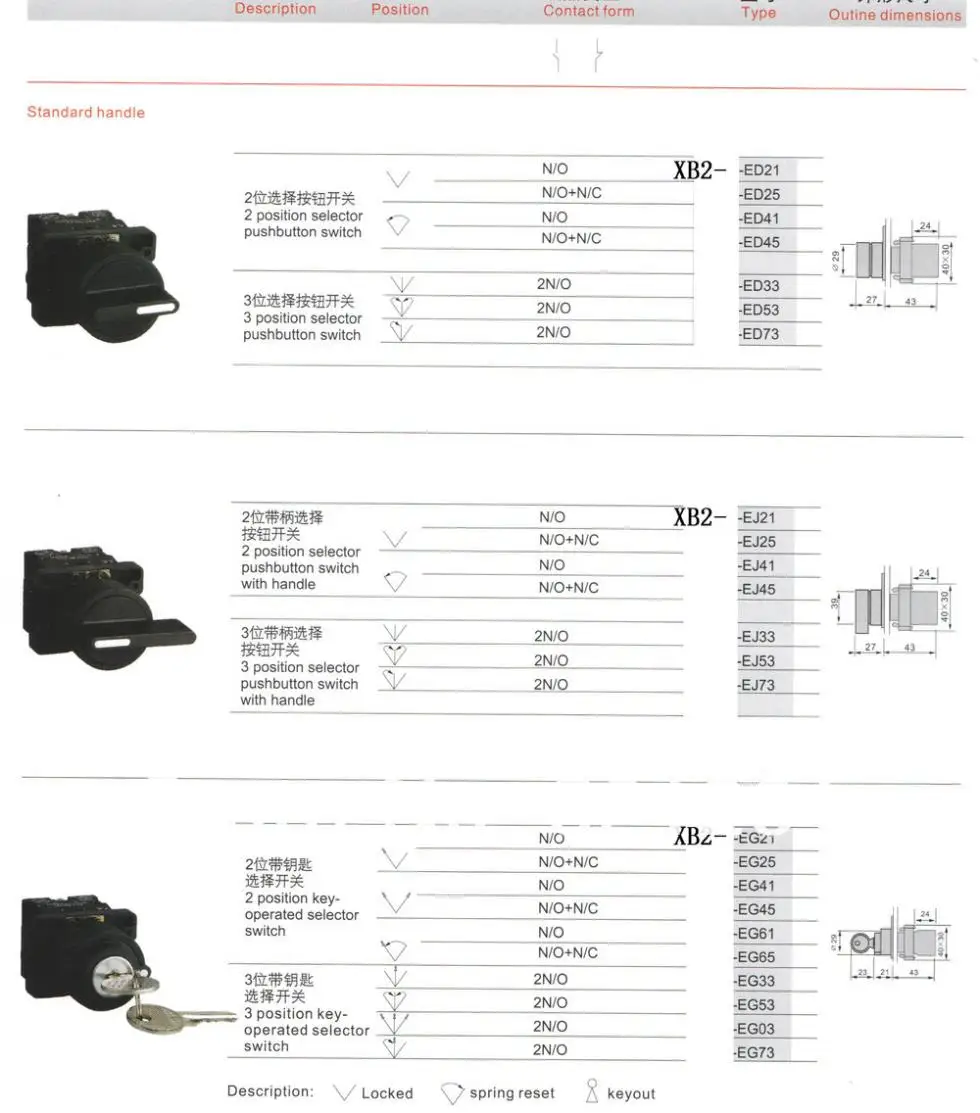

XB2 pushbutton switch

1 Basic spec code: 22mm
2 Protection grade: IP40, IP65
3.Electrical durability: 50 x 104
4.CE,CCC certification

Application:

XB2 series pushbutton switches are used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, DC operational voltage up to 220V and below for controlling in magnetic starter, contactor, relay and other electrical circuits. The buttons with indication conform with the standard of GB14048.5-2001.

Main Technical Parameter

Ambient Temperature:	-5+40		Relative Humidity:			45%85%
Contact Resistance:	≤50mΩ		Electrical Life			5.0x105
Withstanding Voltage	2500V, 1min		Protection Degree			IP40
Rated Insulation Voltage, Ui		660V
Conventional Thermal Current, Ith		10A
Rated Operational Voltage, Ue		380V		220V	110V		48V	24V
Rated Operational Current, Ie	AC-15	2.5A		4.5A	6A		8A	-
	DC-13	-		0.3A	0.6A		1.3A	2.5A

Rated Voltage	Voltage Input Directly							Resistance	Transformer
Lamp-House	6V	12V	24V	48V	110V	220V	380V	220V	220V	380V
LED Lamp	√	√	√	-	-	-	-	-	√	√
Neon Lamp	-	-	-	-	√	√	√	√	-	-
Incandecent Lamp	√	√	√	√	√	√	√	-	√	√
