1. Wide voltage input range: support 9-42V wide voltage input, adapt to a variety of power supply scenarios, enhance the versatility and flexibility of the module.
2. Short-circuit protection: the output has a short-circuit protection design, which effectively prevents equipment damage caused by accidental short-circuit and ensures the safe operation of the system.

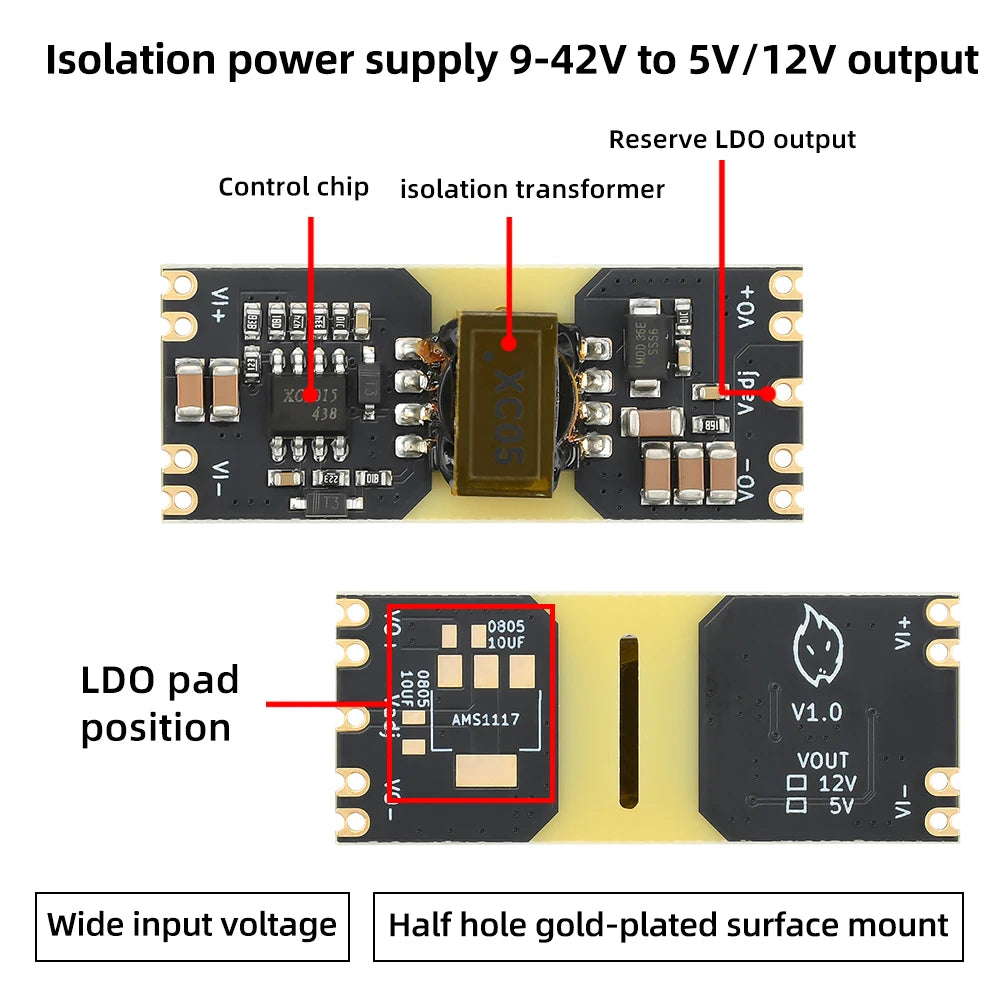

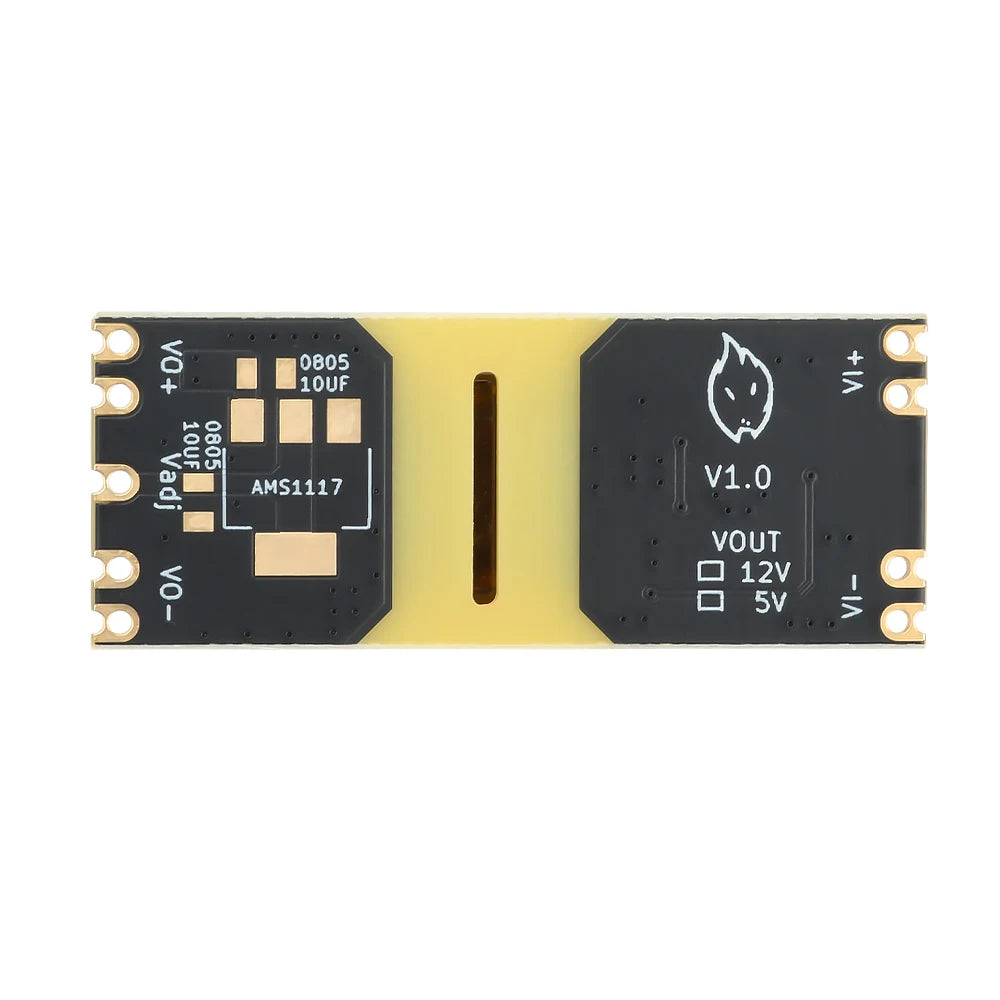

3. Reserved LDO pads: LDO pads are reserved on the module, which can be expanded to more stable LDO outputs according to the requirements to meet high-precision applications.
4. Half-hole gold immersion process: Half-hole gold immersion design, more solid solder joints, more reliable contact, easy for users to carry out secondary development or patch operation.
5. Built-in loop compensation circuit: Integrated loop compensation circuit optimizes the dynamic response performance of the power module and improves output stability and efficiency.

Parameter:
Input voltage: DC 9-42V

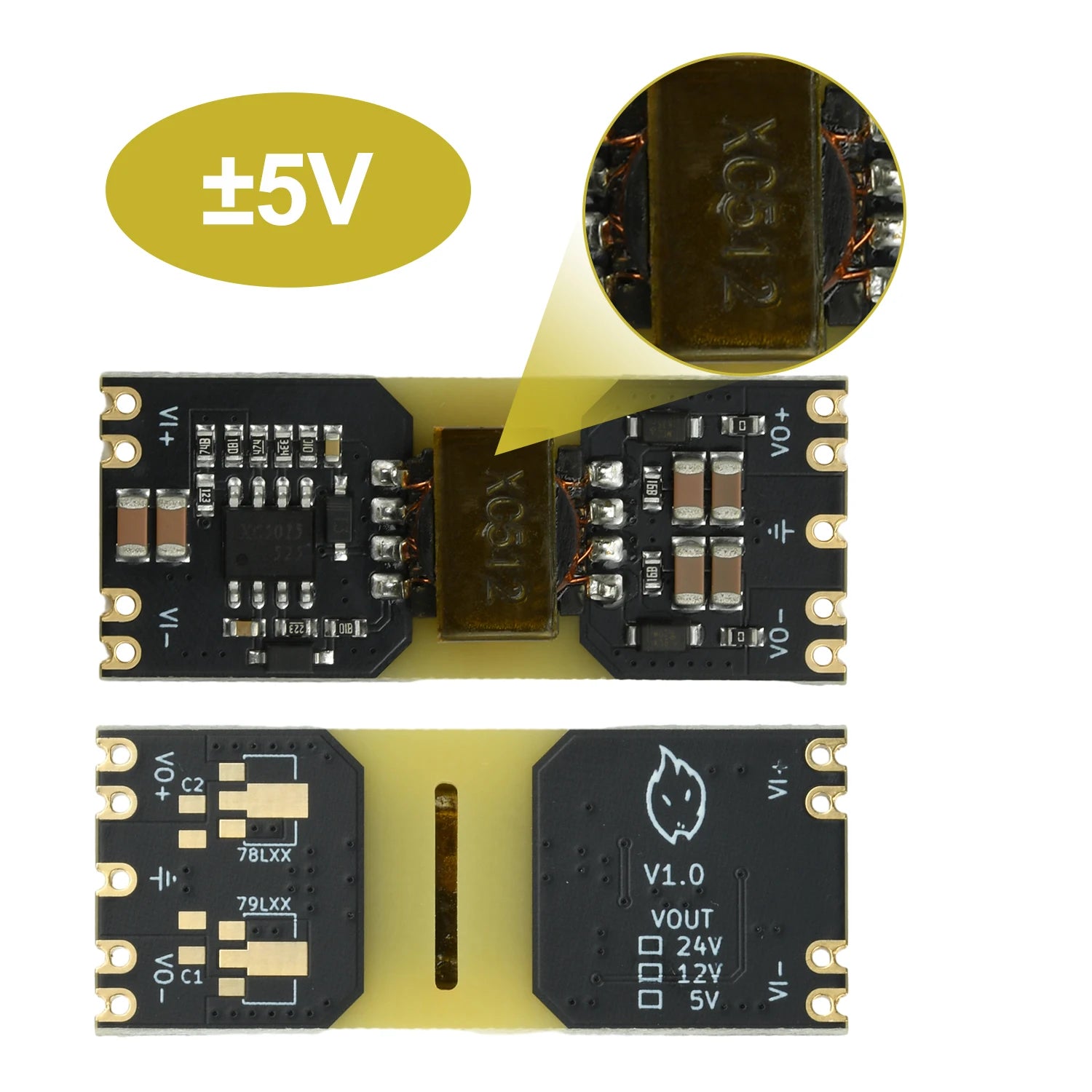

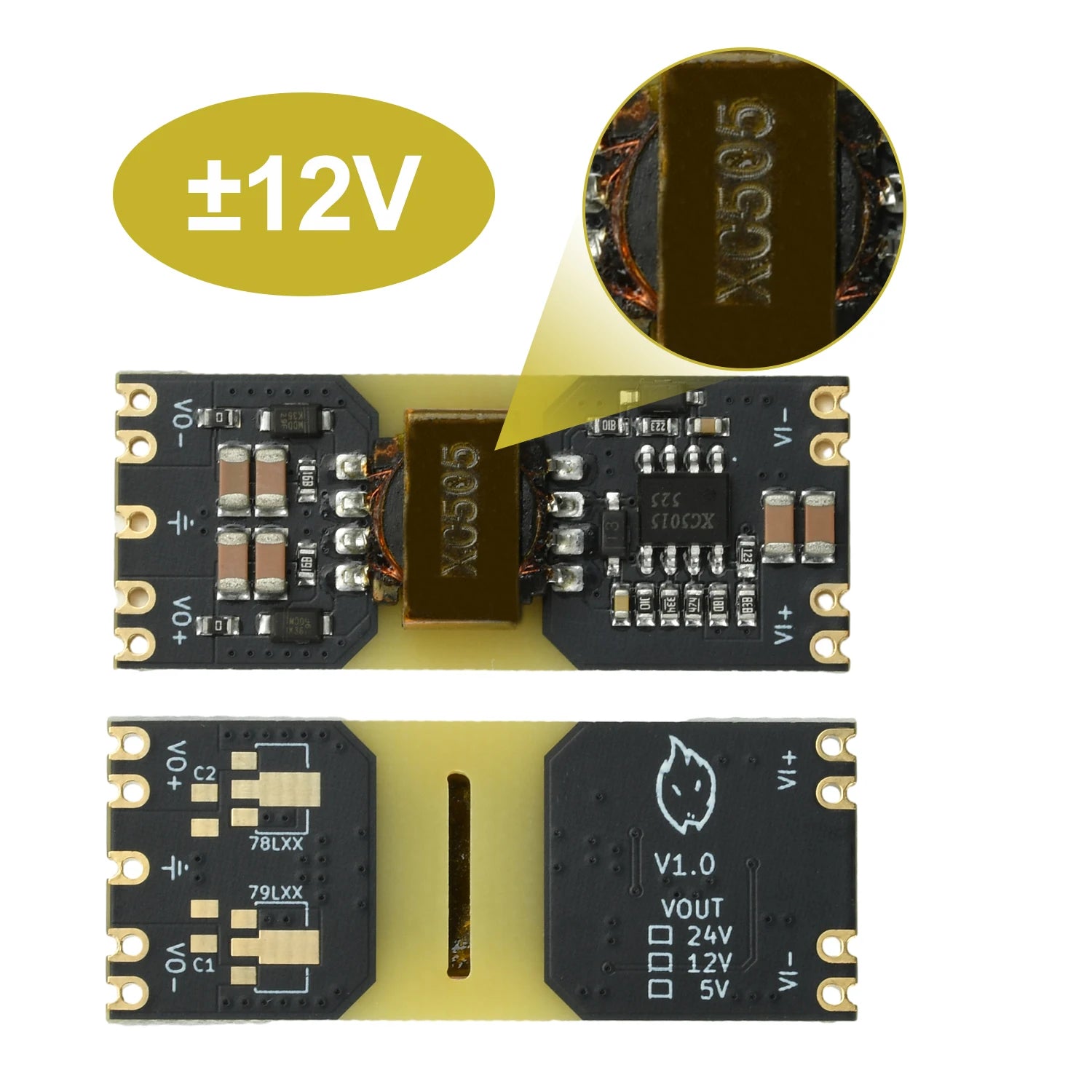

Output voltage: DC 5V, DC 12V

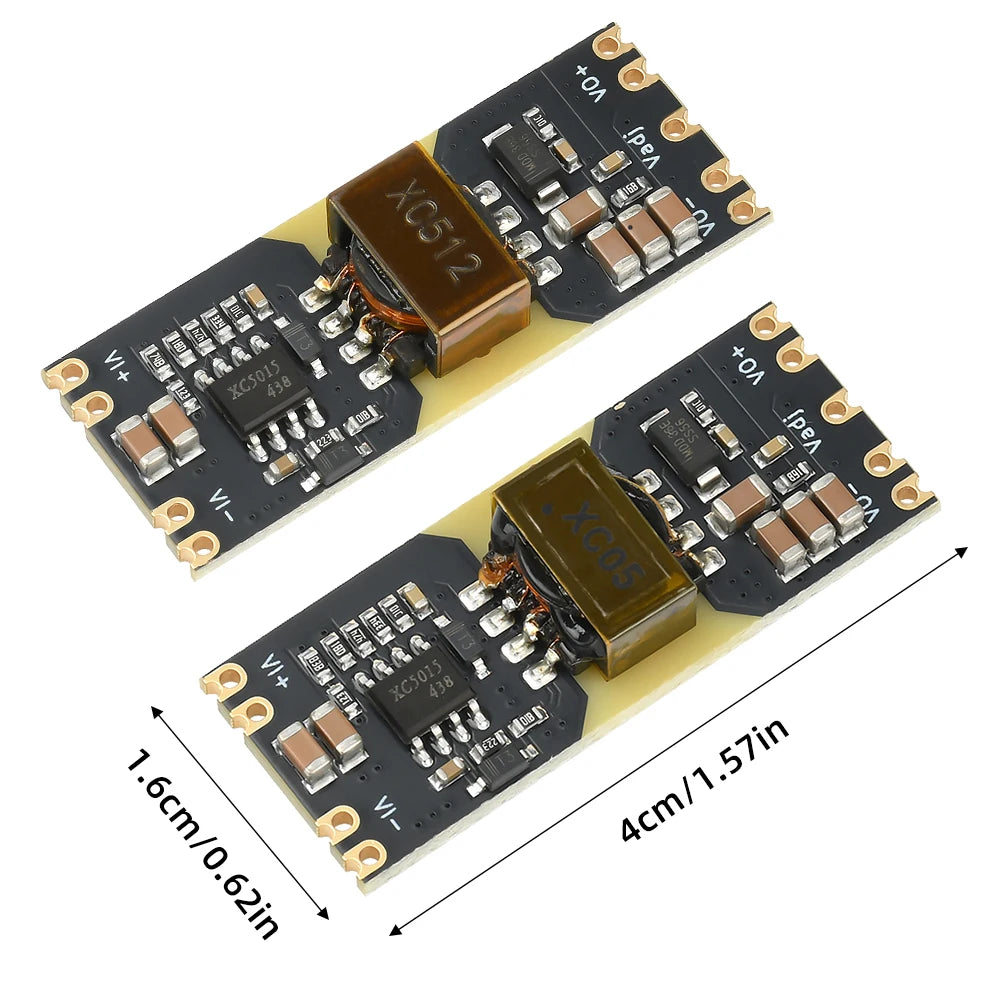

Product size: 40*16mm

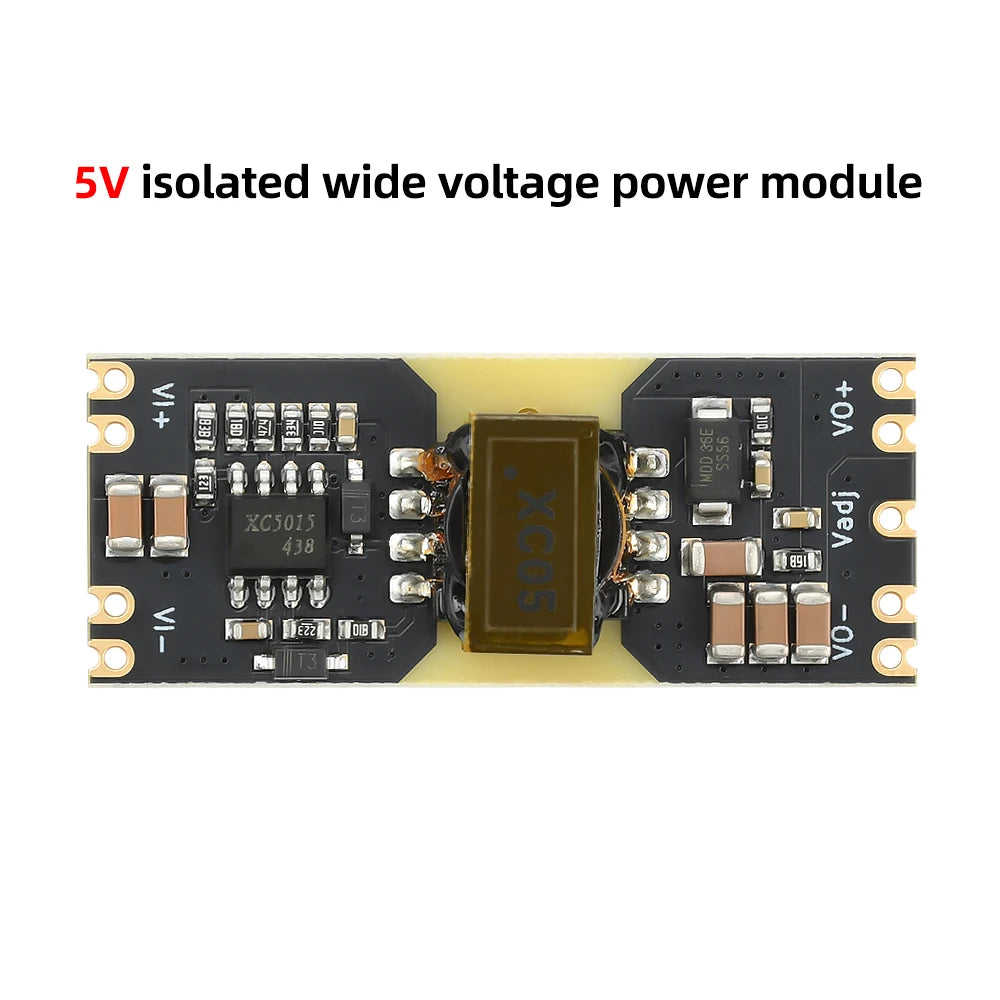

5V Output No-load sampling test
Input 12V Output 5V: 5.037V
Input 24V Output 5V: 5.045V
Input 36V Output 5V: 5.272V

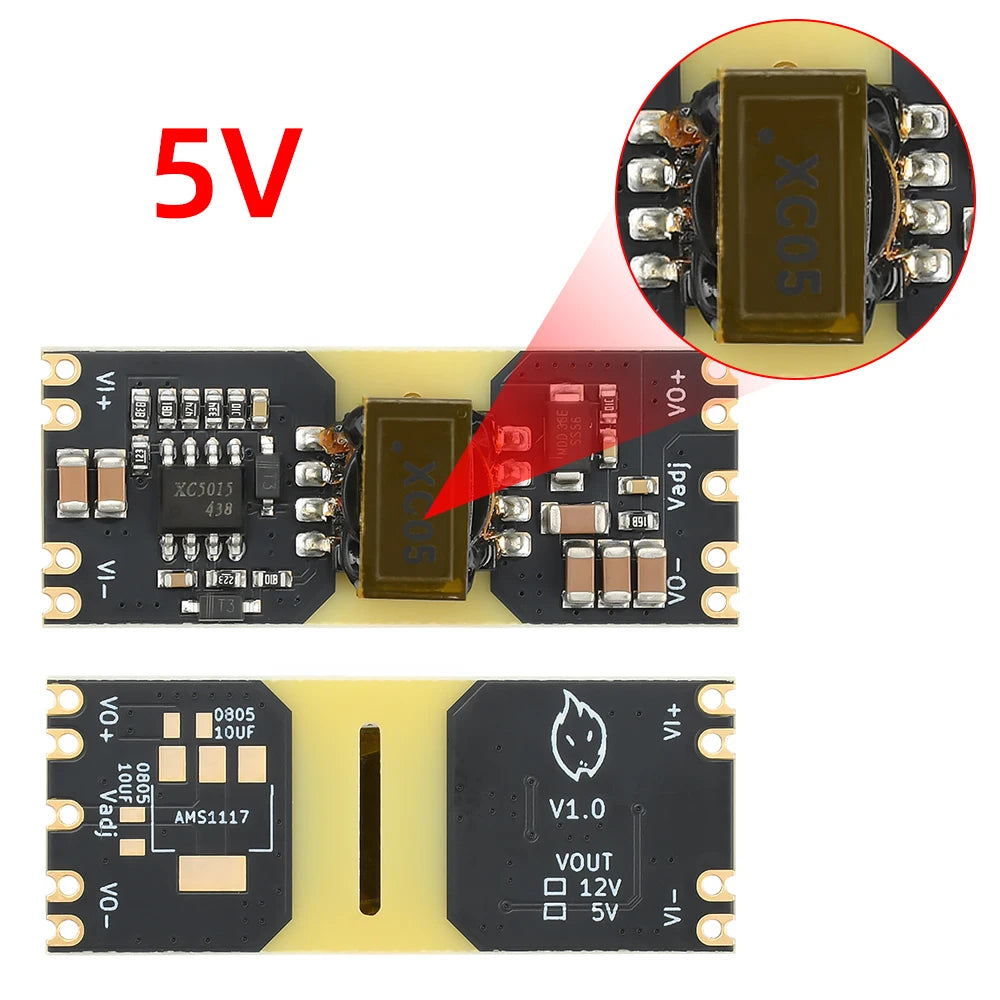

5V Recommended Maximum Load Current
Input 12V Output 5V: 1.1A
Input 24V Output 5V: 1.6A
Input 36V Output 5V: 1.8A

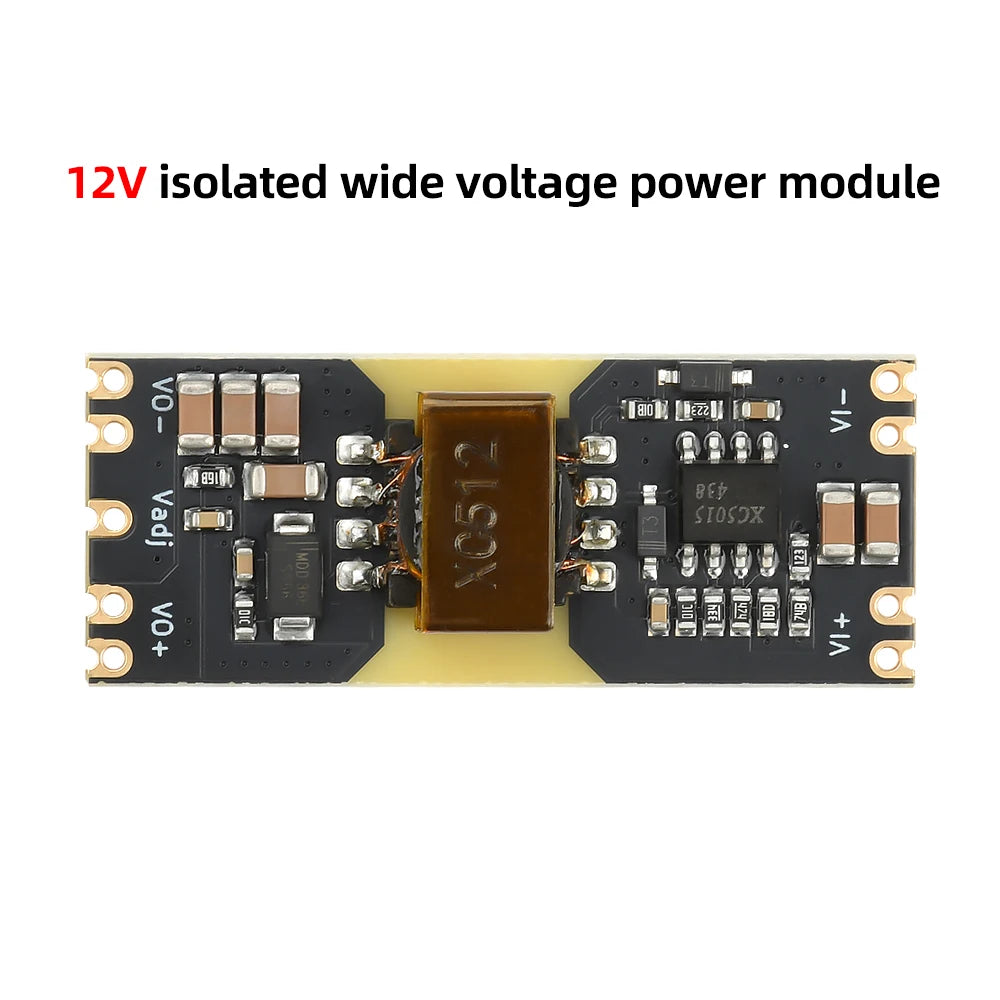

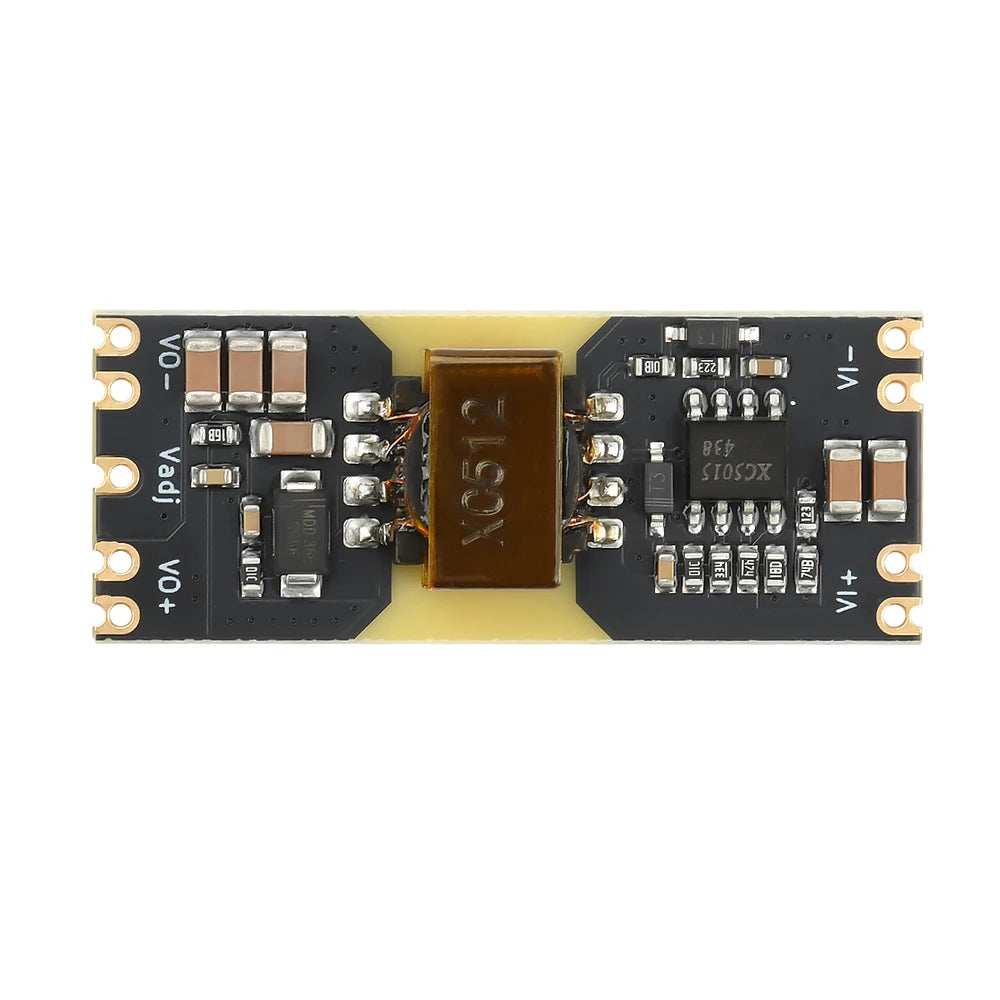

12V Output No-load sampling test
Input 12V Output 5V: 12.099V
Input 24V Output 5V: 12.091V
Input 36V Output 5V: 12.077V

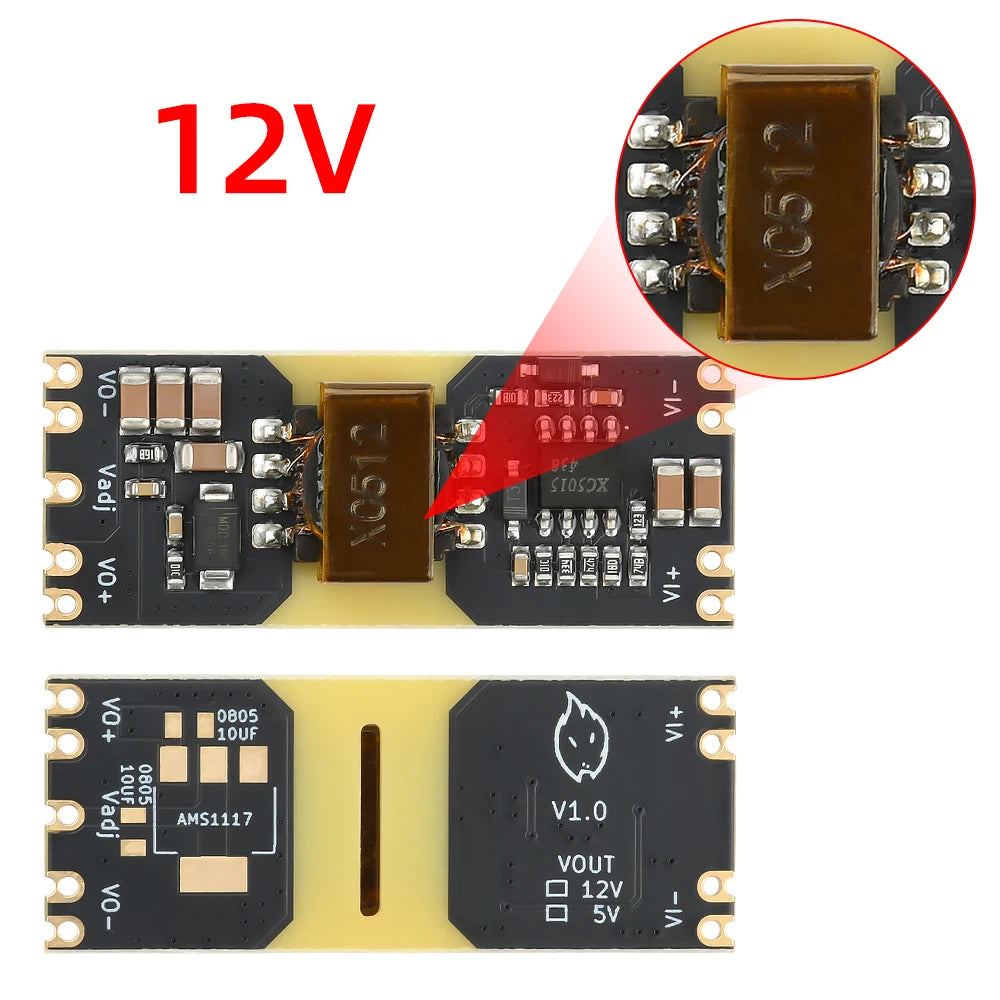

12V Recommended Maximum Load Current
Input 15V Output 12V: 0.8A
Input 24V Output 12V: 0.8A
Input 36V Output 12V: 0.8A
