This is the parameter and feature introduction of the XC5015 power control chip and its related DCDC module.

Product Parameters

XC5015 is a highly integrated power control chip suitable for multiple topological structures (Flyback, Boost, Buck) and output voltage feedback methods (SSR, PSR, resistance voltage division). It can achieve PSR feedback at a working frequency of hundreds of KHz. The built-in output voltage sampling circuit can work in both CCM and DCM modes simultaneously, and the time width requirement for the sampling voltage is as low as 400nS. The built-in loop compensation circuit with fast dynamic response function makes the stability and dynamic response indicators of the switching power supply perform very well.

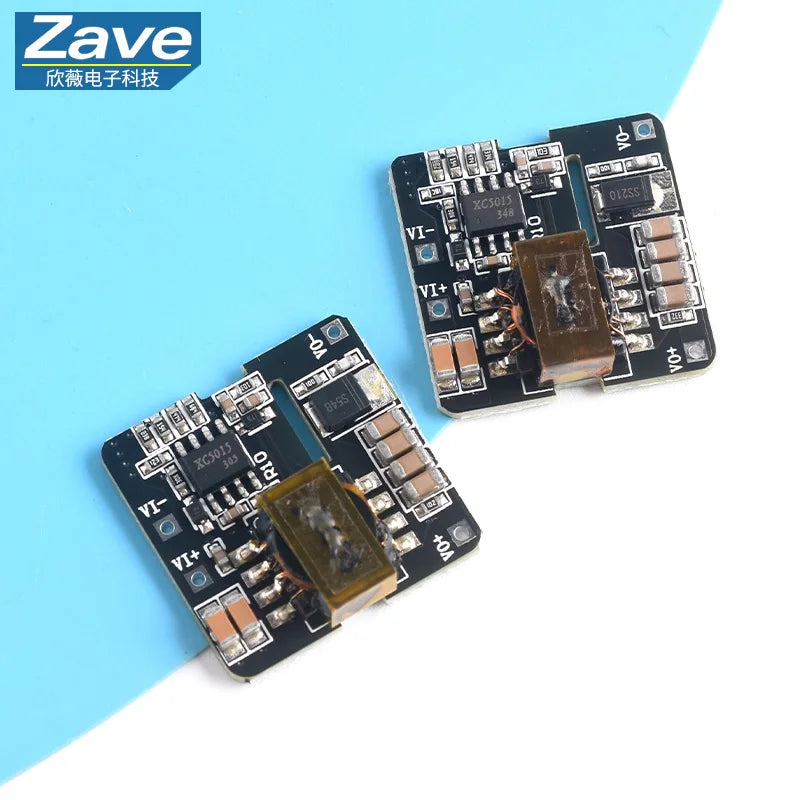

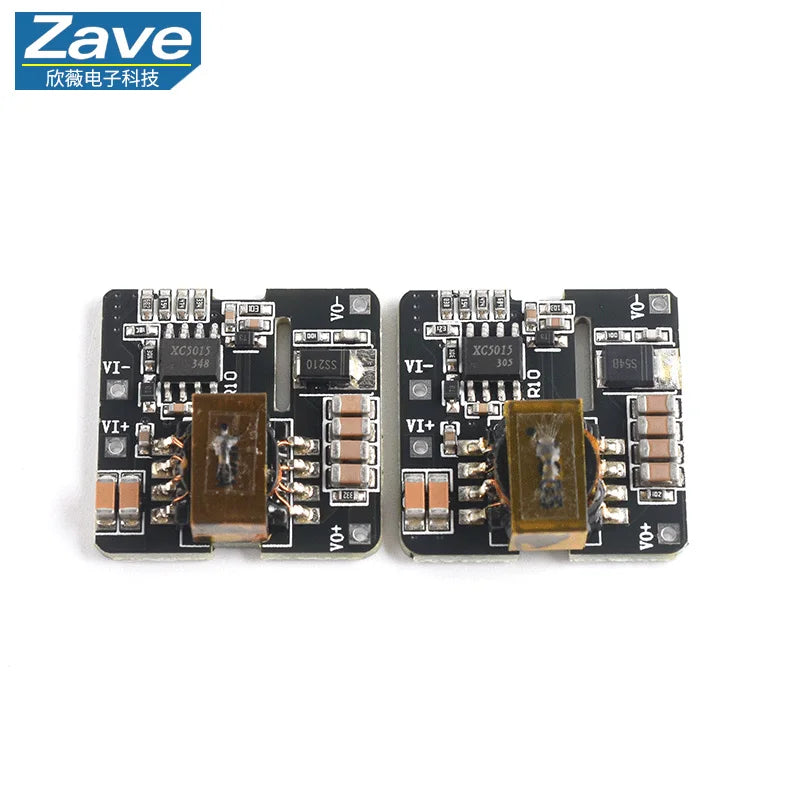

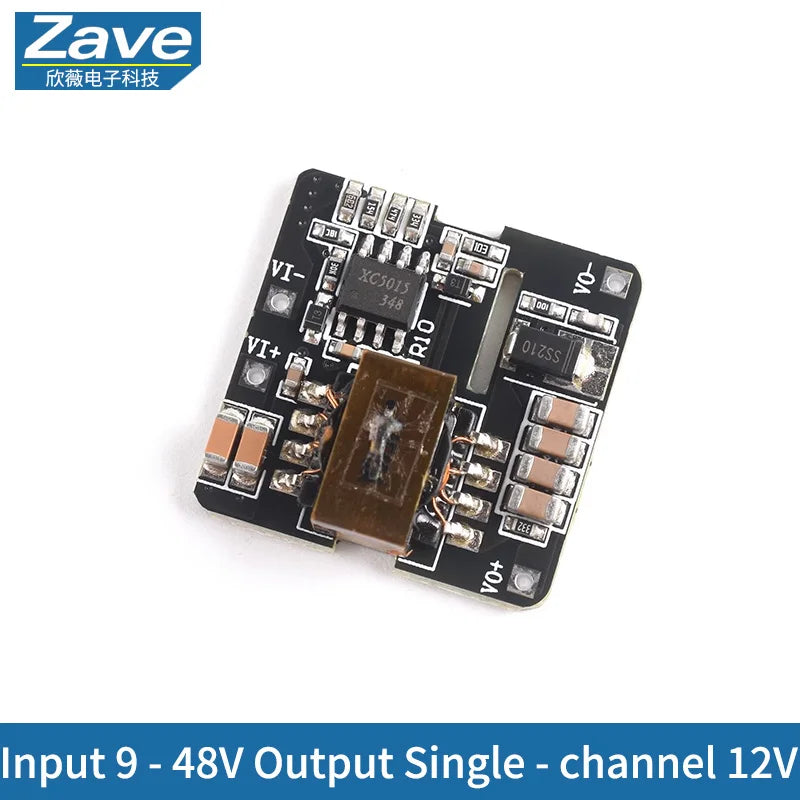

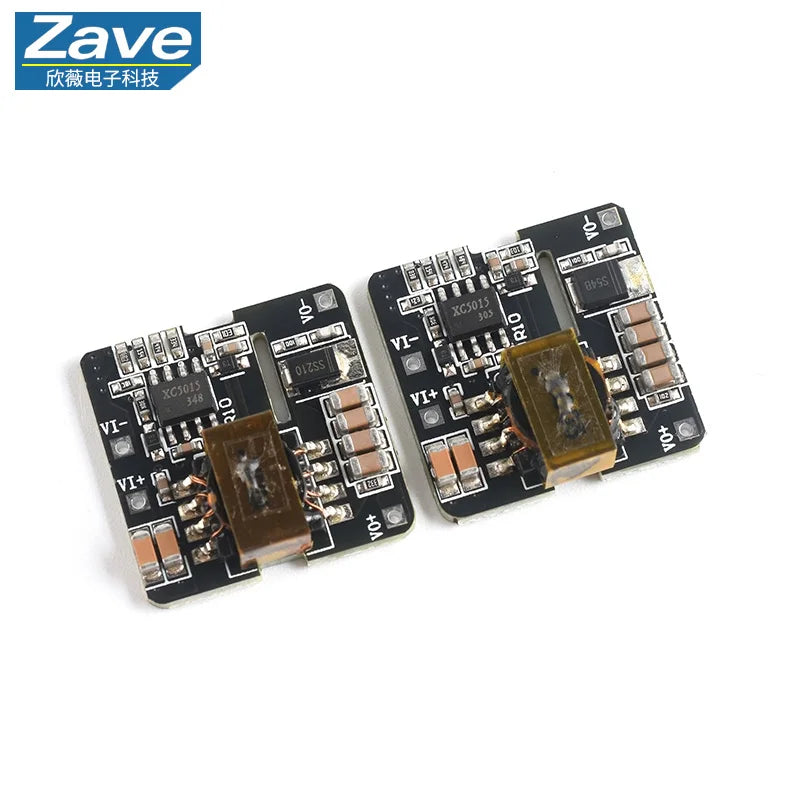

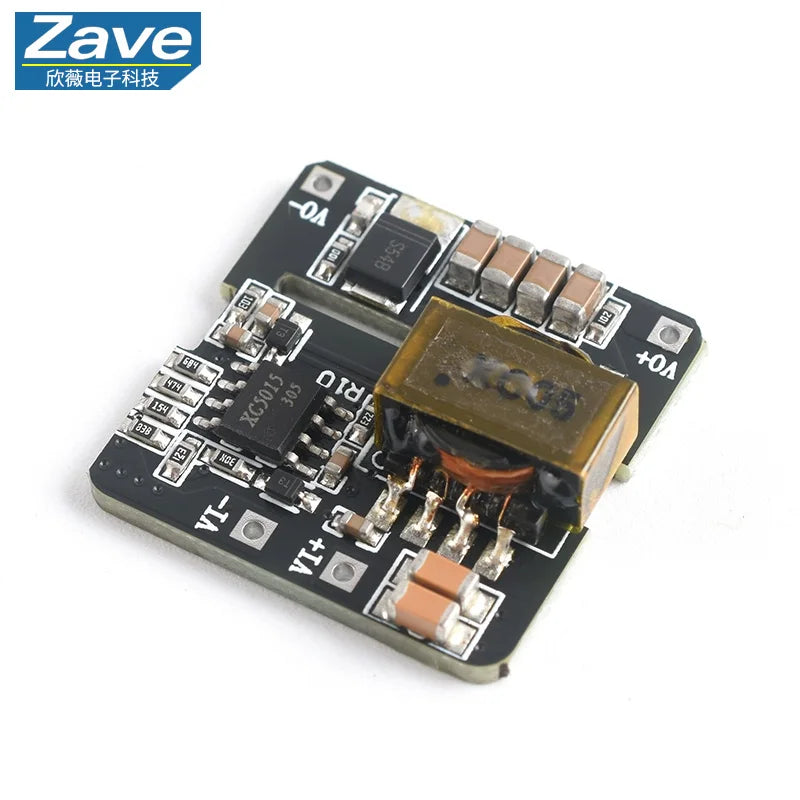

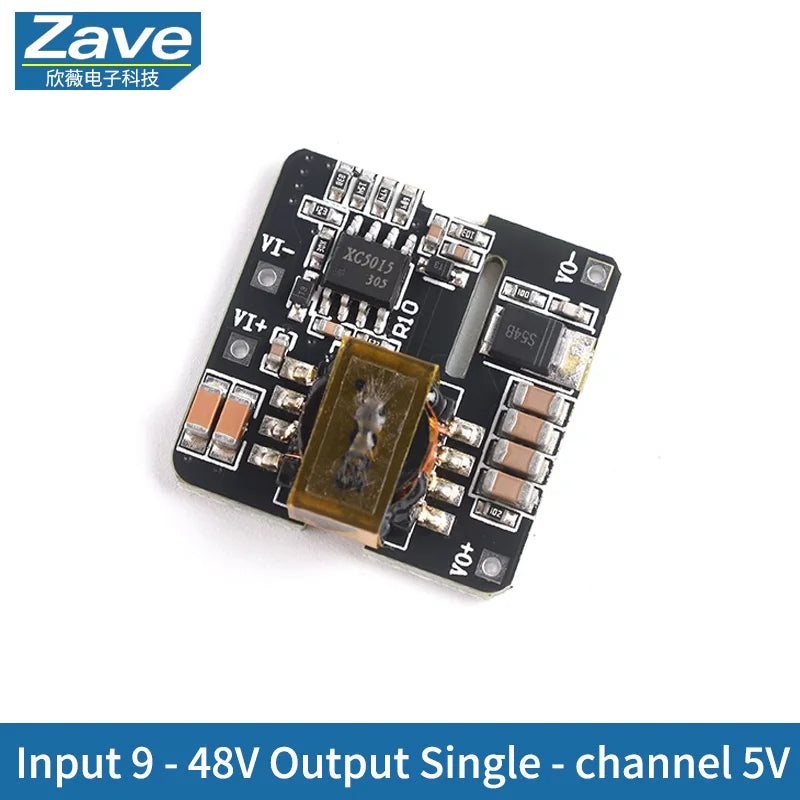

It is an isolated output DCDC module with a rated power of 6W, a maximum power of 10W, and an ultra-wide voltage (9V - 48V) input.

Product Features

Wide input voltage range (4:1)
Efficiency up to 88%
No-load power consumption as low as 0.12W
Isolation voltage 1500VDC
Input under-voltage protection, output over-voltage, over-current, and short-circuit protection
Operating temperature: -40℃ - +85℃
