SPECIFICATIONS

Application: Electric Toy

Brand Name: NONE

Choice: yes

Condition: New

Feature: Stabilizer Board Reserved LDO

High-concerned chemical: none

Operating Temperature: -20-70℃

Origin: Mainland China

Package: TQFP

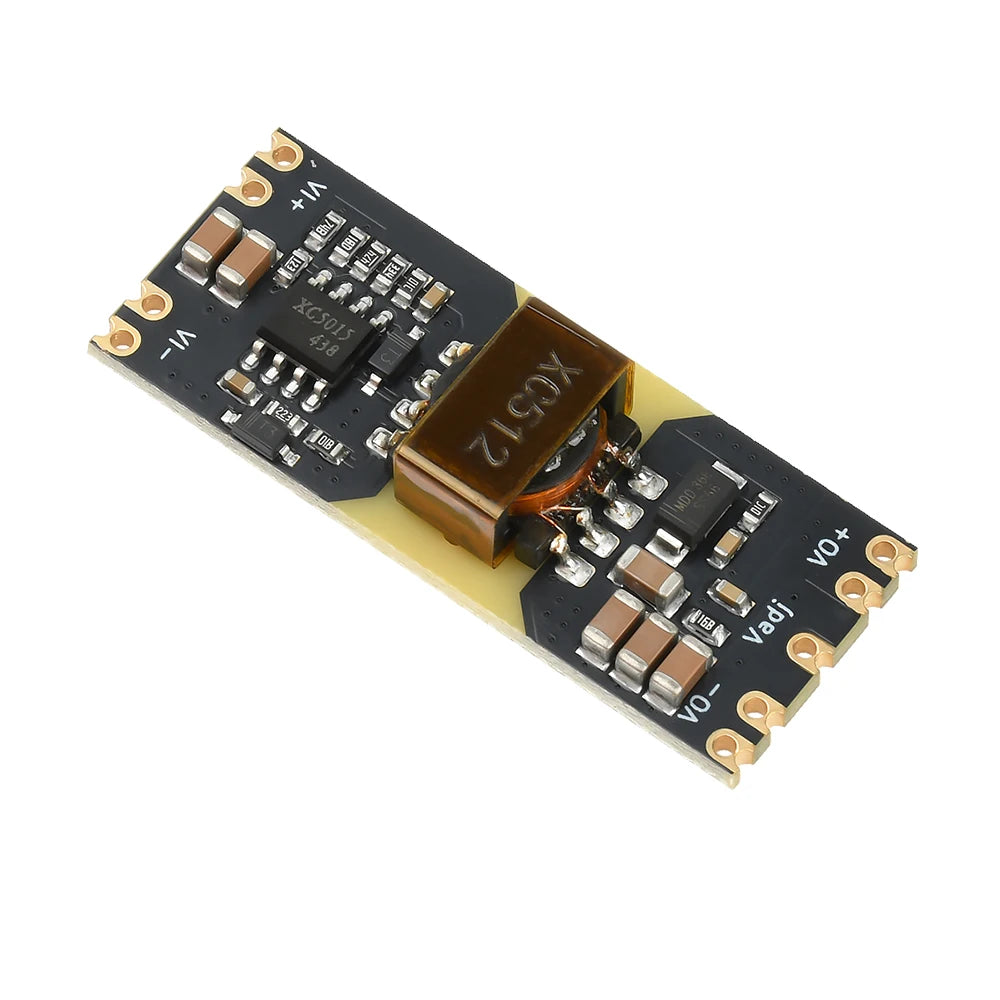

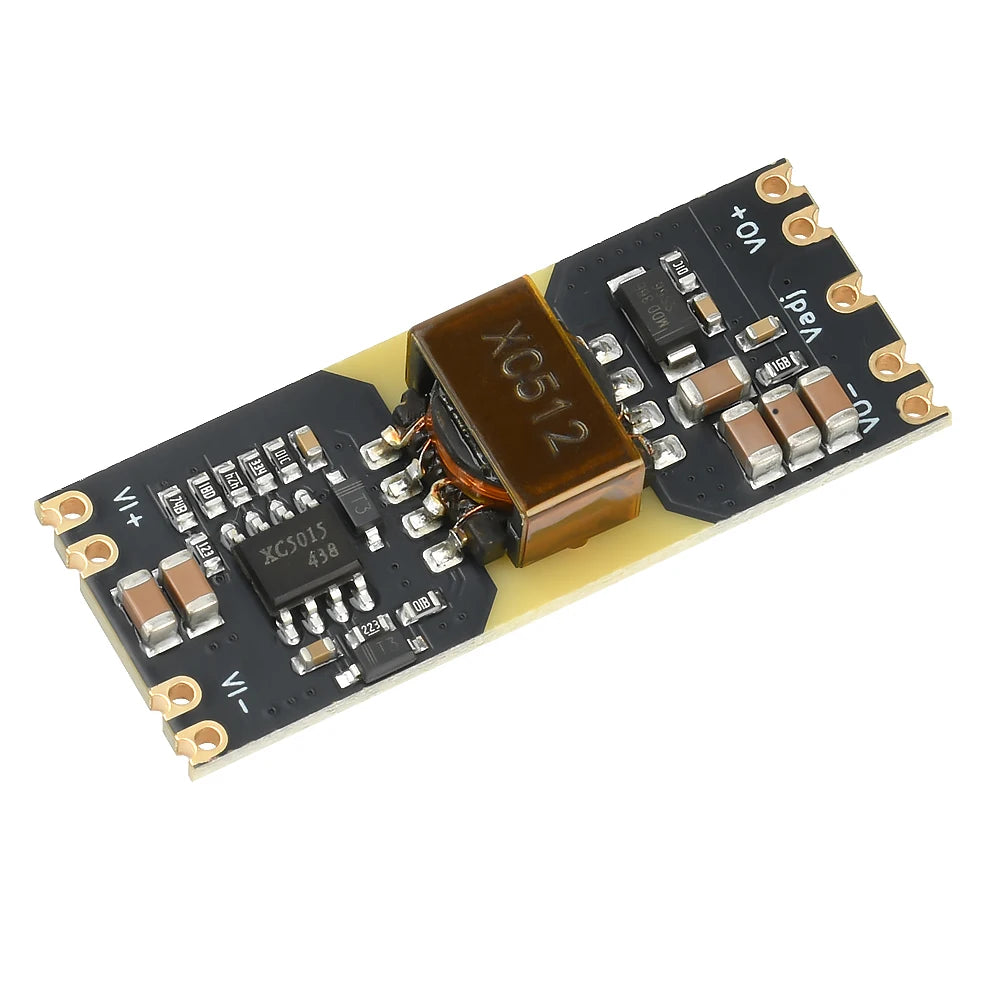

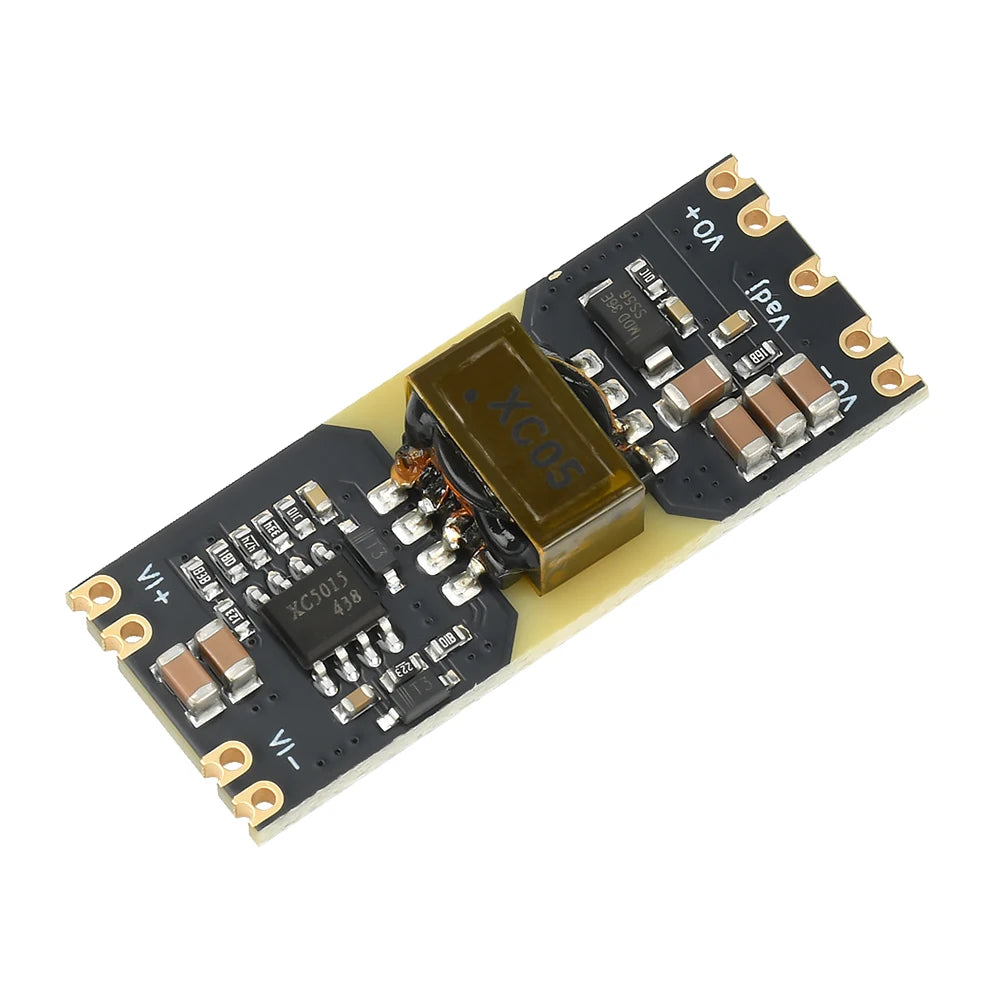

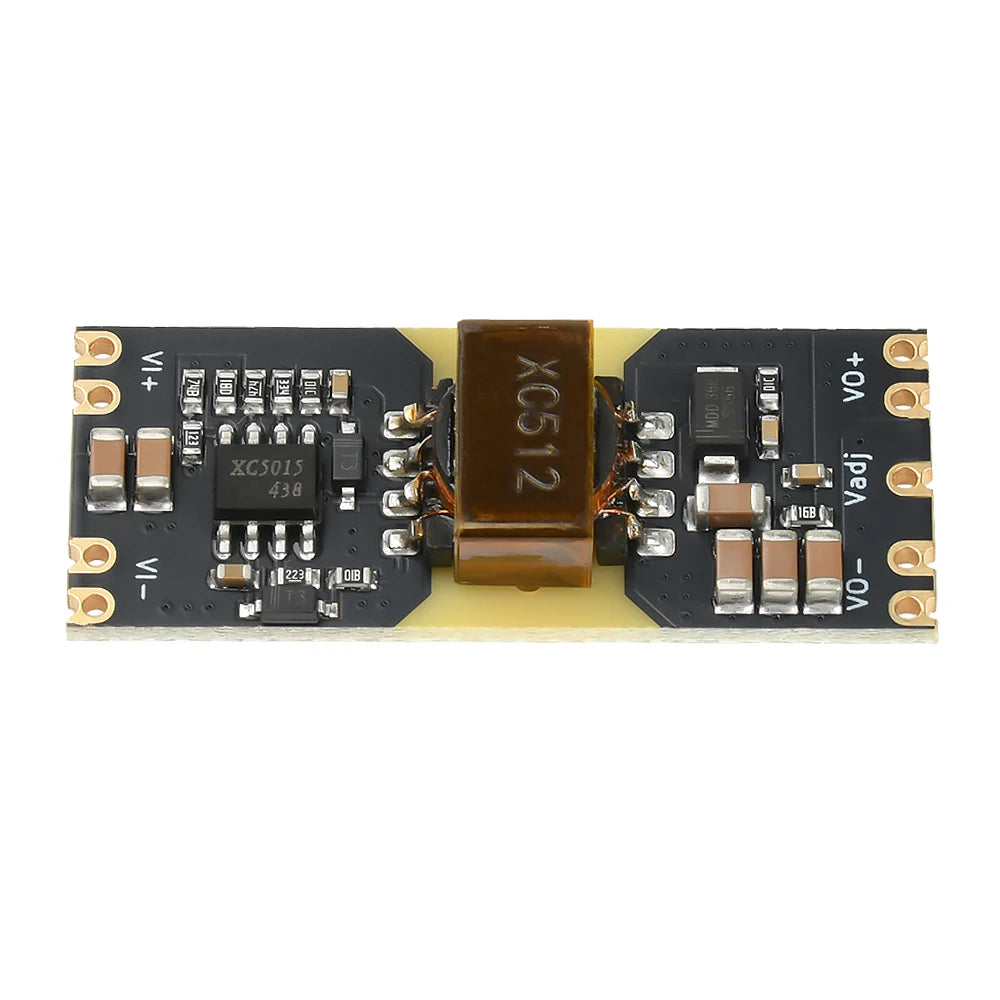

Product Name: Isolated DC DC Power Module

Quantity: 1

Supply Voltage: DC 9-42V

Type: buck (stepdown) regulator,DC-DC Buck Converter Step Power Supply Module,Isolated Voltage Regulator

is_customized: Yes

Features:

1. Wide voltage input range: Supports 9-42V wide voltage input, accommodating diverse power scenarios to enhance the module's versatility and flexibility

2. Short-circuit protection: Output terminals incorporate short-circuit protection design, effectively preventing equipment damage from accidental short circuits and ensuring safe system operation

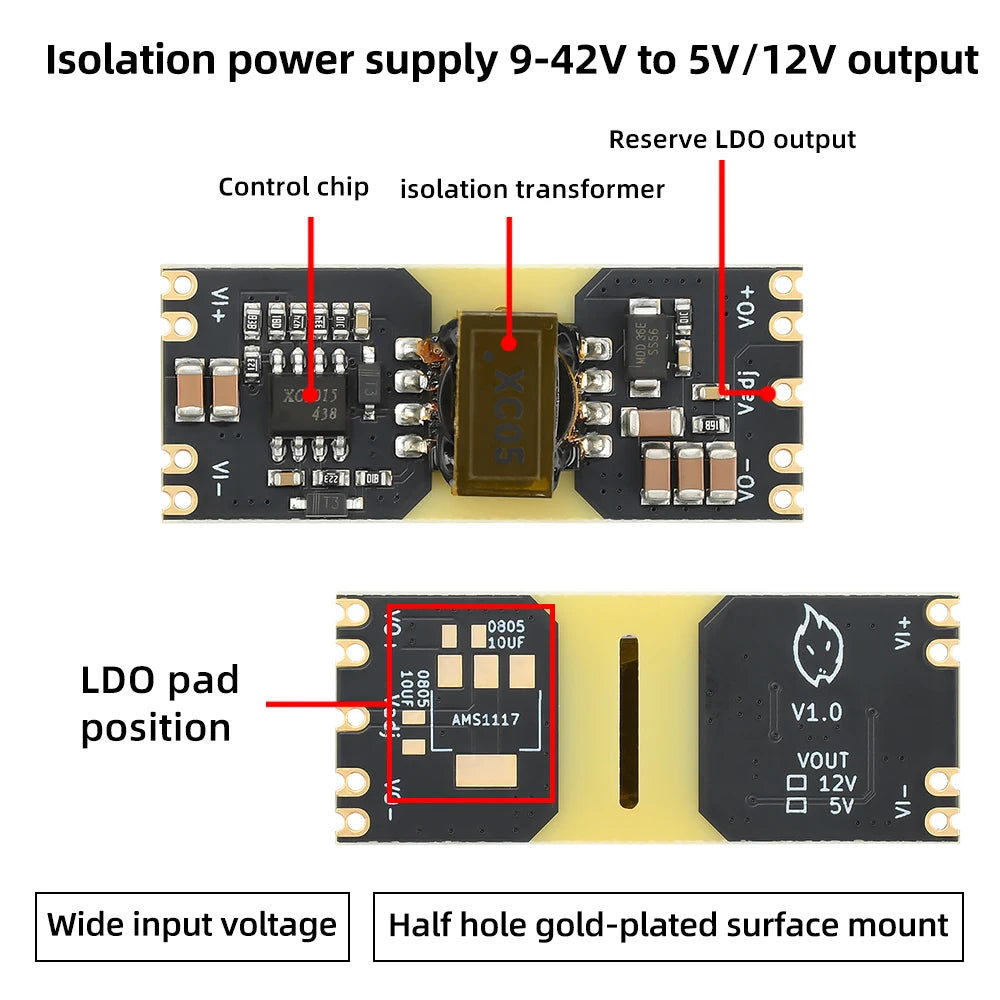

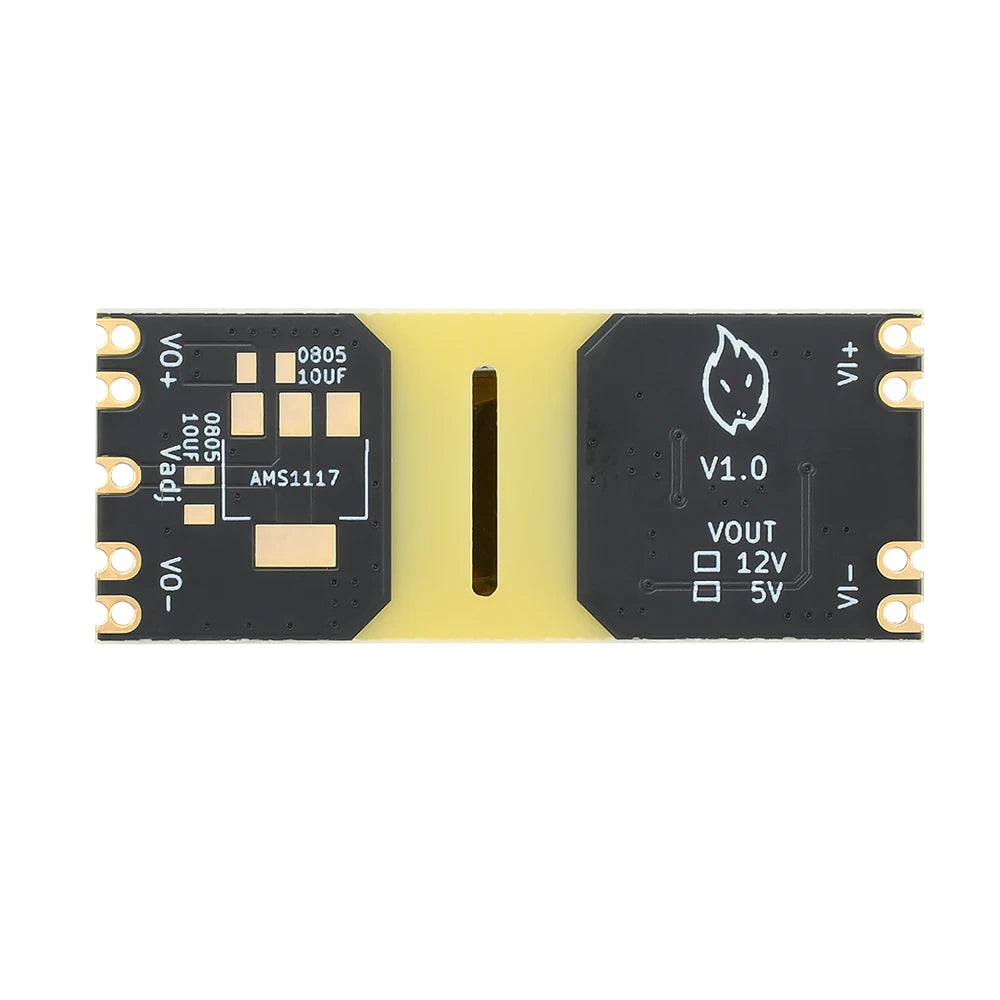

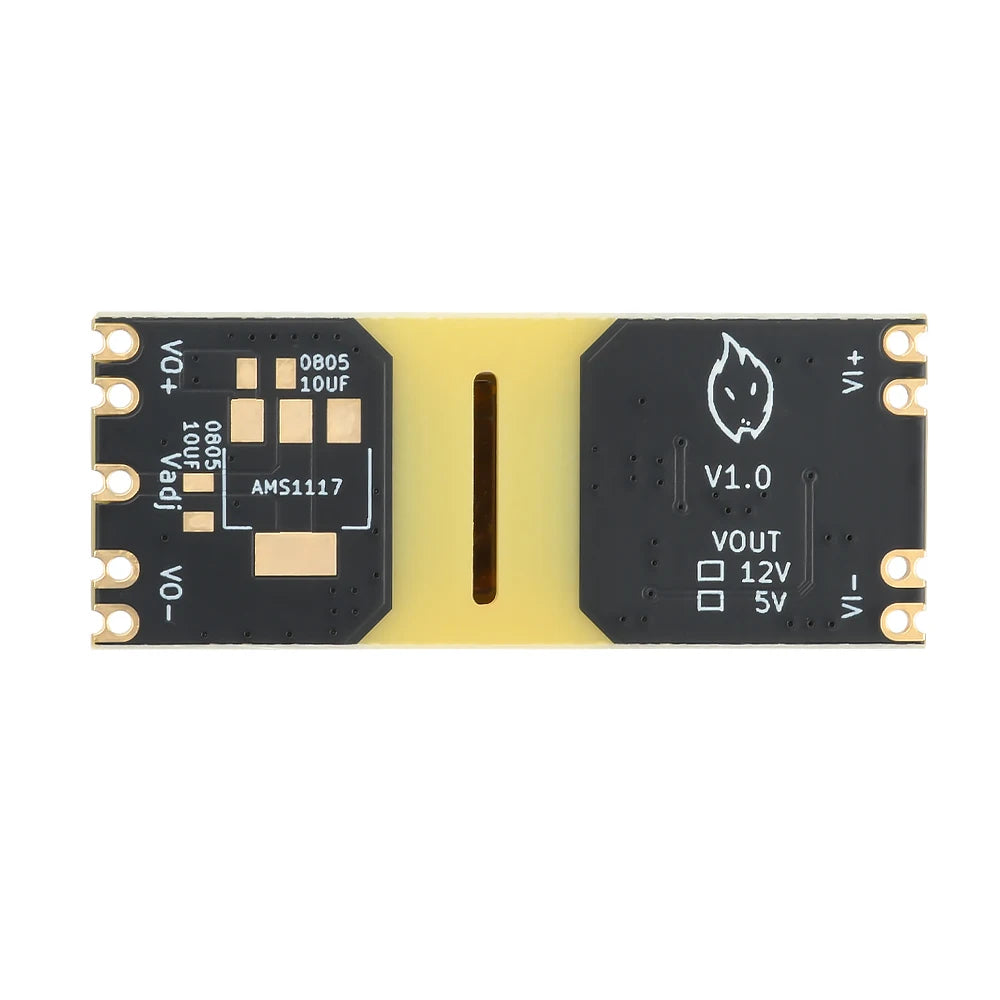

3. Reserved LDO Pad: The module incorporates a reserved LDO pad, enabling expansion to a more stable LDO output for high-precision applications.

4. Semi-plated Through-Hole Technology: Utilises semi-plated through-hole design for more secure solder joints and reliable contact, facilitating secondary development or surface-mount operations.

5. Integrated Loop Compensation Circuit: Features an integrated loop compensation circuit to optimise the power module's dynamic response performance, enhancing output stability and efficiency.

Specifications:

Input Voltage: DC 9–42V

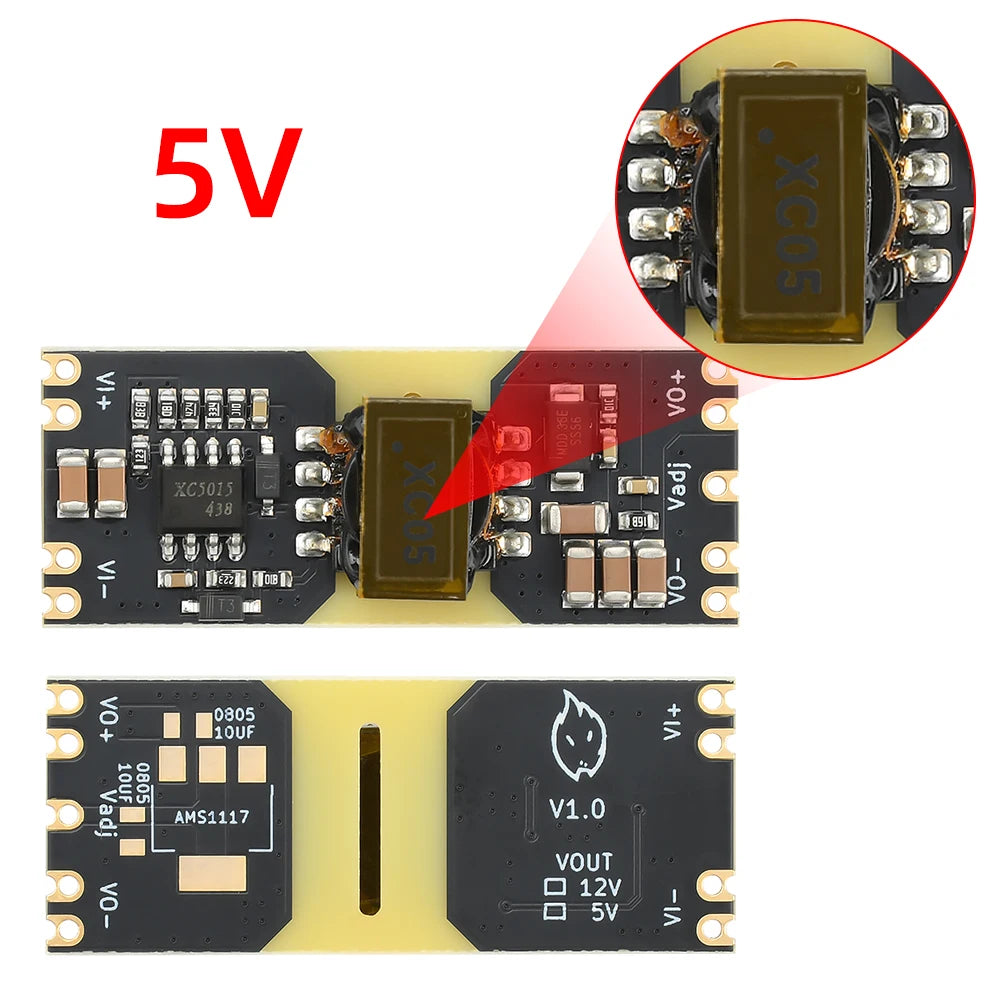

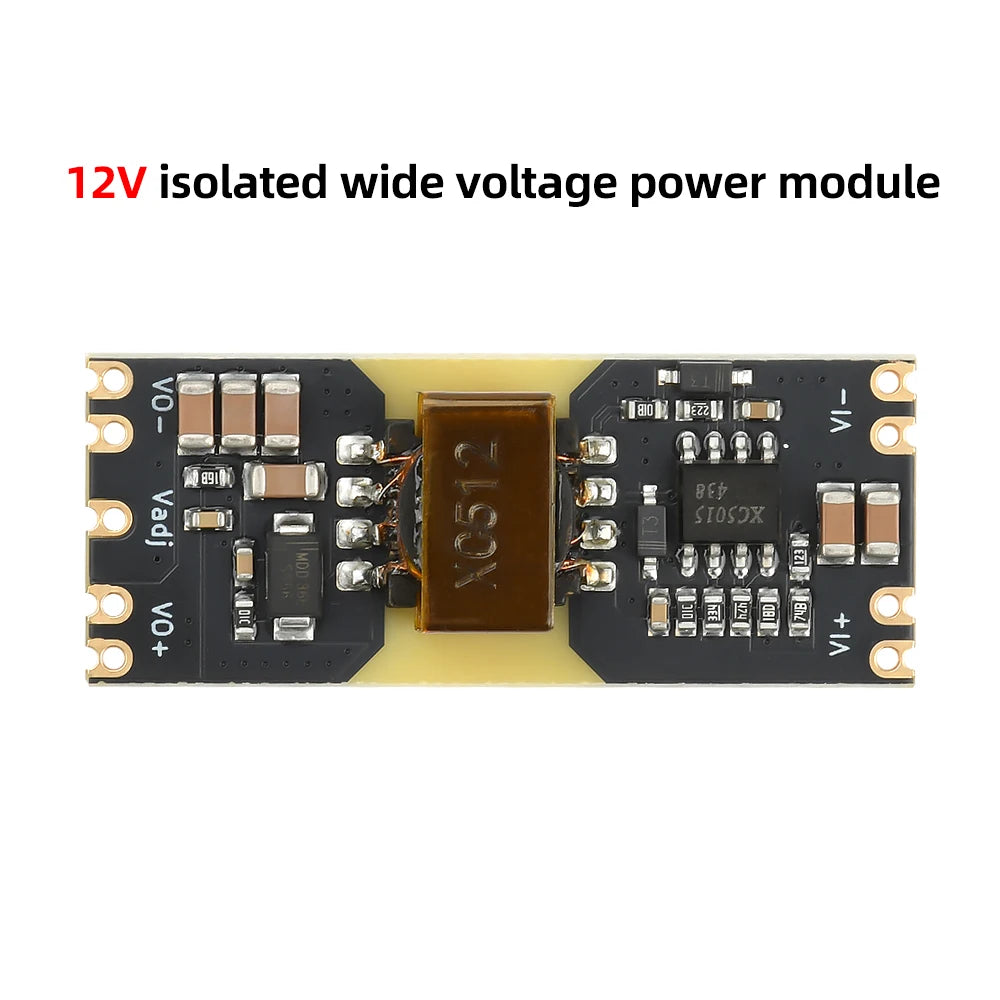

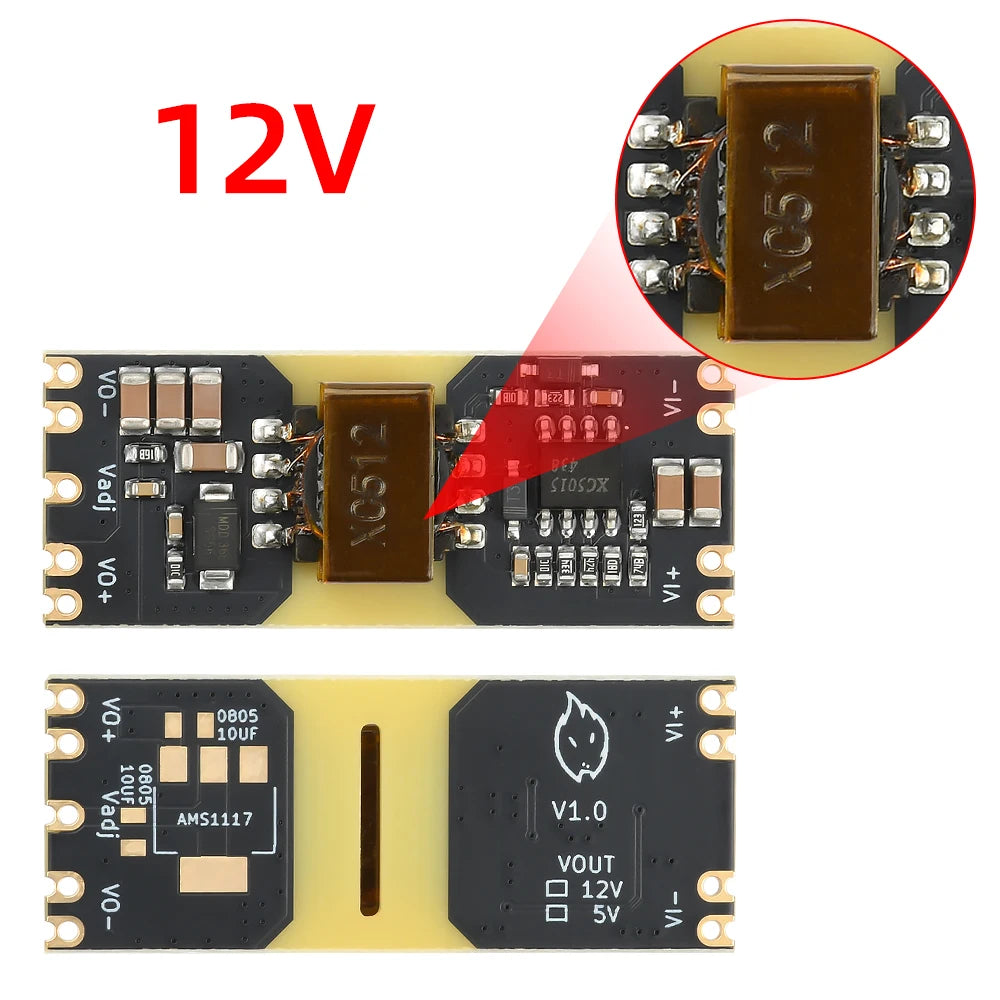

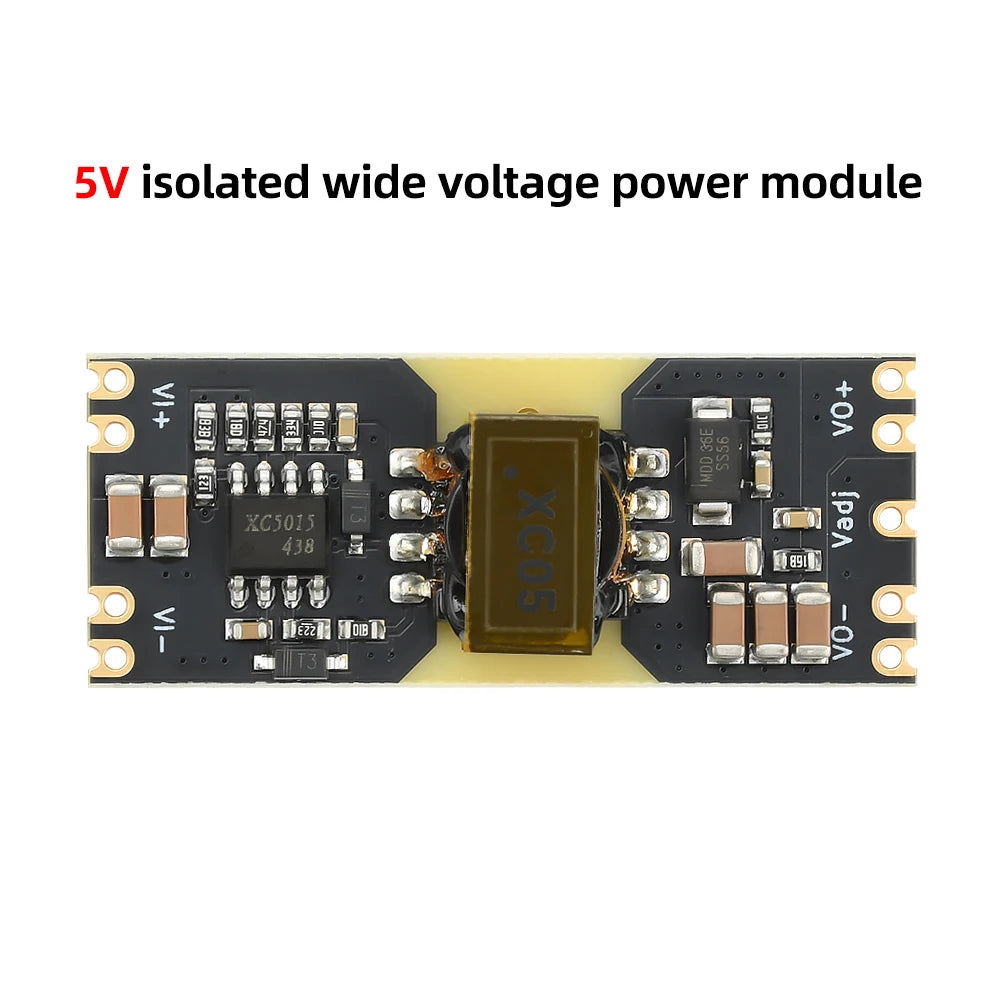

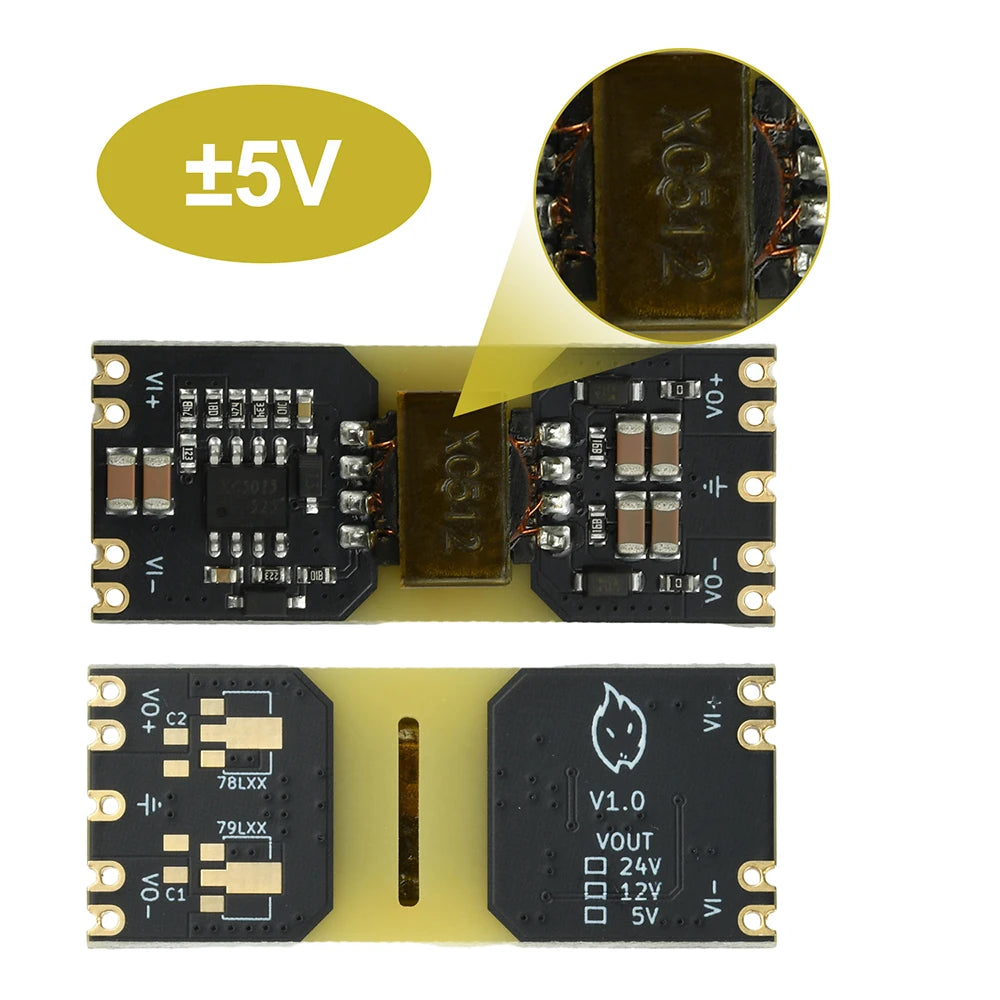

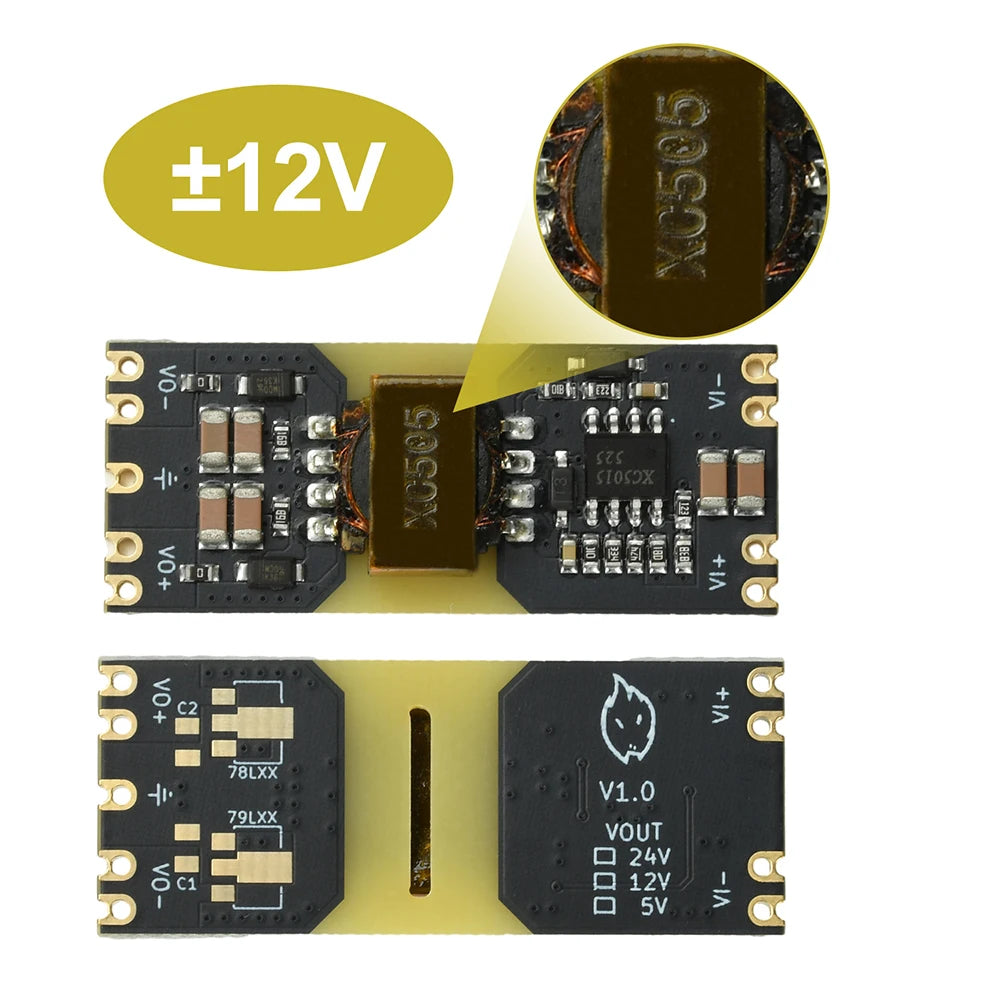

Output Voltage: DC 5V, DC 12V, DC ±5V, DC ±12V (Optional)

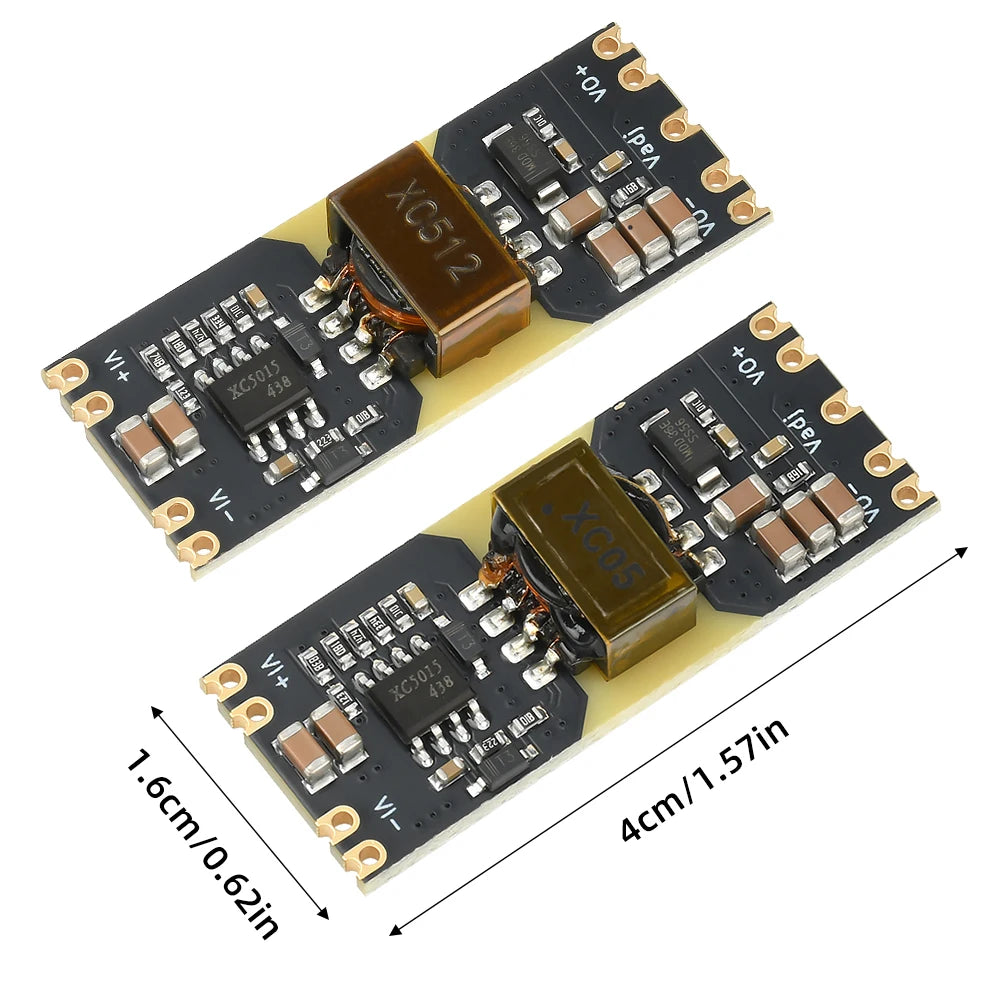

Dimensions: 40 × 16 mm

Packing List:

Isolated Power Module ×1
