Type: buck (stepdown) regulator

Features

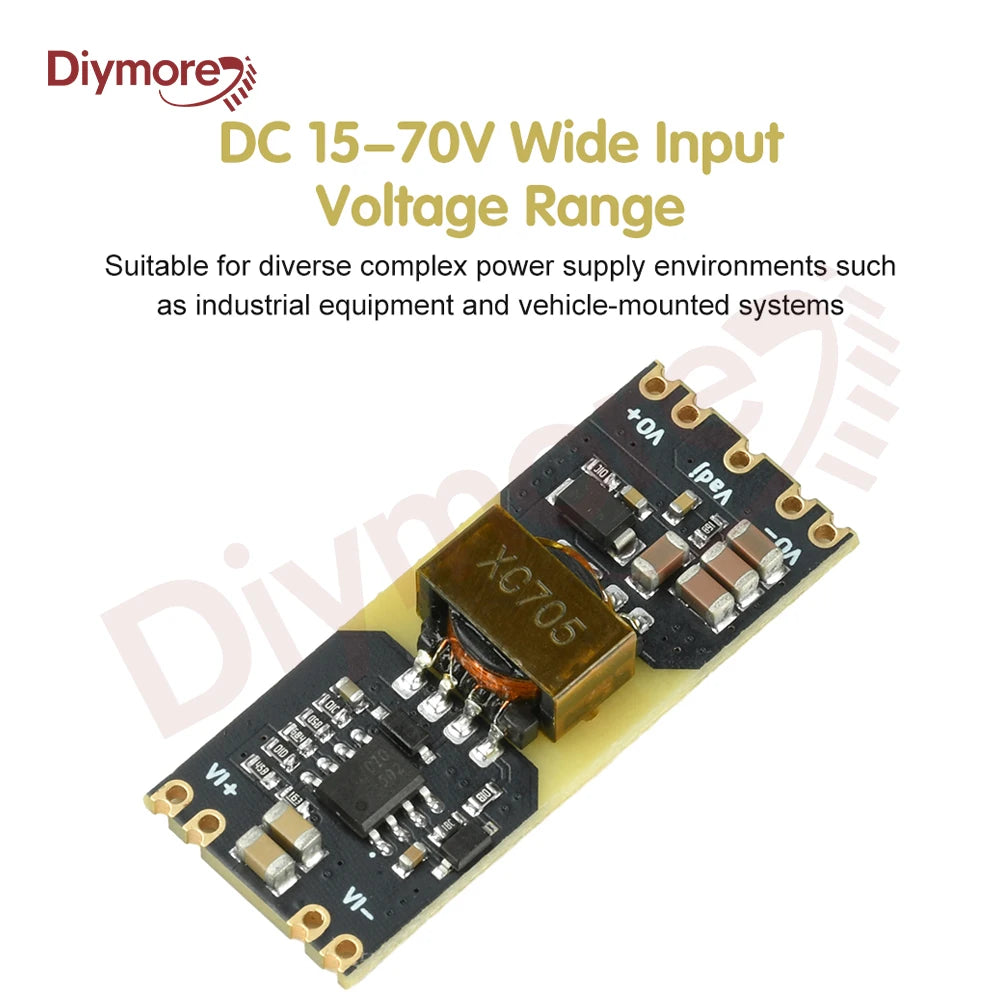

1. Supports wide input voltage range DC 15-70V, suitable for complex power supply environments such as industrial equipment and automotive systems

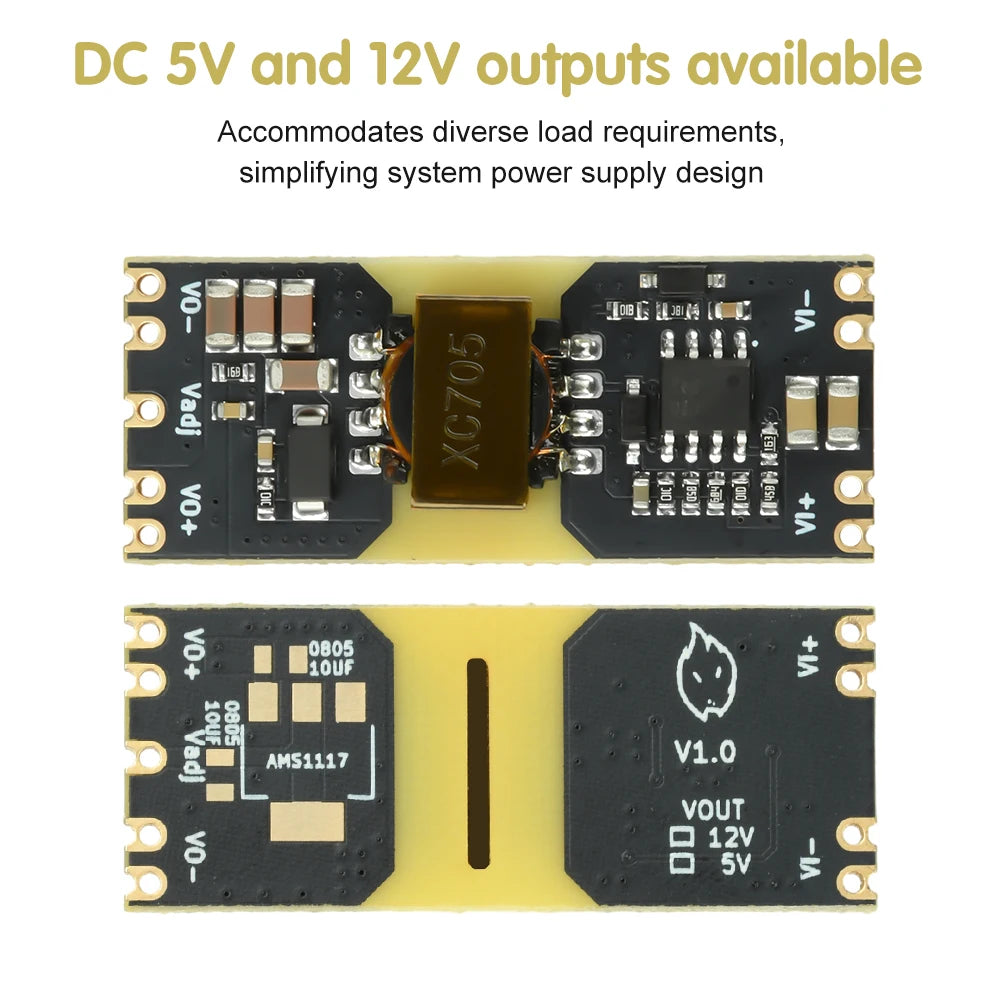

2. Provides DC 5V and 12V output options to meet diverse load requirements, simplifying system power design

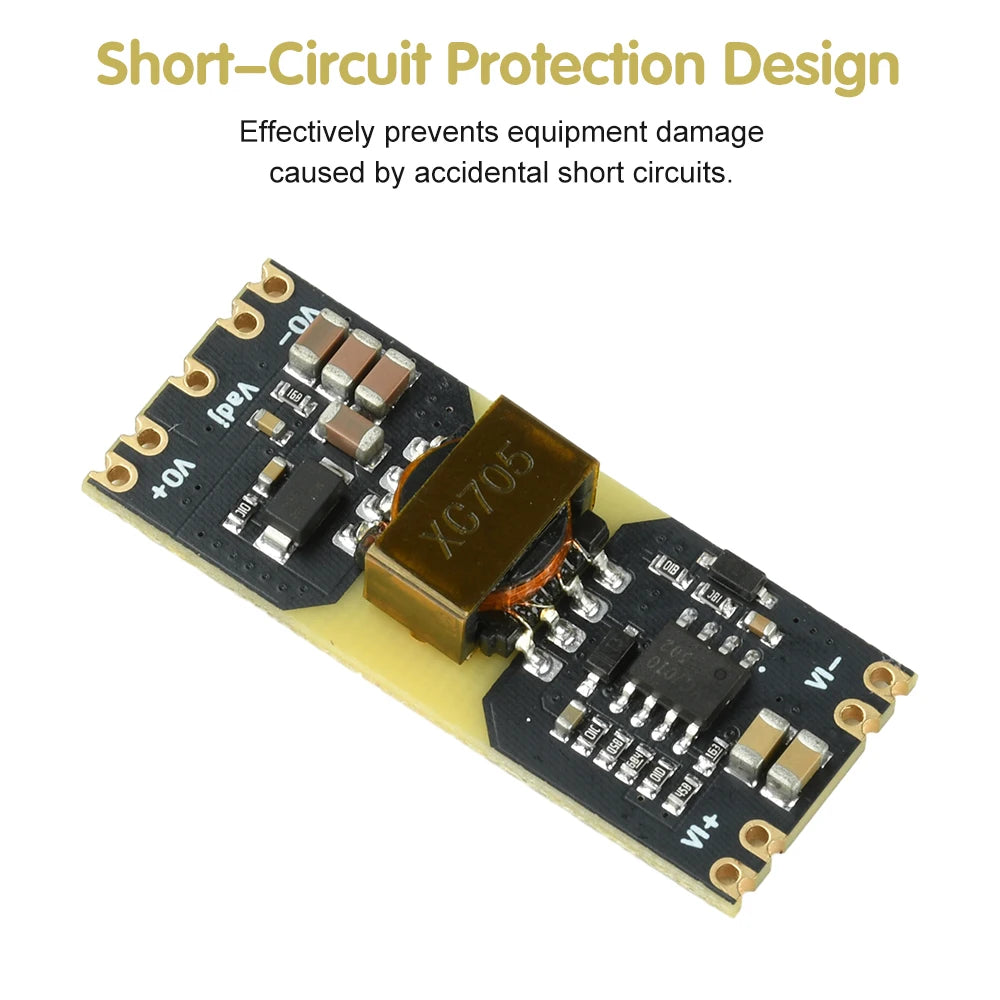

3. Output short-circuit protection prevents equipment damage from accidental short circuits

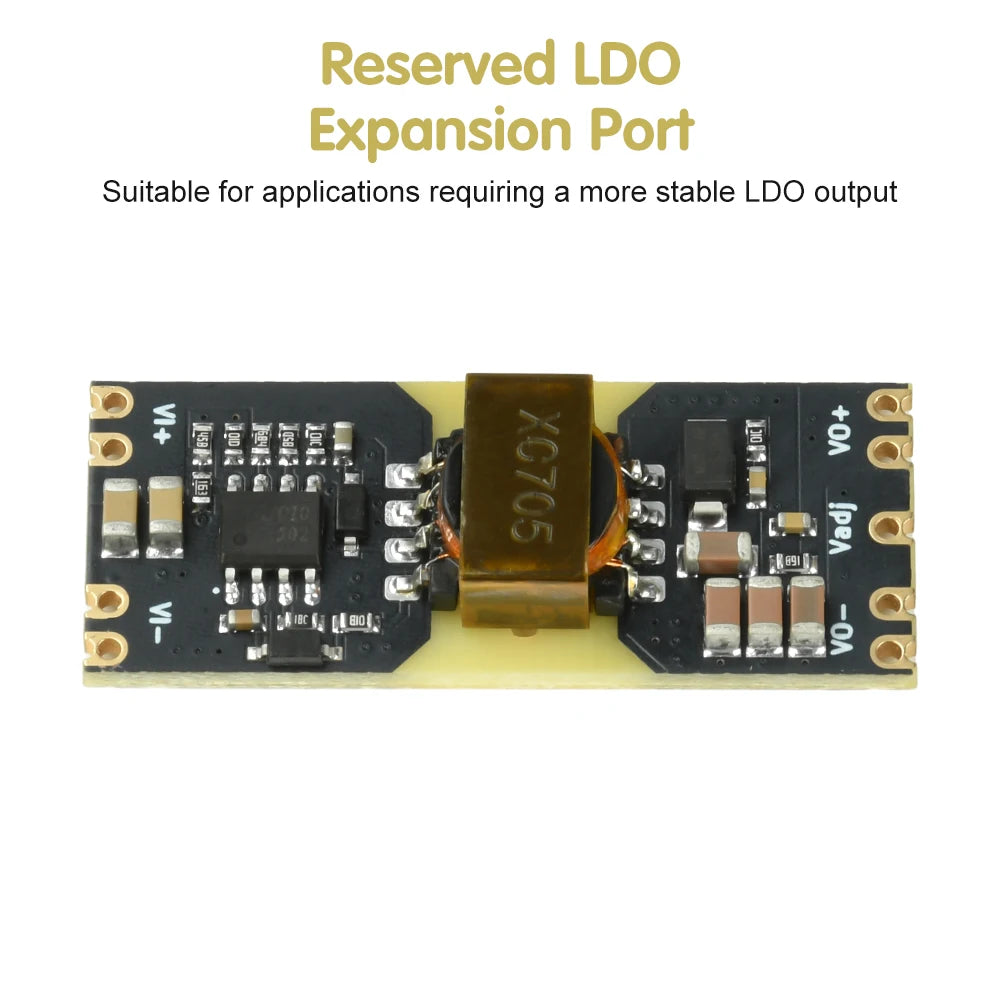

4. Reserved LDO expansion interface for applications requiring more stable LDO outputs

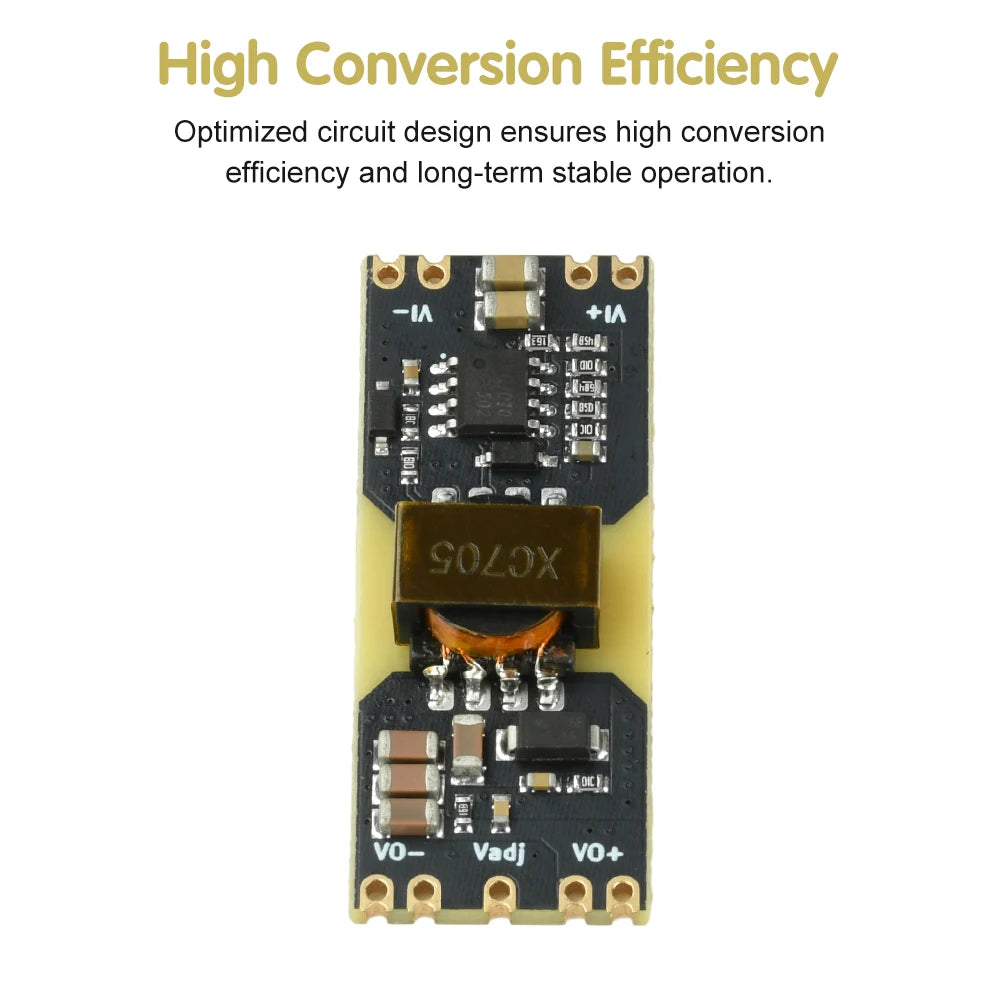

5. Optimized circuit design ensures high conversion efficiency and long-term stable operation

Parameter

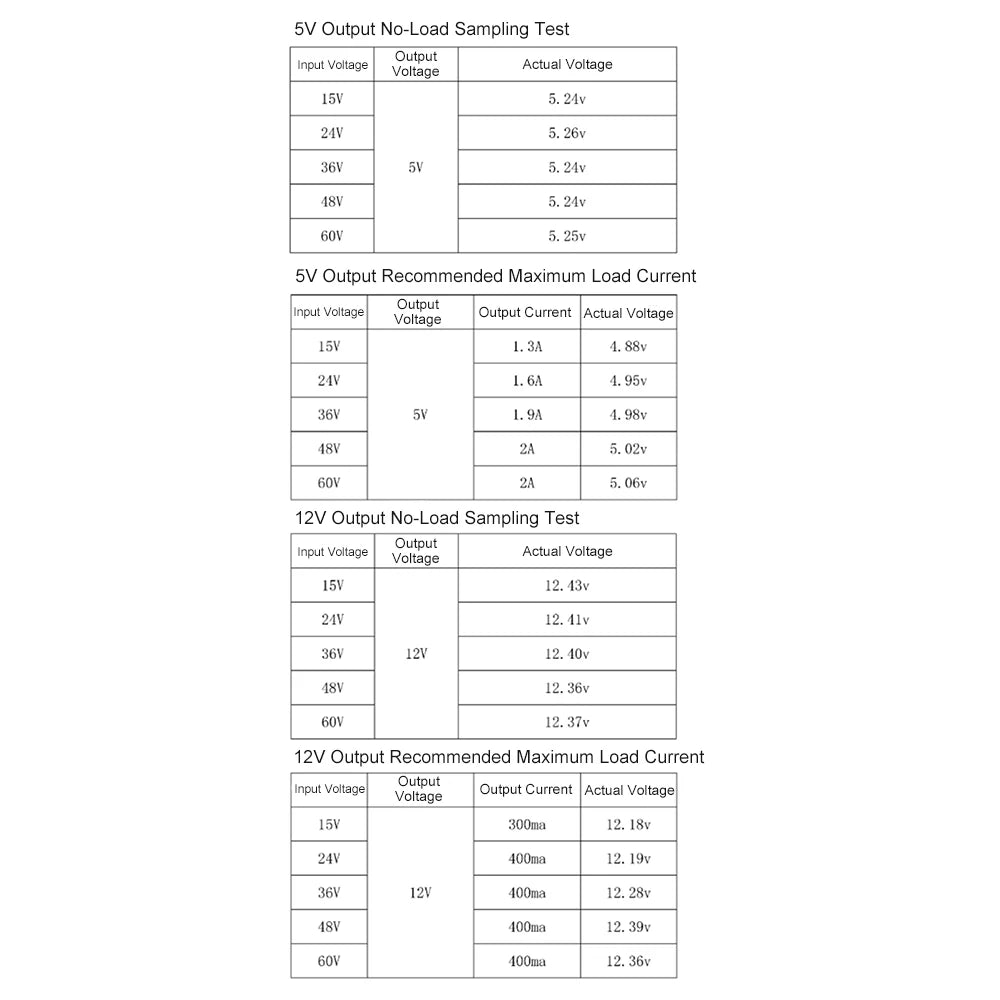

Input Voltage: DC 15-70V
Output Voltage: 5V/12V (selectable)

Product Description

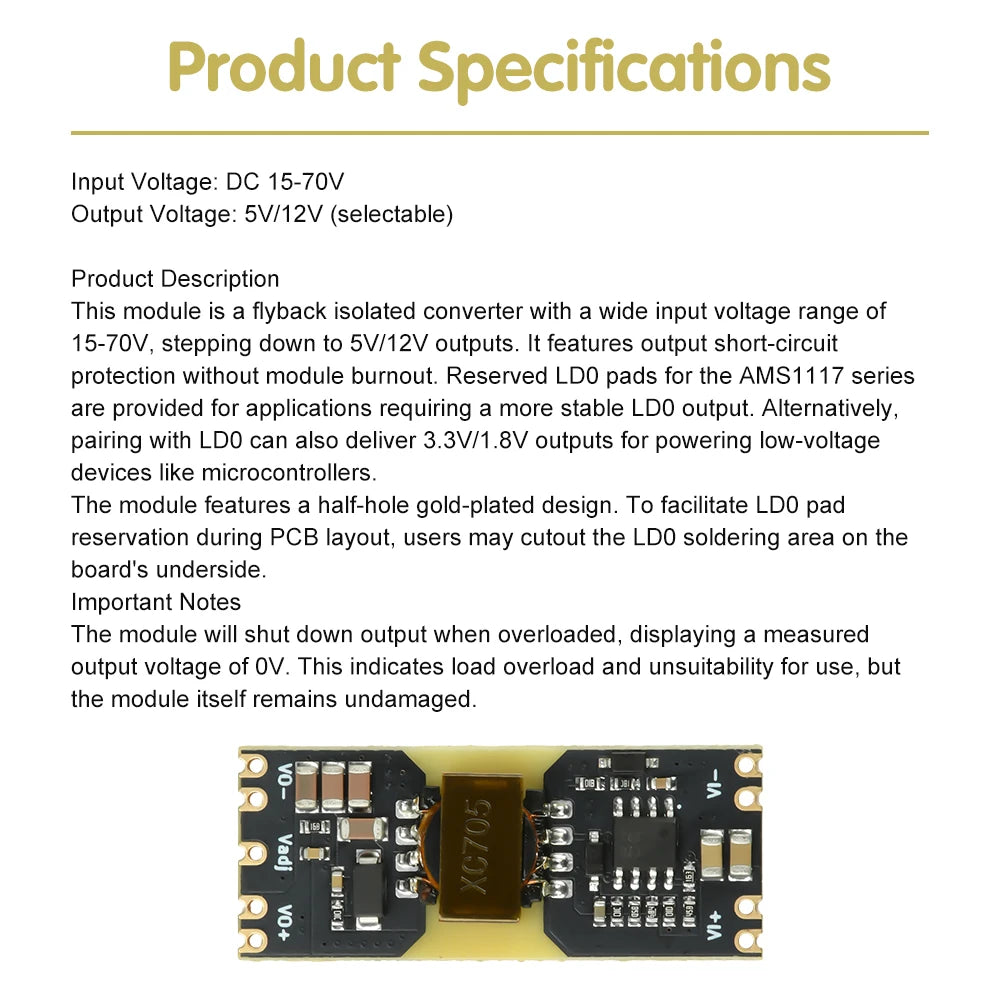

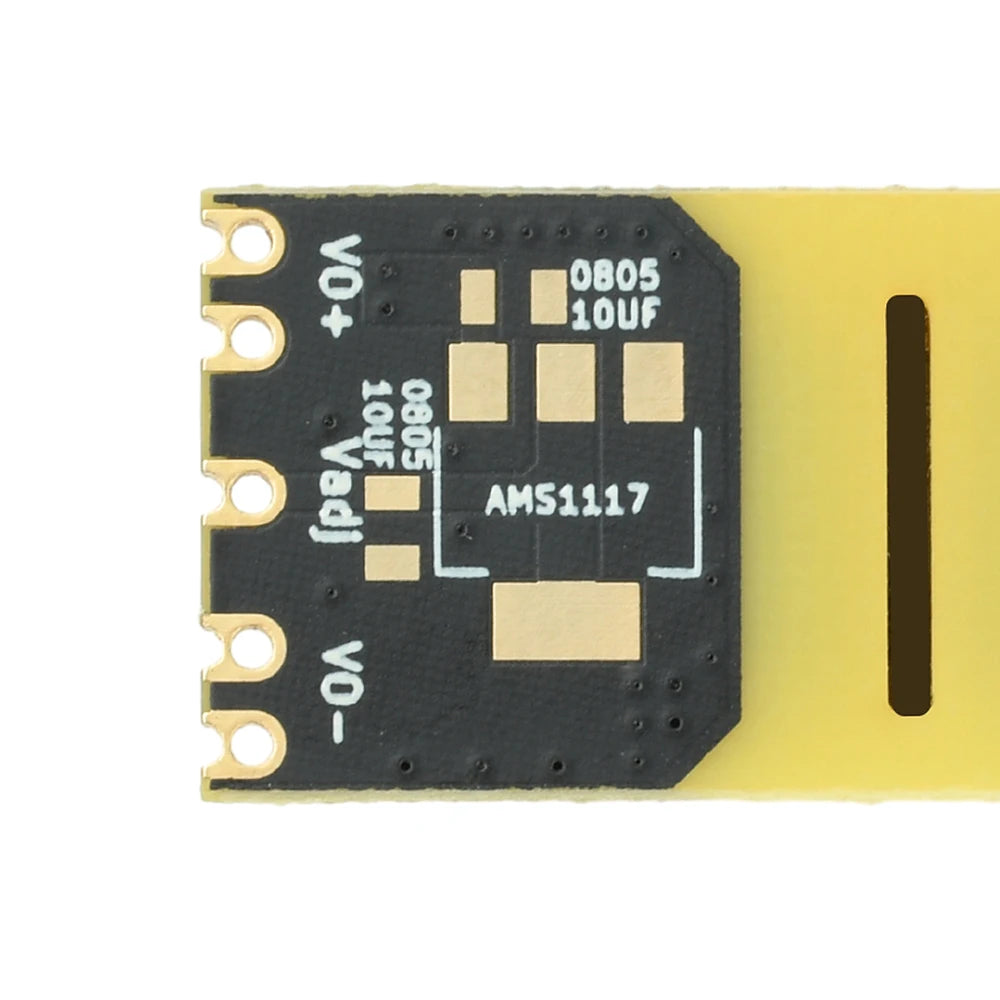

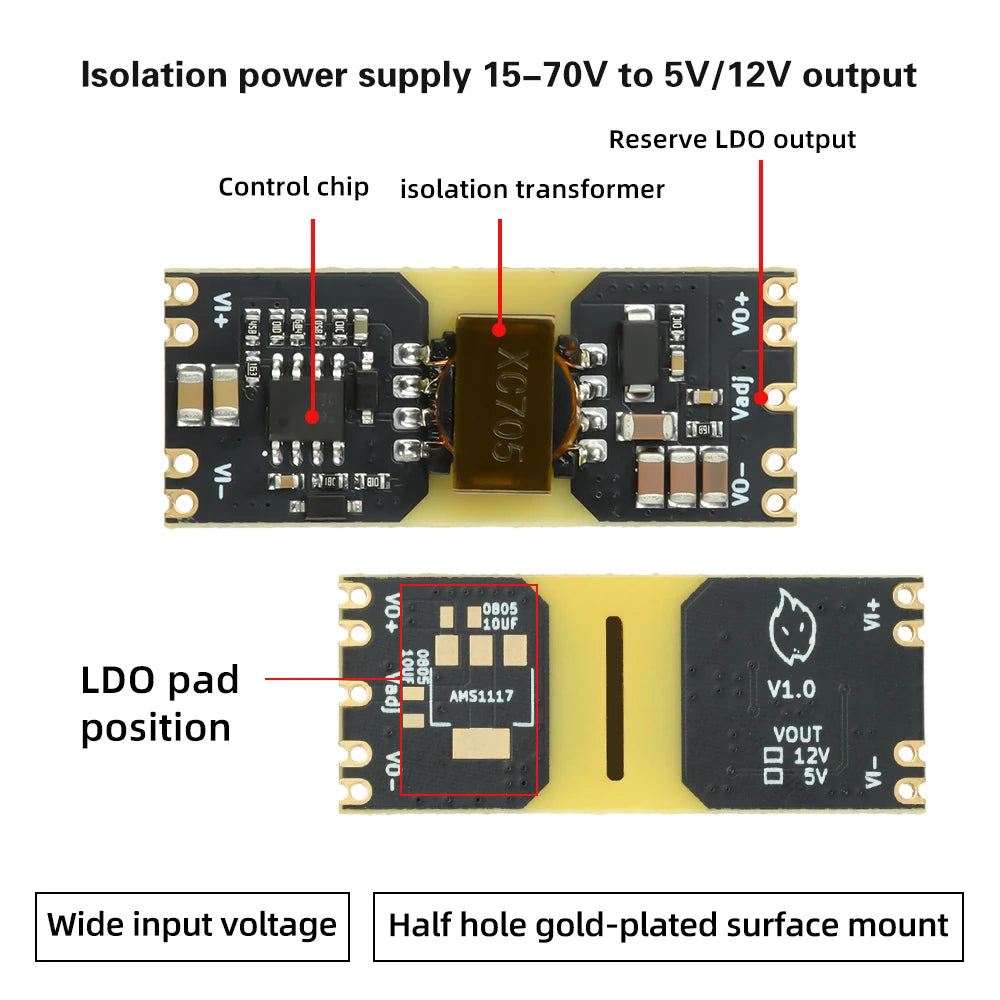

This module is a flyback isolated converter with a wide input voltage range of 15-70V, stepping down to 5V/12V outputs. It features output short-circuit protection to prevent module burnout. Reserved AMS1117 series LDO pads allow application in scenarios requiring more stable LDO outputs. When paired with an LDO, it can also output 3.3V/1.8V to power low-voltage devices like microcontrollers. The module features a half-hole gold-plated design. To facilitate LD0 pad reservation during PCB layout, users may cutout the LD0 soldering area on the board's underside.
Note: The module will shut down output when overloaded, displaying 0V output voltage. This indicates load overload and unsuitability for use, but the module itself remains undamaged.
