Description

SPECIFICATIONS

Brand Name: SZYTF

Choice: yes

High-concerned chemical: none

Material: Metal

Origin: Mainland China

Output: Switching Transducer

Type: Vacuum Sensor

semi_Choice: yes

Features
Measuring range -100kPa~0x...1000kPa
MEMS technology 1 gauge form
SOP or DIP package
Suitable for non-corrosive gases
Operating temperature range: -30'C~+100'C
Chip back pressure chamber is pressed 1 pin direction selectable
Application field
Electronic sphygmomanometer, ventilator, oxygen generator, monitor, etc.
Tire pressure gauge, MAP, steering assist, brake boost, and other automotive electronics fields, such as massagers, massage chairs, air mattresses, etc.
Washing machines, beer machines, coffee machines, emergency lights, vacuum cleaners, water purifiers, pressure gauges, pneumatic components, etc.

product description

XGZP piezoresistive pressure sensitive component is a pressure sensor for biomedicine, automotive electronics and other fields. The core part is a silicon piezoresistive pressure sensitive chip processed by MEMS technology. The pressure sensitive chip is composed of an elastic film and four resistors integrated on the film, and four varistors form a Wheatstone bridge structure, and when a pressure acts on the elastic film, the bridge will generate A voltage output signal that is pressure proportional to a linear proportional relationship.

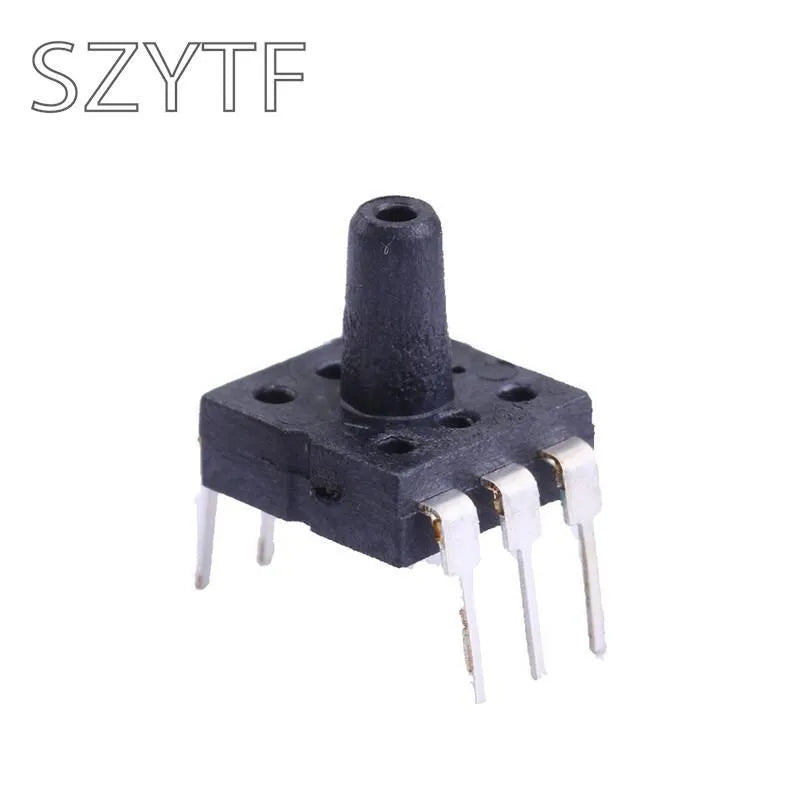

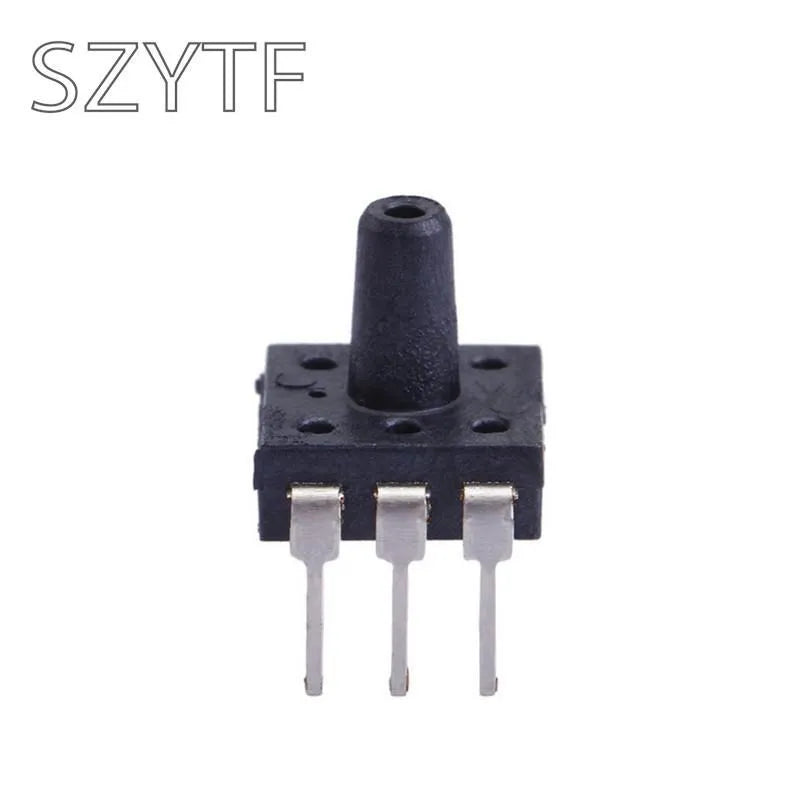

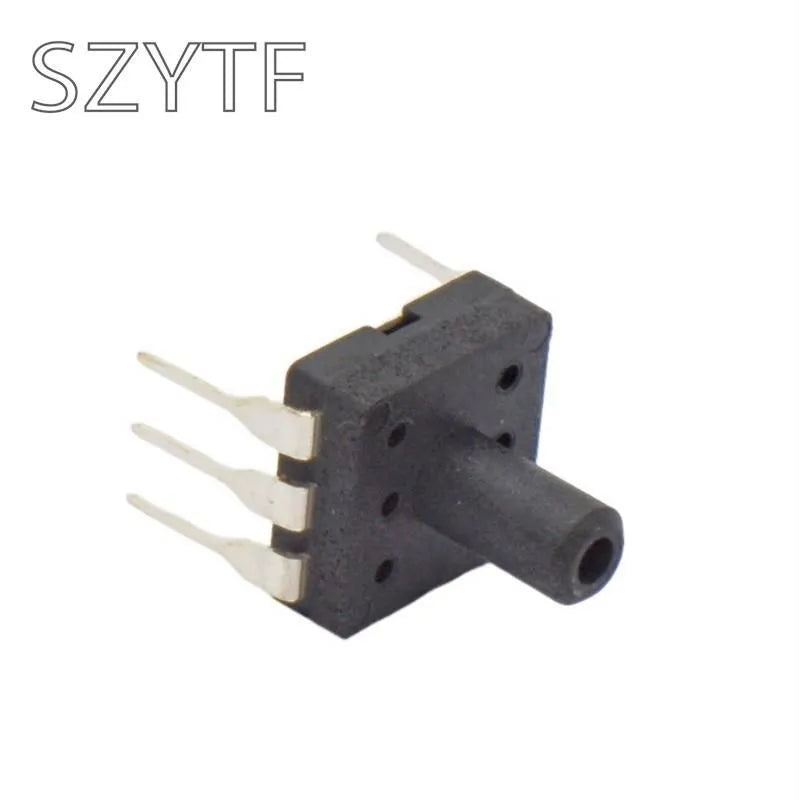

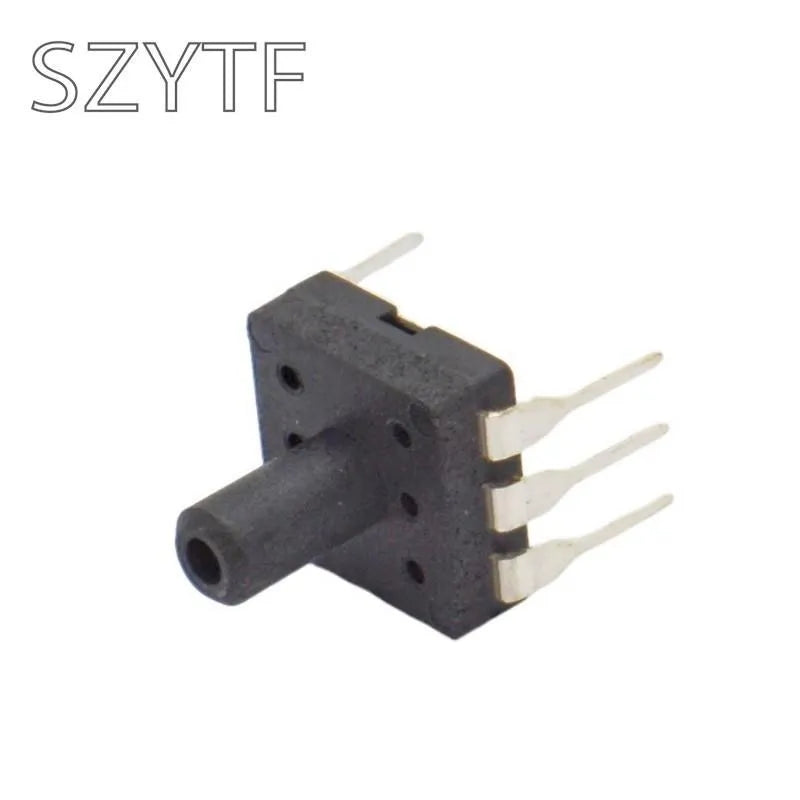

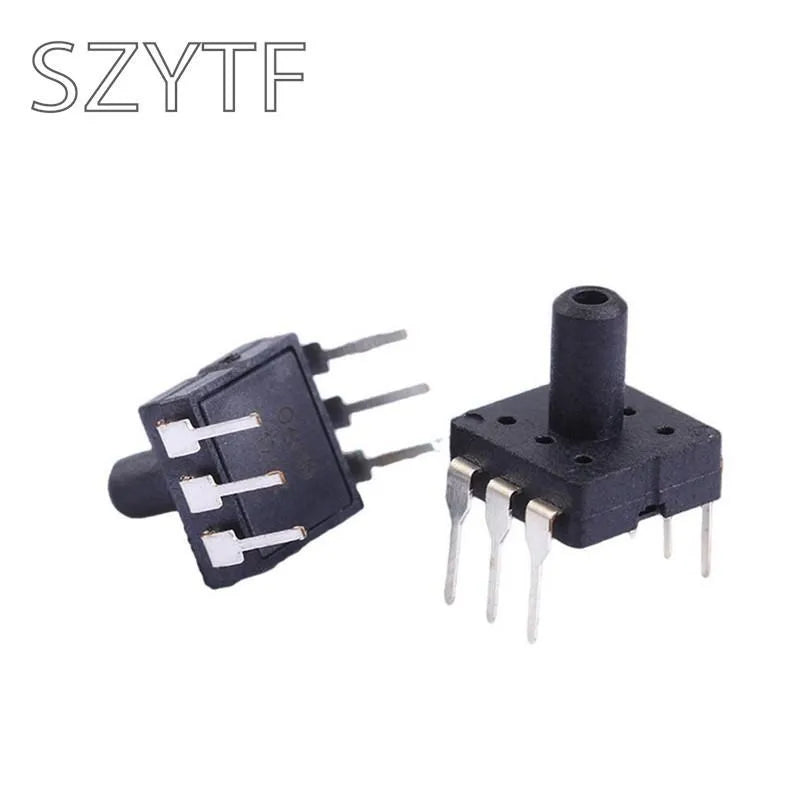

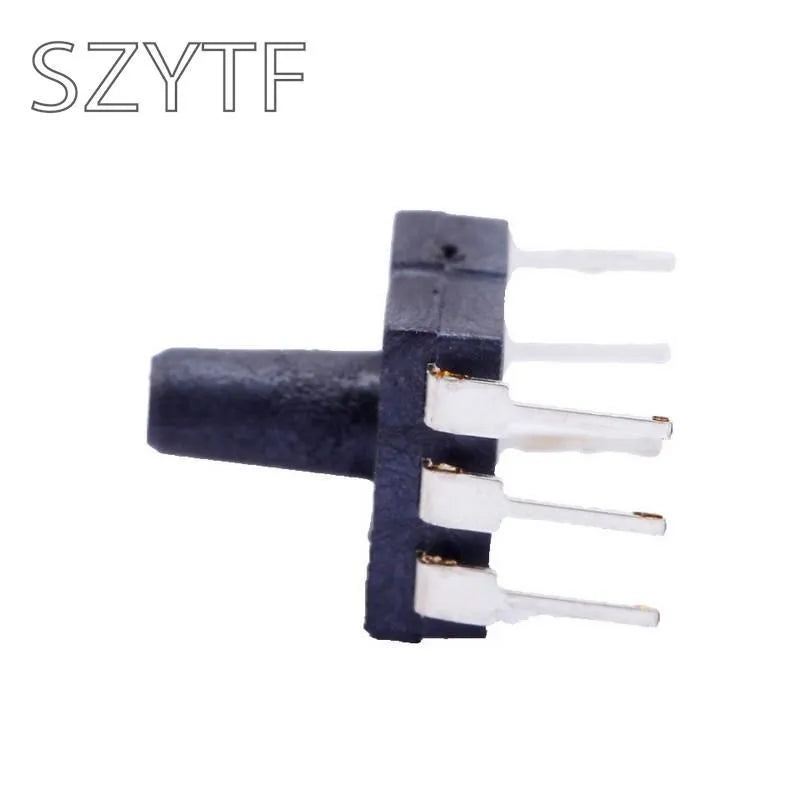

XGZP type pressure sensitive components are OEM components in the standard SOP6 and DIP6 form, which are convenient for users to install by surface mount or dual in-line.

Good linearity, repeatability and stability, high sensitivity, easy for users to use the op amp or integrated circuit for debugging and compensation for output and temperature drift.

Structural performance

Pressure sensitive chip: silicon material

Lead wire: gold wire

Package Housing: PPS Material

Pin: copper plated silver

Net weight: about 0.4 grams

Electrical performance

Power supply: ≤10V DC or ≤3. 0mA DC

Input impedance: 4kQ~6kQ

Output impedance: 4kQ~6kQ

Insulation resistance: 100MQ, 100VDC

Allow overload:

-100~10Ra..200kPa: 2 times full scale -100~500xe--700kPa: 1. 5 times full scale

Benchmark condition

      Measuring medium: air
      Medium temperature: (25 ± 1) C
      Ambient temperature: (25 soil 1) C
      Vibration: 0. 1g (1m / s) Max
      Humidity: (50% soil 10%) RH
      Power: (5 soil 0.005) v DC
